AIPU100CWT - Air purifier NEDIS - Free user manual and instructions

Product type	Air purifier
Brand	Nedis
Model	AIPU100CWT
Dimensions (diameter x height)	215 x 460 mm
Applicable area	Up to 20 m²
Purified air flow	130 m³/h
Noise level	32 - 50 dB
Operating temperature	-10 °C to 40 °C
Operating humidity	< 95 % RH
Power supply	220 - 240 VAC ~ 50/60 Hz
Rated power	35 - 40 W
Standby power consumption	< 0.5 W
Filter type	Integrated air filter
Fan speeds	3 speeds
Special modes	Sleep mode, anion mode
Display	LED
Main parts	LED display, LED lamp, air outlet/inlet, filter, cover
Maintenance	Replace filter if necessary; clean the exterior with a dry cloth
Safety instructions	Do not use if damaged, do not cover openings, do not place near heat sources

Frequently Asked Questions - AIPU100CWT NEDIS

How to turn the air purifier on and off?

To turn on, press the Power button. To turn off, press the same button again.

How to adjust the fan speed?

Press the Fan speed button to increase or decrease the speed. The selected speed is indicated by the corresponding indicator.

What does sleep mode do?

Sleep mode enables silent operation of the purifier. To activate, press the Sleep mode button; to exit, press the Power button.

What does anion mode do?

Anion mode releases millions of anions per second to improve air quality. To activate, press the Anions button; to exit, press the Power button.

How to clean or replace the filter?

The filter should be replaced when dirty. To access it, open the filter cover, remove the old filter, insert the new one, and close. Refer to the detailed manual for replacement frequency.

Why does the filter indicator light up?

The filter indicator lights up to indicate it is time to replace the filter. After changing the filter, press and hold the filter indicator button for 3 seconds to reset the indicator.

The purifier makes strange noises, what to do?

Check that the filter is properly installed. Press the speed button to increase airflow, which may reduce noise. Also ensure that nothing is blocking the air intake and outlet.

What area can the purifier cover?

The purifier is designed for a room up to 20 m². For optimal efficiency, close windows and doors during operation.

Can the purifier be used continuously?

Yes, the purifier can operate continuously. However, follow safety instructions: do not cover openings, do not place less than 40 cm from walls.

How to reset the filter indicator after replacement?

After installing a new filter, press and hold the filter indicator (B8) button for 3 seconds to reset the indicator.

USER MANUAL AIPU100CWT NEDIS

Technical line drawing of a cylindrical mechanical component with textured base and top cap (no text or symbols)

EN Quick start guide 4

DE Kurzanleitung 7

B

Air purifier AIPU100CWT

For more information see the extended manual online: ned.is/aipu100cwt

Intended use

The product is intended to purify the air in a room.

The purifier can filter the air in a room up to 20 m^2 .

Any modification of the product may have consequences for safety, warranty and proper functioning.

Main parts (image A)

1 LED display
2 LED light
3 Air outlet
4 Power cable

5 Air inlet
6 Air filter
7 Filter cover

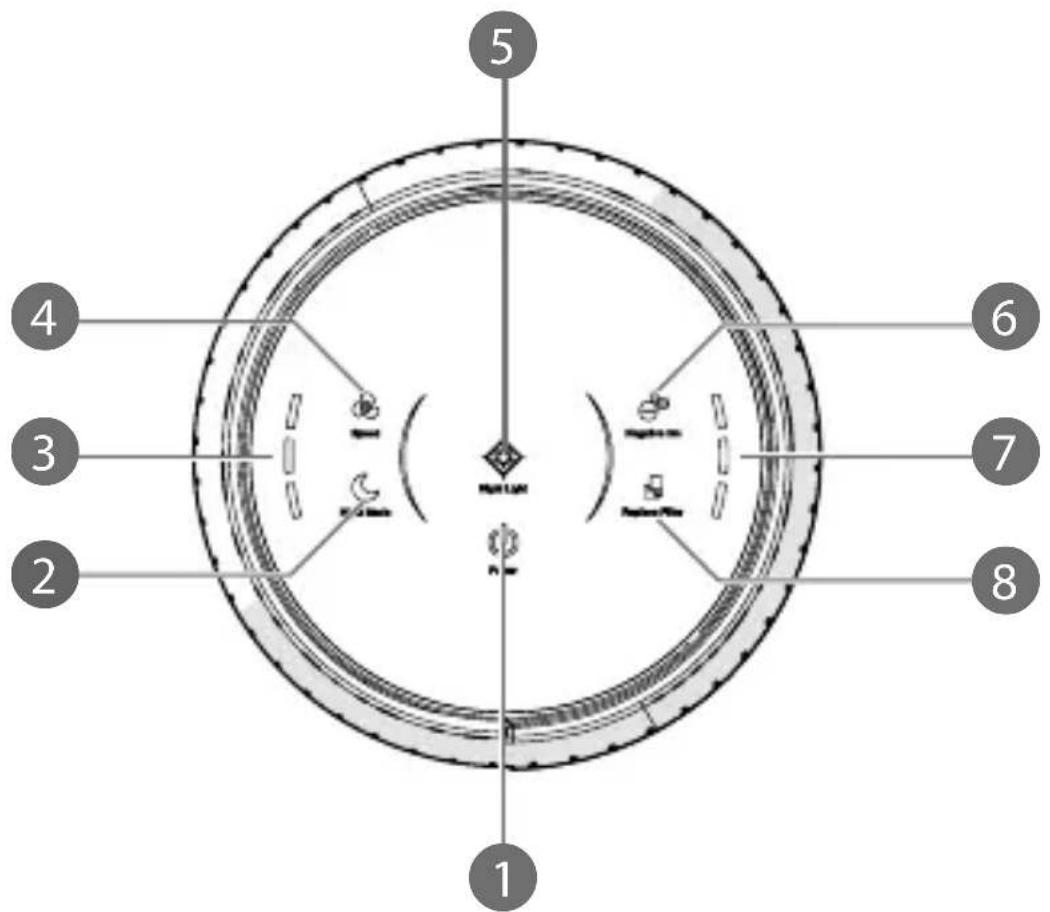

Interface (image B)

1 On/off button
2 Sleep mode button
3 Fan speed indicator
4 Fan speed button

5 Light button
6 Anion button
7 Fan speed indicator
8 Filter indicator

Safety instructions

WARNING

• Read the instructions before use.
• Only use the product as described in this manual.
• Do not use a damaged product.
• Do not connect a bound cable to the power outlet.
• Only use the product indoors.
• Do not use the product in wet or damp environments.
• Do not cover ventilation openings.

- Do not place the product near gas, an electric burner or a heated oven.

• Do not insert any objects into the product.
• Do not place items on top of it.
• If servicing is needed, refer to qualified personnel.
• Do not let the power cable touch hot surfaces.
• Do not use the power cable to carry the device.
• Do not unplug the product by pulling on the cable. Always grasp the plug and pull.

Removing the packaging

1. Open A 7.
2. Take out A 6.
3. Remove the packaging and reinstall A 6.
4. Close A 7.

Do not place the product within 40 cm of the wall to ensure proper operation.

1. Plug A 4 in a power outlet.

Using the product

1. Press B 1 to switch on the product.
2. Press B 4 to increase / decrease the fan speed.

B3 indicates the selected fan speed.

1. Optionally, choose one of the following:

• B2 to select 'sleep'.
• B6 to select 'anion'.

Keep the windows closed while the product is switched on.

Set sleep mode

1. Press B 2 to select sleep mode.

In sleep mode, the product operates as quiet as possible.

1. Press B 2 or B 1 to exit this mode.

Set anion mode

1. Press B 6 to select anion mode.

The product releases millions of anions per second.

1. Press B 6 or B 1 to exit this mode.

Troubleshooting

Problem Solution
The product does not switch on.	Connect to a power outlet.Check if the power cord is damaged.Make sure A7 is closed.
The product is making strange noises.	Make sure A6 is placed in the correct way.Press B4 to increase the speedReplace A6.
Poor purification quality. Do not block ventilation openings and make sure that there is enough space around the product.Make sure A6 is placed in the right way.Make sure the room is smaller than 20 m2.Replace A6.
The product spreads an unpleasant odour.	Make sure the room has a relative humidity below 85%.Replace A6.
B8 illuminates after replacing A6.	Press and hold B8 for 3 seconds to reset.

Specifications

Product Air purifier
Article number AIPU100CWT
Dimensions (l x w x h) 215 ∅ x 460 mm
Applicable area < 20 m	^2
Clean air delivery rate 130 m	^3 /h
Noise level 32 - 50 dB
Operating temperature -10 °C - 40 °C
Operating humidity < 95 % RH
Power supply 220 - 240 VAC ~ 50 / 60 Hz
Rated power 35 - 40 W
Standby power < 0.5 W
