Daily AF40B - Deep fryer WILFA - Free user manual and instructions

Product type	Hot air fryer (Airfryer)
Brand	Wilfa
Model	Daily AF40B
Basket capacity	Approximately 3.5 liters (estimate)
Temperature range	80 °C to 200 °C
Timer	1 to 60 minutes
Power	1400 W (estimate)
Supply voltage	220-240 V ~ 50/60 Hz
Preset programs	Fries, Chicken, Fish, Steak, Shrimp, Pizza, Cake, Defrost
Features	Preheat, "Shake basket" reminder, manual temperature/time adjustment, automatic shut-off
Display	Digital screen with temperature and time
Material	Plastic and metal (non-stick coating in basket)
Care and cleaning	Basket and tub washable with soapy water and a non-abrasive sponge; wipe the exterior with a damp cloth
Safety	Automatic shut-off, overheating protection, hot surfaces indicated, removable power cord?
Warranty	5 years (subject to the conditions set out in the manual)
Spare parts	Not specified in the manual; contact Wilfa customer service
Repairability	Not specified; professional repair recommended

Frequently Asked Questions - Daily AF40B WILFA

How to start the Airfryer Daily AF40B?

Plug in the appliance, press the ON/OFF button. Select a preset program or manually adjust the temperature and time using the +/- buttons. Press the Start/Pause button to start cooking.

Do I need to add oil to the tub?

No, the fryer works with hot air. You can optionally brush or spray a little oil on the food for extra crispiness.

What does the 'Shake basket' reminder mean?

The appliance beeps twice and displays 'trn' to remind you to shake or turn the food halfway through cooking. This reminder is active if the cooking time is more than 5 minutes.

How to clean the basket and tub?

Wash the basket and tub with hot water, soap, and a non-abrasive sponge. For stubborn residues, soak for 10 minutes in soapy water. Do not use hard objects like steel wool.

The fryer emits white smoke, is this normal?

Yes, especially during the first uses or if the food is fatty. Oil dripping into the tub can produce harmless white smoke. For the first use, heat empty for 10 minutes.

The food is not crispy, what to do?

Preheat the fryer for 3 to 5 minutes before cooking. Lightly brush the food with oil. Do not overload the basket and shake halfway through cooking.

Can I program my own settings?

Yes, adjust the temperature and time manually. To save a modified preset, adjust the values then press the + and - buttons simultaneously for 2 seconds.

What is the warranty on this product?

Wilfa offers a 5-year warranty from the date of purchase for domestic use. The warranty covers manufacturing defects, but not normal wear, misuse, or unsuitable electrical supply.

What to do if the appliance does not heat?

Check that the plug is properly connected and that the cord is not damaged. If no error code appears and the problem persists, contact Wilfa customer service.

Can I use metal containers in the fryer?

It is recommended to use only the provided basket. Metal containers could damage the coating or hinder hot air circulation.

USER MANUAL Daily AF40B WILFA

AIRFRYER AF-40B, AF-60B, AF-60W

EN . Instruction manual

NL . Instructies

NO . Bruksanvisning

PL . Instrukcje

SE . Bruksanvisning

FR . Instructions

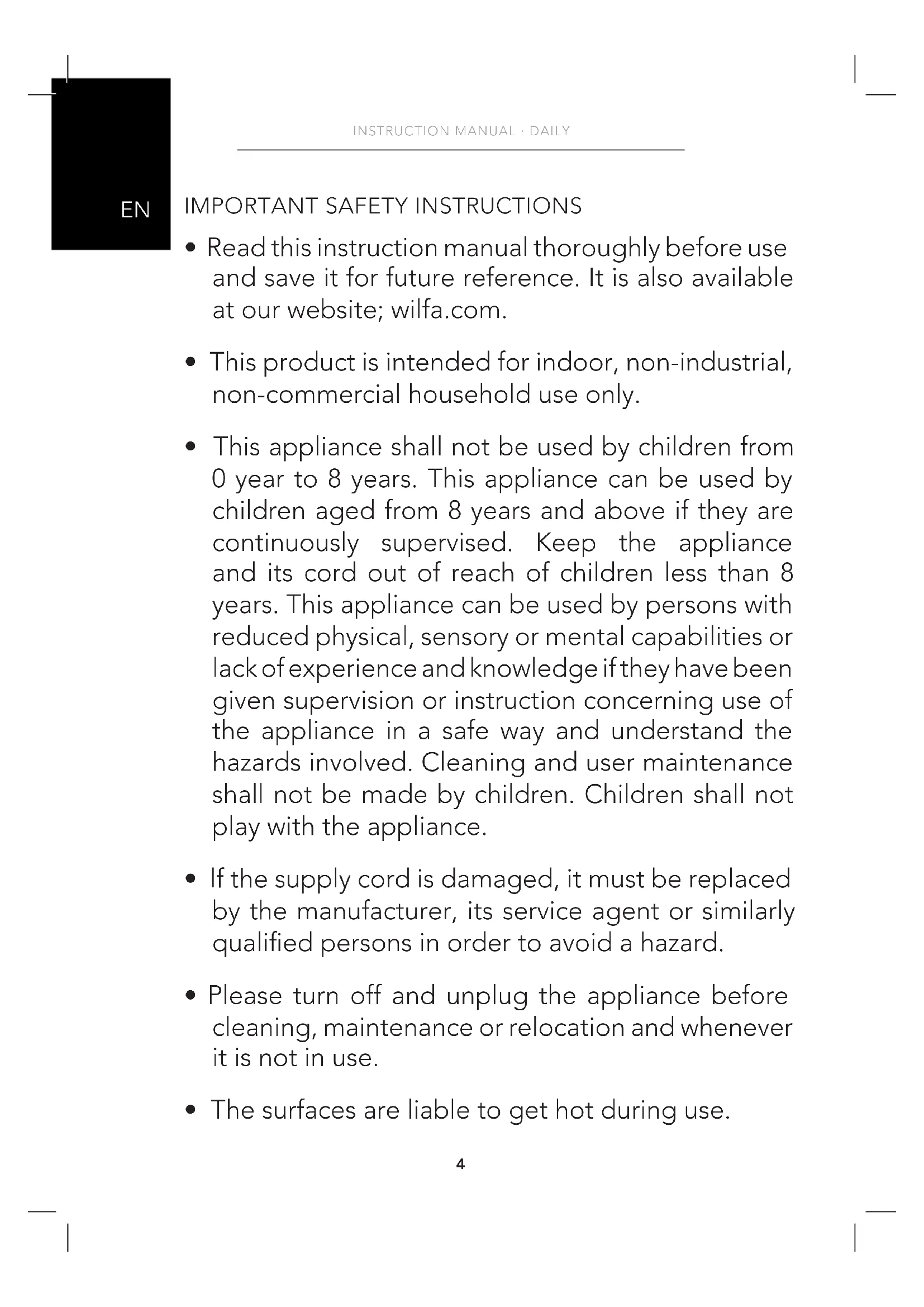

IMPORTANT SAFETY INSTRUCTIONS

• Read this instruction manual thoroughly before use and save it for future reference. It is also available at our website; wilfa.com.
• This product is intended for indoor, non-industrial, non-commercial household use only.
• This appliance shall not be used by children from 0 year to 8 years. This appliance can be used by children aged from 8 years and above if they are continuously supervised. Keep the appliance and its cord out of reach of children less than 8 years. This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children. Children shall not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Please turn off and unplug the appliance before cleaning, maintenance or relocation and whenever it is not in use.

• The surfaces are liable to get hot during use.

• After being used for a long time, the corresponding heating zone of the induction hot plate is still hot. Never touch the ceramic surface to avoid burning.

• Do not immerse any part of the appliance in water or other liquid.
• Never immerse the housing, which contains electrical components and the heating elements, in water nor rinse under the tap.
• Do not let any water or other liquid enter the appliance to prevent electric shock.
• Do not cover the air inlet and the air outlet openings while the appliance is operating.
• Never touch the inside of the appliance while it is operating.
• Keep the main cord away from hot surfaces.
• Never connect this appliance to an external timer switch or separate remote-control system in order to avoid a hazardous situation.
• Immediately unplug the appliance if you see dark smoke coming out of the appliance. Wait for the smoke emission to stop before you remove the pan from the appliance.
• Please pay attention to scald where there is a high temperature symbol.

EN

SAFETY PRECAUTIONS FOR YOUR AIRFRYER

• Always put the ingredients to be fried in the basket, to prevent it from coming in contact with the heating elements.
• Do not fill the pan with oil as this may cause a fire hazard.
• During airfrying, hot steam is released through the air outlet. Keep your hands and face at a safe distance from the steam and from the air outlet openings. Also be careful of hot steam and air when you remove the pan from the appliance.

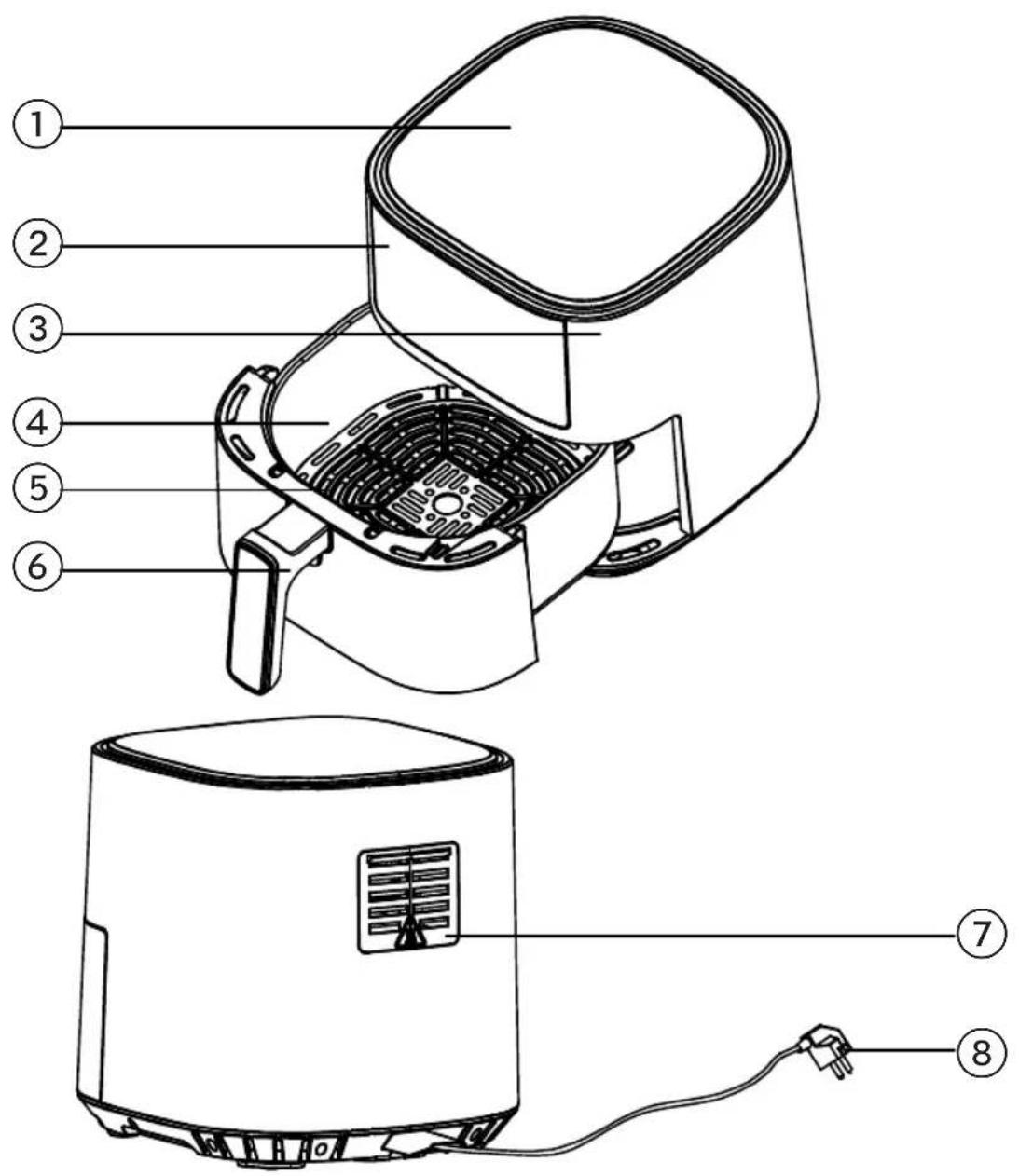

PRODUCT OVERVIEW

1. Top housing
2. Display
3. Main unit
4. Basket
5. Frying rack
6. Handle
7. Air outlet
8. Power cord

EN

BEFORE FIRST USE

1. Remove all packaging materials, stickers, and labels.
2. Clean the basket and pan with hot water, soap, and a non-abrasive sponge.
3. Wipe the inside and outside with a clean cloth.
4. Place the appliance on a flat and even surface.

NOTE: There is no need to fill the pan with oil or fat because the appliance works on hot air.

HOW TO USE

1. Plug in the unit, press ON/OFF button to start.
2. Touch the button to select the corresponding program and touch button to let the machine run for preheating.
3. To manually adjust the temperature and time press switch between temperature and time, and use the +/- buttons to adjust.
4. Press the start/pause button to start or stop cooking.
5. Unplug the unit after use.

WORKING MODE

After selecting a preset or preferred time and degree, press start button to get started. When the cooking operation is finished, the air fryer alert you with 2 beeps. The display shows "end", and the unit will go into sleep mode if you don't take any more actions.

SHAKE REMINDER

The shake reminder will alert you with 2 beeps, and "trn" will blink on the display. The alert will stop when you take the pan out.

The shake reminder is programmed to alert halfway through the cooking when set on manual, and 2/3 of the total cooking time of the presets.

When the cooking time is less than 5 minutes, the alert will not go off.

REFERENCE GUIDE

Results may vary, you can adjust temperature and time for your own recipe.

Function Temperature (^) Time (Min)

Preset	temp.	Adjust temp. range	Pre time Adjust time range
1 Fries 200 80-200 20 1-60
2 Chicken wings 180 80-200 20 1-60
3 Fish 180 80-200 13 1-60
4 Steak 180 80-200 15 1-60
5 Shrimp 180 80-200 10 1-60
6 Pizza 160 80-200 12 1-60
7 Cake	160 80-200 15 1-60
8 Deest	50	40-150 10 1-90
9 Decrease temp/time
10 Increase temp/time
11 Temp/time
12 On/Off
13 Start/pause
14 Menu

To permanently change the time and temperature setting on a preset, choose your preset, adjust the time and temperature settings, press and hold

• buttons at the same time for 2 second to save the new settings. It will be confirmed with a short beep.

EN

CLEANING

• Please clean the air fryer to prevent leftover food/food residue from being burned.
• After using, please clean the frying basket and pan in time to avoid the damage of the coating due to erosion of food residue or oil.
• Wipe the outside of the air fryer with a moist cloth
• Clean the pan and basket with hot water, soap and a non-abrasive sponge. You can remove any remaining food debris by using degreasing liquid soap. Tip: If there is food debris stuck to the basket or bottom of the pan, soak the pan in hot water and soap for about 10 minutes.
• Clean the inside of the appliance with hot water and a non-abrasive sponge. NOTE: Be sure not to get too much water inside the appliance, you are just wiping it down to get rid of any food debris and grease.
• Clean the heating element with a cleaning brush to remove any food debris.
• Do not use hard and sharp items (such as steel wool, sharp tools etc) to clean the basket and pan.

TIPS AND TRICKS

• Use your air fryer to reheat your leftovers, It will make them as crispy as they were fresh.
• Brush or spray some oil on the ingredients before or halfway through airfrying for an even crispier result. Spray or brush any dry flour spots that still appear halfway through airfrying.
• Small ingredients often require slightly shorter cooking time, and larger ingredients often require slightly longer cooking time.

TROUBLESHOOTING

Problem Possible reasons Solutions
The ingredients are not cooked properly	The basket is too full.	Use smaller batches of ingredients in the basket to fry them evenly
	The temperature is too low	Increase the temperature
The ingredients are fried unevenly	You did not flip or shake the ingredients halfway	Ingredients that lie across each other need to be shaken or turned halfway through.
The food is not crispy	The air fryer did not preheat	Preheat air fryer 3-5 minutes.
	The type of ingredients is meant for frying in oil	Try to brush or spray oil onto the ingredients before air frying.
White smoke is coming out of the fryer	You are preparing greasy ingredients.	With greasy food, oil can leak into the pan. Oil makes the makes the white smoke, but it will not affect the appliance or the end result.
The first use gives off un pleasant odour	This is normal during the first times you are using the air fryer	Dry heat the air fryer for 10 minutes before using it the first time
The air fryer stops or will not heat up	If no alarms or error codes appear, check that the plug is plugged in correctly	Make sure the power cord is plugged in. If it's still not working, contact customer service

GUARANTEE

Wilfa issues a 5 year guarantee on this product from the day of purchase is done. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

Overloading of product
- Parts which are normally worn down
- Parts you can expect being replaced regularly (e.g. filter, battery etc.)

Instructions manual is also available at our website wilfa.com

PRODUCT SPECIFICATIONS

AF-40B:220-240V\~50/60Hz,1500W

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or

contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge.

NO

NO

INNHOLD

16 VIKTIGE SIKKERHETSINSTRUKSJONER
18 FORHOLDSREGLER VED BRUK AV AIRFRYER
19 PRODUKTOVERSIKT
20 FØR FØRSTE GANGS BRUK
20 BRUK
21 REFERANSEVEILEDNING
22 RENGJØRING
22 TIPS OG TRIKS
23 FEILSØKING
24 GARANTI
25 PRODUKTSPESIFIKASJONER
25 SUPPORT OG RESERVEDELER
25 GJENVINNING

VIKTIGE SIKKERHETSINSTRUKSJONER

CARACTERISTIQUES DU PRODUIT

AF-40B: 220-240V ~ 50/60Hz, 1500W
