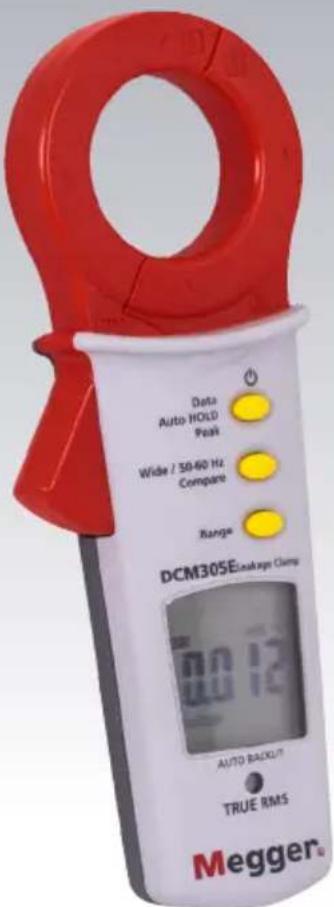

USER MANUAL DCM305E Megger

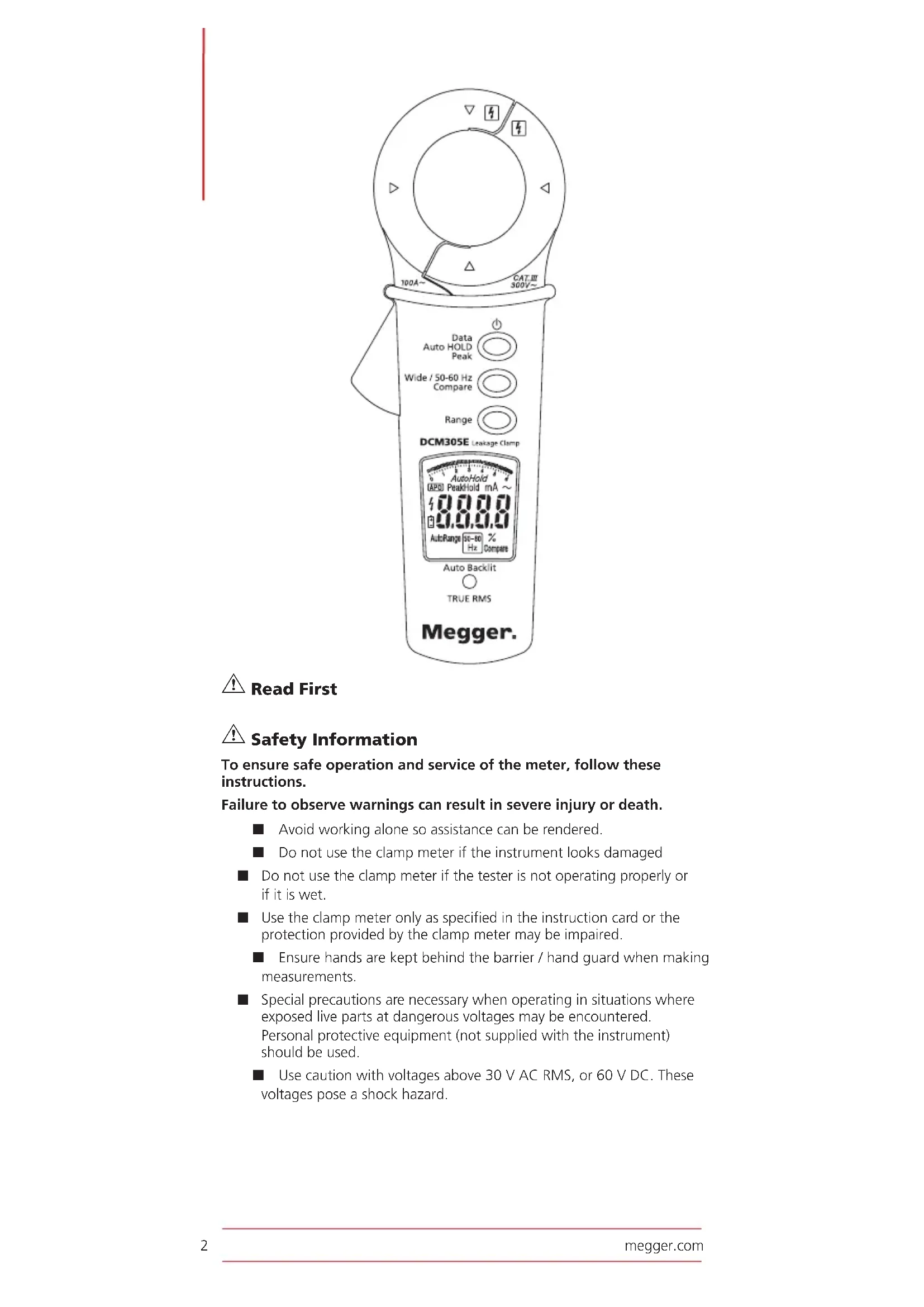

To ensure safe operation and service of the meter, follow these instructions.

Failure to observe warnings can result in severe injury or death.

■ Avoid working alone so assistance can be rendered.
■ Do not use the clamp meter if the instrument looks damaged
■ Do not use the clamp meter if the tester is not operating properly or if it is wet.
■ Use the clamp meter only as specified in the instruction card or the protection provided by the clamp meter may be impaired.
■ Ensure hands are kept behind the barrier / hand guard when making measurements.
■ Special precautions are necessary when operating in situations where exposed live parts at dangerous voltages may be encountered. Personal protective equipment (not supplied with the instrument) should be used.
■ Use caution with voltages above 30 V AC RMS, or 60 V DC. These voltages pose a shock hazard.

CAT IV

Measurement category IV: Equipment connected between the origin of the low-voltage mains supply outside the building and the consumer unit.

CAT III

Measurement category III: Equipment connected between the consumer unit and the electrical outlets.

CAT II

Measurement category II: Equipment connected between the electrical outlets and the user's equipment.

Symbols as marked on the instrument and instruction card

Risk of electric shock

See instruction card

Equipment protected by double or reinforced insulation

Low battery

Earth

AC measurement

Conforms to EU directives

Application around hazardous exposed live conductors is permitted

Do not discard or throw away this product

Caution

Take sufficient care not to apply shock, excessive vibration or force to the jaw. If the meter is used in the vicinity of equipment that generates large electromagnetic fields, the display may become unstable or the measurements may be subject to large errors.

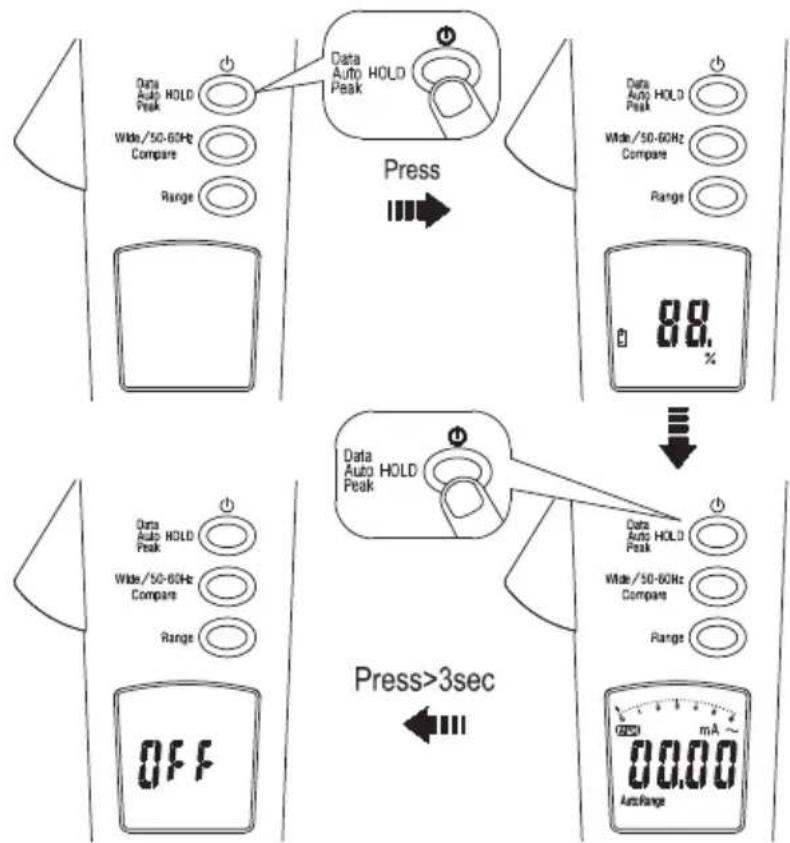

Power Off / On

Data Auto HOLD Peak Wide/50-60Hz Compare Range Data Auto HOLD Peak Press 88. % Data Auto HOLD Peak Wide/50-60Hz Compare Range Press>3sec OFF 00.00 Auto Range mA ~

■ The instrument displays battery capacity when powering up. Replace batteries when 0% is displayed.

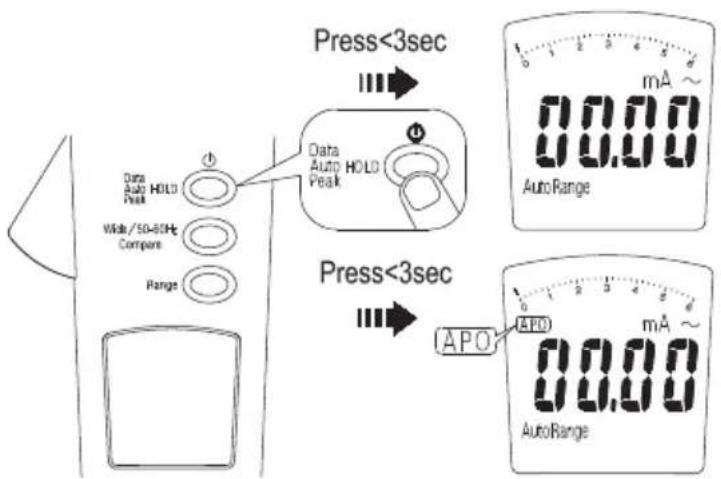

Auto Power Off Enable / Disable

Press<3sec Data Auto HOLD Peak Wide/50-60Hz Compare Range Data Auto HOLD Peak Press<3sec APO 0.00 mA ~ 0.00 mA Auto Range 0.00 mA ~ 0.00 mA Auto Range

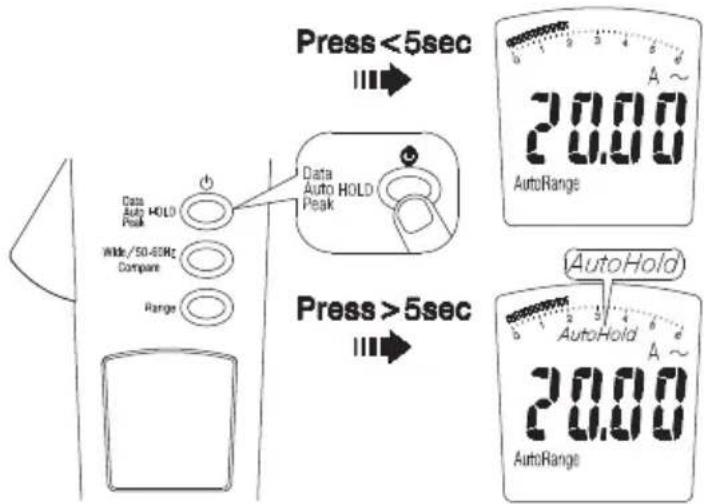

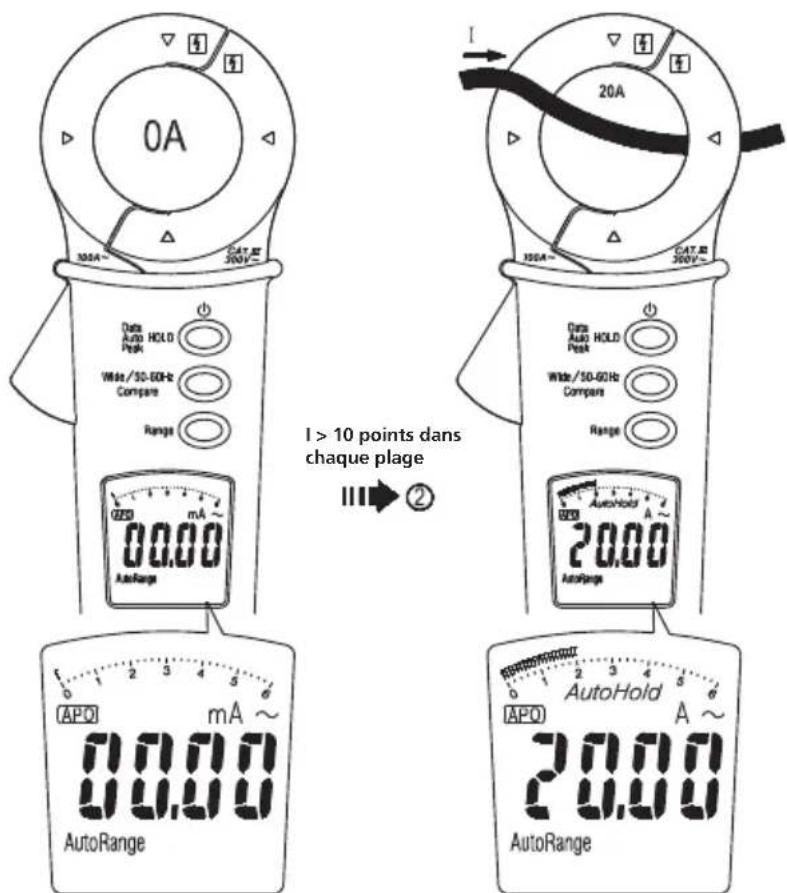

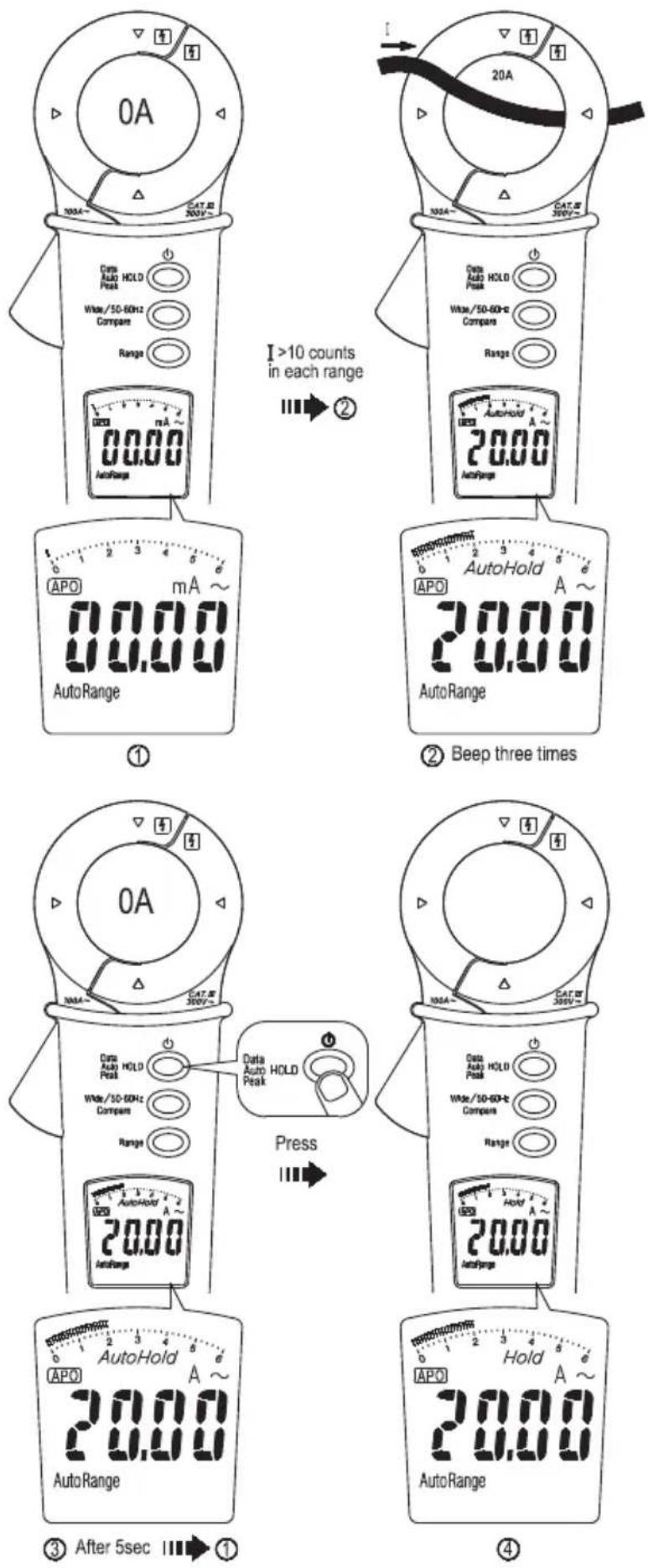

Auto Hold Enable / Disable

Press <5sec Data Auto HOLD HOLD Peak Wide/50-60Hz Compare Range Data Auto HOLD Peak Press >5sec AutoRange 20.00 AutoHold AutoHold 20.00 AutoRange

In the AUTOHOLD mode, if the measured value remains within ±10 counts over 10 measuring cycles the instrument will beep 3 times; the measured value will be held on the display and "AUTOHOLD" will be displayed.

Subsequently if the measured value changes by ±10 counts, the instrument will beep; “AUTOHOLD” will disappear and the instrument will revert to displaying the new readings until the next AUTOHOLD conditions are met.

Note: When the AUTOHOLD activates, the displayed reading will be held for 3 seconds if the clamp jaws are removed from the conductor/s. During this time the HOLD key may be pressed to hold the reading indefinitely.

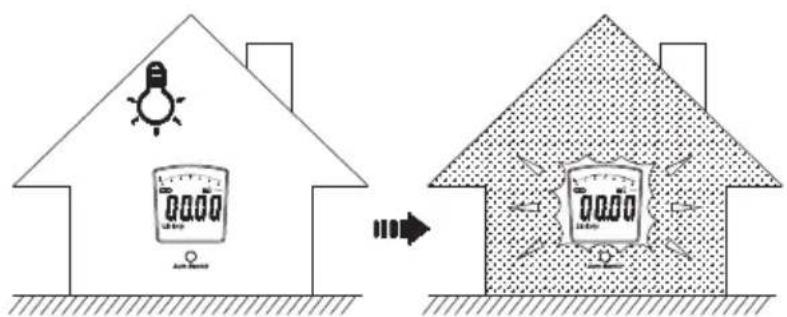

Auto Backlight

Diagram illustrating a weather monitoring system with a light bulb, digital display, and meter reading.

The Auto backlight on the display activates automatically when the instrument is used in very poor light locations

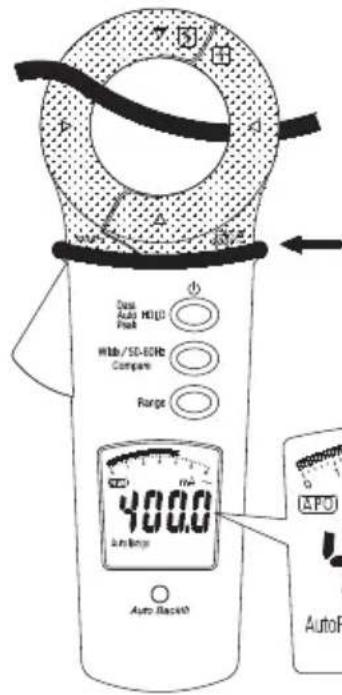

AC Current

Auto Rack 400.0 AutoR AFO + - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

CAT III 300 V with respect to earth for the jaw.

Barrier for hand guard.

Do not hold the instrument above the barrier.

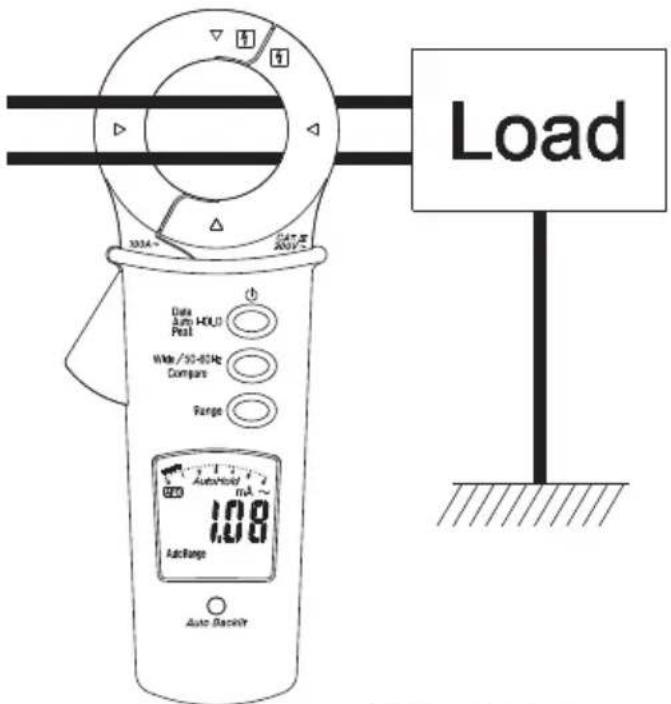

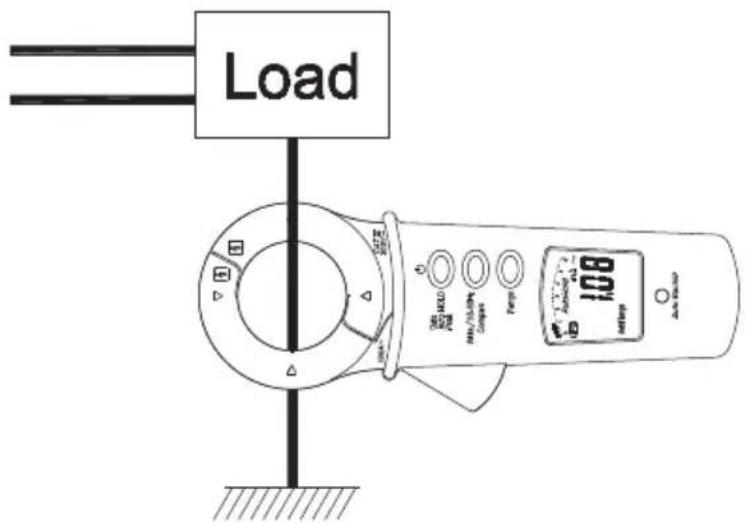

Leakage Current Measurement

Recommended applications of instrument with respect to conductors.

Load 108 mV/1.5V/m Comp Pump 2.4x 1.6x 1.7x 1.8x 1.9x 2.0x 2.1x 2.2x 2.3x 2.4x 2.5x 2.6x 2.7x 2.8x 2.9x 3.0x 3.1x 3.2x 3.3x 3.4x 3.5x 3.6x 3.7x 3.8x 3.9x 4.0x 4.1x 4.2x 4.3x 4.4x 4.5x 4.6x 4.7x 4.8x 4.9x 5.0x 5.1x 5.2x 5.3x 5.4x 5.5x 5.6x 5.7x 5.8x 5.9x 6.0x 6.1x 6.2x 6.3x 6.4x 6.5x 6.6x 6.7x 6.8x 6.9x 7.0x 7.1x 7.2x 7.3x 7.4x 7.5x 7.6x 7.7x 7.8x 7.9x 8.0x

Note: Measurements made on the earth conductor only will indicate current in the earth conductor but not the entire installation.

Load Auto HOLD Peak Wide/30-80Hz Compare Range 1.00 AucRange Auto Receiver

Single / 1 phase

Load Auto Breakout Auto Range 1.08 Auto Hold Peak Wide/SD-60Hz Compare Range 1024 CAT75 JW/C Auto Breakout

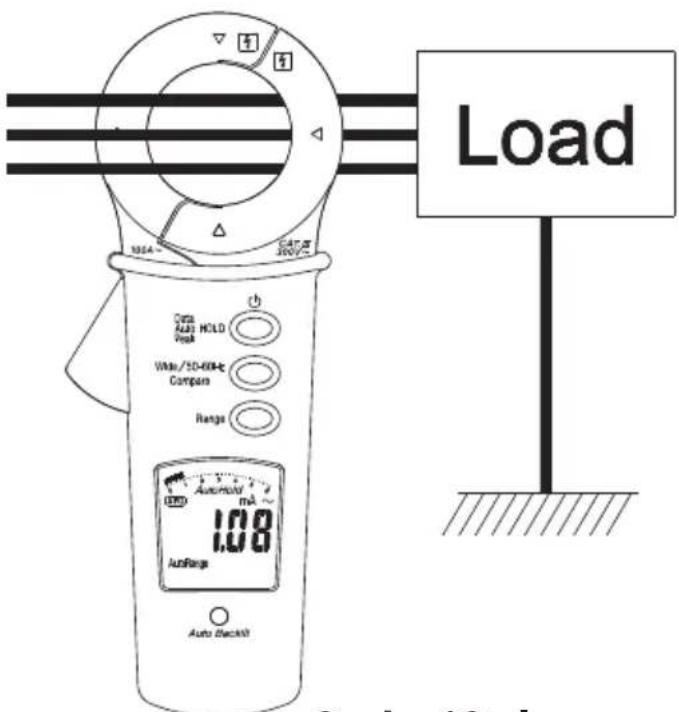

3 wire / 3 phase

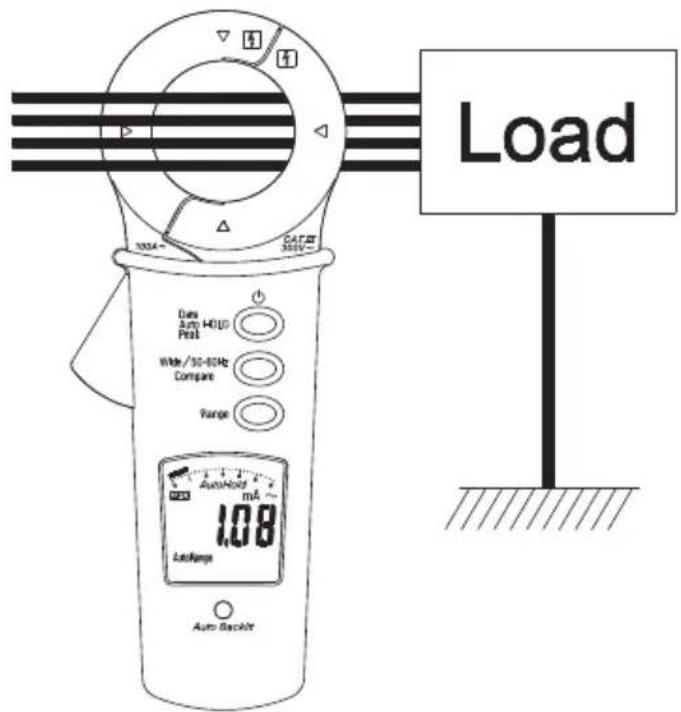

Load Auto Backlit 1.08 Auto Hold mA ~ Auto Range Range Wide/30-80Hz Compare Date Auto HDUO Peak BAT2B 500V~

4 wire / 3 phase + neutral

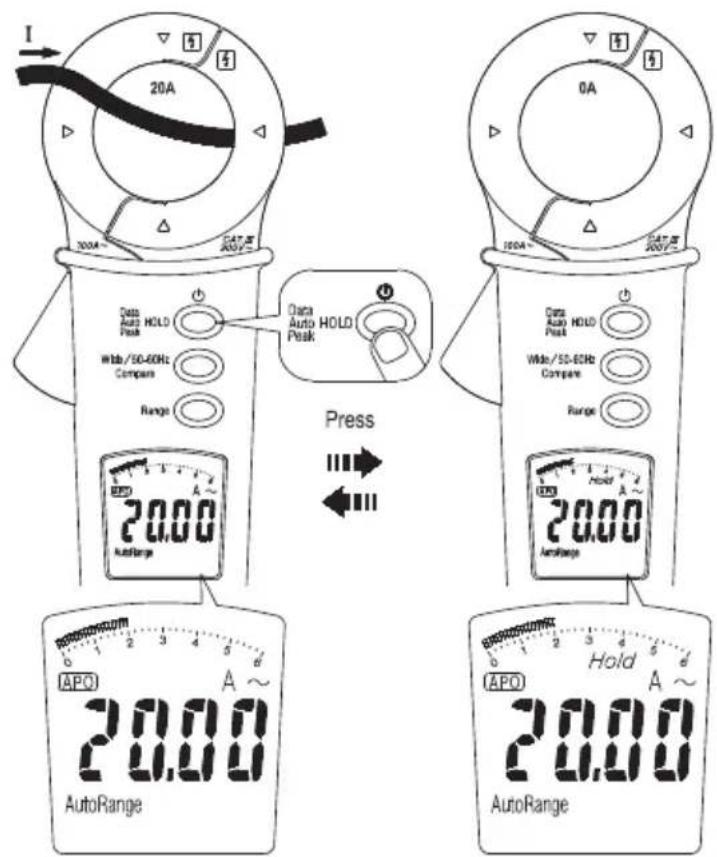

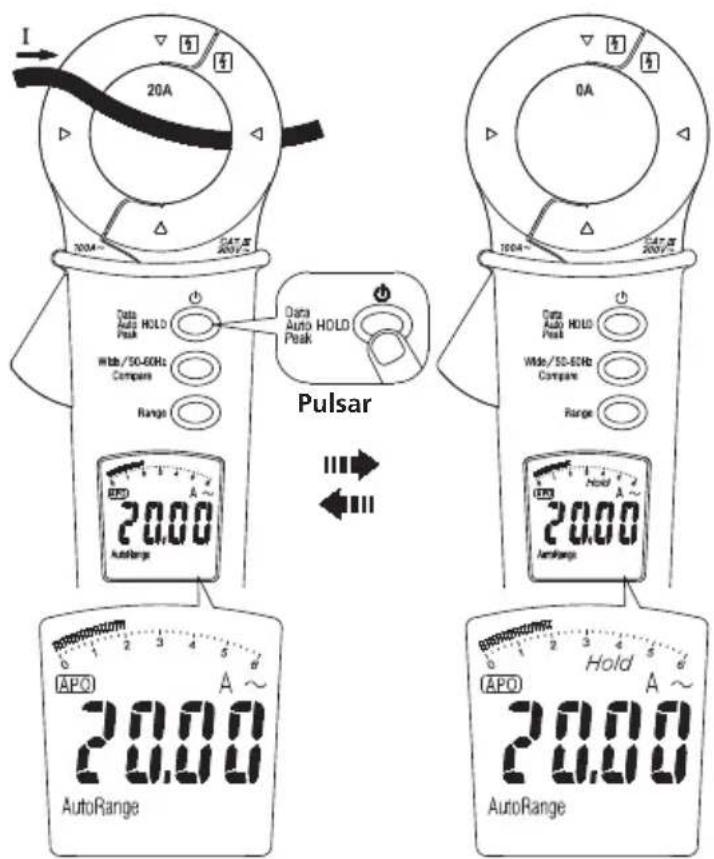

Data Hold

I 20A 300A 247.00 HOLD Data Auto Peak HOLD Initb/50-60Hz Compare Range Press 20.00 AutoRange A~~ 20.00 AutoRange A~~ 20.00 AutoRange A~~ 20.00 AutoRange

Note: Data Hold beep guard
The internal sounder will beep continuously with the LCD display flashing in the Data Hold mode when the measured signal is 50 counts larger than the LCD reading.

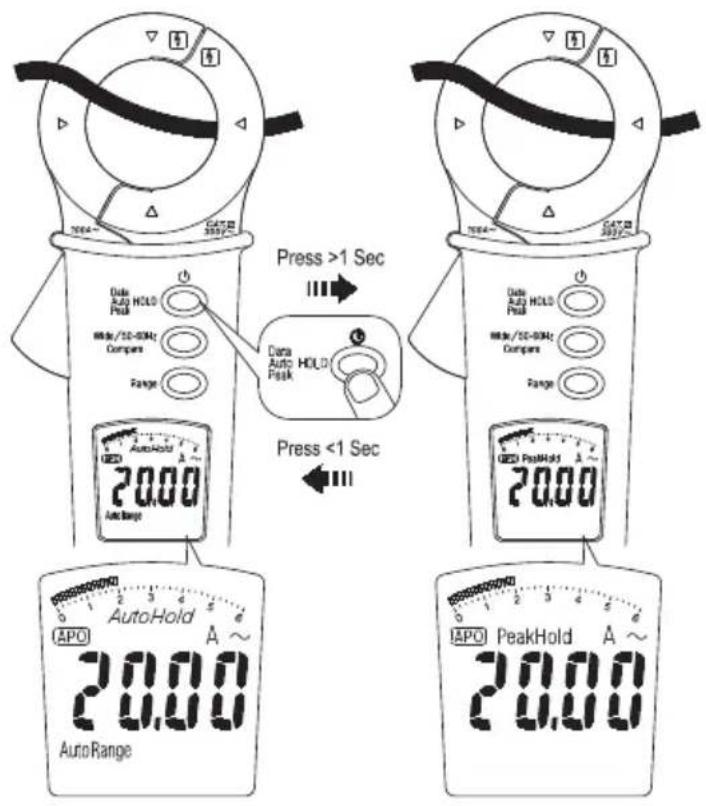

Peak Hold

(forcing into the manual range mode)

Press >1 Sec Press <1 Sec 20.00 AutoHold A ~ 20.00 AutoRange AutoHold A ~ 20.00 AutoHold A ~ 20.00 AutoHold A ~ 20.00 AutoHold A ~ 20.00 AutoHold A ~ 20.00 AutoHold A ~ 20.00 AutoHold A ~ 20.00 AutoHold A ~ 20.00 AutoHold A ~ 20.00 AutoHold A ~ 20.00

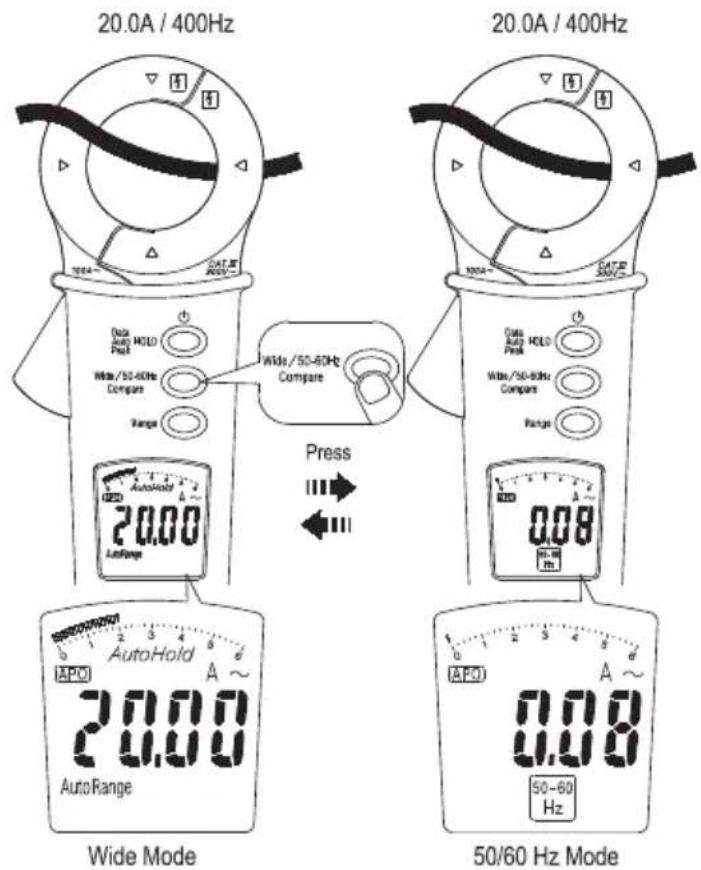

Low Pass Filter

(forcing into the manual range mode)

20.0A / 400Hz 20.0A / 400Hz Wide Mode AutoHold 20.00 AutoRange 50/60 Hz Mode

The cut-off frequency of the low pass filter is about 100 Hz with an attenuation characteristic of approximately -24 dB / octave.

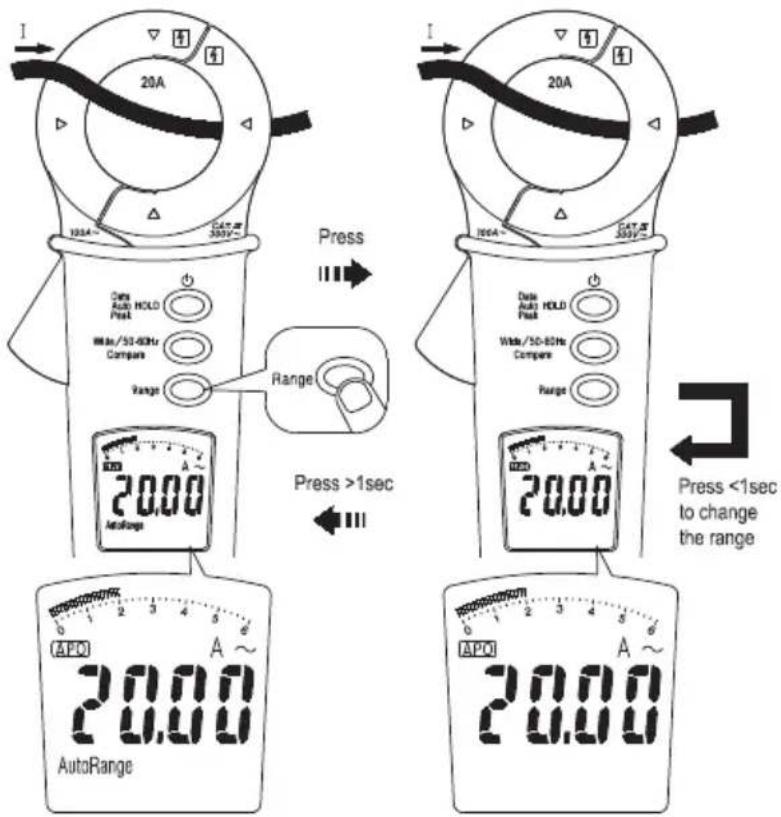

Auto Range / Manual Range

I 20A 193A CST. 20 350V~ Press Auto HOLD Peak Width/55-60Hz Compare Range 20.00 AutoRange A~ 20.00 AutoRange A~ 20.00 Duke Auto HOLD Peak Width/55-60Hz Compare Range 20.00 A~ 20.00 A~ Press >1sec Press <1sec to change the range

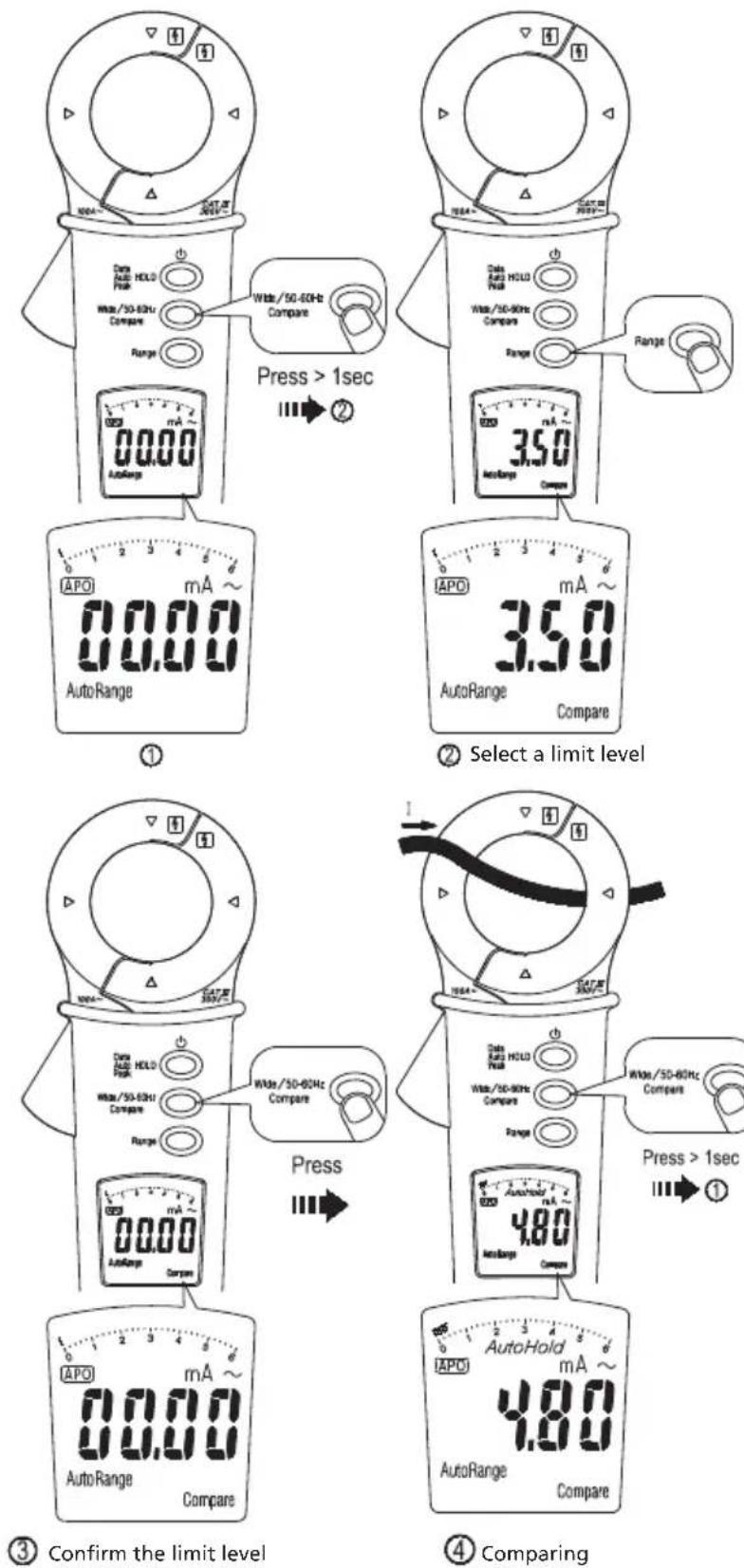

Comparator

■ The instrument offers 3 limit values (0.25 mA, 0.5 mA and 3.5 mA)
■ The internal sounder will beep continuously with the LCD display flashing when measured value exceeds the confirmed limit level.

Auto Hold

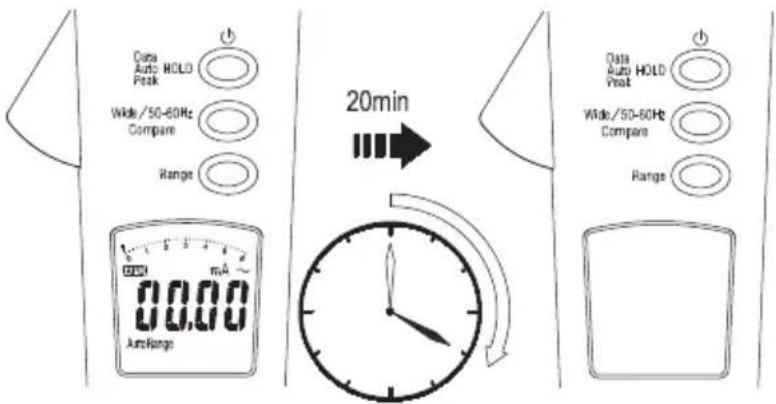

Auto Power Off

Data Auto HOLD Peak Wide/50-60Hz Compare Range 20min Data Auto HOLD Peak Wide/50-60Hz Compare Range

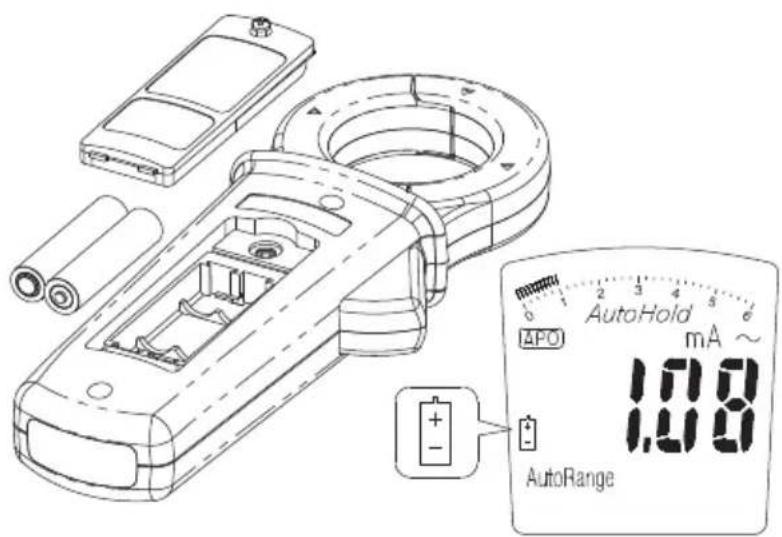

Battery Replacement

AutoHold mA ~ 1.08 1.08 AutoRange

Maintenance

Do not attempt to repair this meter. It contains no user-serviceable parts. Repair or serving should only be performed by qualified personnel.

Cleaning

Periodically wipe the case with a dry cloth and detergent, do not use abrasives or solvents.

WEEE Directive

The crossed out wheeled bin symbol on the instrument and on the batteries is a reminder not to dispose of them with general waste at the end of their life.

Megger is registered in the UK as a Producer of Electrical and Electronic equipment. The registration No is; WEE/DJ2235XR.

Users of Megger products in the UK may dispose of them at the end of their useful life by contacting B2B Compliance at www.b2bcompliance.org.uk or by telephone on 01691 676124.

Users of Megger products in other parts of the EU should contact their local Megger company or distributor.

Battery Disposal

Batteries in this product are classified as Portable Batteries under the Batteries Directive. Please contact Megger Ltd for instructions on the safe disposal of these batteries.

For disposal of batteries in other parts of the EU contact your local distributor.

Megger is registered in the UK as a producer of batteries.

The registration number is BPRN01235.

For Further information see www.megger.com

Specifications

General Specifications

LCD display digits : 6000 count large scale LCD readout.

Measuring rate : 5 times / sec.

Over range display: Shows the real value for "100 A" and shows "OL" for other ranges.

Automatic power off time : Approximately 20 minutes after power on without operations.

Low battery indicator : is displayed. Replace the battery when the indicator appears in the display.

Power requirement : 1.5 V x 2 batteries AAA / LR03

Battery type and life : Alkaline 60 hours.

Environmental Conditions

Indoor Use.

Pollution degree : 2

Calibration : One year calibration cycle.

Operating temperature: 0°C \~ 30 °C (≤ 80% RH)

30^ C 40^ C (≤ 75 % RH)

40^ C 50^ C (≤ 45 % RH)

Storage temperature: -20 to +60 °C, 0 to 80% RH (batteries not fitted).

Operating altitude : 2000 m (6562 ft)

Conductor Size : 40 mm diameter.

Shock vibration: No shock, No vibration to the jaw tips.

Temperature coefficient : 0.2 x (Specified accuracy) / °C, < 18 °C, > 28 °C

EMC : EN 61326-1

Overvoltage category : IEC 61010-1 300 V CAT III

Accuracy is ±(% reading + number of digits) at 23 °C ± 5 °C < 80% RH.

AC Current

Range Resolution Accuracy
* 6 mA 0.001 mA 0A ~ 10A	±(1% reading + 8 digits)10 ~ 50A±(2% reading + 10 digits)50 ~ 100A±(10% reading + 10 digits)
60 mA 0.01 mA
600 mA 0.1 mA
6 A 0.001 A
60 A 0.01 mA
100 A 0.1 A

* Digit rolling ±3 digits.

Frequency Response (61\~400 Hz):

$$ \begin{array}{l} 0 \mathrm{A} \sim 1 0 \mathrm{A} \ \pm (2 \% \text { reading } + 1 1 \text { digits }) \ 1 0 \sim 5 0 A \ \pm (10 \% \text { reading } + 11 \text { digits }) \ 5 0 \sim 1 0 0 A \ \pm (35 \% \text { reading } + 11 \text { digits }) \ \end{array} $$

Position Error: ±1% of reading.

Additional Accuracy by Crest Factor (C.F.):

$$ \begin{array}{l} \text { Add } 1.0 \% \text { for C.F. } 1.4 \sim 2.0. \ \text { Add } 2.5 \% \text { for C.F. } 2.0 \sim 2.5. \ \text { Add } 4.0 \% \text { for C.F. } 2.5 \sim 3.0. \ \end{array} $$

Max. Crest Factor: 1.6 for 6000 \~ 5000 digits

$$ 2. 0 \text { for } 5 0 0 0 \sim 3 0 0 0 \text { digits } $$

$$ 3. 0 \text { for } 3 0 0 0 \sim 0 \text { digits } $$

Influence of external magnetic field of adjacent wires :

$$ 0. 04 \% \text { typical value }. $$

Low Pass Filter

Range Resolution Accuracy
* 6 mA 0.001 mA 0A ~ 10A	± (2% reading + 8 digits) 10 ~ 50A ± (3% reading + 10 digits) 50 ~ 100A ± (12% reading + 10 digits)
60 mA 0.01 mA
600 mA 0.1 mA
6 A 0.001 A
60 A 0.01 A
100 A 0.1 mA

* Digit rolling ±3 digits.

Attenuation characteristic: approximately -24 dB/octave

Cut-off frequency : 100 Hz

Limited Warranty

This meter is warranted to the original purchaser against defects in material and workmanship for 1 year from the date of purchase. If the product is registered on the Megger website www.megger.com the warranty is extended to 3 years.

During this warranty period, manufacturer will, at its option, replace or repair the defective unit, subject to verification of the defect or malfunction.

This warranty does not cover fuses, disposable batteries, or damage from abuse, neglect, accident, unauthorised repair, alteration, contamination, or abnormal conditions of operation or handling.

Any implied warranties arising out of the sale of this product, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited to the above. The manufacturer shall not be liable for loss of use of the instrument or other incidental or consequential damages, expenses, or economic loss, or for any claim or claims for such damage, expense or economic loss. Some states or countries laws vary, so the above limitations or exclusions may not apply to you.

Megger Limited

Archcliffe Road

Dover

Kent

CT17 9EN

Tel: [phone] Fax: [phone] www.megger.com

Megger

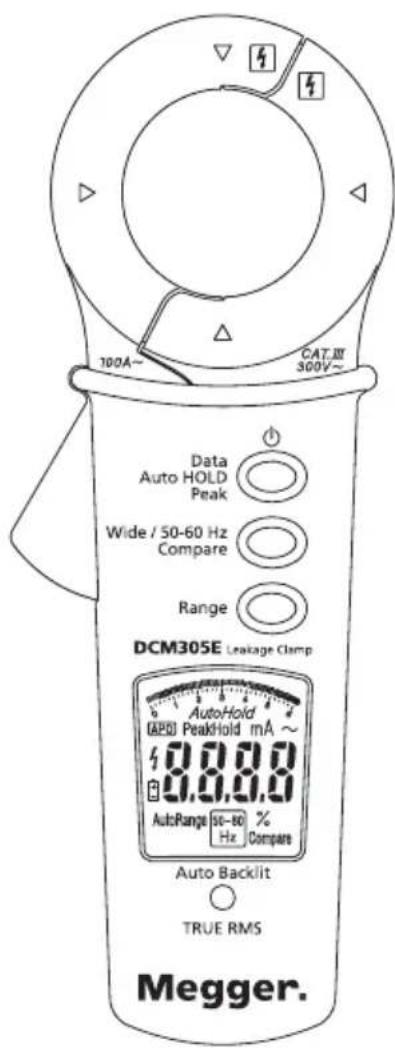

Data Auto HOLD Peak Wide / 50-60 Hz Compare Range DCM305E Leakage Clamp AUTO BACKOUT TRUE RMS Megger®

DCM305E

Leckstromzange für

Ableitstrom

Benutzerhandbuch

CAT.Ⅲ 300V~ 100A~ Data Auto HOLD Peak Wide / 50-60 Hz Compare Range DCM305E Leakage Clamp AutoHold (APG) PeakHold mA ~ 0.0,0.0 0.0,0.0 AutoRange 50-60 % Hz Compare Auto Backlit TRUE RMS Megger.

Zuerst lesen

Diagram showing a house with a light bulb and digital temperature reading to its roof, illustrating the process of heating or cooling.

4 wire/3 phase+neutral

Daten-Halten

I 20A NDA CAT.AT HOLD Data Auto HOLD Peak Data Auto HOLD Peak 0A HOLD 20A HOLD Drücken Sie 20.00 AutoRange 20.00 AutoRange 20.00 AutoRange 20.00 AutoRange

Data Auto HOLD Peak Wide/50-60Hz Compare Range 20min Data Auto HOLD Peak Wide/50-60Hz Compare Range

Positionsfehler: ±1% of reading.

Data Auto HOLD Peak Wide/50-60Hz Compare Range Data Auto HOLD Peak Appuyer Data Auto HOLD Peak Wide/50-60Hz Compare Range 88 % Data Auto HOLD Peak Data Auto HOLD Peak Wide/50-60Hz Compare Range Appuyer plus de 3 secondes OFF 0.00 mA Auto Range

Diagram showing a house with a light bulb and a digital meter connected to a wall-mounted meter, illustrating the process of heating or monitoring.

■ The instrument offers 3 limit values (0.25 mA, 0.5 mA and 3.5 mA)
■ The internal sounder will beep continuously with the LCD display flashing when measured value exceeds the confirmed limit level.

Auto-maintien

0A 300A~ DAT.AT 300V~ Data Auto HOLD Peak Wide/50-60Hz Compare Range 20A 300A~ DAT.AT 300V~ I > 10 points dans chaque plage 2 OFF 00.00 mA ~ AutoRange 20.00 AutoHold A ~ APO mA ~ 0.00 0.4444 AutoRange 20.00 AutoHold A ~

Data Auto HOLD Peak Wide/50-60Hz Compare Range 20min Data Auto HOLD Peak Wide/50-60Hz Compare Range

Erreur de position: ±1% of reading.

CAT.Ⅲ 300V~ 100A~ Data Auto HOLD Peak Wide / 50-60 Hz Compare Range DCM305E Leakage Clamp AutoHold (APB) PeakHold mA ~ 0.0,0.0 0.0,0.0 AutoRange 50-60 % Hz Compare Auto Backlit TRUE RMS Megger.

⚠️ Leer primero

Diagram showing a house with a light bulb and digital timer connected to a wall-mounted meter, illustrating the process of heating or monitoring.

CARGA Auto HOLD Prea Wide/50-60Hz Compare Range Auto Backlit 1.08 Auto Range

44wibles3 phase-penneutral

Retención de datos

I 20A 20A Auto Range Data Auto HOLD Peak Wide/50-60Hz Compare Range Data Auto Peak HOLD Pulsar 100A 247.00 200A Auto Range 20.00 A~ A~ 20.00 A~ 20.00 A~ 20.00 A~ 20.00 A~ Auto Range

Data Auto HOLD Peak Wide/50-60Hz Compare Range 20min Data Auto HOLD Peak Wide/50-60Hz Compare Range

CAT.Ⅲ 300V~ 100A~ Data Auto HOLD Peak Wide / 50-60 Hz Compare Range DCM305E Leakage Clamp AutoHold (APB) PeakHold mA ~ 0.0,0.0 0.0,0.0 AutoRange 50-60 % Hz Compare Auto Backlit TRUE RMS Megger.

⚠️ Lees dit eerst

Data Auto HOLD Peak Wide/50-60Hz Compare Range Data Auto HOLD Peak Indrukken 88. % Data Auto HOLD Peak Wide/50-60Hz Compare Range > 3 seconden indrukken OFF Data Auto HOLD Peak Data Auto HOLD Peak Wide/50-60Hz Compare Range 00.00 AraRange

Diagram showing a house with a light bulb and digital timer connected to a wall-mounted temperature gauge, illustrating thermal monitoring or heating process.

Data Auto HOLD Peak Wide/50-60Hz Compare Range 20min Data Auto HOLD Peak Wide/50-60Hz Compare Range

Batterijvervanging

AutoHold mA ~ 1.08 AutoRange

Onderhoud

Positie Fout: ±1% of reading.

Valley Forge Corporate Center

2621 Van Buren Avenue

Norristown

Pennsylvania,

19403 USA

T. 1-610 676 8500

F. 1-610-676-8610

Megger USA - Dallas

4271 Bronze Way

Dallas TX 75237-1019 USA

T 800 723 2861 (USA only)

T [phone]

F [phone]

[e-mail]

Megger AB

This instrument is manufactured in Taiwan.

The company reserves the right to change the specification or design without prior notice.

Megger is a registered trademark

DCM305E_UG_en-de-fr-es-nl_V05 05 2021

www.megger.com
