GHP945BK - Basket Glem Gas - Free user manual and instructions

Brand	Glem Gas
Model	GHP945BK
Product type	Kitchen extractor hood
Dimensions (W x D x H)	90 cm x 50 cm x 30 cm (estimated)
Weight	Approximately 15 kg
Power supply	220-240 V, 50 Hz
Motor power	Not specified (estimated 150-250 W)
Lighting power	Not specified (estimated 2 x 40 W or LED)
Speeds	4 speeds including a booster mode (P)
Timer	Yes, programmable up to 15 minutes (estimated)
Extraction type	External extraction or recirculation (depending on model)
Duct diameter	150 mm
Grease filter	Aluminum filters, dishwasher safe
Charcoal filter	Activated carbon filter (for recirculation version), replace every 6 months
Minimum distance from cooktop	650 mm (electric) / 750 mm (gas)
Noise level	Not specified (estimated 55-65 dB)
Maintenance	Clean the grease filters every month; replace the charcoal filters every 6 months; clean the exterior with a damp cloth and mild detergent
Safety	Unplug before maintenance; do not use with naked flames; supervise during frying; installation by a professional
Spare parts available	Grease filters, charcoal filters, bulbs, motor (via after-sales service)
Repairability	Repairability index not communicated; repair by a qualified technician recommended
Warranty	Not specified (generally 2 years)

Frequently Asked Questions - GHP945BK Glem Gas

What is the minimum distance between the hood and the cooktop?

The minimum distance is 650 mm for an electric cooktop and 750 mm for a gas cooktop. If your cooktop manual indicates a higher distance, follow that.

How to clean the grease filters?

Aluminum grease filters can be cleaned with a hot detergent solution or in the dishwasher. Color change does not affect efficiency. Clean them at least once a month.

How often should I replace the charcoal filter?

The activated carbon filter (recirculation version) must be replaced every 6 months to ensure good performance.

Can I install the hood myself?

Installation must be carried out by a qualified and experienced technician, especially for electrical connection. Two people are needed to handle the hood due to its weight.

Does the hood work in recirculation mode?

Yes, if your model is equipped with a charcoal filter, the hood can operate in recirculation mode. In this case, the air is filtered and then returned to the room.

What to do if the hood is noisy?

Check that the filters are clean and properly installed. Make sure the exhaust duct is not blocked. If the noise persists, contact a professional.

How to turn on the hood light?

Use the 'light' switch on the control panel to turn the light on or off.

Can I use the hood with a gas cooktop?

Yes, but make sure the minimum distance of 750 mm is respected and the room is well ventilated. Never leave large naked flames under the hood.

How to set the timer?

Press the timer control to program the operating duration after shutdown (usually 1 to 15 minutes). Consult the detailed manual.

Where can I find spare parts?

Grease and charcoal filters are available from authorized dealers or online. For other parts (motor, bulb), contact Glem Gas after-sales service.

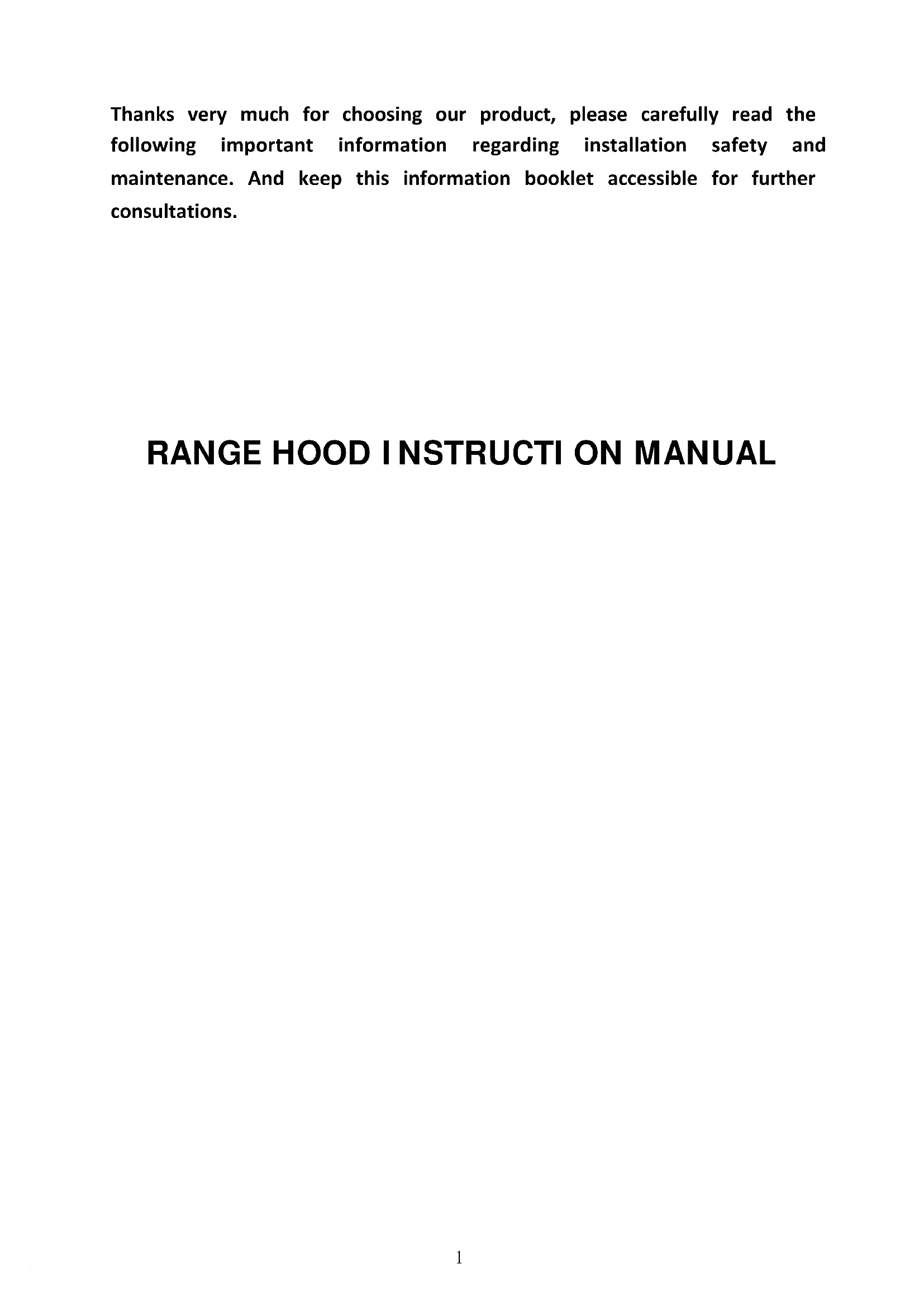

USER MANUAL GHP945BK Glem Gas

Thanks very much for choosing our product, please carefully read the following important information regarding installation safety and maintenance. And keep this information booklet accessible for further consultations.

RANGE HOOD INSTRUCTION MANUAL

Dear Customer,

If you follow the recommendations contained in this Instruction Manual, our appliance will give you constant high performance and will remain efficient for many years to come.

RECOMMENDATIONS AND SUGGESTIONS

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• Please read this instruction manual before installing and using this range hood. Please keep this instruction manual in a safe place for future reference.
• Only a qualified and trained service technician can undertake the work of installation and servicing.
• Check that the main voltage corresponds to the one indicated on the rating plate fixed inside the hood.
• If the hood is used in conjunction with non-electrical appliances (e. g. gas burning appliances), a sufficient degree of ventilation must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening directly with the open air in order to guarantee the entry of clean air.
• The minimum distance is 750mm from the range hood to a gas hob, and is 650mm to an electric hob. If the installation instructions for gas hobs specify a greater distance, this must be taken into account.

NOTICE: Two or more people are required to install or move this appliance.

Failure to do so can cause physical injuries.

USE

• The range hood has been designed only for domestic use to eliminate kitchen fumes.

• Never use the hood for purposes other than what it has been designed for.

• Never leave high naked flames under the hood when it is in operation.

• Adjust the flame intensity to direct it onto the bottom of the pan only; making sure that it does not engulf the pan sides.
• Deep fat fryer must be continuously monitored during use: overheated oil can burst into flame.
• The hood should not be used by children or persons not instructed in its correct use.

MAINTENANCE

• Proper maintenance of the range hood will assure proper performance of the unit.
• Disconnect the hood from the main supply before carrying out any maintenance work.
• Clean and/or replace aluminum grease filters and activated charcoal filters after specified period of time.
• Clean the hood using a damp cloth and a neutral liquid detergent.
• DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

WARNING!!

In certain circumstances electrical appliances may be a danger hazard.

• Do not check the status of the filters while the cooker hood is operating

• Do not touch the light bulbs after appliance use

• Do not disconnect the appliance with wet hands.

• To reduce the risk of fire or electric shock, do not use this fan with any solid-state.

• Avoid free flame, as it would do damage to the filters from a fire hazard

• Constantly check food frying to avoid that the overheated oil may become a fire hazard

• Disconnect the electrical plug prior to any maintenance or servicing.

• Children don't recognize the risks of electrical appliances. Therefore use or keep the appliance only under supervision of adults and out of the reach from children.

• TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

a) Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
b) Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent b drafting.
c) When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
d) Ducted fans must always be vented to the outdoors.

• Don't use this product outdoors.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction, concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.

• There is a fire risk if cleaning is not carried out in accordance with instructions.

• The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.

Do not flambe under the range hood.

Accessible parts may become hot when used with cooking appliances.

Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

CHARACTERISTICS

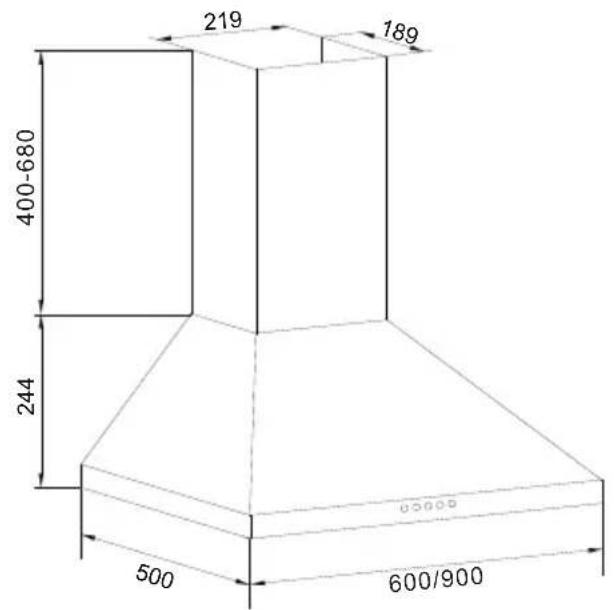

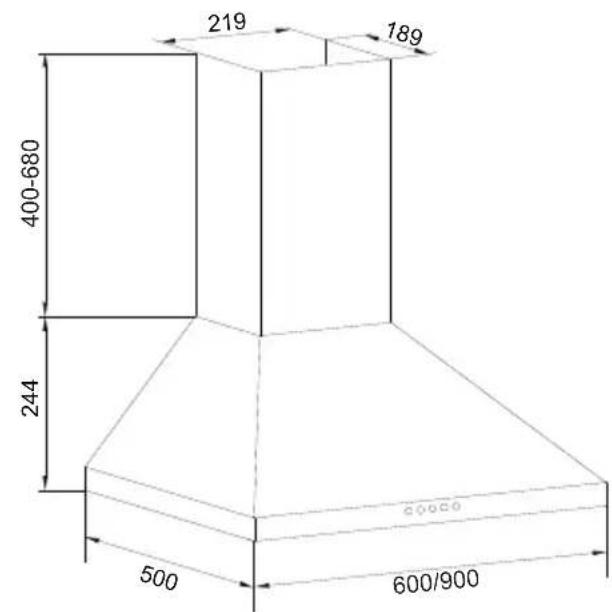

DIMENSIONS

INSTALLATION & USE

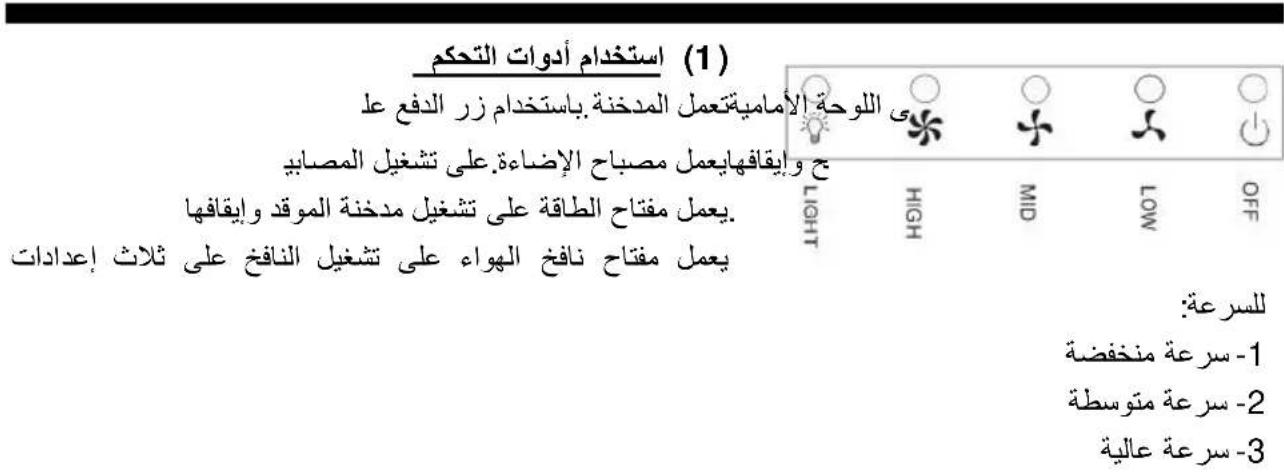

(1) OPERATION OF CONTROLS

The hood is operated using the push button on the front panel.

The light switch turns the lamps on and off. The power switch turns the range hood off.

The blower switch turns the blower on to three speed settings:

1 - LOW SPEED
2 - MEDIUM SPEED
3 - HIGH SPEED

(2) OPERATION OF CONTROLS

The hood is operated using the electronic switch on the front panel.

The power switch turns the range hood on and off.

The light switch turns the lamps on and off.

The blower switch turns the blower on to four speed settings.

Low speed show F1

Medium speed shows F2

High speed shows FC3

Booster shows P

The timer delay switch decides how long the hood stays on after switching off.

Grease Filters

The grease filters should be cleaned frequently. Use a warm detergent solution. Grease filters are washable.

See "INSTALL FILTERS" section for removal and installation instructions.

Non-Ducted Recirculation charcoal filter

The non-ducted recirculation charcoal filter should be changed every 6 months.

See "INSTALL FILTERS" section for removal and installation instructions.

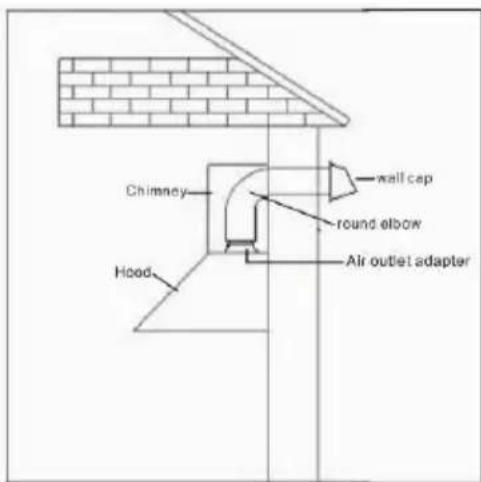

INSTALL THE DUCTWORK

(DUCTED HOODS ONLY)

Caution: To reduce the risk of fire, use metal ductwork is preferred.

1. Decide where the ductwork will run between the hood and the outside.

2. A straight, short duct run will allow the hood to perform most efficiently.

3. Long duct runs, elbows, and transitions

will reduce the performance of the hood. Use as few of them as possible. Larger ducting may be required for best performance with longer duct runs.

1. The air must not be discharge into a flue that is used for exhausting fumes from appliances burning gas or other fuels" "Regulations concerning the discharge of air have to be fulfilled.
2. Install wall cap. Connect round metal ductwork to cap and work back towards hood location. Use duct tape to seal the joints between ductwork sections.

INSTALL ELECTRICAL

Electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards. This range hood must be properly grounded. Turn off electrical power at service entrance before wiring.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard

INSTALL THE HOOD

Note 1: On stainless steel hoods, carefully remove the plastic protective film from all exterior surfaces of the hood and chimney prior to final installation.
Note 2: At least two people will be required to mount the hood.

INSTALL THE HOOD

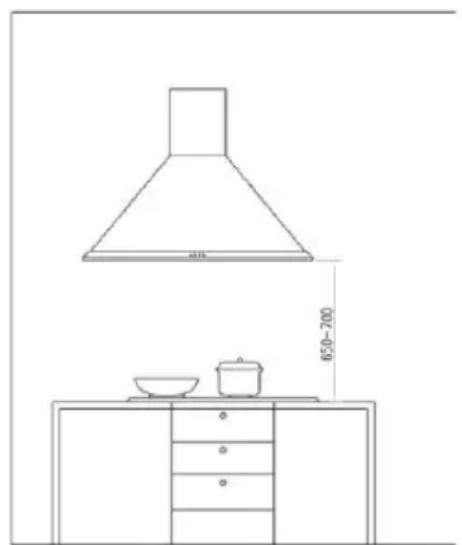

Minimum hood distance above the cooker must not be less than 650mm .

A maximum of 750mm above the cooker is highly recommended for best capture of cooking impurities.

Distance over 750mm above the cooker are at the installer's and user's discretion - providing that ceiling height and flue length permit.

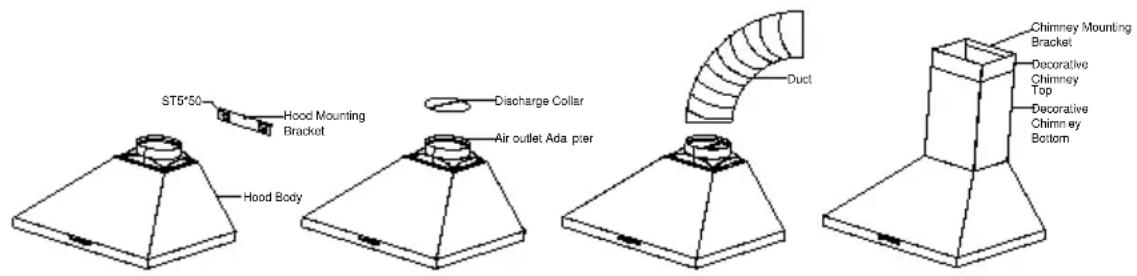

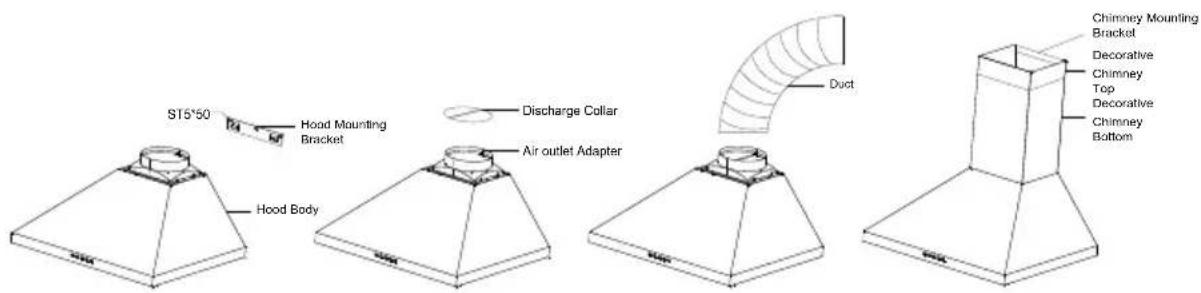

1. Secure the hood mounting bracket to the wall using (3) ST 5 × 45mm mounting

screws and dry wall anchors. Align the hood body with the hood mounting bracket. Gently lower the hood until it securely engages the bracket.

1. Fix the discharge collar into the air outlet adapter.
2. Attach an adequate length of 150mm round duct to the air outlet adapter.
3. Carefully slide the decorative chimney top down inside the decorative chimney bottom. Carefully place the decorative chimney bottom into the recessed area of the hood body top.
4. Secure the chimney mounting bracket to the wall using (2) ST 5 x 45mm mounting screws and dry wall anchors.
5. Raise the decorative chimney top until its holes align with holes in the chimney mounting bracket (located on the wall).
6. Level the hood and secure the chimney with 2 chimney bracket screws.
7. Fix the hood body with two screws from inside of body.

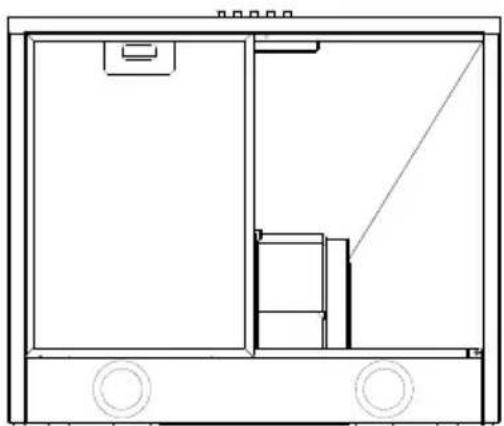

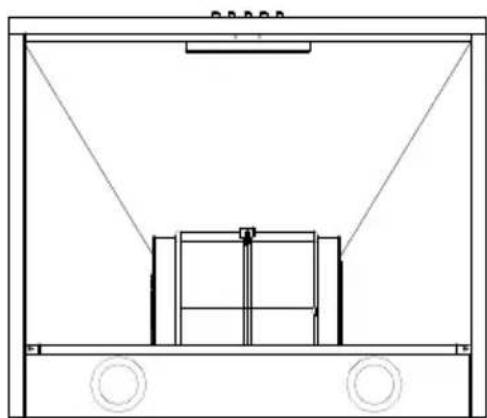

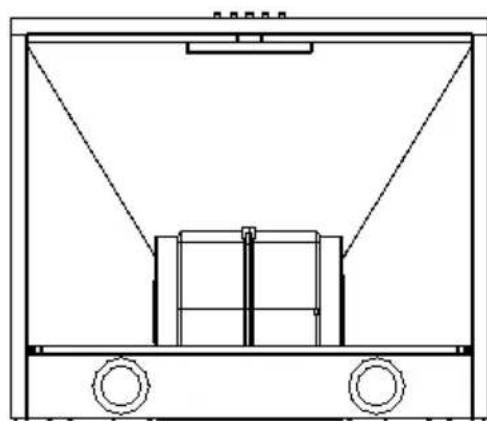

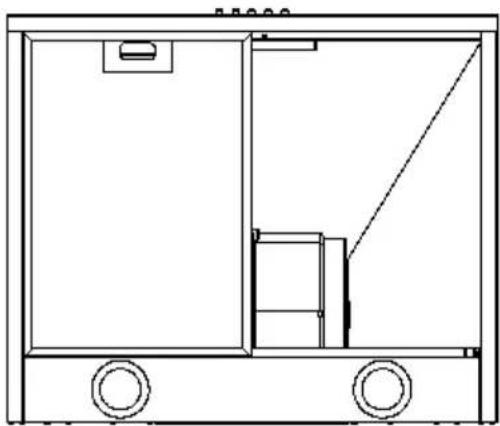

INSTALL FILTERS

1. To remove the grease filter, push in on the metal latch tab. This will disengage the filter from the hood. Tilt the filter downward and remove.
2. To install the grease filter, align rear filter tabs with slots in the hood. Push in the metal latch tab, push filter into position and release. Make sure the filter is securely engaged after assembly.

1. To install the charcoal filter, and lock it until the stop click is heard.

2. Install grease filter after charcoal filter is installed.
