USER MANUAL CI633CE14U CANDY

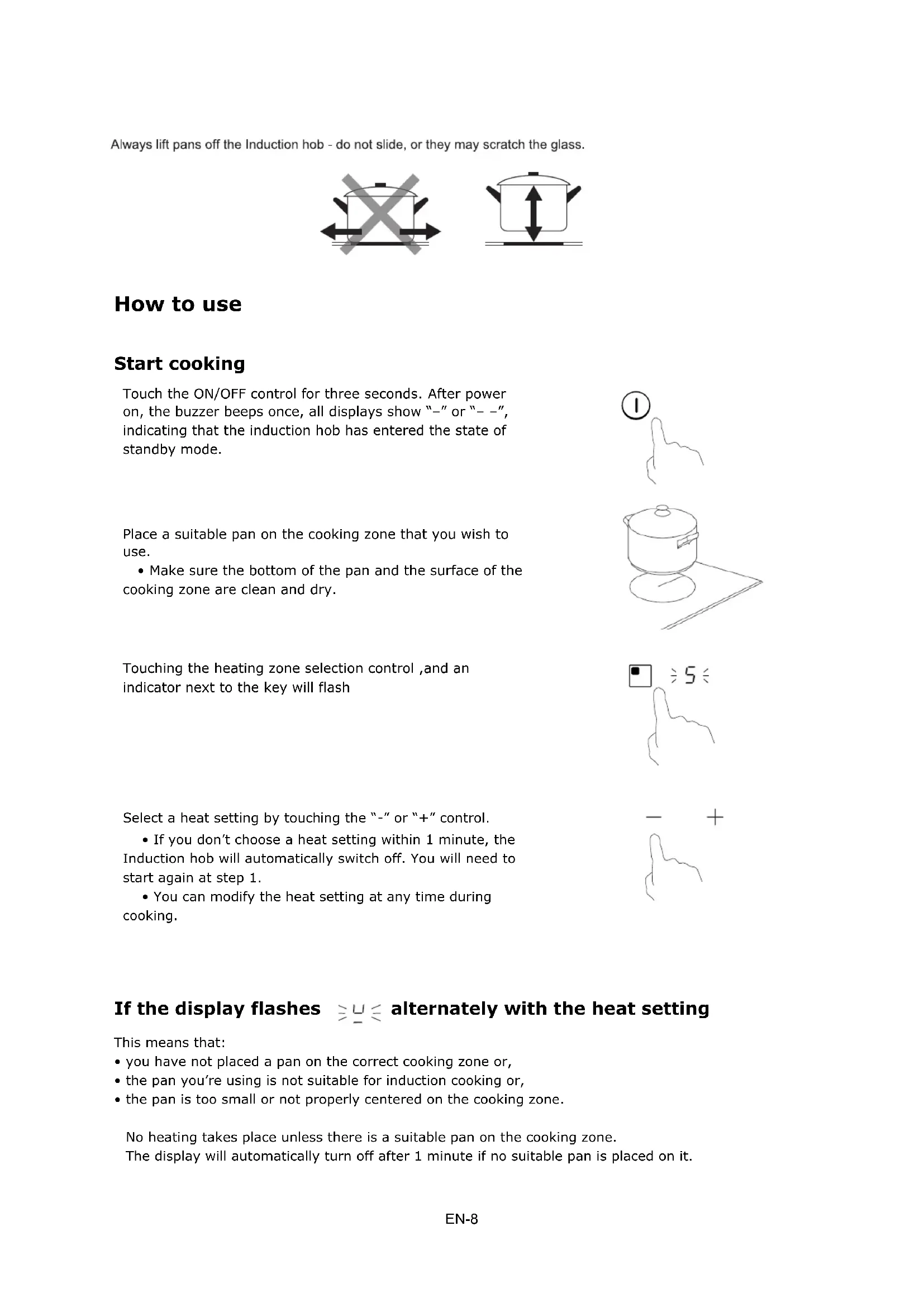

1. On/Off control2. Timer control3. Boost4. Heating zone selection controls5. Power / Timer regulating key6. Keylock control four EN-6EN-7How to use Start cooking Touch the ON/OFF control for three seconds. After power on, the buzzer beeps once, all displays show “–” or “– –”, indicating that the induction hob has entered the state of standby mode. Place a suitable pan on the cooking zone that you wish to use. • Make sure the bottom of the pan and the surface of thecooking zone are clean and dry. Touching the heating zone selection control ,and an indicator next to the key will flash Select a heat setting by touching the “-” or “+” control.

• If you don’t choose a heat setting within 1 minute, the Induction hob will automatically switch off. You will need to start again at step 1. • You can modify the heat setting at any time during cooking. If the display flashes alternately with the heat setting This means that:

• you have not placed a pan on the correct cooking zone or, • the pan you’re using is not suitable for induction cooking or, • the pan is too small or not properly centered on the cooking zone. No heating takes place unless there is a suitable pan on the cooking zone. The display will automatically turn off after 1 minute if no suitable pan is placed on it. EN-8Finish cooking Using the Boost function Touching the heating zone selection control that you wish to switch off Turn the cooking zone off by scrolling down to “0” or touching “-” and “+” control together. Make sure the display shows “0”. Turn the whole cooktop off by touching the ON/OFF control. Beware of hot surfaces H will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot.

Activate the boost function Touching the heating zone selection control. Touching the boost control , the zone indicator show “P” and the power reach Max. EN-9• The cooking zone returns to its original setting after 5 minutes.

• If the original heat setting equals 0, it will return to 9 after 5 minutes. Locking the Controls

• You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on).

• When the controls are locked, all the controls except the ON/OFF control are disabled. To lock the controls Touch the lock control The timer indicator will show “ Lo“ To unlock the controls Touch and hold the lock control for a while. When the hob is in the lock mode, all the controls are disable except the ON/OFF , you can always turn the induction hob off with the ON/OFF control in an emergency, but you shall unlock the hob first in the next operation. Cancel the Boost function Touching the "Boost" control or the “-” button to cancel the Boost function, then the cooking zone will revert to its original setting. Touching “-” and “+” control together. The cooking zone switch off and the boost function cancel automatically

EN-10Timer control You can use the timer in two different ways: a) You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up. b) You can set it to turn one or more cooking zones off after the set time is up. The timer of maximum is 99 min. a) Using the Timer as a Minute Minder Make sure the cooktop is turned on, if you are selecting a cooking zone Note: you can use the minute minder at least one zone shall be active. Select the zone by touching the heating zone selection control. When the zone is confirmed, touch the control of the timer. The minder indicator will start flashing and “10” will show in the timer display. Set the time by touching the “-” or “+” control of the timer Hint: Touch the “-” or “+” control of the timer once to decrease or increase by 1 minute. Touch and hold the “-” or “+” control of the timer to decrease or increase by 10 minutes. To cancel the minute minder Select the zone by touching the heating zone selection control. In a short time, touch the timer control. Touching the “-” and “+” together, the timer is cancelled, and the “00” will show in the minute display. When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator will flash for 5 seconds. Buzzer will beep for 30 seconds and the timer indicator shows “- -” when the setting time finished. EN-11b) Setting the timer to turn one cooking zone off Set one zone When cooking timer expires, the corresponding cooking zone will be switched off automatically. Other cooking zone will keep operating if they are turned on previously. The pictures shown above are for reference only, and the final product shall prevail. Touching the heating zone selection control that you want to set the timer for. (e.g. zone 3#) In short time, before the display stops flashing, touch the timer control. The minder indicator will start flashing and “10” will show in the timer display. Set the time by touching the ”–“ or “+” control of the timer Hint: Touch the “-” or “+” control of the timer once will decrease or increase by 1 minute. Touch and hold the “-” or “+” control of the timer will decrease or increase by 10 minutes. To cancel the timer Select the zone by touching the heating zone selection control. In a short time, touch the timer control. Touching the “-” and “+” together, the timer is cancelled, and the “00” will show in the minute display. When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator flash for 5 seconds. NOTE: The red dot next to power level indicator will illuminate indicating that zone is selected. EN-12Power Management Function it is possible to set a maximum power absorption level for the induction hob, choosing up to different power ranges. induction hobs are able to limit themselves automatically in order to work at lower power, to avoid the risk of overloading. It is not necessary to put any pots on the heating zones. We suggest to start setting within 5 seconds after connecting the power. You need to enter the power setting mode within 60 seconds to enter Power Management Function. To enter Power Management Function

1. Please be noted that do not turn on the

hob. At this stage, press “Boost” and “Lock” at the same time. The “S” symbol will be displayed on zone #1.

2. Press “Lock” key.

The symbol “S” will be displayed on zone #1 and symbol “E” will be displayed on zone #2.

3. Press “Boost” and “Lock” keys at the same

time again. The symbol “S” will be displayed on zone #1, “E” will be displayed on zone #2, and “t” will be displayed on zone #3. At the same time, the current maximum power mode (7.2) will be displayed on the timer indicator. To switch to another level short press the “Boost” key Confirmation Power Management Function There are 6 power levels, from “7.2” to “2.5”. The timer indicator will show one of them. “7.2” : the maximum power is 7.2kW. “6.5” : the maximum power is 6.5kW. “5.5” : the maximum power is 5.5kW. “4.5” : the maximum power is 4.5kW. “3.5” : the maximum power is 3.5kW. “2.5” : the maximum power is 2.5kW. EN-13After the desired power setting mode is selected, please press “Lock” key When the timer indicator stops flickering, the power mode is set successfully. Exit Power Management Function After the setting, make sure to dis-connect the power and connect it again. Then the hob will be turned off.

EN-14You may have a number of different cooking vessels

1. This induction hob can identify a variety of cooking vessels, which you can test by

one of the following methods: Place the vessel on the cooking zone. If the corresponding cooking zone displays a power level, then the vessel is suitable. If “U” flashes, then the vessel is not suitable for use with the induction hob.

2. Hold a magnet to the vessel. If the magnet is attracted to the vessel is suitable for

use with the induction hob. NB: The base of the vessel must contain magnetic material. It must have flat bottom with a diameter according to the table 1 below.

3. Use only ferromagnetic cookwares made from enameled steel, cast iron or stainless

steel but compatible with induction

4. Use pans whose diameter of the ferromagnetic area (base of the pan) is in the range

of dimensions in the table below. (Table 1) - If you use smaller pots, performance could be affected - If you use pot with a diameter smaller than the one indicated in the table 1, pots may not be detected According to the dimension of the zone you can use pots of different diameters as picture below:

Iron oil frying Stainless steel Iron pan Iron kettle

Enamel stainless steel kettle Enamel cooking utesil Iron plate EN-155. If the ferromagnetic part covers only partially the base of the pan, only the ferromagnetic area will heat up, the rest of the base may not heat up a sufficient temperature for cooking.

6. If the ferromagnetic area is not homogeneous, but presents others material such as

aluminum this may affect the heating up and the pan detection. If the base of the pan is similar to the pictures below the pan could be not detected. The base diameter of induction cookware Cooking zone

Minimum(mm) Maximum(mm) The above may vary according to the size of the pan and the material it is made from.
