USER MANUAL CUTCE64EXDFN CANDY

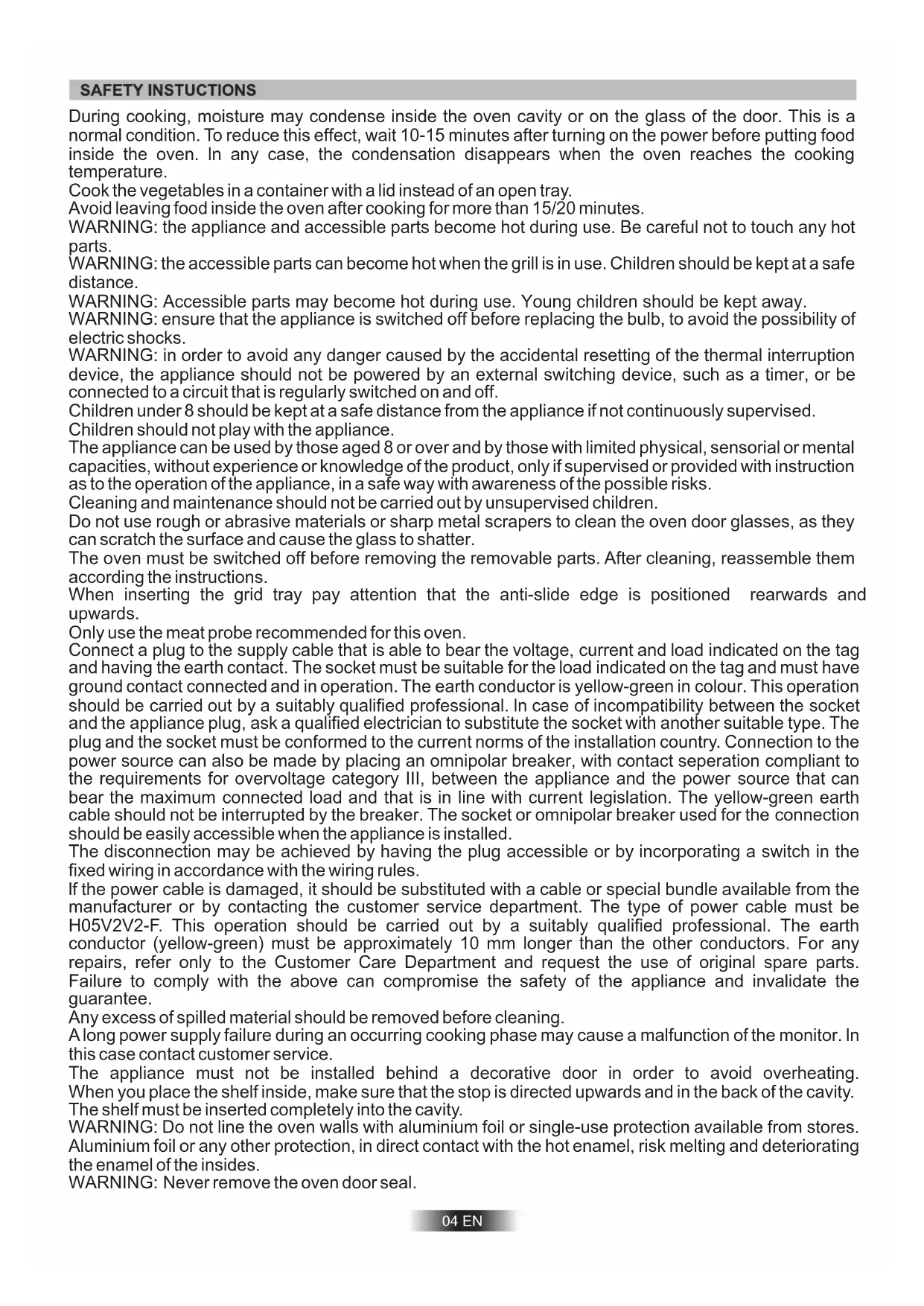

..............................................51During cooking, moisture may condense inside the oven cavity or on the glass of the door. This is a normal condition. To reduce this effect, wait 10-15 minutes after turning on the power before putting food inside the oven. ln any case, the condensation disappears when the oven reaches the cooking temperature. Cook the vegetables in a container with a lid instead of an open tray. Avoid leaving food inside the oven after cooking for more than 15/20 minutes.

WARNING: the appliance and accessible parts become hot during use. Be careful not to touch any hot

WARNING: the accessible parts can become hot when the grill is in use. Children should be kept at a safe

WARNING: Accessible parts may become hot during use. Young children should be kept away.

WARNING: ensure that the appliance is switched off before replacing the bulb, to avoid the possibility of

WARNING: in order to avoid any danger caused by the accidental resetting of the thermal interruption

device, the appliance should not be powered by an external switching device, such as a timer, or be connected to a circuit that is regularly switched on and off. Children under 8 should be kept at a safe distance from the appliance if not continuously supervised. Children should not play with the appliance. The appliance can be used by those aged 8 or over and by those with limited physical, sensorial or mental capacities, without experience or knowledge of the product, only if supervised or provided with instruction as to the operation of the appliance, in a safe way with awareness of the possible risks. Cleaning and maintenance should not be carried out by unsupervised children. Do not use rough or abrasive materials or sharp metal scrapers to clean the oven door glasses, as they can scratch the surface and cause the glass to shatter. The oven must be switched off before removing the removable parts. After cleaning, reassemble them according the instructions. When inserting the grid tray pay attention that the anti-slide edge is positioned rearwards and upwards. Only use the meat probe recommended for this oven. Connect a plug to the supply cable that is able to bear the voltage, current and load indicated on the tag and having the earth contact. The socket must be suitable for the load indicated on the tag and must have ground contact connected and in operation. The earth conductor is yellow-green in colour. This operation should be carried out by a suitably qualified professional. ln case of incompatibility between the socket and the appliance plug, ask a qualified electrician to substitute the socket with another suitable type. The plug and the socket must be conformed to the current norms of the installation country. Connection to the power source can also be made by placing an omnipolar breaker, with contact seperation compliant to the requirements for overvoltage category III, between the appliance and the power source that can bear the maximum connected load and that is in line with current legislation. The yellow-green earth cable should not be interrupted by the breaker. The socket or omnipolar breaker used for the connection should be easily accessible when the appliance is installed. The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules. lf the power cable is damaged, it should be substituted with a cable or special bundle available from the manufacturer or by contacting the customer service department. The type of power cable must be H05V2V2-F. This operation should be carried out by a suitably qualified professional. The earth conductor (yellow-green) must be approximately 10 mm longer than the other conductors. For any repairs, refer only to the Customer Care Department and request the use of original spare parts. Failure to comply with the above can compromise the safety of the appliance and invalidate the guarantee. Any excess of spilled material should be removed before cleaning. A long power supply failure during an occurring cooking phase may cause a malfunction of the monitor. ln this case contact customer service. The appliance must not be installed behind a decorative door in order to avoid overheating. When you place the shelf inside, make sure that the stop is directed upwards and in the back of the cavity. The shelf must be inserted completely into the cavity.

WARNING: Do not line the oven walls with aluminium foil or single-use protection available from stores.

Aluminium foil or any other protection, in direct contact with the hot enamel, risk melting and deteriorating the enamel of the insides.

WARNING: Never remove the oven door seal.

04 EN 04 ENCAUTION: Do not refill the cavity bottom with water during cooking or when the oven is hot. No additional operation/setting is required in order to operate the appliance at the rated frequencies. We recommend you keep the instructions for installation and use for later reference, and before installing the hob, note its serial number in case you need to get help from the after sales service.

WARNING: the appliance and its accessible parts become hot during use. Care should be taken to avoid

touching heating elements.

WARNING: use only hob guards designed by the Manufacturer of the cooking appliance or indicated by

the Manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

WARNING: unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER

try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

WARNING: danger of fire: do not store items on the cooking surfaces.

WARNING: if the surface is cracked, do not touch the glass and switch off the appliance to avoid the

possibility of electric shock. CAUTION: the cooking process must be supervised. A short term cooking process has to be supervised continuously. It is strongly recommended to keep children away from the cooking zones while they are in operation or when they are switched off, so long as the residual heat indicator is on, in order to prevent the risks of serious burns. This appliance is not intended to be operated by means of an external timer or separate remote control system. If present do not to stare into halogen lamp hob elements. Do not put metallic objects such as knives, forks, spoons or lids on the hob. They could heat up. Aluminum foil and plastic pans must not be placed on heating zones. After every use, some cleaning of the hob is necessary to prevent the build-up of dirt and grease. If left, this is recooked when the hob is used and burns giving off smoke and unpleasant smells, not to mention the risks of fire propagation. Never use a steam or high pressure spray to clean the appliance. Do not touch the heat zones during operation or for a while after use. Never cook food directly on the glass ceramic hob. Always use the appropriate cookware.Always place the pan in the center of the unit that you are cooking on. Do not place anything on control panel. Do not use the hob as a working surface. Do not use the surface as a cutting board. Do not store heavy items above the hob. If they drop onto the hob, they may cause damage. Do not use the hob for storage of any items. Do not slide cookware across the hob. 05 EN 05 EN• The oven must be used only for the purpose for which it was designed: it must only be used for cooking food. Any other use, e.g. as a form of heating, is an improper use of the oven and is therefore dangerous.

• The manufacturers cannot be held responsible for any damage caused by improper, incorrect or unreasonable use. When using any electrical appliance you must follow a few basic rules. - Do not pull on the power cable to remove the plug from the socket. - Do not touch the oven with wet or damp hands or feet. - Do not use the oven unless you are wearing something on your feet. - It is not generally a good idea to use adapters, multiple sockets for several plugs and cable extensions. - If the oven breaks down or develops a fault switch it off at the mains and do not touch it.

• If the cable is at all damaged it must be replaced promptly. When replacing the cable, follow these instructions. Remove the power cable and replace it with one of the H05V2V2-F type. The cable must be able to bear the electrical current required by the oven. Cable replacement must be carried out by properly qualified technicians. The earthing cable (yellow-green) must be 10 mm longer than the power cable. Use only an approved service centre for repairs and ensure that only original parts are used. If the above instructions are not adhered to the manufacturers cannot guarantee the safety of the oven. 06 EN07 EN 1800W / ø195 1800W / ø195 1200W / ø155 1200W / ø155 Vitroceramic Surface Figure 3(Version 1) 1500W + 900W ø180 1200W / ø155 1200W / ø155 1000W + 700W / ø190 1600W + 800W ø180 1200W / ø155 1200W / ø155 1000W + 700W / ø190 Figure 4(Version 2) (Version 3) Version 1 Version 1 Model CUTC64 CUTC64FF Version 2 Version 2 CUTCE64EXFDF CUTCE64EXDFN Version 3 Version 3 CUTC64EXDNF CUTC64EXDFF CUTCE64 CUTCE64FF08 EN09 ENConnection to the electrical circuit on glass ceramic hob shall be made only via the oven. To proceed with the connection, it is necessary to joint male connectors 1 and 2 of the hob with the “female” connectors 3 of the oven or of the control panel. 10 EN 550x10 mm

%XOWLQRYHQDSHUWXUHV min 22 mm H05V2V2F H05V2V2F H05V2V2F11 EN12 ENResistance of the vitroceramic glass to heat and extreme changes of temperature is very high. A redness will be noticed on the heated surface with time. When any heating unit is run, you may hear a weak sound; this is normal and it has to do with the technical structure of the system. It does not pose any problems in terms of quality. In case sharpedged pots should rub against or roughly placed on the vitroceramic glass, the sur face may become damaged. It is recommended that you pay attention to this. 13 EN This function allows to cook in a healthier way, by reducing the amount of fat or oil required. The combination of heating elements with a pulsating cycle of air ensures a perfect baking result.

1.4 MISE EN PLACE DU FOUR DANS SON MEUBLE
