USER MANUAL KDCX501 KENWOOD

This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material—special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate Informação sobre a eliminação de pilhas Este produto não deve ser eliminado como lixo doméstico geral. Devolva a pilha usada ao revendedor ou entidade autorizada para que a mesma seja devolvida ao fabricante ou importador. A reciclagem e a eliminação de lixo de maneira apropriada ajudarão a conservar os recursos naturais ao mesmo tempo que prevenirão os efeitos prejudicais à nossa saúde e ao meio ambiente. FCC WARNING This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. FCC NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment may cause harmful interference to radio communications, if it is not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. In compliance with Federal Regulations, following are reproductions of labels on, or inside the product relating to laser product safety. JVC KENWOOD Corporation 2967-3, ISHIKAWA-MACHI,

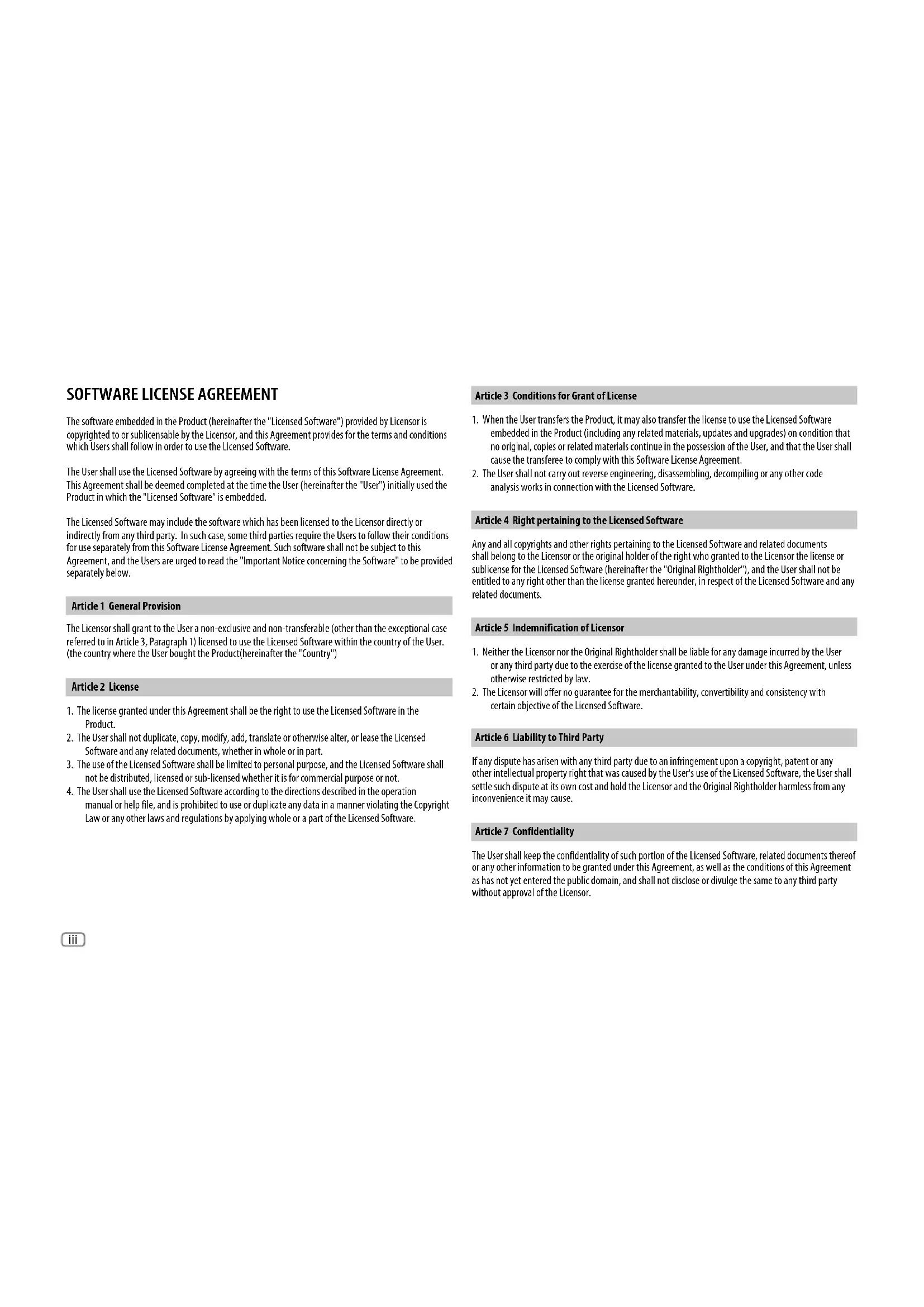

The software embedded in the Product (hereinafter the "Licensed Software") provided by Licensor is copyrighted to or sublicensable by the Licensor, and this Agreement provides for the terms and conditions which Users shall follow in order to use the Licensed Software. The User shall use the Licensed Software by agreeing with the terms of this Software License Agreement. This Agreement shall be deemed completed at the time the User (hereinafter the "User") initially used the Product in which the "Licensed Software" is embedded. The Licensed Software may include the software which has been licensed to the Licensor directly or indirectly from any third party. In such case, some third parties require the Users to follow their conditions for use separately from this Software License Agreement. Such software shall not be subject to this Agreement, and the Users are urged to read the "Important Notice concerning the Software" to be provided separately below. Article 1 General Provision The Licensor shall grant to the User a non-exclusive and non-transferable (other than the exceptional case referred to in Article 3, Paragraph 1) licensed to use the Licensed Software within the country of the User. (the country where the User bought the Product(hereinafter the "Country") Article 2 License

1. The license granted under this Agreement shall be the right to use the Licensed Software in the

Software and any related documents, whether in whole or in part.

3. The use of the Licensed Software shall be limited to personal purpose, and the Licensed Software shall

not be distributed, licensed or sub-licensed whether it is for commercial purpose or not.

4. The User shall use the Licensed Software according to the directions described in the operation

manual or help file, and is prohibited to use or duplicate any data in a manner violating the Copyright Law or any other laws and regulations by applying whole or a part of the Licensed Software. Article 3 Conditions for Grant of License

1. When the User transfers the Product, it may also transfer the license to use the Licensed Software

embedded in the Product (including any related materials, updates and upgrades) on condition that no original, copies or related materials continue in the possession of the User, and that the User shall cause the transferee to comply with this Software License Agreement.

2. The User shall not carry out reverse engineering, disassembling, decompiling or any other code

analysis works in connection with the Licensed Software. Article 4 Right pertaining to the Licensed Software Any and all copyrights and other rights pertaining to the Licensed Software and related documents shall belong to the Licensor or the original holder of the right who granted to the Licensor the license or sublicense for the Licensed Software (hereinafter the "Original Rightholder"), and the User shall not be entitled to any right other than the license granted hereunder, in respect of the Licensed Software and any related documents. Article 5 Indemnification of Licensor

1. Neither the Licensor nor the Original Rightholder shall be liable for any damage incurred by the User

or any third party due to the exercise of the license granted to the User under this Agreement, unless otherwise restricted by law.

2. The Licensor will offer no guarantee for the merchantability, convertibility and consistency with

certain objective of the Licensed Software. Article 6 Liability to Third Party If any dispute has arisen with any third party due to an infringement upon a copyright, patent or any other intellectual property right that was caused by the User's use of the Licensed Software, the User shall settle such dispute at its own cost and hold the Licensor and the Original Rightholder harmless from any inconvenience it may cause. Article 7 Confidentiality The User shall keep the confidentiality of such portion of the Licensed Software, related documents thereof or any other information to be granted under this Agreement, as well as the conditions of this Agreement as has not yet entered the public domain, and shall not disclose or divulge the same to any third party without approval of the Licensor. JS_KWD_KDC_X701_KN_S_4.indd iiiJS_KWD_KDC_X701_KN_S_4.indd iii 11/14/2016 8:39:14 AM11/14/2016 8:39:14 AMiv Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Article 8 Termination In case the User falls under any of the events described in the following items, the Licensor may immediately terminate this Agreement or claim that the User compensates for the damage incurred by the Licensor due to such event: (1) when the User violated any provision of this Agreement; or (2) when a petition has been filed against the User for an attachment, provisional attachment, provisional disposition or any other compulsory execution. Article 9 Destruction of the Licensed Software If this Agreement is terminated pursuant to the provision of Article 8, the User shall destroy the Licensed Software, any related documents and copies thereof within two (2) weeks from such date of termination. Article 10 Protection of Copyright 1. The copyright and all the other intellectual property rights relating to the Licensed Software shall belong to the Licensor and the Original Rightholder, and in no event shall they be under the ownership of the User.

2. The User shall, whenever it uses the Licensed Software, comply with any laws relating to the copyright and other

intellectual property rights. Article 11 Export Restriction

1. It is prohibited to export the Licensed Software and any related documents outside the country of the User (including

transmission thereof outside the country of the User via Internet of other communication tools). 2. The User shall understand that the Licensed Software shall be subject to the export restrictions adopted by the country of User and any other countries. 3. The User shall agree that the software will be subject to any and all applicable international and domestic laws (including the export control regulation of the country of User and any other countries, and any restrictions concerning the end-users, the use by end-users and importing countries to be provided by the country of User and any other countries, and any other governmental authorities). Article 12 Miscellaneous 1. In the event any part of this Agreement is invalidated by operation of law, the residual provisions shall continue in force. 2. Matters not stipulated in this Agreement or any ambiguity or question raised in the construction of this Agreement shall be provided or settled upon good-faith consultation between the Licensor and the User. 3. The Licensor and the User hereby agree that this Agreement is governed by the laws of Japan, and any dispute arising from, and relating to the rights and obligations under, this Agreement shall be submitted to the exclusive jurisdiction of the Tokyo District Court for its first instance. Important Notice concerning the Software -jansson Copyright (c) 2009-2012 Petri Lehtinen <petri@digip.org> Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. JS_KWD_KDC_X701_KN_S_4.indd ivJS_KWD_KDC_X701_KN_S_4.indd iv 11/14/2016 8:39:14 AM11/14/2016 8:39:14 AMData Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm)

To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warning and Caution in this manual.

Please keep the manual in a safe and accessible place for future reference. WARNING

Do not operate any function that takes your attention away from safe driving.

Do not ingest the battery, Chemical Burn Hazard The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. Caution Volume setting:

Adjust the volume so that you can hear sounds outside the car to prevent accidents.

Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level. General:

Avoid using the external device if it might hinder safe driving.

Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.

Never put or leave any metallic objects (such as coins or metal tools) inside the unit to prevent a short circuit.

If a disc error occurs due to condensation on the laser lens, eject the disc and wait for the moisture to evaporate.

USB rating for the USB cables from the rear of the unit is indicated on a label. ( 37)

Depending on the types of cars, the antenna will automatically extend when you turn on the unit with the antenna control wire connected ( 37) . Turn off the unit or change the source to STANDBY when parking at a low ceiling area. Remote control (RC-406):

Do not leave the remote control in hot places such as on the dashboard.

The Lithium battery is in danger of explosion if replaced incorrectly. Replace it only with the same or equivalent type.

The battery pack or batteries shall not be exposed to excessive heat such as sunshine, fire or the like. How to read this manual

Operations are explained mainly using buttons on the faceplate of .

English indications are used for the purpose of explanation. You can select the display language from the [FUNCTION] menu. ( 5)

[XX] indicates the selected items.

( XX) indicates references are available on the stated page. CONTENTS BEFORE USE 2 BASICS 3 GETTING STARTED 4 1 Select the display language and cancel the demonstration 2 Set the clock and date 3 Set the initial settings HD Radio

BASICS To On the faceplate On the remote control Turn on the power Press

• Press and hold to turn off the power.

Press and hold SRC to turn off the power. ( Pressing SRC does not turn on the power. ) Adjust the volume Turn the volume knob. Press or .

• Press and hold to continuously increase the volume to 15. Press ATT during playback to attenuate the sound.

• Press again to cancel. Select a source Press repeatedly. Press SRC repeatedly. Change the display information Press DISP repeatedly. ( 33) ( Not available )

For : The power will automatically turn off after 20minutes when in standby mode (Auto Power Off). Faceplate How to resetAttach Detach Remote control (RC-406) (supplied for / ) ENGLISH Display window Pull out the insulation sheet when using for the first time. How to replace the battery Remote sensor (Do not expose to bright sunlight.) Volume knob Detach button / : Can be remotely controlled with an optionally purchased remote control. : Remote control functions are not available. Flashes when the unit enters searching status. Lights up when Bluetooth connection is established. ( 17) USB 1 cable from the rear of the unit. (For

USB 2 cable from the rear of the unit. Auxiliary cable from the rear of the unit. JS_KWD_KDC_X701_KN_EN_4.indd 3JS_KWD_KDC_X701_KN_EN_4.indd 3 11/14/2016 8:41:36 AM11/14/2016 8:41:36 AM4 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) GETTING STARTED Select the display language and cancel the demonstration When you turn on the power for the first time (or [FACTORY RESET] is set to [YES]

), the display shows: “SEL LANGUAGE” “PRESS” “VOLUME KNOB” 1 Turn the volume knob to select [ENG] (English) or [SPA] (Spanish), then press the knob. [ENG] is selected for the initial setup. (For

Then, the display shows: “CANCEL DEMO” “PRESS” “VOLUME KNOB”. 2 Press the volume knob. [YES] is selected for the initial setup. 3 Press the volume knob again. “DEMO OFF” appears. Set the clock and date

Press repeatedly to enter STANDBY. 2 Press the volume knob to enter [FUNCTION]

3 Turn the volume knob to select an item (see the following table), then press the knob. 4 Repeat step 3 until the desired item is selected or activated. 5 Press and hold to exit. To return to the previous setting item, press . Default:

:ZONE 1 illumination changes to white color.; OFF :ZONE 1 illumination remains as [COLOR SELECT] color. ( 28)

ZONE 2 illumination changes to white color when you enter [FUNCTION] , irregardless of the [EASY MENU] setting.

Refer to the illustration on page 27 for ZONE identification. TUNER SETTING PRESET TYPE NORMAL :Memorizes one station for each preset button in each band (FM1/FM2/FM3/AM).; MIX :Memorizes one station or SiriusXM channel for each preset button, regardless of the selected band or SiriusXM channel.

: Automatically distinguishes between audio file disc and music CD. ;

: Forces to play as a music CD. No sound can be heard if an audio file disc is played.

Vxx YES :Starts upgrading the firmware.;

:Cancels (upgrading is not activated). For details on how to update the firmware, visit <www.kenwood.com/cs/ce/>.

:Resets the settings to default (except the stored station).;

:Cancels. CLOCK CLOCK DISPLAY (For / / /

:The clock time is shown on the display even when the unit is turned off.; OFF :Cancels. ENGLISH Select the display language for [FUNCTION] menu and music information if applicable. By default, [ENGLISH] is selected. ESPANOL Register the marine remote ID (for ) Applicable only when you connect Kenwood Marine Remote Control unit (KCA-RC55MR, optional accessory) to this unit.

• For connection, 37, Wiring connection

• Refer also to the supplied instruction manual of the Kenwood Marine Remote Control unit for more information. Preparation: Press repeatedly to enter STANDBY, then press the volume knob to enter [FUNCTION]. 1 Turn the volume knob to select an item, then press the knob. [SYSTEM]

Remote control ID list is displayed.

[YES] indicates that this ID is already registered.

[NO] indicates that this ID is available. 2 Turn the volume knob to select an available ID [REMOTE ID1]

“REGISTERING” appears on the display window. To register, on the Kenwood Marine Remote Control unit:

• Press ENTER to register as [REMOTE ID1]

• Press SRC to register as [REMOTE ID2]

• Press DISP to register as [REMOTE ID3]

Once the ID is registered, “COMPLETED” appears. To delete the registered ID 1 Turn the volume knob to select an item, then press the knob. [SYSTEM]

2 Turn the volume knob to select the ID to delete [ ID1 DELETE]

ID3 DELETE] , then press the knob. 3 Turn the volume knob to select [YES] to delete the selected ID, and select [NO] to cancel.

Press repeatedly to select HD RADIO. 2 Press repeatedly (or press / on the remote control) to select FM1/FM2/FM3/AM. 3 Press S/T (or press S/ on the remote control) to search for a station or channel.

• To change the searching method for S/T: Press repeatedly. AUTO1 : Automatically search for a station or channel. AUTO2 : Search for a preset station or channel. MANUAL : Manually search for a station or channel.

• To store a station or channel: Press and hold one of the number buttons (1to6).

• To select a stored station or channel: Press one of the number buttons (1to6) (or press one of the number buttons (1to6) on the remote control). Direct Access Tuning (using the remote control) 1 Press DIRECT to enter Direct Access Tuning. 2 Press the number buttons to enter a frequency. 3 Press to search for a station or channel.

• To cancel, press or DIRECT.

• If no operation is done for 10seconds after step 2, Direct Access Tuning is automatically canceled. You can tune in to both conventional and HD Radio broadcasts.

• To find HD Radio stations in your area, visit <http://www.hdradio.com>. Select an HD Radio multicast channel Many HD Radio stations offer more than one channel programming. This service is called multicasting. While receiving HD Radio multicast channels.... Press S/T to select your desired channel (HD1 to HD8). “LINKING” appears while linking to a multicast channel. Receive an Emergency Alert message You can receive an emergency alert message while listening to another source or while in STANDBY, via HD Radio Broadcast. Activate emergency alert message reception

Receive an emergency alert message When an emergency alert message is received, it appears and remains on the display until the user performs the “Ignore” function.

• Press (or press SRC on the remote control) to ignore the alert message. The same emergency alert message will not interrupt again for 12 hours. Display received emergency alert messages The received emergency alert messages are stored in the Alert Message List, and you can check them later. While listening to the HD RADIO source... 1 Press to display the Alert Message List. 2 Turn the volume knob to select a message. ENGLISH JS_KWD_KDC_X701_KN_EN_4.indd 6JS_KWD_KDC_X701_KN_EN_4.indd 6 11/14/2016 8:41:38 AM11/14/2016 8:41:38 AMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) RADIO (for / / ) Search for a station

Press repeatedly to select TUNER. 2 Press repeatedly (or press / on the remote control) to select FM1/FM2/FM3/AM. 3 Press S/T (or press S/ on the remote control) to search for a station.

• To change the searching method for S/T: Press repeatedly. AUTO1 : Automatically search for a station. AUTO2 : Search for a preset station. MANUAL : Manually search for a station.

• To store a station: Press and hold one of the number buttons (1to6).

• To select a stored station: Press one of the number buttons (1to6) (or press one of the number buttons (1to6) on the remote control). Direct Access Tuning (using the remote control) 1 Press DIRECT to enter Direct Access Tuning. 2 Press the number buttons to enter a frequency. 3 Press to search for a station.

• To cancel, press or DIRECT.

• If no operation is done for 10seconds after step 2, Direct Access Tuning is automatically canceled. HD Radio™ tuner (for / ) 3 Press the volume knob to display the information related to the message. 4 Press again to exit.

• “NO LIST” appears when the list is empty.

• This feature can store up to four messages in the list.

2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press and hold to exit. To return to the previous setting item, press . Default:

TUNER SETTING IF BAND AUTO :Increases the tuner selectivity to reduce interference noises from adjacent FM stations. (Stereo effect may be lost.); WIDE :Subjects to interference noises from adjacent FM stations, but sound quality will not be degraded and the stereo effect will remain.

:Automatically starts memorizing 6 stations with good reception.;

Selectable only if [NORMAL] is selected for [PRESET TYPE]

( 4) RECEIVE MODE Sets the receive mode of the HD Radio receiver. AUTO :Automatically tunes to analog broadcast when there is no digital broadcast.; DIGITAL :Tunes in to digital broadcast only.; ANALOG :Tunes in to analog broadcast only. CLOCK TIME SYNC

:Synchronizes the unit’s time to the Radio Broadcast Data System station time.; OFF :Cancels. JS_KWD_KDC_X701_KN_EN_4.indd 7JS_KWD_KDC_X701_KN_EN_4.indd 7 11/14/2016 8:41:39 AM11/14/2016 8:41:39 AM8 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Other settings

Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press and hold to exit. To return to the previous setting item, press . Default:

TUNER SETTING AUTO MEMORY YES :Automatically starts memorizing 6 stations with good reception.;

Selectable only if [NORMAL] is selected for [PRESET TYPE]

:Improves the FM reception, but the stereo effect may be lost.; OFF :Cancels. TI ON :Allows the unit to temporarily switch to Traffic Information if available (“TI” lights up).; OFF :Cancels. PTY SEARCH Select the available Program Type (see the following), then press

:Synchronizes the unit’s time to the Radio Broadcast Data System station time.; OFF :Cancels. RADIO (for / / ) Available Program Type for [PTY SEARCH] SPEECH

REL TALK (religious talk), PERSNLTY (personality), PUBLIC

HABL ESP (spanish talk), WEATHER MUSIC

CLASSICL (classical), R & B (rhythm and blues),

(soft rhythm and blues), REL MUSC (religious music), MUSC ESP (spanish music), HIP HOP The unit will search for the Program Type categorized under [SPEECH]

[MUSIC] if selected.

[PTY SEARCH] is selectable only when the band is FM1/FM2/FM3.

• If the volume is adjusted during reception of traffic information, the adjusted volume is memorized automatically. It will be applied the next time traffic information is turned on. ENGLISH JS_KWD_KDC_X701_KN_EN_4.indd 8JS_KWD_KDC_X701_KN_EN_4.indd 8 11/14/2016 8:41:39 AM11/14/2016 8:41:39 AMENGLISH

Reverse/Fast-forward

Press repeatedly. TRACK REPEAT

Press repeatedly. DISC RANDOM

When connecting an Android device, “Press [VIEW] to install KENWOOD MUSIC PLAY APP” is shown. Follow the instructions to install the application. You can also install the latest version of KENWOOD MUSIC PLAY application on your Android device before connecting. For more information, visit <www.kenwood.com/cs/ce/>.

For ANDROID: Applicable only when [BROWSE MODE] is selected. ( 10)

For CD: Only for MP3/WMA/AAC files. This does not work for iPod/ANDROID.

[BROWSE MODE] is selected. ( 10)

For CD: Only for MP3/WMA/AAC files. Selectable source:

Do not leave the cable inside the car when not using. CA-U1EX (max.: 500mA) (optional accessory) Micro USB 2.0 cable

(commercially available) KCA-iP102/KCA-iP103 (optional accessory)

or accessory of the iPod/iPhone

You can also connect to the USB 2 cable from the rear of the unit (USB input terminal).

Eject disc JS_KWD_KDC_X701_KN_EN_4.indd 9JS_KWD_KDC_X701_KN_EN_4.indd 9 11/14/2016 8:41:39 AM11/14/2016 8:41:39 AM10 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) CD/USB/iPod/ANDROID Select control mode While in iPod 1/iPod 2/iPodUSB source, press 5 repeatedly. MODE ON : Control iPod using the iPod itself. However, you can still play/ pause, file skip, fast-forward or reverse from this unit. MODE OFF : Control iPod from this unit. While in ANDROID 1/ANDROID 2/ANDROID source, press 5 repeatedly. BROWSE MODE : Control Android device from this unit via KENWOOD MUSIC PLAY application installed in the Android device. HAND MODE : Control Android device using the Android device itself via other media player applications installed in the Android device. However, you can still play/pause and file skip from this unit. Select music drive While in USB 1/USB 2/USB source, press 5 repeatedly. Stored songs in the following drive will be played back.

• Selected internal or external memory of a smartphone (Mass Storage Class).

• Selected drive of a multiple drives device. Listen to TuneIn Radio/TuneIn Radio Pro/Aupeo While listening to TuneIn Radio, TuneIn Radio Pro or Aupeo, connect the iPod/iPhone to the USB input terminal of the unit.

• The unit will output the sound from these applications. Select a file from a folder/list For iPod/ANDROID, applicable only when [MODE OFF]

selected. 1 Press . 2 Turn the volume knob to select a folder/list, then press the knob. 3 Turn the volume knob to select a file, then press the knob. Quick Search (applicable only for CD, USB 1, USB 2, USB, ANDROID 1, ANDROID 2 and ANDROID source) If you have many files, you can search through them quickly. Turn the volume knob quickly to browse through the list quickly. Skip Search (applicable only for iPod 1, iPod 2, iPod USB, ANDROID 1, ANDROID 2 and ANDROID source) Press S/T to search at a preset skip search ratio. ( 11, [SKIP SEARCH])

• Pressing and holding S/T searches at a 10

ratio. Alphabet search (applicable only for iPod 1, iPod 2, iPod USB, ANDROID 1, ANDROID 2 and ANDROID source) You can search for a file according to the first character. For iPod 1/iPod 2/iPod USB source 1 Turn the volume knob quickly to enter character search. 2 Turn the volume knob to select the character.

” to search for a character other than AtoZ, 0to9. 3 Press S/T to move to the entry position.

: Character other than AtoZ, 0to9 3 Press the volume knob to start searching.

• Not available if Random Play is selected.

• Not applicable for iPod 1, iPod 2, iPodUSB, ANDROID 1, ANDROID 2 and ANDROID source. Settings to use KENWOOD Remote application KENWOOD Remote application is designed to control the KENWOOD car receiver’s operations from the iPhone/iPod (via USB input terminal). Preparation: Install the latest version of KENWOOD Remote application on your device before connecting. For more information, visit <www.kenwood.com/cs/ce/>. You can make the settings in the same way as connection via Bluetooth. ( 23) Other settings

Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press and hold to exit. To return to the previous setting item, press . Default:

:The next drive ( [DRIVE 1]

[DRIVE 4] ) is selected automatically and playback starts. Repeat steps

to select the following drives. SKIP SEARCH 0.5%

Connect a portable audio player (commercially available).

2 Press repeatedly to select AUX. 3 Turn on the portable audio player and start playback. Set the AUX name While listening to a portable audio player connected to the unit... 1 Press the volume knob to enter [FUNCTION]

5 Press and hold to exit. To return to the previous setting item, press . 3.5mm (1/8") stereo mini plug with “L” shaped connector (commercially available) Portable audio player Auxiliary cable from the rear of the unit JS_KWD_KDC_X701_KN_EN_4.indd 11JS_KWD_KDC_X701_KN_EN_4.indd 11 11/14/2016 8:41:40 AM11/14/2016 8:41:40 AM12 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Pandora® Preparation: Install the latest version of the Pandora application on your device (iPhone/ iPod touch), then create an account and log in to Pandora.

• Select [ON] for [PANDORA SRC]

Open the Pandora application on your device. 2 Connect your device to the USB input terminal. 3 Press repeatedly to select PANDORA 1/PANDORA 2/PANDORA. Broadcast starts automatically. To On the faceplate On the remote control Playback/pause Press . Press

Skip a track Press T. Press

Thumbs up or thumbs down

Do not leave the cable inside the car when not using.

If thumbs down is selected, the current track is skipped. KCA-iP102/KCA-iP103 (optional accessory)

accessory of the iPod/iPhone

Create and save a new station

[FROM TRACK] , then press the knob. A new station is created based on the artist or current song. 4 Press and hold one of the number buttons (1to5) to store. To select a stored station: Press one of the number buttons (1to5). Search for a registered station

: According to the registered date

: By alphabetical order 3 Turn the volume knob (or press J / K on the remote control) to select the desired station. 4 Press the volume knob (or press on the remote control) to confirm. To cancel, press and hold

Bookmark current song information Press and hold the volume knob. “BOOKMARKED” appears and the information is stored to your device.

• The bookmark is available on your Pandora account but not on this unit. ENGLISH / : You can also connect to the USB 2 cable from the rear of the unit. USB 1 cable from the rear of the unit. JS_KWD_KDC_X701_KN_EN_4.indd 12JS_KWD_KDC_X701_KN_EN_4.indd 12 11/14/2016 8:41:40 AM11/14/2016 8:41:40 AMENGLISH

, then press the knob. 4 Turn the volume knob to select the desired station to delete, then press the knob. 5 Turn the volume knob to select [YES] , then press the knob. 6 Press and hold to exit. To return to the previous setting item, press . Pandora® iHeartRadio® Preparation: Install the latest version of iHeartAuto application on your device (iPhone/iPod touch), then create an account and log in to iHeartRadio.

• Select [ON] for [IHEART SRC]

Open the iHeartAuto application on your device. 2 Connect your device to the USB input terminal. 3 Press repeatedly to select IHEARTRADIO 1/IHEARTRADIO 2/IHEARTRADIO. Broadcast starts automatically. To On the faceplate On the remote control Playback/pause Press . Press

Skip a track for custom station Press T. Press

Thumbs up or thumbs down Press J/K. ( Not available ) Create a new/custom station Press 1. ( Not available ) Scan for live station

Press 2 to start scanning.

Press 2 again to listen to the station. ( Not available )

Do not leave the cable inside the car when not using. KCA-iP102/KCA-iP103 (optional accessory)

or accessory of the iPod/iPhone

/ : You can also connect to the USB 2 cable from the rear of the unit. USB 1 cable from the rear of the unit. JS_KWD_KDC_X701_KN_EN_4.indd 13JS_KWD_KDC_X701_KN_EN_4.indd 13 11/14/2016 8:41:40 AM11/14/2016 8:41:40 AM14 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Search and store a station

Press . 2 Turn the volume knob to select a category, then press the knob. 3 Turn the volume knob (or press J / K on the remote control) to select the desired station. 4 Press the volume knob (or press on the remote control) to confirm. When a city list appears, you can search cities in alphabetical order by turning the volume knob quickly. To cancel, press and hold

To store a station: Press and hold one of the number buttons (3, 4or5). To select a stored station: Press one of the number buttons (3, 4or5). iHeartRadio® Only SiriusXM® brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment. Welcome to the world of satellite radio. A SiriusXM Vehicle Tuner and Subscription are required. For more information, visit <www.siriusxm.com>. Preparation: 1 Connect the optional SiriusXM Vehicle Tuner (commercially available). 2 Check your Radio ID for activation. The SiriusXM Radio ID is required for activation and can be found by tuning to Channel 0 as well as on the label found on the SiriusXM Connect tuner and its packaging. The Radio ID does not include the letters I, O, S or F. 3 Activate the subscription. For users in the U.S.A.: Online: Go to <www.siriusxm.com> Phone: Call 1-866-635-2349 For users in Canada: Online: Go to <www.siriusxm.ca/activatexm> Phone: Call 1-877-438-9677 4 Press repeatedly to select SIRIUSXM to start updating. Start listening

Press repeatedly to select SIRIUSXM. 2 Press repeatedly to select a band. 3 Press .

” lights up. ENGLISH SiriusXM® Radio Expansion port on the rear panel SiriusXM Vehicle Tuner Antenna JS_KWD_KDC_X701_KN_EN_4.indd 14JS_KWD_KDC_X701_KN_EN_4.indd 14 11/14/2016 8:41:40 AM11/14/2016 8:41:40 AMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) SiriusXM® Radio 4 Turn the volume knob to select a category, then press the knob. If “ALL CHANNELS” is selected, all the available channels will be shown. 5 Turn the volume knob to select a channel, then press the knob. (or) Press S/T to search for a channel manually.

• Pressing and holding S/T changes the channel rapidly. If a locked channel or a mature channel is selected, a pass code input screen appears. Enter the pass code to receive the channel. ( 16) To change the tuning method for S/T: Press . Each time you press , the tuning method switches between “CHANNEL” (manually search for a channel) and “PRESET” (searches for a preset channel of the selected band). Direct Access Tuning (using the remote control) 1 Press DIRECT to enter Direct Access Tuning. 2 Press the number buttons to enter a channel number. 3 Press to start searching.

• To cancel, press or DIRECT.

• If no operation is done for 10seconds after step 2, Direct Access Tuning is automatically canceled. SiriusXM Keymode Press and hold to change the keymode (channel or replay). (Default: Channel keymode)

” lights up when replay keymode is selected. When channel keymode is selected... To On the faceplate On the remote control Select a channel Press S/T. Press S/

Change a channel rapidly Press and hold S/T. Press and hold

Store a channel of the current band Press and hold one of the number buttons (1to6). (Not available) Select a stored channel of the current band Press one of the number buttons (1to6). When replay keymode is selected... To On the faceplate On the remote control Playback/pause Press . Press

Select a track Press S/T. Press S/

Rewind/Fast-forward Press and hold S/T. Press and hold

Go to Live Press 1. SmartFavorites and TuneStart™ User stored channels are recognized as SmartFavorite channels*. The SiriusXM Vehicle Tuner automatically buffers the broadcast content in the background.

• SmartFavorites feature is available with SXV200 or later SiriusXM Vehicle Tuner.

SXV300 (and later) SiriusXM Vehicle Tuner can use all 18 stored channels as SmartFavorites. The SXV200 SiriusXM Vehicle Tuner can use 6 stored channels from the current band as SmartFavorites. JS_KWD_KDC_X701_KN_EN_4.indd 15JS_KWD_KDC_X701_KN_EN_4.indd 15 11/14/2016 8:41:40 AM11/14/2016 8:41:40 AM16 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) ENGLISH Default:

Press S/T to move to the entry position.

to enter the current pass code. (Initial pass code is 0000.)

Press the volume knob to confirm. CODE SET

Press S/T to move to the entry position.

to enter a new 4-digit pass code.

Press the volume knob to confirm.

to reconfirm the pass code.

Make a note of the new pass code to enter channel lock settings for next time.

LOCK SETTING MATURE CH

:Selects the SiriusXM-defined lock setting.; USER DEFINED :Selects the individual channels the user wants to lock.; OFF :Cancels. CHANNEL EDIT

Turn the volume knob to select a channel you want to lock, then press the knob. “L” appears in front of the channel number.

Press and hold to exit. CHANNEL CLEAR

YES :Clears all the locked channels.;

:All qualified music channels in the SmartFavorite will start playback from the beginning of the song.; OFF :Cancels. SIGNAL LEVEL Shows the strength ( NO SIGNAL

STRONG) of the current received signal. BUFFER USAGE Shows the memory usage (

100% ) for Replay buffer.

:Resets stored channel and lock setting to default.;

Displayed only when [USER DEFINED] is selected.

Available only if the connected SiriusXM Vehicle Tuner is SXV200 or later that supports SmartFavorites. When you select a SmartFavorite channel, you can rewind and replay up to 30minutes of any of the missed news, talk, sports or music content.

• Playback starts from the beginning of the song if [TUNE START] is set to [ON] (see the following table) for most music channels stored as a SmartFavorite. Press one of the number buttons (1 to 6) to select a stored channel. TuneScan™ You can get a short preview of the songs that you have missed on each of your SmartFavorite music channels or currently tuned music channel. Press and hold to start scanning the first 6 seconds of the recorded music contents.

• To listen to the current song, press the volume knob to stop scanning. The unit continues playing the current song.

• To select the previous/next song, press S/T.

• To cancel scanning, press and hold the volume knob. Playback returns to the channel before you entered TuneScan. SiriusXM settings

2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/ activated or follow the instructions stated on the selected item. 4 Press and hold to exit. To return to the previous setting item, press

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) BLUETOOTH — Connection Supported Bluetooth profiles – Hands-Free Profile (HFP) – Advanced Audio Distribution Profile (A2DP) – Audio/Video Remote Control Profile (AVRCP) – Serial Port Profile (SPP) – Phonebook Access Profile (PBAP) Supported Bluetooth codecs – Sub Band Codec (SBC) – Advanced Audio Coding (AAC) – aptX codec (aptX) Connect the microphone BLUETOOTH® Adjust the microphone angle Secure using cord clamps (not supplied) if necessary. MIC (microphone input terminal) Microphone (supplied) Rear panel Pair and connect a Bluetooth device for the first time

Press to turn on the unit. 2 Search and select this unit model name (KDC-X7**/KDC-BT7**HD/ KMR-D7**BT/KDC-X5**/KDC-BT5**U) on the Bluetooth device. “PAIRING” “PASS XXXXXX” Device name “PRESS” “VOLUME KNOB” appears on the display.

• For some Bluetooth devices, you may need to enter the Personal Identification Number (PIN) code immediately after searching. 3 Press the volume knob to start pairing. “PAIRING OK” appears when pairing is completed. Once pairing is completed, Bluetooth connection is established automatically.

• “BT1” and/or “BT2” indicator on the faceplate lights up.

• This unit supports Secure Simple Pairing (SSP).

• Up to five devices can be registered (paired) in total.

• Once the pairing is completed, the Bluetooth device will remain registered in the unit even if you reset the unit. To delete the paired device, 21, [DEVICE DELETE]

• A maximum of two Bluetooth phones and one Bluetooth audio device can be connected at any time. However, while in BT AUDIO source, you can connect to five Bluetooth audio devices and switch between these five devices. ( 22)

• Some Bluetooth devices may not automatically connect to the unit after pairing. Connect the device to the unit manually.

• Refer to the instruction manual of the Bluetooth device for more information. Auto Pairing When you connect iPhone/iPod touch/Android device to the USB input terminal, pairing request (via Bluetooth) is automatically activated. Press the volume knob to pair once you have confirmed the device name. Automatic pairing request is activated only if: – Bluetooth function of the connected device is turned on.

( 21) – KENWOOD MUSIC PLAY application is installed on the Android device ( 9) and [BROWSE MODE] is selected. ( 10) JS_KWD_KDC_X701_KN_EN_4.indd 17JS_KWD_KDC_X701_KN_EN_4.indd 17 11/14/2016 8:41:41 AM11/14/2016 8:41:41 AM18 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) ENGLISH BLUETOOTH — Mobile phone Receive a call When there is an incoming call:

• ZONE 2 illuminates in green color and flashes.

• The unit answers the call automatically if [AUTO ANSWER] is set to a selected time. ( 19) During a call:

• ZONE 1 illuminates according to the settings made for [DISPLAY] ( 28) and ZONE 2 illuminates in green color.

• If you turn off the unit or detach the faceplate, the Bluetooth connection is disconnected. The following operations may differ or not available depending on the connected phone. To On the faceplate On the remote control First incoming call... Answer a call Press or the volume knob or one of the number buttons (1 to 6). Press

BLUETOOTH® Connect with a remote device by One-touch (NFC) Near Field Communication (NFC) enables short-range wireless communication between the unit and remote devices such as smartphones. By holding an NFC-compatible remote device near to the N-Mark on the unit (right side of the panel), the unit and remote device proceed to complete pairing and established the BLUETOOTH connection automatically. 1 Activate the NFC function on the remote device. Refer to the instruction manual of the remote device for more information. 2 Hold the remote device near to the N-Mark on the unit (right side of the panel). The device vibrates when pairing is completed.

• Depending on the type of remote device used, the strength of the NFC signal may vary. For a stronger NFC signal, user must understand the position of the remote device’s NFC antenna and hence tap the NFC antenna with the NFC logo.

• To disconnect, hold the remote device near to the N-Mark on the unit again.

• This unit only can recognize and connect to one NFC-compatible device at a time. JS_KWD_KDC_X701_KN_EN_4.indd 18JS_KWD_KDC_X701_KN_EN_4.indd 18 11/14/2016 8:41:41 AM11/14/2016 8:41:41 AMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) BLUETOOTH® To On the faceplate On the remote control While talking on the first incoming call... Answer another incoming call and hold the current call Press . Press . Reject another incoming call Press

While having two active calls... End current call and activate held call Press

Swap between the current call and held call Press . Press . Adjust the phone volume [00]

Turn the volume knob during a call.

• This adjustment will not affect the volume of the other sources. ( Not available ) Switch between hands-free and private talk modes Press during a call.

• Operations may vary according to the connected Bluetooth device. ( Not available ) Improve the voice quality While talking on the phone... 1 Press the volume knob to enter [FUNCTION]

2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press and hold to exit. To return to the previous setting item, press . Default:

The sensitivity of the microphone increases as the number increased.

LEVEL 0 ):Adjust the noise reduction level until the least noise is being heard during a phone conversation.

LEVEL 0 ):Adjust the echo cancellation delay time until the least echo is being heard during a phone conversation. Make the settings for receiving a call

Press to enter Bluetooth mode. 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press and hold to exit. To return to the previous setting item, press . Default:

:The unit answers incoming call automatically in the selected time (in seconds).; OFF :Cancels. BATTERY/ SIGNAL* AUTO :Shows the strength of the battery and signal when the unit detects a Bluetooth device and the Bluetooth device is connected.; OFF :Cancels. Date is shown.

Functionality depends on the type of the phone used. JS_KWD_KDC_X701_KN_EN_4.indd 19JS_KWD_KDC_X701_KN_EN_4.indd 19 11/14/2016 8:41:41 AM11/14/2016 8:41:41 AM20 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) ENGLISH BLUETOOTH® Make a call You can make a call from the call history, phonebook, or dialing the number. Call by voice is also possible if your mobile phone has the feature. 1 Press to enter Bluetooth mode. “(First device name)” appears.

• If two Bluetooth phones are connected, press again to switch to another phone. “(Second device name)” appears. 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press and hold to exit. To return to the previous setting item, press . CALL HISTORY (Applicable only if the phone supports PBAP.)

• “INCOMING”, “OUTGOING”, or “MISSED” is shown on the lower part of the display to indicate the previous call status.

• Press DISP to change the display category (NUMBER or NAME).

• “NO DATA” appears if there is no recorded call history.

Press the volume knob to call. PHONE BOOK (Applicable only if the phone supports PBAP.)

Turn the volume knob quickly to enter alphabet search mode (if the phonebook contains many contacts). The first menu (ABCDEFGHIJKLMN) appears.

• To go to the other menu (OPQRSTUVWXYZ1

then press the knob. Select “1” to search with numbers and select “

” to search with symbols.

The phonebook of the connected phone is automatically transferred to the unit when pairing.

Contacts are categorized as: HOME, OFFICE, MOBILE, OTHER, GENERAL.

This unit can display only non-accent letters. (Accent letters such as “Ú” is shown as “U”.) NUMBER DIAL

Turn the volume knob to select a number (0 to 9) or character ( , #, +).

Press S/T to move the entry position. Repeat steps

until you finish entering the phone number.

Press the volume knob to call. (or using the remote control)

) to enter the phone number.

Press to call. VOICE Speak the name of the contact you want to call or the voice command to control the phone functions. ( 21, Make a call using voice recognition)

:Shows the strength of the battery. NO SIGNAL

:Shows the strength of the current received signal.

Press and hold to activate the voice recognition of the connected phone. 2 Speak the name of the contact you want to call or the voice command to control the phone functions.

• Supported Voice Recognition features vary for each phone. Refer to the instruction manual of the connected phone for details.

• This unit also supports the intelligent personal assistant function of iPhone. Settings in memory Store a contact in memory You can store up to 6 contacts into the number buttons (1 to 6). 1 Press to enter Bluetooth mode. 2 Turn the volume knob to select [CALL HISTORY]

[PHONE BOOK] , or [NUMBER DIAL] , then press the knob. 3 Turn the volume knob to select a contact or enter a phone number. If a contact is selected, press the volume knob to show the phone number. 4 Press and hold one of the number buttons (1 to 6). “STORED” appears when the contact is stored. To erase a contact from the preset memory, select [NUMBER DIAL]

step 2 and store a blank number. Make a call from memory

Press to enter Bluetooth mode. 2 Press one of the number buttons (1 to 6). 3 Press the volume knob to call. “NO MEMORY” appears if there is no contacts stored. Other settings

2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press and hold to exit. To return to the previous setting item, press . Default:

BT MODE PHONE SELECT Selects the phone or audio device to connect or disconnect.

” appears in front of the device name when connected.

” appears in front of the current playback audio device.

You can only connect a maximum of two Bluetooth phones and one Bluetooth audio device at any time. AUDIO SELECT DEVICE DELETE

Turn the volume knob to select a device to delete, then press the knob.

Turn the volume knob to select [YES]

to move the entry position. Repeat steps

until you finish entering the PIN code.

Press the volume knob to confirm. RECONNECT ON :The unit automatically reconnect when the last connected Bluetooth device is within range.; OFF :Cancels.

:The unit automatically pair supported Bluetooth device (iPhone/ iPod touch/Android device) when it is connected through USB input terminal.Depending on the operating system of the connected device, this function may not work. ; OFF :Cancels. INITIALIZE YES :Initializes all the Bluetooth settings (including stored pairing, phonebook, and etc.).;

:Cancels. JS_KWD_KDC_X701_KN_EN_4.indd 21JS_KWD_KDC_X701_KN_EN_4.indd 21 11/14/2016 8:41:41 AM11/14/2016 8:41:41 AM22 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) BLUETOOTH — Audio ENGLISH BLUETOOTH® Bluetooth test mode You can check the connectivity of the supported profile between the Bluetooth device and the unit.

• Make sure there is no Bluetooth device paired. 1 Press and hold . “PLEASE PAIR YOUR PHONE PIN 0000” appears. 2 Search and select this unit model name

(KDC-X7**/KDC-BT7**HD/KMR-D7**BT/

KDC-X5**/KDC-BT5**U) on the Bluetooth device. 3 Operate the Bluetooth device to confirm pairing. “TESTING” flashes on the display. The connectivity result (OK or NG) appears after the test. PAIRING: Pairing status HF CONNECT: Hands-Free Profile (HFP) compatibility AUDIO CONNECT: Advanced Audio Distribution Profile (A2DP) compatibility PHONEBOOK DL: Phonebook Access profile (PBAP) compatibility To cancel test mode, press and hold to turn off the unit. Audio player via Bluetooth

Press repeatedly (or press SRC on the remote control) to select BTAUDIO. 2 Operate the Bluetooth audio player to start playback. To On the faceplate On the remote control Playback/pause Press . Press

Select group or folder Press J / K. Press

Reverse/Fast-forward Press and hold S/T. Press and hold S/

Repeat play Press repeatedly. ALL REPEAT

REPEAT OFF ( Not available ) Random play Press and hold to select ALL RANDOM

• Press to select RANDOM OFF

( Not available ) Select a file from a folder/list Refer to “Select a file from a folder/ list” on page 10. ( Not available ) Switch between connected Bluetooth audio devices Press 5.* ( Not available )

Pressing the “Play” key on the connected device itself also causes switching of sound output from the device. Operations and display indications may differ according to their availability on the connected device. While in BT AUDIO source, you can connect to five Bluetooth audio devices and switch between these five devices. JS_KWD_KDC_X701_KN_EN_4.indd 22JS_KWD_KDC_X701_KN_EN_4.indd 22 11/14/2016 8:41:42 AM11/14/2016 8:41:42 AMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) BLUETOOTH® STATUS Shows the status of the selected device. IOS CONNECTED : You are able to use the application using the iPhone/iPod connected via Bluetooth or USB input terminal.

: No IOS device is connected to use the application. ANDROID CONNECTED : You are able to use the application using the Android smartphone connected via Bluetooth.

ANDROID NOT CONNECTED

: No Android device is connected to use the application. Listen to iPhone/iPod via Bluetooth You can listen to the songs on the iPhone/iPod via Bluetooth on this unit. Press repeatedly to select iPodBT.

• You can operate the iPod/iPhone in the same way as iPod/iPhone via USB input terminal. ( 9)

• If you plug in an iPhone/iPod to the USB input terminal while listening to iPodBT source, the source automatically change to iPod 1/iPod 2/ iPod USB. Press to select iPodBT if the device is still connected via Bluetooth. Internet radio via Bluetooth You can listen to internet radio (Pandora and iHeartRadio) on the iPhone/ iPod/Android device via Bluetooth on this unit.

• Make sure the USB input terminal is not connected to any device. Listen to Pandora Preparation: Select [ON] for [PANDORA SRC]

( 5) 1 Open the Pandora application on your device. 2 Connect your device via Bluetooth connection. ( 17) 3 Press repeatedly to select PANDORA (for iPhone/iPod) or PANDORA BT (for Android device). The source switches and broadcast starts automatically.

• You can operate Pandora in the same way as Pandora via USB input terminal. ( 12) Settings to use KENWOOD Remote application KENWOOD Remote application is designed to control the KENWOOD car receiver’s operations from the iPhone/iPod (via Bluetooth or via USB input terminal) or Android smartphone (via Bluetooth). Preparation: Install the latest version of KENWOOD Remote application on your device before connecting. For more information, visit <www.kenwood.com/cs/ce/>. 1 Press the volume knob to enter [FUNCTION]

2 Turn the volume knob to select an item (see the following table), then press the knob.

Repeat step 2 until the desired item is selected or activated. 4 Press and hold to exit. To return to the previous setting item, press . Default:

:Cancels. If IOS is selected, select iPod BT source (or iPod 1/iPod 2/iPod USB if your iPhone/iPod is connected via USB input terminal) to activate the application.

The connectivity of the application will be interrupted or disconnected if: – You change from iPod BT source to any playback source connected via the USB input terminal. – You change from iPod 1/iPod 2/iPod USB source to iPod BT source. ANDROID YES :Selects Android smartphone to use the application via Bluetooth.;

[SELECT] is set to [YES]

Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press and hold to exit. (or using the remote control) 1 Press AUD to enter [AUDIO CONTROL]

LEVEL 0 ): Adjusts the subwoofer output level. MANUAL EQ The sound elements (frequency level, tone level, Q factor) are preset into each selection.

LEVEL 0 ):Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.)

LEVEL 0 ):Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.) Q FACTOR 1.35

:Adjust the quality factor.

USER : Selects a preset equalizer suitable to the music genre. (Select [USER] to use the settings made in [MANUAL EQ]

Listen to iHeartRadio Preparation: Select [ON] for [IHEART SRC]

( 5) 1 Open the iHeartAuto application on your device. 2 Connect your device via Bluetooth connection. ( 17) 3 Press repeatedly to select IHEARTRADIO. The source switches and broadcast starts automatically.

LEVEL5 :Selects your preferred bass boost level.; OFF :Cancels. LOUDNESS LEVEL1

LEVEL2 :Selects your preferred low and high frequencies boost to produce a well-balanced sound at a low volume level.; OFF :Cancels.

):Adjusts the rear and front speaker output balance. BALANCE LEFT 15

):Adjusts the left and right speaker output balance.

LEVEL 0 ):Preset the initial volume level of each source. (Before adjustment, select the source you want to adjust.) SOUND EFFECT SOUND RECONSTRA (Sound reconstruction) (Not applicable for TUNER source, AUX source and SIRIUS XM source.)

:Creates realistic sound by compensating the high-frequency components and restoring the rise-time of the waveform that are lost in audio data compression.; OFF :Cancels. SPACE ENHANCER (Not applicable for TUNER source.) SMALL

LEVEL3 :Virtually makes the sound more realistic.; OFF :Cancels.

HIGH :Virtually adjust the sound position heard from the speakers.; OFF :Cancels.

: Boosts the frequency to reduce the noise heard from outside the car or running noise of the tyres.; OFF :Cancels. AUDIO SETTINGS SPEAKER SIZE The frequency and slope settings are automatically set for the crossover of the selected speaker. FRONT SIZE 3.5"

7×10 : Selects according to the connected speaker size for optimum performance. TWEETER SMALL

LARGE :Selects according to the size range of the connected tweeter for optimum performance.; NONE :Not connected. REAR 3.5"

Selects according to the connected speaker size for optimum performance.; NONE :Not connected. SUBWOOFER 6.5"

15" OVER : Selects according to the connected speaker size for optimum performance.; NONE :Not connected.

12.5KHZ: Adjusts the crossover frequency for the tweeter speaker. GAIN LEFT

250HZ: Adjusts the crossover frequency for the selected speakers (high pass filter).

THROUGH : All signals are sent to the selected speakers. FRONT-HPF SLOPE –6DB

–24DB: Adjusts the crossover slope. (Selectable only if a setting other than [THROUGH] is selected for [FRONT-HPF FRQ]

:Adjusts the output volume of the selected speaker. JS_KWD_KDC_X701_KN_EN_4.indd 25JS_KWD_KDC_X701_KN_EN_4.indd 25 11/14/2016 8:41:42 AM11/14/2016 8:41:42 AM26 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) AUDIO SETTINGS Digital Time Alignment settings Digital Time Alignment sets the delay time of the speaker output to create a more suitable environment for your vehicle.

• For more information, Determining the value for [DISTANCE] and [GAIN] of [DTA SETTINGS]

20.01FT :Fine adjust the distance to compensate. (Before making an adjustment, select the speaker you want to adjust.) GAIN –8DB

0DB :Fine adjust the output volume of the selected speaker. (Before making an adjustment, select the speaker you want to adjust.)

:Cancels. CAR SETTINGS Identify your car type and rear speaker location in order to make the adjustment for [DTA SETTINGS]

MINIVAN(LONG) :Selects the type of vehicle.; OFF: Not compensating. REAR-SP LOCATION Selects the location of the rear speakers in your vehicle to calculate the furthest distance from the listening position selected (reference point).

REAR DECK :Selectable only when [CAR TYPE] is selected as [OFF]

3RD ROW :Selectable only when [CAR TYPE] is selected as [MINIVAN]

Before making an adjustment for [DISTANCE] and [GAIN]

[DTA SETTINGS] , select the speaker you want to adjust: FRONT LEFT

SUBWOOFER: You can only select

[REAR LEFT], [REAR RIGHT]

and [SUBWOOFER] if a setting other than [NONE] is selected for [REAR] and [SUBWOOFER]

[CAR SETTINGS] is selectable only if a setting other than [NONE]

250HZ : Adjusts the crossover frequency for the subwoofer (low pass filter).; THROUGH : All signals are sent to the subwoofer.

–24DB: Adjusts the crossover slope. (Selectable only if a setting other than [THROUGH] is selected for

(180°)/ NORMAL (0°): Selects the phase of the subwoofer output to be in line with the speaker output for optimum performance.

:Adjusts the output volume of the subwoofer. DTA SETTINGS For settings, Digital Time Alignment settings

The following item is selectable only if [SUBWOOFER SET] is set to [ON] ( 25)

The following item is selectable only if a setting other than [NONE] is selected for [TWEETER]

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Determining the value for [DISTANCE] and [GAIN] of [DTA SETTINGS] If you specify the distance from the center of the currently set listening position to every speaker, the delay time will be automatically computed and set.

Determine the center of the currently set listening position as the reference point.

Measure the distances from the reference point to the speakers.

Calculate the differences between the distance of the furthest speaker (rear speaker) and other speakers.

Set the [DISTANCE] calculated in step

for individual speakers.

Adjust [GAIN] for individual speakers. Example: When [FRONT ALL] is selected as the listening position DISPLAY SETTINGS Set the dimmer Press and hold DISP (DIMMER) to turn on or off the dimmer.

• If you have set [DIMMER TIME] , it will be canceled once you press and hold this button. Other settings

2 Turn the volume knob to select an item ( 28) , then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press and hold to exit. To return to the previous setting item, press . AUDIO SETTINGS JS_KWD_KDC_X701_KN_EN_4.indd 27JS_KWD_KDC_X701_KN_EN_4.indd 27 11/14/2016 8:41:42 AM11/14/2016 8:41:42 AM28 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Symptom Remedy General Sound cannot be heard.

Adjust the volume to the optimum level.

Check the cords and connections.

“MISWIRING CHECK WIRING

THEN POWER ON” appears. Turn the power off, then check to be sure the terminals of the speaker wires are insulated properly. Turn the power on again.

SERVICE” appears. Send the unit to the nearest service center.

Sound cannot be heard.

The unit does not turn on.

Information shown on the display is incorrect. Clean the connectors. ( 31) The unit does not work at all. Reset the unit. ( 3) (For ) “SET ERROR”/ “DELETE ERROR” Setting/deleting the remote control ID is unsuccessful. Turn the power off, then turn on the power and perform the operation again. ( 5) HD Radio/ Radio

Radio reception is poor.

Static noise while listening to the radio. Connect the antenna firmly. CD/USB/iPod Disc cannot be ejected. Press and hold

to forcibly eject the disc. Be careful not to drop the disc when it is ejected. If this does not solve the problem, reset the unit. ( 3) Noise is generated. Skip to another track or change the disc. Tracks do not play back as you intended them to play. Playback order is determined when files are recorded. “READING” keeps flashing. Do not use too many hierarchical levels or folders. Elapsed playing time is not correct. This is caused by how the tracks are recorded. Default:

ZONE 1 and ZONE 2 separately.

Select a zone. (See the illustration on page 27.)

Select a color for the selected zone. VARIABLE SCAN

CUSTOM R/G/B (R = 9/G = 9/B = 9) To make your own color, select

. The color you have made will be stored in

Press the volume knob to enter the detailed color adjustment.

to select the color (

Turn the volume knob to adjust the level (

:Dimmer is turned on.; OFF :Cancels. DIMMER TIME :Set the dimmer on and off time.

Select a zone. (See the illustration on page 27.)

LEVEL 31 : Select your preferred brightness level for the selected zone.

DISPLAY SETTINGS TROUBLESHOOTING

SUPPORTED” appears. This unit cannot support a USB device connected via a USB hub. “NO MUSIC” Connect a USB device that contains playable audio files. “iPod ERROR”

Sound cannot be heard during playback.

Sound output only from the Android device.

Reconnect the Android device.

If in [HAND MODE] , launch any media player application on the Android device and start playback.

If in [HAND MODE] , relaunch the current media player application or use another media player application.

Restart the Android device.

If this does not solve the problem, the connected Android device is unable to route the audio signal to unit. ( 32) Cannot playback at [BROWSE MODE]

Make sure KENWOOD MUSIC PLAY APP is installed on the Android device. ( 9)

Reconnect the Android device and select the appropriate control mode.

If this does not solve the problem, the connected Android device does not support [BROWSE MODE]

( 32) “NO DEVICE” or “READING” keeps flashing.

Switch off the developer options on the Android device.

Reconnect the Android device.

If this does not solve the problem, the connected Android device does not support [BROWSE MODE]

( 32) Playback is intermittent or sound skips. Turn off the power saving mode on the Android device. “ANDROID ERROR”/ “NADEVICE”

Reconnect the Android device.

Restart the Android device. Symptom Remedy CD/USB/iPod “LOADING” appears when you enter search mode by pressing

This unit is still preparing the iPod/iPhone music list. It may take some time to load, try again later. Correct characters are not displayed (e.g. album name).

This unit can only display uppercase letters, numbers, and a limited number of symbols.

Depending on the display language you have selected ( 5) , some characters may not be displayed correctly. “NA FILE” Make sure the media contains supported audio files. ( 32) “NO DISC” Insert a playable disc into the loading slot. “TOC ERROR” Make sure the disc is clean and inserted properly. “PLEASE EJECT” Reset the unit. If this does not solve the problem, consult your nearest service centre. “READ ERROR” Copy the files and folders onto the USB device again. If this does not solve the problem, reset the USB device or use another USB device. “NO DEVICE” Connect a USB device, and change the source to USB again. “COPY PROTECTED” A copy-protected file is played. “UNSUPPORTED DEVICE” appears.

Check whether the connected device is compatible with this unit and ensure the file systems are in supported formats. ( 32)

Reattach the device. “UNRESPONSIVE DEVICE” appears. Make sure the device is not malfunction and reattach the device. TROUBLESHOOTING JS_KWD_KDC_X701_KN_EN_4.indd 29JS_KWD_KDC_X701_KN_EN_4.indd 29 11/14/2016 8:41:43 AM11/14/2016 8:41:43 AM30 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) TROUBLESHOOTING Symptom Remedy Pandora “ADDERROR” New station creation is unsuccessful. “CHECKDEVICE” Check the Pandora application on your device. “NOSKIPS” The skip limit has been reached. “NOSTATIONS” No stations are found. “STATIONLIMIT” The number of registered stations has reached its limit. Retry after deleting unnecessary stations from your device. “CONNECT ERROR” Communication is unstable. “RATING ERROR” Registration of thumbs up/thumbs down has failed due to insufficient network connectivity. “THUMBS N/A” Registration of thumbs up/thumbs down is not allowed. “LICENSE ERROR” You try to access from a country which Pandora is not deliverable. iHeartRadio iHeartRadio station cannot be selected. If “Explicit Content” in [Account Settings] is checked in the web version of iHeartRADIO, custom stations become unavailable. “NOT CONNECTED” Link to the application is impossible. SiriusXM® Radio “CHANLOCKED ENTER CODE:” The selected channel is locked. Enter the correct pass code to unlock. ( 16) “CHUNSUBSCRIBED” The selected channel is unsubscribed. Call 1-866-635-2349 in the U.S.A. or 1-877-438-9677 in Canada to subscribe. ( 14) “CHANUNAVAILABLE” The selected channel is unavailable. Visit www.siriusxm.com for more information about the SiriusXM channel lineup. “CHECKANTENNA” Check that the antenna and its connection are in good condition. “CHECKTUNER” Make sure the SiriusXM Vehicle Tuner is connected to the unit. Symptom Remedy SiriusXM® Radio “NOSIGNAL” Make sure the antenna is mounted outside the vehicle. “SUBSCRIPTION UPDATED – PRESS

Your subscription is updated. Press the volume knob to continue. “CODE ERROR” Make sure you have entered the correct pass code. ( 16) “NO CONTENT” There is insufficient content to start TuneScan. “SCAN CANCEL” TuneScan has been aborted. Bluetooth® No Bluetooth device is detected.

Search from the Bluetooth device again.

Make sure you have entered the same PIN code to both the unit and Bluetooth device.

Delete pairing information from both the unit and the Bluetooth device, then perform pairing again. ( 17) Echo or noise is heard during a phone conversation.

Check the [ECHO CANCEL] setting. ( 19) Phone sound quality is poor.

Reduce the distance between the unit and the Bluetooth device.

Move the car to a place where you can get a better signal reception. Voice calling method is not successful.

Use voice calling method in a more quiet environment.

Reduce the distance from the microphone when you speak the name.

Make sure the same voice as the registered voice tag is used. Sound is being interrupted or skipped during playback of a Bluetooth audio player.

Reduce the distance between the unit and the Bluetooth audio player.

Turn off, then turn on the unit and try to connect again.

Other Bluetooth devices might be trying to connect to the unit. ENGLISH JS_KWD_KDC_X701_KN_EN_4.indd 30JS_KWD_KDC_X701_KN_EN_4.indd 30 11/14/2016 8:41:43 AM11/14/2016 8:41:43 AMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) TROUBLESHOOTING Symptom Remedy Bluetooth® The connected Bluetooth audio player cannot be controlled.

Check whether the connected Bluetooth audio player supports Audio/Video Remote Control Profile (AVRCP). (Refer to the instructions of your audio player.)

Disconnect and connect the Bluetooth player again. “DEVICE FULL” The number of registered devices has reached its limit. Retry after deleting an unnecessary device. ( 21, DEVICE DELETE) “N/A VOICE TAG” Make sure the same voice as the registered voice tag is used. “NOT SUPPORT” The connected phone does not support Voice Recognition feature or phonebook transfer. “NO ENTRY”/ “NO PAIR” There is no registered device connected/found via Bluetooth. “ERROR” Try the operation again. If “ERROR” appears again, check if the device supports the function you have tried. “NO INFO”/“NO DATA” Bluetooth device cannot get the contact information.

“BT ERROR” Reset the unit and try the operation again. If this does not solve the problem, consult your nearest service center. REFERENCES Maintenance Cleaning the unit Wipe off dirt on the faceplate with a dry silicone or soft cloth. Cleaning the connector Detach the faceplate and clean the connector gently with a cotton swab, being careful not to damage the connector. Handling discs

Do not touch the recording surface of the disc.

Do not stick tape etc. on the disc, or use a disc with tape stuck on it.

Do not use any accessories for the disc.

Clean from the center of the disc and move outward.

Clean the disc with a dry silicone or soft cloth. Do not use any solvents.

When removing discs from this unit, pull them out horizontally.

This unit can only play the following CDs:

For detailed information and notes about the playable audio files, visit <www.kenwood.com/cs/ce/audiofile/>. Connector (on the reverse side of the faceplate) JS_KWD_KDC_X701_KN_EN_4.indd 31JS_KWD_KDC_X701_KN_EN_4.indd 31 11/14/2016 8:41:43 AM11/14/2016 8:41:43 AM32 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Playable files

Playable USB device file system: FAT12, FAT16, FAT32 Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or device. The AAC (.m4a) file in a CD encoded by iTunes cannot be played on this unit. Unplayable discs

Discs that are not round.

Discs with coloring on the recording surface or discs that are dirty.

Recordable/ReWritable discs that have not been finalized.

8cm CD. Attempting to insert using an adapter may cause malfunction. About USB devices

You cannot connect a USB device via a USB hub.

Connecting a cable whose total length is longer than 5m may result in abnormal playback.

This unit cannot recognize a USB device whose rating is other than 5V and exceeds 1.5A. About iPod/iPhone

Via USB: Made for – iPod touch (5th and 6th generation) – iPod nano (7th generation) – iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE

Via Bluetooth: Made for – iPod touch (5th and 6th generation) – iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE

You cannot operate iPod if “KENWOOD” or “ ” is displayed on iPod.

Depending on the version of the operating system of the iPod/iPhone, some functions may not operate on this unit. REFERENCES About Android device

This unit supports Android OS 4.1 and above.

Some Android devices (with OS 4.1 and above) may not fully support Android Open Accessory (AOA) 2.0.

If the Android device supports both mass storage class device and AOA 2.0, this unit always playback via AOA 2.0 as priority. About Pandora

Pandora is only available in certain countries. For more information, visit <http://www.pandora.com/legal>.

Because Pandora is a third-party service, the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired, or some or all of the services may become unavailable.

Some functions of Pandora cannot be operated from this unit.

For issues using the application, please contact Pandora at pandora-support@pandora.com. About iHeartRadio

iHeartRadio® is a third-party service, therefore the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable.

Some iHeartRadio® functionality cannot be operated from this unit. About Bluetooth

Depending on the Bluetooth version of the device, some Bluetooth devices may not be able to connect to this unit.

This unit may not work with some Bluetooth devices.

Signal conditions vary, depending on the surroundings.

Compatible remote device for NFC function: Remote devices with a NFC function (OS: Android™ 2.3.3 or later, excluding Android 3.x). If the OS version of your remote device is older than Android 4.1.x, download and start the “NFC Easy Connect” application. (“NFC Easy Connect” is a free application available at Google Play.) About HD Radio™ Technology

Adjacent to traditional main stations are HD2/HD3 Channels, providing new original programming on the FM dial.

HD Radio broadcasts deliver crystal clear, CD-like digital audio quality to consumers; eliminates background noise.

Program Info provides song name, artist, station ID, and other relevant data to enrich the listening experience.

Emergency Alert delivers critical and life-saving messages to the public during emergency situations. ENGLISH JS_KWD_KDC_X701_KN_EN_4.indd 32JS_KWD_KDC_X701_KN_EN_4.indd 32 11/14/2016 8:41:44 AM11/14/2016 8:41:44 AMENGLISH

[BROWSE MODE] is selected ( 10)

Music title (Artist) Music title (Album name) Music title (Date)* Playing time (Date)* (back to the beginning) PANDORA 1/ PANDORA 2/PANDORA/ PANDORA BT Station name (Date)* Shared/Radio station (Date)* Music title (Artist) Music title (Album title) Music title (Date)* Playing time (Date)* (back to the beginning) IHEARTRADIO 1/ IHEARTRADIO 2/ IHEARTRADIO Station name (Date)* Music title (Artist) Music title (Date)* (back to the beginning) SIRIUS XM Channel number (Status) Channel name (Status)

Artist name (Status) Music title (Status) Content information (Status) Category name (Status) Clock (Status) (back to the beginning) BT AUDIO Music title (Artist) Music title (Album name) Music title (Date)* Playing time (Date)* (back to the beginning) AUX Source name (Date)*

Battery and signal strength of the Bluetooth device will be shown if [BATTERY/SIGNAL]

If the information is unavailable or not recorded, “NO TEXT”, “NO INFO”, or other information (eg. station name, playing time) appears. Source name Display information STANDBY Source name (Date)* HD RADIO (For

(For digital stations only) Station name (Date)* Music title (Artist) Music title (Album title) Music title (Date)* Frequency (Date)* (back to the beginning) (For FM Radio Broadcast Data System stations only) Station name (Date)* Radio text+ (R.TEXT+/Artist) Radio text+ (R.TEXT+/Album title) Music title (Date)* Frequency (Date)* (back to the beginning) TUNER (For

Frequency (Date)* (For FM Radio Broadcast Data System stations only) Station name (Date)* Radio text (Date)* Radio text+ (R.TEXT+) Music title (Artist) Music title (Date)* Frequency (Date)* (back to the beginning) CD or USB 1/ USB 2/USB (For CD-DA) Track title (Artist) Track title (Disc name) Track title (Date)* Playing time (Date)* (back to the beginning) (For MP3/WMA/AAC/WAV/FLAC files) Music title (Artist) Music title (Album title) Music title (Date)* File name (Folder name) File name (Date)* Playing time (Date)* (back to the beginning) JS_KWD_KDC_X701_KN_EN_4.indd 33JS_KWD_KDC_X701_KN_EN_4.indd 33 11/14/2016 8:41:44 AM11/14/2016 8:41:44 AM34 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) SPECIFICATIONS CD player Laser Diode GaAIAs Digital Filter (D/A) 8 times over sampling Spindle Speed 500rpm — 200rpm (CLV) Wow & Flutter Below measurable limit Frequency Response (±1dB) 20Hz — 20kHz Total Harmonic Distortion (1kHz) 0.01% Signal-to-Noise Ratio (1kHz) / : 110 dB

: 105 dB Dynamic Range 90dB Channel Separation 85dB MP3 Decode Compliant with MPEG-1/2 Audio Layer-3 WMA Decode Compliant with Windows Media Audio AAC Decode AAC-LC “.aac” files USB USB Standard USB1.1/USB2.0 Full Speed File System FAT12/16/32 Maximum Supply Current DC5V 1.5A MP3 Decode Compliant with MPEG-1/2 Audio Layer-3 WMA Decode Compliant with Windows Media Audio AAC Decode AAC-LC “.aac”, “.m4a” files WAV Decode Linear-PCM FLAC Decode FLAC file (Up to 48kHz/24bit) Tuner

1.4kg (3.1lbs) : 1.4kg (2.9lbs)

Fit the catch pin on the extraction keys into the holes on both sides of the trim plate, then pull it out.

Insert the extraction keys deeply into the slots on each side, then follow the arrows as shown on the illustration. Installing the unit (in-dash mounting) When installing without the mounting sleeve

Remove the mounting sleeve and trim plate from the unit.

Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure the unit with screws (supplied/ commercially available). Use only the specified screws. Using wrong screws might damage the unit. Hook on the top side Orientate the trim plate as illustrated before fitting. INSTALLATION/CONNECTION Warning

The unit can only be used with a 12V DC power supply, negative ground.

Disconnect the battery’s negative terminal before wiring and mounting.

Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit.

Insulate unconnected wires with vinyl tape to prevent a short circuit.

Be sure to ground this unit to the car’s chassis again after installation. Caution

For safety’s sake, leave wiring and mounting to professionals. Consult the car audio dealer.

Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.

wires of speakers to the car chassis or Ground wire (black), or connect them in parallel.

Mount the unit at an angle of less than 30º.

If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle’s fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.

Keep all cables away from heat dissipate metal parts.

After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.

If the fuse blows, first make sure the wires are not touching car’s chassis, then replace the old fuse with one that has the same rating. Basic procedure

Remove the key from the ignition switch, then disconnect the

terminal of the car battery.

Connect the wires properly. See Wiring connection. ( 37)

Install the unit to your car. See Installing the unit (in-dash mounting).

terminal of the car battery.

Press to turn on the power.

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Part list for installation (A) Faceplate (C) Mounting sleeve (B) Trim plate (D) Wiring harness (E) Extraction key (F) Screws (supplied for

Wiring connection Fuse (10A) Output terminals Antenna terminal Car fuse box Car fuse box Battery Ignition switch Blue/White (Power control wire/ Antenna control wire) (12 V 350 mA) Light blue/yellow (Steering remote control wire) Black (Ground wire) To the metallic body or chassis of the car To the power control terminal when using the optional power amplifier or to the antenna control terminal in the vehicle Brown (Mute control wire) White Gray Green Purple White/Black Gray/Black Green/Black Purple/Black To connect the Kenwood navigation system, refer your navigation manual To front speaker (left) To rear speaker (left) To front speaker (right) To rear speaker (right) If no connections are made, do not let the wire come out from the tab. When connecting to an external amplifier, connect its ground wire to the car’s chassis to avoid damaging the unit. IMPORTANT : We recommend installing the unit with a commercially available custom wiring harness specific for your car and leave this job to professionals for your safety. Consult your car audio dealer. INSTALLATION/CONNECTION MIC (Microphone input terminal) ( 17) Expansion port (12 V 500mA) To the optional SiriusXM Vehicle Tuner (commercially available) ( 14) To the steering wheel remote control adapter (For

:Annulation. CLOCK CLOCK DISPLAY (Pour / / /

[SYSTEM] [REMOTE SETTING] [REMOTE ID SET]

[SYSTEM] [REMOTE SETTING] [REMOTE ID DELETE]

“MISWIRING CHECK WIRING THEN

[SYSTEM] [REMOTE SETTING] [REMOTE ID SET]

[SYSTEM] [REMOTE SETTING] [REMOTE ID DELETE]

“SET ERROR”/“DELETE ERROR”

• HD Radio Technology manufactured under license from iBiquity Digital Corporation. U.S. and Foreign Patents. HD Radio™ and the HD, HD Radio, and “Arc” logos are proprietary trademarks of iBiquity Digital Corp.

• “Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

• iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

• Lightning is a trademark of Apple Inc.

• Pandora, the Pandora logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc., used with permission.

are trademarks owned by iHeartMedia, Inc. All uses are authorized under license.

• Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved.

• The “AAC” logo is a trademark of Dolby Laboratories.

• Google, Google Play and Android are trademarks of Google Inc.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.

• The N-Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.

• Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries, used with permission. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the United States and other countries, used with permission. libFLAC Copyright (C) 2000,2001,2002,2003,2004,2005,2006,2007,2008,2009 Josh Coalson Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: - Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. - Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. - Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. JS_KWD_KDC_X701_KN_C_4.indd 2JS_KWD_KDC_X701_KN_C_4.indd 2 11/14/2016 8:38:42 AM11/14/2016 8:38:42 AM
