USER MANUAL Serano 5 Ritter

Operating instructions | Food slicer

Electronic rpm adjustment

FIRST TIME Preparation Remove the appliance carefully from the packaging. Remove all packaging parts and keep these together with the packaging in a safe place. Clean the appli- ance before allowing it to come into contact with any food (see CLEANING). Setting-up the appliance

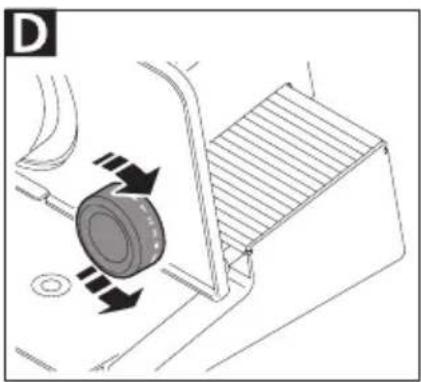

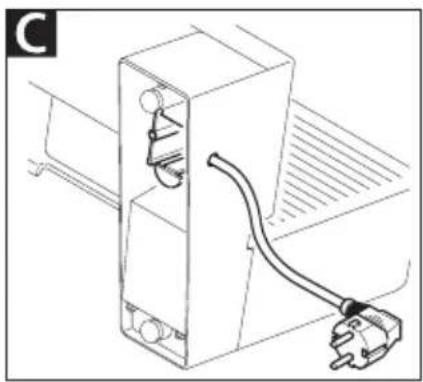

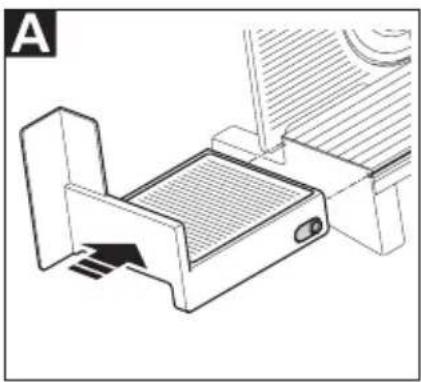

• Set the appliance down on a at, nonskid surface close to a mains socket. Slide the slice carriage (3) into the guide grooves on the appliance. Slide the left-over holder (2) onto the slice carriage's handle. Unwind the power cord (8) to the length required from the cable compartment (9) under the appli- ance and insert the power plug into the socket. SLICING Use the slice thickness adjustment knob (12) to set the required thickness. Note: The slice thickness adjustment scale is not a millimetre scale. For safety reasons, the "0" posi- tion is designed to cover the blade. Place the food to be sliced onto the slice carriage (3). Use the left-over holder (2) to press it up against the stop plate (1).

• Protect your hands, by always using the slice carriage and, where applicable, the left-over holder. Exception: Excessively large foods to be sliced.

• Switch the appliance on using the power switch (7). Two operat- ing modes are available: Temporary operation (Position II): The rotary blade (13) runs as long as the power switch is pressed and held down in this position. Continuous operation (Position I): The rotary blade runs without the power switch being pressed and held down until you move the power switch to the "0" position. Note: Never use the appliance for more than a maximum of 10 minutes in continuous operation.

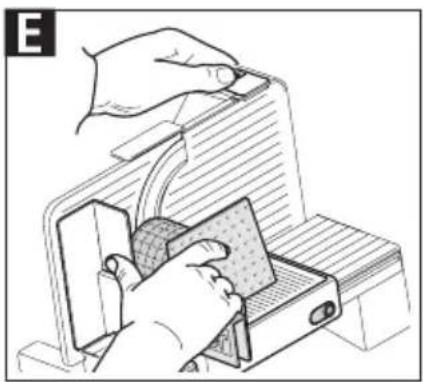

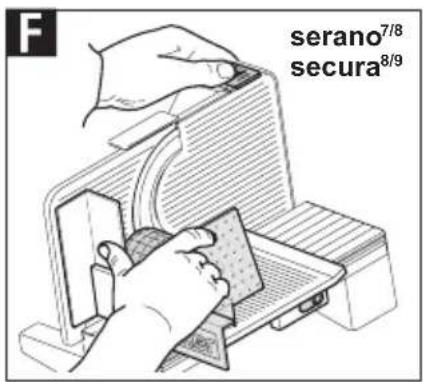

• With the appliance running, gently feed the food to be sliced into the path of the rotary blade. serano 7/8 / secura 8/9 Adapt the slicing speed using the electronic rpm adjust- ment (14) to suit the food to be sliced. When slicing soft food set a low slicing speed, and set a higher speed for hard food.

• Once slicing has been com- pleted, wait until the rotary blade has come to a complete stop.

• After each use, turn the slice thickness adjustment knob to the "0" position, in order to cover up the sharp rotating blade and to avoid any injuries. CLEANING Caution: Switch the appliance o󰀨 before cleaning it; pull the power plug out o󰀨 the socket and turn the slice thickness adjustment knob (12) to the "0" position. Clean the food slicer regularly to prevent the accumulation of food residue. The rotary blade must also be cleaned regularly as described below to prevent its surface from rusting. Note: Over time, an accumulation of food residue may cause damage to the surface of the rotary blade, causing it to rust. Preparation

• Remove the slice tray (11) and/ or the slicing board (11, model serano

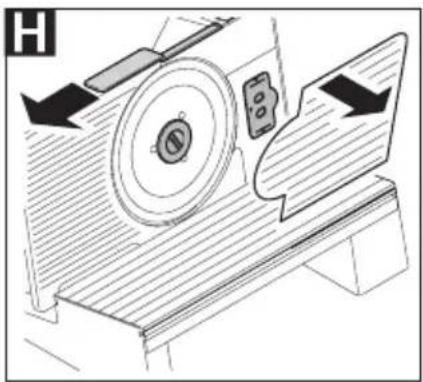

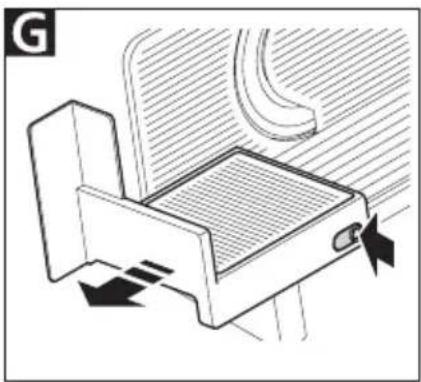

) and the left- over holder (2). Note: Make sure that the slice thickness adjustment knob is set to the "0" position. Press the release button (4) and pull the slice carriage (3) o󰀨 the appliance. Removing the rotary blade: Pull the blade cover release device (15) forwards and remove the blade cover (6). Remove the key (16) next to the rotary blade. Note: When the blade cover has been opened the appliance is safe- guarded against being switched on by an automatic circuit breaker.

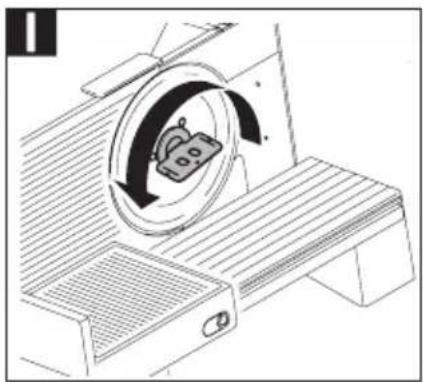

• Place the key up against the blade catch (5), turn it in an anticlockwise direction and then remove it. English11

• Take hold of the rotary blade at its rotational centre and remove it. Cleaning after each use

• Wipe down the housing and all removed parts, including the rotary blade, with a damp cloth. Occasional cleaning

• Give all removed parts, includ- ing the rotary blade, a thorough wash in warm soapy water (not in the dishwasher!).

• Clean the housing behind the blade using a dry cloth/brush. Note: Do not use any abrasive cleans- ers, sponges with rough surfaces or hard brushes to clean the appliance. serano

• Rinse the slicing board with water and detergent. Do not use aggressive abrasive cleaners.

• Rub food-safe oil into the slic- ing board to keep it in the best condition.

• Dry all parts that you have washed.

• Grease the rotary blade’s gear wheel with a little ritter mainte- nance grease (alternatively with a little Vaseline). Assembling the appliance

• Carefully insert the rotary blade.

• Insert the blade catch (5).

• Place the key (16) in the blade catch and turn the blade catch in a clockwise direction until tight.

• Mount the blade cover (6). Slide the slice carriage into the guide grooves on the appliance. MAINTENANCE Your food slicer is maintenance- free. However, we recommend that you occasionally apply a little extra ritter maintenance grease or Vaseline to the rails of the slice carriage to keep them lubricated and ensure that the carriage continues to move easily. STORAGE Keep the appliance out of the reach of children. To store the cable always use the cable compartment integrated into the appliance.

ELECTRICAL AND ELECTRONIC EQUIPMENT This symbol indicates that this product must not be disposed of with unsorted municipal waste. There is a separate (free) system for the collection and return of waste electrical and electronic equipment. For more information, please contact your local authority or the shop where you purchased the product. By ensuring that this product is disposed of correctly, you will help prevent potential negative consequences for the environ- ment and human health and contribute to the conservation of natural resources. REACH DIRECTIVE See www.ritterwerk.de SPECIAL ACCESSORIES A non-toothed rotary blade is also available specically for sliced meat, sausage and ham. The original ritter maintenance grease is available for delivery for maintaining (regreasing) the food slicer. English

SERVICE, REPAIRS AND

SPARE PARTS Please contact your local after- sales service for all service, repairs and spare parts matters! See www.ritterwerk.de TECHNICAL DATA The appliance complies with the CE specications. Mains voltage/power consump- tion: Refer to the type label on the underside of the appliance. Slice thickness: 0 mm to approx. 23 mm WARRANTY This ritter appliance comes with a two-year manufacturer’s war- ranty, starting with the date of purchase and in accordance with the EU warranty directives. Your legal warranty claims according to § 437 󰀨. BGB (German Civil Code) remain una󰀨ected by this regulation. The manufacturer warranty applies to all devices sold within the European Union. For details of the warranty condi- tions, see www.ritterwerk.de/ warranty. In the event of a war- ranty claim or for servicing, the appliance must always be sent to the appropriate national customer service centre.

EXPLANATION OF SYMBOLS

Symbol Explanation CE marking: The product complies with the applicable requirements of the European Union. The product was put on the market after 13 August 2005. It must not be disposed of as normal domestic waste. The crossed-out wheelie bin symbol indicates that separate collection is required. Suitable for contact with foodstu󰀨s12 Français
