USER MANUAL DBSH01113WD13 DANBY
Owner's Manual. 1 - 12
CHAUFFE-EAU EN CÉRAMIQUE OSCILLANT
Danby Products Limited, Guelph, Ontario, Canada N1H 6Z9 Danby Products Inc. Findlay, Ohio, U.S.A. 45840
www.Danby.com
in
2022.08.23
Important Safety Information READ AND FOLLOW ALL SAFETY INSTRUCTIONS
WARNING: Read and understand this entire owner's manual, including all safety information, before plugging in or using this heater. Failure to do so could result in fire, electric shock or serious personal injury.
CAUTION: Keep this owner's manual for future reference.
CAUTION: Risk of electric shock. Do not open or try to repair the heater yourself.
This heater may get hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Use handles when moving this heater. Do not place the heater against walls, furniture, curtains, etc.
Keep combustible materials, such as furniture, pillows, bedding, paper, clothes and curtains at least 3 feet from the front of the heater and keep them away from the sides, top and rear. Do not place towels or other objects on the heater.
Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
The heater is not intended for use in bathrooms, laundry areas, showers or swimming pools and similar locations. Never locate the heater where it may fall into a bathtub or other water container. To protect against electrical hazards, do not immerse in water or other liquids.
SAVE THESE INSTRUCTIONS!
Do not touch the control panel or plug with a wet hand.
Always use on a dry, level surface.
Do not use outdoors.
Always use in an upright position.
WARNING: To reduce the risk of fire or electric shock, do not use this heater with any solid-state speed control devices.
Do not operate any heater with a damaged power cord or after the heater malfunctions, has been dropped or damaged in any manner. Return the heater to an authorized service facility for examination, electrical or mechanical adjustment or repair.
Do not run the power cord under carpeting. Do not cover the power cord with throw rugs, runners or similar coverings. Arrange the power cord away from traffic area where it will not be tripped over.
Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire or damage to the heater.
To prevent possible fire, do not block the air intakes or exhaust in any manner. Do not use the heater on soft surfaces like a bed or thick carpeting where the air intakes may become blocked.
SAVE THESE INSTRUCTIONS!
A heater has hot and arcing or sparking parts inside. Do not use the heater in areas where gasoline, paint, explosive and/or flammable liquids are used or stored. Keep the heater away from heated surfaces and open fl ames.
Always plug the heater directly into a wall outlet or receptacle. Never use an extension cord or power strip. To avoid fire or shock hazard, plug the heater directly into a 120 V AC electrical outlet.
To disconnect the heater, turn the controls to OFF and then remove the plug from the outlet. Pull firmly on the plug, do not unplug by pulling on the cord.
Always unplug the heater before moving or cleaning it. Unplug the heater when it is not in use.
Use only for intended household use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons. The use of attachments is not recommended.
Do not attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty. The inside of the heater does not contain any user serviceable parts.
SAVE THESE INSTRUCTIONS!
SAFETY FEATURES
Tip Over Safety Feature
This heater is equipped with a shut-off safety feature. If the heater is tipped over, an internal switch will automatically shut the heater off. When the heater is returned to an upright position, the heater will reset. To continue operation, turn on the heater using the supplied remote control or the control panel on the heater.
Overheat Safety Feature
This heater is equipped with an overheat safety feature. When the heater's internal components reach a certain temperature that could cause overheating and possible fire, the heater will automatically shut off.
A thermal overload protector is built in to prevent overheating. When an "overheat" temperature is reached, the heater will automatically shut off. Operation can only resume when the user resets the heater.
To reset the heater, ensure the power is turned off, unplug the unit and wait 15 to 20 minutes for the internal components to cool down.
Follow the instructions for use to return the heater to normal functioning.
WARNING: It is normal for the power cord to feel warm to the touch; however, a loose fit between the outlet and the plug may cause overheating of the plug. If this occurs, try inserting the plug into a different outlet. Contact a qualified electrician to inspect the original outlet for damage.
OPERATING INSTRUCTIONS

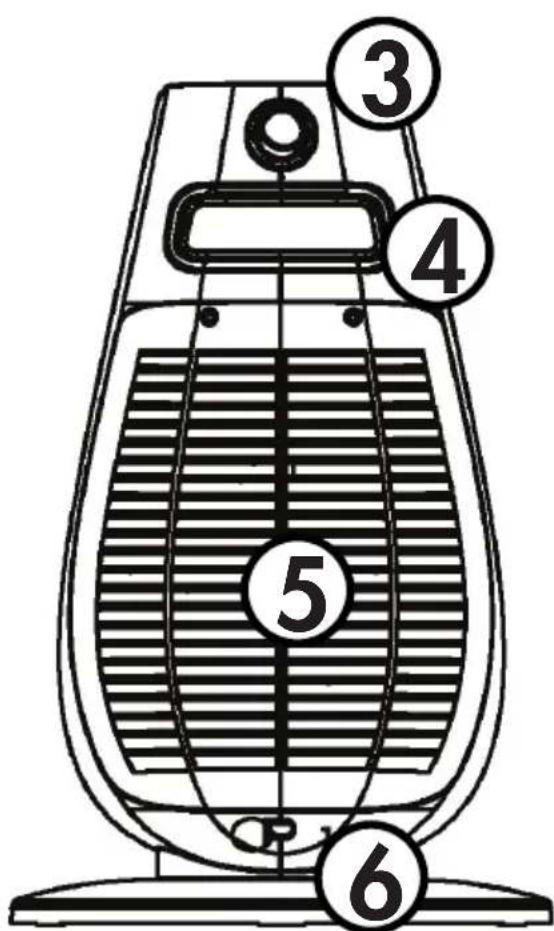

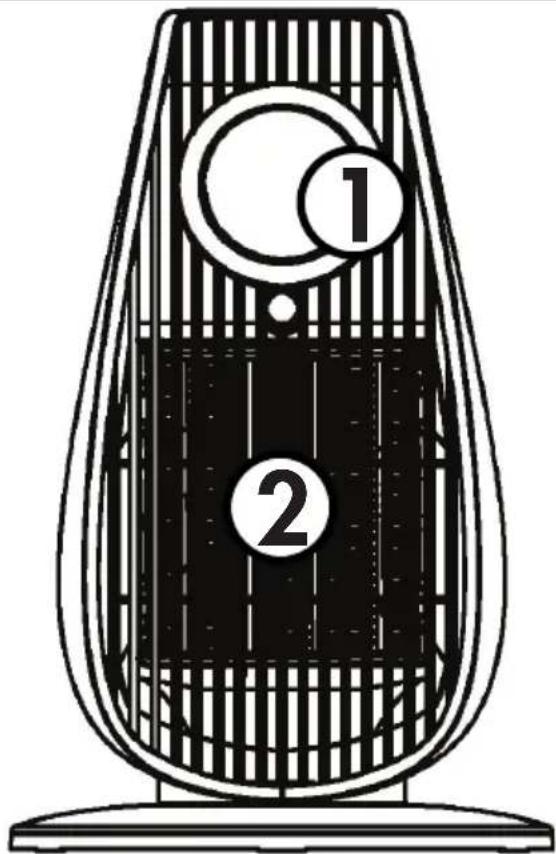

FEATURES
- Control panel
- Air outlet
- Power switch
- Handle
- Air intake
- Tip over safety switch (on bottom)
- Remote control (not pictured)
IMPORTANT WARNING
Do not leave this appliance unattended in a space where people or animals who cannot react to a malfunction are located. A malfunction can cause extreme overheating or death in an enclosed, unattended space.
OPERATING INSTRUCTIONS

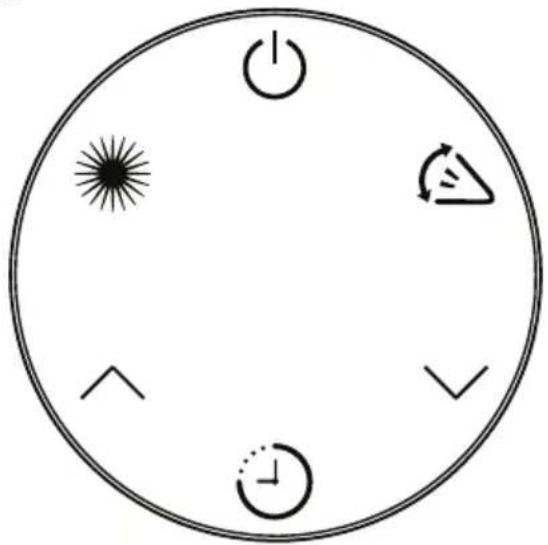

CONTROL PANEL
| CONTROLS FUNCTIONS | ||
| ON/OFF button Turns the heater ON or OFF. | ||
| Mode button Press to set the mode; high, low and fan. Press and hold for 3 seconds to change the display temperature between C and F temperature scales. | ||
| Up button Increases the set temperature. | ||
| Down button Decreases the set temperature. | ||
| Oscillation button Starts and stops the oscillation feature. | ||
| Timer button Used to set the timer. | ||

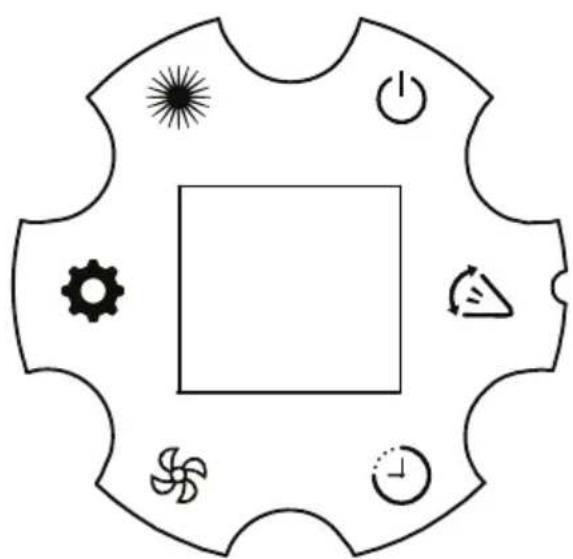

DISPLAY INDICATOR LIGHTS
| DISPLAY DESCRIPTION | ||
| Power indicator | Illuminates when the heater is receiving power from the power outlet. Will flash when the heater is fi rst powered on. | |
| Fan mode indicator | Illuminates when fan mode is in operation. | |
| High mode indicator | Illuminates when high heat mode is in operation. | |
| Low mode indicator | Illuminates when low heat mode is in operation. | |
| Oscillation indicator | Illuminates when the oscillation feature is in operation. | |
| Timer indicator | Illuminates when the timer is in operation. | |

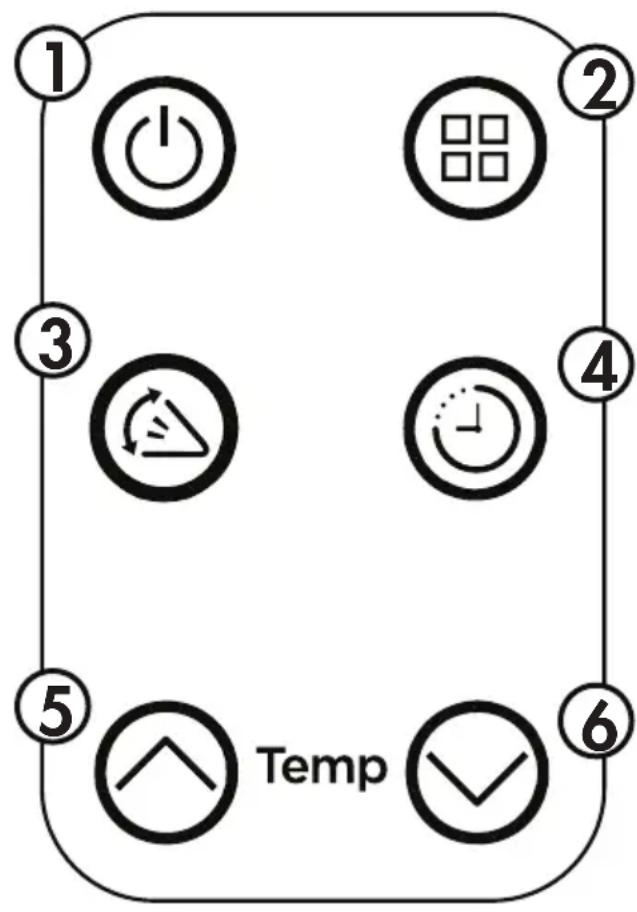

REMOTE CONTROL
- ON/OFF: Used to turn the heater on or off.
- Mode button: Used to set the desired mode; fan, low heat or high heat.
- Oscillation button: Used to start and stop the oscillation feature.
- Timer button: Used to set the timer feature.
- Up button: Used to increase the set temperature.
- Down button: Used to decrease the set temperature.
REMOTE CONTROL BATTERY
This remote control uses one CR2025 battery.
To remove the battery, push the latch on the battery compartment upwards and then pull the battery tray out.
To replace the battery, place the new battery in the battery tray and push it gently into the remote control until it clicks into place.
WARNING: Never dispose of batteries in fire. Failure to observe this precaution may result in an explosion. Dispose of batteries at your local hazardous material processing center.
If the heater will not be used for a long time, remove the batteries to prevent corrosion. Store the remote control in a safe place.
Keep batteries out of children's reach. Discard them carefully.
Do not allow children to play with batteries.
Never put button batteries in or near your mouth for any reason, they are slippery and easy to swallow accidentally.
INSTRUCTIONS FOR USE
- Place the heater on a firm, level surface. Only use the heater in an upright position.
- Pull out the insulating fi lm from the remote control battery compartment.
- Ensure the power is turned off.
- Plug the heater directly into a 120 V AC electrical outlet.
- Turn the heater on by pressing the power button.
- Press the mode button to set the desired mode.
- Press the up and down arrows to set the desired temperature. The temperature can be set between 15C - 30C (59F - 86F). The heater will remain on until the set temperature is reached and it will then cycle on and off to maintain the set temperature.
- Turn the heater off by pressing the power button. When the power is turned off the heating element will stop working immediately but the fan will continue to run for 30 seconds or until the heater has cooled.
Important
When the heat feature is used for the first time, a slight odor may be present. This is normal and should not occur again unless the heater is not used for an extended period of time.
It is normal for the heater to cycle on and off as it maintains the set temperature.
For the heater to function properly, the set temperature must be higher than the ambient temperature in the room. If the heater does not seem to be heating, increase the set temperature to engage the heating element.
Press and hold the mode button for 3 seconds to change the display temperature between C and F temperature scales.
TIMER
The timer feature can be used to set the heater to turn on or off after a set amount of time.
To set the power on timer:
- Ensure the heater is turned off.
- Press the timer button. The LED display will change to show hours instead of temperature.
- Press the timer button repeatedly to set the number of hours before the heater should turn on. The timer can be adjusted in 1 hour increments to a maximum of 12 hours.
- The LED will flash the selected time for a few seconds and then will return to showing the temperature. The timer indicator light will remain illuminated while the timer is active. The heater will automatically turn on when the timer reaches zero.
To set the power off timer:
- Ensure the heater is turned on.
- Press the timer button. The LED display will change to show hours instead of temperature.
- Press the timer button repeatedly to set the number of hours that the heater should run before turning off. The timer can be adjusted in 1 hour increments to a maximum of 12 hours.
- The LED will flash the selected time for a few seconds and then will return to showing the temperature. The timer indicator light will remain illuminated while the timer is active. The heater will automatically turn off when the timer reaches zero.
OSCILLATION
Press the oscillation button to begin the oscillation feature. The heater will oscillate back and forth while this feature is in operation. Press the oscillation button again to stop the oscillation feature.
CLEANING
- Ensure the power is turned OFF and the heater is unplugged.
- Allow the heater to completely cool before attempting any cleaning.
- The outer shell may be cleaned with a soft, damp cloth. A mild detergent can be used if necessary.
- After cleaning, dry the heater with a soft, dry cloth.
- Wait until the heater is completely dry before using.
WARNING: Do not immerse the heater in water or allow water to enter the heater.
WARNING: Do not use alcohol, gasoline, abrasive powders, furniture polish or rough brushes to clean the heater. This may cause damage or deterioration to the surface of the heater.
TROUBLESHOOTING
If the heater will not operate, check the following:
- Check that the power cord is plugged into a 120 V AC electrical outlet. Do not use extension cords.
- Check that the power indicator light on the control panel is illuminated to show that the heater is getting power from the outlet.
- Check if the battery in the remote control needs to be replaced.
- Unplug the heater, wait 15 minutes for the internal components to reset and then plug it back in.
- Ensure that the heater is placed on a flat, firm surface and that the tip over switch is engaged.
STORAGE
Store the heater in a cool, dry location when not in use. To prevent dust and dirt build-up, use the original packaging to repack the heater.
LIMITED "EXCHANGE ONLY" WARRANTY
This quality product is warranted to be free from manufacturer's defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer.
This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter "Danby") or by an authorized distributor of Danby, and is non-transferable.
TERMS OF WARRANTY
First 12 months: During the first twelve (12) months, any replaceable parts of this product found to be defective, will be replaced, at warranter's option, at no charge to the original purchaser.
To obtain service: For help with troubleshooting or for warranty replacement parts, contact Danby Consumer Service by visiting www.Danby.com/Support or call 1-800-263-2629.
EXCLUSIONS
Save as herein provided, by Danby, there are no other warranties, conditions, representations or guarantees, express or implied, made or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statute is hereby expressly excluded. Save as herein provided, Danby shall not be responsible for any damages to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit.
GENERAL PROVISIONS
No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:
- Damage in transit.
- Accident, alteration, abuse or misuse of the appliance.
- Improper power supply such as low voltage, defective house wiring or inadequate fuses.
- Use for commercial or industrial purposes (i.e.. If the appliance is not installed in a domestic residence).
- Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc.
- Service calls resulting in customer education.
- Improper Installation.
Proof of purchase date will be required for warranty claims; retain bills of sale.
