USER MANUAL A170 Snom

Wireless DECT Headset

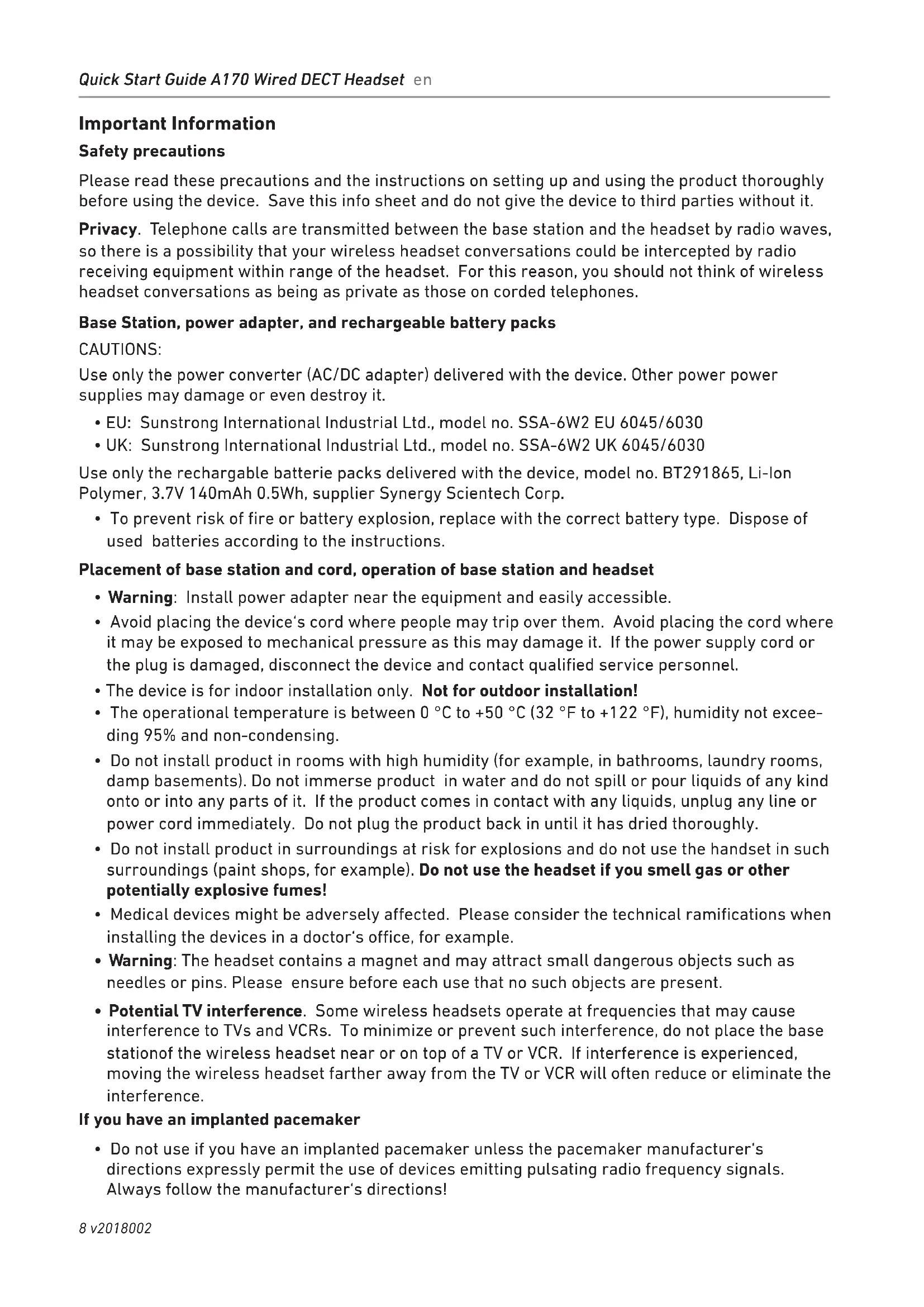

Important information ENGLISH 8

Adjusting for optimal sound quality

Snom phones: Position A

Other brands: Try different settings until audio is clear

Please read these precautions and the instructions on setting up and using the product thoroughly before using the device. Save this info sheet and do not give the device to third parties without it.

Privacy. Telephone calls are transmitted between the base station and the headset by radio waves, so there is a possibility that your wireless headset conversations could be intercepted by radio receiving equipment within range of the headset. For this reason, you should not think of wireless headset conversations as being as private as those on corded telephones.

Base Station, power adapter, and rechargeable battery packs

CAUTIONS:

Use only the power converter (AC/DC adapter) delivered with the device. Other power power supplies may damage or even destroy it.

• EU: Sunstrong International Industrial Ltd., model no. SSA-6W2 EU 6045/6030
  UK: Sunstrong International Industrial Ltd., model no. SSA-6W2 UK 6045/6030

Use only the rechargeable battery packs delivered with the device, model no. BT291865, Li-lon Polymer, 3.7V 140mAh 0.5Wh, supplier Synergy Scientech Corp.

• To prevent risk of fire or battery explosion, replace with the correct battery type. Dispose of used batteries according to the instructions.

Placement of base station and cord, operation of base station and headset

• Warning: Install power adapter near the equipment and easily accessible.
• Avoid placing the device's cord where people may trip over them. Avoid placing the cord where it may be exposed to mechanical pressure as this may damage it. If the power supply cord or the plug is damaged, disconnect the device and contact qualified service personnel.
• The device is for indoor installation only. Not for outdoor installation!
• The operational temperature is between 0^ to +50^ (32°F to +122°F), humidity not exceeding 95% and non-condensing.
• Do not install product in rooms with high humidity (for example, in bathrooms, laundry rooms, damp basements). Do not immerse product in water and do not spill or pour liquids of any kind onto or into any parts of it. If the product comes in contact with any liquids, unplug any line or power cord immediately. Do not plug the product back in until it has dried thoroughly.
• Do not install product in surroundings at risk for explosions and do not use the handset in such surroundings (paint shops, for example). Do not use the headset if you smell gas or other potentially explosive fumes!
  Medical devices might be adversely affected. Please consider the technical ramifications when installing the devices in a doctor's office, for example.
• Warning: The headset contains a magnet and may attract small dangerous objects such as needles or pins. Please ensure before each use that no such objects are present.
• Potential TV interference. Some wireless headsets operate at frequencies that may cause interference to TVs and VCRs. To minimize or prevent such interference, do not place the base station of the wireless headset near or on top of a TV or VCR. If interference is experienced, moving the wireless headset farther away from the TV or VCR will often reduce or eliminate the interference.

If you have an implanted pacemaker

• Do not use if you have an implanted pacemaker unless the pacemaker manufacturer's directions expressly permit the use of devices emitting pulsating radio frequency signals. Always follow the manufacturer's directions!

• Recommended MINIMUM distance to the handset: 20 cm( 7^ ) .

• Do not carry the headset in a breast pocket.
• Wear the headset on the ear opposite the medical device to minimize the potential for interference.
• Turn the headset off immediately if there is any reason to suspect that interference is taking place.

If you are wearing a hearing aid

Please note that the headset may cause an annoying background noise.

Additional safety information

Small children:

Your device and its enhancements may contain small parts. Keep them out of the reach of small children.

Operating environment:

Remember to follow any special regulations in force in any area, and always switch off your device when its use is prohibited or when it may cause interference or danger. Use the device only in its normal operating positions. Do not place credit cards or other magnetic storage media near the device, because information stored on them may be erased.

Medical devices

Operation of any equipment emitting radio frequency signals may interfere with the functionality of inadequately shielded medical devices. Consult a physician or the manufacturer of the medical device to determine if they are adequately shielded from external radio frequency (RF) energy or if you have any other questions concerning this topic. Switch off your device in health care facilities when signs posted in these areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.

Implanted medical devices

Manufacturers of medical devices recommend that a minimum distance should be maintained between a wireless device and an implanted medical device, such as pacemakers or cardioverter defibrillators, to avoid potential interference with the medical device. Persons who have such devices should:

• Always keep the wireless device more than 20 centimeters (7.8 inches) from the medical device when the wireless device is turned on.
• Not carry the wireless device in a breast pocket.
• Hold the wireless device to the ear opposite the medical device to minimize the potential for inter-ference.
• Turn the wireless device off immediately if there is any reason to suspect that interference is taking place.
• Read and follow the directions of the medical device's manufacturer.

If you have any questions about using your wireless device with an implanted medical device, consult your health care provider.

SELV (Safety Extra Low Voltage) Compliance

Safety status of Input/Output connections comply with SELV requirements.

Potentially explosive environments

Switch off your device when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Switch off the device at refuelling points such as near gas pumps at service stations.

Observe restrictions on the use of radio equipment in fuel depots, storage, and distribution areas; chemical plants; or where blasting operations are in progress. Areas with a potentially explosive atmosphere are often but not always clearly marked. They include below deck on boats, chemical transfer or storage facilities, vehicles using liquefied petroleum gas, and areas where the air contains chemicals or particles such as grain dust or metal powders.

Sensitive Electronic Equipment

The current state of research concludes that operational DECT devices normally do not adversely affect electronic equipment. Nevertheless, you should take some precautions if you want to operate DECT devices in the immediate vicinity of such equipment like sensitive laboratory equipment. Always keep a minimum distance of 10cm (3.94") to the equipment even when the phone is in standby.

Electrical Surges

We recommend the installment of an AC surge arrester in the AC outlet to which this device is connected to avoid damage to the equipment caused by local strikes of lightening or other electrical surges.

Important Battery Information

This product uses rechargeable Li-1on battery packs. Only use the battery packs that came with the handset. Do not use any other type of battery since this may lead to leakage, fire, explosion, or other dangerous situations. Never disassemble, alter, or short-circuit batteries or use them for purposes other than the intended one. Charge the batteries only within the headset or the base station, respectively.

Charging and Discharging, Storage

• The full performance of a new battery is achieved only after two or three complete charge and discharge cycles.
• The battery can be charged and discharged hundreds of times, but it will eventually wear out. Use only replacement batteries obtained from Snom Technology GmbH.
• If left unused, a fully charged battery will lose its charge over time.
• Use the battery only for its intended purpose. Do not short-circuit the battery. Short-circuiting the terminals may damage the battery or the connecting object. Do not use a damaged charger or battery. Using a damaged battery may cause it to explode.
• Do not place or store the battery, inside or outside the headset, in the immediate vicinity of open fire or other heat sources.
• Leaving the battery in hot or cold places will reduce its capacity and lifetime. Charge batteries within an ambient temperature range of 0^ to +50^ ( +32^ to +122^ ). A device with a hot or cold battery may not work temporarily, even when the battery is fully charged.
• Avoid overcharging. Repeated overcharging can lead to deterioration in battery performance. Never attempt charging the battery with reversed polarity as this may cause the gas pressure inside the battery to rise and lead to leakages.
• Remove battery if storing headset for more than 1 month.
• Store battery in a cool, dry place without corrosive gases.

Battery Disposal

Defective or exhausted batteries should never be disposed of as municipal waste. Return old batteries to the battery supplier, a licensed battery dealer or a designated collection facility. Do not incinerate batteries.

Cleaning

Use an anti-static cloth. Please avoid water and liquid or solid cleaning products as they might damage the surface or internal electronics of the base, charger, and handset.

Disposal

Base station, headset, power adapter

This product is subject to European Directive 2012/19/EU and may not be disposed of with general household garbage. If you do not know where you may dispose of the device at the end of its lifespan, contact your municipality, your local waste management provider, or your seller.

Battery

The battery provided with this product is subject to European Directive 2006/66/EC and may not be disposed of with general household garbage.

If you do not know where you may dispose of the battery at the end of its lifespan, contact your municipality, your local waste management provider, or your seller.

For countries outside the European Union:

Disposal of electrical and electronic products in countries outside the European Union should be done in line with local regulations. Please contact local authorities for further information.

Standards Conformance

This device complies with the essential health, safety, and environmental requirements of all relevant European directives.

Unauthorized opening, changing, or modifying the device will cause the warranty to lapse and may also result in the loss of CE conformity. In case of malfunction contact authorized service personnel, your seller, or Snom.

Technical specifications

Security: IEC 60950

RF frequency band: 1881.792-1897.344 MHz (EMEA)

Channels: 5

Operational temperature range: 0^ - 50^ (+32^ to +122^)

Base station voltage (AC voltage, 60Hz): 96Vrms - 127Vrms

Base station voltage (AC adapter output): Output 1: 6VDC @450mA

Output 2:6VDC @300mA

Headset operating voltage: 3.2VDC - 4.2VDC

Battery: 3.7V 140mAh

Power adapter:

EU: Sunstrong, model number SSA-6W2 EU 6045/6030
UK: Sunstrong, model number SSA-6W2 UK 6045/6030

All product specifications are subject to change without notification. Snom disclaims all warranties and liability for the accurateness, completeness, and currentness of the information published, except in the case of intention or gross negligence on the part of Snom or where liability arises due to binding legal provisions. For more information, see www.snom.com.
