USER MANUAL OG5116 IFM

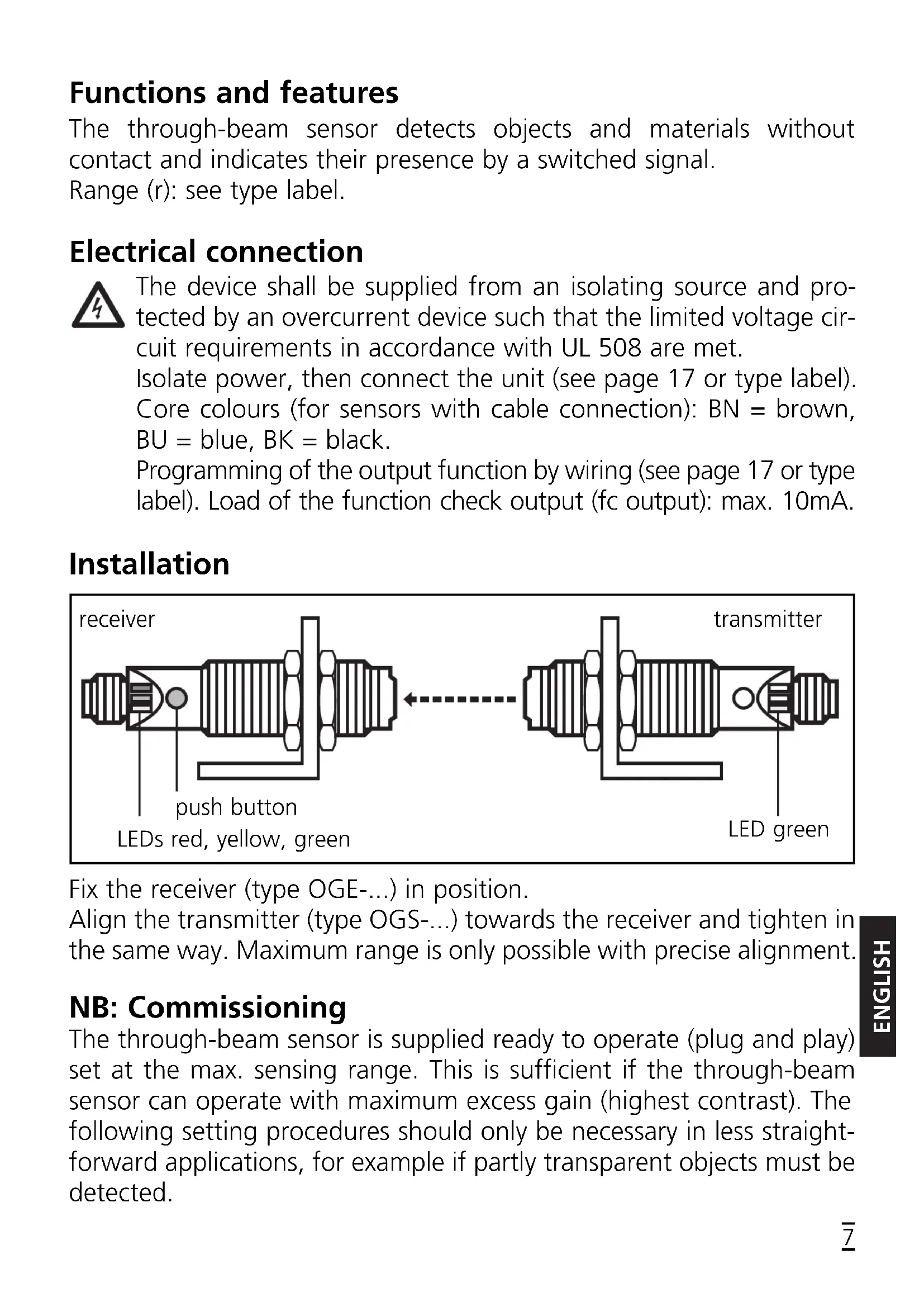

receiver transmitter LEDs red, yellow, green push button LED greenSetting of the sensitivity with stationary objects You can also proceed in reverse order: first setting without the object, then with the object. If the setting of the sensitivity is not possible (e.g. object signal and background signal are about the same), the red LED flashes after step 3 for approx. 2s. The unit then passes into the operating mode with the sensitivity being unchanged.

Press once. The yellow and green LEDs go out for approx. 1s, then the green LED is on. The unit is in the operating mode.

Set the sensitivity without object. receiver transmitter Press for about 2s until the red LED flashes. Activate the programming mode of the unit. The red LED goes out; the yellow and green LEDs flash alternately. The unit is in the programming mode.

Set the sensitivity with object. Press once. The yellow and green LEDs go out for approx. 1s, then flash again alternately.

receiver transmitter receiver transmitterENGLISH Setting of the sensitivity with moving objects If the setting of the sensitivity is not possible (e.g. object signal and background signal are about the same), the red LED flashes after step 3 for approx. 2s. The unit then passes into the operat- ing mode with the sensitivity being unchanged.

Press for about 2s until the red LED flashes. Activate the programming mode of the unit. The red LED goes out; the yellow and green LEDs flash alternately. The unit is in the programming mode.

receiver transmitter During the measurement (approx. 1s) allow at least two objects to move through the sensing area of the lens. Press once. The yellow and green LEDs go out for approx. 1s, then flash again alternately.

Press once. The yellow and green LEDs go out for approx. 1s, then the green LED is on. The unit is in the operating mode.

During the measurement (approx. 1s) allow at least two objects to move through the sensing area of the lens. receiver transmitter receiver transmitterSetting of the maximum sensitivity

• Go into the programming mode (step 1).

• Interrupt the light beam.

• Press the setting button twice (see steps 2 and 3). Locking/Unlocking: Operation Check the safe functioning of the through-beam sensor. Display by LEDs and by the function-check output.

LED green is lit unit is ready for operation LED yellow is lit output is switched LEDs yellow + red flashing alternately, 2 Hz: output short-circuited flashing alternately, 1 Hz: internal malfunction (output is not switched) LED red is lit error in object detection, e.g. maladjustment, soiling of the lenses Press for 10s. The red LED lights for a short time, then the yellow and green LEDs flash alternately; after 10s the LEDs go out, the unit is locked. Press for 10s. After 10s the LEDs go out, locking is annulled.ENGLISH Function check output (not for sensors with cable connection)

• Switches in the case of incorrect object detection (error in object detection, maladjustment, soiling of the lenses) after approx. 4 s, it switches back approx. 4 s after the object is again correctly detect- ed.

• Immediately switches in the case of a short circuit of the switching output, it switches back approx. 2 s after the fault has been recti- fied.
