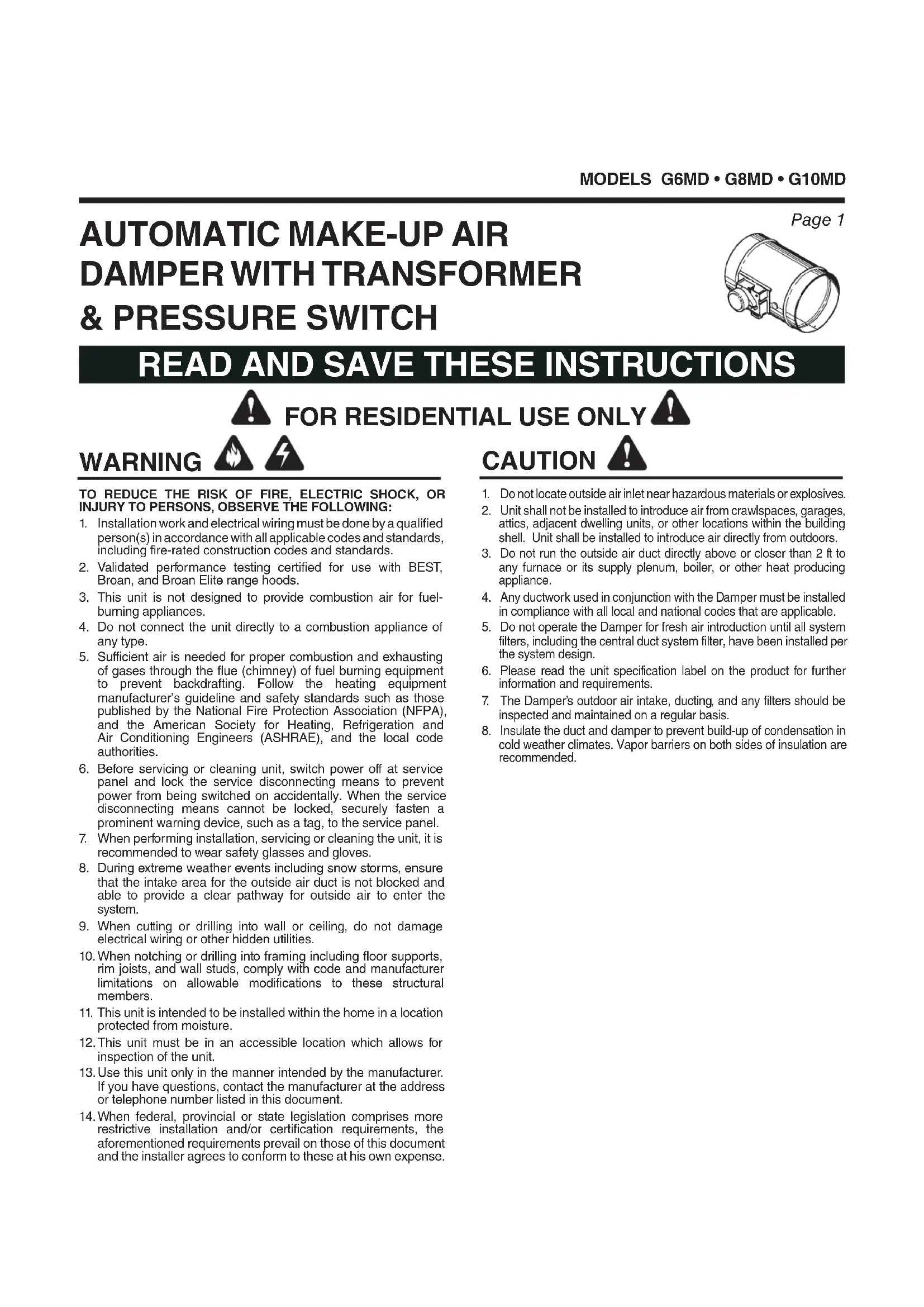

USER MANUAL G8MD VIKING

1. Installation work and electrical wiring must be done by a qualified

person(s) in accordance with all applicable codes and standards, including fire-rated construction codes and standards.

2. Validated performance testing certified for use with BEST,

Broan, and Broan Elite range hoods.

3. This unit is not designed to provide combustion air for fuel-

4. Do not connect the unit directly to a combustion appliance of

5. Sufficient air is needed for proper combustion and exhausting

of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

6. Before servicing or cleaning unit, switch power off at service

panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

7. When performing installation, servicing or cleaning the unit, it is

recommended to wear safety glasses and gloves.

8. During extreme weather events including snow storms, ensure

that the intake area for the outside air duct is not blocked and able to provide a clear pathway for outside air to enter the system.

9. When cutting or drilling into wall or ceiling, do not damage

electrical wiring or other hidden utilities.

10. When notching or drilling into framing including floor supports,

rim joists, and wall studs, comply with code and manufacturer limitations on allowable modifications to these structural members.

11. This unit is intended to be installed within the home in a location

protected from moisture.

12. This unit must be in an accessible location which allows for

inspection of the unit.

13. Use this unit only in the manner intended by the manufacturer.

If you have questions, contact the manufacturer at the address or telephone number listed in this document.

14. When federal, provincial or state legislation comprises more

restrictive installation and/or certification requirements, the aforementioned requirements prevail on those of this document and the installer agrees to conform to these at his own expense.

READ AND SAVE THESE INSTRUCTIONS

1. Do not locate outside air inlet near hazardous materials or explosives.

2. Unit shall not be installed to introduce air from crawlspaces, garages,

attics, adjacent dwelling units, or other locations within the building shell. Unit shall be installed to introduce air directly from outdoors.

3. Do not run the outside air duct directly above or closer than 2 ft to

any furnace or its supply plenum, boiler, or other heat producing appliance.

4. Any ductwork used in conjunction with the Damper must be installed

in compliance with all local and national codes that are applicable.

5. Do not operate the Damper for fresh air introduction until all system

filters, including the central duct system filter, have been installed per the system design.

6. Please read the unit specification label on the product for further

information and requirements.

7. The Damper’s outdoor air intake, ducting, and any filters should be

inspected and maintained on a regular basis.

8. Insulate the duct and damper to prevent build-up of condensation in

cold weather climates. Vapor barriers on both sides of insulation are recommended.MODELS G6MD • G8MD • G10MD Page 2

OUTSIDE AIR INTAKE LOCATION

Proper design and location of the outside air intake location is critical in ensuring that the Damper can safely and reliably provide an opening for fresh air to enter the home. The following requirements for the location of the outside air intake must be met:

pliance vents, chimneys, plumbing stacks, and bathroom or kitchen exhaust vents. If local codes have more stringent separation re- quirements, they shall apply.

blockage from snow or other debris such as leaves, and at a mini- mum of 1’ above grade.

rages, attics, adjacent dwelling units, or any enclosed part of the building. The Damper should be installed to draw air directly from outdoors.

OUTSIDE AIR INTAKE OPENING PROTECTION

Because the Damper, together with the end cap and outside air duct which are installed with it, will allow outdoor air into the indoor environ- ment, it is important to meet the following requirements:

animals and outside debris. Clean screens often and do not remove.

must cover the entire opening of the outside air duct. This screen must also have openings of at least ¼” but no larger than ½”.

for the protection of openings in exterior walls, including steps to prevent moisture intrusion around the opening. Note that the screen over the outside air opening is not a filter. It is intended to prevent the intake of leaves, animals, or debris into the out- side air duct. A downstream filter is necessary to remove pollen, dust, and other airborne particles. Potential filter locations are shown below in the Typical Installations section.

MINIMUM RETURN AIR TEMPERATURE REQUIREMENTS

HVAC equipment manufacturers may have minimum requirements for the air temperature in the return air plenum. Introducing outdoor air to the return side of the central duct system may impact this temperature. The installer should adjust both the size of the outside air duct and the location of its connection to the return side of the central duct system in a manner so that minimum air temperature requirements are satisfied under design conditions.

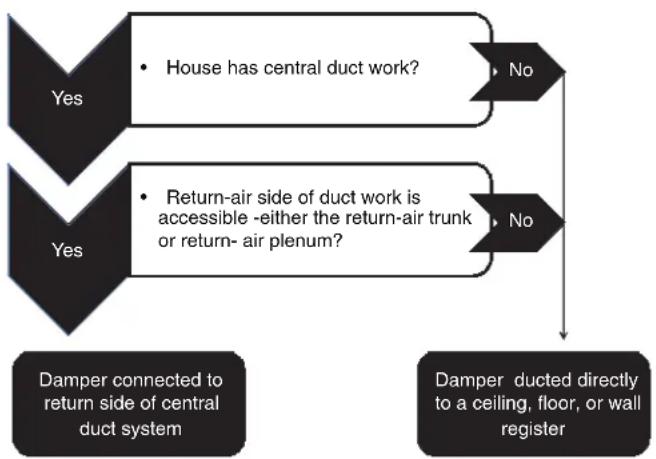

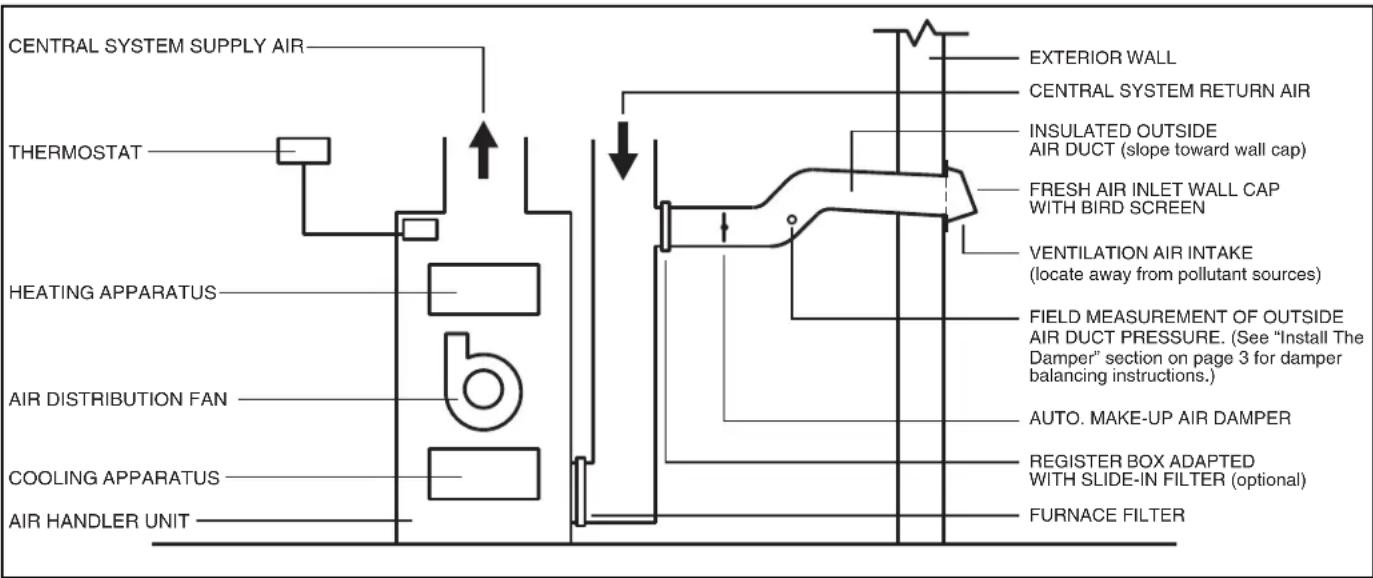

PLAN THE INSTALLATION

Planning the installation first requires selecting the most appropriate installation approach. The chart below offers suggestions for the most effective installation approach by considering a few important factors. Further details on the two main types of installations are provided below.

• House has central duct work? Yes

• Return-air side of duct work is accessible -either the return-air trunk or return- air plenum? Damper connected to return side of central duct system

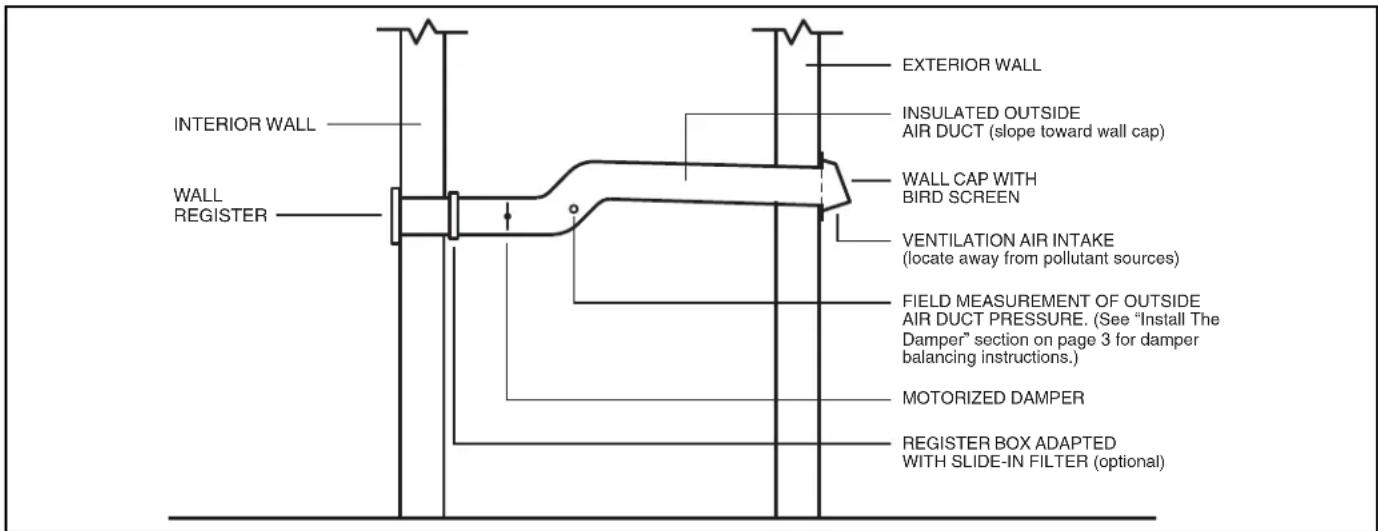

Damper ducted directly to a ceiling, floor, or wall register

- Transformer - Pressure Switch Kit which includes: - Pressure Switch - Probe - 12” PVC tubing 1/4” I.D. - Gasket

TOOLS REQUIRED - 1/4” Socket Drive - Flathead or Phillips Screw Driver - 3/8” Drill Bit - Duct Tape - Low Voltage Wire (2 Conductor) - (2) 1/4” Female Spade Terminals - Wire NutsMODELS G6MD • G8MD • G10MD Page 3 Damper and outside air duct connected directly to a ceiling, floor, or wall register. INTERIOR WALL WALL REGISTERREGISTER BOX ADAPTEDWITH SLIDE-IN FILTER (optional)MOTORIZED DAMPERFIELD MEASUREMENT OF OUTSIDEAIR DUCT PRESSURE. (See “Install TheDamper” section on page 3 for damperbalancing instructions.)WALL CAP WITHBIRD SCREENINSULATED OUTSIDEAIR DUCT (slope toward wall cap)EXTERIOR WALLVENTILATION AIR INTAKE(locate away from pollutant sources) TYPICAL INSTALLATIONS Installations will vary according to the location in the home where the unit is installed and which model Damper is used. Use the following illustrations and notes as guidance for your own installation. Always comply with local code requirements and in any instance where a detail shown below conflicts with local code, the local code provision shall apply. Damper connected to return side of central duct system.

HEATING APPARATUS THERMOSTAT

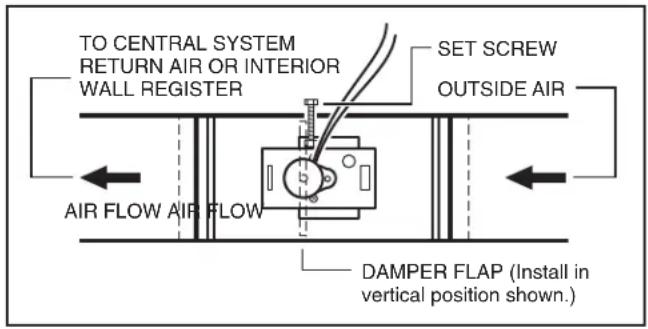

cal position when closed and power is off. The set screw can be used to adjust the damper opening - thereby balancing the inside and outside air pressure when the range hood exhausts at high speed. PRESSURE SWITCH OPERATION The pressure switch is designed to operate when the static pressure increases to 0.05” Ps or more. It may not operate at low speeds since the pressure is below this limit. MULTIPLE DAMPERS

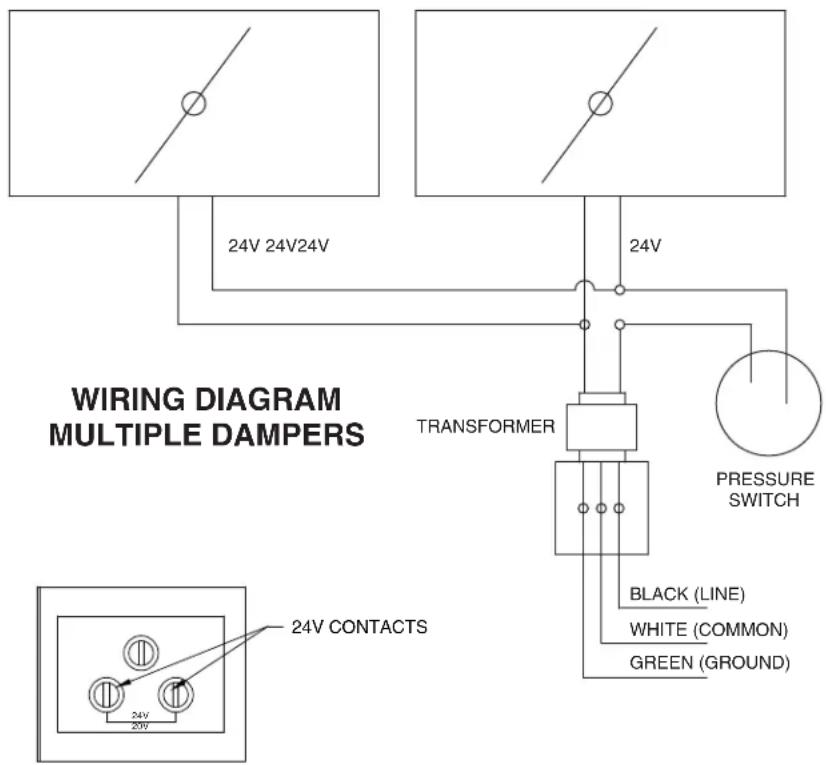

together with one pressure switch and one transformer - for up to three dampers. INSTALLATION OF

PROBE For the probe & pressure switch to work effectively the roof or wall cap must have a spring loaded damper.MODELS G6MD • G8MD • G10MD Page 5

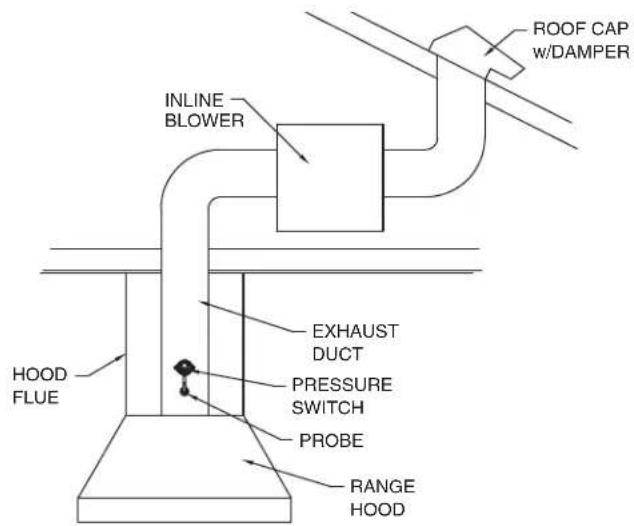

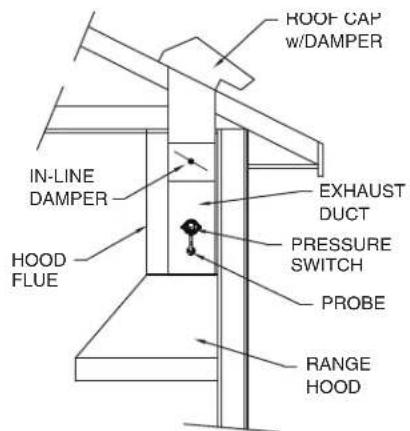

INTERNAL BLOWER AND ROOF VENT

INTERNAL BLOWER AND WALL VENT

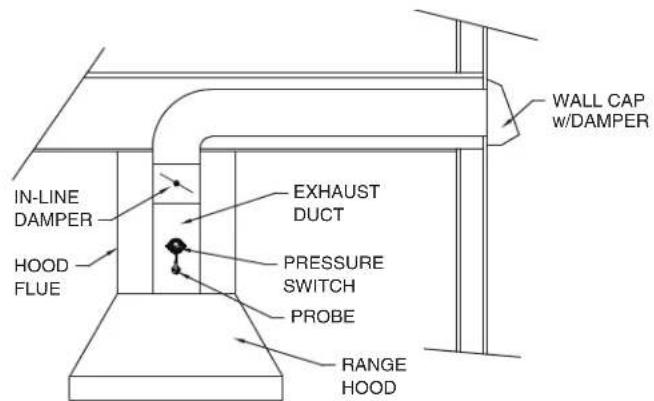

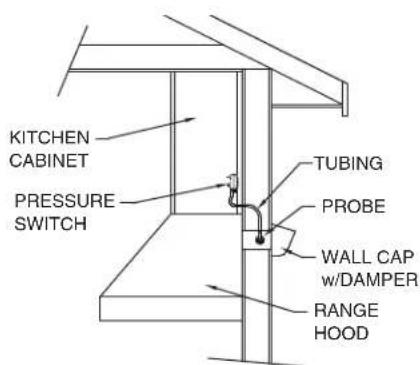

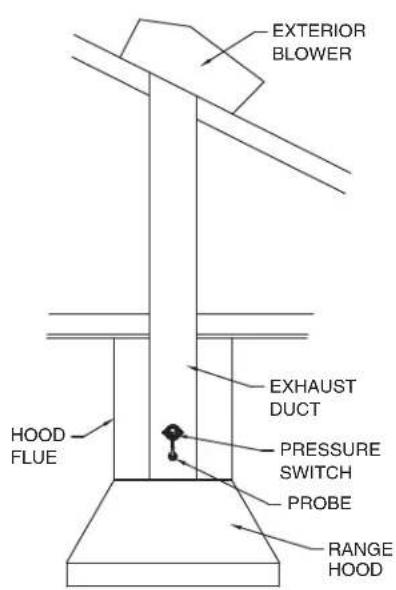

RANGE HOOD PROBE EXHAUST DUCT PRESSURE SWITCH HOOD FLUE EXTERIOR BLOWER The probe must be mounted between the range hood damper and the wall cap, roof cap, in-line blower or external blower.

make sure the hood damper operation is not affected. The pressure switch should be mounted so it is accessible for any future service. The switch can mounted no more then 72” away from the probe. If longer tubing is required then what is supplied, purchase 1/4” I.D. PVC tubing from a local source. See the illustrations below for possible installation scenarios.MODELS G6MD • G8MD • G10MD Page 6

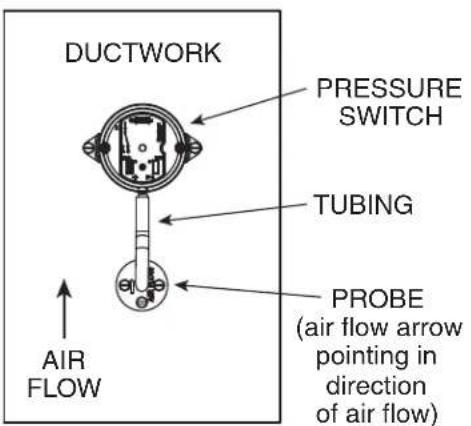

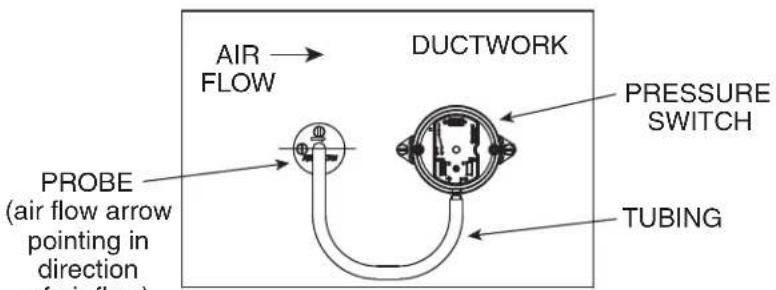

MOUNTING POSITIONS OF PROBE & PRESSURE SWITCH

DUCTWORK VERTICAL PRESSURE SWITCH TUBING PROBE (air flow arrow pointing in direction of air flow) AIR FLOW DUCTWORK DUCTWORK HORIZONTAL PRESSURE SWITCH TUBING PROBE (air flow arrow pointing in direction of air flow) AIR FLOW DUCTWORK

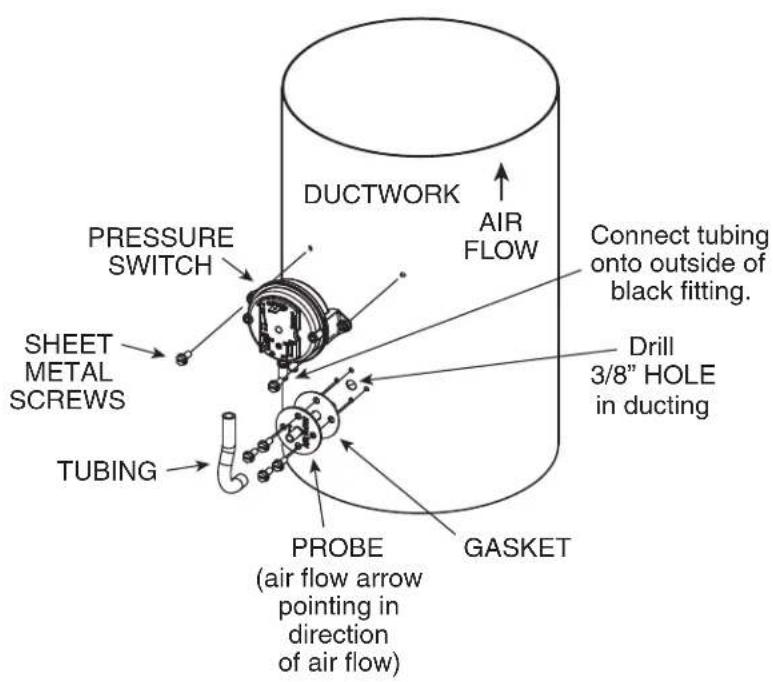

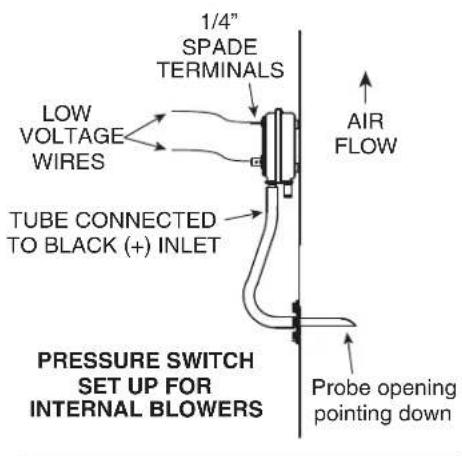

MOUNT THE PROBE & PRESSURE SWITCH

PRESSURE SWITCH TUBING PROBE (air flow arrow pointing in direction of air flow) AIR FLOW DUCTWORK GASKET SHEET METAL SCREWS Connect tubing onto outside of black fitting. Drill 3/8” HOLE in ducting 1/4” SPADE TERMINALS Probe opening pointing down AIR FLOW LOW VOLTAGE WIRES TUBE CONNECTED

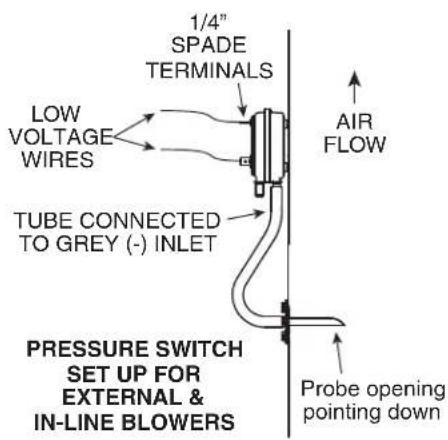

EXTERNAL & IN-LINE BLOWERS 1/4” SPADE TERMINALS Probe opening pointing down AIR FLOW LOW VOLTAGE WIRES TUBE CONNECTED

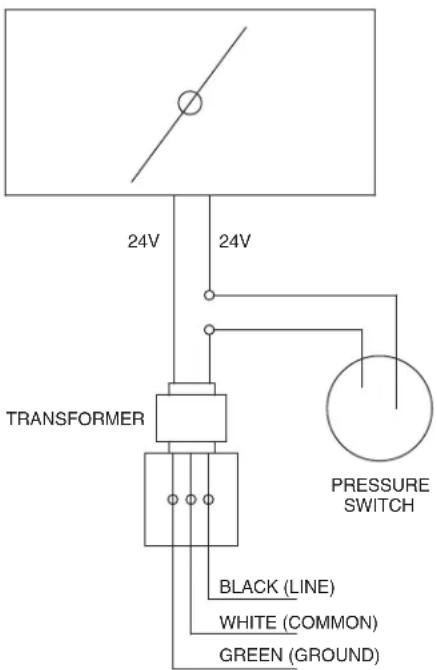

Turn off the hood and check to see if the damper closes. A qualified HVAC contractor should also ensure the proper operation and venting of all combustion equipment in the home. Wire the system as shown. FALSE TRIPPING Under certain extreme conditions there could be false tripping of the damper (opening when the range hood blower is off). If false tripping is encountered, place an in-line backdraft damper (not included) between the probe and the roof or wall cap. 24V 20V 24V CONTACTS TRANSFORMER WIRINGMODELS G6MD • G8MD • G10MD Page 8 FREQUENTLY ASKED QUESTIONS (FAQS)

1. What does the Automatic Make-Up Air

pathway for fresh air to enter a home from outdoors when a compatible exhaust device is operating. The Damper opens when a range hood is operating, thereby creating a known, controlled point for fresh air to enter the home while air is being exhausted from the building by the range hood. By operating in this manner, the Damper provides two key benefits for the home:

allow fresh air into the home to replace air which is exhausted out of the home.

is on, the Damper helps to avoid negative pressure conditions within the home which may interfere with the proper operation of combustion equipment within the home.

and without interfering with the proper operation of other home systems.

2. Does the “Damper” provide combustion air for combustion

appliances like a water heater or a furnace? No. The Damper helps to replace air which is exhausted by a compatible

indoors by a combustion appliance like a natural gas water heater, and it

this restriction is that the Damper is only open when the range hood that it’s connected to is operating. So there is no assurance that the Damper would be open when other appliances, like a water heater, are operating.

3. How do I know if I need make-up air for my

range hood? In some cases the local building code may tell you that make-up air is necessary. For example, some codes specify that range hoods with

mechanical system to introduce make-up air. In other cases, make-up air for a range hood is desirable regardless of whether code requires it. This is especially true for:

easily find its way into the home through cracks, to replace air which is exhausted out.

(i.e. a water heater or natural draft fireplace), which are more susceptible to improper venting if depressurization occurs in the home. In homes with any one of these factors make-up air is advised. And in homes with more than one of these conditions make-up air for the range hood is strongly advised.

4. What are the benefits of providing make-up air to replace air

which is exhausted out of the home by a range hood? Range hoods are designed to pull out pollutants like cooking odors or moisture at the source, so they don’t linger in the home. Because these

from outdoors. Normally this make-up air enters the home through cracks

much more thoroughly so there are not as many cracks and openings. Plus some exhaust fans like range hoods exhaust a lot more air than can be replaced through normal cracks in the building shell. By providing an intentionally designed opening for fresh air to replace air which is exhausted out by the range hood, several important benefits result:

a home without being replaced by new fresh air, are prevented

replacement air is drawn into the home, improving ventilation

5. Does ASHRAE 62.2-2007 – “Ventilation and Acceptable Indoor

Air Quality in Low-Rise Residential Buildings” – require the use of a make-up air damper? ASHRAE 62.2-2007 does not specifically require make-up air dampers. In a few limited circumstances, this standard does require that net exhaust flows from a house be limited. For example, Section 6.4 of the standard limits the net exhaust flow from a home’s two largest exhaust appliances if the home has atmospherically vented or solid-fuel burning appliances located within the pressure boundary of the house. This standard is available at www.ashrae.org.

6. Can I use the Automatic Make-Up Air Damper with other

equipment in my home?

7. What are the different ways that the Damper can be installed in

my home? The most common way to install the Damper is to connect it to a home’s central duct system. In this application, outside fresh air enters the home through the Damper and is then routed and distributed through the home’s ducts.

8. What if my home doesn’t have ducts?

Homes without ducts can still utilize the Damper to help replace air which is exhausted from the home by the range hood.

9. What happens after a power outage?

The Damper system and the associated exhaust devices will not lose their settings following a power outage. So the system will resume its normal operation following a power outage, based on the settings it used prior to the outage. 99045116A Regular maintenance is necessary to ensure the proper operation of the Damper system. Failure to conduct such routine maintenance can jeopardize the ability of the Damper to introduce fresh air into the home. Regular maintenance should include the following activities:

open to allow fresh air to enter.

before it enters the home.

venting the buildup of snow, leaves, or vegetation at the end cap.
