VCWH56048 - Basket VIKING - Free user manual and instructions

Product Type	Professional Kitchen Range Hood
Brand	Viking
Model	VCWH56048
Compatible External Blower	DEV1200
Power Supply Voltage	120 V ~ 60 Hz
Rated Current	3.0 A
Airflow	1,200 CFM
Recommended Duct Diameter	25.4 cm (10 in)
Blower Dimensions (H × W × D)	55.9 cm × 78.3 cm × 32.3 cm (22 in × 30.8 in × 12.7 in)
Mounting Type	Exterior Wall or Roof Mount
Required Duct Material	Metal Ducts Only
Grounding	Required via Terminal Screw
Motor Lubrication	Permanently Lubricated, Maintenance-Free
Recommended Cleaning	Vacuum inside the housing without damaging the wheel
Intended Use	General ventilation for Viking range hoods (models VCWH, VICH, DBCV, DICV, DCWH, DCWL, DCWN, DTWS, DCIH)
Safety Instructions	Disconnect power before servicing; duct must exhaust outdoors; avoid explosive fumes
Certification	UL (listed cable connector)

Frequently Asked Questions - VCWH56048 VIKING

What is the airflow of the blower associated with the VCWH56048 hood?

The external blower model DEV1200 provides an airflow of 1,200 CFM.

What duct diameter is required for installation?

The duct must be 25.4 cm (10 in) in diameter and made of metal.

Can I install the external blower on a wall or on the roof?

Yes, the blower can be mounted on either an exterior wall or a roof, depending on your setup.

What electrical voltage is required for the hood?

The required power supply is 120 V ~ 60 Hz with a circuit of at least 6 A.

How to clean the external blower?

Disconnect the power, remove the cover, and vacuum the inside of the housing carefully without bending the blower wheel.

Does the motor require lubrication?

No, the motor is permanently lubricated and should not be oiled or disassembled.

Which Viking hood models are compatible with this blower?

Models VCWH, VICH, DBCV, DICV, DCWH, DCWL, DCWN, DTWS, and DCIH from 30 to 66 inches wide.

Why use only metal ducts?

To reduce the risk of fire, it is mandatory to use metal ducts.

How to ensure a safe installation?

Disconnect the power at the electrical panel before any intervention, lock the disconnect, and have the installation performed by a qualified professional.

What are the dimensions of the external blower DEV1200?

Dimensions are 55.9 cm high, 78.3 cm wide, and 32.3 cm deep (22 x 30.8 x 12.7 in).

USER MANUAL VCWH56048 VIKING

FOR USE WITH : CWH, VICH, DBCV, DICV, DCWH, DCWL, DCWN, DTWS AND

DCIH : -/ -2 + □RANGE□00' HOODS. 30" TO 66" WIDE, 9" TO 18" HIGH.

READ AND SAVE THESE INSTRUCTIONS

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer or your distributor.
2. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

WARNING

1. When cutting or drilling into wall, or ceiling, do not damage electrical wiring or other hidden utilities.
2. Ducted fans must always be vented to the outdoors.
3. To reduce risk of fire, use only metal ductwork.
4. This unit must be grounded.

CAUTION

1. For general ventilating use only. Do not use to exhaust hazardous or explosive material and vapors.
2. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.
3. Please read specification label on product for further information and requirements.
4. Electrical circuit, including speed control, (if used), must be rated 6 AMPS minimum.

Blower Dimensions

22 × 30.828 × 12.724

SPECIFICATIONS

MODEL	VOLTS	A	MPS	CFM	DUCT SIZE
DEV1200	120		3.0	1200	10" DIA.

PLAN THE INSTALLATION

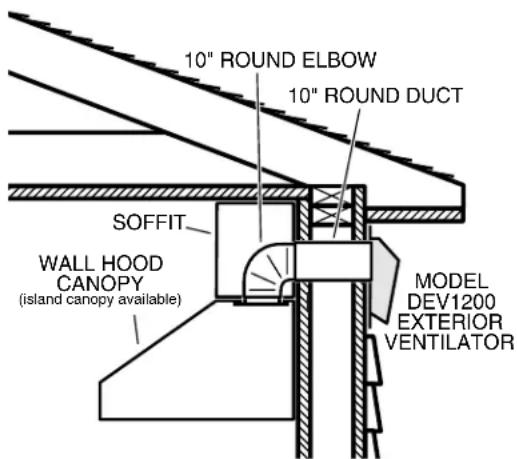

ALL INSTALLATIONS

1. Locate the ventilator so the length of the duct run and number of elbows needed are kept to a minimum.
2. Where possible, ventilator should be centered between wall studs or roof rafters.
3. Avoid pipes, wires, or other ductwork that may be running through the wall.

TYPICAL ROOF MOUNTED INSTALLATION

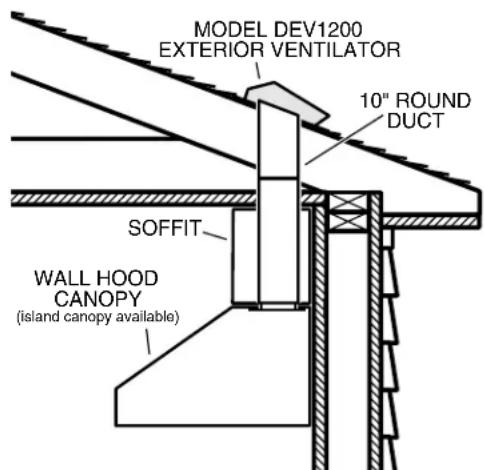

TYPICAL WALL MOUNTED INSTALLATION

PREPARE THE INSTALLATION LOCATION

ROOF INSTALLATIONS

1. Locate the ventilator on the rear slope of the roof. Place it in a location to minimize duct run. The location should be free of obstacles (T.V. leads, electrical lines, etc.). If the ventilator top is level with the roof peak, it will not be seen from the street. Keep this approximate location in mind as you work from within the attic.
2. Mark and drill a guide hole centered between roof rafters.

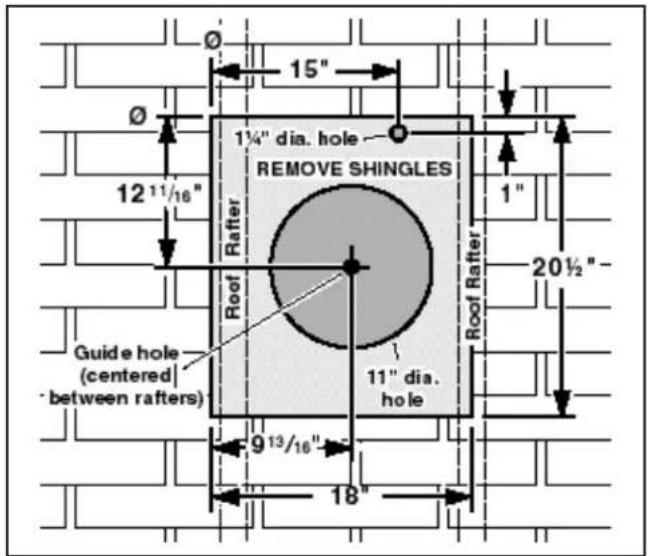

1. From the outside, use the guide hole as a starting point to lay out the installation:

A. Use a T-square to measure 9^13/16 " to the left of the guide hole, then up 12^16 " to locate the top-left corner of the layout.
B. Starting from the top-left corner, mark the rectangular cutout (18" W x 20½" H) and remove only the shingles in this area.
C. Mark an 11" diameter hole centered on the guide hole. Cut this hole through the roof board(s).
D. Mark and cut a 1¼" diameter hole through the roof board(s) where shown.

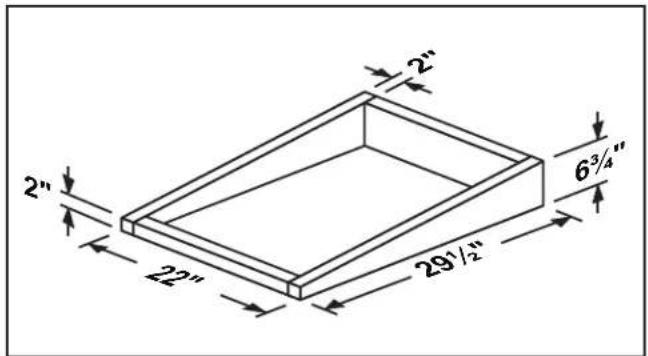

1. For flat roof installations, build a curb that will mount the ventilator at a minimum pitch of 2/12. Discharge end of the ventilator should be pointed away from prevailing winds.

PREPARE THE INSTALLATION LOCATION

WALL INSTALLATIONS

1. Choose a position on the outside wall. Make sure that no wall studs, pipes or wires run through the opening area.
2. From inside, mark and drill a guide hole centered between wall studs.

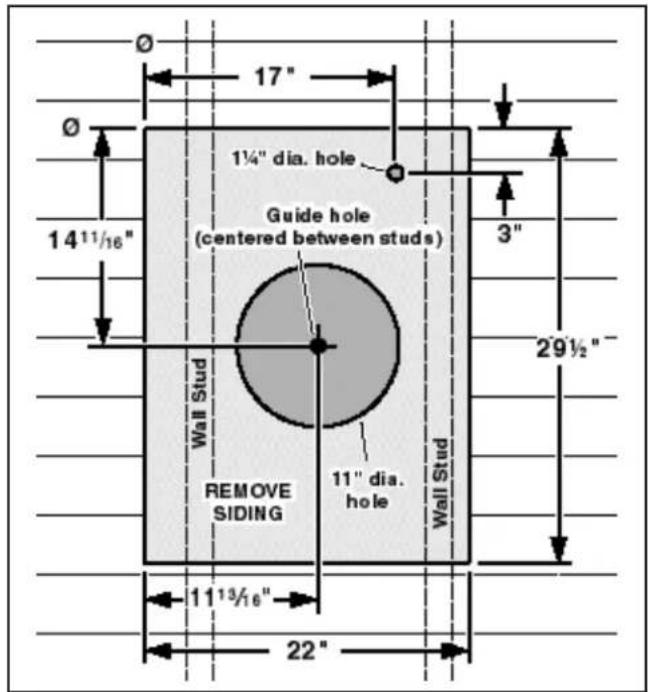

1. From the outside, use the guide hole as a starting point to lay out the installation:

A. Use a T-square to measure 1^13/16 " to the left of the guide hole, then up 14/16 " to locate the top-left corner of the layout.
B. Starting from the top-left corner, mark the rectangular cutout (22" W x 29½" H) and remove only the siding in this area.
C. Mark an 11" diameter hole centered on the guide hole. Cut this hole through the roof board(s).
D. Mark and cut a 1¼" diameter hole through the roof board(s) where shown.

INSTALL THE VENTILATOR

ROOF INSTALLATIONS

1. Remove the cover and screws.
2. Attach an appropriate U.L. approved cable connector in the hole at the rear of the wiring box.
3. Remove roofing nails from shingles around the TOP and SIDES of the cutout area only. Carefully lift the shingles to allow the back flashing sheet on the ventilator housing to fit under them.
4. Center the ventilator ring in the 11" diameter hole, making sure that the 1½" diameter electrical wiring hole aligns with the hole in the wiring box.
5. Attach the ventilator to the roof with six (6) screws provided. It is recommended that the screws be located inside the ventilator housing. Drill pilot holes if necessary.
6. Using a good grade of roofing cement, seal all of the shingles around the housing and flashing sheet as well as the mounting screw heads.
7. Bring electrical wiring through the hole in the wiring box and secure it according to local codes.

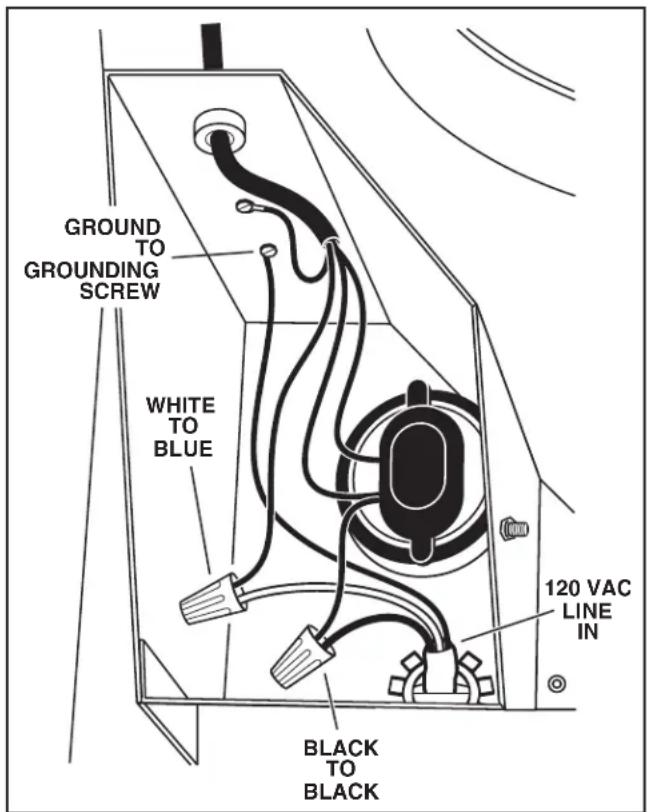

1. Make the electrical connections with the proper connector for the type of wiring being used. Connect black to black, white to blue, and the green or bare wire to grounding screw.
2. Replace cover and screws. Do not pinch wiring under the cover.
3. Make sure damper opens and closes freely.

INSTALL THE VENTILATOR

WALL INSTALLATIONS

1. Place a large bead of caulk on the back side of the housing all along the outer edges.
2. Center the ventilator ring in the 11" diameter hole, making sure that the 1½" diameter electrical wiring hole aligns with the hole in the wiring box.
3. Attach ventilator to the wall with the six (6) screws provided. It is recommended that the screws be located inside the ventilator housing. Drill pilot holes if necessary.
4. Using a good grade of caulk, seal all around the mounting screw heads.
5. Bring electrical wiring through the hole in the wiring box and secure it according to local codes.

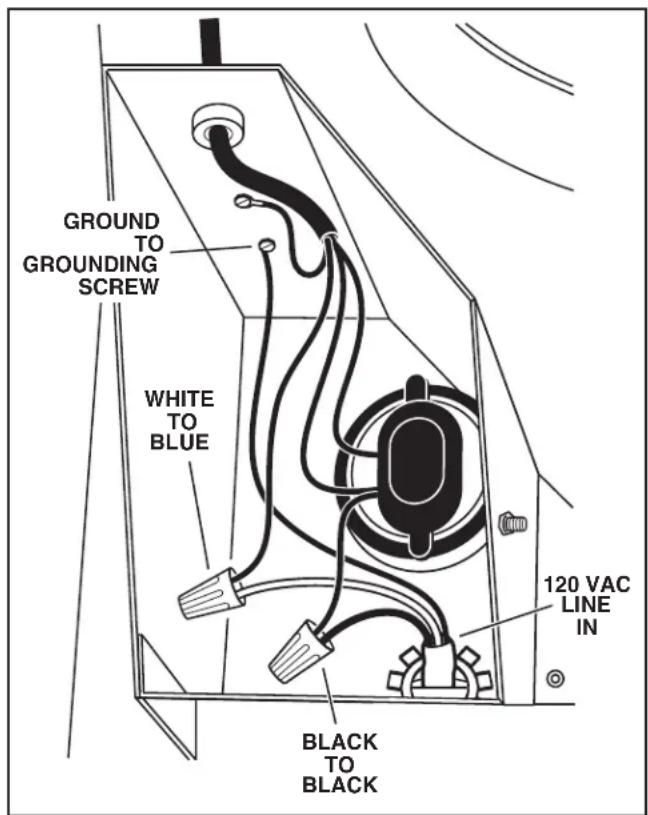

1. Make the electrical connections with the proper connector for the type of wire being used. Connect black to black, white to blue, and green or bare wire to grounding screw.
2. Replace cover and screws. Do not pinch wiring under cover.
3. Make sure damper opens and closes freely.
4. Top and side flanges of the back plate may be covered with trim strips. Do not block grille opening at bottom with trim. It will adversely affect performance of the ventilator.

INSTALL THE ROUGH-IN PLATE USE AND CARE

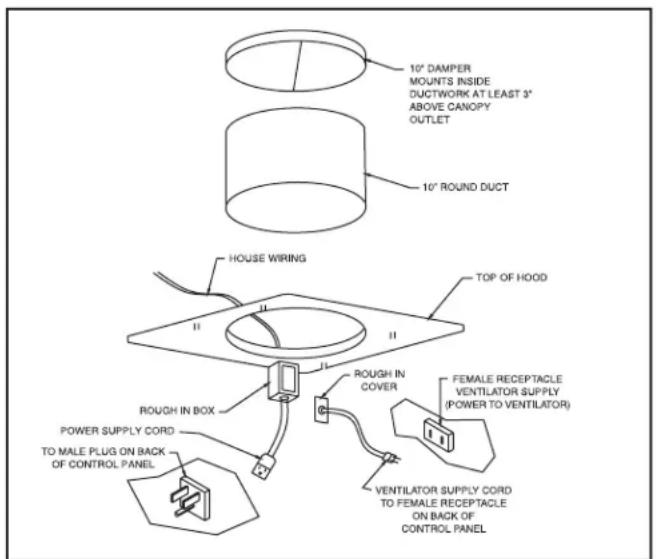

1. Run 10" round steel ductwork, from exterior ventilator to the installation location. For best performance, use the straightest possible duct run and the fewest number of elbows. Tape all joints.
2. Run 120 VAC electrical power cable from service panel and from remote ventilator to installation location.
3. Remove wiring box cover. Remove knockouts from the wiring box. Feed 6" of power cable through openings and attach cables to wiring box with appropriate connectors.

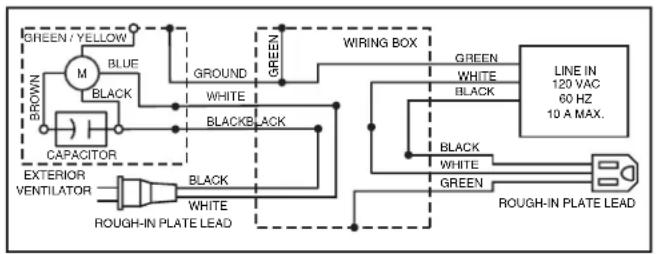


1. Wire black to black, white to white, and green or bare wire beneath green ground screw. Replace wiring box cover.

1. Connect ductwork to transition and tape joint.
2. Turn on power and check ventilator operation.

Disconnect electrical power supply and lock out service panel before cleaning or servicing this unit.

CLEANING

Remove cover and carefully vacuum ventilator and inside of housing. Be careful not to bend or otherwise damage ventilator wheel.

MOTOR LUBRICATION

The motor is permanently lubricated. Do not oil or disassemble motor.

MODÈLE DEV1200
