USER MANUAL WCL 44447 KALORIK

1. Cabinet
2. Upper hinge
3. Fan
4. Control panel/Zone divider

5. Lower hinge

6. Adjustable feet

7. Removable shelves
8. Led light
9. Door handle

ESPANOL:

1. Gabinete
2. Bisagra superiro
3. Ventilador
4. Panel de control/Divisor de zona

5. Bisgara inferior

6. Patas ajustables

7. Repisa extraible
8. Luz LED
9. Manija de la puerta

FRANÇAIS:

When using electrical appliances, basic safety precautions should always be followed, including the following:

READ ALL INSTRUCTIONS

□ After removing the wine cooler from the package, make sure it is in good condition. In case of doubt, do not use it and contact the customer service center.
Plastic bags, nails, etc. should be kept out of the reach of children.
Check that your mains voltage corresponds to that stated on the appliance.
Never leave the appliance unsupervised when in use.
- Never leave the appliance unsupervised when taking beverages out or putting them in the cooler. Keep out of reach of children or incompetent persons.
From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage.
Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it. Keep the power cord away from sources of heat.
- Only use the appliance for domestic purposes and in the way indicated in these instructions.
Should the cord be damaged, it must be replaced by a qualified service.
Never use the appliance near hot surfaces or in the sunlight.
- Never use the appliance outside and always place it in a dry environment.
- Ensure that there is at least a 12cm / 5 in. clearance at the sides; and 12cm / 5 in. clearance at the back of the cooler, to allow adequate ventilation. Kitchen units (cupboards) should be at least 5cm / 2 in. away from the appliance to assure adequate ventilation. Keep ventilation openings clear of obstruction.
Do not place any other object on top of the appliance.
- Never use accessories that are not recommended by the manufacturer. They could constitute a danger to the user and risk to damage the appliance.
Plug the appliance directly into the power outlet; do not use any extension cord or multiple power sockets.

This cooler is designed to store and cool beverages. Do not store perishable food, medicine, or other medical products.
Do not place hot beverages into the appliance but let them cool down to room temperature before.
- Close the cooler door immediately after putting in any items so the inside temperature will not rise dramatically.
- When positioned or if moving the appliance, ensure that it is not set horizontally or declined less than 45^ or turned upside down.
Should you notice any kind of damage on the appliance, please unplug it immediately and contact a qualified service.
All repairs should be made by a qualified service.
To reduce the risk of fire, replace only with same type fuse.
Unplug the appliance before cleaning or when it is not in use.
To avoid risk of child entrapment, leave the shelves in place so children cannot easily climb inside even when the appliance is in routine use or not in use at home. Before disposing of your wine cooler: take off the door and leave the shelves in place so that children may not easily climb inside.
- Avoid direct sunshine and high temperature.

CAUTION: Flammable refrigerant used! When handling, moving and use of the cooler, make sure to avoid either damaging the refrigerant tubing or increasing the risk of a leak.

• Never clean the appliance with flammable fluids. The fumes can create a fire hazard or explosion.
• Do not store or use gasoline or any other flammable vapors and liquids near this or any other appliance. The fumes can create a fire hazard or explosion.
• Do not store explosive substances such as aerosols cans with a flammable propellant in this appliance.

SAVE THESE INSTRUCTIONS HOUSEHOLD USE ONLY

Save time and money. Before you call for service, check the troubleshooting section at the end of this manual. It lists the causes of some common issues that you can correct yourself.

WARNING: Changes or modifications to this unit not expressly approved by the manufacturer could void the user's authority to operate the equipment.

CAUTION - RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. CONSULT REPAIR MANUAL/OWNER'S GUIDE BEFORE ATTEMPTING TO SERVICE THIS PRODUCT. ALL SAFETY PRECAUTIONS MUST BE FOLLOWED.

3-PRONG PLUG INSTRUCTIONS

For your personal safety, this appliance must be grounded. This appliance is equipped with a power supply cord having a 3-prong grounding plug. To minimize possible shock hazard, the cord must be plugged into a mating 3-prong, grounding type, wall receptacle, grounded in accordance with the National Electrical Code ANSI/NFPA 70 latest edition and all local codes and ordinances.

If a mating wall receptacle is not available, it is the personal responsibility and obligation of the customer to have a properly grounded, 3-prong, wall receptacle installed by a qualified electrician.

TECHNICAL DATA

Unit Type	Standalone	Cooling System	Compressor
Bottle Capacity	Approx. 43	Venting Direction	Two Side
Product Dimension	850×480×565 mm 33.46×18.90×22.24 in	Number of Fans	1 PCS
Internal Volume	4.09 15cu. ft. 115.82 L	Shelving Material	Wooden Shelves
Control Type	Touch Control	Removable Racks	YES
Door Material	Stainless Steel, Glass, Plastic	Number of Shelves	4 Shelves + 3 Half Shelf
Door Color	Stainless Steel	Lighting	YES
Number Doors	1	Bulb Type	LED
Reversible Door	NO	Number of Bulbs	2
Glass Type	Tempered Glass	Voltage	110-120V
Glass Finish	Tinted Grey	Certification	ETL/CEC
Temperature Zones	Dual Zone: Upper & Lower	Power Cord	70 inches
Temp. Ranges Upper Zone	5-12°C 41-54°F	Temp. Ranges Lower Zone	12-18°C 54-64°F

NOTE: this appliance is not a standard refrigerator. The maximum cooling capacity is around 30 degrees F (15 degrees C) below the ambient temperature.

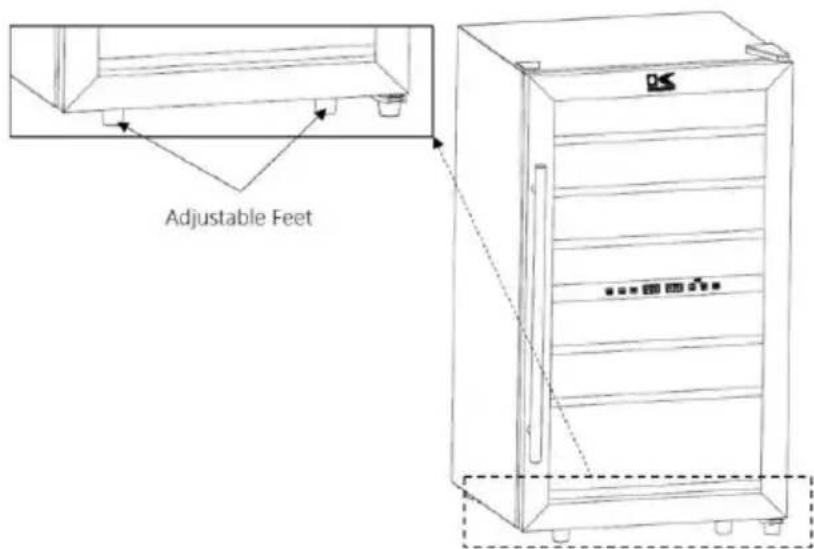

POSITIONING THE APPLIANCE

For best results, use the height-adjustable feet to level the wine cooler. This will allow it to stand perfectly horizontal, which allows for stability.

The height-adjustable feet are located on the base of the appliance in the frontal area. Refer to the image below to identify the two (2) adjustable feet marked by arrows. Turn the foot clockwise or counterclockwise to adjust its height and to ensure the perfect horizontality of the unit.

CAUTION: Do not utilize as a built-in unit. Standalone use only!

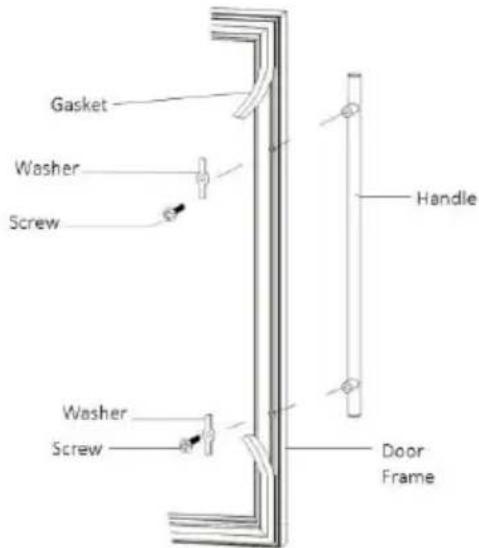

INSTALLING THE HANDLE

This mini cooler includes a stainless-steel handle to be installed, follow instructions below:

1) Remove the door gasket directly behind the designated location of the handle - you can see two (2) holes with screws pre-placed for easy installation. The gasket is displaced by hand, no tools are necessary.
2) Install the handle tightly on to the front of the door, using the provided screws.

WARNING: Do not over tighten to prevent damage to the handle and door frame).

3) Replace the door gasket to its original position.

CAUTION: Before connecting the appliance to an electrical power supply, let it stand for about 4 hours. This will reduce the possibility of malfunctioning in the cooling system due to transport handling.

• Before use, clean the appliance thoroughly, especially inside the cavity (See Cleaning and Maintenance).
• Rearrange the shelves in the cavity properly if they are not correctly placed.
• Make sure that the voltage in your home is compatible with the appliance.
• Position the appliance in a cool place, on a stable surface near a wall outlet, with sufficient clearance on all sides to allow proper ventilation.
• Avoid moist and humid spaces to store or use appliance.

WARNING: Do not store or install the appliance outdoors

WARNING: Do not attempt to install the appliance into a built-in unit!

• Plug in the appliance into an earthed wall outlet.
• Once connected to a power source, the fans will start turning and the wine cooler will start cooling. The cooler will need up to one and a half hours to reach 15^ / 60^ and up to 4 hours to reach the temperature set up as the factory standard.

NOTE: The inside temperature of the wine cooler depends on the exterior room temperature. To reach the minimum temperatures indicated below, the appliance should be located indoors in a room in which the ambient temperature is less than 90^ / 32^ .

Temperature settings applicable when storing mostly one type of wine:

Red Wines	58°F - 64°F	14°C – 18°C
White / Rose / Dry Wines	48°F - 58°F	9°C – 14°C
Sparkling Wines	45°F - 48°F	7°C – 9°C

The appliance is for wine storage with temperature from 41^ to 54^ ( 5^ to 12^ ) in the Upper Zone and from 54^ to 64^ ( 12^ to 18^ ) in the Lower Zone. The digital display on the control panel shows the current temperature of the cooler's interior.

The temperature is factory preset when the cellar is off the assembling line. The temperature of the wine cooler can be set by pressing the temperature "up" and temperature "down" buttons as follows:

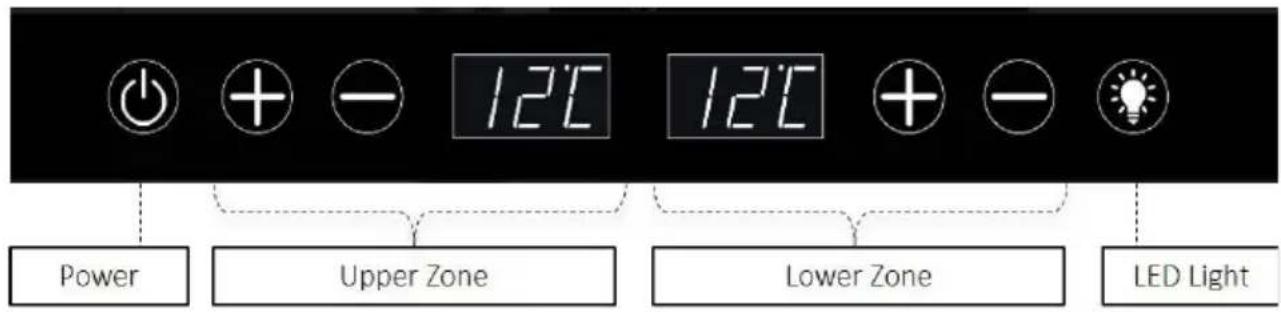

1) Press button for 3 seconds to turn on or turn off the appliance.
2) Press button to turn on or turn off the light in both zones.
3) Press Lower Zone temperature to change temperature display from Celsius to Fahrenheit.
4) You can set the desired temperature of each zone by pressing + or button.
5) The temperature selected will increase/decrease by 1 degree with each press of the buttons.

NOTE:

• This wine cooler needs to be placed on a flat surface, with 12cm/5in. space on each side at the backside. This appliance is not designed to be built in.
• Avoid placing in direct sunshine, near a heating source, or in an unventilated area.
• Do not place heavy items on top of the appliance.

If the unit is unplugged, turned off or power is lost, you must wait 3-5 minutes before restarting the unit. If you attempt to restart the unit before this time delay, the unit may not start.

Sign up for the Kalorik email mailing list on www.kalorik.com to receive special offers and recipes and connect with us on social media for daily inspiration.

CLEANING

• Unplug the appliance from the wall outlet before cleaning it.
• Clean the exterior of the appliance with water and a mild household detergent. Do not use abrasive cleaners as they can damage the finish of the appliance. Rinse well and wipe dry with a clean soft cloth.
• Clean the interior of the appliance with lukewarm water and baking soda. The solution should be about 2 tablespoons of baking soda to 4 cups of water.
• If needed, remove the shelves in the cavity by sliding them out; clean them with water and a mild liquid detergent. Do not put any parts in the dishwasher.
• Never use metal utensils or harsh, abrasive products to clean the appliance.
• NEVER IMMERSE THE APPLIANCE IN WATER OR ANY OTHER LIQUID.
• Any other servicing should be performed by an authorized service representative.

NEVER CLEAN THE APPLIANCE WITH FLAMMABLE FLUIDS. The fumes can create a fire hazard or explosion.

TROUBLESHOOTING

Symptoms	Possible cause	Solutions
Appliance is not running	- No power - Not plugged to power supply - Voltage does not match power supply - Fuse broken	- Plug appliance to power outlet - Check socket is not tripped - Check voltage - Contact customer service
Vibrations	- Wine chiller is not level	- Check to assure that the appliance is level - Adjust feet accordingly
Temperature inside not cold enough	- The cooler is placed too close to a heat source. - The bottles in the cooler were just added to the cooler - Bad ventilation - Fans don't work - The door is not closed tightly or opened too frequently or for too long time - The door gasket does not seal properly. - Abnormal voltage - High ambient temperature	- Keep the cooler away direct sunlight or other heat sources - Give it time for the bottles to cool to the desired temperature - Place the cooler in the area with good ventilation do not obstruct the fans - Fan may need to be replaced. Please contact customer service - Change the gasket - Maintain door closed for an extended period - Make sure the room is not more than 30°F above the target temperature
Door will not close	- Wine cooler is not level - The door is not installed properly - The gasket is dirty, shifted or damaged - The shelves are not positioned correctly - Content in the appliance is preventing door from closing	- Check to assure that the wine cooler is level, adjust feet accordingly - Check the gaskets - Check shelves and, rearrange protruding bottles
LED Light does not work	- Not plugged in - Fuse broken - LED lights are broken - The light button is "OFF"	- Plug in appliance - Check socket is not tripped - Press the light button ON
The compressor starts and stops frequently	- The external temperature is too hot - Too many bottles in the cellar than suggested - Cellar has not been properly installed - Door is not properly closed - Appliance is opened frequently	- Make sure the room is not more than 30°F above the target temperature - Only fill the cooler with the maximum number of bottles suggested - Follow proper installation guidelines as provided - Check that the door always closes properly - Only open appliance when necessary
Appliance makes a lot of noise	- The appliance is not level - Fan may be damaged	- Adjust feet accordingly - Fix or replace the fan

NOTE:

The rattling noise comes from the flow of the refrigerant which is normal.
- At the end of a cooling cycle, you can hear the noise of water circulating.
- Expansion and contraction of the internal walls may cause a cracking sound.

We suggest that you complete and return the enclosed Product Registration Card promptly to facilitate verification of the date of original purchase. However, return of the Product Registration Card is not a condition of these warranties. You can also fill out this warranty card online, at the following address: www.KALORIK.com

This KALORIK product is warranted in the U.S.A. and Canada for 1 year from the date of purchase against defects in material and workmanship. This warranty is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance.

During this period, if the KALORIK product, upon inspection by KALORIK, is proven defective, it will be repaired or replaced, at Kalorik's option, without charge to the customer. If a replacement product is sent, it will carry the remaining warranty of the original product.

This warranty does not apply to any defect arising from a buyer's or user's misuse of the product, negligence, failure to follow KALORIK instructions noted in the user's manual, use on current or voltage other than that stamped on the product, wear and tear, alteration or repair not authorized by KALORIK, or use for commercial purposes. There is no warranty for glass parts, glass containers, filter basket, blades and agitators, and accessories in general. There is also no warranty for parts lost by the user.

ANY WARRANTY OF MERCHANTABILITY OR FITNESS WITH RESPECT TO THIS PRODUCT IS ALSO LIMITED TO THE ONE YEAR LIMITED WARRANTY PERIOD.

Some states do not allow limitation on how long an implied warranty lasts or do not allow the exclusion of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

If the appliance should become defective within the warranty period and more than 30 days after date of purchase, do not return the appliance to the store: often, our Customer Service Representatives can help solve the problem without having the product serviced. If servicing is needed, a Representative can confirm whether the product is under warranty and direct you to the nearest service location.

If this is the case, bring the product, or send it, postage prepaid by the user (all Kalorik customers are responsible for the initial shipment back to the warranty center), along with proof of purchase and a return authorization number indicated on the outer package, given by our Customer Service Representatives. Send to the authorized KALORIK Service Center (please visit our website at www.KALORIK.com or call our Customer Service Department for the address of our authorized KALORIK Service Center).

When sending the product, please include a letter explaining the nature of the claimed defect.

If you have additional questions, please call our Customer Service Department (please see below for complete contact information), Monday through Thursday from 9:00am – 5:00pm (EST) and Friday from 9:00am – 4:00pm (EST). Please note hours are subject to change.

If you would like to write, please send your letter to:

KALORIK Customer Service Department

Team International Group of America Inc.

16175 NW 49th Avenue

Miami Gardens, FL 33014 USA

Or call:

Toll Free: +1 888-521-TEAM / +1 888-KALORIK

Only letters can be accepted at this address above. Shipments and packages that do not have a return authorization number will be refused.

OBTENGAMAS DE SU PRODUCTO

Problema	Causa	Soluciones posible
El dispositivo no funciona	-Esta apagado -No esta enchufado a la fuente de alimentación -El voltaje no coincide con el suministro de energia -Fusible roto	-Plug appliance to power outlet -Check socket is not tripped -Check voltage -Contact customer service
Vibraciones	-Wine chiller is not level	-Check to assure that the appliance is level -Adjust feet accordingly
Dispositivo no enfirma sufiente	-The cooler is placed too close to a heat source; -The bottles in the cooler were just added to the cooler -Bad ventilation -Fans don't work -The door is not closed tightly or opened too frequently or for too long time -The door gasket does not seal properly. -Abnormal voltage -High ambient temperature	-Keep the cooler away direct sunlight or other heat sources -Give it time for the bottles to cool to the desired temperature -Place the cooler in the area with good ventilation do not obstruct the fans -Fan may need to be replaced. Please contact customer service -Change the gasket -Maintain door closed for an extended period -Make sure the room is not more than 30°F above the target temperature
Puerta no cierra	-Wine cooler is not level -The door is not installed properly -The gasket is dirty, shifted or damaged -The shelves are not positioned correctly -Content in the appliance is preventing door from closing	-Check to assure that the wine cooler is level, adjust feet accordingly -Check the gaskets -Check shelves and, rearrange protruding bottles
La luz LED no funciona	-Not plugged in -Fuse broken -LED lights are broken -The light button is "OFF"	-Plug in appliance -Check socket is not tripped -Press the light button ON
El compressor inicia y se detiene con fecuencia	- The external temperature is too hot - Too many bottles in the cellar than suggested - Cellar has not been properly installed - Door is not properly closed - Appliance is opened frequently	- Make sure the room is not more than 30°F above the target temperature - Only fill the cooler with the maximum number of bottles suggested - Follow proper installation guidelines as provided - Check that the door always closes properly - Only open appliance when necessary
El dispositivo hace mucho ruido	- The appliance is not level - Fan may be damaged	- Adjust feet accordingly - Fix or replace the fan
El dispositivo está congregado por dentro	- Demasiada humedad o temperaturablemado bajoantzinho de la casa	- Apague la corriente y desenchufe - disagongelar a mano. Conectar de nuevo la corriente cuando el hielo se haya descongelado

NOTA:

Team International Group of America Inc.

16175 NW 49th Avenue

Miami Gardens, FL 33014 USA

O Ilame gratuitamente (U.S.A.) al +1 888-521-TEAM / +1 888-KALORIK

INSTRUCTIONS POUR LES FICHES AVEC MISE A LA TERRE

Team International Group of America Inc.
16175 NW 49^th Ave.
Miami Gardens, FL 33014 USA

For questions please contact:

Team International Group of America Inc.

16175 NW 49th Avenue

Miami Gardens, FL 33014 USA

Model: WCL 44447

Toll Free/Numéro Gratisuit/Llamada Gratisuita:

User manual content and recipes courtesy of Team International Group - Do not reproduce without consent of the authors - All rights reserved.
