Type	Robot Vacuum
Brand	Kalorik
Model	HUVI R1 (RVC 50229 BK)
Power Supply	14.4V DC
Battery	14.4V Li-ion, 3200mAh
Max Run Time	110 minutes
Max Suction Power	2600 Pa
Filtration	H13 Medical-grade HEPA (99.95% of 0.2 μm particles)
UV-C Disinfection	Built-in UV-C lamp inside dustbin
Bipolar Ionization	Yes, built-in
Aroma Diffuser	Built-in, uses aroma pads
Connectivity	Wi-Fi (2.4 GHz), Bluetooth, HUVI App (iOS/Android)
Voice Control	Amazon Alexa, Google Assistant compatible
Cleaning Modes	Auto, Spot, Wall Follow, Manual Control
Suction Settings	Low, Medium, High, Max
Scheduling	Yes, via app
Automation	Yes, via app (conditions and tasks)
Suitable Floor Types	Hardwood, tile, low-pile carpet/rugs
Side Brushes	Interchangeable 6-arm (hard floors) and 3-arm (rugs) sets
Roller Brush	Removable, cleanable
Dustbin	Removable, easy-empty
Auto Return to Base	When battery low or via app/button
Safety	Anti-collision bumper, floor sensors, virtual wall compatibility (strip sold separately)

Frequently Asked Questions - HUVI R1 KALORIK

How do I connect the HUVI R1 to my WiFi network?

To connect, ensure HUVI is fully charged and near your router. Download the HUVI app. Press and hold the HOME button on HUVI until it flashes blue. Then follow the app instructions for Bluetooth (recommended), EZ Mode, or AP Mode. Make sure your WiFi is on the 2.4 GHz band.

How should I clean the filters?

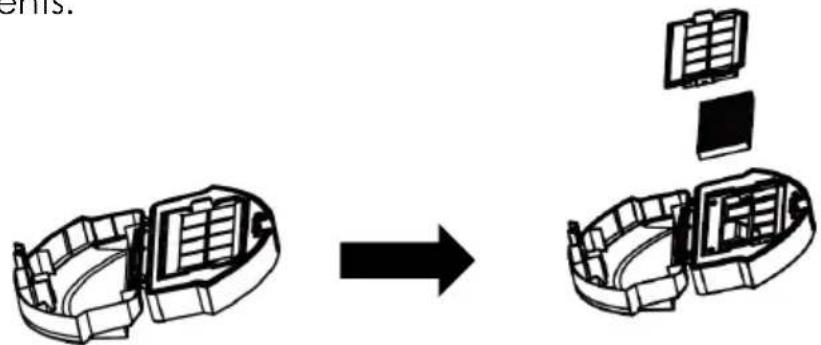

Open the dust bin and remove the HEPA and copper filters. Use the included cleaning brush to gently clean them. Do not wash the HEPA filter with water. Reassemble and reinsert every week.

What is the battery life and how long does it take to charge?

The HUVI R1 runs up to 110 minutes on a single charge. Charging time is typically around 4-5 hours on the included dock. The indicator lights flash white during charging and stop when fully charged.

How does the UV disinfection function work?

HUVI has a UV-C lamp inside the dustbin. As it vacuums, the UV light destroys microorganisms in the debris, preventing them from re-entering the air when you empty the bin. The UV function can be toggled in the app.

Can I use the aroma diffuser with any essential oil?

Yes, you can use any essential oil. Open the compartment on the side, place a few drops on the included pad, and reinsert. The diffuser activates when HUVI is running. Use a fresh pad each time you add oil.

What cleaning modes are available?

HUVI offers multiple modes: Auto (full room), Spot (spiral cleaning a small area), Wall Follow (edge cleaning), and Manual Control (drive manually via app). Switch modes in the HUVI app.

How do I get HUVI to return to the charging base?

You can press the HOME button on the robot, or select the recharge icon in the app. HUVI also returns automatically when the battery is low. Ensure the charging base is placed with 4 ft clearance in front and 1.5 ft on each side.

Why does HUVI stop cleaning before it finishes?

HUVI may return to the base if the battery is low, which is normal. It will resume after charging if scheduled. Also check for obstacles or if the dustbin is full. If it gets stuck, remove the obstruction and restart.

Can I set a schedule for HUVI to clean automatically?

Yes, open the HUVI app, go to the Schedule section, and set the time and days. You can also use the Automation feature for more complex triggers like weather or device status.

Is HUVI compatible with voice assistants?

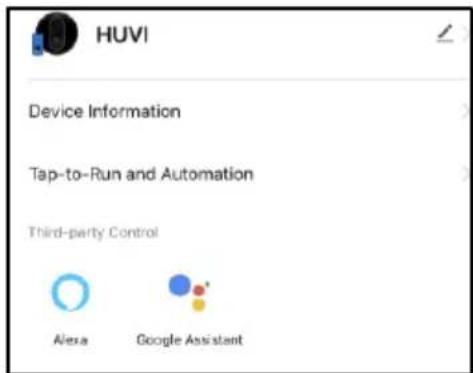

Yes, HUVI works with Amazon Alexa and Google Assistant. After connecting the robot to the HUVI app, link the skill in the Alexa or Google Home app. Use voice commands like 'Alexa, start cleaning'.

USER MANUAL HUVI R1 KALORIK

Thank you for choosing HUVI!

We hope you're delighted with your HUVI. If you are, we'd love it if you'd shout it from the rooftops, tell your friends or leave us a review. We'd love to hear from you, so tag @kalorik on social media to share.

REGISTER YOUR PURCHASE

To register your product, simply complete the included form, visit Kalorik.com/register or scan the QR code below.

TECHNICAL SPECIFICATIONS

Model	RVC 50229 BK
Working Voltage	14.4 DC
Battery	14.4V Li-ion, 3200mAh
Adapter Input	100-240V ~ 50/60 Hz, 0.6A
Adapter Output	19V DC, 1.0A
Max Run Time	110 minutes
Max Suction Power	2600 Pa

CONTENTS

PARTS 5

IMPORTANT SAFEGUARDS....7

KNOW YOUR HUVI 8

BEFORE THE FIRST USE 10

CONNECTING TO THE HUVI APP 12

To Connect Using Bluetooth 13

To Connect in EZ Mode 14

To Connect in AP Mode 14

Connecting with Amazon Alexa.... 15

Connecting with Google Home.... 16

USING YOUR HUVI - HOME & POWER BUTTONS 17

USING YOUR HUVI - APP CONTROLS 17

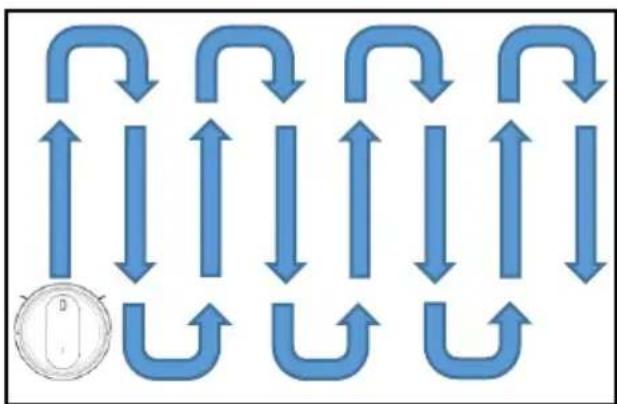

AUTO CLEANING 17

WALL FOLLOW 18

SPOT 18

MANUAL CONTROL 18

CHARGING 18

SUCTION POWER 18

UV FUNCTION 19

ION FUNCTION 19

SCHEDULING CLEANINGS 19

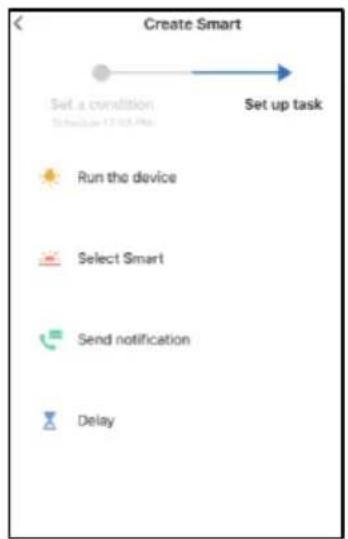

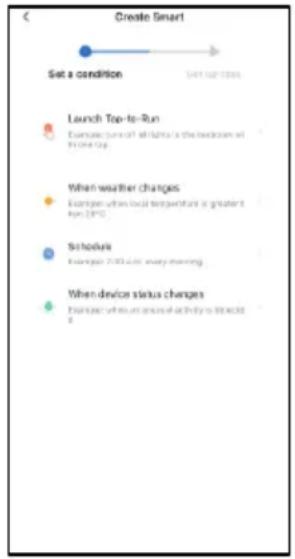

AUTOMATION 19

AROMA DIFFUSER 21

CLEANING AND MAINTENANCE 22

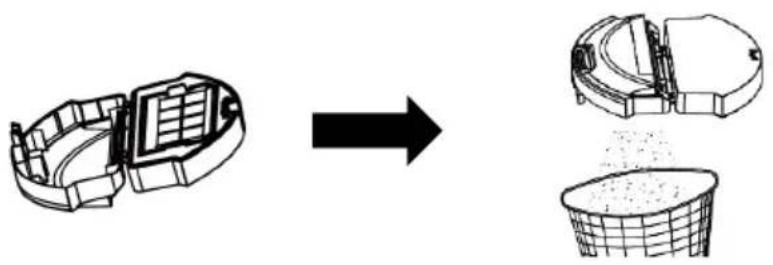

CLEANING THE DUST BIN 22

CLEANING THE FILTERS 23

CLEANING THE SENSORS 24

1. HOME & POWER buttons
2. Front bumper
3. Main body
4. Front wheel
5. Charging contacts
6. Battery cover
7. Ground sensor

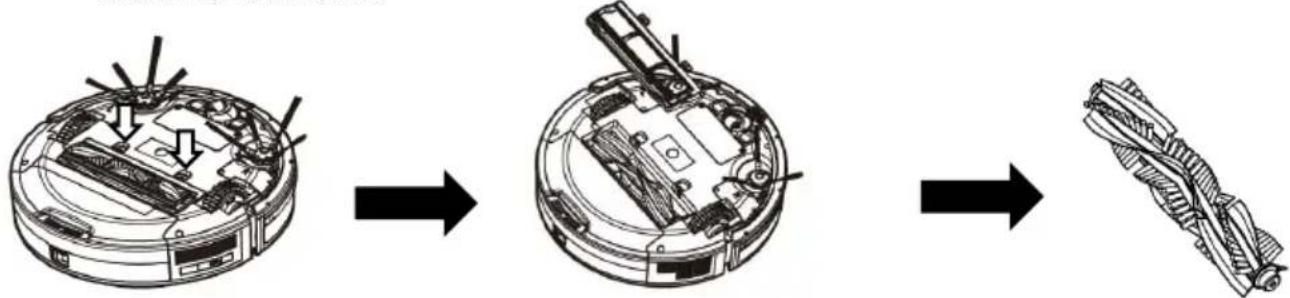

8. Roller brush and suction intake
9. UV-C lamps (inside dust bin)/LED lights (outside bottom of dust bin)
10. Dust bin
11. Virtual wall sensors

12. Dust bin latch

13. Side brush

14. Front signal receiver
15. Side wheel
16. Speaker
17. Bipolar ion generator
18. Aroma diffuser compartment
19. Signal sensor
20. Indicator power light for base
21. Socket for adapter
22. Charging pins
23. Adapter
24. Cleaning brush
25. 6-arm side brushes
26. 3-arm side brushes

POWER BUTTON

• Press and hold for 3-5 seconds to power on/off
- Short press to start/pause cleaning
- Flashing blue: Standby mode
• Solid blue: HUVI is running

HOME BUTTON

• Short press to send HUVI to recharge. Flashes white when charging.
• Long press to connect HUVI to your WiFi network. Flashes blue while connecting. See CONNECTING TO THE HUVI APP section for more details.

ION INDICATOR

- Lights up when the ion function is on. Turns off when ion function is off.

UV INDICATOR

- Lights up when the UV function is on. Turns off when UV function is off.

HEPA INDICATOR

• Flashes as a reminder to empty the dust bin and to clean the filters.

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions before use.
2. This device can be used by children aged 8 years and up, persons with reduced physical, sensory, or mental capabilities, and persons with lack of experience and knowledge, if they have been given supervision or instruction concerning use of this device in a safe way and understand the hazards involved.
3. Cleaning and maintenance shall not be performed by children without adult supervision.
4. This device is only to be used with the power supply unit provided.
5. For the purposes of recharging the battery, use only the detachable power supply unit that came with this device.
6. The battery must be removed from the device before the device is disposed of. To remove the battery, unscrew the battery cover using a screwdriver. Remove the battery by disconnecting the quick connector.
7. The used battery should be placed in a sealed plastic bag and disposed of safely according to local environmental regulations.
8. The external flexible cable or cord of the power supply unit cannot be replaced. If the cord is damaged, the power supply unit shall be disposed of.
9. This device is for indoor use only.
10. This device is not a toy. Do not sit or stand on this device. Small children and pets should be supervised when this device is operating.
11. Store and operate this device in room temperature environments only.
12. Clean with a cloth dampened with water only.
13. Do not use this device to pick up anything that is burning or smoking.
14. Do not use this device to pick up bleach, paint, or chemicals spills, or anything wet.
15. Before using this device, pick up objects like clothing and loose paper. Lift up cords for blinds or curtains, and move power cords and fragile objects out of the way. If this device passes over a power cord and drags it, an object could be pulled off a table or shelf.
16. If the room to be cleaned has a balcony, a physical barrier should be used to prevent access to the balcony and to ensure safe operation.

17. Do not place anything on top of this device.

18. Be aware that this device moves around on its own. Take care when walking in the area where this device is operating to avoid stepping on it.

19. Do not operate this device in areas with exposed electrical outlets on the floor.

20. Do not attempt to alter the electronics of this device or the integrated charging base. There are no user-serviceable parts inside.

21. Do not use this device on an unfinished, unsealed, waxed or rough floor. It may result in damage to the floor and this device. Use only on hard floor surfaces or low-pile carpet.

22. This device has been designed to be used on floors without scratching them. We still recommend that you test this device on a small area of the room to be cleaned to ensure no scratches are made before cleaning the whole room.

23. Check the dustbin regularly for signs of damage. Do not use HUVI with a damaged or broken dustbin. If any signs of damage, look for immediate replacement. Some discoloration is normal with regular use.

SAVE THESE INSTRUCTIONS HOUSEHOLD USE ONLY

KNOW YOUR HUVI

HUVI combines one-of-a-kind advanced cleaning technology with the convenient hands-off automation of a robot vacuum. Harnessing the power of UV-C disinfection, medical grade HEPA 13 filtration, and bipolar ionization, HUVI provides a high-level, multi-stage cleaning experience. The vacuum provides Auto, Spot, Wall Follow, and Manual Mode settings along with adjustable suction power. Use the app to control, automate, and map the vacuum cleaning process. HUVI also features a built-in aroma diffuser that mists your home with refreshing fragrance as it cleans, with option to turn the diffuser on and off.

UV FUNCTION

HUVI features UV-C lights in the dustbin that disinfect the contents inside. UV (or ultraviolet) disinfection works by breaking down the chemical bonds and scrambling the DNA structure of microorganisms, making them unable to multiply. The UV-C light's strategic location inside the dust bin increases

the amount of time the UV-C light has to destroy contaminants, preventing pathogens from reentering the air when emptying the dustbin.

HEPA FILTER

HUVI features an H13 medical-grade HEPA filter. A normal HEPA-standard filter removes at least 99.97% of airborne particles with a size of 0.3 microns ( µ m). Beyond this, HEPA filters are further classified by their level. A filter's HEPA level indicates its effectiveness removing all particles that are 0.2 µ m in diameter.

"True HEPA" filters on the market (H10-H12 grade filters) only trap 85-99.5% of all particles that are 0.2 μm in diameter. A HEPA H13 filter, like the one in HUVI, traps 99.95% of such particles. They are within the highest tier of HEPA and are considered medical-grade quality, being utilized in hospitals, operating rooms and more.

HEPA Grade	Filtration Efficiency
H14	99.995%
H13	99.95%
H12	99.5%
H11	95%
H10	85%

BIPOLAR IONIZATION

HUVI features a bipolar ionization system. Conventional air ionizers generate negative ions to remove pollutants from the air. HUVI uses a newer, more advanced form of ionization that works by emitting a blend of positively and negatively charged ions. These ions of opposite charges attach to pollutants in the air, breaking down their chemical bonds. Bipolar ionization is used in hospitals, assisted living facilities, and more, for its effective air purification.

AROMA DIFFUSER

HUVI features a built-in aroma diffuser. Simply place a few drops of the aroma included with HUVI, or any essential oil of your choosing, on the aroma pad and load it inside HUVI. While HUVI runs, the aroma is dispersed into the air, misting your home with soothing fragrance. Since the HUVI's diffuser works while it is moving, the aroma disperses wherever HUVI goes, expanding the range of coverage compared to a standard, stationary diffuser.

• Place charging dock indoors, on a hard-leveled surface, and against a wall.
• Place the charging dock in an open area, leaving at least 4 feet/1.5m in the front of the charging dock and 1.5ft/0.5m feet on each side.

• Plug the power cord into the charging station, then into the outlet.
- Place the remaining cord behind the charging dock to prevent it from getting in the way of HUVI as it cleans. NOTE: Always keep the charging base plugged in, otherwise the vacuum will not automatically return to it.

• Remove the foam inserts beside the bumper.
• Attach the side brushes to the bottom of HUVI by pressing the brush into each slot until it clicks. Make sure to match the letter on the brush with the letter on HUVI.

NOTE: HUVI is suitable for hardwood floors, tile, low pile carpet/rugs. HUVI includes 2 unique sets of side arm brushes, each designed to tackle different floor types and handle any room in your home.

— 6-ARM SET: designed for hard floors and whole-room carpeting, permanently fixed onto the floor. The six-arm design provides more lifting power for dust and hair, providing more efficient deep cleaning on these surfaces.

— 3-ARM SET: The 3-Arm Set is designed for homes with small or light rugs. The three-arm design makes it easier for HUVI to climb over these surfaces and move freely across the floor. It is recommended to use this set to avoid HUVI getting stuck on the sides of your carpets or from moving your rugs around while cleaning.

- Place HUVI on the charging station by lining up the metal charging contacts.

- Turn on your HUVI by pressing and holding the power button for 3-5 seconds.

HOME BUTTON

POWER BUTTON

- When successfully powered on, the power button lights up in blue.

- Allow HUVI to charge on the base. While charging, the indicator lights on the POWER & HOME buttons flashes white. Once fully charged, the lights stop flashing.

- Download the HUVI App and follow the instructions for complete setup. See CONNECTING TO THE HUVI APP section in this manual for more information.

NOTE:

— Make sure HUVI is close to your WiFi router when connecting to the HUVI app for the first time.

— For best results, make sure that your floor is free of any obstructions. Remove any power cords and small objects from the floor that may interfere with HUVI.
— Fold any tasseled edges of area rugs underneath to prevent tangling.
— Place physical barriers in front of fireplaces or any other areas that could damage HUVI.
- Keep HUVI away from spaces lower than 3.57 in. / 8 cm to prevent it from getting stuck. If necessary, place physical barriers to block problem areas.
— HUVI may climb on top of objects less than 0.63 in. / 16 mm tall. Remove these objects if possible.

CONNECTING TO THE HUVI APP

• Before starting, make sure that:

— HUVI is fully charged, turned on, and close to your wireless router.
— Your smart device is connected to a WiFi network.
— The 2.4 GHz signal is enabled on your wireless router.

IMPORTANT: HUVI will only connect to the router through the 2.4 GHz signal!

• Download the HUVI app by using your smart device's camera to scan the QR code (Fig. A), or by searching for the app on your smart device's app store.
• Once the download is complete, open the app on your smart device. Follow the onscreen instructions to create your account.

Fig. A

There are 3 ways to connect HUVI to the app:

• Bluetooth assisted (default, recommended): Uses the Bluetooth on your smart device to help connect to your WiFi.
• EZ Mode: Uses your home WiFi network to communicate between your smart device and HUVI.
• AP Mode: Uses HUVI's built in WiFi to communicate between your smart device and HUVI.

To connect using Bluetooth (default, recommended):

• Make sure the Bluetooth on your smart device is switched on.
• Press and hold the HOME button on top of HUVI (Fig. B) until the HOME button light turns light blue and begins to flash while HUVI says “connecting to network”.
• In the app, press "Add Device" in the center of the screen (Fig. C), then select the "Go to add" (Fig. D).
• Input your WiFi information, then select "Next" (Fig. E).
• Wait about 30 seconds while HUVI connects to the app (Fig. F).
• Once the connection is successful, select "Next" to complete.
• Your HUVI can now be controlled through the app.

Fig. B

Fig. C

Fig. D

Fig. E

Fig. F

To connect in EZ Mode (if Bluetooth is unsuccessful or not possible):

• Make sure the Bluetooth on your smart device is off.
- Select "Add Device" (Fig. C), then select the HUVI icon.
- Follow the instructions to input your WiFi information (Fig. G), then select "Next".
- Make sure "EZ Mode" is selected in the upper right corner (Fig. H).
- Press and hold the HOME button on top of HUVI (Fig. B) until the HOME button light turns light blue and begins to flash rapidly while HUVI says “connecting to network”.
- Check off the small circle to the left of the text that says "Confirm the indicator is blinking rapidly", then press "Next" (Fig. I).
- The app will show "Adding device..." as the device connects.
- Once successful, you can name your HUVI. Select "Done" in the app to complete.
- Your HUVI can now be controlled through the HUVI app.

Fig. G

Fig. H

Fig. I

Fig. J

Fig. K

To connect in AP Mode (if Bluetooth & EZ mode connection are unsuccessful or not possible):

• Make sure the Bluetooth on your smart device is off.
• Select "Add Device" (Fig. C), then select the HUVI icon.
• Follow the instructions to input your WiFi information (Fig. G), then select "Next".

• Make sure "AP Mode" is selected in the upper right corner (Fig. H).

• Press and hold the HOME button on top of HUVI (Fig. B) until the HOME button light turns light blue and begins to flash slowly while HUVI says “connecting to network”.

• Press the small circle in front of "Confirm the indicator is blinking slowly" to select, then press "Next" (Fig. J).

• Select "Go to Connect" in the app interface (Fig. K)

• You will be taken to the WiFi settings on your smart device. Wait for the HUVI's WiFi hotspot to appear, then connect your smart device to the HUVI's WiFi hotspot (Fig. L)
• On your smart device, return to the app. The app will show "Adding device..." as the device connects.
• Once successful, you will be able to name your HUVI. Select "Done" in the app to complete.
• Your HUVI can now be controlled through the HUVI app.

NOTE: If you cannot connect to WiFi using the connection methods above, try the following before connecting again.

— Restart your smart device
— Reboot HUVI. Press and hold the power button for 3 seconds to turn off. Wait 10 seconds, the press and hold the power button for 3 seconds again to turn back on.
— Reboot your router by unplugging the router for 30 seconds, then reconnecting. Allow the router a few minutes to reboot.

Connecting with Amazon Alexa

HUVI is compatible with Amazon Echo's Alexa. Follow the steps below to connect:

1. Make sure your Amazon Echo (or compatible smart speaker/appliance) is set up and that the Amazon Alexa app is downloaded and connected to your Amazon Echo.
2. Make sure you have downloaded and successfully connected HUVI to the HUVI app. Make sure it is connected to the same WiFi signal as the Alexa app.
3. In the HUVI app, go to the HUVI's control screen and select the √ icon in the upper right corner (Fig. M).

Fig. L

1. Select the "Alexa" icon and follow the instructions to connect (Fig. N).

Fig. M

Fig. N

NOTE: The name of your HUVI will be the same as the name set in the HUVI app. If you change the device's name on the HUVI app, your Echo must re-discover it.

Connecting with Google Assistant

HUVI is compatible with Google Home. Follow the steps below to connect:

1. Make sure your Google Home is set up and that the Google Home app is downloaded and connected to your Google Home device.
2. Make sure you have downloaded the HUVI app and successfully connected HUVI. Make sure it is connected to the same WiFi signal as the Google Home app.
3. In the HUVI app, go to the HUVI's control screen and select the ∠ icon in the upper right corner (Fig. M).
4. Select the "Google Assistant" icon and follow the instructions to connect (Fig. N).

Fig. M

Fig. N

NOTE:

— All the account information must match your HUVI app account information to successfully link.

— If you change the device's name on the HUVI app, your Google Home must re-discover it.

USING YOUR HUVI - HOME & POWER BUTTONS

HUVI can be directed to clean and recharge by using the POWER and HOME buttons located on the top of HUVI.

HOME Button

• Tap once to send HUVI to the charging base.
• Hold for 3-5 seconds to toggle between HUVI WiFi connection modes*.

POWER Button

• Hold for 3-5 seconds to power HUVI on/off.
  Tap once to Start / Pause / Resume HUVI's Smart Cleaning function

*see CONNECTING TO THE HUVI APP section for connection details.

USING YOUR HUVI - APP CONTROLS

To get the most out of HUVI, make sure you have downloaded and connected HUVI to the app (see CONNECTING TO THE HUVI APP section) before starting.

AUTO CLEANING

• In the HUVI app, select the icon (Fig. A).
• After selected, press the ON button to start.
- In Auto mode, HUVI navigates and clean your floor automatically (see pathing on Fig. B).

Fig. A

WALL FOLLOW

• Press the icon to select Wall Follow mode (Fig. A).
• After selecting, press the ON button to start
• In Wall Follow mode, the vacuum reduces its speed when it detects a wall and then follows the wall to ensure the edge is cleaned thoroughly (Fig. C).

SPOT

• Place HUVI by the area you wish to spot clean.
• Press the @ icon to select Spot mode.
• After selected, press the ON button to start.
• In Spot Clean mode, the HUVI moves in an outward spiral, cleaning the floor in expanding circles (Fig. D).

MANUAL CONTROL

• Select the icon to select Manual control (Fig. A)
• Press and hold the arrow buttons on the app to direct the HUVI (Fig. E).
• In Manual Control mode, you will be able to direct the HUVI yourself.

CHARGING

• Select the icon (Fig. A) to direct the HUVI back to the charging base.
• HUVI will also automatically return to the charging base when it is low on battery while HUVI is running.

SUCTION POWER

• HUVI has 4 suction power settings: Low, Medium, High, and Max.
• To select between HUVI's suction power settings, select "Robot Settings" (Fig. A)

Fig. B

Fig. C

Fig. D

Fig. E

while HUVI is in use, then select "Suction Strength" to choose between the settings (Fig. F).

NOTE:

- The suction setting can be changed during any of the other operating functions. - The more powerful the setting the more battery power that will be used.

UV FUNCTION

• Select "Robot Settings" (Fig. A), then select "UV" to toggle the UV function on or off (Fig. F).
• By default, this function is enabled when first powering on the product.

ION FUNCTION

• Select "Robot Settings" (Fig. A), then select "ION" to toggle the ion function on or off (Fig. F).
• By default, this function is enabled when first powering on the product.

SCHEDULE CLEANINGS

• Select "Schedule" (Fig. A), then select "Add" to select the time and parameters (Fig. G).
• Select the parameters for the cleaning schedule, then select "Save" in the upper right corner (Fig. H).

AUTOMATION

• Using the "Automation" function, you can set HUVI to run automatically according to the parameters you select in the HUVI app.
• Select the < icon (Fig. A) to access the HUVI app Home Screen (Fig. I).
• Select the "Smart" icon ( ● ) on the bottom of the screen.
• Select the + icon in the upper right (Fig. J).

Fig. F

Fig. G

Fig. H

- Set the condition you wish HUVI to run under (Fig. K).

- “Launch Tap-to-Run” allows you to set commands for HUVI which HUVI will follow with one touch on the app.

— “When weather changes” allows you to set commands for HUVI, depending on the weather.

- “Schedule” allows you to set a schedule for HUVI to perform specific tasks.

- “When the device status changes” allows you to set commands for HUVI, depending on HUVI’s status. For example, you can direct HUVI to return to the charging base depending on the filter life.

Fig. I

Fig. J

Fig. K

- After setting a condition, select a task for HUVI (Fig. L) and follow the onscreen instructions.

- "Run the device" allows you to select which HUVI functions to enable when automating.

- “Select Smart” allows you to select an Automation or Tap-to-Launch that you have previously created.

- “Send notification” will send a notification to your smart device when the condition you set is met.

- "Delay" allows you to delay the start of the automation by a specific amount of time.

- After setting a task, you can add further conditions/tasks to your automation if you desire. When ready, select "Save" to finalize (Fig. M).

NOTE: Once created, “Automations” can be found by selecting “Automations” in the Smart Screen (Fig. N). “Tap-to-Run” commands

can be found by selecting "Tap-to Run" section in the Smart Screen (Fig. O).

Fig. L

Fig. M

Fig. N

Fig. O

AROMA DIFFUSER

HUVI has an aroma diffuser compartment, located above the vent on the side of the vacuum.

Aroma diffuser compartment

- To access the aroma diffuser compartment, push down on the compartment until it softly clicks and opens. Remove the tray and pad inside.

- Once the aroma diffuser compartment is released, place a few drops of the aroma included with HUVI or an essential oil of your choice on the pad within.

• Place the pad inside of the tray, then reinsert the tray into the aroma diffuser compartment until it clicks in place.
• The diffuser will disperse the aroma whenever the HUVI is running, until the oil is used up.

NOTE: Do not reuse or clean pads. A fresh pad should be used whenever oil needs to be replenished.

CLEANING AND MAINTENANCE

Follow these instructions to clean and maintain HUVI.

NOTE:

• Before cleaning, always power down HUVI and disconnect the charging base.
• Never immerse any electrical part of the product in water or other liquids. Never place under running water.
• Never use solvents or abrasive materials. Never use metallic or sharp cleaning tools.

CLEANING THE DUST BIN

- Press the dust bin release button.

Push down to release

• After pressing the release button, pull the dust bin out.

- Open the dust bin by pulling the sides apart gently but firmly. Dispose of the contents in the dust bin.

NOTE: Some discoloration of the dust bin is normal with regular use.

CLEANING THE FILTERS

For optimal performance, clean the filters after a week of regular use. Follow the instructions below to clean the filters.

- Open the dust bin and remove the HEPA filter and copper filter components.

- Clean the dust bin and filters with the included cleaning brush or by hand.

- Put the filters back together in the dust bin, then reinsert the dust bin into your HUVI.

NOTE: It is not recommended to clean the HEPA filter under running water or get it wet.

CLEANING THE SENSORS

- Use a soft cloth to gently wipe the front sensor, floor sensors, and charging contacts.

Floor sensors

Charging contacts

Front sensor

- Use a soft cloth to clean the signal sensor and charging pins on the charging base.

Signal sensor

Charging pins

For optimal performance, clean the roller brush after a week of regular use. Follow the instructions below to clean the roller brush.

- Push the two release tabs to unlock the sweep guard. Lift the roller brush to remove.

- Clean the roller brush as well as the suction intake with the provided cleaning tool or by hand to remove any debris or obstructions.

- Reinstall the roller brush by inserting the fixed protruding end first so that the brush clicks into place.

• Reattach the sweep guard. Press down to snap it into place.

CLEANING THE SIDE BRUSHES

For optimal performance, clean the side brushes after a month of regular use. Follow the instructions below to clean the side brushes.

- Remove the side brushes from the vacuum.

• Carefully remove any debris wrapped between the main unit and the side brushes.
• Use a cloth dampened with warm water to remove any dust from the brushes or to gently reshape them.

NOTE: the side brushes may slightly deform with regular use.

REPLACING THE BATTERY

- Use a screwdriver to remove the screws from the battery cover under HUVI. Remove the battery from the compartment.

- Disconnect the battery from the connector, then fully remove the battery.

• Install the new battery. Make sure the battery is attached to the connectors.
• Attach the battery cover back in place.

NOTE:

— Do not use batteries other than those specified by the manufacturer to avoid damage to the machine.
— Fully charge the new battery before use.
— Please recycle the replaced battery in an environmentally friendly way to avoid pollution.

AVAILABLE ACCESSORIES

Enhance your HUVI experience with the accessories outlined in this section. Visit kalorik.com/products/HUVI for more information.

ITEM NUMBER	KIT	INCLUDES
RVC 50229 - VCP 51004	HydroPower Mop Set	Water Tank2 Mopping PadsPlastic Drip Mat
RVC 50229 - VCS 51005	Touchless AutoClean Set	Self-Cleaning Station3 Dust BagsRemote ControlVirtual Wall Strip
RVC 50229 - VCP 51006	Deluxe Power Clean Set	Water Tank2 Mopping PadsPlastic Drip MatSelf-Cleaning Station3 Dust BagsRemote ControlVirtual Wall Strip
RVC 50229 - VCP 51007	Filter Replacement Set	6 HEPA Filters6 Copper Filters20 Aroma Pads
RVC 50229 - VCP 51008	Complete Refresh Set (6-Arm Side Brushes)	2 HEPA Filters2 Copper Filters2 Sets of 6-Arm Side Brushes(Left & Right Brushes)20 Aroma PadsRoller Brush and Sweep Guard2 Cleaning Brushes
RVC 50229 - VCP 51446	Complete Refresh Set (3-Arm Side Brushes)	2 HEPA Filters2 Copper Filters2 Sets of 3-Arm Side Brushes (Left & Right Brushes)20 Aroma PadsRoller Brush and Sweep Guard2 Cleaning Brushes

ITEM NUMBER	ACCESSORY
RVC 50229 - VCP 51009	Replacement Dust Bags - 6 Pack
RVC 50229 - VCP 51010	Replacement Dust Bags - 12 Pack
RVC 50229 - VCP 51011	Aroma Pads – 20 Pack
RVC 50229 - VCP 51012	Virtual Wall Strip
RVC 50229 - VCP 51013	2 Pack 6-Arm Side Brushes (Left & Right Brushes)
RVC 50229 - VCP 51445	2 Pack 3-Arm Side Brushes (Left & Right Brushes)
RVC 50229 - VCP 51014	Replacement Filters – 3 Pack (3 HEPA + 3 Copper Filters)
RVC 50229 - VCP 51016	Roller Brush + Sweep Guard
RVC 50229 - VCS 51017	HUVI Home Base (with adapter)
RVC 50229 - VCP 51018	Replacement Battery
RVC 50229 - VCS 51019	Self-Cleaning Station
RVC 50229 - VCP 51020	Mopping Pads – 2 Pack
RVC 50229 - VCP 51015	Replacement Filters – 6 Pack (6 HEPA + 6 Copper Filters)

No.	Problem	Possible Cause	Solution
1	HUVI is not charging.	HUVI is not switched on.	Switch on HUVI.
		HUVI has not properly connected to the charging base.	Make sure HUVI's charging contacts have connected to the charging base's pins.
		The battery is discharged.	Re-activate the battery. To do so, switch HUVI on. Place HUVI on the charging station by hand, then remove after charging for 3 minutes. Repeat 3 times, then charge normally.
2	HUVI cannot return to the charging base.	The charging base is not placed correctly.	Refer to the BEFORE THE FIRST USE section of this manual for correct placement.
3	HUVI gets stuck while running and stops operating.	HUVI has been obstructed by something on the floor (cords, curtains, carpet fringes, etc.)	HUVI will try to free itself. If unsuccessful, remove the obstacles by hand and restart.
4	HUVI returns to the charging base before it has finished cleaning.	When the battery is low, HUVI automatically returns to the charging base to recharge.	This is normal, no action needed.
		Working time van vary depending on the floor surface, room complexity, and cleaning mode selected	This behavior is normal, no action needed.
5	HUVI does not clean at the scheduled time.	Schedule function has been cancelled.	Use the HUVI app to schedule specific cleaning times.
		HUVI has finished the scheduled cleaning.	This behavior is normal, no action needed.
		HUVI is switched off.	Switch on HUVI.
		HUVI's battery is low	Keep HUVI switched on and connected to the charging station. Make sure the battery is fully charged before operating.
		The roller brush/suction intake is blocked and/or there is debris obstructing its components.	Turn off HUVI and clean the dust bin. Clean the roller brush, side brushes, and suction intake as outlined in the CLEANING AND MAITENANCE section.
6	HUVI does not clean the entire area.	There are obstructions on the floor blocking the HUVI from cleaning.	Remove any obstructions and small objects from the area before HUVI starts cleaning.
7	HUVI is not able to connect to your home WiFi network.	Incorrect WiFi username or password.	Enter the correct WiFi username and password.
		HUVI is not within range of the WiFi signal.	Make sure HUVI is within range of your WiFi signal.
		Network connection was started before HUVI was ready.Your smart device's operating system needs to be updated.	Refer to CONNECTING TO THE HUVI APP section for connection instructions. Make sure the HUVI's indicator is flashing when connecting through the app. Make sure you are connecting to the 2.4 GHz signal.Update your smart device's operating system.
		Your devices need to be rebooted.	Restart your smart device, reboot HUVI, and restart your router before connecting again.

If additional assistance is needed, please contact our Customer Assistance at 1-888-525-6745.

We suggest that you complete and return the enclosed Product Registration Card promptly to facilitate verification of the date of original purchase. However, return of the Product Registration Card is not a condition of these warranties. You can also fill out this warranty card online, at the following address: www.KALORIK.com

This KALORIK product is warranted in the U.S.A. and in Canada for 1 year from the date of purchase against defects in material and workmanship. This warranty is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance.

During this period, if the KALORIK product, upon inspection by KALORIK, is proven defective, it will be repaired or replaced, at Kalorik's option, without charge to the customer. If a replacement product is sent, it will carry the remaining warranty of the original product.

This warranty does not apply to any defect arising from a buyer's or user's misuse of the product, negligence, failure to follow KALORIK instructions noted in the user's manual, use on current or voltage other than that stamped on the product, wear and tear, alteration or repair not authorized by KALORIK, or use for commercial purposes. There is no warranty for glass parts, glass containers, filter basket, blades and agitators, accessories outlined in this manual, and accessories in general. There is also no warranty for parts lost by the user.

ANY WARRANTY OF MERCHANTABILITY OR FITNESS WITH RESPECT TO THIS PRODUCT IS ALSO LIMITED TO THE ONE YEAR LIMITED WARRANTY PERIOD.

Some states do not allow limitation on how long an implied warranty lasts or do not allow the exclusion of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

If the appliance should become defective within the warranty period and more than 30 days after date of purchase, do not return the appliance to the store: often, our Customer Service Representatives can help solve the problem without having the product serviced. If

servicing is needed, a Representative can confirm whether the product is under warranty and direct you to the nearest service location.

If this is the case, bring the product, or send it, postage prepaid by the user (all Kalorik customers are responsible for the initial shipment back to the warranty center), along with proof of purchase and a return authorization number indicated on the outer package, given by our Customer Service Representatives. Send to the authorized KALORIK Service Center (please visit our website at www.KALORIK.com or call our Customer Service Department for the address of our authorized KALORIK Service Center).

When sending the product, please include a letter explaining the nature of the claimed defect.

If you have additional questions, please call our Customer Service Department (please see below for complete contact information), Monday through Thursday from 9:00am - 5:00pm (EST) and Friday from 9:00am - 4:00pm (EST). Please note hours are subject to change.

If you would like to write, please send your letter to:

KALORIK Customer Service Department

Team International Group of America Inc.

16175 NW 49th Avenue

Miami Gardens, FL 33014 USA

Or call:

Toll Free: +1 888-521-TEAM / +1 888-KALORIK

Only letters can be accepted at this address above. Shipments and packages that do not have a return authorization number will be refused.

ACCESORIOS DISPONIBLES....58

Fig. D

Fig. E

Fig. F

Fig. G

Fig. H

Fig. I

Fig. J

Fig. K

Fig. L

Fig. M

Fig. N

Fig. M

Fig. N

NOTA:

Fig. C

Fig. D

Fig. E

Fig. F

Fig. G

Fig. H

AUTOMATIZACIÓN

- Set the condition you wish HUVI to run under (Fig. K).

Fig. J

Fig. K

Fig. L

Fig. M

Fig. N

Fig. O

DIFUSOR DE AROMA

Sensores del piso

Contactos de carga

Sensor frontal

Team International Group of America Inc.

16175 NW 49 ^th Avenue

Miami Gardens, FL 33014 USA

O llame gratuitamente (U.S.A.) al +1 888-521-TEAM / +1 888-KALORIK

For questions please contact:

Para preguntas contacte a:

KALORIK Customer Service / Servicio al Cliente

Team International Group of America Inc.

16175 NW 49th Avenue

Miami Gardens, FL 33014 USA

User manual content and recipes courtesy of Team International Group – Do not reproduce without consent of the authors - All rights reserved.
