USER MANUAL CK 1927 ADE

CK 1927 XL radio-controlled wall clock Dear Customer! You have chosen to purchase a high-quality ADE brand product, which combines intelligent functions with an exceptional design. With this radio-controlled clock, you always have the exact time in view. The wealth of experience of the ADE brand ensures a high technical standard and proven quality. We wish you easy timing at any time! Your ADE Team General information About this operating manual This operating manual describes how to operate and maintain your product safely. Keep this operating manual in a safe place for future reference. If you pass this product on to someone else, pass on this operating manual as well. Failure to observe this operating manual may result in injuries or damage to your product. Explanation of symbols This symbol combined with the word DANGER warns of serious injuries. This symbol combined with the word WARNING warns of moderate and mild injuries. This symbol combined with the word NOTE warns of material damage. This symbol indicates additional information and general notes.Table of Contents

CK 1927 XL radio-controlled wall clock Intended use This XL radio-controlled wall clock is used to display the time. It also displays other data (e.g. the room temperature) and has an alarm function. The item is designed for private use and for use in dry areas. Safety This product may be used by children aged 8 and above, as well as by persons with reduced physical, sensory, or mental capacities or lacking experience and knowledge if they are supervised or have been instructed in the safe use of the product and understand the risks that may arise. Children must not play with the product. Cleaning and user maintenance must not be carried out by children, unless they are 8years of age or older and are being supervised. Batteries, when swallowed, can be life-threatening. Therefore, keep the clock and battery out of the reach of small children. If a battery has been swallowed, medical assistance must be sought immediately. DANGER for children Keep packaging material away from children. There is a risk of choking if swallowed. Also pay attention that children do not pull the packaging material over their heads. RISK of fire/burning and/or explosion There is a risk of explosion if the batteries are replaced improperly. Replace the batteries only with the same or equivalent battery type. Pay attention to the “Technical data”. Batteries must not be recharged, reactivated by other means, dismantled, thrown into re, or short-circuited. Otherwise, there is an increased risk of explosion and leakage; furthermore, gases may escape!Technical data

CK 1927 XL radio-controlled wall clock English Avoid contact of the battery uid with skin, eyes, and mucosa. In case of contact, immediately rinse the aected areas with plenty of clean water and consult a doctor. BEWARE of material damage Protect the clock from strong shocks and vibrations. Remove the batteries from the clock, if these are used up or you are not going to use the clock for a long period. You will thus avoid damage that may result from leakage of battery acid. When inserting and changing batteries, pay attention to the correct polarity (+/-). Do not subject the batteries to any extreme conditions, by – for example – storing them on radiators or under direct sunlight. Increased risk of leakage! Clean the battery and device contacts, as needed, before inserting the battery. Do not make any modications to the product. Only allow repairs to be carried out by a specialist workshop. Repairs carried out improperly can considerably endanger the user. Technical data Model: CK 1927 DCF radio-controlled clock Battery: 2x LR6 (AA), 1.5 V Rated current: 120 mA Temperature range: approx. -10°C – 50°C (-14°F – 122°F) Humidity measurement range: 20% – 95% (relative) Dimensions: 225 x 33 x 145 mm Distributor (no service address): Waagen-Schmitt GmbH Hammer Steindamm 27-29 22089 Hamburg, Germany Our products are constantly being developed and improved. For this reason, design and technical modifications are possible at any time. Warranty The company Waagen-Schmitt GmbH warrants for 2 years from the purchase date the cost-free rectification of defects in material or workmanship through repair or exchange. In the event of a warranty claim, please return the product with the proof of purchase (specifying the reason for claim) to your dealer.Overview

CK 1927 XL radio-controlled wall clock Overview

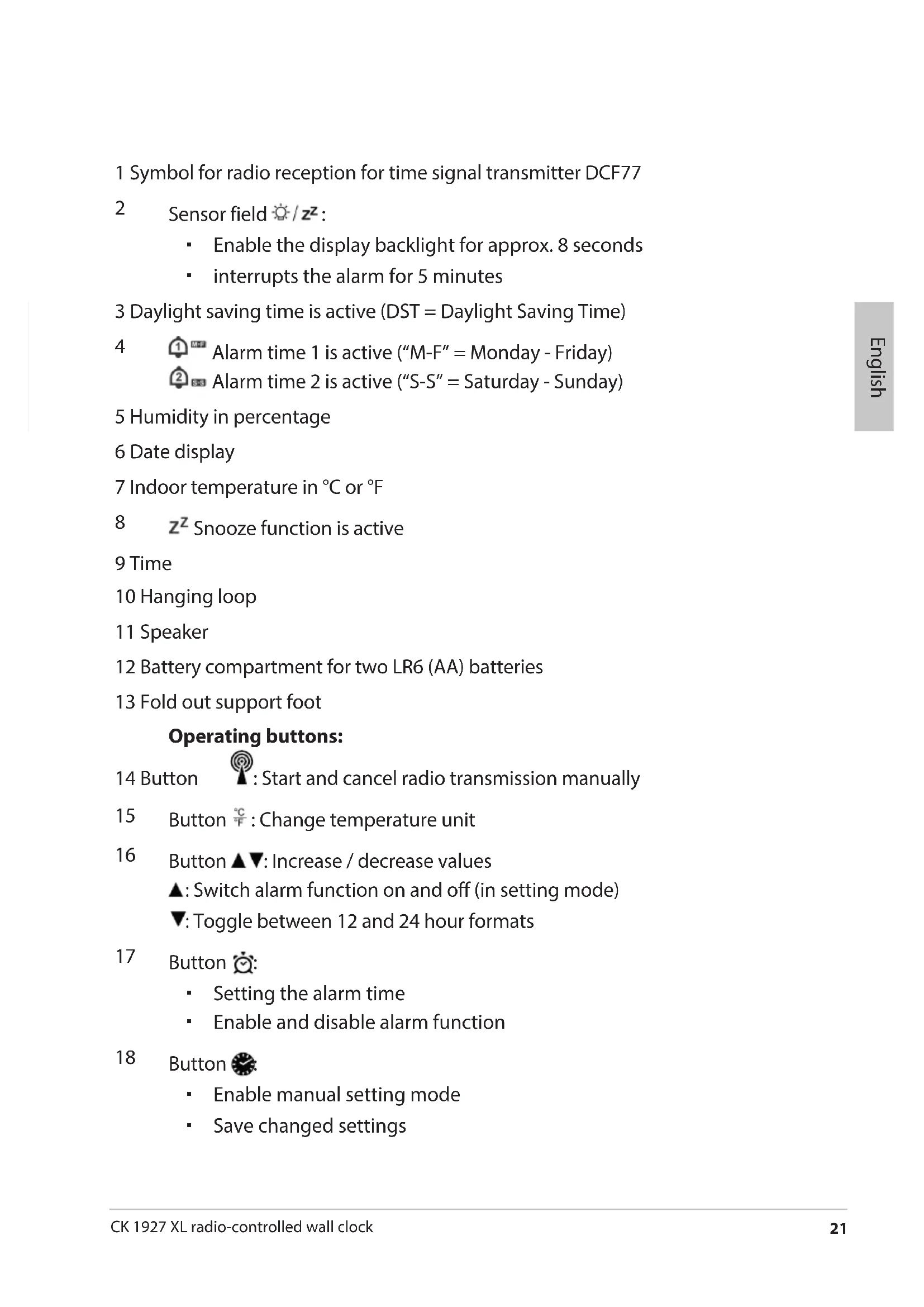

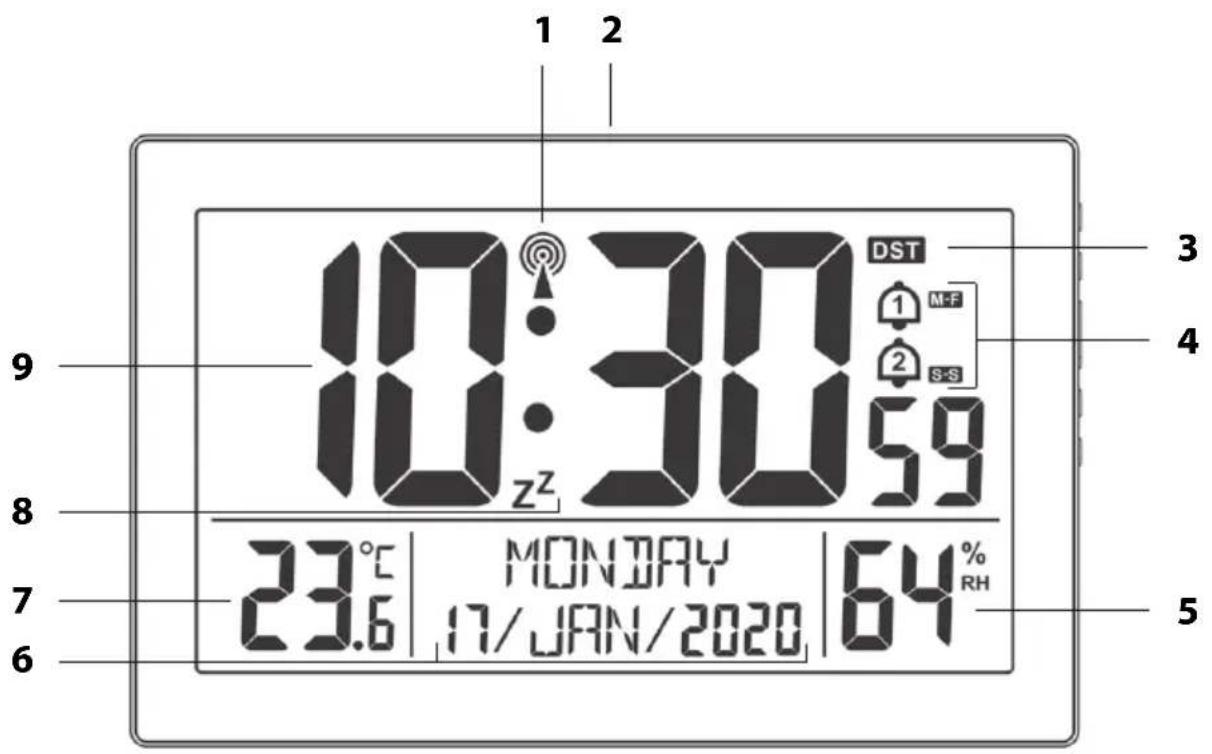

CK 1927 XL radio-controlled wall clock English 1 Symbol for radio reception for time signal transmitter DCF77

Enable the display backlight for approx. 8 seconds interrupts the alarm for 5 minutes 3 Daylight saving time is active (DST = Daylight Saving Time)

Alarm time 1 is active (“M-F” = Monday - Friday) Alarm time 2 is active (“S-S” = Saturday - Sunday) 5 Humidity in percentage 6 Date display 7 Indoor temperature in °C or °F

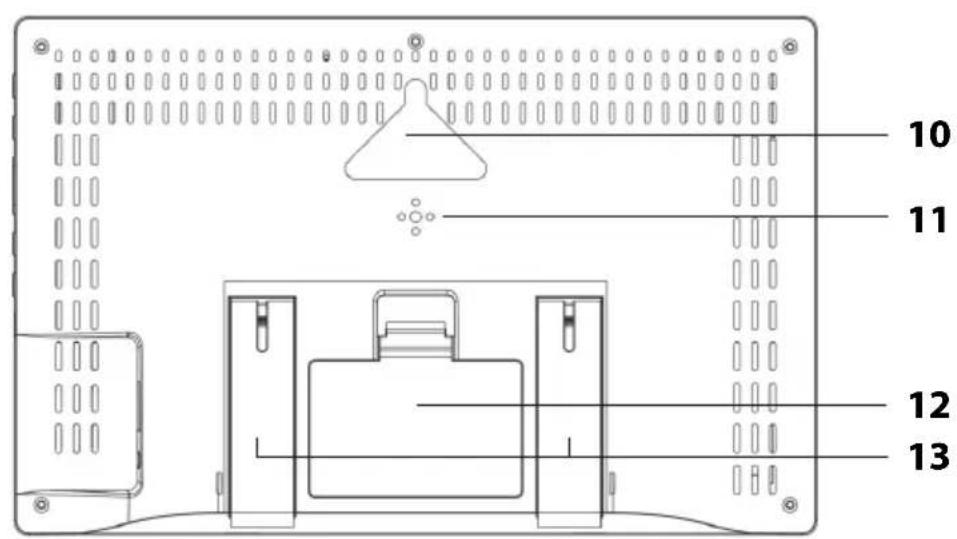

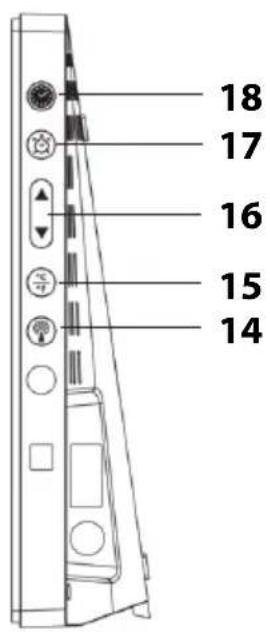

Snooze function is active 9 Time 10 Hanging loop 11 Speaker 12 Battery compartment for two LR6 (AA) batteries 13 Fold out support foot Operating buttons: 14 Button : Start and cancel radio transmission manually

Button : Increase / decrease values : Switch alarm function on and off (in setting mode) : Toggle between 12 and 24 hour formats

Setting the alarm time Enable and disable alarm function

Enable manual setting mode Save changed settingsStart-up

CK 1927 XL radio-controlled wall clock Start-up For use, you will need two LR6 (AA), 1.5V batteries.

1. Push the locking tab down slightly and remove the battery compartment cover.

2. Insert 2 batteries of the type LR6 (AA) / 1.5 V as depicted on the bottom of the

battery compartment. Pay attention to the correct polarity (+/-).

3. Replace the battery compartment cover. The locking tab must snap audibly into

place. Once the batteries are inserted, the clock switches to the receiving mode, see next chapter. Receiving the time signal When you insert the batteries into the radio-controlled clock, all the indicators are displayed for a moment followed by several beeps. The measured room temperature and humidity will appear on the display shortly thereafter. The device then switches to receiving-mode, during which the number of radio waves indicates the quality of the reception: The more radio waves shown on the display, the better is the reception. As soon as the signal has been received in sufficient strength, the display also shows the time and the current date and the day of the week. The radio-controlled clock automatically switches to receiving mode several times every night. During this process, the displayed time is compared with that received from the time signal transmitter and, if necessary, corrected. If a sufficiently strong signal has not been received, the radio-controlled clock will cancel the receiving process after a few minutes and the radio tower symbol goes out. The receiving process is started again at a later point in time. In this case, the time proceeds as usual (beginning with the start time of “00:00”).Receiving the time signal

CK 1927 XL radio-controlled wall clock English Checklist when data is missing on the display No data display from the time signal transmitter

1. Check whether the location of the radio-controlled clock is suitable, see

“Choosing a location”.

2. Restart reception manually, see "Manually starting signal reception".

3. Wait until the radio-controlled clock automatically switches to receiving mode at

a later point in time. The reception is usually better at night.

4. Manually perform the settings if reception is not possible at your location, see

"Setting the time and date manually". Setting the time and date manually If there is more than approx. 20 seconds between two pushes of a button, the setting process automatically ends and you will have to repeat it. If you press and hold the or buttons, the displayed values will be increased or decreased more quickly.

1. Press and hold down the

button until “BEEP ON” appears on the display.

in order to save the settings. “00” flashes in the display for the time zone you are in (“00” is the default setting for the European mainland).

4. Proceed as previously described:

− Press the or button to set the desired value. − Press to save a setting.

5. You should set the following:

to conclude the procedure.About the time signal transmitter DCF77

CK 1927 XL radio-controlled wall clock Starting signal reception of the time signal manually If the radio signal symbol to the left is no longer displayed, the radio signals from the time signal transmitter are no longer being received. The time indicator nevertheless continues precisely. − Press the button. The signal reception is thus started manually. Pay attention to the following: If the reception was not successful, the reception symbol fades out after a few minutes and the time on the display continues normally. Upon successful signal reception, the radio-controlled clock adjusts itself to the time of the time signal transmitter. If you have already made manual time and date settings, they will be adjusted automatically. Choosing a location NOTE on material damage Protect the radio-controlled clock from dust, shocks, extreme temperatures, direct sunlight and moisture. Only place the radio-controlled clock in a dry, closed room. Maintain distance from TV sets, computers, and monitors. Base stations of cordless telephones should also not be in the immediate vicinity of the radio-controlled clock. Depending on your location, it may occur in rare individual cases that the radio-controlled clock receives signals from another time signal transmitter or even alternately from two time signal transmitters. This is not a fault in the device. In this case, change the location for the radio-controlled clock. The weather, e.g. a heavy storm, can cause interference with the reception. Temporary shutoffs of the transmitter can sometimes happen, e.g. because of maintenance work. Setting up/hanging the radio-controlled clock The radio-controlled clock has a hanging loop on the back and a two-part fold out support foot. − Hang or place the radio-controlled clock as near as possible to a window. Here, the reception will generally be best. About the time signal transmitter DCF77 This radio-controlled clock receives its radio signals from the time signal transmitter DCF77. This broadcasts the precise and official time of the Federal Republic of Germany on the long-wave frequency of 77.5 kHz.Alarm

CK 1927 XL radio-controlled wall clock English The transmitter is located in Mainflingen near Frankfurt am Main and, with its range of up to 2000 km, supplies the majority of radio-controlled clocks in western Europe with the necessary radio signals. As soon as the radio-controlled clock is supplied with power, it switches to receiving mode and searches for the signal from the transmitter DCF77. If the time signal is received in sufficient strength, the display shows the date, time and day of the week. The radio-controlled clock switches on several times a day and synchronises the time with the radio signal from the transmitter DCF77. In the event the signal is not received, e.g. during a strong storm, the device continues to run precisely and then switches to receiving mode again at the next scheduled time. Alarm The device offers the possibility of setting two alarm times independently of each other. For each alarm time you can specify the days on which it should be active: Monday to Friday (“M-F” display) or Saturday to Sunday (“S-S” display) or Monday to Sunday (“M-S” display). Setting the alarm time If there is more than approx. 20 seconds between two pushes of a button, the setting process automatically ends and you will have to repeat it. If you press and hold the or buttons, the displayed values will be increased or decreased more quickly. Both alarm times are set in the same way.

button pressed for a few seconds until “AL 1” appears on the display and the wake-up hour display flashes.

or button to set the desired wake-up hour.

The minute indicator for the alarm time blinks on the display.

or button to set the desired wake-up minute.

“M-F”, “S-S” or “M-S” flashes on the display.

or button to set the desired alarm period: − Monday to Friday (“M-F” display) or − Saturday to Sunday (“S-S” display) or − Monday to Sunday (“M-S” display).

CK 1927 XL radio-controlled wall clock

8. Use the or button to set the desired time span for the snooze function (time

span between two alarms). If you select “OFF”, the snooze function is switched off.

10. Proceed as described to make the same settings for “AL 2”. If you do not want to set

a second alarm time, simply press repeatedly until the normal display is shown again. Switching the alarm function on/off

1. Press the button once or twice to select the respective alarm (“AL1” or “AL2”).

to set the display to “ON”. The display shows e.g. (depending on the selected setting). The alarm function is activated. To disable the alarm function, proceed as described and then use to set the display to “OFF” with the alarm function enabled. Waking up At the set time, you will be woken by an alarm signal, which will become more intense as the waking time increases. Interrupting the alarm for 24 hours − Keep the sensor field pressed for a few seconds or press any button to interrupt the alarm. After 24 hours, the alarm will be triggered again. Auto-stop function If you do not press a button, the alarm switches off automatically after 2 minutes. After 24 hours, the alarm will be triggered again. Repeat alarm (snooze function) − Briey tap the sensor eld once when the alarm signal sounds. The alarm signal will be muted and the bell symbol or and will ash on the display. The device will switch on again and wake you up again according to the setting made (default setting: 5 minutes). This procedure can be repeated multiple times. To disable the snooze function, press any button on the side or keep pressed for a few seconds during the snooze phase. The alarm is then only triggered again in 24 hours.Other functions

CK 1927 XL radio-controlled wall clock English Other functions Illuminating the display − Tap the sensor eld once to enable the display backlight for approx. 8 seconds. Changing the time display − To toggle between the 12 and 24 hour formats, press . In the 12 hour format, morning hours are indicated as “AM” and afternoon hours are indicated as “PM”. Change temperature unit − Press the button to display the temperature in °Celsius or °Fahrenheit. Switching between summer and winter time Switching between summer and winter time, or vice versa, takes place automatically with good time signal reception. When daylight saving time is active, the display shows “DST” (Daylight Saving Time). Resetting the radio-controlled wall clock to defaults Reset the clock to defaults if the display shows unusual and/or obviously incorrect values.

1. Remove the batteries from the battery compartment and wait a moment.

2. Reinsert the batteries.

Pay attention to the correct polarity of the batteries (+/-).

3. Proceed as described in the chapter “Receiving the time signal”.

Changing the battery If the display fades out or shows , be sure to change the batteries completely. − Proceed as described in the “Start-up” section. Only use the type of battery that is specied in the “Technical data”. Always change all batteries at the same time. Dispose of old batteries in an environmentally appropriate way (see “Disposal”).Cleaning

CK 1927 XL radio-controlled wall clock Cleaning NOTE on material damage − Do not immerse the clock in water or other liquids. − Never use harsh, scouring or abrasive cleaning agents or the like to clean the clock. Otherwise, the surface could be scratched. − Dust the clock if necessary with a soft, dry cloth. The glass can also be cleaned with commercially available glass cleaners. Fault/Remedy Fault Possible cause The DCF77 signal for the time cannot be received. Check the chosen location. Start the signal reception manually, if necessary. Adjust the time manually. Temperature indication appears too high. Check if the clock is exposed to direct sunlight. The indicator is illegible, the function is unclear, or the values are obviously false. Reset the clock to defaults. The time differs exactly by one or two etc. hours. You have probably set an incorrect time zone. The display shows “HH” or “LL” instead of measured temperature values. The values lie above or below the measurement range. Humidity indication “19% RH” or “96% RH” appears permanently on the display. The values are below the measurement range. The alarm clock didn't ring. Did you activate the correct alarm time? Check whether the wake-up day and setting (“M-F”, “S-S” or “M-S”) match.Declaration of Conformity

CK 1927 XL radio-controlled wall clock English Declaration of Conformity Waagen-Schmitt GmbH hereby declares that the CK 1927 radio-controlled clock complies with 2014/53/EU and 2011/65/EU directives. The full text of the EU declaration of conformity is available at the following Internet address: www.ade-germany.de/doc This declaration loses its validity if any modification is made to the item that has not been agreed with us in advance. Hamburg, January 2020 Waagen-Schmitt GmbH Disposal Disposing of the packaging Dispose of the packaging with similar materials. Dispose of cardboard with waste paper and of films with recyclable materials. Disposing of the product Dispose of the product in accordance with the regulations that apply in your country. Devices must not be disposed of in normal household waste. At the end of its life, the product must be disposed of in an appropriate way. In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided. Bring the old device to a collection point for electronic waste or to a recycling depot. For more information, contact your local waste disposal firm or your local administrative body. Batteries and rechargeable batteries should not be disposed of in the household waste. All batteries and rechargeable batteries must be brought to a local or district collection point or to the retailer. Such batteries and rechargeable batteries can thus be disposed of in an environmentally friendly way.Información general
