USER MANUAL ISW0930RVS Pelgrim

Instructions for use
Cooker hood

NL Handleiding NL 3 - NL 17
FR Notice d'utilisation FR 3 - FR 17
DE Anleitung DE 3 - DE 17
EN Manual EN 3-EN 17

Gebruikte pictogrammen - Pictogrammes utilisés

Preparation installation

Préparer l'orifice

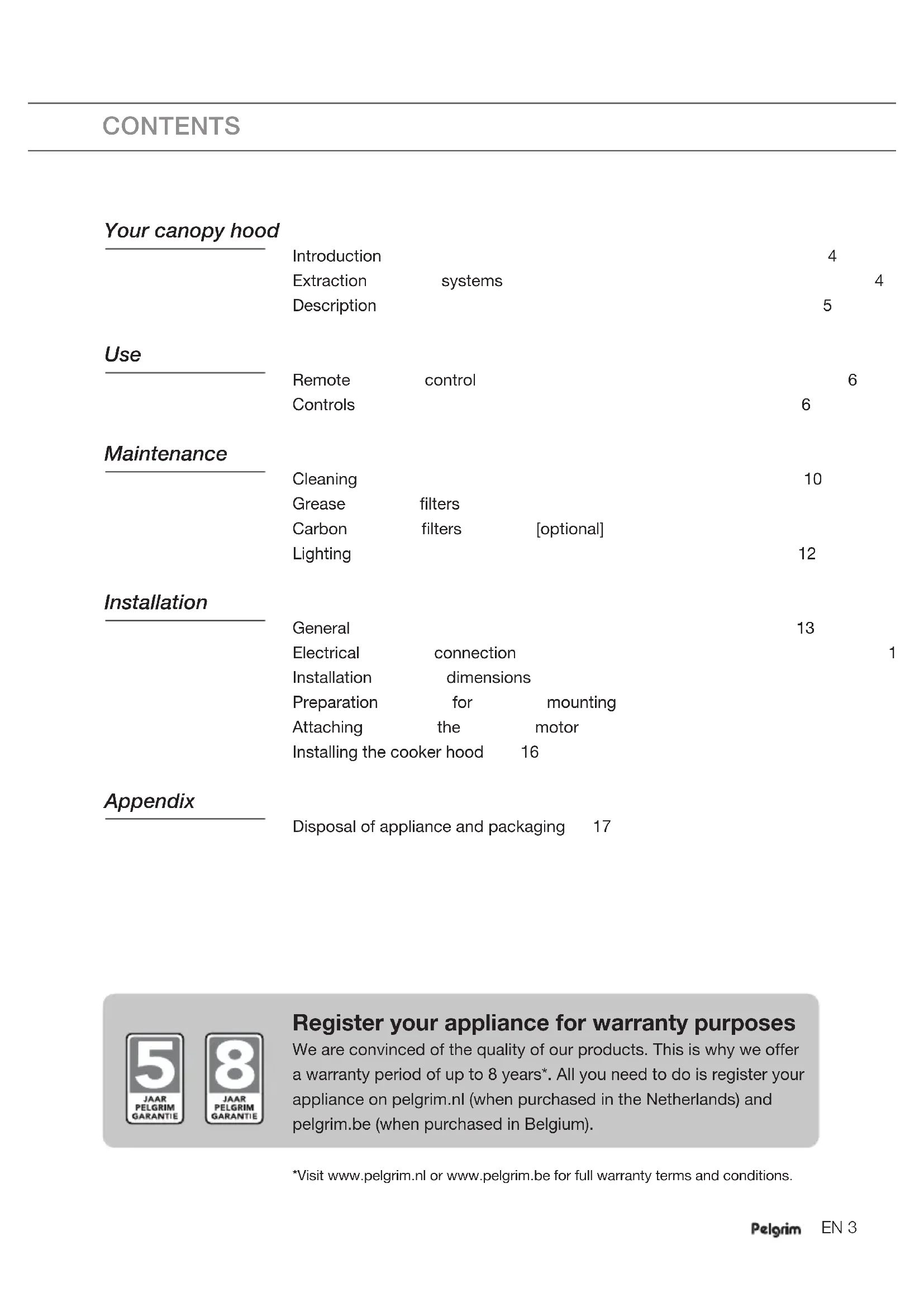

	Introduction			4
	Extraction	systems			4
	Description			5
Use
	Remote	control			6
	Controls			6
Maintenance
	Cleaning			10
	Grease	filters
	Carbon	filters	[optional]
	Lighting			12
Installation
	General			13
	Electrical	connection			1
	Installation	dimensions
	Preparation	for	mounting
	Attaching	the	motor
	Installing the cooker hood	16
Appendix
	Disposal of appliance and packaging	17

Register your appliance for warranty purposes

We are convinced of the quality of our products. This is why we offer a warranty period of up to 8 years*. All you need to do is register your appliance on pelgrim.nl (when purchased in the Netherlands) and pelgrim.be (when purchased in Belgium).

*Visit www.pelgrim.nl or www.pelgrim.be for full warranty terms and conditions.

Introduction

This user manual gives you a quick overview of all the possibilities offered by the appliance. You will find information on safety measures and maintaining the appliance.

Please retain this user manual and the installation guide.

They may be of use to future users of the appliance.

Read the separate safety instructions before using the device!

You can find the most recent version of the instructions for use on our website.

Extraction systems

The cooker hood can be connected in two ways:

1. As a cooker hood connected to an exhaust duct. The extracted and filtered cooking vapours are removed to the outdoors.
2. As a recirculation cooker hood. The grease particles and the odour from the extracted cooking vapours are filtered. The extracted air is not removed but is returned to the kitchen. Therefore, you must fit a carbon filter

Note

The carbon filter must be ordered separately.

Description

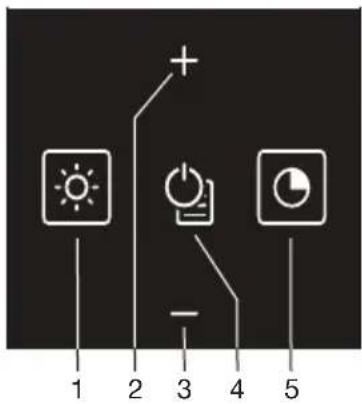

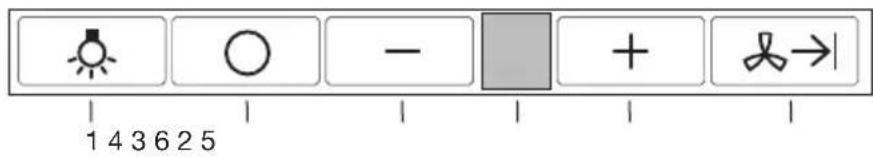

Remote control Control panel on the cooker hood

1. Lighting key

Switching on or dimming lighting.
Switching off lighting.

1. ^+ key

Switching on fan and increasing the fan speed.
Pairing the remote control with the cooker hood.

1. 'key

Reducing fan speed.
Switching off fan.

1. Off key

Remote control and cooker hood: switching off fan.
Remote control: Switching on Clean Air function.
Cooker hood (in combination with ^+ key): Switching on Clean Air function.

1. Timer key

Fan switches off automatically after 10 minutes.

1. Display

Remote control

Pairing the remote control with the appliance

If the appliance cannot be operated with the remote control, for example if the battery has been changed recently, the remote control must be paired with the appliance again.

1. Touch and hold the ^+ key.
2. Connect the appliance to the mains voltage.

A long beep sounds. The remote control is paired with the appliance.

Note: Repeat this procedure if you do not hear a beep within 30 seconds.

Operation

Switching on fan

1. Touch the ^+ key.

The cooker hood switches on at speed 1.

Setting the extraction level

1. Touch the +^ or - key one or more times to select a higher or lower setting (0-1-2-3-P).

The highest setting is intensive setting P (setting 4).

The intensive setting switches off automatically after 4 minutes. After this, the fan switches to setting 2.

Switching off fan

1. Touch the off key.

0^ appears on the display for 5 seconds.

The cooker hood switches off.

Switching the lighting on and off

1. Touch the lighting key.

The lighting is switched on.

1. Touch the lighting key again.

The lighting is switched off.

Dimming the lighting

1. To dim the lighting, touch the lighting key until the dimming function is activated.

The lighting switches on at its brightest setting and continues to dim until you release the key.
At the lowest dimming setting, the lighting returns from dimmed light to bright light.

Clean Air function

The fan automatically switches on for 10 minutes every hour (for 24 hours) at the selected speed.

1. Switch off the appliance and lighting.
2. Touch the off key and the +' key on the cooker hood at the same time, or touch the off key on the remote control.
3. Touch the ^+ key one or more times to select a higher setting (1-2-3).

The setting appears on the display.

1. Confirm the selected setting within 5 seconds: touch the off key and the +^ key on the cooker hood at the same time again, or touch the off key on the remote control.

The Clean Air function is switched on.
The setting flashes on the display: 2 seconds on, 2 seconds off.

1. Touch any key (except the lighting key) to switch off the Clean Air function.

Timer function

With the timer function, the cooker hood can be switched off automatically after 10 minutes at setting 1.

1. Switch on the cooker hood and touch the timer key.

A flashing dot appears on the display next to setting 1, indicating that the cooker hood is in timer mode.

1. Switch off the timer function at any time by selecting a higher setting with the +^ key or by touching the off key.

Grease filter cleaning indicator

After 40 hours of use of the cooker hood, a beep sounds occasionally during use and the display alternates between the setting and three underscore symbols. The three underscore symbols remain on the display when the cooker hood is switched off. The grease filter must be cleaned.

• To reset the cleaning indicator, touch the off key twice with the cooker hood switched off.

You will hear a long confirmation beep.

After 20 hours, the filter cleaning indicator automatically resets.

Carbon filter cleaning indicator

After 350 hours of use of the cooker hood, a beep sounds periodically during use if the carbon filter contamination indicator is activated. The setting and 'C' appear alternately on the display. The 'C' remains on the display when the cooker hood is switched off. The carbon filter must be cleaned.

• To reset the cleaning indicator, touch the off key twice with the cooker hood switched off.

You will hear a long confirmation beep.

After 20 hours, the filter cleaning indicator automatically resets.

If the cleaning indicator for both the grease filter and the carbon filter is displayed and the beep sounds, the reset procedure must be carried out twice.

Activation of the carbon filter cleaning indicator

In standard mode, the carbon filter cleaning indicator is not active. If the cooker hood is used as a recirculation hood, the carbon filter cleaning indicator must be activated.

1. Switch off the cooker hood and the lighting.
2. Touch the off key on the control panel of the cooker hood.
3. Touch the timer key on the control panel of the cooker hood for 5 seconds.

You will hear a beep and 'C' will appear on the display for 5 seconds as confirmation.

Switching off the carbon filter cleaning indicator:

1. Switch off the cooker hood and the lighting.
2. Touch the off key on the control panel of the cooker hood.
3. Touch the timer key on the control panel of the cooker hood for 5 seconds.

You will hear a beep and three underscore symbols will appear on the display for 5 seconds as confirmation.

Cleaning

Attention! Before performing any maintenance operation, isolate the hood from the electrical supply by unplugging the appliance or switching off your household's master switch. The cooker hood should be cleaned regularly (at least as frequently as the grease filters are cleaned) both internally and externally. Do not use abrasive products.

Do not use alcohol!

Attention! Failure to comply with the basic recommendations for cleaning the cooker hood and cleaning/replacing the filters may lead to a fire. Therefore, we recommend that you observe these instructions. The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

Cooker hood

Clean the cooker hood with soapy water and a soft cloth. Then wipe with clean water to rinse. Do not apply aggressive cleaning agents such as caustic soda. The paintwork on the cooker hood will remain shiny if it is periodically rubbed with wax.

Stainless steel canopy hoods

Do not use any sort of scourer. Treat with a stainless steel care product and polish with the structure of the stainless steel.

Metal grease filters

Metal grease filters should be cleaned once a month (or when indicated by the filter saturation indication system, if present on your model), using a neutral cleaning agent, preferably by hand or in the dishwasher on a short, low-temperature program. Place the grease filters with the openings facing downwards in the dishwasher so the water can drain out of the filter. Aluminum-colored and black grease filters become dull as a result of dishwasher cleaning agents. This is normal and does not effect the working.

Grease filters

Removing the grease filters

Switch off the electricity! Remove the plug from the mains socket or turn the switch in the meter cupboard to zero. Open the extraction panel. Release the lock of the fat filer and tilt the filter downwards.

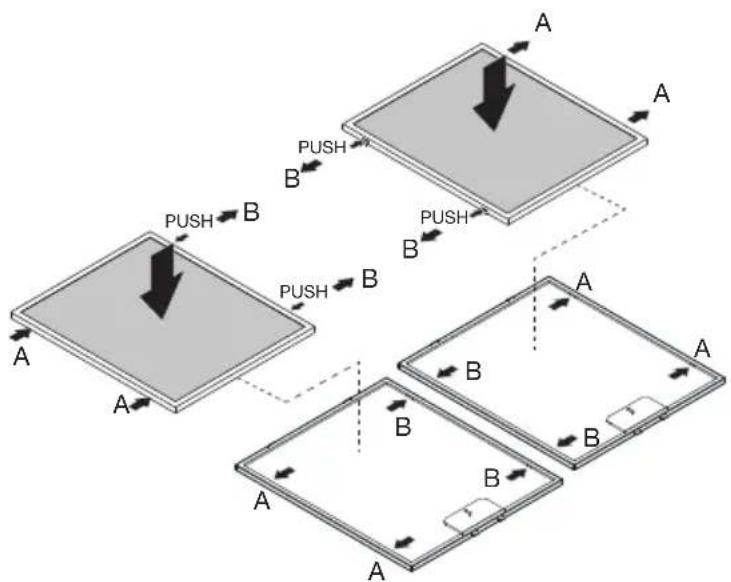

Carbon filters [optional]

For recirculation purpose you can choose for washable carbon filters. The carbon filters can be regenerated.

1. Remove the frame with charcoal filter from the grease filter by pressing the clips on side B.
2. Remove the filter matrass from the filter frame and clean the matrass in the dishwasher, without detergent.
3. Dry the filter matrass in the oven for 1 hour at a max. temperature of 80 degrees.
4. Place the filter mat back in the filter frame.
5. Place the filter frame back on the grease filter. Note that side B with clip is in the middle.

Lighting

This hood is fitted with a light system. This light system has to be replaced by an authorized technician. Do not attempt to replace it by yourself.

The lamp in this household appliance is only suitable for illumination of this appliance. The lamp is not suitable for household room illumination.

General

This appliance must be connected to the electric mains by an authorised installer who is familiar with the safety precautions and will carry them out. The appliance is in compliance with European guidelines.

Important information:

• The distance between the lowest point of the cooker hood and a gas hob must be at least 65~cm . If using an electric, ceramic or induction hob, this distance must be at least 55~cm .
• If the cooker hood is connected to an existing exhaust duct, no other appliance must be connected to the duct (such as a hot water heater or a stove).
• Consider local regulations with respect to the ventilation of gas appliances.
• The shorter the duct, and the fewer bends in it, the better the cooker hood will work.
• Check before you start drilling that no installation pipe(s) is/are present.
• The connection pipe to the cooker hood has a diameter of 125 or 150mm . We recommend that the exhaust pipe has as large a diameter as possible.
• The enclosed installation materials are suitable for reinforced concrete and brick walls. For some types of wall you may need special plugs and screws.

Electrical connection

This appliance is fitted with an earthed plug, which should be connected to an earthed wall socket.

Check that the voltage indicated on the rating plate matches the voltage of your household supply.

The appliance should be connected to the mains as follows:

BROWN = L live

BLUE = N neutral

GREEN/YELLOW = earth

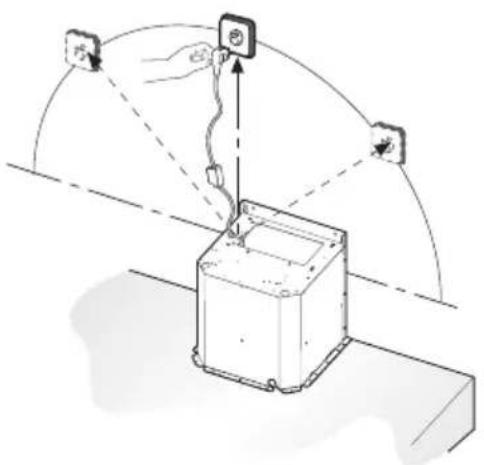

This cooker hood is fitted with a connector plug. Install the cooker hood so that the plug is accessible.

Attention!

If you are making a fixed connection, you must ensure that a double pole switch with an air gap of at least 3mm is fitted in the supply line.

max. 1500mm

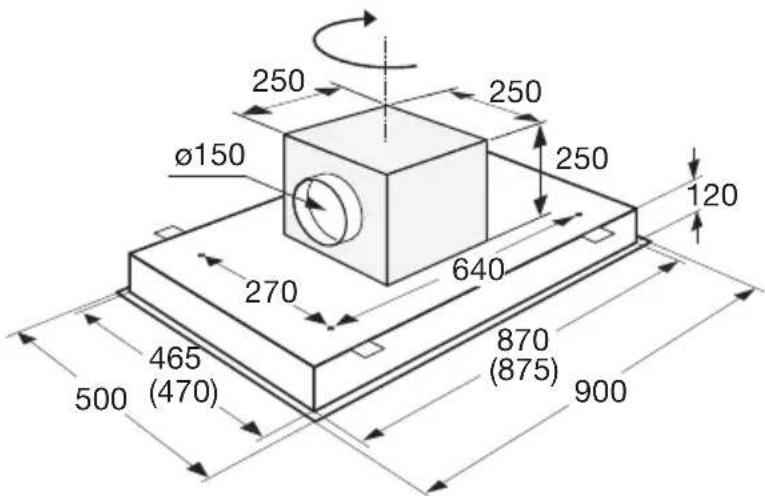

Installation dimensions

Preparation for mounting

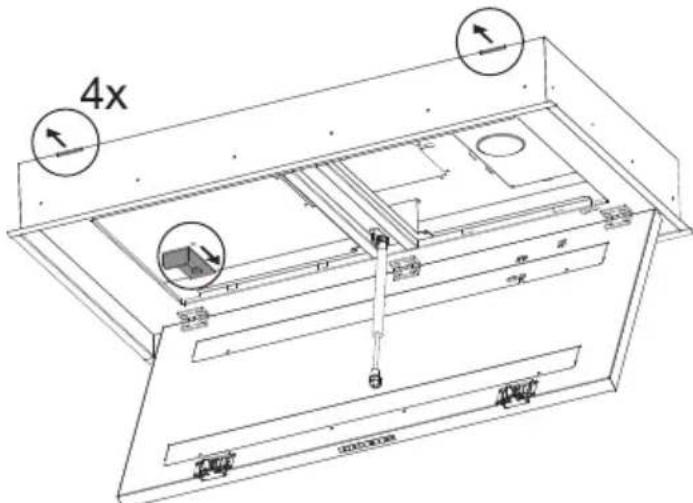

Preparing the recess

• Determine the location for the recess in relation to the hob, either in the ceiling or in the chimney.
• The hood is fitted with a temporary suspension system with sliders to make it easier to mount. To use this system, the recess must have a suspension flange to suspend it temporarily (maximum height 115mm ). Attention: this flange on the front and back must be sufficiently strong to support the cooker hood across 4 points.
• The ceiling/chimney must be fitted with a bar that has a minimum thickness of 36mm to which the extraction hood can be attached with the 4 screws. Remember to check the position of the mounting holes.

Attaching the motor

The motor can be placed directly on the cooker hood, or at a maximum distance of 3 meters from the hood. You have to order the external motor set HE0001 for this.

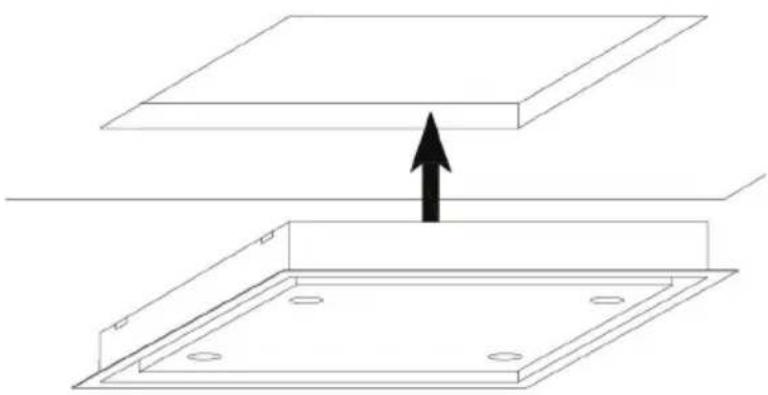

Installing the cooker hood

• Determine the correct position of the support bars in the recess (see 'Preparing the recess').
• Connect the cooker hood to the mains. Put the plug into the socket.
• Place the cooker hood in the recess. Slide the temporary suspension brackets out so the hood is resting on them (see 'Preparing the recess'.
• Screw the hood to the bars with the 4 screws.

Disposal of appliance and packaging

This appliance was manufactured using sustainable materials. It must be disposed of responsibly at the end of its life cycle. The local authorities can provide you with the relevant information.

The packaging of this appliance is recyclable. It may have been made from:

cardboard;
polythene film (PE);
CFRP-free polystyrene (PS hard foam).

You need to dispose of these materials responsibly in accordance with official regulations.

To draw attention to the fact that the segregated processing of household electrical appliances is compulsory, this appliance carries the symbol of a crossed-out dustbin. This means that you may not dispose of the appliance as household refuse at the end of its useful life. Instead, it should be taken to a special segregated refuse collection centre run by the local authority or to a dealer providing this service.

Segregated processing of household appliances prevents any negative impact on the environment and public health that might otherwise arise. It allows the recovery of the materials used to manufacture this appliance, thus generating considerable savings in terms of raw materials and energy.

Declaration of conformity

We hereby declare that our products satisfy the applicable European directives, orders and regulations, as well as the requirements stated in the referenced standards.
