Product type	Column drill
Brand	Güde
Model	GSB 20812
Supply voltage	230 V / 400 V (depending on variant)
Mains frequency	50 Hz
Protection class	I
Motor power	800 W (S1)
Spindle stroke	80 mm
Spindle speed	210 - 2500 min⁻¹
Number of speeds	12
Reach	170 mm
Chuck clamping range	1 - 16 mm
Chuck	Morse taper B16
Spindle holder	MK 2
Max drilling diameter in steel	20 mm
Table dimensions	260 x 260 mm
Base plate	240 x 410 mm
Column diameter	70 mm
Cord length	2.0 m
Net weight	48 kg
Dimensions (L x W x H)	650 x 340 x 1010 mm
Sound pressure level	58 dB(A)
Sound intensity level	71 dB(A)
Required protective equipment	Safety glasses, hearing protection
Warranty	24 months (consumer), 12 months (professional use)

Frequently Asked Questions - GSB 20812 Güde

How to change the drill speed?

The GSB 20812 drill has 12 speeds. To change the speed, stop the machine, unplug it, then adjust the belt on the pulleys following the speed table in the manual. Make sure the belt is properly tensioned before restarting.

How to change the drill bit in the chuck?

First unplug the machine. Use the provided chuck key to loosen the chuck by turning counterclockwise. Insert the drill bit, then tighten firmly by turning the key clockwise. Check that the bit is centered and tight before starting.

What is the motor power of the GSB 20812?

The motor has a power of 800 W in S1 mode, allowing efficient drilling in wood, metal, and plastics up to 20 mm diameter in steel.

What safety precautions should be taken?

Always wear safety glasses and hearing protection. Do not wear loose clothing, tie back long hair, and remove jewelry. Use a vise to secure the workpiece. Never start the machine when the drill bit is in contact with the workpiece. Always unplug before any adjustment or tool change.

How to maintain the column drill?

Before each use, check the proper operation of the switch and safety devices. After each use, clean the machine to remove chips and dust. Lubricate the column and table with a thin layer of oil. Check the condition of the belts and replace them if necessary.

Where can I find spare parts?

Spare parts are available on the website www.guede.com in the Service section. You will need the serial number, product number, and year of manufacture, which are on the machine's rating plate.

What is the maximum drilling depth?

The spindle stroke is 80 mm, which corresponds to the maximum drilling depth in one pass. For deeper holes, you can raise the workpiece or use a step drilling technique.

Can I drill materials other than metal and wood?

Yes, the machine is designed for light and medium drilling in wood, metal, and plastics. For other materials, consult the manual and use appropriate drills. Always wear suitable protective equipment.

What to do if the drill bit jams?

Immediately stop the machine by pressing the emergency stop button. Unplug the power cord. Remove the stuck workpiece using appropriate tools, being careful not to injure yourself. Check the condition of the drill bit before restarting.

How to adjust the table height?

Loosen the table locking lever, adjust the table to the desired height by sliding it along the column, then tighten the lever firmly. Make sure the table is stable before drilling.

USER MANUAL GSB 20812 Güde

3D rendering of a blue and black drill press machine with no visible text or symbols

GTB 20/812

55206

GTB 20/812 R+L

55208

GSB 20/812

55210

GSB 20/812 R+L

55212

GÜDE GmbH & Co. KG

Birkichstrasse 6

74549 Wolpertshausen

Deutschland

CE

®

ENGLISH Please read the instructions carefully before starting the machine.

D Montage

SLO Montaža

GB Assembly

HR Montaža

F Assemblage

BG Монтаж

Montaggio

RO Montaj

NL Montage

CZ Montáž

SK Montáž

H Szerelés

4

5

Illustration of a blue robotic arm gripping a cylindrical object with a spring, mounted on a stand (no text or symbols present)

6

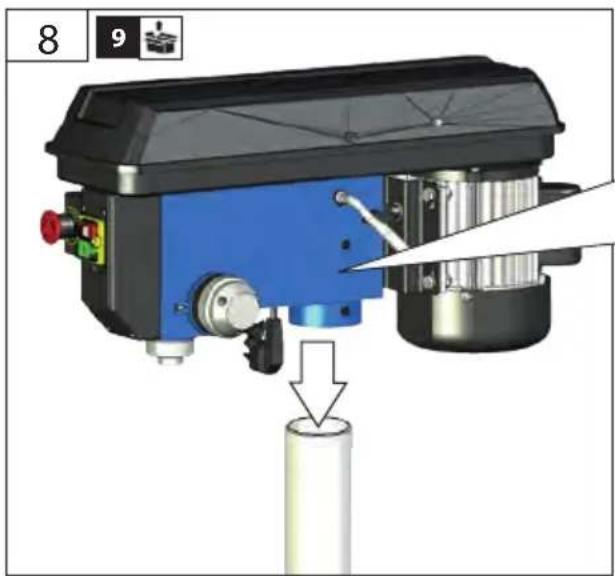

3D diagram of a blue mechanical clamp device with a downward arrow indicating force or adjustment (no text or symbols present)

7

1	D	Montage	SLO	Montaža
	GB	Assembly	HR	Montaža
	F	Assemblage	BG	Монтаж
	I	Montaggio	RO	Montaj
	NL	Montage
	CZ	Montáž
	SK	Montáž
	H	Szerelés

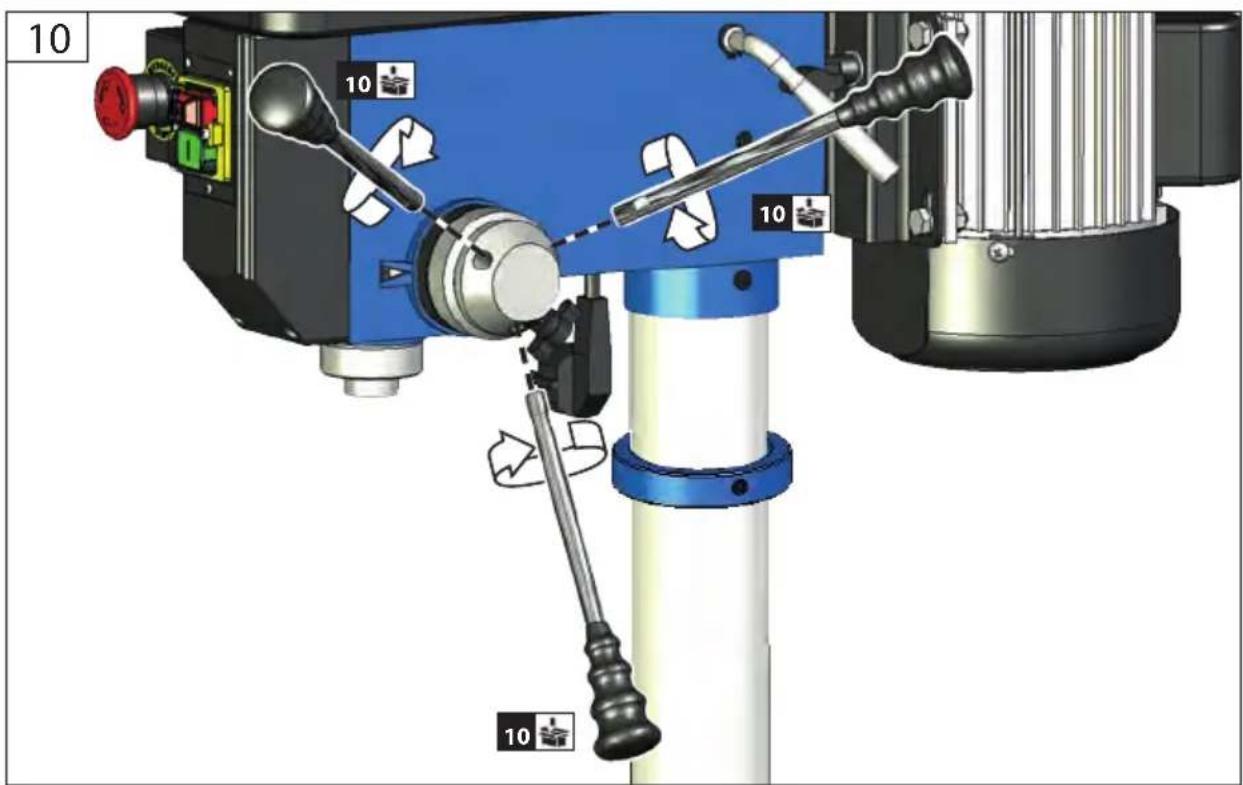

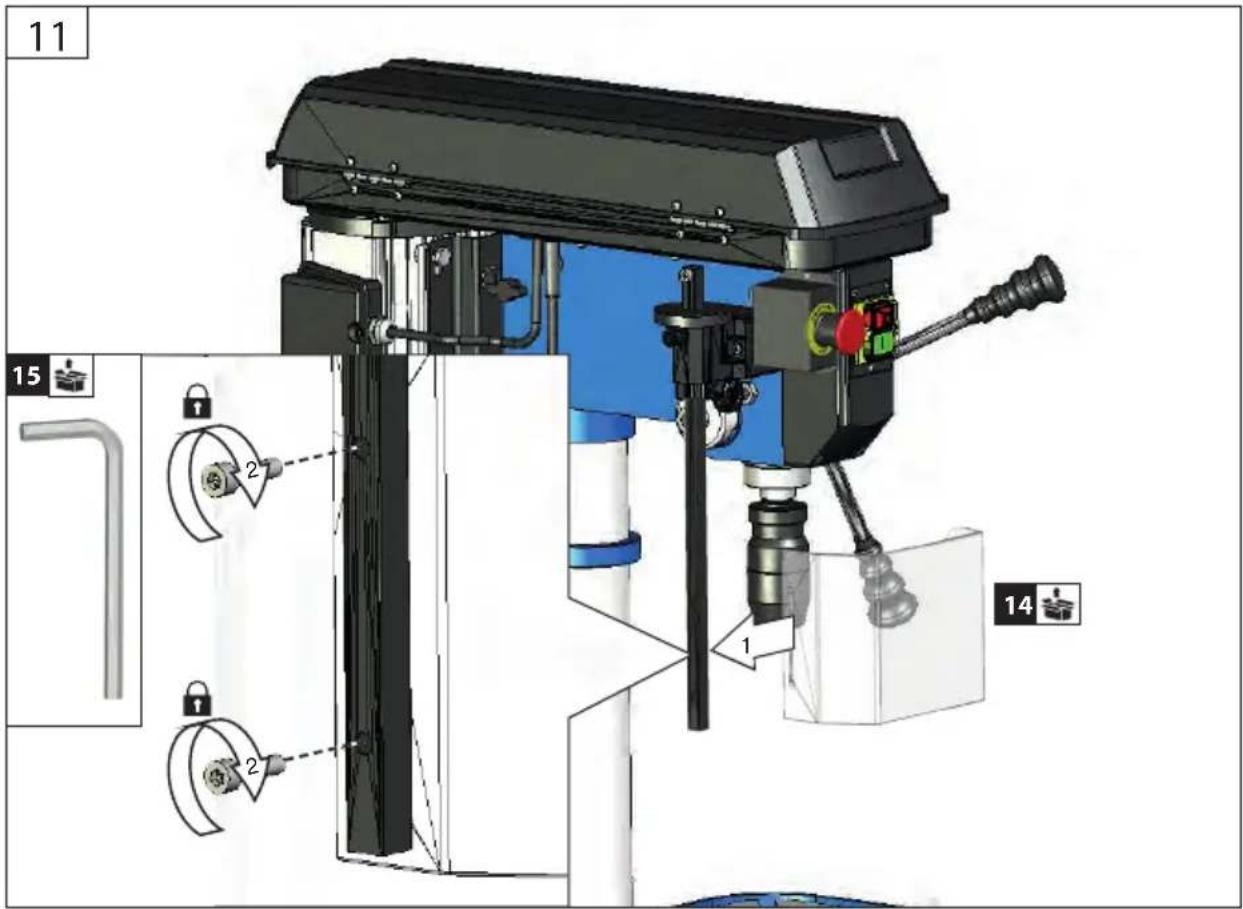

Mechanical assembly diagram showing a blue and black robotic device with a white cylindrical component inserted, no visible text or symbols.

D Montage

GB Assembly

F Assemblage

Montaggio

NL Montage

CZ Montáž

SK Montáž

H Szerelés

SLO Montaža

HR Montaža

BG Монтаж

RO Montaj

1	D	Montage	SLO	Montaža
	GB	Assembly	HR	Montaža
	F	Assemblage	BG	Монтаж
	I	Montaggio	RO	Montaj
	NL	Montage
	CZ	Montáž
	SK	Montáž
	H	Szerelés

Industrial machine with blue and black components, no visible text or symbols

Mechanical assembly diagram showing a blue and black component with a lock mechanism and a close-up inset (no text or symbols)

Close-up of a blue industrial piping system with a white valve and lock, no visible text or symbols

Simple line drawing of a battery connected to a wall-mounted cable (no text or symbols)

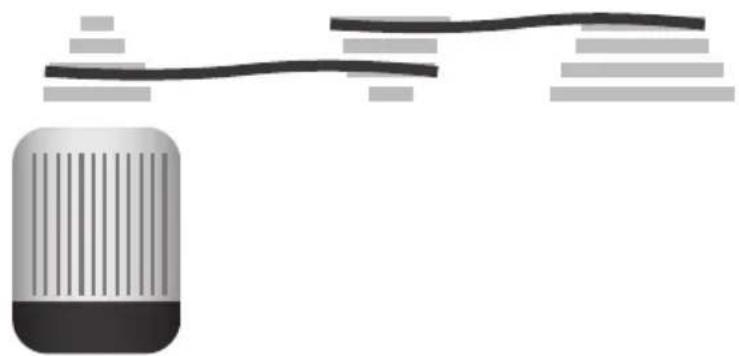

2	D	Bohrspindeldrehzahl	SLO	Število vrtljajev vretena
	GB	Spindle speed	HR	Broj okretaja vretena
	F	Vitesse de rotation de la broche	BG	Брой на оборотите на вретено
	I	Numeri di giri mandrino	RO	Turație pivot
	NL	Spiltoerental
	CZ	Počet otáček vřetena
	SK	Počet otáčok vretena
	H	Orsó fordulatszáma

5
	A	1
	B	2
	C	3
	D	4
A-4 210	A-2 480	B-1 1000	C-1 1600
A-3 300	B-3 500	C-2 1100	D-2 1800
B-4 350	C-4 540	D-3 1200	D-1 2500

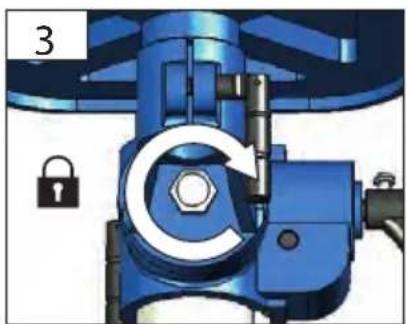

Mechanical assembly diagram showing a lock mechanism inside a blue panel, with no visible text or symbols.

Mechanical device with blue components and directional arrows indicating motion or assembly (no text or symbols)

Pure electrical circuit lines without any symbols

8

2	D	Bohrer einspannen	SLO	Objemka Vrtalni stroj
	GB	Clamp drill	HR	Obujmica za Izbušite
	F	Clamp perceuse	BG	Стяга бормашина
	I	Morsetto Trapano	RO	Clemă Burghiu
	NL	Klem Boor
	CZ	Upínací Vrtačka
	SK	Upínacie Drill
	H	Bilincs Fúrjon

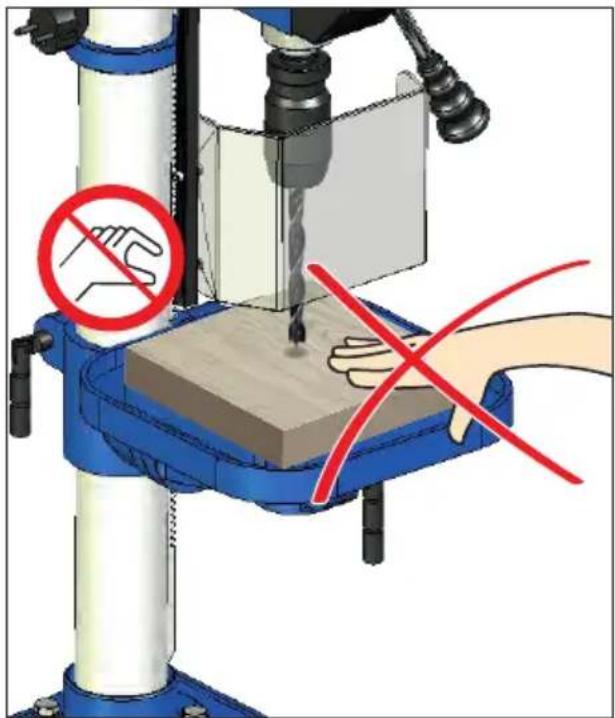

GB Clamp the workpiece

F Fixez la pièce

I Fissare il pezzo

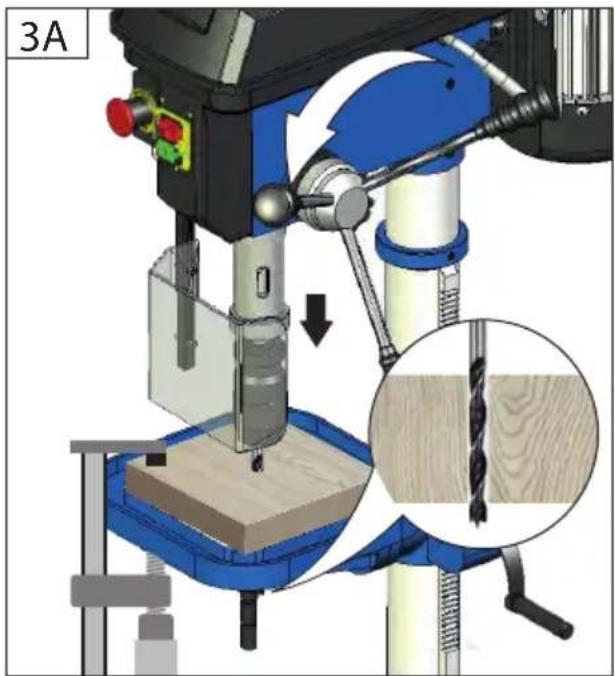

3D mechanical setup showing a drill press operating on a wooden block, with a green checkmark indicating operation (no text or symbols present)

2	D	Inbetriebnahme	SLO	Uvedba v pogon
	GB	Starting-up the machine	HR	Puštanje u rad
	F	mise en service	BG	Пускане в действие
	I	Messa in funzione	RO	Punerea în funcțiune
	NL	Inbedrijfstelling
	CZ	Uvedení do provozu
	SK	Uvedenie do prevádzky
	H	Üzembe helyezés

D Betrieb

GB Operation

F Fonctionnement

I Esercizio

NL Gebruik

CZ Provoz

SK Prevádzka

H Üzemeltetés

SLO Delovanje

HR Rad

BG Работа

RO Functionare

Mechanical assembly diagram showing a blue valve with a rotating knob and lock icon (no text or symbols)

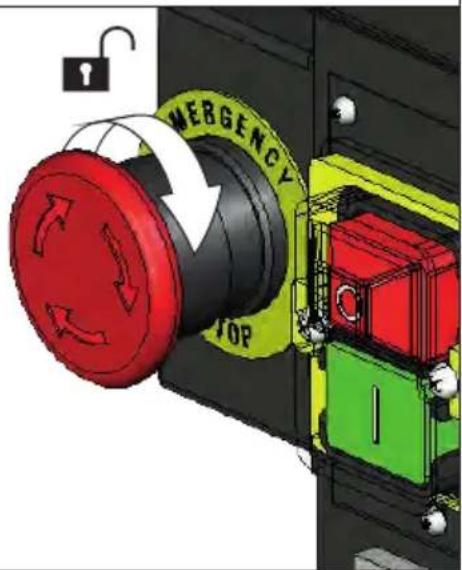

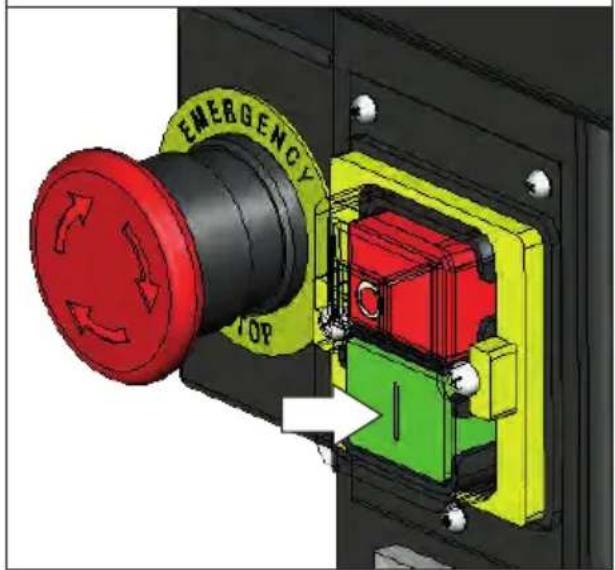

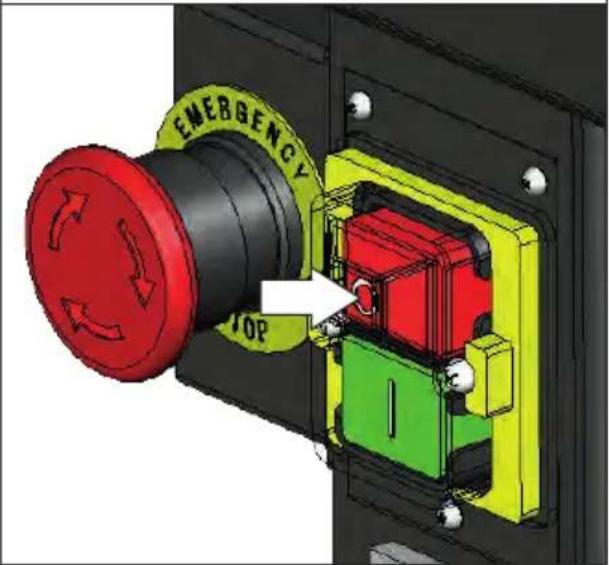

	D	Betrieb - START / STOP	SLO	Delovanje - START / STOP
	GB	Operation - START / STOP	HR	Rad - START / STOP
	F	Fonctionnement - START / STOP	BG	Pábota - START / STOP
	I	Esercizio - START / STOP	RO	Functionare - START / STOP
	NL	Gebruik - START / STOP
	CZ	Provoz - START / STOP
	SK	Prevádzka - START / STOP
	H	Üzemeltetés - START / STOP

START

STOP

STOP 2

D Betrieb

SLO Delovanje

GB Operation

HR Rad

F Fonctionnement

BG Работа

I Esercizio

RO Functionare

NL Gebruik

CZ Provoz

SK Prevádzka

H Üzemeltetés

TEST

3D mechanical assembly diagram showing a drill press operating on a blue base with a green checkmark indicating a precision (no text or symbols present)

3D mechanical assembly diagram showing a drill press and base with red tool paths (no text or symbols)

D Mikroschalter

Microinterruttore

SK Mikrospínač

HR Mikro prekidač

GB Microswitch

NL Microschakelaar

H Mikrokapcsoló

3D mechanical assembly diagram of a drill press machine with no visible text or symbols

3D rendering of a mechanical drill press with blue and white components, no visible text or symbols

	D	Betrieb	SLO	Delovanje
	GB	Operation	HR	Rad
	F	Fonctionnement	BG	Pábota
	I	Esercizio	RO	Funcționare
	NL	Gebruik
	CZ	Provoz
	SK	Prevádzka
	H	Üzemeltetés

D	Betrieb	SLO	Delovanje
GB	Operation	HR	Rad
F	Fonctionnement	BG	Pabota
I	Esercizio	RO	Functionare
NL	Gebruik
CZ	Provoz
SK	Prevádzka
H	Üzemeltetés

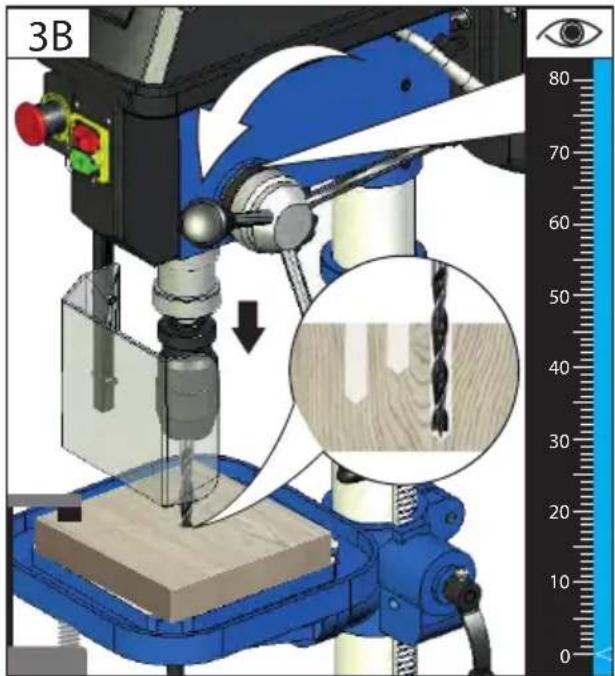

Mechanical drill bit machine with a magnified inset showing the cutting process (no text or symbols visible)

	D	Betrieb	SLO	Delovanje
	GB	Operation	HR	Rad
	F	Fonctionnement	BG	Pábota
	I	Esercizio	RO	Funcționare
	NL	Gebruik
	CZ	Provoz
	SK	Prevádzka
	H	Üzemeltetés

3D mechanical assembly diagram showing a milling machine with tool handle and base, no visible text or symbols

3

4

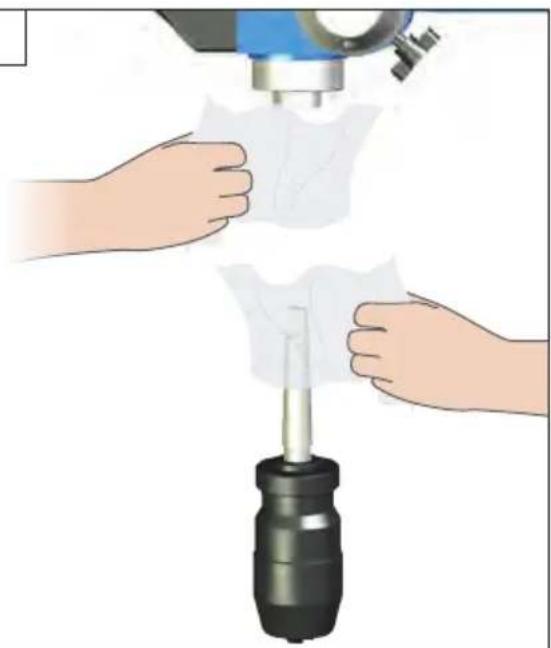

Illustration of hands using a precision tool to clean or fabric the paper, with a mechanical component inserted (no text or symbols visible)

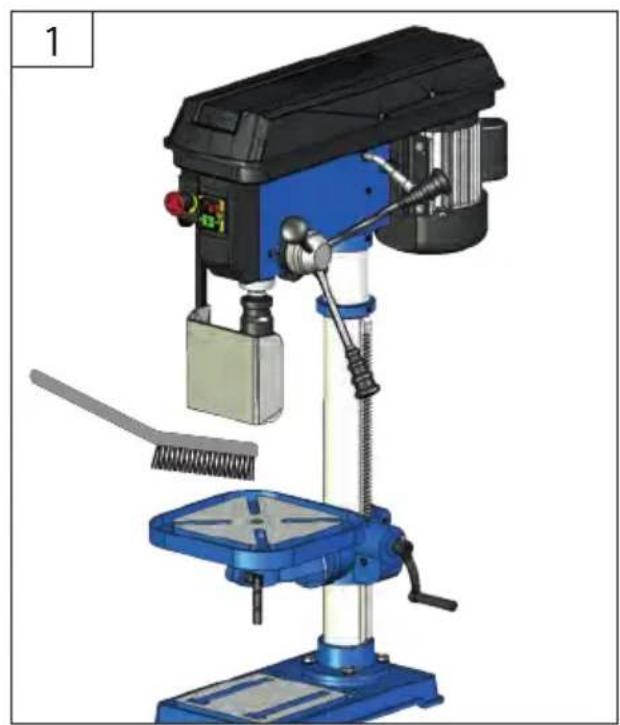

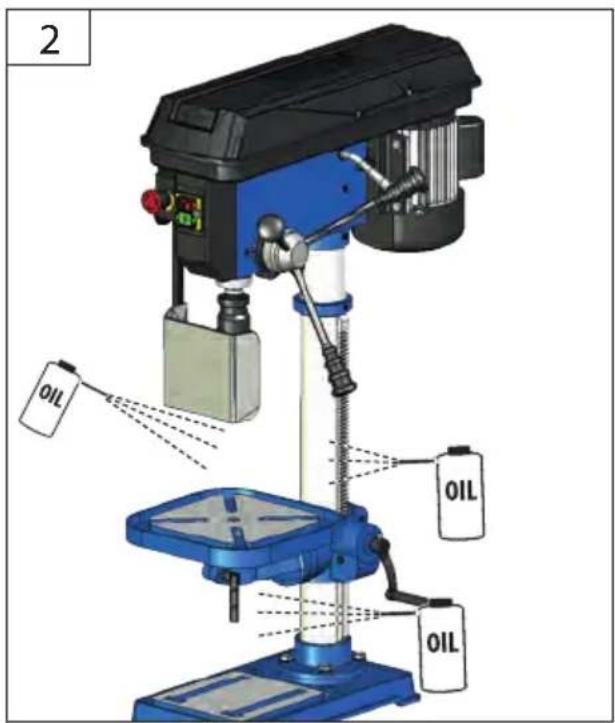

4	D	Wartung	SLO	Vzdrževanje
	GB	Maintenance	HR	Održavanje
	F	Entretien	BG	Поддръжка
	I	Manutenzione	RO	Întreținere
	NL	Onderhoud
	CZ	Údržba
	SK	Údrzba
	H	Karbantartás

3D rendering of a mechanical drill press with blue base and tool holder, no visible text or symbols

Technische Daten

The numerical values given are emission levels and not necessarily safe working levels. Although there is a correlation between the emission levels and the acceptable exposure levels, they cannot be reliably used to determine whether or not any additional safety measures are necessary. The characteristics of the work space, other sources of noise, i.e. the number of machines and other processes running in the vicinity and so on, are all factors that can influence the actual exposure levels of the employees. Moreover, the acceptable exposure levels can vary from country to country. This information should enable the machine's operator to carry out a better assessment of the risks and hazards.

Read and understand the operating instructions before using the appliance. Familiarise with the

control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties.

Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

In case of any doubts about connection and operation refer please to our customer center

Specified Conditions Of Use

Bench drilling machine for light and medium drilling work in wood, metals and plastics.

The machine may only be used in a technically perfect condition and taking into account all safety information.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

It is strictly prohibited to disassemble, modify I purposely remove the protective equipment on unit and fit other protective equipment instead.

Even when the device is used properly and all safety regulations are complied with, there still may be some residual risks.

• noise emissions
• dust emissions
  • vibrations to hand and arms
• Danger of burns
  Tool and workpiece heat up during operation.
• Risk of injury
  Sharp tools and workpiece edges

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. If you seek help, state the following pieces of information: 1. Accident site, 2. Accident type, 3. Number of injured persons, 4. Injury type(s)

Symbols

WARNING/CAUTION!

Warning against cutting injury

Warning against dangerous electric voltage

Warning against thrown-off items

<> - Read the operating instructions to reduce the risk of injury.

Unplug the machine before any work on it.

Wear eye protective goggles! Wear ear protectors!

Keep dry at all times. Never expose tool to rain.

Always keep children and unauthorised persons out of reach of the appliance.

Forbidden operation for persons with chainlet

Forbidden operation for persons with long hair.

Do not operate the power tool when wearing a tie

Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.

CE marking

General safety information

WARNING!

When using electric tools the following general safety instructions must be obeyed to protect yourself from electric shocks, injury and fire risks.

Read all these instructions before using this electric tool and keep the safety instruction in a safe place.

Keep your work area clean and tidy. Untidy workplaces and workbenches increase the risk of accidents and injuries.

Do not expose the appliance to rain and do not use it in wet or moisture conditions.

Provide adequate lighting or good lighting conditions when working with the machine.

Do not work with electric tools in conditions with flammable liquids, gases or dust. Electric tools produce sparks able to ignite dust or fumes.

Protect yourself from electric shock.

Avoid body contact with earthed objects (for example pipes, radiators, electric stoves and cooling units). There is an increased risk of electric shock if your body is earthed.

Keep children and bystanders away while operating a power tool. Do not touch the electric tool or the cable. When not concentrated, you may lose control over the machine.

Ensure that you store electric tools in a safe place.

Tools which are not in used must be stored in a dry place as high as possible out of the reach of children or in an inaccessible place.

Do not overload the machine. Use appropriate electric tools for your work. Working with appropriate electric tools is better and safer when within the specified power range. They will work better and more safely in the specified power range.

Do not use the electric tool for purposes for which it is not designed. For example, do not use a manual circular saw for cutting branches or logs.

Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. We recommend that you wear non-slip shoes when working outdoors. Wear a hairnet if you have long hair.

Use protective equipment which fit you. Wear safety goggles and ear protection at all times. A dust mask or respirator is also required. Wear tight-fitting gloves at all times when handling sharp blades and saw blades,

If dust exhausters and catchers are to be installed, make sure they are fitted and used properly. Using a dust exhauster may reduce the exposure to dust.

Do not use the cable in conflict with its designation, to carry or hang electric tools or to pull the plug out of socket. Protect the cable against high temperatures, oil, sharp edges or moving parts of the machine. Damaged or entangled cables increase the risk of electric shock.

Secure the workpiece. Use clamping equipment or a vice to secure the workpiece. This will be safer than holding it in your hand.

Avoid any abnormal body posture. Provide good stability and keep balance at all times. By this, electric tools are better controlled in unexpected situations.

Treat electric tools carefully.

Keep the cutting tools sharp and clean. Carefully treated cutting tools with sharp edges get stuck less often and are easier to guide.

Follow the instructions for lubricating and changing tools.

Check the connection cable on the electric tool at regular intervals and have it replaced by an expert

if it is damaged.

Check the extension cables at regular intervals and replace them if they are damaged.

Keep the handles dry, clean and free of oil and grease.

Pull the plug out of the socket and/or remove the battery when the tool is not in use before you make machine settings or change accessories, such as the saw blade, drill bit or cutter. This safety measure prevents unintentional starting of the electric tool.

Before starting any electric tool, remove any adjusting wrenches and screwdrivers. A tool or a wrench present in the rotating part of the machine may lead to injuries.

Prevent the machine from unintentional starting. Before plugging and/or connecting the machine to battery, handling or carrying, make sure the electric tools are switched off. Having a finger on the switch when carrying the electric tool or when the machine is on when plugging it may lead to injuries.

If you wish to work outdoors with an electric tool, only use extension cables which are approved for outdoor use and are marked accordingly. Using an extension cable suitable for outdoor use reduces the risk of electric shock.

Be careful, pay attention to what you are doing and use common sense when working with electric tools. Do not use electric tools when you are tired or under the influence of drugs, alcohol or pharmaceuticals. A moment if inattention when using electric tools may lead to serious injuries.

Check the machine for any damage:. Before using the equipment again, the protective equipment must carefully be checked if safe and working as designated.

Check the moving parts for perfect functioning, if working smoothly and if no parts are damaged. To provide safe operation of the equipment, all parts must be installed properly and meet all conditions.

Damaged protective equipment and parts must be professionally repaired or replaced by a recognised professional workshop, unless otherwise specified in the Operating Instructions.

Do not use electric tools with a defective switch.

An electric tool that cannot be switched on or off is dangerous and must be repaired.

Have your electric tool repaired by an electrician.

This electric tools complies with the relevant safety regulations. Repairs may only be carried out by an electrician using genuine spare parts; otherwise the user may suffer accidents.

Caution!

The machine must be secured to the floor using suitable screws since otherwise there is a risk that it will tip over.

Inspect before each use.

• Proper function of the on and off button, incl. the emergency switch.
• Carry out a visual inspection before switching the appliance on.
• Check especially the safety equipment, electrical control elements, power lines and screw couplings for any damage and if they are tightened appropriately. If necessary, replace damaged parts before operation.
• Ensure that the bench clamping lever is tightly secured before starting up the machine.
• Ensure that the drill is safely secured in the clamping chuck.
• REMOVE ADJUSTING KEYS AND WRENCHES. From habit of checking to see that keys and adjusting wrenches are removed from tool before turning it "ON".

Risk of injury!

Keep body parts and clothes away from rotating parts of the device.

Use protective equipment which fit you.

Wear a hairnet if you have long hair.

Do not wear gloves when operating a drill.

Do not attempt to drill into a material that does not have a flat surface, unless you are using a suitable support.

Never start the drilling machine with the drill pressed against the workpiece.

Always use clamps, chuck jaws or a vice to secure the workpiece to the bench.

Set the drilling machine to a speed that is appropriate for the specific job.

In the event of a blockage, switch off the machine immediately. Pull out the mains plug and remove the jammed workpiece.

Chips and splinters must not be removed while the machine is running.

Mains Connection

Operation is only allowed with a safety tch against stray current (RCD max. stray rent of 30mA).

Connect only to a single-phase AC current supply and only to the mains voltage specified on the rating plate. Must only be used from sockets with earth wire.

Only plug-in when machine is switched off.

Maintenance

Unplug the machine before any work on it.

<>

The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts.

Caution! If the power cord of the appliance gets damaged, it must be replaced by the manufacturer or its customer service or a similarly qualified person to avoid danger.

Repairs and works specified in these Instructions may only be performed by qualified authorised staff.

Use only original accessories and original spare parts.

Keep the device, in particular the air vents, clean at all times. Never spray water on the device body!

Do not clean the plastics with solvents, flammable or toxic fluids. For cleaning, use a damp cloth only.

Apply environment-friendly oil to all moving parts.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

If necessary, a list of spare parts can be found at www.guede.com.

Guarantee

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.

Important information for the customer

Please be sure to know that returning the product in or after the warranty period must be made in the original packaging.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label.

Tel.: [phone] / 700-360

Fax: [phone]

E-Mail: [e-mail]

Inspection and maintenance plan

Regular servicing period Before any	start-up	After every start-up	If necessary
Check the safety devices	√
Inspect and, if necessary, tighten the fan belts	√
Lubricate the columns and the bench with a thin layer of oil		√
Clean the tapered mandrel			√
Clean the machine of drilling dust or metal shavings		√

WAARSCHUWING/OPGELET!

Translation of the EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.

In case of any change to the appliance not discussed with us the Declaration expires.

□ Annex IV Notified Body

Name: Adress:No:

Type Ex. Cert.-No.:

□97/68/EC_

Emission No.:

2000/14/EC_2005/88/EC

Annex IV Notified Body

Name: Adress:No:

Type Ex. Cert.-No.:

□97/68/EC

Emission No.:

2000/14/EC_2005/88/EC

Annex IV Notified Body

Name: Adress:No:

Type Ex. Cert.-No.:

□97/68/EC

Emission No.:

2000/14/EC_2005/88/EC

Annex IV Notified Body

Name: Adress:No:

Type Ex. Cert.-No.:

□97/68/EC

Emission No.:

2000/14/EC_2005/88/EC
