USER MANUAL HNK184G INVENTUM

explanation of symbols page 11

1. safety instructions page 13
2. product description page 15
3. prescribed use page 15
4. operation page 15
5. cleaning & maintenance page 17
   6.storing page17
6. disposal page 18

general terms and conditions of service and warranty page 37

Deutsch

explanation of symbols

	Read the instructions!	30	Wool wash program 30 °C.
			Do not bleach.
	Do not stick needles in the heating pad!		Do not dry in dryer.
			Do not iron.
	Do not use when the heating pad is folded or rolled!		Do not dry clean.
		OEKO-TEX® CONFIDENCE IN TEXTILES STANDARD 100 SHHO 098460 TESTEX Tested for harmful substances. www.oeko-tex.com/standard100	The fabrics used with this appliance are in correspondence with the high social ecological requirements of Oeko-Tex standard 100.
03	Do not use for very young children (0-3 years).
	Disposition of the packaging in an environmentally friendly way.		Manufacturer
CE	This product meets the requirements of current European and national directives.		The appliance is doubly insulated and corresponds with protection class 2.

	Dispose of the electrical appliance in accordance with the EC Directive – WEEE (Waste Electrical and Electronic Equipment)
	WARNING; Warning for risk of injury or hazard to your health.
	CAUTION; Safety warning for possible damage to the appliance or its accessories.
	ATTENTION; Point of attention for important information.

Important safety instructions - read carefully and keep for later reference!

WARNING

• Non-observation of the following notes may result in personal injury or material damage (electric shock, skin burns, fire). The following safety and hazard information is not only intended to protect your health and the health of others, it should also protect the product. For this reason, pay attention to these safety notes and include these instructions when handing over the product to others.
• This heat pad must not be used by persons who are not sensitive to heat or by other vulnerable persons who may not be able to react to overheating (e.g. diabetics, people with skin alterations due to illness or scarred tissue in the application area, after taking pain relief medication or alcohol).
• This heat pad must not be used by very young children (0-3 years old) as they are unable to respond to overheating.
• The heat pad can be used by children older than 3 and younger than 8 years of age provided they are supervised. For this, the controller must always be set to the minimum temperature.
• This heat pad may be used by children over the age of 8 and by people with reduced physical, sensory or mental skills or a lack of experience or knowledge, provided that they are supervised and have been instructed on how to use the heat pad safely, and are fully aware of the consequent risks of use.
• Children must not play with the heat pad.
• Cleaning and user maintenance must not be performed by children unless supervised.
• This heat pad is not designed for use in hospitals.
• This heat pad is only intended for domestic/private use, not for commercial use.
• Do not insert needles.
• Do not use when folded or bunched up.
• Do not use if wet.
• This heat pad may only be used in conjunction with the controller specified on the label.

• This heat pad must only be connected to the mains voltage that is specified on the label.

• The electrical and magnetic fields emitted by this heat pad may interfere with the function of a pacemaker. However, they are still well below the limits: electrical field strength: max. 5000 V/m, magnetic field strength: max. 80 A/m, magnetic flux density: max. 0.1 millitesla. Please therefore consult your doctor and the manufacturer of your pacemaker before using this heat pad.

• Do not pull, twist or make sharp bends in the cables.
• If they are not positioned properly, there may be a risk of becoming entangled in, being strangled by, tripping over, or stepping on the cable and controller of the heat pad. The user must ensure that excess lengths of cable, and cables in general, are safely routed.
• Please check this heat pad frequently for signs of wear and tear or damage. If any such signs are evident, if the heat pad has been used incorrectly or if it no longer heats up, it must be checked by the manufacturer before being switched on again.
• Under no circumstances should you open or repair the heat pad (including the accessories) yourself because faultless functionality can no longer be guaranteed thereafter. Failure to observe this will invalidate the warranty.
• If the mains connection cable of this heat pad is damaged, it must be disposed of. If it cannot be removed, the heat pad must be disposed of.

• When this heat pad is switched on:

• Do not place any sharp objects on it

• Do not place any heat sources, such as hot water bottles, heat pads or similar, on it.

• The electronic components in the controller warm up when the heat pad is in use. For this reason, the controller must never be covered or placed on the heat pad when it is in use.

• It is essential to observe the information relating to the following chapters: Operation, Cleaning and maintenance, Storage.
• If you should have any questions about using our devices, please contact our Customer Services department.

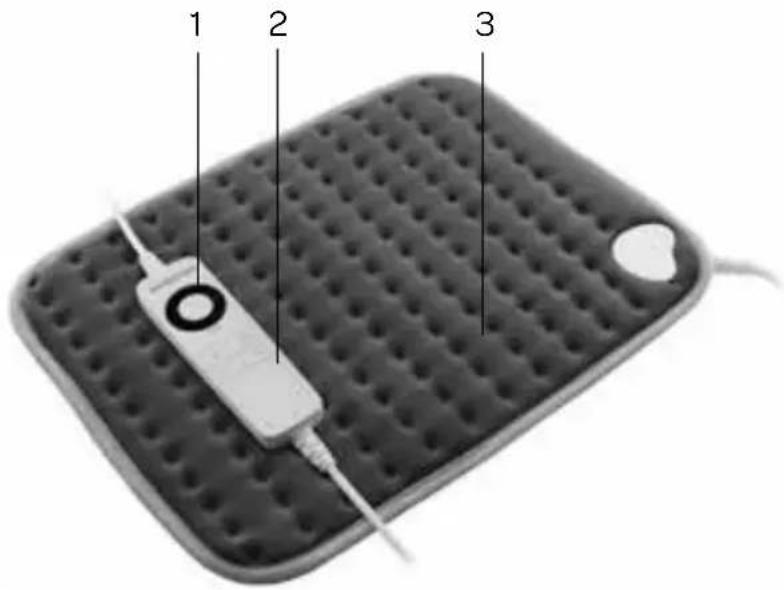

2 product description

1. Display
2. Switch
3. Heating pad

prescribed use

CAUTION

The heating pad is only intended for heating the human body.

4 operation

4.1 Safety

CAUTION

• The heating pad has been provided with a SAFETY SYSTEM. This sensor technology prevents overheating of the heating pad on the entire surface through automatic deactivation in case of breakdowns. When the SAFETY SYSTEM has switched off the heating pad, the temperature levels in an activated condition are no longer lighted.
• Do note that for reasons of safety the heating pad can no longer be used after a breakdown and should be sent to the indicated service address.
• Never connect the faulty heating pad to a different switch of the same type. This would also ensure a final deactivation through the safety system in the switch.

4.2 Use

CAUTION

Make sure the heating pad does not fold or crumple during use.

• First connect the switch to the connection point in the heating pad by connecting the plug.
• Then insert the plug in the socket.

4.3 Switching on

Press the ON/OFF button to switch on the heating pad. The display switches on - position 1 - deactivation time 90 minutes. To set the required heating position, press the + button. To lower the required heating position, press the - button.

4.4 Setting the heating position

Position 1: minimum heating - suitable for long-term use

Positions 2-5: separately adjustable heating

Position 6: maximum heating

ATTENTION

The heating pad heats up the fastest when you first switch on a higher temperature position.

ATTENTION

The heating pad has been provided with turbo heating, which ensures quick heating within the first 10 minutes.

WARNING

If the heating pad is used for several hours, we recommend setting the lowest heating position (position 1) to prevent the user's body part to be heated from overheating and prevent possible resulting burns.

4.5 Automatic deactivation function

This heating pad has been provided with an automatic deactivation function. This means that the supply of heat is stopped approx. 30, 60 or 90 minutes after the heating pad was activated. Repeatedly press the TIMER button to set the automatic deactivation at the required time - 30, 60 or 90 minutes.

Once the set time has expired, the heating pad is switched off. The display is off.

To be able to use the heating pad again, the ON/OFF button should be pressed first in order to switch on the heating pad. Select the required heating position and deactivation time.

4.6 Switching off

Press the ON/OFF button to switch off the heating pad. The display no longer lights up.

ATTENTION

If the heating pad is not used for a number of days, you must switch it off with the ON/OFF button and remove the plug from the socket. Then disconnect the switch from the heating pad by removing the plug.

5

cleaning & maintenance

WARNING

Before cleaning the heating pad, always remove the plug from the socket. Otherwise you will run the risk of an electric shock. Then disconnect the switch from the heating pad by removing the plug. Otherwise the heating pad could get damaged.

CAUTION!

The switch may never come into contact with water or other liquids. It could get damaged as a result.

• Use a dry lint-free cloth for cleaning the switch. Do not use chemical cleaning agents or abrasives.
• Small stains on the heating pad can be removed with a cloth or a damp sponge and, if necessary, a little bit of gentle detergent liquid.

CAUTION!

The heating pad should not be dry cleaned, spun, dried in the machine, mangled or ironed. Otherwise the heating pad could get damaged.

• In case of a stronger level of contamination, the heating pad can be washed in the washing machine.
• Set the washing machine to a 30^ program (wool program). Out of environmental considerations, we recommend washing the heating pad at the same time as other items. Use a gentle detergent in accordance with the manufacturer's dosing instructions.

CAUTION!

Note that excessive washing will wear out the heating pad. For this reason, the heating pad should only be machine-washed a maximum of 5 times throughout its entire life.

• Immediately after washing, pull the heating pad in its original size and form while still wet, and leave it lying flat on a drying rack.

CAUTION!

• Do not use pegs or other clamps to attach the heating pad to the drying rack. Otherwise the heating pad could get damaged.
• Only connect the switch to the heating pad when the plug connection and pad are fully dry. Otherwise the heating pad could get damaged.

WARNING

Never switch on the heating pad in order to dry it in this way! You will run the risk of an electric shock.

6 storing

If you do not use the heating pad for a longer period of time, we recommend storing it in its original packaging. For this, remove the plug of the switch from the connection of the heating pad.

CAUTION!

• Please allow the heating pad to cool down first. Otherwise, the heating pad may be damaged.
• To avoid sharp folds in the heating pad, do not place objects on top of it while it is being stored.

7 disposal

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

general terms and conditions of service and warranty

We do not need to remind you of the importance of service. After all, we develop our products to a standard so that you can enjoy them for many years, without any concerns. If, nevertheless, there is a problem, we believe you are entitled to a solution straight away. Hence our products come with an exchange service, on top of the rights and claims you are entitled to by law. By exchanging a product or part, we save you time, effort and costs.

2-year full manufacturer's warranty

1. Customers enjoy a 2-year full manufacturer's warranty on all Inventum products. Within this period, a faulty product or part will always be exchanged for a new model, free of charge. In order to claim under the 2-year full manufacturer's warranty, you can either return the product to the shop you bought it from or contact the Inventum costumer service department via the form at www.inventum.eu/service-aanvraag.
2. The 2-year warranty period starts from the date the product is bought.
3. In order to claim under the warranty, you must produce a copy of the original receipt.
4. The warranty applies only to normal domestic use of Inventum products within the Netherlands.

Breakdowns or faults outside the warranty period

1. Breakdowns or faults in small or large domestic appliances outside the warranty period, can be reported to the costumer services department via the form at www.inventum.eu/service-aanvraag or by calling the costumer services department.
2. The costumer services department may ask you to send the product for inspection or repair. The costs of dispatch will be at your expense.
3. The inspection to establish whether repair is possible involves a charge. You need to grant your permission for this, in advance.
4. In the event of a large domestic appliance, Inventum, at your request, can send out a service engineer. In that case, you will be charged the call-out costs, as well as parts and labour.
5. In the event of an instruction to repair, the repair costs must be paid in advance. In the event of a repair by a service engineer, the costs of the repair must be settled with the engineer onsite, preferably by means of PIN payment.

Warranty exclusions

1. The following is excluded from the aforesaid warranties:

normal wear and tear;
- improper use or misuse;
insufficient maintenance;
- failure to comply with the operating and maintenance instructions;
- unprofessional installation or repairs by third parties or the customer himself;
- non-original parts used by the customer;
- use for commercial or business purposes;
- removal of the serial number and/or rating label.

1. In addition, the warranty does not apply to normal consumer goods, such as:

2. dough hooks, baking tins, (carbon) filters, etc.;

3. batteries, bulbs, carbon filters, fat filters etc.;
   external connection cables;

4. glass accessories and glass parts such as oven doors;
   and similar items.

5. Transport damage not caused by Inventum is also excluded. Therefore, inspect your new device before starting to use it. If you detect any damage, you must report this to the store where you purchased the product within 5 working days, or to the Inventum customer service department via the form at www.inventum.eu/service-aanvraag. If transport damage is not reported within this period, Inventum does not accept any liability in this respect.

6. The following are excluded from warranty and/or replacement: faults, loss of and damage to the device as a result of an event that is normally insured under the home contents insurance.

Important to know

1. The replacement or repair of a faulty product, or a part thereof, does not lead to an extension of the original warranty period.
2. If a complaint is unfounded, all costs arising from it will be at the customer's expense.
3. Following expiry of the warranty period, all costs of repair or replacement, including administration costs, dispatch and call-out charges, will be charged to the customer.
4. Inventum cannot be held liable for damage caused by external events, unless this liability arises from mandatory statutory provisions.
5. These warranty and service provisions are governed by Dutch law. Disputes will be settled exclusively by the competent Dutch court.
