USER MANUAL HLA 86 STIHL
1 Introduction 24
2 Guide to Using this Manual. 24
3 Overview 25
4 Safety Precautions. 27
5 Preparing Hedge Trimmer for Operation.. 32
6 Charging the Battery, LEDs 32
7 Activating and Deactivating Bluetooth® Radio Interface. 33
8Assembling the Hedge Trimmer. 33
9 Removing and Fitting the Battery. 33
10 Switching the Hedge Trimmer On/Off.... 33
11 Testing the Hedge Trimmer and Battery...34
12 Operating the Hedge Trimmer 34
13 After Finishing Work. 36
14 Transporting. 37
15 Storing. 37
16 Cleaning. 37
17 Maintenance 38
18 Repairing 38
19 Troubleshooting 38
20 Specifications 39
21 Combinations of Carrying Systems. 41
22 Spare Parts and Accessories. 41
23 Disposal 41
24 EC Declaration of Conformity 41
25 UKCA Declaration of Conformity 42
26 General Power Tool SafetyWarnings.42
1 Introduction
Dear Customer,
Thank you for choosing STIHL. We develop and manufacture our quality products to meet our customers' requirements. The products are designed for reliability even under extreme conditions.
STIHL also stands for premium service quality. Our dealers guarantee competent advice and instruction as well as comprehensive service support.
STIHL expressly commit themselves to a sustainable and responsible handling of natural resources. This user manual is intended to help you use your STIHL product safely and in an environmentally friendly manner over a long service life.
We thank you for your confidence in us and hope you will enjoy working with your STIHL product.
Dr. Nikolas Stihl
IMPORTANT! READ BEFORE USING AND KEEP IN A SAFE PLACE FOR REFERENCE.
2 Guide to Using this Manual
2.1 Applicable Documents
The local safety regulations apply.
3 Overview English
In addition to this User Manual, you should also read, understand and retain the following documents:
- User manual of the carrying system you are using
- User Manual for STIHL AR battery
- User Manual for "AP belt bag with connecting cable"
Safety notices and precautions for STIHL AP battery
-User Manual for STIHL AL 101,301,301-4, 500 chargers
- Safety information for STIHL batteries and products with built-in battery: www.stihl.com/safety-data-sheets
For further information on STIHL connected, compatible products and FAQs, please visit www.connect.stihl.com or available from a STIHL servicing dealer.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. These word marks/logos are used by STIHL under license.
Batteries with are equipped with a Bluetooth radio interface. Local operating restrictions (in aircraft or hospitals, for example) must be observed.
2.2 Warning Notices in Text
DANGER
This notice refers to risks which result in serious or fatal injury.
- Serious or fatal injuries can be avoided by taking the precautions mentioned.
WARNING
This notice refers to risks which can result in serious or fatal injury.
- Serious or fatal injuries can be avoided by taking the precautions mentioned.
NOTICE
This notice refers to risks which can result in damage to property.
- Damage to property can be avoided by taking the precautions mentioned.
2.3 Symbols in Text
This symbol refers to a chapter in this instruction manual.

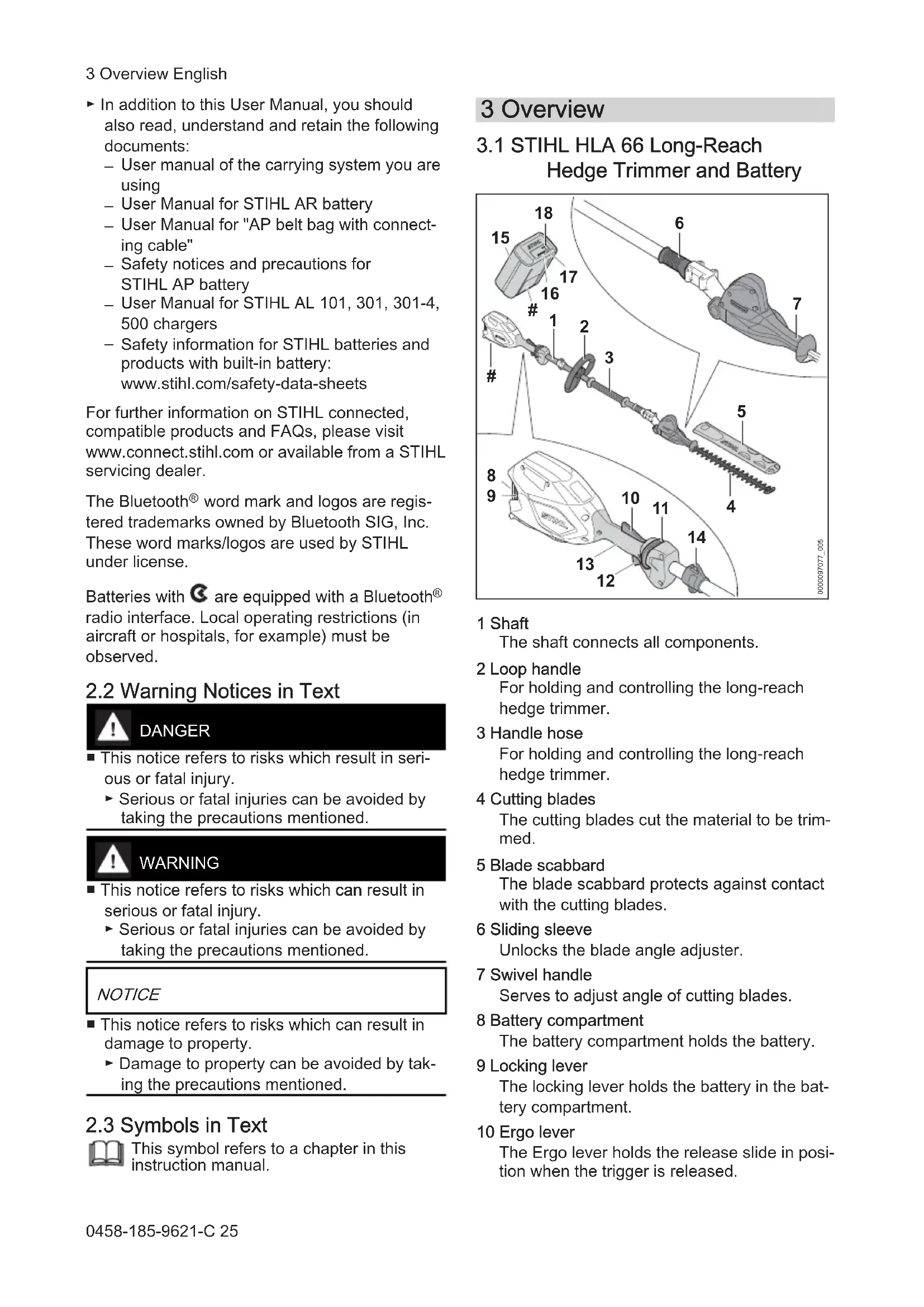

3 Overview

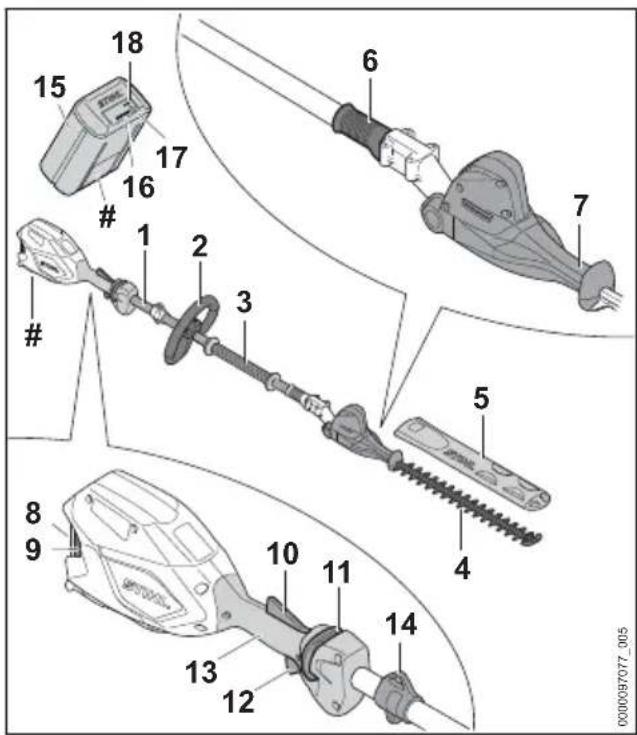

3.1 STIHL HLA 66 Long-Reach Hedge Trimmer and Battery
1 Shaft
The shaft connects all components.
2 Loop handle
For holding and controlling the long-reach hedge trimmer.
3 Handle hose
For holding and controlling the long-reach hedge trimmer.
4 Cutting blades
The cutting blades cut the material to be trimmed.
5 Blade scabbard
The blade scabbard protects against contact with the cutting blades.
6 Sliding sleeve
Unlocks the blade angle adjuster.
7 Swivel handle
Serves to adjust angle of cutting blades.
8 Battery compartment
The battery compartment holds the battery.
9 Locking lever
The locking lever holds the battery in the battery compartment.
10 Ergo lever
The Ergo lever holds the release slide in position when the trigger is released.
11 Release slide
The release slide releases the trigger.
12 Trigger
Switches the long-reach hedge trimmer on and off.
13 Control handle
For operating, holding and controlling the long-reach hedge trimmer.
14 Carrying ring
The carrying ring is for attaching the carrying system.
15 Battery
Supplies power to the long-reach hedge trimmer.
16 LEDs
The LEDs indicate the state of charge of the battery and any faults.
17 Pushbutton
The pushbutton activates the LEDs on the battery. The pushbutton activates and deactivates Bluetooth® radio interface (if available).
18 "BLUETOOTH" LED (only for batteries with )
The LED indicates the activation and deactivation of the Bluetooth® interface.
Rating plate with the machine number

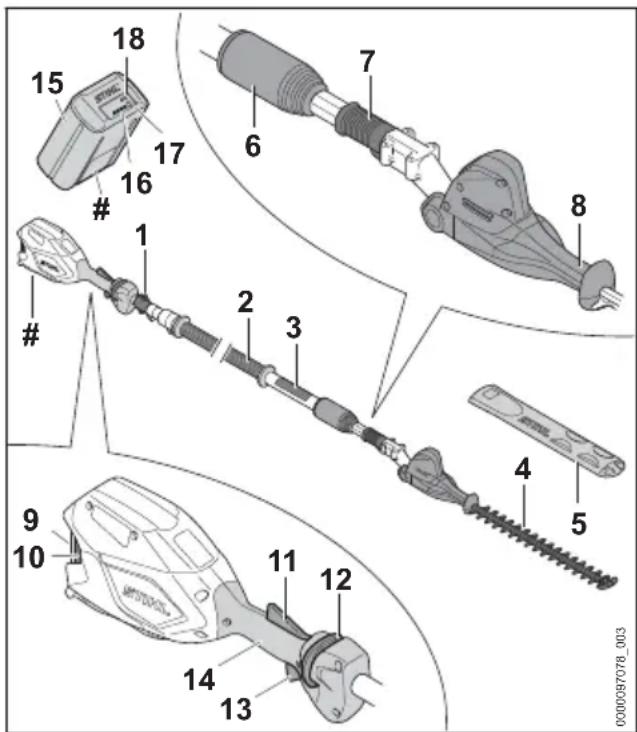

3.2 STIHL HLA 86 Long-Reach Hedge Trimmer and Battery
1 Carrying ring
The carrying ring is for attaching the carrying system.
2 Shaft
The shaft connects all components.
3 Handle hose
For holding and controlling the long-reach hedge trimmer.
4 Cutting blades
The cutting blades cut the material to be trimmed.
5 Blade scabbard
The blade scabbard protects against contact with the cutting blades.
6 Clamp nut
Serves to adjust the length of shaft.
7 Sliding sleeve
Unlocks the blade angle adjuster.
8 Swivel handle
Serves to adjust angle of cutting blades.
9 Battery compartment
The battery compartment holds the battery.
10 Locking lever
The locking lever holds the battery in the battery compartment.
11 Ergo lever
The Ergo lever holds the release slide in position when the trigger is released.
12 Release slide
The release slide releases the trigger.
13 Trigger
Switches the long-reach hedge trimmer on and off.
14 Control handle
For operating, holding and controlling the long-reach hedge trimmer.
15 Battery
Supplies power to the long-reach hedge trimmer.
16 LEDs
The LEDs indicate the state of charge of the battery and any faults.
17 Pushbutton
The pushbutton activates the LEDs on the battery. The pushbutton activates and deactivates Bluetooth® radio interface (if available).
18 "BLUETOOTH" LED (only for batteries with C)
The LED indicates the activation and deactivation of the Bluetooth® interface.
4 Safety Precautions English
Rating plate with the machine number
3.3 Symbols
The symbols which may be on the long-reach hedge trimmer and battery have the following meanings:
The clamp nut is unscrewed in this position. The shaft can be extended.
The clamp nut is locked in this position. The shaft cannot be extended.
1 LED emits red light. The battery is too warm or too cold.
4 LEDs flash red. There is a fault in the battery.
LwA Guaranteed sound power level in accordance with Directive 2000/14/EC in dB(A) for the purpose of comparing the sound emissions of products.
The battery is equipped with a Bluetooth® radio interface and can be paired with the STIHL connected App.
The information next to the symbol indicates the energy content of the battery according to the cell manufacturer's specification. The energy content available in operation is lower.
Do not dispose of the product with domestic waste.
4 Safety Precautions
4.1 Warning Symbols
Meanings of warning signs and labels on the long-reach hedge trimmer or battery:
Observe safety notices and take the necessary precautions.
Read, understand and keep the User Manual.
Wear safety glasses and a hard hat.
Wear safety boots.
Wear work gloves.
Do not touch moving cutting blades.
Maintain a safety distance.
Remove the battery during work stoppages, transport, storage, maintenance or repair.
Protect battery from heat and fire.
Do not immerse battery in fluids.
Observe the permitted battery temperature range.
4.2 Intended use
The STIHL HLA 66 and HLA 86 long-reach hedge trimmers are designed for cutting low growing shrubs, high hedges, high shrubs, high bushes and high scrub.
The long-reach hedge trimmer may be used in the rain.
The long-reach hedge trimmer is powered by a STIHL AP battery or a STIHL AR battery.
The battery with in combination with the STIHL connected app enables customization and the transfer of information to the battery using Bluetooth technology.
WARNING
- Batteries not explicitly approved for the longreach hedge trimmer by STIHL may cause fire or explosion. Persons may be seriously or fatally injured, and property may be damaged.
Use the long-reach hedge trimmer with a STIHL AP battery or a STIHL AR battery.
Using the long-reach hedge trimmer or the battery for purposes for which they were not designed may result in serious or fatal injuries and damage to property.
English 4 Safety Precautions
- Use the long-reach hedge trimmer as described in this User Manual.
- Use the battery as described in this User Manual, STIHL AR battery User Manual, STIHL connected app and at www.connect.stihl.com.
4.3 The Operator
WARNING
- Users without adequate training or instruction cannot recognize or assess the risks involved in using the hedge trimmer and battery. The user or other persons may sustain serious or fatal injuries.
Read, understand and save the instruction manual.
If the hedge trimmer or battery is passed on to another person: Always give them the instruction manual.
Make sure the user meets the following requirements:
- The user must be rested.
- The user must be in good physical condition and mental health to operate and work with the hedge trimmer and battery. If the user's physical, sensory or mental ability is restricted, he or she may work only under the supervision of or as instructed by a responsible person.
- The user is able to recognize and assess the risks involved in using the hedge trimmer and battery.
- The user must be of legal age or is being trained in a trade under supervision in accordance with national rules and regulations.
- The user has received instruction from a STIHL servicing dealer or other experienced user before working with the hedge trimmer for the first time.
The user must not be under the influence of alcohol, medication or drugs.
If you have any queries: Contact a STIHL servicing dealer for assistance.
4.4 Clothing and equipment
WARNING
-
Long hair may be pulled into the long-reach hedge trimmer during operation. This may result in serious injury to the user.
-
Tie up and confine long hair above your shoulders.
-
Objects can be thrown at high speed during operation. This may result in injury to the user.
-
Wear close-fitting safety glasses. Suitable safety glasses are tested in accordance with EN 166 or national regulations and available commercially with the corresponding marking.
-
Falling objects can cause head injuries.
wear a hard hat.
- Dust can be whipped up during operation. Whipped up dust can damage the respiratory passages and cause allergic reactions.
If dust is generated: Wear a dust respirator mask.
- Unsuitable clothing may snag on wood, thickets or the long-reach hedge trimmer. Users not wearing suitable clothing are at risk of serious injury.
Wear close-fitting clothing.
Remove scarves and jewelry.
The user may come into contact with the cutting blades during cleaning or servicing. This may result in injury to the user.
Wear work gloves made from resistant material.
Wearing unsuitable footwear may cause the user to slip. This may result in injury to the user.
Wear sturdy, closed-toed footwear with high-grip soles.
4.5 Work Area and Surroundings
4.5.1 Long-reach hedge trimmer
WARNING
- Bystanders, children and animals cannot recognize or assess the dangers of the long-reach hedge trimmer or flying debris. This may result in serious injury to bystanders, children and animals and damage to property.
Do not allow bystanders, children or animals within 5 meters of the work area.
4 Safety Precautions English
-
Maintain a clearance of 5 meters from objects.
Do not leave the long-reach hedge trimmer unattended.
Make sure that children cannot play with the long-reach hedge trimmer. -
Electrical components of the long-reach hedge trimmer can produce sparks. Sparks may cause fires and explosions in highly flammable or explosive environments. Persons may be seriously or fatally injured and property may be damaged.
-
Do not work in a highly flammable or explosive environment.
4.5.2 Battery
WARNING
-
Bystanders, children and animals cannot recognize or assess the dangers of the battery. Bystanders, children and animals may be seriously injured.
-
Keep bystanders, children and animals away from the work area.
Do not leave the battery unattended.
Make sure that children cannot play with the battery.
The battery is not protected against all ambient conditions. If the battery is exposed to certain ambient conditions, the battery may catch fire, explode or be irreparably damaged. This may result in serious injury to people and damage to property.
Protect battery from heat and fire.
Do not throw the battery into a fire.
Use and store the battery at temperatures between - 10^ and +50^ .
Do not immerse the battery in fluids.
- Keep battery away from small metal parts.
Do not expose the battery to high pressure.
Do not expose the battery to microwaves. - Protect the battery from chemicals and salts.
4.6 Safe Condition
4.6.1 Long-reach hedge trimmer
The long-reach hedge trimmer is in a safe condition if the following points are observed:
- The long-reach hedge trimmer is not damaged.
- The long-reach hedge trimmer is clean.
- The controls function properly and have not been modified.
- The cutting blades are correctly fitted.
- Only original STIHL accessories designed for this long-reach hedge trimmer are fitted.
- The accessories are correctly attached.
WARNING
If not in safe condition, components may no longer operate correctly and safety devices may be disabled. This may result in serous or fatal injury to people.
Work only with an undamaged long-reach hedge trimmer.
- If the long-reach hedge trimmer is dirty: Clean the long-reach hedge trimmer.
Do not modify the long-reach hedge trimmer.
If the controls do not function properly: Do not work with the long-reach hedge trimmer.
-
Only fit original STIHL accessories designed for this long-reach hedge trimmer.
-
Attach accessories as described in this User Manual or in the User Manual for the accessories.
-
Never insert objects into the openings of the long-reach hedge trimmer.
Replace worn or damaged labels.
If you have any doubts, be sure to consult a STIHL dealer.
4.6.2 Cutting Blades
The cutting blades are in a safe condition if the following points are observed:
- Cutting blades are undamaged.
- Cutting blades are not deformed.
- Cutting blades move freely.
Cutting blades are properly sharpened. - Cutting blades have no burrs.
WARNING
If they are in an unsafe condition, parts of the cutting blades may come off and be thrown at high speed. This can result in serious injuries.
Work only with undamaged cutting blades.
Make sure the cutting blades are properly sharpened and deburred.
English 4 Safety Precautions
If you have any queries: Contact your STIHL servicing dealer.
4.6.3 Battery
The battery is in safe condition when the following conditions are met:
- The battery is not damaged.
- The battery is clean and dry.
- The battery is working and has not been modified.
WARNING
The battery cannot function safely if it is not in safe condition. There is a risk of serious injury to persons.
- Use an undamaged and functioning battery.
- Do not charge a damaged or defective battery.
If the battery is dirty or wet: clean the battery and allow it to dry.
Do not modify the battery. - Do not insert objects into the apertures in the battery.
-
Never connect the battery terminals to metallic objects and cause a short circuit.
Do not open the battery.
Replace worn or damaged warning signs. -
Fluid may leak from a damaged battery. If the fluid contacts the skin or eyes, this may cause irritation.
-
Avoid contact with the fluid.
In the event of contact with the skin: wash the affected areas with plenty of soap and water.
In the event of contact with the eyes: rinse the eyes with plenty of water for at least 15 minutes and seek medical attention.
A damaged or defective battery may emit an unusual odour, smoke or catch fire. This may result in serious or fatal injury to people and damage to property.
If the battery emits an unusual odour or smoke: do not use the battery and keep it away from flammable materials.
If the battery catches fire: try to extinguish the battery using a fire extinguisher or water.
4.7 Working
WARNING
In certain situations, the user may no longer be able to concentrate on their work. This may result in the user stumbling, falling and suffering serious injury.
- Keep calm and plan your work.
If light and visibility are poor: Do not work with the long-reach hedge trimmer.
Operate the long-reach hedge trimmer alone.
Watch out for obstacles.
- Work standing on the ground and keep your balance. If you have to work at a height: Use a mobile elevating work platform or secure scaffolding.
If you start feeling fatigue: Take a break.
- Working above shoulder height can cause fatigue sooner. This may result in serious injury to the user.
Work above shoulder height for short periods only.
Take breaks.
If the moving cutting blade makes contact with a hard object it can be brought to a sudden stop. The reactive forces that occur can cause the user to lose control of the long-reach hedge trimmer and be seriously injured.
- Hold the long-reach hedge trimmer firmly with both hands.
Before starting work, check hedge for hard objects and remove any such objects.
The moving cutting blades can cut the user.
This may result in serious injury to the user.
Do not touch moving cutting blades.
If the cutting blades are blocked by an object: Switch off the long-reach hedge trimmer and remove the battery, before clearing the jam.
If the behavior of the long-reach hedge trimmer changes during operation or feels unusual, it may no longer be in a safe condition. This may result in serious injury to people and damage to property.
- Stop working, remove the battery and consult a STIHL dealer.
Vibrations may occur while using the longreach hedge trimmer.
Wear gloves.
Take breaks.
If signs of a circulatory disturbance occur: Consult a doctor.
Note that the cutting blades continue to run for about 1 second after you release the trigger. The moving cutting blades may cut the user. They may cause serious injury to persons.
Wait until the cutting blades come to a complete standstill.
4 Safety Precautions English
In an emergency, the user may start to panic and forget to take off the carrying system. This may result in serious injury to the user.
Practice taking off the carrying system.
DANGER
- Working near live electric cables may result in accidental contact with and damage to the cutting blades. This may result in serious or fatal injury to the user.
- Maintain a clearance of 15 meters from live cables.
4.8 Transporting
4.8.1 Hedge Trimmer
WARNING
The hedge trimmer may turn over or shift during transport. This may result in personal injuries and damage to property.
Remove the battery.
-
Fit the blade scabbard so that it completely covers the cutting blades.
-
Secure the hedge trimmer with lashing straps or a net to prevent it turning over and moving.
4.8.2 Battery
WARNING
The battery is not protected against all ambient conditions. The battery may be damaged if it is exposed to certain ambient conditions, and damage to property may occur.
- Never transport a damaged battery.
The battery may turn over or shift during transport. This may result in injury to people and damage to property.
-
Pack the battery in packaging in such a way that it cannot move.
-
Secure the packaging so that it cannot move.
4.9 Storing
4.9.1 Long-reach hedge trimmer
WARNING
Children are not aware of and cannot assess the dangers of the long-reach hedge trimmer. Children may be seriously injured.
Remove the battery.
-
Push the blade scabbard over the cutting blades, ensuring that it completely covers the cutting blades.
-
Store the long-reach hedge trimmer out of the reach of children.
-
Dampness can corrode the electrical contacts on the long-reach hedge trimmer and metal components. The long-reach hedge trimmer may be damaged.
Remove the battery.
- Store the long-reach hedge trimmer in a clean and dry condition.
4.9.2 Battery
WARNING
Children are not aware of and cannot assess the dangers of the battery Children may be seriously injured.
- Store the battery out of the reach of children.
The battery is not protected against all ambient conditions. If the battery is exposed to certain ambient conditions, the battery may be irreparably damaged.
-
Store the battery in a clean and dry condition.
-
Store the battery in an enclosed space.
-
Store the battery separately from the hedge trimmer.
If the battery is stored in the charger, disconnect the mains plug and store the battery at a state of charge between 40% and 60% (2 lit green LEDs).
- Store the battery at a temperature range between - 10 °C and + 50 °C.
4.10 Cleaning, Maintenance and Repair
WARNING
The long-reach hedge trimmer may start unintentionally if the battery is left in place during cleaning, maintenance or repair operations. This may result in serious injury to people and damage to property.
English 5 Preparing Hedge Trimmer for Operation
Remove the battery.
Aggressive cleaning agents, a water jet or pointed objects can damage the long-reach hedge trimmer, cutting blades and the battery. If the long-reach hedge trimmer, cutting blades or battery are not cleaned correctly, components may no longer function properly or safety devices may be rendered inoperative. They may cause serious injury to persons.
Clean the long-reach hedge trimmer, cutting blades and battery as described in this User Manual.
If the long-reach hedge trimmer, cutting blades or battery are not serviced or repaired correctly, components may no longer function properly or safety devices may be rendered inoperative. This may result in serous or fatal injury to people.
- Do not attempt to service or repair the longreach hedge trimmer or battery.
If the long-reach hedge trimmer or the battery require servicing or repairs: Contact your STIHL dealer for assistance.
- Maintain the cutting blades as described in this User Manual.
The user may be cut while cleaning or servicing the sharp cutting blades. This may result in injury to the user.
Wear work gloves made from resistant material.
5 Preparing Hedge Trimmer for Operation
5.1 Preparing the Long-Reach Hedge Trimmer for Operation
The following steps must be performed before commencing work:
- Ensure that the following components are in a safe condition:
- Long-reach hedge trimmer, 12.6.1.
- Cutting blades, 14.6.2.
-Battery,4.6.3.
Check the battery, 11.2.
Fully charge battery as described in the User Manual for the STIHL AL 101, 301, 301-4, 500 chargers.
Clean the long-reach hedge trimmer, 16.1.
Mount the loop handle (HLA 66), 18.1.
Adjust the angle of the cutting blades, 2.1.

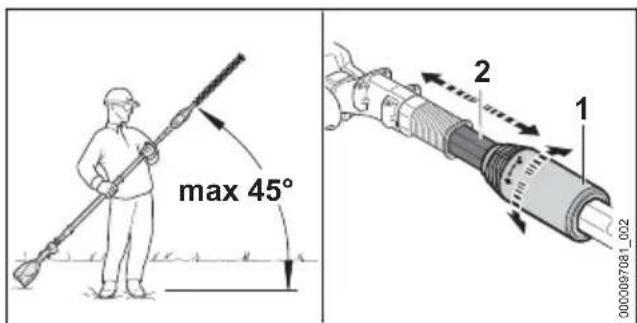

Adjust the shaft length (HLA 86), 2.2.

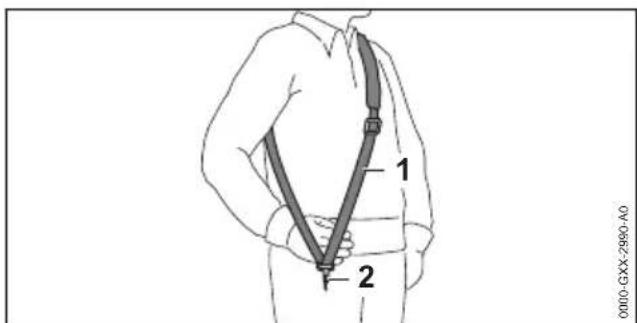

Fit and adjust the shoulder strap, 2.3.
Check the controls, 1.1.
If you cannot carry out these steps: Do not use the long-reach hedge trimmer and contact your STIHL authorized dealer for assistance.
5.2 Connecting a battery with Bluetooth® radio interface with the STIHL connected app
Activate the Bluetooth® radio interface on the mobile device.
- Activating the Bluetooth® radio interface on the battery, 17.1.
Download the STIHL connected app to the mobile device from the App Store and create an account.
- Open and sign in to the STIHL connected app.
- Add the battery in the STIHL connected app and follow the instructions on the screen.
For contacts and other information, please visit https://support.stihl.com or see the STIHL connected app.
The STIHL connected app is available internationally.
6 Charging the Battery, LEDs
6.1 Charging the Battery
The charging time depends on various factors, e.g. the battery temperature or the ambient temperature. The actual charging time may vary from the charging time indicated. The charging time is indicated at www.stihl.com/charging-times.
- Recharge the battery as described in the User Manual for the STIHL AL 101, 301, 301-4, 500 chargers.
6.2 Displaying the charge level
Press the button (1).
The LEDs light up green for about 5 seconds and indicate the state of charge.
If the LED on the right flashes green: Charge the battery.
6.3 LEDs on Battery
The LEDs can show the state of charge or malfunctions. The LEDs can glow or flash green or red.
The state of charge is indicated when the LEDs glow or flash green.
If the LEDs glow or flash red: Troubleshooting, 19.
There is a malfunction in hedge trimmer or battery.
7 Activating and Deactivating Bluetooth® Radio Interface
7.1 Activating the Bluetooth® Radio Interface
If the battery has a Bluetooth® radio interface: Press and hold the pushbutton until the "BLUETOOTH" LED next to the symbol lights up blue for approximately 3 seconds. The Bluetooth® radio interface on the battery is activated.
7.2 Deactivating the Bluetooth® Radio Interface
If the battery has a Bluetooth® radio interface: Press and hold the pushbutton until the "BLUETOOTH®" LED next to the symbol lights up blue six times.
The Bluetooth® radio interface on the battery is deactivated.
8 Assembling the Hedge Trimmer

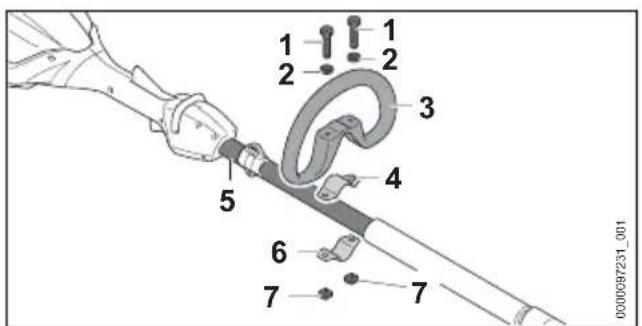

8.1 Mounting the Loop Handle (HLA 66)
- Switch off the long-reach hedge trimmer and remove the battery.
Fit the clamp (4) in the loop handle (3).
- Place the loop handle (3) with clamp (4) on the shaft (5).
Fit the washers (2) on the screws (1).
Press the clamp (6) against the shaft (5).
- Insert the screws (1) through holes in the loop handle (3) and clamps (4 and 6).
Fit and tighten down the nuts (7) firmly.
9 Removing and Fitting the Battery
9.1 Inserting the Battery

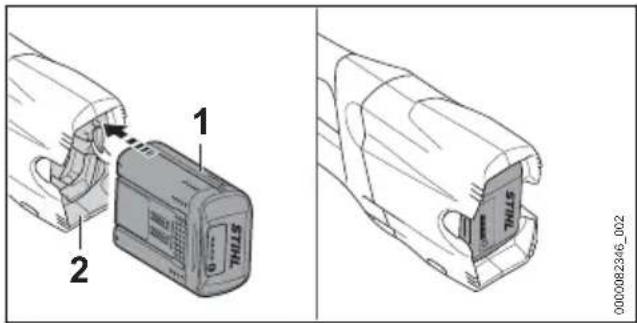

- Insert the battery (1) up to the limit stop into the battery compartment (2).
The battery (1) engages with a click and is now locked.
9.2 Removing the Battery
- Lay the long-reach hedge trimmer on a level surface.
- Keep one hand in front of the battery compartment so that the battery (2) cannot fall out.

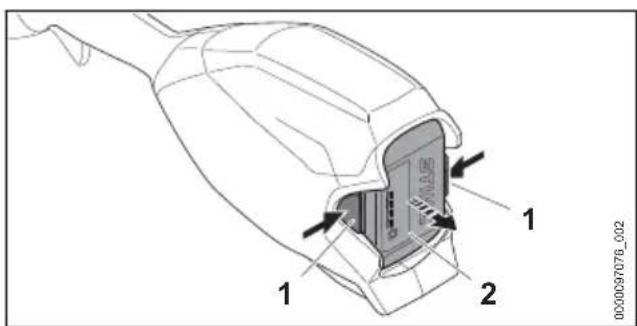

Press both locking levers (1).
The battery (2) is released and can be removed.
10 Switching the Hedge Trimmer On/Off
10.1 Switching on the long-reach hedge trimmer

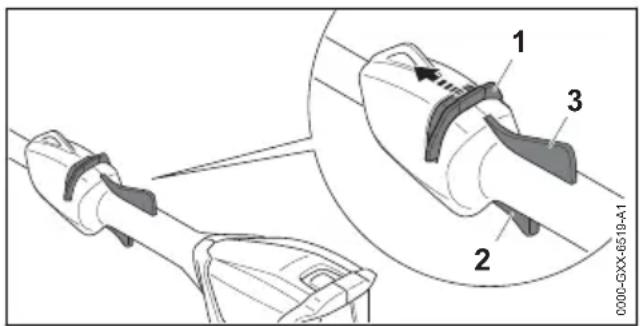

Hold the long-reach hedge trimmer with one hand on the control handle - wrap your thumb around the handle.
English 11 Testing the Hedge Trimmer and Battery
- Hold the long-reach hedge trimmer firmly with your other hand on the loop handle or handle hose - wrap your thumb around the loop handle or handle hose.
- Push the release slide (1) in the direction of the cutting blades with your thumb and hold it there.
Press the trigger (2) with your index finger and keep depressed.
The long-reach hedge trimmer accelerates and the cutting blades run.
The release slide can be released (1).
If the ergo lever (3) is pressed, the trigger switch (2) remains unlocked. This means the trigger can be released and depressed again without having to push the release slide in the direction of the cutting blades.
If the trigger (2) and the Ergo lever (3) are released, the trigger (2) is locked. The release slide (1) must be pushed towards the cutting blades again and held to unlock the trigger (2).
10.2 Switching Off
Release the trigger and Ergo lever
Wait until the cutting blades come to a complete standstill after about 1 second.
If the cutting blades continue to run after about 1 second: Remove the battery and contact your STIHL dealer for assistance.
There is a malfunction in the hedge trimmer.
11 Testing the Hedge Trimmer and Battery
11.1 Checking the controls
Release slide, Ergo lever and trigger
Remove the battery.
Try squeezing the trigger switch without activating the release slide.
If the trigger can be pulled: Do not use the long-reach hedge trimmer and contact your STIHL dealer for assistance.
The release slide is faulty.
- Push the release slide in the direction of the cutting blades with your thumb and hold it there.
Press and hold Ergo lever.
Press the trigger. The release slide can be released.
Release the trigger and the Ergo lever.
If the release slide, trigger or the Ergo lever is stiff or does not spring back to the idle position: Do not use the long-reach hedge trimmer and contact your STIHL dealer for assistance. The release slide, trigger or the Ergo lever is defective.
Switching on the long-reach hedge trimmer
Insert battery.
- Push the release slide in the direction of the cutting blades and hold it there.
Press and hold the trigger.
The cutting blades run.
If 3 LEDs flash red: Remove the battery and consult a STIHL dealer.
There is a malfunction in the long-reach hedge trimmer.
Release the trigger.
The cutting blades stop running after about 1 second.
If the cutting blades continue to run after about 1 second: Remove the battery and contact your STIHL dealer for assistance.
There is a malfunction in the long-reach hedge trimmer.
11.2 Testing the Battery
Press button on battery.
The LEDs glow or flash.
If the LEDs do not glow or flash: Do not use the battery and contact your STIHL servicing dealer.
There is a malfunction in the battery.
12 Operating the Hedge Trimmer
12.1 Adjusting the Angle of the Cutting Blades
The angle of the cutting blades can be adjusted to 2 different positions upwards and 3 different positions downwards to suit the application and the height and reach of the user.
- Switch off the long-reach hedge trimmer and remove the battery.

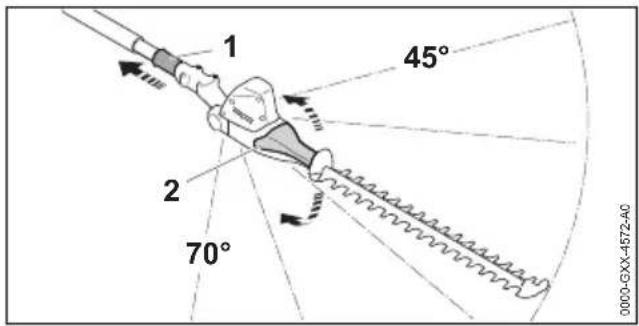

Pull back the sliding sleeve (1) and hold it there.
Grip the swivel handle (2) and swing cutting blade to required angle.
Release the sliding sleeve (1).
- Move swivel handle (2) back and forth until the sliding sleeve (1) engages.
The sliding sleeve (1) butts against the housing. You have adjusted the angle of the cutting blades.
- Check that the swivel handle (2) cannot be pushed in or pulled out any more.
12.2 Adjusting the Shaft Length (HLA 86)
The shaft can be adjusted to different lengths to suit the application as well as the user's height and reach.
- Switch off the long-reach hedge trimmer and remove the battery.
- Maintain an angle of no more than 45^ to the horizontal.
Turn the clamp nut (1) a half-rotation towards
Adjust the shaft (2) to the required length.
Turn the clamp nut (1) in direction as far as it will go.
Make sure the shaft (2) cannot be pushed in or pulled out any more. The shaft length is properly adjusted if the shaft (2) cannot be pushed in or pulled out any more.
If the shaft can be pushed in or pulled out: Twist the clamp nut in direction until the
shaft cannot be pushed in or pulled out any more.
12.3 Fitting and Adjusting the Shoulder Strap
Put on the shoulder strap (1).
Adjust the shoulder strap (1) so that the carabiner (2) is about a hand's width below your right hip.
Other approved carrying systems are listed in this User Manual, 21.
12.4 Holding and Controlling the Long-Reach Hedge Trimmer

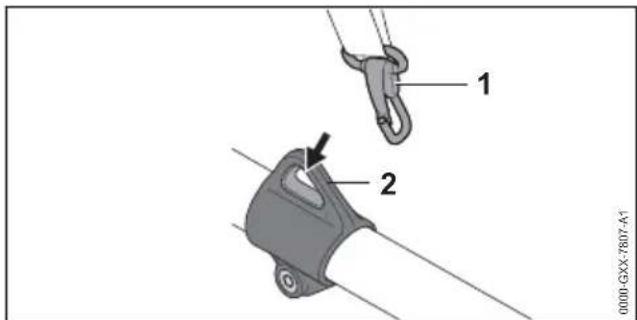

Connect the carrying ring (2) to the carabiner (1).
HLA 66
- Hold the long-reach hedge trimmer with one hand on the control handle - wrap your thumb around the handle.
- Hold the long-reach hedge trimmer with the other hand on the loop handle - wrap your thumb around the loop handle.

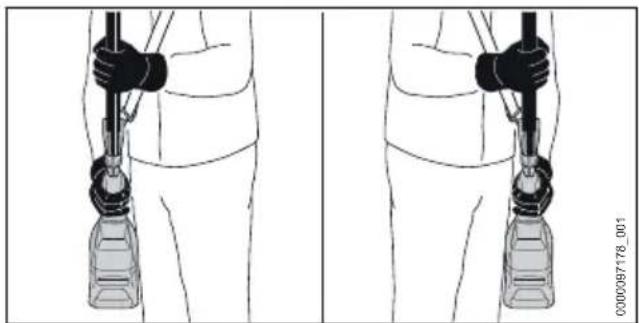

HLA 66/86

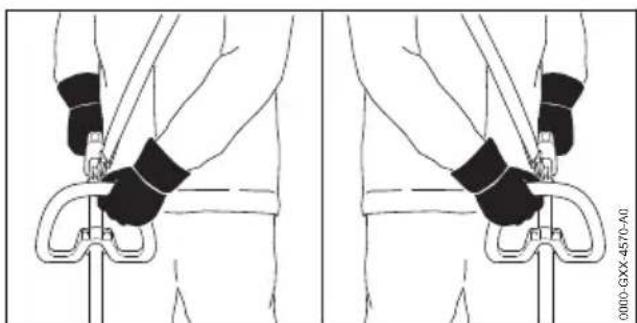

- Hold the long-reach hedge trimmer with one hand on the control handle - wrap your thumb around the handle.
- Hold the long-reach hedge trimmer firmly with your other hand on the handle hose - wrap your thumb around the handle hose.
12.5 Cutting

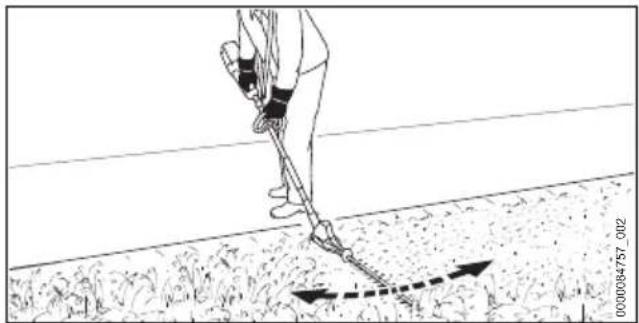

Cutting close to the ground
Set the cutting blades to a suitable angle.
- Swing the long-reach hedge trimmer evenly back and forth in an arc.
Move forward slowly in a controlled manner.
If cutting performance deteriorates: Sharpen the cutting blades.

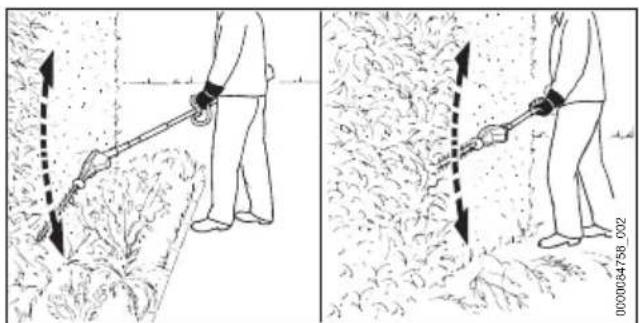

Cutting the side of the hedge
- Use pruning shears or a chainsaw to cut out thick branches first.
If you have to cut at a certain distance from the hedge: Set the cutting blades to a suitable angle.
- Swing the long-reach hedge trimmer in an arc at one side of the hedge while making the cut.
Move forward slowly in a controlled manner.
Cut the other side of the hedge in the same way.
If cutting performance deteriorates: Sharpen the cutting blades.

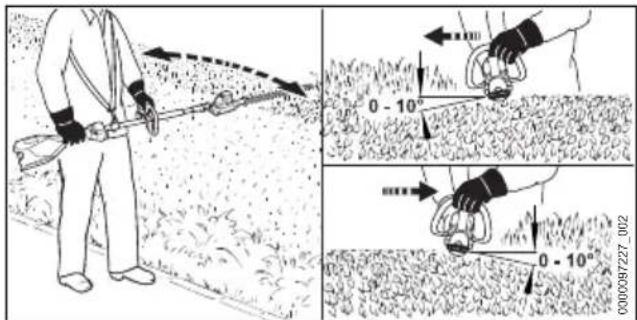

Cutting the top of the hedge
- Use pruning shears or a chainsaw to cut out thick branches first.
- Hold the cutting blades at an angle of 0^ to 10^ to the top of the hedge.
- Swing the long-reach hedge trimmer horizontally and in an arc while making the cut.
If cutting performance deteriorates: Sharpen the cutting blades.

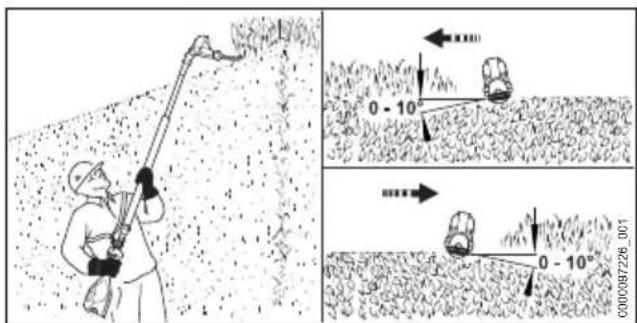

Cutting overhead
- Use pruning shears or a chainsaw to cut out thick branches first.
- Set the cutting blades completely to a suitable angle.
- Hold the cutting blades at an angle of 0^ to 10^ to the top of the hedge.
- Swing the long-reach hedge trimmer horizontally and in an arc while making the cut.
If cutting performance deteriorates: Sharpen the cutting blades.
13 After Finishing Work
13.1 When Work is Finished
- Switch off the long-reach hedge trimmer and remove the battery.
If the long-reach hedge trimmer is wet: Allow the hedge trimmer to dry.
If the battery is wet: Leave the battery to dry.
Clean the long-reach hedge trimmer.
Clean cutting blades.
14 Transporting English
- Push the blade scabbard over the cutting blades, ensuring that it completely covers the cutting blades.
Clean the battery.
14 Transporting
14.1 Transporting the Long-Reach Hedge Trimmer
- Switch off the long-reach hedge trimmer and remove the battery.
- Fit the blade scabbard so that it completely covers the cutting blades.
Push the shaft in completely (HLA 86).

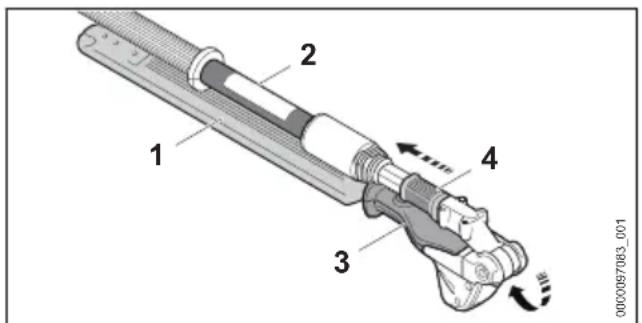

Carrying the long-reach hedge trimmer
Pull back the sliding sleeve (4) and hold it there.
- Grip the swivel handle (3) and swing the cutting blades (1) against the shaft. The cutting blades (1) are flat against the shaft (2).
- Release the sliding sleeve (4). The sliding sleeve (4) engages in position and butts against the housing. The cutting blades (1) are in the transport position.
- Carry the long-reach hedge trimmer by the shaft with the cutting blades (1) behind you.
Transporting the long-reach hedge trimmer in a vehicle
- Secure the long-reach hedge trimmer so that it cannot turn over or move.
14.2 Transporting the Battery
- Switch off the hedge trimmer and remove the battery.
- Check that the battery is in a safe condition.
- Pack the battery in packaging in such a way that it cannot move inside the packaging.
- Secure the packaging so that it cannot move.
The battery is subject to the Carriage of Dangerous Goods regulations. The battery is classified as UN 3480 (lithium ion batteries) and has been tested pursuant to UN Manual Tests and Criteria Part III, Subsection 38.3.
The transport regulations can be found at www.stihl.com/safety-data-sheets.
15 Storing
15.1 Storing the Hedge Trimmer
- Switch off the hedge trimmer and remove the battery.
- Fit the blade scabbard so that it completely covers the cutting blades.
Observe the following points when storing the hedge trimmer:
Hedge trimmer is out of the reach of children.
Hedge trimmer is clean and dry.
15.2 Storing the Battery
STIHL recommends keeping the battery in a charging state between 40% and 60% (2 green LEDs lit).
The battery should be stored in such a way that the following conditions are fulfilled:
- The battery is out of the reach of children.
The battery is clean and dry.
- The battery is in an enclosed space.
Battery is stored separately from the hedge trimmer.
If the battery is stored in the charger, disconnect the mains plug and store the rechargeable battery at a battery charge status between 40% and 60% (2 lit green LEDs).
The battery is in a temperature range between - 10^ and +50^ .
NOTICE
If the battery is not stored as described in this user manual, the battery may become deeply discharged and irreparably damaged.
- Charge a discharged battery before storing it. STIHL recommends keeping the battery in a charging state between 40% and 60% (2 lit green LEDs).
- Store the battery separately from the hedge trimmer.
16 Cleaning
16.1 Cleaning the long-reach hedge trimmer
- Switch off the long-reach hedge trimmer and remove the battery.
Clean the long-reach hedge trimmer with a damp cloth or STIHL resin solvent.
Clean vents with a paintbrush.
English 17 Maintenance
- Remove foreign objects from the battery compartment and clean the battery compartment with a damp cloth.
- Clean the electrical contacts in the battery compartment with a paintbrush or soft brush.
16.2 Cleaning the Cutting Blades
- Switch off the hedge trimmer and remove the battery.
- Spray both sides of blades with STIHL resin solvent.
Fit the battery. - Switch on the hedge trimmer for 5 seconds. The cutting blades run. STIHL resin solvent is distributed evenly.
16.3 Cleaning the Battery
Clean the battery with a damp cloth.
17 Maintenance
17.1 Maintenance intervals
Maintenance intervals depend on the ambient conditions and the operating conditions. STIHL recommends the following maintenance intervals:
After every 50 hours of operation
Have the gearbox lubricated by a STIHL dealer.
17.2 Sharpening the cutting blade
STIHL recommends you have the cutting blades resharpened by a STIHL dealer.
WARNING
The teeth of the cutting blades are very sharp. This may result in the user cutting themselves.
Wear work gloves made from resistant material.
- Switch off the long-reach hedge trimmer and remove the battery.

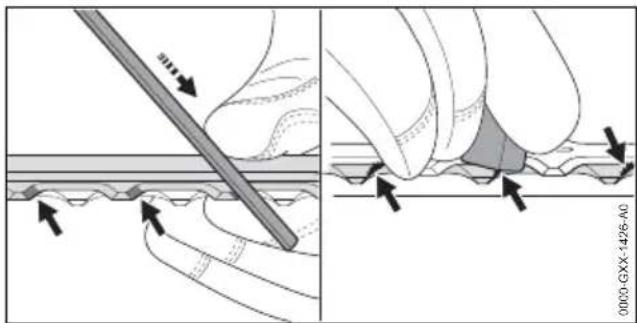

Use a STIHL flat file to sharpen each cutting edge on the upper blade. The file only sharpens on the forward stroke. Maintain the prescribed sharpening angle, 20.2.
Turn the long-reach hedge trimmer over.
Sharpen the remaining cutting edges.
Deburr each cutting edge from below.
Turn the long-reach hedge trimmer over.
- Deburr the remaining cutting edges.
Use a damp cloth to remove the filing dust.
Spray both sides of cutting blades with STIHL resin solvent.
- Switch on the long-reach hedge trimmer for 5 seconds.
The cutting blades run. STIHL resin solvent is distributed evenly.
If you have any doubts, be sure to consult a STIHL dealer.
18 Repairing
18.1 Repairing the Hedge Trimmer and Battery
The hedge trimmer, cutting blades and battery cannot be repaired by the user.
If the hedge trimmer or cutting blades are damaged: Do not use your hedge trimmer and contact your STIHL servicing dealer.
If the battery has a malfunction or is damaged: Replace the battery.
19 Troubleshooting
19.1 Troubleshooting the Hedge Trimmer and Battery
| Fault LEDs on the battery | Cause Remedy | |
| Hedge trimmer does not start when switched on. | 1 LED flashing green. | State of charge of the battery is too low. |
| 1 LED emits red light. | The battery is too warm or too cold. |
| Fault LEDs on the | battery | Cause Remedy | |
| 3 LEDs flashing red. | There is a malfunction in the hedge trimmer. | Remove the battery. Clean electrical contacts in the battery compartment. Insert battery. Switch on the hedge trimmer. If 3 LEDs continue to flash red: Do not use the hedge trimmer and contact your STIHL dealer for assistance. | |
| The cutting blades do not run freely. | Spray both sides of cutting blades with STIHL resin solvent. If 3 LEDs continue to flash red: Do not use the hedge trimmer and contact your STIHL dealer for assistance. | ||
| 3 LEDs light up red. | Hedge trimmer is too hot. | Remove the battery. Allow hedge trimmer to cool down. | |
| 4 LEDs flashing red. | There is a fault in the battery. | Remove battery and reinsert it. Switch on the hedge trimmer. If 4 LEDs continue to flash red: Do not use the battery; contact a STIHL authorized dealer. | |
| No electrical contact between hedge trimmer and battery. | Remove the battery. Clean electrical contacts in the battery compartment. Insert battery. | ||
| Hedge trimmer or battery is damp. | Allow hedge trimmer or battery to dry. | ||
| Hedge trimmer cuts out during operation. | 3 LEDs light up red. | Hedge trimmer is too hot. | Remove the battery. Allow hedge trimmer to cool down. |
| There is an electrical fault. | Remove battery and reinsert it. Switch on the hedge trimmer. | ||
| Hedge trimmer runtime is too short. | The battery is not fully charged. | Fully charge battery as described in the User Manual for the STIHL AL 101, 301, 301-4, 500 chargers. | |
| The battery service life has been exceeded. | Replace battery. | ||
| STIHL connected app unable to find the battery with | Bluetooth® radio interface on the battery or mobile device is deactivated. | Activate Bluetooth® radio interface on the battery or mobile device. | |
| Distance between battery and mobile device is too long. | Reduce distance, 20.3. If the battery still cannot be found with the STIHL connected app: contact a STIHL authorized dealer for assistance. | ||
19.2 Product Support and Assistance on Use
Product support and assistance on use are available from STIHL servicing dealers.
For contacts and other information, please visit https://support.stihl.com or www.stihl.com.
20 Specifications
20.1 STIHL HLA 66, HLA 86 LongReach Hedge Trimmers
HLA 66
-
Permitted batteries:
-
STIHL AP
-
STIHL AR
Weight without battery: 3.8kg
English 20 Specifications
- Degree of electrical protection: IPX4 (protection against splash water from any direction)
HLA 86
-
Permitted batteries:
-
STIHL AP
- STIHL AR
Weight without battery: 4.8kg
- Degree of electrical protection: IPX4 (protection against splash water from any direction)
The running time is shown at www.stihl.com/ battery-life.
20.2 Cutting blades
HLA 66
- Tooth spacing: 33mm
Cutting length: 500mm - Sharpening angle: 45^
HLA 86
- Tooth spacing: 33mm
- Cutting length: 500 mm
- Sharpening angle: 45^
20.3 STIHL AP battery
Battery technology: lithium-ion
Voltage: 36 V
Capacity in Ah: see rating label
Energy content in Wh: see rating label
Weight in kg: see rating label
- Permissible temperature range for operation and storage: +10^ to +50^
- Bluetooth® radio interface (only for batteries with G ):
- Data connection: Bluetooth® 5.1. The mobile appliance must be compatible with Bluetooth® Low Energy 5.0 and support Generic Access Profile (GAP).
Frequency band: ISM band 2.4 GHz
Maximum RF power transmitted: 1 mW - Signal range: approx. 10m . The signal strength depends on the ambient conditions and the mobile terminal. Signal range can vary greatly depending on local conditions, including the receiver. The range may be perceptibly reduced inside enclosed rooms and through metal barriers (such as walls, shelves or cases).
- Mobile appliance operating system requirements: Android or iOS (current version or higher)
20.4 Sound Values and Vibration Values
The K-value for the sound pressure level is 2 dB(A). The K-value for the sound power level is 2 dB(A). The K-value for vibration levels is 2 m/s².
HLA 66
STIHL recommends wearing ear defenders.
Sound pressure level L_pA measured according to ISO 22868: 80 dB(A)
Sound power level LWA measured according to ISO 22868:91 dB(A)
Vibration level ahv measured according to ISO 22867
Control handle: 1.8m / s^2
- Loop handle: 2.3m / s^2
HLA 86
STIHL recommends wearing ear defenders.
Sound pressure level LpA measured according to ISO 22868: 80 dB(A)
Sound power level LWA measured according to ISO 22868:91 dB(A)
Vibration level a_hv measured according to ISO 22867
Control handle: 1.6m / s^2
- Handle hose: 2.3m / s^2
The vibration levels indicated were measured according to a standardized test method and can be used as a basis for comparing electric power tools. The vibration levels actually occurring may vary from the values indicated, depending on the type of application. The vibration levels indicated can be used for an initial estimate of the vibration stress. The actual vibration stress has to be estimated. The times can be taken into account in the estimate when the electric power tool is switched off and also when it is switched on but not running.
For information on compliance with the Employers' Vibration Directive 2002/44/EC see www.stihl.com/vib.
20.5 REACH
REACH is an EC regulation and stands for the Registration, Evaluation, Authorisation and Restriction of Chemical substances.
For information on compliance with the REACH regulation see www.stihl.com/reach.
21 Combinations of Carrying Systems English
21 Combinations of Carrying Systems
21.1 Combinations of Carrying Systems
The long-reach hedge trimmer must be used only in combination with a carrying system. Approved carrying systems are listed in this User Manual:
Shoulder strap
Full harness
STIHL AR battery together with the support cushion
Battery belt with strap and attached "AP belt bag with connecting cable" together with the support cushion
Battery belt with attached "AP belt bag with connecting cable" together with the shoulder strap
Carrying system with built-in "AP belt bag with connecting cable" together with the support cushion
RTS backpack carrying system
22 Spare Parts and Accessories
22.1 Spare parts and accessories
STIHL These symbols indicate original STIHL spare parts and original STIHL accessories.
STIHL recommends the use of original STIHL spare parts and accessories.
Despite ongoing market observation, STIHL is unable to judge the reliability, safety and suitability of other manufacturers' spare parts and accessories; accordingly, STIHL cannot warrant for the use of those parts.
Original STIHL spare parts and original STIHL accessories are available from STIHL dealers.
23 Disposal
23.1 Disposing of the Hedge Trimmer and Battery
Contact the local authorities or your STIHL dealer for information on disposal.
Improper disposal can be harmful to health and pollute the environment.
Take STIHL products including packaging to a suitable collection point for recycling in accordance with local regulations.
Do not dispose with domestic waste.
24 EC Declaration of Conformity
24.1 STIHL HLA 66, HLA 86 LongReach Hedge Trimmers
declare under our sole responsibility that
Category: Cordless long-reach hedge trimmer
Manufacturer's brand: STIHL
-- model: HLA 66, HLA 86
- serial number: 4859
conforms to the relevant provisions of Directives 2011/65/EU, 2006/42/EC, 2014/30/EU and 2000/14/EC and has been developed and manufactured in compliance with the following standards in the versions valid on the date of production: EN 55014-1, EN 55014-2, EN 62841-1, EN 62841-4-2 and EN ISO 10517.
Applied conformity assessment procedure in accordance with Directive 2000/14/EC, Annex V.
Measured sound power level: 91 dB(A)
Guaranteed sound power level: 93 dB(A)
The technical documents are stored at ANDREAS STIHL AG & Co. KG Produktzulassung.
The year of manufacture, country of manufacture and serial number are shown on the long-reach hedge trimmer.
Done at Waiblingen, 15.07.2021
Dr. Jürgen Hoffmann, Director Product Certification & Regulatory Affairs
25 UKCA Declaration of Conformity
25.1 STIHL HLA 66, HLA 86 LongReach Hedge Trimmers
UK CA
declare under our sole responsibility that
Category: Cordless long-reach hedge trimmer
Manufacturer's brand: STIHL
- model: HLA 66, HLA 86
Serial number: 4859
conforms to the relevant provisions of UK regulations The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012, Supply of Machinery (Safety) Regulations 2008, Electromagnetic Compatibility Regulations 2016 and Noise Emission in the Environment by Equipment for use Outdoors Regulations 2001 and has been manufactured in compliance with the following standards in the versions valid on the date of production: EN 55014-1, EN 55014-2, EN 62841-1, EN 62841-4-2 and EN ISO 10517.
Applied conformity assessment procedure in accordance with UK-Verordnung Noise Emission in the Environment by Equipment for use Outdoors Regulations 2001, Schedule 8.
Measured sound power level: 91 dB(A)
Guaranteed sound power level: 93 dB(A)
The technical documents are stored at ANDREAS STIHL AG & Co. KG.
The year of manufacture, country of manufacture and machine number are shown on the longreach hedge trimmer.
Done at Waiblingen, 15.07.2021
Dr. Jürgen Hoffmann, Director Product Certification & Regulatory Affairs
26 General Power Tool SafetyWarnings
26.1 Introduction
This chapter reproduces the pre-formulated, general safety precautions specified in the IEC 62841 standard for hand-held motor-operated electric tools.
STIHL is obliged to publish these texts.
The safety precautions and warnings on avoiding an electric shock given under "Electrical Safety" do not apply to STIHL cordless products.
WARNING
- Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
The term "electric power tool" in the safety warnings refers to mains-operated (corded) power tools or battery-operated (cordless) power tools.
26.2 Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
26.3 Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
26 General Power Tool SafetyWarnings English
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
26.4 Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
26.5 Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
English 26 General Power Tool SafetyWarnings
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
26.6 Battery tool use and care
a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130^ may cause explosion.
g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
26.7 Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.
26.8 Hedge trimmer safety warnings
Safety instructions for hedge trimmers
a) Keep all parts of the body away from the blade. Do not remove cut material or hold material to be cut when blades are moving. Blades continue to move after the switch is turned off. A moment of inattention while operating the hedge trimmer may result in serious personal injury.
b) Carry the hedge trimmer by the handle with the blade stopped and taking care not to operate any power switch. Proper carrying of the hedge trimmer will decrease the risk of inadvertent starting and resultant personal injury from the blades.
c) When transporting or storing the hedge trimmer, always fit the blade cover. Proper handling of the hedge trimmer will decrease the risk of personal injury from the blades.
d) When clearing jammed material or servicing the unit, make sure all power switches are off and the power cord is disconnected. Unexpected actuation of the hedge trimmer while clearing jammed material or servicing may result in serious personal injury.
e) Hold the hedge trimmer by insulated gripping surfaces only, because the blade may contact hidden wiring or its own cord. Blades contacting a "live" wire may make exposed metal parts of the hedge trimmer "live" and could give the operator an electric shock.
f) Keep all power cords and cables away from cutting area. Power cords or cables may be hidden in hedges or bushes and can be accidentally cut by the blade.
g) Do not use the hedge trimmer in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.
26.9 Additional safety instructions for extended-reach hedge trimmers
Extended-reach hedge trimmer safety warnings
a) To reduce the risk of electrocution, never use the extended-reach hedge trimmer near any electrical power lines. Contact with or use near power lines may cause serious injury or electric shock resulting in death.
b) Always use two hands when operating the extended-reach hedge trimmer. Hold the
extended-reach hedge trimmer with both hands to avoid loss of control.
c) Always use head protection when operating the extended-reach hedge trimmer overhead. Falling debris can result in serious personal injuries.
Table des matieres
Chere cliente, cher client,
2.1 Documents applicable
Le tube relie les differents composants.
Le tube relie les differentes composants.
1 led brandt rood. De accu is te warm of te koud.
De heggensnoeier is defect.
11 Heggenshoeier en accu controleren
11.1 Bedieningselementen contrôleren
Deblokkeringsschuif, Ergo-hendel en schakelhendel
De heggensnoeier is defect.
