USER MANUAL NNSN676 PANASONIC

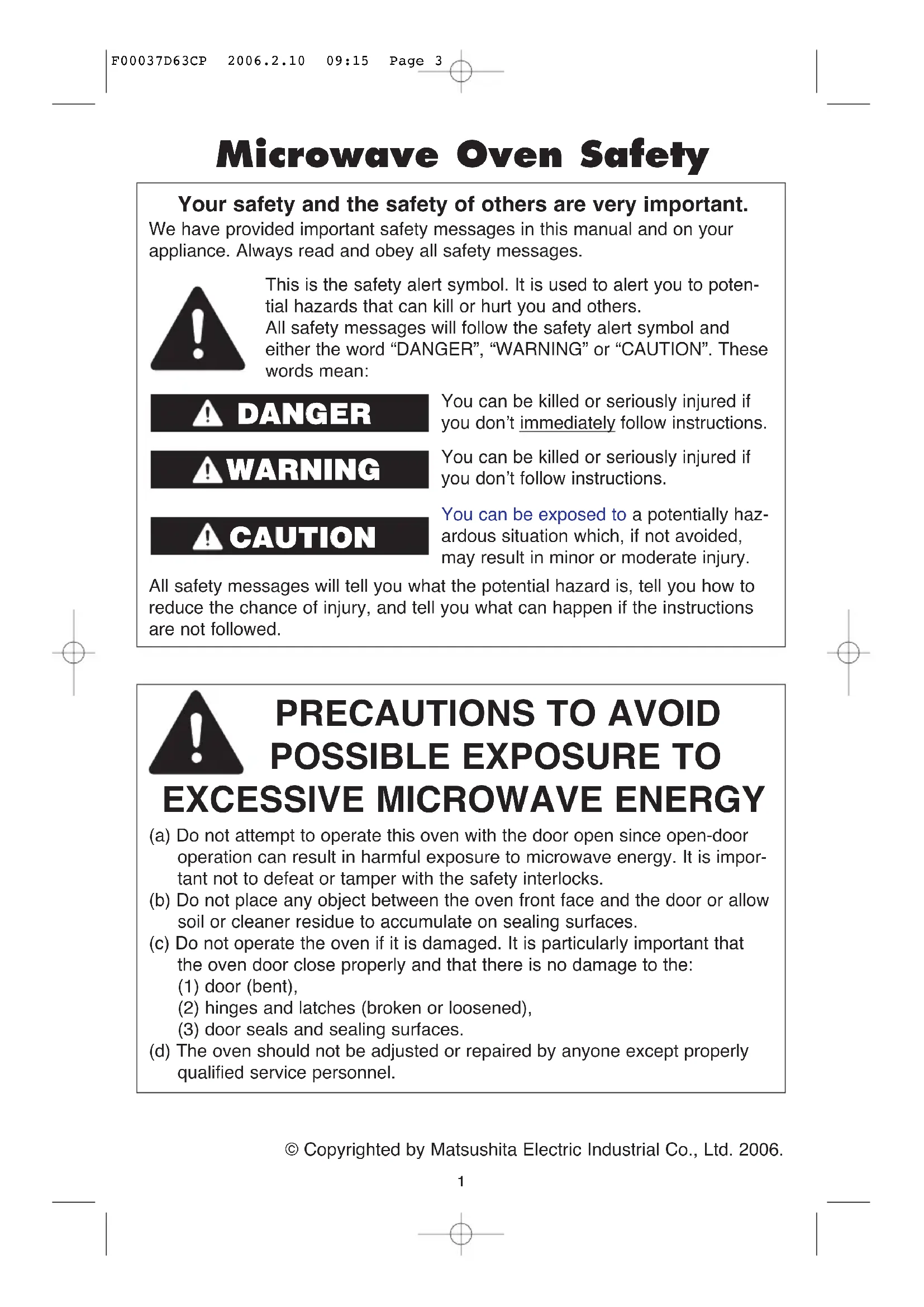

POSSIBLE EXPOSURE TO

EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is impor- tant not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. This is the safety alert symbol. It is used to alert you to poten- tial hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER”, “WARNING” or “CAUTION”. These words mean: You can be killed or seriously injured if you don’t immediately follow instructions. You can be killed or seriously injured if you don’t follow instructions. Microwave Oven Safety DDAANNGGEERR WWAARRNNIINNGG You can be exposed to a potentially haz- ardous situation which, if not avoided, may result in minor or moderate injury. CCAAUUTTIIOONN

—To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy:

1. Read all instructions before using this appliance.

2. Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPO-

SURE TO EXCESSIVE MICROWAVE ENERGY,” found on page 1.

3. This appliance must be grounded. Connect only to a properly grounded outlet.

See “GROUNDING INSTRUCTIONS” found on page 5.

4. As with any cooking appliance, DO NOT leave oven unattended while in use.

5. Install or locate this appliance only in accordance with the installation instruc-

tions found on page 4.

6. DO NOT cover or block any openings on this appliance.

7. DO NOT store this appliance outdoors. DO NOT use this product near water—

for example, near a kitchen sink, in a wet basement, or near a swimming pool or similar locations.

8. Use this appliance only for its intended use as described in this manual. DO

NOT use corrosive chemicals, vapors, or non-food products in this appliance. This type of oven is specifically designed to heat, or cook food. It is not designed for industrial or laboratory use. The use of corrosive chemicals in heating or cleaning will damage the appliance and may result in radiation leaks.

9. When cleaning surfaces of the door and oven that come together upon closing

the door, use only mild, non-abrasive soaps or detergents applied with a sponge or soft cloth.

10. DO NOT allow children to use this appliance, unless closely supervised by an

adult. DO NOT assume that because a child has mastered one cooking skill he/she can cook everything.

11. DO NOT operate this appliance if it has a damaged cord or plug, if it is not

working properly, or if it has been damaged or dropped.

12. DO NOT immerse cord or plug in water.

13. Keep cord away from heated surfaces.

14. DO NOT let cord hang over edge of a table or counter.

15. This appliance should be serviced only by qualified service personnel. Contact

the nearest authorized service centre for examination, repair or adjustment.

16. Some products such as whole eggs with or without shell, narrow neck bottles

and sealed containers—for example, closed glass jars—may explode and should not be heated in this oven.

17. To reduce the risk of fire in the oven cavity:

(a) Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. (b) Remove wire twist-ties from paper or plastic bags before placing bag in oven. (c) If material inside the oven ignites, keep oven door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel. (d) DO NOT use the cavity for storage purposes. DO NOT leave paper products, cooking utensils or food in the cavity when not in use. Your microwave oven is a cooking appliance and you should use as much care as you use with a stove or any other cooking appliance. When using this electric appliance, basic safety precautions should be followed, including the following: Thank you for purchasing a Panasonic Microwave Oven. WWAARRNNIINNGG F00037D63CP 2006.2.10 09:15 Page 43

Superheated Liquids Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without showing evidence (or signs) of boiling. Visible bubbling is not always present when the container is removed from the microwave oven. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons: (a) STIR THE LIQUID BOTH BEFORE AND HALFWAY THROUGH HEATING IT. (b) Do not heat water and oil, or fats together. The film of oil will trap steam, and may cause a violent eruption. (c) Do not use straight-sided containers with narrow necks. (d) After heating, allow the container to stand in the microwave oven for a short time before removing the container.

19. DO NOT cook directly on the turntable. It can crack, cause injury or damage

to the oven. TO AVOID THE RISK OF SHOCK: DO NOT remove outer panel from oven. Repairs must be done only by a qualified serv- ice person. TO REDUCE THE RISK OF EXPOSURE TO MICROWAVE ENERGY: DO NOT tamper with, or make any adjustments or repairs to Door, Control Panel Frame, Safety Interlock Switches, or any other part of oven. Microwave leakage may result. TO AVOID THE RISK OF FIRE:

1. DO NOT operate the oven empty. The microwave energy will

reflect continuously throughout the oven causing overheating and damage, if food or water is not present to absorb energy.

2. DO NOT store flammable materials next to, on top of, or in the

3. DO NOT dry clothes, newspapers or other materials in the oven, or use newspaper or

paper bags for cooking.

4. DO NOT hit or strike Control Panel. Damage to controls may occur.

5. DO NOT use recycled paper products unless the paper product is labeled as safe for

microwave oven use. Recycled paper products may contain impurities which may cause sparking. TO AVOID THE RISK OF SCALDING: POT HOLDERS should always be used when removing items from the oven. Heat is transferred from the HOT food to the cooking container and from the container to the Glass Tray. The Glass Tray can also be very HOT after removing the cooking container from the oven.

IMPORTANT SAFETY INSTRUCTIONS

(continued) WWAARRNNIINNGG

SAVE THESE INSTRUCTIONS

For proper use of your oven, read remaining safety cautions and operating instructions. F00037D63CP 2006.2.10 09:15 Page 54 Glass Tray

1. DO NOT operate the oven without the Roller Ring and the Glass Tray in

2. DO NOT operate the oven without the Glass Tray fully engaged on the drive

hub. Improper cooking or damage to the oven could result. Verify that the Glass Tray is properly engaged and rotating by observing its rotation when you press Start. Note: The Glass Tray can turn in either direction.

3. Use only the Glass Tray specifically designed for this oven. DO NOT substi-

tute any other glass tray.

4. If the Glass Tray is hot, allow to cool before cleaning or placing in water.

5. DO NOT cook directly on the Glass Tray. Always place food in a microwave

safe dish, or on a rack set in a microwave safe dish.

6. If food or utensils on the Glass Tray touch oven walls, causing the tray to stop

moving, the tray will automatically rotate in the opposite direction. Roller Ring

1. The Roller Ring and oven floor should be cleaned frequently to prevent

2. Always replace the Roller Ring and the Glass Tray in their proper positions.

3. The Roller Ring must always be used for cooking along with the Glass Tray.

IMPORTANT SAFETY INSTRUCTIONS

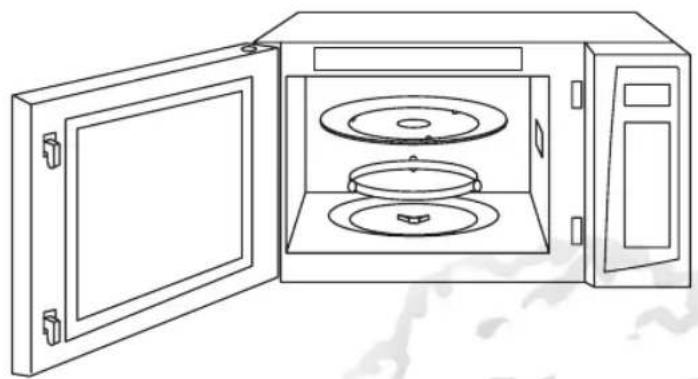

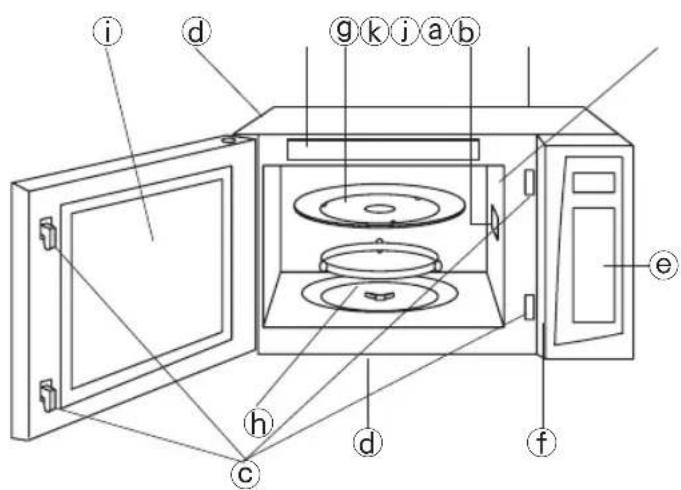

(continued) Examine Your Oven Unpack oven, remove all packing material and examine the oven for any dam- age such as dents, broken door latches or cracks in the door. Notify dealer immediately if oven is damaged. DO NOT install if oven is damaged. Placement of Oven

1. The oven must be placed on a flat, stable surface. Place the front surface of

the door 7.6 cm (3-inches) or more from the counter top edge to avoid acci- dental tipping of the microwave oven during normal use. For proper operation, the oven must have sufficient air flow. Allow 7.6 cm (3-inches) of space on both sides of the oven and 5 cm (2-inches) of space on the top of the oven. (a) DO NOT block air vents. If they are blocked during operation, the oven may overheat and be damaged. (b) DO NOT place oven near a hot, damp surface such as a gas or electric range, or dishwasher. (c) DO NOT operate oven when room humidity is excessive.

2. This oven is manufactured for household use only. It is not approved or tested

for mobile vehicle, marine, or commercial use. Installation

1. DO NOT block air vents. If they are blocked during operation, the oven may

overheat. If the oven overheats, a thermal safety device will turn the oven off. The oven will remain inoperable until it has cooled.

2. If the oven is designed for installation into a wall cabinet, use the proper trim

CAN RESULT IN A RISK OF ELECTRIC SHOCK. Consult a qualified electrician or service person if the grounding instructions are not com- pletely understood, or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a three wire extension cord that has a three prong polarized grounding plug, and a three slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord should be equal to or greater than the electrical rating of the appliance. Grounding Instructions THIS APPLIANCE MUST BE GROUNDED. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

• Plug into properly installed and grounded 3 prong outlet.

• DO NOT remove ground prong.

• DO NOT use an adapter. Power Supply

1. A short power-supply cord is provided to reduce the risks resulting from becoming

entangled in or tripping over a longer cord.

2. Longer cord sets or extension cords are available and may be used if care is exercised

in their use. Do not let cord hang over edge of a table or counter.

3. If a long cord or extension cord is used,

• The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.

• The extension cord must be a grounding-type 3-wire cord.

• The longer cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over accidentally. Wiring Requirements

1. The oven must be operated on a SEPARATE CIRCUIT. No other appli-

ance should share the circuit with the microwave oven. If it does, the branch circuit fuse may blow or the circuit breaker may trip.

2. The oven must be plugged into at least a 15 AMP, 120 VOLT, 60 Hz GROUNDED

OUTLET. Where a standard two-prong outlet is encountered, it is the personal responsibility and obligation of the consumer to have it replaced with a properly grounded three-prong outlet.

3. The VOLTAGE used must be the same as specified on this microwave oven (120 V, 60

Hz). Using a higher voltage is dangerous and may result in a fire or oven damage. Using a lower voltage will cause slow cooking. Panasonic is NOT responsible for any damages resulting from the use of the oven with any voltage other than specified. TV / Radio Interference

1. Operation of the microwave oven may cause interference to your radio, TV or similar

2. When there is interference, it may be reduced or eliminated by taking the following

measures: (a) Place the radio, TV, etc. away from the microwave oven as far as possible. (b) Use a properly installed antenna to obtain stronger signal reception. (c) Clean door and sealing surfaces of the oven. (See Care and Cleaning of Your Microwave Oven) WWAARRNNIINNGG

INSTALLATION AND GROUNDING

INSTRUCTIONS (continued) F00037D63CP 2006.2.10 09:15 Page 76 Follow These Safety Precautions When Cooking in Your Oven. IMPORT ANT Proper cooking depends upon the power, the time setting and quantity of food. If you use a smaller portion than recommended but cook at the time for the recommended portion, fire could result.

1) HOME CANNING / STERILIZING / DRYING FOODS /

SMALL QUANTITIES OF FOODS

• DO NOT use your oven for home canning. Your oven cannot maintain the food at the proper canning temperature. The food may be contaminated and then spoil.

• DO NOT use the microwave oven to sterilize objects (baby bottles, etc.). It is difficult to keep the oven at the high temperature needed for sterilization.

• DO NOT dry meats, herbs, fruits or vegetables in your oven. Small quantities of food or foods with low moisture content can dry out, scorch or catch on fire if overheated.

Popcorn may be popped in a microwave oven corn popper. Microwave pop- corn which pops in its own package is also available. Follow popcorn manu- facturers’ directions and use a brand suitable for the cooking power of your microwave oven. CAUTION: When using pre-packaged microwave popcorn, you can follow recommended package instructions or use the popcorn pad (refer to page 14). Otherwise, the popcorn may not pop adequately or may ignite and cause a fire. Never leave oven unattended when popping popcorn. Allow the popcorn bag to cool before opening; always open the bag facing away from your face and body to prevent steam burns.

• DO NOT deep fat fry in your microwave oven. Cooking oils may burst into flames and may cause damage to the oven and perhaps result in burns. Microwave utensils may not withstand the temperature of the hot oil, and can shatter or melt.

4) FOODS WITH NONPOROUS SKINS

• DO NOT COOK/REHEAT WHOLE EGGS, WITH OR WITHOUT THE SHELL. Steam buildup in whole eggs may cause them to explode, and possibly damage the oven or cause injury. Reheating SLICED hard-boiled eggs and cooking SCRAMBLED eggs is safe.

• Potatoes, apples, whole squash and sausages are examples of foods with non- porous skins. These types of foods must be pierced before microwave cooking to prevent them from exploding. CAUTION: Cooking dry or old potatoes can cause fire. Safety Precautions F00037D63CP 2006.2.10 09:15 Page 87

5) GLASS TRAY / COOKING CONTAINERS / FOIL

• Cooking containers get hot during microwaving. Heat is transferred from the HOT food to the container and the Glass Tray. Use pot holders when removing containers from the oven or when removing lids or plastic wrap covers from cooking containers, to avoid burns.

• The Glass Tray will get hot during cooking. It should be allowed to cool before handling or before paper products, such as paper plates or microwave popcorn bags, are placed in the oven for microwave cooking.

• When using foil in the oven, allow at least 2.5 cm (1-inch) of space between foil and interior oven walls or door.

• Dishes with metallic trim should not be used, as arcing may occur.

6) PAPER TOWELS / CLOTHS

• DO NOT use paper towels or cloths which contain a synthetic fiber woven into them. The synthetic fiber may cause the towel to ignite. Use paper towels under supervision.

7) BROWNING DISHES / OVEN COOKING BAGS

• Browning dishes or grills are designed for microwave cooking only. Always fol- low instructions provided by the manufacturer. DO NOT preheat browning dish for longer than 6 minutes.

• If an oven cooking bag is used for microwave cooking, prepare according to package directions. DO NOT use a wire twist-tie to close bag; instead use plastic ties, cotton string or a strip cut from the open end of the bag.

• DO NOT use a conventional meat thermometer in your oven. Arcing may occur. Microwave safe thermometers are available for both meat and candy.

9) BABY FORMULA / BABY FOOD

• DO NOT heat baby formula or baby food in the microwave oven. The glass jar or surface of the food may appear warm while the interior can be so hot as to burn the infant’s mouth and esophagus.

10) REHEATING PASTRY PRODUCTS

• When reheating pastry products, check temperatures of any fillings before eat- ing. Some foods have fillings which heat faster and can be extremely hot, while the surface remains warm to the touch (e.g. jelly donuts).

11) GENERAL OVEN USAGE GUIDELINES

• DO NOT use the oven for any purpose other than the preparation of food. Safety Precautions (continued) F00037D63CP 2006.2.10 09:15 Page 98 Cookware Guide

ITEM MICROWAVE COMMENTS

Yes for Small strips of foil can be molded around thin parts of Aluminum Foil Shielding meat or poultry to prevent overcooking. Arcing can occur only if foil is too close to oven wall or door and damage to your oven will result. Browning dishes are designed for microwave cooking Browning Dish Yes only. Check browning dish information for instructions and heating chart. Do not preheat for more than 6 minutes. Brown paper bags No May cause a fire in the oven. Dinnerware: Check manufacturers' use and care directions for use in Labeled Yes microwave heating. Some dinnerware may state on the “Microwave Safe” back of the dish, “Oven-Microwave Safe”. Unlabeled Dinnerware ? Use CONTAINER TEST below. Disposable polyester Yes Some frozen foods are packaged in these dishes. Can be Paperboard Dishes purchased in grocery stores. Fast Food Carton No Metal handle may cause arcing. with Metal Handle Frozen Dinner Tray No Metal can cause arcing and damage to your oven. Metal Frozen Dinner Tray Yes Heat only 1 tray in the oven at one time. Microwave safe Glass Jars No Most glass jars are not heat resistant. Do not use for cooking or reheating. Heat Resistant Oven Yes Ideal for microwave cooking and browning. Glassware & Ceramics (See CONTAINER TEST below) Metal Bakeware No Not recommended for use in microwave ovens. Metal can cause arcing and damage to your oven. Metal Twist-Ties No May cause arcing which could cause a fire in the oven. Follow manufacturers' directions. Close bag with the nylon tie provided, a strip cut from the end of the bag, or a piece Oven Cooking Bag Yes of cotton string. Do not close with metal twist-tie. Make six 1 cm (

-inch) slits near the closure. Paper Plates & Cups Yes Use to warm cooked foods, and to cook foods that require short cooking times such as hot dogs. Paper Towels & Napkins Yes Use to warm rolls and sandwiches, only if labeled safe for microwave use. Recycled Paper Towels

Recycled paper products may contain impurities which may & Napkins cause sparks. Parchment Paper Yes Use as a cover to prevent spattering. Safe for use in microwave, microwave/convection and conventional ovens. Plastic: Should be labeled, "Suitable for Microwave Heating." Check Microwave Safe Yes, manufacturers’ directions for recommended uses. Cookware use caution Some microwave safe plastic containers are not suitable for cooking foods with high fat or sugar content. The heat from hot food may cause the plastic to warp. Plastic, Melamine No This material absorbs microwave energy. Dishes get HOT! Plastic Foam Cups Yes, Plastic foam will melt if foods reach a high temperature. Use use caution to reheat foods to a low serving temperature only. Use to cover food during cooking to retain moisture and Plastic Wrap Yes prevent spattering. Should be labeled “Suitable for Microwave Heating”. Check package directions. Yes, Use only for short term reheating and to bring food to a low Straw, Wicker, Wood use caution serving temperature. Wood may dry out & split or crack when used. Thermometers- Yes Use only microwave safe meat and candy thermometers. Microwave safe Thermometers-

Not suitable for use in microwave oven; will cause sparks Conventional and get hot. Wax paper Yes Use as a cover to prevent spattering and to retain moisture. CONTAINER TEST TO TEST A CONTAINER FOR SAFE MICROWAVE OVEN USE: Fill a microwave safe cup with cool water and place it in the microwave oven alongside the empty container to be tested; heat one (1) minute at P10 (HIGH). If the container is microwave oven safe (transparent to microwave energy), the empty container should remain comfortably cool and the water should be hot. If the container is hot, it has absorbed some microwave energy and should NOT be used. This test cannot be used for plastic containers. F00037D63CP 2006.2.10 09:15 Page 109 Care and Cleaning of Your Microwave Oven BEFORE CLEANING: Unplug oven at wall outlet. If outlet is inacces- sible, leave oven door open while cleaning. AFTER CLEANING: Be sure to place the Roller Ring and the Glass Tray in the proper position and press Stop/Reset Pad to clear the Display. Menu Label: Do not remove, wipe with a damp cloth. Inside of the oven: Wipe with a damp cloth after using. Mild detergent may be used if needed. Do not use harsh deter- gents or abrasives. Oven Door: Wipe with a soft, dry cloth when steam accumulates inside or around the outside of the oven door. During cooking, especially under high humidity conditions, steam is given off from the food. (Some steam will condense on cool- er surfaces, such as the oven door. This is normal.) Inside surface is cov- ered with a heat and vapor barrier film. Do not remove. Glass Tray: Remove and wash in warm soapy water or in a dishwasher. Outside oven surfaces: Clean with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into ventila- tion openings. Do not remove waveguide cover: It is important to keep cover clean in the same manner as the inside of the oven. Control Panel:

• Covered with a removable protective film to prevent scratches during shipping. Small bub- bles may appear under this film. (Hint - To remove film, apply masking or clear tape to an exposed corner and pull gently.)

• If the Control Panel becomes wet, clean it with a soft, dry cloth. Do not use harsh detergents or abrasives. Roller Ring and oven cavity floor: Clean the bottom surface of the oven with mild detergent water or window cleaner, and dry. Roller Ring may be washed in mild soapy water or dish- washer. These areas should be kept clean to avoid excessive noise. IT IS IMPORTANT TO KEEP THE OVEN CLEAN AND DRY. FOOD RESIDUE AND CONDENSATION MAY CAUSE RUSTING OR ARCING AND DAMAGE TO THE OVEN. AFTER USE, WIPE

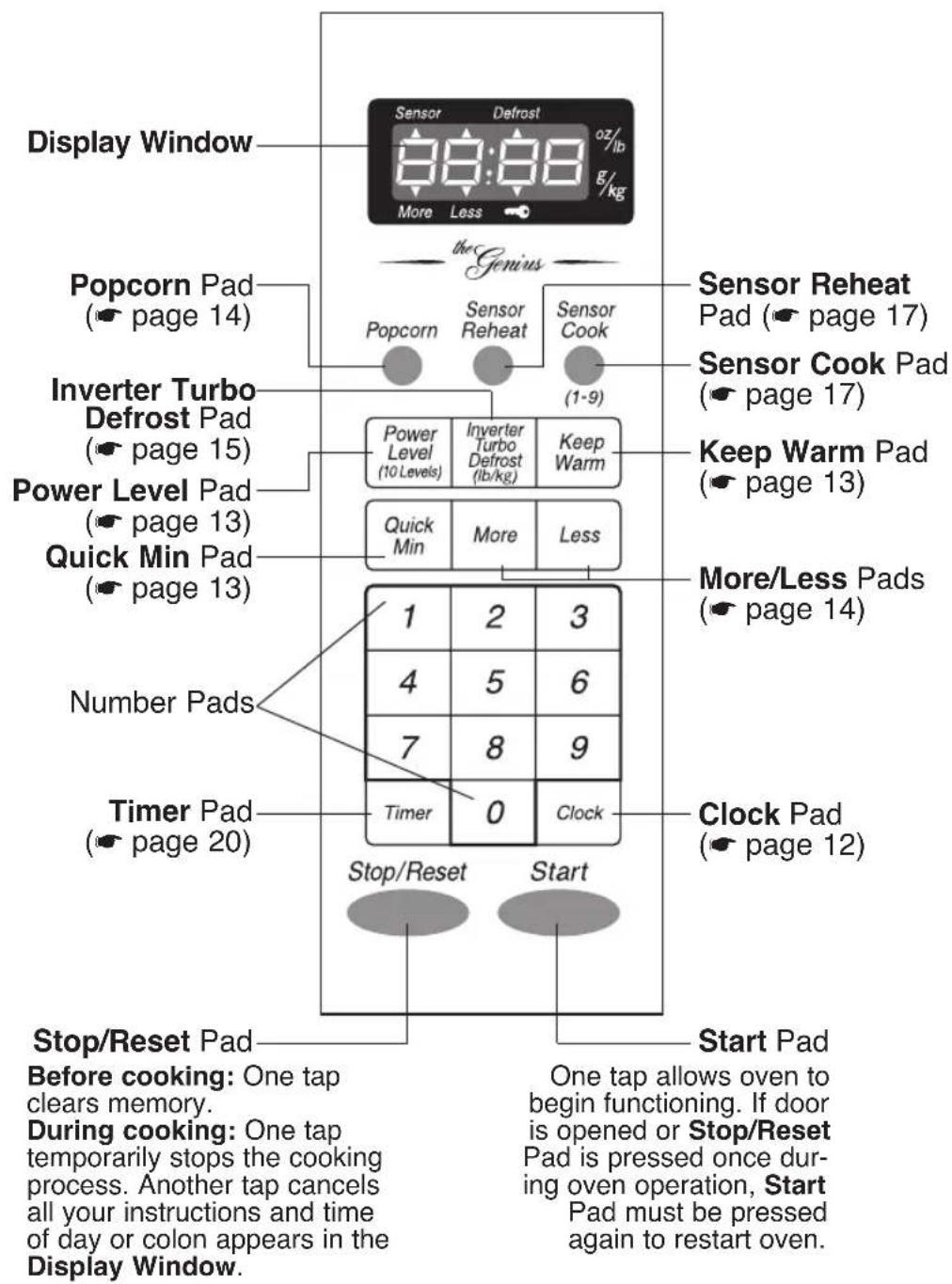

F00037D63CP 2006.2.10 09:15 Page 1211 Control Panel Beep Sound: When a pad is pressed correctly, a beep will be heard. If a pad is pressed and no beep is heard, the unit did not or cannot accept the instruction. When operating, the oven will beep twice between programmed stages. At the end of any complete program, the oven will beep 5 times. Display Window Popcorn Pad (☛ page 14) Power Level Pad (☛ page 13) Timer Pad (☛ page 20) Quick Min Pad (☛ page 13) Stop/Reset Pad Number Pads Inverter Turbo Defrost Pad (☛ page 15) Sensor Reheat Pad (☛ page 17) Keep Warm Pad (☛ page 13) Clock Pad (☛ page 12) More/Less Pads (☛ page 14) Start Pad Sensor Cook Pad (☛ page 17) Before cooking: One tap clears memory. During cooking: One tap temporarily stops the cooking process. Another tap cancels all your instructions and time of day or colon appears in the Display Window. One tap allows oven to begin functioning. If door is opened or Stop/Reset Pad is pressed once dur- ing oven operation, Start Pad must be pressed again to restart oven. F00037D63CP 2006.2.10 09:15 Page 13Child Safety Lock

Setting the Clock Example: To set 11:25 a.m. or p.m.

• Press Clock once. ➤ Colon flashes.

• Enter time of day using the number pads. ➤ Time appears in the display window; colon continues flashing.

• Press Clock. ➤ Colon stops flash- ing; time of day is entered. NOTES:

1. To reset the clock, repeat steps 1-3.

2. The clock will retain the time of day as

long as the oven is plugged in and electricity is supplied.

3. Clock is a 12 hour display.

4. Oven will not operate while colon is

flashing. This feature prevents the electronic oper- ation of the oven until cancelled. It does not lock the door. To Set:

• Press Start 3 times. The indication light appears in the display window. ➤The indication light continues to be displayed until Child Lock is cancelled. Keypads may be pressed but the microwave will not start. To Cancel:

• Press Stop/Reset 3 times. ➤ The display will return to colon or time of day when Child Lock has been cancelled. Starting to Use Your Oven

• Plug into a properly grounded electrical outlet. The oven automatical- ly defaults to the impe- rial measure system (oz/lb).

• Press Start to convert to metric. Verify your selection in the dis- play window.

• Press Stop/Reset. ➤ Colon appears in the display window. Display Window If you wish to use metric system (g/kg): NOTE: You can set the Child Lock feature when the display shows a colon or time of day. F00037D63CP 2006.2.10 09:15 Page 1413 Selecting Power & Cook Time NOTES:

1. For more than one stage cooking, repeat

steps 1 and 2 for each stage of cooking before pressing Start Pad. The maxi- mum number of stages for cooking is 5. When operating, two beeps will sound between each stage. Five beeps will sound at the end of the entire sequence.

2. When selecting P10 (HIGH) power for

the first stage, you may begin at step 2.

3. When selecting P10 (HIGH) power, the

maximum programmable time is 30 min- utes. For other power levels, the maxi- mum time is 99 minutes and 99 sec- onds.

4. For reheating, use P10 (HIGH) for liq-

uids, P7 (MEDIUM-HIGH) for most foods and P6 (MEDIUM) for dense foods.

5. For defrosting, use P3 (MEDIUM-LOW).

DO NOT OVERCOOK. This oven requires less time to cook than an older unit. Overcooking will cause food to dry out and may cause a fire. A microwave oven’s cooking power tells you the amount of microwave power available for cooking. Example: To cook at P 6 (MEDIUM) power for 1 minute 30 seconds

• Press Power Level until the desired power level appears in the display window.

• Set Cooking Time using number pads.

• Press Start. ➤Cooking will start. The time in the display window will count down. Press 5 times. Press once twice 3 times 4 times 5 times 6 times 7 times 8 times 9 times 10 times Power Level P10 (HIGH)

(MEDIUM-LOW)/DEFROST

levels. Select desired power level before setting cooking time.

2. After setting the time by Quick Min

Pad, you cannot use Number Pads.

3. Quick Min Pad can be used to add

more time during manual cooking.

• Press Quick Min until the desired cooking time (up to 10 min- utes) appears in the display window. Power Level is pre-set at P10.

Press Start. Cooking begins and the time will count down. At the end of cooking, 5 beeps sound. Keep Warm Feature This feature will keep food warm for up to 30 minutes after cooking. Example: To keep 2 cups of gravy warm

• Set warming time, up to 30 minutes.

• Press Start. ➤ Keep Warm will start. The time in the display window will count down.

NOTE: Keep Warm can be programmed as the final stage after cook time/s have been manually entered. It cannot be used in combination with sensor or auto features. This feature allows you to set or add cooking time in 1 minute increments up to 10 minutes. To Set Cooking Time: F00037D63CP 2006.2.10 09:15 Page 1514 Popcorn Feature NOTES ON POPCORN FEATURE:

1. Pop one bag at a time.

2. Place bag in oven according to manu-

facturers’ directions.

3. Start with popcorn at room tempera-

4. Allow popped corn to sit unopened for

5. Open bag carefully to prevent burns,

because steam will escape.

6. Do not reheat unpopped kernels or

reuse bag. NOTE: If popcorn is of a different weight than list- ed, follow instructions on popcorn pack- age. Never leave the oven unattended. If popping slows to 2 to 3 seconds between pops, stop oven. Overcooking can cause fire. REMARKS: When popping multiple bags one right after the other, the cooking times may vary slightly. This does not affect the pop- corn results. Example: To pop 3.5 oz. (99 g) of popcorn

• Press Popcorn until the desired size appears in the display window.

(see More/Less Feature.)

• Press Start. ➤ After several seconds, cooking time appears in the display window and begins to count down. Optional Press once Press once twice 3 times Weight

More/Less Feature For Popcorn: By using the More/Less Pad, the pro- grams can be adjusted to cook popcorn for a longer or shorter time if desired. : Adds time : Subtracts time More 1 = Adds Approx. 10 secs. More 2 = Adds Approx. 20 secs. original setting Less 1 = Subtracts Approx. 10 secs. Less 2 = Subtracts Approx. 20 secs. Press More/Less pad before pressing Start. For Sensor Reheat/Cook: Preferences for food doneness vary with each individual. After having used the Sensor Reheat/Cook feature a few times, you may decide you would prefer your food cooked to a different doneness. : Adds time : Subtracts time More 1 = Adds Approx. 10% time original setting Less 1 = Subtracts Approx. 10% time Press More/Less pad before pressing Start.

F00037D63CP 2006.2.10 09:15 Page 1615 Inverter Turbo Defrost Feature This feature allows you to automatically defrost foods such as: meat, poultry and seafood simply by entering the weight. Note: The maximum weight for Inverter Turbo Defrost is 3 kg (6 lb). Place food on microwave safe dish. Example: To defrost 1.5 pounds of meat

• Enter weight of the food using the num- ber pads.

• Press Start. Defrosting will start. The time will count down. Larger weight foods will cause a sig- nal midway through defrosting. If 2 beeps sound, turn over, rearrange foods or shield with aluminum foil. Conversion Chart: Follow the chart to convert ounces or hundredths of a pound into tenths of a pound. To use Inverter Turbo Defrost, enter the weight of the food in lbs. (1.0) and tenths of a lb. (0.1). If a piece of meat weighs 1.95 lbs. or 1 lb. 14 oz., enter 1.9 lbs. Ounces

Hundredths of a Pound .01 - .05 .06 - .15 .16 - .25 .26 - .35 .36 - .45 .46 - .55 .56 - .65 .66 - .75 .76 - .85 .86 - .95 Tenths of a Pound

1. Freeze meats, poultry, and fish in packages with only 1 or 2 layers of food. Place

wax paper between layers.

2. Package in heavy-duty plastic wraps, bags (labeled “For Freezer”), or freezer paper.

3. Remove as much air as possible.

1. Remove wrapper. This helps moisture to evaporate. Juices from food can get hot and

2. Set food in microwave safe dish.

3. Place roasts fat-side down. Place whole poultry breast-side down.

4. Select power and minimum time so that items will be under-defrosted.

5. Drain liquids during defrosting.

6. Turn over (invert) items during defrosting.

7. Shield edges and ends if needed. (See Cooking Techniques).

1. Large items may be icy in the centre. Defrosting will complete during STANDING TIME.

2. Let stand, covered, following stand time directions on page 16.

3. Rinse foods as indicated in the chart.

4. Items which have been layered should be rinsed separately or have a longer stand time.

FOOD TIME at P3 DURING DEFROSTING (min/kg) (min/lb) Stand Time Rinse Fish and Seafood [up to 1.4 kg (3 lbs.)] Crabmeat 12 6 Break apart/Rearrange Fish Steaks 8 to 12 4 to 6 Turn over 5 min. YES Fish Fillets 8 to 12 4 to 6 Turn over/Rearrange/Shield ends Sea Scallops 8 to 12 4 to 6 Break apart/Remove defrosted pieces Whole fish 8 to 12 4 to 6 Turn over Meat Turn over/Remove defrosted Ground Meat 8 to 10 4 to 5 portion/Shield edges 10 min. Roasts 8 to 16 4 to 8 Turn over/Shield ends and 30 min. in refrig. [1.1-1.8 kg (2

-4 lbs.)] defrosted surface Chops/Steak 12 to 16 6 to 8 Turn over/Rearrange/Shield ends and defrosted surface Ribs/T-bone 12 to 16 6 to 8 Turn over/Rearrange/Shield ends and defrosted surface 5 min. NO Stew Meat 8 to 16 4 to 8 Break apart/Rearrange/ Remove defrosted pieces Liver (thinly sliced) 8 to 12 4 to 6 Drain liquid/Turn over/ Separate pieces Bacon (sliced) 8 4 Turn over - - - - Poultry Chicken, Whole 8 to 12 4 to 6 Turn over/Shield 20 min. in refrig. [up to 1.4 kg (3 lbs.)] Cutlets 8 to 12 4 to 6 Break apart/Turn over/ Remove defrosted Pieces 5 min. YES Pieces 8 to 12 4 to 6 Break apart/Turn over/Shield Cornish Hens 12 to 16 6 to 8 Turn over/Shield 10 min. Turkey Breast 12 6 Turn over/Shield 20 min. in refrig. [2.3-2.7 kg (5-6 lbs.)] Defrosting Tips & Technique

(continued) F00037D63CP 2006.2.10 09:15 Page 1817 NOTE: Casseroles - Add 3 to 4 tablespoons of liquid, cover with lid or vented plastic wrap. Stir when time appears in the display window. Canned foods - Empty contents into casse- role dish or serving bowl, cover dish with lid or vented plastic wrap. After reheating, let stand for a few minutes. Plate of food - Arrange food on plate; top with butter, gravy, etc. Cover with lid or vented plastic wrap. After reheating, let stand for a few minutes. DO NOT USE SENSOR REHEAT:

1. To reheat bread and pastry products. Use

manual power and time for these foods.

2. For raw or uncooked foods.

3. If oven cavity is warm.

5. For frozen foods.

This sensor feature allows you to reheat cooked, refrigerated food without setting time. The oven simplifies programming. This sensor feature allows you to cook food without setting time. The oven sim- plifies programming. BEFORE Reheating/Cooking:

1. The room temperature surrounding the

oven should be below 35° C (95° F).

2. Food weight should exceed 110 g (4 oz.).

3. Be sure the glass tray, the outside of the

cooking containers and the inside of the microwave oven are dry before placing food in the oven. Residual beads of mois- ture turning into steam can mislead the sensor.

4. Cover food with lid, or with vented plastic

wrap. Never use tightly sealed plastic containers—they can prevent steam from escaping and cause food to overcook. DURING Reheating/Cooking: DO NOT open the oven door until 2 beeps sound and cooking time appears on the Display Window. Doing so will cause inac- curate cooking since the steam from food is no longer contained within the oven cavity. Once the cooking time begins to count down, the oven door may be opened to stir, turn, or rearrange foods. AFTER Reheating/Cooking: All foods should have a stand time. Example: To reheat a plate of food

(see More/Less Feature) (☛page 14)

• Press Start. ➤ Cooking starts. Cooking is complete when 5 beeps sound. (When steam is detected by the Genius Sensor and 2 beeps sound, the remaining cooking time will appear in the display window.) Optional For the best results with the GENIUS SENSOR, follow these rec- ommendations. Example: To cook Frozen Entrées

• Press Sensor Cook until the desired food number appears on the display window. Press 4 times Sensor Reheat Feature Sensor Cook Feature Automatic features are provided for your convenience. If results are not suitable to your indi- vidual preference or if serving size is other than what is listed on page 18, please refer to page 13 for manual cooking.

• Press Start. ➤ Cooking starts. Cooking is complete when 5 beeps sound. (When steam is detected by the Genius Sensor and 2 beeps sound, the remaining cooking time will appear in the display window.)

(see More/Less Feature) (☛page 14) Optional

1. Oatmeal 40 -80 g Place inside a microwave safe serving bowl with

(0.5 - 1 cup) no cover. Follow manufacturers’ directions for preparation.

2. Breakfast Sausage 2 - 8 links Follow manufacturers' directions for preparation

of pre-cooked breakfast sausage. Place in a radial pattern.

3. Omelette 2, 4 eggs Follow Basic Omelette recipe on page 19.

4. Frozen Entrées 225 - 900 g Follow manufacturers' directions for preparation.

(8 - 32 oz.) After 2 beeps, stir or rearrange. Be careful when removing the film cover after cooking. Remove facing away from you to avoid steam burns. If additional time is needed, continue to cook manually.

5. Frozen Pizza 225 g Follow manufacturers' directions for preparation.

(single) (8 oz.) Add more cooking time if needed.

6. Potatoes 1-4 potatoes Pierce each potato with a fork 6 times spacing

(170 - 225 g) around surface. Place potato or potatoes around the (6 - 8 oz. each) edge of paper-towel-lined glass tray (Turntable), at least 2.5 cm (1-inch) apart. Do not cover. Turn over after 2 beeps. Let stand 5 minutes to complete cooking.

7. Fresh Vegetables 110 - 450 g All pieces should be the same size. Wash thoroughly,

/2 cup of vegetables, and cover with lid or vented plastic wrap. Do not salt/butter until after cooking.

/2 cup of (6 - 16 oz.) vegetables, and cover with lid or vented plastic wrap. Do not salt/butter until after cooking. (Not suitable for vegetables in butter or sauce.) After 2 beeps, stir or rearrange.

9. Pasta 56 - 225 g Place pasta with hot tap water in a microwave safe

(2 - 8 oz.) casserole dish. Cover with lid or vented plastic wrap. F00037D63CP 2006.2.10 09:15 Page 2019 Microwave Recipes OMELETTE Basic Omelette 1 tablespoon butter or margarine 2 eggs 2 tablespoons milk salt and ground black pepper, if desired Heat butter in a microwave safe 22.5 cm (9- inch) pie plate, 20 seconds at P10, or until melted. Turn the plate to coat the bottom with butter. Meanwhile, combine the remain- ing ingredients in a separate bowl, beat together and pour into the pie plate. Cover with vented plastic wrap, using OMELETTE selection. Let stand 2 minutes. With a spatula, loosen the edges of the omelet from the plate, fold into thirds to serve. Always use scrambled eggs. Yield: 1 serving NOTE: Double ingredients for a 4 egg Omelet. (Cook at P6 power for 5 minutes.) CASSEROLE Shepherd’s Pie 450 g (1pound) lean ground beef

teaspoon curry powder

teaspoon ground black pepper 2 cups mashed potatoes In a 2-Qt. casserole dish, crumble the ground beef and cook for 5-7 minutes at P6 or until the meat is cooked, stirring twice. Add the remaining ingredients, except for potatoes. Stir well, and then spread the potatoes evenly on the top. Cover with a lid or vented plastic wrap and cook at P6 power for 16-18 minutes. Yield: 4 servings Macaroni and Cheese

/4 cup butter 2 tablespoons chopped onion 1 clove minced garlic

4 cup all-purpose flour 1 teaspoon dry mustard 1 teaspoon salt

/4 teaspoon ground black pepper 2 cups milk 2 cups grated cheddar cheese 225 g (8 oz.) (dry weight) macaroni, cooked and drained

/3 cup bread crumbs 1 teaspoon paprika In a 2-Qt. casserole dish, melt the butter for 40 seconds at P10. Add onion and garlic and cook for 1 minute at P10. Stir in flour, mustard, salt and pepper, and gradually add the milk. Cook for 3-4 minutes at P10 until sauce thickens, stirring once. Add the cheddar cheese, stirring thoroughly. Pour and stir the sauce into the macaroni, in a 3- Qt. casserole.Top with bread crumbs and paprika. Cover with lid or vented plastic wrap. Cook at P6 power for 16-18 minutes. Yield: 6 servings Beef and Macaroni Casserole 450 g (1 pound) lean ground beef 1 small onion, chopped

/4 cups water 1 cup uncooked elbow macaroni 1 teaspoon parsley

/4 teaspoon ground black pepper

/2 cup grated cheddar cheese Crumble the ground beef in a 3-Qt. casserole. Cook for 5-7 minutes at P6 or until the meat is cooked, stirring twice. Stir in onion, peppers and celery. Cook for 3-4 minutes at P10. Stir in the remaining ingredients, except cheese. Cover with lid or vented plastic wrap. Cook at P6 power for 16-18 minutes. Sprinkle with cheese. Cover and let stand 5 minutes. Yield: 4-6 servings Tuna Casserole 1 170 g (6 oz.) can tuna, drained and flaked 4 cups cooked and drained noodles 1 300 g (10

oz.) can condensed cream of mushroom soup 1 110 g (4 oz.) can mushroom pieces and stems, drained 1 450 g (16 oz.) package frozen peas, defrosted

/4 cup milk 1 cup crushed potato chips

/2 cup grated cheddar cheese In a 3-Qt. casserole, combine tuna, noodles, soup, mushrooms, peas and milk; mix well. Cover with lid or vented plastic wrap. Cook at P6 power for 16-18 minutes. Top with potato chips and cheese before serving. Yield: 4-6 servings F00037D63CP 2006.2.10 09:15 Page 2120 Timer Feature NOTE:

1. When each stage finishes, a two-beep

signal sounds. At the end of the pro- gram, the oven will beep five times.

2. If the oven door is opened during

Stand Time, Kitchen Timer or Delay Time, the time on the display will con- tinue to count down.

3. Stand time and Delay start cannot be

programmed before any automatic Function. This is to prevent the starting temperature of food from rising before defrosting or cooking begins. A change in starting temperature could cause inaccurate results. CAUTION: If oven lamp is lit while using the timer feature, the oven is incorrectly pro- grammed. Stop oven immediately and re-read instructions. This feature allows you to program the oven as a kitchen timer. It can also be used to program a standing time after cooking is completed and/or to program a delay start. To Use as a Kitchen Timer: Example: To count down 5 minutes.

• Set desired amount of time using number pads (up to 99 minutes and 99 seconds).

• Press Start. ➤ Time will count down without oven operating. To Set Stand Time: Example: To cook at P6 power for 3 minutes, with stand time of 5 minutes.

• Enter the desired Power Level (see page 13 for directions). Set desired cooking time using number pads.

• Set desired amount of Stand Time using number pads (up to 99 minutes and 99 seconds).

• Press Start. ➤ Cooking will start. After cooking, stand time will count down without oven operating. Press 5 times To Set Delay Start: Example: To delay the start of cooking for 5 minutes, and cook at P6 power for 3 minutes.

• Enter the desired Power Level (see page 13 for directions). Set desired cooking time using number pads.

• Enter desired amount of delay time using number pads (up to 99 minutes and 99 seconds).

(in mins.) To separate refrigerated P10 (High) 30 sec. Remove wrapper and place in microwave Bacon, safe dish. After heating, use a plastic 450 g (1 pound) spatula to separate slices. To soften Brown Sugar P10 (High) 20 - 30 sec. Place brown sugar in microwave safe dish 1 cup (250 ml) with a slice of bread. Cover with lid or plastic wrap. To soften refrigerated Butter, P3 (MED-LOW) 1 Remove wrapper and place butter in a 1 stick, 110 g (

/4 pound) microwave safe dish. To melt refrigerated Butter, P6 (MEDIUM) 1

/2 - 2 Remove wrapper and place butter in a 1 stick, 110 g (

/4 pound) microwave safe dish covered with lid or vented plastic wrap. To melt Chocolate, P6 (MEDIUM) 1 - 1

Remove wrapper and place chocolate 1 square, 28 g (1 oz.) in a microwave safe dish. After heating, stir To melt Chocolate, P6 (MEDIUM) 1 - 1

/2 until completely melted. Note: Chocolate

cup (125 ml) chips holds its shape even when softened. To toast Coconut, P10 (High) 1 Place in a microwave safe dish.

cup (125 ml) Stir every 30 seconds. To soften Cream Cheese, P3 (MED-LOW) 1 - 2 Remove wrapper and place in a 225 g (8 oz.) microwave safe bowl. To brown Ground Beef, P10 (High) 4 - 5 Crumble into a microwave safe colander 450 g (1 pound) set into another dish. Cover with plastic wrap. Stir twice. Drain grease. To cook Vegetables, Fresh P8 3

/2 - 4 All pieces should be the same size. Wash (225 g) thoroughly, add 1 tbsp of water per

/2 lb) of vegetables, and cover with lid or vented plastic wrap. Do not salt/butter until after cooking. Frozen P8 3

/2 - 4 Wash thoroughly, add 1 tbsp of water per (285 g)

/2 cup of vegetables, and cover with lid or (10 oz) vented plastic wrap. Do not salt/butter until after cooking. (Not suitable for vegetables in butter or sauce.) Canned P8 3

/2 - 4 Empty contents into microwave safe serving (430 g) bowl. Cover with lid or vented plastic wrap. (15 oz) F00037D63CP 2006.2.10 09:15 Page 2322 Microwave Shortcuts (continued)

FOOD POWER TIME DIRECTIONS

(in mins.) To cook baked Potato, Pierce each potato with a fork 6 times (170 - 225 g) spacing around surface. Place potato or (6 - 8 oz. each) potatoes around the edge of paper-towel- 1P83

/2 - 4 lined glass tray (Turntable), at least 2.5 cm (1-inch) apart. Do not cover. Let stand 5 2 P8 6 - 7 minutes to complete cooking. To steam Hand Towels - 4 P10 (High) 20 - 30 sec. Soak in water, then wring out excess. Place on a microwave safe dish. Heat. Present immediately. To soften Ice Cream, P3 (MED-LOW) 1 - 1

/2 Check often to prevent melting. 2 qt. (

/2 gallon) Cup of liquid To boil water, broth, etc. P10 (High) 1 cup, 250 ml (8 oz.) 1

/2 - 3 Do not heat liquids in microwave oven without stirring before heating. Cup of liquid To warm Beverage, P7 (MED-HIGH) 1 cup, 250 ml (8 oz.) 1

/2 - 3 To roast Nuts, P10 (High) 3 - 4 Spread nuts into a 23 cm (9-inch)

/2 cups (375 ml) microwave safe pie plate. Stir occasionally. To toast Sesame Seeds, P10 (High) 2 - 2

/2 Place in a small microwave safe bowl.

cup (60 ml) Stir twice. To skin Tomatoes, P10 (High) 30 sec. Place tomato into a microwave safe bowl (one at a time) containing boiling water. Rinse and peel. Repeat for each tomato. To remove Cooking Odours P10 (High) 5 Combine 1 to 1

cups (250 - 375 ml) water with the juice and peel of one lemon in a 2 quart microwave safe bowl. After water finishes boiling, wipe interior of oven with a cloth. F00037D63CP 2006.2.10 09:15 Page 2423 Food Characteristics Cooking Techniques Bone and Fat Both bone and fat affect cook- ing. Bones may cause irregu- lar cooking. Meat next to the tips of bones may overcook while meat positioned under a large bone, such as a ham bone, may be under- cooked. Large amounts of fat absorb microwave energy and the meat next to these areas may overcook. Density Porous, airy foods such as breads, cakes or rolls take less time to cook than heavy, dense foods such as potatoes and roasts. When reheating donuts or other foods with different centres be very care- ful. Certain foods have centres made with sugar, water, or fat and these centres attract microwaves (for example, jelly donuts). When a jelly donut is heated, the jelly can become extremely hot while the exterior remains warm to the touch. This could result in a burn if the food is not allowed to cool properly in the centre. Quantity Two potatoes take longer to cook than one potato. As the quantity of the food decreases so does the cooking time. Overcooking will cause the moisture content in the food to decrease and a fire could result. Never leave microwave unattended while in use. Shape Uniform sizes heat more evenly. The thin end of a drumstick will cook more quickly than the meaty end. To compensate for irregular shapes, place thin parts toward the centre of the dish and thick pieces toward the edge. Size Thin pieces cook more quickly than thick pieces. Starting Temperature Foods that are at room temperature take less time to cook than if they are chilled, refrigerated, or frozen. Piercing Foods with skins or mem- branes must be pierced, scored or have a strip of skin peeled before cook- ing to allow steam to escape. Pierce clams, oysters, chicken livers, whole potatoes and whole vegetables. Whole apples or new potatoes should have a 1-inch strip of skin peeled before cooking. Score sausages and frankfurters. Do not Cook/Reheat whole eggs with or without the shell. Steam built up in whole eggs may cause them to explode, and possibly damage the oven or cause injury. Reheating SLICED hard-boiled eggs and cooking SCRAMBLED eggs is safe. Browning Foods will not have the same brown appearance as conventionally cooked foods or those foods which are cooked utilizing a browning feature. Meats and poultry may be coated with browning sauce, Worcestershire sauce, barbecue sauce or shake-on browning sauce. To use, com- bine browning sauce with melted butter or margarine and brush on before cooking. For quick breads or muffins, brown sugar can be used in the recipe in place of granulated sugar, or the surface can be sprinkled with dark spices before baking. Spacing Individual foods, such as baked potatoes, cupcakes and appetizers, will cook more evenly if placed in the oven equal distances apart. When possible, arrange foods in a circular pattern. F00037D63CP 2006.2.10 09:15 Page 2524 Cooking Techniques (continued) Covering As with conventional cooking, moisture evaporates during microwave cooking. Casserole lids or plastic wrap are used for a tighter seal. When using plastic wrap, vent the plastic wrap by folding back part of the plastic wrap from the edge of the dish to allow steam to escape. Loosen or remove plastic wrap as recipe directs for stand time. When removing plastic wrap covers, as well as any glass lids, be careful to remove them away from you to avoid steam burns. Various degrees of moisture retention are also obtained by using wax paper or paper towels. Shielding Thin areas of meat and poultry cook more quickly than meaty portions. To prevent overcooking, these thin areas can be shield- ed with strips of aluminum foil. Wooden toothpicks may be used to hold the foil in place. CAUTION is to be exercised when using foil. Arcing can occur if foil is too close to oven wall or door and damage to your oven will result. Cooking time A range of cooking time is given in each recipe. The time range compensates for the uncontrollable differences in food shapes, starting temperature, and regional prefer- ences. Always cook food for the minimum cooking time given in a recipe and check for doneness. If the food is undercooked, con- tinue cooking. It is easier to add time to an undercooked product. Once the food is overcooked, nothing can be done. Stirring Stirring is usually necessary during microwave cooking. Always bring the cooked outside edges toward the centre and the less cooked centre portions toward the outside of the dish. Rearranging Rearrange small items such as chicken pieces, shrimp, hamburger patties, or pork chops. Rearrange pieces from the edge to the centre and pieces from the centre to the edge of the dish. Turning It is not possible to stir some foods to dis- tribute the heat evenly. At times, microwave energy will concentrate in one area of the food. To help ensure even cooking, these foods need to be turned. Turn over large foods, such as roasts or turkeys, halfway through cooking. Stand Time Most foods will continue to cook by conduc- tion after the microwave oven is turned off. In meat cookery, the internal temperature will rise 3°C to 8°C (5°F to 15°F), if allowed to stand, tented with foil, for 10 to 15 min- utes. Casseroles and vegetables need a shorter amount of standing time, but this standing time is necessary to allow foods to complete cooking to the centre without over- cooking on the edges. Test for Doneness The same tests for doneness used in con- ventional cooking may be used for microwave cooking. Meat is done when fork-tender or splits at fibers. Chicken is done when juices are clear yellow and drumstick moves freely. Fish is done when it flakes and is opaque. Cake is done when a toothpick or cake tester is inserted and comes out clean.

ABOUT FOOD SAFETY AND

• Check foods to see that they are cooked at the recommended temperatures. TEMP FOOD 71˚C (160˚F) ...for fresh pork, ground meat, boneless white poultry, fish, seafood, egg dishes and frozen prepared food. 74˚C (165˚F) ...for leftover, ready-to-reheat refrigerated, and deli and carryout “fresh” food. 77˚C (170˚F) ...white meat of poultry. 82˚C (180˚F) ...dark meat of poultry. To test for doneness, insert a meat ther- mometer in a thick or dense area away from fat or bone. NEVER leave the thermometer in the food during cooking, unless it is approved for microwave oven use. F00037D63CP 2006.2.10 09:15 Page 2625 Before Requesting Service These things are normal: The oven causes Some radio and TV interference might occur when you cook interference with with the microwave oven. This interference is similar to the my TV. interference caused by small appliances such as mixers, vacuums, blow dryers, etc. It does not indicate a problem with your oven. Steam accumulates During cooking, steam and warm air are given off from the on the oven door and food. Most of the steam and warm air are removed from the warm air comes from oven by the air which circulates in the oven cavity. However, the oven vents. some steam will condense on cooler surfaces such as the oven door. This is normal. After use, the oven should be wiped dry (see page 9). The oven is not plugged in Remove plug from outlet, wait securely. 10 seconds and re-insert. Circuit breaker or fuse is Reset circuit breaker or replace tripped or blown. fuse. There is a problem with the Plug another appliance into the outlet. outlet to check if it is working. The door is not closed Close the oven door securely. completely. Start Pad was not pressed Press Start Pad. after programming. Another program is already Press Stop/Reset Pad to cancel entered into the oven. the previous program and enter new program. The program is not correct. Program again according to the Operating Instructions. Stop/Reset Pad has been Program oven again. pressed accidentally. The Glass Tray is not Take out Glass Tray and Roller positioned properly on the Ring. Wipe with a damp cloth and Roller Ring or there is food reset Roller Ring and Glass Tray under the Roller Ring. properly. The Roller Ring and oven Clean these parts according to bottom are dirty. Care and Cleaning of your Microwave Oven (see page 9). The CHILD LOCK was Deactivate LOCK by pressing activated by pressing Stop/Reset pad 3 times. Start pad 3 times. Oven will not turn on. Oven will not start cooking. The Glass Tray wobbles. When the oven is operating, there is noise coming from the glass tray. The indication light appears in the Display Window.

PROBLEM POSSIBLE CAUSE REMEDY

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect for a period as stated below from the date of original purchase. Microwave Oven: Two (2) years, parts and labour (Carry-in Service). Additional three (3) year warranty on the magnetron (parts only, labour extra). In-home Service applies to convection, over-the-range and stainless steel ovens. In-home Service will be carried out only to locations accessible by roads and within 50 km of an authorized Panasonic service facility. LIMIT

ATIONS AND EXCLUSIONS

This warranty does not apply to products purchased outside Canada or to any product which has been improperly installed, subjected to usage for which the product was not designed, misused or abused, damaged during shipping, or which has been altered or repaired in any way that affects the reliability or detracts from the performance, nor does it cover any product which is used commercially. Dry cell batteries are also excluded from coverage under this warranty. This warranty is extended to the original end user purchaser only. A purchase receipt or other proof of date of original purchase is required before warranty service is performed. THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MER- CHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES. In certain instances, some jurisdictions do not allow the exclusion or limitation of inciden- tal or consequential damages, or the exclusion of implied warranties, so the above limita- tions and exclusions may not be applicable.

oronto Panasonic Canada Inc. 5770 Ambler Drive Mississauga ON L4W 2T3 Tel: (905) 624-8447 Fax: (905) 238-2418 IF YOU SHIP THE PRODUCT TO A SERVICENTRE Carefully pack and send prepaid, adequately insured and preferably in the original carton. Include details of the defect claimed, and proof of date of original purchase. F00037D63CP 2006.2.10 09:15 Page 2827

QUICK GUIDE TO OPERATION

Feature To set Clock (☛ page 12) How to Operate Thru Thru Thru Thru Thru Press once. Enter time of day. Press once. To set Power and Time (☛ page 13) To Use Child Safety Lock (☛ page 12) Press to select Power Level. Set cooking time. Press. To defrost using Inverter Turbo Defrost (☛ page 15) Press once. Set weight. Press. To use as a Kitchen Timer (☛ page 20) Press once. Set time. Press. To set Stand Time (☛ page 20) Press once. Set time. Press. To reheat using Sensor Reheat (☛ page 17) Press once. Optional. Press. To cook using Popcorn (☛ page 14) Select weight. Optional. Press. To cook using Quick Min (☛ page 13) (up to 10 min.) Press. To use Keep Warm (☛ page 13) Press once. Set keep warm time. (up to 30 min.) Press. To cook using Sensor Cook (☛ page 17) Press to select food number. Optional. Press.

Input up to 4-stage cooking programs. To set Delay Start (☛ page 20) Press once. Set time. Press.

Input up to 4-stage cooking programs. Press 3 times. Press 3 times. To Set: To Cancel:

Thru Thru F00037D63CP 2006.2.10 09:15 Page 2928 User’s Record Specifications Power Source: Power Consumption: Cooking Power:* Outside Dimensions (H x W x D): Oven Cavity Dimensions (H x W x D): Operating Frequency: Net Weight: Trim Kit: Trim Kit Cabinet Opening: NN-H665/SN676 120 V, 60 Hz 1,480 W 1,200 W 301 mm x 518 mm x 402 mm (11

/16") 2,450 MHz Approx. 10.7 kg (23 lbs) NN-TK529WAPH (White) NN-TK529BAPH (Black) NN-TK529SAPH (Stainless) 685 mm x 419 mm (27" x 16
