USER MANUAL Pavilion PL4200N HP

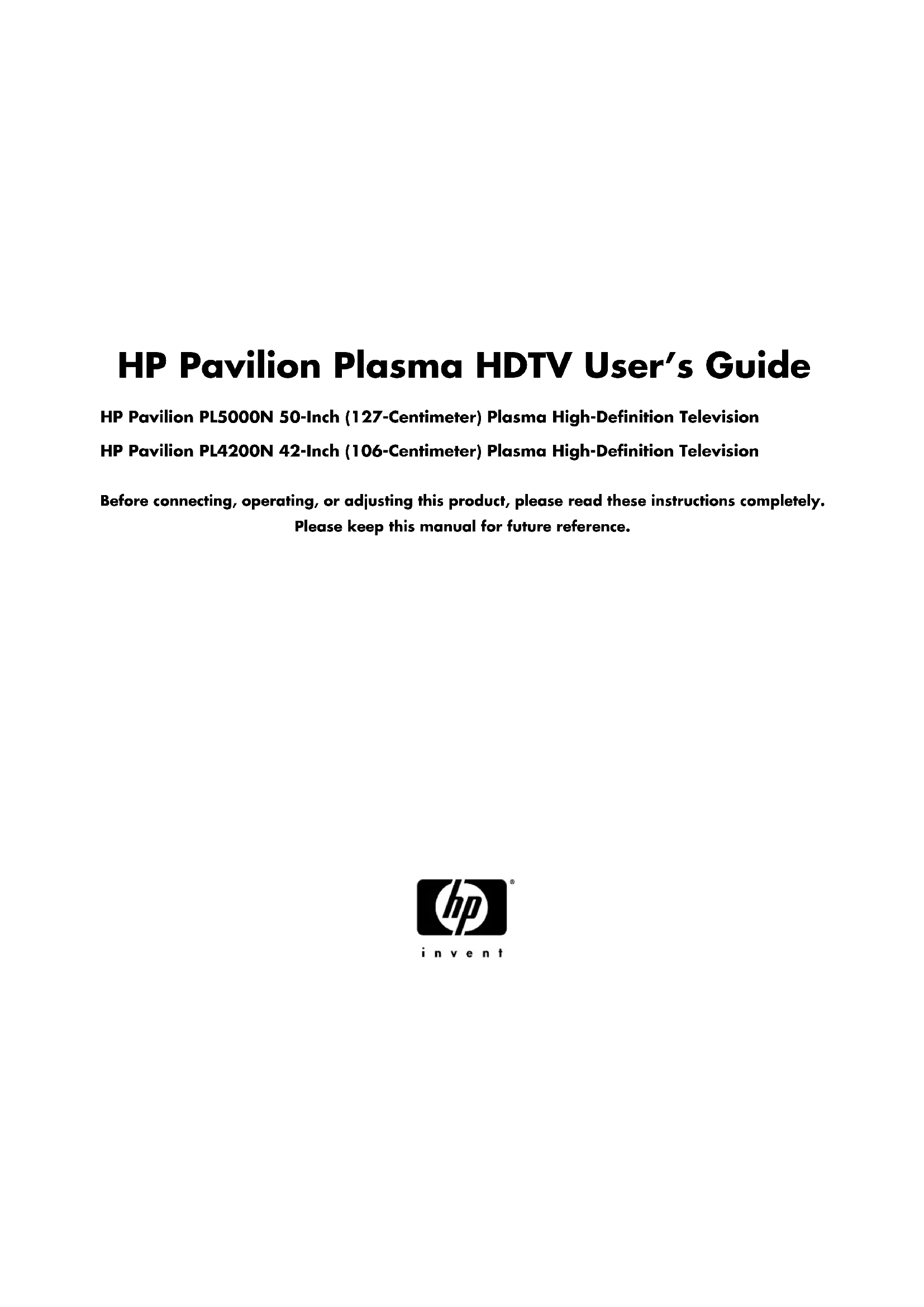

HP Pavilion Plasma HDTV User's Guide

HP Pavilion PL5000N 50-Inch (127-Centimeter) Plasma High-Definition Television

HP Pavilion PL4200N 42-Inch (106-Centimeter) Plasma High-Definition Television

Before connecting, operating, or adjusting this product, please read these instructions completely. Please keep this manual for future reference.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

HP assumes no responsibility for the use or reliability of its software on equipment that is not furnished by HP.

This document contains proprietary information that is protected by copyright. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of HP.

Hewlett-Packard Company

P.O.Box 4010

Cupertino, CA 95015-4010

USA

Copyright © 2005 Hewlett-Packard Development Company, L.P.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

SD logo is a trademark.

BBE and BBE symbol are registered trademarks of BBE Sound, Inc.

CableCard is a trademark of Cable Television Laboratories, Inc.

HP supports lawful use of technology and does not endorse or encourage the use of our products for purposes other than those permitted by copyright law.

The information in this document is subject to change without notice.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

WARNING: To reduce the risk of electric shock, do not remove cover or back. No user-serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrow-head within a triangle is intended to tell the user that parts inside the product are a risk of electric shock to persons.

The exclamation point within a triangle is intended to tell the user that important operating and servicing instructions are included with this user's guide.

WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Do not place liquid containers (flower vase, cups, cosmetics, etc.) above the set (including on shelves above, etc.).

WARNING: 1) To prevent electric shock, do not remove cover. No user-serviceable parts inside. Refer servicing to qualified service personnel.
2) Do not remove the grounding pin on the power plug. This apparatus is equipped with a three-pin grounding-type power plug. This plug will only fit a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician. Do not defeat the purpose of the grounding plug.

Note:

Do not allow a still picture to be displayed for an extended period, as this can cause a permanent afterimage to remain on the Plasma Television. Examples of still pictures include logos, video games, computer images, teletext, and images displayed in 4:3 mode.

DO DOLBY DIGITAL	Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbols are trademarks of Dolby Laboratories.
HDMI®	HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
License description: To view the license information for software used in this product, press the Menu button and select Set up, About, License. (See "About" on page 54.)
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision Corporation and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. U.S. Patents Nos. 4,631,603; 4,577,216; 4,819,098; 4,907,093; 6,381,747; and 6,516,132.
SD logo is a trademark.
Manufactured under license from BBE Sound, Inc.
Licensed by BBE Sound, Inc., under USP 5510752, and 5736897.
BBE and BBE symbol are registered trademarks of BBE Sound, Inc.
CableCARD™ CableCard is a trademark of Cable Television Laboratories, Inc.

Important Safety Instructions

1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with a dry cloth.
7 Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatuses (including amplifiers) that produce heat.
9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding-prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11 Only use attachments/accessories specified by the manufacturer.
12 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13 Unplug this apparatus during lightning storms or when unused for long periods of time.
14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15 To prevent electric shock, ensure the grounding pin on the AC cord power plug is securely connected.

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
■Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
■Consult HP or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Caution:

To assure continued compliance and reduce possible undesirable interference, the provided ferrite cores must be used when connecting this plasma television to video equipment; maintain at least 40~cm spacing to other peripheral devices. Refer to instructions:

"Attaching the ferrite core" on page 8.

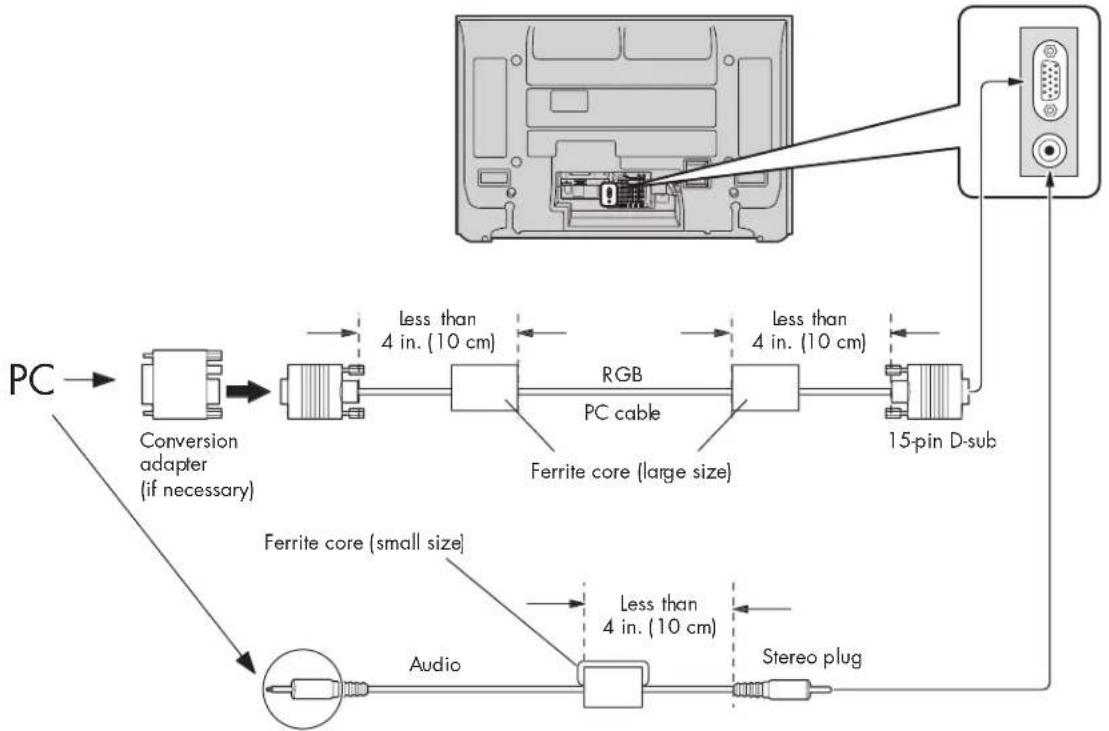

"Connecting a PC" on page 17.
"TV Front Panel" on page 19.

Any changes or modifications not expressly approved by responsible party may cause harmful interference and could void the user's authority to operate this device.

RESPONSIBLE PARTY:

Hewlett-Packard Company

Digital TV Solutions

Attn: Product Regulations Manager

10435 N. Tantau Avenue

CAC 07, MS 4295

Cupertino, CA 95014

USA

CANADIAN NOTICE:

This Class B digital apparatus complies with Canadian ICES-003.

Regulatory and Safety Information

WARNING: The TV is heavy; be sure to use ergonomically correct lifting procedures when moving the TV.

Additional safety information

This product has not been evaluated for connection to an "IT" power system (an AC distribution system with no direct connection to earth, according to IEC 60950).

AC Power Safety Warning

WARNING: Install the TV near an AC outlet. The AC power cord is your main AC disconnecting device and must be easily accessible at all times. For your safety, the power cord provided with your TV has a grounded plug. Always use the power cord with a properly grounded wall outlet, to avoid the risk of electrical shock.

WARNING: Do not operate the TV with the cover removed.

WARNING: The TV is not user serviceable. To prevent damage to the TV, have a qualified person repair or replace it.

TV Antenna Connectors Protection

External television antenna grounding

If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is electrically grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper

Lightning Protection

For added protection of any product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug the product from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product from lightning and power line surges.

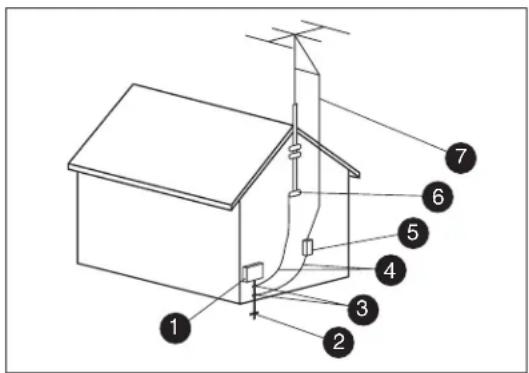

Antenna Grounding

Antenna Grounding

Reference	Grounding Component
1	Electric Service Equipment
2	Power Service Grounding Electrode System (NEC Art 250, Part H)
3	Ground Clamps
4	Grounding Conductors (NEC Section 810-21)
5	Antenna Discharge Unit (NEC Section 810-20)
6	Ground Clamp
7	Antenna Lead in Wire

WARNING: For your safety, always unplug the TV from its power source and from any telecommunications systems (such as CATV, SAT, or any other peripheral) before performing any service procedures. Failure to do so may result in personal injury or equipment damage. Hazardous voltage levels are inside the TV.

electrical grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna-discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

Power lines

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits.

WARNING: When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them could be fatal.

Dear HP Customer

Welcome to the HP family of customers. We hope that you will have many years of enjoyment from your new Plasma TV.

To obtain maximum benefit from your set, read these instructions before making any adjustments, and retain them for future reference.

Retain your purchase receipt, and record the product number and serial number of your set in the space provided on the last page of these instructions.

Table of Contents

Important Safety Instructions .iv

FCC Statement.

Regulatory and Safety Information

Safety Precautions 1

Cleaning and Maintenance 3

Accessories 4

Attaching the Pedestal 5

Assembling and Setting Up the TV 51

Installing 7

Receiver Location. 7

Optional External Equipment 7

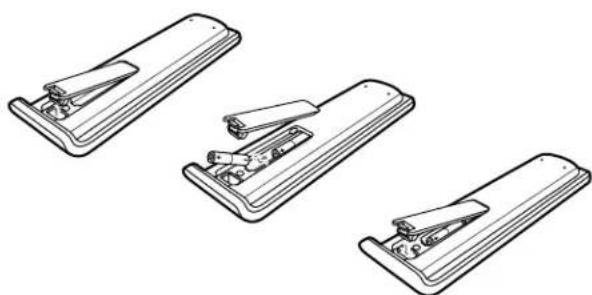

Installing Remote Control Batteries 7

Installing Cable Binding 8

Connecting 9

Connecting the Antenna. 9

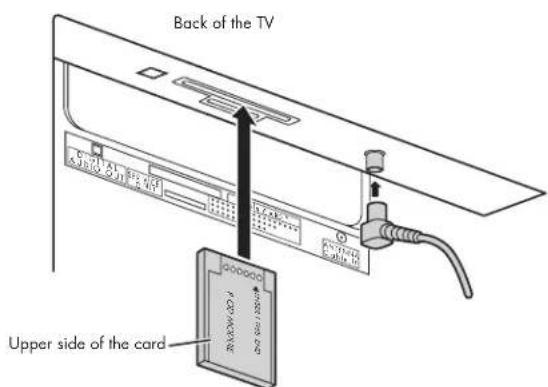

Connecting the CableCard 10

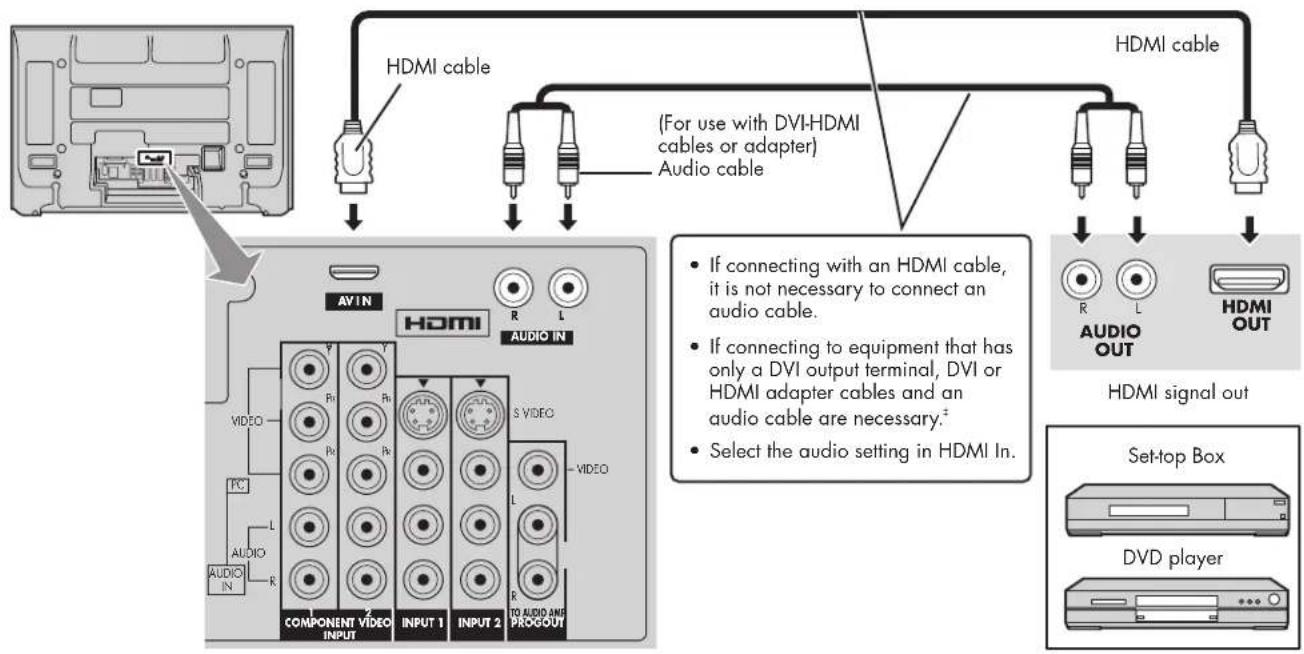

Connecting HDMI. 11

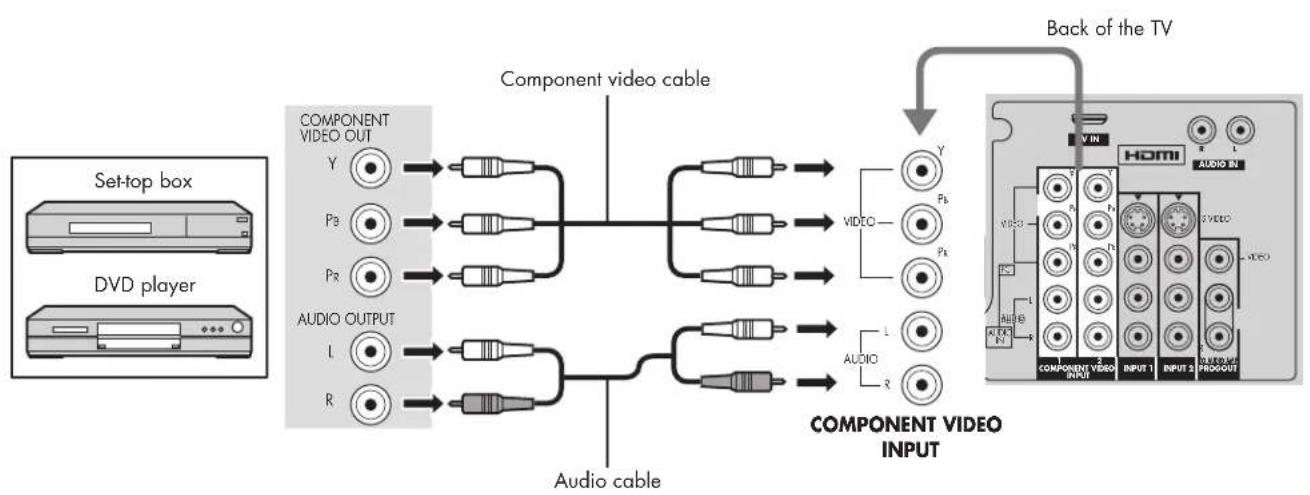

Connecting a Set-top Box or DVD. 13

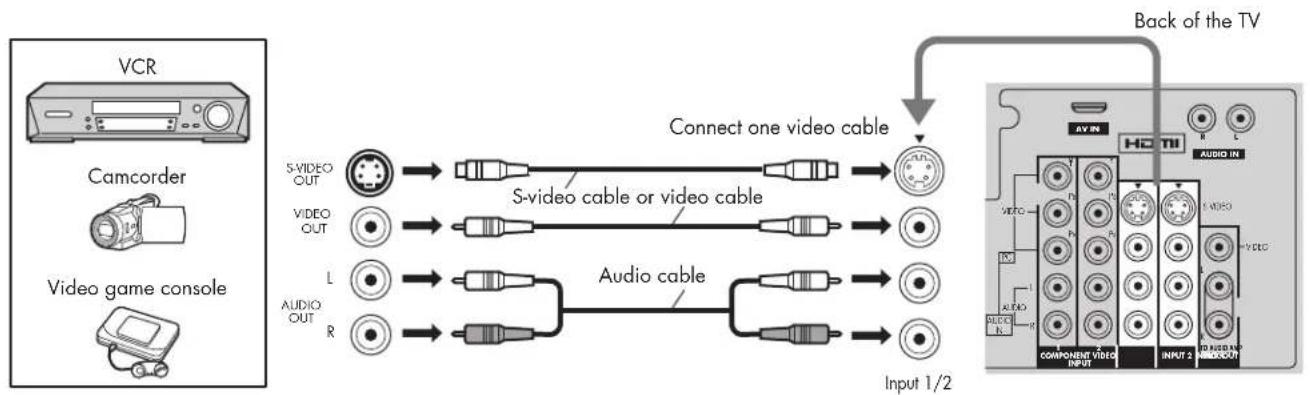

Connecting the Video Input. 14

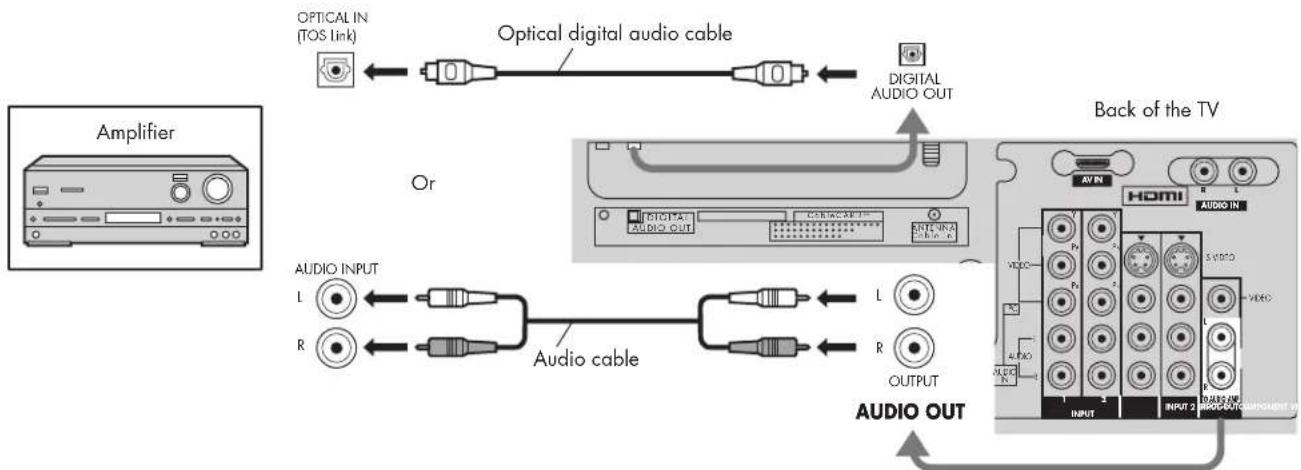

Connecting the Amplifier. 15

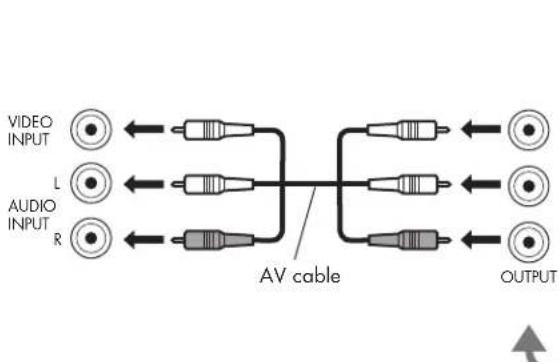

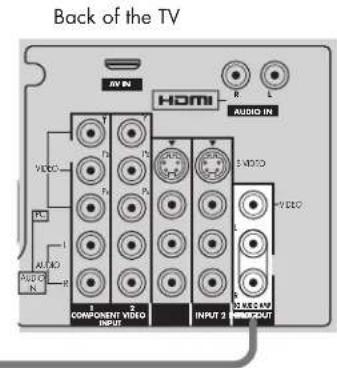

Connecting Program Out. 16

Connecting a PC 17

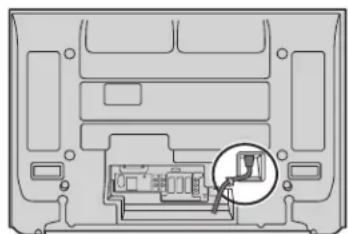

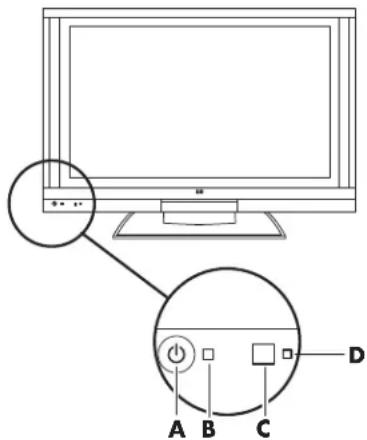

Turning the TV On or Off. 18

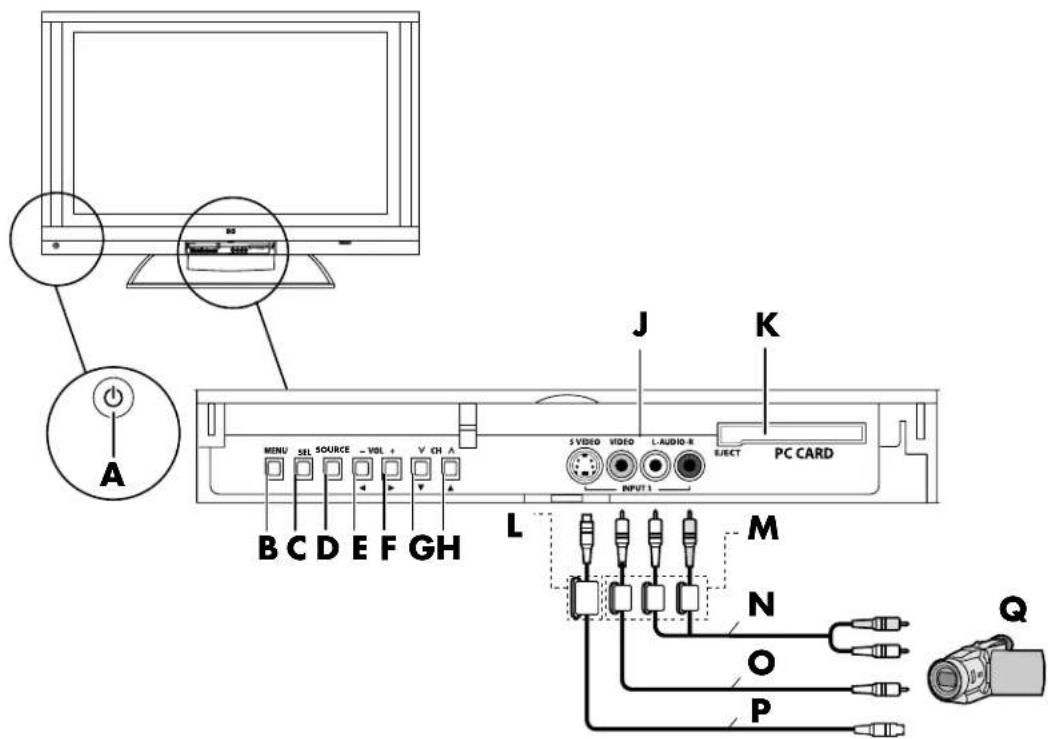

TV Front Panel 19

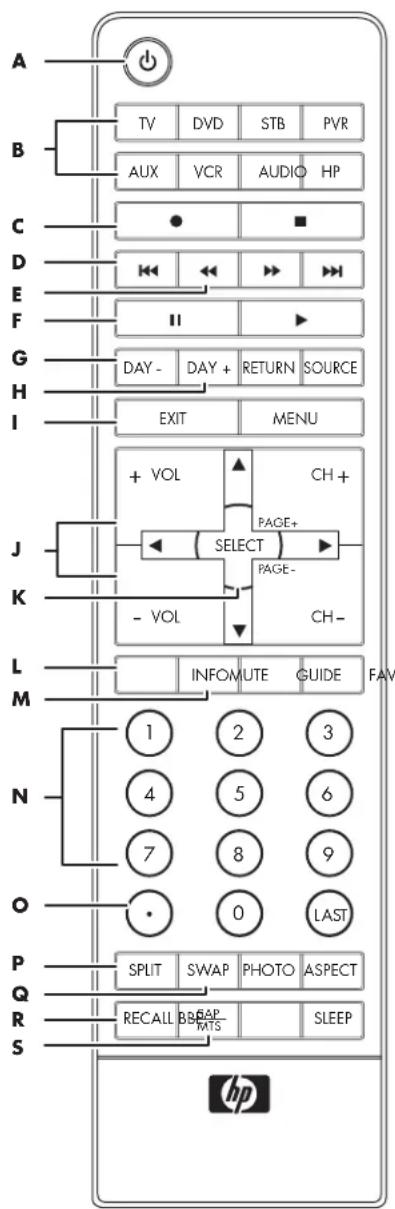

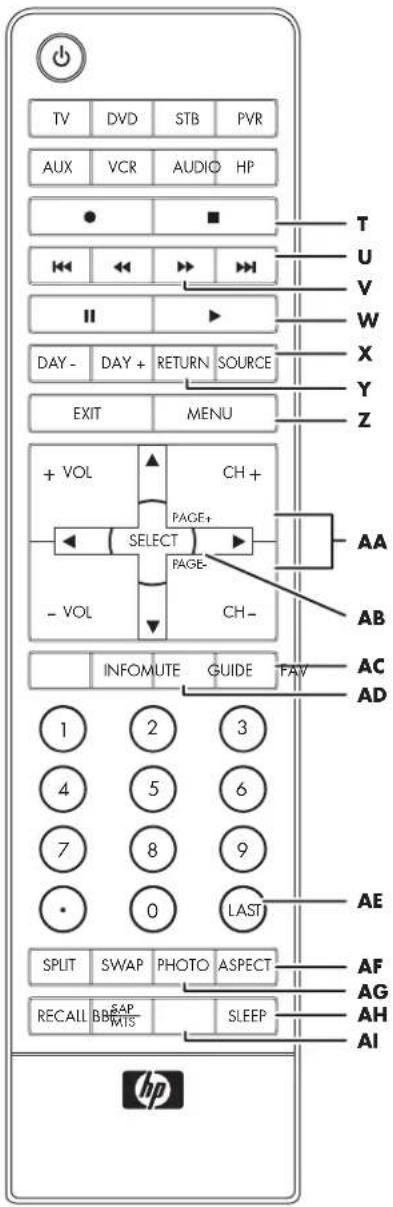

Using the Remote Control 20

Using the First Time Setup. 25

Language 25
Clock 26
Auto Program 28

Watching TV Programs 29

Aspect Controls 29

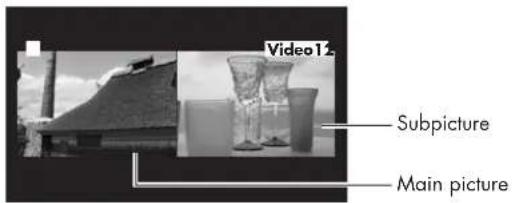

Viewing Split Screens 31

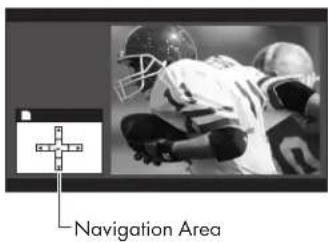

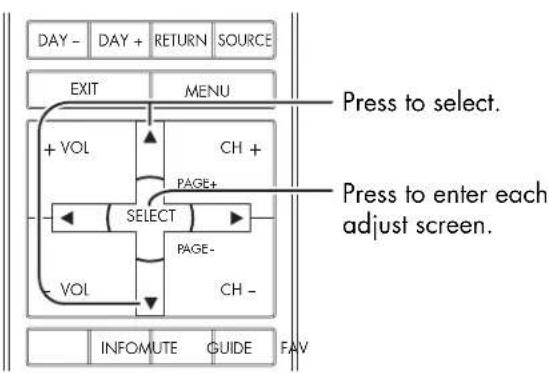

Using the Onscreen

Navigation Menus 33

Using the Menu 34

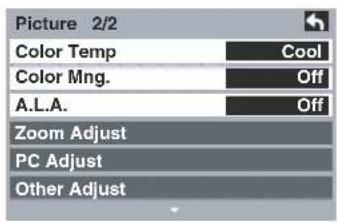

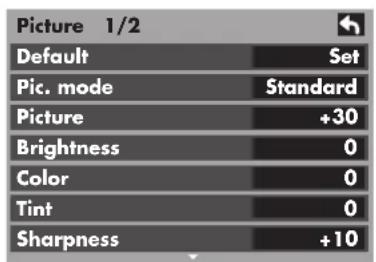

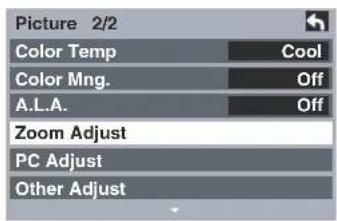

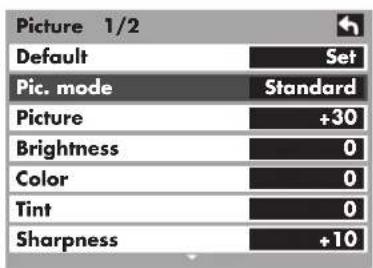

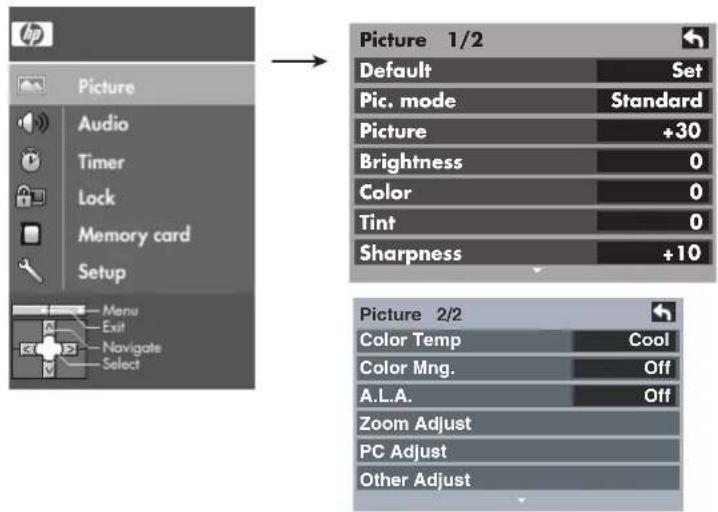

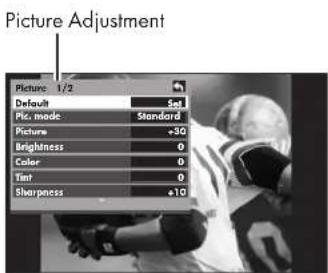

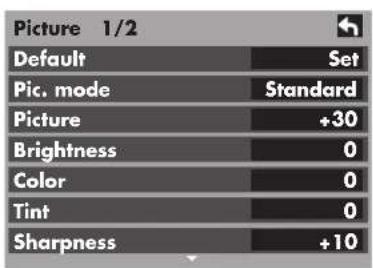

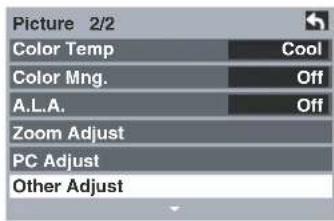

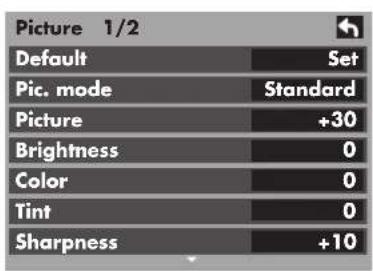

Picture 34
Audio. 39
Timer. 41

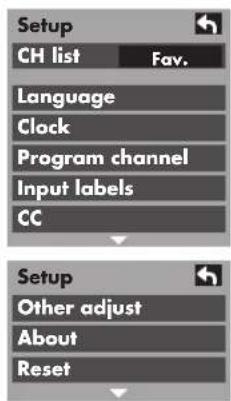

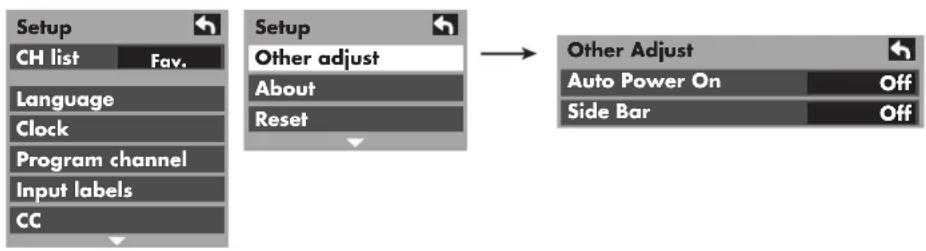

Setup 43
Lock 56

Using the Photo Viewer 63

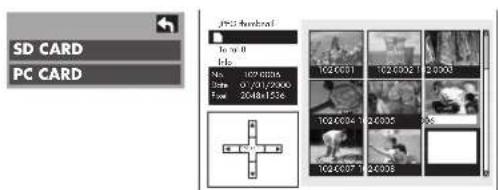

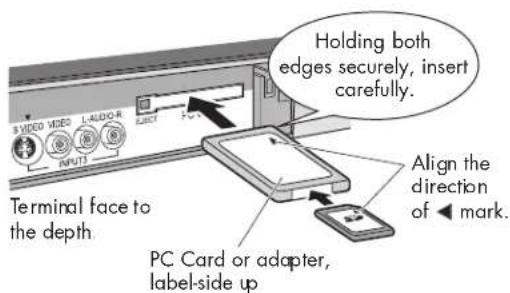

Inserting and Removing a Card 63
Compatible Card Type and Card Size 65

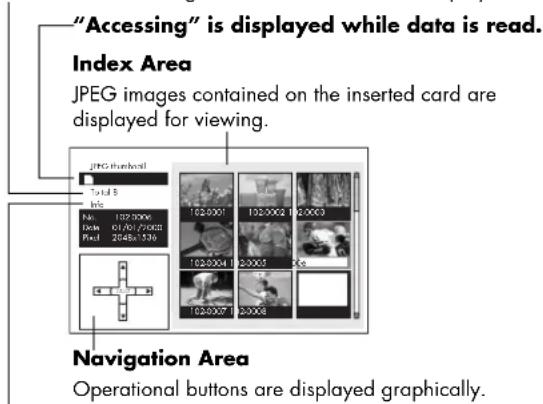

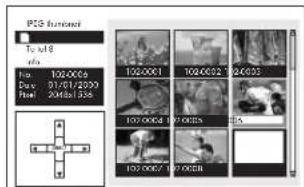

JPEG Thumbnail 65

Operating Peripheral Equipment....69

Programming the remote control code 69
Mode Operational Key Chart. 78

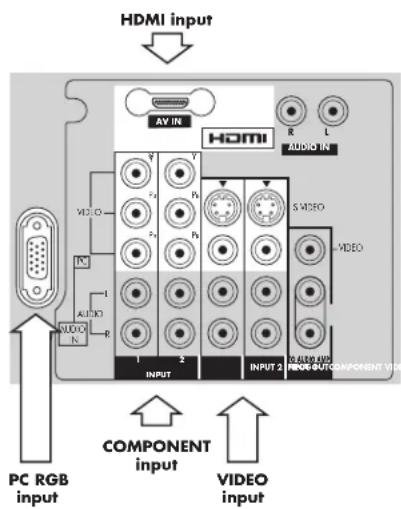

Video/Component/HDMI Input Signals 80

Specifications 81

Troubleshooting Chart 83

Plasma Display Panel 85

Safety Precautions

SMALL PARTS CAN PRESENT CHOKING HAZARD IF ACCIDENTALLY SWALLOWED. KEEP SMALL PARTS AWAY FROM YOUNG CHILDREN. DISCARD UNNEEDED SMALL PARTS AND OTHER OBJECTS, INCLUDING PACKAGING MATERIALS AND PLASTIC BAGS/SHEETS TO PREVENT THEM FROM BEING PLAYED WITH BY YOUNG CHILDREN, CREATING THE POTENTIAL RISK OF SUFFOCATION.

Setup

Do not place the Plasma TV on sloped or unstable surfaces.

The Plasma TV may fall off or tip over.

Do not place any objects on top of the Plasma TV.

If water spills onto the Plasma TV or foreign objects get inside it, a short-circuit may occur which could result in fire or electric shock. If any foreign objects get inside the Plasma TV, please consult an Authorized Service Center.

Do not cover the ventilation holes.

Doing so may cause the Plasma TV to overheat, which can cause fire or damage to the Plasma TV.

If using the pedestal, leave a space of 3_15/16 inch (10cm) or more at the top, left, and right; 238 inch (6cm) or more at the bottom; and 234 inch (7cm) or more at the rear. If using some other method for setup, leave a space of 3_15/16 inch (10cm) or more at the top, bottom, left, and right; and 3/4 inch (1.9cm) or more at the rear. Avoid installing this product near electronic equipment that is readily affected by electromagnetic waves.

It may cause interference in image, sound, etc. In particular, keep video equipment away from this product.

Heat sources

This product should be situated away from heat sources such as fireplaces, chimneys, radiators, heat registers, stoves, or other products (including amplifiers).

AC Power Supply Cord

The Plasma TV is designed to operate on 120V, 50/60Hz .

Securely insert the power cord plug as far as it will go, and use the clamp to secure it. (See "AC cord" on page 8.)

If the plug is not fully inserted, heat may be generated which could cause fire. If the plug is damaged or the wall socket plate is loose, they should not be used.

Do not handle the power cord plug with wet hands.

Doing so may cause electric shocks.

Do not do anything that might damage the power cable. When disconnecting the power cable, hold the plug, not the cable.

Do not make any modifications to, place heavy objects on, place near hot objects, heat, bend, twist, or forcefully pull the power cable. Doing so may cause damage to the power cable which can cause fire or electric shock. If damage to the cable is suspected, have it repaired at an Authorized Service Center.

If the Plasma TV will not be used for a long period of time, unplug the power cord from the wall outlet.

If problems occur during use

If a problem occurs (such as no picture or no sound), or if smoke or an abnormal odor is detected from the Plasma TV, unplug the power cord immediately.

Continued use of the TV under these conditions might cause fire or permanent damage to the unit. Have the TV evaluated at an Authorized Service Center. Service to the TV by any unauthorized personnel is strongly discouraged due to its high voltage dangerous nature.

If water or foreign objects get inside the Plasma TV, if the Plasma TV is dropped, or if the cabinet becomes damaged, disconnect the power cord plug immediately.

A short may occur, which could cause fire. Contact an Authorized Service Center for any repairs that need to be made.

When using the Plasma TV

Do not bring your hands, face, or objects close to the ventilation holes of the Plasma TV.

The top of the Plasma TV is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. Burns or personal injuries can happen if any body parts are brought too close. Placing any object near the top of the TV could also result in heat damage to the object as well as to the TV if its ventilation holes are blocked.

Be sure to disconnect all cables before moving the Plasma TV.

■Moving the TV with its cables attached might damage the cables which, in turn, can cause fire or electric shock.

Disconnect the power plug from the wall outlet as a safety precaution before carrying out any cleaning.

■Electric shocks can result if this is not done.

Clean the power cable regularly to prevent it from becoming dusty.

■Built-up dust on the power cord plug can increase humidity which might damage the insulation and cause fire. Unplug the cord from the wall outlet and clean it with a dry cloth.

This Plasma TV radiates infrared rays; therefore, it may affect other infrared communication equipment. Install your infrared sensor in a place away from direct or reflected light from your Plasma TV.

Cleaning and Maintenance

The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning cloth or a soft, lint-free cloth.

• Do not scratch or hit the surface of the panel with fingernails or other hard objects. Furthermore, avoid contact with volatile substances such as insect sprays, solvents, and thinner; otherwise, the quality of the surface may be adversely affected.

If the cabinet becomes dirty, wipe it with a soft, dry cloth.

• Do not allow any detergent to come into direct contact with the surface of the plasma TV. If water droplets get inside the unit, operating problems may result.
• Avoid contact with volatile substances such as insect sprays, solvents, and thinner; otherwise, the quality of the cabinet surface may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods in contact with articles made from rubber or PVC.

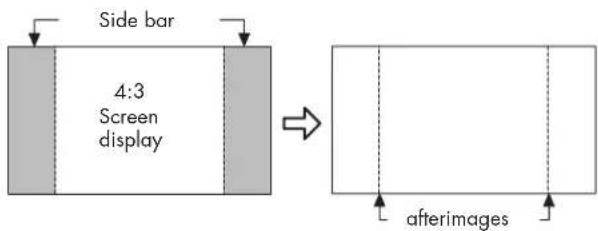

Do not allow a picture to be displayed for an extended period, as this can cause a permanent afterimage to remain on the Plasma TV.

Examples of still pictures include logos, video games, computer images, teletext, and images displayed in 4:3 mode.

Image Retention Protection: If still image data is displayed for more than a few minutes, the image retention prevention function activates automatically and the image disappears. Change the image or change the input source to see an image.

Accessories

Check that you have the Accessories and items listed in the table.

Documentation

Remote control

AC cord

Cable clamp (2)

F-type antenna adapter (for 5C-2V)

Pedestal and parts

Large size ferrite core

Small size ferrite core gray Small size ferrite core white (4)

4 HP Pavilion Plasma HDTV User's Guide

Attaching the Pedestal

Assembling and Setting Up the TV

Points to note during installation:

Select a location for the TV that has easy access to the AC power receptacle.
■Provide adequate ventilation so that the temperature around the television does not rise above 40^ (104^) . If there is insufficient movement of air inside the display, heat may build up inside the television and fire may result. For ventilation spacing specifics, refer to the information listed under "Setup" on page 1.
Due to the size and weight of the display and the pedestal, it is recommended that a minimum of two people assemble and move the TV.

Accessories for pedestal assembly

A:Pole (2)
B:Short screw (4)
C: Long screw (4)
D: Pedestal (1)

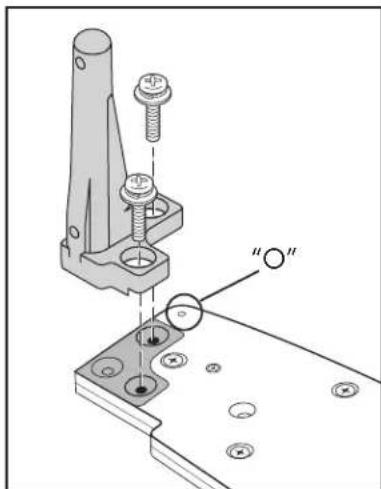

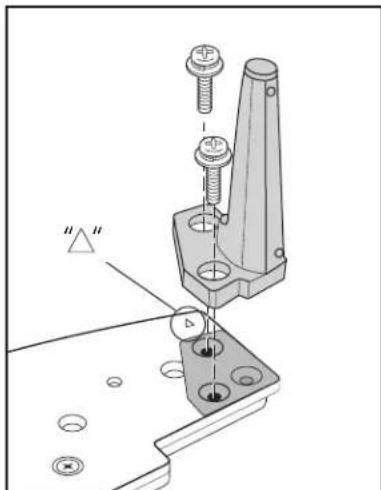

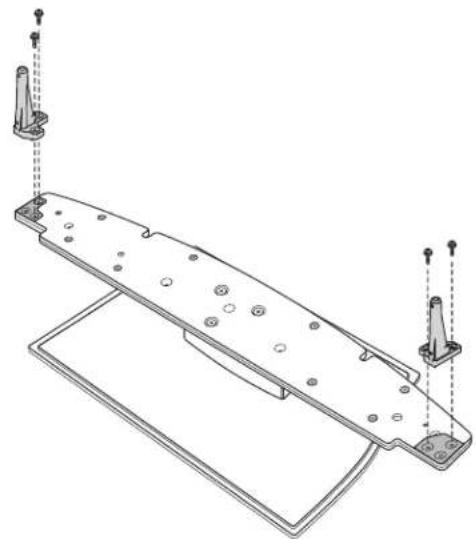

Assembling the pedestal

Match each pole (A) to the mark (a circle or a triangle) on the pedestal (D). When facing the front of the pedestal, the right mark is a triangle and the left mark is a circle. Insert two short screws (B) for each pole.

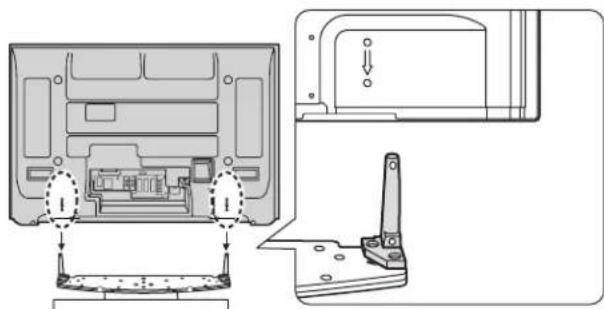

Attaching the pedestal

These steps attach the pedestal to the TV. To remove the pedestal, perform these steps in reverse order.

CAUTION: Never place the television or the display unit with the glass screen facing downward, unless it is protected with pads.

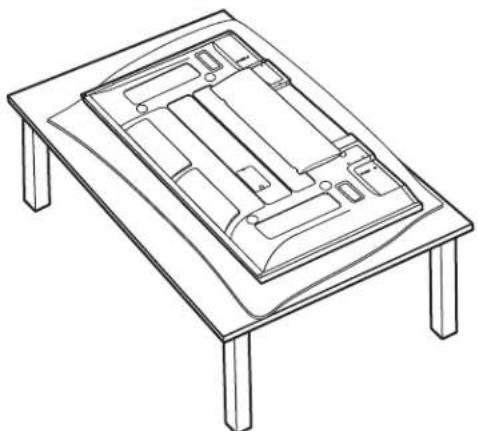

1 Position the TV display unit and the pedestal:

Put a pad or clean cloth on a smooth, stable table. Put the display unit with the glass screen facing downward on the pad.
Position the pedestal with the back (thick part of stand base) toward you on a stable table or on the floor.

2 Lower the TV display unit onto the pedestal poles, matching the marks:

Hold the display with the back toward you. Align the holes in the display bottom with the poles of the pedestal, matching the stamped marks on the back of the display with the pedestal marks. Gently lower the display onto the pedestal, inserting the poles into the display.

3 Insert two long screws (C, see figure under "Assembling the Pedestal") for each pole into the back of the display.

Installing

Receiver Location

This unit is intended to be used with the stand. Consult your dealer for available options. Position for comfortable viewing. Avoid placing where sunlight or other bright light (including reflections) will fall on the screen.

Use of some types of fluorescent lighting can reduce remote control transmitter range.

Adequate ventilation is essential to prevent internal component failure. Keep away from areas of excessive heat or moisture.

Optional External Equipment

The video and audio connections between components can be made with shielded video and audio cables. For best performance, video cables should utilize 75-ohm coaxial shielded wire. Cables are available from your dealer or electronic supply store.

Before you purchase any cables, be sure you know what type of output and input connectors your various components require. Also determine the length of cable you will need.

Installing Remote Control Batteries

1 Open the cover.
2 Install the batteries and replace the cover. Note the correct polarity (+ and -).

Replace used batteries with alkaline batteries for longer life.

CAUTION: Incorrect installation can cause battery leakage and corrosion that will damage the remote control transmitter.

Observe the following precautions:

Batteries should always be replaced as a set. Always use new batteries when replacing the old set.
■ Do not combine a used battery with a new one.
■Do not mix battery types (example: "zinc carbon" with "alkaline").
■Do not attempt to charge, short-circuit, disassemble, heat, or burn used batteries.
■Battery replacement is necessary when remote control acts sporadically or stops operating the TV set.
- When not using the remote for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.
- Do not try to recharge batteries that are not intended to be recharged: they can overheat and rupture. Follow the battery manufacturer's directions for the batteries you are using.

Installing Cable Binding

AC cord

Clamp

Close Open

Closing

Close by pushing in till a clicking sound is heard.

Releasing

Pull down while drawing the knob.

Cable cover

Removing

1 Push down hooks and pull the cover slightly toward yourself to disengage the claws (at two points).
2 Slowly pull out in the downward direction.

Attaching

1 Insert the claws (at two points) at the bottom end.
2 Push until it clicks.

Cable clamp

To avoid interference appearing on the screen, do not bundle the antenna cable and AC cord together.

Attaching the ferrite core

Be sure to choose the appropriate size of ferrite core (large or small) and to route the cable (winding or straight though) as indicated by the connection diagram. See:

"Connecting a PC" on page 17.
"TV Front Panel" on page 19.

Pull back the tabs (in two places) to open.

Put the cable in and close.

8 HP Pavilion Plasma HDTV User's Guide

Connecting

Cables and connectors are not supplied with this set.

Connecting the Antenna

The RF input mode must be set to Antenna. For more information, see "Auto Program" on page 28 or "Auto program" on page 45.

Connecting the CableCard

CableCard allows you to tune digital and high-definition cable channels through the cable.

Consult your cable company on the availability of CableCard.

1 Connect the cable antenna to ANT connector.

2 Turn the TV on, see "Turning the TV On or Off" on page 18.
3 Set the input source to TV, see "TV Front Panel" on page 19.

4 Insert the CableCard (with upper side facing you) into CableCard slot on the back of the TV.

Follow the onscreen messages.

If you experience keyboard or remote control function hang-up when using the CableCard, unplug the TV and plug it back in, turn it on, and try the controls again.

CAUTION: Insert only a CableCard into the CableCard slot.

Connecting HDMI

High Definition Multimedia Interface (HDMI) is an all-digital consumer electronics A/V interface. The HDMI terminal supports both video and audio information.

You can connect an EIA/CEA-861/861B†-compliant consumer electronic device, such as a set-top box or DVD player with HDMI or DVI output terminal, to the HDMI input terminal. Select the HDMI In audio setting in the audio menu; see "Other Adjust" on page 40.

EIA/CEA-861/861B profiles compliance covers profiles for transmission of uncompressed digital video including high bandwidth digital content protection.
+ HDMI-DVI conversion cable or adapter (purchase separately). Consult your consumer electronics dealer for availability details.

Compatible Video Signal

Signals	No. of Dots (H x V)	Vertical Scanning Frequency (Hz)
1080i 1920	x 1080i 59.94/60
720p 1280	x 720p 59.94/60
480p 720	480p, 640 x 480p	59.94/60, 59.94/60
480i 720 [1]	440) x 480i	59.94/60

This input terminal is not intended for use with PCs.

1080i and 720p signals are reformatted for viewing on your plasma display.

Compatible sampling frequency of the audio signal through HDMI (PCM): 48 kHz/44.1 kHz/32 kHz

This HDMI connector is Type A.
If you connect equipment without a digital output terminal, connect to the Component Video, S-video, or Video input terminal on the TV. In this case the picture is displayed as an analog signal.

Connecting a Set-top Box or DVD

This TV is capable of displaying 1080i, 720p, 480p, and 480i DTV signals when connected to a DTV tuner set-top box (STB). This TV also utilizes a progressive scan doubler, which de-interlaces the NTSC signal and progressively scans the image.

To view DTV programs, connect the STB to the component video input terminals (Y, Pb, Pr) of the TV. Component color inputs provide luminance and separate color signal.
Set the output of the STB to either 1080i, 720p, 480p, or 480i. All signals are converted and output to the display.
A DTV signal must be available in your area.

Connecting the Video Input

The S-video input overrides the composite video signal when the S-video cable is connected.

Connect either S-video cable or video cable.

IMPORTANT: You can also use Input 3 on the front of the TV to connect a camcorder or video game console. See "TV Front Panel" on page 19.

Connecting the Amplifier

For a full home theater sound experience, an external Dolby Digital* decoder and a multichannel amplifier must be connected to the Digital Audio Out terminal on the TV.

* Dolby Digital 5.1 channel surround sound delivers digital-quality sound. Dolby Digital provides five discrete full bandwidth channels for front left, front right, center, surround left, and surround right, plus a Low Frequency Effect (LFE) subwoofer channel.

1 Select Off for Speakers in the Audio menu; see "Speakers" under "Other Adjust" on page 40.
2 Adjust the amplifier volume to the desired level.

Depending on your DVD player and DVD audio software, the copyright protection function may operate and disable optical output.

External speakers cannot be connected directly to Output terminals.

With an ATSC channel, the output from Digital Audio Out is Dolby Digital. With an NTSC channel, the output is PCM.

Connecting Program Out

See your equipment manual for instructions.

When a device (STB, DVD, etc.) is connected to the HDMI terminal (see "Connecting HDMI" on page 11), only audio signals output. No video signals output.

When receiving digital channel signals, all digital formats are down-converted to composite NTSC video for output through the Program Out terminals.

Some programs contain copyright protection signals to prevent recording.

Connecting a PC

Connect a cable that matches the audio output terminal on the PC.

Notes

PC signals that can be input have a horizontal scanning frequency of 15 to 110kHz and vertical scanning frequency of 48 to 120Hz . (However, the image will not be displayed properly if the signals exceed 1200 lines.)
Do not set the horizontal and vertical scanning frequencies for PC signals that are above or below the specified frequency range listed in the table. The maximum resolution range:

Model	Resolution
	4:3 16:9
PL4200N	768 x 768	1024 x 768
PL5000N	1024 x 768	1366 x 768

If the display resolution exceeds these maximums, it may not be possible to show fine detail with sufficient clarity.
Some PC models cannot be connected to the set.
There is no need to use an adapter for PCs with DOS/V-compatible 15-pin D-sub terminal.
Additional equipment and cables shown are not supplied with this set.

Turning the TV On or Off

1 Connect the AC cord plug to the plasma TV.

Fix the power cord plug securely with the clamp (see "Installing Cable Binding" on page 8).

2 Connect the plug to the wall outlet.
3 Press the Power button (A) on front of this unit.

A:Power button

B: Power status indicator

C: Remote control sensor

D: Ambient Light Adaptation (A.L.A.) sensor

(See "A.L.A." on page 35.)

4 Press (on the remote control or the TV) to turn the TV on or off.

Power status indicator

Power on Red
Power off No	light

The TV still consumes some power as long as the power cord is inserted into the wall outlet.

The first time setup screen is displayed only the first time you turn the power on after purchase.

If you wish to change the settings of these items later, select them with the Setup menu, see "Setup" on page 43.

TV Front Panel

A:Power button

Press to turn the TV main power on/off.

B:Menu button

Press to open the onscreen display (OSD) menu.

C:SEL button

Press to choose the current menu or option.

D:Source

Change the input source.

E: Volume down

Lower volume, or move left in menu.

F: Volume up

Increase volume, or move right in menu.

G: Channel down

Lower channel, or move down in menu.

H: Channel up

Increase channel, or move up in menu.

J: Video Input 3 connectors

Connect a camcorder or other device using either S-video or Video; the audio connectors are shared.

K:PC Card slot

L: Large size ferrite core

M: Small size ferrite core (white)

N: Audio cable (with left and right plugs)

O: Video cable

P: S-video cable

Q: Camcorder or other source device

Using the Remote Control

Name Description	Icon
A P o w	e r Press Power to or off the TV or the selected home entertainment device.	turn on
B TV, DVD, STB, PVR, AUX, VCR, Audio, or HP	Press one of these buttons once to select a home entertainment device to control. To program the remote control to operate with a home entertainment device, see "Programming the remote control code" on page 69.	TV
C Record	Press Record to start recording from the selected recordable home entertainment device (VCR, DVD recorder, HP MCPC, or HP DEC).
D Skip backward	Press Skip backward to go back to the beginning of the current chapter (DVD).
E Rewind	Press Rewind to rewind the selected home entertainment device (VCR, DVD, HP MCPC, or HP DEC).
F P a u	s e Press Pause the selected home entertainment device (VCR, DVD, HP MCPC, or HP DEC).	to pause II
G D a y	- Press Day - to go back one day in the program guide.	DAY -
H D a y	+ Press Day + to go forward one day in the program guide.	DAY +
I Exit Press Exit to	exit out of the selected home entertainment device's menu or submenu.	EXIT
J Vol	Press + Vol (- Vol) to raise (or lower) the sound.	+ VOL - VOL
K Select	Press Select after entering a channel number. Press Select to choose the current menu option.	SELECT
L M u t	e Press Mute to turn sound off or on.	MUTE
M Info	Press Info to view a channel banner containing information on your current program.	INFO
N Keypad	Press the keypad (0 - 9) to directly select channels.	1

Name Description	Icon
O . (Period)	Press . (period) to enter a period or dash for a subchannel number of a digital channel. For example, channel 123.1 or 4-1.	●
P Split	Press Split to view two input sources.	SPLIT
Q Swap	Press Swap to exchange the two input sources.	SWAP
R Recall	Press Recall to display or remove the channel banner.	RECALL
S SAP/MTS	Press SAP/MTS to select an available secondary audio program.	SAP/MTS

Name Description	Icon
T S t o	Press Stop to stop selected home entertainment device.	the
U S k i p forward	Press Skip forward to skip to the beginning of the next chapter (DVD).	>>
V F ast - forward	Press Fast-forward to fast-forward the selected home entertainment device (VCR, DVD, HP MCPC, or HP DEC).	>>
W Play	Press Play to start playing the selected home entertainment device (VCR, DVD, HP MCPC, or HP DEC).	>>
X S o ur	Press Source to all input sources.	display SOURCE
Y Return	Press Return to return to the previous menu.	RETURN
Z Menu	Press Menu to open the onscreen display (OSD).Press Menu again to return to your display.	MENU
AA CH Press CH	+ (or CH-) to select the next higher (or lower) channel. Press CH+ (or CH-) to page up or down in the program guide.	CH + PAGE+PAGE-CH-
AB Up/ down/ left/right arrows	Press the arrow keys to move the cursor in the menu screens.
AC Fav Press Fav	to display channels you programmed as your favorites.	FAV
AD Guide Press	Guide to display the program guide of your selected home entertainment device.	GUIDE

Name Description	Icon
AE Last Press Last	to recall the previous channel you were viewing.	LAST
AF Aspect Press	Aspect to change the dimensions of your display. Your options depend on what is currently viewed.	ASPECT
AG Photo	Press Photo to open the photo viewer.	PHOTO
AH Sleep	Press Sleep to set the timer in this order: 30, 60, or 90 minutes.	SLEEP
AI BBE	Press BBE to turn TruSurround on and off.	BBE

Using the remote control with HP MCPC and HP DEC PCs

The remote control is already programmed to work with Media Center on HP MCPC and HP DEC PCs.

1 Press the HP button on the remote control to select the HP MCPC or HP DEC as the controlled device.
2 Point the remote control at the HP MCPC or HP DEC remote control sensor and press the buttons you want to use.

HP button Description Icon
Record Press Record to start recording.
Stop Press Stop to stop the recording or playback.
Skip backward Press Skip backward to go back 30 seconds in the program.
Skip forward Press Skip forward to go forward 30 seconds in the program.
Rewind Press Rewind to rewind the program or song.
Fast-forward Press Fast-forward to fast-forward the program or song.
Pause Press Pause to pause the program or song.
Play Press Play to view the program or listen to the song.
Exit Press Exit to go back one submenu.

HP button Description Icon
Menu Press Menu	Menu to open Media Center.	MENU
Select Press Select	Select to choose the current menu option.	SELECT
Up/down/left/right arrows	Press the arrow keys to move the cursor in the menu screens.
Vol Press + Vol (-)	Vol to raise (or lower) the sound.	+ VOL - VOL
Mute Press Mute	to turn sound off or on.	MUTE
Info Press Info to	view information on your current program.	INFO
Guide	Press Guide to display the program guide.	GUIDE
Keypad	Press the keypad (0-9) to directly select channels.	1

Using the First Time Setup

The first time setup menu is displayed on screen when the set is turned on for the first time. Follow the menus and procedures for setting up the features.

You can also adjust the settings in the Setup menu (see "Setup" on page 43).

Language

You may select the language to be used for the Onscreen display.

Press to select Language.

Press to display the Language screen.

Press to select English, Espanol, or Frangois.

Press to move the cursor to

Press to go to the previous screen.

Clock

Press to select Clock.

Press to display the clock adjust screen.

Mode

Press to select Mode.

Press to select Manual or Auto.

Manual: Registers the time set by the user.

Auto: Updates the clock time by extracting time information from the digital broadcast.

Date

Valid when Mode is set to manual.

Press to select Date.

Press and release immediately to change the day; press and hold to change the month.

Time

Valid when Mode is set to manual.

Press to select Time.

Press to adjust Time.

If the button is held, the speed of change increases.

Time zone

Valid when Mode is set to Auto.

Press to select Time zone.

Press to select your zone.

Daylight saving

Valid when Mode is set to Auto.

Press to select DST (daylight saving).

Press to select On or Off.

Auto Program

Auto program is not available while the CableCard is inserted.

You can scan all (analog and digital) channels. If needed, follow the menus and procedures displayed on screen for setting up the features.

You can also adjust the settings in Set up menu.

1

Press to select Auto program.

Press to select Auto program.

2

Press to select ANT In.

Press to select Cable or Antenna.

3

Press to select Mode.

Press to select All or Analog.

4

Press to select Start scan.

Press to start.

Channels available for reception will be set automatically.

To make a channel available that has been located by auto scan, in the Manual program mode, move the cursor to Apply, and press Select.

To exit the menu screen

Press

RETURN

Watching TV Programs

Press the TV button to operate the TV set with the remote control.

2 Press the Power button to turn on the TV.

3 Press the Channel button to select desired channel.

You can also use the direct program number selection buttons.

4 Press the Volume button to select the desired volume level.

The channel number and volume level remain the same even after the TV is turned off.

Power consumption can be reduced if the volume level is lowered.

Aspect Controls

These let you choose the aspect depending on the format of the received signal and your preference.

Press the Aspect button to change the aspect mode.

The available aspect modes depend on the receiving signal.

■For 480i, 480p (4:3), and 480p (16:9), choose 4:3, Zoom, Full, or Just mode.

For 1080i and 720p, choose Full mode only.

Mode Picture Explanation
4:3 Displays a 4:3 picture at its standard 4:3 size with 4:3 3	gray side bars. (It may create an afterimage on screen if displayed for a prolonged period of time.)
Zoom Expands a 4:3 picture uniformly (width and height) to full screen width and then repositions the picture vertically. (Recommended for letterbox. This will show picture at full screen size.)
Full Displays a picture at full screen size. (Recommended for anamorphic pictures.)
Just Stretches the right and left edges of a 4:3 picture to fill the screen, and the center of the screen has aspect correction applied. The size of the picture depends on the original signal. (Recommended for regular TV viewing.)

Viewing Split Screens

Press to display two screens.

Press the buffer while the two screens are displayed) to return to normal viewing.

This TV has one tuner. When the main and subwindows are both in TV mode, you see the same channel in both windows.

The split screen shows the TV channel in the main picture and a video input in the sub picture. Press the Source button to change or select the input.

Audio is from the Main picture only.
■Split cannot show the HDMI input or the PC input.
To reduce the occurrences of afterimages, in the Other Adjust (Setup) menu set the Side Bar to Bright. See "Side Bar" on page 53.

Changing the viewing condition

Press to change the viewing mode.

Picture out of picture mode Picture and picture mode

Press to SWAP both pictures.

Using the Onscreen Navigation Menus

Press to previous menu.

Press to display the main menu.

For the main menu entries:

See "Picture" on page 34.
See "Audio" on page 39.
See "Timer" on page 41.
See "Lock" on page 56 to set the secret number and parental controls.
See "Using the Photo Viewer" on page 63 to use the memory card reader.
See "Setup" on page 43.
See "Language" on page 25.
See "Clock" on page 26.
See "Input labels" on page 49.
See "Program channel" on page 44 for automatic or manual channel scan.
See "CC (closed caption)" on page 50.
See "Other Adjust (setup)" on page 52.
See "About" on page 54.

Using the Menu


Press the Menu button to display the Main menu.

Press to select Picture.

Press to enter submenu.

Default / Picture / Brightness / Color / Tint / Sharpness / Color Temp / Color Mng. / A.L.A.

Press to select the submenu.

Press to adjust the menu.

Picture Menu Function
Default Resets all picture adjustments to factory default settings.
Picture Adjusts white areas of picture.
Brightness Adjusts dark areas of picture.
Color Adjusts desired color intensity.
Tint Adjusts natural flesh tones.
Sharpness Adjusts clarity of outline detail.
Color Temp (Temperature)	Increases or decreases warm (red) and cool (blue) colors to suit personal preferences.
Color Mng. (Color management)	Setting this to On enables vivid color adjustment automatically.
A.L.A. (Ambient Light Adaptation)	Setting A.L.A. to on automatically senses the ambient light conditions and adjusts the image brightness and gradation accordingly to optimize contrast.

Pic.Mode

Choose the preset picture mode that best suits the program you are viewing. This feature also affects Color Temp setting.

Press to select Pic. mode.

Press to select the picture mode.

Vivid (default): Provides enhanced picture contrast and sharpness for viewing in a well-lit room.
Standard:Recommended for normal viewing conditions with subdued room lighting.
Cinema: For watching movies in a darkened room. It provides a soft, film-like picture.

Each mode has its own picture settings (Picture, Brightness, Color, Tint, and Sharpness).

A.L.A.

Choose Ambient Light Adaptation (A.L.A.) to optimize contrast by sensing the ambient light conditions and then automatically adjusting the image brightness and gradation.

Zoom Adjust

Adjust the Zoom position.

It works when Aspect mode is Zoom.

Press to select the Zoom Adjust menu.

Press to display the Zoom Adjust screen.

Press to adjust V-Position.

Press to adjust Size.

V-Position: Adjust the vertical position.

Size: Adjust the vertical size.

To return to the default setting, press the Select button.

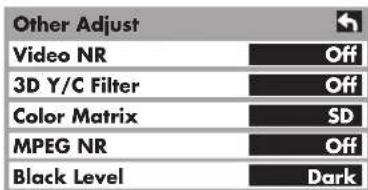

Other Adjust

Press to select Other Adjust.

Press to display other Adjust menu.

Press to select the submenu.

Press to select or adjust the submenu.

Other Adjust Menu Explanations
Video NR	Reduces noise, commonly called snow. Leave off when receiving a strong signal.
3D Y/C Filter Minimizes noise and cross-color in the picture.
Color Matrix	Select SD or HD: ■SD: When the input signal is a normal TV system (NTSC). ■HD: When the input signal is a high-definition system (ATSC). Displays 480p input signals in natural color from digital equipment adapters connected to Component Video Input (Y, Pb, Pr) terminals. Select HD or SD to adjust color parameters automatically for HD (high definition) or SD (standard definition). Notes: ■ This feature is available only with 480p signal and not available with regular TV (NTSC) programming.
MPEG NR Reduces noise from DVD, STB, or other device.
Black Level	Select Dark or Light. Valid only for external input signals.

PC Adjust

During RGB / PC input signal.

Sync Select H & V to have the H and V sync signals input from the HD/VD connector. Select On G to use a synchronized signal on the Video G signal, which is input from the G connector.

Dot Clock Adjusts picture if it appears vertically striped, flickers partially, or is blurred.

H-Pos Adjust the horizontal position.

V-Pos Adjust the vertical position.

Clock Phase (RGB/PC in mode) Eliminate the flickering and distortion.

■Input Resolution Switches to wide display. Input signal switched from VGA to WBGA. Input signal switched from XGA to WXGA.
H-Frequency/V-Frequency (Displays the frequencies of the PC signal currently being adjusted)

Displays the H (Horizontal)/V (Vertical) frequencies.

Display range: Horizontal15-110 kHz

48-120H

H-Frequency	48.6 kHz
V-Frequency	60.3 Hz

Adjustment details are memorized separately for different input signal formats. (Adjustments for component signals are memorized for 525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 1125 (1080) / 60i · 50i · 24p · 25p · 30p · 24sF, 1250 (1080) / 50i, 750 (720) / 60p · 50p each, and RGB/PC/DVI signals are memorized for each frequency.)

If a Cue or Rew signal from a VCR or DVD player is received, the picture position shifts up or down. This picture position movement cannot be controlled by the Picture Pos/Size function.

If adjusting the Picture V-Pos/V-Size in Auto with Full mode, the adjustment is not memorized. When exiting the mode, the screen returns to the former adjustment.

Audio

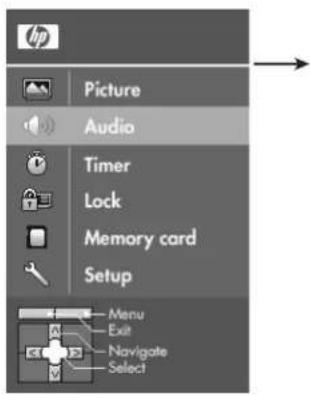

Press the Menu button to display the Main menu.

Press to select Audio. Press to enter submenu

Default / Bass / Treble / Balance

Press to select Default, Bass, Treble, or Balance.

Press to adjust the menu.

Default: Reset Bass, Treble, and Balance adjustments to factory default settings.

Bass: Increase or decrease the bass response.

Treble: Increase or decrease the treble response.

Balance: Emphasize the left/right speaker volume.

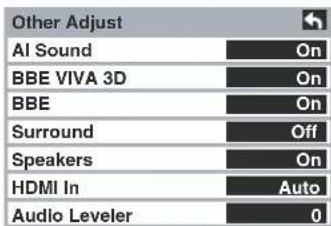

Other Adjust

1

2

AI Sound: Equalize overall volume levels across all channels. AI sound is not available in Video input mode; see "Connecting the Video Input" on page 14.

Al Sound is Off when Speakers is set to Off.

BBE VIVA 3D: Provides a musically accurate natural 3D image with hi-fi sounds. The clarity of the sound is improved by BBE while the width, depth, and height of the sound image are expanded by BBE's proprietary 3D sound processing. BBE VIVA 3D is compatible with all TV programs including news, music, dramas, movies, sports, and electronic games. BBE VIVA 3D enhances the surround sound effect, while maintaining the clarity of dialogue.

BBE: Sound technology enhances speech intelligibility and restores the dynamic range of musical passages to provide outstanding natural sound.

Surround: Enhances audio response when listening to stereo.

On: For stereo audio.
Off: For monaural audio.

Surround is Off when Speakers is set to Off.

Speakers: This feature is used to turn TV speakers On or Off; see "Connecting the Amplifier" on page 15.

On: TV speakers operate normally.
Off: TV speakers off.

AI Sound, Surround, and Audio Leveler are not available when Speakers is set to Off.

HDMI In: Set this option when using HDMI; see "Connecting HDMI" on page 11. This feature lets you switch between digital audio input (audio signal is taken from the HDMI In connector) and analog audio input (audio is taken from the HDMI R/L Audio In connectors when using a DVI-HDMI adapter or cable). Choose:

■Auto: automatically selects the audio signal.
Digital: selects Digital input only.
■Analog: selects Analog input only.

Timer

Select Timer to turn the TV on and off at selected times and on selected days. Press the Menu button to display the Main menu.

Press to select Timer.

Press to enter the submenu.

Sleep timer

Press to select Sleep.

Press to enter the Sleep set screen.

Press to select off time (minutes).

Audio Leveler: The audio leveler monitors the difference in audio levels between input signals from external equipment and minimizes the change in output volume that can occur when switching input signals.

Audio Leveler is not available when the items Speakers is set to Off.

Timer set

The clock must be set before On time/Off time settings can be made.

Channel

1

Press to select Timer 1 - Timer 5.

Press to enter the Timer adjust screen.

2

Press to select CH.

Press to set CH.

Day

Press to select Day.

Press to select appropriate day setting.

Selectable day items: Sun, Mon, Tue, Wed, Thu, Fri, Sat, Mon-Fri, Sat-Sun, Daily, Evr Sun, Evr Mon, Evr Tue, Evr Wed, Evr Thu, Evr Fri, Evr Sat.

On time/Off time

Perform the following operations for both On time and Off time.

Press to select On time/Off time.

Press to select hour (AM or PM) and minutes of On time/ Off time.

Set

Press to select Set.

Press to select On or Off.

The TV automatically turns off after 90 minutes when turned on by the timer. This operation is canceled if the Off time is selected or if a key is pressed.

To return to the previous screen

Press

RETURN

to

return.

Setup

Press the Menu button to display the Main menu.

Press to select Setup.

Press to enter the submenu.

When the power to the TV set is disrupted due to a power outage or similar problem, the off-timer is deactivated, and the TV is in standby mode even after power is restored.

CH list

Press to select CH list.

Press to select Fav. or All.

Language

Press to select Language.

Press to display the Language screen.

Clock

Press to select Clock.

Press to display the Clock screen.

Program channel

1

Press to select Program channel.

Press to enter the Program channel menu.

2

Press to select submenus.

Press to set enter submenu.

Auto and Signal meter cannot be selected while the CableCard is inserted.

Auto program

Automatically scans all available channels.

Auto program is not available while the CableCard is inserted.

1

Press to select ANT In.

Press to select Cable or Antenna.

2

Press to select Mode.

Press to select All or Analog.

All: Analog and digital

Analog: Analog only

3

Press to select Start scan.

Press to start.

After Auto program is complete, the unit returns to Manual program mode.

To make a channel available that has been located by auto scan, in the Manual program mode, move the cursor to Apply, and press Select.

Manual program

To add or delete channels from channels list manually:

Press to select Manual.

Press to enter the Manual program screen.

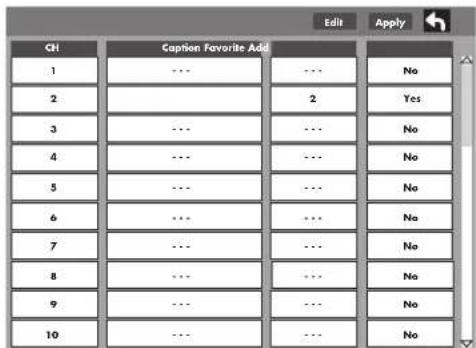

Program edit

1

Press to select Edit.

Press to enter the Edit mode.

2

Press to select the desired preset channel line.

Press to select edit area: Caption, Favorite, Add.

Press to enter the preset screen. Refer to next page for adjustment details.

3 Press REmARKer cursor to Apply.

4

Press to enter your program.

46

HP Pavilion Plasma HDTV User's Guide

Edit (caption)

1

Press to select Preset.

Press to select Broadcast station.

2

Press to select Caption detail.

Press to display the Caption input screen.

3

Press to move cursor to Caption.

Press to enter input field.

4

Press to select the character to input/change.

Press to move to the next character. You can repeat this for up to seven characters. Press to enter your selection.

5

Press to move cursor to Apply.

Press to enter Caption.

Edit (favorite)

1

Press to select Favorite.

Press to select favorite number.

2 Press the up arrow button to highlight Apply.

3

Press to enter Favorite and return to Edit screen.

Edit (Add)

To register/delete channels in Program channel:

Press to select Yes or No.

Signal meter

(For digital channels only)

Displays the signal strength of the ATSC digital channel in antenna.

Signal meter is not available while the CableCard is inserted.

1

Press to select Signal meter.

Press to display Signal meter.

2

Press to select desired channel.

Press to tune desired channel.

The signal meter works only for digital signals input with the antenna.

Input labels

To label video input connections for onscreen display.

1

Press to select Input labels.

Press to enter the submenu field.

2

Press to select the Video input.

Press to select the input label.

To skip the input, select Skip. The input is skipped when you press the Source button on the remote control or TV.

Selectable input labels: Skip, VCR, DVD, Cable, DBS, PVR, Game, Aux.

CC (closed caption)

The television includes a built-in decoder that is capable of providing a visual display of the audio portion. The program viewed must provide closed captioning (CC) for the television to display it.

CC mode

Press to select Mode.

Press to select the setting.

Off: Recommended mode when closed captioning is not being used.

On: To display closed captioning.

The closed captioning is not displayed when you use HDMI connection and PC inputs.

To control the closed caption of an analog connected home entertainment device, use the closed captions On/Off controls for that home entertainment device.
The CC mode setting of the TV will not affect the analog input.
If a digital program is being output in analog format, the CC data will also be output in analog format.
If digital connected equipment is used for input, CC should be set to On on either the connected equipment or the TV.
If CC is set to On on both the connected equipment and the TV, captions from each unit will overlap.

Analog

Choose the closed caption service of analog broadcasting.

Press to select Analog.

Press to select the setting.

CC1: For video-related information that can be displayed (up to four lines of script on the screen, where it does not disturb the relevant parts of the picture). Script can be in any language.
CC2/CC3/CC4: Other modes used for video-related information.

Digital

The Digital CC menu lets you configure the way you choose to view the digital captioning.

Press to select Digital.

Press to select the setting.

■Settings: Primary, Second, Service 3, Service 4, Service 5, Service 6.

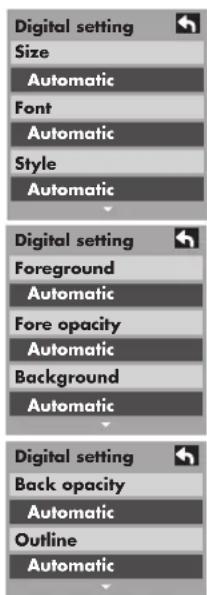

Digital setting

Selecting digital broadcast service and viewing formats.

1

Press to select Digital setting.

Press to enter the Digital setting menu.

T1: Blanks out a large portion of the picture on the television screen and displays program guide or any other information currently being transmitted.
T2/T3/T4: Other modes that display information and blank out a large portion of the picture of the TV screen.

2

Press to select the menu.

Press to select the submenu.

Size: Automatic, Normal, Small, Large
■ Font: Automatic, Default, Mono-serif, Prop-serif, Mono, Prop, Casual, Cursive, Small caps
■ Style: Automatic, None, Raised, Depressed, Uniform, Drop shadow
■ Foreground: The color of the font (Automatic, Black, White, Red, Green, Blue, Yellow, Magenta, Cyan)
Fore Opacity: The opacity of the font (Automatic, Transparent, Translucent, Solid, Flashing)
■ Background: The color of the text box (Automatic, Black, White, Red, Green, Blue, Yellow, Magenta, Cyan)
Back Opacity: The opacity of the text box (Automatic, Transparent, Translucent, Solid, Flashing)
Outline: The outline of the text (if selected under style) (Automatic, Black, White, Red, Green, Blue, Yellow, Magenta, Cyan)

CC reset

Reset the CC settings.

Press to select CC reset.

Press to reset CC settings.

Other Adjust (setup)

Auto Power On

Press to select Auto Power On.

Press to select Set or Off.

Select Set to power the TV on at the same time as the cable box or other connected components are powered on.

The sleep timer and on/off timer will not function if Auto Power On is set.

Side Bar

Do not display a picture in 4:3 mode for an extended period, as this can cause an afterimage to remain on either or both sides of the display field.

To reduce the risk of such an afterimage, change the brightness of the side bars.

Press to select Side bar.

Press to select Off, Dark, Mid, Bright.

The side bar may flash (alternate black/ white) depending on the picture. Using Cinema mode reduces such flashing, see "Pic. Mode" on page 35.

To reduce the occurrence of afterimages, set the Side Bar to Bright.

About

Display the TV set version, software license, and CableCard information.

Press to select About.

Press to display the About screen.

Press to select Version, License, or CableCard.

Press to display Version, License, or CableCard.

CableCard

This menu is used to provide information when a CableCard is inserted into the CableCard slot on the back of the television. CableCard is not accessible without inserting a CableCard into the CableCard slot. To receive the features offered by your cable company, you may have to subscribe to those services.

Contact your cable company regarding availability of the CableCard. The CableCard is needed to receive premium digital services (where available) through the cable input. You may also be able to order call-ahead pay-per-view events.

Reset

1

Press to select Reset.

Press to display the Password screen.

2 Enter your password by pressing the number keys on the remote control to reset the Setup settings.

The confirmation screen is displayed.

3 Select Yes, and press Select.

Lock

1 Press the Menu button to display the Main menu.

Press to select Lock.

Press to display the Input password screen.

2 Enter your password by pressing the number keys on the remote control to reset the Setup settings.

5 After entering your password for the first time, Create password changes to Enter password.

3 Create a four-digit password to enter the Lock menu.
4 Enter a four-digit password.

Lock mode

Select Lock mode to prevent viewing of video games, VCR tapes, channels, and Video modes.

Press to select Mode.

Press to select the setting.

Off: Turns off Lock set functions.

All: All channels are locked regardless of the rating level.

Game: Locks out CH 3, CH 4, and Video inputs.

CH: Locks out specific analog and digital channels. Password is required to view any of the locked channels.

Channel (block channel selection)

Select up to seven (1-7) channels to be blocked out. These channels are blocked out regardless of the program rating.

1

Press to select Channel.

Press to display the channel block screen.

2

Press to select CH 1 - CH 7.

Press to select the desired block channel.

Blocking a program

This television incorporates V-Chip technology to block the viewing of movies and television programs according to the rating category. There are four content advisory categories: MPAA (Motion Picture Association of America), U.S. TV Program, Canadian English ratings, and Canadian French ratings. These categories are used as guidelines for blocking programs.

The default mode for the Lock category is the Unlocked state.

1

Press to select Program.

Press to enter Program menu.

2

Press to select MPAA, U.S. TV, C.E.L.R., or C.F.L.R.

Press to enter the block program.

MPAA: for U.S. movie ratings

U.S.TV: for U.S. TV program ratings

C.E.L.R.: for Canadian English ratings

C.F.L.R.: for Canadian French ratings

3

Press to highlight the desired rating level.

4

Press to select Monitor out.

Press to select On or Off.

Monitor out: On turns on the monitor terminal output for programs that have been set to blocked.

Off turns off the monitor terminal output for programs that have been set to blocked.

The Off rating is independent of other ratings.

When placing a block on a specific age based rating level, the Off rating and any other more restrictive ratings are blocked.

58

HP Pavilion Plasma HDTV User's Guide

U.S. movie ratings chart

NR	No rating (Not Rated) and NA (Not Applicable) programs. Movie has not been rated or rating does not apply.
G General	audiences. All ages admitted.
PG	Parental guidance suggested. Some material may not be suitable for children.
PG-13 Parents strongly cautioned. Some material may be inappropriate for children under 13.
R Restricted	Under 17 requires accompanying parent or adult guardian.
NC-17 No one 17 and under admitted.
X Adults only.

U.S. TV programs ratings chart

The TV parental guidelines have seven levels of age-based ratings that can be selected. These seven levels are split into two age-based groups: youth age-based ratings and guidance age-based ratings. Some of

these age-based ratings can also have content based ratings, denoted as D (dialog), L (language), S (sex), and V (violence). The table below shows the age-based ratings selection.

Age-Based Group	Age-Based Ratings	Possible Content Selections Description
NR (Not rated)	TV-NR	■Viewable■Blocked	Not rated. See CAUTION under “Canadian French ratings chart” on page 61.
Youth TV-Y		■Viewable■Blocked	All children. The themes and elements in this program are specifically designed for a very young audience, including children from ages 2 to 6.
	TV-Y7	■FV blocked■Viewable■Blocked	Directed to older children. Themes and elements in this program may include mild physical or comedic violence, or may frighten children under the age of 7.
Guidance TV-G		■Viewable■Blocked	General audience. It contains little or no violence, no strong language, and little or no sexual dialogue or situations.
TV-PG		■D, L, S, V(All selected)■Any combination of D, L, S, V	Parental guidance suggested. The program may contain infrequent coarse language, limited violence, some suggestive sexual dialogue and situations.
TV-14		■D, L, S, V(All selected)■Any combination of D, L, S, V	Parents strongly cautioned. This program may contain sophisticated themes, sexual content, strong language, and more intense violence.
TV-MA		■L, S, V(All selected)■Any combination of L, S, V	Mature audiences only. This program may contain mature themes, profane language, graphic violence, and explicit sexual content.

FV: Fantasy/cartoon violence

V: Violence

S: Sex

L: Offensive language

D: Dialogue with sexual content

Canadian English Ratings Chart

E	Exempt programming includes: news, sports, documentaries, and other information programming, talk shows, music videos, and variety programming.
C	Programming intended for children under age 8. No offensive language, nudity, or sexual content.
C8+	Programming generally considered acceptable for children 8 years and over. No profanity, nudity, or sexual content.
G General	programming, suitable for all audiences.
PG	Parental guidance suggested. Some material may not be suitable for children.
14+	Programming contains themes or content that may not be suitable for viewers under the age of 14. Parents are strongly cautioned to exercise discretion in permitting viewing by pre-teens and early teens.
18+	18+ years old. Programming restricted to adults. Contains constant violence or scenes of extreme violence.

Canadian French ratings chart

E Exempt programming.
G	Programming intended for audience of all ages. Contains no violence, or the violence content is minimal or is depicted appropriately.
8 ans+	8+ general, not recommended for young children. Programming intended for a broad audience but contains light or occasional violence. Adult supervision recommended.
13 ans+	Programming may not be suitable for children under the age of 13. Contains either a few violent scenes or one or more sufficiently violent scenes to affect them. Adult supervision strongly suggested.
16 ans+	Programming may not be suitable for children under the age of 16. Contains frequent scenes of violence or intense violence.
18 ans+	Programming restricted to adults. Contains constant violence or scenes of extreme violence.

CAUTION: The V-Chip system that is used in this set is capable of blocking NR programs (non rated, not applicable, and none) as FCC Rules Section15.120(e)(2). If the option of blocking NR programs is chosen, unexpected and possibly confusing results may occur, and you may not receive emergency bulletins or any of the following types of programming:

Emergency bulletins (such as EAS messages, weather warnings, and others)
Locally originated programming: news, political, public service announcements, religious, sports, weather

Blocking messages

Various blocking messages are displayed onscreen depending upon the type of blocking you have selected in the Lock menu.

Entering the password overrides the block condition. However, the ratings selection is retained.

Message Possible Cause

Game locked The Source button was pressed when the Game Lock had been selected.

Channel locked Tuned to the designated channel when the Channel Lock had been selected. Tuned to CH 3 or CH 4 when the Game Lock had been selected.

All locked Lock All is selected.

Program locked Received program that exceeds the Blocked Program rating level.

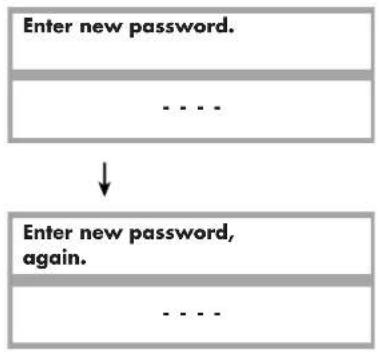

Change password

Press to select Change password.

Press to enter the Input Password screen.

Using the Photo Viewer

Still image data (such as JPEGs) made with a digital camera or digital video camera can be played back using an SD card or PC Card.

Displayable image formats: Baseline JPEG 160 x 120 - 2560 x 1920 pixels (sub-sampling 4:4:4, 4:2:2, or 4:2:0).

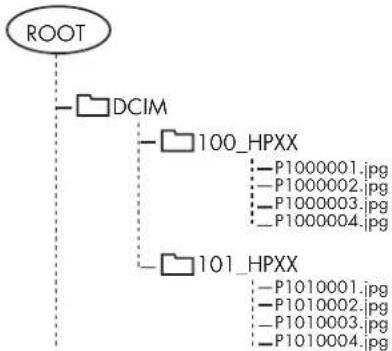

Displayable number of folders: Max 100

Inserting and Removing a Card

Press Menu to display the Main Menu screen.

Press to select Memory Card.

Press to display the photo viewer.

2

Press to select SD Card or PC Card.

Press to enter the photo viewer.

SD card slot

Inserting the card:

Removing the card:

PC Card slot

Turn off the TV before inserting or removing a PC Card.

Inserting the card

Removing the card

1 Push the Eject button to pop out the button.
2 Push the Eject button again to eject the card.

If the Eject button does not pop out

Push in the PC Card again, and then push the Eject button again.

If PC Card adapter is used, remove it together with the card.

WARNING: As with any small object, SD cards can be swallowed by young children. Do not allow children to handle the SD card.

CAUTION: Always insert card in the correct direction. Failure to do so may result in damage to the card and this unit.

The SD card is a precision device. Do not subject a card to excessive pressure or strong impacts.

Compatible Card Type and Card Size

SD card slot

SD card (1GB)
■miniSD Card* (128MB)

• miniSD Card requires miniSD adapter.

PC card slot

SD card (1 GB)
miniSD Card (128 MB)
- CompactFlash (1 GB)
SmartMedia (128 MB)
Memory Stick (128 MB)
xD Picture Card (128 MB)
■Flash ATA (128 MB)
Memory Stick Pro (1 GB)

The cards require standard PC card adapter. (Some PC card adapters may not be compatible.)

This function is not compatible with hard disk type cards (Micro Drive, Mobile type hard disk, etc).
Memory cards are not supplied with this television.
When both an SD card and PC Card are inserted in the slot, the SD card has the priority.

Card data protection

Do not remove the card while the unit is accessing the information. Such action may corrupt the images, damage the memory card, or the unit itself.
Before inserting or removing the PC card, make sure that the TV is turned off. Otherwise, it may damage the unit.
Do not touch the terminals on the back of the SD card/PC Card.

Always insert a card in the correct direction and orientation. Failure to do so may result in damage to the card and this unit.
Do not subject the card to excessive pressure or strong impacts.
Electrical interference, electrostatic discharges, and malfunctions of the unit or card may all result in data loss or damage to the card.
■Stored data should be periodically backed up as a protection against data corruption, data loss, or device malfunction.

Image Retention Protection: If still image data is displayed for more than a few minutes, the image retention prevention function activates automatically and the image disappears. Change the image or change the input source to see an image.

JPEG Thumbnail

The screen below is displayed automatically when a card is inserted. If "Is memory card in?" appears, check whether a card is inserted. If not, turn the unit power off, correctly insert a card, then turn the unit back on. Now, place unit into photo viewer mode.

Total number of JPEG images on the inserted card is displayed.

Selected picture information is displayed.

No.: Image number or file name is displayed.
Date: Date of recording is displayed.
Pixel: Screen resolution is displayed.

Depending on the JPEG type, Info contents may not be displayed correctly.

Only JPEG files can be displayed.
Up to 9,999 JPEG files can be displayed.
If images have duplicate numbers, none of the images will be displayed.
Depending on the JPEG type, it may not be displayed normally.

Card warning messages

If there is a problem with the card or card data, the following messages appear.

Message Description
Is memory card in?	A card may not be inserted, or the card format may not be supported. (Use SD cards formatted in a digital camera.)
No file. The card may not contain image data, or all images on the card may be incompatible.

Index area operation

Press to select icon.

Press to display full-size file preview.

File names are not displayed correctly if: More than eight characters are used.
■Spaces and special symbols are used. Use care when changing file names.

Single play mode

Press to move cursor to desired file in index area.

Press to display file in full screen size.

Navigation display

Pressing Recall while in single play mode displays or removes the Navigation Area screen.

Changing an image:

Press to change displayed image.

Press :The previous image is displayed.

Press :The next image is displayed.

Rotating an image:

Press to rotate the image 90^ at a time.

Press Each press right rotates image 90^

Press:Each press left rotates image 90^

Rotation settings are not written to the file and are canceled when photo viewer is exited.

Picture adjustment

When menu is pressed, the Picture adjust menu is displayed.

Press Return to exit the Picture menu.

Exiting single play mode

Pressing return during single play mode allows you to exit the mode.

Press with single play mode displayed to return to the JPEG thumbnail mode.

Slide show mode

1

Press during Single Play Mode.

2

Press to select each item.

Press to set each item.

Single setting menu

Setting Description

Mode Set to Single/Slide to view single images or perform a slide show.

Disp. Time You can set how many seconds each image is displayed in Slide mode.

Repeat Turn the slide show Repeat function on or off.

3 Press torstanslide show.

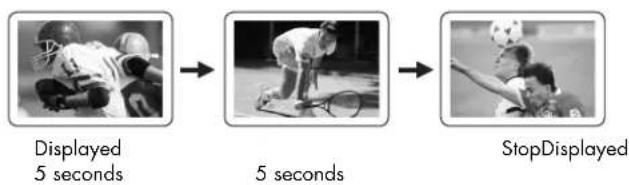

Example:

If the display mode is set to Slide, Disp. time is set to 5 seconds, and Repeat is Off.

4 Press Select during a slide show to stop it. The submenu is displayed.

Navigation display

Pressing Recall during slide show mode allows you to display or remove the Navigation Area.

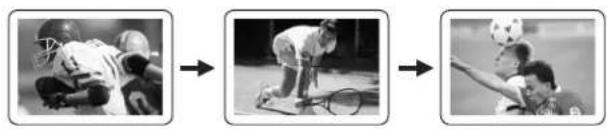

Exit slide show mode

Pressing Return during slide show mode allows you to exit the mode.

Press with slide show mode displayed to return to the Card Menu Screen.

Folders and files

Digital cameras that are compliant with DCF specifications use folders with a specific structure. The following diagram shows an example of the folder structure.

Example:

If the card file hierarchy is displayed on the PC as shown below.

DCIM folder

The digital camera creates this folder automatically.

100_HPXX folder

Folder names consist of a three-digit folder number followed by five arbitrary characters. Digital camera images are stored within these folders.

JPEG files in the 100 HPXX folder are displayed when a card, which is structured as shown, is inserted.

The folder name may vary according to the digital camera being used.

When a directory or file is created, only the characters A-Z, a-z, 0-9, and are used. Two-byte characters or other special codes are not used.

P1000001.JPG: DCF file

File names consist of four arbitrary characters followed by a four-digit file number. DCF files are image files (normally JPEG files) that have been taken by a digital camera.

Operating Peripheral Equipment

Programming the remote control code

Your HP remote control is programmable. You can program the remote control to operate other home entertainment devices such as your VCR, DVD player, audio receiver, or set-top box. Manufacturer codes for compatible brands are listed at the end of this chapter. If the brand of your device is not listed, see "Searching for the device code" on page 69.

Programming the device code

The following steps describe how to program a device button if your brand is listed.

1 Turn on the TV. Turn on the device you would like to program.

Read steps 2 through 4 completely before proceeding. Highlight or write down the codes and device you wish to program before performing step 2.

2 Hold down a device button on the remote control for 5 seconds until the device button blinks, and then release the device button. The device button blinks one more time and then remains lit.
3 Locate the brand of your device and manufacturer codes (see the listing that follows).
4 Enter the first four-digit code. If the code is accepted, the device button flashes twice. If the code is not accepted, the device button flashes three times.

If the device button did not blink twice, repeat steps 2 through 4, entering either the same code or the next code if provided.

5 Aim the remote control at the device, and press the Power button once. The device should turn off. If it does not respond, repeat steps 2 through 4, trying each code for your brand until you find one that works. If it still does not work, try searching for the code; see "Searching for the device code" on page 69.

If the device does not have a Power button, press Play.

6 Repeat steps 1 through 5 for each device you want to control with the remote control.

Searching for the device code

If your device does not respond to the remote control after trying all codes listed for your brand, or if your brand is not listed at all, try searching for your code.

1 Turn on your home entertainment device.
2 Hold down a device button on the remote control for 5 seconds until the device button blinks, and then release the device button. The device button blinks one more time and then remains lit.
3 Enter 1, 1, 1, 1, and the device button blinks once and then remains lit.

4 Press and release the Power button once on the remote control. Wait until the device button stops blinking. Continue to press and release the Power button, waiting each time for the device button to stop blinking, until the home entertainment device turns off.

5 Once the home entertainment device turns off, press the Select button on the remote control to save the code.

Each time you press the Power button it tries a different code. Be sure to wait until the device button stops blinking before pressing the Power button again. You may need to press the Power button several times before the correct code is found.

Manufacturer codes

The following charts include manufacturer codes for these home entertainment devices:

DVD/VCR combo

Amplifier

Home Theater In a Box

Audio cassette

■VCR

Audio system

DVD

■Phono

Cable Box

Receiver/tuner

Satellite box

PVR

Satellite Receiver/Recorder

DVD/VCR combo manufacturer codes
Home Theater in a Box manufacturer codes

Brand Code	Brand Code Brand	Code
GoVideo 0026, 0028, 0068, 0070		JVC 0000, 00	10 Sanyo 0022, 0063
Hitachi 0025, 0067 Samsung		0031, 0017 Zenith	0027, 0069

Brand	Code	Brand	Code
Bose	0010, 0071	Philips	0022
Onkyo	0086	Toshiba	0025

VCR manufacturer codes

Brand Code	Brand Code Brand Code
Admiral 0073,	0074, 0101 Daytron 0067, 0083, 0102		JC Penney 0046, 0047, 0048,		0049, 0050, 0051, 0053, 0054, 0057, 0058, 0059, 0060, 0065, 0079, 0085, 0088, 0090
Aiko 0056 Denon 0088 Jensen 0057,	0058, 0068
Aiwa	0055	Dimensia	0043, 0112	JVC	0000, 0019, 0046, 0047, 0048, 0068, 0071, 0087, 0088
Akai 0044, 0045, 0068, 0069, 0080, 0093	Electrohome		0051, 0090	Kenwood	0046, 0047, 0048, 0068, 0071, 0077
Audiovox	0051	Emerson	0044, 0049, 0051, 0052, 0053, 0055, 0061, 0069, 0087, 0090, 0106	KLH	0059
Bell & Howell	0048 Fisher	0048, 0089, 0105	Kodak 0051, 0053
Broksonic	0023, 0049	Fuji	0045, 0053	LG	0051
Calix	0051	Funai	0055, 0095	Lloyds	0077, 0095, 0105
Canon 0053, 0054 Garrard	0055 Logik		0059, 0085
Capehart	0067, 0083	GE	0040, 0043, 0050, 0053, 0054, 0070, 0079, 0112	LXI	0051
Carver	0060, 0110	GoVideo	0021, 0024, 0026, 0028, 0034, 0079, 0081, 0085, 0086	Magnasonic	0085, 0090, 0102
CCE 0056, 0059 Goldstar	0046, 0051, 0079, 0090, 0092			Magnavox 0008,	0053, 0054, 0060, 0064, 0085, 0110
Citizen 0050, 0051, 0052, 0056, 0095	Gradiente		0055, 0090	Marantz	0046, 0047, 0048, 0053, 0060, 0077, 0092, 0110
ColorTyme	0046, 0096	Harman Kardon	0046, 0110	Matsushita	0053
Craig	0050, 0051, 0059, 0085, 0090, 0105	Harwood	0059 Memorex 0033,	0048, 0050,	0051, 0053, 0055, 0064, 0073, 0074, 0088, 0090, 0091, 0097, 0105
Curtis Mathes	0043, 0046, 0050, 0053, 0054, 0077, 0079, 0112	Hitachi	0025, 0036, 0037, 0057, 0058, 0065, 0068, 0070, 0088	MGA	0061, 0069
Daewoo	0052, 0055, 0056, 0067, 0083, 0102	JBL	0098 MGN 0079
Brand	Code	Brand	Code	Brand	Code
Minolta 0057, 0058, 0065, 0088	Pioneer 0047, 0057, 0071, 0075, 0078, 0104	Sharp 0014, 0015, 0062, 0073, 0074, 0091, 0094, 0101
Mitsubishi 0003, 0005, 0006, 0057, 0058, 0061, 0069, 0071, 0090	Portland 0067, 0083 Shintom 0045, 0058, 0059, 0085
Montgomery Ward	0073, 0074 Proscan 043, 0112 Signature 0073, 0074
Motorola	0053, 0073, 0074	Proton	0085	Signature 2000	0097, 0101
MTC	0050, 0085	Quasar	0053, 0054	Singer	0053, 0059, 0072, 0076, 0085
Multitech	0050, 0055, 0059	Radio Shack	0051, 0062, 0074, 0090	Sony	0007, 0045, 0063, 0080, 0082, 0084, 0098, 0099
NEC	0046, 0047, 0048, 0068, 0071, 0077, 0092	Radio Shack/Realistic	0048, 0050, 0051, 0053, 0054, 0055, 0062, 0073	STS	0053, 0065
Nikko	0051	Radix	0051	Sylvania	0030, 0032, 0053, 0054, 0055, 0060, 0061, 0110
Noblex	0050	RCA	0012, 0016, 0043, 0044, 0050, 0053, 0057, 0058, 0065, 0070, 0078, 0079, 0088, 0107, 0108, 0112	Symphonic	0055, 0077, 0095, 0105
Olympus	0053	Realistic 0048,	0050, 0051, 0052, 0053, 0054, 0055, 0062, 0073, 0074, 0079, 0090, 0094, 0097, 0105	Tandy 0048
Optimus	0051, 0073, 0074, 0090, 0094	Ricoh	0072, 0076 Tashiko	0051
Optonica	0062	Runco	0064	Tatung	0068
Orion	0087, 0090, 0106	Samsung	0029, 0031, 0035, 0039, 050, 052, 079, 095	Teac	0055, 0068, 0107
Panasonic	002, 004, 009, 020, 053, 054, 066, 085, 105	Sansui	0047, 0068, 0071, 0085	Technics	0053, 0066
Pentax	0057, 0058, 0065, 0070, 0077, 0088	Sanyo	0022, 0048, 0050, 0089, 0097, 0105	Teknika	0051, 0053, 0055, 0090
Philco	0053, 0054, 0060, 0088, 0106	Scott	0049, 0052, 0061, 0090	Toshiba	0010, 0011, 0052, 0057, 0061, 0069, 0100, 0102, 0105, 0109
Philips	0017, 0018, 0053, 0060, 0062, 0110	Sears	0048, 0051, 0053, 0057, 0058, 0065, 0077, 0088, 0089, 0090, 0097, 0105	Totevision	0050, 0051, 0090
Brand Code	Brand Code Brand	Code
Unitec 0095 Video		Concepts	0046, 0047, 0052, 0069, 0077	XR-1000 0053, 0055, 0059
Unitech 0050 Wards	0050, 0051, 0052, 0053,	0055, 0057, 0058, 0059, 0062, 0065, 0073, 0074, 0079, 0090, 0091, 0094, 0105, 0108, 0110	Yamaha 0046, 0047, 0048, 0068, 0077
Vector Research	0046, 0047, 0052, 0077	White Westinghouse	0095 Zenith 0027, 0038, 0045,		0064, 0072, 0076, 0093

Brand Code	Brand Code Brand	Code
Aiwa	0073	Hitachi	0065, 0067	Pioneer	0027, 0032
Apex	0000, 0001, 0003, 0004, 0016, 0028, 0029, 0030	Irradio	0092	Proscan	0005, 0099
Audiovox	0074	JVC	0007, 0010, 0011, 0012, 0013	Qwestar	0057
Blaupunkt	0078	Kenwood	0097, 0100	RCA	0005, 0024, 0038
Bose	0062, 0071	Koss	0093	Sampo	0058
Broksonic	0045	Magnavox	0020, 0035	Samsung	0006, 0017, 0033, 0041
Clarion	0046	Marantz	0085	Sansui	0060
Classic	0047	Memorex	0087	Sanyo	0059, 0063
Daewoo	0079, 0080	Mintek	0053	Sharp	0014, 0031
Denon	0075, 0095, 0096	Mitsubishi	0088, 0089, 0090, 0091	Sherwood	0061
Emerson	0048, 0049	NAD	0048, 0081	Sony	0015, 0018, 0034, 0039
Fisher	0050, 0076	Nakamichi	0054	Sylvania	0049, 0072, 0077
Funai	0049, 0064	Norcent	0055, 0056	Techwood	0083
GE 0005, 0051, 0102	Onkyo	0082, 0086	Toshiba	0019, 0026, 0040, 0042
GoVideo	0068, 0070	Oritron	0057	Yamaha	0084, 0098
GPX	0052	Panasonic	0008, 0036, 0037	Zenith	0069, 0094
Harman Kardon	0066	Philips	0002, 0009, 0021, 0022, 0023, 0043

Miscellaneous video manufacturer codes

Type Brand Code Type Brand	Brand Code
DVR Philips 0042 PVR TiVo 01	11
Digital network recorder Sony	0041

Cable box manufacturer codes

Brand Code	Brand Code		Brand Code
ABC	0000, 0001, 0002, 0030	Motorola	0031	Scientific Atlanta	0002, 0023, 0024, 0025
Archer	0006, 0007	Movie Time	0039	Signature	0000
Cableview	0003	NEC	0033	Sprucer	0029
Contec	0034	NSC	0039	Standard Component	0042, 0043
Eastern	0035	Oak	0034, 0041	Starcom	0012, 0030
GE	0000	Panasonic	0027, 0029	Stargate	0012
Gemini 0012, 0013 Philips		0008, 0009, 0010, 0011, 0013, 0017, 0018, 0019, 0020		Tocom 0001, 0015
General Instruments	0000, 0032	Pioneer	0021, 0022	United Cable	0030
Hamlin	0036, 0037, 0038, 0040, 0044	Proscan	0000	Universal	0004, 0006, 0007
Hitachi	0000	RCA	0003, 0029, 0032	Viewstar	0017, 0034, 0039
Jerrold	0000, 0012, 0015, 0016, 0026, 0030, 0032	Realistic	0006	Zenith 0028
Magnavox 0017	Samsung	0022

Satellite box manufacturer codes
Satellite receiver/ recorder codes

Brand Code Brand	Code Brand Code
Alphastar 0073 Hughes	0068 Samsung 005	1,0073
Chaparral 0069 Janei	0067 Sony 0052,0079
DirecTV 0046 JVC 0060 Star Choice		0076
Drake	0072	Mitsubishi	0047	Star Trak	0066
Echostar	0071	Panasonic	0050,0056	STS	0065
Express Vu	0075	Philips	0045	Toshiba	0053,0074
Fujitsu	0067	Proscan	0077,0078	Uniden	0061,0062
GE	0049,0077,0078	Radio Shack 0063,0064Zenith		0054,0067
General Instruments	0063,0064	RCA	0077,0078
Hitachi	0068 Realistic 0059

Amplifier manufacturer codes

Brand	Code	Brand	Code
Philips	0057	Sony	0080
RCA	0055	Zenith	0058

Brand	Code	Brand	Code
Kenwood	0048	Pioneer	0041
Yamaha	0001, 0053	RCA	0069

Audio cassette manufacturer codes
Audio system manufacturer codes

Brand Code Brand Code Brand Code
Aiwa 0039 Onkyo	0055 RCA 0070
Curtis Mathes 0041	Optimus 0041, 0047 Sansui 0057
Denon 0052 Panasonic 0015, 0050 Sanyo 0044
Fisher 0042, 0049	Philips 0013 Sherwood	0047
GE	0070 Pioneer	0018, 0041,	0045	Sony	0043
Kenwood	0048, 0056	Proscan	0070	Technics	0050
NAD	0040	Quasar	0050	Yamaha	0053
Nakamichi	0054 Radio Shack	0047

Miscellaneous audio manufacturer codes

Brand	Code	Brand	Code	Brand	Code
Aiwa	0039	Nakamichi	0054	Scientific Atlanta	0067
Carver	0051	Panasonic	0015, 0016	Sony	0043
Curtis Mathes	0041	Philips	0013, 0014	Starcom	0066
Denon	0052	Pioneer	0018, 0041	Technics	0050
Harman Kardon	0046	RCA & Dimensia	0031, 0032, 0033, 0034, 0035	Yamaha	0053
Jerrold 0066,	0068	Sansui	0057
Kenwood	0048, 0056	Sanyo	0044

Phono manufacturer codes

Type	Brand	Code	Type	Brand	Code
Digital audio tape	Sony	0043	Receiver/amplifier	Yamaha	0001
Tuner	Philips	0022	TV/VCR/tuner combo	Panasonic	0012

Brand	Code	Brand	Code
Kenwood	0048	Sony	0043
Pioneer	0041	Yamaha	0053

Receiver/tuner manufacturer codes
PVR manufacturer codes

Brand Code Brand Code
Aiwa 0017, 0036, 0039		Luxman 0064 Radio Shack 0047
Bose 0010 Marantz 0019 RCA 0071		0072
Carver 0051 McIntosh 0058		Sansui	0057
Curtis Mathes	0041	NAD	0040	Sanyo	0042, 0044
Denon	0006, 0026, 0027, 0052	Nakamichi	0054 Sharp	0060
Fisher	0042, 0044, 0049	NEC	0040 Sherwood 0047
Gradientate	0062	Nikko	0063	Sony	0000, 0024, 0043
Harman Kardon	0008, 0038, 0046	Onkyo	0003, 0021, 0055	Technics	0002, 0020, 0050
Hitachi	0059	Optimus	0041, 0047	Toshiba	0025
JBL	0038 Panasonic	0009, 0012, 0016, 0029, 0050	Yamaha	0048, 0053
Jensen	0061 Philips	0014 Zenith	0065
JVC	0007, 0030	Pioneer	0004, 0023, 0041, 0045
Kenwood	0005, 0028, 0048, 0056	Quasar 0050

Brand	Code	Brand	Code
Philips	0001, 0004	TiVo	0002
Sony	0000, 0005	Zenith	0003

Mode Operational Key Chart

This chart defines which keys are operational after programming (if needed), while in the selected remote control mode: DTV, CABLE, VCR, DVD, and so on.

Key Name DTV Mode Cable Mode
	Power Power
	Navigation Up/Down Cable Channel Up/Down
	OK	-
	Navigation Right/Left -
MENU	DTV Menu -
RECALL	Program Info -
EXIT	Exit Electronic Program Guide -
1 2 3 4 5 6 7 8 9 · 0 1AST	Select Channel Select Channel
	Info Electronic Program Guide -

KEY NAME	VCR Mode	DVD/CD Mode AUX Mode					RCVR Mode(DV)
	Power Power	Power Power Power Power
MUTE	TV Mute TV	Mute RCVR Mute TV Mute		RCVR Mute RCVR	Mute RCVR Mute
SOURCE	TV Input SW	-	-	-	TV Input SW	-	RCVR Input SW
	-	Navigation Up/Down	Next/ Previous Track	Navigation Up/Down	-	-	Tuner +/-
	Volume -/+	Navigation Right/Left	RCVR Volume -/+	Navigation Right/Left	Volume -/+	Volume -/+	RCVR Volume -/+
	-	-	-	-	-	-	-
MENU	-	-	-	PVR MENU	-	-	-
RECALL	Onscreen VCR Display	DVD Display	Time Format	-	Onscreen VCR Display	-	-
EXIT	-	-	-	Exit PVR Menu	-	-	-
1 2 3 4 5 6 7 8 9 10 11	-	1....AV1 2....AV2 3....AV3 4....AV4 5....CD 6....Tuner 7....Phono 8....Tape 9....AUX		Select Channel	-	-	1....AV1 2....AV2 3....AV3 4....AV4 5....CD 6....Tuner 7....Phono 8....Tape 9....AUX
++→	VCR Rew/FF	Skip Search Rew/FF	Search Rew/FF	-	VCR Rew/FF	Tape Rew/FF	Surround +/-
	Play	Play	Play	Play	Play	Play	-
II	Pause	Still/Pause	Pause	Pause	Pause	Pause	-
	Stop	Stop	Stop	-	Stop	Stop	-
	VCR Record	-	-	PVR Record	VCR Record	Tape Record	-
CH + vcc- ncc CH-	VCR Channel Up/Down	-	-	PVR Channel Up/ Down	VCR Channel Up/Down	-	Rcvr Center +/-

Video/Component/HDMI Input Signals

Video input

	Signal Name	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
1 NTSC 15.73 59.94	/60

Applicable input signals (^*)

	Signal Name	Horizontal Frequency (kHz)	Vertical Frequency (Hz) Component HDMI PC
1	525 (480) /60i	15.73	59.94/60	Yes	Yes	No
2	525 (480) /60p	31.47	59.94/60	Yes	Yes	No
3	750 (720) /60p	45.00	59.94/60	Yes	Yes	No
4	1125 (1080) /60i	33.75	59.94/60	Yes	Yes	No
5	640 x 400 /70	31.47	70.08	No	No	Yes
6	640 x 680 /60	31.47	59.94	No	No	Yes

Signals without these horizontal and vertical frequencies may not be displayed properly.

Specifications

	PL 4200N PL5000N
Power source	120V, 50/60 Hz	120V, 50/60 Hz
Power consumptionMaximum 410 W 535 WStand-by condition 0.6	W (with CableCard: 22.0 W) 0.6 W (with CableCard: 22.0 W)
Plasma display panel	Drive method: AC type 42-inch,16:9 aspect ratio	Drive method: AC type 50-inch,16:9 aspect ratio
Screen size(W x H x Diagonal)	36.2 in. (92 cm)20.4 in. (51.8 cm)41.6 in. (105.6 cm)	43.5 in. (110.6 cm)24.5 in. (62.2 cm)50 in. (126.9 cm)
Dimensions(W x H x D)	44.8 in. (113.8 cm)28.7 in. (73.1 cm)5.4 in. (13.75 cm)	52.2 in. (132.7 cm)33.2 in. (84.4 cm)5.4 in. (13.75 cm)
Mass (weight) 90.39 lb	(41 kg) 119 lb. (54 kg)
Channel capability-ATSC/NTSC	VHF/UHF : 2-69, CATV:1-135
Sound speaker	Woofer 3.1 in. (8 cm) x2, Tweeter 0.63in. (1.6 cm) x 2.9 in. (7.3 cm) x 4
Audio output 26 W [8 W + 8 W, 5 W + 5 W] (10% THD)
Features 3D Y/C Filter	HDMI Closed Caption V-Chip	Cable CardTM Slot
Operating conditions	■ Temperature: 32° F - 104° F (0° C - 40° C)■ Humidity: 20% - 80% (non-condensing)
Connection terminals	AV Input 1-2 Video (Phono Jack Type) S-Video (Mini DIN 4-pin) Audio LR (Phono Jack Type x2)	1.0 Vp-p (75 Ω)Y: 1.0 Vp-p (75 Ω), C: 0.286 Vp-p (75 Ω)0.5 Vrms
	AV Prog. Out Video (Phono Jack Type) Audio LR (Phono Jack Type x 2)	1.0 Vp-p (75 Ω)0.5 Vrms
	Component Video Y	1.0 Vp-p (including synchronization)
	Input1-2 PB / PRAudio LR (Phono Jack Type x 2)	± 0.35 Vp-p0.5 Vrms
	HDMI HDMI type A Connector Audio LR (Phono Jack Type x 2)	0.5 Vrms
	Digital Audio Out PCM/Dolby Digital, Fiber Optic

All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower.

Design and specifications are subject to change without notice. Weight and dimensions shown are approximate.

Troubleshooting Chart

Refer to this section if you are having viewing, picture, or sound problems with your TV.

Symptoms		SolutionsVideo Audio
Snowy video Noisy	audio	■Adjust the antenna location and connection.
Multiple image Noisy	sy audio	■Adjust the antenna location and connection. ■Check the antenna lead-in cable.
Interference Noisy	audio	■Move the television away from electrical appliances, lights, vehicles, and medical equipment.
Normal video Noisy	audio	■Check to see if the volume is set at the minimum. ■Verify that Mute mode is not set. ■Check the speaker connection. ■Check all audio inputs. ■Change the channel.
No video with snow	Noisy audio	■Set input setup properly. ■Check the antenna cables.
No video No audio?	※	■Check to see if the TV power cord is plugged into a power outlet.■Try another channel in case of station trouble.■Ensure the remote control codes are properly programmed.■Check cable connections.■Adjust brightness and audio controls.■Press the Source button to select the correct input source.■Make sure a PC is not connected with an HDMI input.■Unplug any HDMI connections and plug them back in.
No color Normal audio		■Adjust the color settings.■Change the channel.
Digitalization of image or image freeze up	Audio break up	■Reposition the ATSC (digital) antenna.■Check signal meter. If the signal is weak, add a signal booster to boost the signal strength.
Normal video Wrong audio		■Verify that the audio mode is set to stereo or mono, not SAP.■Check to see if there is a problem with the audio setting for HDMI. If so, use analog audio.■Make sure the audio input matches the output. For example, set the audio of HDMI to linear PCM.
Black box on screen	Normal audio	■Verify that the CC (Closed Caption) Analog settings are set to something other than T1, T2, T3, or T4.
Normal video Normal audio		■Replace the remote control batteries.
Intermittent Remote Control Operation

Plasma Display Panel

Symptoms Check
Some parts of the screen do not light up.	■The plasma display panel is manufactured using an extremely high level of precision technology; however, sometimes some parts of the screen may be missing picture elements or have luminous spots. This is not a malfunction.
An afterimage appears. ▲How/What/Podcast	■Do not allow a still picture to be displayed for an extended period, as this can cause a permanent afterimage to remain on the Plasma TV. Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode. Note: The permanent afterimage on the plasma TV resulting from fixed image use is not an operating defect and as such is not covered by the warranty. This product is not designed to display fixed images for extended periods of time.
Whirring sounds can be heard from the display unit.	■ The TV is fitted with a cooling fan to dissipate heat generated during normal use. The rotating fan may cause a whirring sound, but it is not a malfunction.

Customer's record

The product number and serial number of this product can be found on the back cover of the television. You should note this serial number in the space provided below and retain this user's guide, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and for warranty service purposes.

Product Number:

Serial Number:

Copyright © 2005 Hewlett-Packard Development Company, L.P.

Digital TV Solutions

Attn: Product Regulations Manager

10435 N. Tantau Avenue

CAC 07, MS 4295

Cupertino, CA 95014

USA

AVIS CANADIEN :

A:Support (2)
B:Viscourte(4)
C:Vislongue(4)
D: Socle (1)

Montage du socle

Signal video compatible

Signaux Nombre	de points (H x V) Fréquence de balayage vertical (Hz)
1080i 1920 x 1080	59.94/60
720p 1280 x 720p	59.94/60
480p 720 x 480p,	40 x 480p 59.94/60,
		59.94/60
480i 720 (1440) x 480i	59.94/60

m = 311 ;

2

m = 311 ;

3

Jour

2 : x^ ( x) = y^ ( x) : 2 : x^ ( x) = y^ ( x) : y = 1

CH

V

Hred

out

0

D.

Href

m = 311

1:

D.

Réglé

m = 311

13/14

F

Réglages: Primaire, Second, Service 3,

Service 4, Service 5, Service 6.

Réglage numérique

Copyright © 2005 Hewlett-Packard Development Company, L.P.

ENTIDAD RESPONSABLE:

Hewlett-Packard Company

Digital TV Solutions

Atencion: Product Regulations Manager

10435 N. Tantau Avenue

CAC 07, MS 4295

Cupertino, CA 95014

EE.UU.
