USER MANUAL Senso Touch 2D RQ1168 PHILIPS

Always here to help you

Register your product and get support at

www.philips.com/welcome

Question? Contact Philips

RQ1100 series

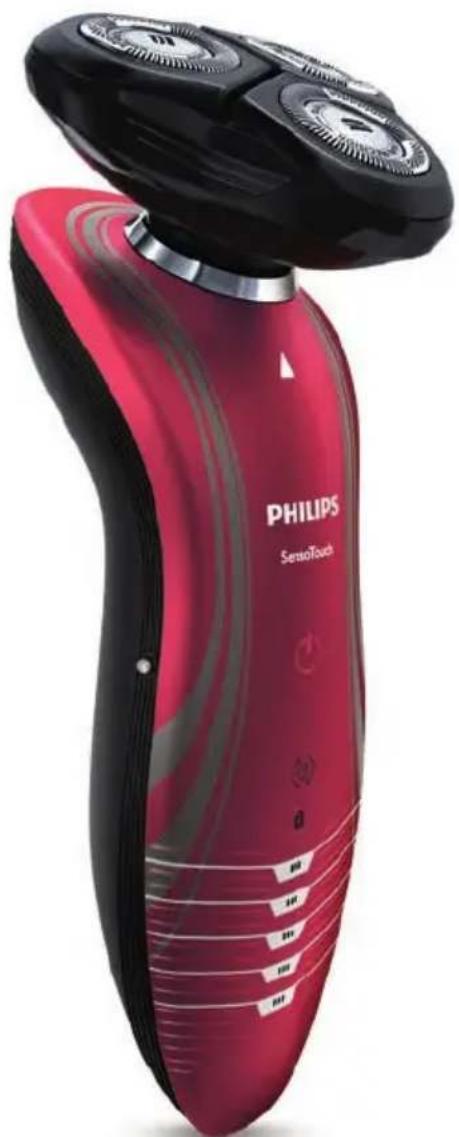

Red Philips SensoTouch electric shaver with black head and silver blade (no visible text or symbols on body)

User manual

PHILIPS

A 1 2 3 4 5 6 7 8 9 10 11 12 D E F G H I B C PHILIPS Jet Clean solution

ENGLISH 4

DANSK 27

SUOMI 50

FRANÇAIS 72

NEDERLANDS 95

DEUTSCH 118

ΕΛΛΗΝΙΚΑ 141

ITALIANO 166

NORSK 189

ESPAÑOL 212

PORTUGUÊS 235

SVENSKA 258

TÜRKÇE 280

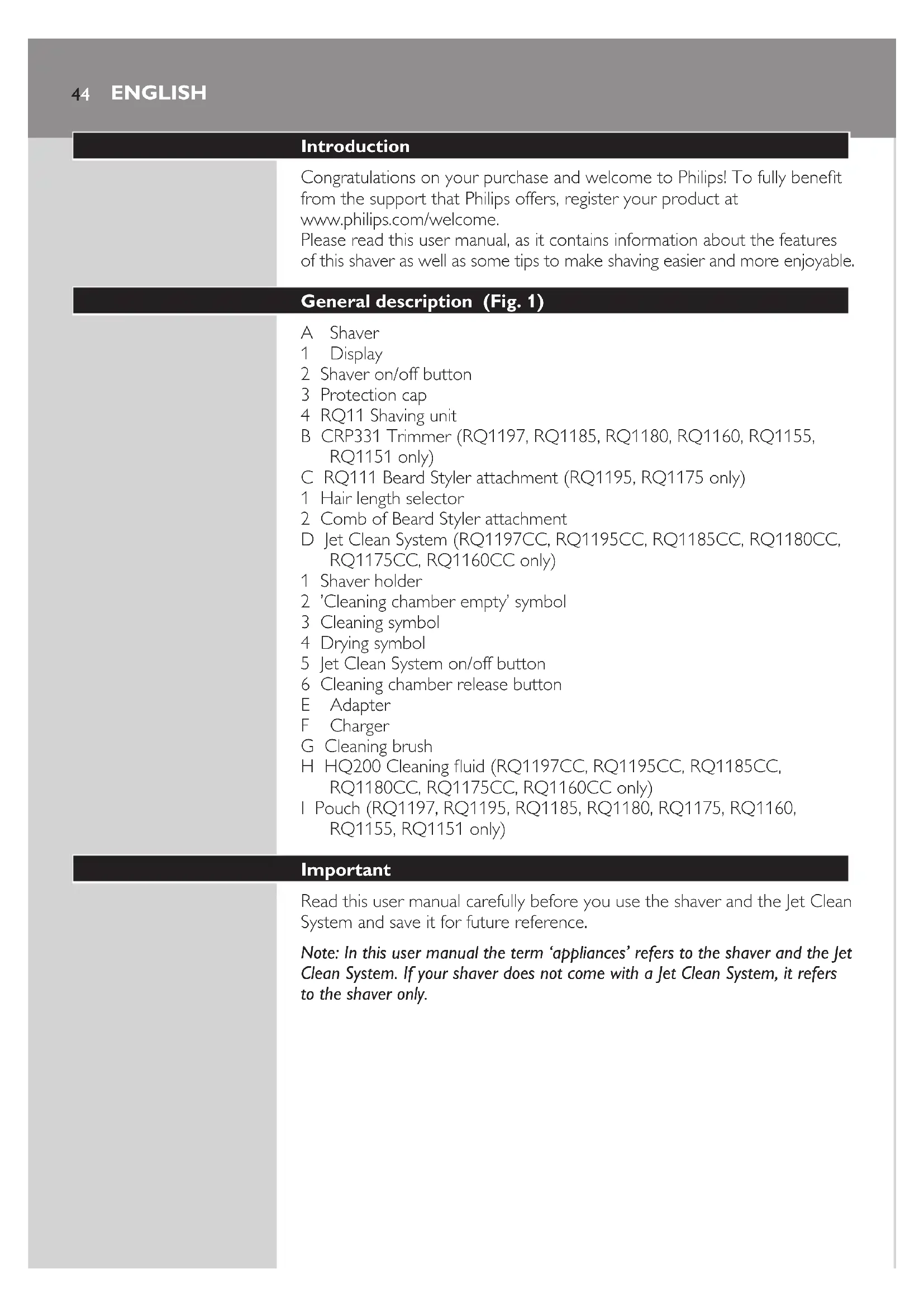

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Please read this user manual, as it contains information about the features of this shaver as well as some tips to make shaving easier and more enjoyable.

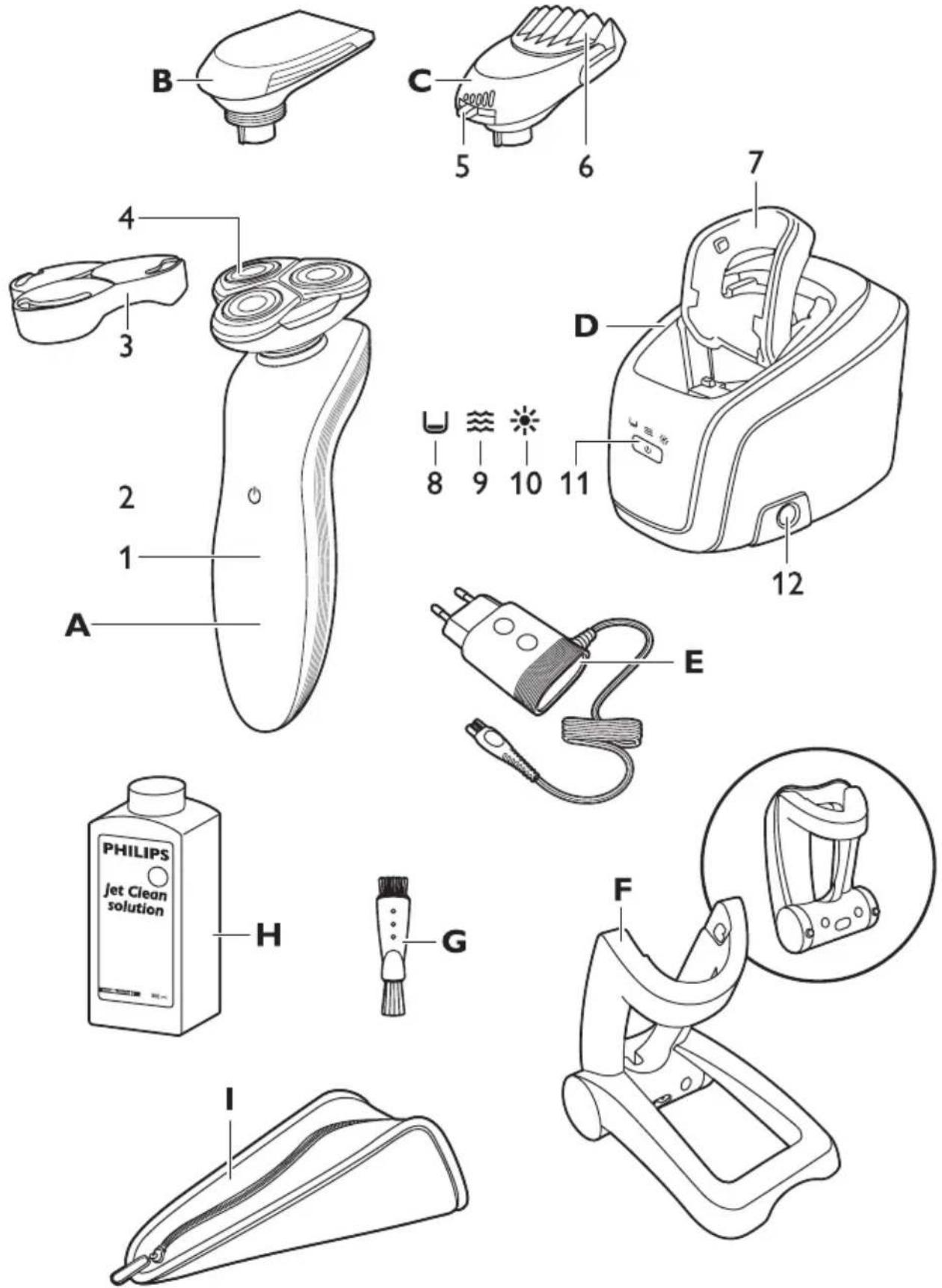

General description (Fig. 1)

A Shaver
1 Display
2 Shaver on/off button
3 Protection cap
4 RQ11 Shaving unit
B CRP331 Trimmer (RQ1197, RQ1185, RQ1180, RQ1160, RQ1155, RQ1151 only)
C RQ111 Beard Styler attachment (RQ1195, RQ1175 only)
1 Hair length selector
2 Comb of Beard Styler attachment
D Jet Clean System (RQ1197CC, RQ1195CC, RQ1185CC, RQ1180CC, RQ1175CC, RQ1160CC only)
1 Shaver holder
2 'Cleaning chamber empty' symbol
3 Cleaning symbol
4 Drying symbol
5 Jet Clean System on/off button
6 Cleaning chamber release button
E Adapter
F Charger
G Cleaning brush
H HQ200 Cleaning fluid (RQ1197CC, RQ1195CC, RQ1185CC, RQ1180CC, RQ1175CC, RQ1160CC only)
I Pouch (RQ1197, RQ1195, RQ1185, RQ1180, RQ1175, RQ1160, RQ1155, RQ1151 only)

Important

Read this user manual carefully before you use the shaver and the Jet Clean System and save it for future reference.

Note: In this user manual the term ‘appliances’ refers to the shaver and the Jet Clean System. If your shaver does not come with a Jet Clean System, it refers to the shaver only.

General

Prohibition sign with a faucet and diagonal line, no text or symbols present

Danger

- Make sure the adapter does not get wet.

Warning

• The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.
• These appliances are not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of these appliances by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the shaver and the Jet Clean System.
• Be careful with hot water when you clean the appliances. Always check if the water is not too hot, to prevent your hands from getting burnt.

Caution

• Never immerse the Jet Clean System and the charger in water nor rinse them under the tap.
• The appliances and accessories are not dishwasher-proof.
• Always place and use the appliances on a surface that is fluid-resistant.
• Use, charge and store the shaver at a temperature between 5^ C and 35^ C.
• Only use the accessories supplied with this shaver or that have been specifically developed for this shaver.
• If the adapter or any of the other accessories is damaged, always have it replaced with one of the original type in order to avoid a hazard.
• The adapter transforms 100-240 volts to a safe low voltage of less than 24 volts.
• Do not use the appliances and accessories if they are damaged.
• Water may leak from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.

Jet Clean system (RQ1197CC, RQ1195CC, RQ1185CC, RQ1180CC, RQ1175CC only)

Caution

• Only use the Jet Clean System with the original HQ200 cleaning fluid.
• Always place and use the Jet Clean System on a stable, level and horizontal fluid-resistant surface to prevent leakage.
• Never immerse the Jet Clean System in water.
• Empty the cleaning chamber and clean it thoroughly by rinsing it with hot tap water every 15 days.
• The Jet Clean System thoroughly cleans but does not disinfect your shaver, therefore do not share the shaver with others.
• The cleaning chamber of the Jet Clean System is not dishwasher-proof.
• When the Jet Clean System is ready for use, do not move it to prevent leakage of cleaning fluid.

Beard Styler attachment (RQ1195, RQ1175 only)

Caution

• Only use the Beard Styler attachment to trim facial hair (beard, moustache and sideburns). Do not use it to trim body parts below the neckline.
• Only use the Beard Styler attachment in combination with the following shaver types: RQ12xx, RQ11xx, RQ10xx.
• The Beard Styler attachment is not dishwasher-proof.

Compliance with standards

• This shaver complies with the internationally approved safety regulations and can be safely used in the bath or shower and cleaned under the tap.
• These Philips appliances comply comply with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliances are safe to use based on scientific evidence available today.

The display

Diagram showing a remote control panel connected to a handheld device, with icons and labels indicating function keys.

Note: If there is a protective foil on the display, remove it before you use the shaver for the first time.

The various shaver types have different displays, which are shown in the figures below.

Diagram showing a remote control panel connected to a handheld device with labeled buttons and ports.

- RQ1185, RQ1167, RQ1160

Diagram showing a device with two buttons connected to a handheld device (no text or symbols present)

- RQ1155, RQ1151, RQ1150, RQ1145, RQ1141, RQ1131

Charging

- Charging takes approx. 1 hour.

• When the shaver is charging, first the bottom charging light flashes, then the second charging light, and so on until the shaver is fully charged.
• Quick charge: When the shaver contains enough energy for one shave, the bottom charging light alternately flashes orange and white.

RQ1185, RQ1167, RQ1160, RQ1155, RQ1151, RQ1150, RQ1145, RQ1141, RQ1131

Note: The displays of the various shaver types look different, but work in the same way.

• When the shaver is charging, first the plug symbol and the battery symbol flash alternately. After some time, the plug symbol goes out and the battery symbol continues to flash until the shaver is fully charged.
• Quick charge: When the shaver contains enough energy for one shave, the alternate flashing of the plug symbol and battery symbol stops and only the battery symbol flashes.

Battery fully charged

Diagram showing battery charging mechanism with lock, power source, and charging symbol

Diagram showing battery charging setup with two test tubes and a battery icon (no text or symbols)

Diagram showing a battery connected to a vertical stack of circular components with a lock icon above (no text or symbols)

Pure electrical circuit lines without any symbols

- When the battery is fully charged, all charging lights light up continuously. After approx. 30 minutes, the display automatically switches off again.

RQ1185, RQ1167, RQ1160, RQ1155, RQ1151, RQ11510, RQ1145, RQ1141, RQ1131

Note: The displays of the various shaver types look different, but work in the same way.

- When the battery is fully charged, the battery symbol lights up continuously. After approx. 30 minutes, the display automatically switches off again.

Battery low

Pure electrical circuit lines without any symbols

• When the battery is almost empty (when there are only 5 or fewer shaving minutes left), the bottom charging light flashes orange.
• When you switch off the shaver, the bottom charging light continues to flash for a few seconds.

RQ1185, RQ1167, RQ1160, RQ1155, RQ1151, RQ11510, RQ1145, RQ1141, RQ1131

Note: The displays of the various shaver types look different, but work in the same way.

Diagram showing battery and switch icons with labels and symbols

• When the battery is almost empty (when there are only 5 or fewer shaving minutes left), the plug symbol flashes.
• When you switch off the shaver, the plug symbol continues to flash for a few seconds.

Remaining battery capacity

Diagram showing battery charging process with sensor, lock, and battery discharge components

- The remaining battery capacity is indicated by the number of charging lights that are on.

Travel lock

3 sec.

You can lock the shaver when you are going to travel. The travel lock prevents the shaver from being switched on by accident.

Activating the travel lock

1 Press the on/off button for 3 seconds to enter the travel lock mode.

Diagram showing security icons and a lock symbol connected to a vertical line with horizontal dashed lines.

The lock symbol lights up on the display.

Note: The displays of the various shaver types look different, but show the same symbol.

Deactivating the travel lock

1 Press the on/off button for 3 seconds.

The motor starts running to indicate that the travel lock has been deactivated.

The shaver is now ready for use again.

Note: When you place the shaver in the plugged-in charger or Jet Clean System, the travel lock is automatically deactivated.

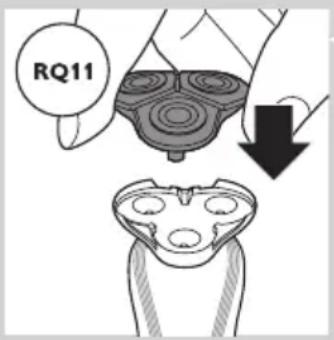

Replace shaving head holder

Diagram showing electrical connections with power and current symbols, including a circular symbol with a heart icon and directional arrows.

Note: The displays of the various shaver types look different, but show the same symbol.

For maximum shaving performance, we advise you to replace the shaving head holder every two years.

- To remind you to replace the shaving head holder, the appliance is equipped with a replacement reminder which is activated automatically after approx. two years. The replacement reminder is repeated at 9 successive shaves or until you reset the shaver.

Charging

Charging takes approx. 1 hour.

RQ1155: A fully charged shaver has a shaving time of up to 50 minutes.

RQ1151, RQ1150, RQ1145: A fully charged shaver has a shaving time of up to 45 minutes.

RQ1141, RQ1131: A fully charged shaver has a shaving time of up to 40 minutes.

Charge the shaver before you use it for the first time and when the display indicates that the battery is almost empty (see section 'Battery low' in chapter 'The display').

Quick charge

After the shaver has charged for 5 minutes, it contains enough energy for one shave.

Charging in the charger

Line drawing of a mechanical device with a black arrow pointing to a component (no text or symbols)

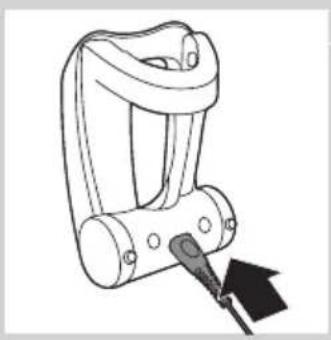

1 Insert the small plug into the charger.

Diagram of a climbing rope with a curved arrow indicating rotational motion (no text or symbols)

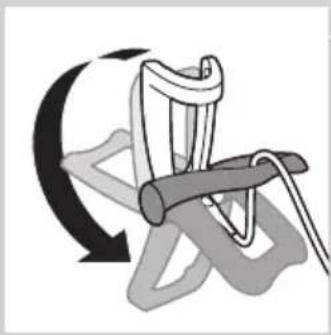

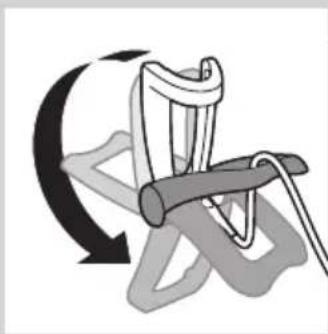

2 Unfold the charger ('click').
3 Put the adapter in the wall socket.

Diagram illustrating a hairbrush with labeled parts and directional arrows indicating motion or force

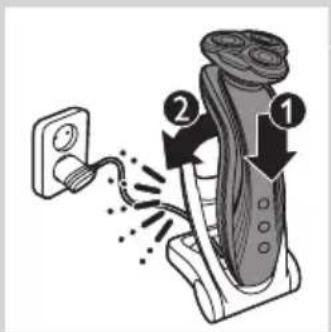

4 Put the shaver in the charger (1) and press it backwards until it locks into place (2).
The display shows that the shaver is charging (see section 'Charging' in chapter 'The display').

Charging in the Jet Clean System (RQ1197CC, RQ1195CC, RQ1185CC, RQ11801CC, RQ1175CC only)

Illustration of a device with a cylindrical top and a rectangular base (no text or symbols)

1 Put the small plug in the Jet Clean System.
2 Put the adapter in the wall socket.

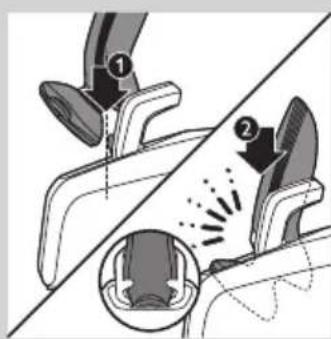

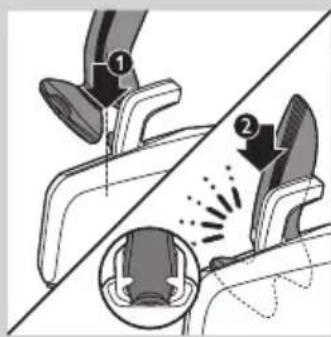

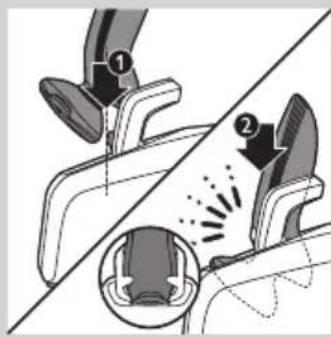

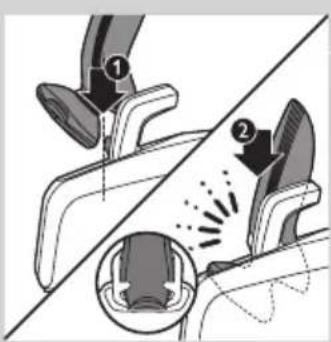

3 Hold the shaver upside down above the holder with the back of the shaver pointing towards the holder.

Note: RQ1197, RQ1195, RQ1180, RQ1175: when you turn the shaver upside down, the battery indication on the display is also turned upside down so you can still see to what level the battery is charged.

Diagram showing two mechanical components with arrows indicating motion or force, no text or symbols present

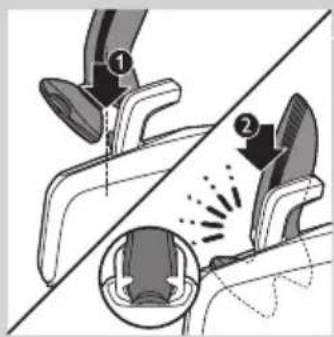

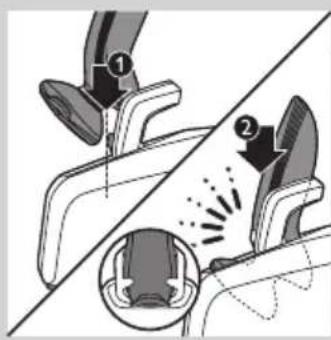

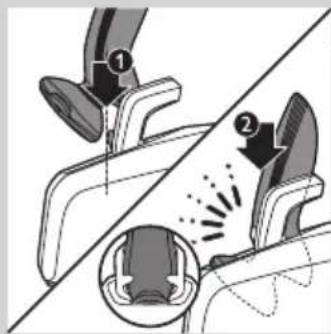

4 Place the shaver body in the holder behind the two clips (1) and press it down until it locks into place (2).

Note: The shaver cannot be placed in the Jet Clean System when the protection cap is on the shaving unit or when the trimmer is placed on the shaver.

The display shows that the shaver is charging (see chapter 'The display').

Using the shaver

Shaving

Skin adaptation period

Your first shaves may not bring you the result you expect and your skin may even become slightly irritated. This is normal. Your skin and beard need time to adapt to any new shaving system.

We advise you to shave regularly (at least 3 times a week) for a period of 3 weeks to allow your skin to adapt to the new shaver. During this period, use your new electric shaver exclusively and do not use other shaving methods. If you use different shaving methods, it is more difficult for your skin to adapt to the new shaving system.

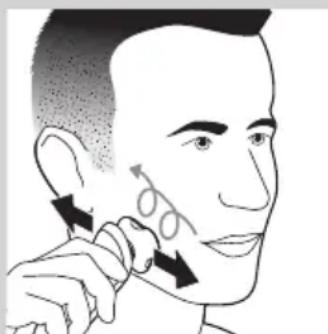

Illustration of a person applying facial massage to the ear with directional arrows indicating motion (no text or symbols)

1 Press the on/off button once to switch on the shaver.

DRQ1197, RQ1195, RQ1185, RQ1180, RQ1175: The display lights up for a few seconds.

2 Move the shaving heads over your skin in circular movements.

- Do not make straight movements.

3 Press the on/off button once to switch off the shaver.

DRQ1197, RQ1195, RQ1185, RQ1180, RQ1175: The display lights up for a few seconds and then shows the remaining battery capacity.

Wet shaving

You can also use this shaver on a wet face with shaving foam or shaving gel. To shave with shaving foam or shaving gel, follow the steps below:

1 Apply some water to your skin.
2 Apply shaving foam or shaving gel to your skin.
3 Rinse the shaving unit under the tap to ensure that the shaving unit glides smoothly over your skin.
4 Press the on/off button once to switch on the shaver.
5 Move the shaving heads over your skin in circular movements.

Note: Rinse the shaver under the tap regularly to ensure that it continues to glide smoothly over your skin.

6 Dry your face and thoroughly clean the shaver after use (see chapter 'Cleaning and maintenance').

Note: Make sure you rinse all foam or shaving gel off the shaver.

Using the trimmer (RQ1197, RQ1185, RQ1180, RQ1160, RQ1155, RQ1151 only)

Illustration of a hand pouring liquid into a container with a cross mark, indicating a process step (no text or symbols present)

You can use the trimmer to groom your sideburns and moustache.

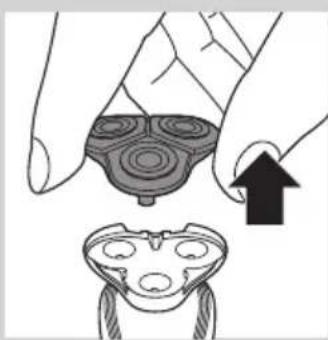

1 Pull the shaving unit straight off the shaver.

Note: Do not twist the shaving unit while you pull it off the shaver.

Diagram showing a spray gun with labeled parts and an inset close-up view of the component

Diagram showing a robotic arm with a cross symbol and an upward arrow, no text or labels present

Diagram illustrating a spray gun with labeled parts and an inset showing the tip of the gun's tip.

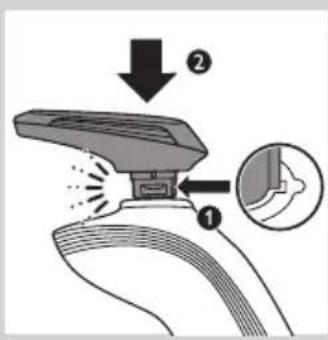

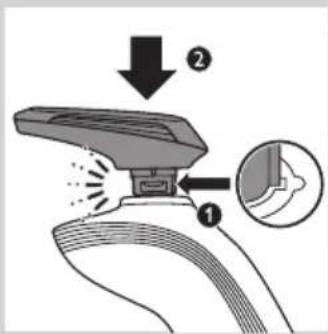

2 Insert the lug of the trimmer into the slot in the top of the shaver (1). Then press down the trimmer (2) to attach it to the shaver ('click').
3 Press the on/off button once to switch on the trimmer. DRQ1180: The display lights up for a few seconds.
4 You can now start trimming.
5 Press the on/off button once to switch off the trimmer. ▶RQ1180: The display lights up for a few seconds to show the remaining battery capacity.
6 Pull the trimmer straight off the shaver.

Note: Do not twist the trimming unit while you pull it off the shaver.

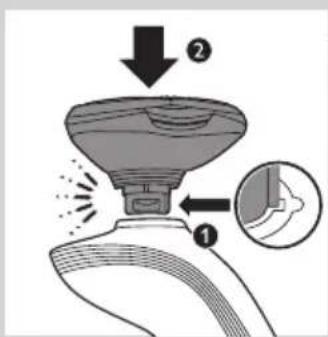

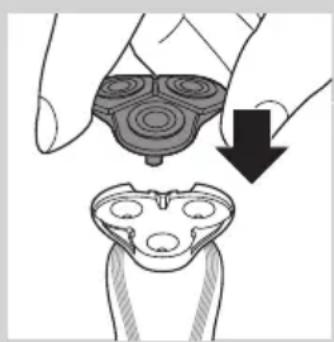

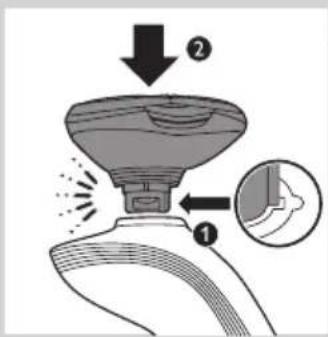

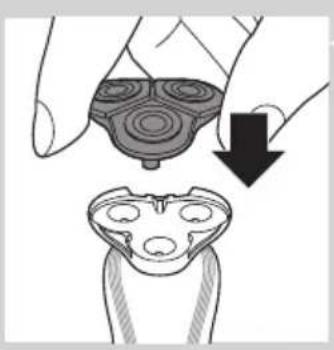

7 Insert the lug of the shaving unit into the slot in the top of the shaver (1). Then press down the shaving unit (2) to attach it to the shaver ('click').

Using the Beard Styler attachment (RQ1195, RQ1175 only)

Diagram showing a hand pressing down a bottle with a cross mark and an upward arrow, no text or symbols present.

Illustration of a hand holding an electronic device with a magnified inset showing internal components (no text or symbols)

Note: Only use the Beard Styler attachment to trim facial hair (beard, moustache and sideburns). Do not use it to trim body parts below the neckline.

1 Make sure the shaver is switched off.
2 Pull the shaving unit straight off the shaver.

Note: Do not twist the shaving unit while you pull it off the shaver.

3 Insert the lug of the Beard Styler attachment into the slot in the top of the shaver (1). Then press down the Beard Styler attachment (2) to attach it to the shaver ('click').

Using the Beard Styler attachment with comb

You can use the Beard Styler attachment with the comb attached to style your beard at one fixed setting, but also at different length settings. The hair length settings on the Beard Styler attachment correspond to the remaining hair length after cutting and range from 1 to 5mm.

Illustration of a hand holding a small electronic device with a lightning bolt indicating sound or vibration (no text or symbols present)

1 Slide the comb straight into the guiding grooves on both sides of the Beard Styler attachment ('click').

Diagram showing a person's head with labeled parts and directional arrows indicating movement or force.

2 Press the length selector (1) and then push it to the left or right (2) to select the desired hair length setting.

Diagram showing a person using a power shaver with a 'Power' button and a small electrical symbol

3 Press the on/off button on the shaver to switch it on.

Line drawing of a person applying a toothbrush to their beaded jaw (no text or symbols)

4 You can now start styling your beard.

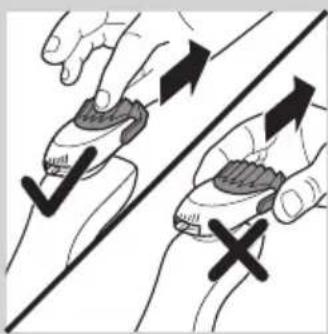

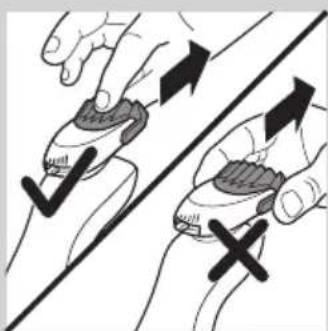

Using the Beard Styler attachment without comb

You can use the Beard Styler attachment without the comb to trim and contour your beard, moustache or sideburns.

Line drawing of a handheld electric shaver with a black arrow indicating motion (no text or symbols)

1 Pull the comb off the Beard Styler attachment.

Diagram illustrating hand positioning and movement of a device, showing correct and incorrect states with directional arrows

Note: Grab the comb in the centre to pull it off the Beard Styler attachment. Do not pull at the sides of the comb.

2 Press the on/off button to switch on the shaver.

Line drawing of a person applying makeup to their ear (no text or symbols)

3 You can now start to trim and contour your beard, moustache, sideburns or neckline.

Beard styles

Below you find some examples of beard styles you can create.

Line drawing of a man's head and shoulders with a beard (no text or symbols)

- A stubble look

Line drawing of a man's head and beard (no text or symbols)

- A full beard

Line drawing of a man's face with short hair and mustache (no text or symbols)

- A moustache

Line drawing of a man's head and shoulders (no text or symbols)

- A goatee

Cleaning and maintenance

Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the shaver, its accessories and the Jet Clean System (RQ1197CC, RQ1195CC, RQ1185CC, RQ1180CC, RQ1175CC only).

• The best and most hygienic way to clean the shaver is in the Jet Clean System (RQ1197CC, RQ1195CC, RQ1185CC, RQ1180CC, RQ1175CC only). You can also rinse the shaver under the tap or clean it with the brush supplied.
• Clean the shaver after every shave for optimal shaving performance.
• You can clean the outside of the shaver with a damp cloth.
• Regular cleaning guarantees better shaving performance.

Cleaning the shaving unit

°C °F

Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt.

1 Switch off the shaver. Remove it from the charger or remove it from the Jet Clean System (RQ1197CC, RQ1195CC, RQ1185CC, RQ1180CC, RQ1175CC only).
2 Rinse the shaving unit under a hot tap for some time.
Note: You can also clean the shaving unit with the cleaning brush supplied.

Illustration of a hand holding a circular object with concentric rings, next to a separate abstract shape with internal circles (no text or symbols)

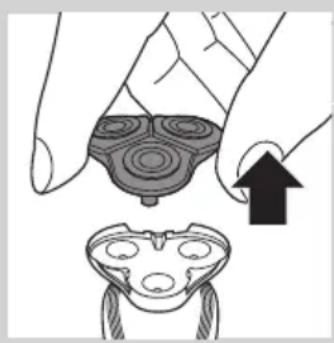

3 Pull the shaving head holder off the bottom part of the shaving unit and rinse it under a hot tap for 30 seconds.

Note: You can also clean the shaving head holder with the cleaning brush supplied.

4 Carefully shake off excess water and let the shaving head holder dry. Never dry the shaving unit with a towel or tissue, as this may damage the shaving heads.

Illustration of a hand holding a device with a downward arrow indicating process (no text or symbols)

5 Reattach the shaving head holder to the bottom part of the shaving unit ('click').

Cleaning the shaving unit in the Jet Clean System (RQ1197CC, RQ1195CC, RQ1185CC, RQ1180CC, RQ1175CC only)

The Jet Clean System has an automatic cleaning program. When you press the on/off button, the Jet Clean System starts cleaning in this automatic cleaning program.

Preparing the Jet Clean System for use

Fill the cleaning chamber before first use.

Diagram illustrating two-step instructions for handling a device, labeled with arrows and numbered steps ① and ②.

1 Put the small plug in the Jet Clean System.
2 Put the adapter in the wall socket.

The holder automatically moves to the highest position.

Illustration of a hand pouring liquid into a container with a water level indicator (no text or symbols)

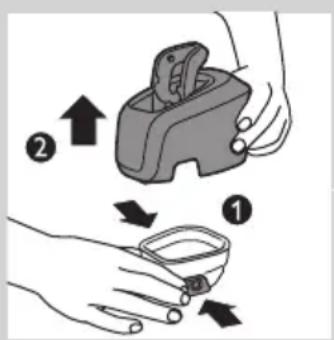

3 Simultaneously press the release buttons on both sides of the cleaning chamber (1). Then lift the Jet Clean System off the cleaning chamber (2).
The cleaning chamber remains behind.
4 Unscrew the cap from the bottle with HQ200 cleaning fluid.

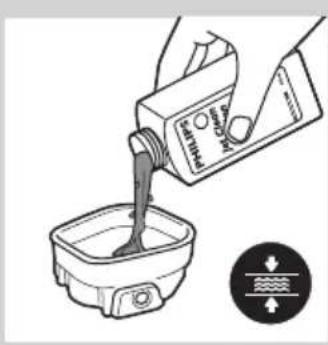

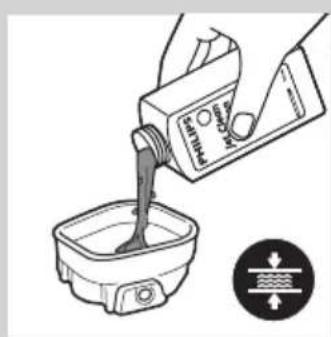

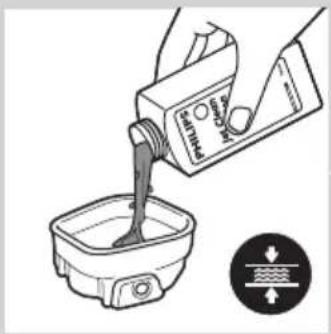

5 Fill the cleaning chamber with HQ200 cleaning fluid to a level between the two lines.

Illustration of hands using a handheld device to remove or clean material, with no text or symbols present.

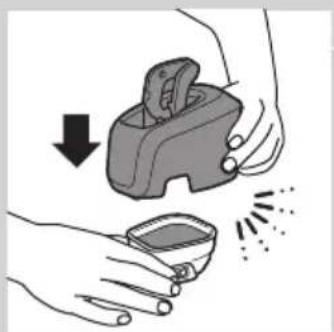

6 Place the Jet Clean System back onto the cleaning chamber.

Make sure the release buttons click back into place.

Using the Jet Clean System

Note: If you use the shaver with shaving foam or shaving gel, we advise you to rinse it under the hot tap before you clean it in the Jet Clean System. This guarantees an optimal lifetime for the cleaning fluid.

Illustration of a device with a cylindrical top and a rectangular base (no text or symbols)

Diagram illustrating a mechanical or fluid system with labeled components and directional arrows, likely illustrating a fluid or material flow.

Diagram showing a finger pressing a button with icons for water level, power button, and directional arrow

Diagram showing a container with a star-shaped symbol inside, containing liquid, with an inset image of three wavy lines above and a label '三' in the center.

Diagram of a device with a sun symbol and a warning sign, no readable text or symbols present

1 Hold the shaver upside down above the holder with the back of the shaver pointing towards the holder.

2 Place the shaver body in the holder behind the two clips (1) and press it down until it locks into place (2).

The display shows that the shaver is charging (see chapter 'The display').

3 Press the on/off button on the Jet Clean System to start the cleaning program.

The shaver display stops showing the charging indication.

The cleaning light starts to flash and the shaver is automatically lowered into the cleaning fluid.

The cleaning light flashes throughout the cleaning program, which takes a few minutes.

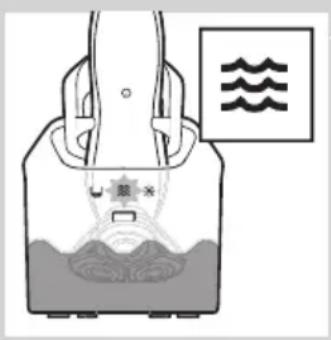

During the first phase of the cleaning program, the shaver automatically switches on and off several times and moves up and down.

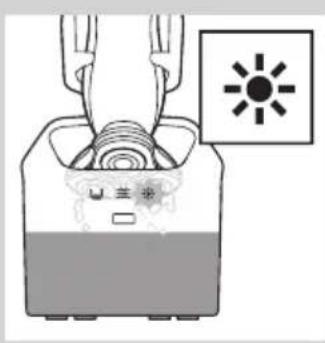

During the second phase of the cleaning program, the shaver is placed in the drying position, indicated by the flashing drying symbol. This phase takes approx. 2 hours. The shaver stays in this position until the end of the program.

After the cleaning program, the charging indication appears on the shaver display (see chapter 'The display').

Note: If you press the on/off button of the Jet Clean System during the cleaning program, the program aborts. In this case, the cleaning or drying light stops flashing and the holder moves to the highest position.

Diagram of a device with a U-shaped symbol and a warning label, no readable text or symbols present.

Diagram illustrating two-step instructions for handling a device, labeled with arrows and numbered parts.

Illustration of a hand holding a small object with a curved line extending from it, no text or symbols present.

Illustration of a faucet dispensing liquid into a container with a small outlet (no text or symbols)

Illustration of a hand pouring liquid into a container with a water level indicator (no text or symbols)

Note: If you remove the adapter from the wall socket during the cleaning program, the program aborts. The holder remains in its current position. When you put the adapter back into the wall socket, the holder moves to the highest position.

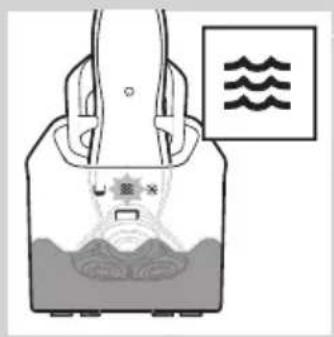

- When the cleaning fluid drops below the minimum level, the 'cleaning chamber empty' symbol starts to flash and the holder returns to its starting position.

- If you use the Jet Clean System to clean your shaver every day, you need to refill the cleaning chamber approx. every 15 days.

Cleaning the Jet Clean System

Clean the cleaning chamber every 15 days.

You can wipe the outside of the Jet Clean System with a damp cloth.

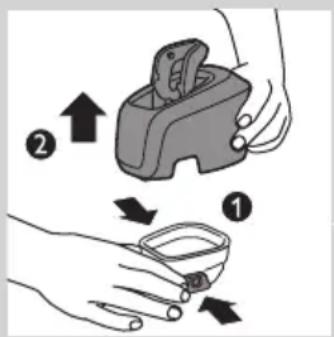

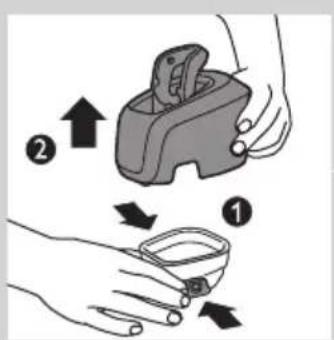

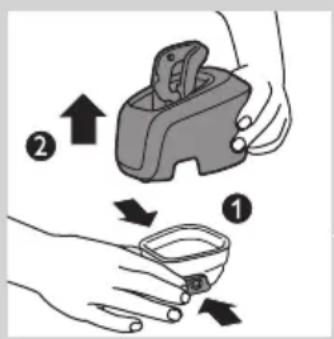

1 Simultaneously press the release buttons on both sides of the Jet Clean System (1). Then lift the Jet Clean System off the cleaning chamber (2).

The cleaning chamber remains behind.

2 Pour any remaining cleaning fluid out of the cleaning chamber. You can simply pour the cleaning fluid down the sink.

3 Rinse the cleaning chamber under the tap.

The cleaning chamber is not dishwasher-proof.

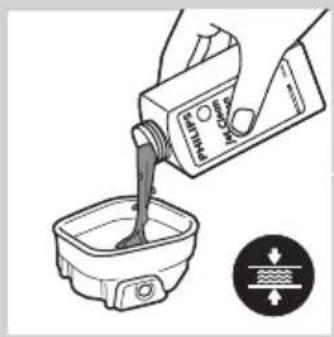

4 Fill the cleaning chamber with HQ200 cleaning fluid to a level between the two lines.

Illustration of a hand holding a device with a downward arrow and a small bowl nearby (no text or symbols)

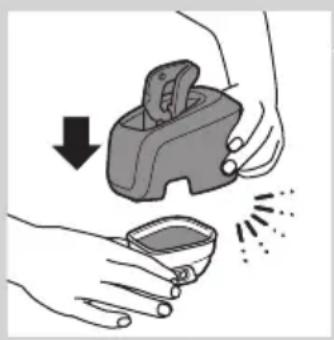

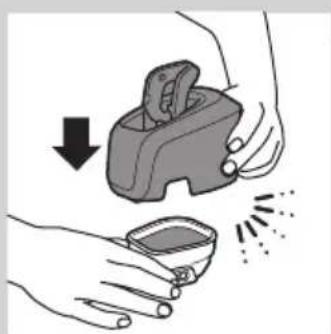

5 Place the Jet Clean System back onto the cleaning chamber. Make sure the release buttons click back into place.

Extra-thorough cleaning method

Illustration of a hand holding a circular object with concentric rings, next to a separate sketch of a frog-like figure (no text or symbols)

Make sure the appliance is switched off.

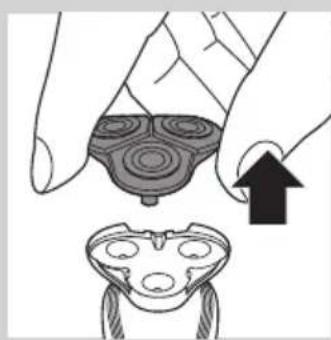

1 Pull the shaving head holder off the bottom part of the shaving unit.

Abstract diagram with concentric circular patterns and a black arrow pointing left (no text or symbols)

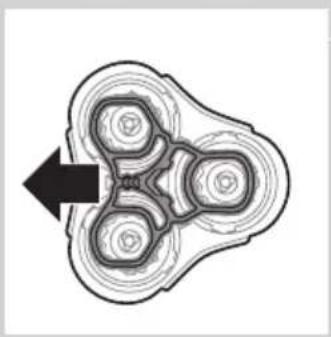

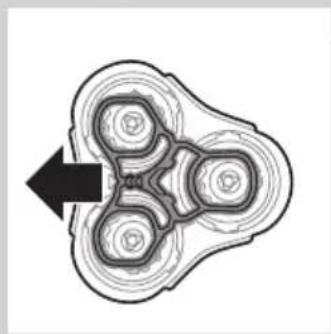

2 Slide the green retaining frame in the direction of the arrows indicated on the retaining frame.

Mechanical assembly diagram showing gears and shafts with an upward arrow (no text or symbols)

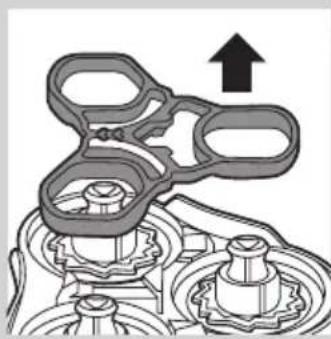

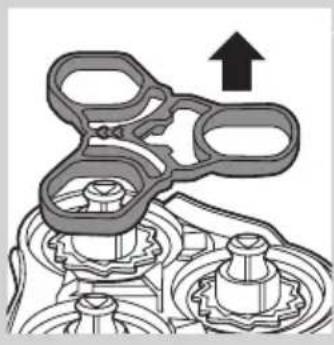

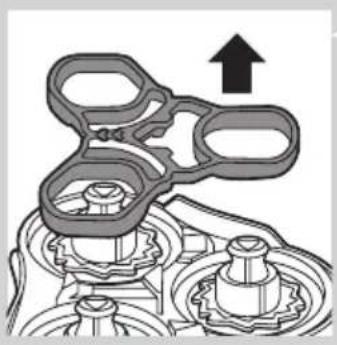

3 Lift the retaining frame out of the shaving head holder.

Mechanical assembly diagram showing a gear-like component with an upward arrow indicating motion (no text or symbols present)

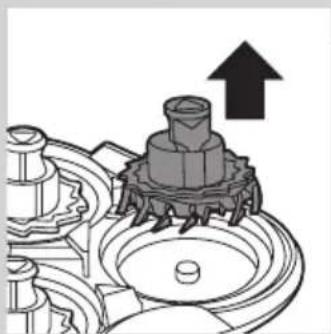

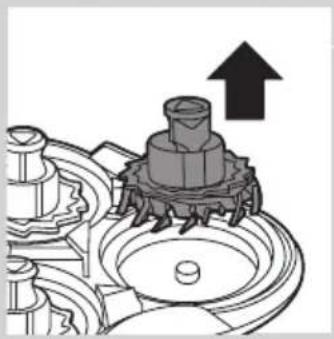

4 Remove the cutter from the shaving guard.

Note: Do not clean more than one cutter and shaving guard at a time, since they are all matching sets. If you accidentally put a cutter in the wrong shaving guard, it may take several weeks before optimal shaving performance is restored.

Diagram showing gear meshing with arrows indicating direction (no text or symbols)

5 Clean the cutter with the cleaning brush supplied.

Mechanical assembly diagram showing a brush applying material to a gear mechanism (no text or symbols)

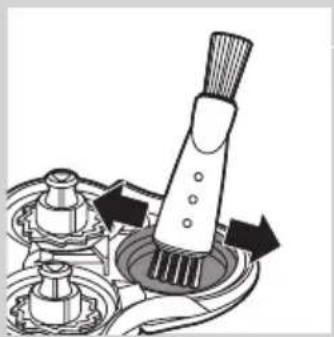

6 Clean the inside of the shaving guard.

Mechanical gear assembly diagram showing a rotating shaft and housing with a downward arrow indicating motion (no text or symbols)

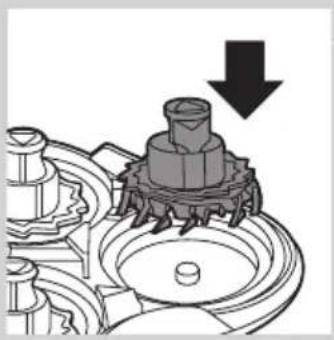

7 After cleaning, place the cutter back into the shaving guard with the cutter legs pointing downwards.

Mechanical assembly diagram showing gear-like components and a downward arrow (no text or symbols)

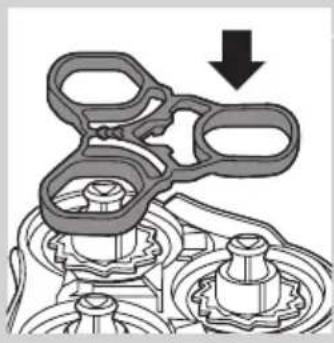

8 Place the retaining frame back onto the shaving head holder.

Abstract diagram with concentric circles and radiating lines, no text or symbols present

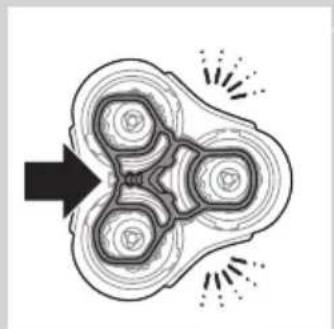

9 Slide the guard back into place ('click').

Illustration of a hand holding a device with a downward arrow indicating process (no text or symbols)

10 Reattach the shaving head holder to the bottom part of the shaving unit.

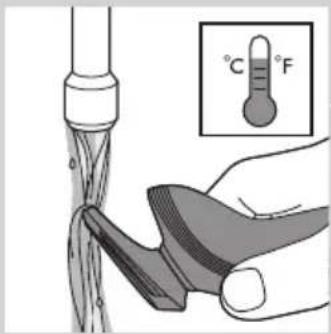

Cleaning the trimmer (RQ1197, RQ1185, RQ1180, RQ1160, RQ1155, RQ1151 only)

Diagram showing a hand holding a tool interacting with a wire, with an inset showing a thermometer reading 'C' and 'F'.

Clean the trimmer every time you have used it.

1 Switch on the appliance with the trimmer attached.

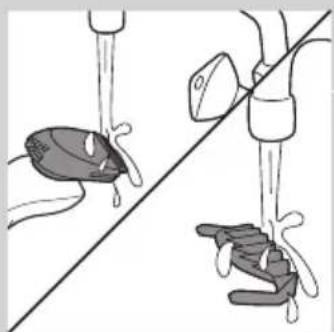

2 Rinse the trimmer under a hot tap for some time.
3 After cleaning, switch off the appliance.

Tip: For optimal trimmer performance, lubricate the trimmer teeth with a drop of sewing machine oil every six months.

Illustration of two hands holding a fish and a tool, separated by a diagonal line (no text or symbols)

Cleaning the Beard Styler attachment (RQ1195, RQ1175 only)

Clean the Beard Styler attachment every time you have used it.

1 Pull the comb off the Beard Styler attachment.
2 Rinse the Beard Styler attachment and the comb separately under a hot tap for some time.
Note: You can also clean the Beard Styler attachment and the comb with the cleaning brush supplied.
3 Lubricate the trimmer teeth with a drop of sewing machine oil every six months.

Storage

Line drawing of a pliers with an arrow indicating motion (no text or symbols)

1 Slide the protection cap onto the shaving unit to prevent damage to the shaving heads.
2 RQ1197, RQ1195, RQ1185, RQ1180, RQ1175, RQ1160, RQ1155, RQ1151 only: Store the shaver in the pouch supplied.

Replacement

For maximum shaving performance, we advise you to replace the shaving head holder every two years.

Only replace the shaving head holder with an original RQ11 Philips Shaving Head Holder.

Replacement reminder

To remind you to replace the shaving head holder, the appliance is equipped with a replacement reminder which is activated automatically after approx. two years. The replacement reminder is repeated at 9 successive shaves or until you reset the shaver.

Diagram showing electrical connections with power and current symbols, including a circular icon with a skull symbol and a square with a circular arrow.

1 The shaving unit symbol flashes when you switch off the shaver.

Note: The displays of the various shaver types look different, but show the same symbol.

2 Pull the shaving head holder off the bottom part of the shaving unit.

Illustration of a hand holding a circular object with concentric rings and an arrow pointing to a separate abstract shape (no text or symbols)

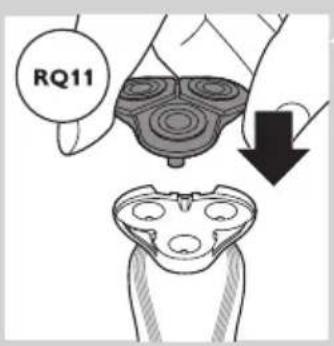

3 Attach the new shaving head holder to the bottom part of the shaving unit ('click').

RQ11

4 To reset the shaver, press and hold the on/off button for approx. 10 seconds.

10 sec.

Note: If you do not reset the shaver at the first replacement reminder, it continues to show the shaving unit symbol at 8 more shaves or until you reset the shaver.

Ordering accessories

To purchase accessories for this appliance, please visit our online shop at www.shop.philips.com/service. If the online shop is not available in your country, go to your Philips dealer or a Philips service centre. If you have any difficulties obtaining accessories for your appliance, please contact the Philips Consumer Care Centre in your country. You find its contact details in the worldwide guarantee leaflet.

The following parts are available

• HQ8505 adapter
• RQ11 Philips Shaving Head Holder
• HQ110 Philips Shaving Head Cleaning Spray
• HQ200 Philips Cleaning Fluid
• RQ111 Beard Styler attachment

2yrs

Shaving head holder

- We advise you to replace the shaving head holder every two years. Always replace the shaving head holder with an original RQ11 Philips Shaving Head Holder.

Cleaning

- RQ1197CC, RQ1195CC, RQ1185CC, RQ1180CC, RQ1175CC only: use Jet Clean Solution (HQ200) for regular cleaning of the shaving heads.

Environment

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

- Do not throw away the shaver and the Jet Clean System (RQ1197CC, RQ1195CC, RQ1185CC, RQ1180CC, RQ1175CC only) with the normal household waste at the end of their life, but hand them in at an official collection point for recycling. By doing this, you help to preserve the environment.

- The built-in rechargeable shaver battery contains substances that may pollute the environment. Always remove the battery before you discard or hand in the shaver at an official collection point. Dispose of the battery at an official collection point for batteries. If you have trouble removing the battery, you can also take the appliance to a Philips service centre. The staff of this centre will remove the battery for you and will dispose of it in an environmentally safe way.

Removing the rechargeable shaver battery

	Only remove the rechargeable battery when you discard the shaver.Make sure the battery is completely empty when you remove it.Be careful, the battery strips are sharp.1 Remove the back panel of the shaver with a screwdriver.2 Remove the rechargeable battery.
Guarantee and support
	If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet.Guarantee restrictions
	The shaving heads (cutters and shaving guards) are not covered by the terms of the international guarantee because they are subject to wear.
Troubleshooting
	This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Centre in your country.
Problem Possible cause Solution
The shaver does not shave as well as it used to.	The shaving heads are damaged or worn.	Replace the shaving head holder (see chapter ‘Replacement’).
	Long hairs obstruct the shaving heads.	Clean the shaving heads by following the steps of the extra-thorough cleaning method (see chapter ‘Cleaning and maintenance’).
	RQ1197CC, RQ1195CC,RQ1185CC, RQ1180CC, RQ1175CC only: The Jet Clean System has not cleaned the shaver properly, because the cleaning fluid in the cleaning chamber is soiled or the cleaning fluid level is too low.	Clean the shaver thoroughly before you continue shaving. If necessary, clean and refill the cleaning chamber (see chapter ‘Cleaning and maintenance’).

Problem Possible cause Solution

The shaver does not work when I press the on/off button.	The rechargeable battery is empty. Recharge the battery (see chapter ‘Charging’).
	The travel lock is activated. Press the on/off button for 3 seconds to deactivate the travel lock.
	The shaving head holder is soiled or damaged to such an extent that the motor cannot run.	Clean the shaving head holder or replace it (see chapters ‘Cleaning and maintenance’ and ‘Replacement’).
	The temperature of the shaver is too high. In this case, the shaver does not work.	Let the shaver cool down. As soon as the temperature of the shaver has dropped sufficiently, you can switch on the shaver again.
RQ1197CC, RQ1195CC, RQ1185CC, RQ1180CC, RQ1175CC only: The shaver is not entirely clean after I clean it in the Jet Clean System.	The cleaning fluid in the cleaning chamber is soiled.	Empty and rinse the cleaning chamber and refill it with new cleaning fluid.
	The cleaning fluid level is too low. If the fluid volume in the cleaning chamber drops below the minimum level during the cleaning program, the program aborts. The cleaning light and the ‘cleaning chamber empty’ symbol flash at intervals and the holder returns to its starting position.	Refill the cleaning chamber with cleaning fluid to a level between the two lines (see chapter ‘Cleaning and maintenance’).
	You have used another cleaning fluid than the original Philips cleaning fluid.	Only use HQ200 Philips Cleaning Fluid.
RQ1197CC, RQ1195CC, RQ1185CC, RQ1180CC, RQ1175CC only: The Jet Clean System does not work when I press the on/off button.	The Jet Clean System is not connected to the mains.	Put the small plug in the Jet Clean System and put the adapter in the wall socket.
	There is no electrical connection between the Jet Clean System and the shaver.	Press the shaver tightly into the holder to lock it into place.

Problem Possible cause Solution

The shaver is not fully charged after I charge it in the charger/Jet Clean System (RQ1197CC, RQ1195CC, RQ1185CC, RQ1180CC, RQ1175CC only).

You have not placed the shaver in the charger/Jet Clean System properly.

Make sure you press the shaver until it locks into place.

Introduktion

Prohibition sign with a faucet and diagonal line, no text or symbols present

Generelt

Fare

Diagram showing a remote control panel connected to a handheld device, with icons and labels indicating function keys.

Diagram showing a remote control panel connected to a handheld device with labeled buttons and ports.

- RQ1185, RQ1167, RQ1160

Diagram showing a device with two buttons connected to a handheld device (no text or symbols present)

- RQ1155, RQ1151, RQ1150, RQ1145, RQ1141, RQ1131

Diagram showing battery charging mechanism with lock, power source, and charging symbol

Diagram showing battery charging setup with two test tubes and a battery icon (no text or symbols)

Opladning

Diagram showing a battery connected to a vertical stack of circular components with a lock icon above (no text or symbols)

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Diagram showing battery and control icons including lock, battery, switch, and power plug

Diagram showing battery charging process with sensor, lock, and battery discharge components

Diagram showing electrical connections with power and current symbols, including a stylized face icon with directional arrows.

Technical line drawing of a mechanical device with a black arrow pointing to a component (no text or symbols)

Diagram of a mechanical device with a curved arrow indicating rotational motion (no text or symbols)

Diagram illustrating a device with labeled parts and directional arrows indicating process flow or movement.

Line drawing of a device with a top view and a base view (no text or symbols)

Diagram illustrating a mechanical or electrical component with labeled parts and motion indicators

4 Placer selve shaveren i holderen bag de to klemmer (1), og tryk den ned, indtil den låses på plads (2).

Illustration of a person applying facial massage to the ear with directional arrows indicating motion (no text or symbols)

Illustration of a hand pouring liquid into a container with a cross mark, indicating a step or process (no text or symbols present)

Diagram illustrating a spray gun mechanism with labeled parts and directional arrows

Diagram showing a hand operating a device with an upward arrow and a cross symbol (no text or labels)

Diagram illustrating a spray gun with labeled parts and an inset showing the tip area of the spray gun.

Illustration of a hand pouring liquid into a container with a cross symbol, indicating a process or action (no text or symbols present)

Illustration of a hand holding a medical or laboratory device with a magnified inset showing internal components (no text or symbols)

Illustration of a hand holding a handheld device with a black arrow indicating motion or force (no text or symbols)

Diagram showing two labeled arrows pointing to a curved object on a human head, with numbered annotations 1 and 2.

Diagram showing a hairdryer with a power button and a 'OK' symbol, likely indicating a power or activation function.

Line drawing of a person applying a toothbrush to their beak (no text or symbols)

Line drawing of a handheld device with a scroll wheel and directional arrow (no text or symbols)

Illustration of two hands holding a device with checkmark and cross symbols, no text or labels present

Line drawing of a person holding a hairpin, no text or symbols present

Line drawing of a man's head and shoulders, showing facial features including hair and beard (no text or symbols)

- Et "skægstubbe-look"

Line drawing of a man's head and beard (no text or symbols)

- Et fuldskæg

Line drawing of a male's head and shoulders (no text or symbols)

- Et overskæg

Line drawing of a man's head and shoulders with a beard (no text or symbols)

- Et gedeskæg

Illustration of a hand holding a circular object with concentric rings, and a separate view of a device with internal components (no text or symbols)

Illustration of a hand holding a circular object with a downward arrow, next to a close-up of a mechanical component (no text or symbols)

Illustration showing two-step instructions for handling a device, labeled with arrows and numbered parts (1 and 2)

Illustration of a hand pouring liquid into a container with a water level indicator (no text or symbols)

Illustration of hands using a handheld device to remove a small container with liquid, no text or symbols present

Line drawing of a device with a cylindrical top and a rectangular base (no text or symbols)

Diagram illustrating foot movement and impact technique with numbered annotations

Diagram showing a finger pressing a button with icons for thermal, power, and switch symbols

Simple line drawing of a container with liquid and a wavy pattern inside, no text or symbols present.

Diagram of a device with a sun symbol and control panel, no text or labels present

Diagram of a device with a U-shaped symbol and a warning icon, no readable text or labels present.

Diagram illustrating two-step instructions for handling a device, labeled with arrows and numbered positions (1 and 2).

Illustration of a hand holding a small object with a string, no text or symbols present

Illustration of a faucet dispensing liquid into a container with a handle (no text or symbols)

3 Skyl rensekammeret under vandhanen.

Illustration of a hand pouring liquid into a container with a pump bottle, accompanied by a directional indicator (no text or symbols on the diagram itself)

Illustration of hands using a handheld device to remove liquid from a small container (no text or symbols)

Illustration of a hand holding a circular object with concentric rings, next to a separate sketch of a frog-like figure (no text or symbols)

Abstract diagram with concentric circles and a black arrow pointing left (no text or symbols)

Mechanical assembly diagram showing gear and shaft components with an upward arrow (no text or symbols)

Mechanical assembly diagram showing a gear and shaft assembly with an upward arrow (no text or symbols)

Illustration of a hand holding a mechanical component with arrows indicating direction (no text or symbols)

Mechanical assembly diagram showing a brush tool interacting with a gear and motor (no text or symbols)

Mechanical gear assembly diagram showing a rotating shaft and housing with a downward arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing gear and shaft components with a downward arrow indicating motion (no text or symbols)

Abstract diagram with concentric circles and radiating lines, no text or symbols present

Illustration of a hand holding a 3D object with a downward arrow indicating a process or transformation (no text or symbols present)

Diagram showing a hand holding a tool with a thermometer and temperature indicators (°C, °F) above it, illustrating a process for thermal treatment.

Illustration of a hand pouring liquid into a bottle and a bag, separated by a diagonal line (no text or symbols)

Illustration of a pliers being cut with an arrow indicating the process (no text or symbols present)

Diagram showing electrical connections with power and current symbols, including a circular symbol labeled 'ω' and a square with a heart icon.

Illustration of a hand holding a circular object with concentric rings, and a separate view of a device with three circular components (no text or symbols)

RQ11

10 sec.

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Prohibition sign with a faucet and diagonal line, no text or symbols present

Vaara

Diagram showing a remote control panel connected to a handheld device, with icons and labels indicating function keys.

Diagram showing a remote control panel connected to a handheld device with labeled buttons and a plus button.

- RQ1185, RQ1167, RQ1160

Diagram showing a device with two buttons connected to a handheld device (no text or symbols present)

- RQ1155, RQ1151, RQ1150, RQ1145, RQ1141, RQ1131

Lataaminen

Diagram showing battery charging mechanism with lock, power source, and battery symbol

Diagram showing two battery cells with charging symbols and a battery icon, no text or labels present

Diagram showing a battery connected to a vertical stack of circular components with a lock icon above (no text or symbols)

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Diagram showing battery and control icons including lock, battery, switch, and power plug

Diagram showing battery charging process with battery, lock, and power connections

Diagram showing a vertical line with a lock icon and a horizontal line with a lock symbol, likely representing security or security system.

Diagram showing electrical connections with power and circular symbols, including a stylized face icon

Mechanical component diagram showing a lever and pin assembly (no text or symbols)

Diagram of a mechanical device with a curved arrow indicating rotational motion (no text or symbols)

Diagram illustrating a device with labeled parts and directional arrows indicating flow or movement.

Line drawing of a device with a handle and top component (no text or symbols)

Diagram illustrating foot movement and impact technique with numbered annotations indicating different foot positions and motion directions.

Illustration of a person applying facial massage to the ear with directional arrows indicating motion (no text or symbols)

1 Kytke parranajokoneeseen virta painamalla virtapainiketta kerran.

Illustration of a hand pouring liquid into a container with a cross mark, indicating a step or process (no text or symbols present)

Diagram illustrating a hairdryer with labeled parts and directional arrows, showing spray effect and magnified detail.

Diagram showing a robotic arm performing a press operation with an upward arrow and cross symbol (no text or labels)

Diagram illustrating a spray gun with labeled parts and directional arrows, showing spray motion and contact point.

Illustration of a hand pouring liquid into a container with a cross symbol, indicating a process or action (no text or symbols present)

Illustration of a hand holding a medical or laboratory device with a magnified inset showing internal components (no text or symbols)

Illustration of a hand holding a handheld device with a lightning bolt indicating compression (no text or symbols)

Diagram showing a person's neck with numbered annotations indicating movement or pressure points.

Diagram showing a hairdryer with a power button and a small circular icon labeled 'Power'

Line drawing of a person applying a hair product to their beaded neck (no text or symbols)

Line drawing of a handheld device with a scroll wheel and directional arrow (no text or symbols)

Illustration of two hands holding a device with checkmark and cross symbols, no text or labels present

Line drawing of a person holding a hairpin, no text or symbols present

Line drawing of a man's head and shoulders (no text or symbols)

- Sänki

Line drawing of a man's head and shoulders with a beard (no text or symbols)

- Kokoparta

Line drawing of a man's face with short hair and mustache (no text or symbols)

- Viikset

Line drawing of a man's head and shoulders with short hair and beard (no text or symbols)

- Pukinparta

Puhdistus ja hoito

Illustration of a hand holding a circular object with concentric rings, next to a separate abstract shape with internal circles (no text or symbols)

Illustration of a hand holding a device with a downward arrow indicating process (no text or symbols)

Diagram illustrating two-step instructions for handling a device, labeled with arrows and numbered parts (1 and 2)

Illustration of a hand pouring liquid into a container with a water level indicator (no text or symbols)

Illustration of hands using a handheld device to remove a small container with liquid, no text or symbols present

Line drawing of a device with a cylindrical top and a rectangular base (no text or symbols)

Diagram illustrating foot massage technique with labeled parts and motion arrows

Diagram showing a finger pressing a button with icons for thermal, power, and switch symbols

Diagram showing a container with a mouthpiece and a label indicating '水' (water) and wave symbols.

Diagram of a device with a sun symbol and control panel, no readable text or symbols present

Diagram of a device with a U-shaped symbol and a warning label, likely indicating a hazard or safety warning.

Diagram illustrating two-step cleaning or packaging process with labeled steps ① and ②

Illustration of a hand holding a medical device with a catheter inserted (no text or symbols)

Illustration of a faucet pouring liquid into a square basin (no text or symbols)

Illustration of a hand pouring liquid into a container with a pump bottle, accompanied by a directional indicator (no text or symbols on the diagram itself)

Illustration of hands using a handheld device to remove liquid from a small bowl (no text or symbols)

Illustration of a hand holding a circular object with concentric rings and an arrow pointing to it, next to a separate abstract shape (no text or symbols)

Abstract symmetrical pattern with concentric rings and a black arrow pointing left (no text or symbols)

Mechanical assembly diagram showing gears and shafts with an upward arrow (no text or symbols)

Mechanical assembly diagram showing a gear-like component with an upward arrow indicating motion (no text or symbols present)

Diagram showing a hand holding a mechanical component with arrows indicating direction (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a gear and shaft (no text or symbols)

Mechanical gear assembly diagram showing a central shaft and surrounding gears with a downward arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing gear and shaft components with a downward arrow indicating motion (no text or symbols)

Abstract diagram with concentric circles and radiating lines, no text or symbols present

Illustration of a hand holding a circular object with concentric rings, and a magnified view of a device with internal components (no text or symbols)

Diagram showing a hand holding a tool interacting with a thermometer, with an inset indicating temperature measurement.

Illustration of a hand pouring liquid into a bottle and a bag, with another hand pouring liquid from a bottle (no text or symbols)

Illustration of a pliers with an arrow indicating motion (no text or symbols)

Diagram showing electrical power and circular symbol with directional arrows, likely representing a system or process flow.

Illustration of a hand holding a circular object with concentric rings, next to a separate abstract shape with internal patterns (no text or symbols)

RQ11

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Prohibition sign with a faucet and diagonal line, no text or symbols present

Danger

Diagram showing a remote control panel connected to a handheld device, with icons and labels indicating components.

Diagram showing a remote control panel connected to a handheld device with labeled buttons and pointer

- RQ1185/RQ1167/RQ1160

Diagram showing a device with two buttons connected to a handheld device (no text or symbols present)

- RQ1155/RQ1151/RQ1150/RQ1145/RQ1141/RQ1131

Charge

Diagram showing a battery connected to a vertical stack of icons, with an upward arrow indicating charging direction.

Diagram showing battery charging mechanism with icons for battery, charging symbol, and power source

Diagram showing a battery connected to a vertical stack of circular components with a circular icon above (no text or symbols)

RQ1197/RQ1195/RQ1180/RQ1175

Pure electrical circuit lines without any symbols

Diagram showing battery charging mechanism with lock, power, and connection symbols

RQ1197/RQ1195/RQ1180/RQ1175

Diagram showing battery and plug icons with labels like lock, battery, and plug symbol

Diagram showing a battery connected to a series of battery cells with an icon indicating sensor or signal processing.

RQ1197/RQ1195/RQ1180/RQ1175

Diagram showing security icons including lock, refresh, and Wi-Fi symbol with vertical lines and a separate lock icon connected to a cable.

Diagram showing electrical connections with a power switch and a circular symbol, alongside a directional icon with a heart-like symbol.

Line drawing of a mechanical device with a black arrow pointing to a component (no text or symbols)

Diagram of a mechanical device with a rotating arrow and curved motion, no text or symbols present

Diagram illustrating a hairpin with labeled parts and electrical connections, showing parts numbered 1 and 2.

Line drawing of a device with a top view and a base view (no text or symbols)

Diagram illustrating foot contact technique with labeled parts and motion arrows

Illustration of a person applying facial massage to the ear with directional arrows indicating motion (no text or symbols)

Diagram illustrating a step-by-step procedure for removing a hair accessory, showing steps from opening to opening and using a tool.

Illustration of a hand pouring liquid into a container with a cross mark, indicating a process step (no text or symbols present)

Illustration of a hand holding an electronic device with a magnified inset showing internal components (no text or symbols)

Illustration of a hand holding a handheld device with a curved handle and directional arrows indicating motion (no text or symbols)

Diagram illustrating a neck massage technique with labeled parts 1 and 2, showing directional arrows indicating movement.

Line drawing of a person using a power shaver with a 'Power' button (no text or symbols on the diagram itself)

Line drawing of a person brushing their neck with a comb (no text or symbols)

Line drawing of a handheld electric shaver with a black arrow indicating motion (no text or symbols)

Illustration of two hands holding a device with checkmark and cross symbols, no text or symbols present

Line drawing of a person applying makeup to their ear (no text or symbols)

Line drawing of a man's head and shoulders with a beard (no text or symbols)

Styles de barbe

Line drawing of a man's head and beard (no text or symbols)

Line drawing of a man's head and shoulders (no text or symbols)

- Une moustache

Line drawing of a man's head and shoulders (no text or symbols)

- Un bouc

Illustration of a hand holding a circular object with concentric rings, next to a separate abstract shape with three circles (no text or symbols)

Illustration of a hand holding a circular object with a downward arrow, alongside a close-up of a mechanical component (no text or symbols)

Diagram illustrating two-step instructions for handling a device, labeled with arrows and numbered parts (① and ②)

Illustration of a hand pouring liquid into a container with a water level indicator (no text or symbols)

Illustration of hands holding a device with a downward arrow and a small bowl nearby (no text or symbols)

Line drawing of a device with a vertical cylindrical component and a base unit (no text or symbols)

Diagram illustrating foot contact angles and foot movements with numbered labels for contact angle and movement direction

Diagram showing a finger pressing a button with icons for water level, power button, and directional arrow

Diagram of a scientific apparatus with labeled components and wave symbols, likely illustrating an experimental setup or measurement.

Diagram of a device with a sun symbol and control panel, no readable text or symbols present

Illustration of a handbag with decorative patterns and a small inset showing a U-shaped symbol (no text or labels)

Diagram illustrating two-step instructions for handling a mechanical device, labeled with arrows and numbered parts.

Illustration of a hand holding a medical device with a catheter inserted (no text or symbols)

Illustration of a faucet pouring liquid into a square basin (no text or symbols)

Illustration of a hand pouring liquid into a container with a water level indicator (no text or symbols)

Illustration of hands using a tool to remove a small container with liquid, showing a downward arrow and motion lines (no text or symbols)

Illustration of a hand holding a circular object with concentric rings and an arrow pointing to it, next to a separate abstract shape (no text or symbols)

Abstract diagram with concentric circles and a black arrow pointing left (no text or symbols)

Mechanical assembly diagram showing gear and shaft components with an upward arrow (no text or symbols)

Mechanical assembly diagram showing a gear and shaft assembly with an upward arrow (no text or symbols)

4 Retirez la lame de la grille.

Illustration of a hand holding a mechanical component with arrows indicating motion or force direction (no text or symbols)

Mechanical assembly diagram showing a brush tool interacting with a gear mechanism (no text or symbols visible)

Mechanical assembly diagram showing a gear-like component with a downward arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing gear and shaft components with a downward arrow indicating motion (no text or symbols)

Abstract diagram with concentric circles and radiating lines, no text or symbols present

Illustration of a hand holding a device with a downward arrow indicating process (no text or symbols)

Diagram showing a hand holding a tool interacting with a thermometer, with an inset indicating temperature range from 0°C to 1°F.

Illustration of a hand pouring liquid from a bottle onto a pair of boots, separated by a diagonal line (no text or symbols)

Illustration of a pliers with an arrow indicating force or movement (no text or symbols)

Diagram showing electrical connections with power and circular symbols, including a circled icon with two dots and curved arrows.

Illustration of a hand holding a circular object with concentric rings, next to a stylized frog-like figure with three eyes (no text or symbols)

Symbol of a waste bin with no text or labels, crossed by two crossed lines and a solid rectangle below (no text or symbols present)

Prohibition sign with a faucet and lightbulb crossed out, no text or symbols present

Algemeen

Gevaar

Diagram showing a remote control panel connected to a pair of electric shakers, illustrating the relationship between power and current.

Diagram showing a remote control panel with labeled buttons and a handheld device with a scroll wheel.

- RQ1185, RQ1167, RQ1160

Diagram showing a device connected to a handheld device, both with buttons and a stylus (no text or symbols present)

- RQ1155, RQ1151, RQ1150, RQ1145, RQ1141, RQ1131

Diagram showing battery charging mechanism with lock, battery symbol, and charging symbol

Opladen

Diagram showing battery charging setup with two test tubes and a battery icon indicating charging direction

RQ1185, RQ1167, RQ1160, RQ1155, RQ1151, RQ1150, RQ1145, RQ1141, RQ1131

Diagram showing a battery connected to a vertical stack of circular components, with a magnified inset highlighting the battery (no text or symbols present)

Pure electrical circuit lines without any symbols

Diagram showing battery symbol and connection to a star-shaped device with a battery icon

Diagram showing battery and plug icons with labels like lock, battery, and plug symbol

RQ1185, RQ1167, RQ1160, RQ1155, RQ1151, RQ11510, RQ1145, RQ1141, RQ1131

Diagram showing battery charging process with battery, switch, and battery stack components

Diagram showing a vertical stack of icons with a lock symbol and a separate lock icon connected by a line, indicating security or security.

De reisvergrendeling deactiveren

Diagram showing a power button and a circular symbol with a biological process icon, likely illustrating a biological process or mechanism.

Technical line drawing of a mechanical device with a tool inserted (no text or symbols)

Diagram of a mechanical device with a curved arrow indicating rotational motion (no text or symbols)

Diagram illustrating hairpin usage process with labeled parts and directional arrows

Line drawing of a device with a cylindrical top and a rectangular base (no text or symbols)

Diagram showing two mechanical components with arrows indicating motion or force, no text or symbols present

Illustration of a person applying facial massage to the ear with directional arrows indicating motion (no text or symbols)

Diagram showing a hand pouring liquid into a container with a cross mark, indicating a process or operation (no text or symbols present)

Diagram illustrating a spray gun with labeled parts and directional arrows, showing components like spray gun tip and spray nozzle.

Diagram showing a robotic arm performing a manual press operation with a valve and switch (no text or symbols present)

Diagram illustrating a spray gun with labeled parts and an inset showing the tip area

Diagram showing a hand pressing down a container with a cross symbol, indicating a process or procedure (no text or labels present)

Illustration of a hand holding a medical device with an inset showing a magnified view of the device's internal structure (no text or symbols present)

Illustration of a hand holding a handheld device with a black arrow indicating motion or force (no text or symbols)

Diagram illustrating a hand massage technique with numbered instructions for movement and direction

Line drawing of a person using a power shaver with a 'Power' button (no text or symbols on the diagram itself)

Illustration of a person brushing their hair with a comb (no text or symbols)

4 U kunt nu beginnen uw baard te stylen.

Line drawing of a handheld device with a scroll wheel and directional arrow (no text or symbols)

Illustration of two hands holding a small object with directional arrows indicating movement or change (no text or symbols present)

Line drawing of a person holding a hairpin, no text or symbols present

Line drawing of a man's head and shoulders with short hair and beard (no text or symbols)

- Een stoppelbaard

Line drawing of a man's head and shoulders with a beard (no text or symbols)

- Een volle baard

Line drawing of a male's head and shoulders (no text or symbols)

- Een snor

Line drawing of a man's head and shoulders (no text or symbols)

- Een sik

Illustration of a hand holding a circular object with concentric rings, and a separate view of a device with internal components (no text or symbols)

Illustration of a hand holding a circular object with a downward arrow, next to a close-up of a mechanical component (no text or symbols)

Illustration showing two-step instructions for handling a device, with numbered arrows indicating step 1 and step 2.

Illustration of a hand pouring liquid into a container with a water level indicator (no text or symbols)

Illustration showing two hands exchanging a device and a small bowl with spikes, no text or symbols present

Line drawing of a vacuum cleaner with a cylindrical component and a flat blade (no text or symbols)

Diagram illustrating a mechanical or electrical component with labeled parts and motion indicators

Diagram showing a finger pressing a button with icons for thermal, power, and refresh symbols

Diagram of a scientific apparatus with labeled components and wave symbols, likely illustrating an experimental setup or measurement.

Diagram of a device with a sun icon and control panel, no text or symbols present

Diagram of a device with a U-shaped symbol and a small inset showing a black-and-white icon (no text or labels)

Diagram illustrating two-step cleaning or packaging process with labeled steps ① and ②

Illustration of a hand holding a small object with a curved line inside, no text or symbols present

Illustration of a faucet pouring liquid into a square basin (no text or symbols)

Illustration of a hand pouring liquid into a container with a water level indicator (no text or symbols)

Illustration of hands holding a device with a downward arrow and a small bowl nearby (no text or symbols)

Illustration of a hand holding a circular object with concentric rings, next to a separate sketch of a frog-like figure (no text or symbols)

Abstract symmetrical pattern with concentric rings and a black arrow pointing left (no text or symbols)

Mechanical assembly diagram showing gears and shafts with an upward arrow (no text or symbols)

Mechanical assembly diagram showing a gear-like component with an upward arrow indicating motion (no text or symbols present)

Diagram showing mechanical components interacting with a tool, no text or symbols present

Mechanical assembly diagram showing a brush applying material to a gear mechanism (no text or symbols)

Mechanical assembly diagram showing a gear-like component with a downward arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing gear and shaft components with a downward arrow indicating motion (no text or symbols)

Abstract diagram with concentric circles and radiating lines, no text or symbols present

Illustration showing a hand holding a device with a magnified view of its internal components (no text or symbols)

Diagram showing a hand holding a tool interacting with a cable, with an inset showing a thermometer reading 'C' and 'F'.

Illustration of two fish being pulled by a rope, showing water droplets (no text or symbols)

Illustration of a pliers with an arrow indicating motion (no text or symbols)

Diagram showing electrical connections with power and current symbols, including a circular symbol with two circular elements and a square with directional arrows.

Illustration of a hand holding a circular object with concentric rings, and a separate view of a mechanical component with internal cavities (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or restriction, plus a solid black rectangle below (no text or symbols)

Prohibition sign with a faucet and diagonal line, no text or symbols present

Gefahr

Diagram showing a remote control panel connected to a pair of electric shakers (no text or symbols present)

Diagram showing a remote control panel connected to a handheld device with labeled buttons and ports

- RQ1185, RQ1167, RQ1160

Diagram showing a device with two buttons connected to a handheld device (no text or symbols present)

- RQ1155, RQ1151, RQ1150, RQ1145, RQ1141, RQ1131

Laden

Diagram showing battery charging mechanism with battery, lock, and power connections

Diagram showing battery charging mechanism with icons for battery, power source, and charging device

RQ1185, RQ1167, RQ1160, RQ1155, RQ1151, RQ1150, RQ1145, RQ1141, RQ1131

Diagram showing a vertical stack of circular components with a battery symbol and a separate rectangular device connected by wires (no text or labels)

Pure electrical circuit lines without any symbols

Diagram showing battery charging mechanism with sensor, lock, and power connections

Diagram showing battery and plug icons with labels like lock, battery, and plug symbol

Diagram showing battery charging process with battery, switch, and battery icon

Diagram showing a vertical stack of icons with a lock symbol and a padlock icon, likely representing security or security modules.

Diagram showing electrical connections with power and current symbols, including a circular symbol with a minus sign and a square with a minus sign.

Technical line drawing of a mechanical component with a tool inserted (no text or symbols)

Diagram of a rope knot with a curved arrow indicating rotational motion (no text or symbols)

Diagram illustrating hairpin usage process with labeled parts 1 and 2 showing hairpin insertion and release

Illustration of a device with a cylindrical top and a rectangular base (no text or symbols)

Diagram illustrating seatbelting technique with labeled parts and motion arrows

Illustration of a person's face with arrows indicating direction of movement or pressure (no text or symbols)

Illustration of a hand pressing down on a device with a cross symbol, showing mechanical components and an upward arrow (no text or symbols)

Diagram showing a spray gun with labeled parts and directional arrows, including a magnified inset view.

Diagram illustrating a spray gun with labeled parts and directional arrows, showing spray motion and contact point.

Illustration of a hand pouring liquid into a container with an X mark, indicating a process or operation (no text or symbols present)

Illustration of a hand holding a small device with a magnified inset showing internal components (no text or symbols)

Illustration of a hand holding a handheld device with a black arrow indicating compression or disassembly (no text or symbols present)

Diagram illustrating a neck massage technique with numbered instructions and directional arrows indicating movement.

Diagram showing a person using a power shaver with a 'Power' button and a small power switch icon

Illustration of a person brushing a beaded neck with a tool (no text or symbols)

Line drawing of a hand holding a small electronic device with a handle and arrow indicating rotation (no text or symbols)

Illustration of two hands holding a device with checkmark and cross symbols, no text or labels present

Line drawing of a person holding a hairpin, no text or symbols present

Line drawing of a man's head and shoulders with a beard (no text or symbols)

- Ein Dreitagebart

Line drawing of a man's head and beard (no text or symbols)

- Ein Vollbart

Line drawing of a male's face with short hair and mustache (no text or symbols)

- Ein Schnurrbart

Line drawing of a man's head and shoulders (no text or symbols)

- Ein Spitzbart

Illustration of a hand holding a circular object with concentric rings, and a separate view of a frog-like creature below (no text or symbols)

Illustration of a hand holding a device with a magnified view below showing internal components (no text or symbols)

Diagram illustrating two-step instructions for handling a device, labeled with arrows and numbered steps ① and ②.

Illustration of a hand pouring liquid into a container with a device, showing fluid flow direction (no text or symbols)

Illustration of hands using a handheld device to remove or spray liquid, with no text or symbols present.

Illustration of a vacuum cleaner with a cylindrical component and a base device (no text or symbols)

Diagram illustrating shoe seatbelting technique with labeled parts and motion arrows

Diagram showing a finger pressing a button with icons for power, water, and power button symbols

变x

Diagram of a device with a sun icon and control panel, no readable text or symbols present

Illustration showing two-step instructions for handling a device, with arrows indicating movement and rotation.

Line drawing of a hand holding a medical device with a catheter inserted (no text or symbols)

Illustration of a faucet pouring liquid into a square basin with water flowing out (no text or symbols)

Illustration of a hand pouring liquid into a container with a water level indicator (no text or symbols)

Illustration of hands using a handheld device to remove or clean material, with no text or symbols present.

Illustration of a hand holding a circular object with concentric rings, next to a separate abstract shape with arrows indicating direction (no text or symbols)

Abstract symmetrical pattern with concentric rings and a central arrow (no text or symbols)

Mechanical assembly diagram showing gears and shafts with an upward arrow (no text or symbols)

Mechanical gear assembly diagram showing a central shaft and surrounding gears with an upward arrow (no text or symbols)

Diagram showing a hand holding a car wheel with gear teeth and a brush, indicating mechanical or electrical components (no text or symbols present)

Mechanical assembly diagram showing a brush applying material to a gear (no text or symbols)

Mechanical assembly diagram showing a gear-like component with a downward arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing gear and shaft components with a downward arrow indicating motion (no text or symbols)

Abstract diagram with concentric circles and radiating lines, no text or symbols present

Illustration of a hand holding a three-layered device with a downward arrow indicating compression or disassembly (no text or symbols present)

Diagram showing a hand holding a tool interacting with a cable, with an inset showing a thermometer reading 'C' and 'F'.

Illustration of two fish being watered from a pipe, showing different shapes and water droplets (no text or symbols)

Illustration of a pliers with an arrow indicating force or movement (no text or symbols)

Diagram showing electrical connections with power and current symbols, including a circular symbol with a mouth icon and a square with a heart-like symbol.

Illustration of a hand holding a circular object with concentric rings, and a separate view of a device with internal components (no text or symbols)

Prohibition sign showing a faucet crossed out by a diagonal line, indicating no pollution or water release.

Γενικά

Κίνδυνος

Diagram showing a remote control panel connected to a handheld electric shaver, with labeled buttons and pointer arrows.

- RQ1185, RQ1167, RQ1160

Diagram showing a remote control panel connected to a handheld device with labeled buttons and ports.

- RQ1155, RQ1151, RQ1150, RQ1145, RQ1141, RQ1131

Diagram showing a device connected to a handheld device, both with buttons and a stylus (no text or symbols present)

Φόρτιση

Diagram showing a vertical sequence of icons including a lock, battery, and directional arrows, with an upward arrow labeled 'Up' inside a container.

Diagram showing battery charging setup with two charging stations and a battery icon (no text or symbols)

RQ1185, RQ1167, RQ1160, RQ1155, RQ1151, RQ1150, RQ1145, RQ1141, RQ1131

Diagram showing a battery connected to a vertical stack of circular components, with a circular icon above indicating refresh or update (no text or symbols present)

Pure electrical circuit lines without any symbols

Diagram showing a vertical sequence of icons and a battery symbol with connecting lines, likely representing a system or process flow.

Diagram showing battery and connection icons including lock, battery, switch, and power plug symbols

RQ1185, RQ1167, RQ1160, RQ1155, RQ1151, RQ11510, RQ1145, RQ1141, RQ1131

Diagram showing battery charging process with sensor, lock, and battery symbol

Diagram showing a power button and a circular symbol with two curved arrows, likely indicating rotation or synchronization.

Mechanical component diagram showing a lever and pin (no text or symbols)

Diagram of a mechanical device with a curved arrow indicating rotational motion (no text or symbols)

Diagram illustrating hair styling technique with labeled parts and directional arrows indicating hair styling process

Illustration of a hairdryer with a black handle and a white base (no text or symbols)

Diagram illustrating foot movement and impact technique with labeled parts and motion arrows

Illustration of a person applying facial massage to the ear with directional arrows indicating motion (no text or symbols)

Diagram showing a hand pressing down a device with a cross symbol, indicating mechanical or electrical hazard (no text or labels present)

Diagram showing a spray gun with labeled parts and directional arrows, including a magnified inset view.

Diagram showing a mechanical device with an upward arrow and a cross symbol, no text or labels present

Diagram illustrating a spray gun with labeled parts and an inset showing the tip area of the spray gun.

Diagram showing a hand pressing down a device with a cross symbol, indicating mechanical or electrical hazard (no text or labels present)

Illustration of a hand holding a medical device with a magnified inset showing internal components (no text or symbols)

Illustration of a hand holding a small electronic device with a lightning bolt indicating light emission (no text or symbols)

Diagram showing a person's neck with numbered arrows indicating movement or pressure points, labeled 1 and 2.

Diagram showing a person using a power shaver with an 'Power' button and a cursor pointer, likely indicating a power switch function.

Line drawing of a person applying a hair to their beache, no text or symbols present

Line drawing of a hand holding a small electric shaver with a black arrow indicating motion (no text or symbols)

Illustration of two hands holding a device with checkmark and cross symbols, no text or labels present

Line drawing of a person applying makeup to their ear (no text or symbols)

Line drawing of a man's head and shoulders with a beard (no text or symbols)

Line drawing of a man's head and beard (no text or symbols)

Line drawing of a male's face with short hair and mustache (no text or symbols)

- Μουστάκι

Line drawing of a man's head and shoulders (no text or symbols)

- Μουσάκι

Illustration showing two hand positions of a mechanical component with arrows indicating movement (no text or symbols)

Illustration showing two-step food preparation steps: adding a container to a bowl, then pouring liquid into a container with a brush.

Illustration of hands using a handheld device to remove liquid from a small bowl (no text or symbols)

Line drawing of a device with a vertical cylindrical component and a base case (no text or symbols)

Diagram illustrating a mechanical or electrical component with labeled parts and motion indicators

Diagram showing a finger pressing a button with icons for battery, power switch, and function buttons

Diagram of a scientific apparatus with labeled components and wave symbols, likely illustrating an experimental setup or measurement.

Diagram of a device with a sun symbol and a warning label, no readable text or symbols present.

Diagram of a device with a U-shaped symbol and a warning label, likely indicating a hazard or hazard.

Diagram illustrating two-step steps of a hand holding a device and a small bowl, with arrows indicating direction of movement.

Illustration of a hand holding a small object with a curved line extending from it, no text or symbols present.

Illustration of a faucet pouring liquid into a square basin (no text or symbols)

Illustration of a hand pouring liquid into a container with a pump bottle, accompanied by a directional indicator (no text or symbols on the diagram itself)

Illustration of hands using a handheld device to remove liquid from a small bowl (no text or symbols)

Illustration of a hand holding a circular object with concentric rings and an arrow pointing to it, next to a separate abstract shape (no text or symbols)

Abstract symmetrical pattern with concentric rings and a black arrow pointing left (no text or symbols)

Mechanical assembly diagram showing gears and shafts with an upward arrow (no text or symbols)

Mechanical assembly diagram showing a gear and shaft assembly with an upward arrow (no text or symbols)

Diagram showing a hand holding a mechanical component with arrows indicating direction (no text or symbols)

Mechanical assembly diagram showing a brush tool interacting with a gear mechanism (no text or symbols visible)

Mechanical gear assembly diagram showing a rotating shaft and housing with a downward arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing gear and shaft components with a downward arrow indicating motion (no text or symbols)

Abstract diagram with concentric circles and radiating lines, no text or symbols present

Illustration of a hand holding a circular object with a downward arrow indicating a process or transformation (no text or symbols present)

Diagram showing a hand holding a tool with a thermometer labeled 'F' and temperature scale 'C' above it, illustrating a process of heating or cooling.

Illustration of a hand pouring liquid from a bottle onto a pair of boots, separated by a diagonal line (no text or symbols)

Illustration of a kitchen knife with a handle and blade, showing a cutting tool (no text or symbols)

Diagram showing electrical connections with power and current symbols, including a circular symbol labeled '①' and a square with a heart icon.

Illustration of a hand holding a circular object with concentric rings, next to a separate abstract shape with internal circles (no text or symbols)

RQ11

10 sec.

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

No smoking sign with a faucet symbol crossed out by a diagonal line (no text or numbers present)

Pericolo

Simple line drawing of a showerhead spraying over a water-filled basin (no text or symbols)

Diagram showing a power switch connected to a brushbrush, with labeled components and directional arrows.

Diagram showing a remote control panel connected to a handheld device with labeled buttons and directional arrows

- RQ1185, RQ1167, RQ1160

Diagram showing a device with two buttons connected to a handheld device (no text or symbols present)

- RQ1155, RQ1151, RQ1150, RQ1145, RQ1141, RQ1131

Diagram showing battery charging mechanism with icons for lock, power, and connection points

Diagram showing battery charging mechanism with battery symbol, charging symbol, and power source icons

Diagram showing a vertical stack of circular components with a lock icon and a battery symbol, connected by a wire (no text or labels)

Pure electrical circuit lines without any symbols

Diagram showing battery symbol, lock, and connection to a star-shaped device with a battery icon

Diagram showing battery and switch icons with labels and symbols

Diagram showing battery charging process with sensor, lock, and battery symbol

Diagram showing electrical power and circular symbol with directional arrows, likely representing a system or process flow.

Line drawing of a mechanical device with a cable inserted, showing no text or symbols

Diagram of a rope knot with a curved arrow indicating rotational motion (no text or symbols)

Diagram illustrating hairpin insertion process with labeled parts 1 and 2 showing hairpin positioning and color change

Illustration of a showerhead and a water dispenser (no text or symbols)

Diagram illustrating foot contact technique with labeled parts and motion arrows

Illustration of a person's face with arrows indicating direction of motion or movement (no text or symbols)

Diagram showing a hand pressing down on a device with an arrow indicating force or movement (no text or symbols present)

Diagram showing a hairdryer with labeled parts and directional arrows, including a magnified inset of the tip.

Diagram showing a hand operating a device with an upward arrow and a cross symbol (no text or labels)

Diagram illustrating a spray gun with labeled parts and directional arrows, including a magnified inset showing the tip.

Illustration of a hand holding a container with a cross symbol, showing mechanical components and an upward arrow (no text or symbols)

Illustration of a hand holding an electronic device with a magnified inset showing internal components (no text or symbols)

Illustration of a hand holding a handheld device with a lightning bolt and arrow indicating motion (no text or symbols)

Diagram showing two labeled arrows pointing to a curved object on a human torso, with numbered annotations 1 and 2.

Diagram showing a hairdryer with a power button and a power symbol, likely indicating a power switch or trigger mechanism.

Line drawing of a person applying a hair to their beache, no text or symbols present

Line drawing of a handheld device with a curved handle and arrow indicating motion (no text or symbols)

Illustration of two hands holding a device with directional arrows indicating movement or force (no text or symbols present)

Line drawing of a person holding a hairpin, no text or symbols present

Line drawing of a man's head and shoulders with short hair and beard (no text or symbols)

- Look trasandato

Line drawing of a man's head and beard (no text or symbols)

- Barba lunga

Line drawing of a man's head and shoulders (no text or symbols)

- Baffi

Line drawing of a man's head and shoulders (no text or symbols)

- Pizzetto

Diagram illustrating two-step cleaning or packaging process with labeled steps ① and ②

Illustration of a hand pouring liquid into a container with a water level indicator (no text or symbols)

Illustration of hands using a handheld device to remove or clean material, with no text or symbols present.

Line drawing of a vacuum cleaner with a handle and top component (no text or symbols)

Diagram illustrating foot contact technique with labeled parts and motion arrows

Diagram showing a finger pressing a button with icons for battery, power switch, and function buttons

Diagram of a scientific apparatus with labeled components and wave symbols, likely illustrating an electrochemical or fluid dynamics concept.

Diagram of a device with a sun symbol and control panel, no text or labels present

Illustration of a handbag with a U-shaped symbol and decorative elements, no readable text or symbols present.

Diagram illustrating two-step cleaning or cleaning process: step 1 shows hand holding a tool, step 2 shows presser holding a device with upward arrow.

Illustration of a hand holding a medical device with a catheter inserted (no text or symbols)

Illustration of a faucet dispensing water into a square basin (no text or symbols)

Illustration of a hand pouring liquid into a container with a water level indicator (no text or symbols)

Illustration of hands using a handheld device to remove liquid from a small bowl (no text or symbols)

Illustration of a hand holding a circular object with concentric rings, next to a separate abstract shape with internal circles (no text or symbols)

Abstract symmetrical pattern with concentric rings and a black arrow pointing left (no text or symbols)

Mechanical assembly diagram showing gears and shafts with an upward arrow (no text or symbols)

Mechanical gear assembly diagram showing a central shaft and housing with an upward arrow (no text or symbols)

Diagram showing a hand holding a gear-like object with arrows indicating motion or force (no text or symbols)

Mechanical assembly diagram showing a brush applying material to a gear mechanism (no text or symbols)

Mechanical assembly diagram showing a gear and shaft assembly with a downward arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing gear and shaft components with a downward arrow indicating motion (no text or symbols)

Abstract diagram of a symmetrical, multi-layered structure with radiating lines and a black arrow pointing inward (no text or symbols)

Illustration of a hand holding a 3D object with a downward arrow indicating a process or transformation (no text or symbols present)

Diagram showing a hand holding a tool with a thermometer labeled 'F' and temperature scale 'C' above it, illustrating a process of heating or cooling.

Pulizia del rifinitore (solo RQ1197, RQ1185, RQ1180, RQ1160, RQ1155, RQ1151)

Illustration of two hands performing a manual water tap technique (no text or symbols present)

Illustration of a pliers with an arrow indicating motion (no text or symbols)

Diagram showing electrical connections with power and current symbols, including a circular symbol with a heart icon and a square with a circular symbol.

Symbol of a trash bin crossed with a diagonal line, representing no waste or elimination (no text or numbers present)

Prohibition sign with a faucet and diagonal line, no text or symbols present

Generelt

Fare

Diagram showing a remote control panel connected to a handheld device, with icons and labels indicating function keys.

Diagram showing a remote control panel connected to a handheld device with labeled buttons and ports.

- RQ1185, RQ1167, RQ1160

Diagram showing two electronic devices connected by a cable, one with power button and others with buttons (no text or symbols)

- RQ1155, RQ1151, RQ1150, RQ1145, RQ1141, RQ1131

Diagram showing battery charging mechanism with lock, power source, and charging symbol

Diagram showing battery charging setup with two test tubes and a battery icon (no text or symbols)

Lading

- Ladingen tar ca. én time.

Diagram showing a battery connected to a vertical stack of circular components with a lock icon above (no text or symbols)

Pure electrical circuit lines without any symbols

Diagram showing battery symbol, lock, and connection to a star-shaped device with a battery icon

Diagram showing battery and control icons including lock, battery, switch, and power plug

Diagram showing battery charging process with sensor, lock, and battery discharge components

Diagram showing a lock icon with refresh symbol and vertical arrows, alongside a padlock symbol connected to a cable.

Diagram showing electrical connections with power and current symbols, including a circular symbol and a square with a heart-like symbol.

Ladingen tar ca. én time.

Line drawing of a mechanical device with a black arrow pointing to a component (no text or symbols)

1 Sett den lille kontakten i laderen.

Diagram of a mechanical device with a rotating arrow and curved motion, no text or symbols present

Diagram illustrating hairpin insertion process with labeled parts 1 and 2 showing hairpin insertion mechanism

4 Sett barbermaskinen i laderen (1), og trykk den bakover til den låses på plass (2).

- Displayet viser at barbermaskinen lades (se under Lading i avsnittet Displayet).

Lading i Jet Clean-systemet (kun RQ1197CC, RQ1195CC, RQ1185CC, RQ11801CC, RQ1175CC)

Line drawing of a device with a top view and a base view (no text or symbols)

1 Koble den lille kontakten til Jet Clean-systemet.

2 Sett adapteren i stikkontakten.

Diagram illustrating shoe safety instructions with numbered steps and highlighted safety zones

Illustration of a person's face with directional arrows indicating movement or pressure points (no text or symbols)

Illustration of a hand pouring liquid into a container with a cross mark, indicating a step or process (no text or symbols present)

Diagram showing a spray gun with labeled parts and directional arrows, including section 1 and section 2.

Diagram showing a mechanical device with an upward arrow and a cross symbol, no readable text or labels present.

Diagram illustrating a spray gun with labeled parts and directional arrows, including a magnified inset showing the tip.

Illustration of a hand pouring liquid into a container with a cross symbol, indicating a process or operation (no text or symbols present)

Illustration of a hand holding a medical device with a magnified inset showing internal components (no text or symbols)

Illustration of a hand holding a small electronic device with a lightning bolt and arrow indicating motion (no text or symbols)

Diagram showing a person's neck with numbered annotations indicating movement or pressure points.

Diagram showing a hairdryer with a power button and a 'Power' symbol, likely illustrating a manual or electrical device operation.

Illustration of a person brushing their neck with a brush (no text or symbols)

Line drawing of a handheld device with a curved handle and arrow indicating motion (no text or symbols)

Illustration of two hands holding a device with directional arrows indicating movement or force (no text or symbols)

Line drawing of a person holding a hairpin, no text or symbols present

Line drawing of a man's head and shoulders with short hair and beard (no text or symbols)

- Tredagersskjegg

Line drawing of a man's head and beard (no text or symbols)

- Helskjegg

Line drawing of a man's head and shoulders (no text or symbols)

- Bart

Line drawing of a man's head and shoulders (no text or symbols)

- Fippskjegg

Illustration of a hand holding a circular object with concentric rings, next to a separate frog-like shape (no text or symbols)

Illustration showing a hand pressing down on a circular object with a downward arrow, next to a separate close-up of a mechanical component (no text or symbols)

Diagram illustrating two-step cleaning or packaging process with labeled steps ① and ②

2 Skyll barberingsenheten under varmt vann.

Illustration of a hand pouring liquid into a container with a water level indicator (no text or symbols)

Illustration of hands using a handheld device to remove or clean material, with no text or symbols present.

Line drawing of a vacuum cleaner with a cylindrical component and a flat blade (no text or symbols)

Diagram showing two mechanical components with arrows indicating motion or force, no text or symbols present

Diagram showing a finger pressing a button with icons for water level, power button, and directional arrow

Diagram of a scientific apparatus with a central star-like component and wavy lines indicating wave or measurement (no text or symbols present)

Diagram of a device with a sun icon and internal components, no text or symbols present

Illustration of a bag with a decorative emblem and a small inset showing a U-shaped symbol (no text or labels)

Diagram illustrating two-step instructions for handling a device, labeled with arrows and numbered steps ① and ②.

Illustration of a hand holding a medical device with a catheter inserted (no text or symbols)

Illustration of a faucet pouring liquid into a square basin (no text or symbols)

Illustration of a hand pouring liquid into a container with a pressure gauge, no text or symbols present

Illustration of hands using a handheld device to remove liquid from a small bowl (no text or symbols)

Illustration of a hand holding a circular object with concentric rings, being pointed at by an arrow (no text or symbols present)

Abstract diagram with concentric circles and a black arrow pointing left (no text or symbols)

2 Skyv den grønne holderammen i pilens retning, som står på holderammen.

Mechanical assembly diagram showing gears and housing with an upward arrow (no text or symbols)

Mechanical assembly diagram showing a gear-like component with an upward arrow indicating motion (no text or symbols present)

4 Fjern kniven fra barberlamelltoppen.

Diagram showing a hand holding a mechanical component with arrows indicating direction (no text or symbols)

Mechanical assembly diagram showing a brush tool interacting with a gear and motor (no text or symbols)

Mechanical assembly diagram showing a gear-like component with a downward arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing gear and shaft components with a downward arrow indicating motion (no text or symbols)

Abstract diagram with concentric circles and radiating lines, no text or symbols present

Illustration of a hand holding a device with a downward arrow indicating process (no text or symbols)

Diagram showing a hand holding a thermometer measuring temperature, with an inset showing the thermometer reading 'C' and 'F'.

Illustration of two fish being watered from a pipe, showing different shapes and water droplets (no text or symbols)

Illustration of a pliers being adjusted to form a tool (no text or symbols present)

Diagram showing electrical connections with power and current symbols, including a circular symbol labeled '①' and a square containing a stylized eye icon.

Illustration of a hand holding a circular object with concentric rings and an arrow pointing to it, next to a separate abstract shape (no text or symbols)

RQ11

10 sec.

Symbol of a waste bin with no text or labels, crossed by two crossed lines and a solid black rectangle below (no text or symbols present)

Prohibition sign with a faucet and diagonal line, no text or symbols present

Peligro

Diagram showing a remote control panel connected to a handheld electric shaver (no text or symbols present)

Diagram showing a remote control panel connected to a handheld device with labeled buttons and ports.

- RQ1185, RQ1167, RQ1160

Diagram showing a device with two buttons connected to a handheld device (no text or symbols present)

- RQ1155, RQ1151, RQ1150, RQ1145, RQ1141, RQ1131

Carga

Diagram showing battery charging mechanism with lock, power lines, and battery symbol

Diagram showing two battery cells with charging symbols and a battery icon, no text or labels present

Diagram showing a vertical stack of circular components with a lock icon and a battery symbol, connected by a wire (no text or labels)

Diagram showing battery and connection icons with a battery symbol inside a box

Diagram showing battery charging mechanism with lock, battery symbol, and power connections

Diagram showing battery and plug icons with labels like lock, battery, switch, and power plug

Diagram showing battery charging process with battery symbol, recycling icon, and power connection arrows

Diagram showing a vertical stack of icons with a lock symbol and a padlock icon, likely representing security or security modules.

Diagram showing electrical connections with power and switch symbols, including a circular icon labeled '①' and a square with a gear-like symbol.

Line drawing of a mechanical device with a cable inserted, showing no text or symbols

Diagram of a rope knot with a curved arrow indicating rotational motion (no text or symbols)

Diagram illustrating hairpin insertion process with labeled parts 1 and 2 showing hairpin positioning and color change

Illustration of a device with a cylindrical top and a rectangular base (no text or symbols)

Diagram illustrating foot contact technique with labeled parts and motion arrows

Illustration of a person's face with arrows indicating direction or movement (no text or symbols)

Illustration of a hand pressing down on a device with a cross symbol, showing mechanical components and an upward arrow (no text or symbols)

Diagram illustrating hair cleaning process with labeled steps ① and ②, showing spray and hair removal setup

Diagram showing a hand operating a device with an upward arrow and a cross symbol (no text or labels)

Diagram illustrating a spray gun with labeled parts and directional arrows, showing spray motion and component insertion.

Illustration of a hand pouring liquid into a container with a cross mark, indicating a process step (no text or symbols present)

Illustration of a hand holding a medical device with an inset showing a magnified view of the device's internal structure (no text or symbols present)

Illustration of a hand holding a handheld device with a curved handle and emitting light rays (no text or symbols)

Diagram showing a person's neck with labeled parts and directional arrows indicating movement or force.

Diagram showing a hairdryer with a power button and a 'Power' symbol, likely illustrating a manual or electrical operation.

Line drawing of a person applying a hair to their beache, no text or symbols present

Line drawing of a handheld device with a curved handle and arrow indicating motion (no text or symbols)

Illustration of two hands holding a device with directional arrows indicating movement or force (no text or symbols present)

Line drawing of a person holding a hairpin, no text or symbols present

Line drawing of a man's head and shoulders with short hair and beard (no text or symbols)

Line drawing of a man's head and beard (no text or symbols)

- Barba completa

Line drawing of a man's head and shoulders (no text or symbols)

- Bigote

Line drawing of a man's head and shoulders (no text or symbols)

- Perilla

Diagram illustrating two-step instructions for handling a device, labeled with arrows and numbered parts (1 and 2)

Illustration of a hand pouring liquid into a container with a water level indicator (no text or symbols)

Illustration of hands using a handheld device to remove or clean material, showing a downward arrow and spray effect (no text or symbols)

Illustration of a vacuum cleaner with a handle and top component (no text or symbols)

Diagram illustrating a mechanical or electrical component with labeled parts and motion indicators

Diagram showing a finger pressing a button with icons for power, function, and switch symbols

瓶×

Diagram of a device with a sun symbol and control panel, no readable text or symbols present

Diagram of a device with a U-shaped symbol and Chinese characters, likely indicating a physical or engineering concept.

Diagram illustrating two-step cleaning or packaging process: step 1 shows hand holding a container while moving to a bowl, step 2 shows hand holding a plastic clip with arrows indicating steps.

Illustration of a hand holding a medical device with a catheter inserted (no text or symbols)

Illustration of a faucet dispensing water into a square basin (no text or symbols)

Illustration of a hand pouring liquid into a container with a water level indicator (no text or symbols)

Illustration of hands using a handheld device to interact with a small bowl, showing motion and vibration (no text or symbols)

Illustration of a hand holding a circular object with an upward arrow, alongside a separate sketch of a frog-like figure (no text or symbols)

Abstract symmetrical pattern with concentric rings and a black arrow pointing left (no text or symbols)

Mechanical assembly diagram showing gears and shafts with an upward arrow (no text or symbols)

Mechanical gear assembly diagram showing a central shaft and housing with an upward arrow (no text or symbols)

4 Extraiga la cuchilla del protector.

Diagram showing a hand holding a gear-like object with arrows indicating motion or force (no text or symbols)

Mechanical assembly diagram showing a brush applying material to a gear (no text or symbols)

Mechanical assembly diagram showing a gear and shaft assembly with a downward arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing gear and shaft components with a downward arrow indicating motion (no text or symbols)

Abstract diagram of a symmetrical, multi-layered structure with radiating lines and a black arrow pointing inward (no text or symbols)

Illustration of a hand holding a 3D object with a downward arrow indicating a process or transformation (no text or symbols present)

Diagram showing a hand holding a tool with a thermometer labeled 'F' and temperature scale 'C' above it, illustrating a process or measurement setup.

Illustration of two hands pouring liquid from a bottle onto a surface, separated by a diagonal line (no text or symbols)

Illustration of a pliers being adjusted to form a tool (no text or symbols present)

Diagram showing electrical power and circular symbol with directional arrows, likely representing a system or signal flow.

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Prohibition sign with a faucet and diagonal line, no text or symbols present

Geral

Perigo

Diagram showing a remote control panel connected to a stylus, with no text or symbols present.

Diagram showing a remote control panel connected to a handheld device with labeled buttons and ports.

- RQ1185,RQ1167,RQ1160

Diagram showing a device with two buttons connected to a handheld device (no text or symbols present)

- RQ1155,RQ1151,RQ1150,RQ1145,RQ1141,RQ1131

Carregamento

Diagram showing a vertical stack of icons with a lock and battery symbol, likely representing a system or data flow setup.

RQ1185, RQ1167, RQ1160, RQ1155, RQ1151, RQ1150, RQ1145, RQ1141, RQ1131

Diagram showing battery charging symbols and a battery icon with upward arrow, alongside two charging devices with icons for power, battery, and charging.

Diagram showing a vertical stack of circular elements with a lock icon and a battery symbol, connected by a wire (no text or labels)

RQ1197,RQ1195,RQ1180,RQ1175

Diagram showing battery and connection icons with a battery symbol inside a box

Diagram showing battery charging mechanism with star-shaped battery symbol and circular icon indicating recycling symbol

RQ1197,RQ1195,RQ1180,RQ1175

Diagram showing battery and plug icons with labels like lock, battery, switch, and plug symbol

Diagram showing battery charging process with icons for recycling, lock, and battery discharge

RQ1197,RQ1195,RQ1180,RQ1175

Diagram showing a vertical stack of icons with a lock symbol and a padlock icon, likely representing security or security modules.

Bloqueio de viagem

Diagram showing electrical power and circular symbol with directional arrows, likely illustrating a power or current flow system.

Line drawing of a mechanical device with a cable inserted, showing no text or symbols

1 Introduza a ficha pequena no carregador.

Diagram of a rope knot with a curved arrow indicating rotational motion (no text or symbols)

Diagram illustrating hairpin insertion process with labeled parts 1 and 2 showing hairpin positioning and color change

Illustration of a showerhead and a water dispenser (no text or symbols)

1 Introduza a ficha pequena no sistema Jet Clean.

2 Ligue o adaptador à tomada eléctrica.

Diagram illustrating foot movement and impact technique with numbered annotations indicating different foot positions and motion directions.

Illustration of a person's face with directional arrows indicating movement or pressure points (no text or symbols)

Illustration of a hand pressing down on a device with a cross symbol, showing mechanical components and an upward arrow (no text or symbols)

Diagram illustrating hair cleaning process with labeled steps ① and ②, showing spray and hair removal setup

Diagram showing a hand operating a device with an upward arrow and a cross symbol (no text or labels)

Diagram illustrating a spray gun with labeled parts and directional arrows, including a magnified inset showing the tip.

Illustration of a hand pouring liquid into a container with a cross mark, indicating a process step (no text or symbols present)

Illustration of a hand holding a medical device with an inset showing a magnified view of the device's internal structure (no text or symbols present)

Illustration of a hand holding a handheld device with a curved handle and emitting light rays (no text or symbols)

Diagram showing a person's neck with labeled parts and directional arrows indicating movement or force.

Diagram showing a hairdryer with a power button and a power symbol, likely illustrating a manual or electrical operation.

Line drawing of a man brushing his beard with a comb (no text or symbols)

Line drawing of a handheld device with a scroll wheel and directional arrow (no text or symbols)

Illustration of two hands holding a device with directional arrows indicating movement or force (no text or symbols present)

Line drawing of a person applying makeup to their ear (no text or symbols)

Line drawing of a man's head and shoulders with a beard (no text or symbols)

Line drawing of a man's head and beard (no text or symbols)

Line drawing of a man's head and shoulders (no text or symbols)

- Um bigode

Line drawing of a man's head and shoulders (no text or symbols)

- Uma barbicha

Illustration of a hand holding a circular object with concentric rings, above a separate frog-shaped object (no text or symbols)

Illustration of a hand holding a three-layered device with a downward arrow indicating compression or disassembly (no text or symbols present)

Diagram illustrating two-step instructions for handling a device, labeled with arrows and numbered positions (1 and 2).

Illustration of a hand pouring liquid into a container with a water level indicator (no text or symbols)

Illustration of hands using a handheld device to remove or clean material, with no text or symbols present.

Line drawing of a vacuum cleaner with a cylindrical component and a flat body (no text or symbols)

Diagram showing two mechanical components with arrows indicating motion or force, no text or symbols present

Diagram showing a finger pressing a button with icons for water level, power button, and directional arrow

Diagram of a scientific apparatus with a star-shaped component and wavy lines, no readable text or symbols present.

Diagram of a device with a sun symbol and control panel, no readable text or labels present

Simple line drawing of a bag with a decorative pattern and a small inset showing a U-shaped symbol (no text or labels)

Diagram illustrating two-step instructions for handling a device, labeled with arrows and numbered steps ① and ②.

Illustration of a hand holding a medical device with a catheter inserted (no text or symbols)

Illustration of a faucet pouring liquid into a square basin (no text or symbols)

Illustration of a hand pouring liquid into a container with a water level indicator (no text or symbols)

Illustration of hands holding a device with a downward arrow and a small bowl nearby (no text or symbols)

Illustration of a hand holding a circular object with an arrow pointing to it, next to a separate abstract shape (no text or symbols)

Abstract diagram with concentric contour lines and a black arrow pointing left (no text or symbols)

Mechanical assembly diagram showing gears and housing with an upward arrow (no text or symbols)

Mechanical assembly diagram showing a gear-like component with an upward arrow indicating motion (no text or symbols present)

Diagram showing a hand holding a gear-like object with arrows indicating motion or force (no text or symbols)

Mechanical assembly diagram showing a brush tool interacting with a gear and motor (no text or symbols)

Mechanical assembly diagram showing a gear-like component with a downward arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing gear and shaft components with a downward arrow indicating motion (no text or symbols)

Abstract diagram with concentric circles and radiating lines, no text or symbols present

Illustration of a hand holding a device with a downward arrow indicating process (no text or symbols)

Diagram showing a hand holding a thermometer measuring temperature, with an inset showing the thermometer reading 'C' and 'F'.

Illustration of two hands performing a manual water stroke technique (no text or symbols)

Illustration of a pliers being adjusted with an arrow (no text or symbols)

Diagram showing electrical connections and a circular symbol with a heart icon, likely illustrating a power or signal flow system.

Illustration of a hand holding a circular object with concentric rings, next to a separate view of a device with three circular features (no text or symbols)

RQ11

10 sec.

Encomendar acessórios

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Prohibition sign showing a faucet crossed out by a diagonal line, indicating no pollution or water discharge (no text present)

Fara

Diagram showing a remote control panel connected to a handheld device with labeled buttons and dials.

Diagram showing a remote control panel connected to a handheld device with labeled buttons and ports

- RQ1185, RQ1167, RQ1160

Diagram showing a pair of remote control buttons connected to a handheld device (no text or symbols present)

- RQ1155, RQ1151, RQ1150, RQ1145, RQ1141, RQ1131

Laddning

Diagram showing battery charging process with icons for lock, power, and connection points

Diagram showing two battery icons with a battery symbol and circular icons, no text or labels present.

Diagram showing a battery connected to a vertical stack of circular components with a lock icon and a separate rectangular device (no text or symbols)

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Diagram showing battery and control icons including lock, battery, switch, and power plug

Diagram showing battery charging process with sensor, lock, and battery discharge components

Diagram showing a lock icon with refresh symbol and vertical arrows, alongside a padlock symbol connected to a cable.

Diagram showing electrical connections with power and current symbols, including a circular symbol with a heart icon and directional arrows.

Technical line drawing of a mechanical device with a tool inserted (no text or symbols)

Diagram of a mechanical device with a curved arrow indicating rotational motion (no text or symbols)

Diagram illustrating a hairdryer with labeled parts and directional arrows indicating hair distribution or usage.

Line drawing of a device with a top view and a base view (no text or symbols)

Diagram illustrating foot movement and impact technique with numbered annotations indicating different foot positions and motion directions.

Illustration of a person's face with arrows indicating direction or movement (no text or symbols)

Illustration of a hand pressing down on a device with a cross symbol, showing mechanical components and an upward arrow (no text or symbols)

Diagram illustrating hair cleaning process with labeled steps ① and ②, showing spray application and detail view

Diagram showing a robotic arm performing a press operation with an upward arrow and cross symbol (no text or labels)

Diagram illustrating a spray gun with labeled parts and an inset showing the tip area of the spray gun.

Diagram showing a hand pouring liquid into a container with a cross mark, indicating a process or operation (no text or symbols present)

Illustration of a hand holding a medical device with a magnified inset showing internal components (no text or symbols)

Illustration of a hand holding a small electronic device with a curved handle and emitting light, accompanied by a black arrow indicating direction (no text or symbols present)

Diagram showing a person's head with labeled parts and directional arrows indicating movement or force.

Line drawing of a person using a power shaver with a 'Power' button (no text or symbols on the diagram itself)

Line drawing of a man brushing his beard with a comb (no text or symbols)

Line drawing of a hand holding a small electric shaver with a black arrow indicating motion (no text or symbols)

Illustration of two hands holding a device with checkmark and cross symbols, no text or labels present

Line drawing of a person applying makeup to their ear (no text or symbols)

Line drawing of a man's head and shoulders with a beard (no text or symbols)

Line drawing of a man's head and beard (no text or symbols)

Line drawing of a male's head and shoulders (no text or symbols)

• Mustasch

Line drawing of a man's head and shoulders (no text or symbols)

• Bockskägg

Illustration of a hand holding a circular object with concentric rings, next to a separate abstract diagram with arrows indicating motion (no text or symbols)

Illustration of a hand holding a device with a magnified view below showing internal components (no text or symbols)

Diagram illustrating two-step cleaning or packaging process with labeled steps ① and ②

Illustration of a hand pouring liquid into a container with a water level indicator (no text or symbols)

Illustration of hands holding a device with a downward arrow and emitting sound waves (no text or symbols)

Line drawing of a device with a vertical cylindrical component and a base device (no text or symbols)

Diagram illustrating car seatbelting technique with labeled parts and motion arrows

Diagram showing a finger pressing a button with icons for thermal, power, and switch symbols

Diagram of a scientific apparatus with labeled components and wave symbols, likely illustrating an experimental setup or measurement.

Diagram of a device with a sun symbol and a warning label, no readable text or symbols present.

Diagram of a device with a U-shaped symbol and a warning label, likely indicating a hazard or safety warning.

Diagram illustrating two-step cleaning or packaging process with labeled steps ① and ②

Illustration of a hand holding a medical device with a catheter inserted (no text or symbols)

Illustration of a faucet dispensing liquid into a square basin (no text or symbols)

Illustration of hands using a handheld device to remove or clean material, with no text or symbols present.

Illustration of a hand holding a circular object with concentric rings and an arrow pointing to it, next to a separate abstract diagram (no text or symbols)

Abstract diagram with concentric circular patterns and a black arrow pointing left (no text or symbols)

Mechanical assembly diagram showing gears and shafts with an upward arrow (no text or symbols)

Mechanical gear assembly diagram with an upward arrow indicating motion (no text or symbols present)

Diagram showing a hand holding a mechanical component with arrows indicating motion or force direction (no text or symbols present)

Mechanical assembly diagram showing a brush applying material to a gear (no text or symbols)

Mechanical assembly diagram showing a gear-like component with a downward arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing gear and shaft components with a downward arrow indicating motion (no text or symbols)

Abstract diagram with concentric circles and radiating lines, no text or symbols present

Illustration of a hand holding a circular object with a downward arrow indicating a process or transformation (no text or symbols present)

Diagram showing a hand holding a tool with a thermometer and temperature indicators (°C, °F) in the inset.

Illustration of two hands performing a manual water tap stroke technique (no text or symbols)

Line drawing of a pliers with an arrow indicating motion (no text or symbols)

Diagram showing electrical power and circular symbol with directional arrows, likely illustrating a power or current flow system.

Illustration of a hand holding a circular object with concentric rings, next to a separate abstract shape with three circles (no text or symbols)

Symbol of a waste bin with no text or labels, crossed by two crossed lines and a solid black rectangle below (no text or symbols present)

Prohibition sign showing a faucet crossed out by a diagonal line, indicating no pollution or water discharge (no text present)

Tehlike

Diagram showing a remote control panel connected to a handheld device, with icons and labels indicating components.

Diagram showing a remote control panel connected to a handheld device with labeled buttons and ports.

- RQ1185, RQ1167 ve RQ1160

Diagram showing two electronic devices connected by a cable, one with power button and others with buttons (no text or symbols)

- RQ1155, RQ1151, RQ1150, RQ1145, RQ1141 ve RQ1131

Şarj etme

Diagram showing battery charging mechanism with lock, power source, and charging symbol

Diagram showing battery charging setup with two test tubes and a battery icon (no text or symbols)

Diagram showing a battery connected to a vertical stack of circular components, with a separate inset showing the same battery (no text or symbols present)

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Diagram showing battery and switch icons with labels and symbols

Diagram showing battery charging process with sensor, lock, and battery discharge components

Diagram showing a security icon with lock and Wi-Fi symbol, alongside a vertical line of icons representing security features.

Diagram showing electrical power and circular symbol with a warning icon containing a face symbol

Technical line drawing of a mechanical bracket with a tool inserted (no text or symbols)

Diagram of a mechanical device with a curved arrow indicating rotational motion (no text or symbols)

Diagram illustrating a device with labeled parts and directional arrows indicating flow or movement.

Line drawing of a device with a handle and top component (no text or symbols)

Diagram illustrating foot movement and impact technique with numbered annotations indicating different foot positions and motion directions.

Illustration of a person's face with arrows indicating direction of motion or movement (no text or symbols)

Illustration of a hand pouring liquid into a container with a cross symbol, indicating a process or operation (no text or symbols present)

Diagram illustrating a spray gun with labeled parts and directional arrows, showing spray motion and contact point.

Diagram showing a robotic arm performing a press operation with an upward arrow and a cross symbol (no text or labels)

Diagram illustrating a spray gun mechanism with labeled parts and directional arrows

Illustration of a hand pouring liquid into a container with a cross symbol, indicating a process or operation (no text or symbols present)

Illustration of a hand holding a medical device with an inset showing a magnified view of the device's internal structure (no text or symbols present)

Illustration of a hand holding a small electronic device with a lightning bolt and arrow indicating action (no text or symbols)

Diagram showing a person's neck with labeled parts and directional arrows indicating movement or force.

Diagram showing a person using a power shaver with a 'Power' button and a cursor pointer, likely illustrating a power switch function.

Line drawing of a person applying a hair to their beache, no text or symbols present

Line drawing of a handheld device with a curved handle and directional arrow (no text or symbols)

Illustration of two hands holding a device with directional arrows indicating movement or force (no text or symbols present)

Line drawing of a person holding an object near their ear (no text or symbols)

Line drawing of a man's head and shoulders with short hair and beard (no text or symbols)

Sakal stilleri

Line drawing of a man's head and beard (no text or symbols)

- Uzun sakal

Line drawing of a male's head and shoulders (no text or symbols)

- Bıyıklı

Line drawing of a man's head and shoulders (no text or symbols)

- Keçi sakal

Temizlik ve bakım

Illustration showing two-step instructions for handling a device, labeled with arrows and numbered parts (1 and 2)

Illustration of a hand pouring liquid into a container with a water level indicator (no text or symbols)

Illustration of hands using a handheld device to remove or clean material, with no text or symbols present.

Line drawing of a vacuum cleaner with a handle and top component (no text or symbols)

Diagram illustrating foot movement and motion of a mechanical component, labeled with parts ① and ②.

Diagram showing a finger pressing a button with icons for water level, power button, and directional arrow

Diagram of a scientific apparatus with labeled components and wave symbols, including Chinese characters for 'stem' and wave patterns.

Diagram of a device with a sun symbol and internal components, no readable text or labels present

U U 等米

Diagram illustrating two-step cleaning or disassembly process with labeled steps ① and ②

Illustration of a hand holding a medical device with a catheter inserted (no text or symbols)

Illustration of a faucet dispensing water into a square basin (no text or symbols)

Illustration of a hand pouring liquid into a container with a water level indicator (no text or symbols)

Illustration of hands using a handheld device to remove liquid from a small bowl (no text or symbols)

Illustration of a hand holding a 3D object with a black arrow pointing to it, alongside a separate 2D model of a frog-like creature (no text or symbols)

Abstract symmetrical pattern with concentric rings and a black arrow pointing left (no text or symbols)

Mechanical assembly diagram showing gears and shafts with an upward arrow (no text or symbols)

Mechanical gear assembly diagram showing a central shaft and housing with an upward arrow (no text or symbols)

Diagram showing a hand holding a gear-like object with arrows indicating motion or force (no text or symbols)

Mechanical assembly diagram showing a brush applying material to a gear mechanism (no text or symbols)

Mechanical assembly diagram showing a gear and shaft assembly with a downward arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing gear and shaft components with a downward arrow indicating motion (no text or symbols)

Abstract diagram of a symmetrical, multi-layered structure with radiating lines and a black arrow pointing inward (no text or symbols)

Illustration of a hand holding a 3D object with a downward arrow indicating a process or transformation (no text or symbols present)

Diagram showing a hand using a tool to cut a pipe with temperature indicators (°C and °F) in the inset.

Illustration of two hands pouring liquid from a bottle onto a surface, separated by a diagonal line (no text or symbols)

Illustration of a pliers being adjusted with an arrow indicating motion (no text or symbols)

Diagram showing electrical connections with power and current symbols, including a circular symbol with a mouth icon and a square with a circular symbol.

Illustration of a hand holding a circular object with concentric rings, next to a separate abstract shape with three circles (no text or symbols)

RQ11

10 sec.

Symbol of a trash bin crossed with a diagonal line, representing no waste or elimination (no text or numbers present)
