USER MANUAL THJU2240 THOMSON
Please keep these instructions for future reference.
This product complies with the requirements of Directive 2014/35/EU (repealing Directive 73/23/EEC as amended by Directive 93/68/EEC) and 2014/30/EU (repealing Directive 89/336/EEC).
Important Safety Instruction
For safety, to avoid loss or hurt to you or others, please be sure to observe the following safety precautions; If you do not follow the safety precautions and wrong usage may lead to accidents. Please follow these instructions for using the device:
-
The appliance must not be used by children or by people with disabilities.
-
Children should not play with this device.
-
Please read the instruction book carefully before the product is used, and please use the machine according to the instruction book. Please properly retained for reference because the continuous improvement of products is subject to change without notice.
-
The product is applicable to family use, and it is inapplicable to commercial use.
- Do not allow children to use appliance alone. Please keep it out
of reach of children. The elderly or people with disabilities and people without experience should use this product under guardianship and guidance.
- The continuous use time of the product should be control within 30 minutes and rest for 5 to 10 minutes.
- Prohibited no-load or overload use during the operation of machine.
- Please do not touch or move any moving part during the operation of the machine.
- Prohibit to put the power cord hang over some sharp object and do not connect to some moving object.
- Prohibit to use this product in an inclined surface or unstable table.
- All the parts of machine are prohibited high-temperature baking in sterilizer or oven.
- It is forbidden to use finger, spoon and chopstick to push fruits or vegetables into the feed inlet of machine, but can use the pusher only.
- If the parts of product structure is found to be damaged (particularly
the safety device and power line are damaged),please stop using and send to the company's maintenance department to maintain by professionals, so as to prevent accident.
- Before the machine is cleaned, moved or if it is not used, press "0" to power off and unplug the power cord.
- Do not use unauthorised accessories because it may cause damage and injury.
- Carefully watch it during the operation so as to prevent accident.
- Please confirm whether the voltage has consistency with the product specifications before use (220-240V~50/60Hz), so as to avoid a safety hazard and damage of product.
- After using the product, clean the parts in contact with food to avoid a smell.
- If the fine strainer is damaged, do not use the appliance.
-
After using the product, please unplug the power in time and clean the product.
-
In case this product cannot be started, please refer to the "troubleshooting guide" on page 16, if still cannot be started, product should be sent to the company's maintenance department to maintain, please do not disassemble by yourself.
- This product is not available for crushing grain, ice, sugar, sugar cane and other hard foods (easily lead to stuck, mechanical failure).
- Please do not use or put the product beside high temperature gas or electric stove.
- This appliance is intended to be used in household.
- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
- Children shall not play with the appliance. Keep the appliance
and its cord out of reach of children.
- Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
- Warning: potential injury from misuse. Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- No service parts can be washed in dishwasher.

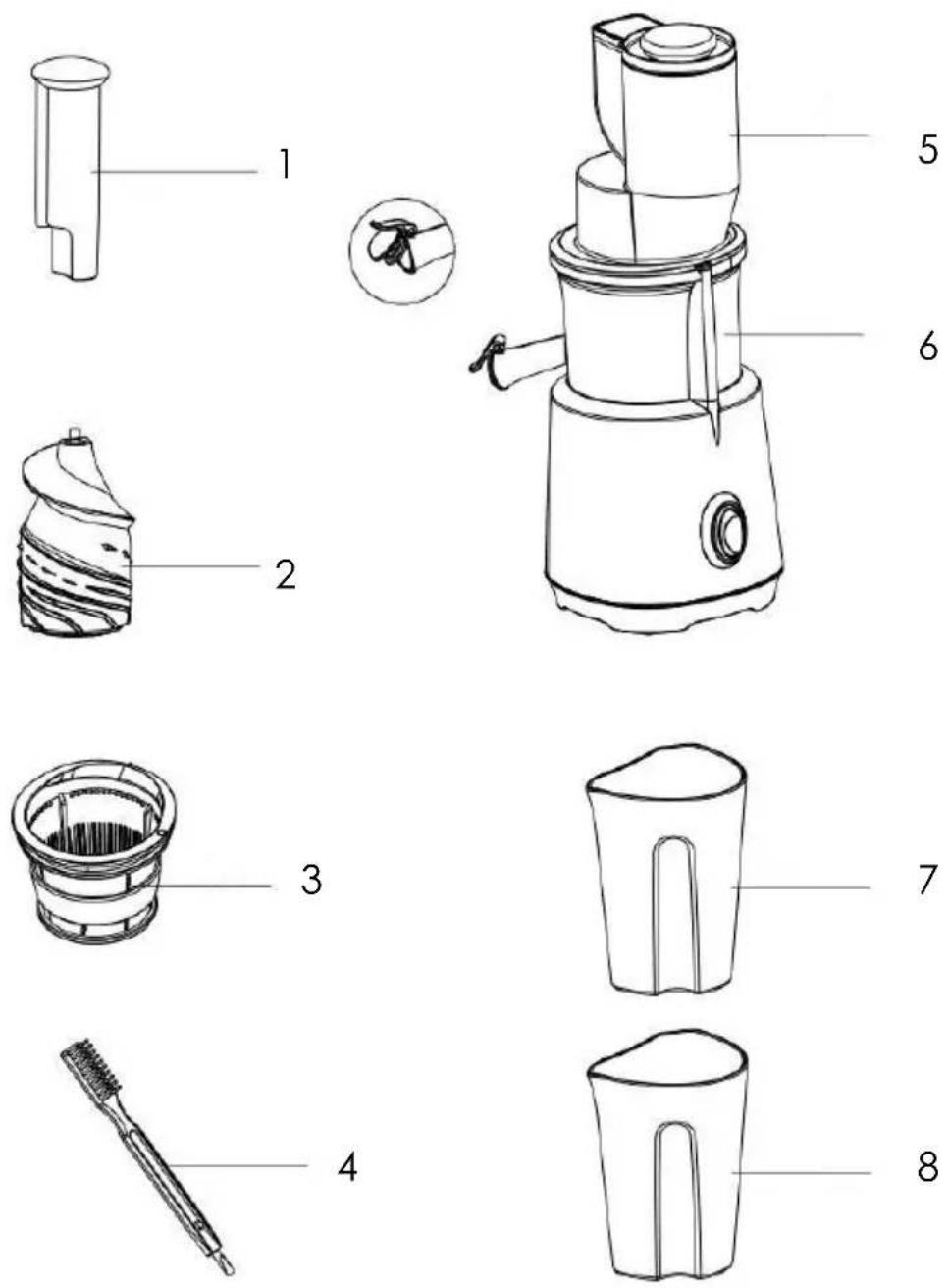

For Food contact use.
- Pusher
- Augar 6. Juice bowl
- Stainless steel filter
-
Cleaning brush
-
Feeding tube
- Juice Cup
- Pulp Cup

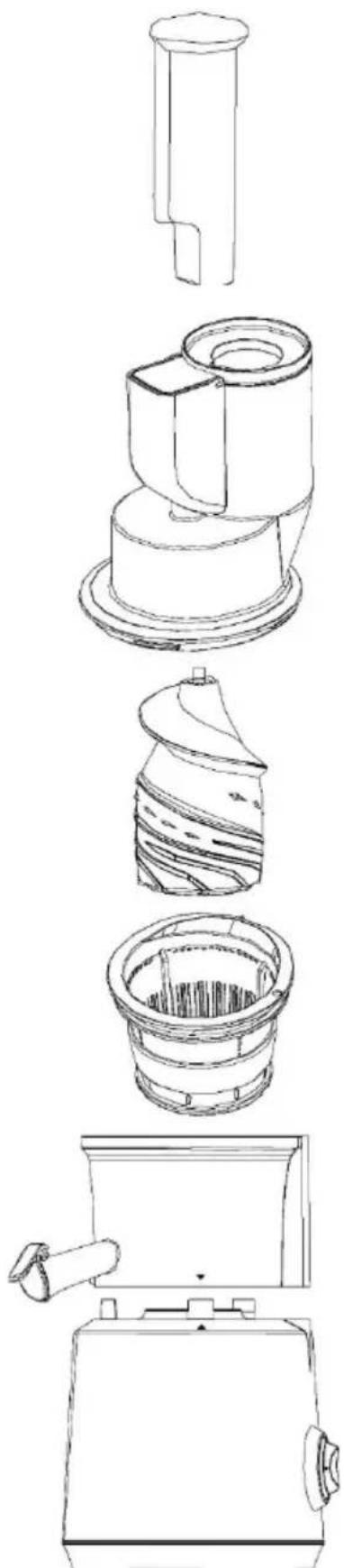

Assembly Instruction
STEP1
Assembly of the upper part.
Align the red dots on each part and assemble in the orders shown. Once assembled, tum the upper lid clock wise to close.
STEP 2
Assembly the upper part and base.
Place the bowl on the base, the 3 holes of bowl lock into the 3 feet of the base
Top-set Assembly

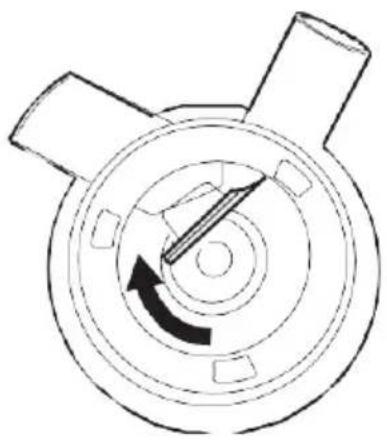

Check Before Operating
Note: The juicer may leak if the tab and the silicone ring are not properly assembled.
-

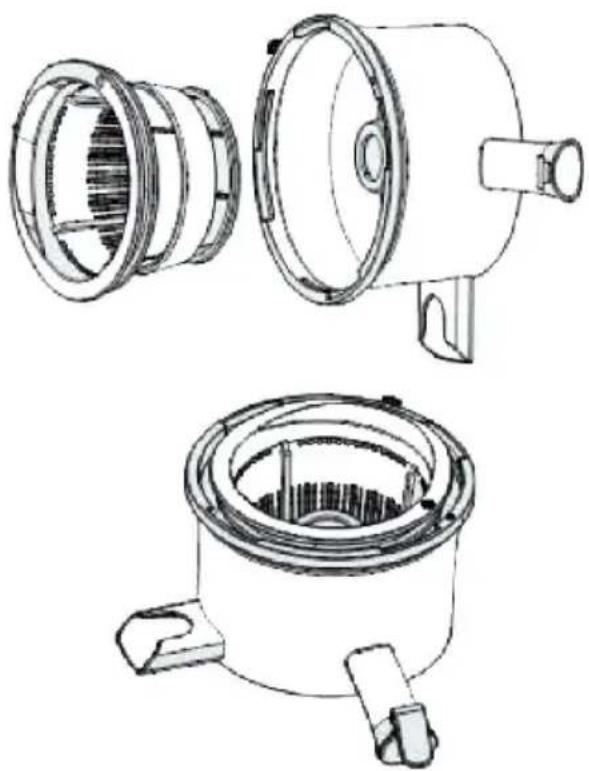

Place the strainer into the juicing bowl ensuring the red dot
-
on the strainer is aligned with the red dot
on the juicing bowl.
- Place the juicing auger into the filter. Turn and press it until it clicks into place.
Note: The juicing auger must be locked in the correct place to close the feed tube cover.

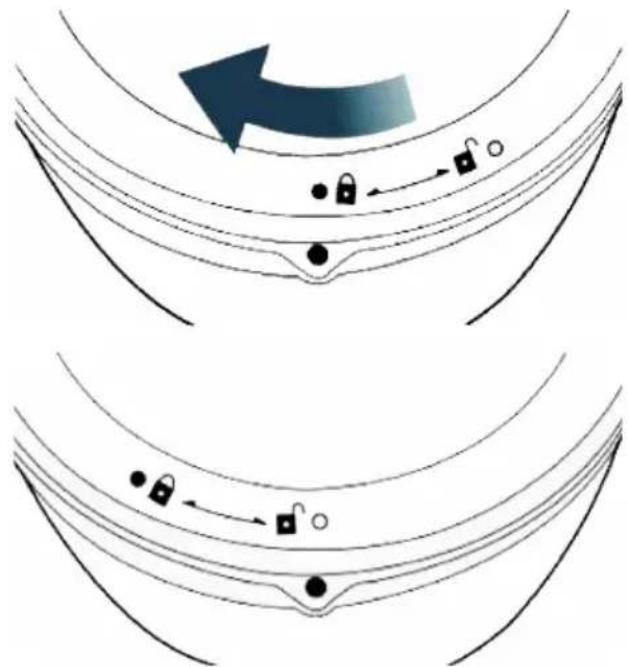

- Place the feed tube cover on the juice bowl by aligning the juicer lid's red dot:
with the juicer bowl's red dot
- And then turn clockwise to close.

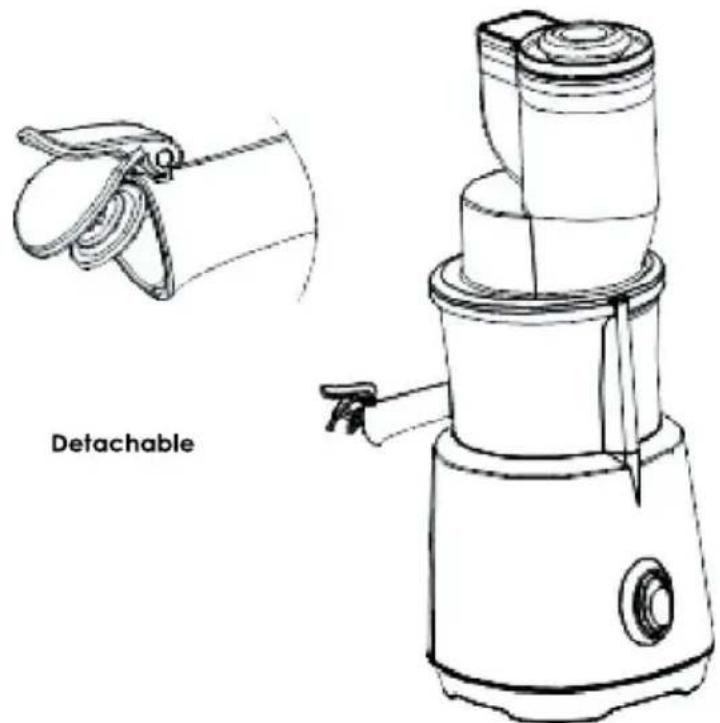

Top-set and Base Assembly

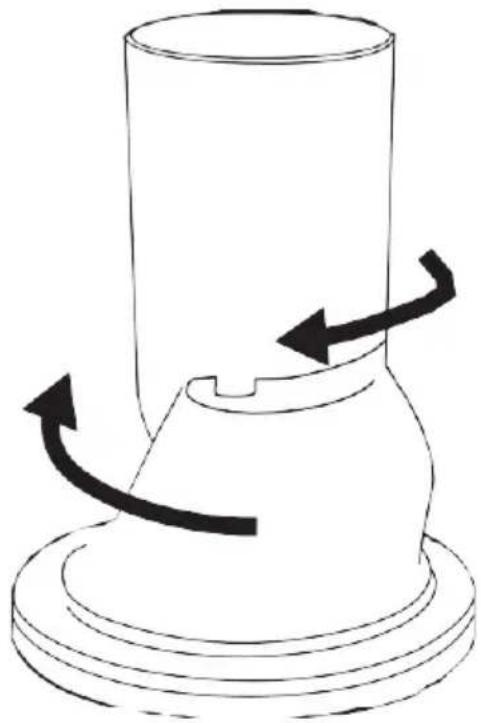

To facilitate assembly, hold the cover of the feed tube by grasping the chute and turn clockwise as shown in the illustration.

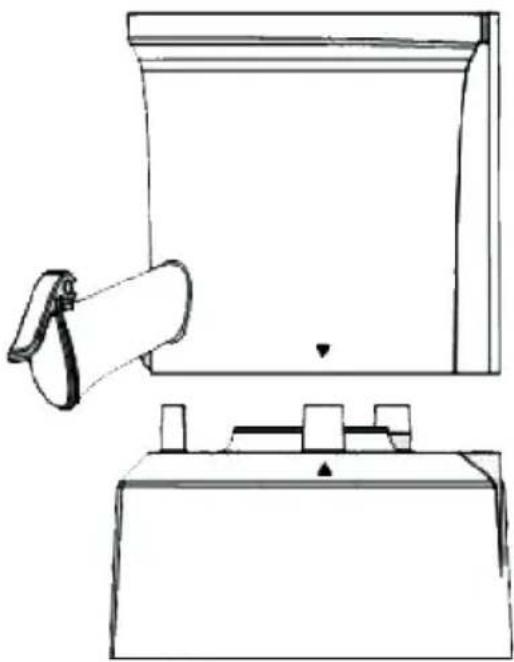

- Place the bowl on the base, the 3 bowl locking holes facing the 3 feet of the base.

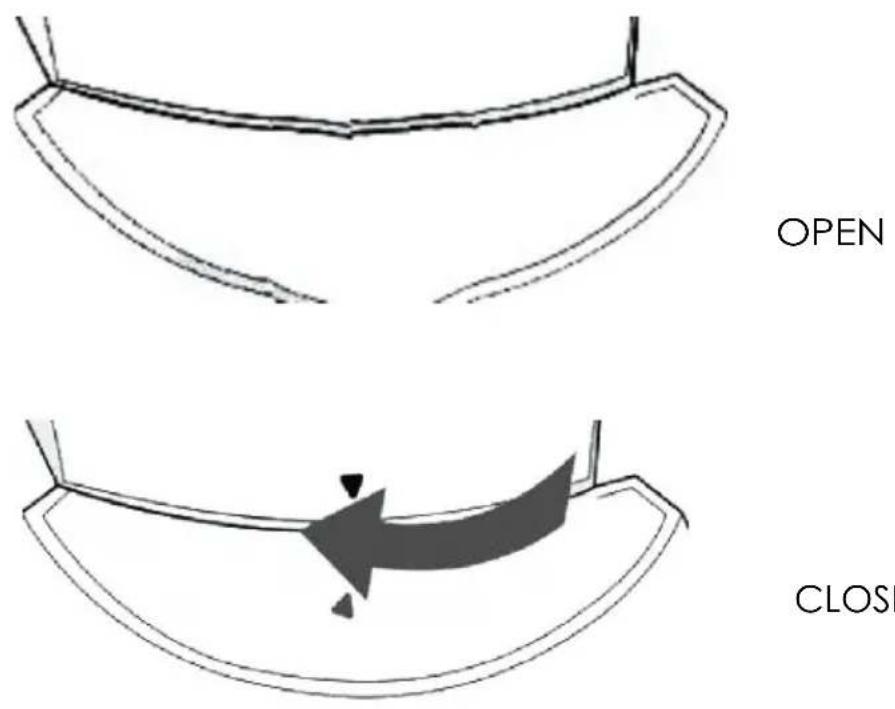

- Open/Close mark on the top-set.
Note: Juicer will not operate if all parts are not assembled correctly.
- Place the pulp cup under the pulp spout and place the juice cup under the Juice spout as shown in the illustration.
How to operate
Insert the prepared ingredients one piece at a time.
Double size Food chute-- One for whole apple, another for strip shaped vegetables.
- Open the lid to feed the whole round fruits like apples, oranges(peeled).
- Feeding the vegetables which cut into strips such as carrots.
Tips: Please cut the ingredients into small pieces then slowly insert the food to avoid stuffing and facilitate the extraction of the juice.
Note: • Leave the smart cap open when juicing ingredients that create excessive foam during extraction, (e.g. Apples, celery)
- Please pay attention when operating with the smart cap closed. Juice may overflow if the juice collected in the juicing bowl exceeds capacity which indicated on the bowl.
After juice and pulp are completely extracted, switch the unit to STOP position.
"Stop" operation:
Switch the button to STOP position then press and hold the REVERSE button until the ingredients become dislodged.
Repeat REV-STOP-START as needed.
ON: Pulls down the food
O: Stop the operation
R: Reverse rotation of the auger to avoid jams.
Note: • REVERSE: reverse rotation of the ingredients to dislodge them. The INVERSE button works only while holding down the switch.
- Switch button to STOP position and make sure the juicer complete stop. Then press REVERSE.
Hold the REVERSE button for 2~3 seconds and release. Repeat as needed. Let the juicer stop completely before using the REVERSE button to prevent malfunction.
- If the juicer does not work after these steps, disassemble and clean the parts before operating the juicer again.
Preparation
Juice Yield
- For the optimal extraction and maximum juice yield, cut the ingredients following the guidelines given in this section.
- Insert ingredients slowly monitoring how the ingredients are extracted. The juice yield may vary depending on speed.
Soft fruits and vegetables (e.g. Oranges, tomatoes):
- If the ingredients are larger than the feeding tube, cut the ingredients into pieces that will fit into the feeding tube.
- Fruits with hard pits (e.g. peaches, apricots, mangoes, etc.) must be pitted before extraction.
Hard fruits and vegetables (e.g. Carrots, potato, beets & spinach):
- Hard fruits and vegetables may put excess strain onto the motor and cause it to stall.
- To increase the juice yield, juice fruits and vegetables with high water content.
Ingredients with small seeds (e.g. Raspberry, pomegranate, grape):
- Slowly insert ingredients with small seeds to prevent the seeds from clogging the strainer.
- Foam may build up during the extraction of the juice of fibrous ingredients. Use the colander to remove the foam before serving.
- For ingredients like pineapple, slice off the rind of the pineapple and cut around the fibrous Core. Cut the flesh of the pineapple to smaller pieces.
Cleaning and Maintenance
Remove the plug from the wall socket and allow the appliance to cool down few minutes before cleaning.
Note: Remove all the remaining pulp in the juicing bowl after stopping the juicer.
- After the juice is extracted, running the juicer for 30 seconds to clean easier.
-
When the feed tube is stuck, press the REVERSE-STOP-START button, following this order, switching back and forth 2 to 3 times to dislodge. Then place your hands on the top of the drum lid and firmly press down simultaneously turning the drum lid counter clockwise to open.
-
The best way to clean the motor section is with a slightly dampened cloth and, if necessary, a little detergent. Do NOT immerse the motor section in any form of liquid!
- The centrifuge bowl, fruit pulp holder and all other detachable parts can be washed up by hand.
- Be careful not to touch the sharp parts in the bottom of the centrifuge bowl.
- Do not use any kind of strong or abrasive cleaning agent on the appliance or its accessories. Never use a scouring sponge or similar to clean it, as the surface may be damaged.
- Allow all parts of the appliance to dry completely before reassembling it after cleaning.
- The detachable elements like juice bowl, screw, etc should not be placed into the dishwasher as it may alterate their original color.
Normal troubleshooting
- When the machine is damaged. Stop using the machine and ask customer service for help.
- When you are unable to install the machine after reading the instruction, please install the machine gently, you can ask our customer service for help.
-
When using for the first time, if there is bad smell, please clean it and explode into air for 12 hours before using. Then the smell will disappear.
-
At first use, if there is smell, but not in abnormal sound, this is normal situation. Don't worry. It will not occur all the time.
- When the applicance is operating, but occur a sudden stop, turn off the machine immediately. Please disassemble the machine as the description above. Clean out the hard ingredients which are stuck inside the machine.
Technical specification
Voltage: 220-240V~50/60Hz
Power: 240W
Vitesse: 56 rpm
Speed: 700ml
If this logo appears on the appliance, it signifies that it should be scrapped in line with directive 2012/19/UE relating waste electronic and electric equipment (DEEE). All dangerous substances contained in electric and electronic equipment may exert deleterious effects on the environment and human health during processing. This explains why at the end of its useful life this appliance should not be disposed
of with unsorted municipal waste. As end consumer, your role is essential in ensuring reuse, recycling or other form of value creation for this appliance. You have at your disposal several collection and recovery systems put in place by your local authority (recycling centre) and distributors. You have the obligation of using these systems.
The warranty does not cover the wear parts of the product, nor the problems or damage resulting from:
(1) surface deterioration due to normal wear and tear of the product;
(2) defects or deterioration due to contact with liquids and corrosion caused by rust or the presence of insects;
(3) any incident, abuse, misuse, alteration, disassembly or unauthorized repair
(4) improper maintenance, improper use concerning the product or connection to an incorrect voltage;
(5) any use of accessories not supplied or not approved by the manufacturer.
The guarantee will be cancelled if the nameplate and / or serial number of the product are removed.
THOMSON is a brand of Technicolor SA used under licence by SCHNEIDER CONSUMER GROUP
This product is imported by: SCHNEIDER CONSUMER GROUP
12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCE
