THJU91IX - Juicer THOMSON - Free user manual and instructions

Product Type	Electric juicer
Brand	Thomson
Model	THJU91IX
Power supply	220-240 V ~ 50 Hz
Power	30 W
Bowl capacity	0.8 L
Included cones	Large cone and small cone
Pulp selector	Yes, adjustable (adjustable strainer)
Start	Automatic by pressing on fruit, automatic stop when released
Functions	Extraction of citrus juice (orange, lemon, grapefruit, etc.)
Main material	Plastic, stainless steel (strainer)
Cleaning	Removable parts (cone, lid, bowl) dishwasher safe; wipe motor unit with damp cloth
Safety	Do not use unattended; do not immerse motor unit; use on a stable surface
Maximum continuous use time	15 seconds
Certifications	Compliant with directives 2014/35/EU and 2014/30/EU
After-sales service	Contact the manufacturer or local distributor
Warranty	Manufacturer warranty (excluding wear parts and non-compliant use)

Frequently Asked Questions - THJU91IX THOMSON

How to clean the juicer?

Unplug the appliance and let it cool. Disassemble the removable parts (cones, lid, strainer, bowl) and wash them in warm soapy water or in the dishwasher. Wipe the motor unit with a damp cloth. Never immerse the motor unit.

Can I use the appliance continuously for a long time?

No, do not use it for more than 15 seconds continuously. Let it cool between uses.

What fruits can I juice with this appliance?

This extractor is designed for citrus fruits: oranges, grapefruits, lemons, limes. Use the large cone for large fruits and the small cone for small ones.

How does the pulp selector work?

The adjustable strainer has a lever: turn it to the left to reduce the holes (less pulp) and to the right to enlarge them (more pulp).

What to do if the appliance does not start?

Check that the fruit is correctly placed on the cone and that you press lightly. Ensure the container is properly installed. If the problem persists, unplug the appliance and consult after-sales service.

Can I change the cone while operating?

No, always stop the appliance, unplug it, then change the accessory.

How to avoid pulp clogs?

Regularly remove pulp and seeds from the strainer during use. Do not apply excessive force on the fruit.

Is the appliance suitable for people with reduced mobility?

Yes, provided they are supervised or have received safety instructions. The appliance is easy to use with automatic start.

What to do if the power cord is damaged?

Do not replace the cord yourself. Contact the manufacturer, its after-sales service, or a qualified person to avoid any danger.

How to dispose of the appliance at end of life?

Do not throw it with household waste. Take it to a recycling center or collection point for waste electrical and electronic equipment (WEEE).

USER MANUAL THJU91IX THOMSON

Black and white photo of a Thomson brand juice maker with glass lid and digital display (no visible text or symbols on device body)

Technical diagram showing a kettle and a base device with labeled parts and a power outlet symbol.

Fig 1

Diagram showing the internal structure and internal components of a water heater with labeled parts in Chinese.

Fig 2

Line drawing of a frying pan with a side handle and lid (no text or symbols)

Fig 3

Diagram showing the step-by-step assembly of a coffee maker with labeled parts and a digital kiln scale.

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Black and white photo of a modern glass coffee maker with a lid, showing liquid level and control panel (no text or symbols on the device itself)

Read the instructions carefully before use.

This product complies with the requirements of Directives 2014/35/EU (repealing Directive 73/23/EEC as amended by Directive 93/68/EEC) and 2014/30/EU (repealing Directive 89/336/EEC).

SAFETY INSTRUCTIONS

• Do not let the appliance operate unattended or within the reach of children. This appliance should only be used by adults.
• Do not use extension cord to connect the appliance.
• Place the appliance on a stable surface and do not leave the cord dangling.
• Check that the mains voltage corresponds to the one indicated on the unit - AC only.
• Never use or plug your appliance in if:
• The po wer cord is defective or damaged;
• The appliance has been dropped; or
• It shows any visible signs of damage or malfunction.
• Do not disassemble the appliance yourself.
• Do not operate the appliance near any flammable material or heat source such as a hob or cooker.

- This appliance is designed for domestic use only. Any usage for commercial purpose, improper use or failure to comply with the operating instructions shall void the warranty.

- Unplug the appliance when not in use and before cleaning.

- Do not use the appliance outdoors.

- Never move the juicer during use.

- The product must be installed in accordance with the national wiring rules.

- Never immerse the plug or appliance in water or any other liquid.

- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

- Children shall not play with the appliance.

• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
• Keep the appliance and its cord out of reach of children aged less than 8 years.
• This appliance is intended to be used in household.
• If you think that this appliance may not operate safely, remove the plug from the power socket and do not switch it on again. The safe use of this product can longer be guaranteed if:

- The appliance or the power cord shows sign of damage or wear; - The appliance no longer works;

- The appliance has been stored in poor conditions for a long period of time; or

- The appliance was substantially damaged during transport.

- This appliance is not intended to be operated by means of external timer or remote control system.

- Do not use the appliance if the filter is damaged.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Disposal and environmental protection: If you want to dispose of your electrical appliance as it needs to be replaced or is no longer used, think about protecting the environment. Consult local authorities for environmental friendly ways for waste disposal.

Suitable for contacting food

IMPORTANT

To avoid any risk of danger, it is strictly forbidden to replace the cable yourself. In the event of damage, it must be replaced by the local distributor's service department, the manufacturer, or by the manufacturer's service department or a similarly qualified person.

If your unit has been dropped, have it checked by a professional before using it again. Internal damage could result in accidents.

In the event of a problem or for any type of repair, consult the local distributor's service department, the manufacturer, its service department or a person of similar qualification to avoid any risk of danger.

Disposal and environmental responsibility:

In order to be environmental friendly, we encourage you to dispose of the appliance. You can contact local authorities or recycling centres for more information.

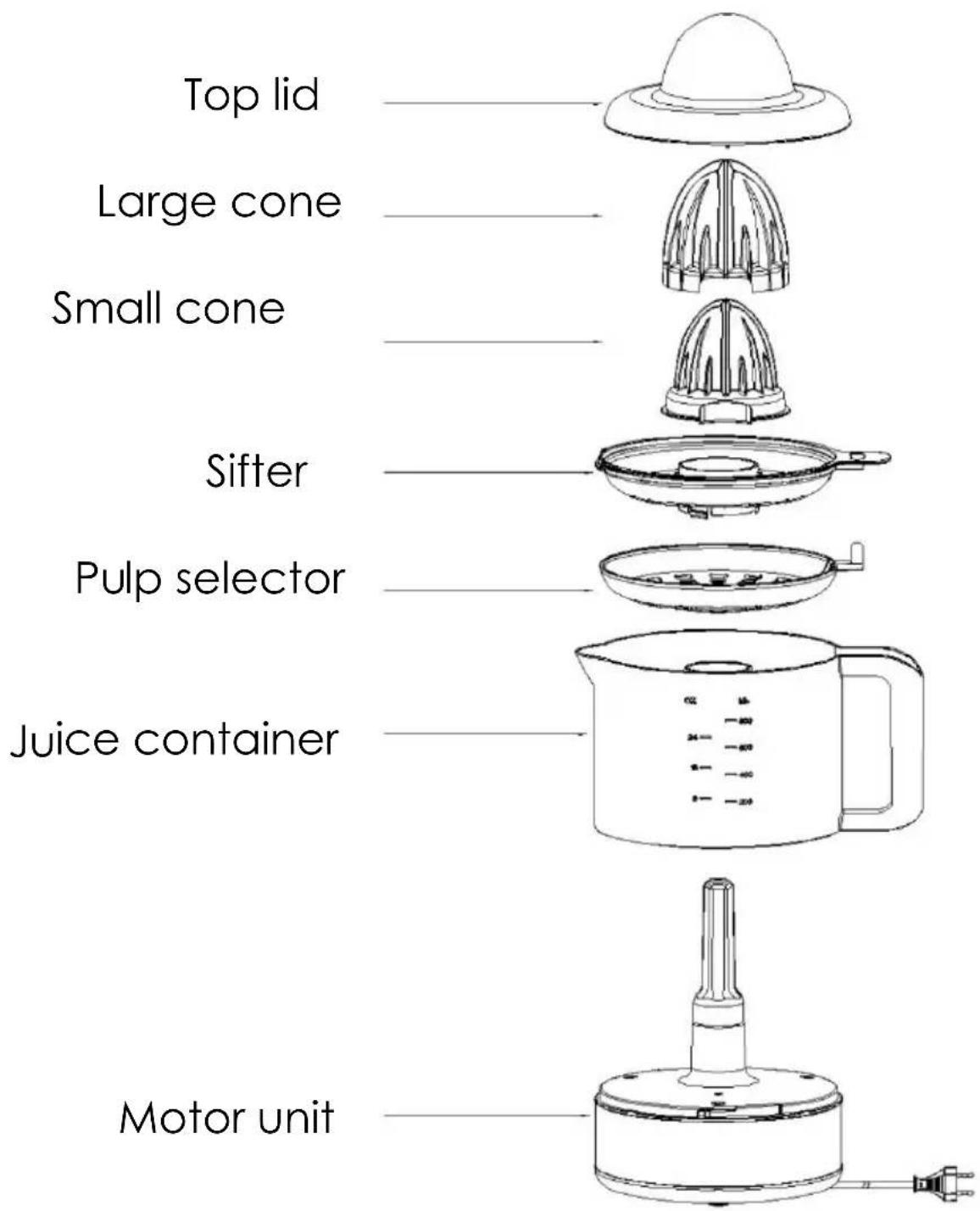

GETTING TO KNOW YOUR APPLIANCE

Top lid Large cone Small cone Sifter Pulp selector Juice container Motor unit

USING YOUR APPLIANCE FOR THE FIRST TIME

√ Thoroughly clean the top lid, large cone, small cone, sifter, pulp selector and juice container with hot water.
√ Then dry thoroughly.

USING YOUR APPLIANCE

1- Place the juicer container on the motor unit as Fig.1, Turn the cup in clockwise until it clicks into place.

Technical diagram showing a kettle and a base device with labeled parts and a schematic symbol.

Fig 1

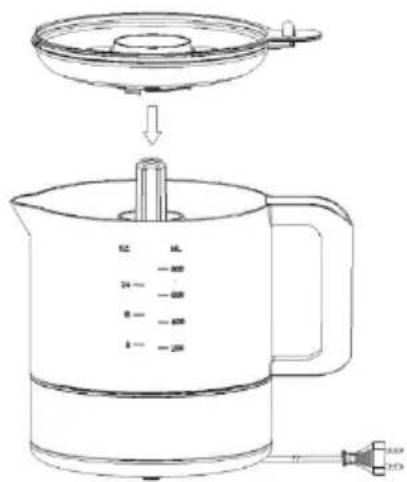

2- Then assemble the pulp selector (sifter + pulp selector) through the rotating axis on the juice container of the juicer (Fig 2).

3- The adjust sifter has a knob that can move smoothly and can control the sifter hole, see Fig 3. Turning the knob toward left would reduce the sifter hole and in opposite, enlarge the hole.

Line drawing of a circular kitchen appliance with a side handle and lid (no text or symbols)

Fig 3

CAUTION: When the cup is not in place, never press the rotating axis with hand to prevent from hurting. As the motor will start running once the rotating axis is pressed down regardless the cup whether is in place.

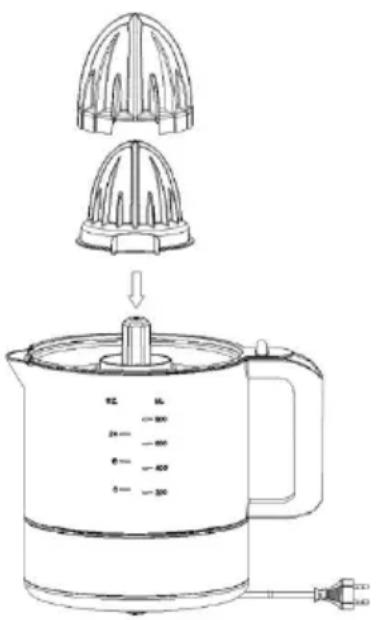

4- Choose the appropriate reamer according to the size of fruit. The big reamer is suitable for juicing bigger citrus fruits such as grapefruit or oranges. The small reamer is suitable for juicing small citrus fruits such as lemon or limes.

5- The small reamer can be used individually. But the big reamer must be used together with the small reamer.

Diagram showing the step-by-step assembly of a coffee maker with labeled parts and a water level scale.

6- The juicer container capacity is 0.8L. Do not overfill the appliance, when the appliance is full, remove the juicer to start a new operation.
7- If you want to change the reamer, stop the operation, unplug the appliance and then change the accessories.
8- H Cut the citrus fruit in half, put the fruit on the cone and press lightly on it: the motor starts. Then the extracted juice flows through the sifter into the container of the juicer. Most of the pulp and seeds remain on the sifter.
9- Regularly remove the pulp and seeds from the sifter plate to avoid jamming.
10- Once completing the squeezing, release the hand from the cone and the motor stop running. The appliance is in the idle state. You may restart it again at any time by pressing the reamer down.
11- When operating is completed or do not use the appliance, unplug the appliance.
12- If depositing the juice in the cup, make sure the top lid is in place.

NOTE: The motor may rotate in different direction.

CAUTION: Never exert excessive force when pressing the fruit to prevent from blocking and damaging motor.

NOTE: Never operating the appliance continuously for 15 seconds.

CAUTION: when juicer is not use, never hold the two pins of plug while turn the reamer by hand as this may result in electric shock.

CLEANING YOUR APPLIANCE

• Unplug the appliance and wait it completely cool down before clean.
- Disassemble sifters, also disassemble the large and small reamer, top lid and juicer bowl. When disassembling the bowl, only need turning the cup in anti-clockwise. Clean them in hot, sudsy water. Then rinse under running water and wipe dry.

CAUTION: Never use metal brush for cleaning, the reamer, lid and juicer container can use dishwasher to clean it.

• Wipe the surface of the appliance with a soft, damp cloth.
• Clean the juicer after each use to prevent fruit scraps from sticking.
• Assemble all parts together and put in suitable place for storage.

Never immerse the motor unit in water or any other liquid.

IT IS STRONGLY DISCOURAGED TO CLEAN ANY PARTS OF THE JUICER IN THE DISHWASHER.

TECHNICAL SPECIFICATION

Voltage: 220-240V\~

Frequency: 50Hz

Power: 30W

Capacity: 0.8L

We decline any liability for defects due to improper use of the appliance and damage caused by service or repair made by a third party or due to installation of unauthorized parts.

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

This logo affixed to the product indicates that is an appliance of which the waste processing falls within the framework of the 2012/19/EC, on Waste Electrical and Electronic Equipment (WEEE).

The presence of hazardous substances in electrical and electronic equipment may have potential effects on the environment and human health in the reprocessing cycle of the product. Thus, at the end of the life of this appliance, it should not be disposed of with unsorted household waste.

As a consumer, your role is crucial in the cycle of reuse, recycling

and other forms of recovery of electrical and electronic equipment. Waste reception center and collection facilities are implemented at your disposal by local communities (recycling facilities) and distributors.

You have the responsibility to use the selective waste collection systems at your disposal.

The warranty does not cover the wear parts of the product, nor the problems or damage resulting from:

(1) surface deterioration due to normal wear and tear of the product;
(2) defects or deterioration due to contact with liquids and corrosion caused by rust or the presence of insects;
(3) any incident, abuse, misuse, alteration, disassembly or Unauthorized repair
(4) improper maintenance, improper use
Concerning the product or connection to an incorrect voltage;
(5) any use of accessories not supplied or not approved by the manufacturer.

The guarantee will be cancelled if the nameplate and / or serial number of the product are removed.

THOMSON is a trademark of Technicolor SA used under license by SCHNEIDER CONSUMER GROUP.

Imported by SCHNEIDER CONSUMER GROUP, 12 rue Jules Ferry, 93110 ROSNY-SOUS-BOIS, FRANCE
