First things first

We would like to thank you for making an Acer notebook your choice for meeting your mobile computing needs.

Your guides

To help you use your Acer notebook, we have designed a set of guides:

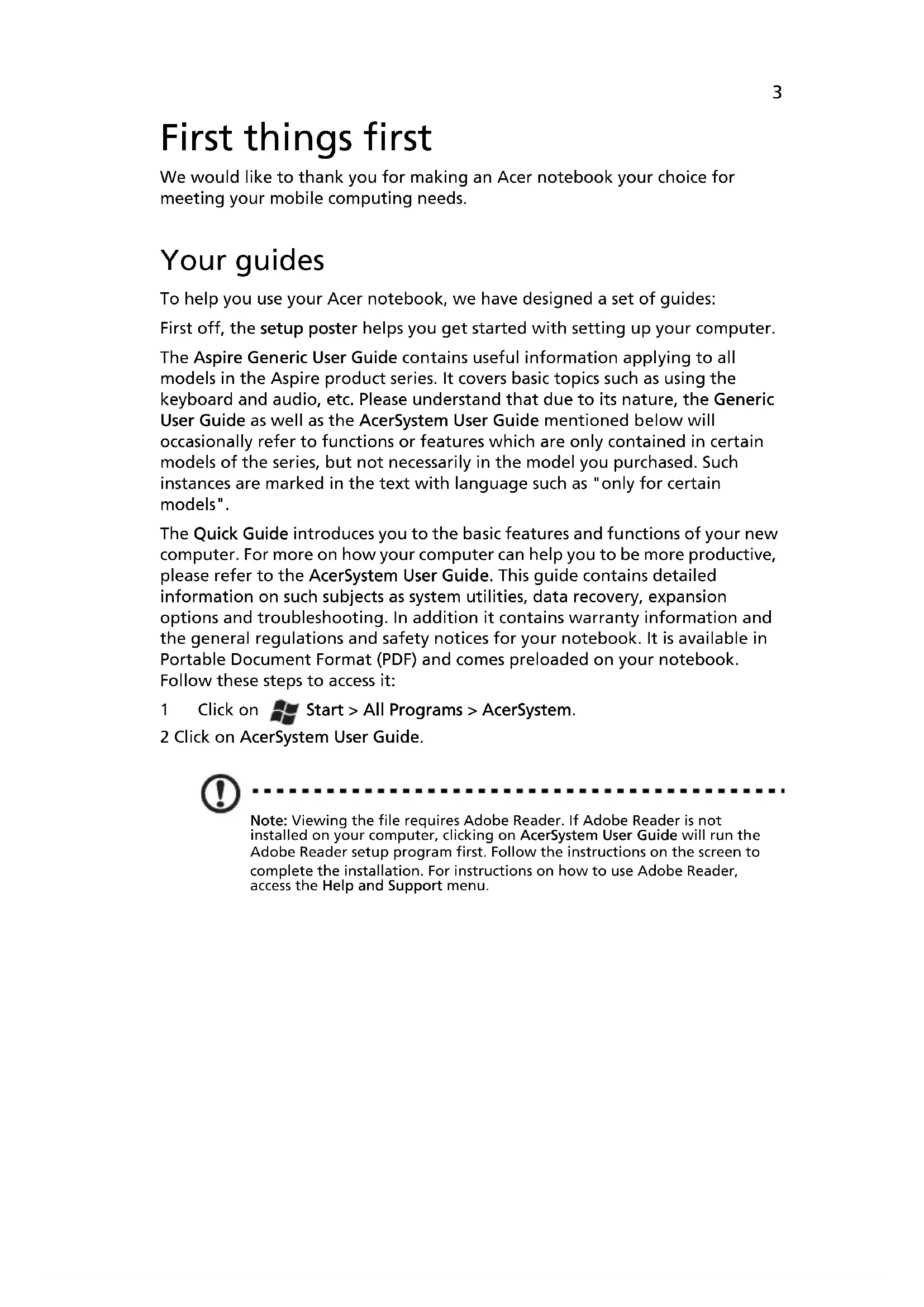

First off, the setup poster helps you get started with setting up your computer.

The Aspire Generic User Guide contains useful information applying to all models in the Aspire product series. It covers basic topics such as using the keyboard and audio, etc. Please understand that due to its nature, the Generic User Guide as well as the AcerSystem User Guide mentioned below will occasionally refer to functions or features which are only contained in certain models of the series, but not necessarily in the model you purchased. Such instances are marked in the text with language such as "only for certain models".

The Quick Guide introduces you to the basic features and functions of your new computer. For more on how your computer can help you to be more productive, please refer to the AcerSystem User Guide. This guide contains detailed information on such subjects as system utilities, data recovery, expansion options and troubleshooting. In addition it contains warranty information and the general regulations and safety notices for your notebook. It is available in Portable Document Format (PDF) and comes preloaded on your notebook.

Follow these steps to access it:

1 Click on Start > All Programs > AcerSystem.

2 Click on AcerSystem User Guide.

Note: Viewing the file requires Adobe Reader. If Adobe Reader is not installed on your computer, clicking on AcerSystem User Guide will run the Adobe Reader setup program first. Follow the instructions on the screen to complete the installation. For instructions on how to use Adobe Reader, access the Help and Support menu.

Your Acer notebook tour

After setting up your computer as illustrated in the setup poster, let us show you around your new Acer notebook.

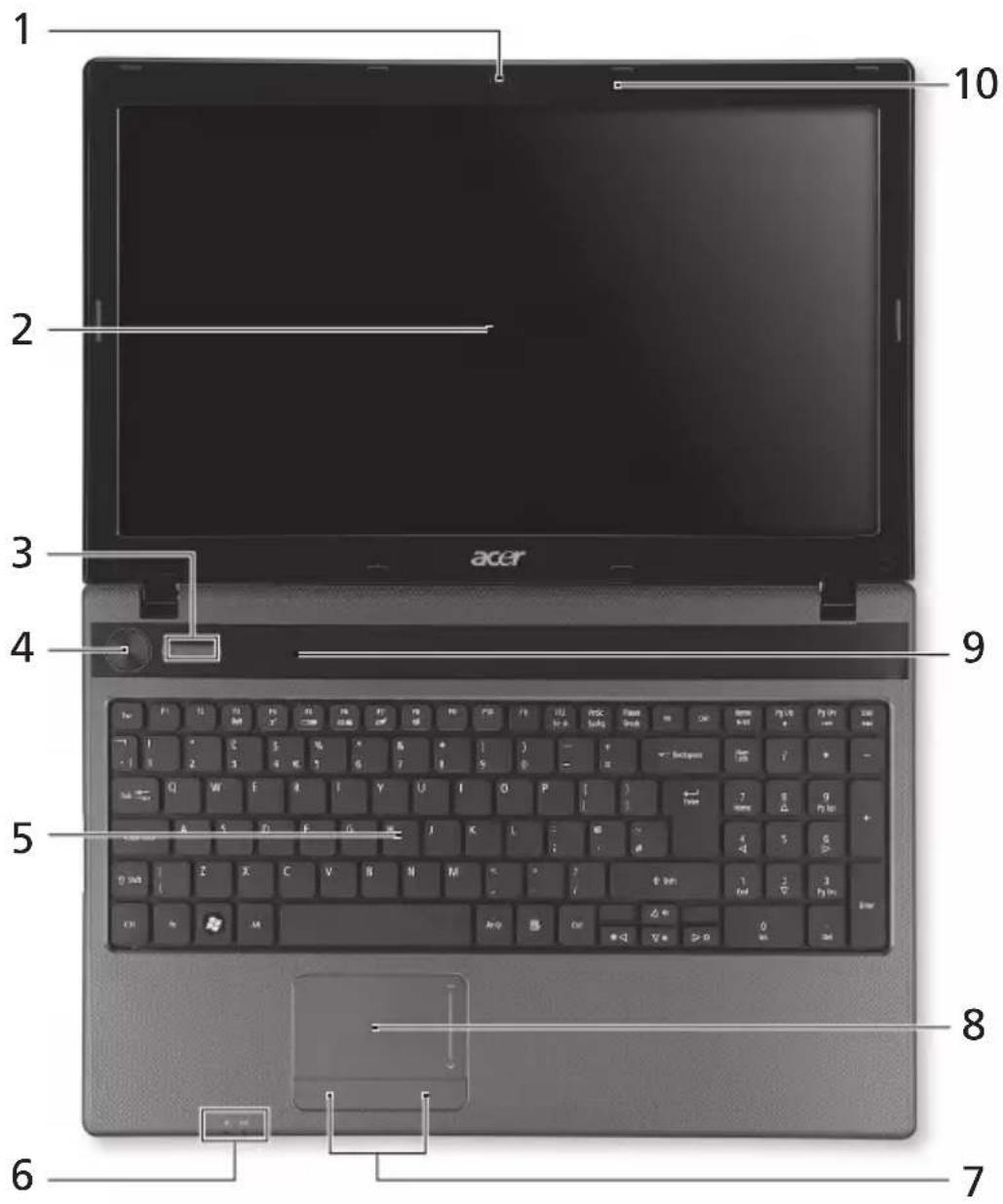

Top view

1 2 3 4 5 6 7 8 9 10 acer

Icon Item Description

1 Integrated webcam

Web camera for video communication (only for certain models).

# Icon Item Description
2 Display screen Also called Liquid-Crystal Display (LCD), displays computer output.
3 HD~ indicator Indicates when the hard disk drive is active.
	Communication indicator	Indicates the computer's wireless connectivity device status.
4 Power button /	indicator	Turns the computer on and off. Indicates the computer's power status.
5 Keyboard For entering data into your computer.
6 Power indicator Indicates the computer's power status.
	Battery indicator Indicates the computer's battery status. 1. Charging: The light shows amber when the battery is charging. 2. Fully charged: The light shows blue when in AC mode.
7 Click buttons (left and right)		The left and right buttons function like the left and right mouse buttons.
8 Touchpad Touch-sensitive pointing device which functions like a computer mouse.
9 Speaker Delivers audio output.
10 Microphone Internal microphone for sound recording.
	2-in-1 card reader Accepts Secure Digital (SD), MultiMediaCard (MMC). Note: Push to remove/install the card. Only one card can operate at any given time.

Hotkeys

The computer employs hotkeys or key combinations to access most of the computer's controls like screen brightness and volume output.

To activate hotkeys, press and hold the key before pressing the other key in the hotkey combination.

+ Communication Enables/disables the computer's communication devices.
+ Sleep Puts the computer in Sleep mode.[THC]
+ Display toggle Switches display output between thedisplay screen, external monitor (ifconnected) and both.
+ Screen blank Turns the display screen backlight offto save power. Press any key toreturn.
+ Touchpad toggle Turns the internal touchpad on andoff.
+ Speaker toggle Turns the speakers on and off.
+ < ▶ [S3HW]	Brightness up Increases the screen brightness.
+ < ▶	Brightness down Decreases the screen brightness.
+ < ▶	Volume up Increases the sound volume.
+ < ▶ [OK98]	Volume down Decreases the sound volume.
+ [24W7]	Play/Pause Play or pause a selected media file.
+	Stop Stop playing the selected media file.
+	Previous Return to the previous media file.
+ [1786]	Next Jump to the next media file.

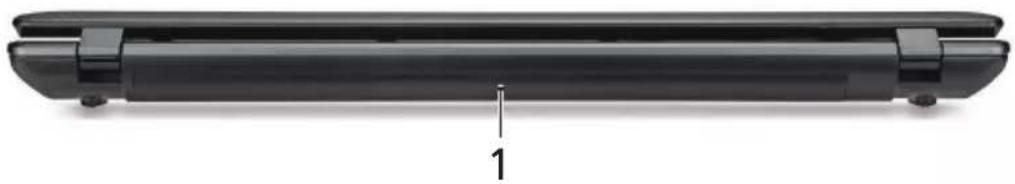

Rear view

Black cylindrical object with a labeled dimension '1' on its side, no other text or symbols visible.

# Item Description

1 Battery bay Houses the computer's battery pack.

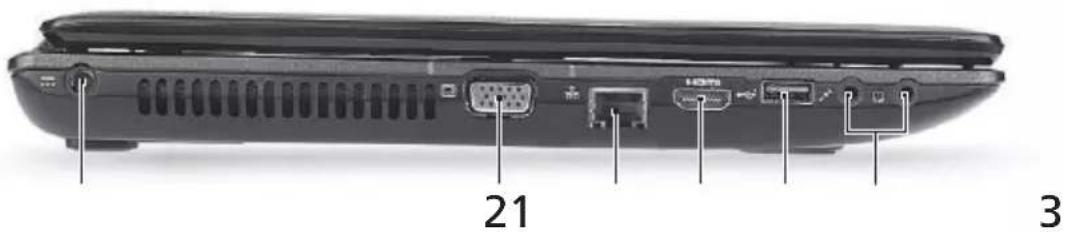

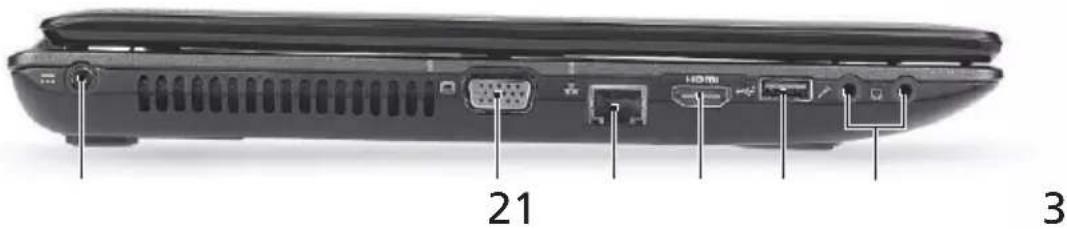

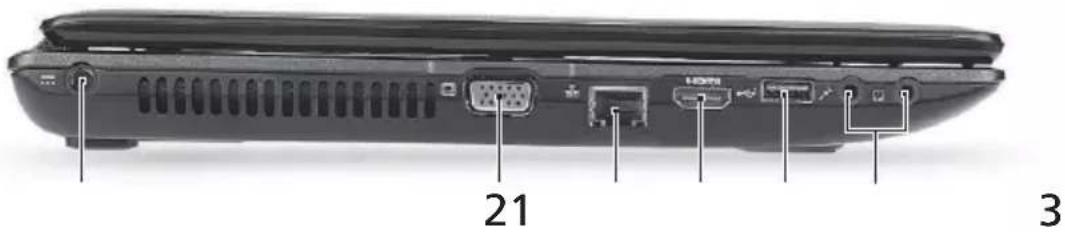

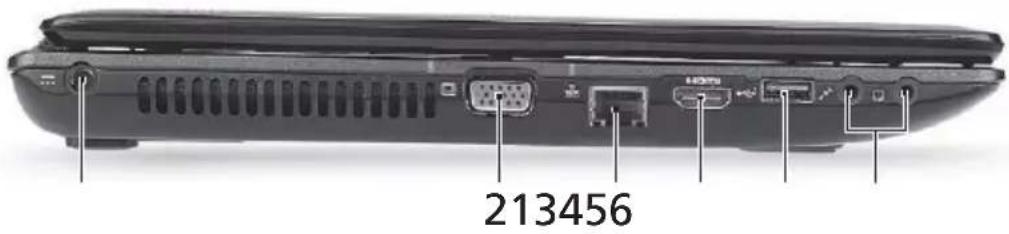

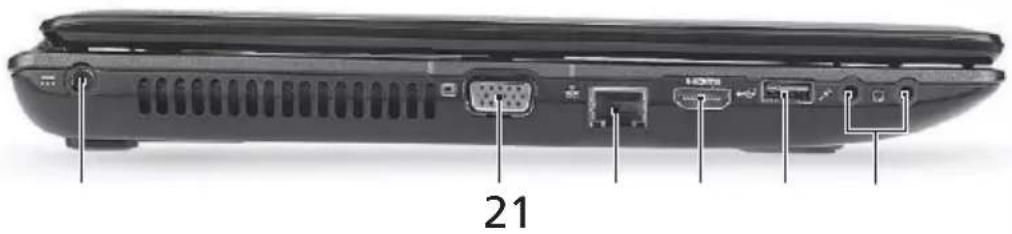

Left view

21

# Icon Item Description

1 DC-in jack Connects to an AC adapter.

2 External display (VGA) port

Connects to a display device (e.g., external monitor, LCD projector).

3 Ethernet (RJ-45) port Connects to an Ethernet 10/100/1000-based network.

4 HDMI port Supports high-definition digital video connections.

5 USB 2.0 port Connect to USB 2.0 devices (e.g., USB mouse, USB camera).

6 Microphone jack Accepts inputs from external microphones.

Headphone/speaker/line-out jack Connects to audio line-out devices (e.g., speakers, headphones).

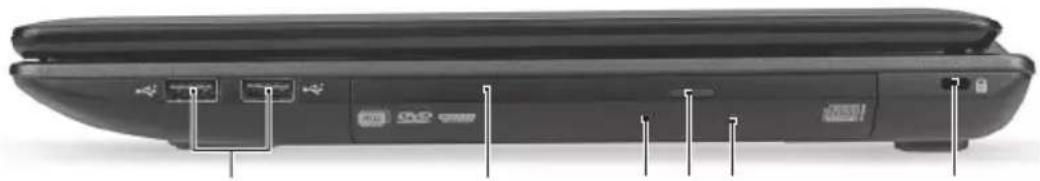

Right view

Back view of a black electronic device with labeled ports and connectors (no visible text or symbols)

21
3

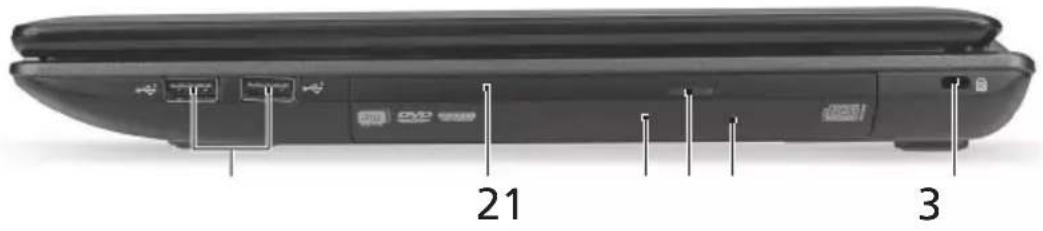

# Icon Item Description

1 USB 2.0 ports Connect to USB 2.0 devices

(e.g., USB mouse, USB camera).

2 Optical drive Internal optical drive; accepts CDs or DVDs.

3 Optical drive access indicator Lights up when the optical drive is active.

4 Optical drive eject button Ejects the optical disc from the drive.

5 Emergency eject hole Ejects the optical drive tray when the computer is turned off.

Note: Insert a paper clip to the emergency eject hole to eject the optical drive tray when the computer is off.

6 Kensington lock slot Connects to a Kensington-compatible computer security lock.

Mechanical assembly diagram showing a linkage mechanism with no visible text or symbols

Note: Wrap the computer security lock cable around an immovable object such as a table or handle of a locked drawer. Insert the lock into the notch and turn the key to secure the lock. Some keyless models are also available.

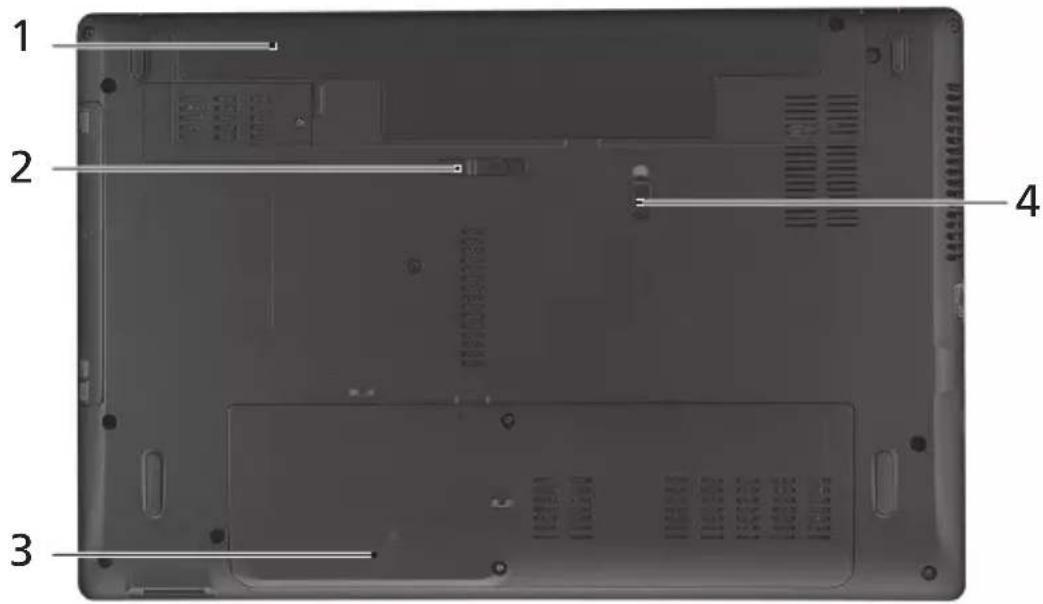

Base view

1 2 3 4

# Icon Item Description

1 Battery bay Houses the computer's battery pack.

2 Battery release latch Releases the battery for removal.

3 M e Houses the computer's main memory. y

compartment

Hard disk bay - Main Houses the computer's hard disk (secured with screws).

4 Battery lock Locks the battery in position.

Environment

- Temperature:

• Operating: 5 °C to 35 °C
• Non-operating: -20 °C to 65 °C

• Humidity (non-condensing):

• Operating: 20% to 80%
• Non-operating: 20% to 80%
