USER MANUAL EWF180 Air King

SAVE THESE INSTRUCTIONS

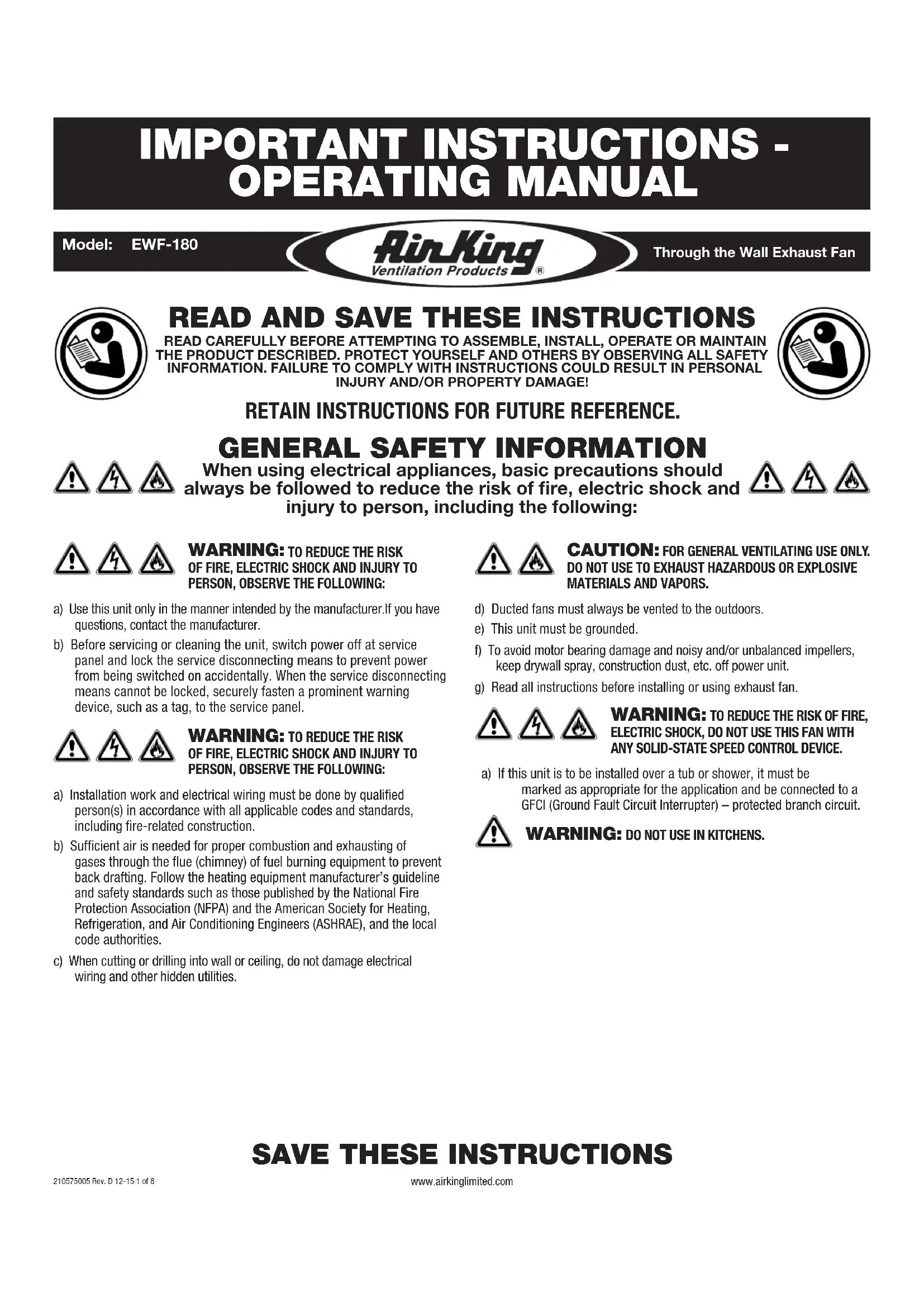

www.airkinglimited.com210575005 Rev. D 12-15 1 of 8Through the Wall Exhaust Fan Model: EWF-180

READ AND SAVE THESE INSTRUCTIONS

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to person, including the following:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND INJURY TO PERSON, OBSERVE THE FOLLOWING: a) Use this unit only in the manner intended by the manufacturer.If you have questions, contact the manufacturer.b) Before servicing or cleaning the unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

WARNING: TO REDUCE THE RISK

OF FIRE, ELECTRIC SHOCK AND INJURY TO PERSON, OBSERVE THE FOLLOWING: a) Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-related construction.b) Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National Fire Protection Association (NFPA) and the American Society for Heating, Refrigeration, and Air Conditioning Engineers (ASHRAE), and the local code authorities.c) When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities. CAUTION: FOR GENERAL VENTILATING USE ONLY. DO NOT USE TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS AND VAPORS.d) Ducted fans must always be vented to the outdoors.e) This unit must be grounded.f) To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.g) Read all instructions before installing or using exhaust fan.

WARNING: TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE. a) If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application and be connected to a GFCI (Ground Fault Circuit Interrupter) – protected branch circuit.

Preparing the Exhaust Fan

1. Unpack from carton and confirm that all pieces are present. You should have:

1 - Wiring Compartment and screws

1 - Instruction/Safety Sheet

NOTE: This fan is designed to mount between exterior walls 4-1/2” to 9-1/2” in thickness.

2. Remove the motor bracket assembly from the fan housing by loosening the two screws

which secure the bracket in place (Figure 1).

3. Slide the inner housing out from the outer housing and set aside in a safe place (Figure 2).

Mounting the Housing

1. From inside the house, choose the best location to mount the housing on an exterior wall.

Make sure to locate the housing where there are no studs, electrical/mechanical utilities, or any other obstructions.

2. Once you have selected the best location from inside the house, transfer the location to

the exterior of the house and confirm that there are no obstructions in the location and the fan has proper clearance to operate.

3. Once the installation location has been confirmed, cut a 8-1/4” diameter hole in the

interior wall where the fan is to be located (Figure 3).

4. Drill a small hole through to the outside in the center of the 8-1/4” diameter hole, so you

can properly locate the exterior housing (Figure 3). www.airkinglimited.com 210575005 Rev. D 12-15 2 of 8

5. On the siding of the outside wall, layout a 14-1/2” x 14-1/2” square using the small hole

drilled in Step 4 as the center point and cut out the square hole (Figure 4). CAUTION: ONLY CUT THE EXTERIOR WALL SIDING. DO NOT CUT INTO THE SHEATHING (PLYWOOD) UNDERNEATH.

6. Once the siding is cut, nail down all the loose ends of the siding (Figure 4).

7. In the center of the 14-1/2” square cut in step 5, mark and cut a 8-1/4” diameter hole

through the wall sheathing (Figure 5).

8. Install 1” x 2” casing strips (not included) for support on the edges of the 14-1/2” square

hole. Secure casing strips to plywood sheathing with screws or nails (not included) and seal where the strips meet the plywood with caulk (Figure 5). CAUTION: IF SHEATHING IS NOT PLYWOOD, YOU WILL HAVE TO ADD ADDITIONAL SUPPORT FOR THE INSTALLATION.

9. If the wall is less than 8” thick, remove one or more of the electrical compartment

clearance knockouts located on the housing (Figure 6).

10. On the interior flange of the housing, apply a generous amount of caulking and install the

housing through the hole and onto the casing strips and secure in place using screws or nails (not included) through the predrilled holes on the four corners of the housing. Seal the flange where the housing meets the wall with caulk (Figure 7). Figure 1 Screws Figure 2 Inner Housing Outer Housing

1. Run wiring from an approved wall switch carrying the appropriate rating. One neutral

(white), one ground (green or bare copper), and one hot (black).

2. From inside the house, insert the inner housing into the outer housing until it is tight against

the wall. Line up three holes at the end of the inner housing with three of the holes on the outer housing and secure in place with the three included 3/8” screws (Figure 8). NOTE: If you removed any of the electrical compartment clearance knockouts on the outer housing, make sure the electrical opening of the inner housing is aligned with them.

3. Pull the electrical wires through the electrical opening of the interior housing. Remove one

of the electrical knockouts of the wiring compartment and run wires through the opening making sure to leave enough wiring to make the connection to the fan’s receptacle. Secure wires to wiring compartment with an approved electrical connector (Figure 9).

4. Connect the green or bare ground wire from the house to the ground screw in the

wire compartment. Connect the white wire from the house to the white wire from the receptacle. Connect the hot (black) wire from the wall switch to the black wire from the receptacle (Figure 10). Use approved methods for all connections.

5. Insert the wire compartment into the electrical opening of the interior housing and line

up holes of wire compartment and wire compartment cover with holes on the interior housing. Secure in place using the two included 1/2” screws (Figure 11). www.airkinglimited.com 210575005 Rev. D 12-15 3 of 8

Completing the Installation

1. Reinstall the fan’s motor bracket by sliding in place and tightening the screws. Rotate

the blower wheel by hand to ensure it spins freely. Now plug the fan motor into the receptacle (Figure 1).

2. Install grill by positioning over the inner housing and aligning the center hole on the grill

with the hole on the motor bracket. Screw one side of the included grill bolt into the hole on the motor bracket and the other side into the grill knob and turn to tighten until the grill is tightly fit against the wall. DO NOT OVER TIGHTEN (Figure 12).

3. Restore power and test your installation.

1. Cleaning the Grill: Remove grill and use a mild detergent, such as dishwashing liquid,

and dry with a soft cloth. NEVER USE ANY ABRASIVE PADS OR SCOURING POWDERS. Completely dry grill before reinstalling. Refer to instructions in Section 4 Completing the Installation, to reinstall grill.

2. Cleaning the Fan Assembly: Wipe all parts with a dry cloth or gently vacuum the fan.

NEVER IMMERSE ELECTRICAL PARTS IN WATER. CALIFORNIA RESIDENTS ONLY:

WARNING: THIS PRODUCT CAN EXPOSE YOU TO A CHEMICAL [OR

CHEMICALS] KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER.

WARNING: THIS PRODUCT CAN EXPOSE YOU TO A CHEMICAL [OR

CHEMICALS] KNOWN TO THE STATE OF CALIFORNIA TO CAUSE REPRODUCTIVE TOXICITY. Figure 8 Hole Knockout Inner Housing Electrical Opening Figure 10 Figure 9 Knockout Electrical Opening Wiring Compartment Figure 11 Electrical Opening Wiring Compartment Cover Wiring Compartment Figure 12 Grill Bolt Grill Knob Motor Bracket Holewww.airkinglimited.com210575005 Rev. D 12-15 4 of 8 Troubleshooting Guide Trouble Probable Cause Suggested Remedy 1. Fan does not operate when the switch is on. 1a. A fuse may be blown or a circuit tripped. 1a. Replace fuse or reset circuit breaker. 1b. Connector plug from motor is not plugged in. 1b. Turn off power to unit. Remove Grill and plug motor into receptacle in housing. Restore power to unit. 1c. Wiring is not connected properly. 1c. Turn off power to unit. Check that all wires are connected. 1d. Motor has stopped operating. 1d. Replace motor. 2. Fan is operating, but air moves slower than normal. 2. Obstruction in the exhaust ducting. 2. Check for any obstructions in the ducting. The most common are bird nests in the roof cap or wall cap where the fan exhausts to the outside. 3. Fan is operating louder than normal. 3a. Motor is loose. 3a. Turn off power to unit. Remove grill and check that all screws are fully tightened. Restore power to unit. 3b. Fan blade is hitting housing of unit. 3b. Call your dealer for service. LIMITED WARRANTY WHAT THIS WARRANTY COVERS: This product is warranted against defects in workmanship and/or materials. HOW LONG THIS WARRANTY LASTS: This warranty extends only to the original purchaser of the product and lasts for one (1) year from the date of original purchase or until the original purchaser of the product sells or transfers the product, whichever first occurs. WHAT AIR KING WILL DO: During the warranty period, Air King will, at its sole option, repair or replace any part or parts that prove to be defective or replace the whole product with the same or comparable model. WHAT THIS WARRANTY DOES NOT COVER: This warranty does not apply if the product was damaged or failed because of accident, improper handling or operation, shipping damage, abuse, misuse, unauthorized repairs made or attempted. This warranty does not cover shipping costs for the return of products to Air King for repair or replacement. Air King will pay return shipping charges from Air King following warranty repairs or replacement ANY AND ALL WARRANTIES, EXPRESSED OR IMPLIED (INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF MERCHANTABILITY), LAST ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE OR UNTIL THE ORIGINAL PURCHASER OF THE PRODUCT SELLS OR TRANSFERS THE PRODUCT, WHICHEVER FIRST OCCURS AND IN NO EVENT SHALL AIR KING’S LIABILITY UNDER ANY EXPRESS OR IMPLIED WARRANTY INCLUDE (I) INCIDENTAL OR CONSEQUENTIAL DAMAGES FROM ANY CAUSE WHATSOEVER, OR (II) REPLACMENT OR REPAIR OF ANY HOUSE FUSES, CIRCUIT BREAKERS OR RECEPTACLES. NOTWITHSTANDING ANYTHING TO THE CONTRARY, IN NO EVENT SHALL AIR KING’S LIABILITY UNDER ANY EXPRESS OR IMPLIED WARRANTY EXCEED THE PURCHASE PRICE OF THE PRODUCT AND ANY SUCH LIABILITY SHALL TERMINATE UPON THE EXPIRATION OF THE WARRANTY PERIOD. Some states and provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so these exclusions or limitations may not apply to you. This warranty gives you specific legal rights. You may also have other rights which vary from state to state and province to province. Proof of purchase is required before a warranty claim will be accepted. CUSTOMER SERVICE: Toll-Free [phone] Our Customer Service team is available to assist you with product questions, service center locations, and replacement parts. They can be reached Monday through Friday, 8am-4pm Eastern. Please have your model number available, as well as the type and style (located on the label inside of your product). Please do not return product to place of purchase.www.airkinglimited.com PARTS FOR DISCONTINUED, OBSOLETE AND CERTAIN OTHER PRODUCTS MAY NOT BE AVAILABLE. DUE TO SAFETY REASONS, MANY ELECTRONIC COMPONENTS AND MOST HEATER COMPONENTS ARE NOT AVAILABLE TO CONSUMERS FOR INSTALLATION OR REPLACEMENT. # Qty. Description Replacement Part # 1 1 Interior Housing 5S2203001 2 1 Exterior Housing Assembly 5S2203102 3 1 Wire Compartment Assembly 5S2203110 4 1 Motor Assembly 5S2203114 5 1 Grill 5S2203021 6 1 Knob - Grill 5S2203020 Installer: Installation Date: Place of Purchase: Model Number:
