USER MANUAL DSX-A60BT SONY

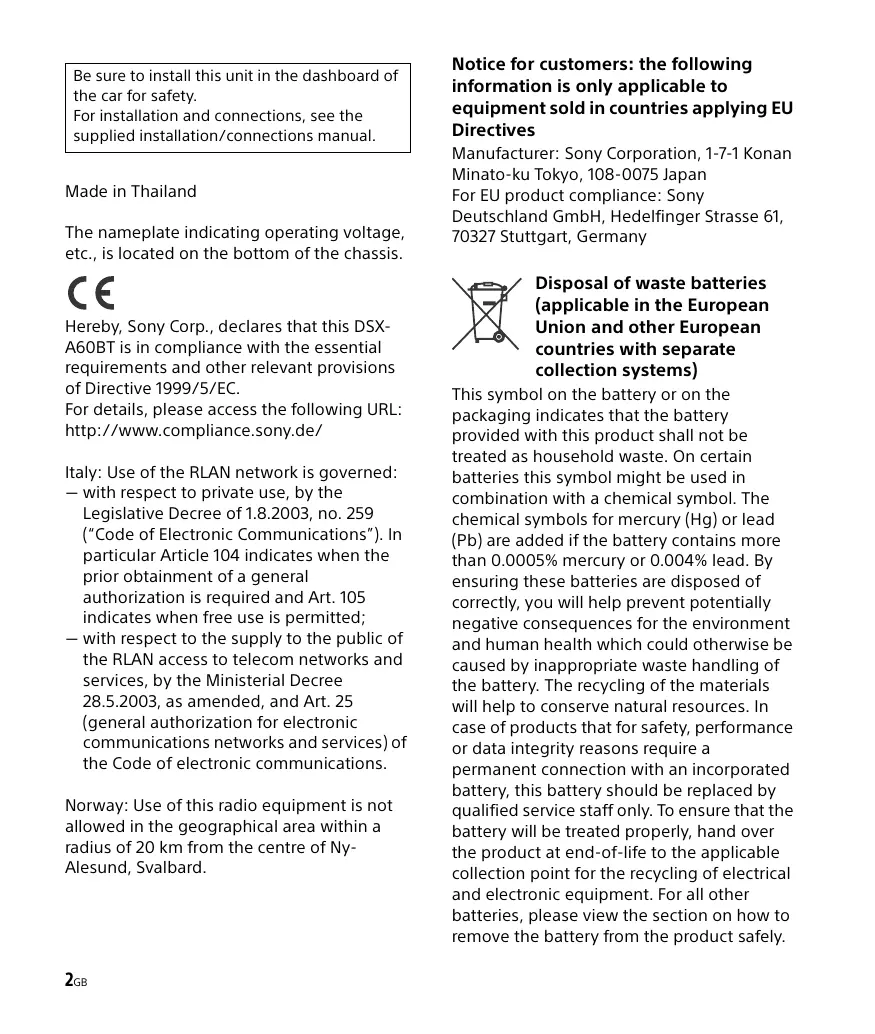

Be sure to install this unit in the dashboard of the car for safety. For installation and connections, see the supplied installation/connections manual. Made in Thailand The nameplate indicating operating voltage, etc., is located on the bottom of the chassis. Hereby, Sony Corp., declares that this DSXA60BT is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For details, please access the following URL: http://www.compliance.sony.de/ Italy: Use of the RLAN network is governed: with respect to private use, by the Legislative Decree of 1.8.2003, no. 259 (“Code of Electronic Communications”). In particular Article 104 indicates when the prior obtainment of a general authorization is required and Art. 105 indicates when free use is permitted; with respect to the supply to the public of the RLAN access to telecom networks and services, by the Ministerial Decree

28.5.2003, as amended, and Art. 25

(general authorization for electronic communications networks and services) of the Code of electronic communications. Norway: Use of this radio equipment is not allowed in the geographical area within a radius of 20 km from the centre of NyAlesund, Svalbard. 2GB Notice for customers: the following information is only applicable to equipment sold in countries applying EU Directives Manufacturer: Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan For EU product compliance: Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany Disposal of waste batteries (applicable in the European Union and other European countries with separate collection systems) This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead. By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product. Note on the lithium battery Do not expose the battery to excessive heat such as direct sunlight, fire or the like. Warning if your car’s ignition has no ACC position Be sure to set the AUTO OFF function (page 19). The unit will shut off completely and automatically in the set time after the unit is turned off, which prevents battery drain. If you do not set the AUTO OFF function, press and hold OFF until the display disappears each time you turn the ignition off. Notes on BLUETOOTH function Caution IN NO EVENT SHALL SONY BE LIABLE FOR

ANY INCIDENTAL, INDIRECT OR

CONSEQUENTIAL DAMAGES OR OTHER

• DAMAGES INCLUDING, WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF DATA, LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED EQUIPMENT, DOWNTIME, AND PURCHASER’S TIME RELATED TO OR ARISING OUT OF THE USE OF THIS PRODUCT, ITS HARDWARE AND/OR ITS SOFTWARE. IMPORTANT NOTICE! Safe and efficient use Changes or modifications to this unit not expressly approved by Sony may void the user’s authority to operate the equipment. Please check for exceptions, due to national requirement or limitations, in usage of BLUETOOTH equipment before using this product. Driving Check the laws and regulations on the use of cellular phones and handsfree equipment in the areas where you drive. Always give full attention to driving and pull off the road and park before making or answering a call if driving conditions so require. Connecting to other devices When connecting to any other device, please read its user guide for detailed safety instructions. 3GB Radio frequency exposure RF signals may affect improperly installed or inadequately shielded electronic systems in cars, such as electronic fuel injection systems, electronic antiskid (antilock) braking systems, electronic speed control systems or air bag systems. For installation or service of this device, please consult with the manufacturer or its representative of your car. Faulty installation or service may be dangerous and may invalidate any warranty that may apply to this device. Consult with the manufacturer of your car to ensure that the use of your cellular phone in the car will not affect its electronic system. Check regularly that all wireless device equipment in your car is mounted and operating properly. Emergency calls This BLUETOOTH car handsfree and the electronic device connected to the handsfree operate using radio signals, cellular, and landline networks as well as userprogrammed function, which cannot guarantee connection under all conditions. Therefore do not rely solely upon any electronic device for essential communications (such as medical emergencies). Remember, in order to make or receive calls, the handsfree and the electronic device connected to the handsfree must be switched on in a service area with adequate cellular signal strength. Emergency calls may not be possible on all cellular phone networks or when certain network services and/or phone features are in use. Check with your local service provider. 4GB Table of Contents Guide to Parts and Controls p. 6
• Getting Started Detaching the Front Panel p. 8
• Setting the Clock p. 8
• Preparing a BLUETOOTH Device p. 8
• Connecting an iPod/USB Device p. 10
• Connecting Other Portable Audio Device p. 10
• Listening to the Radio Listening to the Radio p. 11
• Using Radio Data System (RDS) p. 12
• Settings Canceling the DEMO Mode p. 19
• Basic Setting Operation p. 19
• General Setup p. 19
• BT INIT (BLUETOOTH initialize) p. 20
• Sound Setup p. 20
• EQ3 PRST (EQ3 preset) p. 20

EQ3 LOW, EQ3 MID, EQ3 HIGH . . . . . . . . 20

• BLUETOOTH Setup p. 21
• Additional Information Precautions p. 21
• Maintenance p. 24
• Specifications p. 24
• Troubleshooting p. 26
• Playback Playing an iPod/USB Device p. 13
• Playing a BLUETOOTH Device p. 14
• Searching and Playing Tracks p. 15
• Handsfree Calling Receiving a Call p. 16
• Making a Call p. 17
• Available Operations during Call 5GB Guide to Parts and Controls Main unit The number 2/ALBUM button has a tactile dot. p. 18

(browse) (page 15) Enter the browse mode during playback. SOURCE Turn on the power. Change the source. -OFF Press and hold for 1 second to turn off the power. Press and hold for more than 2 seconds to turn off the power and the display. If the unit is turned off and the display disappears, it is unable you to operate with the remote. Control dial Rotate to adjust the volume. ENTER Enter the selected item. SELECT Enter sound setting. Press and hold to open the general setup menu. (handsfree) Receive/end a call. CALL Enter the call menu. Press and hold more than 2 seconds to switch the BLUETOOTH signal. Display window 6GB

(back) Return to the previous display. RM-X231 Remote MODE (page 11, 14, 18)

(front panel release) SEEK +/– Tune in radio stations automatically. Press and hold to tune manually. / (prev/next), / (reverse/fast-forward) Receptor for the remote commander AF (alternative frequencies)/TA (traffic announcement) Set AF and TA in RDS. -PTY (program type) Press and hold to select PTY in RDS. Number buttons Receive stored radio stations. Press and hold to store stations. Call a stored phone number. Press and hold to store a phone number. ALBUM / Skip an album for audio device. Press and hold to skip albums continuously. The VOL (volume) + button has a tactile dot. Remove the insulation film before use. PAUSE SHUF (shuffle) MIC (page 18) DSPL (display) Change display items. -SCRL (scroll) Press and hold to scroll a display item. USB port AUX input jack

VOL (volume) +/– SOUND Open the SOUND menu directly. -MENU Press and hold to open the general setup menu.

7GB Getting Started Detaching the Front Panel You can detach the front panel of this unit to prevent theft.

Press and hold SELECT. The setup display appears.

Press and hold OFF . The unit is turned off.

Setting the Clock Rotate the control dial to select [CLOCK-ADJ], then press it. The hour indication flashes.

Press , then remove the panel by pulling it towards you. Rotate the control dial to set the hour and minute. To move the digital indication, press SEEK

After setting the minute, press SELECT. The setup is complete and the clock starts. To display the clock, press DSPL. Caution alarm If you turn the ignition switch to the OFF position without detaching the front panel, the caution alarm will sound for a few seconds. The alarm will only sound if the built-in amplifier is used. Attaching the front panel 8GB Preparing a BLUETOOTH Device You can enjoy music, or perform handsfree calling, by connecting a suitable BLUETOOTH device. For details on connecting, refer to the operating instructions supplied with the device. Before connecting the device, turn down the volume of this unit; otherwise, loud sound may result.

• Passkey may be called “passcode,” “PIN code,” “PIN number” or “Password,” etc., depending on the device. Pairing and connecting with a BLUETOOTH device When connecting a BLUETOOTH device (cellular phone, audio device, etc.) for the first time, mutual registration (called “pairing”) is required. Pairing enables this unit and other devices to recognize each other. Input passkey [0000] When pairing is made,

Place the BLUETOOTH device within 1 m (3 ft) of this unit.

Press CALL, rotate the control dial to select [PAIRING], then press it. stays lit. Select this unit on the BLUETOOTH device to establish the BLUETOOTH connection. lights up when the connection is made. Note flashes. The unit enters pairing standby mode.

Perform pairing on the BLUETOOTH device so it detects this unit.

Select [Sony Automotive] shown in the display of the BLUETOOTH device. If [Sony Automotive] does not appear, repeat from step 2. While connecting to a BLUETOOTH device, this unit cannot be detected from another device. To enable detection, enter the pairing mode and search for this unit from another device. To cancel pairing Perform step 2 to cancel the pairing mode after this unit and the BLUETOOTH device are paired. Connecting with a paired BLUETOOTH device To use a paired device, connection with this unit is required. Some paired devices will connect automatically.

Press CALL, rotate the control dial to select [BT SIGNL], then press it. 9GB Make sure that lights up.

Operate the BLUETOOTH device to connect to this unit.

lights up. Connecting an iPod/USB Device

Icons in the display: Turn down the volume on the unit. Connect the iPod/USB device to the unit. To connect an iPod/iPhone, use the USB connection cable for iPod (not supplied). Lights up when a cellular phone is connected to the unit. When connecting an iPhone Lights up when an audio device is connected to the unit. To connect the last-connected device from this unit Activate the BLUETOOTH function on the BLUETOOTH device. Press SOURCE. Select [BT PHONE] or [BT AUDIO]. Press (handsfree) to connect with the cellular phone, or PAUSE to connect with the audio device. Note While streaming BLUETOOTH audio, you cannot connect from this unit to the cellular phone. Connect from the cellular phone to this unit instead. Tip With BLUETOOTH signal on: when the ignition is turned to on, this unit reconnects automatically to the last-connected cellular phone. Connecting Other Portable Audio Device

Turn off the portable audio device. Turn down the volume on the unit. Connect the portable audio device to the AUX input jack (stereo mini jack) on the unit with a connecting cord (not supplied)*.

• Be sure to use a straight type plug. 10GB Listening to the Radio Listening to the Radio To listen to the radio, press SOURCE to select [TUNER].

Press SOURCE to select [AUX]. To match the volume level of the connected device to other sources Start playback of the portable audio device at a moderate volume, and set your usual listening volume on the unit. Press SELECT, and rotate the control dial to select [AUX VOL] (page 20). Storing automatically (BTM)

Press MODE to change the band. Press and hold SELECT (FM1, FM2, FM3, MW or LW). The setup display appears.

Rotate the control dial to select [BTM], then press it. The unit stores stations in order of frequency on the number buttons. Tuning

Press MODE to change the band (FM1, FM2, FM3, MW or LW).

Perform tuning. To tune manually Press and hold SEEK +/– to locate the approximate frequency, then press SEEK +/– repeatedly to fine adjust to the desired frequency. To tune automatically Press SEEK +/–. Scanning stops when the unit receives a station. Repeat this procedure until the desired station is received. 11GB Storing manually

While receiving the station that you want to store, press and hold a number button (1 to 6) until [MEM] appears. Receiving the stored stations

Select the band, then press a number button (1 to 6). Using Radio Data System (RDS) Setting alternative frequencies (AF) and traffic announcement (TA) AF continuously retunes the station to the strongest signal in a network, and TA provides current traffic information or traffic programs (TP) if received.

With AF or TA on, emergency announcements will automatically interrupt the currently selected source. When adjusting the volume level during a traffic announcement Level will be stored into memory for subsequent traffic announcements, independently from the regular volume level. To stay with one regional program (REGIONAL) When the AF and REGIONAL functions are on, you will not be switched to another regional station with a stronger frequency. If you leave this regional program’s reception area, set [REG-OFF] in the general setup during FM reception (page 20). This function does not work in the UK and some other areas. Local Link function (UK only) This function enables you to select other local stations in the area, even if they are not stored on your number buttons. During FM reception, press a number button (1 to 6) on which a local station is stored. Within 5 seconds, press again a number button of the local station. Repeat this procedure until the local station is received. Press AF/TA to select [AF-ON], [TAON], [AF/TA-ON] or [AF/TA-OFF]. To store RDS stations with the AF and TA setting You can preset RDS stations along with an AF/TA setting. Set AF/TA, then store the station with BTM or manually. If you preset manually, you can also preset non-RDS stations. 12GB To receive emergency announcements Selecting program types (PTY) Use PTY to display or search for a desired program type.

Press and hold PTY during FM reception.

Rotate the control dial until the desired program type appears, then press it. The unit starts to search for a station broadcasting the selected program type. Type of programs NEWS (News), AFFAIRS (Current Affairs), INFO (Information), SPORT (Sports), EDUCATE (Education), DRAMA (Drama), CULTURE (Culture), SCIENCE (Science), VARIED (Varied), POP M (Pop Music), ROCK M (Rock Music), EASY M (M.O.R. Music), LIGHT M (Light classical), CLASSICS (Serious classical), OTHER M (Other Music), WEATHER (Weather), FINANCE (Finance), CHILDREN (Children’s program), SOCIAL A (Social Affairs), RELIGION (Religion), PHONE IN (Phone In), TRAVEL (Travel), LEISURE (Leisure), JAZZ (Jazz Music), COUNTRY (Country Music), NATION M (National Music), OLDIES (Oldies Music), FOLK M (Folk Music), DOCUMENT (Documentary) Setting clock time (CT) The CT data from the RDS transmission sets the clock.

Set [CT-ON] in the general setup (page 19). Playback Playing an iPod/USB Device In these Operating Instructions, “iPod” is used as a general reference for the iPod functions on an iPod and iPhone, unless otherwise specified by the text or illustrations. For details on the compatibility of your iPod, see “About iPod” (page 22) or visit the support site on the back cover. MSC (Mass Storage Class)-type USB devices (such as a USB flash drive, digital media player, Android™ phone) compliant with the USB standard can be used. Depending on the digital media player or Android phone, setting the USB connection mode to MSC is required. Notes For details on the compatibility of your USB device, visit the support site on the back cover. Playback of the following MP3/WMA files is not supported. lossless compression files copyright-protected files DRM (Digital Rights Management) files Multi-channel audio files

Connect an iPod/USB device to the USB port (page 10). Playback starts. If a device is already connected, to start playback, press SOURCE to select [USB].

Adjust the volume on this unit. 13GB To stop playback Press and hold OFF for 1 second. To remove the device Stop playback, then remove the device. Caution for iPhone When you connect an iPhone via USB, phone call volume is controlled by the iPhone, not the unit. Do not inadvertently increase the volume on the unit during a call, as sudden loud sound may result when the call ends. Playing a BLUETOOTH Device You can play contents on a connected device that supports BLUETOOTH A2DP (Advanced Audio Distribution Profile).

Make BLUETOOTH connection with the audio device (page 9).

Press SOURCE to select [BT AUDIO]. Adjust the volume on this unit. To exit passenger control

Press and hold MODE until [AUDIO] appears. Notes Operating an iPod directly (Passenger control) Press and hold MODE during playback to display [IPOD] to enable operation by the iPod directly. Note that the volume can be adjusted only by the unit. Operate the audio device to start playback. Press PAUSE to start playback. Depending on the audio device, information such as title, track number/time and playback status may not be displayed on this unit. Even if the source is changed on this unit, playback of the audio device does not stop. To match the volume level of the BLUETOOTH device to other sources Start playback of the BLUETOOTH audio device at a moderate volume, and set your usual listening volume on the unit. Press SELECT, and rotate the control dial to select [BTA VOL] (page 20). 14GB Searching and Playing Tracks Searching a track by name (QuickBrowZer™)

Repeat play and shuffle play When the track list appears, press (back) repeatedly to display the desired search category. Repeat play:

During playback, press and hold SELECT.

Rotate the control dial to select [REPEAT], then press it.

Rotate the control dial to select the desired play mode, then press it.

Press (back) to return to the previous display. During USB playback, press (browse)* to display the list of search categories.

• During playback, press (browse) for more than 2 seconds to directly return to the beginning of the category list.

Rotate the control dial to select the desired search category, then press it to confirm.

Repeat step 2 to search the desired track. Playback starts. To exit the Quick-BrowZer mode Press (browse). Shuffle play:

During playback, press SHUF repeatedly to select the desired play mode. Playback in selected play mode may take time to start. Available play modes differ depending on the selected sound source. Searching by skipping items (Jump mode)

Press (browse) Press SEEK +. Rotate the control dial to select the item. The list is jumped in steps of 10% of the total number of items. 15GB

Press ENTER to return to the QuickBrowZer mode. The selected item appears.

Rotate the control dial to select the desired item, then press it. Playback starts. Handsfree Calling To use a cellular phone, connect it with this unit. For details, see “Preparing a BLUETOOTH Device” (page 8). Receiving a Call

Press (handsfree) when a call is received with a ringtone. The phone call starts. Note The ringtone and talker’s voice are output only from the front speakers. To reject the call Press and hold OFF for 1 second. To end the call Press 16GB (handsfree) again. Making a Call You can make a call from the phonebook or call history when a cellular phone supporting PBAP (Phone Book Access Profile) is connected. Calling by phone number input

Press CALL, rotate the control dial to select [DIAL NUM], then press it.

Rotate the control dial to enter the phone number, and lastly select [ ] (space), then press (handsfree)*. The phone call starts. Calling from the phonebook

Press CALL, rotate the control dial to select [PH BOOK], then press it. Rotate the control dial to select an initial from the initial list, then press it. Rotate the control dial to select a name from the name list, then press it. Rotate the control dial to select a number from the number list, then press it. The phone call starts.

• To move the digital indication, press SEEK +/–. Note [_] appears instead of [#] on the display. Calling by redial

The phone call starts. Presetting phone numbers You can store up to 6 contacts in the preset dial.

Calling from the call history

Press CALL, rotate the control dial to select [RECENT], then press it. Rotate the control dial to select a name or phone number from the call history, then press it. The phone call starts. Select a phone number that you want to store in the preset dial, from the phonebook, call history or by inputting the phone number directly. The phone number appears in the display of this unit. A list of the call history appears.

Press CALL, rotate the control dial to select [REDIAL], then press it.

Press and hold a number button (1 to 6) until [MEM] appears. The contact is stored in the selected preset number. 17GB Calling by preset number

Press CALL. Press a number button (1 to 6) to select the contact you want to call. Press (handsfree). The phone call starts. Calling by voice tags Adjusting the ringtone volume: Rotate the control dial while receiving a call. Adjusting the talker’s voice volume: Rotate the control dial during a call. To adjust the volume for the other party (Mic gain adjustment) Press MIC. Adjustable volume levels: [MIC-LOW], [MICMID], [MIC-HI]. To reduce echo and noise (Echo Canceler/Noise Canceler Mode) You can make a call by saying the voice tag stored in a connected cellular phone that has a voice dialing function. Press and hold MIC. Settable mode: [EC/NC-1], [EC/NC-2].

Press CALL, rotate the control dial to select [VO DIAL], then press it. To transfer a call

Say the voice tag stored on the cellular phone. Your voice is recognized, and the call is made. Available Operations during Call To preset the volume of the ringtone and talker’s voice You can preset the volume level of the ringtone and talker’s voice. 18GB In order to activate/deactivate the appropriate device (this unit/cellular phone), press MODE or use your cellular phone. Note Depending on the cellular phone, handsfree connection may be cut off when call transfer is attempted.

Settings Canceling the DEMO Mode Rotate the control dial to select the options, then press it. To return to the previous display Press (back). You can cancel the demonstration display which appears while this unit is turned off.

Press and hold SELECT. The setup display appears.

Rotate the control dial to select [DEMO], then press it. Rotate the control dial to select [DEMO-OFF], then press it. The setting is complete.

Press (back). The display returns to normal reception/ play mode. General Setup CLOCK-ADJ (clock adjust) (page 8) CT (clock time) Activates the CT function: [ON], [OFF]. BEEP Activates the beep sound: [ON], [OFF]. CAUT ALM (caution alarm) Activates the caution alarm: [ON], [OFF] (page 8). (Available only when the unit is turned off.) AUX-A (AUX audio) Activates the AUX source display: [ON], [OFF]. (Available only when the unit is turned off.) Basic Setting Operation You can set items in the menu to the following procedure. The following items can be set depending on the source and setting.

AUTO OFF Shuts off automatically after a desired time when the unit is turned off: [NO], [30S] (30 seconds), [30M] (30 minutes), [60M] (60 minutes). DEMO (demonstration) Activates the demonstration: [ON], [OFF]. Press SELECT for the sound setup, press and hold SELECT for the general setup, or press CALL for the BLUETOOTH setup. DIMMER Changes the display brightness: [ON], [OFF]. Rotate the control dial to select the desired item, then press it. AUTO SCR (auto scroll) Scrolls long items automatically: [ON], [OFF]. 19GB REPEAT (page 15) REGIONAL Restricts reception to a specific region: [ON], [OFF]. (Available only when FM is received.) LOUDNESS (dynamic loudness) Reinforces bass and treble for clear sound at low volume levels: [ON], [OFF]. BTM (page 11) BT INIT (BLUETOOTH initialize) Initializes all the BLUETOOTH related settings (pairing information, preset number, device information, etc.). When disposing the unit, initialize all the settings. (Available only when the unit is turned off.) Sound Setup EQ3 PRST (EQ3 preset) Selects an equalizer curve from 7 equalizer curves or off: [XPLOD], [VOCAL], [EDGE], [CRUISE], [SPACE], [GRAVITY], [CUSTOM], [OFF]. The equalizer curve setting can be memorized for each source.

EQ3 LOW, EQ3 MID, EQ3 HIGH

Sets [CUSTOM] of EQ3. Customizes the equalizer curve. The volume level is adjustable in 1 dB steps, from -10 dB to +10 dB. BALANCE Adjusts the sound balance: [RIGHT-15 (R15)] – [CENTER (0)] – [LEFT-15 (L15)]. FADER Adjusts the relative level: [FRONT-15 (F15)] – [CENTER (0)] – [REAR-15 (R15)]. AUX VOL (AUX volume level) Adjusts the volume level for each connected auxiliary device: [+18 dB] – [0 dB] – [-8 dB]. This setting negates the need to adjust the volume level between sources. BTA VOL (BLUETOOTH audio volume level) Adjusts the volume level for each connected BLUETOOTH device: [+18 dB] – [0 dB] – [-8 dB]. This setting negates the need to adjust the volume level between sources. 20GB BLUETOOTH Setup PAIRING (page 9) Additional Information Precautions PH BOOK (phone book) (page 17) REDIAL (page 17) RECENT (recent call) (page 17) VO DIAL (voice dial) (page 18) DIAL NUM (dial number) (page 17) RINGTONE Selects whether this unit or the connected cellular phone outputs the ringtone: [1] (this unit), [2] (cellular phone). AUTO ANS (auto answer) Sets this unit to answer an incoming call automatically: [OFF], [1] (about 3 seconds), [2] (about 10 seconds). BT SIGNL (BLUETOOTH signal) (page 9) Activates the BLUETOOTH function: [ON], [OFF]. Cool off the unit beforehand if your car has been parked in direct sunlight. Do not leave the front panel or audio devices brought in inside the car, or it may cause malfunction due to high temperature in direct sunlight. Power antenna (aerial) extends automatically. To maintain high sound quality Do not splash liquid onto the unit. Playback order of MP3/WMA files MP3/WMA Folder (album) MP3/WMA file (track) 21GB About iPod You can connect to the following iPod models. Update your iPod devices to the latest software before use. Made for iPod touch (5th generation) iPod touch (4th generation) iPod touch (3rd generation) iPod touch (2nd generation) iPod classic iPod nano (7th generation) iPod nano (6th generation) iPod nano (5th generation) iPod nano (4th generation) iPod nano (3rd generation) iPod nano (2nd generation) iPod nano (1st generation)* iPhone 5 iPhone 4S iPhone 4 iPhone 3GS iPhone 3G

• Passenger control is not available for iPod nano (1st generation). “Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone respectively and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance. 22GB About BLUETOOTH function What is BLUETOOTH technology? BLUETOOTH wireless technology is a shortrange wireless technology that enables wireless data communication between digital devices, such as a cellular phone and a headset. BLUETOOTH wireless technology operates within a range of about 10 m (33 ft). Connecting two devices is common, but some devices can be connected to multiple devices at the same time. You do not need to use a cable for connection since BLUETOOTH technology is a wireless technology, neither is it necessary for the devices to face one another, such is the case with infrared technology. For example, you can use such a device in a bag or pocket. BLUETOOTH technology is an international standard supported by millions of companies all over the world, and employed by various companies worldwide. On BLUETOOTH communication BLUETOOTH wireless technology operates within a range of about 10 m (33 ft). Maximum communication range may vary depending on obstacles (person, metal, wall, etc.) or electromagnetic environment. The following conditions may affect the sensitivity of BLUETOOTH communication. There is an obstacle such as a person, metal, or wall between this unit and BLUETOOTH device. A device using 2.4 GHz frequency, such as a wireless LAN device, cordless telephone, or microwave oven, is in use near this unit. Because BLUETOOTH devices and wireless LAN (IEEE802.11b/g) use the same frequency, microwave interference may occur and result in communication speed deterioration, noise, or invalid connection if this unit is used near a wireless LAN device. In such as case, perform the following. Use this unit at least 10 m (33 ft) away from the wireless LAN device. If this unit is used within 10 m (33 ft) of a wireless LAN device, turn off the wireless LAN device. Install this unit and BLUETOOTH device as near to each other as possible. Microwaves emitting from a BLUETOOTH device may affect the operation of electronic medical devices. Turn off this unit and other BLUETOOTH devices in the following locations, as it may cause an accident. where inflammable gas is present, in a hospital, train, airplane, or petrol station near automatic doors or a fire alarm This unit supports security capabilities that comply with the BLUETOOTH standard to provide a secure connection when the BLUETOOTH wireless technology is used, but security may not be enough depending on the setting. Be careful when communicating using BLUETOOTH wireless technology. We do not take any responsibility for the leakage of information during BLUETOOTH communication. Connection with all BLUETOOTH devices cannot be guaranteed. A device featuring BLUETOOTH function is required to conform to the BLUETOOTH standard specified by BLUETOOTH SIG, and be authenticated. Even if the connected device conforms to the above mentioned BLUETOOTH standard, some devices may not be connected or work correctly, depending on the features or specifications of the device. While talking on the phone hands free, noise may occur, depending on the device or communication environment. Depending on the device to be connected, it may require some time to start communication. Others Using the BLUETOOTH device may not function on cellular phones, depending on radio wave conditions and location where the equipment is being used. If you experience discomfort after using the BLUETOOTH device, stop using the BLUETOOTH device immediately. Should any problem persist, consult your nearest Sony dealer. If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer. 23GB Maintenance Replacing the lithium battery of the remote commander When the battery becomes weak, the range of the remote commander becomes shorter. Replace the battery with a new CR2025 lithium battery. Use of any other battery may present a risk of fire or explosion. + side up Notes For safety, turn off the ignition before cleaning the connectors, and remove the key from the ignition switch. Never touch the connectors directly with your fingers or with any metal device. Specifications Notes on the lithium battery Keep the lithium battery out of the reach of children. Should the battery be swallowed, immediately consult a doctor. Wipe the battery with a dry cloth to assure a good contact. Be sure to observe the correct polarity when installing the battery. Do not hold the battery with metallic tweezers, otherwise a short-circuit may occur. WARNING Battery may explode if mistreated. Do not recharge, disassemble, or dispose of in fire. Cleaning the connectors The unit may not function properly if the connectors between the unit and the front panel are not clean. In order to prevent this, detach the front panel (page 8) and clean the connectors with a cotton swab. Do not apply too much force. Otherwise, the connectors may be damaged. 24GB Tuner section Tuning range: 87.5 – 108.0 MHz Antenna (aerial) terminal: External antenna (aerial) connector Intermediate frequency: 25 kHz Usable sensitivity: 8 dBf Selectivity: 75 dB at 400 kHz Signal-to-noise ratio: 80 dB (stereo) Separation: 50 dB at 1 kHz Frequency response: 20 – 15,000 Hz MW/LW Tuning range: MW: 531 – 1,602 kHz LW: 153 – 279 kHz Antenna (aerial) terminal: External antenna (aerial) connector Intermediate frequency: 9,124.5 kHz or 9,115.5 kHz/4.5 kHz Sensitivity: MW: 26 μV LW: 45 μV USB Player section Interface: USB (Full-speed) Maximum current: 1 A The maximum number of recognizable data: Folders (albums): 128 Files (tracks) per folder: 512 Corresponding codec: MP3 (.mp3) and WMA (.wma) Wireless Communication Communication System: BLUETOOTH Standard version 2.1 + EDR Output: BLUETOOTH Standard Power Class 2 (Max. +4 dBm) Maximum communication range: Line of sight approx. 10 m (33 ft)*1 Frequency band:

2.4 GHz band (2.4000 – 2.4835 GHz)
