USER MANUAL DSX-S100, DSX-S300 SONY
Operating Instructions CB
To cancel the demonstration (DEMO) display, see page 6.
Be sure to install this unit in the dashboard of the car for safety. For installation and connections, see the supplied installation/ connections manual.
The manufacturer of this product is Sony Corporation, 1-7-1 Konan, Minato-ku Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.
Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)
This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.
ZAPPIN is a trademark of Sony Corporation.
"WALKMAN" and "WALKMAN" logo are registered trademarks of Sony Corporation.
Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the
United States and/or other countries.
iPod is a trademark of Apple Inc., registered in the U.S. and other countries.
MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.
This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.
Content providers are using the digital rights management technology for Windows Media contained in this device ("WM-DRM") to protect the integrity of their content ("Secure Content") so that their intellectual property, including copyright, in such content is not misappropriated. This device uses WM-DRM software to play Secure Content ("WM-DRM Software"). If the security of the WM-DRM Software in this device has been compromised, owners of Secure Content ("Secure Content Owners") may request that Microsoft revoke the WM-DRM Software's right to acquire new licenses to copy, display and/or play Secure Content. Revocation does not alter the WM-DRM Software's ability to play unprotected content. A list of revoked WM-DRM Software is sent to your device whenever you download a license for Secure Content from the Internet or from a PC. Microsoft may, in conjunction with such license, also download revocation lists onto your device on behalf of Secure Content Owners.
Note on the lithium battery
Do not expose the battery to excessive heat such as direct sunlight, fire or the like.
Warning if your car's ignition has no ACC position
Be sure to set the Auto Off function (page 19). The unit will shut off completely and automatically in the set time after the unit is turned off, which prevents battery drain. If you do not set the Auto Off function, press and hold (SOURCE/OFF) until the display disappears each time you turn the ignition off.
Getting Started
Resetting the unit. 6
Canceling the DEMO mode 6
Setting the clock 6
Detaching the front panel 7
Attaching the front panel 7
Location of controls and basic operations
Main unit. 8
Searching for a track 10
Searching a track by name
— Quick-BrowZer 10
Searching a track by listening to track passages
—ZAPPINTM 11
Radio
Storing and receiving stations 11
Storing automatically -BTM. 11
Storingmanually. 11
Receiving the stored stations 11
Tuning automatically 12
RDS. 12
Overview. 12
Setting AF and TA 12
Selecting PTY. 13
Setting CT. 13
USB devices
Playing back a USB device 14
Display items 15
Repeat play 15
Shuffle play. 15
iPod

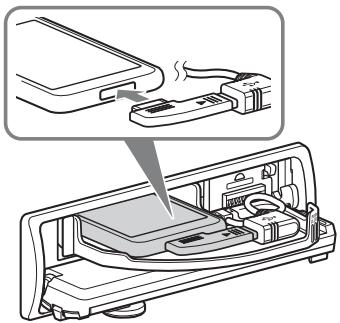

Playing back iPod 16
Display items 17
Repeat play 17
Shuffle play 17
Other functions
Changing the sound settings. 18
Adjusting the sound characteristics 18
Customizing the equalizer curve -EQ3. 18
Adjusting setup items — SET 18
Using optional equipment. 19
Auxiliary audio equipment. 19

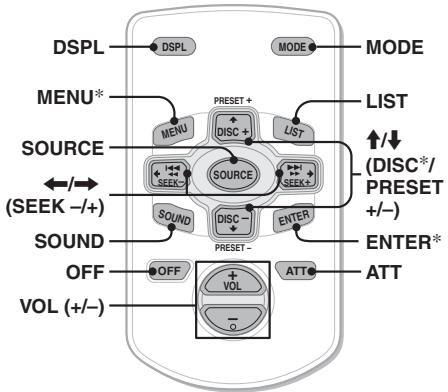

Card remote commander RM-X114. 20
Precautions 20

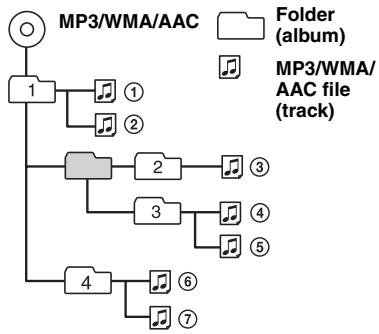

Playback order of MP3/WMA/AAC files. 20
About Device Inside Alert 20
About iPod 21
Maintenance 21
Removing the unit. 22
Specifications 22
Troubleshooting 23
Error displays/Messages. 25
Support site
If you have any questions or for the latest support information on this product, please visit the web site below:
http://support.sony-europe.com/
Provides information on:
- Models and manufacturers of compatible digital audio players
Supported MP3/WMA/AAC files
Getting Started
Resetting the unit
Before operating the unit for the first time, or after replacing the car battery or changing the connections, you must reset the unit. Detach the front panel (page 7) and press the RESET button (page 8) with a pointed object, such as a ball-point pen.
Note
Pressing the RESET button will erase the clock setting and some stored contents.
Canceling the DEMO mode
You can cancel the demonstration display which appears during turning off.
1 Press and hold the select button. The setup display appears.
2 Press the select button repeatedly until "DEMO" appears.
3 Rotate the control dial to select "DEMO-OFF."
4 Press and hold the select button. The setup is complete and the display returns to normal reception/play mode.
Setting the clock
The clock uses a 24-hour digital indication.
1 Press and hold the select button. The setup display appears.
2 Press the select button repeatedly until "CLOCK-ADJ" appears.
3 Press +▶▶1. The hour indication flashes.
4 Rotate the control dial to set the hour and minute.
To move the digital indication, press -1 / +1 .
5 After setting the minute, press the select button.
The setup is complete and the clock starts.
To display the clock, press DSPL. Press DSPL again to return to the previous display.
Tip
You can set the clock automatically with the RDS feature (page 13).
Detaching the front panel
You can detach the front panel of this unit to prevent theft.
Caution alarm
If you turn the ignition switch to the OFF position without detaching the front panel, the caution alarm will sound for a few seconds. The alarm will only sound if the built-in amplifier is used.
1 Press and hold (SOURCE/OFF).
The unit is turned off.
2 Press (OPEN).
The front panel is flipped down.
3 Slide the front panel to the right, then gently pull out the left end of the front panel.
Notes
- Do not drop or put excessive pressure on the front panel and display window.
- Do not subject the front panel to heat/high temperature or moisture. Avoid leaving it in a parked car or on a dashboard/rear tray.
- If "DEVICE INSIDE" appears in the display or the Device Inside Alert LED flashes, detach the front panel and remove the USB device or iPod.

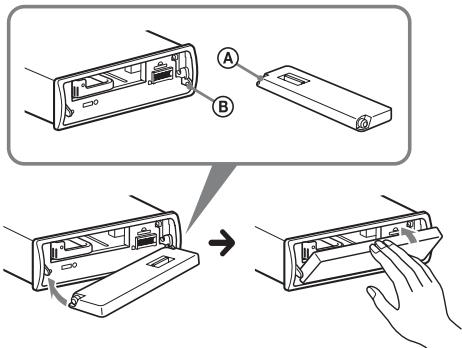

Attaching the front panel
Place the hole A of the front panel onto the spindle 8 on the unit, then lightly push the left side in.
Press SOURCE/OFF on the unit to operate the unit.
Note
Do not put anything on the inner surface of the front panel.

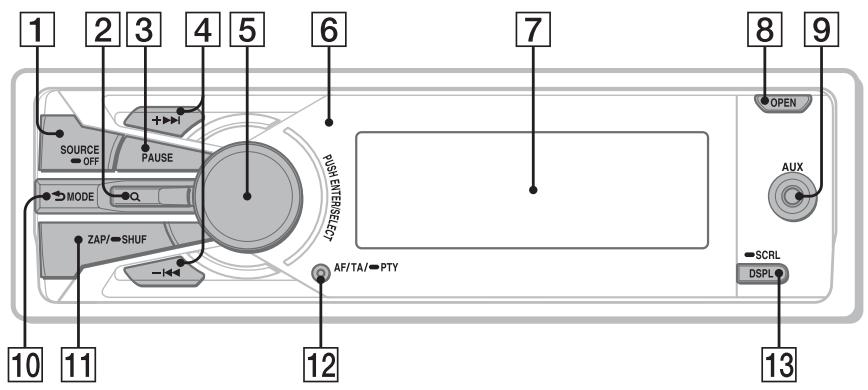

Main unit

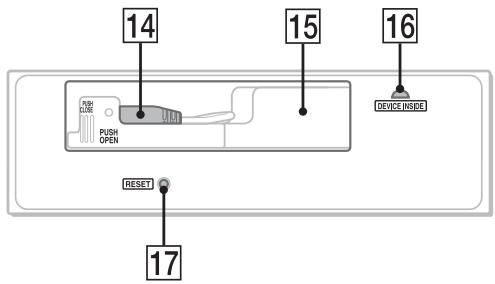

Front panel removed
This section contains instructions on the location of controls and basic operations.
For details, see the respective pages.
SOURCE/OFF button
Press to turn on the power/change the source (Radio/USB/AUX).
Press for 1 second to turn off the power.
Press for 2 seconds or more to turn off the power and the display disappears.
Q (BROWSE) button page 10, 11
To list up (Radio); enter the Quick-BrowZer mode (USB).
3 PAUSE button
To pause playback. To cancel, press again.
4 +I-I+ buttons
Radio:
To tune in stations automatically (press); find a station manually (press and hold).
USB:
To skip tracks (press); skip tracks continuously (press, then press again within about 1 second and hold); fast-forward/ reverse a track (press and hold).
5 Control dial/select button page 18 To adjust volume (rotate); select setup items (press and rotate).
6 Receptor for the card remote commander
7 Display window
8 OPEN button page 7

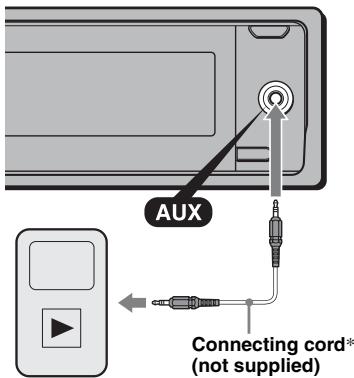

AUX input jack page 19 To connect a portable audio device.
10 一 (BACK)/MODE page 10, 11, 18 To return to the previous display/select the radio band (FM/MW/LW).
11 ZAP/SHUF button page 11, 15, 17 To enter ZAPPINTM mode (press); select shuffle play mode (press and hold).
12 AF (Alternative Frequencies)/ TA (Traffic Announcement)/ PTY (Program Type) button page 12, 13 To set AF and TA (press); select PTY (press and hold) in RDS.
13 DSPL(display)/SCRL scroll) button page 12, 15, 17 To change display items (press); scroll the display item (press and hold).

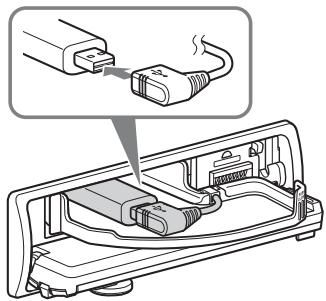

14 USB connector (located on the TUNE TRAY) page 14, 16 To connect to the USB device.

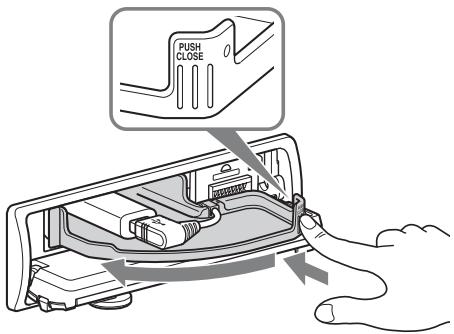

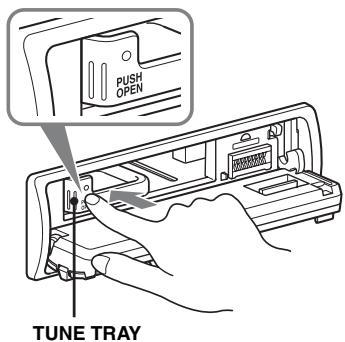

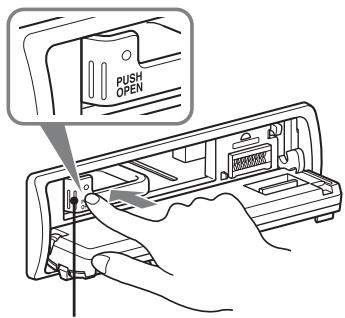

TUNE TRAY page 14, 16 Tray unit to place a USB device or an iPod.
16 Device Inside Alert LED page 20
17 RESET button page 6

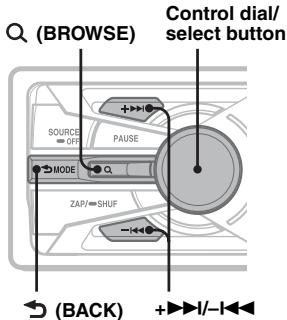

Searching a track by name — Quick-BrowZer
You can search for a track in a USB device easily by category.
1 Press Q (BROWSE).
The unit enters the Quick-BrowZer mode, and the list of search categories appears.
2 Rotate the control dial to select the desired search category, then press it to confirm.
3 Repeat step 2 until the desired track is selected.
Playback starts.
To return to the previous display
Press (BACK).
To exit the Quick-BrowZer mode
Press Q (BROWSE).
Note
When entering the Quick-BrowZer mode, the repeat/shuffle setting is canceled.
Searching by skip items — Jump mode
When many items are in a category, you can search the desired item quickly.
1 Press +▶▶ in Quick-BrowZer mode. The following display appears.
A Current item number
Total item number in the current layer
Then the item name will appear.
2 Rotate the control dial to select the desired item, or one near the desired item.
It skips in steps of 10% of the total item number.
3 Press the select button.
The display returns to the Quick-BrowZer mode and the selected item appears.
4 Rotate the control dial to select the desired item and press it.
Playback starts if the selected item is a track.
To cancel Jump mode
Press (BACK) or -

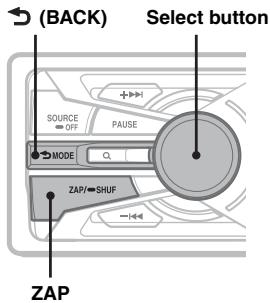

Searching a track by listening to track passages — ZAPPIN™
While playing back short track passages in a USB device in sequence, you can search for a track you want to listen to.
ZAPPIN mode is suitable for searching for a track in shuffle or shuffle repeat mode.

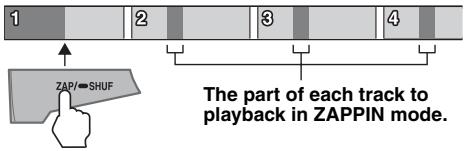

1 Press (ZAP/SHUF) during playback.
After "ZAPPIN" appears in the display, playback starts from a passage of the next track.
The passage is played for the set time, then a click sounds and the next passage starts.
Track
The track that you select returns to normal play mode from the beginning.
To search a track by ZAPPIN mode again, repeat steps 1 and 2.
Tips
- You can select the playback time from about 6 seconds/15 seconds/30 seconds (page 19). You cannot select the passage of the track to playback.
- Press +▶/− in ZAPPIN mode to skip a track.
- Pressing (BACK) also confirms a track to playback.
Radio
Storing and receiving stations
Caution
When tuning in stations while driving, use Best Tuning Memory (BTM) to prevent an accident.
Storing automatically — BTM
1 Press SOURCE/OFF repeatedly until "TUNER" appears.
To change the band, press MODE repeatedly. You can select from FM1, FM2, FM3, MW or LW.
The setup display appears.
4 Press +▶▶.
The unit stores stations in order of frequency in the preset list.
A beep sounds when the setting is stored.
Storing manually
1 While receiving the station that you want to store, press (BROWSE).
The preset list appears.
2 Rotate the control dial to select the preset number.
Note
If you try to store another station on the same number button, the previously stored station will be replaced.
Tip
When a RDS station is stored, the AF/TA setting is also stored (page 12).
Receiving the stored stations
You can select a station to receive via a list.
1 Select the band, then press Q (BROWSE).
The preset list appears.
2 Rotate the control dial until the desired station appears.
The display returns to normal reception mode.
Tuning automatically
1 Select the band, then press +▶I/ -I to search for the station.
Scanning stops when the unit receives a station. Repeat this procedure until the desired station is received.
Tip
If you know the frequency of the station you want to listen to, press and hold +▶/−▶ to locate the approximate frequency, then press +▶/−▶ repeatedly to fine adjust to the desired frequency (manual tuning).
RDS
Overview
FM stations with Radio Data System (RDS) service send inaudible digital information along with the regular radio program signal.
Display items
A Radio band, Function
B TA/TP*1
Frequency*2 (Program service name), Preset number, Clock, RDS data
1 "TA" flashes during traffic information. "TP" lights up while such a station is received.
2 While receiving the RDS station, “*” is displayed on the left of the frequency indication.
To change display items A, G, press DSPL.
RDS services
This unit automatically provides RDS services as follows:
AF (Alternative Frequencies)
Selects and retunes the station with the strongest signal in a network. By using this function, you can continuously listen to the same program during a long-distance drive without having to retune the same station manually.
TA (Traffic Announcement)/TP (Traffic Program)
Provides current traffic information/programs.
Any information/program received, will interrupt the currently selected source.
PTY (Program Types)
Displays the currently received program type. Also searches your selected program type.
CT (Clock Time)
The CT data from the RDS transmission sets the clock.
Notes
- Depending on the country/region, not all RDS functions may be available.
- RDS will not work if the signal strength is too weak, or if the station you are tuned to is not transmitting RDS data.
Setting AF and TA
1 Press AF/TA repeatedly until the desired setting appears.
| Select | To |
| AF-ON | activate AF and deactivate TA. |
| TA-ON | activate TA and deactivate AF. |
| AF, TA-ON | activate both AF and TA. |
| AF, TA-OFF | deactivate both AF and TA. |
Storing RDS stations with the AF and TA setting
You can preset RDS stations along with the AF/ TA setting. If you use the BTM function, only RDS stations are stored with the same AF/TA setting.
If you preset manually, you can preset both RDS and non-RDS stations with the AF/TA setting for each.
1 Set AF/TA, then store the station with BTM or manually.
Receiving emergency announcements
With AF or TA on, the emergency announcements will automatically interrupt the currently selected source.
Tip
If you adjust the volume level during a traffic announcement, that level will be stored into memory for subsequent traffic announcements, independently from the regular volume level.
Staying with one regional program — REG
When the AF function is on: this unit's factory setting restricts reception to a specific region, so you will not be switched to another regional station with a stronger frequency.
If you leave this regional program's reception area, set "REG-OFF" in setup during FM reception (page 19).
Note
This function does not work in the UK and in some other areas.
Local Link function (UK only)
This function enables you to select other local stations in the area, even if they are not stored on your preset list.
1 During FM reception, press Q(BROWSE), and select a preset number on which a local station is stored.
2 Within 5 seconds, press Q(BROWSE), and select the same preset number of the local station again.
Repeat this procedure until the local station is received.
Selecting PTY
1 Press and hold AF/TA (PTY) during FM reception.
The current program type name appears if the station is transmitting PTY data.
2 Press AF/TA (PTY) repeatedly until the desired program type appears.
3 Press +▶/−▶.
The unit starts to search for a station broadcasting the selected program type.
Type of programs
NEWS (News), AFFAIRS (Current Affairs), INFO (Information), SPORT (Sports), EDUCATE (Education), DRAMA (Drama), CULTURE (Culture), SCIENCE (Science), VARIORED (Varied), POP M (Pop Music), ROCK M (Rock Music), EASY M (M.O.R. Music), LIGHT M (Light classical), CLASSICS (Serious classical), OTHER M (Other Music), WEATHER (Weather), FINANCE (Finance), CHILDREN (Children's program), SOCIAL A (Social Affairs), RELIGION (Religion), PHONE IN (Phone In), TRAVEL (Travel), LEISURE (Leisure), JAZZ (Jazz Music), COUNTRY (Country Music), NATION M (National Music), OLDIES (Oldies Music), FOLK M (Folk Music), DOCUMENT (Documentary)
Note
You cannot use this function in countries/regions where no PTY data is available.
Setting CT
1 Set "CT-ON" in setup (page 18).
Notes
- The CT function may not work even though an RDS station is being received.
- There might be a difference between the time set by the CT function and the actual time.
USB devices
For details on the compatibility of your USB device, visit the support site.
Support site
http://support.sony-europe.com/
- MSC (Mass Storage Class) and MTP (Media Transfer Protocol) type USB devices compliant with the USB standard can be used.
- Corresponding codec is MP3 (.mp3), WMA (.wma) and AAC (.m4a).
- Backup of data in a USB device is recommended.
Notes
- Connect the USB device after starting the engine. Depending on the USB device, malfunction or damage may occur if it is connected before starting the engine.
- Do not place a cellular phone or a device with wireless communication functions on the TUNE TRAY, as it may not receive phone signals or communication may be terminated.
- Do not leave a USB device in a parked car, as malfunction may result.
Playing back a USB device
1 Press
The front panel is flipped down.
2 Press PUSH OPEN on the TUNE TRAY.
The TUNE TRAY opens slowly.
3 Connect the USB device to the USB connector.
4 Slide in the TUNE TRAY by pressing CLOSE on the TUNE TRAY until it locks shut.
5 Close the front panel.
Playback starts.
If a USB device is already connected, to start playback, press SOURCE/OFF repeatedly until "USB" appears.
Press SOURCE/OFF for 1 second to stop playback.
Removing the USB device
1 Stop the USB device playback.
2 Press .
3 Press PUSH OPEN on the TUNE TRAY.
4 Remove the USB device.
5 Slide in the TUNE TRAY, and close the front panel.
Notes
- Do not remove the USB device during playback, otherwise USB data may be damaged.
- Do not place non-USB devices on the TUNE TRAY, or foreign objects, such as coins, keys, cards, liquids, etc.
-
Do not place a flammable object such as a lighter on the TUNE TRAY, as this may cause smoke, fire, or other accident.
Capacity of the tray: Approx. 65 × 17 × 118 mm ( 2^9 / 16 × 2^1 / 32 × 4^5 / 8 in) (w/h/d)
-
If the size of the USB device alone or combined with the USB cable cannot be placed easily in the TUNE TRAY, the device may be exceeding the tray capacity. Do not slide in the TUNE TRAY or the USB cable forcefully.
- For "WALKMAN" users, use of the optional adaptor XA-50WM is recommended. It is designed for use with this unit only, and should not be used with the other USB devices.
- This unit cannot recognize USB devices via a USB hub.
- Slide in the TUNE TRAY and close the front panel before playback, as damage may result in the case of an obstruction in the car, etc.
- If the front panel does not fully open because of the dashboard shape at the installation position, detach the front panel and open the TUNE TRAY manually. For how to detach the front panel, see page 7.
- It is extremely dangerous to connect or remove the USB device while driving.
Display items
A Source, Track name, Artist name, Album name
3 Track name, Artist name, Album number*, Album name, Track number/Elapsed playing time, Clock
- Album number is displayed only when the album is changed.
To change display items A, B, press DSPL.
Notes
- Displayed items will differ, depending on the USB device, recorded format and settings. For details, visit the support site.
-
The maximum number of displayable data is as follows.
-
folders (albums): 128
-
files (tracks) per folder: 500
-
It may take time for playback to begin, depending on the amount of recorded data.
- DRM (Digital Rights Management) files may not be played.
-
During playback or fast-forward/reverse of a VBR (Variable Bit Rate) MP3/WMA/AAC file, elapsed playing time may not display accurately.
-
Playback of the following MP3/WMA/AAC files is not supported.
-lossless compression
copyright-protected
Repeat play
1 During playback, press and hold the select button.
The setup display appears.
2 Press the select button repeatedly until the "REPEAT" appears.
3 Rotate the control dial to select the play mode.
4 Press and hold the select button.
The setup is complete and the display returns to normal play mode.
| Select | To play |
| REPEAT-TRK | track repeatedly. |
| REPEAT-ALB | album repeatedly. |
To return to normal play mode, select "REPEAT-OFF."
Shuffle play
1 During playback, press and hold (ZAP/SHUF).
The lower half of the display starts flashing.
2 Press (ZAP/SHUF) repeatedly until the desired setting appears.
SHUF
| Select | To play |
| ALBUM | album in random order. |
| DEVICE | device in random order. |
After 3 seconds, the setting is complete.
To return to normal play mode, select "OFF."
iPod
For details on the compatibility of your iPod, see "About iPod" on page 21 or visit the support site.
In these Operating Instructions, "iPod" is used as a general reference for the iPod functions on the iPod and iPhone, unless otherwise specified by the text or illustrations.
Support site
http://support.sony-europe.com/
Notes
- Do not place a cellular phone or a device with wireless communication functions on the TUNE TRAY, as it may not receive phone signals or communication may be terminated.
- Do not leave an iPod in a parked car, as malfunction may result.
Playing back iPod
Before connecting the iPod, turn down the volume of the unit.
1 Press
The front panel is flipped down.
2 Press PUSH OPEN on the TUNE TRAY.
The TUNE TRAY opens slowly.
TUNE TRAY

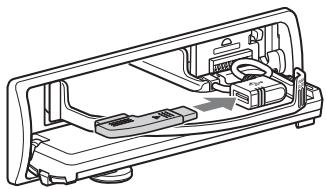

3 Connect the supplied adaptor to the USB connector.
4 Connect the iPod to the supplied adaptor.

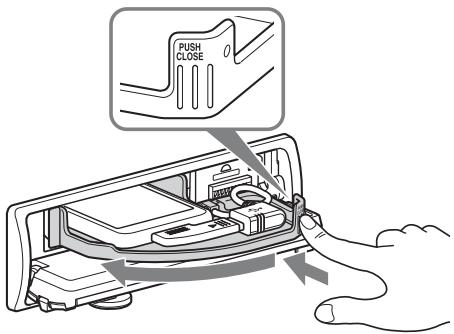

5 Slide in the TUNE TRAY by pressing CLOSE on the TUNE TRAY until it locks shut.
6 Close the front panel.
The iPod will turn on automatically, and the display will appear on the iPod screen as below.*
The tracks on the iPod start playing automatically from the point last played. If an iPod is already connected, to start playback press SOURCE/OFF repeatedly until "USB" appears. ("IPOD" appears in the display when iPod is recognized.)
- Display differs depending on the iPod, or may not appear in the case of an iPod touch being connected.
7 Adjust the volume.
Press SOURCE/OFF for 1 second to stop playback.
Removing the iPod
1 Stop the iPod playback.
2 Press (OPEN).
3 Press PUSH OPEN on the TUNE TRAY.
4 Remove the iPod.
5 Slide in the TUNE TRAY, and close the front panel.
Notes
- Do not remove the iPod during playback, otherwise data may be damaged.
- Do not place non-iPod devices on the TUNE TRAY, or foreign objects, such as coins, keys, cards, liquids, etc.
- Do not place a flammable object such as a lighter on the TUNE TRAY, as this may cause smoke, fire, or other accident.
- For iPod users, use the supplied adaptor XA-50IP. It is designed for use with this unit only, and should not be used with the other USB devices.
- This unit cannot recognize iPod via a USB hub.
- Slide in the TUNE TRAY and close the front panel before playback, as damage may result in the case of an obstruction in the car, etc.
- If the front panel does not fully open because of the dashboard shape at the installation position, detach the front panel and open the TUNE TRAY manually. For how to detach the front panel, see page 7.
- It is extremely dangerous to connect or remove the iPod while driving.
Tips
- When the ignition key is turned to the ACC position, and the unit is on, the iPod will be recharged.
- If the iPod is disconnected during playback, "NO DEV" appears in the display of the unit.
Resuming mode
When the iPod is connected, the mode of this unit changes to resuming mode and playback starts in the mode set by the iPod. In resuming mode, repeat/shuffle play does not function.
Display items
A Source, Track name, Artist name, Album name
3 Track name, Artist name, Album name, Track number/Elapsed playing time, Clock
To change display items A, B, press DSPL.
Tip
When album/podcast/genre/artist/playlist is changed, its item number appears momentarily.
Note
Some letters stored in iPod may not be displayed correctly.
Repeat play
1 During playback, press and hold the select button.
The setup display appears.
2 Press the select button repeatedly until the "REPEAT" appears.
3 Rotate the control dial to select the play mode.
4 Press and hold the select button.
The setup is complete and the display returns to normal play mode.
| Select | To play |
| REPEAT-TRK | track repeatedly. |
| REPEAT-ALB | album repeatedly. |
| REPEAT-PCS | podcast repeatedly. |
| REPEAT-ART | artist repeatedly. |
| REPEAT-PLY | gallery repeatedly. |
| REPEAT-GNR | genre repeatedly. |
To return to normal play mode, select "REPEAT-OFF:
Shuffle play
1 During playback, press and hold (ZAP/SHUF).
The lower half of the display starts flashing.
2 Press (ZAP/SHUF) repeatedly until the desired setting appears.
| Select | To play |
| ALBUM | album in random order. |
| PODCAST | podcast in random order. |
| ARTIST | artist in random order. |
| PLAYLIST | album in random order. |
| GENRE | genre in random order. |
| DEVICE | device in random order. |
After 3 seconds, the setting is complete.
To return to normal play mode, select "OFF."
Other functions
Changing the sound settings
Adjusting the sound characteristics
1 Press the select button repeatedly until the desired item appears.
2 Rotate the control dial to adjust the selected item.
3 Press (BACK). The setting is complete and the display returns to normal reception/play mode.
The following items can be set (follow the page reference for details):
EQ3
Selects an equalizer curve from 7 music types (XPLOD, VOCAL, EDGE, CRUISE, SPACE, GRAVITY, CUSTOM or OFF).
DSO (Dynamic Soundstage Organizer)
Creates a more ambient sound field.
To select the DSO mode: "1," "2," "3" or "OFF."
The larger the number, the more enhanced the effect.
LOW*, MID*, HIGH*1 (page 18)
BALANCE
Adjusts the sound balance between the left and right speakers.
FADER
Adjusts the relative level between the front and rear speakers.
SUB*2 (Subwoofer volume)
Adjusts the subwoofer volume.
AUX LV^*3 (AUX level)
Adjusts the volume level for each connected auxiliary equipment: +18dB - 0dB - -8 dB.
This setting negates the need to adjust the volume level between sources.
1 When EQ3 is activated.
2 When the audio output is set to "SUB-OUT" (page 19).
"ATT" is displayed at the lowest setting, and can be adjusted up to 21 steps.
*3 When AUX source is activated (page 19).
Customizing the equalizer curve - EQ3
"CUSTOM" of EQ3 allows you to make your own equalizer settings.
1 Select a source, then press the select button repeatedly to select "EQ3."
2 Rotate the control dial to select "CUSTOM."
3 Press the select button repeatedly until "LOW," "MID" or "HIGH" appears.
4 Rotate the control dial to adjust the selected item.
The volume level is adjustable in 1 dB steps, from -10dB to +10dB .
LOW
+EdB
Repeat steps 3 and 4 to adjust the equalizer curve.
To restore the factory-set equalizer curve, press and hold the select button before the setting is complete.
5 Press (BACK).
The setting is complete and the display returns to normal reception/play mode.
Tip
Other equalizer types are also adjustable.
Adjusting setup items — SET
1 Press and hold the select button.
The setup display appears.
2 Press the select button repeatedly until the desired item appears.
3 Rotate the control dial to select the setting (example "ON" or "OFF").
4 Press and hold the select button.
The setup is complete and the display returns to normal reception/play mode.
Note
Displayed items will differ, depending on the source and setting.
The following items can be set (follow the page reference for details):
CLOCK-ADJ (Clock Adjust) (page 6)
CT (Clock Time)
Activates the CT function: "ON," "OFF"
(page 12, 13).
BEEP
Activates the beep sound: "ON," "OFF."
AUX-A\*1 (AUX Audio)
Activates the AUX source display: "ON," "OFF" (page 19).
AUTO OFF
Shuts off automatically after a desired time when the unit is turned off: "NO," "30S (Seconds)," "30M (Minutes)," "60M (Minutes)."
SUB/REAR\*1
Switches the audio output: "SUB-OUT" (subwoofer), "REAR-OUT" (power amplifier).
DEMO (Demonstration)
Activates the demonstration: "ON," "OFF."
DIMMER
Changes the display brightness.
- "AT": to dim the display automatically when you turn lights on. (Available only when the illumination control lead is connected.)
- "ON": to dim the display.
- "OFF": deactivate the dimmer.
CONTRAST
Adjusts the contrast for a clear view of the display, suitable for the installed viewing angle. The contrast level is adjustable in 7 steps.
LV-METER (Level Meter)
Activates the level meter: "ON," "OFF."
Scrolls long items automatically: "ON," "OFF."
REPEAT (page 15)
- "ON": to only tune into stations with stronger signals.
- "OFF": to tune normal reception.
MONO\*2 (Monaural Mode)
Selects monaural reception mode to improve poor FM reception: "ON," "OFF."
REG^*2 (Regional)
Restricts reception to a specific region: "ON," "OFF" (page 13).
ZAP TIME (Zappin Time)
Selects the playback time for the ZAPPIN function.
-ZAP.TIME-1 (about 6 seconds),
"ZAP.TIME-2 (about 15 seconds),"
"ZAP.TIME-3 (about 30 seconds)."
LPF*3 (Low Pass Filter)
Selects the subwoofer cut-off frequency: "OFF," "80Hz," "100Hz," "120Hz," "140Hz," "160Hz."
SUB*3 (Subwoofer Phase)
Selects the subwoofer phase: "NORM," "REV."
HPF (High Pass Filter)
Selects the front/rear speaker cut-off frequency: "OFF," "80Hz," "100Hz," "120Hz," "140Hz," "160Hz."
LOUD (Loudness)
Reinforces bass and treble for clear sound at low volume levels: "ON," "OFF."
DM+
Activates the DM+ function: "ON," "OFF."
BTM (page 11)
1 When the unit is turned off.
2 When FM is received.
*3 When the audio output is set to "SUB-OUT."
Using optional equipment
Auxiliary audio equipment
By connecting an optional portable audio device to the AUX input jack (stereo mini jack) on the unit and then simply selecting the source, you can listen on your car speakers. The volume level is adjustable for any difference between the unit and the portable audio device. Follow the procedure below:
Connecting the portable audio device
1 Turn off the portable audio device.
2 Turn down the volume on the unit.
3 Connect to the unit.
* Be sure to use a straight type plug.
Adjust the volume level
Be sure to adjust the volume for each connected audio device before playback.
1 Turn down the volume on the unit.
2 Press (SOURCE/OFF) repeatedly until "AUX" appears.
After that, "AUX FRONT IN" appears.
3 Start playback of the portable audio device at a moderate volume.
4 Set your usual listening volume on the unit.
5 Adjust the input level (page 18).
Card remote commander RM-X114
The corresponding buttons on the card remote commander control the same functions as those on this unit.
To change display items.
Press to select the radio band (FM/MW/LW).
To turn on; change the source (Radio/USB/AUX).
To control Radio/USB, the same as -I / + on the unit.
The same as the select button on the unit.
OFF button
To turn off; stop the source.
To adjust volume.
LIST button
To select PTY in RDS.
To receive the stored stations (Radio); skip albums (USB).
To attenuate the sound. To cancel, press again.
- Not available for this unit.
Note
If the unit is turned off and the display disappears, it cannot be operated with the card remote commander unless SOURCE/OFF on the unit is pressed to activate the unit first.
Precautions
Cool off the unit beforehand if your car has been parked in direct sunlight.
- Power antenna (aerial) extends automatically.
Playback order of MP3/WMA/AAC files
About Device Inside Alert
If you turn the ignition switch to the OFF position without removing the USB device or iPod, "DEVICE INSIDE" will appear in the display.
Open the front panel to remove the USB device or iPod.
If the front panel is detached when the ignition is turned off.
The Device Inside Alert LED flashes.
Tip
For how to remove the USB device or iPod, see page 14 (USB), 17 (iPod).
Note
The Device Inside Alert will only sound if the built-in amplifier is used.
About iPod
- You can connect to the following iPod models. Update your iPod devices to the latest software before use.
Made for
- iPod touch (2nd generation)
- iPod touch (1st generation)
- iPod classic
- iPod with video
- iPod nano (5th generation)
- iPod nano (4th generation)
- iPod nano (3rd generation)
- iPod nano (2nd generation)
- iPod nano (1st generation)
- "Made for iPod" means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards.
- Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer.
Maintenance

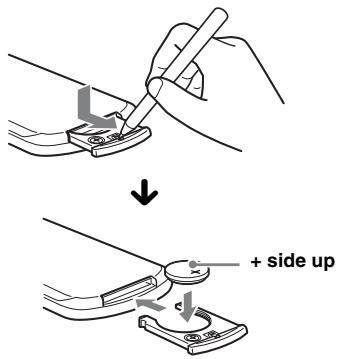

Replacing the lithium battery of the card remote commander
Under normal conditions, the battery will last approximately 1 year. (The service life may be shorter, depending on the conditions of use.) When the battery becomes weak, the range of the card remote commander becomes shorter. Replace the battery with a new CR2025 lithium battery. Use of any other battery may present a risk of fire or explosion.
Notes on the lithium battery
-
Keep the lithium battery out of the reach of children. Should the battery be swallowed, immediately consult a doctor.
-
Wipe the battery with a dry cloth to assure a good contact.
- Be sure to observe the correct polarity when installing the battery.
- Do not hold the battery with metallic tweezers, otherwise a short-circuit may occur.
WARNING
Battery may explode if mistreated.
Do not recharge, disassemble, or dispose of in fire.
Fuse replacement
When replacing the fuse, be sure to use one matching the amperage rating stated on the original fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer.
Fuse (10 A)

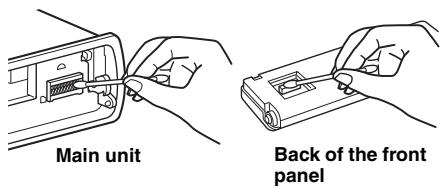

Cleaning the connectors
The unit may not function properly if the connectors between the unit and the front panel are not clean. In order to prevent this, detach the front panel (page 7) and clean the connectors with a cotton swab. Do not apply too much force. Otherwise, the connectors may be damaged.
Notes
- For safety, turn off the ignition before cleaning the connectors, and remove the key from the ignition switch.
- Never touch the connectors directly with your fingers or with any metal device.
Removing the unit
1 Remove the protection collar.
Detach the front panel (page 7).
Pinch both edges of the protection collar, then pull it out.

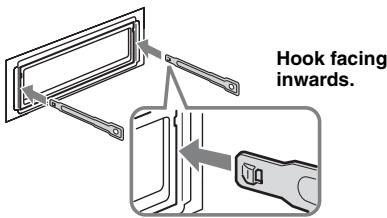

2 Remove the unit.
Insert both release keys simultaneously until they click.
Pull the release keys to unseat the unit.
Slide the unit out of the mounting.
Specifications
Tuner section
FM
Tuning range: 87.5 - 108.0MHz
Antenna (aerial) terminal:
External antenna (aerial) connector
Intermediate frequency: 150kHz
Usable sensitivity: 10 dBf
Selectivity: 75dB at 400kHz
Signal-to-noise ratio: 70 dB (mono)
Separation: 40dB at 1kHz
Frequency response: 20 - 15,000Hz
MW/LW
Tuning range:
MW: 531 - 1,602 kHz
LW: 153 - 279kHz
Antenna (aerial) terminal:
External antenna (aerial) connector
Intermediate frequency: 25kHz
Sensitivity: MW: 26 V , LW: 45 V
USB Player section
Interface: USB (Full-speed)
Maximum current: 500mA
Power amplifier section
Output: Speaker outputs
Speaker impedance: 4 - 8 ohms
Maximum power output: 52W× 4 (at 4 ohms)
General
Outputs:
Audio outputs terminal (front, sub/rear switchable)
Power antenna (aerial) relay control terminal
Power amplifier control terminal
Inputs:
Remote controller input terminal
Antenna (aerial) input terminal
Telephone ATT control terminal
Illumination control terminal
USB signal input connector
Tone controls:
Low: ± 10 dB at 60Hz (XPLOD)
Mid: ± 10 dB at 1kHz (XPLOD)
High: ± 10 dB at 10kHz (XPLOD)
Power requirements: 12 V DC car battery (negative ground (earth))
Dimensions: Approx. 178 × 50 × 180 ~mm ( 7^1 / 8 × 2 × 7^1 / 8 in) (w/h/d)
Mounting dimensions: Approx. 182× 53× 163mm
(7^1 / 4× 2^1 / 8× 6^1 / 2 in) (w / h / d)
Mass: Approx. 1.0kg (2 lb 4 oz)
Supplied accessories:
USB connector for iPod XA-50IP
Parts for installation and connections (1 set)
Optional accessories/equipment:
Card remote commander: RM-X114
Walkman adaptor XA-50WM
Your dealer may not handle some of the above listed accessories. Please ask the dealer for detailed information.
Design and specifications are subject to change without notice.
Troubleshooting
The following checklist will help you remedy problems you may encounter with your unit. Before going through the checklist below, check the connection and operating procedures.
If the problem is not solved, visit the following support site.
Support site
http://support.sony-europe.com/
General
No power is being supplied to the unit.
- Check the connection or fuse.
- If the unit is turned off and the display disappears, it cannot be operated with the remote commander.
Turn on the unit.
The power antenna (aerial) does not extend.
The power antenna (aerial) does not have a relay box.
No sound.
- The ATT function is activated, or the Telephone ATT function (when the interface cable of a car telephone is connected to the ATT lead) is activated.
- The position of the fader control "FADER" is not set for a 2-speaker system.
No beep sound.
- The beep sound is canceled (page 19).
- An optional power amplifier is connected and you are not using the built-in amplifier.
The contents of the memory have been erased.
- The RESET button has been pressed.
Store again into the memory.
- The power supply lead or battery has been disconnected or it is not connected properly.
Stored stations and correct time are erased.
The fuse has blown.
Makes noise when the position of the ignition is switched.
The leads are not matched correctly with the car's accessory power connector.
During playback or reception, demonstration mode starts.
If no operation is performed for 5 minutes with "DEMO-ON" set, demonstration mode starts.
Set "DEMO-OFF" (page 19).
The display disappears from/does not appear in the display window.
- The dimmer is set "DIMMER-ON" (page 19).
- The display disappears if you press and hold SOURCE/OFF
Press / OFF on the unit until the display appears.
- The connectors are dirty (page 21).
The Auto Off function does not operate.
The unit is turned on. The Auto Off function activates after turning off the unit.
Turn off the unit.
DSO does not function.
- Depending on the type of car interior or type of music, DSO may not have a desirable effect.
Radio reception
The stations cannot be received. The sound is hampered by noises.
The connection is not correct.
Connect a power antenna (aerial) control lead (blue) or accessory power supply lead (red) to the power supply lead of a car's antenna (aerial) booster (only when your car has built-in FM/MW/LW antenna (aerial) in the rear/side glass).
Check the connection of the car antenna (aerial).
If the auto antenna (aerial) will not go up, check the connection of the power antenna (aerial) control lead.
When the DSO mode is on, the sound is sometimes hampered by noises. Set the DSO mode to "OFF" (page 18).
Preset tuning is not possible.
- Store the correct frequency in the memory.
The broadcast signal is too weak.
Automatic tuning is not possible.
- Setting of the local seek mode is not correct.
Tuning stops too frequently: Set "LOCAL-ON" (page 19).
Tuning does not stop at a station: Set "LOCAL-OFF" (page 19).
The broadcast signal is too weak.
Perform manual tuning.
During FM reception, the "ST" indication flashes.
- Tune in the frequency accurately.
The broadcast signal is too weak.
Set "MONO-ON" (page 19).
An FM program broadcast in stereo is heard in monaural.
The unit is in monaural reception mode.
Set "MONO-OFF" (page 19).
RDS
The SEEK starts after a few seconds of listening.
The station is non-TP or has weak signal.
Deactivate TA (page 12).
No traffic announcements.
- Activate TA (page 12).
- The station does not broadcast any traffic announcements despite being TP.
Tune in another station.
PTY displays "---"
- The current station is not an RDS station.
RDS data has not been received.
- The station does not specify the program type.
Program service name flashes.
There is no alternative frequency for the current station.
Press + > 一 / - 1 < 一 while the program service name is flashing. "PI SEEK" appears and the unit starts searching for another frequency with the same PI (Program Identification) data.
USB playback
You cannot play back items via a USB hub.
This unit cannot recognize USB devices via a USB hub.
Cannot play back items.
A USB device does not work.
Reconnect it.
The USB device takes longer to play back.
The USB device contains files with a complicated tree structure.
- A large number of characters may not scroll.
"A.SCRL" is set to "OFF."
Set "A.SCRL-ON" (page 19).
Press and hold DSPL (SCRL).
A beep sounds.
During playback, the USB device has been disconnected.
Before disconnecting a USB device, make sure to stop playback first for data protection.
The sound is intermittent.
The sound may be intermittent at a high-bit-rate of more than 320 kbps.
Error displays/Messages
CHECKING
The unit is confirming the connection of a USB device. Wait until confirming the connection is finished.
DEVICE INSIDE
If you turn the ignition switch to the OFF position without removing the USB device or iPod, "DEVICE INSIDE" will appear in the display.
ERROR
USB device was not automatically recognized. Reconnect it again.
FAILURE
The connection of speakers/amplifiers is incorrect. See the installation/connections manual of this model to check the connection.
HUB NO SUPRT (HUB Not Support)
USB hub is not supported on this unit.
L. SEEK +/-
The local seek mode is on during automatic tuning.
NO AF
There is no alternative frequency for the current station.
NO DEV (No Device)
USB is selected as source without a USB device connected. A USB device or a USB cable has been disconnected during playback.
Be sure to connect a USB device and USB cable.
NO MUSIC
The USB device does not contain a music file. Connect a USB device with a music file in it.
NO NAME
A album/artist/track name is not written in the track.
NO TP
The unit will continue searching for available TP stations.
OFFSET
There may be an internal malfunction.
Check the connection. If the error indication remains on in the display, consult your nearest Sony dealer.
OVERLOAD
USB device is overloaded.
Disconnect the USB device, then change the source by pressing (SOURCE/OFF).
Indicates that the USB device is out of order, or an unsupported device is connected.
READ
The unit is reading all track and album information on the USB device.
Wait until reading is complete and playback starts automatically.
RESET
USB device cannot be operated due to a problem.
Press the RESET button (page 6).
USB NO SUPRT (USB Not Support)
The connected USB device is not supported.
For details on the compatibility of your USB device, visit the support site.
"LLL" or "7777"
During reverse or fast-forward, you have reached the beginning or the end of the USB device and you cannot go any further.
“一”
The character cannot be displayed with the unit.
If these solutions do not help improve the situation, consult your nearest Sony dealer.
Wichtig!
Appareil principal 8
10 (BACK)/MODE page 10, 11, 19
11 Touche ZAP/SHUF page 11, 15, 18
13 Touche DSPL (affichage)/SCRL
( defilement) page 12, 15, 18
La lecture commence.
La lecture commence.
Mode Resuming (reprise de lecture)
DEMO (Demonstration)
AF (alternative frequencies)
Na 3 seconden is de instelling voltooid.
Na 3 seconden is deinstelling voltooid.
Selecteer "OFF" om谈起kerenaar denormale weergavestand.
Overige functies
-ZAP.TIME-1 (ongeveer 6 seconden),"
"ZAP.TIME-2 (ongeveer 15 seconden),"
"ZAP TIME-3 (ongeveer 30 seconden)."
Interface: USB (Full-speed)
Maximale voeding: 500mA
Versterker
Walkman-adapterXA-50WM
"A.SCRL" is ingesteld op "OFF".
→Stel "A.SCRL-ON" in (pagea 19).
Houd DSPL (SCRL) ingedrukt.
Register your product online now at:
www.sony-europe.com/myproducts
