USER MANUAL MEX-BT3800U SONY

To cancel the demonstration (DEMO) display, see page 7. Zum Deaktivieren der Demo-Anzeige (DEMO) schlagen Sie bitte auf Seite 7 nach. Pour annuler la démonstration (DEMO), reportez-vous à la page 7. Per annullare la dimostrazione (DEMO), vedere pagina 7. Om de demonstratie (DEMO) te annuleren, zie pagina 7. MEX-BT3800U ©2009 Sony Corporation Be sure to install this unit in the dashboard of the car for safety. For installation and connections, see the supplied installation/ connections manual. This label is located on the bottom of the chassis. The nameplate indicating operating voltage, etc., is located on the bottom of the chassis. Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product. Applicable accessory: Remote commander Hereby, Sony Corp., declares that this MEXBT3800U is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For details, please access the following URL: http://www.compliance.sony.de/ Use of this radio equipment is not allowed in the geographical area within a radius of 20 km from the centre of Ny-Alesund, Svalbard in Norway. Notice for customers: the following information is only applicable to equipment sold in countries applying EU Directives The manufacturer of this product is Sony Corporation, 1-7-1 Konan, Minato-ku Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents. Disposal of waste batteries (applicable in the European Union and other European countries with separate collection systems) This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead. By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners. ZAPPIN is a trademark of Sony Corporation.

Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. iPod is a trademark of Apple Inc., registered in the U.S. and other countries. iPhone is a trademark of Apple Inc. MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson. This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary. Content providers are using the digital rights management technology for Windows Media contained in this device (“WM-DRM”) to protect the integrity of their content (“Secure Content”) so that their intellectual property, including copyright, in such content is not misappropriated. This device uses WM-DRM software to play Secure Content (“WM-DRM Software”). If the security of the WM-DRM Software in this device has been compromised, owners of Secure Content (“Secure Content Owners”) may request that Microsoft revoke the WM-DRM Software’s right to acquire new licenses to copy, display and/or play Secure Content. Revocation does not alter the WM-DRM Software’s ability to play unprotected content. A list of revoked WM-DRM Software is sent to your device whenever you download a license for Secure Content from the Internet or from a PC. Microsoft may, in conjunction with such license, also download revocation lists onto your device on behalf of Secure Content Owners. Note on the lithium battery Do not expose the battery to excessive heat such as direct sunlight, fire or the like. Warning if your car’s ignition has no ACC position Be sure to set the Auto Off function (page 26). The unit will shut off completely and automatically in the set time after the unit is turned off, which prevents battery drain. If you do not set the Auto Off function, press and hold (SOURCE/OFF) until the display disappears each time you turn the ignition off.

• Bluetooth (Handsfree calling and Music streaming) Bluetooth operations p. 22
• Pairing p. 22
• About Bluetooth icons p. 22
• Connection p. 23
• To switch the Bluetooth signal output of this unit to on p. 23
• Connecting a cellular phone p. 23
• Connecting an audio device p. 23
• Handsfree calling p. 23
• Receiving calls p. 23
• Making calls p. 24
• Call transfer p. 24
• Voice Dial Activation p. 24
• Music streaming p. 24
• Listening to music from an audio device p. 24
• Operating an audio device with this unit p. 25
• Deleting registration of all paired devices p. 25
• Other functions Changing the sound settings p. 25
• Adjusting the sound characteristics p. 25
• Customizing the equalizer curve — EQ3 p. 26
• Adjusting setup items — SET p. 26
• Using optional equipment p. 27

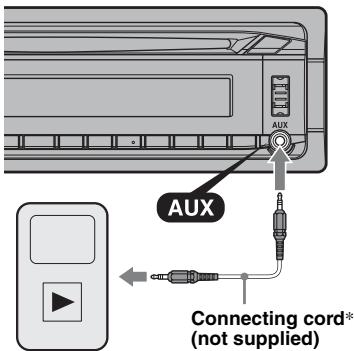

• Auxiliary audio equipment p. 27

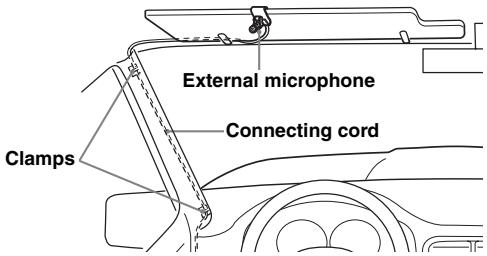

• External microphone XA-MC10 p. 27
• Additional Information Precautions p. 28
• Notes on discs p. 28

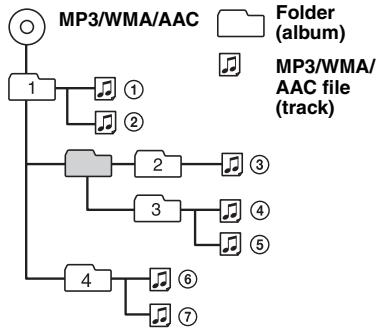

• Playback order of MP3/WMA/AAC files p. 28
• About iPod p. 28
• About Bluetooth function p. 29
• Maintenance p. 29

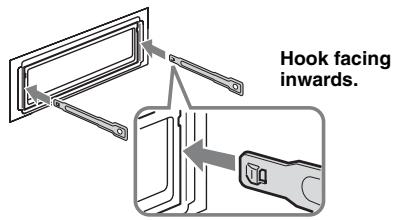

• Removing the unit p. 30
• Specifications p. 31
• Troubleshooting p. 32
• Error displays/Messages Support site If you have any questions or for the latest support information on this product, please visit the web site below: http://support.sony-europe.com/ Provides information on: p. 34

• Models and manufacturers of compatible digital audio players
• Supported MP3/WMA/AAC files
• Models and manufacturers of compatible cellular phones and the FAQ about Bluetooth function

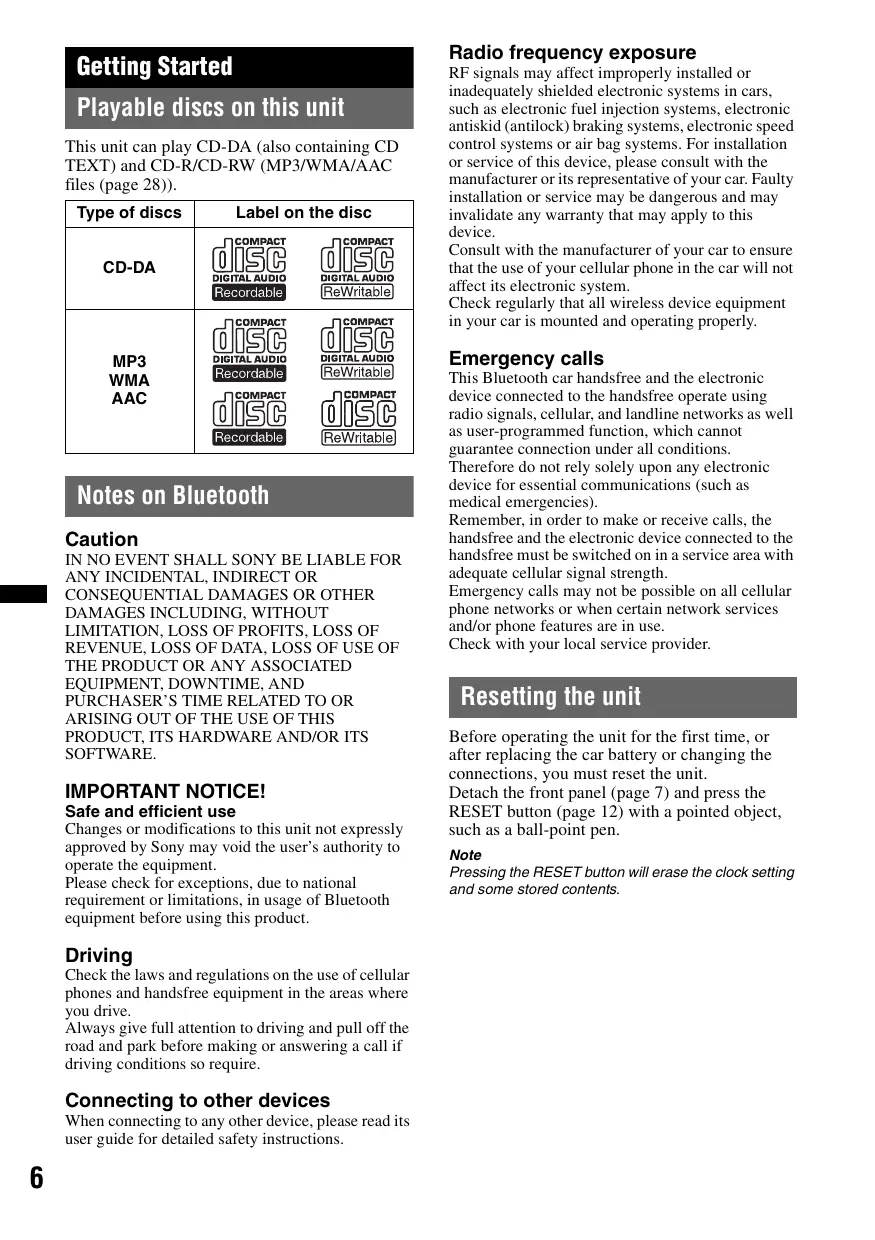

Radio frequency exposure Getting Started Playable discs on this unit This unit can play CD-DA (also containing CD TEXT) and CD-R/CD-RW (MP3/WMA/AAC files (page 28)). Type of discs Label on the disc CD-DA MP3 WMA AAC Notes on Bluetooth Caution IN NO EVENT SHALL SONY BE LIABLE FOR

ANY INCIDENTAL, INDIRECT OR

CONSEQUENTIAL DAMAGES OR OTHER

DAMAGES INCLUDING, WITHOUT

LIMITATION, LOSS OF PROFITS, LOSS OF

REVENUE, LOSS OF DATA, LOSS OF USE OF

THE PRODUCT OR ANY ASSOCIATED

EQUIPMENT, DOWNTIME, AND

PURCHASER’S TIME RELATED TO OR

ARISING OUT OF THE USE OF THIS

PRODUCT, ITS HARDWARE AND/OR ITS

SOFTWARE. IMPORTANT NOTICE! Safe and efficient use Changes or modifications to this unit not expressly approved by Sony may void the user’s authority to operate the equipment. Please check for exceptions, due to national requirement or limitations, in usage of Bluetooth equipment before using this product. Driving Check the laws and regulations on the use of cellular phones and handsfree equipment in the areas where you drive. Always give full attention to driving and pull off the road and park before making or answering a call if driving conditions so require. Connecting to other devices When connecting to any other device, please read its user guide for detailed safety instructions.

RF signals may affect improperly installed or inadequately shielded electronic systems in cars, such as electronic fuel injection systems, electronic antiskid (antilock) braking systems, electronic speed control systems or air bag systems. For installation or service of this device, please consult with the manufacturer or its representative of your car. Faulty installation or service may be dangerous and may invalidate any warranty that may apply to this device. Consult with the manufacturer of your car to ensure that the use of your cellular phone in the car will not affect its electronic system. Check regularly that all wireless device equipment in your car is mounted and operating properly. Emergency calls This Bluetooth car handsfree and the electronic device connected to the handsfree operate using radio signals, cellular, and landline networks as well as user-programmed function, which cannot guarantee connection under all conditions. Therefore do not rely solely upon any electronic device for essential communications (such as medical emergencies). Remember, in order to make or receive calls, the handsfree and the electronic device connected to the handsfree must be switched on in a service area with adequate cellular signal strength. Emergency calls may not be possible on all cellular phone networks or when certain network services and/or phone features are in use. Check with your local service provider. Resetting the unit Before operating the unit for the first time, or after replacing the car battery or changing the connections, you must reset the unit. Detach the front panel (page 7) and press the RESET button (page 12) with a pointed object, such as a ball-point pen. Note Pressing the RESET button will erase the clock setting and some stored contents. Canceling the DEMO mode Detaching the front panel You can cancel the demonstration display which appears during turning off. You can detach the front panel of this unit to prevent theft.

Press and hold the select button. The setup display appears. Caution alarm

Press the select button repeatedly until “DEMO” appears.

Rotate the control dial to select “DEMO-OFF.”

Press and hold the select button. The setup is complete and the display returns to normal reception/play mode. If you turn the ignition switch to the OFF position without detaching the front panel, the caution alarm will sound for a few seconds. The alarm will only sound if the built-in amplifier is used.

Press and hold (SOURCE/OFF). The unit is turned off.

Press , then pull it off towards you. (SOURCE/OFF) Preparing the card remote commander Remove the insulation film. Tip For how to replace the battery, see page 29. Setting the clock The clock uses a 24-hour digital indication.

Press and hold the select button. The setup display appears.

Press the select button repeatedly until “CLOCK-ADJ” appears.

Rotate the control dial to set the hour and minute. To move the digital indication, press (SEEK)

• Do not drop or put excessive pressure on the front panel and display window.
• Do not subject the front panel to heat/high temperature or moisture. Avoid leaving it in a parked car or on a dashboard/rear tray.

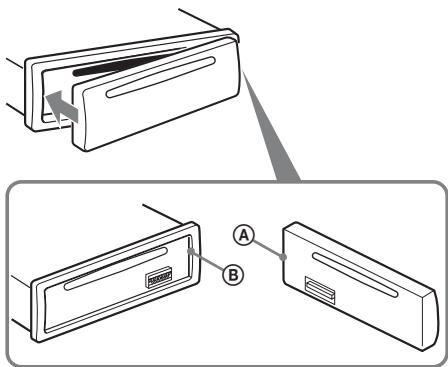

• Do not detach the front panel during playback of the USB device, otherwise USB data may be damaged. Attaching the front panel Engage part A of the front panel with part B of the unit, as illustrated, and push the left side into position until it clicks.

After setting the minute, press the select button. The setup is complete and the clock starts. To display the clock, press (DSPL). Press (DSPL) again to return to the previous display. Tip You can set the clock automatically with the RDS feature (page 18). Note Do not put anything on the inner surface of the front panel.

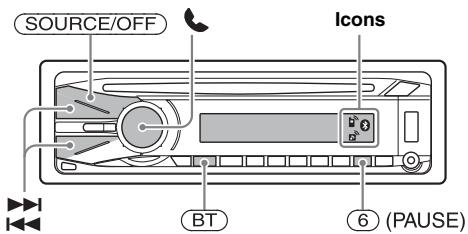

Quick Guide for Bluetooth function For full details on operation, see “Bluetooth (Handsfree calling and Music streaming)” (page 22) and the Bluetooth device operating instructions. 3 steps to Bluetooth function 1 Pairing First, register (“pair”) Bluetooth device (cellular phone, etc.) with this unit. Pairing is no longer required after the first time. 2 Connection Sometimes pairing allows to connect automatically. To use the device after pairing is made, start the connection. 3 Handsfree calling/Music streaming You can talk handsfree and listen to music when the connection is made. Support site http://support.sony-europe.com/

Buttons and icons Icons Icon status descriptions Lit Bluetooth signal on Flashing Pairing standby mode None Bluetooth signal off Lit Cellular phone connection successful Flashing Unit connecting to cellular phone None No connection Lit Audio device connection successful Flashing Unit connecting to audio device None No connection

1 Pairing Operated equipment Operation

Press and hold (BT) for about 5 seconds.

Follow display directions.

(Pairing successful) 2 Connection Operated equipment Operation

Press and hold (BT) for about 3 seconds.

Connect to this unit using a cellular phone.

Connect to this unit using an audio device.

Note You can connect from this unit to a Bluetooth device (page 23). If you cannot connect from this unit to the Bluetooth device, start pairing again.

3 Handsfree calling and Music streaming Handsfree calling To do Operation Receive a call/end a call Press Reject a call Press and hold Redial 1 Press (SOURCE/OFF).

2 Press and hold To transfer a call Press and hold for 3 seconds. for 2 seconds. Music streaming To do Operation Listen 1 Press (SOURCE/OFF). 2 Press Start playback on the audio device. Play back/pause (AVRCP)* Press (6) (PAUSE). Skip tracks (AVRCP)* Press ./>.

• The operation may differ depending on the audio device.

Location of controls and basic operations Main unit SOURCE SEEK OFF ZAP 9 q; qa BLUETOOTH PTY

qs qd qf Front panel removed RESET

This section contains instructions on the location of controls and basic operations. For details, see the respective pages. A SEEK +/– buttons CD/USB: To skip tracks (press); skip tracks continuously (press, then press again within about 1 second and hold); reverse/fastforward a track (press and hold). Radio: To tune in stations automatically (press); find a station manually (press and hold). Bluetooth audio device*1: To skip tracks (press).

(BACK)/MODE button page 15, 16, 20, 21 Press to: Return to the previous display/ select the radio band (FM/MW/LW)/select the play mode of iPod. Press and hold to: Enter/cancel the passenger control. C SOURCE/OFF button*2 Press to turn on the power/change the source (Radio/CD/USB/AUX/Bluetooth audio/ Bluetooth phone). Press for 1 second to turn off the power. Press for 2 seconds or more to turn off the power and the display disappears. D Control dial/select / (handsfree) button To adjust volume (rotate); select setup items (press and rotate); receive/end a call (press).

E Disc slot Insert the disc (label side up), playback starts. F Display window G Z (eject) button To eject the disc. H USB connector page 19, 20 To connect to the USB device.

(front panel release) button page 7 (BROWSE) button page 15 To enter the Quick-BrowZer mode. R RESET button (located behind the front panel) page 6 S Microphone page 23 Note Do not cover the microphone, the handsfree function may not work properly. *1 When a Bluetooth audio device (supports AVRCP of Bluetooth technology) is connected. Depending on the device, certain operations may not be available. *2 This button has a tactile dot. Note When ejecting/inserting a disc, keep any USB devices disconnected to avoid damage to the disc. K ZAP button page 16 To enter ZAPPIN™ mode. L Receptor for the card remote commander M BT (BLUETOOTH) button page 22 For Bluetooth signal on/off, pairing. N AF (Alternative Frequencies)/ TA (Traffic Announcement)/ PTY (Program Type) button page 17, To set AF and TA (press); select PTY (press and hold) in RDS. O Number buttons CD/USB: (1)/(2): ALBM –/+ (during MP3/WMA/ AAC playback) To skip albums (press); skip albums continuously (press and hold). (3): REP*2 page 18, 19, 21 (4): SHUF page 18, 19, 21 (6): PAUSE To pause playback. To cancel, press again. Radio: To receive stored stations (press); store stations (press and hold). Bluetooth audio device*1: (6): PAUSE To pause playback. To cancel, press again. Bluetooth phone: (5): MIC page 23 P DSPL (display)/SCRL (scroll) button page 17, 18, 19, 20, 21 To change display items (press); scroll the display item (press and hold). Q AUX input jack page 27 To connect a portable audio device.

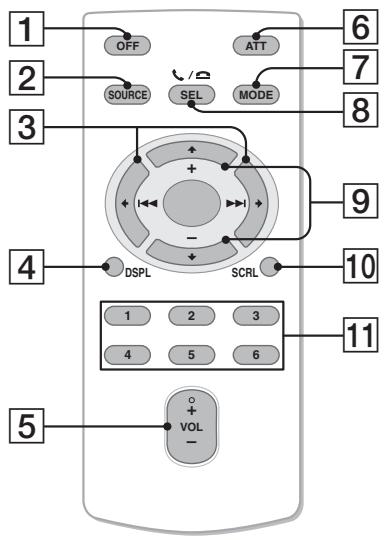

Card remote commander RM-X304

OFF SOURCE ATT SEL MODE Remove the insulation film before use (page 7). A OFF button To turn off; stop the source.

C < (.)/, (>) buttons To control Radio/CD/USB/Bluetooth audio, the same as (SEEK) –/+ on the unit. Setup, sound setting, etc., can be operated by

D DSPL (display) button To change display items. E VOL (volume) +*/– button To adjust volume. F ATT (attenuate) button To attenuate the sound. To cancel, press again. G MODE button Press to select the radio band (FM/MW/LW)/ select the play mode of iPod. Press and hold to enter/cancel the passenger control. H SEL (select)/ (handsfree) button The same as the select button on the unit. I M (+)/m (–) buttons To control CD/USB, the same as (1)/(2) (ALBM –/+) on the unit. Setup, sound setting, etc., can be operated by M m. J SCRL (scroll) button To scroll the display item. K Number buttons To receive stored stations (press); store stations (press and hold).

• This button has a tactile dot. Note If the unit is turned off and the display disappears, it cannot be operated with the card remote commander unless (SOURCE/OFF) on the unit is pressed, or a disc is inserted to activate the unit first.

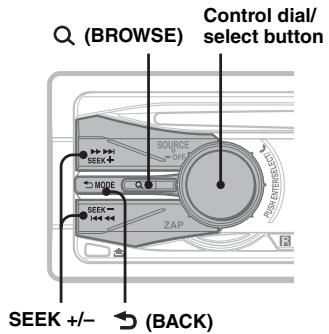

Searching for a track Searching a track by name — Quick-BrowZer You can search for a track in a CD or USB device easily by category. (BROWSE) Searching by skip items — Jump mode When many items are in a category, you can search the desired item quickly. 1 Press (SEEK) + in Quick-BrowZer mode. The following display appears. Control dial/ select button A Current item number B Total item number in the current layer SEEK +/– (BACK)

Press (BROWSE). The unit enters the Quick-BrowZer mode, and the list of search categories appears.

Rotate the control dial to select the desired search category, then press it to confirm.

Repeat step 2 until the desired track is selected. Playback starts. Then the item name will appear. 2 Rotate the control dial to select the desired item, or one near the desired item. It skips in steps of 10% of the total item number. 3 Press the select button. The display returns to the Quick-BrowZer mode and the selected item appears. 4 Rotate the control dial to select the desired item and press it. Playback starts if the selected item is a track. To cancel Jump mode Press (BACK) or (SEEK) –. To return to the previous display Press (BACK). To exit the Quick-BrowZer mode Press (BROWSE). Note When entering the Quick-BrowZer mode, the repeat/ shuffle setting is canceled.

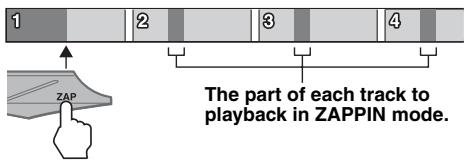

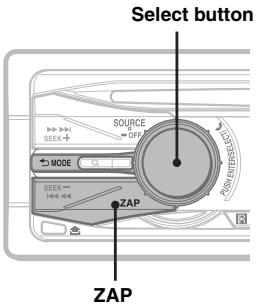

Searching a track by listening to track passages — ZAPPIN™ While playing back short track passages in a CD or USB device in sequence, you can search for a track you want to listen to. ZAPPIN mode is suitable for searching for a track in shuffle or shuffle repeat mode. Radio Storing and receiving stations Caution When tuning in stations while driving, use Best Tuning Memory (BTM) to prevent an accident. Select button Storing automatically — BTM ZAP

Press (ZAP) during playback. After “ZAPPIN” appears in the display, playback starts from a passage of the next track. The passage is played for the set time, then a click sounds and the next passage starts. Track Press (SOURCE/OFF) repeatedly until “TUNER” appears. To change the band, press (MODE) repeatedly. You can select from FM1, FM2, FM3, MW or LW.

Press and hold the select button. The setup display appears.

Press the select button repeatedly until “BTM” appears.

Press (SEEK) +. The unit stores stations in order of frequency on the number buttons. A beep sounds when the setting is stored. Storing manually

The part of each track to playback in ZAPPIN mode.

Press the select button or (ZAP) when a track you want to listen is played back. The track that you select returns to normal play mode from the beginning. To search a track by ZAPPIN mode again, repeat steps 1 and 2. Tips

• You can select the playback time from about 6 seconds/9 seconds/30 seconds (page 26). You cannot select the passage of the track to playback.
• Press (SEEK) +/– or (1)/(2) (ALBM –/+) in ZAPPIN mode to skip a track or album. While receiving the station that you want to store, press and hold a number button ((1) to (6)) until “MEM” appears. Note If you try to store another station on the same number button, the previously stored station will be replaced. Tip When a RDS station is stored, the AF/TA setting is also stored (page 17). Receiving the stored stations

Select the band, then press (SEEK) +/– to search for the station. Scanning stops when the unit receives a station. Repeat this procedure until the desired station is received. Tip If you know the frequency of the station you want to listen to, press and hold (SEEK) +/– to locate the approximate frequency, then press (SEEK) +/– repeatedly to fine adjust to the desired frequency (manual tuning).

RDS Setting AF and TA

Overview FM stations with Radio Data System (RDS) service send inaudible digital information along with the regular radio program signal. Display items Press (AF/TA) repeatedly until the desired setting appears. Select

AF-ON activate AF and deactivate TA. TA-ON activate TA and deactivate AF. AF, TA-ON activate both AF and TA. AF, TA-OFF deactivate both AF and TA. Storing RDS stations with the AF and TA setting A TA/TP*1 B Radio band, Function C Frequency*2 (Program service name), Preset number, Clock, RDS data *1 “TA” flashes during traffic information. “TP” lights up while such a station is received. *2 While receiving the RDS station, “ *” is displayed on the left of the frequency indication. To change display items C, press (DSPL). RDS services This unit automatically provides RDS services as follows: AF (Alternative Frequencies) Selects and retunes the station with the strongest signal in a network. By using this function, you can continuously listen to the same program during a long-distance drive without having to retune the same station manually. TA (Traffic Announcement)/TP (Traffic Program) Provides current traffic information/programs. Any information/program received, will interrupt the currently selected source. PTY (Program Types) Displays the currently received program type. Also searches your selected program type. CT (Clock Time) The CT data from the RDS transmission sets the clock. Notes

• Depending on the country/region, not all RDS functions may be available.
• RDS will not work if the signal strength is too weak, or if the station you are tuned to is not transmitting RDS data. You can preset RDS stations along with the AF/ TA setting. If you use the BTM function, only RDS stations are stored with the same AF/TA setting. If you preset manually, you can preset both RDS and non-RDS stations with the AF/TA setting for each. 1 Set AF/TA, then store the station with BTM or manually. Receiving emergency announcements With AF or TA on, the emergency announcements will automatically interrupt the currently selected source. Tip If you adjust the volume level during a traffic announcement, that level will be stored into memory for subsequent traffic announcements, independently from the regular volume level. Staying with one regional program — REG When the AF function is on: this unit’s factory setting restricts reception to a specific region, so you will not be switched to another regional station with a stronger frequency. If you leave this regional program’s reception area, set “REG-OFF” in setup during FM reception (page 26). Note This function does not work in the UK and in some other areas. Local Link function (UK only) This function enables you to select other local stations in the area, even if they are not stored on your number buttons. 1 During FM reception, press a number button ((1) to (6)) on which a local station is stored. continue to next page t

2 Within 5 seconds, press again a number button of the local station. Repeat this procedure until the local station is received.

Press and hold (AF/TA) (PTY) during FM reception. The current program type name appears if the station is transmitting PTY data.

Press (AF/TA) (PTY) repeatedly until the desired program type appears.

*1 The information of a CD TEXT, MP3/WMA/AAC is displayed. *2 Album number is displayed only when the album is changed. Press (SEEK) +/–. The unit starts to search for a station broadcasting the selected program type. To change display items B, press (DSPL). Type of programs NEWS (News), AFFAIRS (Current Affairs), INFO (Information), SPORT (Sports), EDUCATE (Education), DRAMA (Drama), CULTURE (Culture), SCIENCE (Science), VARIED (Varied), POP M (Pop Music), ROCK M (Rock Music), EASY M (M.O.R. Music), LIGHT M (Light classical), CLASSICS (Serious classical), OTHER M (Other Music), WEATHER (Weather), FINANCE (Finance), CHILDREN (Children’s program), SOCIAL A (Social Affairs), RELIGION (Religion), PHONE IN (Phone In), TRAVEL (Travel), LEISURE (Leisure), JAZZ (Jazz Music), COUNTRY (Country Music), NATION M (National Music), OLDIES (Oldies Music), FOLK M (Folk Music), DOCUMENT (Documentary) Note You cannot use this function in countries/regions where no PTY data is available. Setting CT

Set “CT-ON” in setup (page 26). Notes

• The CT function may not work even though an RDS station is being received.
• There might be a difference between the time set by the CT function and the actual time.

A Source B Track name*1, Disc/artist name*1, Artist name*1, Album number*2, Album name*1, Track number/Elapsed playing time, Clock Tip Displayed items may differ depending on model, disc type, recording format and settings. Repeat and shuffle play

During playback, press (3) (REP) or (4) (SHUF) repeatedly until the desired setting appears. Select TRACK ALBUM* To play track repeatedly. album repeatedly. SHUF ALBUM* album in random order. SHUF DISC disc in random order.

• When an MP3/WMA/AAC is played. To return to normal play mode, select “ or “SHUF OFF.” OFF” USB devices Display items For details on the compatibility of your USB device, visit the support site. Support site http://support.sony-europe.com/
• MSC (Mass Storage Class) and MTP (Media Transfer Protocol) type USB devices compliant with the USB standard can be used.
• Corresponding codec is MP3 (.mp3), WMA (.wma) and AAC (.m4a).
• Backup of data in a USB device is recommended. Note Connect the USB device after starting the engine. Depending on the USB device, malfunction or damage may occur if it is connected before starting the engine. Playing back a USB device

Connect the USB device to the USB connector. When using a cable, use the one supplied with the USB device to connect. A Source B Track name, Artist name, Album number*, Album name, Track number/Elapsed playing time, Clock

• Album number is displayed only when the album is changed. To change display items B, press (DSPL). Notes
• Displayed items will differ, depending on the USB device, recorded format and settings. For details, visit the support site.
• The maximum number of displayable data is as follows. – folders (albums): 128 – files (tracks) per folder: 500
• Do not leave a USB device in a parked car, as malfunction may result.
• It may take time for playback to begin, depending on the amount of recorded data.
• DRM (Digital Rights Management) files may not be played.
• During playback or fast-forward/reverse of a VBR (Variable Bit Rate) MP3/WMA/AAC file, elapsed playing time may not display accurately.
• Playback of the following MP3/WMA/AAC files is not supported. – lossless compression – copyright-protected Repeat and shuffle play Playback starts. If a USB device is already connected, to start playback, press (SOURCE/OFF) repeatedly until “USB” appears. Press (SOURCE/OFF) for 1 second to stop playback.

During playback, press (3) (REP) or (4) (SHUF) repeatedly until the desired setting appears. Select To play TRACK track repeatedly. ALBUM album repeatedly. Removing the USB device SHUF ALBUM album in random order. 1 Stop the USB device playback. 2 Remove the USB device. If you remove your USB device during playback, data in the USB device may be damaged. SHUF DEVICE device in random order. Notes

• Do not use USB devices so large or heavy that they may fall down due to vibration, or cause a loose connection.
• Do not detach the front panel during playback of the USB device, otherwise USB data may be damaged.
• This unit cannot recognize USB devices via a USB hub. After 3 seconds, the setting is complete. To return to normal play mode, select “ or “SHUF OFF. ” OFF”

RESUMING t ALBUM t TRACK t PODCAST* t GENRE t PLAYLIST t ARTIST iPod For details on the compatibility of your iPod, see “About iPod” on page 28 or visit the support site. In these Operating Instructions, “iPod” is used as a general reference for the iPod functions on the iPod and iPhone, unless otherwise specified by the text or illustrations.

• May not appear depending on iPod setting.

Adjust the volume. Press (SOURCE/OFF) for 1 second to stop playback. Removing the iPod 1 Stop the iPod playback. 2 Remove the iPod. Support site http://support.sony-europe.com/ Playing back iPod Before connecting the iPod, turn down the volume of the unit.

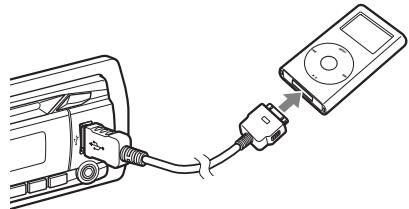

Connect the iPod to the USB connector via the dock connector to USB cable. Caution for iPhone When you connect an iPhone via USB, telephone volume is controlled by iPhone itself. In order to avoid sudden loud sound after a call, do not increase the volume on the unit during a telephone call. Notes

• Do not detach the front panel during playback of the iPod, otherwise data may be damaged.
• This unit cannot recognize iPod via a USB hub.

• When the ignition key is turned to the ACC position, and the unit is on, the iPod will be recharged.
• If the iPod is disconnected during playback, “NO DEV” appears in the display of the unit.

Resuming mode The iPod will turn on automatically, and the display will appear on the iPod screen as below.* When the iPod is connected to the dock connector, the mode of this unit changes to resuming mode and playback starts in the mode set by the iPod. In resuming mode, the following buttons do not function. – (3) (REP) – (4) (SHUF) Display items Tip We recommend the RC-100IP USB cable (not supplied) to connect the dock connector. The tracks on the iPod start playing automatically from the point last played. If an iPod is already connected, to start playback press (SOURCE/OFF) repeatedly until “USB” appears. (“IPD” appears in the display when iPod is recognized.)

• In the case of an iPod touch or iPhone being connected, or that the iPod was last played back using passenger control, the logo will not appear on the screen.

Press (MODE) to select the play mode. The mode changes as follows: A Source (iPod) indication B Track name, Artist name, Album name, Track number/Elapsed playing time, Clock To change display items B, press (DSPL). Tip When album/podcast/genre/artist/playlist is changed, its item number appears momentarily. Note Some letters stored in iPod may not be displayed correctly. Setting the play mode

During playback, press (MODE). The mode changes as follows: ALBUM t TRACK t PODCAST* t GENRE t PLAYLIST t ARTIST Skipping albums, podcasts, genres, playlists and artists Press Skip (1)/(2) (ALBM –/+) [press once for each] Skip continuously (1)/(2) (ALBM –/+) [hold to desired point] To exit the passenger control Press and hold (MODE). Then “MODE AUDIO” will appear and the play mode will change to “RESUMING.” During playback, press (3) (REP) or (4) (SHUF) repeatedly until the desired setting appears. Select During playback, press and hold (MODE). “MODE IPOD” appears and you will be able to operate the iPod directly. To change the display item Press (DSPL). The display items change as follows: Track name t Artist name t Album name t MODE IPOD t Clock Repeat and shuffle play

You can operate an iPod connected to the dock connector directly.

• May not appear depending on iPod setting.

Operating an iPod directly — Passenger control Notes

• The volume can be adjusted only by the unit.
• If this mode is canceled, the repeat setting will be turned off. To play TRACK track repeatedly. ALBUM album repeatedly. PODCAST podcast repeatedly. ARTIST artist repeatedly. PLAYLIST playlist repeatedly. GENRE genre repeatedly. SHUF ALBUM album in random order. SHUF PODCAST podcast in random order. SHUF ARTIST artist in random order. SHUF PLAYLIST playlist in random order. SHUF GENRE genre in random order. SHUF DEVICE device in random order. After 3 seconds, the setting is complete. To return to normal play mode, select “ or “SHUF OFF.” OFF”

A list of detected devices appears in the display of the device to be connected. This unit is displayed as “XPLOD” on the device to be connected. Bluetooth (Handsfree calling and Music streaming) Bluetooth operations To use the Bluetooth function, the following procedure is necessary. 1 Pairing When connecting Bluetooth devices for the first time, mutual registration is required. This is called “pairing.” This registration (pairing) is required only for the first time, as this unit and the other devices will recognize each other automatically from the next time. You can pair up to 8 devices. (Depending on the device, you may need to input a passkey for each connection.) 2 Connection To use the device after pairing is made, start the connection. Sometimes pairing allows to connect automatically. 3 Handsfree calling/Music streaming You can talk handsfree and listen to music when the connection is made. DR-BT30Q XPLOD XXXXXXX

If Passkey* input is required on the display of the device to be connected, input “0000.” Input passkey. XXXX “0000” This unit and the Bluetooth device memorize each other’s information, and when pairing is made, the unit is ready for connection to the device. Support site http://support.sony-europe.com/ “ ” flashes and then stays lit after pairing is complete. Pairing

First, register (“pair”) a Bluetooth device (cellular phone, etc.) and this unit with each other. You can pair up to 8 devices. Once pairing is established, there is no need for pairing again.

Place the Bluetooth device within 1 m (3 ft) of this unit.

Press and hold (BT) until “ ” flashes (about 5 seconds). The unit enters pairing standby mode. Set the Bluetooth device to connect to this unit. “ ” or “ ” appears when the connection is made.

• Passkey may be called “passcode,” “PIN code,” “PIN number” or “Password,” etc., depending on the device. Note Pairing standby mode is not released until the connection is made. About Bluetooth icons The following icons are used by this unit. flashing

Set the Bluetooth device to search for this unit. lit: flashing: off: Bluetooth signal on Pairing standby mode Bluetooth signal off lit: flashing: off: Connection successful Connecting No connection lit: flashing: off: Connection successful Connecting No connection Connection If pairing has already been achieved, start operation from here. To switch the Bluetooth signal output of this unit to on Connecting an audio device

Be sure that both this unit and the audio device are switched to Bluetooth signal on.

Connect to this unit using the audio device. “ ” appears when the connection is made. To use the Bluetooth function, switch the Bluetooth signal output of this unit to on.

Press and hold (BT) until “ ” lights (about 3 seconds). Bluetooth signal is switched to on. Connecting a cellular phone

Be sure that both this unit and the cellular phone are switched to Bluetooth signal on.

Connect to this unit using the cellular phone. “ ”appears when the connection is made. Connecting the last-connected audio device from this unit 1 Be sure that both this unit and the audio device are switched to Bluetooth signal on. 2 Press (SOURCE/OFF) repeatedly until “BT AUDIO” appears. 3 Press (6). “ ” flashes while the connection is being made. And then “ ” stays lit when the connection is made. Handsfree calling Check that the unit and cellular phone are connected beforehand. Connecting the last-connected cellular phone from this unit 1 Be sure that both this unit and the cellular phone are switched to Bluetooth signal on. 2 Press (SOURCE/OFF) repeatedly until “BT PHONE” appears. 3 Press (handsfree). “ ” flashes while the connection is being made. And then “ ” stays lit when the connection is made. Note While streaming Bluetooth audio, you cannot connect from this unit to the cellular phone. Connect from the cellular phone to this unit instead. A connecting noise may be heard over playback sound. Tip With Bluetooth signal on: when the ignition is switched to on, this unit reconnects automatically to the lastconnected cellular phone. But automatic connection also depends on the cellular phone’s specification. If this unit does not reconnect automatically, connect manually. Receiving calls When receiving a call, a ring tone is output from your car speakers.

Press (handsfree) when a call is received with a ring tone. The phone call starts. To end a call Press (handsfree) again. To reject an incoming call, press and hold (handsfree) for 2 seconds. Mic Gain adjustment You can switch between two volume levels (“LOW” or “HI”) to set a suitable level for the other party during a call. 1 Press (5) during a call. The item changes as follows: MIC-LOW y MIC-HI Note The microphone of this unit is located on the rear of the front panel (page 12). Do not cover the microphone with tape, etc.

Making calls In the case of making calls from this unit, redial is used.

Press (SOURCE/OFF) repeatedly until “BT PHONE” appears.

Press and hold (handsfree) for 3 seconds or more. The phone call starts. To end a call Press (handsfree) again. To call another phone, use your cellular phone, and then transfer the call. For call transfer details, check the following. Notes

• Check that unit and cellular phone are connected beforehand.
• Store a voice tag on your cellular phone beforehand.
• If you activate voice dialing with a cellular phone connected to this unit, this function may not always work in some cases.
• Noises such as the engine running may interfere with sound recognition. In order to improve recognition, operate under conditions where noise is minimized.
• Voice dialing may not work in some situations, depending on the effectiveness of the cellular phone’s recognition function. For details, see the support site (page 22). Tips
• Speak in the same way as you did when you stored the voice tag.
• Store a voice tag while seated in the car, via this unit with “BT PHONE” source selected. Call transfer In order to activate/deactivate the appropriate device (this unit/cellular phone), check the following.

Press and hold (handsfree) or use your cellular phone. For details on cellular phone operation, refer to your cellular phone manual. Note Depending on the cellular phone, handsfree connection may be cut off when call transfer is attempted.

Music streaming Listening to music from an audio device You can listen to music of an audio device on this unit if the audio device supports A2DP (Advanced Audio Distribution Profile) of Bluetooth technology.

Turn down the volume on this unit. Voice Dial Activation

You can activate voice dialing with a cellular phone connected to this unit by saying the voice tag stored on the cellular phone, then make a call. Operate the audio device to start playback.

Adjust the volume on this unit.

Press (SOURCE/OFF) repeatedly until “BT PHONE” appears. Adjusting the volume level

Press (handsfree). The cellular phone enters voice dialing mode.

Say the voice tag stored on the cellular phone. Your voice is recognized, and the call is made. Press (SOURCE/OFF) repeatedly until “BT AUDIO” appears. The volume level is adjustable for any difference between the unit and the Bluetooth audio device. 1 Start playback of the Bluetooth audio device at a moderate volume. 2 Set your usual listening volume on the unit. 3 Press the select button repeatedly until “BTA” appears, and rotate the volume control dial to adjust the input level (–8 dB to +18 dB). Operating an audio device with this unit Other functions Changing the sound settings You can perform the following operations on this unit if the audio device supports AVRCP (Audio Video Remote Control Profile) of Bluetooth technology. (The operation differs depending on the audio device.) Adjusting the sound characteristics

Play (6) (PAUSE)* on this unit. Press the select button repeatedly until the desired item appears. Pause (6) (PAUSE)* on this unit.

Rotate the control dial to adjust the selected item. Skip tracks SEEK –/+ (./>) [once for each track]

Press (BACK). The setting is complete and the display returns to normal reception/play mode.

• Depending on the device, it may be necessary to press twice. Operations other than the above should be performed on the audio device. Notes
• During audio device playback, information such as track number/time, playback status, etc., of a connected audio device is not displayed on this unit.
• Even if the source is changed on this unit, playback of the audio device does not stop. Tip You can connect a cellular phone that supports A2DP (Advanced Audio Distribution Profile) as an audio device and listen to music. Deleting registration of all paired devices

Press and hold (SOURCE/OFF) for 1 second to turn off the power.

If “ ” lights, press and hold (BT) until “ ” turns off.

Press (SEEK) +. Initializing starts. It takes 3 seconds to cancel all registration. Do not turn off the power while “INITIAL” is flashing. Press the select button repeatedly until “BT INIT” appears. The following items can be set (follow the page reference for details): EQ3 Selects an equalizer curve from 7 music types (XPLOD, VOCAL, EDGE, CRUISE, SPACE, GRAVITY, CUSTOM or OFF). LOW*1, MID*1, HI*1 (page 26) BAL (Balance) Adjusts the sound balance between the left and right speakers. FAD (Fader) Adjusts the relative level between the front and rear speakers. SUB*2 (Subwoofer volume) Adjusts the subwoofer volume. AUX*3 (AUX level) Adjusts the volume level for each connected auxiliary equipment: “+18 dB” – “0 dB” – “–8 dB.” This setting negates the need to adjust the volume level between sources. BTA*4 (BT-Audio level) Adjusts the volume level for each connected Bluetooth audio device: “+18 dB” – “0 dB” – “–8 dB.” This setting negates the need to adjust the volume level between sources (page 24). *1 When EQ3 is activated. *2 “ATT” is displayed at the lowest setting, and can be adjusted up to 21 steps. *3 When AUX source is activated (page 27). *4 When Bluetooth audio source is activated (page 24).

Customizing the equalizer curve — EQ3 “CUSTOM” of EQ3 allows you to make your own equalizer settings.

Select a source, then press the select button repeatedly to select “EQ3.”

Rotate the control dial to select “CUSTOM.”

Press the select button repeatedly until “LOW,” “MID” or “HI” appears.

Rotate the control dial to adjust the selected item. The volume level is adjustable in 1 dB steps, from –10 dB to +10 dB. Repeat steps 3 and 4 to adjust the equalizer curve. To restore the factory-set equalizer curve, press and hold the select button before the setting is complete.

Press (BACK). The setting is complete and the display returns to normal reception/play mode. Tip Other equalizer types are also adjustable. Adjusting setup items — SET

Press and hold the select button. The setup display appears.

Press the select button repeatedly until the desired item appears.

Rotate the control dial to select the setting (example “ON” or “OFF”).

Press and hold the select button. The setup is complete and the display returns to normal reception/play mode. Note Displayed items will differ, depending on the source and setting. The following items can be set (follow the page reference for details):

CLOCK-ADJ (Clock Adjust) (page 7) CT (Clock Time) Activates the CT function: “ON,” “OFF” (page 17, 18). BEEP Activates the beep sound: “ON,” “OFF.” AUX-A*1 (AUX Audio) Activates the AUX source display: “ON,” “OFF” (page 27). A.OFF (Auto Off) Shuts off automatically after a desired time when the unit is turned off: “NO,” “30S (Seconds),” “30M (Minutes),” “60M (Minutes).” MIC*1 (Microphone) – “EXT”: to automatically switch to the external microphone when it is connected. – “INT”: to select only the internal microphone. DEMO (Demonstration) Activates the demonstration: “ON,” “OFF.” DIM (Dimmer) Changes the display brightness: “ON,” “OFF.” A.SCRL (Auto Scroll) Scrolls long items automatically: “ON,” “OFF.” LOCAL (Local Seek Mode) – “ON”: to only tune into stations with stronger signals. – “OFF”: to tune normal reception. MONO*2 (Monaural Mode) Selects monaural reception mode to improve poor FM reception: “ON,” “OFF.” REG*2 (Regional) Restricts reception to a specific region: “ON,” “OFF” (page 17). Z.TIME (Zappin Time) Selects the playback time for the ZAPPIN function. – “Z.TIME-1 (about 6 seconds),” “Z.TIME-2 (about 9 seconds),” “Z.TIME-3 (about 30 seconds).” LPF (Low Pass Filter) Selects the subwoofer cut-off frequency: “OFF,” “80Hz,” “100Hz,” “120Hz,” “140Hz,” “160Hz.” LPF NORM/REV (Low Pass Filter Normal/ Reverse) Selects the subwoofer phase: “NORM,” “REV.” HPF (High Pass Filter) Selects the front/rear speaker cut-off frequency: “OFF,” “80Hz,” “100Hz,” “120Hz,” “140Hz,” “160Hz.” LOUD (Loudness) Reinforces bass and treble for clear sound at low volume levels: “ON,” “OFF.” DM+ Activates the DM+ function: “ON,”“OFF.” BTM (page 16) BT INIT*1 (Bluetooth Initialize) (page 25) *1 When the unit is turned off. *2 When FM is received. Using optional equipment Auxiliary audio equipment By connecting an optional portable audio device to the AUX input jack (stereo mini jack) on the unit and then simply selecting the source, you can listen on your car speakers. The volume level is adjustable for any difference between the unit and the portable audio device. Follow the procedure below: Connecting the portable audio device 1 Turn off the portable audio device. 2 Turn down the volume on the unit. 3 Connect to the unit. External microphone XA-MC10 By connecting an optional external microphone to the microphone input connector, you can improve audio quality while talking through this unit. External microphone Connecting cord Clamps Tip You can set the priority of the microphones (page 26). Note Connect XA-MC10 as the external microphone. You may not be able to call or malfunction may occur if another device is connected. Connecting cord* (not supplied)

• Be sure to use a straight type plug. Adjust the volume level Be sure to adjust the volume for each connected audio device before playback. 1 Turn down the volume on the unit. 2 Press (SOURCE/OFF) repeatedly until “AUX” appears. After that, “AUX FRONT IN” appears. 3 Start playback of the portable audio device at a moderate volume. 4 Set your usual listening volume on the unit. 5 Adjust the input level (page 25).

Additional Information Precautions

• Cool off the unit beforehand if your car has been parked in direct sunlight.
• Power antenna (aerial) extends automatically. Moisture condensation – CD-R/CD-RW other than those recorded in music CD format or MP3 format conforming to ISO9660 Level 1/Level 2, Joliet/Romeo or multi-session. Playback order of MP3/WMA/AAC files

Should moisture condensation occur inside the unit, remove the disc and wait for about an hour for it to dry out; otherwise the unit will not operate properly. Folder (album) MP3/WMA/ AAC file (track) To maintain high sound quality Do not splash liquid onto the unit or discs. Notes on discs

• Do not expose discs to direct sunlight or heat sources such as hot air ducts, nor leave it in a car parked in direct sunlight.
• Before playing, wipe the discs with a cleaning cloth from the center out. Do not use solvents such as benzine, thinner, commercially available cleaners.
• This unit is designed to playback discs that conform to the Compact Disc (CD) standard. DualDiscs and some of the music discs encoded with copyright protection technologies do not conform to the Compact Disc (CD) standard, therefore, these discs may not be playable by this unit.
• Discs that this unit CANNOT play – Discs with labels, stickers, or sticky tape or paper attached. Doing so may cause a malfunction, or may ruin the disc. – Discs with non-standard shapes (e.g., heart, square, star). Attempting to do so may damage the unit. – 8 cm (3 1/4 in) discs. Notes on CD-R/CD-RW discs
• The maximum number of: (CD-R/CD-RW only) – folders (albums): 150 (including root folder) – files (tracks) and folders: 300 (may less than 300 if folder/file names contain many characters) – displayable characters for a folder/file name: 32 (Joliet)/64 (Romeo)
• If the multi-session disc begins with a CD-DA session, it is recognized as a CD-DA disc, and other sessions are not played back.
• Discs that this unit CANNOT play – CD-R/CD-RW of poor recording quality. – CD-R/CD-RW recorded with an incompatible recording device. – CD-R/CD-RW which is finalized incorrectly.

• You can connect to the following iPod models. Update your iPod devices to the latest software before use. Made for – iPod touch – iPod touch (2nd generation) – iPod classic – iPod classic (120 GB) – iPod with video* – iPod nano (4th generation) – iPod nano (3rd generation) – iPod nano (2nd generation) – iPod nano (1st generation)* Works with – iPhone – iPhone 3G – iPhone 3GS
• Passenger control is not available for iPod nano (1st generation) or iPod with video.

• “Made for iPod” means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards.
• “Works with iPhone” means that an electronic accessory has been designed to connect specifically to iPhone and has been certified by the developer to meet Apple performance standards.
• Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. About Bluetooth function What is Bluetooth technology?
• Bluetooth wireless technology is a short-range wireless technology that enables wireless data communication between digital devices, such as a cellular phone and a headset. Bluetooth wireless technology operates within a range of about 10 m (about 33 feet). Connecting two devices is common, but some devices can be connected to multiple devices at the same time.
• You do not need to use a cable for connection since Bluetooth technology is a wireless technology, neither is it necessary for the devices to face one another, such is the case with infrared technology. For example, you can use such a device in a bag or pocket.
• Bluetooth technology is an international standard supported by millions of companies all over the world, and employed by various companies worldwide. On Bluetooth communication
• Bluetooth wireless technology operates within a range of about 10 m. Maximum communication range may vary depending on obstacles (person, metal, wall, etc.) or electromagnetic environment.
• The following conditions may affect the sensitivity of Bluetooth communication. – There is an obstacle such as a person, metal, or wall between this unit and Bluetooth device. – A device using 2.4 GHz frequency, such as a wireless LAN device, cordless telephone, or microwave oven, is in use near this unit.
• Because Bluetooth devices and wireless LAN (IEEE802.11b/g) use the same frequency, microwave interference may occur and result in communication speed deterioration, noise, or invalid connection if this unit is used near a wireless LAN device. In such as case, perform the following. – Use this unit at least 10 m away from the wireless LAN device. – If this unit is used within 10 m of a wireless LAN device, turn off the wireless LAN device. – Install this unit and Bluetooth device as near to each other as possible.
• Microwaves emitting from a Bluetooth device may affect the operation of electronic medical devices. Turn off this unit and other Bluetooth devices in the following locations, as it may cause an accident. – where inflammable gas is present, in a hospital, train, airplane, or petrol station – near automatic doors or a fire alarm
• This unit supports security capabilities that comply with the Bluetooth standard to provide a secure connection when the Bluetooth wireless technology is used, but security may not be enough depending on the setting. Be careful when communicating using Bluetooth wireless technology.

• We do not take any responsibility for the leakage of information during Bluetooth communication.
• Connection with all Bluetooth devices cannot be guaranteed. – A device featuring Bluetooth function is required to conform to the Bluetooth standard specified by Bluetooth SIG, and be authenticated. – Even if the connected device conforms to the above mentioned Bluetooth standard, some devices may not be connected or work correctly, depending on the features or specifications of the device. – While talking on the phone hands free, noise may occur, depending on the device or communication environment.
• Depending on the device to be connected, it may require some time to start communication. Others
• Using the Bluetooth device may not function on cellular phones, depending on radio wave conditions and location where the equipment is being used.
• If you experience discomfort after using the Bluetooth device, stop using the Bluetooth device immediately. Should any problem persist, consult your nearest Sony dealer. If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer. Maintenance Replacing the lithium battery of the card remote commander Under normal conditions, the battery will last approximately 1 year. (The service life may be shorter, depending on the conditions of use.) When the battery becomes weak, the range of the card remote commander becomes shorter. Replace the battery with a new CR2025 lithium battery. Use of any other battery may present a risk of fire or explosion. + side up

continue to next page t

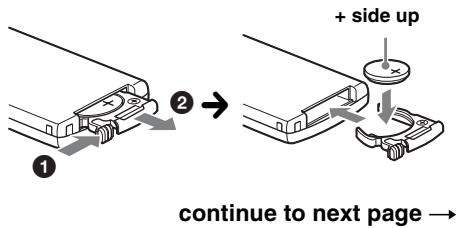

Notes on the lithium battery

• Keep the lithium battery out of the reach of children. Should the battery be swallowed, immediately consult a doctor.
• Wipe the battery with a dry cloth to assure a good contact.
• Be sure to observe the correct polarity when installing the battery.
• Do not hold the battery with metallic tweezers, otherwise a short-circuit may occur. Removing the unit

Remove the protection collar. 1 Detach the front panel (page 7). 2 Pinch both edges of the protection collar, then pull it out. WARNING Battery may explode if mistreated. Do not recharge, disassemble, or dispose of in fire.

Fuse replacement When replacing the fuse, be sure to use one matching the amperage rating stated on the original fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer. Fuse (10 A) Cleaning the connectors The unit may not function properly if the connectors between the unit and the front panel are not clean. In order to prevent this, detach the front panel (page 7) and clean the connectors with a cotton swab. Do not apply too much force. Otherwise, the connectors may be damaged.

Remove the unit. 1 Insert both release keys simultaneously until they click. Hook facing inwards. 2 Pull the release keys to unseat the unit. Main unit Back of the front panel Notes

• For safety, turn off the ignition before cleaning the connectors, and remove the key from the ignition switch.
• Never touch the connectors directly with your fingers or with any metal device.

3 Slide the unit out of the mounting. Specifications Tuner section Tuning range: 87.5 – 108.0 MHz Antenna (aerial) terminal: External antenna (aerial) connector Intermediate frequency: 150 kHz Usable sensitivity: 10 dBf Selectivity: 75 dB at 400 kHz Signal-to-noise ratio: 70 dB (mono) Separation: 40 dB at 1 kHz Frequency response: 20 – 15,000 Hz MW/LW Tuning range: MW: 531 – 1,602 kHz LW: 153 – 279 kHz Antenna (aerial) terminal: External antenna (aerial) connector Intermediate frequency: 25 kHz Sensitivity: MW: 26 µV, LW: 45 µV CD Player section Signal-to-noise ratio: 120 dB Frequency response: 10 – 20,000 Hz Wow and flutter: Below measurable limit USB Player section Interface: USB (Full-speed) Maximum current: 500 mA Wireless Communication Communication System: Bluetooth Standard version 2.0 Output: Bluetooth Standard Power Class 2 (Max. +4 dBm) Maximum communication range: Line of sight approx. 10 m (33 ft)*1 Frequency band:

2.4 GHz band (2.4000 – 2.4835 GHz)

Modulation method: FHSS Compatible Bluetooth Profiles*2: A2DP (Advanced Audio Distribution Profile) AVRCP (Audio Video Remote Control Profile) HFP (Handsfree Profile) 1.5 HSP (Headset Profile) Power antenna (aerial) relay control terminal Power amplifier control terminal Inputs: BUS control input terminal BUS audio input terminal Telephone ATT control terminal Remote controller input terminal Antenna (aerial) input terminal MIC input terminal AUX input jack (stereo mini jack) USB signal input connector Tone controls: Low: ±10 dB at 60 Hz (XPLOD) Mid: ±10 dB at 1 kHz (XPLOD) High: ±10 dB at 10 kHz (XPLOD) Power requirements: 12 V DC car battery (negative ground (earth)) Dimensions: Approx. 178 × 50 × 179 mm (7 1/8 × 2 × 7 1/8 in) (w/h/d) Mounting dimensions: Approx. 182 × 53 × 162 mm (7 1/4 × 2 1/8 × 6 1/2 in) (w/h/d) Mass: Approx. 1.2 kg (2 lb 11 oz) Supplied accessories: Card remote commander: RM-X304 Parts for installation and connections (1 set) Optional accessories/equipment: BUS cable (supplied with an RCA pin cord): RC-61 (1 m), RC-62 (2 m) Source selector: XA-C40 USB connection cable for iPod: RC-100IP External microphone: XA-MC10 Your dealer may not handle some of the above listed accessories. Please ask the dealer for detailed information. Design and specifications are subject to change without notice.

• Halogenated flame retardants are not used in the certain printed wiring boards.
• Halogenated flame retardants are not used in cabinets.
• Packaging cushions are made from paper. *1 The actual range will vary depending on factors such as obstacles between devices, magnetic fields around a microwave oven, static electricity, reception sensitivity, antenna’s performance, operating system, software application, etc. *2 Bluetooth standard profiles indicate the purpose of Bluetooth communication between devices. Power amplifier section Output: Speaker outputs (sure seal connectors) Speaker impedance: 4 – 8 ohms Maximum power output: 52 W × 4 (at 4 ohms) General Outputs: Audio outputs terminal (front/rear) Subwoofer output terminal (mono)

Troubleshooting The following checklist will help you remedy problems you may encounter with your unit. Before going through the checklist below, check the connection and operating procedures. If the problem is not solved, visit the following support site. Support site http://support.sony-europe.com/ General No power is being supplied to the unit.

• Check the connection or fuse.
• If the unit is turned off and the display disappears, it cannot be operated with the remote commander. t Turn on the unit. The power antenna (aerial) does not extend. The power antenna (aerial) does not have a relay box. No sound.
• The ATT function is activated, or the Telephone ATT function (when the interface cable of a car telephone is connected to the ATT lead) is activated.
• The position of the fader control “FAD” is not set for a 2-speaker system.
• The Bluetooth audio device is in pause. t Cancel pause. No beep sound.
• The beep sound is canceled (page 26).
• An optional power amplifier is connected and you are not using the built-in amplifier. The contents of the memory have been erased.
• The RESET button has been pressed. t Store again into the memory.
• The power supply lead or battery has been disconnected or it is not connected properly. Stored stations and correct time are erased. The fuse has blown. Makes noise when the position of the ignition is switched. The leads are not matched correctly with the car’s accessory power connector. During playback or reception, demonstration mode starts. If no operation is performed for 5 minutes with “DEMO-ON” set, demonstration mode starts. t Set “DEMO-OFF” (page 26). The display disappears from/does not appear in the display window.
• The dimmer is set to “DIM-ON” (page 26).
• The display disappears if you press and hold (SOURCE/OFF). t Press (SOURCE/OFF) on the unit until the display appears.
• The connectors are dirty (page 30).

The Auto Off function does not operate. The unit is turned on. The Auto Off function activates after turning off the unit. t Turn off the unit. Radio reception The stations cannot be received. The sound is hampered by noises.

• The connection is not correct. t Connect a power antenna (aerial) control lead (blue) or accessory power supply lead (red) to the power supply lead of a car’s antenna (aerial) booster (only when your car has built-in FM/ MW/LW antenna (aerial) in the rear/side glass). t Check the connection of the car antenna (aerial). t If the auto antenna (aerial) will not go up, check the connection of the power antenna (aerial) control lead. Preset tuning is not possible.
• Store the correct frequency in the memory.
• The broadcast signal is too weak. Automatic tuning is not possible.
• Setting of the local seek mode is not correct. t Tuning stops too frequently: Set “LOCAL-ON” (page 26). t Tuning does not stop at a station: Set “LOCAL-OFF” (page 26).
• The broadcast signal is too weak. t Perform manual tuning. During FM reception, the “ST” indication flashes.
• Tune in the frequency accurately.
• The broadcast signal is too weak. t Set “MONO-ON” (page 26). An FM program broadcast in stereo is heard in monaural. The unit is in monaural reception mode. t Set “MONO-OFF” (page 26). RDS The SEEK starts after a few seconds of listening. The station is non-TP or has weak signal. t Deactivate TA (page 17). No traffic announcements.
• Activate TA (page 17).
• The station does not broadcast any traffic announcements despite being TP. t Tune in another station. PTY displays “- - - - - - - -.”
• The current station is not an RDS station.
• RDS data has not been received.
• The station does not specify the program type. CD playback The disc cannot be loaded.
• Another disc is already loaded.
• The disc has been forcibly inserted upside down or in the wrong way. The disc does not play back.
• Defective or dirty disc.
• The CD-Rs/CD-RWs are not for audio use (page 28). MP3/WMA/AAC files cannot be played back. The disc is incompatible with the MP3/WMA/AAC format and version. For details on playable discs and formats, visit the support site. MP3/WMA/AAC files take longer to play back than others. The following discs take a longer time to start playback. – a disc recorded with a complicated tree structure. – a disc recorded in Multi Session. – a disc to which data can be added. The display items do not scroll.
• For discs with very many characters, those may not scroll.
• “A.SCRL” is set to “OFF.” t Set “A.SCRL-ON” (page 26). t Press and hold (DSPL) (SCRL). The sound skips.
• Installation is not correct. t Install the unit at an angle of less than 45° in a sturdy part of the car.
• Defective or dirty disc. The operation buttons do not function. The disc will not eject. Press the RESET button (page 6). USB playback You cannot play back items via a USB hub. This unit cannot recognize USB devices via a USB hub. Cannot play back items. A USB device does not work. t Reconnect it. The USB device takes longer to play back. The USB device contains files with a complicated tree structure. A beep sounds. During playback, the USB device has been disconnected. t Before disconnecting a USB device, make sure to stop playback first for data protection. The sound is intermittent. The sound may be intermittent at a high-bit-rate of more than 320 kbps. Bluetooth function The connecting device cannot detect this unit.
• Before the pairing is made, set this unit to pairing standby mode.
• While connected to a Bluetooth device, this unit cannot be detected from another device. Disconnect the current connection and search for this unit from another device.
• When the device pairing is made, set the Bluetooth signal output to on (page 23). Connection is not possible.
• Connect to this unit from a Bluetooth device or vice versa. The connection is controlled from one side (this unit or Bluetooth device), but not both.
• Check the pairing and connection procedures in the manual of the other device, etc., and perform the operation again. The talker’s voice volume is low. Adjust the volume level. A call partner says that the volume is too low or high. Adjust the volume accordingly using Mic Gain adjustment (page 23). Echo or noise occurs in phone call conversations.
• If the ambient noise other than the phone call sound is loud, try reducing this noise. E.g.: If a window is open and road noise, etc., is loud, shut the window. If the air conditioner is loud, lower the air conditioner. The phone is not connected. When the Bluetooth audio is played back, the phone is not connected even if you press (handsfree). t Connect from the phone. The phone sound quality is poor. Phone sound quality depends on reception conditions of cellular phone. t Move your car to a place where you can enhance the cellular phone’s signal if the reception is poor. The volume of the connected audio device is low (high). Volume level will differ depending on the audio device. t Adjust the volume of the connected audio device or this unit. The sound skips during playback of a Bluetooth audio device.
• Reduce the distance between the unit and the Bluetooth audio device.
• If the Bluetooth audio device is stored in a case which interrupts the signal, remove the audio device from the case while using.
• Several Bluetooth devices or other devices which emit radio waves are used nearby. t Turn off the other devices. t Increase the distance from the other devices.
• The playback sound stops momentarily when the connection between this unit and the cellular phone is being made. This is not a malfunction. The connected Bluetooth audio device cannot be controlled. Check that the connected Bluetooth audio device supports AVRCP. Some functions do not work. Check if the connecting device supports the functions in question. continue to next page t

A call is answered unintentionally. The connecting phone is set to answer a call automatically. No sound is output from the car speakers during handsfree call. If the sound is output from the cellular phone, set the cellular phone to output the sound from the car speakers. “OFF BT” appears when initializing. Press and hold (BT) until “ ” turns off. Then initialize again (page 25). The external microphone does not work. The setting of the microphone is not correct. t Set “MIC-EXT” (page 26). Error displays/Messages

CHECKING The unit is confirming the connection of a USB device. t Wait until confirming the connection is finished. ERROR

• The disc is dirty or inserted upside down. t Clean or insert the disc correctly.
• A blank disc has been inserted.
• The disc cannot play due to a problem. t Insert another disc.
• USB device was not automatically recognized. t Reconnect it again.
• Press Z to remove the disc. FAILURE The connection of speakers/amplifiers is incorrect. t See the installation/connections manual of this model to check the connection. HUB NO SUPRT (HUB Not Support) USB hub is not supported on this unit. L. SEEK +/– The local seek mode is on during automatic tuning. NO AF There is no alternative frequency for the current station. t Press (SEEK) +/– while the program service name is flashing. The unit starts searching for another frequency with the same PI (Program Identification) data (“PI SEEK” appears). NO DEV (No Device) USB is selected as source without a USB device connected. A USB device or a USB cable has been disconnected during playback. t Be sure to connect a USB device and USB cable. NO MUSIC The disc or USB device does not contain a music file. t Insert a music CD in this unit. t Connect a USB device with a music file in it. NO NAME A disc/album/artist/track name is not written in the track. NO TP The unit will continue searching for available TP stations. OFFSET There may be an internal malfunction. t Check the connection. If the error indication remains on in the display, consult your nearest Sony dealer. OVERLOAD USB device is overloaded. t Disconnect the USB device, then change the source by pressing (SOURCE/OFF). t Indicates that the USB device is out of order, or an unsupported device is connected. READ The unit is reading all track and album information on the disc. t Wait until reading is complete and playback starts automatically. Depending on the disc structure, it may take more than a minute. RESET This unit or USB device cannot be operated due to a problem. t Press the RESET button (page 6). USB NO SUPRT (USB Not Support) The connected USB device is not supported. t For details on the compatibility of your USB device, visit the support site. ” or “ During reverse or fast-forward, you have reached the beginning or the end of the disc and you cannot go any further. The character cannot be displayed with the unit. If these solutions do not help improve the situation, consult your nearest Sony dealer. If you take the unit to be repaired because of CD playback trouble, bring the disc that was used at the time the problem began.

OFF SOURCE ATT SEL MODE

OFF SOURCE ATT SEL MODE

• File MP3/WMA/AAC supportati

OFF SOURCE ATT SEL MODE

OFF SOURCE ATT SEL MODE
