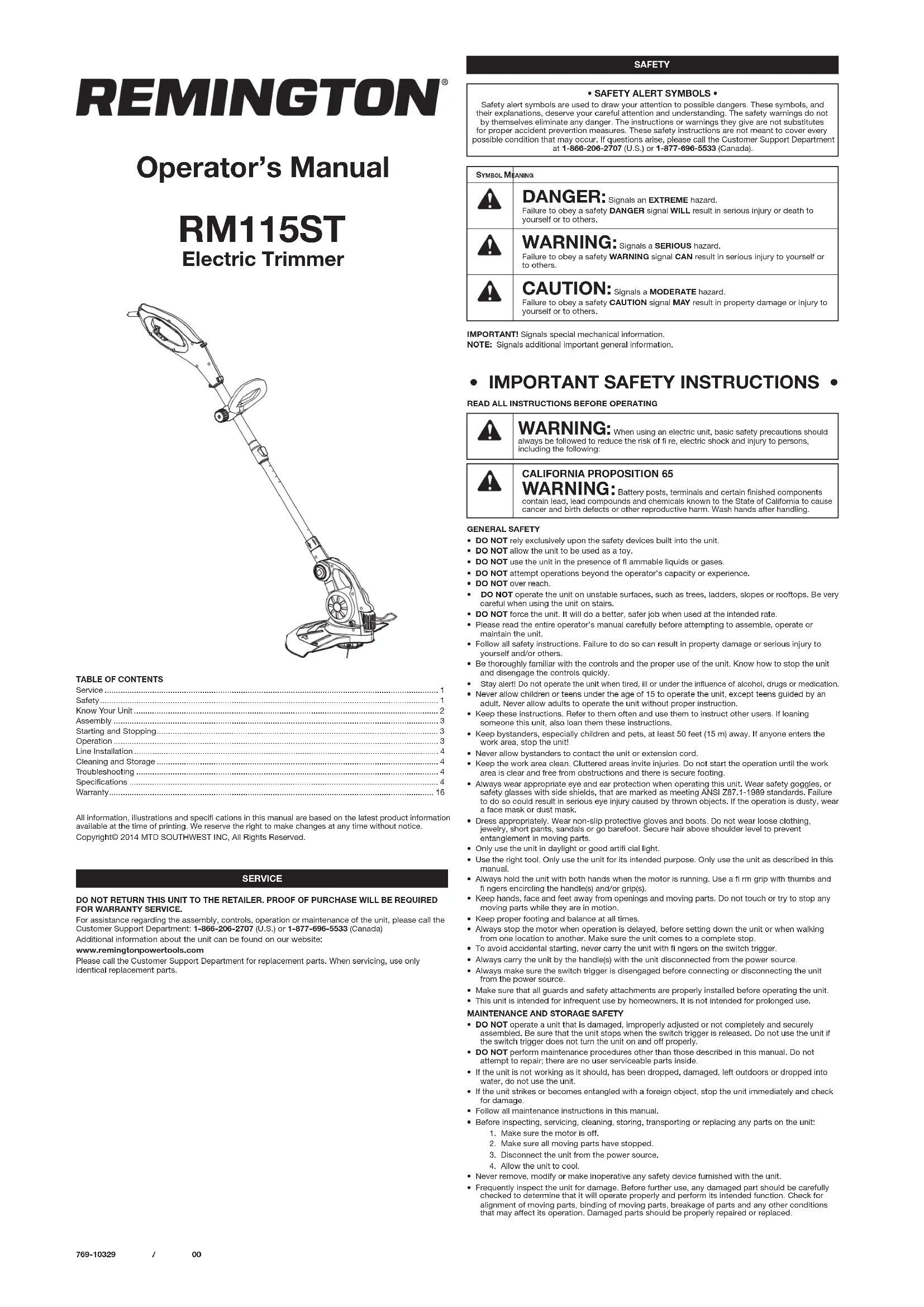

USER MANUAL RM115ST REMINGTON

READ ALL INSTRUCTIONS BEFORE OPERATINGGENERAL SAFETY• DO NOT rely exclusively upon the safety devices built into the unit. • DO NOT allow the unit to be used as a toy. • DO NOT use the unit in the presence of fl ammable liquids or gases. • DO NOT attempt operations beyond the operator’s capacity or experience.• DO NOT over reach.

• DO NOT operate the unit on unstable surfaces, such as trees, ladders, slopes or rooftops. Be very careful when using the unit on stairs.• DO NOT force the unit. It will do a better, safer job when used at the intended rate.• Please read the entire operator’s manual carefully before attempting to assemble, operate or maintain the unit. • Follow all safety instructions. Failure to do so can result in property damage or serious injury to yourself and/or others. • Be thoroughly familiar with the controls and the proper use of the unit. Know how to stop the unit and disengage the controls quickly.
• Stay alert! Do not operate the unit when tired, ill or under the infl uence of alcohol, drugs or medication.
• Never allow children or teens under the age of 15 to operate the unit, except teens guided by an adult. Never allow adults to operate the unit without proper instruction.• Keep these instructions. Refer to them often and use them to instruct other users. If loaning someone this unit, also loan them these instructions.• Keep bystanders, especially children and pets, at least 50 feet (15 m) away. If anyone enters the work area, stop the unit!• Never allow bystanders to contact the unit or extension cord.• Keep the work area clean. Cluttered areas invite injuries. Do not start the operation until the work area is clear and free from obstructions and there is secure footing.• Always wear appropriate eye and ear protection when operating this unit. Wear safety goggles, or safety glasses with side shields, that are marked as meeting ANSI Z87.1-1989 standards. Failure to do so could result in serious eye injury caused by thrown objects. If the operation is dusty, wear a face mask or dust mask. • Dress appropriately. Wear non-slip protective gloves and boots. Do not wear loose clothing, jewelry, short pants, sandals or go barefoot. Secure hair above shoulder level to prevent entanglement in moving parts.• Only use the unit in daylight or good artifi cial light.• Use the right tool. Only use the unit for its intended purpose. Only use the unit as described in this manual. • Always hold the unit with both hands when the motor is running. Use a fi rm grip with thumbs and fi ngers encircling the handle(s) and/or grip(s). • Keep hands, face and feet away from openings and moving parts. Do not touch or try to stop any moving parts while they are in motion. • Keep proper footing and balance at all times.• Always stop the motor when operation is delayed, before setting down the unit or when walking from one location to another. Make sure the unit comes to a complete stop.• To avoid accidental starting, never carry the unit with fi ngers on the switch trigger. • Always carry the unit by the handle(s) with the unit disconnected from the power source. • Always make sure the switch trigger is disengaged before connecting or disconnecting the unit from the power source. • Make sure that all guards and safety attachments are properly installed before operating the unit.• This unit is intended for infrequent use by homeowners. It is not intended for prolonged use. MAINTENANCE AND STORAGE SAFETY• DO NOT operate a unit that is damaged, improperly adjusted or not completely and securely assembled. Be sure that the unit stops when the switch trigger is released. Do not use the unit if the switch trigger does not turn the unit on and off properly. • DO NOT perform maintenance procedures other than those described in this manual. Do not attempt to repair; there are no user serviceable parts inside.• If the unit is not working as it should, has been dropped, damaged, left outdoors or dropped into water, do not use the unit. • If the unit strikes or becomes entangled with a foreign object, stop the unit immediately and check for damage.• Follow all maintenance instructions in this manual.• Before inspecting, servicing, cleaning, storing, transporting or replacing any parts on the unit:1. Make sure the motor is off. 2. Make sure all moving parts have stopped.3. Disconnect the unit from the power source.4. Allow the unit to cool.• Never remove, modify or make inoperative any safety device furnished with the unit.• Frequently inspect the unit for damage. Before further use, any damaged part should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts and any other conditions that may affect its operation. Damaged parts should be properly repaired or replaced. RM115ST Electric Trimmer

DANGER: Signals an EXTREME hazard.

Failure to obey a safety DANGER signal WILL result in serious injury or death to yourself or to others.

WARNING: Signals a SERIOUS hazard.

Failure to obey a safety WARNING signal CAN result in serious injury to yourself or to others. CAUTION: Signals a MODERATE hazard. Failure to obey a safety CAUTION signal MAY result in property damage or injury to yourself or to others.

WARNING: When using an electric unit, basic safety precautions should

always be followed to reduce the risk of fi re, electric shock and injury to persons, including the following:769-10329 / 00 10/14 Operator’s Manual CALIFORNIA PROPOSITION 65

WARNING: Battery posts, terminals and certain fi nished components

contain lead, lead compounds and chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.2 SAFETY

• If the unit starts to vibrate abnormally, stop the motor, disconnect the unit from the power source and allow the unit to cool. Then inspect the unit for the cause of the vibration. Vibration is generally an indicator of trouble.

• Use only original manufacturer replacement parts and accessories, which are designed specifi cally to enhance the performance and maximize the safe operation of the product. Failure to do so may cause poor performance and possible injury.

• Be sure to secure the unit while transporting.

• When not in use, store the unit indoors in a locked-up and dry, or high and dry, place to prevent unauthorized use or damage. Keep out of the reach of children.

• To avoid serious personal injury and/or damage to the unit, keep the unit clean of vegetation and other materials that may clog, gum or bind moving parts. Keep the handles dry, clean and free from debris, oil and grease. Clean the unit after each use.

• Never douse or spray the unit with water or any other liquid. Do not wash the unit with a hose; avoid getting water in the motor and electrical connections. Do not use solvents or strong detergents. ELECTRICAL SAFETY

• DO NOT handle the unit, plug(s) or cord(s) with wet hands.

• DO NOT expose the unit to rain. Do not use the unit in damp or wet locations or conditions.

• DO NOT operate the unit on wet surfaces.

• DO NOT abuse the extension cord or the power cord on the unit. Never pull or carry the unit by the cord(s), use the cord(s) as a handle, close a door on a cord, pull the cord(s) around sharp edges or corners or yank the cord(s) to disconnect the unit. Grasp the plug(s), not the cord(s), to disconnect the unit.

• DO NOT modify the power cord, extension cord, power cord plug, extension cord plug or wall outlet in any way.

• DO NOT use multiple extension cords.

• Keep the cords away from oil, water, sharp objects and heated surfaces.

• Keep the cords away from the cutting area and position the cords so that they will not be caught on branches or other obstacles that may bind or entangle the cords during operation.

• Keep the cords away from the operator’s feet to prevent tripping.

• Make sure the cords are in good condition. Inspect the power cord and extension cord periodically. Look closely for deterioration, cuts or cracks in the insulation. If the power cord is damaged, have it repaired by an authorized service center. If the extension cord is damaged, replace it. Do not use a damaged cord or plug.

• If the extension cord is damaged in any manner while plugged in, disconnect the extension cord from the receptacle.

• Since the unit is double-insulated, a 2-wire extension cord (one without a ground) may be used. However, a 3-wire extension cord (one with a ground) that uses a NEMA-type connector (parallel blade, U ground) is recommended. Extension cords are available from local retailers. Use only round-jacketed extension cords approved for outdoor use.

• Make sure the extension cord is heavy enough to carry the current drawn by the unit. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. If in doubt, use the next heavier gauge cord. The smaller the gauge number, the heavier the cord.

• To reduce the risk of electrical shock, this unit has a polarized plug (one blade is wider than the other) and will require the use of a polarized extension cord. The power cord plug will fi t into a polarized extension cord only one way. If the plug does not fi t fully into the extension cord, reverse the plug. If the plug still does not fi t, obtain another polarized extension cord. A polarized extension cord will require the use of a polarized wall outlet. This plug will fi t into the polarized wall outlet only one way. If the plug does not fi t fully into the wall outlet, reverse the plug. If the plug still does not fi t, contact a qualifi ed electrician to install the proper wall outlet.

• A nameplate on your unit indicates the voltage used. Never connect the unit to an AC voltage that differs from this voltage.

• Ground Fault Circuit Interrupter (GFCI) protection should be provided on the circuit(s) or outlet(s) that will be used with the unit. For an extra measure of safety, use receptacles with built-in GFCI protection.

• To reduce the likelihood of disconnecting the extension cord from the unit, be sure to use the cord restraint provided.

• To reduce the risk of electric shock, avoid body contact with grounded conductors, such as metal pipes or wire fences.

• Unplug the unit from the power source when not in use. Servicing a Double-Insulated Unit

• This is a double-insulated unit. Two systems of insulation are provided instead of grounding. There is no grounding provided and no means of grounding should be added to the unit. Servicing a double-insulated unit requires extreme care and knowledge of the system and should only be done by qualifi ed service personnel. Replacement parts for a double-insulated unit must be identical to the parts they replace. Failure to have a double-insulated unit repaired by an authorized service technician with identical replacement parts could result in serious injury. TRIMMER SAFETY

• The cutting head shield must always be in place while operating the unit. Do not operate the unit without both trimming lines extended and the proper line installed. Do not extend the trimming line beyond the length of the shield.

• Adjust the position of the D-handle to provide the best grip.

• Be sure the cutting head is not in contact with anything before starting the unit

• Use only 0.065 inch (1.65 mm) diameter replacement line. Never use metal-reinforced line, wire, chain or rope. These can break off and become dangerous projectiles. SYMBOL MEANING

• SAFETY ALERT SYMBOL Indicates danger, warning or caution. May be used in conjunction with other symbols or pictographs.

• READ OPERATOR’S MANUAL

WARNING: Read the operator’s manual(s) and follow all warnings and safety

instructions. Failure to do so can result in serious injury to the operator and/or bystanders.

• WEAR EYE AND HEARING PROTECTION

WARNING: Thrown objects and loud noise can cause severe eye

injury and hearing loss. Wear eye protection meeting ANSI Z87.1-1989 standards and ear protection when operating this unit. Use a full face shield when needed.

• KEEP BYSTANDERS AWAY

WARNING: Keep all bystanders, especially children and pets, at least

50 feet (15 m) from the operating area. If anyone enters the work area, stop the unit!

• THROWN OBJECTS AND ROTATING CUTTER CAN CAUSE SEVERE INJURY

WARNING: Small objects can be propelled at high speed, causing

injury. Keep away from the rotating rotor.

• WEAR SAFETY GLOVES Wear non-slip, heavy-duty protective gloves when handling the unit.

• WEAR SAFETY FOOTWEAR Wear non-slip safety footwear when using this equipment.

• DO NOT USE IN THE RAIN

WARNING: Avoid dangerous environments. Never operate your unit

in the rain, or in damp or wet conditions. Moisture is a shock hazard.

• DOUBLE INSULATED Two systems of insulation are provided instead of grounding. There is no grounding provided and no means of grounding should be added to the unit.

• SAFETY AND INTERNATIONAL SYMBOLS • This operator’s manual describes safety and international symbols and pictographs that may appear on this product. Read the operator’s manual for complete safety, assembly, operating, maintenance and repair information.

SAVE THESE INSTRUCTIONS

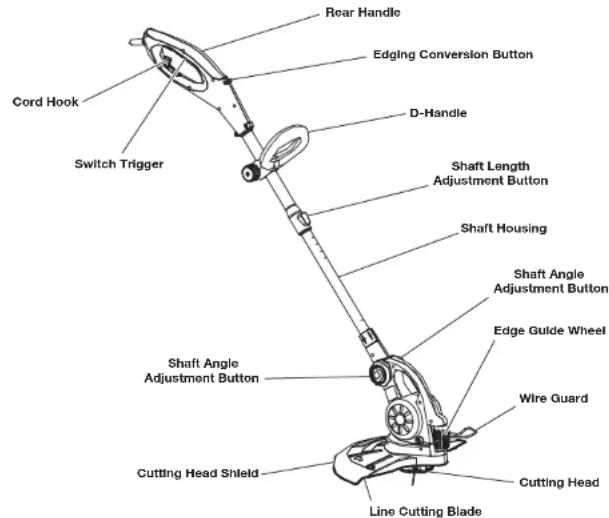

APPLICATIONS This unit may be used for the purposes listed below:

• Cutting grass and light weeds

• Decorative trimming around trees, fences, etc. No Tools Required!

WARNING: To reduce the risk of electric shock, only use extension cords

suitable for outdoor use, such as SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJOW-A, SJTW-A or SJTOW-A cord types. SAFETY Rear Handle Edging Conversion Button D-Handle Shaft Length Adjustment Button Shaft Housing Cord Hook Switch Trigger Shaft Angle Adjustment Button Cutting Head Shield Cutting Head Wire Guard Edge Guide Wheel Line Cutting Blade Shaft Angle Adjustment Button3 This unit requires assembly. UNPACKING

• Carefully remove the product and any accessories from the box.

• Inspect the product carefully to make sure no breakage or damage occurred during shipping.

• Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.

• If any parts are damaged or missing, please call 1-866-206-2707 (U.S.) or 1-877-696-5533 (Canada) for assistance.

ASSEMBLING THE SHAFT

3. While pushing the shaft length adjustment button up

toward the rear handle, slide the upper shaft over the lower shaft until they lock together (Fig. 2). NOTE: Once assembled, the upper and lower shafts will not separate again. Adjusting the Shaft Length

1. Grip the shaft housing fi rmly.

2. While pushing the shaft length adjustment button up

toward the rear handle, move the upper shaft up or down to the desired length.

3. Release the shaft length adjustment button.

INSTALLING THE CUTTING HEAD SHIELD

1. Align the arrow on the cutting head shield with the

arrow on the motor housing (Fig. 3).

2. Twist the cutting head shield counterclockwise, in

the LOCK direction (Fig. 3), until it snaps into place. Make sure the cutting head shield is assembled as shown in the Know Your Unit section.

INSTALLING THE D-HANDLE

1. Remove the knob and bolt from the D-handle.

2. Push the D-handle down onto the upper shaft (Fig. 4).

Some force is required. The hex bolt hole in the handle should be on the left side.

3. Insert the bolt into the hex hole in the handle and

push it through (Fig. 4). Screw the knob onto the bolt. Do not tighten the knob completely.

4. While holding the unit in the operating position (Fig.

11), move the D-handle to the location that provides the best grip. Place it a minimum of 6 inches (15.24 cm) from the end of the rear handle.

5. Tighten the knob until the D-handle is secure.

ADJUSTING THE SHAFT ANGLE

1. Squeeze the shaft angle adjustment buttons on both

sides of the motor housing (Fig. 5).

2. Rotate the shaft to one of the four settings, as

needed to reach under decks, bushes, etc.

CONVERTING TO EDGER MODE

1. Grip the shaft housing fi rmly.

2. Press the edger conversion button and rotate the

rear handle until it locks in place (Fig. 6 and 7).

3. Make sure the wire guard is fl ipped up against the

1. Rotate the wire guard up or down to the desired

position (Fig. 8). The wire guard helps keep the trimmer line away from fences, curbs, fl owers, etc.

CONNECTING AND DISCONNECTING THE POWER

SOURCE Follow these instructions in order to avoid injury and to reduce the risk of electric shock or fi re:

• Verify that the switch trigger is disengaged before connecting or disconnecting the power source. Refer to the Starting and Stopping section.

• Verify that the unit is disconnected from the power source and the switch trigger is disengaged before inspecting, adjusting or performing maintenance on any part of the unit. Connecting the Power Source

1. Connect the power cord plug to the extension cord

2. Make a narrow loop with the extension cord and

push the loop through the opening for the cord hook (Fig. 9).

3. Move the loop onto the cord hook and pull the cord

gently to secure the loop over the hook. This helps prevent accidental disconnection.

4. Connect the extension cord plug to the outlet.

Disconnecting the Power Source

1. Disconnect the extension cord plug from the outlet.

2. Remove the loop in the extension cord from the cord

3. Disconnect the power cord plug from the extension

WARNING: Make sure the unit is disconnected from the power source before

assembling, disassembling or adjusting any components. Fig. 1 Lower Shaft Rubber Grommet Upper Shaft

1. Connect the unit to the power source. Refer to

Connecting and Disconnecting the Power Source in the Assembly section.

• Always maintain a proper grip on the handles whenever the motor is running. Grip the unit fi rmly with both hands. Keep the left hand on the D-handle and the right hand on the rear handle. The fi ngers should encircle the handles and the thumbs should wrap under the handles. The left arm should be straight and the right arm slightly bent. PROPER STANCE

• Balance body weight securely, with both feet on solid ground.

• Hold the unit at waist level. The cutting head should easily contact the grass without the need to bend over (Fig. 11).

WORK AREA PRECAUTIONS

• Keep everyone – helpers, bystanders, children and animals – at least 50 feet (15 m) away from the work area. If anyone enters the work area, stop the unit!

• Only operate the unit when visibility and light are adequate to see clearly.

• Remove stones, nails, glass and wire from the area before operating the unit.

• Only operate the unit during reasonable hours. Comply with times listed in local ordinances.

OPERATING THE UNIT AS A TRIMMER

1. Start the motor. Refer to the Starting and Stopping section.

2. Slowly move the cutting head into and out of the cutting area at the desired height.

• Move either in a forward-backward or side-to-side motion. When cutting from side-to-side, cut from right to left whenever possible. This improves the unit’s cutting effi ciency and directs clippings away from the operator.

• Keep the cutting head parallel to the ground.

• Cutting shorter lengths produces the best results.

• Cut grass over 8 inches (200 mm) by working from top to bottom in small increments to avoid premature line wear or motor drag.

• Do not force the cutting head. Allow the tip of the line to do the cutting, especially along walls. Cutting with more than the tip will reduce cutting effi ciency and may overload the motor.

• Only trim when grass or weeds are dry.

3. Dispose of debris appropriately.

Decorative Trimming Decorative trimming is accomplished by removing all vegetation around trees, posts, fences and more.

• Rotate the whole unit so that the cutting head is at a 30° angle to the ground (Fig. 12).

OPERATING THE UNIT AS AN EDGER

Tips for Best Edging Results

• Convert the unit to edger mode.

• Hold the unit with the motor to the operator’s left side so that debris is thrown to the rear (Fig. 13).

• Place the edge guide wheel on the sidewalk, driveway, etc. and the trimmer line in the grass.

ADJUSTING THE TRIMMING LINE LENGTH

The trimming line wears down and becomes shorter with use. This unit is equipped with an EZ Line Advance cutting head. The cutting head will automatically dispense more line whenever the unit is stopped and restarted. NOTE: DO NOT bump the cutting head; this will damage the unit and void the warranty. NOTE: Always keep the trimming line fully extended. Line release becomes more diffi cult when the cutting line gets shorter. If the line becomes too short:

1. Stop the motor. See the Starting and Stopping section.

2. Wait two seconds and then restart the motor.

3. Repeat this process until the line length reaches the line cutting blade on the cutting head shield.

The line cutting blade will cut the line to the proper length if any excess line is released. Remove the protective material from the line cutting blade before using the unit. The trimming line can also be extended manually:

2. Disconnect the unit from the power source.

3. Press and release the manual line release button

while gently pulling both lines until they reach the line cutting blade (Fig. 14). The life of the cutting line is dependent upon:

• Following the trimming techniques previously explained

• What vegetation is cut

• Where the vegetation is cut. For example, the line will wear faster when trimming against a foundation wall as opposed to trimming around a tree.

WARNING: Do not allow familiarity with this unit to promote carelessness.

Remember that a careless fraction of a second is enough to infl ict serious injury.

WARNING: If any parts are damaged or missing, do not operate the unit until the

parts are replaced. Failure to heed this warning could result in serious personal injury.

WARNING: Always wear appropriate eye and ear protection when operating this

unit. Wear safety goggles, or safety glasses with side shields, that are marked as meeting ANSI Z87.1-1989 standards. Failure to do so could result in serious eye injury caused by thrown objects. If the operation is dusty, wear a face mask or dust mask.

WARNING: Wear non-slip gloves for maximum grip and protection. Refer to the

Safety section for appropriate safety equipment.

WARNING: Do not expose the unit to rain. Do not use the unit in damp or wet

locations or conditions. Fig. 11 Fig. 2 Upper Shaft Lower Shaft Shaft Length Adjustment Button Fig. 4 Bolt Knob D-Handle Fig. 3 Arrows Cutting Head Shield Motor Housing Fig. 5 Shaft Angle Adjustment Button Fig. 6 Edger Conversion Button Fig. 8 Wire Guard Fig. 7 Trimmer Mode Edger Mode Fig. 9 Cord Hook Power Cord Extension Cord Fig. 12 Fig. 14 Manual Line Release Button Fig. 134 Motor Type ..................................................................................................................... Electric, Corded Motor Voltage ...................................................................................................................120 VAC, 60HZ Motor Amperage .......................................................................................................................5.5 Amps Motor Speed (no load) .............................................................................................................7,000 rpm Trimming Line Diameter .............................................................................................0.065 in. (1.65 mm) Cutting Path Diameter .....................................................................................................14 in. (35.6 cm) Weight ....................................................................................................................................7 lb (3.2 kg)

CLEANING AND STORAGE

Cleaning Instructions

• Use a fi rm-bristled, non-wire, brush to remove debris from the unit.

• Wipe the unit down with a damp cloth. Do not douse the unit with water. Do not use solvents or strong detergents. Storage Instructions

• Follow the Cleaning Instructions listed above.

• Store the unit indoors in a dry, high and/or locked location, out of the reach of children and other unauthorized persons.

WARNING: Do not let brake fl uids, gasoline, petroleum-based products, penetrating

oils, etc., come in contact with plastic parts. These chemicals may damage, weaken and destroy plastic, which may result in serious personal injury. TROUBLESHOOTING CAUSE SOLUTION

THE MOTOR WILL NOT RUN

The cord is not securely connected to the unit or power source Make sure each plug is securely connected The GFCI in the outlet has tripped (if used) Reset the GFCI THE CUTTING HEAD WILL NOT ADVANCE LINE The cutting head is bound with grass Clean the cutting head The cutting head is out of line Refi ll the cutting head with new line The spool is bound up Replace the spool The cutting head is dirty Clean the spool and hub The line is welded Remove the welded section and rewind the line The line twisted when it was refi lled Rewind the line

THE CUTTING HEAD ADVANCES LINE UNCONTROLLABLY

The cutting head is broken Refer to the Service section NOTE: For maintenance beyond the minor adjustments listed above, or for replacement parts, please call the Customer Support Department at 1-866-206-2707 (U.S.) or 1-877-696-5533 (Canada). SPECIFICATIONS

• All specifi cations are based on the latest product information available at the time of printing. We reserve the right to make changes at any time without notice. LINE INSTALLATION

1. Press and hold the two cap release latches (Fig. 15).

2. Pull the cap away from the hub.

3. Remove the spool.

4. Use a clean cloth to clean the spool and inner

5. Cut two 10.5 feet lengths of replacement line.

NOTE: Always use original equipment manufacturer

0.065 in. (1.65 mm) replacement line. Other line

may make the motor overheat or fail. NOTE: Always use the correct line length. The line may not release properly if it is too long.

6. Insert one line into each of the two slots on the spool

7. Wind the line onto the spool by turning the spool

clockwise (Fig. 17). The line should wrap snugly around the spool. Do not twist or cross the line. Wind the line until there are approximately 4 inches remaining.

8. Lock the ends of the lines in the two notches on the

9. Put the spool back into the hub.

10. Insert a line through each of the two eyelets on the

11. Straighten the lines by removing them from the

notches. Make sure the lines feed smoothly.

12. Securely place the cap back onto the hub.

13. Manually extend the lines to the line cutting blade.

See Adjusting the Trimming Line Length in the Operation section.

WARNING: Never use metal-reinforced line, wire, chain or rope. These can break off

and become dangerous projectiles.

WARNING: Before inspecting, cleaning or servicing the unit, stop the motor, wait

for all moving parts to stop, disconnect the unit from the power source and allow it to cool. Failure to follow these instructions can result in serious personal injury or property damage. Fig. 16 Fig. 17 Fig. 15 Cap Release Latch Cap Hub Spool Cap Release Latch Fig. 18 Notches Fig. 19 Eyelet

WARNING: Before inspecting, cleaning or servicing the unit, stop the motor, wait

for all moving parts to stop, disconnect the unit from the power source and allow it to cool. Failure to follow these instructions can result in serious personal injury or property damage.LISEZ TOUTES LES INSTRUCTIONS AVANT L’UTILISATIONCONSIGNES DE SÉCURITÉ D’ORDRE GÉNÉRAL

• NE vous fi ez PAS exclusivement aux protections de sécurité incorporées dans l’appareil.
