IAN 285656 - Bike accessory CRIVIT - Free user manual and instructions

Product Type	Foot Pump
Brand	CRIVIT
Model	IAN 285656
Category	Bicycle Accessory
Intended Use	Inflating bicycle tires, balls, air mattresses, inflatable toys, etc.
Hose Length	100 cm
Maximum Pressure	8 bars / 116 PSI
Compatible Valve Types	Schrader, Blitz (Presta), Sclaverand (Dunlop) via dual head
Included Nozzles	1 metal nozzle for balls, 2 plastic nozzles for mattresses
Pressure Gauge	Yes, with adjustable red needle for pressure reference
Warranty	3 years
Cleaning	Clean with a damp cloth; do not immerse
Maintenance	No maintenance required; regularly check screw tightness
Storage	In a cool, dry place away from UV rays
Safety	Do not exceed max pressure (risk of explosion); do not use if damaged; risk of burns after prolonged use
Repairability	Not repairable; replace if defective
Manufacturer	MONZ Handelsgesellschaft International mbH & Co. KG

Frequently Asked Questions - IAN 285656 CRIVIT

What types of tires can I inflate with this pump?

This pump is suitable for inflating all common types of bicycle tires, including Schrader, Blitz (Presta) and Sclaverand (Dunlop) valves. It can also inflate balls, air mattresses and inflatable toys using the included nozzles.

How to set the desired pressure on the gauge?

The gauge has a red needle that you can set to the desired pressure value. This mark is indicative; use a calibrated gauge to check the exact pressure.

What is the maximum allowed pressure?

The maximum pressure is 8 bars (116 PSI). Never exceed this value, nor that indicated on the tire, to avoid any risk of explosion.

Can I use this pump to inflate car tires?

No, this pump is not designed for automobile tires. Use it only for bicycle tires and other items mentioned.

How to maintain the pump?

No special maintenance is required. Clean it with a damp cloth, do not immerse it in water, and regularly check the tightness of screws. Store it in a cool, dry place.

What to do if the pump is defective?

Do not use a damaged pump. It cannot be repaired; replace it. Please dispose of it according to local regulations and contact customer service under warranty if applicable.

Does the pump heat up during use?

Yes, friction can generate heat. After use, hold the pump only by the handle to avoid burns.

What nozzles are included and what are they used for?

The pump comes with a metal nozzle for balls and two plastic nozzles for air mattresses and inflatable toys. The dual head allows inflating bicycle valves without an additional nozzle.

How to inflate a tire with Schrader valve?

Remove the valve cap, place the dual head with the large opening on the valve, then lower the lever to lock.

Where to find after-sales service?

After-sales service is provided by MONZ SERVICE CENTER. In France, address: ZA Les Anguillarires I, 31410 Noe. Free hotline: [phone], email: [e-mail].

USER MANUAL IAN 285656 CRIVIT

MONZ HANDELSGESELLSCHAFT INTERNATIONAL MBH & CO. KG

Schondor 50-2

36424re

CERMOANY

【难度】较难

1

022

1491692002228

---

neptnr Cpyngemn dnn. Ynne nnnnns

Before reading, please unfold the illustrations page and familiarise yourself with all device functors.

Pc mnnn nnnnnaeapnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneep

(3)

Kup for having sier and fllstrutioe ag info fbrig and alla pumum funfikn. Bilbuae er lei riser pleper de tlesvredne red te kienet.

中

Attention safety instructions 5

Initial use of the floor pump .5

Adapter. 6

Cleaning & care instructions 6

Disposal 6

Warranty 6

Warranty terms 7

Distributor 7

Service address 7

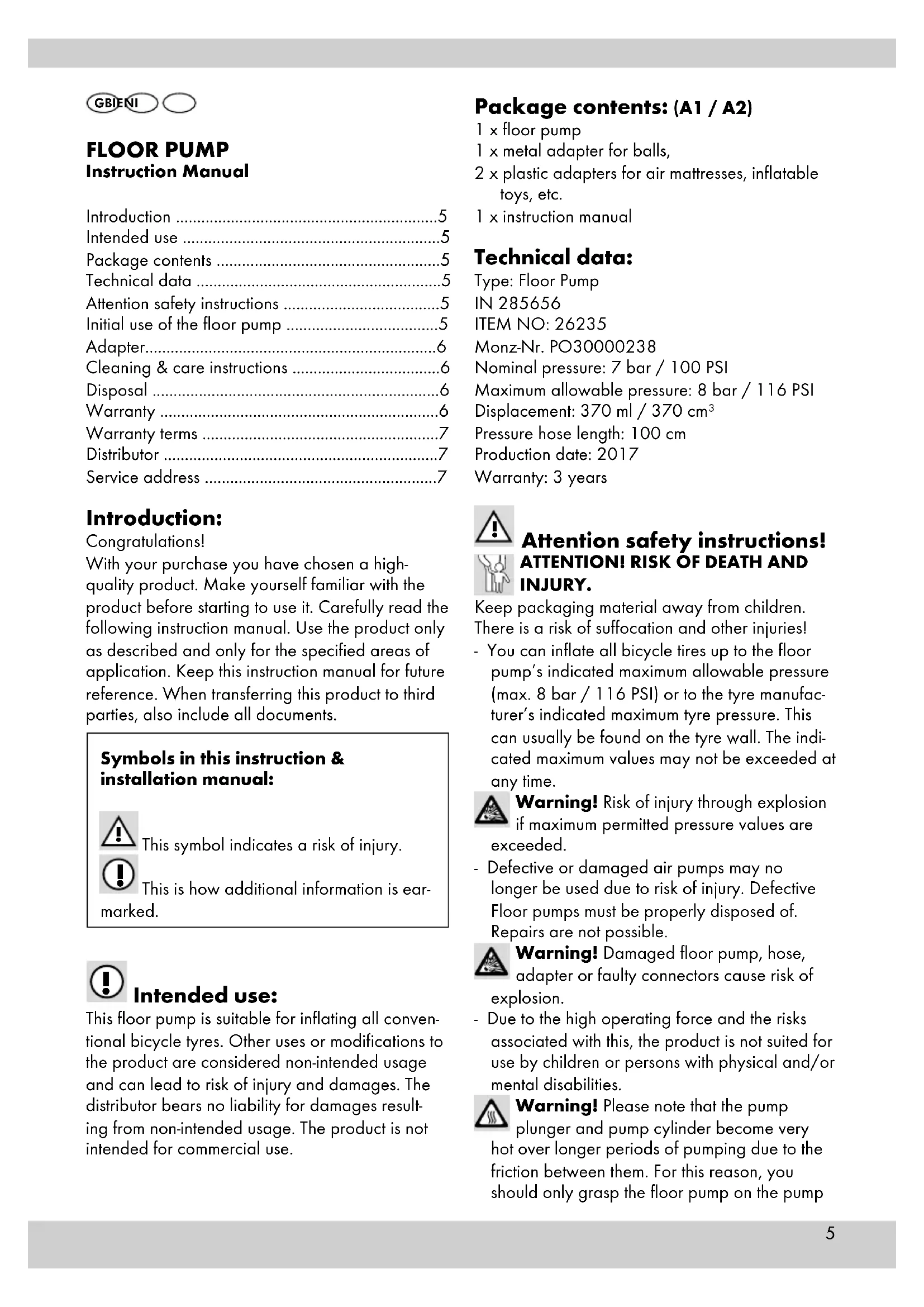

Introduction:

Congratulations!

With your purchase you have chosen a high-quality product. Make yourself familiar with the product before starting to use it. Carefully read the following instruction manual. Use the product only as described and only for the specified areas of application. Keep this instruction manual for future reference. When transferring this product to third parties, also include all documents.

Symbols in this instruction & installation manual:

This symbol indicates a risk of injury.

This is how additional information is ear- ed.

Intended use:

This floor pump is suitable for inflating all conventional bicycle tyres. Other uses or modifications to the product are considered non-intended usage and can lead to risk of injury and damages. The distributor bears no liability for damages resulting from non-intended usage. The product is not intended for commercial use.

Package contents: (A1 / A2)

1 x floor pump
1 x metal adapter for balls,
2 x plastic adapters for air mattresses, inflatable toys, etc.
1 x instruction manual

Technical data:

Type: Floor Pump

IN 285656

ITEM NO: 26235

Monz-Nr. PO30000238

Nominal pressure: 7 bar / 100 PSI

Maximum allowable pressure: 8 bar / 116 PSI

Displacement: 370ml / 370cm^3

Pressure hose length: 100 cm

Production date: 2017

Warranty: 3 years

Attention safety instructions! ATTENTION! RISK OF DEATH AND INJURY.

Keep packaging material away from children.

There is a risk of suffocation and other injuries!

• You can inflate all bicycle tires up to the floor pump's indicated maximum allowable pressure (max. 8 bar / 116 PSI) or to the tyre manufacturer's indicated maximum tyre pressure. This can usually be found on the tyre wall. The indicated maximum values may not be exceeded at any time.

Warning! Risk of injury through explosion if maximum permitted pressure values are ceeded.

Defective or damaged air pumps may no longer be used due to risk of injury. Defective Floor pumps must be properly disposed of. Repairs are not possible.

Warning! Damaged floor pump, hose, adapter or faulty connectors cause risk of plosion.

• Due to the high operating force and the risks associated with this, the product is not suited for use by children or persons with physical and/or mental disabilities.

Warning! Please note that the pump plunger and pump cylinder become very over longer periods of pumping due to the tion between them. For this reason, you could only grasp the floor pump on the pump

handle after pumping in order to avoid burns.
- Due to the risk of injury, a defective or dam

aged floor pump may never be used. Warning! Some bicycle valves do not allow pressure display. For your own safety please check the air pressure with a calibrated manometer (i.e. at a fuel station).

Initial use of the floor pump: (B1 / B4)

(B1) Place the floor pump on a level and stable surface.
(B2) There must be no kinks in the pump hose.
(B3) During pumping, please always position yourself with both feet on the foot plate of the floor pump to ensure it won't fall over.
(B4) Operate the pump handle in a smooth and even manner and not too quickly.

B5 There is a red pointer in the middle of the manometer. This red pointer can serve as an optical mark for the desired pressure.
Turn the red pointer to the desired pressure display for this purpose.
Please note that the set mark only serves as orientation and does not influence the air pressure!

Adapter: (c1)

(1) E.g. balls

(2) E.g. air mattresses
(3) E.g. inflatable boats
{4} To inflate inner tubes with schrader valves e.g. mountain bikes, trolleys and trailers.
{5} To inflate inner tubes with blitz valves. e.g. city/freakking bicycles
(6) For inflating inner tubes with a presta valve, e.g. on racing bicycles and mountain bikes.
(7) Dual head (To lock in place, please fold

(Valves not included)

Inflating tyres with a schrader valve: (C2)

First remove the dust protection cap [1]. Insert the dual head with the large opening into the valve
{2}. To lock in place, please fold down the lever of the dual head [3].

Inflating tyres with a blitz valve: (C3)

First remove the dual protection cap [1]. Insert the dual head with the small opening into the valve
(2). To lock in place, please fold down the lever of

the dual head [3].

Inflating tyres with a presta valve: (C4)

First remove the dust protection cap [1]. Detach the valve nut (2a-2c). Insert the dual head with the small opening into the valve [3]. To lock in place, please fold down the lever of the dual head [4].

Inflating air mattresses, inflatable toys, etc.: (C5)

First open the valve plug (1). Select the appropriate plastic adapter and insert it into the large opening of the dual head (2). To lock in place, please fold down the lever of the dual head (3). Now insert the plastic adapter into the object to be inflated [4].

Inflating balls: (C6)

Insert the metal adapter in the large opening of the dual head [1]. To lock in place, please fold down the lever of the dual head [2]. Now insert the metal adapter into the ball [3].

Cleaning & care instructions:

clean with a damp cloth
- do not immerse in water
- regularly inspect the floor pump's screw joints
for secure attachment before use
the floor pump is maintenance-free.
- Store the floor pump in a cool, dry place protected from UV light.

Disposal:

Packaging is made of 100% environmentally-friendly materials that can be disposed of at your local recycling point.

Please enquire with your community or municipal administration regarding possibilities for the disposal of the product.

Warranty:

Warranty of the Monz Handelsgesellschaft International MBH & CO. KG.

Dear customer, this device comes with a three-year warranty, valid from the date of purchase. In case of defects of this product, you will have legal rights towards the seller of this product. These legal rights shall not be limited by our warranty as set out below.

Warranty terms:

The warranty term starts on the date of purchase. Please keep the original receipt in a safe place.

This document is required as proof of purchase. If within a period of three years following the date of purchase, this product displays material or manufacturing defects, we shall - at our discretion - repair or replace the product free of charge. This warranty assumes that within a period of three years the defective device and the proof of purchase [receipt] are submitted and that a brief written description of the defect, including when it occurred, is provided.

If the defect is covered by our warranty, you shall receive a repaired or a new product. The repair or exchange of the product does not commence a new warranty term.

Distributor:

MONZ Handelsgesellschaft
International mbH & Co. KG
Schöndorfer Str. 60-62
54292 Trier / Germany

Service address:

MONZ SERVICE CENTER

c/o Teknihall Elektronik GmbH

Breitefeld 15,64839 Munster/Germany

Hotline: 00800 / 68546854 (free of charge, mobile networks may vary)

E-Mail: [e-mail]

E-Mail: [e-mail]

54292 Trier / Germany
