USER MANUAL Profile WPDH8900JMV GE

Operating Instructions

Available Accessories 14

Control Panel 4

Control Settings 5-9

Demand Response 15

Features 10

Loading and Using the Washer....11-14

Installation Instructions 16-21

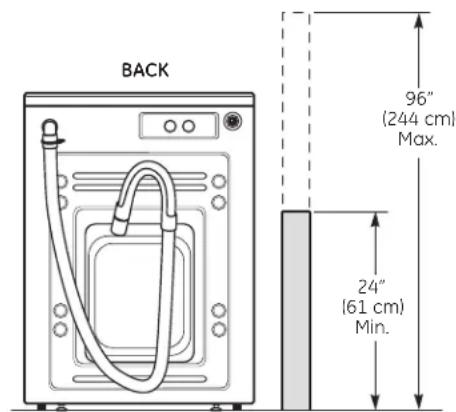

Drain Requirements 19

Electrical Requirements. 19

Grounding Requirements 19

Installing the Washer 20, 21

Location of Your Washer .17

Preparing to Install Your Washer .16

Replacement Parts 21

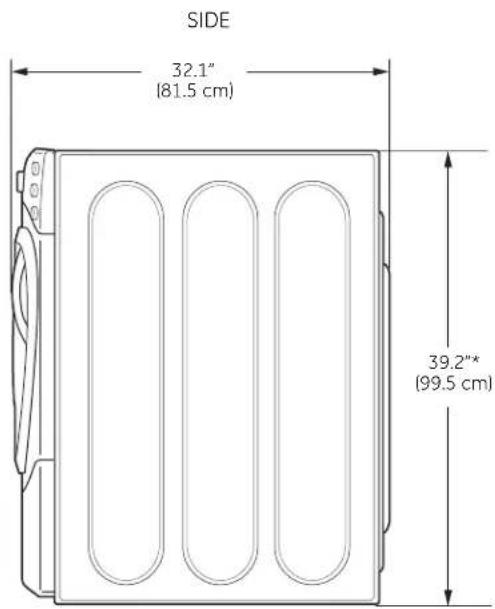

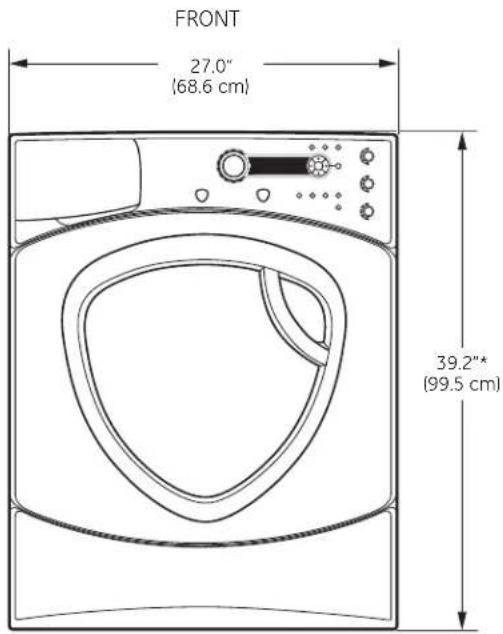

Rough-In Dimensions. 17

Unpacking Your Washer 18

Water Supply Requirements 19

Troubleshooting Tips 22-24

Consumer Support

Consumer Support .Back Cover

Warranty (Canada) 26

Warranty (U.S.) 25

ENERGY STAR

As an ENERGY STAR® partner,

GE has determined that this

product meets the ENERGY STAR®

guidelines for energy efficiency.

Write the model and serial

numbers here:

Model#

Serial #

You can find them on a label on the

side of the washer.

Owner's Manual & Installation Instructions

WPDH8850

WPDH8910

WPDH8900

Laveuses

Profile

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life.

The instructions in this manual and all other literature included with this washer are not meant to cover every possible condition and situation that may occur. Good, safe practices and caution MUST be applied when installing, operating and maintaining any appliance.

WATER HEATER SAFETY

Under certain conditions, hydrogen gas may be produced in a water heater that has not been used for two weeks or more. Hydrogen gas can be explosive under these circumstances.

If the hot water has not been used for two weeks or more, prevent the possibility of damage or injury by turning on all hot water faucets and allowing them to run for several minutes. Do this before using any electrical appliance which is connected to the hot water system. This simple procedure will allow any built-up hydrogen gas to escape. Since the gas is flammable, do not smoke or use an open flame or appliance during this process.

PROPER INSTALLATION

This washer must be properly installed and located in accordance with the Installation Instructions before it is used.

Install or store where it will not be exposed to temperatures below freezing or exposed to the weather, which could cause permanent damage and invalidate the warranty.

• Properly ground washer to conform with all governing codes and ordinances. Follow details in Installation Instructions.

YOUR LAUNDRY AREA

• Keep the area underneath and around your appliances free of combustible materials such as lint, paper, rags and chemicals.

• Do not leave the washer door open. An open door could entice children to hang on the door or crawl inside the washer.

• Close supervision is necessary if this appliance is used by or near children. Do not allow children to play on, with or inside this or any other appliance.

Use this appliance only for its intended purpose as described in this Owner's Manual.

WHEN USING THE WASHER

• Never reach into washer while it is moving. Wait until the machine has completely stopped before opening the door.
• Do not mix chlorine bleach with ammonia or acids such as vinegar and/or rust remover. Mixing different chemicals can produce a toxic gas which may cause death.

• Do not wash or dry articles that have been cleaned in, washed in, soaked in or spotted with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.) which may ignite or explode. Do not add these substances to the wash water. Do not use or place these substances around your washer or dryer during operation.
  The laundry process can reduce the flame retardancy of fabrics. To avoid such a result, carefully follow the garment manufacturer's wash and care instructions.
  To minimize the possibility of electric shock, unplug this appliance from the power supply or disconnect the washer at the building's distribution panel by removing the fuse or switching off the circuit breaker before attempting any maintenance or cleaning. NOTE: Pressing the power button does NOT disconnect the appliance from the power supply.

• Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.
  Do not slam the washer door closed. Do not try to force the door open when locked (LOCKED indicator ON). This could result in damage to the washer.
  The washer is equipped with an electrical overload protector. The motor will stop if it becomes overheated. The washer will automatically restart after a cool-down period of up to 2 hours, if the washer has not been manually turned off during this time.

WHEN NOT IN USE

Turn off water faucets to relieve pressure on hoses and valves and to minimize leakage if a break or rupture should occur. Check the condition of the fill hoses; they should be replaced every 5 years.
Before discarding a washer, or removing it from service, remove the washer door to prevent children from hiding inside.

• Do not attempt to repair or replace any part of this appliance unless specifically recommended in this Owner's Manual, or in published user-repair instructions that you understand and have the skills to carry out.
  Do not tamper with controls.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

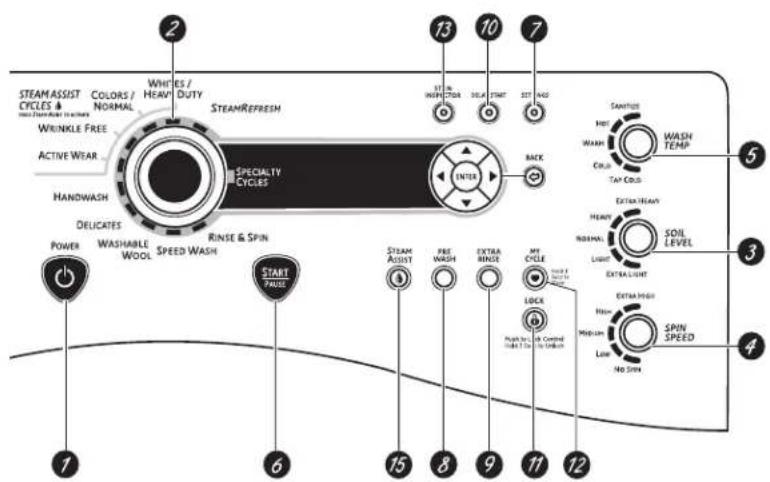

About the washer control panel.

You can locate your model number on a label on the side of the washer.

WARNING! To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance.

Quick Start

If the screen is dark, press the POWER button to "wake up" the display.

Press the POWER button.

2 Select a wash cycle or Steam Refresh cycle. (Defaults are set for each cycle. These default settings can be changed. See Control settings for more information.)

If you selected a cycle other than the SPECIALTY CYCLE, press the START/PAUSE button.

If you selected SPECIALTY CYCLE, choose between Drain & Spin, Garments, Bed and Bath, Other Specialty and Basket Clean for your specific needs before pressing START/PAUSE. See Specialty Cycles for more information.

WPDH8900J, WPDH8910K - Profile HA Steam Washer w/ SmartDispense™

WPDH8850J - Profile HA Steam Washer

Power Press to "wake up" the display. If the display is active, press to put the washer into standby mode.

NOTE: Pressing POWER does not disconnect the appliance from the power supply.

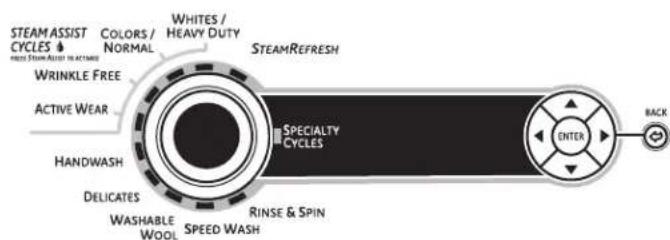

Wash Cycles

The wash cycles are optimized for specific types of wash loads. The chart below will help you match the wash setting with the loads. The GentleClean™ lifters lightly tumble the clothes into the water and detergent solution to clean the load.

WHITES/HEAVY DUTY	For heavily to lightly soiled white cottons, household linens, work and play clothes. Can use the STEAM ASSIST option with this cycle.
COLORS/NORMAL	For heavy to lightly soiled colorfast cottons, household linens, work and play clothes. Can use the STEAM ASSIST option with this cycle.
WRINKLE FREE(PERMA PRESS)	For Easy Care and permanent press items. Can use the STEAM ASSIST option with this cycle.
ACTIVE WEAR	For active sports, exercise and some casual wear clothes. Fabrics include modern technology finishes and fibers such as spandex, stretch and micro-fibers. Can use the STEAM ASSIST option with this cycle.
STEAM REFRESH	To de-wrinkle 1 to 5 cotton blend items. This is not a wash cycle, but a cycle that applies only steam to the garments. Select the correct number of garments using the arrow keys and press ENTER.The washer will beep upon completion of the cycle, and will continue to tumble for 30 minutes to keep wrinkles from setting in. Press START/PAUSE to remove clothes.If clothes are slightly damp after completion of the cycle, hang dry clothes for 5 minutes before wearing.
HANDWASH	For items labeled hand-washable with light soils. Provides gentle rocking to mimic the handwashing action.
DELICATES	For lingerie and special-care fabrics with light to normal soil. Provides gentle tumbling and soak during wash and rinse.
WASHABLE	For the washing of machine washable wool products, provided that they are WOOL washed according to the instructions on the garment label. When selecting this cycle, you must use a detergent suitable for washing wool.
SPEED WASH	For lightly soiled items that are needed in a hurry. Cycle time is approximately 30 minutes, depending on selected options.
RINSE & SPIN	To quickly rinse out any items at any time.

SPECIALTY CYCLES For unique garments that may need special treatment.

Specialty Cycles

DRAIN & SPIN	GARMENTS	BED and BATH	SPECIALIZED CYCLES	BASKET CLEAN
Drain & spin at any time.	Coats	Blankets (cotton)	Athletic Shoes
	Dress Shirts	Comforters	Energy Savings
	Hosiery/Bras	Sheets	Fabric Refresh
	Jeans	Towels	Fleece
	Khakis		Fragile Cottons
	Sweaters		Performance Fabrics
			Pet Bedding
			Play Clothes
			Single Item Wash
			Sleeping Bag
			Soak
			Super Clean
			Throw Rugs

While in the Specialty Cycle, use the and arrow keys to scroll between the different options. Press ENTER to select the cycle. Press BACK to go to the previous menu.

Control settings.

Soil Level

Changing the SOIL LEVEL increases or decreases the wash time to remove different amounts of soil.

To change the SOIL LEVEL, press the SOIL LEVEL button until you have reached the desired setting. You can choose between Extra Light, Light, Normal, Heavy or Extra Heavy soil.

Spin Speed

Changing the SPIN SPEED changes the final spin speed of the cycles. Always follow the garment manufacturer's care label when changing the SPIN SPEED.

To change the SPIN SPEED, press the SPIN SPEED button until you have reached the desired setting. You can choose between No Spin, Low, Medium, High or Extra High Spin. Higher spin speeds are not available on certain cycles, such as Delicates.

Higher spin speeds remove more water from the clothes and will help reduce dry time, but may also increase the possibility of setting wrinkles on some fabrics.

Wash Temp

Adjust to select the proper water temperature for the wash cycle. The prewash and rinse water is always cold to help reduce energy usage and reduce setting of stains and wrinkles.

Follow the fabric manufacturer's care label when selecting the wash temperature.

To change the wash temperature, press the WASH TEMP button until you have reached the desired setting. You can choose between Tap Cold, Cold, Warm, Hot or Sanitize. The Sanitized wash temperature is not available on certain cycles, such as Delicates.

When selecting the Sanitize wash temperature, the washer increases the water temperature to sanitize and kill more than 99% of many common bacteria found in home laundry. The sanitize wash temperature is only available on the Whites/Heavy Duty wash cycle. For best results, select the heavy soil setting when using the Sanitize wash temperature setting.

NOTE: The first 10 seconds of the wash fill is always cold. This feature assists in conditioning the fabric and preventing stains from setting on garments.

START/PAUSE

Press to start a wash cycle. If the washer is running, pressing it once will pause the washer and unlock the door. It will take a few seconds for the door to unlock after pressing PAUSE. Press again to restart the wash cycle.

NOTE: If the washer is paused and the cycle is not restarted within 15 minutes, the current wash cycle will be cancelled.

NOTE: In some cycles the washer will drain first, then unlock the door when it is paused.

NOTE: The washer performs automatic system checks after pressing the START button. Water will flow in 45 seconds or less. You may hear the door lock and unlock before water flows; this is normal.

SETTINGS

Settings

Use the SETTINGS button to adjust the following features:

Dryer Link:

Press the SETTINGS button.

When "DRYER LINK" appears in the display, press ENTER. Using the arrow keys, select ON and press ENTER.

When the washer cycle is completed, the washer will communicate with the dryer when any button on the control panel is touched or the door is opened.

The washer will display "TRANSFERRING CYCLE

INFORMATION TO THE DRYER" and the dryer will display, "RECEIVING CYCLE INFORMATION TO THE DRYER".

The dryer will only communicate with the washer if the dryer is not running a cycle.

If the washer starts a new cycle before the dryer has a chance to communicate with it, the information will be lost.

End-of-Cycle Volume:

Press the SETTINGS button. When "VOLUME" appears in the display, press ENTER, then select "End of Cycle". Using the arrow keys, select High, Medium, Low or Off.

Control Sounds:

Press the SETTINGS button, then select "Volume". When "CONTROL SOUNDS" appears in the display, press ENTER. Using the arrow keys, select High, Medium, Low or Off.

Display Brightness:

Press the SETTINGS button. When "DISPLAY BRIGHTNESS" appears in the display, press ENTER. Using the arrow keys, select High, Medium or Low.

Water Hardness

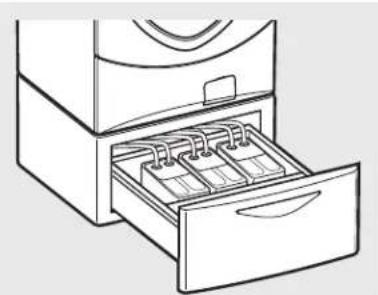

(Only appears when SMART DISPENSER Pedestal Accessory is connected to washer):

This will adjust the amount of detergent dispensed automatically for the SMART DISPENSER. See the Owner's Manual supplied with the SMART DISPENSER for instructions for use.

PRE WASH

Prewash

Prewash is an extra wash before the main wash. Use it for heavily soiled clothes or for clothes with a care label that recommends prewashing before washing. Be sure to add high-efficiency detergent, or the proper wash additive to the prewash dispenser.

The prewash feature will fill the washer (adding the prewash detergent), tumble the clothes, drain and spin. Then the washer will run the selected wash cycle.

NOTE: In some special cycles, the prewash is selected automatically as the default. You can modify this selection at any time.

EXTRA RINSE

Extra Rinse

Use an extra rinse when additional rinsing is desired to remove excess dirt and detergent from soiled loads.

NOTE: In some special cycles, the extra rinse is selected automatically as the default. You can modify this selection at any time. Some cycles have additional rinses done automatically.

DELAY START

Delay Start

You can delay the start of a wash cycle for up to 24 hours. Press the DELAY START button to choose the number of hours you want to delay the start of the cycle. Use the and (up and down) arrows to find the desired delay time; then press ENTER to select the delay time. Finally, press the START button after the desired cycle is selected. The machine will count down and start automatically at the correct time.

NOTE: If you forget to fully close the door, a reminder signal will beep reminding you to do so.

NOTE: If you open the door when the delay is counting down, the machine will enter the pause state. You must close the door and press START again in order to restart the countdown.

LOCK

Push to Lock Control Hold 3 Secs to Unlock

Lock

You can lock the controls to prevent any selections from being made. Or you can lock or unlock the controls after you have started a cycle.

Children cannot accidentally start the washer by touching pads with this option selected.

To lock the washer, press and hold the LOCK button for 3 seconds. To unlock the washer controls, press and hold the LOCK button for 3 seconds. A sound is made to indicate the lock/unlock status.

The control lock icon on the display will light up when it is on.

NOTE: The POWER button can still be used when the machine is locked.

MY CYCLE

Hold 3 Secs to Store

MY CYCLE (on some models)

To save a favorite cycle, set the desired settings for wash cycle, soil level, spin speed and wash temp settings and hold down the MY CYCLE button for 3 seconds. A beep will sound to indicate the cycle has been saved.

To use your custom cycle, press the MY CYCLE button before washing a load.

NOTE: When using MY CYCLE, wash options cannot be modified after the cycle has been started.

NOTE: If you change wash options with MY CYCLE before starting the cycle, the MY CYCLE light will turn off and you will be returned to the base cycle.

Control settings.

Stain Inspector

The STAIN INSPECTOR feature allows you to indicate what stains are on the garments in your load. This feature can be used with any wash cycle.

To use STAIN INSPECTOR:

1. Select the wash cycle.
2. Press the STAIN INSPECTOR button (the button will light up when it is on).

3. Check the wash instructions on your garment.

4. Press the ENTER button to select the stain category.

5. Use the and arrows to select the desired stain.

1. Press the ENTER button to continue.
2. Use the and arrows to find the desired stain category.

You have the following stains available to choose from:

OUTDOOR	COSMETICS	BEVERAGES	FOOD/COOKING
Clay	Lipstick/Lip Balm	Grape Juice	Butter/Margarine
Grass	Deodorant	Coffee/Tea	Cooking/Vegetable Oil
Mud/Dirt	Lotionss	Fruit Juice Other	Chocolate
Rust Iron	Makeup (water-based)	Milk/Dairy	Tomato Based
Tree Sap	Oil (hair/mineral)	Wine (red/white)	Barbecue Sauce

PERSONAL	SCHOOL/OFFICE/HOME	LAUNDRY	OIL/GREASE/WAX
Blood	Adhesive Tape	Dingy White Socks	Motor Oil/Lube
Perspiration	Ballpoint Ink	Collar/Cuff Soil	Ointment/Salve
Urine/Feces	Glue (white common)	Dye Transfer	Candle Wax
Mouthwash	Pencil Mark	Fabric Softener	Crayon
Vomit	Correction Fluid	Yellowing	Chapstick™

1. Press the ENTER button to select the stain.
2. Your selected stain will appear on the display.
3. Press the START button to start the cycle.

NOTE: To turn off STAIN INSPECTOR or to select a different stain, press the STAIN INSPECTOR button again.

NOTE: Prewash is selected automatically as the default for some stains. When selected automatically, the PREWASH button will light. For optimum stain removal, it is recommended to add high-efficiency detergent or proper wash additive to the prewash dispenser. You can turn off the prewash option if you do not want to add the prewash to the cycle.

SMART DISPENSE™ - optional accessory (on some models)

If you have purchased the PROFILE SMART DISPENSE System, refer to the Owner's Manual that comes with the SMART DISPENSE System.

If you have not purchased the PROFILE SMART DISPENSE System, you will not have bulk-dispensing capability. If you select the SMART DISPENSE option, a message will be displayed advising that your unit does not have the capability. You should then put detergent and other selected additive in the flow-through dispenser drawer located at the top left of the unit. To purchase the PROFILE SMART DISPENSE System, go online to GEAppliances.com or contact your local retailer.

STEAM ASSIST

STEAM ASSIST adds steam into the washer during WHITES/HEAVY DUTY, COLORS/NORMAL, WRINKLE FREE or ACTIVE WEAR cycles.

To use:

1. Turn power ON and select a wash cycle. The STEAM ASSIST option is only available on WHITES/HEAVY DUTY, COLOURS/NORMAL, WRINKLE FREE or ACTIVE WEAR cycles.
2. Select the STEAM ASSIST button to activate Steam.
3. Press the START/PAUSE button.

About the washer features.

The Dispenser Drawer

Slowly open the dispenser drawer by pulling it out until it stops.

After adding laundry products, slowly close the dispenser drawer. Closing the drawer too quickly could result in early dispensing of the bleach, fabric softener or detergent.

You may see water in the bleach and fabric softener compartments at the end of the cycle. This is a result of the flushing/siphoning action and is part of the normal operation of the washer.

Use only HE High-Efficiency detergent.

The Prewash Compartment

Only use the Prewash Compartment if you are selecting the Prewash cycle for heavily soiled clothes. Add measured detergent or prewash additive to the back left prewash compartment of the dispenser drawer.

Detergent or prewash additive is flushed from the dispenser in the prewash cycle (if selected).

NOTE: Liquid detergent will drain into the washer drum as it is added.

Detergent usage may need to be adjusted for water temperature, water hardness, size and soil level of the load. Avoid using too much detergent in your washer as it can lead to over suding and leave detergent residue on the clothes.

Insert in rear position for powder detergent

Insert in forward position for liquid detergent

The Detergent Compartment

Only use high-efficiency detergent in this washer. MAX line is for normal detergent. DO NOT fill above the MAX line.

DO NOT fill high-efficiency detergent to the MAX line. Use detergent manufacturer's recommended amount.

The detergent selection insert must be placed in the detergent compartment in a specific position according to the type of detergent you are using.

■ Powder Detergent - Place the insert in the rear position. The Powder Icons must line up on center when the insert is in the powder position.
Liquid Detergent - Place the insert in the forward position. The Liquid Icons must line up on center when the insert is in the liquid position.

Move the insert by pulling it up and replace it by sliding it down between either the rear or front detergent compartment molded rails, as desired, for powder or liquid detergent.

Add measured detergent to the front left detergent compartment of the dispenser drawer.
Detergent is flushed from the dispenser at the beginning of the wash cycle. Either powdered or liquid detergent can be used.
Detergent usage may need to be adjusted for water temperature, water hardness, size and soil level of the load. Avoid using too much detergent in your washer as it can lead to oversudsing and detergent residue being left on the clothes.
DO NOT put clumped detergent in the dispenser. Clumped detergent can cause a leak.

The Liquid Bleach Compartment

If desired, measure out the recommended amount of liquid bleach, not to exceed 1/3 cup (80 ml) and pour into the center compartment labeled "LIQUID BLEACH" marked with this symbol.

It is recommended to use High-Efficiency (HE) bleach in this front-load washer.

Do not exceed the maximum fill line. Overfilling can cause early dispensing of the bleach which could result in damaged clothes.

NOTE: Do not use powdered bleach in the dispenser.

10

The Fabric Softener Compartment

If desired, pour the recommended amount of liquid fabric softener into the compartment labeled "FABRIC SOFTENER."

Use only liquid fabric softener in the dispenser.

Dilute with water to the maximum fill line.

Do not exceed the maximum fill line. Overfilling can cause early dispensing of the fabric softener, which could stain clothes.

NOTE: Do not pour fabric softener directly on the wash load.

Loading and using the washer.

Always follow fabric manufacturer's care label when laundering. GEAppliances.com

Sorting Wash Loads

Colors	Soil	Fabric	Lint
Whites	Heavy	Delicates	Lint Producers
Lights	Normal	Easy Care	Lint Collectors
Darks	Light	Sturdy Cottons

Combine large and small items in a load. Load large items first. Large items should not be more than half the total wash load.
■ Washing single items is not recommended. This may cause an out-of-balance load. Add one or two similar items.
■ Pillows and comforters should not be mixed with other items. This may cause an out-of-balance load.
- Sort dark-colored clothes from light-colored clothes to prevent dye transfer. This is a high-efficiency washer, so it uses less water, making dye transfer more common.

Loading the Washer

The wash drum may be fully loaded with loosely added items. Do not wash garments containing flammable materials (waxes, cleaning fluids, etc.).

To add items after the washer has started, press START/PAUSE and wait until the door is unlatched. The washer may take up to 30 seconds to unlock the door after pressing START/PAUSE, depending on the machine conditions. Do not try to force the door open when it is locked. After the door unlocks, open gently. Add items, close the door and press START/PAUSE to restart.

Loading Examples*

WORKWear	LINENS	MIXED LOAD	DELICATES*	SPEED WASH(2-4 GARMENTS)
4 Jeans5 Work WearShirts5 Work WearPants	2 Bath Sheets10 Bath Towels/12 Washcloths7 Hand Towels/2 Terrycloth Bath MatsOR2 Flat Queen-Sized Sheets2 Fitted Queen-Sized Sheets4 Pillowcases	4 Pillowcases2 Hand Towels2 Flat Sheets/2 Fitted Sheets2 Bath Towels/4 WashclothsOR6 Shirts (Men's or Women's)4 Pair Pants(Khakis or Twills)5 T-shirts7 Pairs of Boxers4 Pairs of ShortsOR6 T-shirts4 Pairs of Sweatpants4 Sweatshirts2 Hoodies7 Pairs of Socks	7 Bras7 Panties3 Slips2 Camisoles4 Nightgowns*Using a nylon mesh bag for small items is recommended.	2 Casual WearWork Shirts1 Pair Casual WearWork PantsOR3 Soccer Uniforms

*Using a nylon mesh bag for small items is recommended.

Loading and using the washer.

Care and Cleaning/General Maintenance

Exterior: Immediately wipe off any spills. Wipe with damp cloth. Do not hit surface with sharp objects.

Interior: Dry around the washer door opening, flexible gasket (including attached hoses) and door glass. These areas should always be clean to ensure a water-tight seal.

It is recommended to rinse the washer at least once per month with 1 cup of bleach (or other commercially available product manufactured for this purpose) poured into the prewash section of the dispenser (no clothes) using the BASKET CLEAN CYCLE (found in the SPECIALTY CYCLES menu). Check to ensure the steam nozzle is not clogged. Clean the nozzle if necessary.

Moving and Storage: Ask the service technician to remove water from drain pump and hoses. Do not store the washer where it will be exposed to the weather. When moving the washer, the tub should be kept stationary by using the shipping bolts removed during installation. See Installation Instructions in this manual. If these parts are not available, they can be ordered by visiting our Website at GEAppliances.com or by calling 800.GE.CARES.

Long Vacations: Be sure water supply is shut off at faucets. Drain all water from hoses if weather will be below freezing.

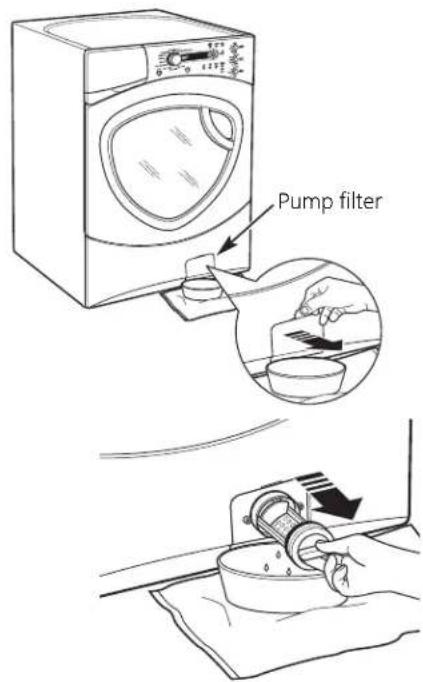

Clean Pump Filter

Due to the nature of the front-load washer, it is sometimes possible for small articles to pass to the pump. The washer has a filter to capture lost items so they are not dumped to the drain. To retrieve lost items, clean out the pump filter.

1. Using a coin in the notch on the door, open the access door.
2. Place a shallow pan or dish under the pump access door and towels on the floor in front of the washer to protect the floor. It is normal to catch about a cup of water when the filter is removed.
3. Turn the pump filter counterclockwise and remove the filter.
4. Clean the debris from the filter.
5. Replace the filter and turn clockwise to the marked position.
6. Close the access door.

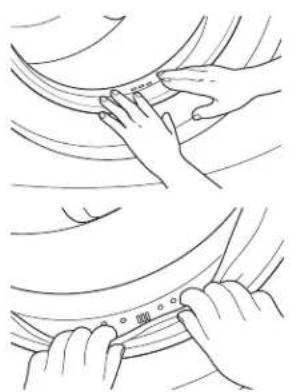

Cleaning the Door Gasket

Open the washer door. Using both hands, press down the door gasket. Remove any foreign objects if found trapped inside the gasket. Make sure there is nothing blocking the holes behind the gasket.

While holding down the door gasket, inspect the interior gasket by pulling it down with your fingers. Remove any foreign objects if found trapped inside this gasket. Make sure there is nothing blocking the holes behind the gasket.

When you are finished cleaning the door gasket, remove your hands and the gaskets will return to the operating position.

Lock tab is visible only after drawer has been pulled out

Dispenser Drawing Area: Detergent and fabric softener may build up in the dispenser drawer. Residue should be removed once or twice a month.

Remove the drawer by first pulling it out until it stops. Then reach back into the right rear corner of the drawer cavity and press down firmly on the lock tab, pulling out the drawer.

• Remove the insert from the bleach and fabric softener compartments and the detergent insert. Rinse the inserts and the drawer with hot water to remove traces of accumulated laundry products.

To clean the drawer opening, use a small brush to clean the recess. Remove all residue from the upper and lower parts of the recess.
Return inserts to the proper compartments. Replace the dispenser drawer.

To reduce buildup in the Dispenser Drawer area:

Use only HE High-Efficiency detergent.

Loading and using the washer.

Fabric Care Labels

Below are fabric care label "symbols" that affect the clothing you will be laundering.

WASH LABELS

Machine wash cycle

Normal

Permanent Press/ wrinkle resistant

Gentle/ deli cate

Handwa

Do not wash Do not wring

Water temperature

Hot 50C/120F

Warm (40 C/105 F)

Cold/cool (30 C/85 F)

BLEACH LABELS

Bleach symbols

Any bleach (when needed)

Only non-chlorine bleach (when needed)

Do not bleach

DETERGENT LABELS

Use only HE High-Efficiency detergent.

Available accessories.

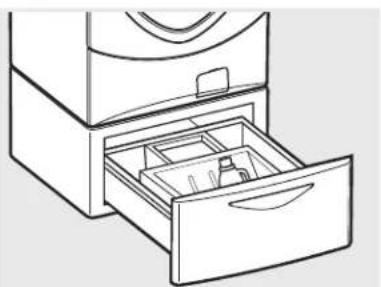

Pedestal

There is a pedestal available for your washer. This pedestal gives the washer more height and gives storage for your washing necessities. Included with the pedestal is a divider that allows you to store liquid laundry detergent out of sight. See the pedestal installation instructions.

Profile Smart Dispense System

The Profile SMART DISPENSE System lets you store laundry detergent and fabric softener to be dispensed automatically during the wash and rinse cycles of this washer. NO BLEACH may be used in this dispense system. See the Owner's Manual that is included with the Profile SMART DISPENSE System for installation instructions.

Model WPDH8910 is compatible with the GE Demand Response (DR) module which can be purchased separately. Contact your local utility or visit www.GEApliances.com/demand_response to see if your area is using DR technology.

The following demand response features are available as part of a pilot test program with the local utility company to help consumers reduce peak electricity usage in the home.

INSTALLATION

The preferred location for the module installation is on top of the clothes dryer.

Details on how to connect the cables to the module are in the instructions that come with the module.

Wait 5 minutes; then press the Settings button. Scroll and look for the energy management screen as seen below.

This screen means the module is attached correctly and you can begin to use your DR-enabled appliance following the instructions below.

If the Energy Management Screen is not available, refer to the DR module troubleshooting guide.

QUICK GUIDE

There are 4 power levels available: Critical, High, Medium and Low. On the Medium and Low levels, the unit runs as normal. The following steps show how the unit reacts during startup at Critical and High power levels.

Option 1 (Delay Eco)

During startups at Critical and High levels, the unit will delay starting until the level becomes Medium or Low. Press the START/PAUSE button.

Option 2 (Override Delay Eco)

To start the washer when Delay Eco is shown, press the DELAY START button to turn the delay off. Then press START/PAUSE to begin the wash.

SETTINGSMENU

Press SETTINGS; then select Energy Management.

Delay Eco Override

If you are starting a cycle in a Critical or High utility rate, this option allows the unit to automatically run on an Eco Cycle. This setting will wash with less energy than normal cycles. The default setting is YES.

Auto-Extend Delays

If a timed delay is selected, this option allows for the scheduled start to extend if the utility rate is Critical or High at the scheduled start. The default setting will automatically extend these cycles.

In order for the demand response features on the appliance to work, additional equipment is required to be installed to interface with the local utility. Such equipment may be sold separately and/or is available through your utility as part of the pilot test program. Check with your utility company to see if a pilot test program is available in your area and for full details.

PLEASE NOTE: At the conclusion of the pilot test program or if you move to an area where the program is not available, the demand response features cannot be activated and utilized on the appliance. The appliance will function as normal after the demand response equipment has been deactivated or disconnected.

Installation Instructions

Washer

If you have any questions, call 800.GE.CARES (800.432.2737)

or visit our Website at: GEAppliances.com

In Canada, call 1.800.561.3344 or visit www.GEApliances.ca

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPOR
  TANT -
  Save these instructions
  for local inspector's use.

·IMPORTANT -
Observe all governing
codes and ordinances.
Note to Installer - Be sure to leave these
instructions with the Consumer.
Note to Consumer - Keep these instructions
for future reference.
- Skill level - Installation of this appliance requires
basic mechanical and electrical skills.
Completion time - 1-3 hours
- Proper installation is the responsibility of the installer.
- Product failure due to improper installation is not
covered under the Warranty.

FOR YOUR SAFETY:

WARNING

• This appliance must be properly grounded and installed as described in these Installation Instructions.
• Do not install or store appliance in an area where it will be exposed to water/weather. See Location of Your Washer section.
  NOTE: This appliance must be properly grounded, and electrical service to the washer must conform with local codes and ordinances and the latest edition of the National Electrical Code, ANSI/NFPA 70.

TOOLS REQUIRED FOR WASHER INSTALLATION

1/4" nut driver
3/8" socket with ratchet
3/8" open-end wrench
Adjustable wrench or 7/16" socket with ratchet
Adjustable wrench or 9/16" open-end wrench
Channel-lock adjustable pliers
Carpenter's level

PARTS SUPPLIED
Water Hoses (2)

Cable Tie

Hose Guide

Do Not Install the Washer:

1. In an area exposed to dripping water or outside weather conditions. The ambient temperature should never be below 60^ (15.6^) for proper washer operation.
2. In an area where it will come in contact with curtains or drapes.
3. On carpet. The floor MUST be a hard surface with a maximum slope of 1/2'' per foot (1.27 cm per 30 cm). To make sure the washer does not vibrate or move, you may have to reinforce the floor.

NOTE: If floor is in poor condition, use 3/4'' impregnated plywood sheet solidly attached to existing floor covering.

IMPORTANT:

Minimum Installation Clearances

• When installed in alcove: Sides, Rear, Top = 0" (0 cm)
• When installed in closet: Sides, Rear, Top = 0" (0 cm), Front = 1" (2.54 cm)
  Closet door ventilation openings required: 2 louvers each 60 square in. (387~cm^2) located 3'' (7.6~cm) from top and bottom of door

ROUGH-IN DIMENSIONS

*NOTE:

With Washer Legs: 40.5" (102.5 cm)

0.75^ adjustability

With Pedestal: 53.75" (136.6 cm)

(0.75"adjustability)

Stacked: 82.75" (209.8 cm)

UNPACKING THE WASHER

WARNING: Recycle or destroy the carton and plastic bags after the washer is unpacked. Make materials inaccessible to children. Children might use them for play. Cartons covered with rugs, bedspreads or plastic sheets can become airtight chambers causing suffocation.

1. Cut and remove the top and bottom packaging straps.
2. While it is in the carton, carefully lay the washer on its side. DO NOT lay the washer on its front or back.
3. Turn down the bottom flaps—remove all base packaging, including the cardboard, styrofoam base and styrofoam tub support (inserted in center of base). Save the stacking brackets located on the styrofoam pad that covered the top of the washer.

NOTE: If you are installing a pedestal, proceed to the installation instructions that come with the pedestal.

1. Carefully return the washer to an upright position and remove the carton.
2. Carefully move the washer to within 4 feet (122 cm) of the final location.

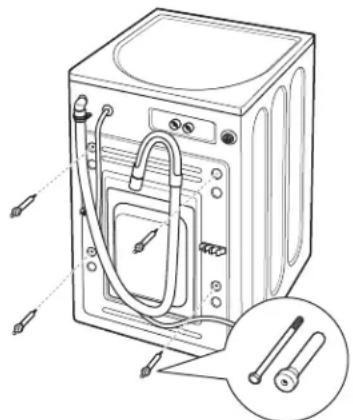

3. Remove the following from the back side of the washer: 4 bolts 4 plastic spacers (including rubber grommets) 4 power cord retainers
4. Remove the shipping bolt. Insert plug into shipping bolt hole.

NOTE: Failure to remove the shipping braces can cause the washer to become severely unbalanced.

Save all bolts for future use.

NOTE: If you must transport the washer at a later date, you must reinstall the shipping support hardware to prevent shipping damage. Keep the hardware in the plastic bag provided.

ELECTRICAL REQUIREMENTS

Read these instructions completely and carefully.

WARNING-TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK AND PERSONAL INJURY:

DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.

Washer must be electrically grounded in accordance with local codes and ordinances, or in the absence of local codes, in accordance with the NATIONAL ELECTRICAL CODE, ANSI/NFPA NO. 70.

CIRCUIT - Individual, properly polarized and grounded 15-amp branch circuit fused with 15-amp time-delay fuse or circuit breaker.

POWER SUPPLY - 2-wire, with ground, 120-volt, single-phase, 60-Hz, Alternating Current.

OUTLET RECEPTACLE - Properly grounded 3-prong receptacle to be located so the power supply cord is accessible when the washer is in an installed position.

GROUNDING REQUIREMENTS

WARNING: Improper connection of the equipment grounding conductor can result in a risk of electrical shock. Check with a licensed electrician if you are in doubt as to whether the appliance is properly grounded.

1. The washer MUST be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electrical shock by providing a path of least resistance for electrical current.
2. Since your washer is equipped with a power supply cord having an equipment-grounding conductor and a grounding plug, the plug MUST be plugged into an appropriate, copper-wired receptacle that is properly installed and grounded in accordance with all local codes and ordinances or in the absence of local codes, with the National Electrical Codes, ANSI/NFPA 70 (latest edition). If in doubt, call a licensed electrician. DO NOT cut off or alter the grounding prong on the power supply cord. In situations where a two-slot receptacle is present, it is the owner's responsibility to have a licensed electrician replace it with a properly grounded three-prong grounding-type receptacle.

WATER SUPPLY REQUIREMENTS

Hot and cold water faucets MUST be installed within 42 inches (107 cm) of your washer's water inlet. The faucets MUST be 3/4'' (1.9 cm) garden hose-type so inlet hoses can be connected. Water pressure MUST be between 10 and 120 pounds per square inch. Your water department can advise you of your water pressure. The hot water temperature should be set to deliver water at 120^ to 140^ F (48^ - 60^) to provide proper Automatic Temperature Control (ATC) performance.

NOTE: A water softener is recommended to reduce buildup of scale inside the steam generator if the home water supply is very hard.

DRAIN REQUIREMENTS

1. Drain capable of eliminating 17 gals (64.3 L) per minute.
2. A standpipe diameter of 114'' (3.18 cm) minimum.
3. The standpipe height above the floor should be:

Minimum height: 24" (61 cm)
Maximum height: 96" (244 cm)

NOTE: The drain hose attached to the washer can reach a 58"(147 cm) high standpipe. For a higher standpipe, contact an authorized parts distributor.

INSTALLING THE WASHER

1. Run some water from the hot and cold faucets to flush the water lines and remove particles that might clog the water valve screens.

2. Remove the inlet hoses from the plastic bag.

3. (90^ elbow end) Carefully connect the inlet hose marked HOT to the outside "H" outlet of the water valve. Tighten by hand, then tighten another 2/3 turn with pliers. Carefully connect the other inlet hose to the inside "C" outlet of the water valve. Tighten by hand; then tighten another 2/3 turn with or over-tighten these connec

1. Connect the inlet hose ends to the HOT and COLD water faucets tightly by hand, then tighten another 2/3 turn with pliers. Turn the water on and check for leaks.

1. Carefully move the washer to its final location. Gently rock the washer into position. It is important not to damage the rubber leveling legs when moving your washer to its final location. Damaged legs can increase washer vibration. It may be helpful to spray window cleaner on the floor to help move your washer into its final position. NOTE: To reduce vibration, ensure that all four rubber leveling legs are firmly touching the floor. Push and pull on the back right and then back left of your washer.

NOTE: Do not use the dispenser drawer or door to lift the washer.

NOTE: If you are installing into a drain pan, you can use a 24-inch long 2 × 4 to lever the washer into place.

1. With the washer in its final position, place a level on top of the washer (if the washer is installed under a counter, the washer should not be able to rock). Adjust the front

leveling legs up or down to ensure the washer is resting solidly. Turn the lock nuts on each leg up toward the base of the washer and snug with a wrench.

NOTE: Keep the leg extension at a minimum to prevent excessive vibration. The farther out the legs are extended, the more the washer will vibrate.

If the floor is not level or is damaged, you may have to extend the rear leveling legs.

INSTALLING THE WASHER (cont.)

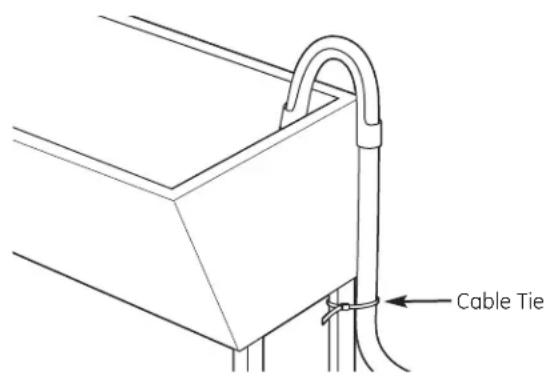

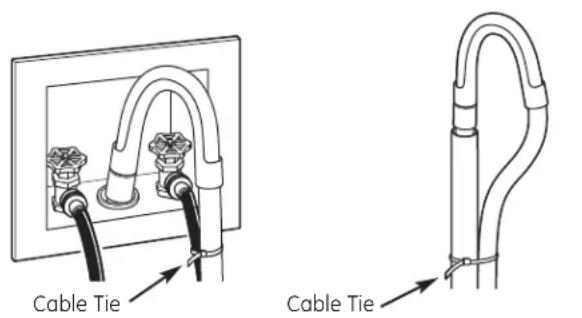

1. Attach U-shaped hose guide to the end of the drain hose. Place the hose in a laundry tub or standpipe and secure it with the cable tie provided in the enclosure package.

NOTE: If the drain hose is placed in a standpipe without forming a U shape, a siphoning action could occur. There must be an air gap around the drain hose. A snug hose fit can also cause a siphoning action.

1. Plug the power cord into a grounded outlet.

NOTE: Check to be sure the power is off at the circuit breaker/fuse box before plugging the power cord into an outlet.

1. Turn on the power at the circuit breaker/fuse box.
2. Read the rest of this Owner's Manual. It contains valuable and helpful information that will save you time and money.
3. Before starting the washer, check to make sure:

Main power is turned on.
The washer is plugged in.
The water faucets are turned on.
The unit is level and all four leveling legs are firmly on the floor.
The shipping support hardware is removed and saved.
The drain hose is properly tied up.
There are no leaks at the faucet, drain line or washer.

1. Run the washer through a complete cycle. Check for water leaks and proper operation.
2. If your washer does not operate, please review the Before You Call For Service section before calling for service.
3. Place these instructions in a location near the washer for future reference.

REPLACEMENT PARTS

If replacement parts are needed for your washer, they can be ordered in the United States by visiting our Website at GEAppliances.com or by calling 800.GE.CARES. In Canada, visit geappliances.ca or call 1.800.561.3344.

Before you call for service...

Troubleshooting Tips

Save time and money! Review the charts on the following pages first and you may not need to call for service.

Problem Possible Cause What To Do

Not spinning or agitating	Drain hose is kinked or • Straighten drain hose and make sure washer is not improperly connected sitting on it.
	Household drain may • Check household plumbing. You may need to call be clogged a plumber.
	Drain hose siphoning; drain hose • Ensure there is an air gap between hose and drain. pushed too far down the drain
	Washer pump filter may • Clean Pump Filter - Open the pump access door (use a coin) be clogged and remove the pump filter by turning it counterclockwise and pulling out. Clean the filter, removing all loose debris, and put filter back in place.
	Load is out of balance • Redistribute clothes and run drain & spin or rinse & spin. • Increase load size if washing small load containing heavy and light items.
Leaking water	Door gasket is damaged • Check to see if gasket is seated and not torn. Objects left in pockets may cause damage to the washer (nails, screws, pens, pencils).
	Door gasket not damaged • Water may drip from the door when the door is opened. This is a normal operation.
	Check back left of washer for water • If this area is wet, you have oversudsing condition. Use less detergent.
	Fill hoses or drain hose is improperly connected faucets and make sure end of drain hose is correctly inserted in and secured to drain facility.
	Household drain may • Check household plumbing. You may need to call be clogged a plumber.
Not draining	Drain hose is kinked or • Straighten drain hose and make sure washer is not improperly connected sitting on it.
	Household drain may • Check household plumbing. You may need to call be clogged a plumber.
	Drain hose siphoning; drain hose • Ensure there is an air gap between hose and drain. pushed too far down the drain
	Washer pump filter may • Clean Pump Filter - Open the pump accessdoor (use a coin) be clogged and remove the pump filter by turning it counterclockwise and pulling out. Clean the filter, removing all loose debris, and put filter back in place.
Not spinning	Drain hose is kinked or • Straighten drain hose and make sure washer is not sitting on it.
	Household drain may • Check household plumbing. You may need to call a plumber. be clogged
	Drain hose siphoning; drain hose • Ensure there is an air gap between hose and drain. pushed too far down the drain
	Washer pump filter may • Clean Pump Filter - Open the pump access door (use a coin) be clogged and remove the pump filter by turning it counterclockwise and pulling out. Clean the filter, removing all loose debris, and put filter back in place.
	Load is out of balance• Redistribute clothes and run drain & spin or rinse & spin. • Increase load size if washing small load containing heavy and light items.
	Motor is overheated • Washer motor will stop if it becomes overheated. It will automatically restart after a cool-down period of up to 2 hours (if washer has not been manually turned off).
	Door is open • Make sure door is closed.
Problem Possible Cause What To Do
Incomplete cycle or timer not advancing improperly connected sitting on it.	Drain hose is kinked or	• Straighten drain hose and make sure washer is not
	Household drain may • Check household plumbing. You may need to call be clogged a plumber.
	Drain hose siphoning; drain hose • Ensure there is an air gap between hose and drain. pushed too far down the drain
	Washer pump filter may • Clean Pump Filter - Open the pump access door (use a coin) be clogged and remove the pump filter by turning it counterclockwise and pulling out. Clean the filter, removing all loose debris, and put filter back in place.
	Automatic load redistribution • Remaining time display has changed as the machine has redistributed the load once or twice. This is normal operation. Do nothing; the machine will finish the wash cycle.
Loud or unusual noise; vibration or shaking	Cabinet moving	• Washer is designed to move 1/4" to reduce forces transmitted to the floor. This movement is normal.
	All rubber leveling legs are not firmly touching the floor	• Push and pull on the back right and then back left of your washer to check if it is level. If the washer is uneven, adjust the rubber leveling legs so they are all firmly touching the floor. Your installer should correct this problem.
	Unbalanced load	• Open door and manually redistribute load. To check machine, run rinse and spin with no load. If normal, unbalance was caused by load.
	Whistling	• SteamAssist or SteamREFRESH is selected. This is normal operation for the selected steam modes.
Clothes too wet	Drain hose is kinked or improperly connected sitting on it.	• Straighten drain hose and make sure washer is not
	Household drain may • Check household plumbing. You may need to call be clogged a plumber.
	Drain hose siphoning; drain hose • Ensure there is an air gap between hose and drain. pushed too far down the drain
	Washer pump filter may • Clean Pump Filter - Open the pump access door (use a coin) be clogged and remove the pumping filter by turning it counterclockwise and pulling out. Clean the filter, removing all loose debris, and put filter back in place.
	Load is out of balance	• Redistribute clothes and run drain & spin or rinse & spin. • Increase load size if washing small load containing heavy and light items.
No power/washer not working or dead	Drain hose is kinked or improperly connected	• Straighten drain hose and make sure washer is not sitting on it.
	Household drain may • Check household plumbing. You may need to call be clogged a plumber.
	Drain hose pushed too far down the drain	• Ensure there is an air gap between hose and drain.
	Washer pump filter may • Clean Pump Filter - Open the pump access door (use a coin) and remove the pump filter by turning it counterclockwise and pulling out. Clean the filter, removing all loose debris, and put filter back in place.
	Washer is unplugged	• Make sure cord is plugged securely into a working outlet.
	Water supply is turned off	• Turn both hot and cold faucets fully on.
	Circuit breaker/fuse is tripped/blown	• Check house circuit breakers/fuses. Replace fuses or reset breaker. Washer should have separate outlet.
	Controls are not set properly	• Hold START/PAUSE button to start cycle.
	Automatic self system checks	• First time the washer is plugged in, automatic checks occur. It may take up to 20 seconds before you can use your washer. This is normal operation.

Before you call for service...

Problem Possible Cause What To Do
Water does not enter washer or enters slowly	Automatic self system checks	After START is pressed, the washer does several system checks. Water will flow several seconds after START is pressed.
	Water supply is turned off • Turn on both hot and cold faucets fully.
	Water valve screens are stopped up	Turn off the water source and remove the water connection hoses from the upper back of the washer. Use a brush or toothpick to clean the screens in the machine. Reconnect the hoses and turn the water back on.
Snags, holes, tears, rips or excessive wear other objects left in pockets	Pens, pencils, nails, screws or	Remove loose items from pockets.
	Pins, snaps, hooks, sharp • Fasten snaps, hooks, buttons and zippers.
	buttons, belt buckles, zippers and sharp objects left in pockets
Wrinkling	Improper sorting	Avoid mixing heavy items (like work clothes) with light items (like blouses).
	Overloading	Load your washer so clothes have enough ro
	Incorrect wash cycle	Match Cycle selection to the type of fabric you are washing (especially for easy care loads).
	Repeated washing in water that is too hot	Wash in warm or cold water.
Graued or yellowed clothes	Not enough detergent	Use correct amount of detergent.
	Not using HE (high-efficiency) detergent	Use HE detergent.
	Hard water	Use hottest water safe for fabric. Use a water conditioner like Calgon brand or install a water softener.
	Water is not hot enough	Make sure water heater is delivering water at 120°-140°F (48°-60°C).
	Detergent is not dissolving	Try a liquid detergent.
	Dye transfer	Sort clothes by color. If fabric label states wash separately, unstable dyes may be indicated.
Colored spots	Incorrect use of fabric softener	Check fabric softener package for instructions and follow directions for using dispenser.
	Dye transfer	Sort whites or lightly colored items from dark colors. Promptly remove wash load from washer.
Water temperature is incorrect	Water supply is improperly connected	Make sure hoses are connected to correct faucets.
	House water heater is not set properly	Make sure house water heater is delivering water at 120°-140°F (48°-60°C).
Bad odor inside your washer	Washer unused for a long time or not using recommended quality of HE detergent	Leave the door slightly open for the water to air dry. Run a BasketClean cycle (found in the Specialty cycle Menu) with 1 cup of bleach. See the Care and Cleaning/General Maintenance section.
Slight variation in metallic color	This is normal	Due to the metallic properties of paint used for this unique product, slight variations of color may occur due to viewing angles and lighting conditions.
Door unlocks slowly	This is normal	During SteamASSIST and SteamREFRESH, access to the tub is delayed to reduce exposure to steam.

All warranty service provided by our Factory Service Centers, or an authorized Customer Care technician. To schedule service, on-line, visit us at GEAppliances.com, or call 800.GE.CARES (800.432.2737). Please have serial number and model number availa ble when calling for service.

Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.

For The Period Of: We Will Replace:

One Year From the date of the original purchase costs to replace the defective part.	Any part of the washer which fails due to a defect in materials or workmanship. During this limited one-year warranty, GE will also provide, free of charge, all labor and related service
Second through Fifth Year From the date of the original purchase	The suspension strut assembly, motor and motor controller if any of these parts should fail due to a defect in materials or workmanship. GE will also replace the washer top panel, front panel or service panel if they should rust under operating conditions. During this additional three-year limited warranty, you will be responsible for any labor or related service costs.
Second through Tenth Year From the date of the for any labor or related service costs.	The outer tub and driven pulley if any of these parts should fail due to a defect in materials or workmanship. During this additional eight-year limited warranty, you will be responsible
Lifetime of Product From the date of the original purchase	The washer basket if it should fail due to a defect in materials or workmanship. During this product lifetime limited warranty, you will be responsible for any labor or related service costs.

What Is Not Covered (in the United States):

Service trips to your home to teach you how to use the product.
■ Improper installation, delivery or maintenance.
Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
Damage after delivery.

■ Replacement of house fuses or resetting of circuit breakers.
Damage to the product caused by accident, fire, floods or acts of God.
- Incidental or consequential damage caused by possible defects with this appliance.
Product not accessible to provide required service.

EXCLUSION OF IMPLIED WARRANTY--Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

GE Washer Warranty. (For customers in Canada)

All warranty service provided by our Factory Service Centres or an authorized technician. For service, call 1.800.561.3344.

Please have serial number and model number available when calling for service.

For The Period Of: We Will Replace:

One Year From the date of the original purchase service	Any part of the washer which fails due to a defect in materials or workmanship. During this limited one-year warranty, GE will also provide, free of charge, all labour and related costs to replace the defective part.
Second through Fifth Year From the date of the original purchase	The suspension strut assembly, motor and motor controller if any of these parts should fail due to a defect in materials or workmanship. GE will also replace the washer top panel, front panel or service panel if they should rust under operating conditions. During this additional three-year limited warranty, you will be responsible for any labour or related service costs.
Second through Tenth Year From the date of the for any labour or related service costs.	The outer tub and driven pulley if any of these parts should fail due to a defect in materials or workmanship. During this additional eight-year limited warranty, you will be responsible
Lifetime of Product From the date of the original purchase	The washer basket if it should fail due to a defect in materials or workmanship. During this product lifetime limited warranty, you will be responsible for any labour or related service costs.

What Is Not Covered (in Canada):

Service trips to your home to teach you how to use the product.
Improper installation, delivery or maintenance.
Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
Damage after delivery.

Replacement of house fuses or resetting of circuit breakers.
Damage to the product caused by accident, fire, floods or acts of God.
- Incidental or consequential damage caused by possible defects with this appliance.
Product not accessible to provide required service.

EXCLUSION OF IMPLIED WARRANTY--Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada for home use within Canada. In-home warranty service will be provided in areas where it is available and deemed reasonable by Mabe to provide.

WARRANTOR IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES.

Warrantor: MABE CANADA INC.

Prewash (Pre-lavage)

Garante: General Electric Company. Louisville, KY 40225

Pagina Web de GE Appliances

GEAppliances.com

General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

Registre su electrodoméstico GEAppliances.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, order parts or even schedule service on-line. In Canada: www.GEAppliances.ca

Schedule Service

In the U.S.: GEAppliances.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours. In Canada, call 1.800.561.3344

Real Life Design Studio

In the U.S.: GEAppliances.com

GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

In Canada, contact: Manager, Consumer Relations, Mabe Canada Inc.

Suite 310, 1 Factory Lane

Moncton, N.B. E1C 9M3

Extended Warranties

In the U.S.: GEAppliances.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires. In Canada, call 1.888.261.2133

Parts and Accessories

In the U.S.: GEAppliances.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Customers in Canada should consult the yellow pages for the nearest Mabe service center, or call 1.800.661.1616.

Contact Us

In the U.S.: GEAppliances.com

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

In Canada: www.GEAppliances.ca, or write to:

Director, Consumer Relations, Mabe Canada Inc.

Suite 310, 1 Factory Lane

Moncton, N.B. E1C 9M3

Register Your Appliance

In the U.S.: GEAppliances.com

Register your new appliance on-line-at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material. In Canada: www.GEAppliances.ca
