USER MANUAL LT42E910 JVC

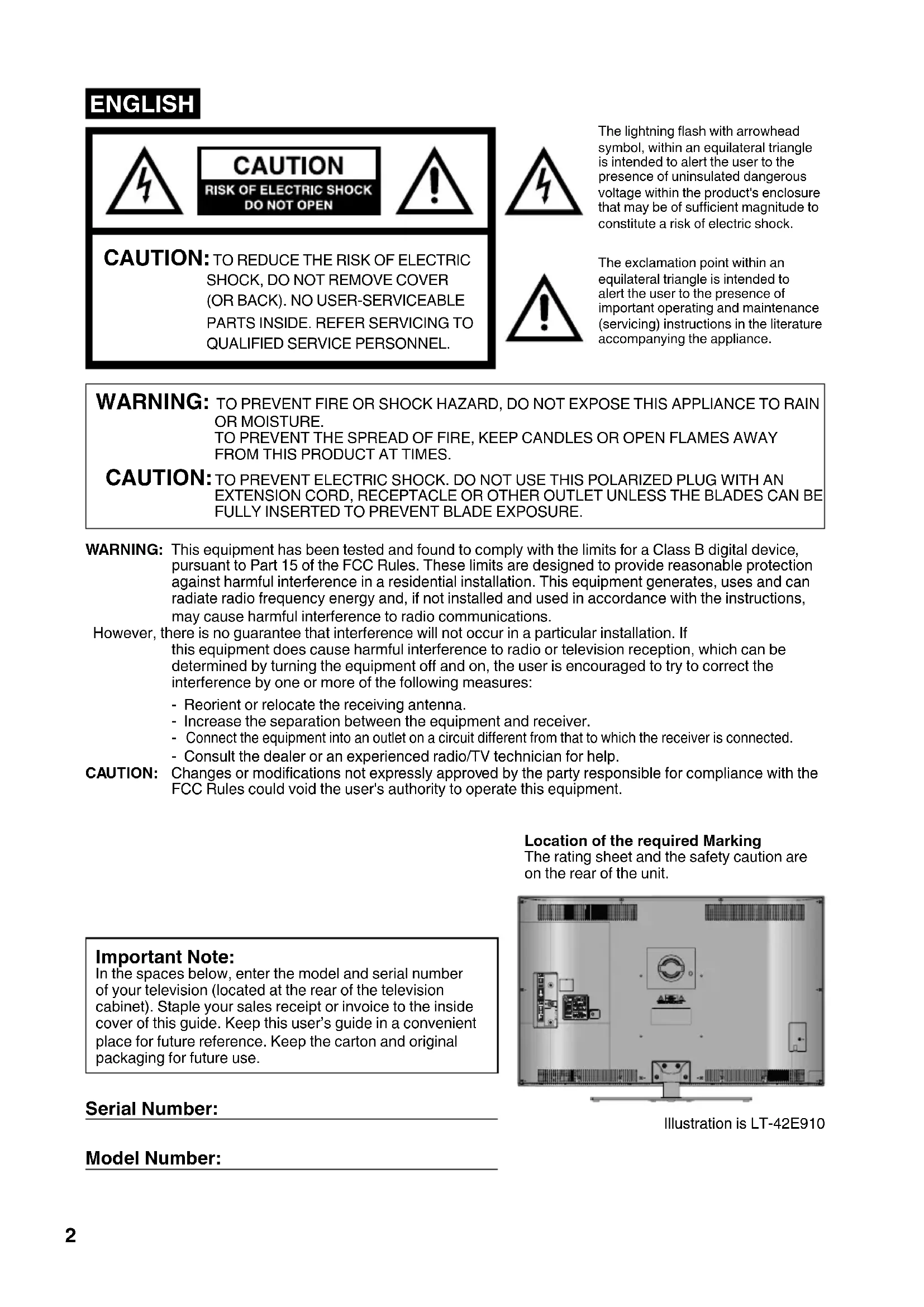

WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the user's authority to operate this equipment.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN

OR MOISTURE. TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OPEN FLAMES AWAY FROM THIS PRODUCT AT TIMES. CAUTION: TO PREVENT ELECTRIC SHOCK. DO NOT USE THIS POLARIZED PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. Important Note: In the spaces below, enter the model and serial number of your television (located at the rear of the television cabinet). Staple your sales receipt or invoice to the inside cover of this guide. Keep this user’s guide in a convenient place for future reference. Keep the carton and original packaging for future use. Serial Number: Model Number: Illustration is LT-42E910 3CQ0221B_En.indd 23CQ0221B_En.indd 2 10/6/10 3:52:13 PM10/6/10 3:52:13 PM3 ENGLISH

15) Apparatus should not be exposed to dripping or splashing, and objects filled with liquids, such as

vases, should not be placed on the apparatus.

16) An outside antenna system should not be located in the vicinity of overhead power lines or other

electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits, as contact with them might be fatal.

17) Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock.

18) Do not push objects through any openings in this unit, as they may touch dangerous voltage points

or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid into the unit.

19) If an outside antenna or cable system

is connected to the unit, be sure the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges, Section 810 of the National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

CHILD SAFETY: It Makes A Difference How and Where You Use Your Flat Panel Display Congratulations on your purchase! As you enjoy your new product, please keep these safety tips in mind: THE ISSUE The home theater entertainment experience is a growing trend and larger flat panel displays are popular purchases. However, flat panel displays are not always supported on the proper stands or installed according to the manufacturer’s recommendations. Flat panel displays that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests or carts may fall over and cause injury. THIS MANUFACTURER CARES! The consumer electronics industry is committed to making home entertainment enjoyable and safe.

One size does NOT fit all. Follow the manufacturer’s recommendations for the safe installation and use of your flat panel display. Carefully read and understand all enclosed instructions for proper use of this product. Don’t allow children to climb on or play with furniture and television sets. Don’t place flat panel displays on furniture that can easily be used as steps, such as a chest of drawers. Remember that children can become excited while watching a program, especially on a “larger than life” flat panel display. Care should be taken to place or install the display where it cannot be pushed, pulled over, or knocked down. Care should be taken to route all cords and cables connected to the flat panel display so that they cannot be pulled or grabbed by curious children. WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT YOUR FLAT PANEL DISPLAY, ALWAYS: Use a mount that has been recommended by the display manufacturer and/or listed by an independent laboratory (such as UL, CSA, ETL). Follow all instructions supplied by the display and wall mount manufacturers. If you have any doubts about your ability to safely install your flat panel display, contact your retailer about professional installation. Make sure that the wall where you are mounting the display is appropriate to support the weight of the unit/ product and wall mount. If you are unsure, contact a professional installer. A minimum of two people are required for installation. Flat panel displays can be heavy.

20) When replacement parts are required, be sure the service technician uses replacement parts

specified by the manufacturer or those that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

21) Upon completion of any service or repairs to this unit, ask the service technician to perform safety

checks to determine that the unit is in proper operating condition.

22) When you connect the product to other equipment, turn off the power and unplug all of the

equipment from the wall outlet. Failure to do so may cause an electric shock and serious personal injury. Read the owner's manual of the other equipment carefully and follow the instructions when making any connections.

23) Sudden high volume sound may cause hearing or speaker damage. When you use headphones,

(if the unit is equipped with a headphone jack) keep the volume at a moderate level. If you use headphones continuously with high volume sound, it may cause hearing damage.

24) Do not allow the product to output distorted sound for an extended period of time. It may cause

speaker overheating and fire.

25) This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the

NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

26) The socket-outlet must be installed near the unit and easily accessible.

CONDENSATION Moisture will form in the operating section of the unit if the unit is brought from cool surroundings into a warm room or if the temperature of the room rises suddenly. When this happens, unit's performance will be impaired. To prevent this, let the unit stand in its new surroundings for about an hour before switching it on, or make sure that the room temperature rises gradually. Condensation may also form during the summer if the unit is exposed to the breeze from an air conditioner. In such cases, change the location of the unit.

HOW TO HANDLE THE LCD PANEL

Do not press hard or jolt the LCD panel. It may cause the LCD panel glass to break and injury may occur. If the LCD panel is broken, make absolutely sure that you do not touch the liquid in the panel. This may cause skin inflammation. If the liquid gets in your mouth, immediately gargle and consult with your doctor. Also, if the liquid gets in your eyes or touches your skin, consult with your doctor after rinsing for at least 15 minutes or longer in clean water. Possible Adverse Effects on LCD Panel: If a fixed (non-moving) pattern remains on the LCD Panel for long periods of time, the image can become permanently engrained in the LCD Panel and cause subtle but permanent ghost images. This type of damage is NOT COVERED BY YOUR WARRANTY. Never leave your LCD Panel on for long periods of time while it is displaying the following formats or images: Fixed Images, such as stock tickers, video game patterns, TV station logos, and websites. Special Formats that do not use the entire screen. For example, viewing letterbox style (16:9) media on a normal (4:3) display (black bars at top and bottom of screen); or viewing normal style (4:3) media on a widescreen (16:9) display (black bars on left and right sides of screen). The following symptoms are not signs of malfunction but technical limitation. Therefore we disclaim any responsibility for these symptoms. LCD Panels are manufactured using an extremely high level of precision technology, however sometimes parts of the screen may be missing picture elements or have luminous spots. This is not a sign of a malfunction. Do not install the LCD Panel near electronic equipment that produces electromagnetic waves. Some equipment placed too near this unit may cause interference. Effect on infrared devices – There may be interference while using infrared devices such as infrared cordless headphones.

SAFETY PRECAUTIONS The unit emits heat when in operation. Do not place any covers or blankets on the unit, this may cause overheating. Do not block ventilation holes, or set up near radiators. Do not place in direct sunshine. When placing on a shelf leave 10 cm (4 inches) free space around the entire unit. 10cm 10cm 3CQ0221B_En.indd 53CQ0221B_En.indd 5 10/6/10 3:52:16 PM10/6/10 3:52:16 PM6 400mm400mmBracket holes How to attach the stand NOTE:

Unplug the AC cord from the AC outlet.

Ensure that unpacking and transfer of the unit is carried out by two or more people.

Before beginning this process, assure that TV is laid on a clean, safe, and cushioned space to avoid any damage to the unit.

Do not touch or press the TV-screen, glass might break under pressure. Place the TV on its front onto a table. Align the stand’s bottom-plate (supplied) as seen here. It will ﬁ t in only one direction. Hold the unit and attach the stand slowly, as shown in Figure 1. How to remove the stand When you transport this product, remove the stand and pack ﬂ at against the back of the unit in the carton. To remove the stand, perform these steps in reverse order. For wall mounting, the base must be removed. To disconnect the base/stand remove the 4 screws from the back. Finally secure the bottom-plate with 4 screws (supplied) as indicated by the arrows in Figure 2. Be sure to follow the instructions. Insufficient tightening or incorrect installation of the stand will not support your unit correctly, and could result in damage or injury from tip-over.

Figure 1 Figure 2 Notes when mounting the LCD TV on a wall If the unit is to be mounted on the wall, contact the retailer where you purchased the LCD TV for advice, and have the equipment professionally installed. Incomplete or improper installation may cause injury to you, and/or damage to the LCD TV. Bracket holes: To attach a wall mounting bracket (not supplied) remove the screw, then attach where indicated in the drawing right. This manufacturer recommends professional installation. Utilize an appropriate bracket and fasteners, sufficient to accommodate the size and weight of the unit. Assure the wall to which the unit is to be mounted will safely support the size and weight of the unit, using the bracket and fasteners you have selected. Keep cords and cables connected to this flat panel display out of reach of children. To hang the television on a wall, remove these screws and then remove a stand. Before performing work spread cushioning over the base area to lay the TV on.

Bracket holes200mm200mm Screws M6 × 10 Illustration is LT-42E910 Illustration is LT-42E910 M8 × 15 Screws Illustration is LT-46E910 3CQ0221B_En.indd 63CQ0221B_En.indd 6 10/6/10 3:52:17 PM10/6/10 3:52:17 PM7 ENGLISH AC cord AC 120V, 60Hz AC Outlet Features LED Backlight System - It realize thin profile, low power consumption, eco-friendly Hg-less design and high contrast picture. Integrated Digital Tuner - You can view digital broadcasts without using a Digital TV Set-Top Box. Closed Caption Decoder With Full Text Mode - Displays text captions or full screen text on the screen for hearing impaired viewers. Picture Adjustments Using The Remote Control - The On-Screen display allows precise remote control adjustment of BRIGHTNESS, CONTRAST, COLOR, TINT and SHARPNESS. Programmable TV Sleep Timer - Operable from the remote control, the LCD TV can be programmed for up to 120 minutes to turn off automatically. V-Chip - The V-Chip function can read the rating of a broadcast program or movie content if the program is encoded with this information. V-Chip will allow you to set a restriction level. Digital Audio Jack (Coaxial) - When a component with a built-in Dolby Digital decoder is connected, Dolby Digital sound can produce the effect of being in a movie theater or a concert hall. HDMI/Component Video Jacks - A VCR, DVD player, satellite receiver or other audio/video component can be connected to this unit. On-Screen 3 Language Display - You can select one of 3 languages, English, French or Spanish for on- screen programming.

NOTE: Please make sure to insert the cord securely the wall outlet. The AC cord has a grounding-type AC line plug. If the supplied AC cord does not match you AC outlet, contact a qualified electrician, do not defeat the purpose of a grounding plug.

qualification. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Logos & Licenses 3CQ0221B_En.indd 83CQ0221B_En.indd 8 10/6/10 3:52:29 PM10/6/10 3:52:29 PM9 ENGLISH Parts and functions Front Remote sensor POWER button INPUT/ENTER button VOL (VOLUME) +/– buttons CH (CHANNEL) / buttons MENU button Rear To display the menu screen : Touch MENU button to display the menu screen. CH (CHANNEL) / buttons, VOL (VOLUME) +/– buttons and INPUT/ENTER button can be used to select the desired setting during the menu screen operations. To adjust the TV angle : You can adjust the TV angle of the TV-screen for 30° from horizontal angle. Hold the base of the TV while adjusting the angle. PC/DVI AUDIO IN jack VIDEO 1 IN jacks (VIDEO/AUDIO (L(MONO)/R)) HDMI1/DVI IN jack PC MONITOR IN jack Right side Power Indicator Red : Standby Blue : On FOR SERVICE PERSONNEL USE ONLYDo NOT insert ANY USB device into this port. Use of this port by other than Service Personnel may void this products warranty. Service connector cover: Please do not open this cover. There is a socket only for service purpose inside. COMPONENT IN jacks DIGITAL AUDIO COAXIAL OUT jack RF (ANT.) IN jack HDMI3 IN jack VIDEO 2 IN jacks (VIDEO/AUDIO (L(MONO)/R)) HDMI2 IN jack VAR. (VARIABLE) AUDIO OUT jacks Illustration is LT-42E910 Illustration is LT-42E910 3CQ0221B_En.indd 93CQ0221B_En.indd 9 10/6/10 3:52:29 PM10/6/10 3:52:29 PM10 Remote control

HOW TO INSTALL BATTERIES

1. Open the battery compartment cover.

2. Install two “AA” batteries (supplied).

3. Replace the battery compartment cover.

Before using the remote control, batteries must first be installed. Use two “AA” size batteries (supplied). The batteries may last approximately one year depending on how much the remote control is used. For best performance, it is recommended that batteries should be replaced on a yearly basis, or when the remote operation becomes erratic. Do not mix old and new batteries or different types. BATTERY PRECAUTIONS These precautions should be followed when using batteries in this device: Use only the size and type of batteries specified. Be sure to follow the correct polarity when installing the batteries as indicated in the battery compartment. Reversed batteries may cause damage to the device. Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc) or old batteries with fresh ones. If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture. (Follow battery manufacturer’s directions.) Batteries should not be exposed to excessive heat such as sunshine, fire or the like.

1.POWER Button - Used to turn the power on/off to the LCD TV. 2.DISPLAY Button - When you press this button, the current information will be displayed on a screen. To remove the display from the screen, press this button again. 3.Direct Channel Selection Buttons (0-9) - Allows direct access to any channel of the LCD TV.

– Button -This button is the “–” button used when selecting digital channels. 5.MENU Button - Use to display the On-Screen menu function. 6.CURSOR ▲/▼/◀/▶ Buttons - Used to operate the menu functions of the LCD TV. 7.MUTING Button - To turn off the sound, press this button once. The LCD TV will be silenced and the symbol “Muting” will appear on the screen. The muting feature can be released by pressing the MUTING button again or one of the VOL (VOLUME) + or – buttons. 8.INPUT SELECT Button - Use to change the external input. 9.VOL (VOLUME) + / – Buttons - Press the + button to increase, or the – button to decrease the sound level. 10.CCD Button - Used to display the Closed Caption menu screen. 11.PICTURE SIZE Button - Used to change the picture size. 12.SLEEP Button - To set the LCD TV to turn off after a preset amount of time, use the SLEEP button on the remote control. 13.RECALL Button - This button allows you to go back to the previous channel selected by just pressing the RECALL button. Press this button again to return to the channel you were watching. 14.EXIT Button - Press to remove setup menu. 15.ENTER Button - Use to enter or select information for On-Screen operations. 16.AUDIO Button - Change soundtrack language.

CH (CHANNEL) / Buttons - To change the channels of the LCD TV.

If this symbol is shown, it is only valid in the European union. 3CQ0221B_En.indd 103CQ0221B_En.indd 10 10/6/10 3:52:36 PM10/6/10 3:52:36 PM11 ENGLISH Antenna connections If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your antenna system. If you are using a Cable TV service, see “Cable TV connections”. Combination VHF/UHF Antenna (Single 75 ohm cable) Antenna Jack 75 ohm Coaxial Cable Connect the 75 ohm cable from the combination VHF/UHF antenna to the antenna jack. Cable TV connections For basic Cable TV service not requiring a Converter/ Descrambler box, connect the 75 ohm Coaxial Cable directly to the Antenna Jack on the back of the TV. For subscribers to scrambled Cable TV service If you subscribe to a Cable TV service which requires the use of a Converter/Descrambler box, connect the incoming 75 ohm Coaxial Cable to the Converter/Descrambler box. Using another 75 ohm Coaxial Cable, connect the output jack of the Converter/Descrambler box to the Antenna Jack on the TV. Follow the connections shown below. Set the TV to the output channel of the Converter/Descrambler box (usually channel 3 or 4) and use the Converter/Descrambler box to select channels. For subscribers to unscrambled Cable TV service with scrambled premium channels If you subscribe to a Cable TV service in which basic channels are unscrambled and premium channels require the use of a Converter/Descrambler box, you may wish to use a signal Splitter and an A/B Switch box (available from the Cable TV company or an electronics supply store). Follow the connections shown below. With the switch in the “B” position, you can directly tune any nonscrambled channels on your TV. With the switch in the “A” position, tune your TV to the output of the Converter/Descrambler box (usually channel 3 or 4) and use the Converter/Descrambler box to tune scrambled channels. This TV has an extended tuning range and can tune most cable channels without using a Cable TV Converter box. Some cable companies offer “premium pay channels” where the signal is scrambled. Descrambling these signals for normal viewing requires the use of a descrambler device which is generally provided by the Cable TV company. For subscribers to basic Cable TV service Incoming 75 ohm Cable TV Cable 75 ohm Cable to TV Antenna Jack Converter/ Descrambler Splitter

The exact arrangement you use to interconnect various video and audio components to this unit is dependent on the model and features of each component. Check the Owner’s Manual provided with each component for the location of video and audio inputs and outputs. To connect the LCD TV to a VCR Connections to other equipment To connect the LCD TV to a DVD player with Component Video Input You can enjoy a high quality picture by connecting the unit’s COMPONENT VIDEO OUT jacks of your DVD player with the COMPONENT video cables (not supplied). Right of the unit To Video/Audio OUT Video/Audio cord (not supplied) To VIDEO/AUDIO IN To Component OUT Audio cord (not supplied) Component video cord (not supplied) To AUDIO IN To COMPONENT IN To Audio OUT NOTE: Component Video input of the unit are for use with a device which output 480i/1080i interlaced signals and 480p/720p progressive signals.

VCR DVD To connect the LCD TV to a camcorder, or a TV Game To playback from a camcorder, connect the camcorder to the unit as shown. This unit can also be used as a display device for many video games. However, due to the wide variety of signals generated by these devices and subsequent hook-up variations required, they have not all been included in the suggested connection diagrams. You’ll need to consult each component’s Owner’s Manual for additional information. Right of the unit Video/Audio cord (not supplied) To VIDEO/AUDIO IN To Video/Audio OUT Rear of the unit 3CQ0221B_En.indd 123CQ0221B_En.indd 12 10/6/10 3:52:38 PM10/6/10 3:52:38 PM13 ENGLISH Connections to other equipment (continued) Using an AV Amplifier with built-in digital surround If you are using an Amplifier with built-in digital surround sound, you can enjoy various audio systems including Dolby Digital Surround audio that sounds just like the movie. Connect an AV amplifier with built-in Dolby Digital decoder, etc. as shown below. Coaxial digital cable (not supplied) AV Amplifier with built-in digital surround decoder as listed above Center Speaker To DIGITAL AUDIO COAXIAL OUT To Coaxial Digital Audio IN Rear of the unit Front Speaker (Left) Front Speaker (Right) Subwoofer Surround Speaker (Left) Surround Speaker (Right)

NOTE: When you are viewing digital broadcast, this unit will not work in conjunction with DTS audio or MPEG audio. There will be no sound output if connected to an AV amplifier with a built-in DTS decoder or MPEG decoder.

To Audio (L) Input To Audio (R) Input Audio cord (not supplied) Amplifier Rear of the unit To connect an audio system This connection allows you to use an audio amplifier and external speakers, and adjust the audio level using the TV’s remote control. To control the audio, turn on the TV and the stereo amplifier, and turn off the TV’s built-in speakers (see page 17). NOTE: To hear sound when using an external audio amplifier, the volume of both the TV and the amplifier must be set above 0 (zero). For example, if the volume of the TV is set to 0, you will not be able to hear any sound, even if the volume of the amplifier is at its highest level.

To VAR. AUDIO OUT 3CQ0221B_En.indd 133CQ0221B_En.indd 13 10/6/10 3:52:38 PM10/6/10 3:52:38 PM14 To connect the LCD TV to a HDMI or a DVI device to the unit The HDMI1/DVI input receives digital audio and uncompressed video from a HDMI device or uncompressed digital video from a DVI device. When you connect to a DVI device with a HDMI-to-DVI adapter cable, it transfers only video signal. Separate analog audio cords required. Connections to other equipment (continued) HDMI - to - DVI adapter cable (HDMI type A connector) (not supplied) Audio cord (not supplied) HDMI cable (type A connector) (not supplied) To DVI output To HDMI out

HDMI device DVI device To HDMI IN To PC/DVI AUDIO IN NOTE: When using HDMI1/DVI to connect your HDMI or DVI devices, you must select the corresponding audio input source (HDMI or DVI) on the menu screen (see page 17). Otherwise you will only see the image with no sound.

Right and rear of the unit VGA cable (not supplied) To connect the LCD TV to a PC (Personal Computer) Before you connect this LCD TV to your PC, change the adjustment of your PC’s Resolution and Refresh rate (60 Hz). Connect one end of a (male to male) VGA cable to the video card of the computer and the other end to the VGA connector PC MONITOR IN on the rear of the

. Attach the connectors firmly with the screws on the plug. In case of a Multimedia computer, connect the audio cord to the audio output of your Multimedia computer and to the AUDIO connector of the PC/DVI AUDIO IN jack of the TV. You can also connect the PC with HDMI cable. If you use HDMI cable, you don’t have to connect the audio cord. If you use DVI-to-HDMI cable, please connect audio cord as same way as VGA cable. Press INPUT SELECT on the remote control to select PC mode. Switch on the computer. The TV can operate as the computer monitor. Monitor Display modes MODE Resolution Refresh rate VGA 640x480 60/ 72/ 75 Hz VGA 720x400 70Hz SVGA 800x600 56/ 60/ 72/ 75 Hz XGA 1024x768 60/ 70/ 75 Hz WXGA 1280x768 60Hz WXGA 1360x768 60Hz SXGA 1280x1024 60Hz WXGA+ 1440x900 60Hz FHD 1920x1080 60Hz To return to normal mode Press INPUT SELECT again. NOTE: The on-screen displays will have a different appearance in PC mode than in TV mode. If there is no video signal from the PC when the unit is in PC mode, “No signal” will appear on the TV-screen. When the PC connected to the HDMI terminal and 1920x1080 resolution (FHD) is selected, the top and bottom, right and left edges of the picture may be hidden on all PICTURE SIZE. In this case, use the PC MONITOR IN jack (VGA cable) is recommended to connect. When the PC’s resolution is set to 1920 x 1080/60 Hz (FHD mode), a signal that differs from the FHD signal, which has been confirmed operational on this TV, may appear depending on the PC used. In this case, “Auto Adjust” or other Position Adjustment functions may fail to correct the image position. To solve this problem, change the PC settings to select another resolution.

HDMI cable (not supplied) Right and rear of the unit Audio cord (not supplied) To PC/DVI AUDIO IN To PC MONITOR

To HDMI IN 3CQ0221B_En.indd 143CQ0221B_En.indd 14 10/6/10 3:52:38 PM10/6/10 3:52:38 PM15 ENGLISH Starting setup The Auto Setup menu appears the first time you turn on the TV, and assists you to specify the Air/Cable setting, and program your channels automatically. IMPORTANT: Make sure that the antenna or cable TV system connection is made!

To turn on the TV, press POWER (POWER indicator on the front of the unit changes blue. It may take approx. 10 seconds for a picture to appear on screen.). The Auto setup function begins. Automatic Search StartThis unit has been preset to STORE brightnessThis setting does not qualify under ENERGY STAR. To reduce brightness and energy consumption, change setting to ‘HOME’. This setting does qualify under ENERGY STAR.Auto SetupTV Location Store: Adjust: SelectSignal Type Cable

Press ▲ or ▼ to select “TV Location”, then press ◀ or ▶ to select “Store” or “Home”. This product qualifies for ENERGY STAR In Home mode default setting. NOTE: This unit has been preset to STORE brightness. This setting does not qualify under ENERGY STAR. To reduce brightness and energy consumption, change setting to ‘HOME’. This setting does qualify under ENERGY STAR. The device may not conform to the ENERGY STAR standard after Reset is performed or the Backlight is adjusted.

Press ▲ or ▼ to select “Signal Type”, then press ◀ or ▶ to select “Cable” or “Air”.

Now the “Auto Setup” starts. After the auto setup is completed, the TV channel appears on the screen.

Depending on the reception condition, it may take from 15 minutes to 30 minutes to complete memorizing digital cable channels. Please be patient. NOTE: If you press EXIT in the process of “Auto Setup”, the Auto Setup stops and changes to the normal screen. When you make a menu selection, your changes occur immediately. You do not have to press EXIT to see your changes. TV operation

To turn on the TV, press POWER. (POWER indicator on the front of the unit changes blue. It may take approx. 10 seconds for a picture to appear on screen.)

Adjust the volume level by pressing VOL + or – . The volume level will be indicated on the screen by blue bars. As the volume level increases, so do the number of bars. If the volume decreases, the number of blue bars also decreases.

Set the Signal Type option to the appropriate position (see “Air/Cable selection” on page 18).

Press the Direct Channel Selection (0-9, –) buttons to select the channel. (If you press only channel number, channel selection will be delayed for a few seconds.)

Press the first 3 digits, then press the – button, followed by the remaining number. Example, to select channel 15-1, press 1, 5, –, 1, then press ENTER. If a channel is selected with only audio content, “Audio only” will be displayed on the screen. If a channel is selected with a weak digital signal, “Digital channel signal strength is low” will be displayed on the screen. The same program may be available on either an analog channel or a digital channel. You may choose to watch either format. If a channel is selected to which you have not subscribed, “Digital channel is encrypted” will be displayed on the screen.

Air Cable VHF 2-13 VHF 2-13 UHF 14-69STD/HRC/IRC14-36 (A) (W)37-59 (AA) (WW)60-85 (AAA) (ZZZ)86-94 (86) (94)95-99 (A-5) (A-1)100-135 (100) (135)01 (4A) NOTE: If a channel with no broadcast is selected, the sound will automatically be muted. It may take a few seconds for a digital channel picture to appear on screen after being selected. To select the video input source To view a signal from another device connected to your LCD TV, such as a VCR player, press INPUT SELECT, then press ▲ or ▼ or corresponding Number buttons (0-7), then press ENTER. You can select TV, Video1, Video2, Component, HDMI1, HDMI2, HDMI3 or PC depending on which input jacks you used to connect your devices. Input Select 1.Video1 2.Video2 3.Component 4.HDMI1 5.HDMI2 6.HDMI3 7.PC [0-7]:Select 0.TV CH / Press and release CH / . The channel automatically stops at the next channel set into memory. For proper operation, before selecting channels, they should be set into the memory. See “Memorizing channels” on page 18.

Resolution• Press DISPLAY again to clear the call display. NOTE: After a few seconds, DISPLAY screen will return to normal TV-operation automatically. RECALL This button allows you to go back to the last channel selected by pressing RECALL. Press RECALL again to return to the last channel you were watching. MUTING Press MUTING to switch off the sound. The TV’s sound will be silenced and “Muting” will appear on the screen. The sound can be switched back on by pressing this button again or the VOL + or –. SLEEP To set the TV to turn off after a preset amount of time, press SLEEP on the remote control. The clock will count up 10 minutes for each press of the SLEEP but- ton (Off, 0h 10m, 0h 20m, ..., 2h 0m). After the sleep time is programmed, the display will appear briefly every ten minutes to remind you that the sleep timer is operating. To confirm the sleep timer setting, press SLEEP and the remaining time will be displayed for a few seconds. To cancel the sleep timer, press SLEEP repeatedly until the display turns to Off.

Quick guide for menu operation Call menu and for example: Select Language.

Press MENU. The TV menu screen will appear. AudioChannel Lock Setup Main Menu Picture>> : Select ENTER:Set

Press ▲ or ▼ to select “Language”, then press ◀ or ▶ to select the desired language. …on the following pages the menu can be called in the same way as here.

Press EXIT to return to the normal screen. NOTE: If no buttons are pressed for more than about 60 seconds, the menu screen will return to normal operation automatically.

3CQ0221B_En.indd 163CQ0221B_En.indd 16 10/6/10 3:52:39 PM10/6/10 3:52:39 PM17 ENGLISH Convenience functions You can change the default settings by pressing the MENU button on your remote, then select one of the icons at the left of the menu - follow the On-Screen prompts to set your preferences. Icon Selected Items Setup hint Picture Picture Setting Brightness / Contrast / Sharpness / Color / Tint You can adjust the picture quality to your preference. Color Temperature Bluish (Cool) / Neutral (Standard) / Reddish (Warm) Backlight

The Backlight feature adjusts the screen brightness for improved picture clarity. DBC On / Off Use this feature to change the Black level automatically according to the brightness of an image. The Black level will become dark in a dark scene. Picture Preference Sports Bright and dynamic picture (factory-set) Standard Standard picture quality (factory-set) Movie Movie-like picture setting (factory-set) Memory Your personal preferences (set by you; see “Picture Setting”) Picture Size See page 22. Film Mode On/Off A smoother motion may be obtained by setting the Film Mode to “On” when you view a DVD from the DVD player connected with the component or HDMI input (480i only). PC Setting Hor Position / Ver Position To adjust the horizontal / vertical position of the image on the PC Monitor screen. Each video standard will require a different value for this setting. Clock To minimize any vertical bars or stripes visible on the screen background. Phase This must be adjusted after the frequency has been set optimize picture quality. Auto Adjust To adjust the all PC settings automatically. DNR On/Off DNR (Digital Noise Reduction) can reduce the roughness of the picture. Motion 120Hz On/Off A smoother motion may be obtained by setting the Motion 120Hz to On. Audio Bass / Treble / Balance You can adjust the sound quality to your preference. MTS Stereo / SAP / Mono The multi-channel TV sound (MTS) feature provides high-fidelity stereo sound. MTS also can transmit a second audio program (SAP) containing a second language or other audio information. When the TV receives a stereo or SAP broadcast, the word “Stereo” or “SAP” displays on-screen every time you press DISPLAY. Audio Language When two or more audio languages are included in a digital signal, you can select an audio language. (This function is available only for digital broadcast.) HDMI1 Audio HDMI When you connect the HDMI device to the TV, select this setting. DVI When you connect the DVI device to the TV with analog audio cords, select this setting. Speakers On/Off Use this feature to turn the TV speakers off when you connect an audio system. Channel Add / Delete See page 18. DTV Signal See page 19. Auto Ch Memory See page 18. Ch Label See page 19. Lock See page 20. Setup Closed Caption See page 21. Language You can choose from three different languages (English, Français (French) and Español (Spanish)) for the on-screen displays. Select the language you prefer first, then proceed with the other menu options. Video Label See page 19. On Timer Off / 0h30m / 1h00m / 1h30m / 2h00m / 3h00m⋅⋅⋅12h00m You can set On Timer to automatically turn on the TV. To cancel the On Timer, set to “Off”. Auto Shut Off*

On/Off If the Auto Shut Off feature is On, a station being viewed stops broadcasting and the TV is not operated, the TV will automatically shut itself off after 15 minutes. Auto Setup See page 15. Power On LED On/Off When you turn on the TV, Power indicator on the front of the TV will light. You can select On or Off. Reset*

The Reset function returns your Picture/Audio settings to the factory settings. “Picture Setting”, “DBC”, “Picture Preference”, “Film Mode”, “PC Setting”, “DNR”, “Motion 120Hz”, “Bass”, “Treble” and “Balance” can be reset by this function. NOTE:

If there is no input signal in the HDMI or PC mode, after 1 minute Auto Shut Off will be activated.

The device may not conform to the Energy Star standard after Reset is performed or the Backlight is adjusted. 3CQ0221B_En.indd 173CQ0221B_En.indd 17 10/6/10 3:52:40 PM10/6/10 3:52:40 PM18 Memorizing channels This TV is equipped with a channel memory feature which allows channels to skip up or down to the next channel set into memory, skipping over unwanted channels. Before selecting channels, they must be programmed into the TV’s memory. To use this TV with an antenna, set the Signal Type option to the Air mode. When shipped from the factory, this menu option is in the Cable mode. Air/Cable selection
