Product Type	32-inch HD LED TV
Brand	JVC
Model	LT-32VH5105
Screen Size	32 inches (80 cm)
Resolution	HD (1366 x 768 pixels)
Tuner Type	DVB-T2/C/S2
Connectivity	HDMI (x2), USB (x2), LAN Ethernet, built-in Wi-Fi (depending on model)
Main Features	Teletext, Electronic Program Guide (EPG), USB Recording, Parental Control, Hotel Mode, Customizable My Button 1
Supported Audio/Video Formats	MPEG, H.264, HEVC, MP3, AAC, JPEG, PNG
Audio Power	2 x 8 W (stereo)
Power Supply	220-240 V AC, 50-60 Hz
Power Consumption (standby)	< 0.5 W
Dimensions (without stand)	Approx. 73 x 43 x 8 cm
Weight (without stand)	Approx. 4.5 kg
Wall Mounting	VESA 200 x 200 mm (M6 screws, max length 10 mm)
Included Accessories	Remote control, AAA batteries (2x), quick start guide, side AV cable (depending on model)
Maintenance and Cleaning	Clean the screen and casing with a soft, dry cloth. Do not use liquid or abrasive products.
Safety	Do not expose to water or naked flames. Leave a 5 cm space around for ventilation. Unplug during thunderstorms or extended absence.
Spare Parts and Repairability	Internal parts are not user-accessible. Contact a qualified service provider. Repairability index: not communicated.
General Information	Compliant with European standards. Manufactured by Vestel. European representative: Vestel Germany GmbH.

Frequently Asked Questions - LT-32VH5105 JVC

How to set up the TV for the first time?

During the first power-on, a setup wizard appears. Select the language, country, usage mode (Home or Store), then configure the network and start channel search. Follow the on-screen instructions.

How to connect the TV to the Internet?

You can use a wired connection via the LAN port or wireless via the built-in Wi-Fi. For Wi-Fi, go to Settings > Network, select 'Wireless', then 'Scan networks'. Choose your network and enter the password if necessary.

What to do if the remote control does not work?

Check that the batteries are correctly inserted (respect the +/- polarities) and that they are new. Make sure no obstacle blocks the signal between the remote and the TV. If the problem persists, reset the remote by removing the batteries and pressing a button for 3 seconds.

How to tune channels after installation?

Press the Menu button on the remote, go to Settings > Channel search. You can start an automatic or manual search. Make sure the antenna or cable is connected correctly.

The TV does not turn on, what to do?

Check that the power cord is properly plugged into the wall outlet. Make sure the outlet works (test with another device). If the standby light does not turn on, contact an authorized repair service.

How to use the USB recording function?

Connect a USB flash drive or hard drive formatted as FAT32 or NTFS to the USB port. In TV mode, press the Record button on the remote to start recording the current program. The function may require scheduling via the EPG guide.

Can I mount the TV on the wall?

Yes, the TV is compatible with a VESA 200x200 mm wall mount. Remove the stand, attach the mount to the wall (following safety instructions), then hang the TV. Use M6 screws with a maximum length of 10 mm.

How to clean the TV screen?

Turn off the TV and use a soft, dry cloth (microfiber) to wipe the screen. Never use chemical products, water, or abrasive cloths. For stubborn stains, slightly dampen the cloth with distilled water.

What does the blinking standby light mean?

A blinking red light may indicate a software update issue or a system error. Wait a few minutes. If the blinking persists, unplug the TV for one minute, then plug it back in. If the problem continues, contact technical support.

How to customize the 'My Button 1' button?

Select the source or channel you want to associate, then press and hold the My Button 1 button on the remote for about 5 seconds until a confirmation message appears. The function will then be memorized.

USER MANUAL LT-32VH5105 JVC

1 Insert the batteries into the Remote Control

Insert two AAA/R3 or equivalent type batteries inside. Observe the correct polarity (+/-) when inserting batteries and replace the battery cover.

Diagram of a conical device with labeled terminals and polarity indicators (no readable text or symbols)

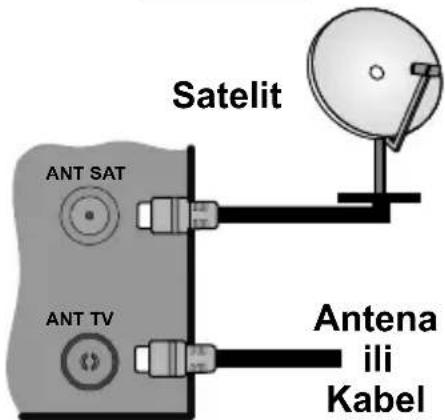

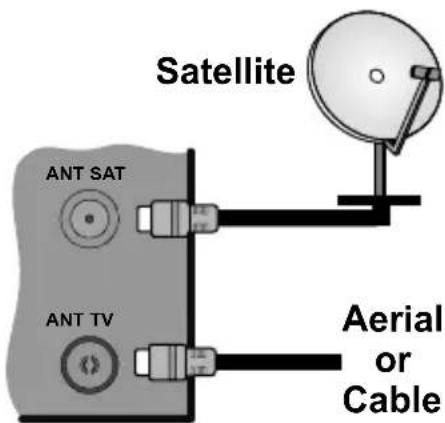

2 Connect the antenna to your TV

* The back connection options may differ depending on the model

REAR SIDE OF THE TV

Satellite ANT SAT ANT TV Aerial or Cable

3 Connect the TV to the mains socket

Simple line drawing of a plug inserted into a socket (no text or symbols)

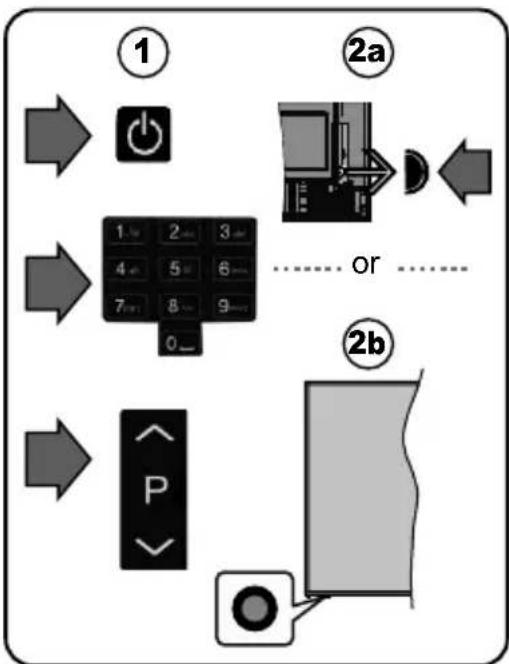

4 To switch the TV on (depending on the model)

After connecting the power cord to the mains socket, the standby LED lights up.

To switch on the TV from standby mode either;

1. Press the Standby button, a numeric button or Programme +/- button on the remote control.

or

2a. Press the middle of the side function switch on the TV in.

2b. Press the control button on the TV.

* The appearance of the remote control buttons and the position of the control buttons on the TV may differ depending on the model


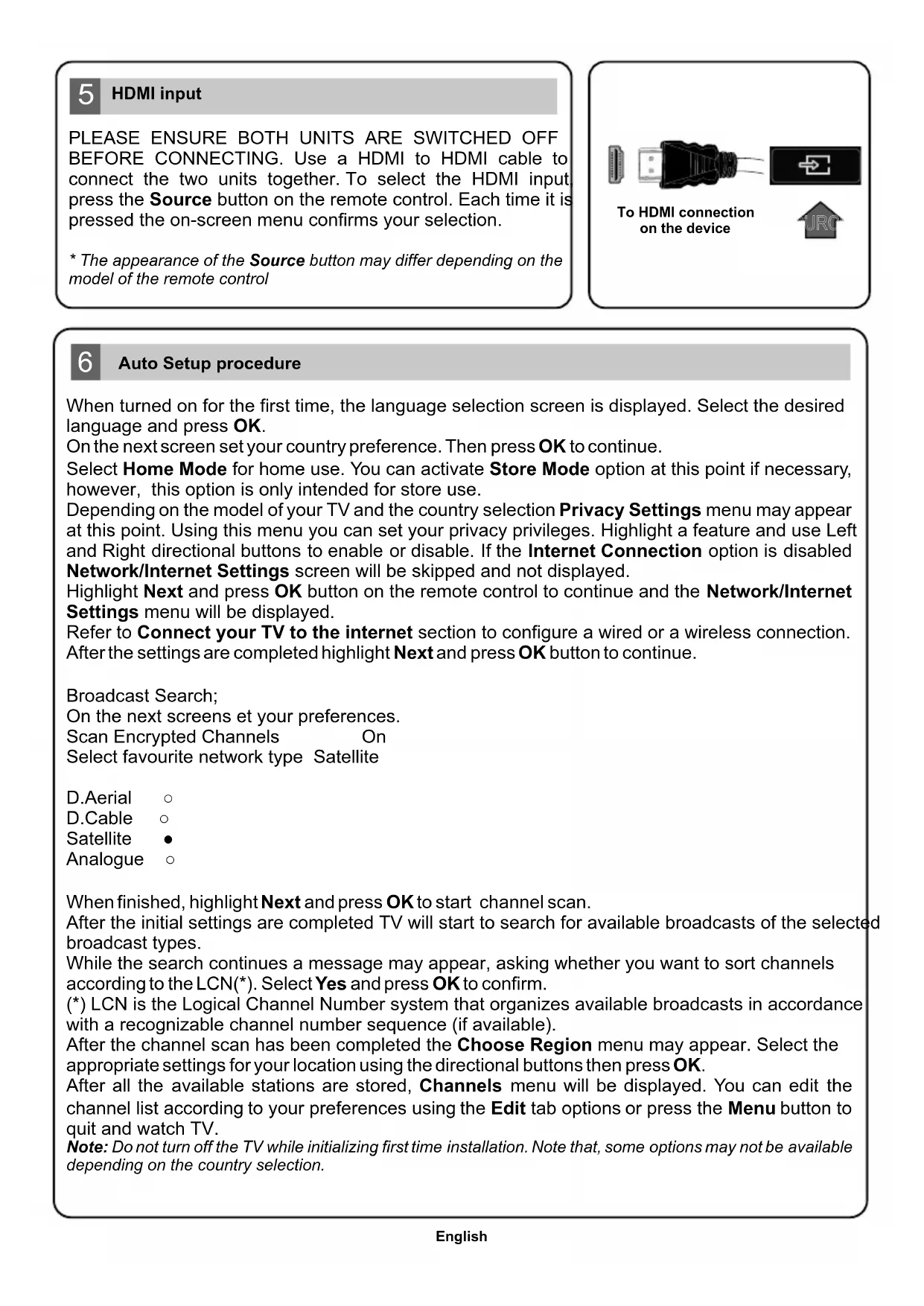

5 HDMI input

PLEASE ENSURE BOTH UNITS ARE SWITCHED OFF BEFORE CONNECTING. Use a HDMI to HDMI cable to connect the two units together. To select the HDMI input press the Source button on the remote control. Each time it is pressed the on-screen menu confirms your selection.

* The appearance of the Source button may differ depending on the model of the remote control

To HDMI connection on the device

6 Auto Setup procedure

When turned on for the first time, the language selection screen is displayed. Select the desired language and press OK.

On the next screen set your country preference. Then press OK to continue.

Select Home Mode for home use. You can activate Store Mode option at this point if necessary, however, this option is only intended for store use.

Depending on the model of your TV and the country selection Privacy Settings menu may appear at this point. Using this menu you can set your privacy privileges. Highlight a feature and use Left and Right directional buttons to enable or disable. If the Internet Connection option is disabled Network/Internet Settings screen will be skipped and not displayed.

Highlight Next and press OK button on the remote control to continue and the Network/Internet Settings menu will be displayed.

Refer to Connect your TV to the internet section to configure a wired or a wireless connection. After the settings are completed highlight Next and press OK button to continue.

Broadcast Search;

On the next screens et your preferences.

Scan Encrypted Channels On

Select favourite network type Satellite

D.Aerial

D.Cable

Satellite

Analogue

When finished, highlight Next and press OK to start channel scan.

After the initial settings are completed TV will start to search for available broadcasts of the selected broadcast types.

While the search continues a message may appear, asking whether you want to sort channels according to the LCN(*). Select Yes and press OK to confirm.

(*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel number sequence (if available).

After the channel scan has been completed the Choose Region menu may appear. Select the appropriate settings for your location using the directional buttons then press OK.

After all the available stations are stored, Channels menu will be displayed. You can edit the channel list according to your preferences using the Edit tab options or press the Menu button to quit and watch TV.

Note: Do not turn off the TV while initializing first time installation. Note that, some options may not be available depending on the country selection.

7

Connect your TV to the Internet

Connectivity feature allows you to connect your TV to the home network wired or wirelessly. You can use this networking system to connect to internet or to access photo, video and audio files that are stored on a Media server connected to the network and play/display them on the TV.

However, if your TV does not have Wireless USB dongle or doesn't support internal WLAN feature, you should use wired connection type. Add your TV to your home network by connecting it to the modem/router via an LAN cable (not supplied) as illustrated.

To use your TV with your wireless network, you may need a WLAN USB dongle. You should connect it to one of the USB inputs on the TV. If your TV supports internal WLAN feature you won't need a wireless LAN adaptor.

Press the Menu button to open the main TV menu. Select Settings by using the directional buttons, highlight Network and press OK. While Network Type is highlighted, press Left or Right buttons to select connection type. Wired connection will be established automatically. If wireless connection is selected, highlight Scan Wireless Networks and press OK. The TV will search for the available wireless networks and list them when finished. Select one and press the OK button to connect. If the wireless network is password-protected you should enter the correct password to access the network.

Note: For more detailed information refer to the manual installed on your TV. To access this manual, enter Settings menu, select Manuals and press OK. For quick access press Menu button and then Info button.

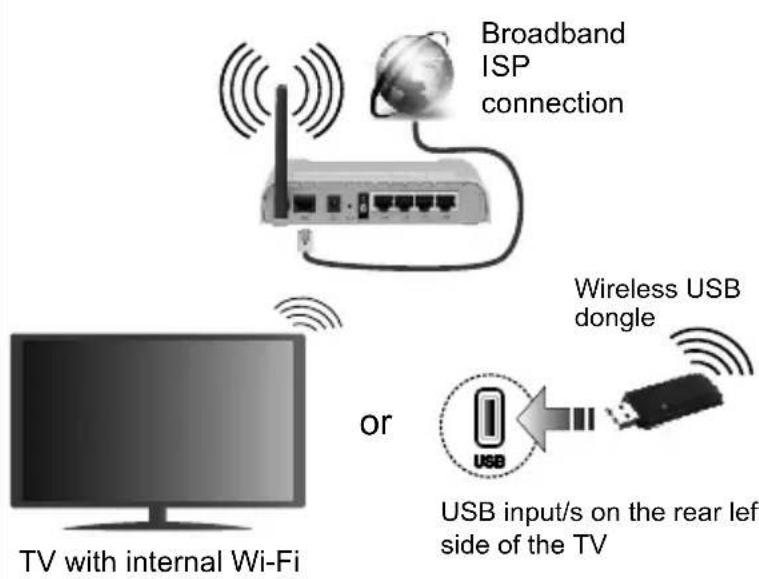

Wireless Connection

Broadband ISP connection Wireless USB dongle or USB USB input/s on the rear left side of the TV TV with internal Wi-Fi

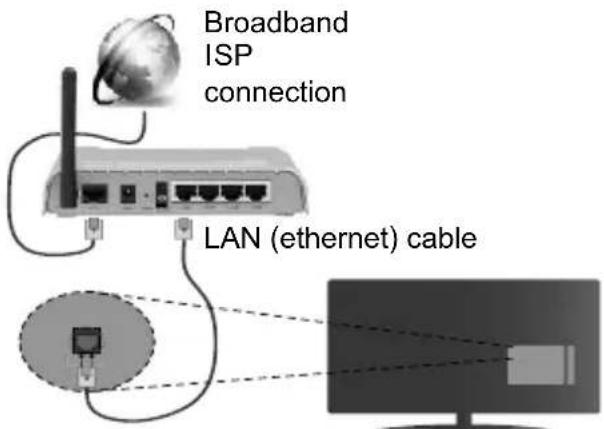

Wired Connection
(depending on the model)

Broadband ISP connection LAN (ethernet) cable

LAN input on the rear side of the TV

Dear Customer

This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety.

European representative of the manufacturer is:

Vestel Germany GmbH

Parkring 6

85748 Garching b. München

Germany

Accessories Included

• Remote Control
• Batteries: 2 x AAA
• Quick Start Guide

Depends on model

• Side AV Connection Cable
• YPbPr Connection Cable
• WLAN USB Dongle and USB Extension Cable
- Wall Mount Kit

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

In extreme weather (storms, lightning) and long inactivity periods (going on holiday) disconnect the TV set from the mains.

The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable. If the TV set is not disconnected electrically from the mains, the device will still draw power for all situations even if the TV is in standby mode or switched off.

Note: Follow the on screen instructions for operating the related features.

IMPORTANT - Please read these instructions fully before installing or operating

WARNING: This device is intended to be used by persons (including children) who are capable / experienced of operating such a device unsupervised, unless they have been given supervision or instruction concerning the use of the device by a person responsible for their safety.

• Use this TV set at an altitude of less than 5000 meters above the sea level, in dry locations and in regions with moderate or tropical climates.

• The TV set is intended for household and similar indoor use but may also be used in public places.

• For ventilation purposes, leave at least 5cm of free space around the TV.

• The ventilation should not be impeded by covering or blocking the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
• The power cord plug should be easily accessible. Do not place the TV, furniture, etc. on the power cord. A damaged power cord/plug can cause fire or give you an electric shock. Handle the power cord by the plug, do not unplug the TV by pulling the power cord. Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock. Never make a knot in the power cord or tie it with other cords. When damaged it must be replaced, this should only be done by qualified personnel.
• Do not expose the TV to dripping or splashing of liquids and do not place objects filled with liquids, such as vases, cups, etc. on or over the TV (e.g., on shelves above the unit).
• Do not expose the TV to direct sunlight or do not place open flames such as lit candles on the top of or near the TV.
• Do not place any heat sources such as electric heaters, radiators, etc. near the TV set.
• Do not place the TV on the floor and inclined surfaces.
• To avoid danger of suffocation, keep plastic bags out of the reach of the babies, children and domestic animals.
• Carefully attach the stand to the TV. If the stand is provided with screws, tighten the screws firmly to prevent the TV from tilting. Do not over-tighten the screws and mount the stand rubbers properly.
• Do not dispose of the batteries in fire or with hazardous or flammable materials.

WARNING - Batteries must not be exposed to excessive heat such as sunshine, fire or the like.

WARNING - Excessive sound pressure from earphones or headphones can cause hearing loss.

ABOVE ALL - NEVER let anyone, especially children, push or hit the screen, push anything into holes, slots or any other openings in the case.

Caution	Serious injury or death risk
Risk of electric shock	Dangerous voltage risk
[3W?D] Maintenance	Important maintenance component

Markings on the Product

The following symbols are used on the product as a marker for restrictions and precautions and safety instructions. Each explanation shall be considered where the product bears related marking only. Note such information for security reasons.

Class II Equipment: This appliance is designed in such a way that it does not require a safety connection to electrical earth.

Hazardous Live Terminal: The marked terminal(s) is/are hazardous live under normal operating conditions.

Caution, See Operating Instructions: The marked area(s) contain(s) user replaceable coin or button cell batteries.

CLASS 1 LASER PRODUCT

Class 1 Laser Product: This product contains Class 1 laser source that is safe under reasonably foreseeable conditions of operation.

WARNING

Do not ingest the battery, Chemical Burn Hazard This product or the accessories supplied with the product may contain a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children.

If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

A television may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• ALWAYS use cabinets or stands or mounting methods recommended by the manufacturer of the television set.
• ALWAYS use furniture that can safely support the television set.
• ALWAYS ensure the television set is not overhanging the edge of the supporting furniture.
• ALWAYS educate children about the dangers of climbing on furniture to reach the television set or its controls.
• ALWAYS route cords and cables connected to your television so they cannot be tripped over, pulled or grabbed.
• NEVER place a television set in an unstable location.
• NEVER place the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
• NEVER place the television set on cloth or other materials that may be located between the television set and supporting furniture.
• NEVER place items that might tempt children to climb, such as toys and remote controls, on the top of the television or furniture on which the television is placed.
• The equipment is only suitable for mounting at heights ≤ 2 m.

If the existing television set is going to be retained and relocated, the same considerations as above should be applied.

Apparatus connected to the protective earthing of the building installation through the MAINS connection or through other apparatus with a connection to protective earthing – and to a television distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a television distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator)

WALL MOUNTING WARNINGS

• Read the instructions before mounting your TV on the wall.
• The wall mount kit is optional. You can obtain from your local dealer, if not supplied with your TV.
• Do not install the TV on a ceiling or on an inclined wall.
• Use the specified wall mounting screws and other accessories.
• ighten the wall mounting screws firmly to prevent the TV from fall. Do not over-tighten the screws.

Figures and illustrations in this user manual are provided for reference only and may differ from the actual product appearance. Product design and specifications may be changed without notice.

License Notification

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

Dolby Audio

YouTube and the YouTube logo are trademarks of Google Inc.

Depends on model

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, DTS-HD, and the DTS-HD logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

dts-HD

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Virtual:X, and the DTS Virtual:X logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

dts VIRTUAL™

Depends on model

The Bluetooth ^® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Vestel Elektronik Sanayi ve Ticaret A.S. is under license. Other trademarks and trade names are those of their respective owners.

This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.

Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device's ability to consume PlayReady-protected content. Revocation should not affect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.

The "CI Plus" Logo is a trademark of CI Plus LLP.

This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.

DVB is a registered trademark of the DVB Project.

This product is manufactured, distributed and warranted exclusively by VESTEL Ticaret A.Ş and serviced by its designated service providers. "JVC" is the trademark of JVC KENWOOD Corporation, used by such companies under licence.

Wall mounting instructions (depending on the model)

Wall Mounting the TV

The TV can be mounted on a wall using a MXX*X mm (*) VESA mounting kit supplied separately. Remove the base stand as shown. Mount the TV according to the instructions supplied with the kit. Beware of electrical cables, gas and water pipes in the wall. In case of any doubt please contact a qualified installer. The screw thread length must not exceed X mm (*) into the TV. Contact the store where you purchased the product for information on where to purchase the VESA kit.

(*) Refer to the related additional page for the accurate VESA measurements and screw specifications.

Removing the base stand

- To remove the base stand, protect the screen and lay the TV flat on its face on a stable table with the base over the edge. Remove the screws fixing the stand to the TV.

Diagram showing a mechanical component with arrows indicating direction, surrounded by circular symbols (no text or labels)

-or-

Diagram showing two vertical metal supports with circular holes and directional arrows pointing to each, against a plain gray background (no text or symbols)

Disposal Information

[European Union]

These symbols indicate that the electrical and electronic equipment and the battery with this symbol should not be disposed of as general household waste at its end-of-life. Instead, the products should be handed over to the applicable collection points for the recycling of electrical and electronic equipment as well as batteries for proper treatment, recovery and recycling in accordance with your national legislation and the Directive 2012/19/EU and 2013/56/EU.

By disposing of these products correctly, you will help to conserve natural resources and will help to prevent potential negative effects on the environment human health which could otherwise be caused by inappropriate waste handling of these products.

For more information about collection points and recycling of these products, please contact your local municipal office, your household waste disposal service or the shop where you purchased the product.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

[Business users]

If you wish to dispose of this product, please contact your supplier and check the terms and conditions of the purchase contract.

[Other Countries outside the European Union]

These symbols are only valid in the European Union.

Contact your local authority to learn about disposal and recycling.

The product and packaging should be taken to your local collection point for recycling.

Some collection points accept products free of charge.

Note: The sign Pb below the symbol for batteries indicates that this battery contains lead.

Products

Battery

and

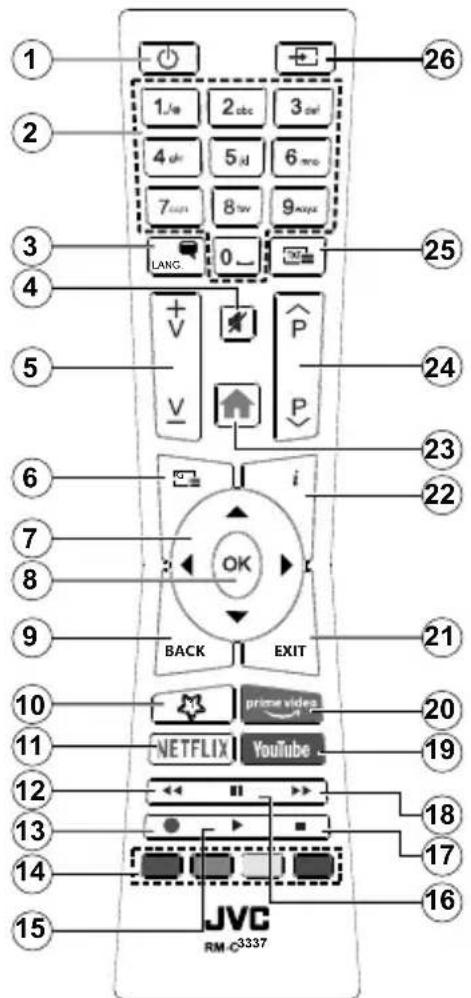

Remote Control

1 2 3 4 5 6 7 8 9 0 1/1a 2abc 3cwt 4d 5d 6moc 7moc 8mw 9mmp LANG V P V P i 22 23 24 25 26 BACK EXIT 21 10 prime video 20 11 NETFLIX YouTube 19 12 << >> 18 13 JVC 17 14 15 RM-C3337

(\*) MY BUTTON 1:

This button may have default function depending on the model. However you can set a special function to this button by pressing on it for five seconds when on a desired source or channel. A confirmation message will be displayed on the screen. Now the My Button 1 is associated with the selected function.

Note that if you perform First Time Installation, My Button 1 will return to its default function.

Teletext Services

Press the Text button to enter. Press again to activate mix mode, which allows you to see the teletext page and the TV broadcast at the same time. Press once more to exit. If available, sections in the teletext pages will become colour-coded and can be selected by pressing the coloured buttons. Follow the instructions displayed on the screen.

Digital Teletext

Press the Text button to view digital teletext information. Operate it with the coloured buttons, cursor buttons and the OK button. The operation method may differ depending on the contents of the digital teletext. Follow the instructions displayed on the digital teletext screen. When the Text button is pressed again, the TV returns to television broadcast.

1. Standby: Switches On / Off the TV
2. Numeric buttons: Switches the channel, enters a number or a letter in the text box on the screen
3. Language: Switches among sound modes (analogue TV), displays and changes audio/subtitle language and turns subtitles on or off (digital TV, where available)

4. Mute: Completely turns off the volume of the TV

5. Volume +/-

6. Guide: Displays the electronic programme guide

7. Directional buttons: Helps navigate menus, content etc. and displays the subpages in TXT mode when pressed Right or Left

8. OK: Confirms user selections, holds the page (in TXT mode), views Channels menu (DTV mode)

9. Back/Return: Returns to previous screen, previous menu, opens index page (in TXT mode). Quickly cycles between previous and current channels or sources

10. My Button 1 (*)

11. Netflix: Launches the Netflix application

12. Rewind: Moves frames backwards in media such as movies

13. Record: Records programmes**

14. Coloured Buttons: Follow the on-screen instructions for coloured button functions

15. Play: Starts to play selected media

16. Pause: Pauses the media being played, starts timeshift recording**

17. Stop: Stops the media being played

18. Fast Forward: Moves frames forward in media such as movies

19. YouTube: Launches the YouTube application

20. Prime Video: Launches the Amazon Prime Video application

21. Exit: Closes and exits from displayed menus or returns to previous screen

22. Info: Displays information about on-screen content, shows hidden information (reveal - in TXT mode)

23. Menu: Displays TV menu

24. Programme +/-

25. Text: Displays teletext (where available), press again to superimpose the teletext over a normal broadcast picture (mix)

26. Source: Shows available broadcast and content sources

Footnote:

Red, green, blue and yellow buttons are multifunction; please follow on-screen prompts and section instructions.

(**) If this feature is supported by your TV.

Diagram of a battery cell with positive and negative terminals, showing internal structure and charge distribution (no text or labels)

Illustration of a plug inserted into a socket with a circular component inserted (no text or symbols)

Diagram showing a USB connector with cable, alongside a black rectangular button with an arrow symbol (no text or labels)

CLASS 1 LASER PRODUCT

Diagram showing a mechanical or electrical component with arrows indicating direction, surrounded by circular symbols (no text or labels)

-0-

Diagram showing two vertical supports with circular symbols and arrows pointing to them, no text or labels present.

Diagram of a cylindrical device with two positive charges and a central conical structure, no text or symbols present.

Simple line drawing of a plug inserted into a socket (no text or symbols)

4 Para ligar a TV (Dependendo do modelo)

Simple diagram showing a gray rectangular shape with a small circular element below it, no text or symbols present.

5 Entrada HDMI

CLASS 1 LASER PRODUCT

Diagram showing a mechanical component with arrows indicating direction, surrounded by circular symbols (no text or labels)

-OU-

Diagram showing two vertical supports with circular symbols and arrows pointing to each, no text or labels present.

Close-up of a mechanical component with two positive charges and a central conical tip (no visible text or symbols)

Simple line drawing of a plug inserted into a socket (no text or symbols)

Simple diagram showing a gray rectangular shape with a small black circle and a separate white square (no text or symbols)

5 HDMI-Eingang

CLASS 1 LASER PRODUCT

Diagram showing a mechanical or electrical component with arrows indicating direction, surrounded by circular symbols (no text or labels)

-oder-

Diagram showing two vertical supports with circular symbols and arrows pointing to them, no text or labels present.

Close-up of a mechanical component with two positive charges and a central conical structure (no visible text or symbols)

Simple line drawing of a plug inserted into a socket (no text or symbols)

4 Zapnutí televizoru )v závislosti od modelu(

Simple diagram showing a gray rectangular shape with a small black circle and a curved line, no text or symbols present.

5

HDMI vstup

Diagram showing a USB connector connected to a port with an arrow symbol (no text or labels)

CLASS 1 LASER PRODUCT

Diagram showing a mechanical component with arrows indicating direction, surrounded by circular symbols (no text or labels)

-nebo-

Diagram showing two vertical supports with circular symbols and arrows pointing to each, no text or labels present.

Informace o likvidaci

Evropská Unie

Pure electrical circuit lines without any symbols

Simple line drawing of a plug inserted into a socket (no text or symbols)

Diagram showing a USB connector connected to a black D-sub and a white connector symbol (no text or labels)

CLASS 1 LASER PRODUCT

Diagram showing a mechanical component with arrows indicating direction, surrounded by circular symbols (no text or labels)

-alebo-

Diagram showing two vertical metal supports with circular symbols and arrows pointing to them, no text or labels present.

Close-up of a conical device with two labeled terminals (no visible text or symbols)

Simple line drawing of a plug inserted into a socket (no text or symbols)

CLASS 1 LASER PRODUCT

Diagram showing a mechanical component with arrows indicating direction, surrounded by circular symbols (no text or labels)

-vagy-

Diagram showing two vertical supports with circular symbols and arrows pointing to them, no text or labels present.

Pure electrical circuit lines without any symbols

2 Lidhni antenën me televizorin

Simple line drawing of a plug inserted into a socket socket (no text or symbols)

CLASS 1 LASER PRODUCT

Diagram showing a mechanical component with arrows indicating direction, surrounded by circular symbols (no text or labels)

-ose-

Diagram showing two vertical supports with circular symbols and arrows pointing to the top of each support (no text or labels)

1 2 3 4 5 6 7 8 9 0 1/oo 2nd 3nd 4th 5th 6th 7th 8th 9th LANG. 26 25 24 23 22 21 20 19 18 17 16 15 JVC RM-C3337

(\*) BUTONI IM 1:

CLASS 1 LASER PRODUCT

Diagram showing a mechanical or electrical component with arrows indicating direction, surrounded by circular symbols (no text or labels)

-ИЛУ-

Diagram showing two vertical metal supports with circular symbols and arrows pointing to them, no text or labels present.

Diagram of a conical device with two positive charges and a central circular component (no text or symbols)

2 Povezite antenu na vaš TV

* Opcije povezivanja sa stražnje strane se mogu razlikovati u zavisnosti od modela

TV STRAGA

Satelit ANT SAT ANT TV Antena ili Kabel

3 Povezite TV u struju

Simple line drawing of a plug inserted into a square socket with a circular outlet (no text or symbols)

4 Uključivanje TV-a (ovisno od modela)

CLASS 1 LASER PRODUCT

Laserski proizvod klase 1:

Diagram showing a mechanical or electrical component with arrows indicating direction, surrounded by circular symbols (no text or labels)

-iji-

Diagram showing two vertical metal supports with circular symbols and arrows pointing to them, no text or labels present.

Close-up of a conical device with two labeled terminals (no visible text or symbols)

Simple line drawing of a plug inserted into a socket (no text or symbols)

Simple diagram showing a gray rectangular shape with a small circular element below it, no text or symbols present.

5 Entrée HDMI

Diagram showing a USB connector with cable, alongside a black rectangular button with an arrow symbol (no text or labels)

CLASS 1 LASER PRODUCT

Diagram showing a mechanical or electrical component with arrows indicating direction, surrounded by circular symbols (no text or labels)

-OU-

Diagram showing two vertical metal supports with circular holes and directional arrows indicating movement or force (no text or symbols)

Informations de la disposition

[Union européenne]

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.
Produits

Piles

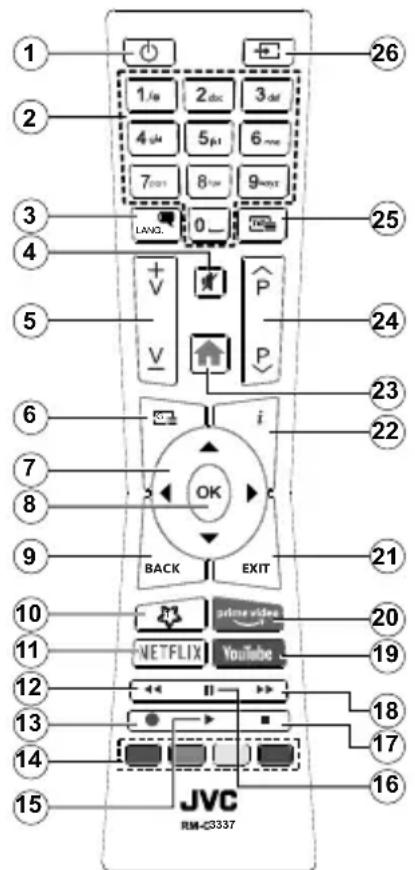

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1 /a 2 abc 3 def 4 oh 5 pt 6 new 7 com 8 com 9 com LAVG. 0 _ V P V P i OK BACK EXIT 21 22 23 24 25 26 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

(\*) MON BOUTON 1 :

Diagram of a conical device with two positive charges and a central lens, no text or symbols present

Simple line drawing of a plug inserted into a socket socket (no text or symbols)

Simple diagram showing a gray rectangular shape with a small black circle and a white square, no text or symbols present.

5 Ingresso HDMI

CLASS 1 LASER PRODUCT

Diagram showing a mechanical component with arrows indicating direction, surrounded by circular symbols (no text or labels)

-oppure-

Diagram showing two vertical metal supports with circular holes and directional arrows pointing to the top of each component (no text or symbols)

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1 Jun 2 Dec 3 Dec 4 Sept 5 Sept 6 Sept 7 Sept 8 Sept 9 Sept LANC 0... V V P V V P BACK EXIT 26 25 24 23 22 21 20 19 18 17 16 JVC RM-C3337

(\*) PULSANTE PERSONALE 1:
