TR200i - Treadmills VirtuFit - Free user manual and instructions
Find the device manual for free TR200i VirtuFit in PDF.
| Product type | Folding treadmill |
| Brand | VirtuFit |
| Model | TR200i |
| Max user weight | 140 kg |
| Speed | 1.0 to 16 km/h (estimated) |
| Incline | 0 to 9% (quick adjustment 3%, 6%, 9%) |
| Motor | DC motor 2.5 HP |
| Power supply | 220-240 V, 50/60 Hz |
| Programs | 36 preset programs (P1-P36), manual mode, HRC, 3 countdowns |
| Display | LCD screen: time, distance, calories, speed, incline, heart rate |
| Heart rate measurement | Hand grip sensors + receiver for wireless chest strap 5 kHz (strap not included) |
| Dimensions unfolded (L x W x H) | Approx. 180 x 80 x 130 cm (estimated) |
| Dimensions folded (L x W x H) | Approx. 100 x 80 x 150 cm (estimated) |
| Running surface | Approx. 130 x 45 cm (estimated) |
| Net weight | Approx. 70 kg (estimated) |
| Ambient temperature range | Use: 10°C to 35°C; Storage: 5°C to 45°C |
| Folding | Yes, with locking system and transport wheels |
| Safety | Magnetic safety key, emergency stop |
| Lubrication | Silicone oil recommended, automatic reminder every 300 km |
| Maintenance | Clean after each use, semi-annual bolt check, annual dusting |
| Warranty | Manufacturer's warranty (see manual for conditions) |
| Included accessories | Safety key, user manual, assembly tools |
Frequently Asked Questions - TR200i VirtuFit
User questions about TR200i VirtuFit
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Treadmills in PDF format for free! Find your manual TR200i - VirtuFit and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TR200i by VirtuFit.
USER MANUAL TR200i VirtuFit
NOTE! Do not connect the unit to the power supply until it is fully assembled.
CAUTION! Only hand-tighten part 6 after assembly.

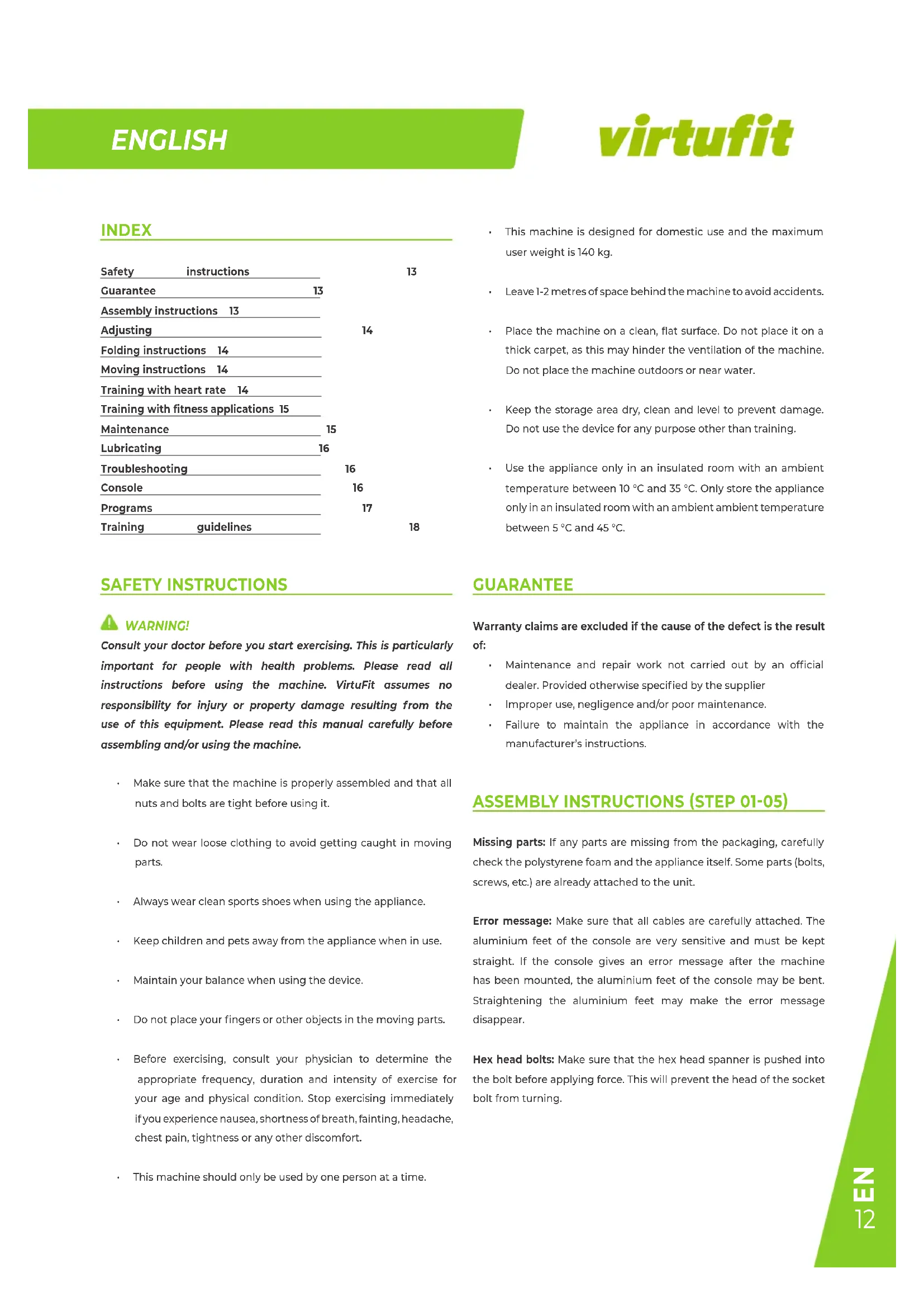

| Safety instructions | 13 | |
| Guarantee | 13 | |
| Assembly instructions 13 | ||
| Adjusting | 14 | |
| Folding instructions 14 | ||
| Moving instructions 14 | ||
| Training with heart rate 14 | ||
| Training with fitness applications 15 | ||
| Maintenance | 15 | |
| Lubricating | 16 | |
| Troubleshooting | 16 | |
| Console | 16 | |
| Programs | 17 | |
| Training guidelines | 18 | |
SAFETY INSTRUCTIONS
WARNING!
Consult your doctor before you start exercising. This is particularly important for people with health problems. Please read all instructions before using the machine. VirtuFit assumes no responsibility for injury or property damage resulting from the use of this equipment. Please read this manual carefully before assembling and/or using the machine.
- Make sure that the machine is properly assembled and that all nuts and bolts are tight before using it.
- Do not wear loose clothing to avoid getting caught in moving parts.
Always wear clean sports shoes when using the appliance. - Keep children and pets away from the appliance when in use.
- Maintain your balance when using the device.
- Do not place your fingers or other objects in the moving parts.
-
Before exercising, consult your physician to determine the appropriate frequency, duration and intensity of exercise for your age and physical condition. Stop exercising immediately if you experience nausea, shortness of breath, fainting, headache, chest pain, tightness or any other discomfort.
This machine should only be used by one person at a time. -
This machine is designed for domestic use and the maximum user weight is 140kg .
- Leave 1-2 metres of space behind the machine to avoid accidents.
- Place the machine on a clean, flat surface. Do not place it on a thick carpet, as this may hinder the ventilation of the machine. Do not place the machine outdoors or near water.
- Keep the storage area dry, clean and level to prevent damage. Do not use the device for any purpose other than training.
- Use the appliance only in an insulated room with an ambient temperature between 10^ and 35^ . Only store the appliance only in an insulated room with an ambient ambient temperature between 5^ and 45^ .
GUARANTEE
Warranty claims are excluded if the cause of the defect is the result of:
- Maintenance and repair work not carried out by an official dealer. Provided otherwise specified by the supplier
- Improper use, negligence and/or poor maintenance.
- Failure to maintain the appliance in accordance with the manufacturer's instructions.
ASSEMBLY INSTRUCTIONS (STEP 01-05)
Missing parts: If any parts are missing from the packaging, carefully check the polystyrene foam and the appliance itself. Some parts (bolts, screws, etc.) are already attached to the unit.
Error message: Make sure that all cables are carefully attached. The aluminium feet of the console are very sensitive and must be kept straight. If the console gives an error message after the machine has been mounted, the aluminium feet of the console may be bent. Straightening the aluminium feet may make the error message disappear.
Hex head bolts: Make sure that the hex head spanner is pushed into the bolt before applying force. This will prevent the head of the socket bolt from turning.
ADJUSTING
Adjusting
- The treadmill veers to the left: Turn on the treadmill, set the speed to 2 to 3km / h without forcing. Use the Allen key to turn the screw on the left side of the end of the treadmill a quarter turn to the right (I). Run the treadmill for 1 to 2 minutes without a load. Repeat the process until the treadmill is exactly in the middle.
- The treadmill turns to the right: start the treadmill, set the speed to 2 to 3km / h without a load on the treadmill. Using the hexagonal key, turn the screw on the right side of the end of the treadmill a quarter turn to the right (2). Run the treadmill for 1 to 2 minutes without a load.
- The treadmill has jammed: Use the Allen spanner to turn the screw on the right side of the end half a turn to the right and the screw on the left side of the end half a turn to the right as well. Repeat the process until the blockage is resolved (3).
FOLDING AND UNFOLDING INSTRUCTIONS
NOTE! Keep the appliance in a dry room and out of reach of children. Ensure that the appliance is stable and secure so that it cannot fall on children or animals.
Folding (1)
- Support the treadmill with your hands at point F.
- Push the treadmill upwards until you hear a click on the spring.
The treadmill is folded.
CAUTION! Do not fold the treadmill while it is in use.
Unfolding (2)
Support the treadmill with your hands at point F.
- Press down on point E with your foot and the treadmill will unfold. Do not push the treadmill down, it will lower automatically.
- Hold the belt and guide it until it touches the floor.
- The treadmill is unfolded.
MOVING INSTRUCTIONS
NOTE! Keep the appliance in a dry room and out of reach of children. Ensure that the appliance is stable and secure so that it cannot fall on children or animals.
- Support the treadmill with your hands at point F and your foot at point D.
- Using your hands (F), slowly push the treadmill towards the ground. When the lowest point of position F is reached, the wheels can be used.
- Push the treadmill to where it is to be placed.
TRAINING WITH HEART RATE
Hand sensors
This VirtuFit fitness machine is equipped with hand sensors for measuring heart rate. The hand sensors are attached to the handle and only work if both sensors are held for a longer period of time. For optimal performance, it is important that the hands are slightly moist and exert constant pressure on the sensors. Hands that are too dry or moist may cause abnormal readings.
NOTE! To avoid interference, never use the hand sensors with a wireless heart rate monitor.
Wireless heart rate receiver (5 kHz)
This VirtuFit fitness device is equipped with a wireless heart rate receiver. For the heart rate measurement with a wireless heart rate monitor, you use a heart rate monitor which works on a 5 kHz frequency. With a wireless heart rate monitor, it is important that the electrodes are slightly moist and the heart rate monitor fits well to your body. Refer to your heart rate monitor's user manual for proper instructions. Incorrect use of the heart rate monitor may result in abnormal readings.
NOTE!
- A wireless heart rate monitor is not included as standard. Contact your dealer to purchase a wireless heart rate monitor.
- To avoid interference, never use the wireless heart rate monitor in combination with the hand sensors.
WARNING!
If you have a pacemaker, we recommend that you consult your physician before using a wireless heart rate monitor
- In rooms with multiple heart rate monitors, it is recommended that you keep enough distance to avoid interference between different devices.
- Always try to keep the wireless heart rate monitor within a range of 1 meter from the console for optimal reception.
Always wear a wireless heart rate monitor directly on the body, under clothing.
TRAINING WITH FITNESS APPLICATIONS
VirtuFit does not provide service for third party fitness applications such as Kinomap, iConsole, FitShow etc. If you encounter problems with a third party fitness application, please contact the developer of the application in question.
Instruction
- To scan the QR code with an Android or IOS phone or tablet, a QR code scanner is required. The app for scanning QR codes can be downloaded from the App Store or Google Play Store.
- Scan one of the QR codes below to go directly to the App Store or Google Play Store page where the fitness app can be downloaded.
- Scan the QR code on the right to access the fitness app manual. The manual describes step by step how to connect the fitness app to the device, how the fitness app works and what its capabilities are.
Fitshow
APP STORE
GOOGLE PLAY
MANUAL
MAINTENANCE
Safe and efficient use can only be achieved if the appliance is properly installed and maintained. It is your responsibility to ensure that the appliance is maintained regularly. Parts that have been used and/or damaged must be replaced before the appliance is used again. The appliance should only be used and stored indoors. Long-term exposure to weather and temperature/humidity changes can have a serious impact on the electrical components and moving parts of the unit. Always unplug the power cord from the unit before cleaning or servicing it.
Daily maintenance
- Clean and remove sweat and moisture after each use.
- Check that the unit is free of dust and dirt.
- Do not use aggressive cleaning agents and keep the device away from moisture.
Semi-annual maintenance
- Inspect all nuts and bolts on the moving parts of the machine. Tighten bolts and nuts as necessary and appropriate.
- Remove dust from the treadmill. Switch off the treadmill and remove the power supply. Carefully remove the cover and wipe off any dust and dirt with a soft cloth or use a (hand) hoover if necessary. Replace the cover and turn the power back on.
We recommend the following:
Clean the unit after use.
- Use a dry cloth to clean the control panel and the areas around the on/off switch.
- Use a soft, clean cloth and detergent to remove stubborn marks and dirt from the unit.
- Store the unit in a safe, dry place away from heat and water.
ENGLISH
CAUTION!
- Repairs must be carried out by a professional technician, unless otherwise specified by the supplier or manufacturer.
- To avoid slipping during exercise, the treadmill belt should not be too loose. To avoid abrasion between the roller and the treadmill and to ensure proper operation of the machine, the treadmill should not be too tight. The distance between the step and the belt can be adjusted. The distance between the step and the belt should be 50 to 75mm on both sides.
Cleaning
General cleaning of the unit will extend its life. Keep the appliance clean by dusting it regularly. Regular maintenance will prolong the life of your appliance and prevent injuries! For more information, please visit https://www.virtufit.nl/service/faq/
CAUTION! Wear clean shoes to reduce the risk of soiling the machine. At least once a year, remove the cover to remove dust.
LUBRICATING THE TREADMILL
The treadmill is equipped with a pre-lubricated coating that requires little maintenance. Wear and tear of the treadmill plays an important role in the function and durability of the treadmill and should therefore be lubricated periodically. We recommend that you check the treadmill regularly.
Recommended lubrication of the treadmill
- Low usage (less than 3 hours per week): once a year.
Medium use (3 to 5 hours per week): every six months. - Heavy use (more than 5 hours per week): every three months.
Instruction
- Lift the treadmill and clean it with a damp cloth to remove dirt and dust.
- Apply a small amount of silicone oil under the treadmill. To do this, use a silicone spray bottle or drip two or three drops of silicone oil along the length of the belt. Do this on both sides of the treadmill.
- Turn on the treadmill and let it run for three minutes without standing on it. This ensures that the silicone oil is properly distributed on the belt and that excess oil is removed.
- Check the condition of the treadmill regularly and reapply silicone oil if necessary. Make sure that the belt is clean and dry before riding on it.
CAUTION! Regular maintenance will prolong the durability of the treadmill and prevent injury!
TROUBLESHOOTING
There is no signal when the power supply is connected
Check that the cables to the console are connected correctly. Make sure that all cables are securely fastened. The aluminium ends of the console cables are very sensitive and should be kept straight. If the console issues an error message, the aluminium ends of the cable may be tilted. Straighten the aluminium ends, which may resolve the error message.
No power: Check that the power cable and cables are properly connected.
Loss of power: Check that the sensor cable is correctly connected.
CONSOLE
MODE
To choose the preset programmes, press
restore the selection.
START/ STOP
To start a workout, press using to stop and
view results. To reset the data, press to set the training target in terms of time, distance and calories.
CLEAR/ SET
During use, press to increase the speed by 0.5km / h When the button is held down, the speed is increased continuously.
During use, press to reduce the speed by 0.5 km/h. When the button is held down, the speed is continuously reduced.
QUICK SPEED
Speeds 3, 6 and 9km / h During use, press one of these buttons to quickly select the speed.
INCLINE
During operation, press to increase the gradient by one level. When the button is held down, the gradient increases continuously.
During operation, press to decrease the slope by one level. When the button is held down, the slope is continuously reduced.
QUICK INCLINE
Slope 3% , 6% and 9% . Press one of these buttons during operation to quickly select the slope.
PROGRAMS (FIG. B)
Count-down
Press to
Select the training TIME countdown.
Press two
to select the training DISTANCE countdown.
Press text
times to select the CALORIE training countdown.
Press to
Time
count-down
·Press
the display will show 30:00.
Press
PEED to set the time between 5 and 99 minutes
Press
To start the workout. The treadmill will count down to when TIME 00:00 is displayed.
NOTE! The workout starts at a speed of 1.0km / h . The speed can be adjusted by pressing SPEED + | -
Distance count-down
Press
and the display shows 1.0km
- Press SPEED
the distance between 1.0 and 9.0km
Press
in your workout. The treadmill will count down 10.00 is displayed in DISTANCE.
NOTE! The workout starts at a speed of 1.0km / h .The speed can be adjusted by pressing SPEED +
Calorie count-down
Press
times and the display will show 50CAL.
- Press SPEED
et the number of calories between 10
and 990 CAL.
- your workout. The treadmill will count down.
CAL 0 is displayed.
NOTE! The workout starts at a speed of 1.0km / h . The speed can be adjusted by pressing SPEED + | -
Quickstart
Press START/STOP to start the treadmill at 1.0km / h and set the desired speed by pressing 加 .to change speed quickly, press theSPEED
31619 shortcut keys. You can also use the + and keys on the handlebar during your workout.
Incline
The incline can be adjusted at any time during the workout. The incline cannot be returned to "0%" after removing the safety key. When the safety key is replaced and the treadmill is restarted, the incline can be adjusted again.
Pulse grip
Hold the two hand-held sensors in the handles and the display will show the heart rate measured during the workout within 15 seconds.
NOTE! To measure heart rate, the hand sensors on both handles must be held firmly. The heart rate measurement is an estimate and cannot be used for medical purposes.
Heart Rate Control (HRC)
Press button until "HRC" appears under the programme.
Select the HRC programme by pressing .
- Select the desired heart rate by pressing under SPEED.
- Press to start the programme.
Speed and incline
During this programme, the speed and angle of incline change according to your heart rate. The speed and angle of incline increase as soon as the desired heart rate is not yet reached. If this heart rate is exceeded, the speed and incline angle will decrease.
Programs (FIG.B)
This treadmill has 36 preset programs (P1 to P36). The first 24 preset programs (P1 to P24) relate to speed. The other 12 preset programs (P25 to P36) are a combination of speed and incline (fatburn, hill and fittest).
Each preset program has a maximum speed level which is displayed when a desired workout is selected. The speed that the program in question will reach is displayed in the speed window. Each program has different speed changes.
Selecting a program
- Make sure the treadmill is stationary and press to activate the reset state.
- Press ← to select the required program (P1 to P36) and press → to start the program.
The speed window displays the preset speed of the selected program. Each program lasts 10 minutes. After each minute, the program and speed can be adjusted manually or automatically. 3 seconds before the end of the program, a signal sounds three times, after which the treadmill stops.
NOTE! All programmes are listed at the beginning of this manual.
TRAINING GUIDELINES (FIG. C, 1-5)
A successful training program includes a warm-up, the actual training and a cool-down. Perform the complete training program at least twice, but preferably three times a week and keep a rest day between training sessions. After a few months, the intensity of the training can be increased, for example to four or five times a week.
The warm-up
The purpose of a warm-up is to prepare the body for training and to reduce the risk of injury. Warm up your body for two to five minutes before starting a cardio or strength training session. Do exercises that increase the heart rate and warm up the working muscles. Examples of this type of activity are running, jogging, jumping jacks, skipping and running in place.
Stretching
Stretching while the muscles are warm is very important after a good warm-up and cool-down. It reduces the risk of injury. Stretching exercises should be held for 15-30 seconds. Here are some examples of stretching exercises:
- Toe touch (Fig. C-1)
- Inner thight stretch (Fig. C-2)
- Hamstring stretch (Fig. C-3)
- Achilles stretch (Fig. C-4)
- Side stretch (Fig. B-5)
Cooling down
The purpose of the cool-down is to return the body to its (near) normal resting position at the end of the workout. A good cool-down slowly reduces your heart rate and promotes recovery.
INHOUD
| 01 Basic frame 1 | |
| 02 Main frame 1 | |
| 03 Console bracket 1 | |
| 04 Left upright 1 | |
| 05 Right upright 1 | |
| 06 Strengthen tube 1 | |
| 07 Incline frame 1 | |
| 08 Motor basic frame 1 | |
| 09 Left side cover 1 | |
| 10 Right side cover 1 | |
| 11 Adjustable cushion | 4 |
| 12 Cushion 35*Φ20 | 4 |
| 13 Moving wheel | 4 |
| 14 Rubber stopper | 1 |
| 15 Lower motor hood | 1 |
| 16 Motor cover | 1 |
| 17 Side rail | 2 |
| 18 Left end cap | 1 |
| 19 Right end cap | 1 |
| 20 Cushion | 4 |
| 21 Cushion for running deck | 4 |
| 22 Side rail fixed buckle | 8 |
| 23 Plastic cushion | 2 |
| 24A Upper console cover | 1 |
| 24B Console board 1 | |
| 24C Keyboard | 1 |
| 24D Lower console cover | 1 |
| 24E Main control board | 1 |
| 24F Button board 1 | |
| 24G Safety key sensor | 1 |
| 24H Sheet iron | 1 |
| 24J Pan head screw ST4.2*13 | 14 |
| 24K Flat head screw ST4.2*13 | 7 |
| 24L Round head screw ST3*8 | 23 |
| 24M Flat head screw ST3*8 | 2 |
| 24N Console cable | 1 |
| 24P Cable for button board | 1 |
| 24Q Console sticker -1 | 1 |
DESCRIPTION QTY.
| 24R | Console sticker - 2 | 1 |
| 24S | Speaker | 2 |
| 24T | Audio head fixing plate | 1 |
| 24U | Bluetooth receiver | 1 |
| 24V | Audio head cable | 2 |
| 24W | Speaker cable | 1 |
| 24X | MP Audio head cable 3 cable | 1 |
| 25 | Handle foam | 2 |
| 26 | Oval end cap 50*30 | 2 |
| 27 | Plastic screw socket | 4 |
| 28 | Motor Bumper Pad 1 | 1 |
| 29 | Motor Bumper Pad 2 | 1 |
| 30 | Tie | 3 |
| 31 | Air spring | 1 |
| 32 | Front roller | 1 |
| 33 | Rear roller | 1 |
| 34 | Running deck | 1 |
| 35 | Running belt | 1 |
| 36 | V-belt | 1 |
| 37 | Socket | 1 |
| 38 | Switch | 1 |
| 39 | Power cord | 1 |
| 40 | Incline motor | 1 |
| 41 | Motor | 1 |
| 42 | Magic ring | 1 |
| 43 | Safety key | 1 |
| 44 | Bolt M10*28 | 4 |
| 45 | Bolt M8*45 | 3 |
| 46 | Round head bolt M8*35 | 1 |
| 47 | Flat washer class C Φ10 | 10 |
| 48 | Flat washer class C Φ8 | 37 |
| 49 | Nylon Nut M8 14 | |
| 51 | Bolt M8*55 | 1 |
| 52 | Bolt M8*80 | 2 |
| 53 | Countersunk head bolt M8*35 | 8 |
| 54 | Cross pan head screw ST4.2*13 | 18 |
| 55 | Flat head screw ST4.2*13 | 8 |
| 56 | Cross umbrella screw ST4.2*13 | 35 |
USER MANUAL
DESCRIPTION QTY.
57 Black zinc screw M48 2
59 Screw ST4.238 4
60 Screw M850 4
61 Screw M816 4
62 Screw M812 4
63 Screw M855 2
64 Saddle washer 8 4
65 Hexagon bolt M835
66 Bolt M812
67 Bolt M816
68 Bolt M1050
69 Bolt M1065
70 Non-metallic hexagon locknut M10 4
71 Controller
72 Speed sensor
73 Incline easy key
74 Speed easy key
75 Upright cable
76 Easy key cable
77 AC input cable (black)
78 AC output cable (red)
79 AC input cable (red)
80 Ground cable (yellow)
81 Spring cushion
82 Countersunk head bolt M625
83 Flat washer class C 64
84 Nylon nut M6
virtufit
VIRTUFIT
Twekkelerweg 263
7553 LZ Hengelo
The Netherlands
info@virtuftn.nl
VIRTUFIT SERVICE
Do you have a problem with your VirtuFit fitness equipment and would you like to submit a service request? Then scan the QR code on the right and fill in our service form.
