USER MANUAL BGA 45 STIHL

Translation of Original Instruction Manual

Printing inks contain vegetable oils, paper can be recycled.

© ANDREAS STIHL AG & Co. KG 2018

0458-719-9621-A.VA4.D18.

000007567_007_GB

1 Introduction 22
2 Guide to Using this Manual 22
2.1 Applicable Documentation 22
2.2 Symbols used with warnings in the text 23
2.3 Symbols in Text 23
3 Overview 23
3.1 Blower and Charging Cable 23
3.2 Symbols 24
4 Safety Precautions 24
4.1 Introduction 24
4.2 Warning Signs 24
4.3 Intended Use 25
4.4 The Operator 25
4.5 Clothing and Equipment 26
4.6 Work Area and Surroundings 26
4.7 Safe Condition 27
4.8 Built-in Battery 28
4.9 Operation 28
4.10 Charging 29
4.11 Transporting 29
4.12 Storing 30
4.13 Cleaning, Maintenance and Repairs 30
5 Preparing the Blower for Operation 31
5.1 Preparing the Blower for Operation 31
6 Charging the Blower, LEDs 31

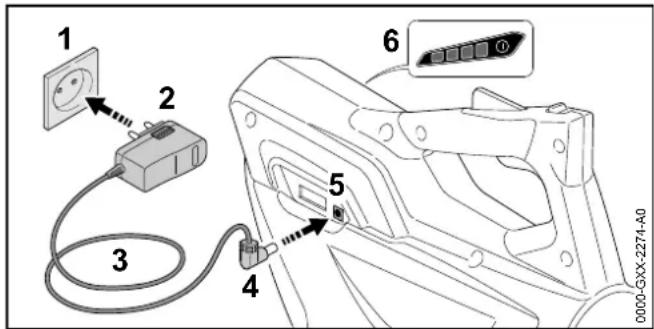

6.1 Charging the Blower 31

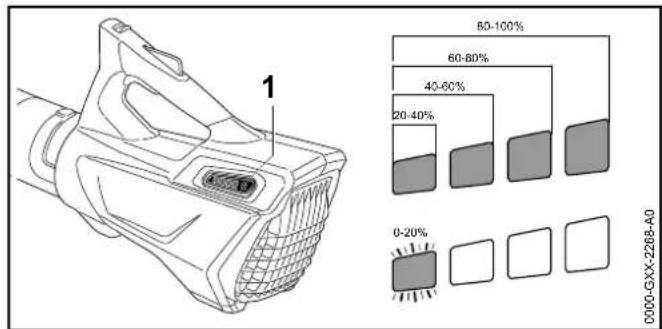

6.2 State of Charge 32
6.3 LEDs 32
7Assembling the Blower 32

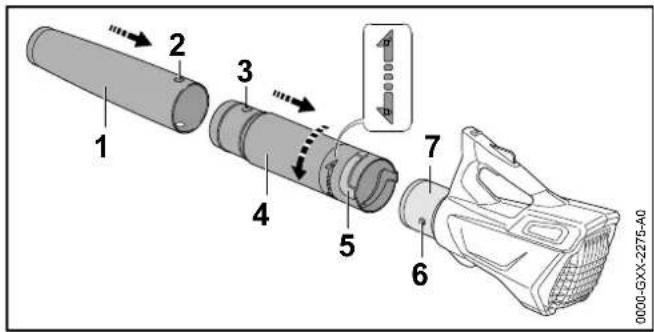

7.1 Mounting the Blower Tube and Nozzle 32
8 Inserting and Removing Activation Key 32
8.1 Inserting the Activation Key 32
8.2 Removing the Activation Key 33

9 Switching the Blower On/Off 33

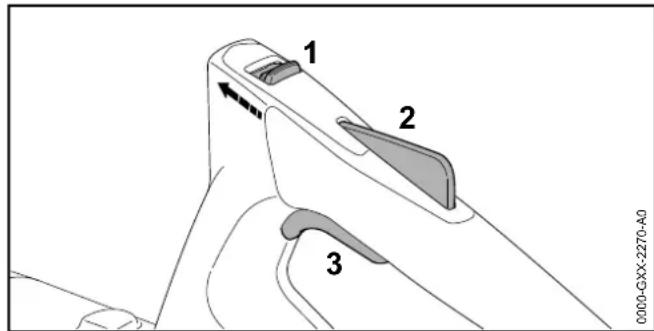

9.1 Switching On 33
9.2 Switching Off 33
10 Testing the Blower and Battery 33
10.1 Checking the Controls 33
10.2 Checking the Built-In Battery 34
11 Operating the Blower 34

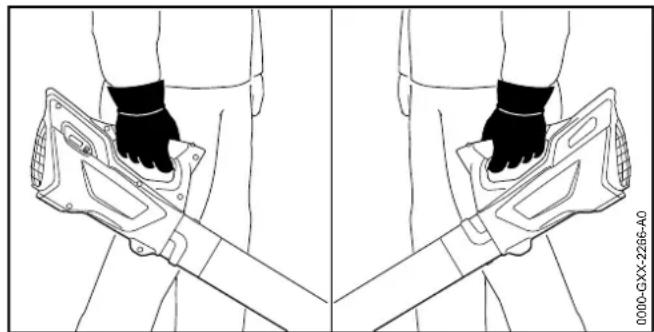

11.1 Holding and Controlling the Blower 34

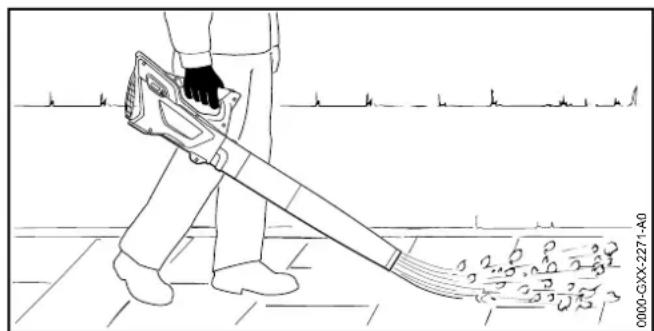

11.2 Blow-Sweeping 34
12 After Finishing Work 34
12.1 After Finishing Work 34
13 Transporting 34
13.1 Transporting the Blower 34
14 Storing 35
14.1 Storing the Blower 35
14.2 Storing the Charging Cable 35
15 Cleaning 35
15.1 Cleaning the Blower 35
15.2 Cleaning the charging cable 35
16 Maintenance and Repairs 35
16.1 Maintenance Intervals 35
16.2 Servicing and Repairing the Blower 35
16.3 Servicing and repairing the charging cable 35
17 Troubleshooting 36
17.1 Troubleshooting Blower or Charging Cable 36
18 Specifications 37
18.1 STIHL BGA 45 Blower 37
18.2 STIHL LK 45 Charging Cable 37
18.3 Noise and Vibration Data 37
18.4REACH 37
19 Spare Parts and Accessories 37
19.1 Spare Parts and Accessories 37

STIHL

This instruction manual is protected by copyright. All rights reserved, especially the rights to reproduce, translate and process with electronic systems.

English

1 Introduction

20 Disposal 38
20.1 Disposing of Blower and Charging Cable 38
21 EC Declaration of Conformity 38
21.1 STIHL BGA 45 Blower 38
21.2 STIHL LK 45 Charging Cable 38

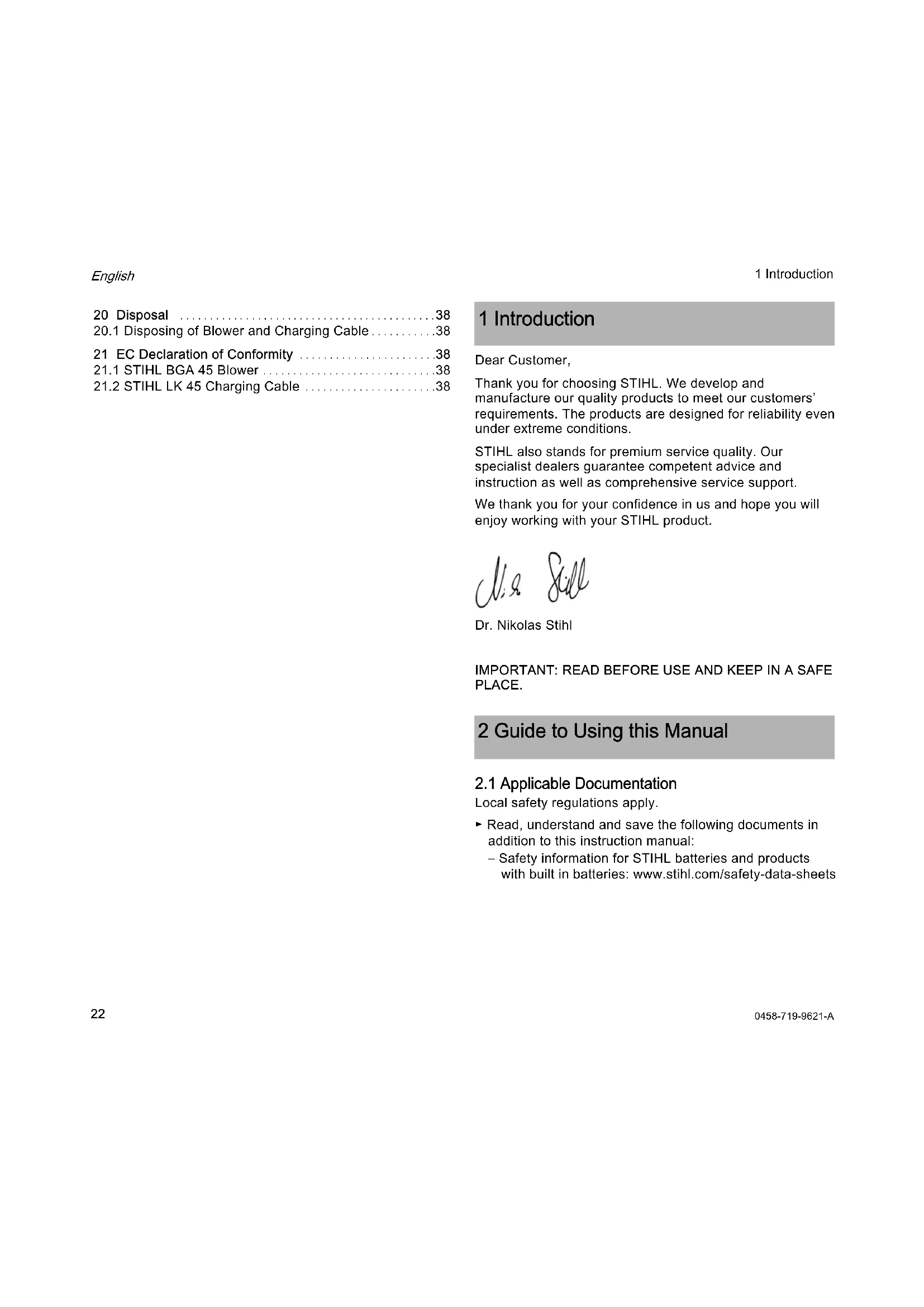

1 Introduction

Dear Customer,

Thank you for choosing STIHL. We develop and manufacture our quality products to meet our customers' requirements. The products are designed for reliability even under extreme conditions.

STIHL also stands for premium service quality. Our specialist dealers guarantee competent advice and instruction as well as comprehensive service support.

We thank you for your confidence in us and hope you will enjoy working with your STIHL product.

Dr. Nikolas Stihl

IMPORTANT: READ BEFORE USE AND KEEP IN A SAFE PLACE.

2 Guide to Using this Manual

2.1 Applicable Documentation

Local safety regulations apply.

• Read, understand and save the following documents in addition to this instruction manual:

Safety information for STIHL batteries and products with built in batteries: www.stihl.com/safety-data-sheets

2.2 Symbols used with warnings in the text

WARNING

This symbol indicates dangers that can cause serious injuries or death.

The measures indicated can avoid serious injuries or death.

NOTICE

This symbol indicates dangers that can cause damage to property.
The measures indicated can avoid damage to property.

2.3 Symbols in Text

This symbol refers to a chapter in this instruction manual.

3 O v e r v i e w

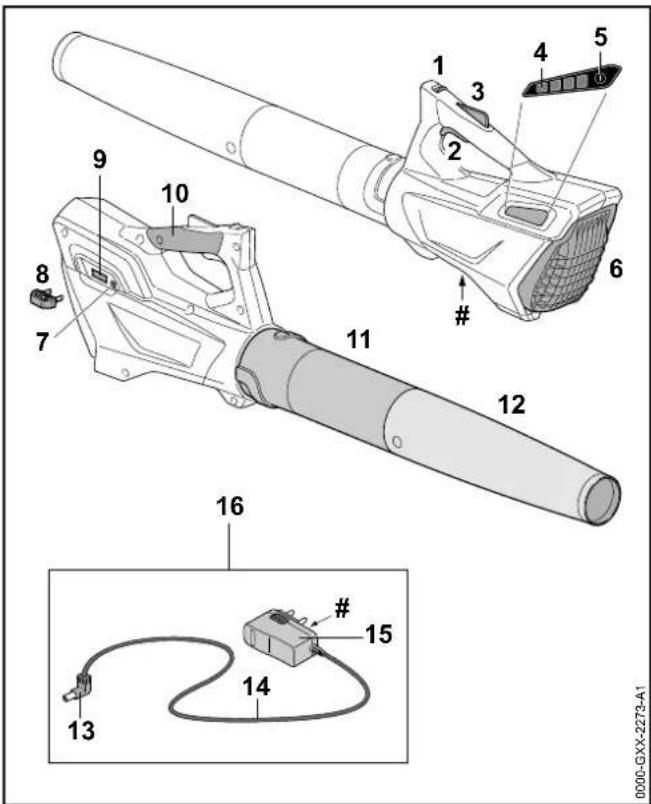

3.1 Blower and Charging Cable

The rechargeable battery is built into the blower.

1 Release Slide

Operated together with the trigger lockout to unlock the trigger.

2 Trigger

The trigger switches the blower on and off.

3 Trigger Lockout

Locks trigger in position.

4 LEDs

Indicate blower's state of charge and malfunctions.

5 Button

Activates the LEDs on the blower.

English

4 Safety Precautions

6 Intake Screen

Protects the operator from moving parts inside the blower.

7 Charging Socket

Accommodates the charger plug.

8 Activation Key

Activates the blower.

9 Key Socket

Accommodates the activation key.

10 Control Handle

For operating, controlling and carrying the blower.

11 Blower tube

Directs the airstream.

12 Nozzle

Directs and concentrates the airstream.

13 Charger Plug

Connects charging cable to charger socket.

14 Connecting Cable

Connects charger plug to appliance plug.

15 Appliance Plug

Connects charging cable to wall outlet.

16 Charging Cable

Serves to charge the blower.

Rating label with serial number

3.2 Symbols

Meanings of symbols that may be on the blower and charging cable:

This symbol indicates in what direction the release slide has to be pushed.

Guaranteed sound power level according to LwA directive 2000/14/EC in dB(A) in order to make sound emissions of products comparable.

K_LK45 This symbol shows that an LK 45 charging cable must be used.

The data next to this symbol indicates the energy content of the battery according to the cell manufacturer's specification. The energy content available during operation is lower.

Operate the electric appliance in a dry place, indoors only.

Do not dispose of the product with your household waste.

Mount so that the arrows point vertically upwards.

4 Safety Precautions

4.1 Introduction

This product was designed for safe operation and features safety devices. Nevertheless, you should observe the following safety precautions in order to avoid possible dangers.

4.2 Warning Signs

Meanings of warning signs and labels on the blower and charging cable:

Observe safety notices and take the necessary precautions.

Read, understand and save the instruction manual.

Wear safety glasses.

Confine long hair so that it cannot be sucked into the blower.

Always remove the activation key during work breaks, transport, charging, storage, maintenance and repairs.

Protect the blower from rain and damp - do not immerse it in fluids.

Maintain safe distance.

Protect the blower from heat and fire.

Observe the blower's specified temperature range.

4.3 Intended Use

The STIHL BGA 45 blower is designed for blow-sweeping leaves, grass, paper and similar matter.

Do not use the blower in the rain.

A built-in battery supplies the blower with power.

The STIHL LK 45 charging cable recharges the STIHL BGA 45 blower.

WARNING

• Charging cables or power supply units not explicitly approved for the blower by STIHL may cause a fire or explosion. This can result in serious or fatal injuries and damage to property.

Always recharge a STIHL BGA 45 blower with a STIHL LK 45 charging cable.

• Using the blower or the charging cable for purposes for which they were not designed may result in serious or fatal injuries and damage to property.

• Use the blower and charging cable as described in this instruction manual.

4.4 The Operator

WARNING

• Users without adequate training or instruction cannot recognize or assess the risks involved in using the blower and charging cable. The user or other persons may sustain serious or fatal injuries.

• Read, understand and save the instruction manual.

If you pass the blower and charging cable on to another user: Always give them the instruction manual.
- Make sure the user meets the following requirements:

• The user must be rested.

• The user must be in good physical condition and mental health to operate and work with the blower and the charging cable. If the user's physical, sensory or mental ability is restricted, he

or she may work only under the supervision of or as instructed by a responsible person.

• The user must be legally recognized as an adult.

• The user has received instruction from a STIHL servicing dealer or other experienced user before working with the blower for the first time.

• The user must not be under the influence of alcohol, medication or drugs.

If you have any queries: Contact your STIHL servicing dealer for assistance.

4.5 Clothing and Equipment

WARNING

• Long hair can be sucked into the blower during operation. This can result in serious injuries.

• Tie up and confine long hair so that it cannot be sucked into the blower.

• Objects can be thrown through the air at high speed during operation. This can result in personal injury.

• Wear close-fitting safety glasses. Suitable glasses that have been tested and labeled in accordance with EN 166 or national standards are available from retailers.

Wear long trousers.

• Dust can be whipped up during operation: Whipped up dust can damage the respiratory passages and cause allergic reactions.

Wear a respirator.

• Unsuitable clothing can snag on wood, brush or the blower. Not wearing personal protective equipment may result in serious injury.

Wear snug-fitting clothing.

Do not wear a scarf or jewelry.

• Dust can be whipped up during operation: The dust generated may cause the blower to be electrostatically charged. If the blower is touched, there may be a static electricity discharge which can produce a mild electric shock. This can result in personal injury.

Wear work gloves made of durable material.

Wearing unsuitable footwear may cause you to slip or stumble. This can result in personal injury.

• Wear sturdy enclosed footwear with non-slip soles.

4.6 Work Area and Surroundings

4.6.1 Blower

WARNING

• Innocent bystanders, children and animals are not aware of the dangers of the blower or flying debris. Innocent bystanders, children and animals may be seriously injured and damage to property may occur.

• Do not allow bystanders, children or animals within 5 meters of the work area.

• Maintain a clearance of 5 meters from objects.
  Do not leave the blower unattended.

• Make sure that children cannot play with the blower.

• The blower is not waterproof. Working in the rain or a damp location may result in an electric shock. This can result in injuries to the user and may damage the blower.

• Do not work in the rain or a damp location.

• Electrical components of the blower can produce sparks. Sparks may cause a fire or an explosion in an easily combustible or explosive environment. This can result in serious or fatal injuries and damage to property.

• Do not work in an easily combustible or explosive environment.

4.6.2 Charging Cable

WARNING

• Innocent bystanders, children and animals are not aware of and cannot assess the dangers of a charging cable or electric current. Innocent bystanders, children and animals may be seriously or fatally injured.
• Keep bystanders, children and animals away from the work area.
  Do not leave the charging cable unattended.
  Make sure that children cannot play with the charging cable.
• The charging cable is not protected against all ambient conditions. If the charging cable is exposed to certain ambient conditions, it may catch fire or explode. This can result in serious injuries and damage to property.
  Protect the charging cable from rain and dampness.
  Operate the charging cable in a dry place, indoors only.
• Do not operate the charging cable in an easily combustible or explosive environment.
• Use and store the charging cable at a temperature between 0^ and +40^ .

4.7 Safe Condition

4.7.1 Blower

The blower is in a safe condition if the following points are observed:

• Blower is undamaged.
• Blower is clean and dry.
• The controls function properly and have not been modified.
• Only original STIHL accessories are fitted.
• Accessories are properly mounted.

WARNING

If components do not comply with safety requirements, they will no longer function properly and safety devices may be rendered inoperative. This can result in serious or fatal injuries.
Work only with an undamaged blower.
- Never recharge a damaged blower.
- If the blower is dirty or wet: Clean the blower and allow it to dry.
- Never modify your blower. Exception: Mounting a blower tube and nozzle approved for this blower model.
- If the controls do not function properly: Do not work with the blower.
- Only fit original STIHL accessories designed for this blower model.
- Mount accessories as described in this instruction manual or the instructions supplied with the accessory.
- Never insert objects in the blower's openings.
- Never bridge the contacts in the activation key socket with metallic objects (short circuit).
Do not open the blower.
If you have any queries: Contact your STIHL servicing dealer for assistance.

English

4.7.2 Charging Cable

The charging cable is in a safe condition if the following points are observed:

• Charging cable is undamaged.
• Charging cable is clean and dry.

WARNING

If the product does not comply with safety requirements, components will no longer function properly or safety devices may be rendered inoperative. This can result in serious or fatal injuries.
Do not use a damaged charging cable.
- If the charging cable is dirty or wet: Clean the charging cable and allow it to dry.
Do not modify the charging cable.
- Never bridge the charging cable's contacts with metallic objects (short circuit).
Do not open the charging cable.

4.8 Built-in Battery

WARNING

• The built-in battery is not protected against all ambient conditions. If the built-in battery is exposed to certain ambient conditions, the blower may catch fire or explode. This can result in serious or fatal injuries and damage to property.

• Protect the blower from heat and fire.
  Do not throw the blower into a fire.

• Use and store the blower at a temperature between 0^ and +50^ .

• Keep the blower away from metallic objects.

• Protect the blower from rain and damp - do not immerse it in fluids.
  Do not expose blower to high pressure.
• Do not expose blower to microwaves.
• Protect the blower from chemicals and salts.

• Never transport a damaged blower.

• Fluid may escape from a damaged battery. The fluid can cause irritation if it contacts the skin or eyes.

• Avoid contact with the fluid.
  In case of contact with the skin: Wash affected areas with plenty of water and soap.
  In case of contact with the eyes: Rinse eyes with plenty of water for at least 15 minutes and seek medical advice.

A damaged or defective battery may smell unusual, emit smoke or burn. This can result in serious or fatal injuries and damage to property.

• If the blower smells unusual or emits smoke: Do not use the blower and keep it away from combustible substances.
• If the blower catches fire: Extinguish the blower with a fire extinguisher or water.

4.9 Operation

WARNING

The user cannot concentrate on the work in certain situations. The user may stumble, fall and be seriously injured.

Work calmly and carefully.
If light and visibility are poor: Do not work with the blower.

4 Safety Precautions

English

Operatethebloweralone.
Do not work above shoulder height.
Watch out for obstacles.
- Stand on the ground while working and keep a good balance. If it is necessary to work at heights: Use a lift bucket or a safe platform.
If you begin to feel tired: Take a break.
- Blow sweep with the wind.

• Objects can be thrown through the air at high speed during operation. Bystanders and animals may be injured and damage to property may occur.
• Do not direct the air blast towards bystanders, animals or objects.
  If the behavior of the blower changes during operation or feels unusual, it may no longer be in a safe condition. This can result in serious injuries and damage to property.
• Stop work, remove the activation key and contact your STIHL servicing dealer.
  Blower vibrations may occur during operation.
  Wear gloves.
  Take regular breaks.
• If signs of circulation problems occur: Seek medical advice.

4.10 Charging

WARNING

Contact with live components may occur for the following reasons:

• Connecting cable is damaged.
• Plug is damaged.

• Wall outlet is not properly installed.

• Contact with live components can result in an electric shock. This can result in serious or fatal injuries.

• Check that the connecting cable and plug are not damaged.

• Insert the plug in a properly installed wall outlet.

• Overvoltage can occur in the charging cable if the line voltage or frequency are incorrect during charging. The charging cable may be damaged.

• Make sure the line voltage and frequency agree with the data on the charging cable's rating label.

A damaged or defective charging cable may produce an unusual smell or emit smoke during the charging process. This may result in personal injuries and damage to property.

• Disconnect the plug from the wall outlet.

• The charging cable can overheat and cause a fire if heat dissipation is inadequate. This can result in serious or fatal injuries and damage to property.

Do not cover the charging cable.

If several charging cables are connected to one wall outlet, electric cables may be overloaded during the charging process. The cords can overheat and cause a fire. This can result in serious or fatal injuries and damage to property.

• Connect the charging cable to a single wall outlet.
• Do not connect the charging cable to multiple sockets.

4.11 Transporting

WARNING

• The blower can turn over or move while being transported. This may result in personal injuries and damage to property.

Remove the activation key.

• Pack the blower in packaging or a transport box in such a way that it cannot move.
• Secure the packaging or transport box with lashing straps or a net so that the packaging or transport box cannot move.

4.12 Storing

4.12.1 Blower

WARNING

Children are not aware of and cannot assess the dangers of a blower and can be seriously injured.

Remove the activation key.

• Store the blower out of the reach of children.

• Dampness can corrode the electrical contacts in the activation key socket and metal components. The blower may be damaged.

Remove the activation key.

• Store the blower in a clean and dry condition.

• The blower is not protected against all ambient conditions. The blower may be damaged if it is exposed to certain ambient conditions.

• Store the blower in a clean and dry condition.

• Store the blower in a closed location.
• Store the activation key separately from the blower.

4.12.2 Charging Cable

WARNING

Children are not aware of and cannot assess the dangers of a charging cable. Children may sustain serious or fatal injuries.
- Keep the charging cable out of the reach of children.
The charging cable is not protected against all ambient conditions. The charging cable may be damaged if it is exposed to certain ambient conditions.
- If the charging cable is hot: Allow the charging cable to cool down.
- Store the charging cable in a clean and dry condition.
- Store the charging cable in a confined space.
- Store the charging cable within temperature range of 0^ to +40^ .

4.13 Cleaning, Maintenance and Repairs

WARNING

The blower may start unintentionally if the activation key remains inserted during cleaning, maintenance or repair operations. This can result in serious injuries and damage to property.

Remove the activation key.

• Aggressive cleaning agents, cleaning with a jet of water or pointed objects can damage the blower and the charging cable. If the blower or charging cable are not cleaned

5 Preparing the Blower for Operation

English

correctly, components may no longer function properly or safety devices may be rendered inoperative. This can result in serious injuries.

• Clean the blower and charging cable as described in this instruction manual.

If the blower or charging cable are not serviced or repaired correctly, components may no longer function properly or safety devices may be rendered inoperative. This can result in serious or fatal injuries.
- Do not attempt to service or repair the blower or charging cable.
- If the blower or the charging cable require servicing or repairs: Contact your STIHL servicing dealer for assistance.

5 Preparing the Blower for Operation

5.1 Preparing the Blower for Operation

Perform the following steps before starting work:

Make sure the following components are in a safe condition:

-BIower, 4.7.1.

• Charging cable, 4.7.2.

• Check the built-in battery, 110.2.
  Fully charge the blower, 6.
  Clean the blower, 15.1.

• Mount the blower tube and nozzle, 7.
  Check the controls, 10.

• If 3 LEDs flash red while you are checking the controls: Remove the activation key and contact your STIHL servicing dealer. Malfunction in blower.

• If you cannot carry out this work: Do not use the blower and contact your STIHL servicing dealer.

6 Charging the Blower, LEDs

6.1 Charging the Blower

The charging time depends on several factors, e.g. temperature of the blower or ambient temperature. The actual charging time may differ from the specified charging time. For specified charging times see www.stihl.com/charging-times.

The charging process starts automatically when the plug is inserted in a wall outlet and the charging cable is connected to the blower. The charging process stops automatically when the blower is fully charged.

The blower and charging cable heat up during the charging process.

• Remove the activation key.

• Insert the plug (2) in a convenient wall outlet (1).

WARNING

Persons may trip over the connecting cable. This can result in injuries and may damage the charging cable.

• Lay the connecting cable flat on the floor.
  Position the connecting cable (3).

English

• Insert the charger plug (4) in the charge socket (5). The LEDs (6) glow green and show the state of charge.
• If the LEDs (6) stop glowing: Disconnect the charger plug (4) from the charge socket (5). The blower is fully charged.
• Disconnect the plug (2) from the wall outlet (1).

6.2 State of Charge

7 Assembling the Blower

• Press the button (1). The LEDs (5) glow green for about 5 seconds and indicate the state of charge.
• If the LED on the right flashes green: Recharge the blower.

6.3 LEDs

The LEDs can indicate the state of charge or malfunctions in the blower. The LEDs can glow or flash green or red.

The state of charge is indicated when the LEDs glow or flash green.

If the LEDs glow or flash red: Troubleshooting, 17. Malfunction in blower.

7 Assembling the Blower

7.1 Mounting the Blower Tube and Nozzle

• Switch off the blower and remove the activation key.

Line up the hole (2) and the lug (3).
- Push the nozzle (1) onto the blower tube (4). The nozzle (1) engages audibly and can no longer be removed.
Line up the lug (6) and the slot (5).
- Push the blower tube (4) onto the housing (7).
- Rotate nozzle (4) in direction of until it engages.

There is no need to remove the blower tube again.

8 Inserting and Removing Activation Key

8.1 Inserting the Activation Key

Insert the activation key (1) in the socket (2).

8.2 Removing the Activation Key

• Stand the blower on a level surface.
• Remove the activation key.
• Keep the activation key out of the reach of children.

9 Switching the Blower On/Off

9.1 Switching On

• Hold the blower with one hand on the control handle - wrap you thumb around the handle.

• Push the release slide (1) in the direction of the blower tube with your thumb and hold it there.
  Depress the trigger lockout (2) with your hand and hold it there. You can let go of the release slide (1).
• Pull the trigger (3) with your index finger and hold it there. The blower accelerates and air flows from the nozzle.

9.2 Switching Off

• Release the trigger and lockout lever at the same time. No air flows from the nozzle.
  If air continues to flow from nozzle: Remove the activation key and contact your STIHL servicing dealer. Blower has a malfunction.

10 Testing the Blower and Battery

10.1 Checking the Controls

Release slide, trigger lockout and trigger

Remove the activation key.
Attempt to pull the trigger lever without depressing the release slide and the trigger lockout.
If the trigger can be pulled: Do not use the blower and contact your STIHL servicing dealer. Release slide or trigger lockout is faulty.
- Push the release slide in the direction of the blower tube with your thumb and hold it there.
Depress the trigger lockout and hold it in that position.
Pull the trigger.
Let go of the trigger, trigger lockout and release slide.
- If the trigger, trigger lockout or release slide is stiff or does not spring back to the idle position: Do not use the blower and contact your STIHL servicing dealer. The trigger, trigger lockout or release slide has a malfunction.

Switching On

• Insert the activation key.
• Push the release slide in the direction of the blower tube with your thumb and hold it there.
  Depress the trigger lockout and hold it in that position.
  Pull the trigger and hold it there. Air flows from the nozzle.
• If 3 LEDs flash red: Remove the activation key and contact your STIHL servicing dealer. Malfunction in blower.
• Release the trigger. No air flows from the nozzle.
  If air continues to flow from nozzle: Remove the activation key and contact your STIHL servicing dealer. Blower has a malfunction.

10.2 Checking the Built-In Battery

Press the button. The LEDs glow or flare
- If the LEDs do not glow or flash: Do not use the blower and contact your STIHL servicing dealer. There is a malfunction in the built-in battery.

11 Operating the Blower

11.1 Holding and Controlling the Blower

- Hold and control the blower with one hand on the control handle - wrap your thumb around the handle.

11.2 Blow-Sweeping

- Point the nozzle at the ground.

• Walk slowly and steadily forwards.

12 After Finishing Work

12.1 After Finishing Work

• Switch off the blower and remove the activation key.
  Clean the blower.

13 Transporting

13.1 Transporting the Blower

Switch off the blower and remove the activation key.
- Carry the blower by the control handle.
- Transporting the blower in a vehicle: Secure the blower to prevent turnover and movement.
- If the blower need to be packed: Observe the following points when packing the blower:

• Packaging or transport box must be non-conductive.
• Make sure the blower cannot shift inside the packaging or transport box.
• Secure the packaging or transport box so that the packaging or transport box cannot move.

Owing to the built-in battery, the blower is subject to the requirements for transporting dangerous goods. The blower is classified as UN 3481 (lithium-ion batteries in equipment) and has been tested in accordance with UN Manual of Tests and Criteria, Part III, sub-section 38.3.

For transport regulations see www.stihl.com/safety-datasheets

14 Storing

14.1 Storing the Blower

STIHL recommends that you store the blower with a charge between 40% and 60% (2 LEDs glow green).

Switch off the blower and remove the activation key.
- Observe the following points when storing the blower: - Blower is out of the reach of children.

• Blower is clean and dry.
• Charging cable is in an enclosed space.
• Blower is in a temperature range between 0^ and +50^ .

14.2 Storing the Charging Cable

• Disconnect the plug from the wall outlet.

• Observe the following points when storing the charging cable:

• Charging cable is out of the reach of children.

• Charging cable is clean and dry.
• Charging cable is in an enclosed space.
• Charging cable is separated from the blower.
• Charging cable is in a temperature range between 0^ and +40^ .

15 Cleaning

15.1 Cleaning the Blower

• Switch off the blower and remove the activation key.
  Clean the blower with a damp cloth.
  Clean the intake screen with a soft brush.

15.2 Cleaning the charging cable

• Disconnect the plug from the wall outlet.

• Disconnect the charger plug from the charge socket.
  Clean the charging cable with a damp cloth.

16 Maintenance and Repairs

16.1 Maintenance Intervals

The maintenance intervals are dependent on the environmental and operating conditions. STIHL recommends the following maintenance intervals:

Every 12 months

• Have the blower checked by a STIHL servicing dealer.

16.2 Servicing and Repairing the Blower

The blower cannot be serviced or repaired by the user.

If your blower has a malfunction or is damaged or requires servicing: Contact your STIHL servicing dealer.

16.3 Servicing and repairing the charging cable

The charging cable requires no servicing and cannot be repaired.
- If the charging cable is defective or damaged: Replace the charging cable.

17 Troubleshooting

17.1 Troubleshooting Blower or Charging Cable

Condition LEDs on blower Cause Remedy
Blower does not start when switched on	1 LED flashes green	Blower has low charge. ▶ Recharge the blower.
	3 LEDs glow red B	Blower too hot. ▶ Remove the activation key. ▶ Allow blower to cool down.
	3 LEDs flash red.	There is a electrical malfunction.	Remove the activation key. Do not use the blower and contact your STIHL servicing dealer.
		Blower is damp. ▶ Allow the blower to dry.
Blower cuts out during operation	3 LEDs glow red B	Blower too hot. ▶ Remove the activation key. ▶ Allow blower to cool down.
		There is a electrical malfunction.	Switch off the blower, wait 5 seconds and then switch on again.
Blower runtime is too short		The blower is not fully charged.	Fully charge the blower.
		Normal blower life has been exceeded.	Replace the blower.
Blower is not being charged.	3 LEDs glow red B	Blower too hot. ▶ Remove the activation key. ▶ Allow blower to cool down.
		Malfunction in blower or charging cable.	Remove the activation key. Contact your STIHL servicing dealer.

18 Specifications

18.1 STIHL BGA 45 Blower

• Weight: 2.1kg
  Air speed with nozzle mounted: 38 m/s
• Battery technology: Lithium-ion
  Voltage: 18 V
• Capacity in Ah: see rating label
• Energy content in Wh: see rating label
• Permissible temperature range for operation and storage: 0^ up to +50^

If the blower is used at temperatures higher than +30^ , the battery runtime may be shortened and the blower's performance reduced.

For battery life see www.stihl.com/battery-life.

18.2 STIHL LK 45 Charging Cable

Voltage: 100-240 V, 50--60 Hz
Power rating: 14.6 W
- Charge current: 0.65 A
- Permissible temperature range for operation and storage: 0^ up to 40^

For charging times see www.stihl.com/charging-times.

18.3 Noise and Vibration Data

K-value for sound pressure level is 2 dB(A). K-value for sound power level is 2 dB(A). K-value for vibration level is 2m / s^2

STIHL recommends that you wear hearing protection.

Sound pressure level LpA measured according to EN 50636-2-100:76 dB(A)
- Sound power level LwA measured according to EN 50636-2-100: 87 dB(A)
Vibration measurement a hv measured according to EN 506362100; control handle: 3.2m / s^2

The vibration values quoted above have been measured according to a standardized test procedure and may be used to compare electric power tools. Depending on the type of usage, the vibrations that actually occur may differ from the values quoted. The vibration values quoted may be used for an initial assessment of the user's exposure to vibrations. The actual exposure to vibrations has to be estimated. This process may also take into account times during which the electric power tool is switched off and times during which it is switched on but running off load.

Information on compliance with Vibration Directive 2002/44/ EC is available at www.stihl.com/vib.

18.4 REACH

REACH is an EC regulation and stands for the Registration, Evaluation, Authorisation and Restriction of Chemical substances.

For information on compliance with the REACH regulation see www.stihl.com/reach.

19 Spare Parts and Accessories

19.1 Spare Parts and Accessories

These symbols identify original STIHL replacement parts and original STIHL accessories.

STIHL recommends the use of original STIHL replacement parts and accessories.

Original STIHL replacement parts and original STIHL accessories are available from STIHL servicing dealers.

20 Disposal

20.1 Disposing of Blower and Charging Cable

The blower contains a built-in rechargeable battery which must be disposed of separately.

• Return the blower to a STIHL servicing dealer for disposal. The STIHL dealer removes the built-in battery from the blower for separate disposal.
• Dispose of the charging cable, accessories and packaging in accordance with local regulations and environmental requirements.

21 EC Declaration of Conformity

21.1 STIHL BGA 45 Blower

declare in exclusive responsibility that

• Category: Cordless electric blower
  -Make:STIHL
• Model: BGA 45
• Serial identification: 4513

conforms to the relevant provisions of Directives 2011/65/EU, 2006/42/EC, 2014/30/EU and 2000/14/EC and has been developed and manufactured in compliance with the following standards in the versions valid on the date of production: EN 55014-1, EN 55014-2, EN 60335-1 and EN 50636-2-100.

The measured and guaranteed sound power levels were determined according to Directive 2000/14/EC, Annex V.

Measured sound power level: 86 dB(A)
Guaranteed sound power level: 89 dB(A)

Technical documents are deposited at ANDREAS STIHL AG & Co. KG Produktzulassung (Product Licensing).

The year of manufacture, country of manufacture and serial number are applied to the product.

Done at Waiblingen, 01.03.2017

Thomas Elsner, Director Product Management and Services

21.2 STIHL LK 45 Charging Cable

This charging cable is manufactured and put on the market in accordance with the following directives: 2014/35/EU, 2014/30/EU and 2011/65/EU.

The year of manufacture, country of manufacture and serial number are applied to the charger.

The complete EC Declaration of Conformity is available from ANDREAS STIHL AG & Co. KG, Badstrasse 115, 71336 Waiblingen, Germany.

Table des matieres

ANDREAS STIHAG&Co.KG2018

Chere cliente, cher client,
