USER MANUAL 49UM71007LB LG

MANUEL D'UTILISATION

RISQUE D'ÉLECTROCUTION NE PAS OUVRIR

AVERTISSEMENT : AFIN DE RÉDUIRE LE RISQUE D'ÉLECTROCUTION, NE RETIREZ PAS LE CAPOT (OU L'ARRIÈRE). AUCUNE PIÈCE N'EST RÉPARABLE PAR L'UTILISATEUR LUI-MÊME. CONFIEZ L'ENTRETIEN DE CET APPAREIL À UN PERSONNEL QUALIFIÉ.

Diagram illustrating a step-by-step procedure for using a tool to lift a vertical panel, with hand placement and angle marking options.

Diagram showing a device with a sensor and a connector, connected to a monitor screen, with magnified insets highlighting the components.

(Selon le modèle)

Orifices du support

Raccordements

Illustration of a flat-screen monitor with a power button icon below it (no text or symbols)

Fonctions de base

Bouton marche (Appuyer)

Two remote control panels showing navigation keys and function buttons with icons like 'SUSTITLE', 'GUIDE', and 'T.OPT'

Diagram showing two methods of removing a plastic bag, with one method marked by a hand and the other by a pen.

HEVCEAdvance™ Covered by Patents at patentlist.hevcadvance.com

LG

Life's Good

* Image shown may differ from your TV.
* Image shown on a PC or mobile phone may vary depending on the OS(Operating System).
* App icon positions may vary on the platform, depending on the software version.

Network Settings

1 Press the (Settings) on the remote to access the settings menu. Point the Ⓤ All Settings] icon and select by pressing the ⏻ Wheel (OK) button on the remote.

All Settings

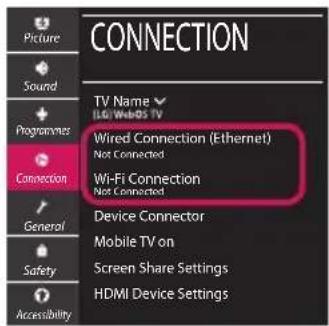

2 Select the [Connection] [Wired Connection(Ethernet)] or [Wi-Fi Connection].

CONNECTION TV Name (LG) WebOS TV Wired Connection (Ethernet) Not Connected Wi-Fi Connection Not Connected Device Connector Mobile TV on Screen Share Settings HDMI Device Settings

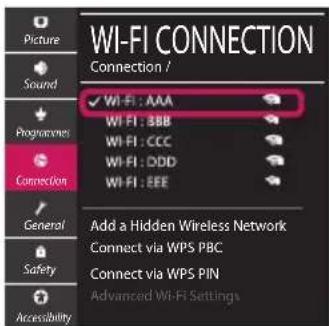

3 The device automatically tries to connect to the network available (wired network first). When you select the [Wi-Fi Connection], the network list available is displayed. Choose the network you wish to use.

WI-FI CONNECTION Connection / ✓ WI-FI : AAA WI-FI : BBB WI-FI : CCC WI-FI : DDD WI-FI : EEE Add a Hidden Wireless Network Connect via WPS PBC Connect via WPS PIN Advanced Wi-Fi Settings

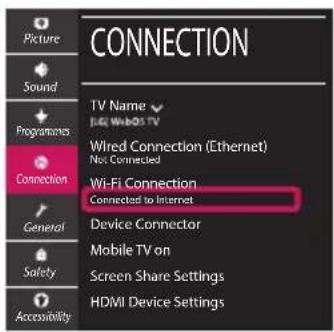

4 If the connection is successful, the "[Connected to Internet]" is displayed.

CONNECTION TV Name JiGi WebOS TV Wired Connection (Ethernet) Not Connected Wi-Fi Connection Connected to Internet Device Connector Mobile TV on Screen Share Settings HDMI Device Settings

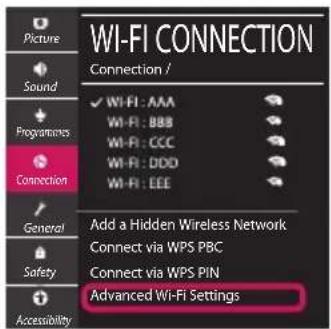

You can check the status of connection in [Advanced Wi-Fi settings].

WI-FI CONNECTION Connection / ✓ WI-FI : AAA WI-FI : BBB WI-FI : CCC WI-FI : DDD WI-FI : EEE Add a Hidden Wireless Network Connect via WPS PBC Connect via WPS PIN Advanced Wi-Fi Settings

For wireless AP (Router) that have the symbol, you need to enter the security key.

Troubleshooting Network Problems

1 Press the (Settings) on the remote to access the settings menu. Point the (All Settings] icon and select by pressing the Wheel (OK) button on the remote.

(All Settings)

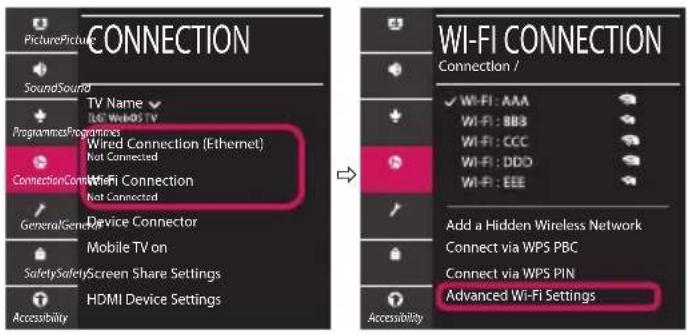

2 Select the [Connection] → [Wired Connection (Ethernet)] or [Wi-Fi Connection] → [Advanced Wi-Fi Settings].

PicturePicture CONNECTION SoundSound TV Name LED Wi-Fi TV Programmes/Programmes Wired Connection (Ethernet) Not Connected ConnectionControl WiFi Connection Not Connected General/Generic Device Connector Mobile TV on Safety/SafetyScreen Share Settings HDMI Device Settings Accessibility WI-FI CONNECTION Connection / WiFi: AAA WiFi: BBB WiFi: CCC WiFi: DDD WiFi: EEE Add a Hidden Wireless Network Connect via WPS PBC Connect via WPS PIN Advanced Wi-Fi Settings

Follow the instructions below that correlate to your network status.

Check the TV or the AP (Router).

Log icons representing television, wireless router, DNS, and globe symbols

When X appears next to TV:

① Check the connection status of the TV, AP (Router).
② Power off and power on the TV, AP (Router).
③ If you are using a static IP, enter the IP directly.
④ Contact internet service provider or AP (Router) company.

Check the AP (Router) or consult your Internet service provider.

Diagram showing three connection icons: TV, Wi-Fi device, and globe with 'DNS' label

When X appears next to Gateway:

① Unplug the power cord of the AP (Router) and try to connect after 5 seconds.
② Initialize (Reset) the AP (Router).
③ Contact internet service provider or AP (Router) company.

When X appears next to DNS:

① Unplug the power cord of the AP (Router) and try to connect after 5 seconds.
② Initialize (Reset) the AP (Router).
③ Check that the MAC address of the TV/AP (Router) is registered with your Internet service provider. (The MAC address displayed on the right pane of the network status window should be registered with your Internet service provider.)
4 Check the AP (Router) manufacturer's website to make sure your router has the latest firmware version installed.

SmartShare Connection to Smartphone

1 Check that Wi-Fi is enabled on your smartphone. To use SmartShare, both devices must on the same local network.
2 Install/run the app for sharing content on your smartphone (It's called LG TV Plus on LG phones).
3 Enable your smartphone to share content files with other devices.
4 Select the file type you want to play (movie, audio or photo).
5 Select a movie, music or photo file to play on the TV.
6 Play the media file to view and enjoy it on your TV.

Updating the TV Firmware

* If the TV is turned on for the first time after it was shipped from the factory, initialization of the TV may take a few minutes.

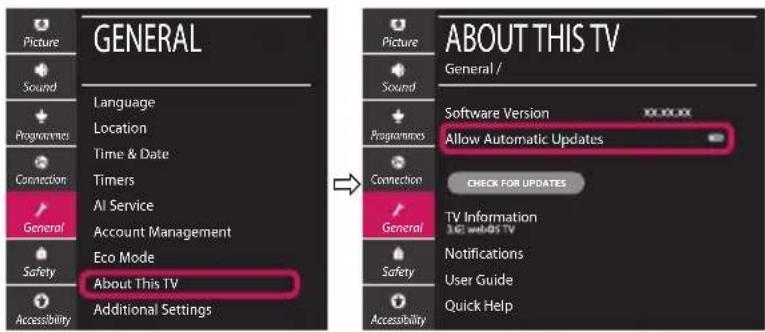

1 (Settings) → ⚠️ (💡)[All Settings] → ⚣️ [General] → [About This TV] → [CHECK FOR UPDATES]

2 After checking the version of the software, update it. If you check the "[Allow Automatic Updates]", you can update the software automatically.

GENERAL Language Location Time & Date Timers AI Service Account Management Eco Mode About This TV Additional Settings ABOUT THIS TV General / Software Version XXXXX Allow Automatic Updates CHECK FOR UPDATES General TV Information 3.61 web-05 TV Notifications User Guide Quick Help

Log icons representing TV, wireless router, DNS, and globe symbols

Diagram showing three connection icons: TV, Wi-Fi device, and globe with 'DNS' label crossed out

Log icons representing TV, wireless device, DNS, and globe symbols

Logos and icons showing TV, Wi-Fi, and DNS symbols with corresponding logos

Diagram showing three connection icons: TV, Wi-Fi, and DNS symbols with corresponding icons.

Log icons representing TV, wireless router, DNS, and globe symbols

Diagram showing three icons: TV, Wi-Fi device, and globe with 'DNS' label crossed out by a green circle

Log icons representing TV, wireless router, DNS, and globe symbols

Diagram showing TV, wireless device, and DNS icons with corresponding symbols
