– Rundumgriff: 3,5 m/s ^2

– Rundumgriff: 3,7 m/s ^2

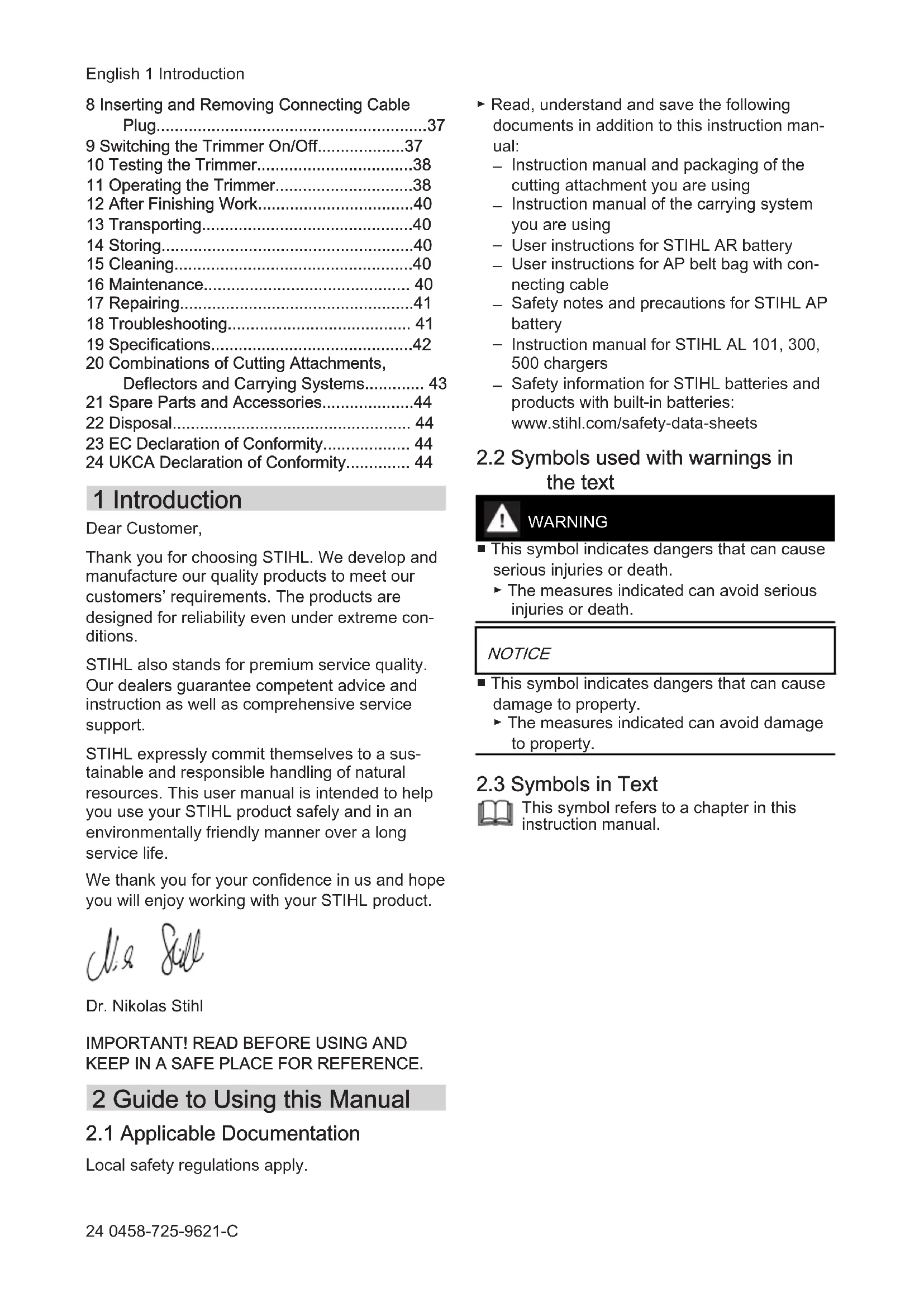

1 Introduction.... 24
2 Guide to Using this Manual....24
3 Overview.... 25
4 Safety Precautions....26
5 Preparing Trimmer for Operation.... 31
6 Assembling the Trimmer.... 32
7 Adjusting Trimmer for User.... 34

English 1 Introduction

8 Inserting and Removing Connecting Cable Plug....37

9 Switching the Trimmer On/Off....37
10 Testing the Trimmer....38
11 Operating the Trimmer....38
12 After Finishing Work....40
13 Transporting....40
14 Storing....40
15 Cleaning....40
16 Maintenance.... 40
17 Repairing....41
18 Troubleshooting.... 41
19 Specifications....42
20 Combinations of Cutting Attachments, Deflectors and Carrying Systems...... 43
21 Spare Parts and Accessories....44
22 Disposal.... 44
23 EC Declaration of Conformity.... 44
24 UKCA Declaration of Conformity...... 44

1 Introduction

Dear Customer,

Thank you for choosing STIHL. We develop and manufacture our quality products to meet our customers' requirements. The products are designed for reliability even under extreme conditions.

STIHL also stands for premium service quality. Our dealers guarantee competent advice and instruction as well as comprehensive service support.

STIHL expressly commit themselves to a sustainable and responsible handling of natural resources. This user manual is intended to help you use your STIHL product safely and in an environmentally friendly manner over a long service life.

We thank you for your confidence in us and hope you will enjoy working with your STIHL product.

N.a. 8:11

Dr. Nikolas Stihl

IMPORTANT! READ BEFORE USING AND KEEP IN A SAFE PLACE FOR REFERENCE.

2 Guide to Using this Manual

2.1 Applicable Documentation

Local safety regulations apply.

▶ Read, understand and save the following documents in addition to this instruction manual:

– Instruction manual and packaging of the cutting attachment you are using
– Instruction manual of the carrying system you are using
– User instructions for STIHL AR battery
- User instructions for AP belt bag with connecting cable
- Safety notes and precautions for STIHL AP battery
– Instruction manual for STIHL AL 101, 300, 500 chargers
- Safety information for STIHL batteries and products with built-in batteries: www.stihl.com/safety-data-sheets

2.2 Symbols used with warnings in the text

WARNING

■ This symbol indicates dangers that can cause serious injuries or death.

▶ The measures indicated can avoid serious injuries or death.

NOTICE

■ This symbol indicates dangers that can cause damage to property.

▶ The measures indicated can avoid damage to property.

2.3 Symbols in Text

This symbol refers to a chapter in this instruction manual.

3 Overview English

3 Overview

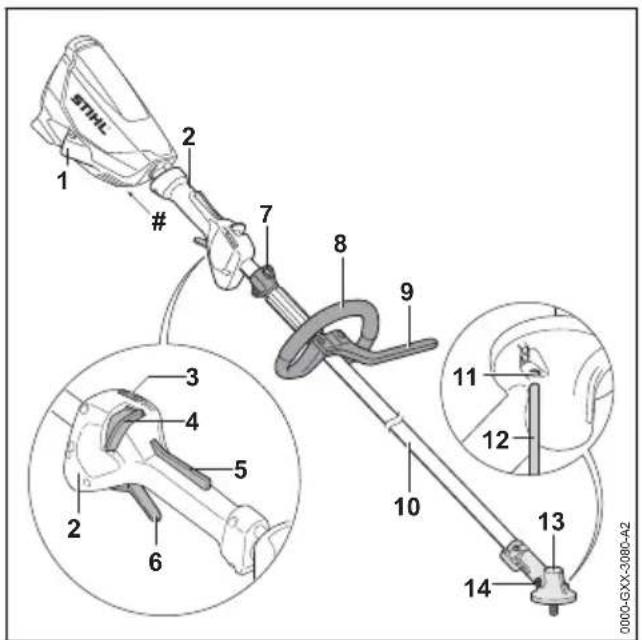

3.1 Brushcutter

STHL 1 2 # 7 8 9 3 4 5 2 6 10 11 12 13 14 0000-GXX-308C-A2

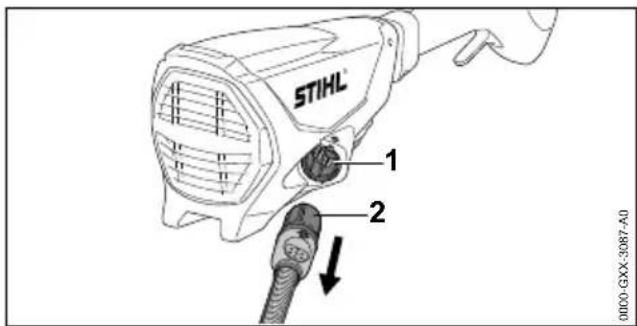

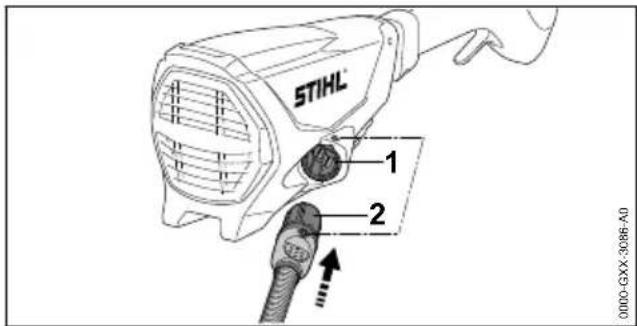

1 Socket

Receptacle for connecting cable plug.

2 Control handle

The control handle is used for operating, holding and controlling the brushcutter.

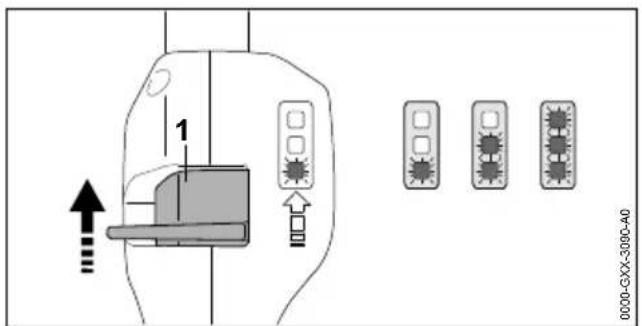

3 LEDs

The LEDs indicate the selected power level.

4 Release slide

Operated together with the trigger lockout to unlock the trigger. It is also used to select the power level.

5 Trigger lockout

Operated together with the release slide to unlock the trigger.

6 Trigger

The trigger switches the brushcutter on and off.

7 Carrying ring

For attaching the carrying system to the brushcutter.

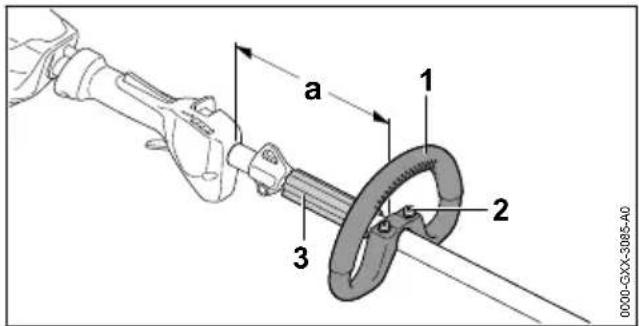

8 Loop handle

For holding and controlling the brushcutter.

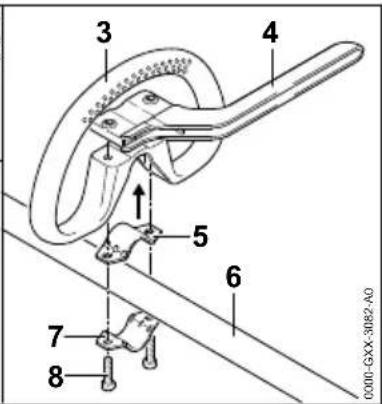

9 Barrier bar

Maintains distance between operator's leg and a metal cutting attachment.

10 Shaft

The shaft connects all components.

11 Opening for stop pin

The opening for the stop pin accommodates the stop pin.

12 Stop pin

The stop pin blocks the shaft while a cutting attachment is being mounted.

13 Gear housing

The gear housing encloses the gearbox.

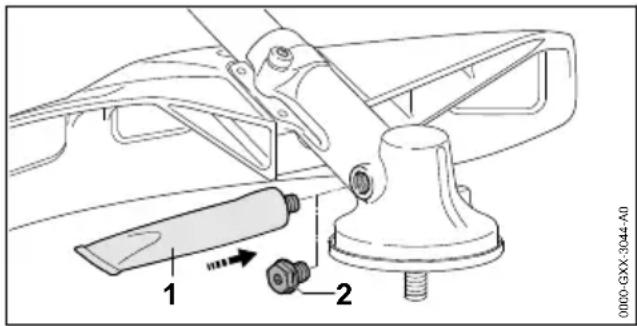

14 Screw plug

The screw plug closes the filler opening for STIHL gear grease.

# Rating plate with machine number

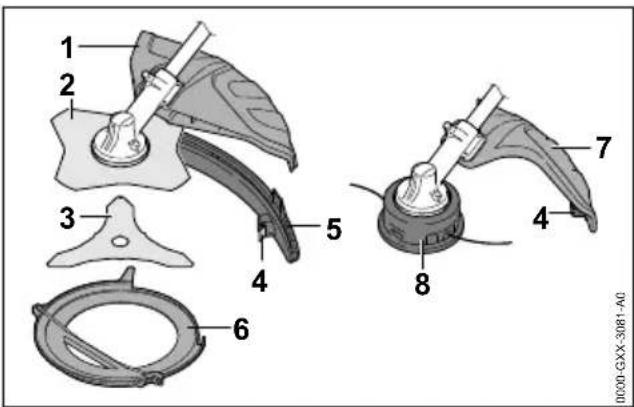

3.2 Deflectors and Cutting Attachments

The illustrations show examples of deflectors and cutting attachments. Approved combinations are listed in this instruction manual, 20.

1 2 3 4 5 6 7 8 0000-GXX-3081-A0

1 Universal Deflector

Protects user from flying debris and contact with the cutting attachment.

2 Grass Cutting Blade

Cuts grass and weeds.

3 Brush knife

Cuts brushwood.

4 Line Limiting Blade

Trims surplus mowing line to correct length.

5 Skirt

Extends universal deflector for use with a mowing head.

6 Transport Guard

Helps protect user from contact with metal cutting attachments.

7 Deflector for mowing heads

Protects user from flying debris and contact with the mowing head.

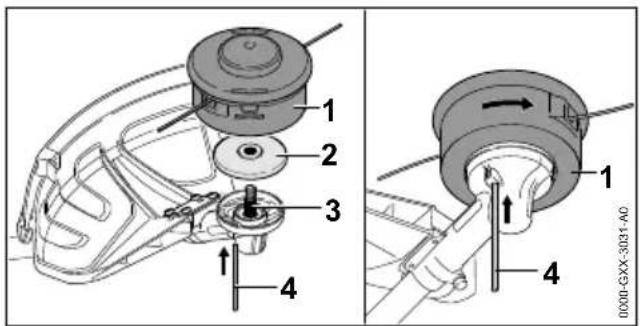

8 Mowing Head

The mowing head contains the mowing line.

English 4 Safety Precautions

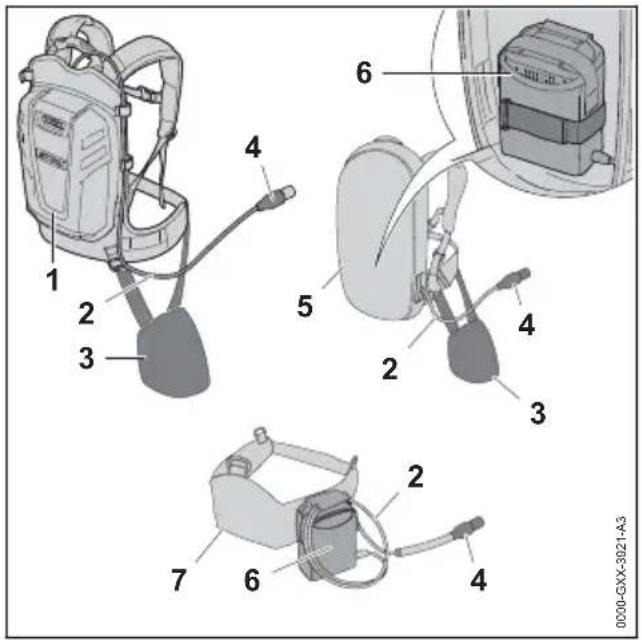

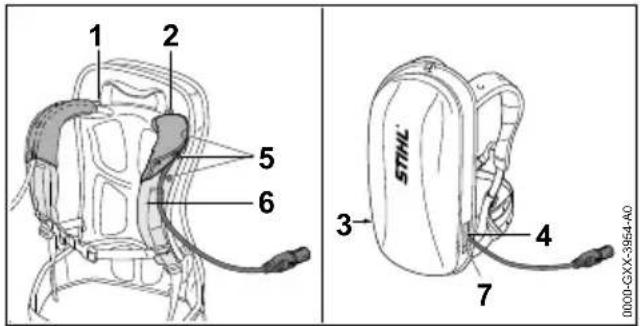

3.3 Carrying Systems

The illustrations show typical examples of carrying systems. Approved combinations are listed in this instruction manual, 20.1.

Technical diagram of a portable air purifier with numbered components and labeled parts

1 STIHL AR Battery

Supplies power to the trimmer.

2 Connecting Cable

Connects trimmer to the battery or "AP belt bag with connecting cable".

3 Hip Padding

Serves to secure trimmer to STIHL AR battery or the carrying system with built-in "AP belt bag with connecting cable".

4 Connecting Cable Plug

Connects trimmer to "AP belt bag with connecting cable" or STIHL AR battery.

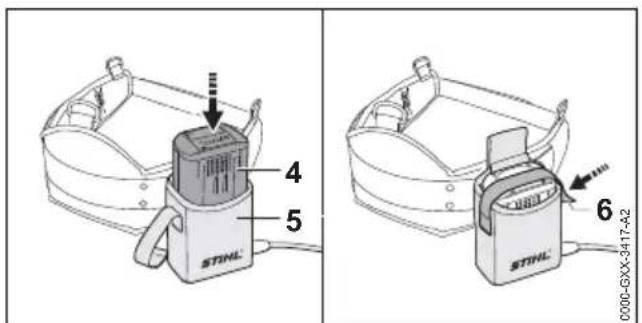

5 Carrying System with Built-In "AP Belt Bag with Connecting Cable"

Can supply power to the trimmer.

6 "AP Belt Bag with Connecting Cable"

Supplies power to the trimmer.

7 Battery Belt with "AP Belt Bag with Connecting Cable"

Supplies power to the trimmer.

3.4 Symbols

Meanings of symbols that may be on the trimmer and the deflector:

This symbol shows the direction of rotation of the cutting attachment.

This symbol shows the maximum diameter of the cutting attachment in millimeters.

This symbol shows the rated speed of the cutting attachment.

LWA Guaranteed sound power level according to directive 2000/14/EC in dB(A) in order to make sound emissions of products comparable.

Do not dispose of the product with your household waste.

4 Safety Precautions

4.1 Warning Signs

4.1.1 Trimmer

Meanings of warning signs on the trimmer:

Observe safety notices and take the necessary precautions.

Read, understand and save the instruction manual.

Wear safety glasses. If there is a danger of falling objects during operation: Wear a safety hard hat.

Wear safety boots.

Wear work gloves.

Observe safety notices on kickback and take the necessary precautions.

Observe safety notices on flying debris and take the necessary precautions.

Maintain safe distance.

Disconnect connecting cable plug from socket during work breaks, transport, storage, maintenance and repairs.

Do not touch hot surface.

4.1.2 Deflector for mowing heads

Meanings of warning signs and labels on the deflector for mowing heads:

4 Safety Precautions English

Use this deflector for mowing heads.

Do not use this deflector for grass cutting blades.

Do nit use this deflector for brush knives.

Do not use this deflector for shredder blades.

Do not use this deflector for circular saw blades.

4.1.3 Universal Deflector and Skirt

Universal deflector

Meanings of warning signs on the universal deflector:

Do not use this deflector without skirt for mowing heads.

Use this deflector for grass cutting blades.

Use use this deflector for brush knives.

Use this deflector for shredder blades.

Do not use this deflector for circular saw blades.

Skirt

Meanings of warning signs on the skirt:

Use the universal deflector with skirt and line limiting blade for mowing heads.

4.2 Intended Use

The STIHL FSA 130 trimmer is designed for the following applications:

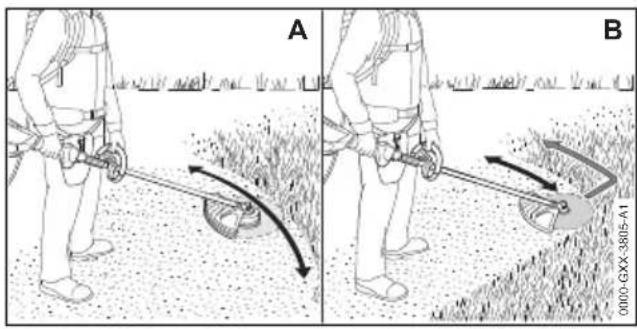

– with a mowing head: Mowing grass

– with a grass cutting blade: Mowing grass and weeds
– with a brush knife: Cutting brush with a stem diameter up to 20 mm

The trimmer may be used in the rain.

Power to this trimmer is supplied by a STIHL AP battery in combination with the "AP belt bag with connecting cable" or a STIHL AR battery.

WARNING

■ Batteries not explicitly approved for the trim-mer by STIHL may cause a fire or explosion. This can result in serious or fatal injuries and damage to property.

▶ Use the trimmer with a STIHL AP battery in combination with the "AP belt bag with connecting cable" or an STIHL AR battery.

■ Using the trimmer or the battery for purposes for which they were not designed may result in serious or fatal injuries and damage to property.

▶ Use the trimmer as described in this instruction manual.

▶ Use the battery as described in the instruction manual for the "AP belt bag with connecting cable" or the STIHL AR battery.

4.3 The Operator

WARNING

■ Users who have had no instruction cannot recognize or assess the risks involved in using the trimmer. The user or other persons may sustain serious or fatal injuries.

▶ Read, understand and save the instruction manual.

▶ If the trimmer is passed on to another user: Always give them the instruction manual.
▶ Make sure the user meets the following requirements:

• The user must be rested.
• The user must be in good physical condition and mental health to operate and work with the trimmer. If the user's physical, sensory or mental ability is restricted, he or she may work only under the supervision of or as instructed by a responsible person.
• The user is able to recognize and assess the risks involved in using the trimmer.
• The user must be of legal age or is being trained in a trade under supervi-

English 4 Safety Precautions

sion in accordance with national rules and regulations.

• The user has received instruction from a STIHL servicing dealer or other experienced user before working with the trimmer for the first time.
• The user must not be under the influence of alcohol, medication or drugs.

▶ If you have any queries: Contact a STIHL servicing dealer for assistance.

4.4 Clothing and equipment

WARNING

■ Long hair can be drawn into the brushcutter during operation. This may result in serious injury to the user.
- Tie up and confine long hair above your shoulders.
■ Objects can be thrown at high speed during operation. This may result in injury to the user.

▶ Wear close-fitting safety glasses. Suitable safety glasses are tested in accordance with EN 166 or national regulations and available commercially with the corresponding marking.

▶ Wear face protection.
- Wear long trousers made from resistant material.

■ Falling objects can cause head injuries.

▶ If objects are likely to fall while working: wear a hard hat

■ Dust can be whipped up during operation. Whipped up dust can damage the respiratory passages and cause allergic reactions.
▶ If dust is generated: Wear a dust respirator mask.
■ Inappropriate clothing can snag on wood, brush or the brushcutter. Users not wearing suitable clothing are at risk of serious injury.
▶ Wear close-fitting clothing.
▶ Remove scarves and jewelry.
■ The user may come into contact with the rotating cutting attachment during operation. This may result in serious injury to the user.
▶ Wear robust footwear.

▶ If you are using a metal cutting attachment: Wear steel-toed safety boots.

• Wear long trousers made from resistant material.
  ■ There is a risk of the user coming into contact with the cutting attachment or the line limiting

blade during cleaning and maintenance work and when the cutting attachment is mounted or removed. This may result in injury to the user.

▶ Wear work gloves made from resistant material.

■ Wearing unsuitable footwear may cause the user to slip. This may result in injury to the user.

- Wear sturdy, closed-toed footwear with high-grip soles.

4.5 Working Area and Surroundings

WARNING

■ Bystanders, children and animals are not aware of the dangers of the brushcutter or flying debris. This may result in serious injury to bystanders, children and animals and damage to property.

▶ Do not allow bystanders, children or animals within 15 meters of the work area.

• Maintain a clearance of 15 meters from objects.
  ▶ Do not leave the brushcutter unattended.
  ▶ Make sure that children cannot play with the brushcutter.

■ Electrical components of the brushcutter can produce sparks. Sparks may cause fires and explosions in highly flammable or explosive environments. Persons may be seriously or fatally injured and property may be damaged.

- Do not work in a highly flammable or explosive environment.

4.6 Safe Condition

4.6.1 Brushcutter

The brushcutter is in a safe condition if the following points are observed:

– The brushcutter is not damaged.
- The brushcutter is clean.
- The controls function properly and have not been modified.
- A combination of cutting attachment and deflector recommended in this user manual is mounted.
- The cutting attachment and deflector are properly mounted.
- Genuine STIHL accessories for this brushcutter are fitted.
- The accessories are correctly attached.

WARNING

■ If not in safe condition, components may no longer operate correctly and safety devices may be disabled. This may result in serous or fatal injury to people.

▶ Work only with an undamaged brushcutter.
▶ If the brushcutter is dirty: Clean the brush-cutter.
▶ Never attempt to modify your brushcutter. Exception: Mounting one of the combinations of cutting attachment and deflector recommended in this user manual.
▶ If the controls do not function properly: Do not use your brushcutter.
- Fit genuine STIHL accessories for this brushcutter.
▶ Mount the cutting attachment and deflector as described in this user manual.
▶ Attach accessories as described in this User Manual or in the User Manual for the accessories.
▶ Never insert objects in the openings of the brushcutter.
- Replace worn or damaged labels.
▶ If you have any doubts, be sure to consult a STIHL dealer.

4.6.2 Deflector

The deflector is in a safe condition if the following points are observed:

• The deflector is not damaged.
• If you are using the line limiting blade and skirt: Line limiting blade and skirt are correctly fitted.

WARNING

■ If components do not comply with safety requirements, they will no longer function properly and safety devices may be rendered inoperative. This can result in serious injuries.

▶ Work only with an undamaged deflector.
▶ If you are using the line limiting blade and skirt: Work with a correctly fitted line limiting blade and skirt.
▶ If you have any queries: Contact your STIHL servicing dealer.

4.6.3 Mowing Head

The mowing head is in a safe condition if the following points are observed:

• The mowing head is not damaged.
  – The mowing head is not jammed.
  – The mowing lines are properly installed.
  – The wear limits are not exceeded.

WARNING

■ If they are in an unsafe condition, parts of the mowing head or mowing lines may come off and be ejected at high speed. They may cause serious injury to persons.

▶ Work only with an undamaged mowing head.
▶ Never use metal objects in place of the nylon mowing lines.
▶ Observe and remain inside the wear limits.
▶ If you have any doubts, be sure to consult a STIHL dealer.

4.6.4 Metal cutting attachment

The metal cutting attachment is in a safe condition if the following points are observed:

– Metal cutting attachment and mounting hardware are undamaged.
– Metal cutting attachment is not warped.
– Metal cutting attachment is properly mounted.
- Metal cutting attachment is correctly sharpened.
- Cutting edges of the metal cutting attachment have no burrs.
– The wear limits are not exceeded.
- If a metal cutting attachment not manufactured by STIHL is used, it must not be heavier, thicker, of a different shape, of a lower quality, or larger in diameter than the largest metal cutting attachment approved by STIHL.

WARNING

■ If it is not in an safe condition, parts of the metal cutting attachment may come off and be thrown at high speed. They may cause serious injury to persons.

▶ Never work with a damaged metal cutting attachment or damaged mounting hardware.
- Sharpen the metal cutting attachment correctly.
▶ Deburr the cutting edges with a file.
▶ Have the metal cutting attachment balanced by a STIHL servicing dealer.
▶ Observe and remain inside the wear limits.
▶ Use a metal cutting attachment specified in these instructions for use.
▶ If you have any doubts, be sure to consult a STIHL dealer.

4.7 Working

WARNING

In certain situations, the user may no longer be able to concentrate on their work. This may result in the user stumbling, falling and suffering serious injury.

▶ Work in a calm and considered way.
▶ If light and visibility are poor: Do not use your trimmer.
▶ Operate the trimmer alone.
- Keep the cutting attachment close to the ground.
▶ Watch out for obstacles.
▶ Work standing on the ground and keep your balance.
▶ If you feel tired, take a break.

■ The rotating cutting attachment can cut the user. This may result in serious injury to the user.

• Do not touch the rotating cutting attachment.
  ▶ If the cutting attachment is blocked by an object: Switch off the trimmer and pull the connecting cable plug out of the socket. Only then should you remove the object.

■ If the behavior of the trimmer changes during operation or feels unusual, it may no longer be in a safe condition. There is a risk of serious injury to people and damage to property.

- Stop work, pull the connecting cable plug out of the socket and contact your STIHL servicing dealer.

■ Vibrations may occur during brushcutter operation.

▶ Wear gloves.

▶ Take breaks.
▶ If signs of a circulatory disturbance occur: Consult a doctor.

■ If the cutting attachment makes contact with a foreign object during operation, the object or parts of it may be thrown at high speed. Persons may be injured or property damaged.

- Remove foreign objects from the working area.

■ If the rotating cutting attachment makes contact with a hard object, sparks may occur and the cutting attachment may be damaged.

Sparks can cause fires in a flammable environment. Persons may be seriously or fatally injured and property may be damaged.

- Do not use in a flammable environment.

- Make sure the cutting attachment is in a safe condition.

■ Note that the cutting attachment continues to rotate for a short period after you release the trigger. They may cause serious injury to persons.
- Wait until the cutting attachment comes to a complete stop.
■ In an emergency, the user may start to panic and forget to take off the carrying system. This may result in serious injury to the user.
▶ Practice taking off the carrying system.

4.8 Reactive Forces

4.8.1 Reactive Forces

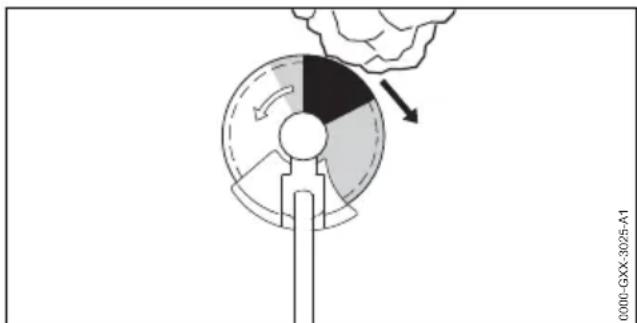

Diagram of a mechanical device with a rotating wheel and directional arrows, no readable text or symbols present.

Kickout can be caused for the following reasons: – The shaded area or the black area of the rotating metal cutting attachment comes into contact with a solid object and is suddenly braked.
- The rotating metal cutting attachment gets pinched in the cut.

The risk of kickout is greatest in the black area.

WARNING

■ These situations can abruptly decelerate or stop rotation of the cutting attachment and cause the cutting attachment to be thrown to the right or in the direction of the user (black arrow). The user can lose control of the trim-mer. This can result in serious or fatal injuries.

• Hold the trimmer firmly with both hands.
  ▶ Use the working techniques described in this instruction manual.
  ▶ Do not use the black area for cutting.
  ▶ Use a combination of cutting attachment, deflector and carrying system recommended in this instruction manual.
• Sharpen the metal cutting attachment correctly.
  ▶ Cut with the motor running at full speed.

5 Preparing Trimmer for Operation English

4.9 Transporting

WARNING

■ The gearbox can get hot during operation. There is a risk of burn injuries.

▶ Do not touch a hot gearbox.

■ The trimmer may turn over or shift during transport. This may result in personal injuries and damage to property.

▶ Pull the connecting cable plug out of the socket.

▶ If a metal cutting attachment is mounted: Fit the transport guard.

- Secure the trimmer with lashing straps or a net to prevent it turning over and moving.

4.10 Storage

WARNING

■ Children are not aware of and cannot assess the dangers of a brushcutter Children may be seriously injured.

▶ Pull the connecting cable plug out of the socket.

▶ If a metal cutting attachment is mounted: Fit the transport guard.

- Store the brushcutter out of the reach of children.

■ Dampness can corrode the electrical contacts on the brushcutter and metal components. This can damage the brushcutter.

▶ Pull the connecting cable plug out of the socket.

- Store the brushcutter in a clean and dry condition.

4.11 Cleaning, Maintenance and Repair

WARNING

■ The trimmer may start unintentionally if the connecting cable plug remains inserted during cleaning, maintenance or repair operations. This may result in serious injury to people and damage to property.

▶ Pull the connecting cable plug out of the socket.

■ The gear housing can get hot during operation. There is a risk of burn injuries.

▶ Do not touch a hot gear housing.

■ Aggressive cleaning agents, a water jet or pointed objects can damage the trimmer, deflector or the cutting attachment. If the trimmer, deflector and cutting attachment are not cleaned correctly, components may no longer function properly or safety devices may be rendered inoperative. They may cause serious injury to persons.

▶ Clean the trimmer, deflector and cutting attachment as described in this instruction manual.

If the trimmer, deflector and cutting attachment are not serviced or repaired correctly, components may no longer function properly or safety devices may be rendered inoperative. This may result in serous or fatal injury to people.

▶ Do not attempt to service or repair the trim-mer or deflector.

▶ If the trimmer or the deflector require servicing or repairs: Contact your STIHL servicing dealer for assistance.

- Maintain the cutting attachment as described in the User Manual supplied with the cutting attachment being used or on the cutting attachment's packaging.

■ The user can be cut by the sharp cutting edges while cleaning or maintaining cutting attachments. This may result in injury to the user.

▶ Wear work gloves made from resistant material.

5 Preparing Trimmer for Operation

5.1 Preparing the Brushcutter for Operation

The following steps must be performed before commencing work:

English 6 Assembling the Trimmer

• Ensure that the following components are in safe condition:
• Brushcutter, 4.6.1.
• Deflector, 14.6.2.
• Mowing head, 4.6.3 or metal cutting attachment, 4.6.4.
• Battery as described in the STIHL AR battery's instruction manual or in the user instructions for the "AP belt bag with connecting cable".
• Check the battery as described in the STIHL AR battery's instruction manual or in the user instructions for the "AP belt bag with connecting cable".
  ▶ Fully charge battery as described in the User Manual for chargers STIHL AL 101, 300, 500.
  ▶ Clean the brushcutter, 15.1.
  ▶ Mount the loop handle, ☐6.1.
  ▶ Select combination of cutting attachment, deflector and carrying system, ☐20.
  ▶ Mount the deflector, 6.3.1.
  ▶ If you are using a universal deflector together with a mowing head: Fit the skirt and line limiting blade, ☐6.4.1.
  ▶ If you are using a metal cutting attachment: Mount loop handle with barrier bar, 6.2.
  ▶ Mount mowing head or metal cutting attachment, ☐6.5.1 or ☐6.6.1.

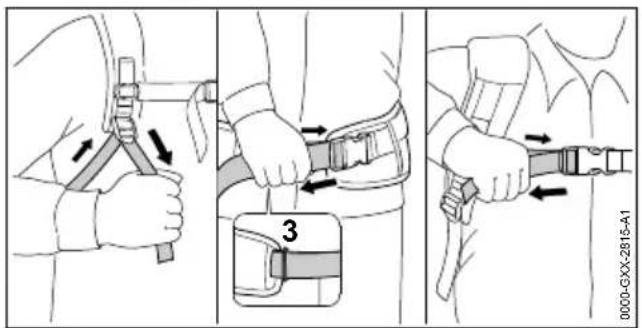

• Put on and adjust the STIHL AR battery, carrying system or "AP belt bag with connecting cable", 17.
  ▶ Balance the brushcutter, 7.4.
  ▶ Adjust the loop handle, 17.5.
  ▶ Check the controls, 10.1.
  ▶ If you cannot carry out this work: Do not use your brushcutter and contact your STIHL dealer for assistance.

6 Assembling the Trimmer

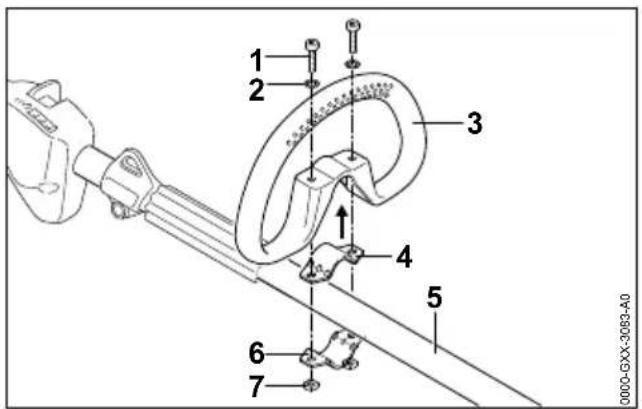

6.1 Mounting the Loop Handle

- Switch off the trimmer and pull the connecting cable plug out of the socket.

1 2 3 4 5 6 7 0000-GXX-3083-A0

▶ Fit the clamp (4) in the loop handle (3).
▶ Place the loop handle (3) with clamp (4) on the drive tube (5).
▶ Fit washers (2) on the screws (1).
▶ Hold the clamp (6) against the drive tube (5).
- Insert screws (1) through holes in loop handle (3) and clamps (4 and 6).
▶ Fit and tighten down the nuts (7) firmly.

6.2 Mounting Loop Handle with Barrier Bar

- Switch off the trimmer and pull the connecting cable plug out of the socket.

Technical diagram showing a mechanical clamp or bracket with labeled parts 1 and 2

Line drawing of a mechanical device with a curved handle and loop (no text or symbols)

3 4 5 6 7 8 0.000-GXX-30B2-A0

• Insert nuts (2) in the barrier bar (1) so that the holes line up.
  ▶ Fit the clamp (5) in the loop handle (3).
  ▶ Place the loop handle (3) with clamp (4) and barrier bar (4) on the drive tube (6).
  ▶ Hold the clamp (7) against the drive tube (6).
• Insert and tighten down the screws (8).

6.3 Mounting and Removing the Deflector

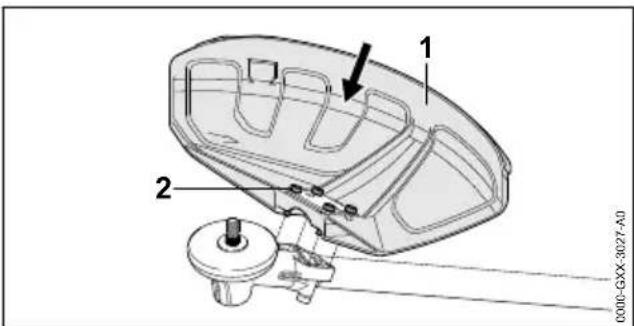

6.3.1 Mounting the Deflector

▶ Switch off the trimmer and pull the connecting cable plug out of the socket.

1 2 0000-GXX-3027-A0

▶ Push the deflector (1) into the guides on the gear housing as far as stop.
▶ Insert and tighten down the screws (2) firmly.

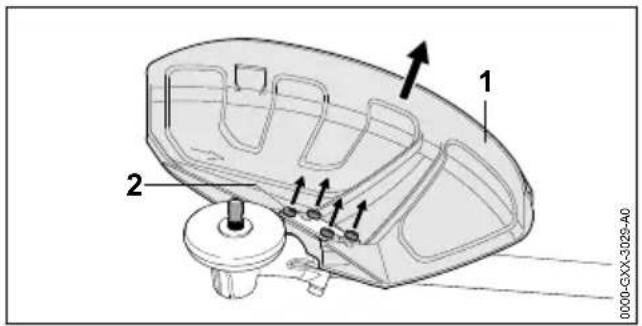

6.3.2 Removing the Deflector

▶ Switch off the trimmer and pull the connecting cable plug out of the socket.

Technical diagram of a vehicle interior with labeled parts and directional arrows indicating movement or force

▶ Take out the screws (2).
▶ Pull off the deflector (1).

6.4 Fitting and Removing the Skirt

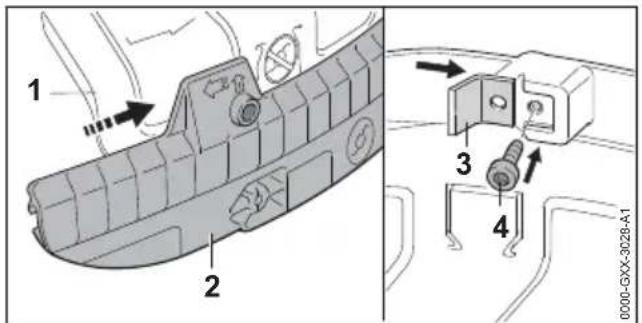

6.4.1 Fitting the Skirt

▶ Switch off the trimmer and pull the connecting cable plug out of the socket.

1 2 3 4 0000-GXX-3028-A1

• Slide the guide slot in the skirt (2) onto the deflector (1) – it must snap into position.
• Push the line limiting blade (3) into the slot in the skirt (2).
• Insert and tighten down the screw (4) firmly.

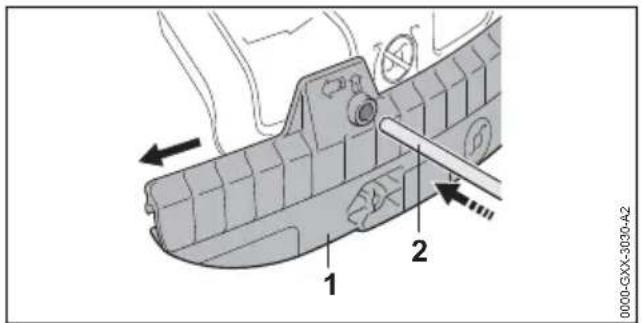

6.4.2 Removing the Skirt

- Switch off the trimmer and pull the connecting cable plug out of the socket.

1 2 0000-GXX-3030-A2

- Insert stop pin (2) into the hole in the skirt (1). - Use the stop pin (2) to slide the skirt (1) off the deflector.

The line limiting blade (1) can be left on the skirt.

6.5 Mounting and Removing the Mowing Head

6.5.1 Mounting the Mowing Head

- Switch off the trimmer and pull the connecting cable plug out of the socket.

1 2 3 4 0000-GXX-3031-A0

▶ Place the thrust plate (2) on the shaft (3) so that its smaller diameter faces up.
▶ Fit the mowing head (1) on the shaft (3) and turn it counterclockwise.
- Insert the stop pin (4) in the bore as far as stop and hold it depressed.
▶ Rotate the mowing head (1) counterclockwise until the stop pin (4) engages in position. The shaft is now blocked.
▶ Tighten down the mowing head (1) firmly by hand.
▶ Remove the stop pin (4).

6.5.2 Removing the Mowing Head

• Switch off the trimmer and pull the connecting cable plug out of the socket.
• Insert the stop pin in the bore as far as stop and hold it depressed.
  ▶ Rotate the mowing head (3) until the stop pin engages in position. The shaft is now blocked.
  ▶ Unscrew the mowing head clockwise.
  ▶ Remove the thrust plate.
  ▶ Remove stop pin.

6.6 Removing and Installing Metal Cutting Attachment

6.6.1 Mounting Metal Cutting Attachment

- Switch off the trimmer and pull the connecting cable plug out of the socket.

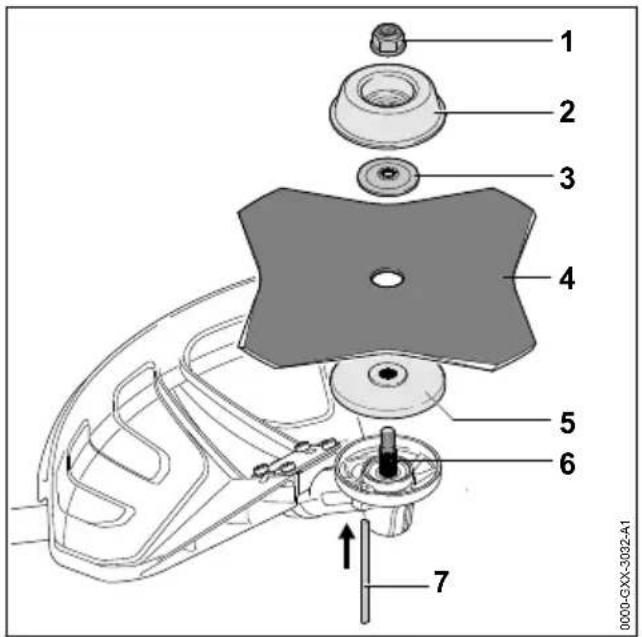

Technical diagram of a mechanical assembly with numbered components for identification

• Place the thrust plate (5) on the shaft (6) so that its smaller diameter faces up.
• Place the metal cutting attachment (4) on the thrust plate (5). If you are fitting a circular saw blade or a grass cutting blade with more than 4 cutting edges: Its cutting edges must face in the same direction as the arrow on the deflector.
• Place the thrust washer (3) on the metal cutting attachment so that its raised side faces up.
  ▶ Place the rider plate (2) on the thrust washer (3) so that its closed side faces up.
• Insert the stop pin (7) in the bore as far as stop and hold it depressed.
  ▶ Rotate the metal cutting attachment (4) clockwise until the stop pin (7) engages in position. The shaft is now blocked.
  ▶ Fit the nut (1) counterclockwise and tighten it down firmly.
  ▶ Remove the stop pin (7).

6.6.2 Removing the Metal Cutting Attachment

• Switch off the trimmer and pull the connecting cable plug out of the socket.
• Insert the stop pin in the bore as far as stop and hold it depressed.
  ▶ Rotate the metal cutting attachment clockwise until the stop pin engages in position. The shaft is now blocked.
  ▶ Unscrew the mounting nut clockwise.
• Remove the rider plate, thrust washer, metal cutting attachment and thrust plate.
  ▶ Remove stop pin.

7 Adjusting Trimmer for User

7.1 Using with STIHL AR Battery

7.1.1 Fitting and Adjusting the Connecting Cable

The connecting cable can be fitted and adjusted to suit the user's size and the application.

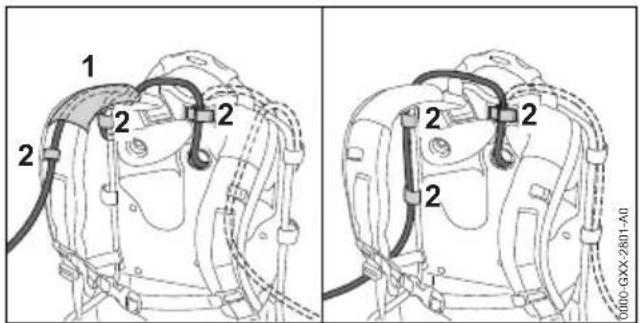

1 2 2 2 2 2 2 000-GXX-2801-A0

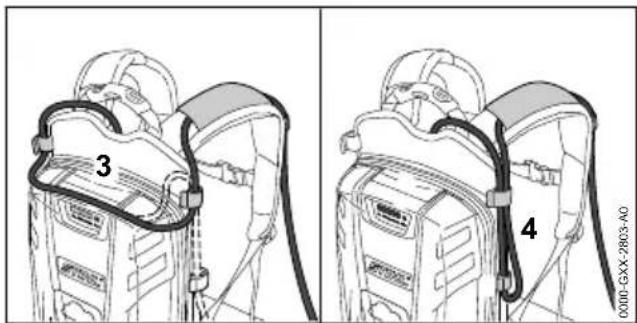

The connecting cable can be secured in position by the guide (1) on the harness and the fasteners (2), or on the side of the backplate with the fasteners (2).

3 4 0000-GX-X-2903-A0

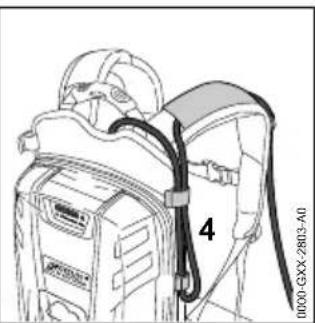

The length of the connecting cable can be adjusted by making a loop on the backplate (3) or at one side (4).

▶ Arrange the connecting cable so that it is as short as possible without hindering your work.

7.1.2 Fitting and Adjusting the Carrying System

▶ Put the battery on your back.

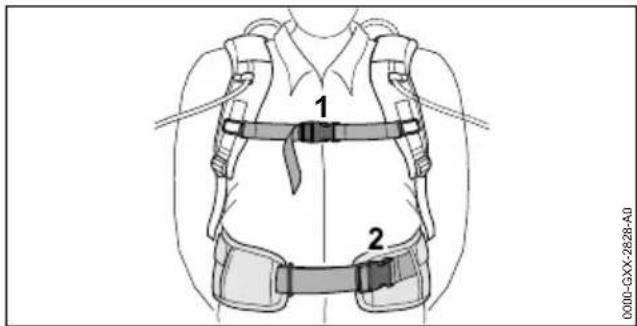

1 2 0000-5GXX-2828-A0

▶ Close buckle (2) on the waist belt.
▶ Close buckle (1) on the chest strap.

Illustration showing three steps of a person's seatbelt buckle being adjusted, with numbered instructions and a close-up view.

▶ Tighten the straps until the waist belt fits snugly on your hips and the back padding is against your back.
- Thread the end of the waist belt through the loop (3).
▶ Fit the hip pad as described in the instructions supplied with the hip pad.

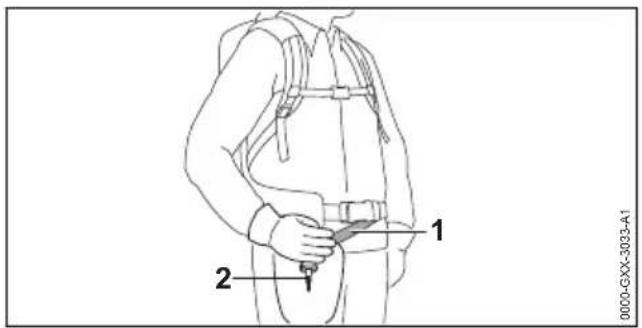

1 2 0000-GXX-3033-A1

- Adjust the strap (1) so that the carabiner (2) is about a hand's width below your right hip.

7.2 Using with Carrying System

7.2.1 Fitting and Adjusting the Connecting Cable

The connecting cable can be fitted and adjusted to suit the user's size and the application.

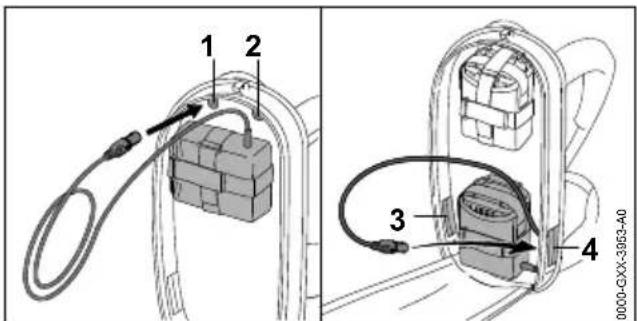

1 2 3 4 0000-GX-3963-A0

The connecting cable can be fitted through the following openings:

– the upper left opening (1)
– the upper right opening (2)
– the lower left opening (3)
– the lower right opening (4)

1 2 5 6 3 STIHL 4 7 0000-GXX-3954-A0

▶ If the connecting cable is fitted through the upper left opening (1) or the upper right opening (2):

▶ Open the press studs (5).
- Lay the connecting cable over the shoulder strap (6).
▶ Close the press studs (5).

▶ If the connecting cable is fitted through the lower left opening (3) or the lower right opening (4): Seal the opening you use (3 or 4) with the hook and loop fastener (7).
▶ Arrange the connecting cable so that it is as short as possible without hindering your work.

7.2.2 Fitting and Adjusting the Carrying System

▶ Put the battery on your back.

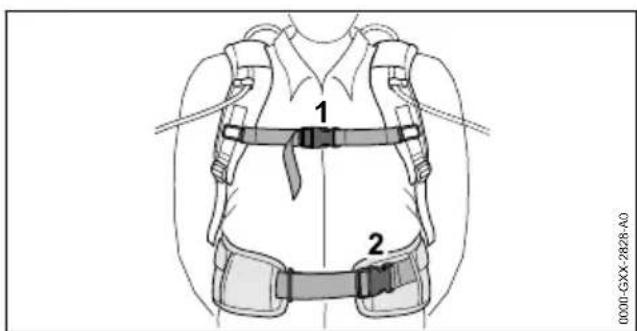

1 2 0000-GXX-2828-A0

▶ Close buckle (2) on the waist belt.
▶ Close buckle (1) on the chest strap.

Medical illustration showing three steps of a person's seatbelt buckle replacement, with arrows indicating movement and labeled parts.

▶ Tighten the straps until the waist belt fits snugly on your hips and the back padding is against your back.
- Thread the end of the waist belt through the loop (3).
▶ Fit the hip pad as described in the instructions supplied with the hip pad.

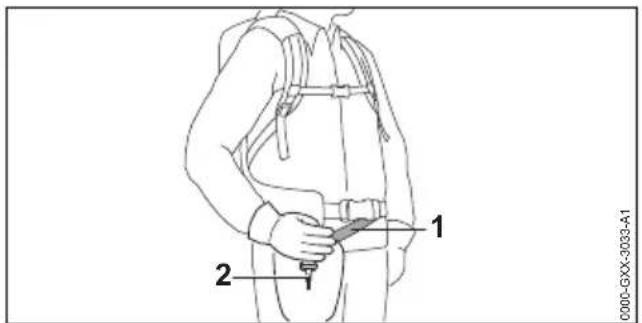

1 2 0000-GXX-3033-A1

- Adjust the strap (1) so that the carabiner (2) is about a hand's width below your right hip.

7.3 Using with AP Belt Bag with Connecting Cable

7.3.1 Attaching the "Belt bag AP with connecting cord"

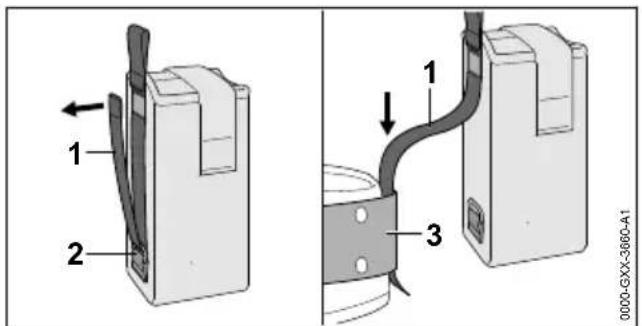

1 2 1 3 0000-GXX-3660-A1

- Open the Velcro® fastening on the strap (1) and pull the strap (1) out of the ring (2).

▶ Feed strap (1) through belt (3).

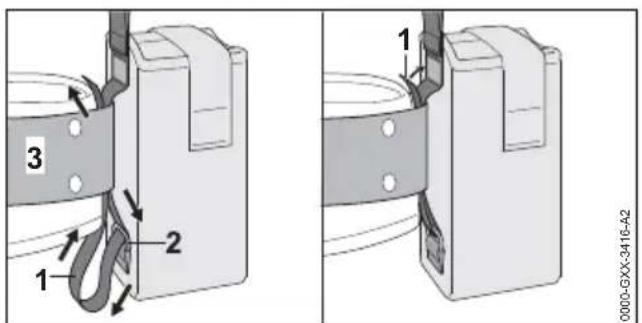

1 2 3 1 0000-GXX-3416-A2

▶ Feed strap (1) back through the ring (2) and the belt (3).

- Close the Velcro® fastening on the strap (1).

4 5 STINL 6 0000-GXX-3417-A2

▶ Push battery (4) as far as it will go into the belt bag (5).

A short beep will sound.

- Secure battery (4) with the Velcro® fastening (6).

7.3.2 Adjusting the Connecting Cable

The connecting cable can be fitted and adjusted to suit the user's size and the application.

STIHL 1 2 3 0000-GXX-3418-A0

The length of the connecting cable can be adjusted by making a loop (1) and securing it to the belt bag (3) with the fastener (2).

▶ Arrange the connecting cable so that it is as short as possible without hindering your work.

7.3.3 Fitting and Adjusting the Carrying System

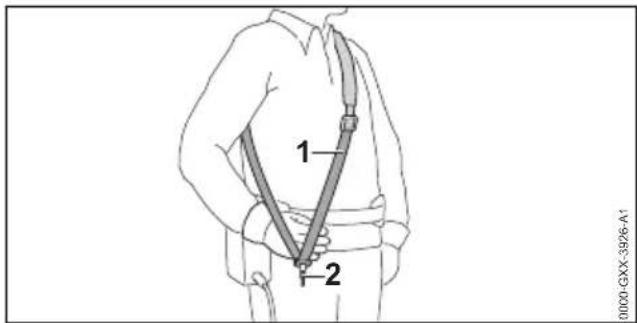

1 2 0000-GXX-3926-A1

▶ Put on the shoulder strap (1).

Adjust the shoulder strap (1) so that the carabiner (2) is about a hand's width below your right hip.

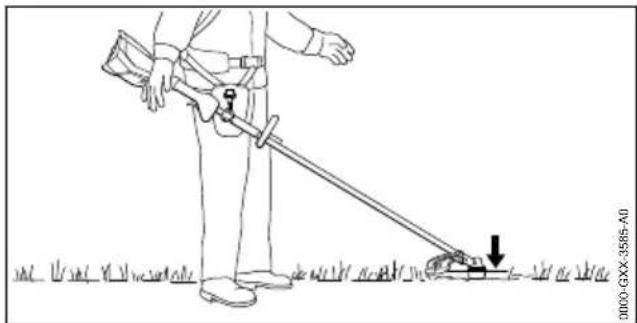

7.4 Balancing the Trimmer

Line drawing of a person using a lever to measure a small object on grass, with no text or symbols present.

The cutting attachment should rest lightly on the ground.

- Switch off the trimmer and pull the connecting cable plug out of the socket.

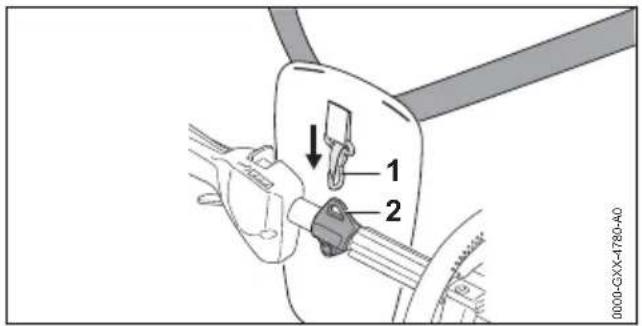

1 2 0000-GXX-4780-A0

• Connect the carrying ring (2) to the carabiner (1).
  ▶ Wait for the trimmer to stop swinging.
  ▶ Check position of cutting attachment. If it needs adjustment:

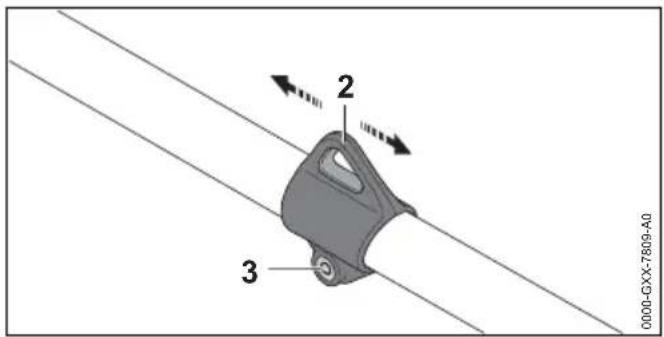

2 3 0000-GXX-7809-A0

▶ Loosen the screw (3).
▶ Move carrying ring (2) up or down the drive tube until correct balanced position is reached.
▶ Tighten down the screw (3) firmly.

7.5 Adjusting the Loop Handle

The loop handle can be set to different positions to suit the height and reach of the user.

- Switch off the trimmer and pull the connecting cable plug out of the socket.

a 1 2 3 0000-GXX-3085-A0

▶ Loosen the screws (2).
▶ Move the loop handle (1) to the required position and make sure that:

• The spacer sleeve (3) fits between the loop handle (1) and carrying ring.
• If you are using a mowing head: a = no more than 30 cm
• If you are using a metal cutting attachment: a = no more than 25 cm

▶ Tighten down the screws (2) so that the loop handle cannot be rotated on the drive tube.

8 Inserting and Removing Connecting Cable Plug

8.1 Inserting the Connecting Cable Plug

STIHL 1 2 0000-GXX-3086-A0

• Hold connecting cable plug (2) so that the arrow on its side lines up with the arrow on the socket (1).
• Insert the connecting cable plug (2) in the socket (1).

The plug (2) engages in position.

8.2 Removing the Connecting Cable Plug

STIHL 1 2 0000-GXX-3087-A0

▶ Grip the connecting cable plug (2) with your hand.
▶ Pull the plug (2) out of the socket (1).

9 Switching the Trimmer On/Off

9.1 Switching On

• Hold the trimmer with your right hand on the control handle – wrap your thumb around the control handle.
• Hold the trimmer with the other hand on the loop handle - wrap your thumb around the loop handle.

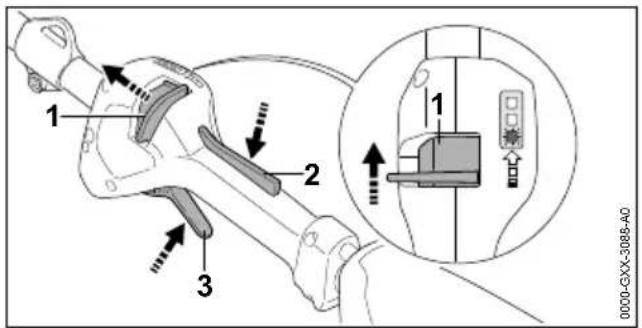

1 2 3 1 0000-GXX-3088-A0

▶ Push the release slide (1) in the direction of the loop handle with your thumb and hold it there.
▶ Depress the trigger lockout (2) with your hand and hold it there.
You can let go of the release slide (1).
▶ Pull the trigger (3) with your index finger and hold it there.
The motor accelerates and the cutting attachment rotates.

The speed of the cutting attachment is controlled by the trigger (3).

The trimmer recognizes the cutting attachment being used and adjusts the maximum speed automatically.

9.2 Switching Off

▶ Release the trigger and trigger lockout lever at the same time.
- Wait for the cutting attachment to come to a standstill.
▶ If the cutting attachment continues to rotate: Pull connecting cable plug out of the socket and contact your STIHL servicing dealer.
The trimmer has a malfunction.

10 Testing the Trimmer

10.1 Checking the Controls

Release slide, trigger lockout and trigger

▶ Pull the connecting cable plug out of the socket.
▶ Attempt to pull the trigger lever without depressing the release slide and the trigger lockout.
▶ If the trigger can be pulled: Do not use your trimmer and contact your STIHL dealer for assistance.

Release slide or trigger lockout is faulty.

▶ Push the release slide in the direction of the loop handle and hold it there.

▶ Depress the trigger lockout lever and hold it in that position.

▶ Pull the trigger.

▶ Release the trigger and trigger lockout lever.

▶ If the trigger, trigger lockout or release slide is stiff or does not spring back to the idle position: Do not use your trimmer and contact your STIHL dealer for assistance.
The trigger, trigger lockout or release slide has a malfunction.

Switching On

• Insert the connecting cable plug.
  ▶ Push the release slide in the direction of the loop handle and hold it there.
  ▶ Depress the trigger lockout lever and hold it in that position.
  ▶ Pull the trigger and hold it there. The cutting attachment rotates.

▶ If 3 LEDs flash red: Pull connecting cable plug out of the socket and contact your STIHL dealer for assistance.

There is a malfunction in the trimmer.

▶ Release the trigger and trigger lockout lever. The cutting attachment comes to a standstill.

▶ If the cutting attachment continues to rotate: Pull connecting cable plug out of the socket and contact your STIHL dealer for assistance. The trimmer has a malfunction.

11 Operating the Trimmer

11.1 Holding and Controlling the Trimmer

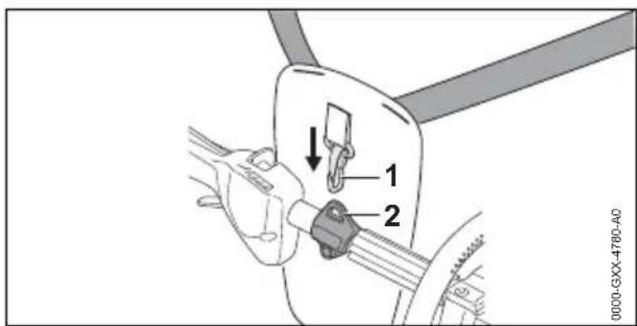

1 2 0000-GXX-4780-A0

- Connect the carrying ring (2) to the carabiner (1).

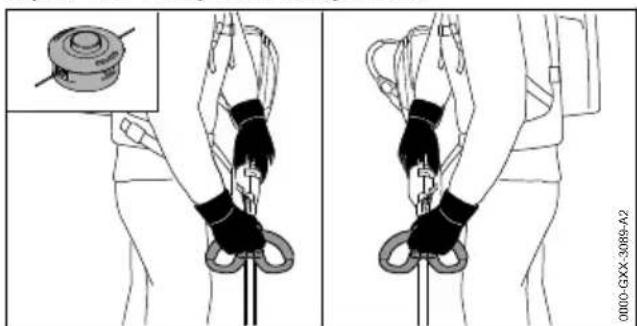

If you are using a mowing head:

Technical diagram showing two steps of a person performing a climbing exercise, with an inset image of a mechanical component.

- Hold the trimmer with one hand on the control handle – wrap your thumb around the control handle.

11 Operating the Trimmer English

- Hold the trimmer with the other hand on the loop handle – wrap your thumb around the loop handle.

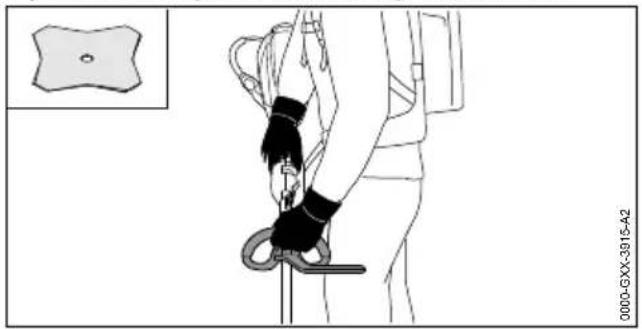

If you are using a metal cutting attachment:

Illustration of a person climbing a rope using a pulley, with a small inset showing a circular object (no text or symbols)

• Hold the trimmer with your right hand on the control handle – wrap your thumb around the control handle.
• Hold the trimmer with the other hand on the loop handle – wrap your thumb around the loop handle.

11.2 Setting the performance level

Depending on the application, 3 power levels can be set. The LEDs indicate the selected power level. The higher the power level, the faster the cutting attachment can run.

The selected power level affects the battery's runtime. The lower the power level, the longer the runtime.

1 0000-GXX-3090-A0

▶ Push the release slide (1) in the direction of the loop handle with your thumb and hold it there.

The LEDs indicate the selected power level.

▶ Push the release slide (1) forwards, hold it briefly in that position and allow it to spring back.

This selects the next power level. After the third performance level, it starts again with the first performance level.

▶ Push the release slide (1) forwards and allow it to spring back as many times as necessary to select the required power level.

11.3 Mowing

The cutting height is determined by the distance of the cutting attachment from the ground.

A B 0000-GX-3805-A1

Mowing with a mowing head (A)

▶ Swing the brushcutter steadily back and forth in an arc.
▶ Move forward slowly in a controlled manner.

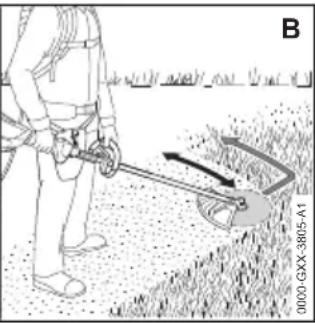

Mowing with a grass cutting blade or brush knife (B)

▶ Mow with the left-hand side on the metal cutting attachment.
▶ Move forward slowly in a controlled manner.

11.4 Adjusting Nylon Line

11.4.1 Line Feed on AutoCut Mowing Head

- Tap the rotating mowing head on the ground. About 30 mm of fresh nylon line is advanced. The line limiting blade in the deflector trims the mowing lines to the correct length.

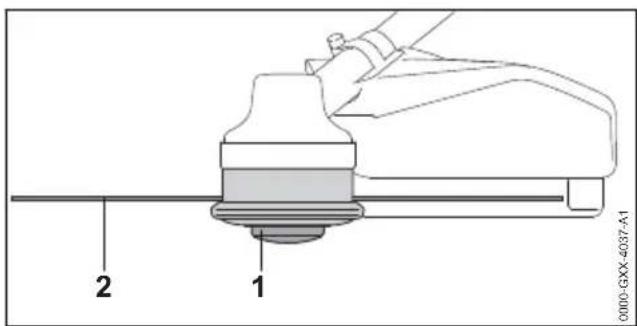

0000-GXX-4037-A1 1 2

Automatic feed does not operate if the mowing lines are shorter than 25 mm.

• Switch off the trimmer and pull the connecting cable plug out of the socket.
  ▶ Depress the spool (1) on the mowing head and hold it depressed.
  ▶ Pull out the mowing lines (2).
  ▶ If the mowing lines (2) cannot be pulled out to the required length: Replace the spool (1) or the mowing lines (2).

The spool is empty.

English 12 After Finishing Work

11.4.2 Line Feed on SuperCut Mowing Head

Mowing lines are advanced automatically. The line limiting blade in the deflector trims the mowing lines to the correct length.

Automatic feed will not take place if the mowing lines are shorter than 40 mm.

• Switch off the trimmer and pull the connecting cable plug out of the socket.
  ▶ Pull out the mowing lines.
  ▶ If the mowing lines cannot be pulled out to required length: Replace nylon line.
  The spool is empty.

12 After Finishing Work

12.1 When Work is Finished

• Switch off the brushcutter and pull the connecting cable plug out of the socket.
  ▶ If the brushcutter is wet: Allow the brushcutter to dry.
  ▶ Clean the brushcutter.
  ▶ Clean the deflector.
  ▶ Clean the cutting attachment.
  ▶ If a metal cutting attachment is mounted: Fit the matching transport guard.

13 Transporting

13.1 Transporting the brushcutter

▶ Switch off the brushcutter and pull the connecting cable plug out of the socket.
▶ If a metal cutting attachment is mounted: Fit the matching transport guard.

Carrying the brushcutter

- Carry the brushcutter in one hand properly balanced by the shaft, with the cutting attachment behind you.

Transporting the brushcutter in the car

- Secure the brushcutter to prevent turnover and movement.

14 Storing

14.1 Storing the Brushcutter

▶ Switch off the brushcutter and pull the connecting cable plug out of the socket.
▶ If a metal cutting attachment is mounted: Fit the matching transport guard.
▶ Ensure that the following conditions are met when storing the brushcutter:
- The brushcutter is out of the reach of children.
- The brushcutter is clean and dry.

▶ If you store the brushcutter for more than 3 months: Remove the cutting attachment.

15 Cleaning

15.1 Cleaning the Brushcutter

▶ Switch off the brushcutter and pull the connecting cable plug out of the socket.
- Clean the brushcutter with a damp cloth.
▶ Clean vents with a paintbrush.

15.2 Cleaning the Deflector and Cutting Attachment

▶ Switch off the trimmer and pull the connecting cable plug out of the socket.
- Clean the deflector and cutting attachment with a damp cloth or a soft brush.

16 Maintenance

16.1 Maintenance Intervals

The maintenance intervals are dependent on the environmental and operating conditions. STIHL recommends the following maintenance intervals:

After every 50 hours of operation

▶ Lubricate the gearbox.

Every 12 months

▶ Have the trimmer checked by a STIHL servicing dealer.

16.2 Lubricating the Gearbox

0000-GXX-3044-A0 1 2

▶ Remove the screw plug (2).
▶ If no grease can be seen on the end of the screw plug (2):
▶ Screw the tube (1) of STIHL gear grease into the filler hole.
▶ Squeeze 5 g of STIHL gear grease into the gear housing.
▶ Unscrew the tube (1) of STIHL gear grease.
▶ Refit and tighten down the screw plug (2) firmly.
▶ Run the trimmer for 1 minute. STIHL gear grease is distributed evenly.

17 Repairing English

16.3 Sharpening and Balancing a Metal Cutting Attachment

Correctly sharpening and balancing metal cutting attachments requires a lot of practice.

STIHL recommends you have metal cutting attachments resharpened and balanced by a STIHL servicing dealer.

▶ Sharpen the metal cutting attachment as described in the instructions and on the pack-

aging supplied with the cutting attachment you are using.

17 Repairing

17.1 Repairing the Trimmer and Cutting Attachment

The trimmer and cutting attachment cannot be repaired by the user.

▶ If the trimmer or cutting attachment is damaged: Do not use your trimmer or cutting attachment and contact your STIHL servicing dealer.

18 Troubleshooting

18.1 Troubleshooting the Brushcutter and Battery

Fault LEDs on the battery	Cause Remedy
The brushcutter does not start when switched on.	1 LED flashing green.	State of charge of the battery is too low. ▶ Recharge the battery fully as described in the User Manual for the STIHL AL 101, 300, 500 chargers.
	1 LED emits red light.	The battery is too warm or too cold. ▶ Pull the connecting cable plug out of the socket. ▶ Allow the battery to cool down or warm up.
	3 LEDs flash red.	The brushcutter has a malfunction. ▶ Pull connecting cable plug out of the socket and plug in again. ▶ Switch on the brushcutter. ▶ If 3 LEDs continue to flash red: Do not use your brushcutter and contact your STIHL dealer for assistance.
	3 LEDs light up red.	The brushcutter is too hot. ▶ Pull the connecting cable plug out of the socket. ▶ Allow the brushcutter to cool down.
	4 LEDs flashing red.	There is a fault in the battery. ▶ Pull connecting cable plug out of the socket and plug in again. ▶ Switch on the brushcutter. ▶ If 4 LEDs continue to flash red: Do not use the battery and contact your STIHL dealer for assistance.
	No electrical contact between brushcutter and battery.	▶ Pull connecting cable plug out of the socket and plug in again. ▶ If the brushcutter still does not start when switched on: Clean the contacts of the connecting cable as described in the STIHL AR battery's user manual or in the user manual for the “AP belt bag with connecting cable”.
	The brushcutter or battery is damp.	▶ Allow the brushcutter or battery to dry.
The brushcutter cuts out during operation.	3 LEDs light up red.	The brushcutter is too hot. ▶ Pull the connecting cable plug out of the socket. ▶ Allow the brushcutter to cool down.
There is an electrical	fault.	▶ Pull connecting cable plug out of the socket and plug in again.

Fault LEDs on the	battery	Cause Remedy
			► If the brushcutter continues to cut out during operation: Clean the contacts of the connecting cable as described in the STIHL AR battery's user manual or in the user manual for the “AP belt bag with connecting cable”.► Switch on the brushcutter.
The runtime of the brushcutter is too short.	The battery is not fully charged.		► Recharge the battery fully as described in the User Manual for the STIHL AL 101, 300, 500 chargers.
	The battery life has been exceeded.		► Replace battery.

19 Specifications

19.1 STIHL FSA 130 R Trimmer

Approved batteries:

• STIHL AR
- STIHL AP together with "AP belt bag with connecting cable"
- Weight without battery, cutting attachment and deflector: 3.9 kg
– Length without cutting attachment: 1750 mm

For battery life see www.stihl.com/battery-life.

19.2 Sound Values and Vibration Values

The K-value for sound pressure levels is 2 dB(A). K-value for sound power levels is 2 dB(A). The K-value for vibration level is 2 m/s ^4 .

STIHL recommends wearing ear defenders.

Using with a mowing head except PolyCut 28-2

– Sound pressure level L_pA measured according to EN 50636-2-91: 83 dB(A)
– Sound power level L_wA measured according to EN 50636-2-91: 94 dB(A)
- Vibration level a_hv measured according to EN 50636-2-91
- Control handle: 3.3 ~m / s^2
- Loop handle: 3.5 ~m / s^2

Using with a mowing head PolyCut 28-2

– Sound pressure level L_pA measured according to EN 50636-2-91: 84 dB(A)
- Sound power level L_wA measured according to EN 50636-2-91: 97 dB(A)
- Vibration level a_hv measured according to EN 50636-2-91

– Control handle: 3.3 m/s ^4
- Loop handle: 3.5 ~m / s^2

Using with a metal cutting attachment

– Sound pressure level L_pA measured according to EN 50636-2-91: 82 dB(A)
- Sound power level L_wA measured according to EN 50636-2-91: 94 dB(A)
- Vibration level a_hv measured according to EN 50636-2-91
– Control handle: 2.9 m/s ^4
- Loop handle: 3.7 ~m / s^2

The vibration levels indicated were measured according to a standardized test method and can be used as a basis for comparing electric power tools. The vibration levels actually occurring may vary from the values indicated, depending on the type of application. The vibration levels indicated can be used for an initial estimate of the vibration stress. The actual vibration stress has to be estimated. The times when the electric power tool is switched off and the times when it is switched on but running under no load can be taken into account in the estimate.

For information on compliance with Employers' Vibration Directive 2002/44/EC see www.stihl.com/vib.

19.3 REACH

REACH is an EC regulation and stands for the Registration, Evaluation, Authorisation and Restriction of Chemical substances.

For information on compliance with the REACH regulation see www.stihl.com/reach.

20 Combinations of Cutting Attachments, Deflectors and Carrying Systems

20.1 Combinations of Cutting Attachments, Deflectors and Carrying Systems

Cutting attachment Deflector B	Barrier bar Carrying system
– PolyCut 28-2Mowing head with 2.4 mm diameter “round, silent” mowing line:– AutoCut 25-2 mowing head– AutoCut C 26-2 mowing head– SuperCut mowing head 20-2– DuroCut 20-2 mowing head– TrimCut 31-2 mowing head– FixCut 31-2 mowing head Mowing head with 2.7 mm diameter “round, silent” mowing line:– AutoCut 36-2 mowing head	– Guard for mowing heads– Universal deflector with skirt and line limiting blade	– optional	– STIHL AR battery, together with optional support cushion– Battery belt with attached “AP belt bag with connecting cable” together with the shoulder strap– Battery belt with strap and attached “AP belt bag with connecting cable” together with the support cushion– Carrying system with built-in “AP belt bag with connecting cable”, together with optional support cushion
– Grass cutting blade 230-2 (230 mm dia.)– Grass cutting blade 230-4 (230 mm dia.)– Grass cutting blade 230-8 (230 mm dia.)– Grass cutting blade 250-32 (250 mm dia.)– Grass cutting blade 260-2 (260 mm dia.)	– Universal deflector without skirt	– required	– STIHL AR battery with the support cushion– Battery belt with attached “AP belt bag with connecting cable” together with the shoulder strap– Battery belt with strap and attached “AP belt bag with connecting cable” together with the support cushion– Carrying system with built-in “AP belt bag with connecting cable” together with the support cushion
– Brush knife 250-3 (∅ 250 mm)

Description of the carrying systems

STIHL AR battery together with the support cushion

Battery belt with attached "AP belt bag with connecting cable" together with the shoulder strap

Battery belt with strap and attached "AP belt bag with connecting cable" together with the support cushion

Carrying system with built-in "AP belt bag with connecting cable" together with the support cushion

21 Spare Parts and Accessories

21.1 Spare parts and accessories

STIHL These symbols indicate original STIHL spare parts and original STIHL accessories.

STIHL recommends the use of original STIHL spare parts and accessories.

Despite ongoing market observation, STIHL is unable to judge the reliability, safety and suitability of other manufacturers' spare parts and accessories; accordingly, STIHL cannot warrant for the use of those parts.

Original STIHL spare parts and original STIHL accessories are available from STIHL dealers.

22 Disposal

22.1 Disposing of Brushcutter

Contact the local authorities or your STIHL dealer for information on disposal.

Improper disposal can be harmful to health and pollute the environment.

▶ Take STIHL products including packaging to a suitable collection point for recycling in accordance with local regulations.
- Do not dispose with domestic waste.

23 EC Declaration of Conformity

23.1 STIHL FSA 130 R Brushcutter

declare under our sole responsibility that

– category: Cordless brushcutter

– Manufacturer's brand: STIHL

– model: FSA 130 R

– serial number: 4867

conforms to the relevant provisions of Directives 2011/65/EU, 2006/42/EC, 2014/30/EU and 2000/14/EC and has been developed and manufactured in compliance with the following standards in the versions valid on the date of production: EN 55014-1, EN 55014-2, EN 60335-1 and EN ISO 12100 taking EN 50636-2-91 into account.

The measured and guaranteed sound power levels were determined according to Directive 2000/14/EC, Annex VI.

– Measured sound power level: 94 dB(A)
– Guaranteed sound power level: 96 dB(A)

The technical documents are stored at ANDREAS STIHL AG & Co. KG Produktzulassung.

The year of manufacture, country of manufacture and serial number are specified on the rating plate of the brushcutter.

Dr. Jürgen Hoffmann, Director Product Certification & Regulatory Affairs

24 UKCA Declaration of Conformity

24.1 STIHL FSA 130 R Brushcutter

declare under our sole responsibility that

– category: Cordless brushcutter
– Manufacturer's brand: STIHL
- model: FSA 130 R
– Serial number: 4867

complies with the relevant provisions of the UK regulations The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012, Supply of Machinery (Safety) Regulations 2008, Electromagnetic Compatibility Regulations 2016 and Noise Emission in the Environment by Equipment for use Outdoors Regulations 2001 and has been developed and manufactured in accordance with the versions of the following

standards valid on the date of manufacture: EN 55014-1, EN 55014-2, EN 60335-1 and EN ISO 12100 taking into account the standard EN 50636-2-91.

The measured and the guaranteed sound power level have been determined in accordance with UK regulation Noise Emission in the Environment by Equipment for use Outdoors Regulations 2001, Schedule 9..

Participating notified body: INTERTEK Testing & Certification Ltd, Academy Place, 1-9 Brook Street, Brentwood, Essex, CM14 5NQ, United Kingdom

– Measured sound power level: 94 dB(A)
– Guaranteed sound power level: 96 dB(A)

The technical documents are stored at ANDREAS STIHL AG & Co. KG.

The year of manufacture, country of manufacture and serial number are specified on the rating plate of the brushcutter.

Dr. Jürgen Hoffmann, Director Product Certification & Regulatory Affairs

Table des matières

1 Préface....45

Technical diagram of a portable air purifier with numbered components and labeled parts

1 Batterie STIHL AR

Technical diagram showing mechanical assembly steps with numbered components and a hanging hook, likely from an engineering or mechanical drawing.

Technical diagram of a mechanical assembly with numbered components for identification

Medical illustration showing three steps of a shoulder belt buckle replacement, with numbered instructions and instructional arrows.

Medical illustration showing three steps of a person's seatbelt buckle being adjusted, with numbered instructions and a labeled component.

Line drawing of a person using a long-handled tool to extend a small object, with grass and a downward arrow indicating motion (no text or symbols)

Line drawing of a person climbing a rope using a harness, with no visible text or symbols

Person wearing safety harness and gloves using a tool to extend a curved arc through grass (no text or symbols)

Illustration of a person using a shoveling machine in a field, with no visible text or symbols

Technical diagram showing mechanical assembly with labeled parts 1 and 2, including a tool and screw assembly.

J. Hoffmann P.O.

Street, Brentwood, Essex, CM14 5NQ, United Kingdom

J. Hoffmann P.O.

Technical diagram of a portable air purifier with numbered components and labeled parts

1 Batteria STIHL AR

Diagram of a mechanical device with a rotating wheel and directional arrow, no readable text or symbols present.

Technical diagram showing mechanical assembly steps with numbered components and a hanging clamp device

Technical diagram of a vehicle interior with labeled parts and directional arrows indicating motion or flow

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

Illustration showing three steps of a person's seatbelt buckle being adjusted, with arrows indicating movement and labeled parts.

Medical illustration showing three steps of a person's seatbelt buckle replacement, with labeled instructions and a numbered inset.

Technical diagram showing two mechanical assembly steps with labeled components and directional arrows indicating motion or movement.

Line drawing of a person using a long-handled tool to measure a small object on grass, with no text or symbols present.

Illustration of a person performing a high jump exercise using a pulley system, with no visible text or symbols.

Illustration of a person climbing a rope using a pulley, with no visible text or symbols

Technical diagram of a mechanical assembly with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a portable air purifier with numbered components and labeled parts

1 Accu STIHL AR

Diagram of a mechanical device with a rotating wheel and directional arrow, no text or symbols present

Technical diagram showing mechanical assembly steps with numbered components and a hanging clamp mechanism

Technical diagram of a mechanical component with numbered parts and directional arrows indicating assembly or movement.

▶ Bouten (2) losdraaien.

102 0458-725-9621-C

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

Illustration showing three steps of a person's seatbelt buckle being adjusted, with numbered instructions and a close-up view.

Illustration showing three steps of a person's seatbelt buckle being adjusted, with numbered instructions and directional arrows.

Illustration of a person using a lever to measure a small object on grass, with no visible text or symbols.

Illustration of a person performing a high kick exercise, showing two sequential steps with no text or symbols

Illustration of a person using a rope harness to lift a chair, with no visible text or symbols.

Image displaying a vertical column of evenly spaced black horizontal lines on white background, resembling a barcode or pattern.

0458-725-9621-C
