USER MANUAL HSMC1300FX BLACK & DECKER

English (original instructions)

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

WARNING: To reduce the risk of injury, read the

instructionmanual. Definitions: Safety Alert Symbols and Words This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or seriousinjury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or seriousinjury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury.

(Used without word) Indicates a safety related message. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage.

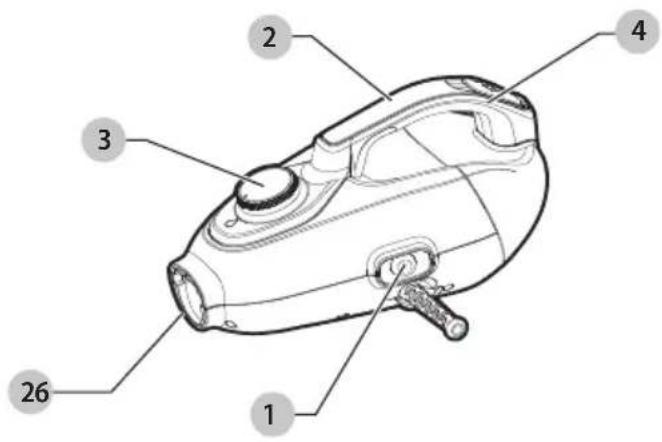

Hand-held steam cleaner

Flexible accessory hose

Steam Glove cleaning pad

Small brush (plastic)

Window squeegee and pad

Micro-fiber cleaning pad

Large scrub brush (plastic)

Large scrub brush (wire)

Fabric steamer steam distributor

Fabric steamer lint brush

This appliance may include some or all of these accessories. The performance of your appliance depends on the accessory used. BLACK+DECKER accessories are engineered to high quality standards and designed to enhance the performance of your appliance. By using these accessories you will get the very best from your appliance.English

INTENDED USE Your BLACK+DECKER steam cleaner has been designed for sanitizing and cleaning the following SEALED surfaces: tiles, stainless steel, wood, work tops, kitchen surfaces, and bathroom surfaces. Use the appliance in a horizontal position only. This appliance is intended for indoor household use only. IMPORTANT SAFETY INSTRUCTIONS When using your appliance, basic precautions should always be followed, including the following: 1 . Read all instructions. 2 . To reduce the risk of contact with hot water emitting from steam vents, check appliance before each use by holding it away from body and operating steam button. 3 . Use appliance only for its intended use. 4 . To reduce the risk of electric shock, do not immerse the appliance in water or other liquids. 5 . Never yank cord to disconnect from outlet; instead, grasp plug and pull to disconnect. 6 . Do not allow cord to touch hot surfaces. Let appliance cool completely before putting away. Loop cord loosely around appliance when storing. 7 . Always disconnect appliance from electrical outlet when filling with water or emptying, and when not in use. 8 . Do not operate appliance with a damaged cord, or if the appliance has been dropped or damaged. To reduce the risk of electric shock, do not disassemble or attempt to repair the appliance, take it to a qualified service person for examination and repair. Incorrect reassembly or repair could cause a risk of fire, electric shock, or injury to persons when the appliance is used. 9 . Close supervision is necessary for any appliance being used by or near children. Do not leave appliance unattended while connected. 10 . Burns could occur from touching hot metal parts, hot water, or steam. Use care when you turn a steam appliance upside down – there may be hot water in the reservoir. SAVE THESE INSTRUCTIONS 1 . To reduce the likelihood of circuit overload, do not operate another high wattage appliance on the same circuit. 2 . If an extension cord is absolutely necessary, a (the rated number of amperes for the appliance) ampere rated cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that the cord cannot be pulled or tripped over.

WARNING: Read all safety warnings and all

instructions. Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury.

safety precautions, including the following, should always be followed to reduce the risk of fire, electric shock, personal injury and material damage.

INSTRUCTIONS: POLARIZED PLUGS

To reduce the risk of electric shock, this equipment has a polarized plug (one blade is wider than the other). This equipment must be used with a suitable polarized 2 wire or 3 wire extension cord. Polarized connections will fit together only one way. Make sure that the receptacle end of the extension cord has large and small blade slot widths. If the plug does not fit fully into the extension cord, reverse the plug. If it still does not fit, obtain a suitable extension cord. If the extension cord does not fit fully into the outlet, contact a qualified electrician to install the proper outlet. Do not change the tool plug or extension cord in any way. Minimum Gauge for Cord SetsVolts Total Length of Cord in Feet120V 0-25 26-50 51-100 101-150 (0-7,6m) (7,6-15,2m) (15,2-30,4m) (30,4-45,7m)Ampere Rating More Not more American Wire GaugeThan Than0 - 6 18 16 16 146 - 10 18 16 14 12

• Read all of this manual carefully before using the appliance.

• The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury.

• Retain this manual for future reference.

USING YOUR APPLIANCE

• Do not direct steam at people, animals, electrical appliances or electrical outlets.

• Do not expose to rain.

• Do not immerse the appliance in water.

• Do not leave the appliance unattended. Keep children away from unit while in use.

• Do not leave the appliance connected to an electrical outlet when not in use.

• Never pull the power cord to disconnect the appliance from the socket. Keep the appliance cord away from heat, oil and sharp edges.

• Do not handle steam cleaner with wet hands.

• Do not pull or carry by cord, use cord as a handle, close door on cord, pull cord around sharp corners or expose cord to heated surfaces.

• Do not use appliance in an enclosed space filled with vapor given off by oil-based paint thinner, some moth-English

• Do not use on leather, wax polished furniture or floors, synthetic fabrics, velvet or other delicate, steam-sensitive materials.

• Do not use on any unsealed hard surfaces or painted surfaces. Additionally, on surfaces that have been treated with wax or some no-wax floors, the sheen may be removed by the heat and steam action. It is always recommended to test an isolated area of the surface to be cleaned before proceeding. We also recommend that you check the use and care instructions from the floor manufacturer.

• Never put de-scaling, aromatic, alcoholic or detergent products into the steam cleaner, as this may damage it or make it unsafe for use.

• If the circuit breaker activates while using the steam function, discontinue product use immediately and contact the customer support center. (Beware of the risk of electrical shock.)

• The appliance emits very hot steam to sanitize the area of use. This means that the steam floor head and cleaning pads get very hot during use.

• Always wear suitable shoes when using your steam cleaner and when changing the accessories on your steam cleaner. Do not wear slippers or open-toed footwear.

• Steam may escape from the appliance during use.

• Care should be taken when using this appliance. DO NOT touch any parts which may become hot during use. AFTER USE

• Unplug the appliance and allow to cool.

• When not in use, the appliance should be stored in a dry place.

• Children should not have access to stored appliances.

INSPECTION AND REPAIRS

• Unplug the appliance and allow to cool down before performing any maintenance or repairs.

• Before use, check the appliance for damaged or defective parts. Check for breakage of parts, damage to switches and any other conditions that may affect its operation.

• Regularly check the power cord for damage.

• Do not use the appliance if any part is damaged or defective.

• Have any damaged or defective parts repaired or replaced by an authorized repair agent.

• Never attempt to remove or replace any parts other than those specified in this manual.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance. Residual risks Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings. These risks can arise from misuse, prolonged use, etc. Even with the application of the relevant safety regulations and the implementation of safety devices, certain residual risks can not be avoided. These include:

• Injuries caused by touching any moving parts.

• Injuries caused by touching any hot parts.

• Injuries caused when changing any parts or accessories.

• Injuries caused by prolonged use of the appliance. When using any appliance for prolonged periods ensure you take regular breaks. ASSEMBLY nOTE: Each steam mop is 100% tested in the factory to ensure product performance and safety. When assembling your new steam mop for the first time you may notice water residue inside of the unit.

WARNING: Before attempting any of the following

operations, make sure that the appliance is switched off and unplugged and that the appliance is cold and contains minimal or no water. Attaching floor extension

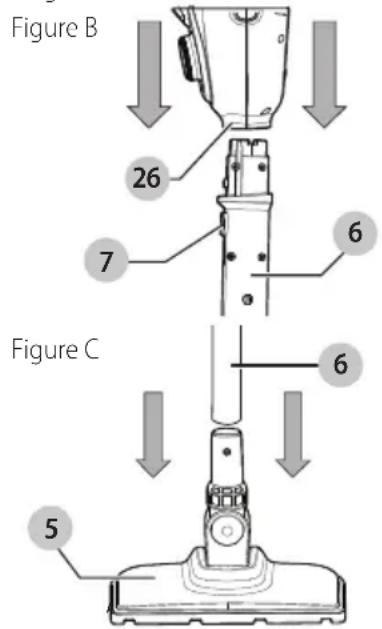

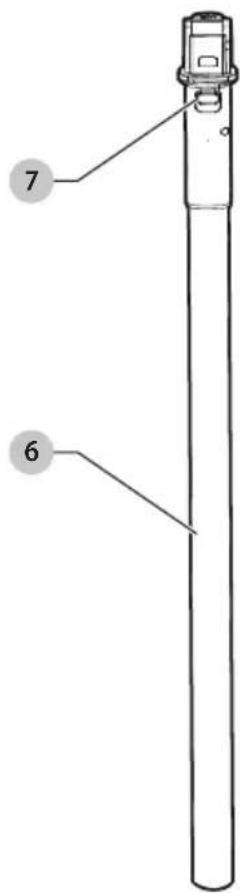

1. Slide the steam jet nozzle

of the hand-held steam cleaner into into the floor extension

as shown in figure B.

2. To remove the floor extension tube, depress the release

and pull the tube off.

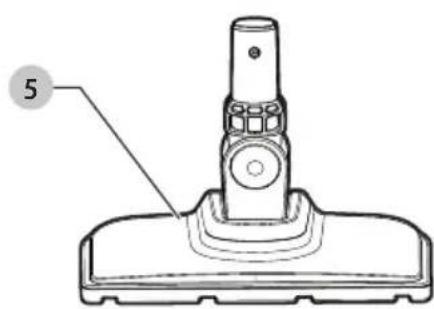

3. Slide the floor extension onto the steam head

shown in figure C. Figure B

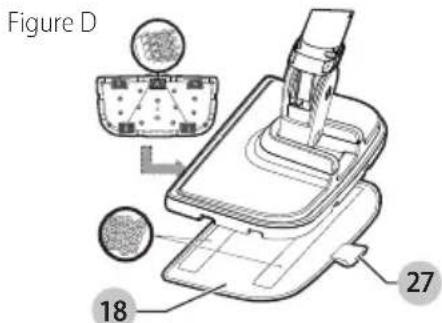

Attaching a cleaning pad - Fig. D Replacement cleaning pads are available from your BLACK+DECKER dealer (cat. no. SMP20).

• Place a micro-fiber cleaning pad

on the floor with the ‘hook & loop’ side facing up.

• Press steam mop down onto the cleaning pad. You are now ready to steam clean and sanitize your floor.English

Removing a cleaning pad - Fig. D

CAUTION: Always wear suitable shoes when changing the cleaning pad on your steam mop. Do not wear slippers or open-toed footwear.

1. Turn the steam mop ‘OFF’.

2. Wait until it cools down. (approximately five minutes)

3. Place the front of your shoe onto the cleaning pad

and press down firmly.

4. Lift the steam mop up off the cleaning pad.

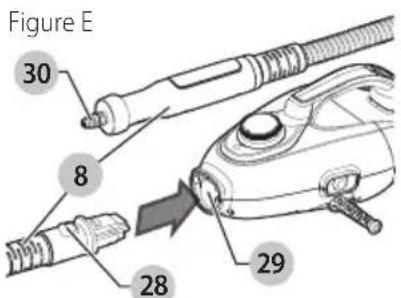

nOTE: Do not store with a wet pad as this can damage your floor. When stationary, make sure the steam mop is turned off when not in use. Hand-held steam cleaner attachments nOTE: Remove the hand-held steam cleaner from the steam body after turning off and unplugging the steam mop, and after allowing the steam mop to cool down. Attaching the hose and steam glove - Fig. E

onto the steam nozzle

of the hand-held steam cleaner such that it is fully seated.

2. To remove, depress the hose release button

, and pull the hose out of the hand-held steam cleaner.

WARNING: Inspect the seal

on the handheld steam cleaner

at the end of the hose before each use (figure F). If the seal is missing or damaged contact your nearest authorized repair agent. Do not use the appliance.

CAUTION: En sure that the hose is securely fastened before using the hand-held steam cleaner. Figure E

ATTACHING OTHER ACCESSORIES TO

THE HOSE - Fig. F For other accessories other than the steam jet nozzle, align the lugs

with the recesses on the accessory.

1. Press the accessory onto the hose and twist clockwise until

the accessory is fully seated and clicks into place. Figure F

Attaching steam jet nozzle - Fig. G

1. Press in the clips

on the steam jet nozzle

2. Align the two keys on the inside flange of the steam jet

nozzle with the two slots at the end of the hose

3. Firmly press the steam jet nozzle onto the hose such that

it is fully seated, and release the clips.

4. To remove, press the clips and pull the steam jet nozzle

WARNING: Inspect the seal

on the steam nozzle of the hose

before each use (figure G). If the seal is missing or damaged contact your nearest authorized repair agent. Do not use the appliance.

CAUTION: Ensure that the hose and/or steam jet nozzle is securely fastened before using the hand-held steam cleaner. Figure G

REMOVING ACCESSORIES FROM THE HOSE

• For accessories other than the steam jet nozzle, turn hand held steamer off, unplug, and allow to cool down. Then twist accessory counterclockwise then pull away from the hose.

FILLING THE WATER TANK

nOTE: Fill the water tank with regular tap water. nOTE: In areas of very hard water, the use of de-ionized water is recommended.

WARNING: Do not over fill the tank.

1. Ensure that the appliance is switched off and the power

cord is disconnected from the power supply.

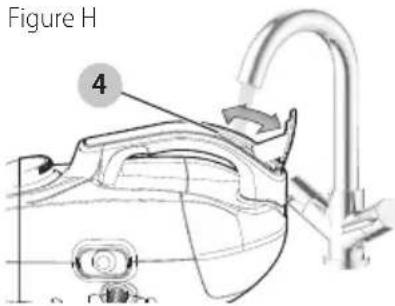

by pulling up (figure H).

3. Fill the water tank with water.

4. Close the filler cap.

nOTE: Always empty the water tank after use. nOTE: Fill the water tank with clean tap water (Do not use any additives or chemicals).

WARNING: When filling, detach from main unit and

WARNING: Your water tank has a 0.5 litre capacity.

Do not over fill the tank. nOTE: Ensure the filler cap is firmly secured. Figure H

CAUTION: For floor use only; do not use the unit upside down. Switching on/off nOTE: It takes approximately 15 seconds for the steam mop to heat up.

then turn the SmartSelect

to the desired setting.

• To switch the appliance off, turn the SmartSelect

off, then press the ON/OFF button. nOTE: Never leave the steam mop in one spot on any surface for any period of time. Do not store with a wet pad as this can damage your floor. Make sure the steam mop is turned off and unplugged when not in use. nOTE: Always empty the water tank after use. SmartSelect

Dial The steam mop is equipped with a SmartSelect

which shows various hard surface cleaning applications. To change the application, turn the SmartSelect

dial until the correct operating mode for your particular hard floor surface is selected. nOTE: The dial has an "off" position. There will be no steam flow when the dial is turned to this position nOTiCE: For garments and carpet, set the dial to the Wood/Laminate setting. nOTE: Do not use on any unsealed hard floor surfaces. Additionally, on surfaces that have been treated with wax or some no wax floors, the sheen may be removed by the heat and steam action. It is always recommended to test an isolated area of the surface to be cleaned before proceeding. We also recommend that you check the use and care instructions from the floor manufacturer. Using the SmartSelect

dial, choose from one of the following applications. The steam mop will select the correct volume of steam required for your particular cleaning operation. Steam Mop cleaning

1. Place a cleaning pad

on the floor with the ‘hook & loop’ side facing up.

2. Lightly press it down onto the cleaning pad.

3. Plug the steam mop electric cord into the outlet.

. It takes approximately 15 seconds for the steam mop to heat up.

5. Turn the SmartSelect

to the desired setting to activate the steam pump. After a few seconds steam will start to come out of the steam floor head at the rate corresponding to the SmartSelect Dial setting.. nOTE: If the system has been run dry it may take up to 30 seconds to prime the system on first use. nOTE: It takes a few seconds for steam to enter the cleaning pad. The steam mop will now glide easily over the surface to be sanitized/cleaned.

6. Push and pull the steam mop slowly across the floor to

thoroughly steam clean each section.

7. When you have finished using the steam mop, turn the

dial to off, unplug the steam mop, and wait until the steam mop cools down (approximately five minutes). Steam Glove

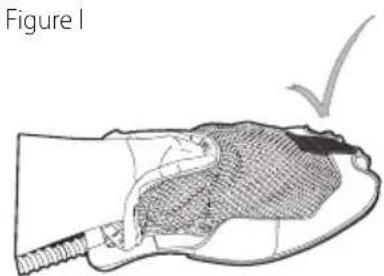

WARNING: Always use the steam glove as shown in

figure I, with your hand inside the protective glove.

WARNING: Never attempt to use the steam glove by

gripping it externally as shown in figure J. This will result in scalding.

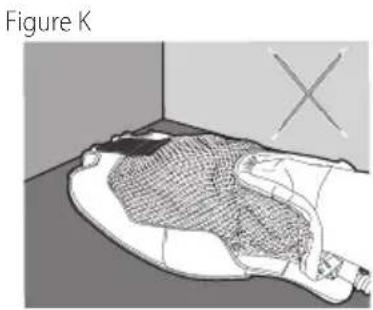

WARNING: Avoid using the steam glove in tight

corners as shown in figure K.

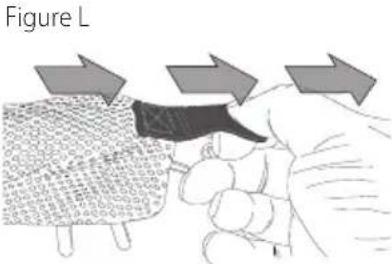

WARNING: Should a problem occur during use, use

the quick release tab

to quickly remove the steam glove from your hand as shown in figure L. Figure IEnglish

Figure J Figure K Figure L

• Attach the steam glove

as shown in the "Attaching the hose and steam glove" section. nOTE: The SmartSelect

dial is disabled when the steam glove is attached. Attaching a cleaning pad

1. Insure steam glove is cool and not attached to hand-held

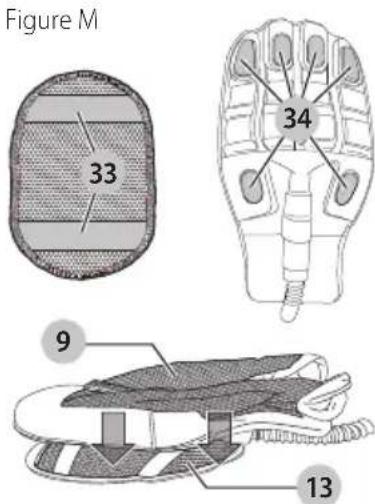

2. Fit a steam glove cleaning pad

by attaching the velcro strips

on the back side of the cleaning pad, to the velcro pads

on the underside of the steam glove (figure M).

3. Press down firmly.

4. To use, follow instructions under hand-held steam

WARNING: Do not use the steam glove without a

cleaning pad in proper position. Figure M

Hand-held steam cleaning

1. Attach the required accessory from the steam mop

body. nOTE: The unit will not produce steam unless an accessory hose is fitted.

2. Plug hand-held steam cleaner electric cord into the

. It takes approximately 15 seconds for the hand-held steam cleaner to heat up.

• When you have finished using the hand held steam cleaner, turn it ‘OFF,’ and unplug it. Wait until it cools (approximately five minutes) before reattaching to steam mop body. Hints for optimum use General use

CAUTION: Never use the steam mop without first attaching a cleaning pad.

WARNING: It is important to monitor the water level

in the water tank. To refill the water tank and continue to sanitize/ clean, see Filling the Water Tank section. nOTiCE: Never leave the steam mop in one spot on any surface for any period of time. Do not store with a wet pad as this can damage your floor. Make sure the steam mop is turned off when not in use.

• Always vacuum or sweep the floor before using the steam mop.

• The easiest way to use the steam mop is to tilt the handle to a 45˚ angle and clean slowly, covering a small area at a time.

• Do not use chemical cleaners with your steam mop. To remove stubborn stains from vinyl or linoleum floors, you can pre-treat them with a mild detergent and some water before using the steam mop. After use

• Wait until the steam mop cools down. (approximately five minutes)

• Unplug the steam mop from the wall outlet.

• Empty the water tank.

• Remove the cleaning pad (

) and wash it so that it is ready for the next use. (Take care to follow the wash care instructions printed on the cleaning pad).

• Switch the steam mop off by turning the SmartSelect

dial to off and pressing the ON/OFF button. nOTE: The top cord hook rotates to easily release the cord for the next use. nOTE: With the handle tube in the upright position, the cord neatly wrapped around the cord hooks your steam mop will stand on its own for storage. Alternatively there is a hanging bracket built into the hand grip which will allow your steam mop to be hung from a suitable hook on the wall. Always ensure that your wall hook is capable of supporting the weight of the steam mop safely.English

MAINTENANCE AND CLEANING

Your BLACK+DECKER corded appliance has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper appliance care and regular cleaning.

WARNING: Before performing any maintenance or

cleaning on corded appliances switch off and unplug the appliance.

• Clean your appliance using a soft damp cloth. Never let any liquid get inside the appliance; never immerse any part of the appliance into a liquid. IMPORTANT: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment should be performed by authorized service centers or other qualified service organizations, always using identical replacement parts.

• For stubborn marks you can use a mild solution of soap and water to dampen your cloth. Care of the cleaning pads nOTE: Follow the cleaning instructions printed on the label of your cleaning pad. Wash care instructions - Machine wash warm 140°F (60°C) - No bleach - No fabric softener - Air dry only - Allow to dry fully before re-use. ACCESSORIES Recommended accessories for use with your appliance are available from your local dealer or authorized service center. If you need assistance regarding accessories, please call: 1-800-544-6986.

WARNING: The use of any accessory not

recommended for use with this appliance could be hazardous. SERVICE INFORMATION All BLACK+DECKER Service Centers are staffed with trained personnel to provide customers with efficient and reliable power tool service. Whether you need technical advice, repair, or genuine factory replacement parts, contact the BLACK+DECKER location nearest you. To find your local service location, call: 1-800-544-6986 or visit www.blackanddecker.com

LIMITED TWO-YEAR HOME USE WARRANTY

BLACK+DECKER warrants this product to be free from defects in material or workmanship for a period of two (2) years following the date of purchase, provided that the product is used in a home environment. This limited warranty does not cover failures due to abuse, accidental damage or when repairs have been made or attempted by anyone other than BLACK+DECKER and its Authorized Service Centers. A defective product meeting the guarantee conditions set forth herein will be replaced or repaired at no charge in either of two ways: Send the product (prepaid) to a BLACK+DECKER owned or authorized Service Center for repair or replacement at BLACK+DECKER’s option. Proof of purchase may be required. BLACK+DECKER owned and authorized service centers are listed online at www.blackanddecker.com. This warranty does not apply to accessories. This warranty gives you specific legal rights and you may have other rights which vary from state to state or province to province. Should you have any questions, contact the manager of your nearest BLACK+DECKER Service Center. This product is not intended for commercial use, and accordingly, such commercial use of this product will void this warranty. All other warranties, express or implied, are hereby disclaimed. LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, check country specific warranty information contained in the packaging, call the local company or see the website for such information. FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-800-544- 6986 for a free replacement.ENGLISH

Imported by Black & Decker (U.S.) Inc., 701 E. Joppa Rd. Towson, MD 21286 BlackandDecker.com 1-800-544-6986 TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION

• Unit will not start. • Cord not plugged in. • Plug appliance into a working outlet.

• Main switch not on. • Turn main switch on.

• Floor head not correctly • Ensure floor head is correctly fitted. attached.

dial is • Turn SmartSelect

dial to desired not turned on. setting.

• Circuit fuse is blown. • Replace circuit fuse. (If the product repeatedly causes the circuit fuse to blow, discontinue use immediately and have it serviced at a BLACK+DECKER service center or authorized servicer.)

• Circuit breaker is tripped. • Reset circuit breaker. (If the product repeatedly causes the circuit breaker to trip, discontinue use immediately and have it serviced at a BLACK+DECKER service center or authorized servicer.)

• Cord or switch is • Have cord or switch replaced damaged. at a BLACK+DECKER Service Center or Authorized Servicer.

• Mop will not make steam. • No water in water tank. • Add water to the water tank.

dial is • Turn SmartSelect

dial to desired not turned on. setting.

• Mop leaves water on floor. • Cleaning pad is too wet. • Unplug unit from power outlet and change the micro-fiber cleaning pad.

• Mop left spot on floor. • SmartSelect

dial is • Adjust SmartSelect

dial to reduce turned up too high. the amount of steam being produced.

• Mop left in one spot too • Never leave the steam mop on long. the floor with a damp or wet cleaning pad still attached when not in use.

• Hard water. • Use distilled water. For assistance with your product, visit our website www.blackanddecker.com for the location of the service center nearest you or call the BLACK+DECKER help line at 1-800-544-6986.Français

PROBLÈME CAUSE POSSIBLE SOLUTION POSSIBLE

LEA Y SIGA TODAS LAS
