Product Type	All-in-One (AIO) Computer
Brand	Thomson
Model	AIO 24
Screen	23.8 inches (60.5 cm)
Operating System	Windows 10
Dimensions (approx.)	56 x 40 x 5 cm
Weight (approx.)	5 kg
Power Supply	Power adapter (input 100-240V, output 19V)
Battery	Built-in lithium-ion
Wireless Connectivity	Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 4.2
Ports	1x USB 3.0, 2x USB 2.0, 1x HDMI, 1x RJ45, headphone/microphone jack, micro-SD card reader
Internal Storage	1 slot HDD/SSD 2.5" SATA III (max 7mm)
Main Functions	Internet browsing, office tasks, multimedia, email
Included Peripherals	Keyboard, mouse (depending on version)
Operating Temperature	5°C to 35°C
Care and Cleaning	Clean with a soft, dry cloth. Do not use solvents.
Safety	Important safety instructions: do not expose to water or magnetic fields, use only original accessories.
Spare Parts and Repairability	Battery, power adapter, keyboard available. Repair by Thomson authorized technician.
General Information	Thomson registered trademark licensed by Group SFIT. Made in China.

Frequently Asked Questions - AIO 24 THOMSON

The battery is not charging, what should I do?

Check that the power adapter is properly plugged into a wall outlet and the device's power port. If the problem persists, contact Thomson customer service.

The screen stays black at startup, what should I do?

Force shutdown by holding the power button for 10 seconds. Disconnect all USB peripherals, then turn the device back on while plugged into the mains.

No sound is coming from the device.

Check that sound is not disabled via the Fn + F8 key (depending on model) or that the volume is not too low. Make sure no headphones are plugged in.

How do I connect to a Wi-Fi network?

Click the network icon in the notification area, enable Wi-Fi if necessary, select your network, and enter the security key.

How do I pair a Bluetooth device?

Go to Settings > Devices > Bluetooth & other devices. Turn on Bluetooth, then add a new device by following the instructions.

How do I restore factory settings?

Go to Settings > Update & Security > Recovery. Choose 'Reset this PC' and follow the instructions. Back up your data before.

Where can I find the drivers?

Drivers are preinstalled in the folder C:\WINDOWS\DRIVERS. It is recommended to back them up to an external medium.

How to optimize battery life?

Reduce screen brightness, disable Wi-Fi and Bluetooth when not in use, and close unnecessary applications.

The computer does not wake up from sleep mode.

Press the power button. If that doesn't work, plug in the power adapter and try again. If the problem persists, contact customer support.

How to clean the screen and casing?

Use a soft, dry cloth. Never use solvents, liquid detergents, or chemicals. Avoid any contact with water.

USER MANUAL AIO 24 THOMSON

Thank you for choosing a Thomson Computing device. To ensure that you are fully satisfied with your device, we invite you to read the information in this user manual.

Wolfgang Kupffer, Siegfried Wieser, Anselm Rieger, Claus von Hohenhauer, Dr.
Department of Mathematics, The Royal School of Chemistry, Germany

In order to cite this article, please use the following keywords: http://dx.doi.org/10.1016/j.jciv.2018.05.003

（二）本次股东大会无否决议案

Dataset of 3D-axial, prefrontal green-prediction models ^17 "Visual cortex, primate/monkeys: opto-corrected visual cortex models"

1. 实验原理

- FAQ -

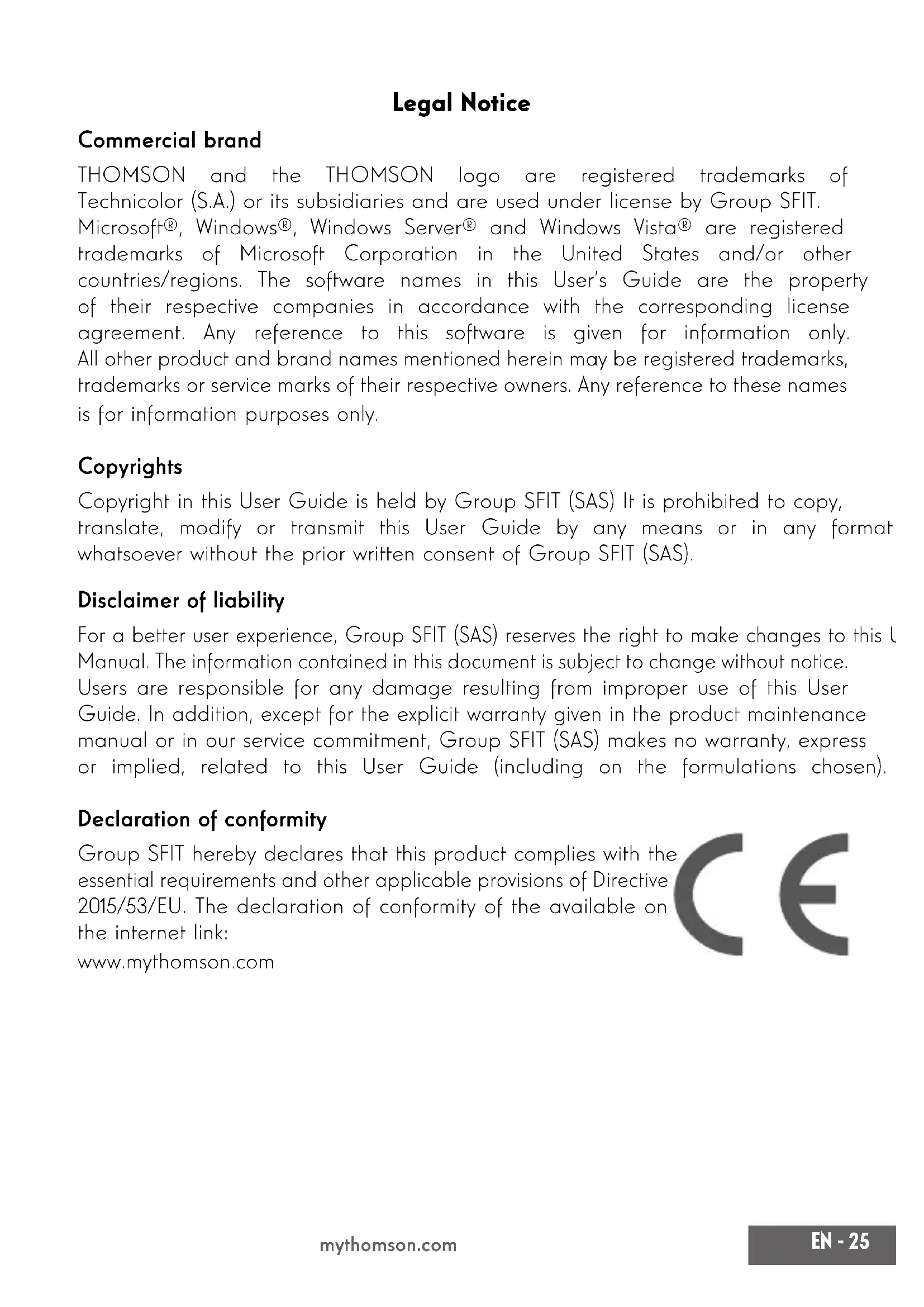

THOMSON and the THOMSON logo are registered trademarks of Technicolor (S.A.) or its subsidiaries and are used under license by Group SFIT. Microsoft®Windows®, Windows Server®and Windows Vista®are registered trademarks of Microsoft Corporation in the United States and/or other countries/regions. The software names in this User's Guide are the property of their respective companies in accordance with the corresponding license agreement. Any reference to this software is given for information only. All other product and brand names mentioned herein may be registered trademarks, trademarks or service marks of their respective owners. Any reference to these names is for information purposes only.

Copyrights

Copyright in this User Guide is held by Group SFIT (SAS) It is prohibited to copy, translate, modify or transmit this User Guide by any means or in any format whatsoever without the prior written consent of Group SFIT (SAS).

Disclaimer of liability

For a better user experience, Group SFIT (SAS) reserves the right to make changes to this User Manual. The information contained in this document is subject to change without notice. Users are responsible for any damage resulting from improper use of this User Guide. In addition, except for the explicit warranty given in the product maintenance manual or in our service commitment, Group SFIT (SAS) makes no warranty, express or implied, related to this User Guide (including on the formulations chosen).

Declaration of conformity

Group SFIT hereby declares that this product complies with the essential requirements and other applicable provisions of Directive 2015/53/EU. The declaration of conformity of the available on the internet link:

www.mythomson.com

- Important safety instructions -

This unit should be used in an environment with an ambient temperature between 5^ (41^) and 35^ (95^) .

Do not expose the unit to rain or moisture and keep it away from liquids. In case of splashing water or other liquid on the unit, immediately switch off the unit and wait until it is completely dry before turning it on again.

Do not expose the device directly to solar radiation

Do not use strong solvents, liquid detergents or other chemicals on or near the surface of the unit to prevent corrosion or deterioration of the surface of the unit.

Do not expose the camera to a dusty environment.

Do not use the unit during a gas leak.

Do not expose the device to strong magnetic or electric fields. You can run the device through airport x-ray detectors. However, it is recommended not to pass your device through the magnetic detection portals or expose it to portable detectors.

Do not place any objects on the device.

Do not place the unit on an uneven or unstable surface.

Make sure to protect the unit from falls or any other impact that may damage it.

Do not leave the appliance on or loaded on your lap or any other part of your body to avoid any risk of heat-related injuries.

Switch off the unit before transporting it or covering it with a material that does not allow optimal air circulation.

Do not use damaged power cords, accessories or other devices with your device.

We recommend the exclusive use of the accessories (power supply, cables etc.) supplied with the unit.

Use only original batteries. Replacing the battery with an incorrect battery can cause an explosion risk.

Do not disassemble, modify or repair the unit yourself, as this may void the warranty.

Please back up your important content regularly to avoid data loss.

Our company accepts no responsibility for the loss or removal of items contained in the device due to improper use of the hardware or software, lack of maintenance or any other accidental event.

This product has been designed to allow proper recycling of parts and components. The symbol representing a crossed-out wheeled bin indicates that the device should not be disposed of with municipal waste. Consult local regulations for disposal of electronic devices.

The symbol representing a crossed-out wheeled bin indicates that the battery should not be disposed of with municipal waste. Consult local regulations for battery disposal.

At full volume, prolonged listening to the portable audio device may damage the user's hearing.

- Presentation of the device -

Front view

Rear view

Bottom view

Note : The presentation of the device and some features may vary by country, model or version.

Front view

1. Screen

Rear view

1. Restart
2. Power button A long press of this button allows you to turn your notebook on or off.
3. Storage extension 1 × HDD / SSD Slot 2.5'' SATA III (Max thickness 7mm)
4. USB port 3.0 type A
   This port is compatible with USB devices such as a keyboard, mouse, flash drive (USB sticks, memory card readers...), external hard disk, printer.
5. USB port 2.0 type A
   This port is compatible with USB devices such as a keyboard, mouse, flash drive (USB sticks, memory card readers...), external hard disk, printer.
6. Port RJ45
7. Headset/microphone socket Use this port to connect external speakers or headphones to your tablet. You can also connect headphones with an external microphone.
8. Mains power port This port provides power when connected to an adapter.
9. HDMI port (High - Definition Multimedia Interface)
   This port allows you to connect your device to an HDMI-compatible device such as a TV, monitor or projector.

Bottom view

1. Micro-SD card reader
   The micro-SD card reader allows you to read or write to micro-SDHC / micro-SDXC memory cards.
2. USB port 2.0 type A
3. Kensington security slot
   The Kensington security slot (also known as the Kensington lock, or K-lock) is part of an anti-theft system developed by Kensington Computer Products Group. It is a small rectangular shape hole reinforced around its circumference. It is intended to support a pluggable system associated with a padlock, then connected to a cable that must be fixed around a fixed object, or difficult to move.

- Switching on -

Note : Charge your Thomson device before using it for the first time.

Charging the battery of your device

Connect the AC adapter to an earthed electrical outlet.

WARNING :

Read carefully the following instructions concerning the battery of your THOMSON device:

• Only a technician authorized by Thomson is authorized to remove and handle the battery.
• The battery in your Thomson device may present a fire or burn hazard if it is removed or disassembled.
  Comply with the information on the device's warning labels to avoid any risk of injury.
• There is a risk of explosion if the battery is replaced by an incorrect model.
• Do not dispose of the battery in a fire.
  · Do not attempt to short-circuit the battery of the Thomson camera.
• Do not attempt to disassemble the battery or reassemble the battery.
• Stop using the battery if it leaks.
• The battery and its components must be recycled or disposed of properly.
• Keep the battery and its components out of reach of children.

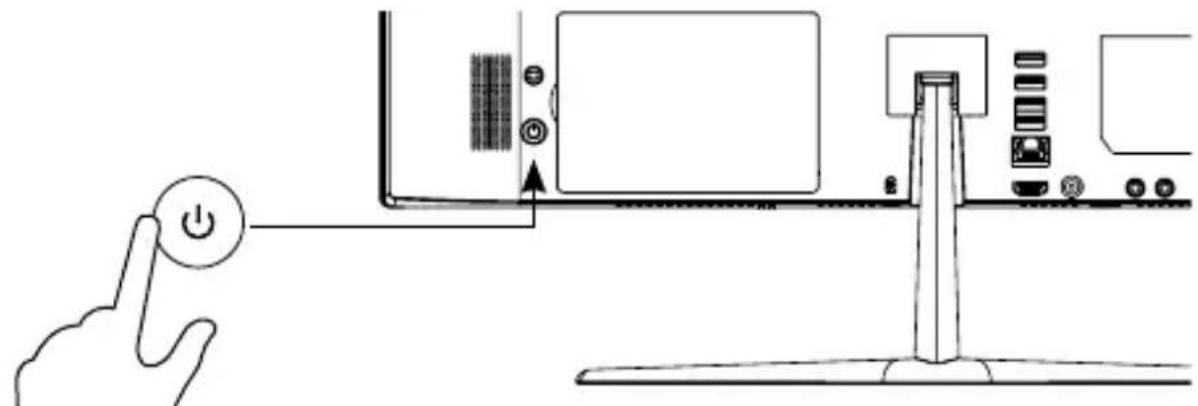

Turning your device on / off

Turn on your device by pressing and holding the power button for a long time.

To turn off your device, go to the Start menu and select Start/Stop > Stop.

First start of your device

During the first boot, the Windows® 10 operating system will guide you through the configuration steps.

Once these configuration steps are completed, the system completes the installation and applies your customized settings. Do not turn off the unit and ensure that there is sufficient battery power during this step.

The Windows® 10 home screen appears after installation and configuration is complete.

Note: If you want to restore the factory configuration or reinstall your operating system, we recommend using the Windows Reset function. For this reason,

1. Open the start menu and choose «Settings».
2. Select «Update and Update and Security» then «Recovery» from the Right menu.
3. Click on the «Start» button in the «Reset this PC» section.
4. Let us guide you.

- Using the keyboard -

Function keys

The keypad on your device is equipped with function keys for performing actions or settings.

Note : The key icons displayed and the functions offered may vary depending on the model.

fn + 品 ^ 2 Put the computer into standby mode
fn + Opens the default web browser
fn +Enables or disables the
图 touchpad
Lower the volume level
fn + Increases the volume level
fn + Enables or disables sound
fn + □ Opens the default media player
fn + Media player playback or pause function
fn + Previous music or video
fn + Next music or video
fn ^+ -Decreases the brightness of the screen
fn ^+ +Increases the brightness of the screen
fn + Opens the default email software
fn +□■Enables the use of an external display
fn + Opens the settings menu
fn + Opens the search pane
fn + |^ _^n Enables / Enables the wireless network

fn + Displays applications running at runtime

fn + Opens the sharing pane
fn + Vertical scrolling upwards
fn + Vertical scrolling down
fn + Start function
fn + Fine function

Pause Cancels the current program (example: a game)

PrtScr/ Saves a screenshot of your Impécr screen

Numlck/ Enables/disables the numeric VerrNum keypad

ScrLk Enables/disables scrolling

Ins Enables/disables the Refresh mode

Shortcut keys

Using the shortcut keys makes it easier to navigate under Windows® 10.

Opens the Windows® 10 Start menu
+ A Opens the action center
+D Displays the desktop
E Opens the file explorer
+1 Opens the Device Settings menu
+ L Locks the computer and displays the lock screen
+ M Reduces the size of active windows
+ S Opens the search window
+P Opens the Project pane

- Windows® 10 Overview -

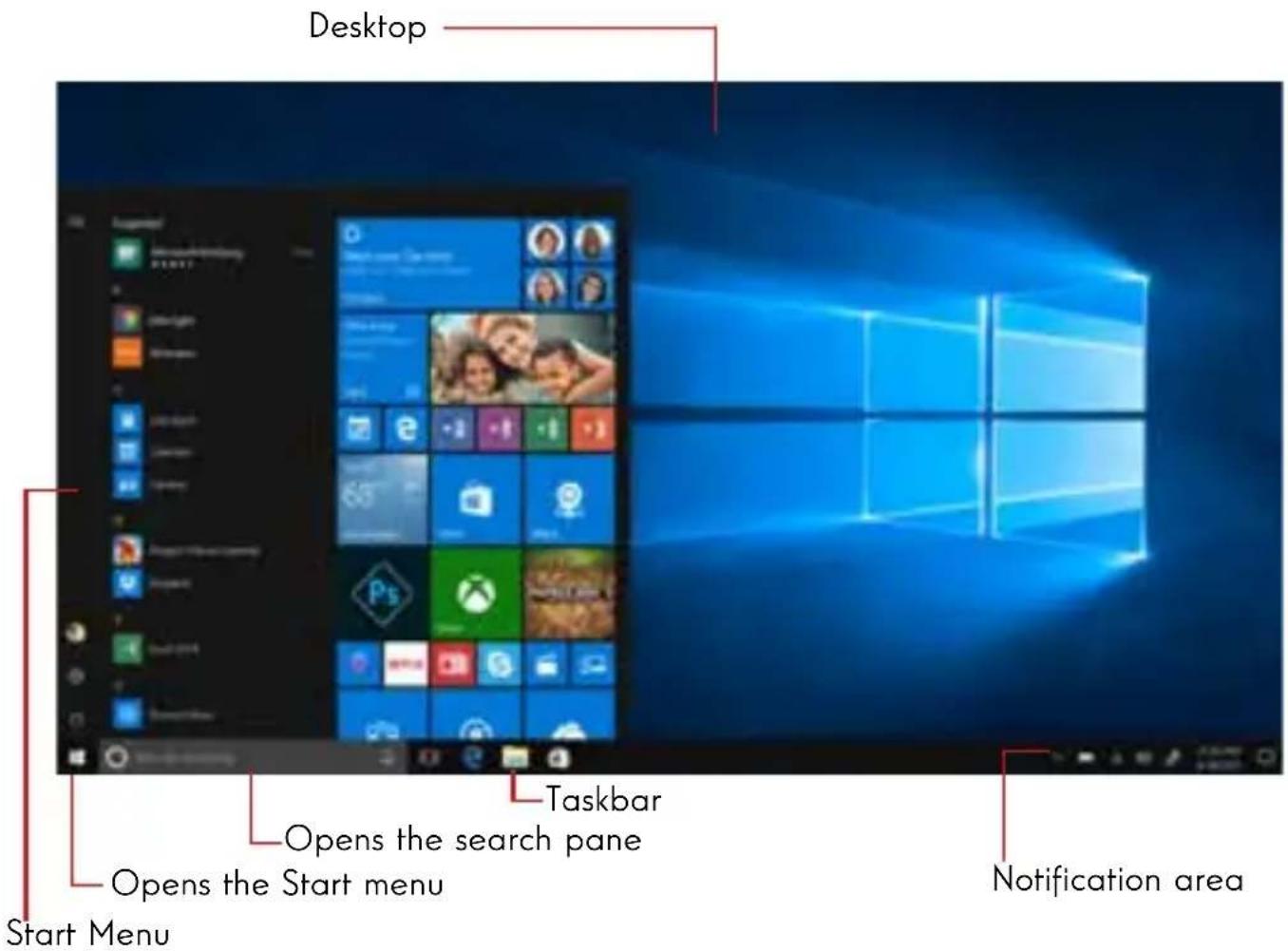

Presentation of the interface

Note : The interface may vary by country, model or version of Windows® 10

The Start menu is the entry point for your device. It allows you to access applications, folders and settings.

The taskbar displays the applications in use and allows you to switch between them.

The notification area displays important information about the use of your device.

The search pane allows you to easily search through your files, applications and other items on your device.

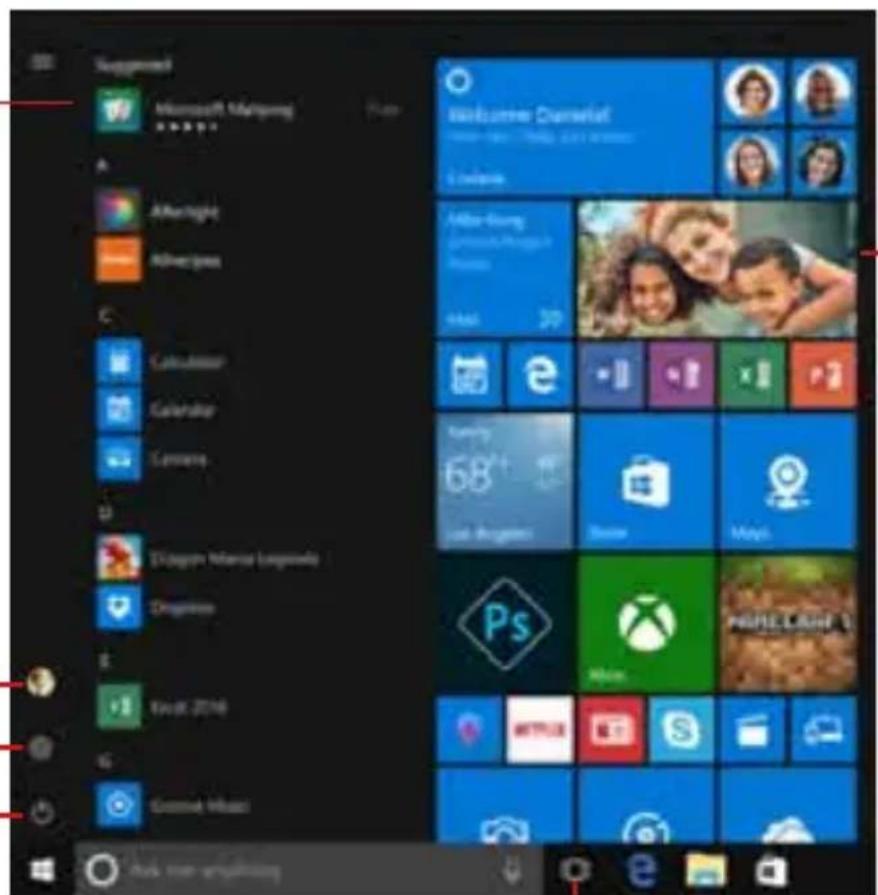

Presentation of the Start Menu

Note : The interface may vary by country, model or version of Windows® 10

The Start menu is the entry point for your device. It allows you to access applications, folders and settings.

Stop, Restart or Sleep your device

Displays applications running at runtime

Allows you to open the parameters

Allows you to log out, lock the user session or change account settings

The applications installed on your device are listed here.

Note: To open an application, move the mouse pointer over it and click to open it.

Displays your favorite applications as tiles for quick and easy access.

Note: To display an item as a tile, right-click on it and select the «Pin to Start Menu» option.

To remove a file, right-click on it and select the option: «Detach from the start menu»,

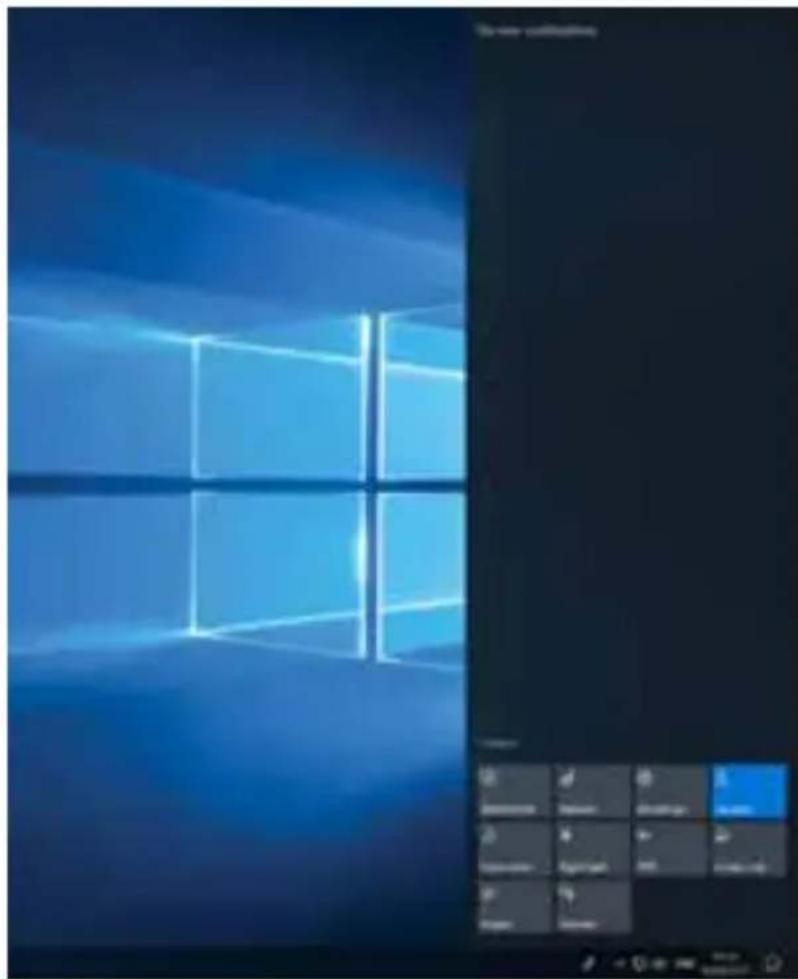

Presentation of the Action Centre

Note : The interface may vary by country, model or version of Windows® 10

The action center groups all notifications from your applications. The lower part provides the main shortcuts useful for setting up your device.

To open the action center, click on the icon in the notification area.

Connecting to a wireless Wi-Fi network

Your device is equipped with a Wi-Fi module. Connecting to a Wi-Fi wireless network will allow you to access the Internet, check your e-mails, perform device updates or access a home or business network. To connect, follow these steps:

Click on the or in the notification area.
If Wi-Fi is not enabled, click on the
Select your wireless network from the list.
Click on «Connect». If your wireless network requires a security key, fill in the key before making the connection.

Pairing your device with a Bluetooth device

Your device is equipped with a Bluetooth module. This one allows you to connect it to a Bluetooth device (mouse, portable speakers...). To connect the two devices, follow these steps:

Go to the Start menu and select Settings.
Click on the «Devices» section and select «Bluetooth and other devices».
Select the option + "Add Bluetooth or other device"
Let the assistant guide you.

Activate the Airplane mode

Airplane mode disables wireless Wi-Fi and Bluetooth connectivity. To activate the airplane mode :

Click on the icon or in the notification area.
Click on the button

To disable the airplane mode :

Click on the icon or in the notification area.
Click on the button

System restoration

WARNING:

Make a backup of your important data before running this option.

Windows® 10 offers several recovery options to restore the factory configuration :

• Keep my files: Reset your device by keeping your personal files.
• Delete All: Restores the factory configuration of your device. Make a backup of your important data before running this option.
• Retrograde to the previous version of Windows® 10: Use this option if you are having trouble with your device after the system update.
• Advanced boot: This option allows you to boot from an external device or access the device's firmware settings or change Windows boot settings or restore Windows from a disk image.

To perform a restoration operation, follow the following steps:

Go to the Start menu and select Settings.
Click on the «Update and security» section and select «Recovery».
Select the restoration option to be executed.

Windows 10

Discover more features on the Microsoft website :

https://support.microsoft.com/en-us/hub/4338813.windows-help?os=windows-10

Windows help

1. 实验原理

1

1

1

与

(1) a -amn (2) a -amn (3) a -amn (4) a -amn (5)

特此公告。

1

图1

7-8

一

一、风险提示

1 + u7 = 7 + 1 > ( 1 + u) u7 = 7 + 1 > ( 1 + u) u = 2

Theorem 2.1. The following theorem provides the existence of a non-trivial solution to the above equations. To confirm this, we assume that

图1-2

m - 1 0 ;

一

Get more support

（

Rok quanr, Hw-ien coa, and, hwoonmmeo a n o

for simplicity

中

corms-100,200,400,800,1600,3200,5600,7200,9600,12800,15600,2000,25600,32600,40600,56600,72600,96600,128600,156600,206600,326600,406600,566600,726600,967600,1287600,1567600,207600,327600,407600,567600,727600,1288600,1586600,2086600,3286600,4086600,586660

Gm#e 2019-0374 - GPM_2019-0374-0365.00000000000000000000000000000

- FAQ -

A black or colored dot appears on the screen!

This does not affect the performance of your device. If the problem persists, please consult the general warranty conditions and then contact Thomson Customer Service.

The battery charge indicator does not light up!

Make sure that the AC charger is properly connected to an AC outlet and the power port of the unit. If the problem persists, contact Thomson Customer Service.

How to optimize battery life?

To optimize the battery life, you can adjust the screen brightness, disable Wi-Fi and Bluetooth if you are not using it and close applications you are not using.

I lost the AC adapter!

Contact Thomson Customer Service.

The battery doesn't work anymore!

Contact Thomson Customer Service.

The device does not emit any sound!

Check that the sound has not been disabled by using the function key Fn + or by increasing the volume by using the function key Fn + Make sure that no headphones are connected to your device.

When the device starts, the power indicator lights up but the operating system does not start!

Force the device to turn off by pressing the power button for 10 seconds and then disconnect all connected USB devices. Connect the device to a socket with the charger. Turn on the device.

If the problem persists, contact Thomson Customer Service.

The computer does not wake up from sleep mode!

Use the power button to exit the standby mode. Check that the battery level is sufficient by plugging the unit into an AC outlet using the charger. Press the power button again.

Where to find the drivers for your Thomson device?

The drivers necessary for the proper functioning of your device are present in the following folder :

C:\WINDOWS\DRIVERS

We recommend that you backup the entire folder to an external storage medium (external hard disk, USB sticks, CD-R) in order to keep a copy of these drivers.

MANUAL DE USUARIO

THOMSON

friendly technology

AIO - 23.8"

VERSION 1.0 - 0320

Aviso legal

Marca commercial

Outener maki sappate thcice

（

当 m = 32 且 m 1 时方程有两个实数根;

- FAQ -

Displays applications running at runtime

Discover more features on the Microsoft website :

https://support.microsoft.com/it-it/hub/4338813/windows-help?os=windows-10

Guida di Windows

1. 有氧呼吸

图

1

图

12x - 1 > 0

特此公告。

Discover more features on the Microsoft website :

https://support.microsoft.com/nl-be/hub/4338813/windows-help?os=windows-10

Windows Help

1. 有氧呼吸

华

1

1

一

Bil

特此公告。

12x - 1 > 0

m - 1 0 ;

100% full of 24 h (30-60) period of preterm birth in the first trimester of infants with a history of premature birth.

Mens understraining:

t

（20

If the application cannot work with a program in the form of a computer program, then use the following command:

whifly winy winy winy winy winy winy winy winy

（二）议案

- FAQ -

- Presentation of the device -

Vorderansicht

Rückansicht

Untere Ansicht

Discover more features on the Microsoft website :

https://support.microsoft.com/de-de/hub/4338813.windows-help?os=windows-10

Windows-Hilfe

图

m = 311 ;

图1-2

1

当 m = 32 且 m 1 时方程有两个实数根;

mnnnne nnnnne

aAATGACGCACTGAGTGGTAAATGTTTGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGGTGG

二

Tender: 20-18mg, 40mg/3x per day. 200mg/week. 200mg/week. 200mg/week. 200mg/week. 200mg/week. 200mg/week. 200mg/week. 200mg/week. 200mg/week. 200mg/week. 200mg/week. 200mg/week. 200mg/week. 250mg/3x per day. 250mg/3x per day. 250mg/3x per day. 250mg/3x per day. 250mg/3x per day. 250mg/3x per day.

1

```python

(int) -> (int) -> (int) -> (int) -> (int) -> (int) -> (int) -> (int) -> (int) -> (int) -> (int) -> (int) -> (int) -> (int) -> (int) -> (int) -> (int) -> (int) -> (int) -> (int) -> (int) -> (int) -> (int) -> (int) -> (int) -> (int)

1

```python

mystring = 'hello', 'Hello', 'Hi', 'It', 'I', 'My', 'You', 'The', 'We', 'They', 'He', 'She', 'You', 'He', 'She'

- FAQ -
