USER MANUAL DCL043 DEWALT

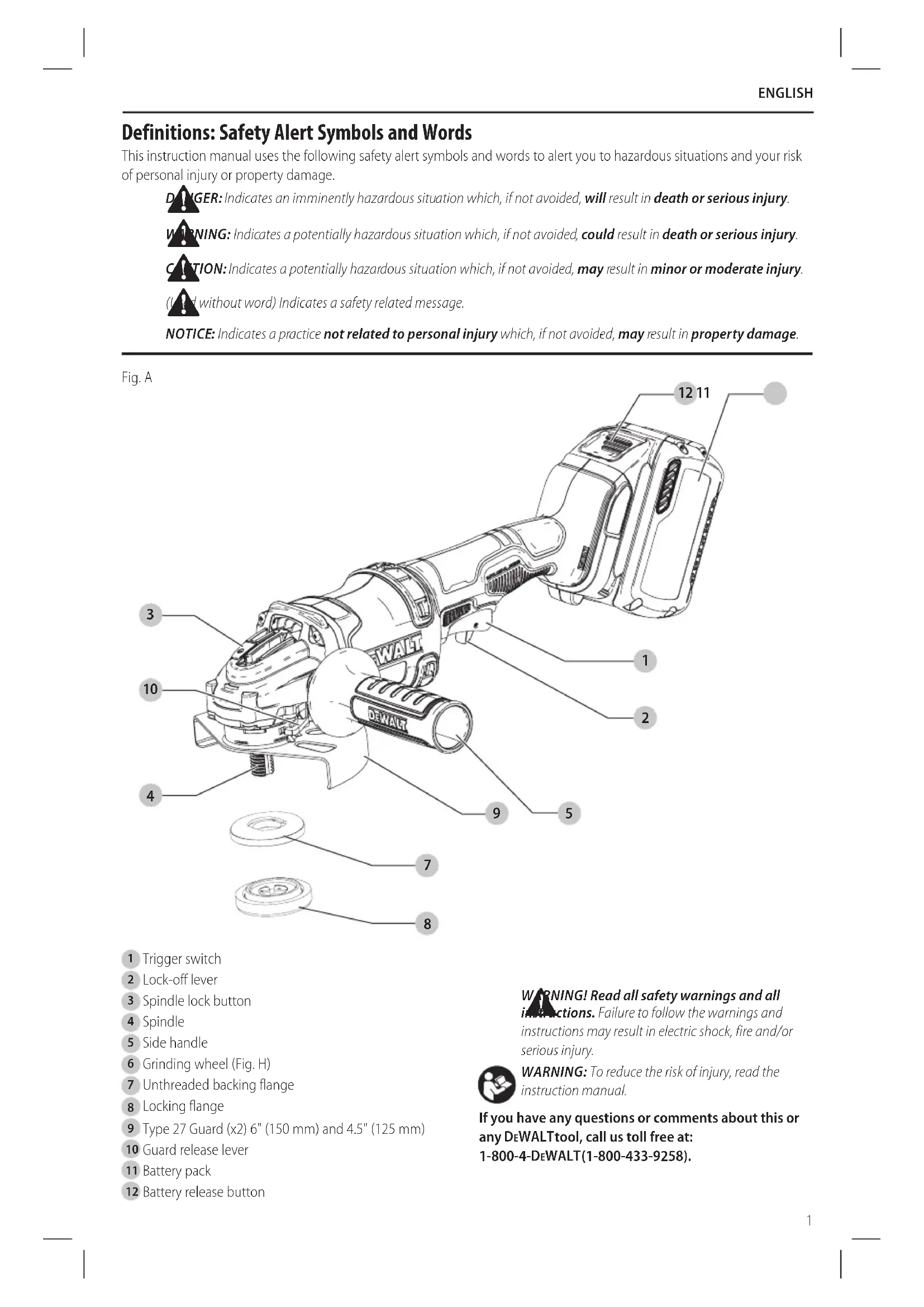

English (original instructions) Definitions: Safety Alert Symbols and Words This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or propertydamage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or seriousinjury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or seriousinjury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury.

(Used without word) Indicates a safety relatedmessage. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage. Fig. A

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

WARNING: To reduce the risk of injury, read the

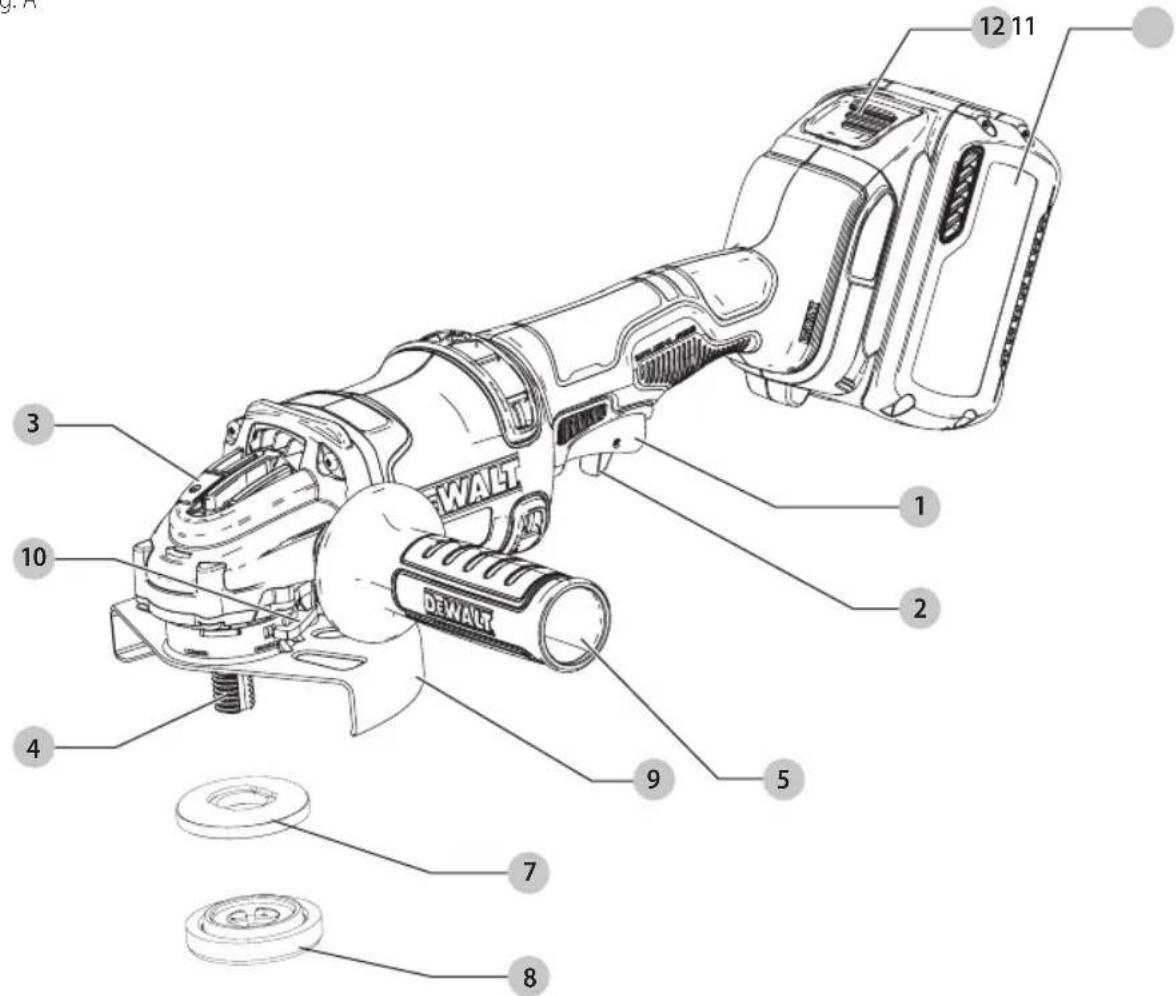

Unthreaded backing flange

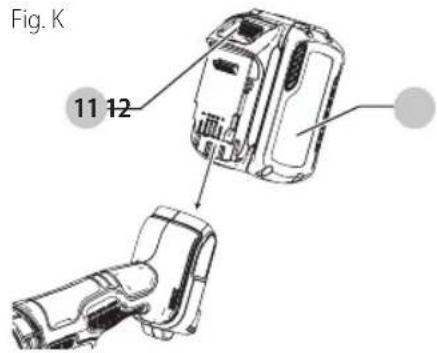

Battery release button

WARNING: Read all safety warnings,

instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or seriousinjury.

AND INSTRUCTIONS FOR

FUTUREREFERENCE. The term “power tool” in the warnings refers to your mains- operated (corded) power tool or battery-operated (cordless) powertool.

a ) Keep work area clean and well lit. Cluttered or dark areas inviteaccidents. b ) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust orfumes. c ) Keep children and bystanders away while operating a power tool. Distractions can cause you to losecontrol.

2) Electrical Safety

a ) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electricshock. b ) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed orgrounded. c ) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electricshock. d ) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electricshock. e ) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electricshock. f ) If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electricshock.

a ) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personalinjury. b ) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personalinjuries. c ) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invitesaccidents. d ) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personalinjury. e ) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpectedsituations. f ) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in movingparts. g ) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-relatedhazards. h ) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of asecond.

4) Power Tool Use and Care

a ) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it wasdesigned. b ) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must berepaired. c ) Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power toolaccidentally. d ) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrainedusers. e ) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained powertools. f ) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier tocontrol.English

g ) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardoussituation. h ) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpectedsituations.

5) Battery Tool Use and Care

a ) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another batterypack. b ) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury andfire. c ) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or afire. d ) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation orburns. e ) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk ofinjury. f ) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 265 °F (130°C) may causeexplosion. g ) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

a ) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool ismaintained. b ) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized serviceproviders.

SAFETY INSTRUCTIONS FOR

ALL OPERATIONS Safety Warnings Common for Grinding, Sanding, Wire Brushing or Abrasive, Cutting-Off Operations a ) This power tool is intended to function as a grinder, sander, wire brush or cut-off tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or seriousinjury. b ) Operations such as polishing are not reccomended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personalinjury. c ) Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safeoperation. d ) The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and flyapart. e ) The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded orcontrolled. f ) Threaded mounting of accessories must match the grinder spindle thread. For accessories mounted by flanges, the arbor hole of the accessory must fit the locating diameter of the flange. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss ofcontrol. g ) Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this testtime. h ) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by variousEnglish

operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearingloss. i ) Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area ofoperation. j ) Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electricshock. k ) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinningaccessory. l ) Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of yourcontrol. m ) Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into yourbody. n ) Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electricalhazards. o ) Do not operate the power tool near flammable materials. Sparks could ignite thesematerials. p ) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution orshock. q ) Do not use Type 11 (flaring cup) wheels on this tool. Using inappropriate accessories can result ininjury. r ) Always use side handle. Tighten the handle securely. The side handle should always be used to maintain control of the tool at alltimes. s ) When starting the tool with a new or replacement wheel, or a new or replacement wire brush installed, hold the tool in a well protected area and let it run for one minute. If the wheel has an undetected crack or flaw, it should burst in less than one minute. If the wire brush has loose wires, they will be detected. Never start the tool with a person in line with the wheel. This includes theoperator. t ) Use of accessories not specified in this manual is not recommended and may be hazardous. Use of power boosters that would cause the tool to be driven at speeds greater than its rated speed constitutesmisuse. u ) Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss ofcontrol. v ) Avoid bouncing the wheel or giving it rough treatment. If this occurs, stop the tool and inspect the wheel for cracks orflaws. w ) Always handle and store wheels in a carefulmanner. x ) Do not operate this tool for long periods of time. Vibration caused by the operating action of this tool may cause permanent injury to fingers, hands, and arms. Use gloves to provide extra cushion, take frequent rest periods, and limit daily time ofuse. y ) Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in movingparts. Kickback and Related Warnings Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory’s rotation at the point of thebinding. For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel’s movement at the point of pinching. Abrasive wheels may also break under theseconditions. Kickback is the result of tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below: a ) Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start up. The operator can control torque reaction or kickback forces, if proper precautions aretaken. b ) Never place your hand near the rotating accessory. Accessory may kickback over yourhand. c ) Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel’s movement at the point ofsnagging. d ) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control orkickback. e ) Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss ofcontrol.English

Safety Warnings Specific for Grinding and Abrasive Cutting-Off Operations a ) Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and areunsafe. b ) The grinding surface of center depressed wheels must be mounted below the plane of the guard lip. An improperly mounted wheel that projects through the plane of the guard lip cannot be adequatelyprotected. c ) The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect the operator from broken wheel fragments, accidental contact with wheel and sparks that could igniteclothing. d ) Wheels must be used only for recommended applications. For example: do not grind with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them toshatter. e ) Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheelflanges. f ) Do not use worn down wheels from larger power tools. Wheel intended for larger power tool is not suitable for the higher speed of a smaller tool and mayburst. Additional Safety Warnings Specific for Abrasive Cutting-Off Operations a ) Do not “jam” the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheelbreakage. b ) Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your body, the possible kickback may propel the spinning wheel and the power tool directly atyou. c ) When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheelbinding. d ) Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully reenter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in theworkpiece. e ) Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of thewheel. f ) Use extra caution when making a “pocket cut” into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can causekickback. Safety Warnings Specific for Sanding Operations a ) Do not use excessively oversized sanding disc paper. Follow manufacturers recommendations, when selecting sanding paper. Larger sanding paper extending beyond the sanding pad presents a laceration hazard and may cause snagging, tearing of the disc orkickback. Safety Warnings Specific for Wire Brushing Operations a ) Be aware that wire bristles are thrown by the brush even during ordinary operation. Do not overstress the wires by applying excessive load to the brush. The wire bristles can easily penetrate light clothing and/orskin. b ) If the use of a guard is recommended for wire brushing, do not allow any interference of the wire wheel or brush with the guard. Wire wheel or brush may expand in diameter due to work and centrifugalforces. c ) Safety goggles or safety glasses with side shields and a full face shield compliant with ANSI Z87.1 MUST be worn by the operator and others that are within 50' (15.2 m) of the use of thisproduct. Additional Safety Information

of it. Damage or personal injury couldresult.

WARNING: ALWAYS use safety glasses. Everyday

eyeglasses are NOT safety glasses. Also use face or dust mask if cutting operation is dusty. ALWAYS WEAR CERTIFIED SAFETYEQUIPMENT:

WARNING: Some dust created by power sanding,

sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicalsare:

• lead from lead-based paints,English

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically- treatedlumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopicparticles.

• Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmfulchemicals.

WARNING: Use of this tool can generate and/

or disperse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection appropriate for the dust exposure. Direct particles away from face andbody.

WARNING: Always wear proper personal hearing

protection that conforms to ANSI S12.6 (S3.19) during use. Under some conditions and duration of use, noise from this product may contribute to hearingloss.

CAUTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools with large battery packs will stand upright on the battery pack but may be easily knockedover. The label on your tool may include the following symbols. The symbols and their definitions are asfollows: V ......................... volts Hz .......................hertz min ..................... minutes or DC ......direct current ...................... Class I Construction (grounded) …/min ..............per minute BPM .................... beats per minute IPM ..................... impacts per minute RPM .................... revolutions per minute sfpm ................... surface feet per minute SPM .................... strokes per minute A ......................... amperes W ........................watts or AC ...........alternating current or AC/DC .... alternating or direct current ...................... Class II Construction (double insulated)

The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below and then follow charging proceduresoutlined. When ordering replacement battery packs, be sure to include the catalog number andvoltage. Your tool uses a DeWALT charger. Be sure to read all safety instructions before using your charger. Consult the chart at the end of this manual for compatibility of chargers and batterypacks.

READ ALL INSTRUCTIONS

Important Safety Instructions for All Battery Packs

WARNING: Read all safety warnings and all

instructions for the battery pack, charger and power tool. Failure to follow the warnings and instructions may result in electric shock, fire and/ or seriousinjury.

• Do not charge or use the battery pack in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery pack from the charger may ignite the dust orfumes.

• NEVER force the battery pack into the charger. DO NOT modify the battery pack in any way to fit into a non-compatible charger as battery pack may rupture causing serious personal injury. Consult the chart at the end of this manual for compatibility of batteries andchargers.

• Charge the battery packs only in designated DeWALT chargers.

• DO NOT splash or immerse in water or otherliquids.

• Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104°F (40°C) (such as outside sheds or metal buildings in summer). For best life store battery packs in a cool, drylocation. NOTE: Do not store the battery packs in a tool with the trigger switch locked on. Never tape the trigger switch in the ONposition.

• Do not expose battery pack or tool/appliance to fire or excessive temperature. Exposure to fire or temperature above 265°F (130°C) may causeexplosion.

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium ion battery packs areburned.

• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithiumsalts.

• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medicalattention.

WARNING: Burn hazard. Battery liquid may be

flammable if exposed to spark orflame.

WARNING: Fire hazard. Never attempt to open the

battery pack for any reason. If the battery pack caseENGLISH

is cracked or damaged, do not insert into the charger. Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on). Damaged battery packs should be returned to the service center forrecycling. Transportation

WARNING: Fire hazard. Do not store or carry

the battery pack so that metal objects can contact exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, etc. Transporting batteries can possibly cause fires if the battery terminals inadvertently come in contact with conductive materials such as keys, coins, hand tools and the like. The US Department of Transportation Hazardous Material Regulations (HMR) actually prohibit transporting batteries in commerce or on airplanes in carry-on baggage UNLESS they are properly protected from short circuits. So when transporting individual battery packs, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a shortcircuit. NOTE: Lithium-ion batteries should not be put in checkedbaggage. Shipping the DeWALT FLEXVOLT™ Battery The D

WALT FLEXVOLT™ battery has two modes: Use and Shipping. Use Mode: When the FLEXVOLT™ battery stands alone or is in a D

WALT 20V Max* product, it will operate as a 20V Max* battery. When the FLEXVOLT™ battery is in a 60V Max* or a 120V Max* (two 60V Max* batteries) product, it will operate as a 60V Max* battery. Shipping Mode: When the cap is attached to the FLEXVOLT™ battery, the battery is in Shipping Mode. Strings of cells are electrically disconnected within the pack resulting in three batteries with a lower watt hour (Wh) rating as compared to one battery with a higher Watt hour rating. This increased quantity of three batteries with the lower watt hour rating can exempt the pack from certain shipping regulations that are imposed upon the higher Watt hourbatteries. The battery label indicates two Watt Hour Ratings (see example). Depending on how the battery is shipped, the appropriate Whr rating must be used to determine the applicable shipping requirements. If utilizing the shipping cap, the pack will be considered 3 batteries at the Whr indicated for “Shipping”. If shipping without the cap or in a tool, the pack will be considered one battery at the Watt hour rating indicated next to “Use”. USE: 120 Wh Shipping: 3 x 40 Wh Example of Use and Shipping Label Marking Transport Wh rating indicates 3 x 40 Wh, meaning 3 batteries of 40 Watt hours each. The Use Wh rating indicates 120 Watt hour (1 battery implied). Fuel Gauge Battery Packs (Fig. B) Some DeWALT battery packs include a fuel gauge which consists of three green LED lights that indicate the level of charge remaining in the batterypack. The fuel gauge is an indication of approximate levels of charge remaining in the battery pack according to the followingindicators: 75–100% charged 51–74% charged < 50% charged Pack needs to be charged To actuate the fuel gauge, press and hold the fuel gauge button

. A combination of the three green LED lights will illuminate designating the level of charge left. When the level of charge in the battery is below the usable limit, the fuel gauge will not illuminate and the battery will need to berecharged. Fig. B

NOTE: The fuel gauge is only an indication of the charge left on the battery pack. It does not indicate tool functionality and is subject to variation based on product components, temperature and end-userapplication. For more information regarding fuel gauge battery packs, please contact call 1-800-4- DeWALT (1-800-433-9258) or visit our website www.dewalt.com. The RBRC® Seal The RBRC® (Rechargeable Battery Recycling Corporation) Seal on the nickel cadmium, nickel metal hydride or lithium- ionbatteries (or battery packs) indicates that the costs to recycle these batteries (or battery packs) at the end of their useful life have already been paid by DeWALT . In some areas, it is illegal to place spent nickel cadmium, nickel metal hydride or lithium-ion batteries in the trash or municipal solid waste stream and the Call2Recycle® program provides an environmentally consciousalternative. Call 2 Recycle, Inc., in cooperation with DeWALT and other battery users, has established the program in the United States and Canada to facilitate the collection of spent nickelENGLISH

cadmium, nickel metal hydride or lithium-ion batteries. Help protect our environment and conserve natural resources by returning the spent nickel cadmium, nickel metal hydride or lithium-ion batteries to an authorized DeWALT service center or to your local retailer for recycling. You may also contact your local recycling center for information on where to drop off the spent battery. RBRC® is a registered trademark of Call 2 Recycle,Inc. RBRC™ is a registered trademark of the Rechargeable Battery RecyclingCorporation. Important Safety Instructions for All Battery Chargers

WARNING: Read all safety warnings and all

instructions for the battery pack, charger and power tool. Failure to follow the warnings and instructions may result in electric shock, fire and/ or seriousinjury.

• DO NOT attempt to charge the battery pack with any chargers other than the ones in this manual. The charger and battery pack are specifically designed to worktogether.

• These chargers are not intended for any uses other than charging DeWALT rechargeable batteries. Any other uses may result in risk of fire, electric shock orelectrocution.

• Do not expose the charger to rain orsnow.

• Pull by the plug rather than the cord when disconnecting the charger. This will reduce the risk of damage to the electric plug andcord.

• Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage orstress.

• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock orelectrocution.

• When operating a charger outdoors, always provide a dry location and use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electricshock.

• An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is, 16 gauge has more capacity than 18 gauge. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The lower the gauge number, the heavier thecord. Minimum Gauge for Cord Sets Volts Total Length of Cord in Feet (meters) 120 V 25 (7.6) 50 (15.2) 100 (30.5) 150 (45.7) 240 V 50 (15.2) 100 (30.5) 200 (61.0) 300 (91.4) Ampere Rating American Wire Gauge More Than Not More Than

WARNING: If the plug or power cord is damaged,

it must be replaced by the manufacturer or its representative or by an equally qualified person to avoiddanger.

• Do not place any object on top of the charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of thehousing.

• Do not operate the charger with a damaged cord orplug.

• Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorized servicecenter.

• Do not disassemble the charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution orfire.

• Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce thisrisk.

• NEVER attempt to connect 2 chargerstogether.

• The charger is designed to operate on standard 120V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicularcharger.

WARNING: Shock hazard. Do not allow any liquid to

WARNING: Burn hazard. Do not submerge the

battery pack in any liquid or allow any liquid to enter the battery pack. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks or cracks, return to a service center forrecycling.

CAUTION: Burn hazard. To reduce the risk of injury, charge only DeWALT rechargeable battery packs. Other types of batteries may overheat and burst resulting in personal injury and propertydamage. NOTICE: Under certain conditions, with the charger plugged into the power supply, the charger can be shorted by foreign material. Foreign materials of a conductive nature, such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil or anyENGLISH

buildup of metallic particles should be kept away from the charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug the charger before attempting toclean. Charging a Battery (Fig. A, C)

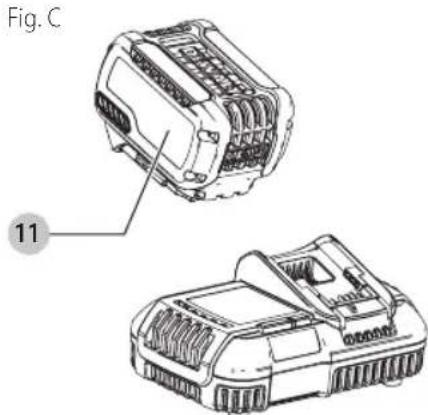

1. Plug the charger into an appropriate outlet before

inserting batterypack. Fig. C

into the charger, making sure the battery pack is fully seated in the charger. The red (charging) light will blink continuously indicating that the charging process hasstarted.

3. The completion of charge will be indicated by the red

light remaining ON continuously. The battery pack is fully charged and may be used at this time or left in the charger. To remove the battery pack from the charger, push the battery release button on the battery pack and then slide the battery pack out of thecharger. NOTE: To ensure maximum performance and life of lithium- ion battery packs, charge the battery pack fully before firstuse. Charger Operation Refer to the indicators below for the charge status of the batterypack. DCB107, DCB112, DCB113, DCB115, DCB118, DCB132, DCB1106 Charging Fully Charged Hot/Cold Pack Delay*

• DCB107, DCB112, DCB113, DCB115, DCB118, DCB132, DCB1106: The red light will continue to blink, but a yellow indicator light will be illuminated during this operation. Once the battery pack has reached an appropriate temperature, the yellow light will turn off and the charger will resume the chargingprocedure. The compatible charger(s) will not charge a faulty battery pack. The charger will indicate faulty battery pack by refusing to light. NOTE: This could also mean a problem with acharger. If the charger indicates a problem, take the charger and battery pack to be tested at an authorized servicecenter. Hot/Cold Pack Delay When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery packlife. A cold battery pack will charge at a slower rate than a warm battery pack. The battery pack will charge at that slower rate throughout the entire charging cycle and will not return to maximum charge rate even if the battery packwarms. The DCB118 charger is equipped with an internal fan designed to cool the battery pack. The fan will turn on automatically when the battery pack needs to becooled. Never operate the charger if the fan does not operate properly or if ventilation slots are blocked. Do not permit foreign objects to enter the interior of thecharger. Lithium-Ion Battery Packs Only Li-Ion tools are designed with an Electronic Protection System that will protect the battery pack against overloading, overheating or deepdischarge. The tool will automatically turn off if the Electronic Protection System engages. If this occurs, place the lithium- ion battery pack on the charger until it is fullycharged. Wall Mounting DCB107, DCB112, DCB113, DCB115, DCB118, DCB132, DCB1106 These chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet, and away from a corner or other obstructions which may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the wall. Mount the charger securely using drywall screws (purchased separately) at least 1" (25.4 mm) long, with a screw head diameter of 0.28–0.35" (7–9mm), screwed into wood to an optimal depth leaving approximately 7/32" (5.5 mm) of the screw exposed. Align the slots on the back of the charger with the exposed screws and fully engage them in theslots. Charger Cleaning Instructions

WARNING: Shock hazard. Disconnect the charger

from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaningsolutions. Important Charging Notes

1. Longest life and best performance can be obtained if

the battery pack is charged when the air temperature is between 65°F and 75°F (18° – 24°C). DO NOT charge the battery pack in an air temperature below +40°F (+4.5°C), or above +104°F (+40°C). This is important and will prevent serious damage to the batterypack.

2. The charger and battery pack may become warm to the

touch while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling ofEnglish

the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed or an uninsulatedtrailer.

3. If the battery pack does not charge properly:

a. Check operation of receptacle by plugging in a lamp or other appliance; b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights; c. Move the charger and battery pack to a location where the surrounding air temperature is approximately 65°F – 75°F (18° – 24°C); d. If charging problems persist, take the tool, battery pack and charger to your local servicecenter.

4. The battery pack should be recharged when it fails to

produce sufficient power on jobs which were easily done previously. DO NOT CONTINUE to use under these conditions. Follow the charging procedure. You may also charge a partially used pack whenever you desire with no adverse effect on the batterypack.

5. Foreign materials of a conductive nature such as, but

not limited to, grinding dust, metal chips, steel wool, aluminum foil, or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug the charger before attempting toclean.

6. Do not freeze or immerse the charger in water or any

otherliquid. Storage Recommendations

1. The best storage place is one that is cool and dry, away

from direct sunlight and excess heat orcold.

2. For long storage, it is recommended to store a fully

charged battery pack in a cool dry place out of the charger for optimalresults. nOTE: Battery packs should not be stored completely depleted of charge. The battery pack will need to be recharged beforeuse.

SAVE THESE INSTRUCTIONS FOR

FUTURE USE Intended Use These heavy-duty small angle grinders have been designed for professional grinding, sanding, wire brush, and cut-off applications at various work sites (i.e., construction sites). DO nOT use under wet conditions or in presence of flammable liquids orgases. These heavy-duty small angle grinders are professional power tools. DO nOT let children come into contact with the tool. Supervision is required when inexperienced operators use thistool. E-Clutch™ This unit is equipped with an E-Clutch™ (Electronic Clutch), which in the event of a high-load the unit will be shut off to reduce the reaction torque to the user. The switch needs to be cycled (turned on and off) to restarttool. Kickback Brake™ When a pinch, stall, or bind-up event is sensed the electronic brake engages with maximum force to quickly stop the wheel, reduce the movement of the grinder, and shut the grinder off. The switch needs to be cycled (turned on and off) to restart thetool. Power-OFF™ OVERLOAD Protection The power supply to the motor will be reduced in case of motor overload. With continued motor overload, the tool will shut off. The switch needs to be cycled (turned on and off) to restart tool. The tool will power off each time the current load reaches the overload current value (motor burn-up point). If continued overload shutdowns occur, apply less force/weight on the tool until the tool will function without the overloadengaging. Electronic Soft Start This feature limits the initial start up speed, allowing the tool to build up to full speed gradually over a 1 secondperiod.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can causeinjury. Attaching Side Handle (Fig. D) The side handle

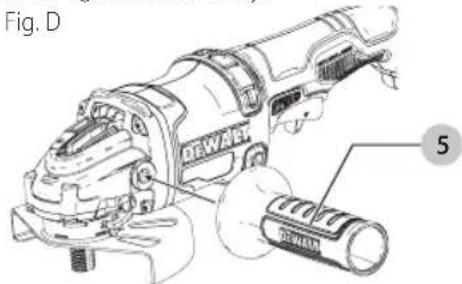

can be fitted to either side of the gear case in the threaded holes. Before using the tool, check that the handle is tightenedse cure ly. Fig. D

Rotating the Gear Case (Fig. E) To improve user comfort, the gear case will rotate 90° for cuttingoperations.

1. Remove the four corner screws attaching the gear case

2. Without separating the gear case from motor housing,

NOTE: If the gear case and motor housing become separated by more than 1/8" (3.17 mm), the tool must be serviced and re-assembled by a DeWALT service center. Failure to have the tool serviced may motor and bearingfailure.

3. Reinstall screws to attach the gear case to the motor

housing. Tighten screws to 12.5 in.-lbs. torque. Overtightening could cause screws tostrip. Guards

CAUTION: Guards must be used with all grinding wheels, cutting wheels, sanding flap discs, wire brushes, and wire wheels. The tool may be used without a guard only when sanding with conventional sanding discs. Refer to Figure A to see guards provided with the unit. Some applications may require purchasing the correct guard from your local dealer or authorized servicecenter. NOTE: Edge grinding and cutting can be performed with Type 27 wheels designed and specified for this purpose; 1/4" (6.35 mm) thick wheels are designed for surface grinding while thinner Type 27 wheels need to be examined for the manufacturer's label to see if they can be used for surface grinding or only edge grinding/cutting. A Type 1/41 guard must be used for any wheel where surface grinding is forbidden. Cutting can also be performed by using a Type1/41 wheel and a Type 1/41guard. NOTE: See the Accessories Chart to select the proper guard / accessorycombination. Adjusting and Mounting Guard (Fig. F, G)

CAUTION: Turn unit off and unplug the tool before making any adjustments or removing or installing attachments oraccessories.

CAUTION: BEFORE operating the tool, identify which guard adjustment option your tool is set to. Adjustment Options For guard adjustment, the guard release lever

engages one of the alignment holes

on the guard collar using a ratcheting feature. Your grinder offers two options for thisadjustment.

: In this position the engaging face is slanted and will ride over to the next alignment hole when guard is rotated in a clockwise direction (spindle facing user) but self-locks in the counter- clockwisedirection.

: In this position the engaging face is straight and squared off. It will NOT ride over to the next alignment hole unless guard release lever is pressed and held while simultaneously rotating the guard in either a clockwise or counterclockwise direction (spindle facinguser). One Touch Two Touch Fig. F

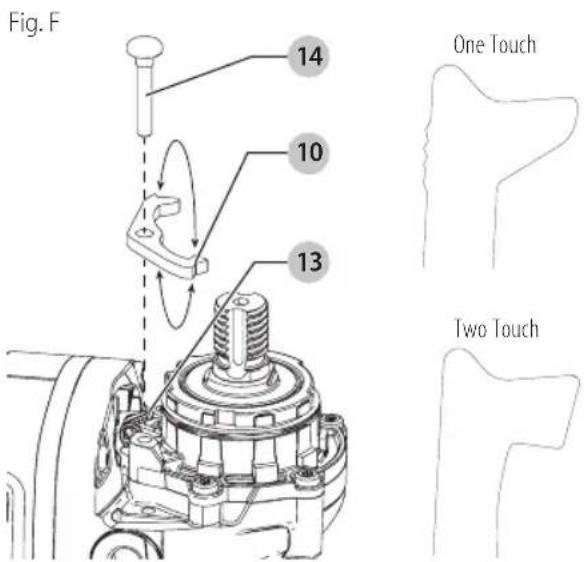

Setting Guard Adjustment Options To adjust the guard release lever

for desired adjustmentoption:

2. Remove the guard release lever taking note of the

spring position. Choose the end of the lever for the desired adjustment option. One-touch will use the slanted end of the lever

to engage the alignment holes

on the guard collar. Two-touch will use the squaredend to engage the alignmnet holes

. Ensure the lever is in proper contact with thespring.

4. Replace screw and torque to 2.0-3.0N-m. Ensure proper

installation with spring return function by depressing guard release lever

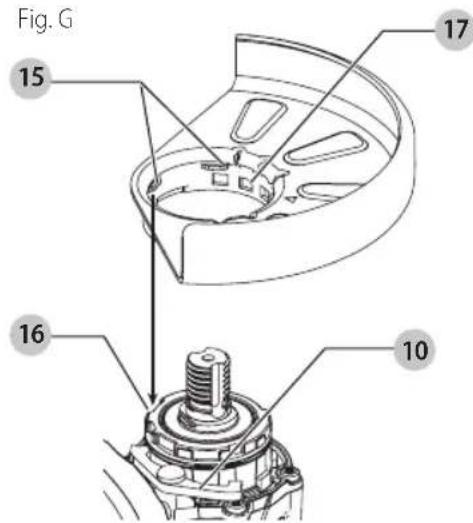

Mounting Guard (Fig. G)

CAUTION: Prior to mounting guard, ensure the screw, lever, and spring are fitted correctly before mounting theguard.

1. With the spindle facing the operator, press and hold the

on the guard with the slots

3. Push the guard down until the guard lugs engage and

rotate them in the groove on the gear case hub. Release the guard releaselever.

: Rotate the guard clockwise into the desired working position. Press and hold the guard release lever

release lever to rotate the guard in the anti-clockwisedirection. Two-touch

: Press and hold the guard release lever

. Rotate the guard clockwise or counterclockwise into the desired working position. NOTE: The guard body should be positioned between the spindle and the operator to provide maximum operatorprotection.ENGLISH

The guard release lever should snap into one of the alignment holes

on the guard collar. This ensures that the guard issecure.

5. To remove the guard, follow steps 1–3 of these

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can causeinjury. Mounting Non-Hubbed Wheels (Fig. H)

WARNING: Failure to properly seat the flange/ clamp

nut/ wheel could result in serious injury (or damage to the tool or wheel).”

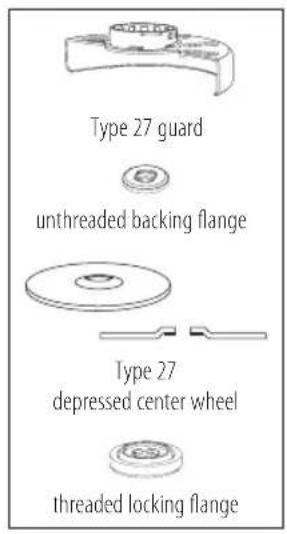

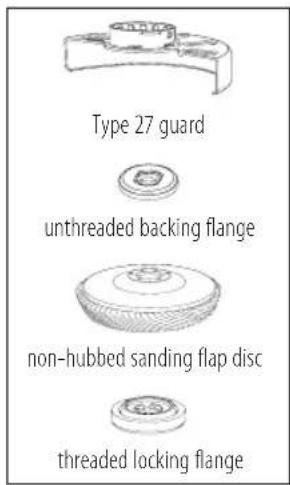

CAUTION: Included flanges must be used with depressed center Type 27 grinding wheels and Type1/41 and Type 27/42 cutting wheels. See the Accessories Chart for moreinformation.

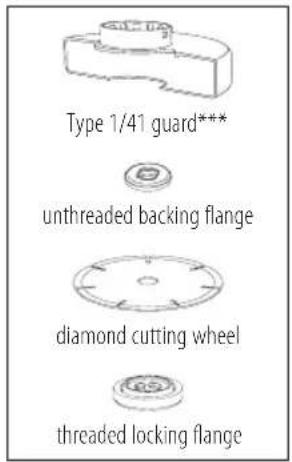

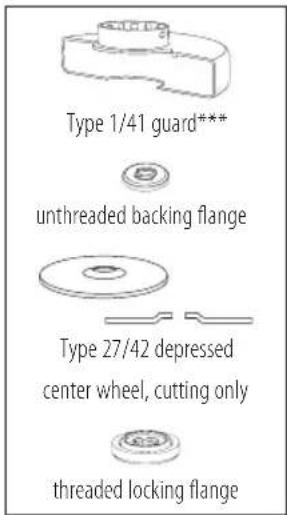

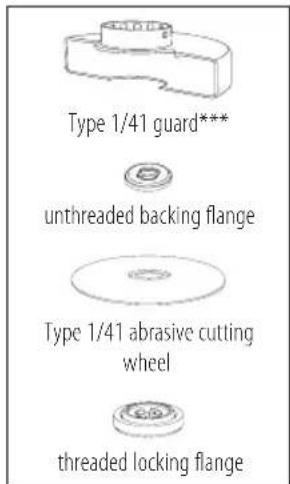

WARNING: A closed, two-sided cutting wheel guard

is re quired when using cutting wheels. Cutting wheels include diamond wheels and abrasive discs. Abrasive cutting wheels for metal and concrete use are available. Diamond blades for concrete cutting can also beused.

CAUTION: Included flanges must be used with all non-hubbed accessories except conventional sandingdiscs.

WARNING: Use of a damaged flange or guard or

failure to use proper flange and guard can re sult in injury due to wheel breakage and wheel contact. See the Accessories Chart for moreinformation.

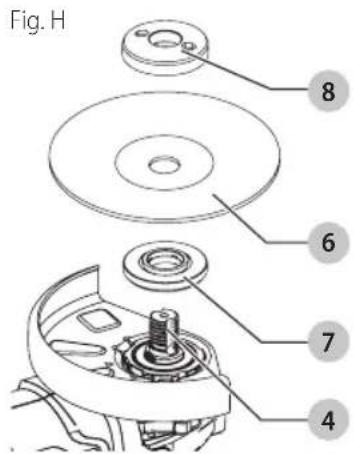

1. Install the unthreaded backing flange

with the raised section (pilot) facing the wheel asshown.

2. Place wheel against the backing flange, centering the

wheel on the raised section (pilot) of the backingflange.

3. While depressing the spindle lock button and with the

hex depressions facing away from the wheel, thread the locking flange

on spindle so that the lugs engage the two slots in thespindle.

4. While depressing the spindle lock button, tighten the

locking flange with awrench.

5. To remove the wheel, depress the spindle lock button

and loosen the threaded locking flange with awrench. Fig. H

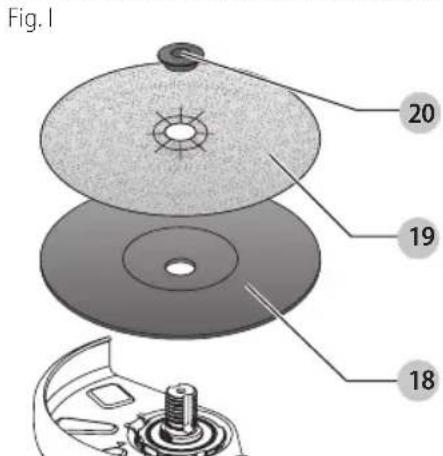

Mounting Sanding Backing Pads (Fig.A,I) NOTE: Use of a guard with sanding discs that use backing pads, often called fiber resin discs, is not required. Since a guard is not required for these accessories, the guard may or may not fit correctly ifused.

WARNING: Failure to properly seat the flange/ clamp

nut/ wheel could result in serious injury (or damage to the tool or wheel).

WARNING: Proper guard must be reinstalled for

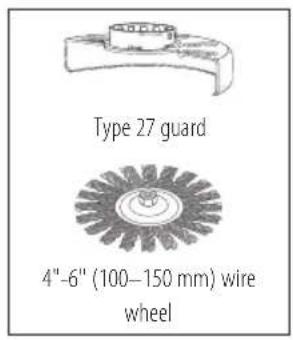

grinding wheel, cutting wheel, sanding flap disc, wire brush or wire wheel applications after sanding applications arecomplete.

1. Remove the innerflange.

2. Place or appropriately thread backing pad

3. Place the sanding disc

on spindle, piloting the raised hub on the clamp nut into the center of san ding disc and backingpad. Fig. I

5. Tighten the clamp nut by hand. Then depress the

spindle lock button while turning the sanding disc until the sanding disc and clamp nut aresnug.English

6. To remove the wheel, grasp and turn the backing

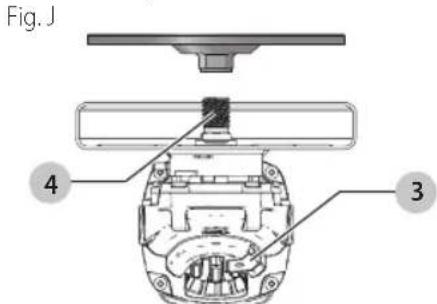

pad and sanding pad while depressing the spindle lockbutton. Mounting and Removing Hubbed Wheels (Fig. J)

WARNING: Failure to properly seat the flange/ clamp

nut/ wheel could result in serious injury (or damage to the tool or wheel).” Hubbed wheels install directly on the 5/8"-11 threaded spindle. Thread of accessory must match thread ofspindle.

1. Remove backing flange by pulling away fromtool.

2. Thread the wheel on the spindle

and use a wrench to tighten the hub of thewheel.

4. Reverse the above procedure to remove thewheel.

NOTICE: Failure to properly seat the wheel before turning the tool on may result in damage to the tool or thewheel. Mounting Wire Cup Brushes and WireWheels

CAUTION: To reduce the risk of personal injury, wear work gloves when handling wire brushes and wheels. They can becomesharp.

CAUTION: To reduce the risk of damage to the tool, wheel or brush must not touch guard when mounted or while in use. Undetectable damage could occur to the accessory, causing wires to fragment from accessory wheel orcup. Wire cup brushes or wire wheels screw directly on the grinder spindle without the use of flanges. Use only wire brushes or wheels provided with a 5/8"-11 threaded hub. A Type 27 guard is required when using wire brushes andwheels.

1. Thread the wheel on the spindle byhand.

2. Depress spindle lock button and use a wrench on the

hub of the wire wheel or brush to tighten thewheel.

3. To remove the wheel, reverse the aboveprocedure.

NOTICE: To reduce the risk of damage to the tool, properly seat the wheel hub before turning the toolon. OPERATION

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can causeinjury. Installing and Removing the Battery Pack (Fig. K) nOTE: For best results, make sure your battery pack is fullycharged. To install the battery pack

into the tool handle, align the battery pack with the rails inside the tool’s handle and slide it into the handle until the battery pack is firmly seated in the tool and ensure that it does notdisengage. To remove the battery pack from the tool, press the release button

and firmly pull the battery pack out of the tool handle. Insert it into the charger as described in the charger section of thismanual. Fig. K

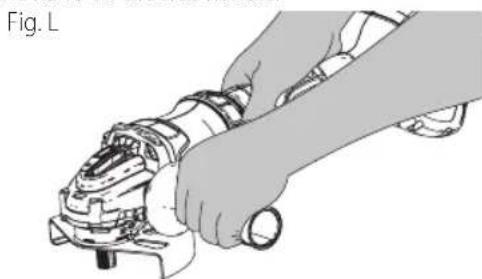

WARNING: To reduce the risk of serious personal injury,

ALWAYS use proper hand position as shown.

WARNING: To reduce the risk of serious personal

injury, ALWAYS hold securely in anticipation of a suddenreaction. Proper hand position requires one hand on the main handle and one hand on the side handle. Fig. L Trigger Switch and Lock-off Lever (Fig.M)

WARNING: Before using the tool, check that the side

handle is tightenedsecurely.

WARNING: Hold the side handle and main handle of

the tool firmly to maintain control of the tool at start up and during use and until the wheel or accessory stops rotating. Make sure the wheel has come to a complete stop be fore laying the tooldown.

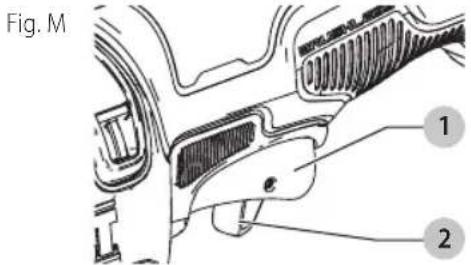

1. To turn the tool on, push the lock-off lever

toward the back of the tool, then depress the trigger switch

. The tool will run while the switch isdepressed.

2. Turn the tool off by releasing the releasingswitch.

WARNING: Allow the tool to reach full speed before

touching tool to the work surface. Lift the tool from the work surface before turning the tooloff.ENGLISH

NOTE: This tool has no provision to lock the switch in the ON position, and should never be locked ON by any othermeans. Spindle Lock Button (Fig. N) The spindle lock button

is provided to prevent the spindle from rotating when installing or removing wheels. Operate the spindle lock button only when the tool is turned off, the tool is unplugged, and the wheel has come to a completestop. NOTICE: To reduce the risk of damage to the tool, do not engage the spindle lock button while the tool is operating. Damage to the tool will result and attached accessory may spin off possibly resulting ininjury. To engage the lock, depress the spindle lock button

and rotate the spindle until you are unable to rotate the spindlefurther.

Fig. N Surface Grinding, Sanding and Wire Brushing (Fig. O)

CAUTION: Always use the correct guard per the instructions in thismanual. To perform work on a the surface of a workpiece:

1. Allow the tool to reach full speed before touching the

tool to the worksurface.

2. Apply minimum pressure to the work surface, allowing

the tool to operate at high speed. Material removal rate is greatest when the tool operates at highspeed. Fig. O Maintain an appropriate angle between the tool and work surface. Refer to the chart according to particularfunction. Function Angle Grinding 20˚-30˚ Sanding with Flap Disc 5˚-10˚ Sanding with Backing Pad 5˚-15˚ Wire Brushing 5˚-10˚

3. Maintain contact between the edge of the wheel and

the worksurface. - If grinding, sanding with flap discs or wire brushing move the tool continuously in a forward and back motion to avoid creating gouges in the worksurface. - If sanding with a backing pad, move the tool constantly in a straight line to prevent burning and swirling of worksurface. NOTE: Allowing the tool to rest on the work surface without moving will damage the workpiece.

4. Remove the tool from work surface before turning tool

off. Allow the tool to stop rotating before laying itdown.

CAUTION: Use extra care when working over an edge, as a sudden sharp movement of grinder may beexperienced. Precautions To Take When Working on a Painted Workpiece

1. Sanding or wire brushing of lead based paint is NOT

RECOMMENDED due to the difficulty of controlling the contaminated dust. The greatest danger of lead poisoning is to children and pregnantwomen.

2. Since it is difficult to identify whether or not a paint

contains lead without a chemical analysis, we recommend the following precautions when sanding any paint: Personal Safety

1. No children or pregnant women should enter the work

area where the paint sanding or wire brushing is being done until all clean up iscompleted.

2. A dust mask or respirator should be worn by all persons

entering the work area. The filter should be replaced daily or whenever the wearer has difficultybreathing. NOTE: Only those dust masks suitable for working with lead paint dust and fumes should be used. Ordinary painting masks do not offer this protection. See your local hardware dealer for the proper N.I.O.S.H. approvedmask.

3. NO EATING, DRINKING or SMOKING should be done in

the work area to prevent ingesting contaminated paint particles. Workers should wash and clean up BEFORE eating, drinking or smoking. Articles of food, drink, or smoking should not be left in the work area where dust would settle onthem. Environmental Safety

1. Paint should be removed in such a manner as to

minimize the amount of dustgenerated.

2. Areas where paint removal is occurring should be sealed

with plastic sheeting of 4 milsthickness.

3. Sanding should be done in a manner to reduce tracking

of paint dust outside the workarea. Cleaning and Disposal

1. All surfaces in the work area should be vacuumed

and thoroughly cleaned daily for the duration of the sanding project. Vacuum filter bags should be changedfrequently.ENGLISH

2. Plastic drop cloths should be gathered up and disposed

of along with any dust chips or other removal debris. They should be placed in sealed refuse receptacles and disposed of through regular trash pick-upprocedures. During clean up, children and pregnant women should be kept away from the immediate workarea.

3. All toys, washable furniture and utensils used by

children should be washed thoroughly before being usedagain. Edge Grinding and Cutting (Fig. P)

WARNING: Do not use edge grinding/cutting wheels

for surface grinding applications because these wheels are not designed for side pressures encountered with surface grinding. Wheel breakage and injury mayresult.

CAUTION: Wheels used for edge grinding and cutting may break or kick back if they bend or twist while the tool is being used. In all edge grinding/ cutting operations, the open side of the guard must be positioned away from the operator.

Edge grinding/cutting with a Type27 wheel must be limited to shallow cutting and notching—less than 1/2" (13mm) in depth when the wheel is new. Reduce the depth of cutting/notching equal to the reduction of the wheel radius as it wears down. Refer to the Accessories Chart for more information. Edge grinding/cutting with a Type 1/41 wheel requires usage of a Type 1/41guard.

1. Allow the tool to reach full speed before touching the

tool to the worksurface.

2. Apply minimum pressure to the work surface, allowing

the tool to operate at high speed. Grinding/cutting rate is greatest when the tool operates at highspeed.

3. Position yourself so that the open-underside of the

wheel is facing away fromyou.

4. Once a cut is begun and a notch is established in

the workpiece, do not change the angle of the cut. Changing the angle will cause the wheel to bend and may cause wheel breakage. Edge grinding wheels are not designed to withstand side pressures caused bybending.

5. Remove the tool from the work surface before turning

the tool off. Allow the tool to stop rotating before laying itdown. Fig. P MAINTENANCE

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can causeinjury. Your D

WALT power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regularcleaning. Cleaning

WARNING: Blow dirt and dust out of all air vents with

clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performingthis.

WARNING: Never use solvents or other harsh

chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into aliquid. Accessories The capacity of this tool is 6"(150mm) diameter x 1/4"(6.35mm) thick grinding or cutting wheels. It is important to choose the correct guards, backing pads and flanges to use with grinder accessories. See the Accessories Chart for information on choosing the correctaccessories.

WARNING: Accessories must be rated for at least

the speed recom mended on the tool warning label. Wheels and other accessories running over their rated accessory speed may fly apart and cause injury. Threaded accessories must have a 5/8"-11 hub. Every unthreaded accessory must have a 7/8" (22.2 mm) arbor hole. If it does not, it may have been designed for a circular saw. Use only the accessories shown in the Accessories Chart of this manual. Accessory ratings must always be above tool speed as shown on toolnameplate.

WARNING: Handle and store all abrasive wheels

carefully to prevent damage from thermal shock, heat, mechanical damage, etc. Store in a dry protected area free from high humidity, freezing temperatures or extreme temperaturechanges.

WARNING: Since accessories, other than those

offered by DeWALT , have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only DeWALT

recommended accessories should be used with thisproduct. Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact DeWALT Industrial Tool Co., 701East Joppa Road, Towson, MD 21286, call 1-800-4- DeWALT (1-800-433-9258) or visit our website: www.dewalt.com. Repairs The charger and battery pack are notserviceable.

WARNING: To assure product SAFETY and

RELIABILITY, repairs, maintenance and adjustment (including brush inspection and replacement) shouldEnglish

be performed by a DeWALT factory service center or a DeWALT authorized service center. Always use identical replacementparts. Register Online Thank you for your purchase. Register your product nowfor:

• WARRAnTY sERViCE: Registering your product will help you obtain more efficient warranty service in case there is a problem with yourproduct.

• COnFiRMATiOn OF OWnERshiP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof ofpurchase.

• FOR YOUR sAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer SafetyAct. Register online at www.dewalt.com/register. Three Year Limited Warranty DeWALT will repair, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase. This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www. dewalt.com or call 1-800-4- DeWALT (1-800-433-9258). This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHERS,

INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY

AND FITNESS FOR A PARTICULAR PURPOSE, AND EXCLUDES ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary in certain states orprovinces. In addition to the warranty, DeWALT tools are covered byour: 1 YEAR FREE sERViCE DeWALT will maintain the tool and replace worn parts caused by normal use, for free, any time during the first year afterpurchase. 2 YEARs FREE sERViCE On DEWAlT BATTERY PACKs DC9096, DCB120, DCB122, DCB124, DCB127, DCB201,

DCB203BT, DCB207, DCB240, DCB361

nOTE: Battery warranty voided if the battery pack is tampered with in any way. DeWALT is not responsible for any injury caused by tampering and may prosecute warranty fraud to the fullest extent permitted bylaw. 90 DAY MOnEY BACK gUARAnTEE If you are not completely satisfied with the performance of your DeWALT Power Tool, Laser, or Nailer for any reason, you can return it within 90 days from the date of purchase with a receipt for a full refund – no questionsasked. lATin AMERiCA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warrantyinformation. FREE WARning lABEl REPlACEMEnT: If your warning labels become illegible or are missing, call 1-800-4- DeWALT

4.5" (115 mm) and 6" (150mm) Grinding Wheels Type 27 guard unthreaded backing flange Type 27 depressed center wheel threaded locking flange Type 27 guard Type 27 hubbed wheel 4.5" (115 mm) and 6" (150mm) Sanding Flap Discs Type 27 guard unthreaded backing flange non-hubbed sanding flap disc threaded locking flange Type 27 guard hubbed sanding flap disc 4.5" (115 mm) and 6" (150mm) Cutting Wheels Type 1/41 guard*** unthreaded backing flange Type 27/42 depressed center wheel, cutting only threaded locking flange Type 1/41 guard*** unthreaded backing flange Type 1/41 abrasive cutting wheel threaded locking flange Type 1/41 guard*** unthreaded backing flange diamond cutting wheel threaded locking flange Wire Wheels Type 27 guard 3–5" (76.2–127 mm) wire cup brush Type 27 guard 4"-6" (100–150 mm) wire wheel Sanding Discs rubber backing pad sanding disc clamp nut ACCESSORIES CHART

Type 1/41 guards are intended for use with Type 1/41 cutting wheels and Type 27 wheels marked for cutting only. Grinding with wheels other than Type 27 and Type 29 require different accessory guards. Always use the smallest proper guard possible that does not contact theaccessory.

• * * NOTE: A Type 1/41 guard is available at extra cost from your local dealer or authorized servicecenter.FRANÇAIS

DCB203BT, DCB207, DCB240, DCB361

DCB203BT, DCB207, DCB240, DCB361

WALT Industrial Tool Co., 701 East Joppa Road, Towson, MD 21286 (OCT19) Part No. N770107 DCG418 Copyright © 2019 D

WALT The following are trademarks for one or more D

WALT power tools: the yellow and black color scheme, the “D” shaped air intake grill, the array of pyramids on the handgrip, the kit box configuration, and the array of lozenge-shaped humps on the surface of thetool. 60V Max* Li-Ion Battery Packs Blocs-piles Baterías

• Maximum initial battery voltage (measured without a workload) is 12, 20, 60 or 120 volts. Nominal voltage is 10.8, 18, 54 or 108. (120V Max* is based on using 2 D

WARNING: Use of any other battery packs may create a risk of injury and fire.
