USER MANUAL Bravia KD43XH8599 SONY

This TV comes with the following manuals. Please retain the manuals for future reference.

Setup Guide

• TV installation and setup.

Reference Guide (this manual) / Safety Documentation

- Safety information, remote control, troubleshooting, wall-mount installation, specification, etc.

Help Guide (On screen Manual)

- Settings, Android TV functions, Internet connection, troubleshooting, etc.

- To open it, press the HELP button on the remote control and select Help Guide.

- You can refer to the Help Guide with your smartphone.

https://rd1.sony.net/help/tv/haep1/h_aep/

IMPORTANT - Read the End User Software Licence

Agreement before using your Sony product. Using your product indicates your acceptance of the End User Software Licence Agreement. The software licence agreement between you and Sony is available online at Sony website (http://www.sony.net/tv-software-licenses/) or on your product screen. Go to [Settings] → [Device Preferences] → [About] → [Legal information] → [Notices and licences].

Note

• Before operating the TV, please read the "Safety Information".
• Read the supplied safety documentation for additional safety information.
• Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product.
• The "xx" that appears in the model name corresponds to a numeric digit, related to design, colour or TV system.

Location of the identification label

Labels for the TV Model No., Production Date (year/month) and Power Supply rating are located on the rear of the TV or package.

For models with supplied mains adaptor: Labels for mains adaptor Model No. and Serial No. are located on the bottom of mains adaptor.

IMPORTANT NOTICE

Notice for Radio Equipment

Hereby, Sony Corporation declares that the radio equipment types KD-49XH9196, KD-49XH8599, KD-49XH8596, KD-49XH8588, KD-49XH8577, KD-49XH8505, KD-43XH9196, KD-43XH8599, KD-43XH8596, KD-43XH8588, KD-43XH8505 are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.compliance.sony.eu/

Notice for customers: the following information is only applicable to equipment sold in countries applying EU directives.

For this radio equipment, the following restrictions on putting into service or of requirements for authorization of use apply in AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, EL, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, UK, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo :

5150 - 5350 MHz band is restricted to indoor operations only.

Safety Information

Installation/Set-up

Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electric shock or damage and/or injuries.

Installation

• The TV set should be installed near an easily accessible mains socket.
• Place the TV set on a stable, level surface to prevent it from falling over and causing personal injury or property damage.
  • Install the TV where it cannot be pulled, pushed, or knocked over.
• Install the TV so that the TV's Table-Top Stand does not protrude out from the TV stand (not supplied). If the Table-Top Stand protrudes out from the TV stand, it may cause TV set to topple over, fall down, and cause personal injury or damage to the TV.

Diagram showing a monitor setup with an arrow pointing to a screen and a separate view of a mechanical component (no text or symbols)

Safety warning symbols including no/unknown and crossed-out signs, next to a monitor and bracket diagram

Transporting

• Before transporting the TV set, disconnect all cables.
• Two or more people are needed to transport a large TV set.
• When transporting the TV set by hand, hold it as shown below. Do not put stress on the LCD panel and the frame around the screen.
• When lifting or moving the TV set, hold it firmly from the bottom.

Illustration of two silhouetted figures holding a rectangular device (no text or symbols visible)

• When transporting the TV set, do not subject it to jolts or excessive vibration.
• When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.

Topple prevention

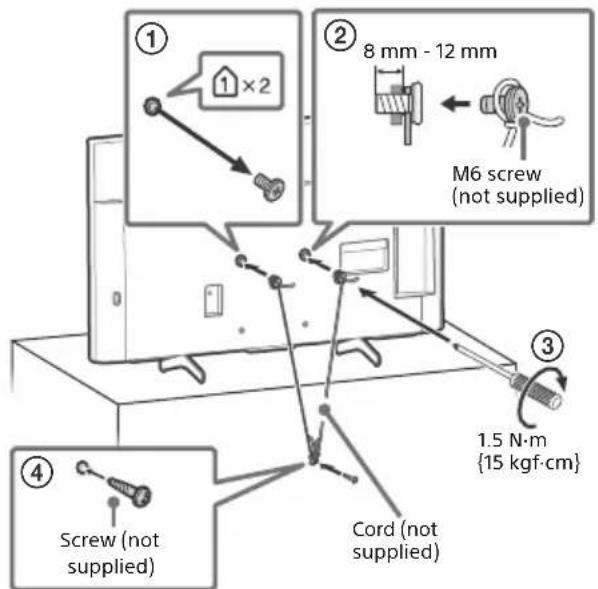

① ② 8 mm - 12 mm M6 screw (not supplied) ③ 1.5 N·m {15 kgf·cm} ④ Screw (not supplied) Cord (not supplied)

Remote Control and TV

The remote control shape, location, availability and function of remote control buttons may vary depending on your region/country/TV model.

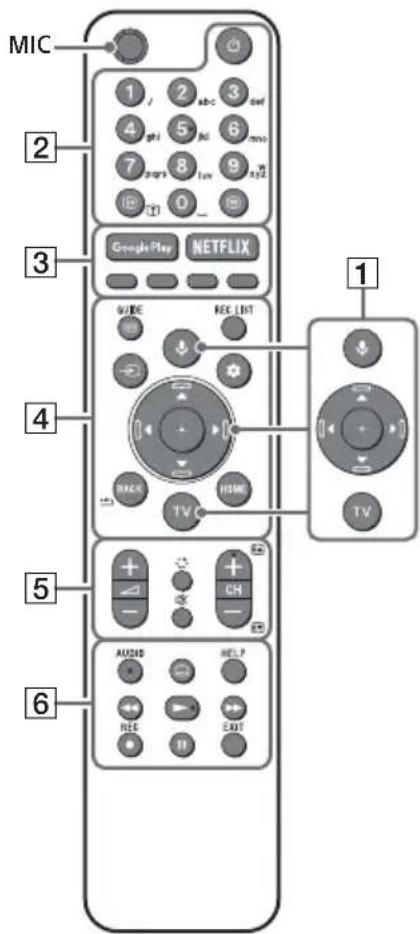

MIC 1 / 2 abc 3 swf 4 gti 5 Bd 6 mno 7 8 9 y2 0 ... GooglePlay NETFLIX VIDE REE LIST BACK HSMR TV TV 1 5 AUDIO HELP REE EXIT 6

1 ↓ (Microphone): Use the Google Assistant*1*2 or voice search*2. For hints on how to control your TV press ↓(Microphone) button and speak the phrase "voice hints".

▲/▼/◄/►/÷: On screen menu navigation and selection.

TV: Display TV channel list or switch to input.

2 ⏻ (TV standby)

Number buttons

i+/Info/Text reveal): Display information.
☐ (Text): Display text information.

3 Google Play / NETFLIX ^1 / Colour buttons
4 GUIDE: Display the digital programme guide of TV or TV box*1*3.

REC LIST: Display the Rec list of USB HDD/DVR ^*3 .

→ (Input select): Display and select the input source, etc.

(Qquick settings): Display Quick Settings. BACK/← HOME

5 +/- (Volume)

(Jump)

呂 × (Mute)^*4

CH +/−/☐/☐: Select the channel, or next (☐) / previous (☐) page.

6 AUDIO: Select the sound of multilingual source or dual sound (depend on programme source).

(Subtitle setting)

HELP: Display the Help menu.

● REC: Record the currently viewed programme on USB HDD/DVR ^*3 .

EXIT

8 7

7 ⏻ (Power)/+/-

8 Remote Control sensor / Light sensor / Illumination LED

*1 Only on limited region/country/TV model/language.
*2 The Google Assistant or voice search requires an Internet connection.
*3 [TV box setup] setting is required.
*4 Accessibility shortcut is available by pressing and holding ☒ (Mute).

For more information, refer to the Help Guide.

Installing the TV to the Wall

Using the optional Wall-Mount Bracket (SU-WL450)\* (not supplied)

To Customers:

For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Wall-Mount Bracket Installation Information

This TV's instruction manual only provides the steps to prepare the TV for Wall-Mount installation before it is installed on the wall. For instructions on Wall-Mount Bracket installation, see the Installation Information (Wall-Mount Bracket) on the product page for your TV model. https://www.sony.eu/support

Preparing for Wall-Mount Installation

• Prepare the TV for the Wall-Mount Bracket before making cable connections.
- Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this TV, especially to determine the strength of the wall for withstanding the TV's weight.
- Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.
- The screws for Wall-Mount Bracket are not supplied.
- Only qualified service personnel should carry out wall-mount installations.
- For safety reasons, it is strongly recommended that you use Sony accessories, including: —Wall-Mount Bracket SU-WL450

- Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Mount Bracket to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket.

The diameter and length of the screws differ depending on the Wall-Mount Bracket model. Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc.

8 mm - 12 mm

Screw (M6) Wall-Mount Bracket TV's rear cover

- Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready to attach the Table-Top Stand. Keep the screws away from small children.

* Only on limited region/country/TV model.

Note

- Place the TV with its screen facing down on a level and stable surface covered with a thick and soft cloth when removing the Table-Top Stand from the TV to prevent damaging the surface of the LCD display.

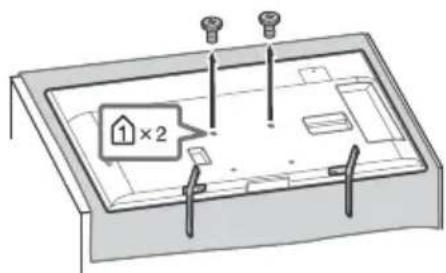

Remove the screws from the rear of the TV

1 × 2

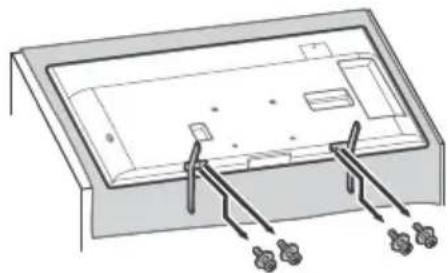

Detaching the Table-Top Stand from the TV

Diagram of a device rear panel with connectors and ports, no text or symbols present

Troubleshooting

General troubleshooting for issues like: black screen, no sound, frozen picture, TV does not respond, or network is lost, do the following steps.

1 Restart your TV by pressing the power button on the remote control for about five seconds. The TV will restart. If the TV does not recover, try unplugging the mains lead. Then press the power button on the TV, and release it. Wait for two minutes, and plug in the mains lead.
2 Refer to the Help menu by pressing HELP on the remote control.
3 Connect your TV to the Internet and perform a software update. Sony recommends you to keep your TV software updated. Software updates provide new features and performance improvements.
4 Visit Sony support website (information provided at the end of this manual).

When you plug in the TV, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV.

It takes time to initialize the system. Wait for about one minute, then operate it again.

The remote control does not function.

• Replace the batteries.
  The parental lock password has been forgotten.
• Enter 9999 for the PIN and enter the new PIN.

For more information on troubleshooting, refer to the Help Guide.

Specifications

System

Panel system: LCD (Liquid Crystal Display) Panel, LED Backlight

TV system: Depending on your country/area selection/TV model

Analogue: B/G, D/K, I

Digital: DVB-T/DVB-C/DVB-T2 ^4

Colour system: PAL/SECAM/NTSC3.58 (Video only)/NTSC4.43 (Video only)

Channel coverage: Depending on your country/area selection/TV model

Analogue: UHF/VHF/Cable

Digital: UHF/VHF/Cable

Satellite ^*1 : IF Frequency 950-2,150 MHz

Sound output: 10 W + 10 W

Wireless technology

Protocol IEEE 802.11a/b/g/n/ac

Bluetooth® Version 4.2

Frequency band(s)

Frequency range Output power
Wireless LAN (TV)
2400-2483.5 MHz	< 20.0 dBm
5150-5250 MHz	< 23.0 dBm
5250-5350 MHz	< 20.0 dBm
5470-5725 MHz	< 20.0 dBm
5725-5850 MHz	< 13.9 dBm
Bluetooth®(TV)
2400-2483.5 MHz < 10.0 dBm
Bluetooth®(Remote control)
2400-2483.5 MHz < 10.0 dBm

Input/Output jacks

Antenna (aerial)/cable

75 ohm external terminal for VHF/UHF

Satellite antenna ^*1

Female F Type Connector, 75 ohm.

DiSEqC 1.0, LNB 13 V/18 V & 22 kHz tone, Single

Cable Distribution EN50494.

→ 000 / COMPONENT IN

YP_BP_R (Component Video): 1080p (50, 60 Hz), 1080i (50, 60 Hz), 720p (50, 60 Hz), 576p, 576i, 480p, 480i

Audio input (phono jacks)

AV IN

Video input (common phono pin with Y input)

HDMI IN 1/2/3/4 (support 4K resolution, HDCP 2.3-compatible)

Video:

4096 × 2160p (50, 60 Hz)*2*3, 4096 × 2160p

(24 Hz)* ^2 , 3840 × 2160p (50, 60 Hz)* ^3 , 3840 ×

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p, PC Formats*4

Audio:

In eARC (Enhanced Audio Return Channel) mode

Refer to the Help Guide for details.

Except eARC mode

5.1 channel linear PCM: 32/44.1/48/88.2/

96/176.4/192 kHz 16/20/24 bits, Dolby

Audio, Dolby Atmos, DTS

eARC/ARC (Enhanced Audio Return Channel/Audio Return Channel) (HDMI IN 3 only) ^5

In eARC mode

Refer to the Help Guide for details.

In ARC mode

Two channel linear PCM: 48 kHz 16 bits, Dolby Audio, Dolby Atmos, DTS

→ DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM:

48 kHz 16 bits, Dolby Audio, DTS)

(Stereo mini jack)

Headphone

1, 2, 3 (HDD REC)* 6

USB device port (•3 USB HDD device for REC feature)

USB port 1 and 2 support High Speed USB (USB 2.0)

USB port 3 supports Super Speed USB (USB 3.1 Gen 1)

CAM (Conditional Access Module) slot

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. The communication rate and quality are not guaranteed.)

- C + DC IN 19.5 V

Mains adaptor input

Power, Product Fiche and others

Power requirements

19.5 V DC with mains adaptor

Rating: Input 220 V - 240 V AC, 50 Hz

Energy Efficiency Class

KD-49XH91xx / 49XH85xx: B

KD-43XH91xx / 43XH85xx: B

Screen size (measured diagonally) (Approx.)

KD-49XH91xx / 49XH85xx: 123.2 cm /

49 inches

KD-43XH91xx / 43XH85xx: 108.0 cm /

43 inches

Power consumption

In [Standard] mode

KD-49XH91xx / 49XH85xx: 105 W

KD-43XH91xx / 43XH85xx: 89 W

In [Vivid] mode

KD-49XH9196, KD-49XH8599, KD-49XH8596,

KD-49XH8588, KD-49XH8577, KD-49XH8505:

160 W

KD-43XH9196, KD-43XH8599, KD-43XH8596,

KD-43XH8588, KD-43XH8505: 150 W

Annual energy consumption ^4

KD-49XH91xx / 49XH85xx: 146 kWh per year

KD-43XH91xx / 43XH85xx: 123 kWh per year

Standby power consumption*8*9

0.50 W (25 W in software/EPG update mode)

Display resolution

3,840 dots (horizontal) × 2,160 lines (vertical)

Output Rating

USB 1/2

5 V, 500 mA MAX

USB 3

5 V, 900 mA MAX

Dimensions (Approx.) (w × h × d) (cm)

with Table-Top Stand (without Table-Top Stand)

KD-49XH91xx / 49XH85xx: 109.8 × 69.9 × 27.9

(109.8 × 64.4 × 5.8)

KD-43XH91xx / 43XH85xx: 96.5 × 62.4 × 26.4

(96.5×56.9×5.8)

Mass (Approx.) (kg)

with Table-Top Stand (without Table-Top Stand)

KD-49XH91xx / 49XH85xx: 13.7 (13.2)

KD-43XH91xx / 43XH85xx: 11.3 (10.8)

Others

Optional accessories

Wall-Mount Bracket: SU-WL450

Operating temperature: 0 °C – 40 °C

Operating humidity: 10 % – 80 % RH

(non-condensing)

*1 Not all the TV sets have DVB-T2 or DVB-S/S2 technology or satellite antenna terminal.

*2 When 4096 × 2160p is input and [Wide mode] is set to [Normal], the resolution is displayed as 3840 × 2160p . To display 4096 × 2160p , set [Wide mode] setting to [Full 1] or [Full 2].

*3 To support 18 Gbps, set [HDMI signal format] to [Enhanced format].

*4 Refer to the online Help Guide for details.

*5 Connect your audio system to the HDMI IN 3 to route TV audio to your audio system.

*6 Only on limited region/country/TV model.

*7 Energy consumption in kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.

*8 Specified standby power is reached after the TV finishes necessary internal processes.

*9 Standby power consumption will increase when your TV is connected to the network.

Note

- Optional accessories availability depends on countries/region/TV model/stock.

- Design and specifications are subject to change without notice.

- Subscriptions for services and applications may be required and additional terms, conditions and/or charges may apply when using the Google Assistant.

Notes on Digital TV function

- Digital TV (DVB terrestrial, satellite and cable), interactive services and network functions may not be available in all countries or areas. Some functions might not be enabled or might not operate correctly with some providers and network environments. Some TV service providers may charge a fee for their services.

- This TV supports digital broadcasting using MPEG-2, H.264/MPEG-4 AVC and H.265/HEVC codecs, but compatibility with all operator/service signals, which may change over time, cannot be guaranteed.

Trademark Information

- The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

- Dolby, Dolby Vision, Dolby Atmos, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2018 Dolby Laboratories. All rights reserved.

• Gracenote, the Gracenote logo and logotype, "Powered by Gracenote" logo are either registered trademarks or trademarks of Gracenote, Inc. in the United States and/or other countries.
• Google, Google Play, Chromecast, YouTube, Android TV and other related marks and logos are trademarks of Google LLC.
• For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS and the Symbol together, and Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.
• Netflix is a registered trademark of Netflix, Inc.
• DiSEqC™ is a trademark of EUTELSAT. This TV supports DiSEqC 1.0. This TV is not intended for controlling motorized antennas.
• TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.
• All other trademarks are the property of their respective owners.

https://rd1.sony.net/help/tv/haep1/h_aep/

Diagram illustrating three different electrical circuitry conditions: check, no/×, and switch symbols.

Transport

Illustration of two silhouetted figures holding a rectangular electronic device (no text or symbols visible)

—Support de fixation murale SU-WL450

Diagram of a device with connectors and ports, no text or symbols present

Dépannage

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p, Formats PC*4

Audio :

En mode eARC (Enhanced Audio Return

Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (HDMI IN 3

uniquement)*5

En mode eARC

DIGITAL AUDIO OUT (OPTICAL)

1, 2, 3 (HDD REC)* 6

KD-43XH8588, KD-43XH8505: 150 W

https://rd1.sony.net/help/tv/haep1/h_aep/

Diagram illustrating three different electrical circuit symbols: a switch, a pole, and a lamp, with Chinese characters indicating symbols for protection or disconnection.

Transporte

Illustration of two silhouetted figures holding a rectangular device (no text or symbols visible)

https://www.sony.eu/support

Diagram of a device with connectors and ports, no text or symbols present

Digital: UHF/VHF/Cable

Satélite ^*1 : Frecuencia IF 950-2 150 MHz

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p, Formatos de PC*4

Audio:

En el modo eARC (Enhanced Audio Return Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (sólo HDMI IN 3)*5

En el modo eARC

DIGITAL AUDIO OUT (OPTICAL)

Toma digital óptica (PCM lineal de dos

canales: 48 kHz 16 bits, Dolby Audio, DTS)

(minitoma estéreo)

Auricular

1, 2, 3 (HDD REC)* 6

KD-43XH8588, KD-43XH8505: 150 W

https://rd1.sony.net/help/tv/haep1/h_aep/

Diagram illustrating three different electrical circuit symbols: a switch, a pole, and a lamp, with Chinese labels.

Transport

Illustration of two silhouetted figures holding a rectangular electronic device (no text or symbols visible)

https://www.sony.eu/support

Diagram of a device with connectors and ports, no text or symbols present

NL

Problemen oplossen

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (alleen HDMI IN 3)*5

In eARC-modus

Tweekanaals lineaire PCM: 48 kHz 16 bits,

Dolby Audio, Dolby Atmos, DTS

DIGITAL AUDIO OUT (OPTICAL)

KD-43XH8588, KD-43XH8505: 150 W

Afmetingen (ong.) (b × h × d) (cm)

https://rd1.sony.net/help/tv/haep1/h_aep/

Diagram illustrating three different types of lighting or fixture installation methods, including check, no/×, and cross symbols.

Transport

Illustration of two silhouetted figures holding a rectangular electronic device (no text or symbols visible)

MIC 1 2 abc 3 def 4 phi 5 phi 6 info 7 eqrs 8 lon yds IE 0 ... Google Play NETFLIX WUBE REE LIST BACK HOME TV TV 1 5 AUDIO HEL? REC CUT 6

https://www.sony.eu/support

Diagram of a device with connectors and ports, no text or symbols present

DE

Störungsbehebung

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 480p,

Computerformate ^4

Audio:

Im eARC (Enhanced Audio Return Channel)-Modus

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (nur HDMI IN 3)*5

Im eARC-Modus

DIGITAL AUDIO OUT (OPTICAL)

KD-43XH8588, KD-43XH8505: 150 W

https://rd1.sony.net/help/tv/haep1/h_aep/

Diagram showing a screen setup with an arrow indicating direction and a separate view of a mechanical component.

Safety warning symbols including no sign, crossed-out X, and diagonal line drawing

Transporte

Illustration of two silhouetted figures holding a rectangular device (no text or symbols visible)

https://www.sony.eu/support

Diagram of a device with connectors and ports, no text or symbols present

→ DIGITAL AUDIO OUT (OPTICAL)

Tomada digital ótica (PCM linear de dois canais: 48 kHz 16 bits, Dolby Audio, DTS)

KD-43XH8588, KD-43XH8505: 150 W

https://rd1.sony.net/help/tv/haep1/h_aep/

Diagram illustrating three different electrical circuitry conditions: check, no protection, and switch symbols.

Trasporto

Illustration of two silhouetted figures holding a rectangular device (no text or symbols visible)

https://www.sony.eu/support

Diagram of a device rear panel with connectors and ports, no text or symbols present

DIGITAL AUDIO OUT (OPTICAL)

KD-43XH8588, KD-43XH8505: 150 W

Consumo energetico annuo ^*7

https://rd1.sony.net/help/tv/haep1/h_aep/

Diagram showing a screen setup with an arrow indicating direction and a separate view of a mechanical component.

Safety warning symbols for electrical circuitry, including no/no/unknown symbol and safety instructions

Transport

Illustration of two human silhouettes holding a rectangular device with internal components (no text or symbols)

Diagram of a device rear panel with connectors and ports, no text or symbols present

Felsökning

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Endast HDMI IN 3)*5 I eARC-läge

DIGITAL AUDIO OUT (OPTICAL)

KD-43XH8588, KD-43XH8505: 150 W

https://rd1.sony.net/help/tv/haep1/h_aep/

Diagram illustrating three different electrical circuitry or safety rules with checkmark and prohibition symbols

Transport

Illustration of two human silhouettes holding a rectangular device (no text or symbols visible)

Diagram of a device rear panel with connectors and ports, no text or symbols present

Fejlfinding

I eARC (Enhanced Audio Return Channel)-tilstand

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (kun HDMI IN 3)*5

I eARC-tilstand

→ DIGITAL AUDIO OUT (OPTICAL)

Digitalt optisk stik (to-kanals lineær PCM: 48 kHz 16 bit, Dolby Audio, DTS)

(Stereo-minijack)

Hovedtelefoner

1, 2, 3 (HDD REC)* 6

USB-port (3 USB HDD-enhanced for REC-funktion)

I [Standard] tilstand

KD-49XH91xx / 49XH85xx: 105 W

KD-43XH91xx / 43XH85xx: 89 W

I [Kraftig] tilstand

KD-49XH9196, KD-49XH8599, KD-49XH8596,

KD-49XH8588, KD-49XH8577, KD-49XH8505:

160 W

KD-43XH9196, KD-43XH8599, KD-43XH8596,

KD-43XH8588, KD-43XH8505: 150 W

Mål (Ca.) (b × h × d) (cm)

Inkl. TV-fod (Uden TV-fod)

KD-49XH91xx / 49XH85xx: 109,8 × 69,9 × 27,9

(109,8 × 64,4 × 5,8)

KD-43XH91xx / 43XH85xx: 96,5 × 62,4 × 26,4

(96,5 × 56,9 × 5,8)

Vægt (Ca.) (kg)

Inkl. TV-fod (Uden TV-fod)

KD-49XH91xx / 49XH85xx: 13,7 (13,2)

KD-43XH91xx / 43XH85xx: 11,3 (10,8)

Andre

Ekstraudstyr

https://rd1.sony.net/help/tv/haep1/h_aep/

Diagram illustrating three different electrical circuitry or safety rules with checkmarks and prohibition symbols

Illustration of two silhouetted figures holding a rectangular electronic device (no text or symbols visible)

https://www.sony.eu/support

Diagram of a device rear panel with connectors and ports, no text or symbols present

Vianmääritys

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p, PC-muodot ^4

Audio:

eARC (Enhanced Audio Return Channel)-tilassa

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Vain HDMI IN 3) ^5

eARC-tilassa

DIGITAL AUDIO OUT (OPTICAL)

KD-43XH8588, KD-43XH8505: 150 W

https://rd1.sony.net/help/tv/haep1/h_aep/

Diagram showing a screen setup with an arrow indicating direction and a separate view of a mechanical component.

Safety warning symbols including no sign, crossed-out X, and structural diagram with diagonal braces

Bæring

Illustration of two silhouetted figures holding a rectangular device (no text or symbols visible)

(Teksting-innstilling)

HELP: Vis Hjelp-menyen.

◀/▶/▶/II

- REC: Ta opp programmet som vises på USB HDD/DVR*3.

EXIT

8 7

7 ⏻ (Strøm)/+/-

8 Fjernkontroll-sensor / Lyssensor / LED-lys

https://www.sony.eu/support

Forberede veggmontering

Diagram of a device rear panel with connectors and ports, no text or symbols present

Feilsøking

Lydinngang (phonoplugger)

AVIN

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p, PC-formater ^A

Lyd:

I eARC (Enhanced Audio Return Channel)-modus

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Kun HDMI IN 3) ^5

I eARC-modus

DIGITAL AUDIO OUT (OPTICAL)

Digital optisk kontakt (tokanals lineær PCM: 48 kHz 16 biter, Dolby Audio, DTS)

( minijack, stereo )

Hodetelefon

1, 2, 3 (HDD REC)* 6

AM-spor (Conditional Access Module)

LAN

10BASE-T/100BASE-TX-kontakt

KD-43XH8588, KD-43XH8505: 150 W

Mål (ca.) (b × h × d) (cm)

med bordstativ (uten bordstativ)

KD-49XH91xx / 49XH85xx: 109,8 × 69,9 × 27,9

(109,8 × 64,4 × 5,8)

KD-43XH91xx / 43XH85xx: 96,5 × 62,4 × 26,4

(96,5×56,9×5,8)

Vekt (ca.) (kg)

med bordstativ (uten bordstativ)

KD-49XH91xx / 49XH85xx: 13,7 (13,2)

KD-43XH91xx / 43XH85xx: 11,3 (10,8)

Annet

Tilleggsutstyr

Veggmonteringsbrakett: SU-WL450

https://rd1.sony.net/help/tv/haep1/h_aep/

Diagram illustrating three different electrical circuit symbols: a switch, a pole, and a lamp, with Chinese characters indicating symbols for protection or disconnection.

Transport

Illustration of two silhouetted figures holding a rectangular electronic device (no text or symbols visible)

https://www.sony.eu/support

Diagram of a device with connectors and ports, no text or symbols present

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, formaty

komputerowe*4

Audio:

W trybie eARC (Enhanced Audio Return Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (tylko HDMI IN 3)*5

W trybie eARC

→ DIGITAL AUDIO OUT (OPTICAL)

KD-43XH8588, KD-43XH8505: 150 W

https://rd1.sony.net/help/tv/haep1/h_aep/

Diagram showing a device with an arrow indicating direction and a separate view of a mechanical or structural component.

Safety warning symbols for electrical circuitry, including no protection and cross symbol

Přeprava

Illustration of two silhouetted figures holding a rectangular device (no text or symbols visible)

https://www.sony.eu/support

Diagram of a device with connectors and ports, no text or symbols present

Řešení problémů

(24 Hz)*2, 3840 × 2160p (50, 60 Hz)*3,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, PC formáty*4

Audio:

V režimu eARC (Enhanced Audio Return Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (pouze HDMI IN 3) ^*5 V režimu eARC

DIGITAL AUDIO OUT (OPTICAL)

KD-43XH8588, KD-43XH8505: 150 W

https://rd1.sony.net/help/tv/haep1/h_aep/

Diagram illustrating three different electrical circuitry or safety rules with checkmarks and prohibition symbols

Preprava

Illustration of two silhouetted figures holding a rectangular device (no text or symbols visible)

https://www.sony.eu/support

Diagram of a device with connectors and ports, no text or symbols present

Riešenie problémov

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (len model HDMI IN 3) ^5

V režime eARC

Podrobnosti nájdete v Príručke.

V režime ARC

Dvojkanálový lineárny PCM: 48 kHz 16 bitov,

Dolby Audio, Dolby Atmos, DTS

DIGITAL AUDIO OUT (OPTICAL)

Digitálny optický konektor (dvojkanálový lineárny PCM: 48 kHz 16 bitov, Dolby Audio, DTS)

1, 2, 3 (HDD REC)* 6

Port v zariadení USB (3 Zariadenie s USB HDD pre funkciu REC)

KD-43XH8588, KD-43XH8505: 150 W

https://rd1.sony.net/help/tv/haep1/h_aep/

Diagram showing a screen setup with a checkmark and a bracket diagram, likely illustrating a folding or alignment process.

Safety warning symbols for electrical circuitry, including no/no/unknown prohibition and circuit breaker protection

Szállítás

Illustration of two silhouetted figures holding a rectangular electronic device (no text or symbols visible)

Diagram of a device with connectors and ports, no text or symbols present

Hibaelhárítás

(24 Hz)*2, 3840 × 2160p (50, 60 Hz)*3,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

PC formátumok*4

Audio:

eARC (Enhanced Audio Return Channel)

üzemmodban

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Csak HDMI IN 3)*5

eARC üzemmodban

DIGITAL AUDIO OUT (OPTICAL)

1, 2, 3 (HDD REC)* 6

KD-43XH8588, KD-43XH8505: 150 W

https://rd1.sony.net/help/tv/haep1/h_aep/

INFORMATIE IMPORTANTĂ

Observatie cu privire la echipamentul radio

Diagram showing a screen setup with an arrow indicating direction and a separate view of a mechanical component.

Safety warning symbols including no sign, crossed-out X, and structural diagram with diagonal braces

Transportul

Illustration of two silhouetted figures holding a rectangular electronic device (no text or symbols visible)

https://www.sony.eu/support

Diagram of a device with connectors and a panel, no visible text or symbols

Depanare

Analogic: B/G, D/K, I

Digital: DVB-T/DVB-C/DVB-T2 ^4

Analogic: UHF/VHF/Cablu

Digital: UHF/VHF/Cablu

Satelit*1: Frecvență IF 950-2.150 MHz

Ieşire audio: 10 W + 10 W

Tehnologie wireless

Protocol IEEE 802.11a/b/g/n/ac

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Formate PC ^*4

Audio:

96/176,4/192 kHz 16/20/24 biti,

Dolby Audio, Dolby Atmos, DTS

eARC/ARC (Enhanced Audio Return Channel/Audio Return Channel) (Numai HDMI IN 3)*5

În modul eARC

DIGITAL AUDIO OUT (OPTICAL)

KD-43XH8588, KD-43XH8505: 150 W

Consumul de energie anual ^*7

KD-49XH91xx / 49XH85xx: 146 kWh pe an

KD-43XH91xx / 43XH85xx: 123 kWh pe an

https://rd1.sony.net/help/tv/haep1/h_aep/

Diagram illustrating three different types of lighting or fixture installation methods, including check, no/×, and cross symbols.

Пренасяне

Illustration of two silhouetted figures holding a rectangular electronic device (no text or symbols visible)

https://www.sony.eu/support

Diagram of a device with connectors and a central panel, no visible text or symbols

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

PC формати*4

Аудио:

В режим eARC (Enhanced Audio Return Channel)

eARC/ARC (Enhanced Audio Return Channel/Audio Return Channel) (camo HDMI IN 3)*5

В режим eARC

DIGITAL AUDIO OUT (OPTICAL)

Цифров оптичен жак (Двуканален линеен PCM: 48 kHz 16 бита, Dolby Audio, DTS)

(Стерео мини жак)

Слушалки

2,3 (HDD REC)\*

6

порт за USB устройство (S USB HDD устройство за функция REC)

KD-43XH8588, KD-43XH8505: 150 W

https://rd1.sony.net/help/tv/haep1/h_aep/

Diagram illustrating three different types of electrical circuitry: switch, no gate, and switch symbol.

Μεταφορά

Illustration of two silhouetted figures holding a rectangular device (no text or symbols visible)

Diagram of a device with three connectors and a central panel, no text or symbols present

eARC/ARC (Enhanced Audio Return Channel/

DIGITAL AUDIO OUT (OPTICAL)

1, 2, 3 (HDD REC)* 6

KD-43XH8588, KD-43XH8505: 150 W

https://rd1.sony.net/help/tv/haep1/h_aep/

Diagram illustrating three different electrical circuitry conditions: check, no/×, and switch symbols.

Nakliye

Illustration of two silhouetted figures holding a rectangular device (no text or symbols visible)

https://www.sony.eu/support

Diagram of a device rear panel with connectors and ports, no text or symbols present

Sorun Giderme

Dijital: UHF/VHF/Kablolu

→ DIGITAL AUDIO OUT (OPTICAL)

1, 2, 3 (HDD REC)* 6

KD-43XH8588, KD-43XH8505: 150 W

https://www.sony.eu/support
