Product Type	LED LCD TV
Screen Size	55 inches (138.8 cm diagonal)
Display Resolution	3840 x 2160 pixels (4K UHD)
Backlight	LED
TV Standards	Analog: B/G, D/K, I; Digital: DVB-T/C/T2, DVB-S/S2
Sound	2 x 10 W
HDMI Connectivity	3 HDMI inputs (including 1 with ARC)
USB Connectivity	3 USB 2.0 ports
Network	Wi-Fi 802.11b/g/n, Ethernet 10/100
Smart Functions	Netflix, YouTube, BRAVIA Sync, HDR10
Dimensions (without stand)	124.1 x 72.1 x 7.9 cm (W x H x D)
Dimensions (with stand)	124.1 x 78.1 x 34.0 cm
Weight (without stand)	15.4 kg
Weight (with stand)	16.3 kg
Power Supply	220-240 V ~ 50 Hz
Power Consumption (standard)	110 W
Power Consumption (standby)	0.50 W
Optional Accessories	Wall Mount SU-WL450

Frequently Asked Questions - Bravia KD55X7052 SONY

What to do if the remote control does not work?

Replace the remote control batteries with new ones. Check that no obstacle is blocking the remote control sensor. If the problem persists, reset the TV by unplugging the power cord for two minutes.

Why is there no picture or sound?

Check that the TV is properly plugged into a power outlet and turned on (LED indicator lit). Make sure the antenna or cable is correctly connected. Test with another source (e.g., HDMI) to isolate the problem.

How can I connect an HDMI device?

Connect your device to one of the HDMI IN jacks (1, 2, or 3) on the back of the TV. Press the SOURCE or INPUT button on the remote control to select the corresponding input.

The TV turns off by itself, what should I do?

Check the timer settings: press HOME, then go to [Settings] > [Timers]. Disable the [Sleep Timer] or [Duration] functions if they are enabled. Also check the [TV Auto Off] function.

How to reset the TV in case of a problem?

Unplug the TV power cord from the outlet for at least two minutes, then plug it back in. If the LED indicator flashes red, count the number of flashes and contact Sony customer service.

Can I mount the TV on the wall?

Yes, the TV is compatible with the SU-WL450 wall mount bracket (optional). Installation should be performed by a qualified technician to ensure safety.

What is the power consumption in standby?

The standby power consumption is 0.50 W when the TV is in standard standby mode. This value may increase if the TV remains connected to the network.

How to clean the TV screen?

Use a soft, dry cloth (microfiber) to dust the screen. Never use abrasive products, alcohol, or liquids directly on the screen. Unplug the device before cleaning.

What video formats are supported via USB?

The TV plays video files in MPEG-2, H.264/MPEG-4 AVC, and H.265/HEVC formats, including 4K resolution. For more details, refer to the built-in help guide.

How to access the help guide?

Press the HOME button on the remote control, then select [Help Guide] from the [Settings] menu. You can also view it from a PC or smartphone using the link provided on the back cover of the manual.

USER MANUAL Bravia KD55X7052 SONY

For useful information about Sony products

https://www.sony.eu/support

BRAVIA

Reference Guide	GB
Guide de référence	FR
Guía de referencia	ES
Referentiegids	NL
Referenzanleitung	DE
Guía de referencia	PT
Guida di riferimento	IT
Referensmaterial	SE
Referencevejledning	DK
Viiteopas	FI
Referanseveiledning	NO
Przewodnik	PL
Referenční príručka	CZ
Referenční príručka	SK
Felhasznález útmutató	HU
Ghid de referintă	RO
Информацья за позукту	BG
Öðnyóç áváφopáç	GR
Başvuru Kılıvuzu	TR

To attach the Table-Top Stand, refer to the Setup Guide.

Table of Contents

IMPORTANT NOTICE 2

Safety Information 2

Remote Control and TV. 4

Connection Diagram 6

Installing the TV to the Wall 8

Using the optional Wall-Mount Bracket . . .8

Detaching the Table-Top Stand from the TV. 9

Troubleshooting. 10

Troubles and Solutions. 10

Specifications 10

Introduction

Thank you for choosing this Sony product.

Before operating the TV, please read this manual thoroughly and retain it for future reference.

Note

Before operating the TV, please read the "Safety Information" (page 2). Read the supplied safety documentation for additional safety information. Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product. The "xx" that appears in the model name corresponds to a numeric digit, related to design, colour or TV system.

Help Guide (Manual)

For more detailed information, press HOME on the remote control, then select [Help Guide] under [Settings] menu. You can also check the Help Guide from your PC or smartphone (information provided on the back cover of this manual).

Location of the identification label

Labels for the TV Model No., Production Date (year/month) and Power Supply rating are located on the rear of the TV or package.

For models with supplied mains adaptor:

Labels for mains adaptor Model No. and Serial No. are located on the bottom of mains adaptor.

IMPORTANT NOTICE

Notice for Radio Equipment

Hereby, Sony Corporation declares that the radio equipment types KD-65X7056, KD-65X7055, KD-65X7053, KD-65X7052, KD-55X7056, KD-55X7055, KD-55X7053, KD-55X7052, KD-49X7056, KD-49X7055, KD-49X7053, KD-49X7052, KD-43X7056, KD-43X7055, KD-43X7053, KD-43X7052 are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.compliance.sony.eu/

This radio equipment can be operated in the EU without infringing applicable requirements on the use of radio spectrum.

Safety Information

Installation/Set-up

Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electric shock, or damage and/or injuries.

Installation

• The TV set should be installed near an easily accessible mains socket.
• Place the TV set on a stable, level surface to prevent it from falling over and causing personal injury or property damage. Install the TV where it cannot be pulled, pushed, or knocked over.
• Install the TV so that the TV's Table-Top Stand does not protrude out from the TV stand (not supplied). If the Table-Top Stand protrudes out from the TV stand, it may cause the TV set to topple over, fall down, and cause personal injury or damage to the TV.

• Only qualified service personnel should carry out wall-mount installations. For safety reasons, it is strongly recommended that you use Sony accessories, including: Wall-Mount Bracket: SU-WL450
• Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Mount Bracket to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket. The diameter and length of the screws differ depending on the Wall-Mount Bracket model.

Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc.

Transporting

• Before transporting the TV set, disconnect all cables.
• Two or more people are needed to transport a large TV set.
• When transporting the TV set by hand, hold it as shown below. Do not put stress on the LCD panel and the frame around the screen.
• When lifting or moving the TV set, hold it firmly from the bottom.

• When transporting the TV set, do not subject it to jolts or excessive vibration.
• When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.

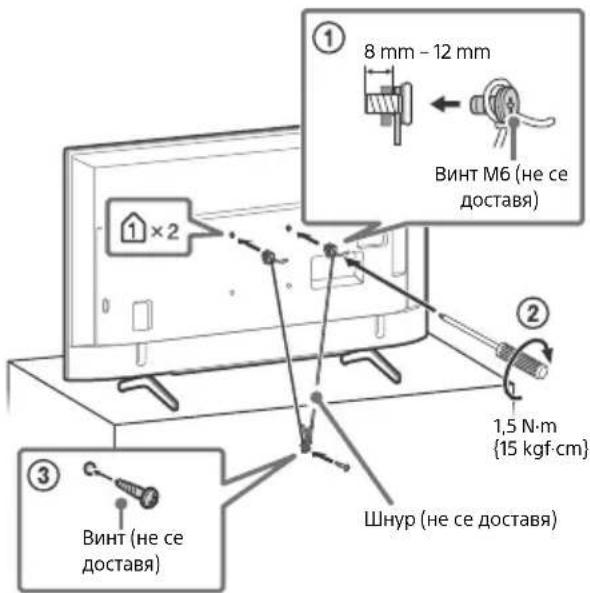

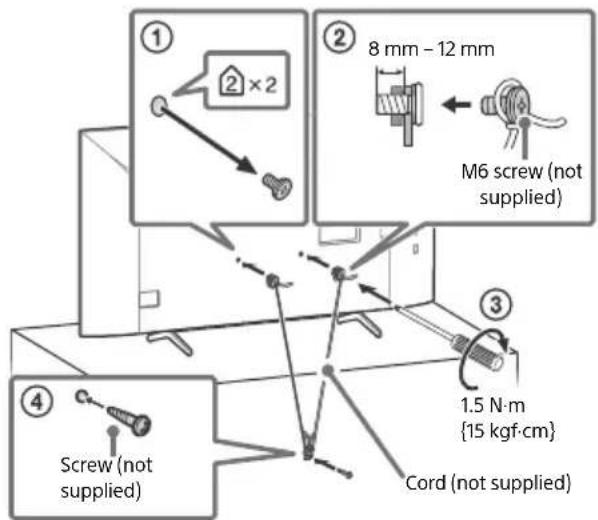

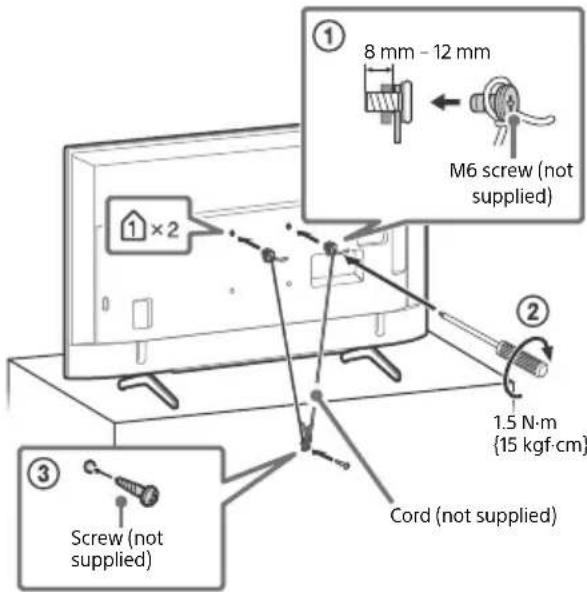

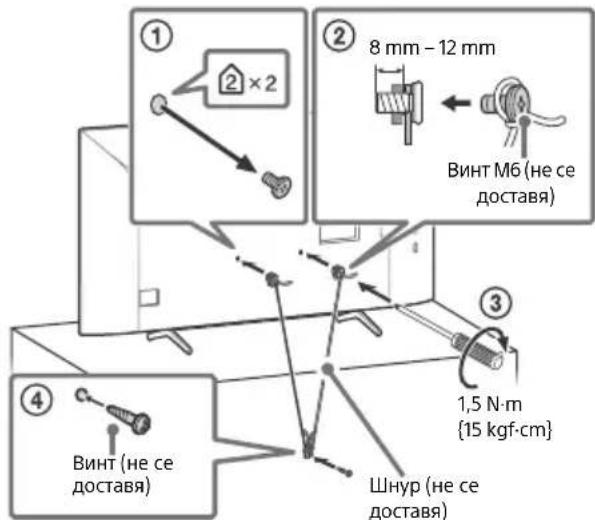

Topple prevention KD-65X70xx

KD-55X70xx / 49X70xx / 43X70xx

Remote Control and TV

The remote control shape, location, availability and function of remote control buttons may vary depending on your region/country/TV model.

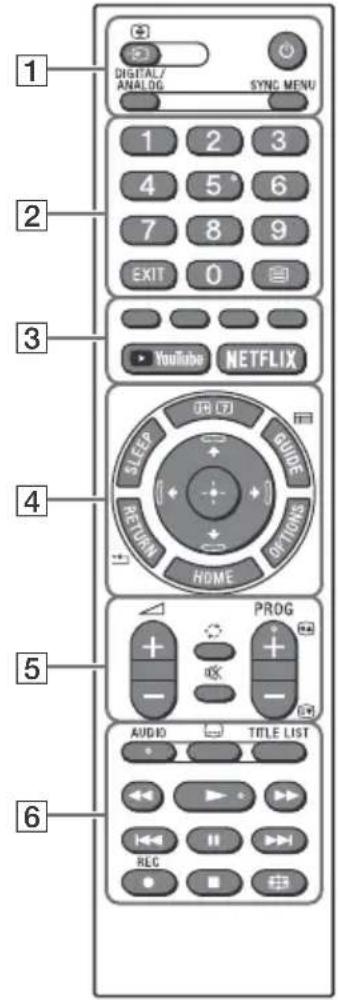

1 (Input select/Text hold)

In TV mode: Display and select the input source.

In Text mode: Hold the current page.

(TV standby)

DIGITAL/ANALOG

Switch between digital and analogue input.

SYNC MENU

Display the BRAVIA Sync Menu.

For more detailed information, press HOME on the remote control, then select [Help Guide] under [Settings] menu.

Number buttons

EXIT

(Text)

Display text information.

3 Colour buttons

YouTube (Only on limited region/ country/TV model)

NETFLIX (Only on limited region/ country/TV model)

4 17

I n f o / T e x t r e v

Display information.

SLEEP

Press repeatedly until the TV displays the time in minutes ([Off]/[15 min]/[30 min]/[45 min]/[60 min]/[90 min]/[120 min]) that you want the TV to remain on before shutting off. To cancel the sleep timer, press SLEEP repeatedly until [Off] appears.

GUIDE/

Display the Digital EPG (Electronic Programme Guide).

RETURN/

OPTIONS

Display a list that contains shortcuts to some setting menus.

The listed options vary depending on the current input and content.

HOME

/4/4/1

On screen menu navigation and selection.

5 +/-(Volume)

(Jump)

(Mute)

PROG+/-/E/A/E

In TV mode: Select the channel.

In Text mode: Select the next (E) or previous (E) page.

6 AUDIO

Select the sound of multilingual source or dual sound (depend on programme source).

(Subtitle setting)

Title List (Not available for Italy)

Display the Title list.

Operate media contents on the TV and connected BRAVIA Sync-compatible device. This key can also be used to operate VOD (Video on Demand) service playback. Availability depends on VOD service.

REC (Not available for Italy)

Record the currently viewed programme on the USB HDD.

(Wide Mode)

Adjust the screen display. Press repeatedly to select the desired wide mode.

KD-65X70xx

KD-55X70xx / 49X70xx / 43X70xx

(Power)

Remote Control sensor / LED indicator

Note

• If subtitles are selected and the user launches a digital text application via 'text' key, subtitles may, under certain circumstances, stop being displayed. When the user exits the digital text application, subtitle decoding will resume automatically.
• Make sure that the TV is completely turned off before unplugging the mains lead.
• To disconnect the TV from the mains completely, pull the plug from the mains socket.
• Please wait for a while when performing input selection to change to other input.

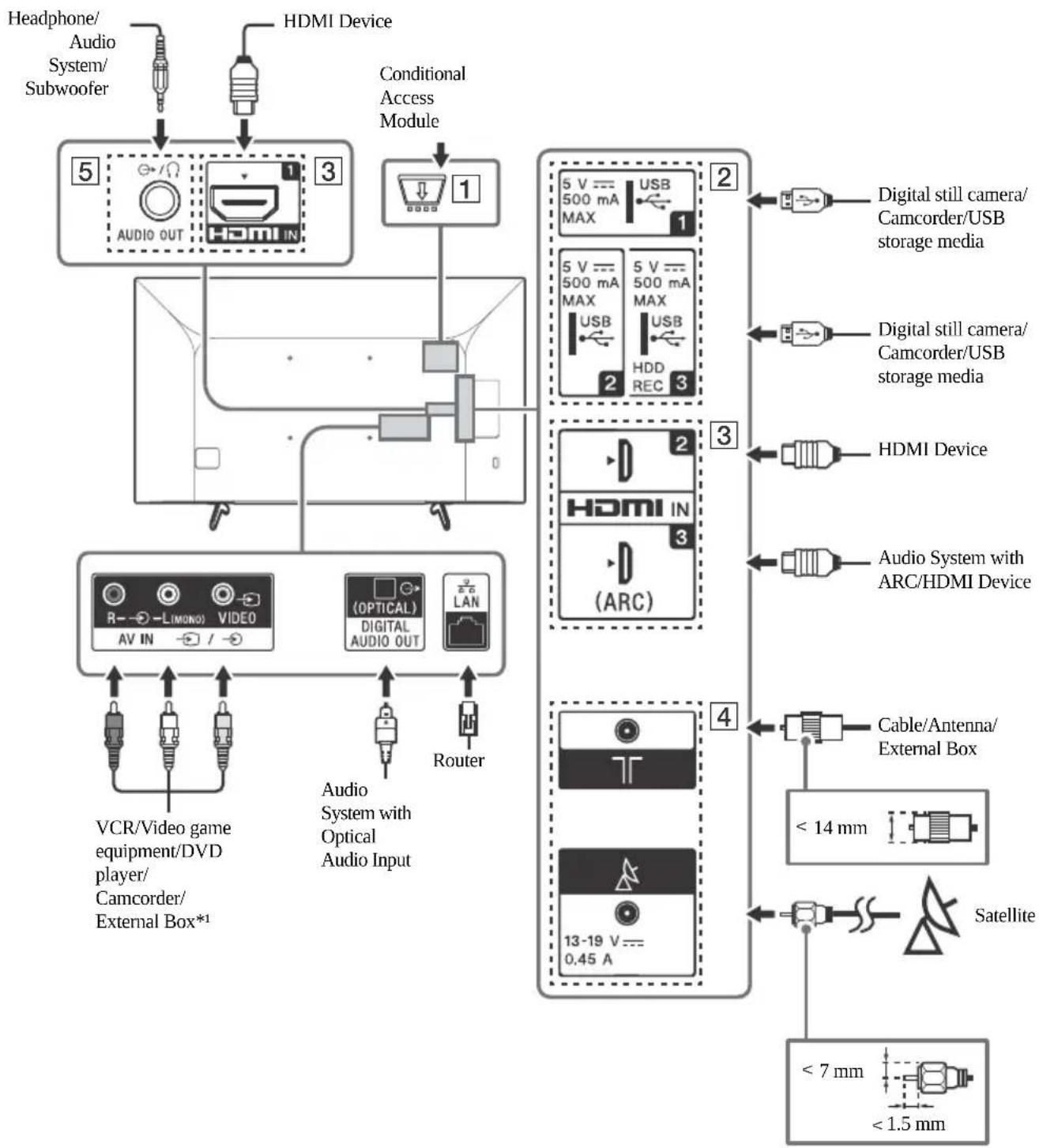

Connection Diagram

You can connect a wide range of optional equipment to your TV.

Note

• Terminals, labels and functions may vary depending on region/country/TV model.

1 CAM (Conditional Access Module)

• Provides access to pay TV services. For details, refer to the instruction manual supplied with your CAM.
• Do not insert the smart card directly into the TV CAM slot. It must be fitted into the Conditional Access Module provided by your authorised dealer.
• CAM is not supported in some countries/areas. Check with your authorised dealer.
• A CAM message may appear when you switch to a digital programme after using the Internet video.

2 USB1/2, USB3 (HD)

• Connecting a large USB device may interfere with other connected devices beside it.
• When connecting a large USB device, connect to the USB 1 port.
• Connect a USB HDD device to the USB 3 port.

3 HDMI IN 1/2/3

• The HDMI interface can transfer digital video and audio on a single cable.

HDMI IN 2/3

To enjoy high quality 4K 50p/60p content, connect a Premium High Speed HDMI cable to the HDMI IN 2/3 and set the [HDMI signal format] to [Enhanced format].

For details of supported formats, refer to the "Specifications" in this manual (pages 10-11).

HDMI IN 3 ARC (Audio Return Channel)

Connect your audio system to the HDMI IN 3 to route TV audio to your audio system. An audio system that supports HDMI ARC can send video to the TV and receive audio from the TV via the same HDMI cable. If your audio system does not support HDMI ARC, an additional connection with DIGITAL AUDIO OUT

(OPTICAL) is necessary.

REC)

4 (RF input), (Satellite input)* 2

• Connections for terrestrial/cable and satellite.

5 AUDIO OUT

Supports 3-pole stereo mini jack only. - To listen to the TV's sound through the connected equipment, press HOME, then select [System Settings] → [Setup] → [AV Setup] → [Headphone/Audio Out] and then select the desired item.

Note

1 For an external device which has only SCART AV OUT, use a SCART-RCA adaptor. 2 Only on limited region/country/TV model.

Installing the TV to the Wall

Using the optional Wall-Mount Bracket

This TV's instruction manual only provides the steps to prepare the TV for Wall-Mount installation before it is installed on the wall.

To Customers:

For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Sufficient expertise is required for installing this product, especially to determine the strength of the wall for withstanding the TV's weight. Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.

Use the Wall-Mount Bracket SU-WL450 (not supplied) to install the TV to the wall.

When installing the Wall-Mount Bracket, also refer to the Operating Instructions and Installation Guide supplied with the Wall-Mount Bracket.

Note

• Be sure to store the removed screws in a safe place, keeping them away from children.
• If the Table-Top Stand is attached to the TV, detach the Table-Top Stand beforehand. See the Setup Guide and follow in reverse order the steps to detach the Table-Top Stand.
• Place the TV with its screen facing down on a level and stable surface covered with a thick and soft cloth when removing the Table-Top Stand from the TV to prevent damaging the surface of the LCD display. (KD-49/43X70xx only)

For instructions on Wall-Mount Bracket installation, see the Installation Information (Wall-Mount Bracket) on the product page for your TV model.

https://www.sony.eu/support

KD-65X70xx

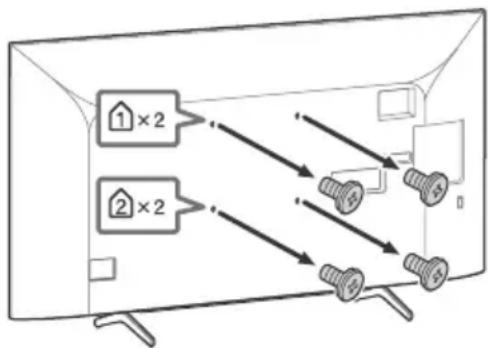

Remove the screws from the rear of the TV.

KD-65X70xx

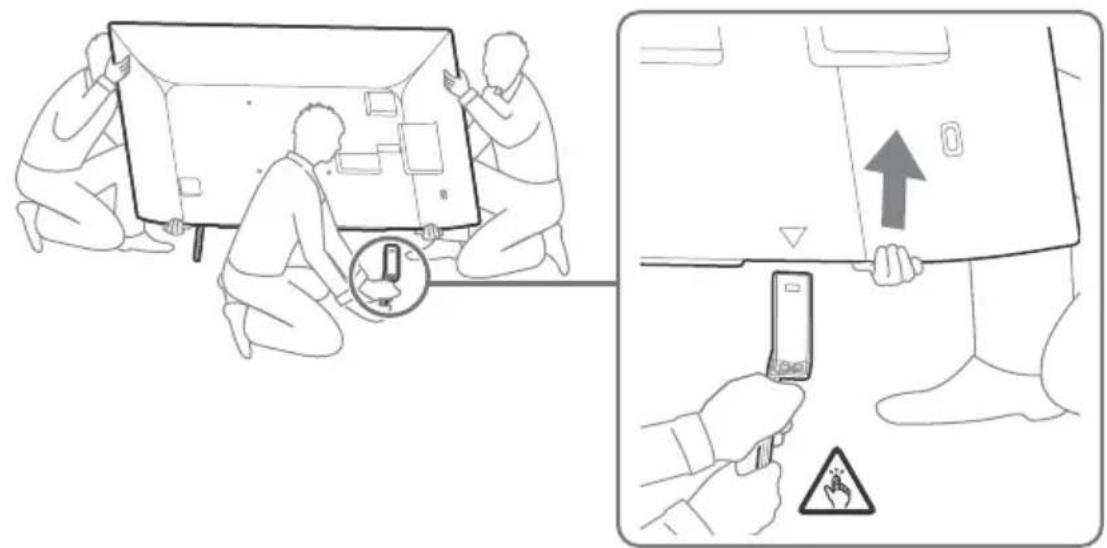

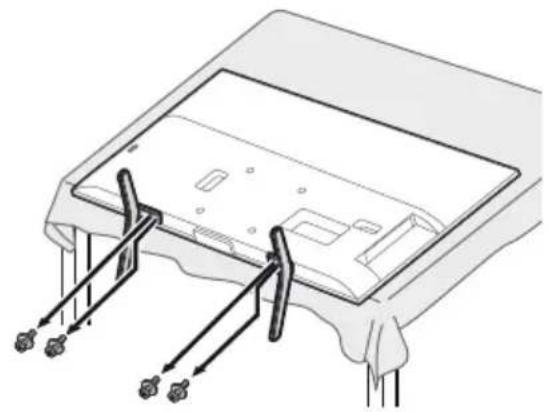

1 Remove one side of the Table-Top Stand at a time. Firmly hold the Table-Top Stand securely with both hands while the other people lift up the TV.

2 Repeat the previous step and remove the other side of the Table-Top Stand.

Note

• Three or more people are required to detach the Table-Top Stand.
• Be careful not to use excessive force while detaching the Table-Top Stand from the TV as it may cause the TV set to fall resulting in personal injury or physical damage to the TV.
• Take care when handling the Table-Top Stand to prevent damage to the TV.
• Be careful when lifting the TV as the Table-Top Stand is detached, the Table-Top Stand may topple over and cause personal injury. Take care when removing the Table-Top Stand from the TV to prevent it from falling over and damaging the surface that the TV is sitting on.

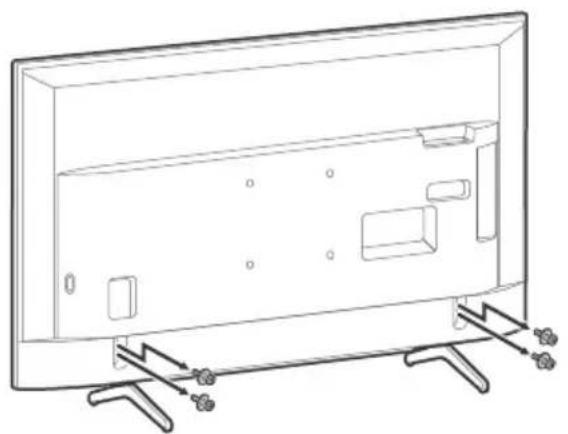

KD-55X70xx KD-49X70xx / 43X70xx

Troubleshooting

When the LED indicator is flashing red, count how many times it flashes (interval time is three seconds).

If the LED indicator flashes red, reset the TV by disconnecting the mains lead from the TV for two minutes, then turn on the TV.

If the problem persists, contact your dealer or Sony service centre with the number of times the LED indicator flashes red (interval time is three seconds). Press on the TV to turn it off, disconnect the mains lead, and inform your dealer or Sony service centre.

Troubles and Solutions

No picture (screen is dark) and no sound

• Check the antenna (aerial)/cable connection.
• Connect the TV to the mains socket, and press on the TV or the remote control.

Picture contours are distorted

• Change the current setting of [Film Mode]* to other settings.

The TV turns off automatically (the TV enters standby mode)

• Check if the [Sleep Timer]* is activated.
• Check if the [Duration] is activated by [On Timer] or [Photo Frame Settings]*.
• Check if the [Idle TV Standby]* is activated.

Some input sources cannot be selected

• Select [AV Preset] and select [Always] of the input source.

Some programmes cannot be tuned

• Check the antenna (aerial)/cable connection.

The remote control does not function

• Replace the batteries.

The TV surrounds become warm

• When the TV is used for an extended period, the TV surrounds become warm. You may feel hot when touching there by the hand.
• For more detailed information, press HOME on the remote control, then select [Help Guide] under [Settings] menu.

Specifications

System

Panel system LCD (Liquid Crystal Display) Panel, LED Backlight

TV system Depending on your country/area selection/TV model Analogue: B/G, D/K, I Digital: DVB-T/DVB-C DVB-T2*1 Satellite*1:DVB-S/DVB-S2

Colour/video system Analogue: PAL/SECAM/NTSC3.58 (Video only)/NTSC4.43 (Video only) Digital: MPEG-2 MP@ML/HL, H.264/MPEG-4 AVC MP/HP@L5.0, H.265/HEVC MP/Main10@L5.1 (4K 60fps)

Channel coverage Depending on your country/area selection/TV model Analogue: UHF/VHF/Cable Digital: UHF/VHF/Cable Satellite ¹ : IF Frequency 950-2,150 MHz

Sound output 10 W + 10 W Wireless technology Protocol IEEE 802.11b/g/n

Frequency band(s)

Wireless LAN (IEEE 802.11b/g/n)
Frequency range Output	Power
2400-2483.5 MHz < 20.0 dBm

Input/Output jacks

Antenna (aerial)/ cable 75 ohm external terminal for VHF/UHF Satellite antenna* Female F Type Connector, 75 ohm. DiSEqC 1.0, LNB 13 V/18 V & 22kHz tone, Single Cable Distribution EN50494.

A V I N Video/Audio input (phono jacks)

HDMI IN 1/2/3 (support 4K resolution, HDCP 2.3-compatible) Video: 4096×2160p (24, 50, 60 Hz), 3840×2160p (24, 25, 30, 50, 60 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i Audio: Two channel linear PCM: 32/44.1/48 kHz 16/20/24 bits, Dolby Audio, DTS

ARC (Audio Return Channel) (HDMI IN 3 only) Two channel linear PCM: 48 kHz 16 bits, Dolby Audio, DTS

DIGITAL AUDIO OUT (OPTICAL) Digital optical jack (Two channel linear PCM: 48 kHz 16 bits, Dolby Audio, DTS)

AUDIO OUT (Stereo mini jack) Headphone, Audio output, Subwoofer 1, 2-3 (HDD-REC) (Function not available in Italy)

USB port 1, 2 and 3 support High Speed USB (USB 2.0)

CAM (Conditional Access Module) slot

DC IN 19.5 V (models with supplied mains adaptor only)

Mains adaptor input LAN

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. The communication rate and quality are not guaranteed.)

Power, Product Fiche and others

Power requirements

except models with supplied mains adaptor

220V-240VAC, 50Hz

models with supplied mains adaptor only

19.5 V DC with mains adaptor

Rating: Input 220 V - 240 V AC, 50 Hz

Energy Efficiency Class

KD-65X70xx: A

KD-55X70xx: A

KD-49X70xx: A

KD-43X70xx: A

Screen size (measured diagonally) (Approx.)

KD-65X70xx: 163.9 cm / 65 inches

KD-55X70xx: 138.8 cm / 55 inches

KD-49X70xx: 123.2 cm / 49 inches

KD-43X70xx: 108.0 cm / 43 inches

Power consumption

In [Standard] mode

KD-65X70xx: 151 W

KD-55X70xx: 110W

KD-49X70xx: 75W

KD-43X70xx: 66W

In [Vivid] mode

KD-65X7056/65X7055: 256W

KD-65X7053/65X7052: 245W

KD-55X7056/55X7055: 184W

KD-55X7053/55X7052: 173W

KD-49X7056/49X7055: 115W

KD-49X7053/49X7052/43X7056/43X7055: 100W

KD-43X7053/43X7052: 97W

Annual energy consumption

KD-65X70xx: 220 kWh per year

KD-55X70xx: 161 kWh per year

KD-49X70xx: 110 kWh per year

KD-43X70xx: 96 kWh per year

Standby power consumption*4*5

0.50W

Display resolution

3,840 dots (horizontal) × 2,160 lines (vertical)

Output Rating

USB 1/2/3

5V, 500mA MAX

Dimensions (Approx.) (w × h × d)

with Table-Top Stand

KD-65X70xx: 146.3 × 90.4 × 34.0 cm

KD-55X70xx: 124.1 × 78.1 × 34.0 cm

KD-49X70xx: 110.1 × 70.2 × 28.6 cm

KD-43X70xx: 97.0 × 62.8 × 28.6 cm

without Table-Top Stand

KD-65X70xx: 146.3 × 84.5 × 8.0 cm

KD-55X70xx: 124.1 × 72.1 × 7.9 cm

KD-49X70xx: 110.1 × 64.5 × 5.7 cm

KD-43X70xx: 97.0 × 57.0 × 5.7 cm

Mass (Approx.)

with Table-Top Stand

KD-65X70xx: 21.4 kg

KD-55X70xx: 16.3 kg

KD-49X70xx: 12.4 kg

KD-43X70xx: 10.2 kg

without Table-Top Stand

KD-65X70xx: 20.5 kg

KD-55X70xx: 15.4 kg

KD-49X70xx: 11.9 kg

KD-43X70xx: 9.7 kg

Others

Optional accessories

Wall-Mount Bracket: SU-WL450

Operating temperature: 0°C - 40°C

Operating humidity: 10% - 80% RH (non-condensing)

1 Not all TV sets have DVB-T2 or DVB-S/S2 technology or a satellite antenna terminal. 2 HDMI IN 2 and HDMI IN 3 support High-Quality HDMI formats such as 4K 60p/50p 4:2:0 10 bit, 4:4:4, 4:2:2. 3 Energy consumption in kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used. 4 Specified standby power is reached after the TV finishes necessary internal processes. *5 Standby power consumption will increase when your TV is connected to the network.

Note

• Do not remove the dummy card or cover (availability depends on TV model) from the TV CAM (Conditional Access Module) slot other than to insert a smart card fitted in CAM.
• Optional accessories availability depends on countries/region/TV model/stock.
• Design and specifications are subject to change without notice.

Notes on Digital TV function

• Digital TV (DVB terrestrial, satellite and cable), interactive services and network functions may not be available in all countries or areas. Some functions might not be enabled or might not operate correctly with some providers and network environments. Some TV service providers may charge a fee for their services. This TV supports digital broadcasting using MPEG-2, H.264/MPEG-4 AVC and H.265/HEVC codecs, but compatibility with all operator/service signals, which may change over time, cannot be guaranteed.

Notes on HDR (High Dynamic Range) (Only on limited region/country/TV model)

• Compatible with all HDR PS4 Game titles via HDMI and HDR videos of built-in Netflix and YouTube App only. (See Sony support website for more information).
• HDR image signal specifically means HDR10 Media Profile format (commonly referred to as HDR10).
• Compatibility with all HDR content is not guaranteed.

Trademark Information

• The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
• Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories. Vewd Core. Copyright 1995-2020 Vewd Software AS. All rights reserved. Wi-Fi, Wi-Fi Alliance, Wi-Fi Direct and Miracast are registered trademarks of Wi-Fi Alliance.
• Wi-Fi Protected Setup™ is a trademark of Wi-Fi Alliance. The Wi-Fi CERTIFIED™ Logo is a certification mark of Wi-Fi Alliance.
• Netflix is a registered trademark of Netflix, Inc.
• "YouTube" and the "YouTube logo" are registered trademarks of Google LLC. "BRAVIA", and BRAVIA Sync are trademarks or registered marks of Sony Corporation.
• "Blu-ray Disc", "Blu-ray" and "Blu-ray Disc" logo are trademarks of Blu-ray Disc Association.
• "PlayStation" is a registered trademark and "PS4" is a trademark of Sony Interactive Entertainment Inc.
• For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS and the Symbol together, and Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved. TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.

For satellite models only:

• DiSEqC™ is a trademark of EUTELSAT. This TV supports DiSEqC 1.0. This TV is not intended for controlling motorized antennas.
• All other trademarks are the property of their respective owners.

https://www.sony.eu/support

KD-65X70xx

Analogue: UHF/VHF/Cable

ARC (Audio Return Channel) (HDMI IN 3 equipment)

KD-65X7052, KD-55X7056, KD-55X7055, KD-55X7053, KD-55X7052, KD-49X7056, KD-49X7055, KD-49X7053, KD-49X7052

TV system

Digital: UHF/VHF/Cable

DIGITAL AUDIO OUT (OPTICAL)

Optical digital output (two-channel linear PCM: 48 kHz 16 bits,

Dolby Audio, DTS)

AUDIO OUT (stereo minijack)

Headphones, audio output, subwoofer

1,2-3(HDD-REC)(American standard)

KD-65X70xx: 146.3 × 90.4 × 34.0 cm

KD-55X70xx: 124.1 × 78.1 × 34.0 cm

KD-49X70xx: 110.1 × 70.2 × 28.6 cm

KD-43X70xx: 97.0 × 62.8 × 28.6 cm

Two-channel linear PCM: 32/44.1/48 kHz 16/20/24 bits, Dolby Audio, DTS

ARC (Audio Return Channel) (only HDMI IN 3)

Two-channel linear PCM: 48 kHz 16 bits, Dolby Audio, DTS

DIGITAL AUDIO OUT (OPTICAL)

KD-65X70xx: 146.3 x 90.4 x 34.0 cm

KD-55X70xx: 124.1 x 78.1 x 34.0 cm

KD-49X70xx: 110.1 x 70.2 x 28.6 cm

KD-43X70xx: 97.0 x 62.8 x 28.6 cm

https://www.sony.eu/support

KD-65X70xx

DIGITAL AUDIO OUT (OPTICAL)

KD-55X70xx: 124.1 x 78.1 x 34.0 cm

KD-49X70xx: 110.1 x 70.2 x 28.6 cm

KD-43X70xx: 97.0 x 62.8 x 28.6 cm

without table stand

KD-65X70xx: 146.3 × 84.5 × 8.0 cm

KD-55X70xx: 124.1 × 72.1 × 7.9 cm

KD-49X70xx: 110.1 × 64.5 × 5.7 cm

KD-43X70xx: 97.0 × 57.0 × 5.7 cm

Weight (approx.)

with table stand

KD-65X70xx: 21.4 kg

KD-55X70xx: 16.3 kg

KD-49X70xx: 12.4 kg

KD-43X70xx: 10.2 kg

without table stand

KD-65X70xx: 20.5 kg

KD-55X70xx: 15.4 kg

KD-49X70xx: 11.9 kg

KD-43X70xx: 9.7 kg

Miscellaneous

Optional accessories

KD-55X7056, KD-55X7055, KD-55X7053, KD-55X7052

KD-49X7056, KD-49X7055, KD-49X7053, KD-49X7052

Installing the TV on the wall

Using the optional wall-mount bracket

720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

Audio:

Linear PCM 2-channel: 32/44.1/48 kHz, 16/20/24 bits

Dolby Audio, DTS

ARC (Audio Return Channel) (Only on models with

HDMI IN 3)

Linear PCM 2-channel: 48 kHz, 16 bits, Dolby Audio, DTS

DIGITAL AUDIO OUT (OPTICAL)

Optical digital output (Linear PCM 2-channel: 48 kHz, 16 bits,

Dolby Audio, DTS)

AUDIO OUT (Mini stereo jack)

Headphones, audio output, subwoofer

KD-65X70xx: 146.3 × 90.4 × 34.0 cm

KD-55X70xx: 124.1 × 78.1 × 34.0 cm

KD-49X70xx: 110.1 × 70.2 × 28.6 cm

KD-43X70xx: 97.0 × 62.8 × 28.6 cm

Without table-top stand

KD-65X70xx: 146.3 × 84.5 × 8.0 cm

KD-55X70xx: 124.1 × 72.1 × 7.9 cm

KD-49X70xx: 110.1 × 64.5 × 5.7 cm

KD-43X70xx: 97.0 × 57.0 × 5.7 cm

Weight (Approx.)

720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

Audio:

Linear PCM two channels: 32/44.1/48 kHz 16/20/24 bit, Dolby Audio, DTS

ARC (Audio Return Channel) (only HDMI IN 3)

DIGITAL AUDIO OUT (OPTICAL)

KD-65X70xx: 146.3 x 90.4 x 34.0 cm

KD-55X70xx: 124.1 x 78.1 x 34.0 cm

KD-49X70xx: 110.1 x 70.2 x 28.6 cm

KD-43X70xx: 97.0 x 62.8 x 28.6 cm

https://www.sony.eu/support

KD-65X70xx

Linear PCM: 48 kHz 16-bit, Dolby Audio, DTS

Theta -> DIGITAL AUDIO OUT (OPTICAL)

KD-65X70xx: 146.3 x 90.4 x 34.0 cm

KD-55X70xx: 124.1 x 78.1 x 34.0 cm

KD-49X70xx: 110.1 x 70.2 x 28.6 cm

KD-43X70xx: 97.0 x 62.8 x 28.6 cm

without table stand

KD-65X70xx: 146.3 × 84.5 × 8.0 cm

KD-55X70xx: 124.1 × 72.1 × 7.9 cm

KD-49X70xx: 110.1 × 64.5 × 5.7 cm

KD-43X70xx: 97.0 × 57.0 × 5.7 cm

Weight (approx.)

with table stand

KD-65X70xx: 21.4 kg

KD-55X70xx: 16.3 kg

KD-49X70xx: 12.4 kg

KD-43X70xx: 10.2 kg

without table stand

KD-65X70xx: 20.5 kg

KD-55X70xx: 15.4 kg

KD-49X70xx: 11.9 kg

KD-43X70xx: 9.7 kg

Other

Optional accessory

Wall-mount bracket: SU-WL450

Operating temperature: 0°C - 40°C

KD-65X7056, KD-65X7055, KD-65X7053, KD-65X7052,

KD-55X7056, KD-55X7055, KD-55X7053, KD-55X7052,

KD-49X7056, KD-49X7055, KD-49X7053, KD-49X7052

KD-43X7056, KD-43X7055, KD-43X7053, KD-43X7052 are

https://www.sony.eu/support

KD-65X70xx

Two-channel linear PCM: 48 kHz 16 bit, Dolby Audio, DTS

DIGITAL AUDIO OUT (OPTICAL)

Digital optical connector (two-channel linear PCM: 48 kHz 16 bit, Dolby Audio, DTS)

AUDIO OUT (Stereo minijack)

Headphones, audio output, subwoofer

In [Standard] mode

KD-65X70xx:151W

KD-55X70xx:110W

KD-49X70xx: 75 W

KD-43X70xx:66W

In [Powerful] mode

KD-65X7056/65X7055:256W

KD-65X7053/65X7052:245W

KD-55X7056/55X7055:184W

KD-55X7053 / 55X7052:173W

KD-49X7056 / 49X7055:115W

KD-49X7053 / 49X7052 / 43X7056 / 43X7055:100W

KD-43X7053/43X7052:97W

KD-65X70xx:146.3×90.4×34.0 cm

KD-55X70xx: 124.1 × 78.1 × 34.0 cm

KD-49X70xx: 110.1 × 70.2 × 28.6 cm

KD-43X70xx: 97.0 × 62.8 × 28.6 cm

Without TV stand

KD-65X70xx: 146.3 × 84.5 × 8.0 cm

KD-55X70xx: 124.1 × 72.1 × 7.9 cm

KD-49X70xx: 110.1 × 64.5 × 5.7 cm

KD-43X70xx: 97.0 × 57.0 × 5.7 cm

Weight (approx.)

With TV stand

KD-65X70xx: 21.4 kg

KD-55X70xx: 16.3 kg

KD-49X70xx: 12.4 kg

KD-43X70xx: 10.2 kg

Without TV stand

KD-65X70xx: 20.5 kg

KD-55X70xx: 15.4 kg

KD-49X70xx: 11.9 kg

KD-43X70xx: 9.7 kg

Other

Accessories

720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

Audio:

DIGITAL AUDIO OUT (OPTICAL)

KD-65X70xx: 146.3 × 90.4 × 34.0 cm

KD-55X70xx: 124.1 × 78.1 × 34.0 cm

KD-49X70xx: 110.1 × 70.2 × 28.6 cm

KD-43X70xx: 97.0 × 62.8 × 28.6 cm

without tabletop stand

KD-65X70xx: 146.3 × 84.5 × 8.0 cm

KD-55X70xx: 124.1 x 72.1 x 7.9 cm

KD-49X70xx: 110.1 x 64.5 x 5.7 cm

KD-43X70xx: 97.0 x 57.0 x 5.7 cm

Weight (Approx.)

https://www.sony.eu/support

KD-65X70xx

60 Hz], 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

Audio:

Tokenals linear PCM: 32/44.1/48 kHz 16/20/24 bits, Dolby Audio, DTS

ARC (Audio Return Channel) (when HDMI IN 3)

Tokenals linear PCM: 48 kHz 16 bits, Dolby Audio, DTS

Theta -> DIGITAL AUDIO OUT (OPTICAL)

Digital optical connector (Tokenals linear PCM: 48 kHz 16 bits, Dolby Audio, DTS)

AUDIO OUT (minijack, stereo)

Headphone, audio output, subwoofer

1,2-3 (HDD-REC) (Function/DD-REC)

Italy)

KD-65X70xx:146.3×90.4×34.0 cm

KD-55X70xx:124.1×78.1×34.0 cm

KD-49X70xx:110.1×70.2×28.6 cm

KD-43X70xx:97.0×62.8×28.6 cm

without table stand

KD-65X70xx:146.3×84.5×8.0 cm

KD-55X70xx:124.1×72.1×7.9 cm

KD-49X70xx:110.1×64.5×5.7 cm

KD-43X70xx:97.0×57.0×5.7 cm

Weight (approx.)

with table stand

KD-65X70xx:21.4 kg

KD-55X70xx: 16.3 kg

KD-49X70xx: 12.4 kg

KD-43X70xx: 10.2 kg

without table-top stand

KD-65X70xx: 20.5 kg

KD-55X70xx: 15.4 kg

KD-49X70xx: 11.9 kg

KD-43X70xx: 9.7 kg

Other

Optional accessories

Wall-mount bracket: SU-WL450

Operating temperature: 0°C - 40°C

Operating humidity: 10% - 80% relative humidity

(non-condensing)

KD-55X70xx: 124.1 × 78.1 × 34.0 cm

KD-49X70xx: 110.1 × 70.2 × 28.6 cm

KD-43X70xx: 97.0 × 62.8 × 28.6 cm

without stand

KD-65X70xx: 146.3 × 84.5 × 8.0 cm

KD-55X70xx: 124.1 × 72.1 × 7.9 cm

KD-49X70xx: 110.1 × 64.5 × 5.7 cm

KD-43X70xx: 97.0 × 57.0 × 5.7 cm

Weight (approximate)

with stand

KD-65X70xx: 21.4 kg

KD-55X70xx: 16.3 kg

KD-49X70xx: 12.4 kg

KD-43X70xx: 10.2 kg

without stand

KD-65X70xx: 20.5 kg

KD-55X70xx: 15.4 kg

KD-49X70xx: 11.9 kg

KD-43X70xx: 9.7 kg

Other

KD-55X7056, KD-55X7055, KD-55X7053, KD-55X7052

KD-49X7056, KD-49X7055, KD-49X7053, KD-49X7052.

KD-43X7056, KD-43X7055, KD-43X7053, KD-43X7052 are in

compliance with Directive 2014/53/EU. The full text of the EU Declaration of

Conformity is available at the following internet address:

http://www.compliance.ory.eu/

This radio equipment can be used in the EU without violating applicable requirements for the use of the radio spectrum.

720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

Audio:

Two-channel linear PCM: 32/44.1/48 kHz 16/20/24 bits, Dolby Audio, DTS

ARC (Audio Return Channel) (only on HDMI IN 3 models)

Two-channel linear PCM: 48 kHz 16 bit, Dolby Audio, DTS

DIGITAL AUDIO OUT (OPTICAL)

KD-65X70xx: 146.3 x 90.4 x 34.0 cm

KD-55X70xx: 124.1 x 78.1 x 34.0 cm

KD-49X70xx: 110.1 x 70.2 x 28.6 cm

KD-43X70xx: 97.0 x 62.8 x 28.6 cm

KD-55X7056, KD-55X7055, KD-55X7053, KD-55X7052

KD-49X7056, KD-49X7055, KD-49X7053, KD-49X7052

KD-43X7056, KD-43X7055, KD-43X7053, KD-43X7052 are in accordance with Directive 2014/53/EU. The full EU declaration of conformity is available at the following internet address: http://www.compliance.sony.eu/

This radio equipment can be operated in the EU without violating applicable requirements for the use of the radio frequency spectrum.

720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

Audio:

Two-channel linear PCM: 32/44.1/48 kHz 16/20/24 bit, Dolby Audio, DTS

ARC (Audio Return Channel) (Only on HDMI IN 3)

Two-channel linear PCM: 48 kHz 16 bit, Dolby Audio, DTS

DIGITAL AUDIO OUT (OPTICAL)

4096×2160p (24, 50, 60 Hz), 3840×2160p (24, 25, 30, 50, 60 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

Audio:

Two-channel linear PCM: 32/44.1/48 kHz 16/20/24 bit, Dolby Audio, DTS

ARC (Audio Return Channel) (only HDMI IN 3)

DIGITAL AUDIO OUT (OPTICAL)

KD-65X70xx: 220 kWh/year

KD-55X70xx: 161 kWh/year

KD-49X70xx: 110 kWh/year

KD-65X70xx: 146.3 × 90.4 × 34.0 cm

KD-55X70xx: 124.1 × 78.1 × 34.0 cm

KD-49X70xx: 110.1 × 70.2 × 28.6 cm

KD-43X70xx: 97.0 × 62.8 × 28.6 cm

KD-55X7056, KD-55X7055, KD-55X7053, KD-55X7052

KD-49X7056, KD-49X7055, KD-49X7053, KD-49X7052

KD-43X7056, KD-43X7055, KD-43X7053, KD-43X7052 are in conformity with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.compliance.sony.eu/

Analog: UHF/VHF/Cable

Digital: UHF/VHF/Cable

Satellite*1: IF frequency 950-2.150 MHz

Audio output

10W+10W

Wireless technology Protocol IEEE 802.11b/g/n Frequency band(s)

LAN wireless (IEEE 802.11b/g/n)
Gama de freventa Putere	de ieşire
2.400-2.483,5 MHz < 20,0	dBm

Input/Output jacks

Antenna (external)/cable

4096×2160p(24,50,60 Hz),3840×2160p(24,25,30,50, 60 Hz),1080p(30,50,60 Hz),1080/24p,1080i(50,60 Hz), 720p(30,50,60 Hz),720/24p,576p,576i,480p,480i

Audio:

Linear PCM 2ch: 32/44.1/48 kHz 16/20/24 bit, Dolby Audio, DTS

ARC (Audio Return Channel) (HDMI IN 3 only)

Linear PCM 2ch: 48 kHz 16 bit, Dolby Audio, DTS

DIGITAL AUDIO OUT (OPTICAL)

Digital optical audio output (Linear PCM on two channels: 48 kHz 16 bit, Dolby Audio, DTS)

AUDIO OUT (Mini stereo jack)

Headphones, audio output, subwoofer

KD-55X70xx: 138.8 cm / 55 inches

KD-49X70xx: 123.2 cm / 49 inches

KD-43X70xx: 108.0 cm / 43 inches

Power consumption

In [Standard] mode

KD-65X70xx: 151 W

KD-55X70xx: 110 W

KD-49X70xx: 75 W

KD-43X70xx: 66 W

In [Vivid] mode

KD-65X7056/65X7055: 256 W

KD-65X7053/65X7052: 245 W

KD-55X7056 / 55X7055:184W

KD-55X7053/55X7052:173W

KD-49X7056 / 49X7055:115W

KD-49X7053 / 49X7052 / 43X7056 / 43X7055:100W

KD-43X7053 / 43X7052:97W

Annual energy consumption*3

KD-65X70xx:146.3×90.4×34.0 cm

KD-55X70xx:124.1×78.1×34.0 cm

KD-49X70xx: 110.1×70.2×28.6 cm

KD-43X70xx:97.0×62.8×28.6 cm

without table stand

KD-65X70xx: 146.3 × 84.5 × 8.0 cm

KD-55X70xx:124.1×72.1×7.9 cm

KD-49X70xx:110.1×64.5×5.7 cm

KD-43X70xx:97.0×57.0×5.7 cm

Mass (approx.)

with table stand

KD-65X70xx: 21.4 kg

KD-55X70xx: 16.3 kg

KD-49X70xx: 12.4 kg

KD-43X70xx: 10.2 kg

without table stand

KD-65X70xx: 20.5 kg

KD-55X70xx: 15.4 kg

KD-49X70xx: 11.9 kg

KD-43X70xx: 9.7 kg

Others

Optional accessories

Wall-mount bracket: SU-WL450

Operating temperature: 0°C - 40°C

Connecting the TV 6

Wall mounting the TV .8 Using the optional wall-mount bracket .8 Removing the stand for tabletop use of the TV. .9

Troubleshooting. 10 Problems and solutions 10

Specifications 11

Introduction

Thank you for purchasing this Sony product. Before operating the TV, please read this manual thoroughly and retain it for future reference.

Safety

- Please read the supplied safety documentation for additional safety information. The illustrations and photos used in the setup guide and in this manual are for reference only and may differ from the actual product. The "XX" symbol appears on the model name and corresponds to the model, color, and TV system.

Manual (RM)

For more information, press the HOME button on the remote control, then select [Help] > [Manual] > [Settings]. You can also check the Help Guide on your computer or smartphone (information is provided on the back cover of this manual).

Identification label

The label for the model number, production date (year/month), and power rating is located on the rear of the TV or on the packaging.

For models supplied with a power adapter: The label for the model number and serial number of the power adapter is located on the bottom of the power adapter.

IMPORTANT SAFETY

Safety for radio equipment

This radio equipment complies with Directive 2014/53/EC. The full text of the EU declaration of conformity is available at the following internet address: http://www.compliance.sony.eu/

This radio equipment can be used in the EU without restrictions regarding the use of the radio frequency spectrum.

Safety information

Installation

Install and use the TV in accordance with the instructions described below to avoid the risk of fire, electric shock, or damage and/or injury.

Installation

The TV must be installed near an easily accessible power outlet. - Place the TV on a stable, level surface to prevent it from tipping over, which could cause injury to people or damage to property. - Install the TV in a place where it cannot be pulled, pushed, or knocked over.

• Place the TV so that the TV's stand does not protrude from the surface on which the TV is placed (not shown). If the stand protrudes beyond the surface on which the TV is placed, this may cause the TV to tip over or fall, leading to injury or damage to the TV.

• Wall mounting of the device must be performed only by qualified personnel. For greater safety, we recommend using original Sony accessories, including: - Wall-mount bracket: SU-WL450. Always use the screws supplied with the wall-mount bracket when attaching the wall-mount bracket to the TV. The supplied screws are designed as shown in the illustration; the measurement is indicated directly on the mounting surface of the wall-mount bracket.

The length of the screws differs depending on the model of the wall-mount bracket.

Using screws other than those provided with the wall-mount bracket may cause internal damage to the TV or cause it to fall, etc.

8mm-12mm

Carrying

- Before carrying the TV, disconnect all cables. - Carrying the large TV requires two or more people. When placing the TV on a rack, hold it as shown below. Do not press on the LCD panel near the screen. When lifting or moving the TV, hold it firmly from the bottom.

Do not subject the TV to sudden impacts or vibrations. When transporting the TV, preferably use the original packaging material for packing.

Repair of the steam KD-65X70xx KD-55X70xx / 49X70xx / 43X70xx

RCT* (RF input), (Satellite input)* 2

Connector for terrestrial/cable and satellite television.

5 AUDIO OUT

Supports only stereo mini-jack. To listen to sound from the TV through the connected device, press HOME, select [System Settings] → [Settings] → [AV Settings] → [Audio/Video Output], then select the desired item.

Note

For an external device that has only SCART AV OUT, use a SCART-RCA adapter. 2 Only for certain regions/countries/TV models.

The TV turns off automatically (the TV enters standby mode)

• Select to activate [Sleep Timer]*.
• Select to activate [Duration] from [Auto Power Off] or [Photo Frame Settings]*.
• Select to activate [Power Off when TV not in use]*.

Some input sources cannot be selected

• Select [AV Settings] and select [Enable] for the input source.

Some programs cannot be tuned

Check the antenna/cable connection.

Remote control does not work

• Replace the batteries.

The TV frame is hot

When the TV is used for a long time, the frame may become hot. You may feel the heat when you touch the frame. *For more detailed information, press the HOME button on the remote control, then select [Help Guide] in [Settings] menu.

Specifications

System

Panel system

LCD (Liquid Crystal Display) panel, LED backlight

TV system

Depending on the country/region selection/model of the TV

Analog: B/G, D/K, I

Digital: DVB-T/DVB-C DVB-T2*1

Input/Output jacks

Antenna/cable

75 ohm external terminal for VHF/UHF

Connector type F, 75 ohm.

DiSEqC 1.0, LNB 13 V/18 V & 22 kHz tone, distribution to 1

cable EN50494

AV IN

ARC (Audio Return Channel) (via HDMI IN 3)

Digital Linear PCM: 48 kHz 16 bit, Dolby Audio, DTS

DIGITAL AUDIO OUT (OPTICAL)

Optical output jack (2-channel linear PCM: 48 kHz

16 bit, Dolby Audio, DTS)

AUDIO OUT (Stereo mini jack)

Headphones, audio output, subwoofer

1,2-3 (HDD-REC) (function not available in

this model)

USB ports 1, 2 and 3 support High Speed USB (USB 2.0)

0

AM (mOyI 3a yCNoBEN IOCTbN) rHe3do

DC IN 19.5 V (camo moJeN c octaBeH 3axpaHbaa aanTop)

KD-65X70xx:220kWhroDnHNO

KD-55X70xx:161kWh roDnHnO

KD-49X70xx:110kWh roDnH

KD-43X70xx:96kWh roDnshO

KoHcymaLna Ha eHepnB pexm IOTOBHOCT*4*5

0.50 W

Pe3oHouznaHaDucnpea

3840 toky (no xopunoHTana) × 2160 peja (no BepTnKa)

U3XOJHNNHOOMHaHNN daHHN

USB 1/2/3

5V=500mA（mKc.）

Pa3mepn (npn6I.) (w x B x d)

With stand

KD-65X70xx: 146.3 × 90.4 × 34.0 cm

KD-55X70xx: 124.1 × 78.1 × 34.0 cm

KD-49X70xx: 110.1 × 70.2 × 28.6 cm

KD-43X70xx: 97.0 × 62.8 × 28.6 cm

Without stand

KD-65X70xx: 146.3 × 84.5 × 8.0 cm

KD-55X70xx: 124.1 × 72.1 × 7.9 cm

KD-49X70xx: 110.1 × 64.5 × 5.7 cm

KD-43X70xx: 97.0 × 57.0 × 5.7 cm

Weight (approx.)

With stand

KD-65X70xx: 21.4 kg

KD-55X70xx: 16.3 kg

KD-49X70xx: 12.4 kg

KD-43X70xx: 10.2 kg

Weight with stand

KD-65X70xx: 20.5 kg

KD-55X70xx: 15.4 kg

KD-49X70xx: 11.9 kg

KD-43X70xx: 9.7 kg

Other

Optional accessories

Wall-mount bracket: SU-WL450

Operating temperature: 0°C - 40°C

Operating humidity: 10% - 80% relative humidity

(no condensation)

1 Not all TV models have DVB-T2 or DVB-S/S2 tuners and a satellite antenna connector. 2 HDMI IN 2 and HDMI IN 3 support high-quality HDMI formats: 4K 60p/50p 4:2:0 10 bit, 4:4:4, 4:2:2. 3 Power consumption in kWh is based on the TV operating 4 hours per day, 365 days. Actual energy consumption depends on how the TV is used. *4 The indicated power consumption in standby mode is reached after the TV is connected to the necessary external devices. 5 Power consumption in standby mode will increase when your TV is connected to a network.

Note

• Do not remove the TV card or card slot (availability depends on the TV model) from the TV itself (module for conditional access), unless you need to insert a CAM card. The availability of optional accessories depends on the country/region/model of the TV. Design and specifications are subject to change without notice.

Some features of the TV may not be available.

Broadcast television (DVB terrestrial, satellite and cable), interactive services and network functions may not be available in all countries or may not be activated or may not work correctly with some providers and networks. Some broadcast TV services may charge for services. This TV's digital TV reception, MPEG-2, H.264/MPEG-4 AVC and H.265/HEVC decoding cannot guarantee compatibility with all operators/services, which may change over time.

Regarding HDR (High Dynamic Range) (Only for certain models/countries/TVs)

Compatible only with HDR PS4 via HDMI and HDR video from Netflix and YouTube apps. (For more information, see the Sony support website). HDR signal output means a specific format HDR10 Media Profile (widely distributed and adopted as HDR10). Compatibility with other HDR content is not guaranteed.

Trademark information

• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
• Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.
• Vewd® Core. Copyright 1995-2020 Vewd Software AS. All rights reserved. Wi-Fi, Wi-Fi Alliance, Wi-Fi Direct and Miracast are trademarks of Wi-Fi Alliance.
• Wi-Fi Protected Setup™ is a trademark of Wi-Fi Alliance.
• The Wi-Fi CERTIFIED™ logo is a certification mark of Wi-Fi Alliance.
• Netflix is a registered trademark of Netflix, Inc.
• "YouTube" and "YouTube TV" are registered trademarks of Google LLC. "BRAVIA", "BRAVIA Sync" are trademarks or registered trademarks of Sony Corporation. "Blu-ray Disc", "Blu-ray", and "Blu-ray Disc" logo are trademarks of Blu-ray Disc Association. "PlayStation" is a registered trademark and "PS4" is a trademark of Sony Interactive Entertainment Inc.
• For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the symbol, DTS and the symbol together, and Digital Surround are registered trademarks or trademarks of DTS, Inc., in the United States and/or other countries. © DTS, Inc. All rights reserved. TUXERA is a registered trademark of Tuxera Inc. in the United States and other countries.

Only for satellite models:

DiSEqC is a trademark of EUTELSAT. This receiver supports DiSEqC 1.0. This receiver is not intended for controlling motorized antennas. All other trademarks are the property of their respective owners.

For radio operation, see the user manual for the corresponding model.

Contents

IMPORTANT SAFETY INSTRUCTIONS. 2

DIGITAL AUDIO OUT (OPTICAL)

Optical digital output (PCM 2-channel:

48 kHz 16 bit, Dolby Audio, DTS)

AUDIO OUT (Analog stereo audio output)

Audio output, Subwoofer

1, 2, 3 (HDD REC) (Function not available

in some models)

The USB 1, 2, and 3 ports support High Speed USB

(USB 2.0)

Ytoboxn CAM (Movdaa Nepiopioevnc Pooaaonc)

KD-65X70xx: 163.9 cm / 65 inches

KD-55X70xx: 138.8 cm / 55 inches

KD-49X70xx: 123.2 cm / 49 inches

KD-43X70xx: 108.0 cm / 43 inches

Power consumption

KD-55X70xx: 124.1 × 78.1 × 34.0 cm

KD-49X70xx: 110.1 × 70.2 × 28.6 cm

KD-43X70xx: 97.0 × 62.8 × 28.6 cm

Without stand

KD-65X70xx: 146.3 × 84.5 × 8.0 cm

KD-55X70xx: 124.1 × 72.1 × 7.9 cm

KD-49X70xx: 110.1 × 64.5 × 5.7 cm

KD-43X70xx: 97.0 × 57.0 × 5.7 cm

Weight (approx.)

https://www.sony.eu/support

KD-65X70xx

720p(30,50,60Hz),720/24p,576p,576i,480p,480i

Audio:

Two channel linear PCM: 32/44.1/48 kHz 16/20/24 bit, Dolby Audio, DTS

ARC (Audio Return Channel) (only HDMI IN 3)

Two channel linear PCM: 48 kHz 16 bit, Dolby Audio, DTS

DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM: 48 kHz 16 bit, Dolby Audio, DTS)

AUDIO OUT (Stereo Mini Jack)

Headphones, Audio output, Subwoofer

KD-65X70xx: 146.3 x 90.4 x 34.0 cm

KD-55X70xx: 124.1 x 78.1 x 34.0 cm

KD-49X70xx: 110.1 x 70.2 x 28.6 cm

KD-43X70xx: 97.0 x 62.8 x 28.6 cm
