Product Type	Evaporative Air Cooler
Brand	Daewoo
Model	DA6LWE
Dimensions (L x W x H)	235 x 260 x 565 mm
Net Weight	3.51 kg
Power Supply	220-240 V~, 50/60 Hz
Rated Power	65 W
Maximum Airflow	210 m³/h
Water Tank Capacity	6 L
Number of Speeds	3 (High, Medium, Low)
Oscillation Function	Yes
Cooling Function	By evaporation with or without ice cubes
Filter Type	Honeycomb Filter
Filter Maintenance	Clean every 2 months
Water Drainage	Through the drain at the bottom
Included Accessories	4 caster wheels, 2 ice blocks, user manual
Recommended Room Area	9 m² or more, near a window
Safety Instructions	Use on a flat surface, do not block vents, unplug before maintenance, do not use with wet hands
Repairability	Do not open, contact a qualified professional
Recycling	WEEE compliant - do not dispose of with household waste

Frequently Asked Questions - DA6LWE DAEWOO

How to turn on the device and adjust the fan speed?

To turn on the device, press one of the speed buttons (high, medium or low). The device will start at the selected speed. To turn off, press the stop button.

How to activate the cooling function?

Make sure the water tank contains water (between MIN and MAX levels), then press the Cooling button. Do not press this button if there is no water, as it could damage the device.

How to use the ice blocks for more intense cooling?

Freeze the provided ice blocks, then place them in the upper water tank. Add water up to the MAX level and close the tank. The cooling function will be more effective.

How often should the honeycomb filter be cleaned?

It is recommended to clean the honeycomb filter every two months. Remove it, rinse it with water (using a mild detergent if necessary), and let it dry completely before reinstalling.

How to drain the water from the device?

Place the device over a sink. Open the drain at the bottom to remove the water. Once drained, close the drain.

What to do if the device does not turn on?

Check that the power cord is properly connected. Also ensure that the honeycomb filter holder is correctly installed. If the problem persists, contact your retailer.

What accessories are included in the package?

The package contains the air cooler, 4 caster wheels, 2 ice blocks, and the user manual.

How to install the caster wheels?

The caster wheels attach to the bottom of the device. No detailed instructions are provided in the manual, but they usually snap into the designated slots. Consult the manual for more details.

How to store the device after use?

For optimal storage, let the device run 15 minutes without cooling to dry the filters. Unplug it, empty the water, clean the filter, then store it upright in a dry place.

What safety precautions are important?

Do not block the ventilation openings. Do not use with wet hands. Unplug the device before any maintenance. Place it on a flat and stable surface. Do not let children play with the device.

USER MANUAL DA6LWE DAEWOO

White portable air conditioner unit with multiple ventilation slots and wheels (no visible text or labels)

EN USER MANUAL 3
NL GEBRUIKERSHANDLEIDING 9
DE GEBRAUCHSANWEISUNG 15
FR MODE D'EMPLOI 21
ES MANUAL DEL USARIO 27

1

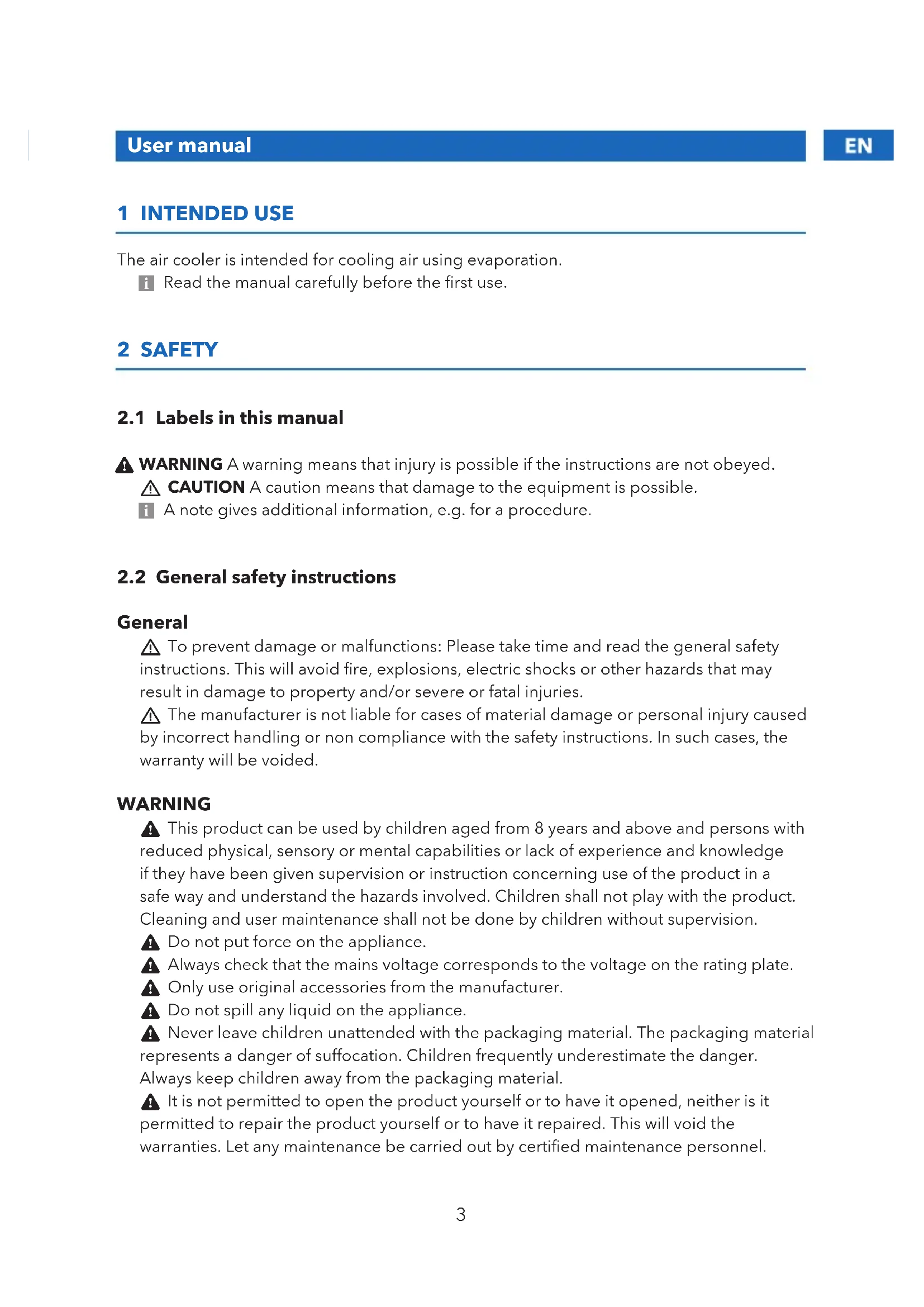

1 INTENDED USE

The air cooler is intended for cooling air using evaporation.

i Read the manual carefully before the first use.

2 SAFETY

2.1 Labels in this manual

⚠ WARNING A warning means that injury is possible if the instructions are not obeyed.

⚠️ CAUTION A caution means that damage to the equipment is possible.

i A note gives additional information, e.g. for a procedure.

2.2 General safety instructions

General

⚠️ To prevent damage or malfunctions: Please take time and read the general safety instructions. This will avoid fire, explosions, electric shocks or other hazards that may result in damage to property and/or severe or fatal injuries.

⚠ The manufacturer is not liable for cases of material damage or personal injury caused by incorrect handling or non compliance with the safety instructions. In such cases, the warranty will be voided.

WARNING

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be done by children without supervision.

Do not put force on the appliance.

Always check that the mains voltage corresponds to the voltage on the rating plate.

Only use original accessories from the manufacturer.

Do not spill any liquid on the appliance.

Never leave children unattended with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the danger. Always keep children away from the packaging material.

It is not permitted to open the product yourself or to have it opened, neither is it permitted to repair the product yourself or to have it repaired. This will void the warranties. Let any maintenance be carried out by certified maintenance personnel.

Do not block the ventilation holes.
Do not insert any objects in the ventilation holes.
Power cords should be placed so that they cannot be walked on and they cannot easily become trapped due to items resting on or against them. Pay particular attention to the power cords at plugs, sockets, and points where the cords exit the product.
⚠️ Disconnect the appliance from the power source during service or when not in use.
Do not operate the appliance with wet hands.
Do not leave the appliance unattended.
Do not unplug the appliance during operation.
Do not operate the appliance when damaged.

CAUTION

⚠️ Do not place the appliance near a heat source. This could damage the appliance.
⚠️ Place the appliance on a horizontal flat surface.

⚠ Make sure the water in the water tank does not exceed the 'max' indicator, and does not drop below the 'min' indicator.

Remarks

We recommend that you retain the original carton and packaging materials in case it ever becomes necessary to return your product for service. This is the only way to safely protect the product against damage in transit. If you do dispose of the carton and the packaging materials, please remember to recycle with due care to the environment.

3 PREPARATIONS FOR USE

3.1 Unpacking

• Unpack the appliance carefully.
• Check the package contents as described below. If any item is missing, please contact your reseller.

We recommend that you retain the original carton and packaging materials in case it ever becomes necessary to return your product for service. This is the only way to safely protect the product against damage in transit. If you do dispose of the carton and the packaging materials, please remember to recycle with due care to the environment.

3.2 Package contents

i If any item is missing, please contact your reseller.

The following items are included in the received package:

• Air cooler
• Ice packs
• Castor wheels (4x)

• User manual

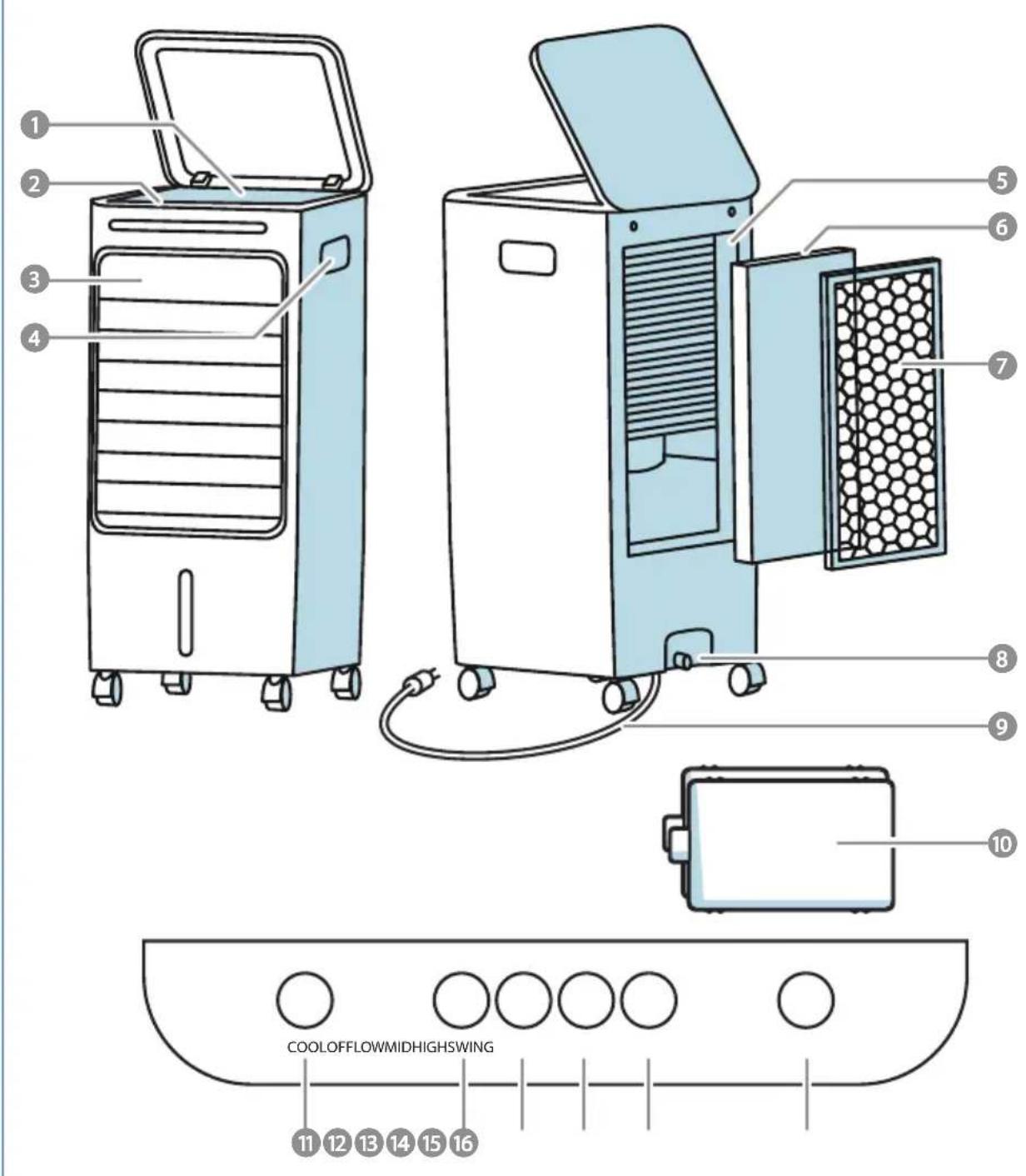

• Top water tank 9. Power cable

• Control panel 10. Ice packs
• Adjustable air outlet 11. Cool button
• Handle 12. Off button
• Air inlet 13. Low button
• Honeycomb filter 14. Mid button
• Filter locking plate 15. High button
• Drain 16. Swing button

5 INSTALLATION

5.1 Placing the appliance

1. Place the appliance in a room of 9 m ^2 or bigger.
2. Place the appliance close to an open door or window.
3. Place the appliance on a horizontal flat surface.
4. Keep minimum (50 mm) space around the appliance for optimal ventilation.
5. Do not place the appliance near a heat source. This could damage the appliance.
6. Do not expose the appliance to direct sunlight.

7. Do not install the appliance where it could be subjected to:
   -Mechanical vibration or shock
   -Excessive dust
   -Lack of ventilation, such as cabinet or bookcase

8. Make sure the air inlet and outlet are not blocked, or close to loose objects e.g. curtains.

5.2 Filling the water tank

i Make sure the drain is closed while filling.

i Make sure the water does not go above the MAX level. Drain if necessary.

i Make sure the water does not go below the MIN level.

1. Fill the top water tank with water.

5.3 Adding ice packs

i Ice packs can be added to provide extra cooling.

1. Add frozen icepacks to the top water tank.

2. Add water up to the max indicator.

3. Close the top water tank.

4. Press one of the fan speed buttons to switch on the appliance.

5. Press the cool button to start cooling.

Do not press the cool button when there is no water in the water reservoir.

1. Press the swing button to swing the air flow.
2. Press the off button to switch off the appliance.

6.1 Storage

For optimal performance. Let the appliance run for 15 minutes without the cooling function activated to dry the filters after use.

1. Unplug the power cable.
2. Drain the water from the appliance.

3. Clean the filter.

4. Store the appliance in an upright position in a dry place.

7 CLEANING AND MAINTENANCE

⚠️ Turn the appliance off and remove the main plug out the socket before you start cleaning the device.
It is not permitted to open the product yourself or to have it opened, neither is it permitted to repair the product yourself or to have it repaired. This will void the warranties. Let any maintenance be carried out by certified maintenance personnel.

- Clean the outside of the appliance with a soft cloth. When the appliance is very dirty, dampen the cloth slightly with water and a neutral solution.

7.1 Draining the appliance

1. Carefully place the appliance above a sink.
2. Open the drain.
3. When the appliance is drained, close the drain.

7.2 Cleaning the filters

i We recommend cleaning the filters every two months.

1. Remove the honeycomb filter from the appliance.
2. Rinse the honeycomb filter with water. If necessary, use a mild detergent.
3. Let the honeycomb filter completely dry before reinstalling.

Problem Possible cause Solution
The appliance does not switch on.	The power cable is not connected correctly.	Reconnect the power cable.
	Honeycomb filter support is not installed correctly.	Reinstall the honeycomb filter
The appliance runs with reduced capacity.	The honeycomb filter is dirty.	Clean the filter.
	The air inlet is blocked. Unblock the air inlet. Check if the location meets the requirements.
The appliance produces odour.	The honeycomb filter is new and can produce odour.	No action required.
	The honeycomb filter molds.	Clean the filter.

If the above solutions do not resolve the problem, please contact your reseller.

9 TECHNICAL SPECIFICATIONS

• Power supply: 220 - 240 VAC \~ 50/60 Hz
- Rated input: 65 W
• Air circulation: 210 m ^3 /h
• Water tank capacity: 6 L
• Weight: 3510 gr
• Body size: 235 x 260 x 565 mm

The meaning of the symbol on the material, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this equipment at your applicable collection point for the recycling of electrical and electronic equipments waste. In the European Union and other European countries which there are separate collection systems for used electrical and electronic product. By ensuring the correct disposal of this product, you will help prevent potentially hazardous to the environment and to human health, which could otherwise be caused by unsuitable waste handling of this product. The recycling of materials will help conserve natural resources. Please do not therefore dispose of your old electrical and electronic equipment with your household waste.

For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
