USER MANUAL Stepper TUNTURI

Installation and operating- Manual

14TUSFU239

14TUSFU240

Assembly Instructions

1. Please Keep the box until you have a full functional test have performed.

2. Your step-up is completely pre-assembled. You can instantly start the training you need to connect the computer only in advance.

3. To do this, first insert the batteries (pay attention to plus/min-indication) in the battery compartment at the bottom of the computer (19). Insert then the sensor cable (21) under the computer into the electrical outlet.

4. Slide now the computer horizontally in front of the Central tube on the attachment A.

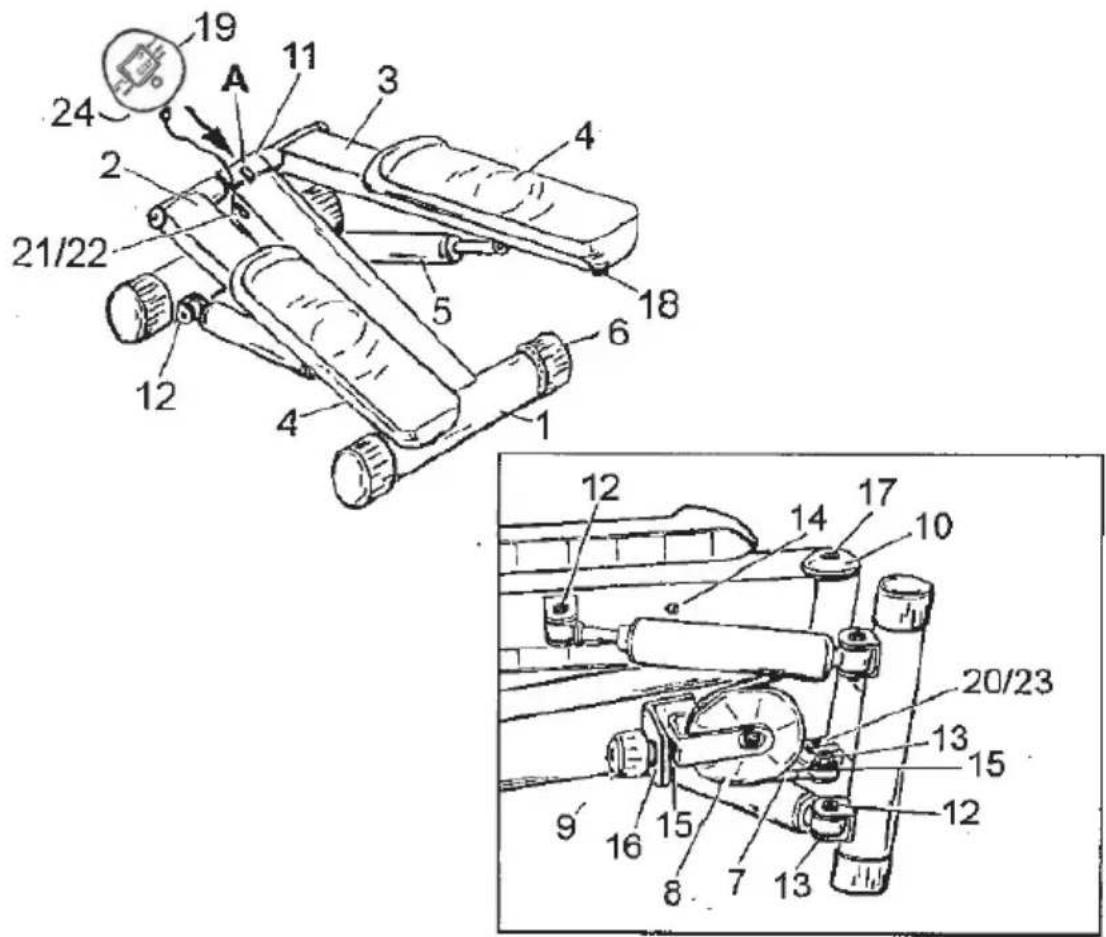

Technical diagram of a mechanical device with numbered components and an inset detailed view showing internal parts labeled with numbers.

	Parts List
	Description	Qty	Index	Parts-no.
1	Base frame	1	F	8815070300
2	Step-bracket, left	1	F	8816070010
3	Step-bracket, right	1	F	8816070011
4	Pedal	2	A	8817070010
5	Hydraulic cylinder with bus	2	L	8831070100
6	Exit Cover	4	A	8814070025
7	Traction Cable	1	L	8819070100
8	Deposit Trekrol with bracket	1	L	88150701 00
9	Adjustment Wheel	1	L	8814070030
10	Plastic Hood Made	2	A	8814070020
	Rectangular stop	1	A	8814070035
12	Screws M 8 x 40	4	F	M8X40DIN931
13	Safety Nut, M8	2	F	M8 ISO7040
14	Screw for pedal	4	F	8860071020
15	Plastic Drive	3	F	8871074003
16	U-disk, 8	2	F	8DIN125
17	Screw M8 x 12	2	F	M8x12DIN912
18	Pedal Attack	2	A	881407040
19	Computer	1	H	8812070100
20	Magnet	1	L	8819070110
21	Sensor with cable	1	L	8812070120
22	Screw for sensor	2	F	8860071010
23	Screw and nut for magnet	2	F	8860071030
24	Batteries	2	J	8818020010

Index for material removal

A = plastic, thermoplastic G = rubber

B = plastic, Duroplast H = electronics

C = plastic, polyethylene J = batteries

D = styropor K = glass

E = paper/board L = other

F = metal

This index is intended to the collation of materials for a later disposal easier.

Safety Instructions

Read the entire operating instructions carefully for the first training.

In order to guarantee a safe and years of training, it is essential that the safety and maintenance instructions in this manual strictly followed. Point to anyone who wants to use your training device on these instructions.

This device is in accordance with EN (class H) a training device for home use and not for professional use (e.g. fitness-studios) or for places that are accessible for everyone without control (e.g. public swimming pools etc.). This device is with a test weight of 100 kg, in compliance with the safety factors of the European standard tested.

Use your training device exclusively for the designated purpose. Inefficient use can lead to accidents, damage to the health or damage to the training device, for which the manufacturer can accept no liability.

Setup:

• For the preparation of the device you need to choose a place that offers sufficient free space in any direction.
• Make sure that the training room is well ventilated during training. Avoid drafts.
• The device should not be used outside, use the device only indoors and in rooms with the right temperature.
• The device is not suitable for damp rooms and should not be used (e.g. sauna, pool ...).
• Only place the appliance on a flat and hard surface floor and compensate any unevenness.
• It is advisable to place the device on a dedicated protective mat.
• Keep it away from hot objects.

This is how you train correctly:

Set the desired tax and lift height in with the hand wheel on the bottom of the unit.

Abstract geometric shapes including stairs, a gear, and a plus sign with curved arrows (no text or symbols)

To change the lift height, you will first need to draw up the pedals by hand. This simplifies the adjustment.

Go straight with a stretched back stand on the pedals. Ensure a stable stand on the pedals.

If desired, set the step-up on near objects that you feel during exercise with one or both hands can hold.

Bend the knee of one leg and push the other leg at the same time powerful by down. This causes the second pedal automatically in a higher position. Now you start with your training. Push the second pedal down and bring the other pedal in a higher position. And vice versa.

Warranty Provisions

Warranty Periods

This training device has a full 2-year warranty for home use.

Application Areas

Home: reserved for private use

Proof of purchase and serial number

For you to be able to offer services within the warranty period, we have a copy of your proof of purchase with date, required. Always store your proof of purchase and send us in case of guaranteed always a copy as an attachment to your service order. So a quick handling.

To be able to unambiguously identify your model version, we need to get some information. Therefore for your service order or for ordering parts using the enclosed service card.

Terms Of Guarantee

The warranty is valid from the date of purchase by the final consumer for all newly bought products from authorized distributors of Tunturi Fitness B.V. be purchased.

At demonstrators, the warranty from the date of purchase by the original purchaser, in this case the subject specialist.

This warranty is subject to other agreements between the seller (subject specialist) and buyers (end users or resellers).

We accept the guarantee the intactness of our purchased products through retailers.

This warranty does not cover damage caused by:

• negligent misuse,
• poor maintenance,
• normal wear and tear,
• ingress of moisture (e.g. body perspiration)
• an incorrect installation,
• force majeure,
• repairs or product modifications and alterations by not by Tunturi Fitness E.g. certified technicians.

What we mean by full warranty:

The full guarantee of Tunturi means that for you at no cost within the relevant warranty period for spare parts and repairs.

The guarantee does not cover wears out parts, e.g. bearings etc.

Service out of warranty services

Your subject specialist and Tunturi Fitness E.g. are also at your disposal in the resolution of problems, eg. If there are flaws occur after expiration of the warranty period or in the case of cases which are not covered by warranty. In these cases you should contact your subject specialist directly or directly with Tunturi Fitness E.g.. We will your problem then send it to a service technician.

Note:

Also after intensive quality controls, to which we attach great importance, may occasionally defects occur. These defects can usually be corrected by the replacement of parts, so that returning the complete device is not necessary. In addition, we also in many places in Germany about service technicians can help.

Any returns must be with us.

Maintenance Instructions

When used intensively or an unfavorable indoor temperature can occur and wear particles from the hydraulic system oil can escape. We recommend therefore to spare in each case to your floor and exclusively to train on a dirt-repellent surface. We ask you to understand that we have complaints related to a contamination of the floor must reject in principle.

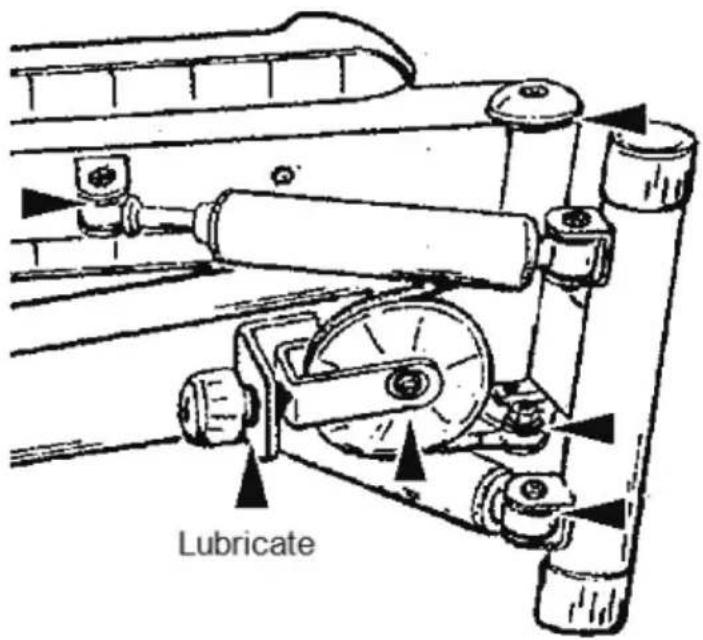

Like any sport your step-up device also has occasional maintenance. Fat therefore from time to time the bearing positions in the market with a usual sewing machine oil etc. Your sports device is grateful for a good maintenance in the form of a longer life.

Lubricate

Cleaning

Clean the device after every workout to avoid damage by body perspiration. Make for the maintenance of the device do not use caustic agents. Use a damp cloth for cleaning. When the step-up CP, in addition, that there is no moisture in the cockpit.

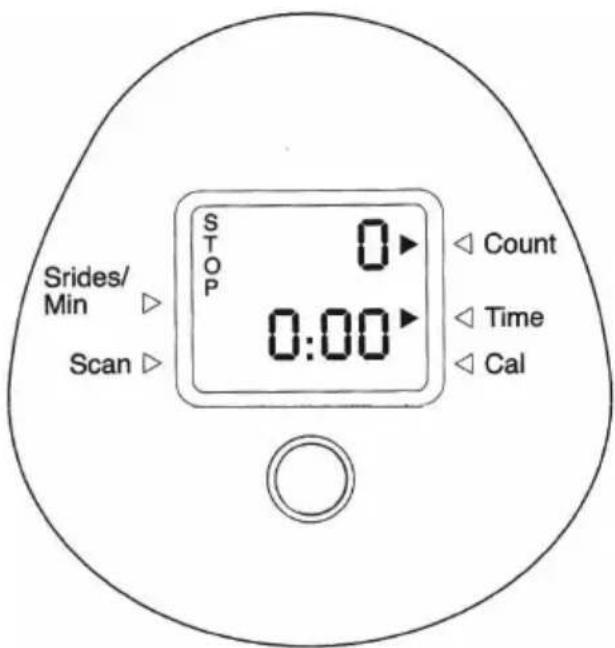

FUNCTION BUTTONS

Mode / Reset

Mode to choose a function, or press and hold the mode button to reset all functions

FUNCTIONS.

Stop

If you stop

steppes

the

word

appears

stop in the display

Strides / min. shows the number of steps per min made

Scan automatic function skips per every 6 seconds

Count counts the number of steps per workout

Time displays the total time per training again, up to 99 min.

59 sec.

Calorie indicates the number of consumed calories per

workout. Max. 9999 calories. This is a value only for comparison of different exercises and should not be used for medical treatment

Extra info: -4 minutes after using the computer will turn off

automatically and all programs will be reset

-When starting the exercise will enable the computer automatically

-If the computer is not clear to read out you can install new batteries for better results

-Batteries: 1, 5V AA (1 X)

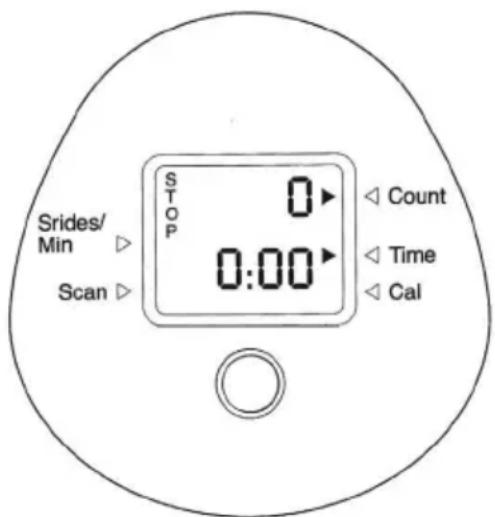

Srides/ Min ▷ Scan ▷ STOP 0 ▶ 0:00 ▶ ◄ Count ◄ Time ◄ Cal

Technical data / device properties

STEP-UP CP

Dimensions (l x w x h): Computer indication of: approx. 470 x 340 x 220 time in min 00: 00-99: 00 Weight approx. 8 kg steps 0-9999 Max. user weight: 100 kg

Our training equipment is constantly developed. We reserve therefore in the framework of the technical progress amendments.

Error Solution

P r o b l e m : S o l u

The sounds device creates abnormal maintenance during training. (see page 8)

No indication after checking the batteries enable. Indication still have sufficient voltage unreadable. Prob. new batteries.

No indication of the steps check the cable

plug in the cockpit is seated firmly.

Tunturi Fitness B.V.

Purmerweg 1 NL - 1311 XE Almere P.O. Box 60001 NL - 1320 AA Almere The Netherlands

www.tunturi-fitness.com
