Attention, Achtung, Attention, Attentie, Atención, Giv akt, Huomio

• Please read this Owner's manual before assembling this product.
• Bitte lesen Sie dieses Handbuch durch, bevor Sie mit er Montage dieses Produkts beginnen.
• Veuillez lire ce manuel avant de commencer le montage de ce produit.
• Leest u deze handleiding voordat u dit apparaat installeert.
• Lea este manual antes de montar este producto
• Läs bruksanvisningen innan du monterar denna produkt
• Lue tämä käsikirja ennen kokoamista tuotetta

A

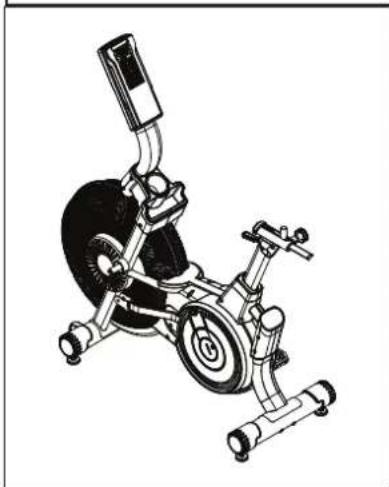

Line drawing of a stationary exercise bike with visible gears, wheels, and sensor components (no text or symbols)

B

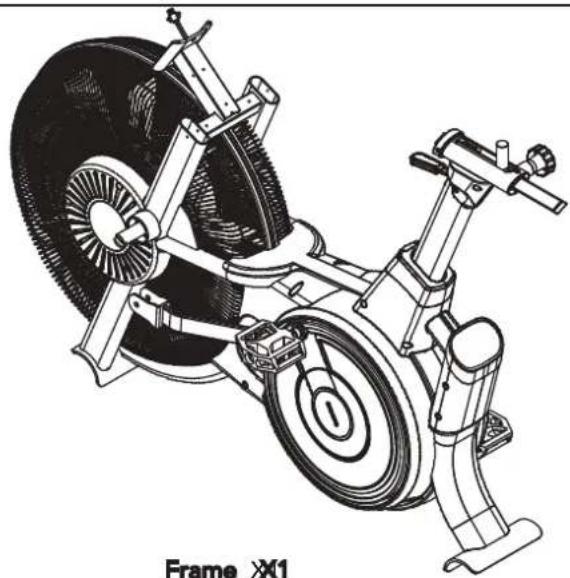

Technical line drawing of a vehicle tire mounted on a stationary support frame (no text or symbols)

Line drawing of a curved mechanical component with mounting bracket (no text or symbols)

Console post XX1

Console MX1

Line drawing of a mechanical lever or lever mechanism (no text or symbols)

Left handlebar XX1

Line drawing of a bent pipe with two circular components attached (no text or symbols)

Right handlebar XX1

Console post left cover X1X1

Console post right cover X1 X1

Front stabilizer X1

Rear stabilizer X1

Personal storage holder X1X1

Left pedal X1

Right pedal X1

Seat X1

Anti-slippery rubber X1

Left pedal bracket X1

Right pedal bracket X1

Anti-slippery rubber X1

C

Simple line drawing of two vertical cylindrical objects with horizontal striped bands, no text or symbols present.

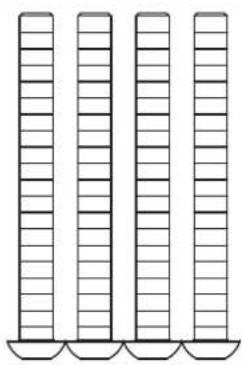

79_M10X110L

Screw X2

Four vertical cylindrical objects with horizontal lines, arranged horizontally (no text or symbols)

85_M10X105L

Screw X4

80_M10X55L

Screw X2

82_M10X50L

Screw X1

77_M6X12L

Screw X8

12_M4X12L

Screw X10

84_M6X50L

Screw X2

83_M10X15L

Screw X1

81_M10

Nylon Locknut X2

78_M10X21XT2.0

Washer X6

94_M10

SPRING WASHER X2

93_M6

SPRING WASHER X8

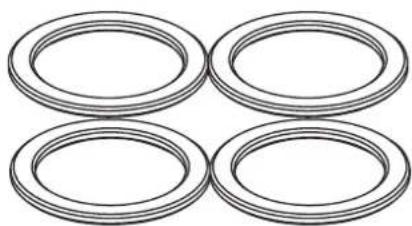

75 ∅35X∅25xL12.8

Bushing X2

Four identical ring diagrams arranged in a 2x2 grid (no text or symbols)

76_∅33x∅25XT2.0

Spacer X4

Four identical hand-drawn oval shapes arranged in a 2x2 grid (no text or symbols)

90_∅33.7x ∅25.6XT0.3

Washer X4

M6X191L Tool X1 M8X139L Tool X1

Tool X1

Tool X1

Tool X1

D-0

100 cm 100 cm 100 cm 100 cm

D-1

85 x2

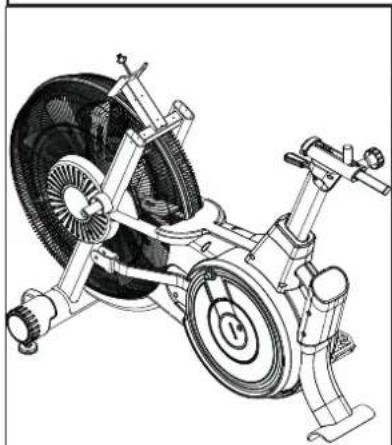

Technical line drawing of a stationary exercise bike with visible wheel, wheels, and suspension components (no text or labels)

Technical diagram showing mechanical assembly with labeled parts and a close-up of the main component, including a 85-unit base.

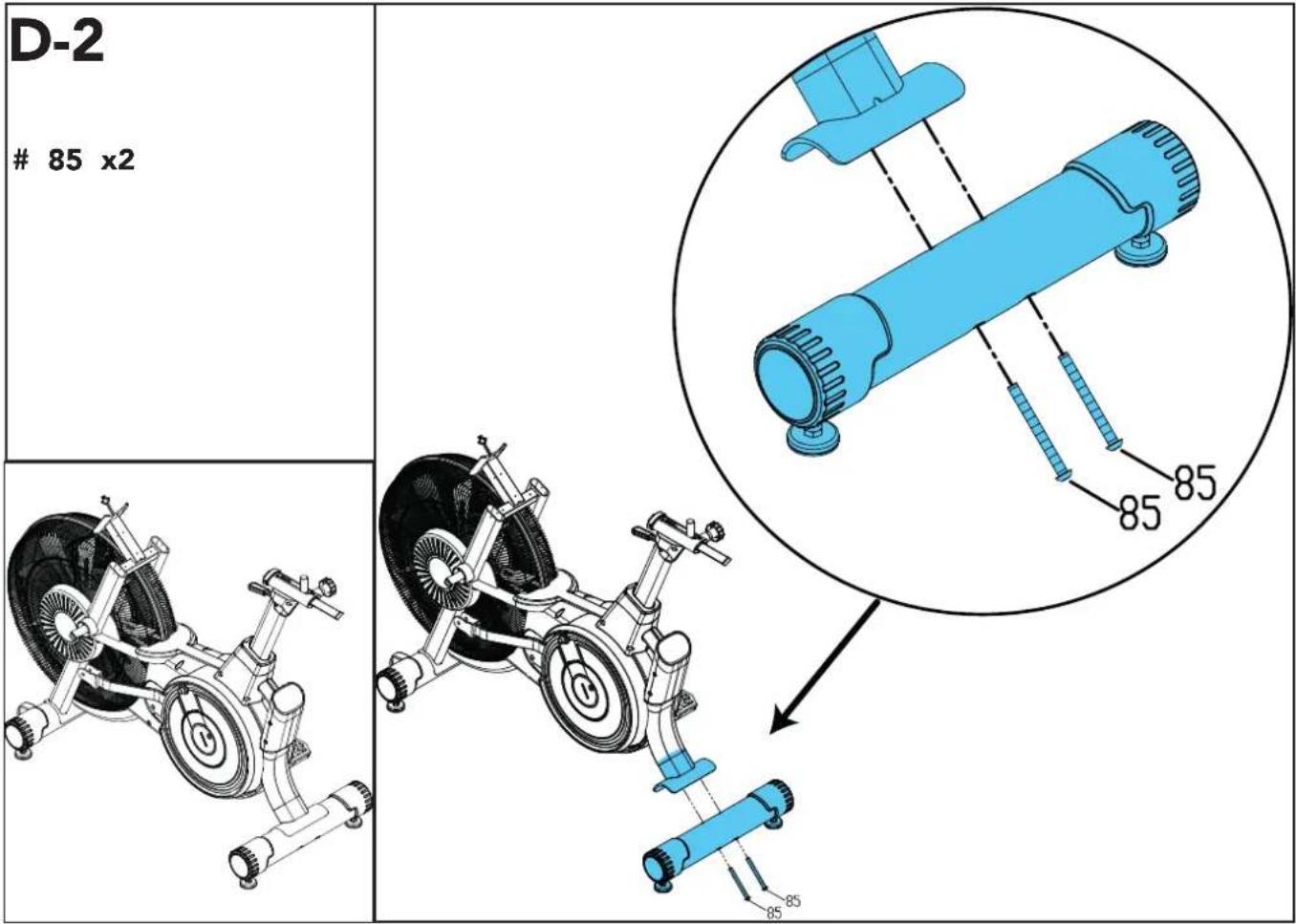

D-2

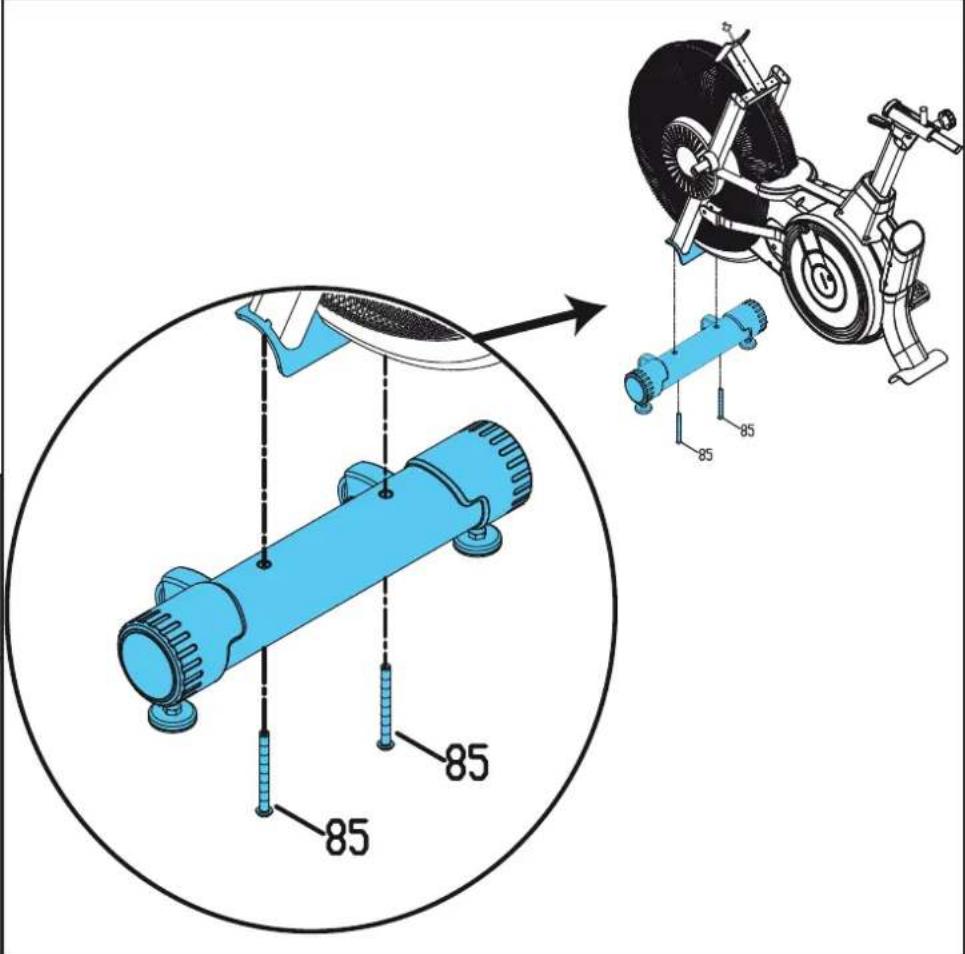

85 x2

85 85 85 85 85

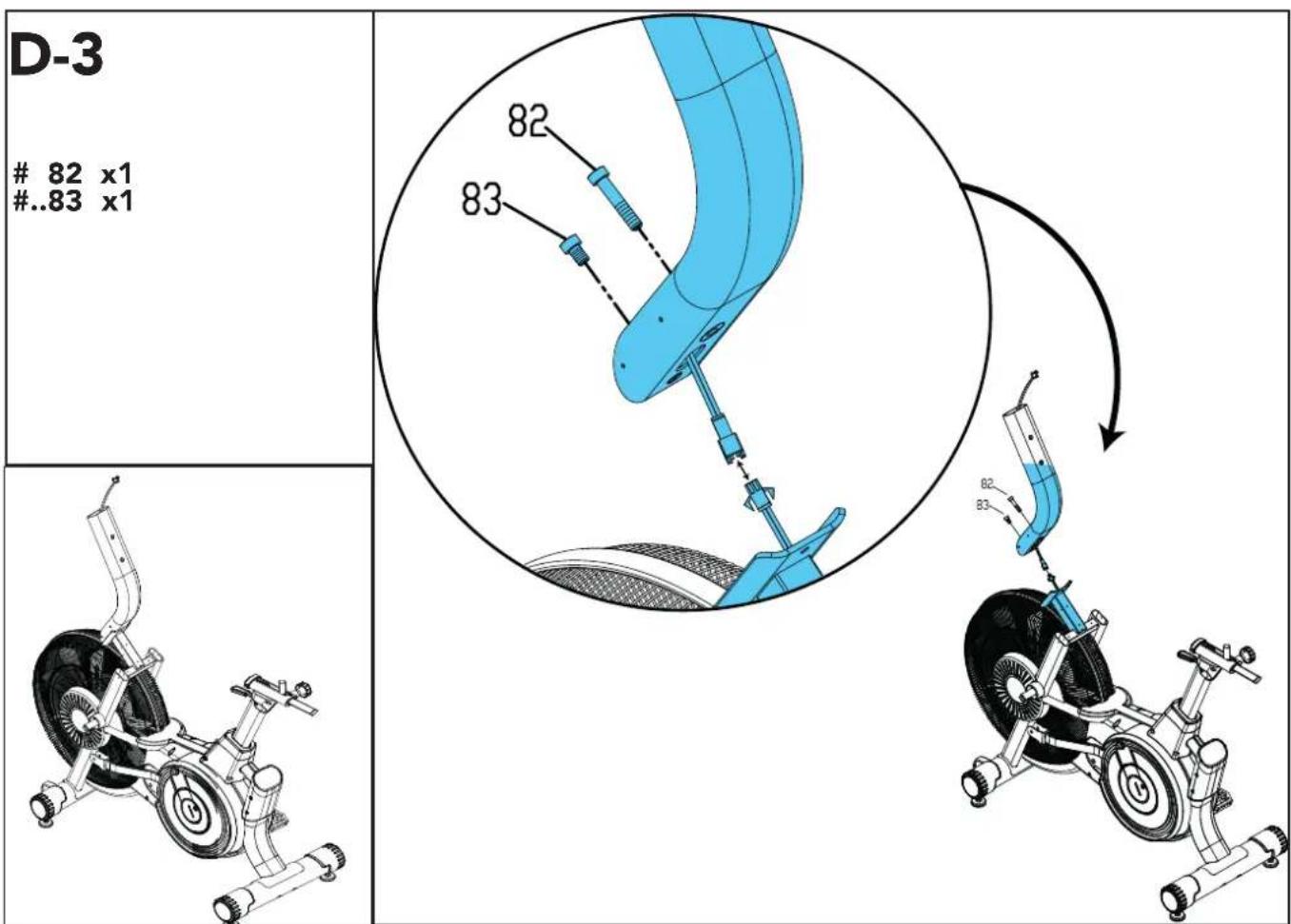

D-3

82 x1

#..83 x1 82 83 82 83

Platinum®PRO

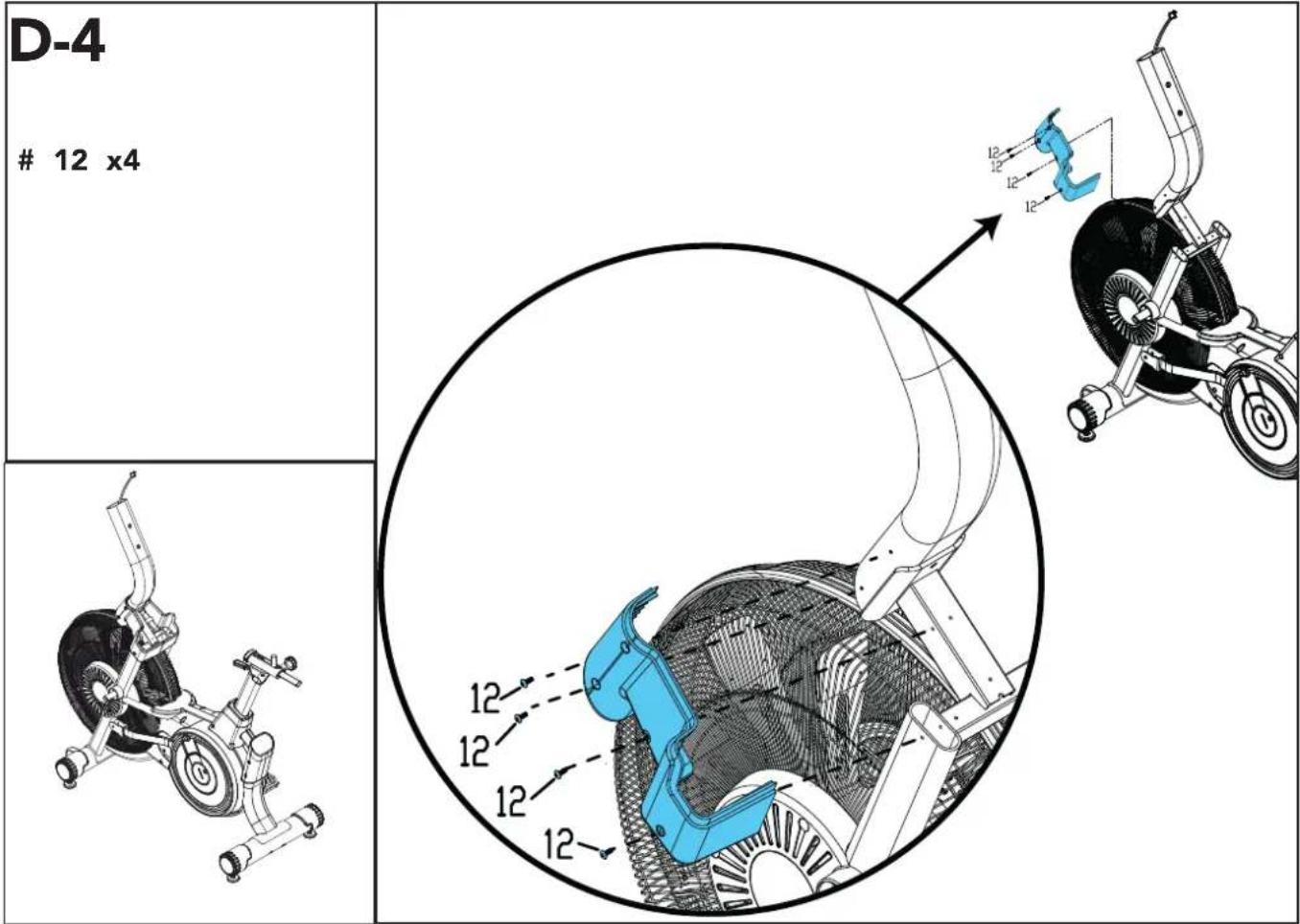

D-4

12 x4

12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12

D-5

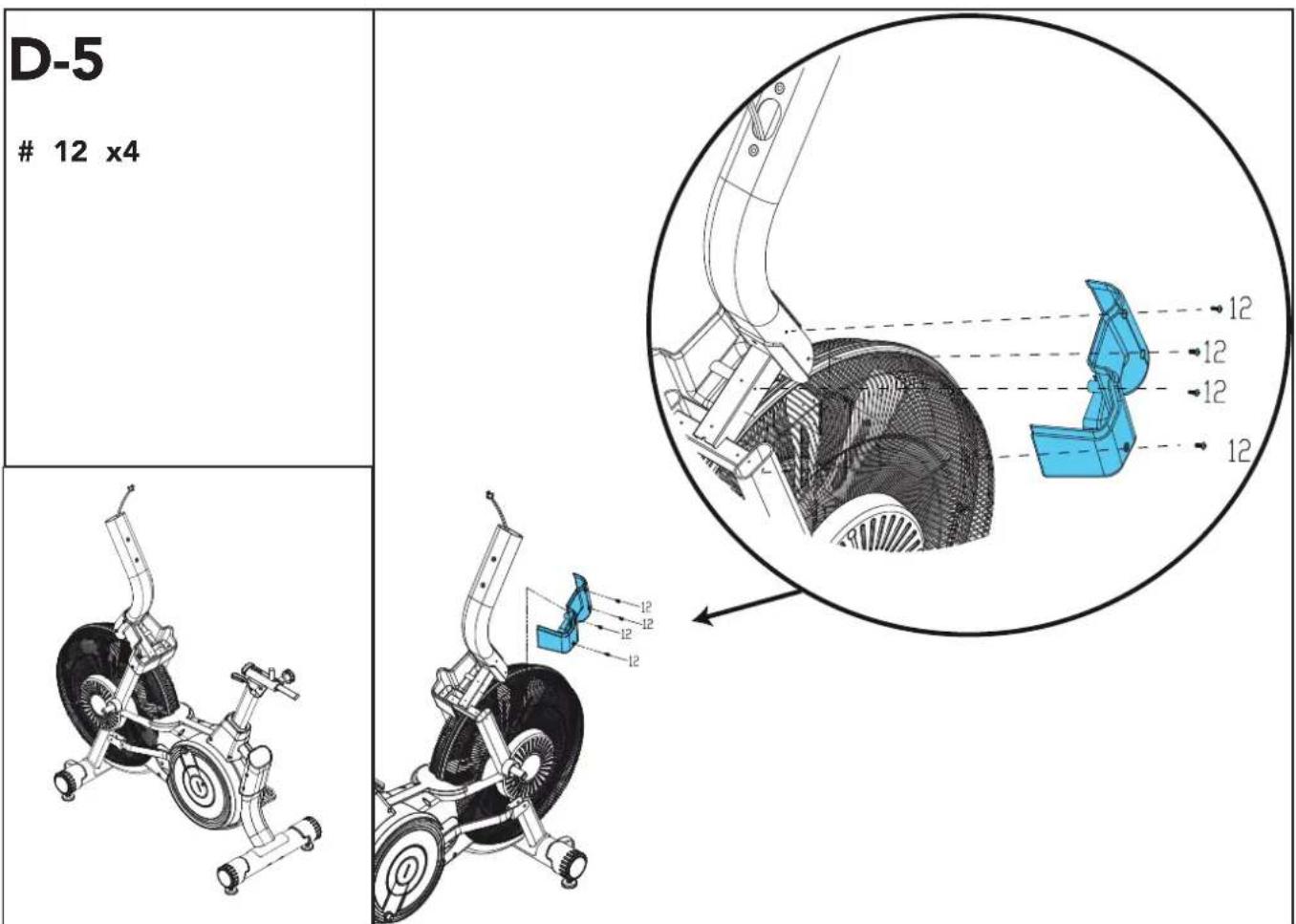

12 x4

12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12

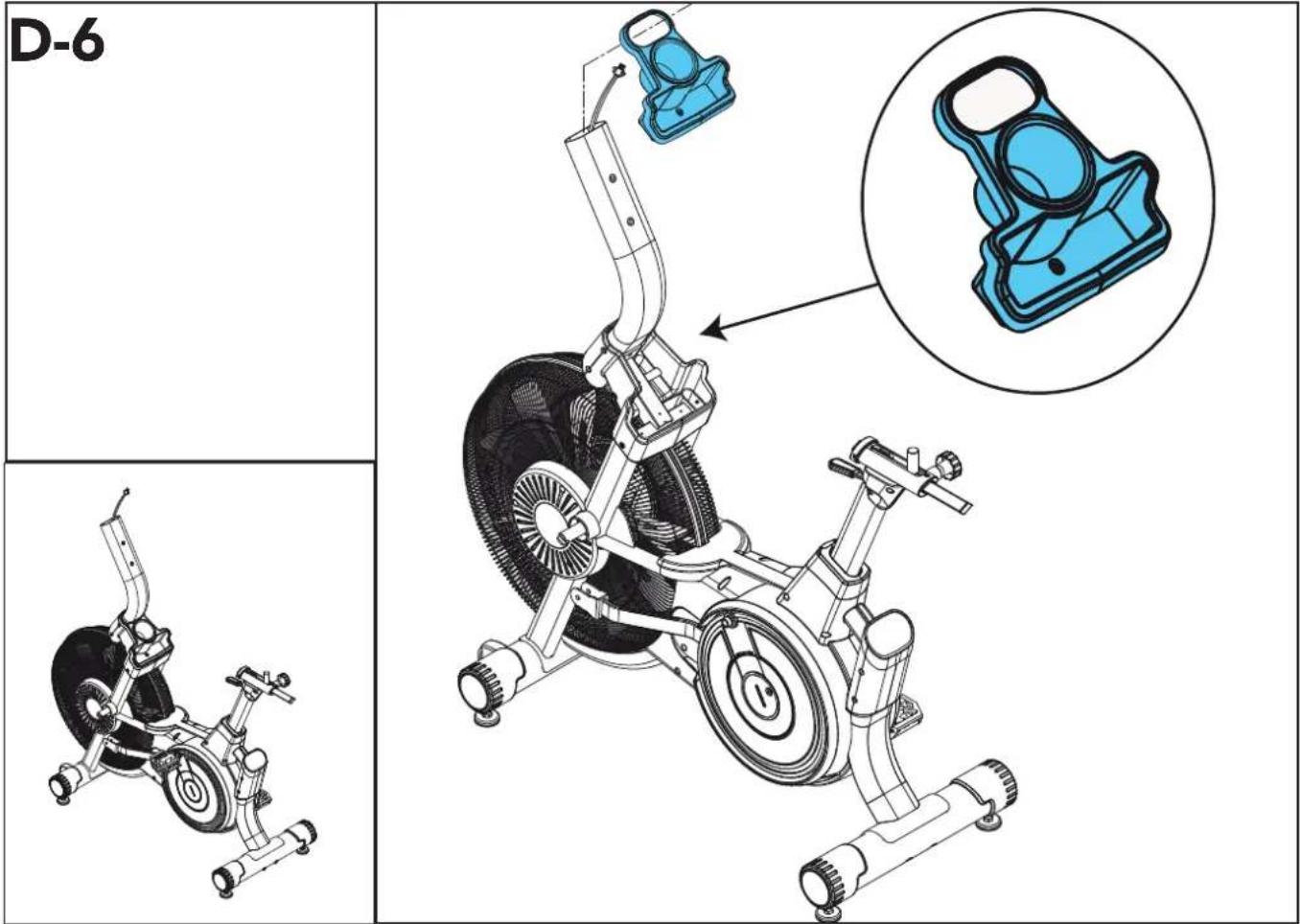

D-6 12

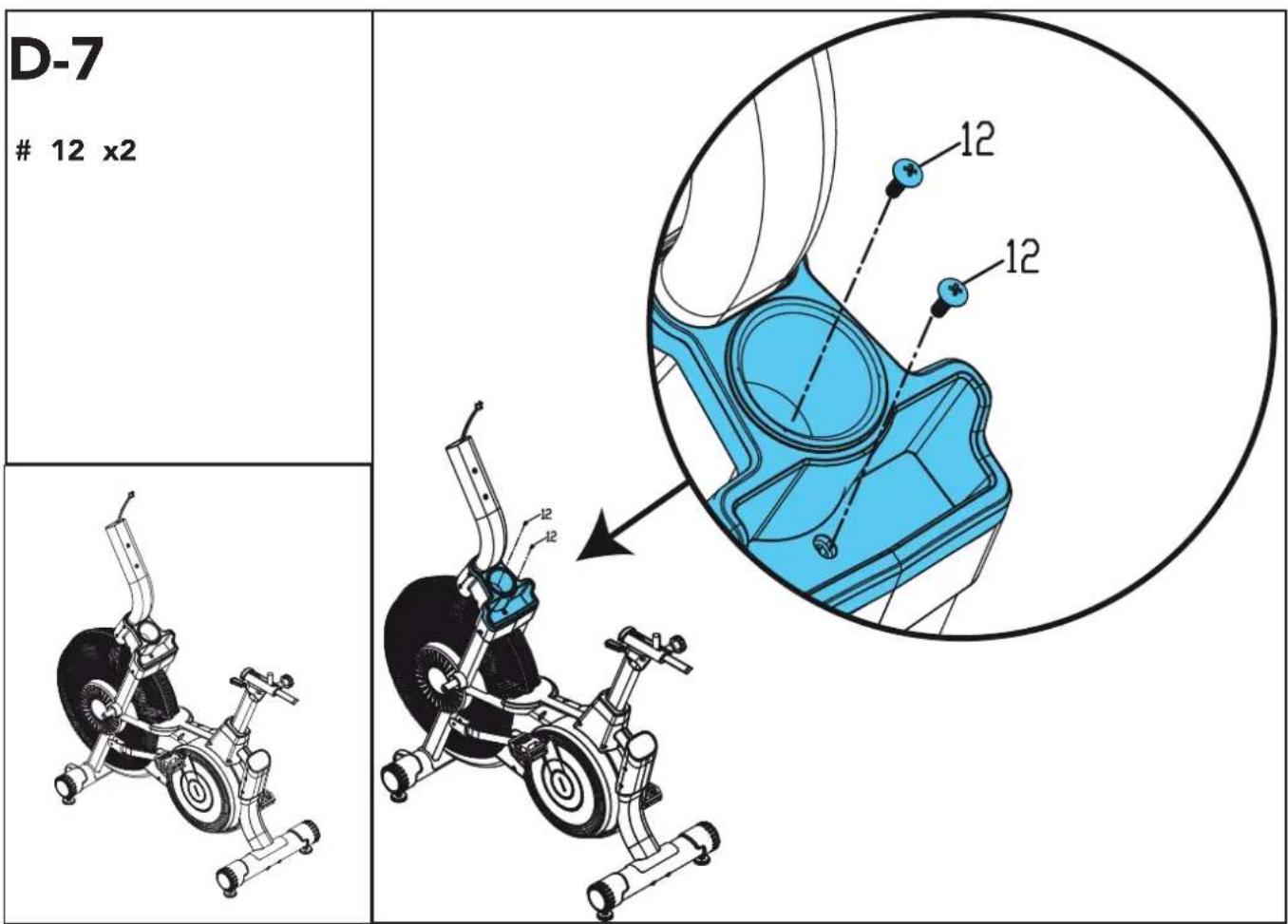

D-7

12 x2

12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 14 14 14 14 14 14 14 14 14 14 14 14 14 14 14 14 14 14 14 14 14 14 14 14 14 14 14 14 14 14 14 14 14 14

Platinum®PRO

D-9

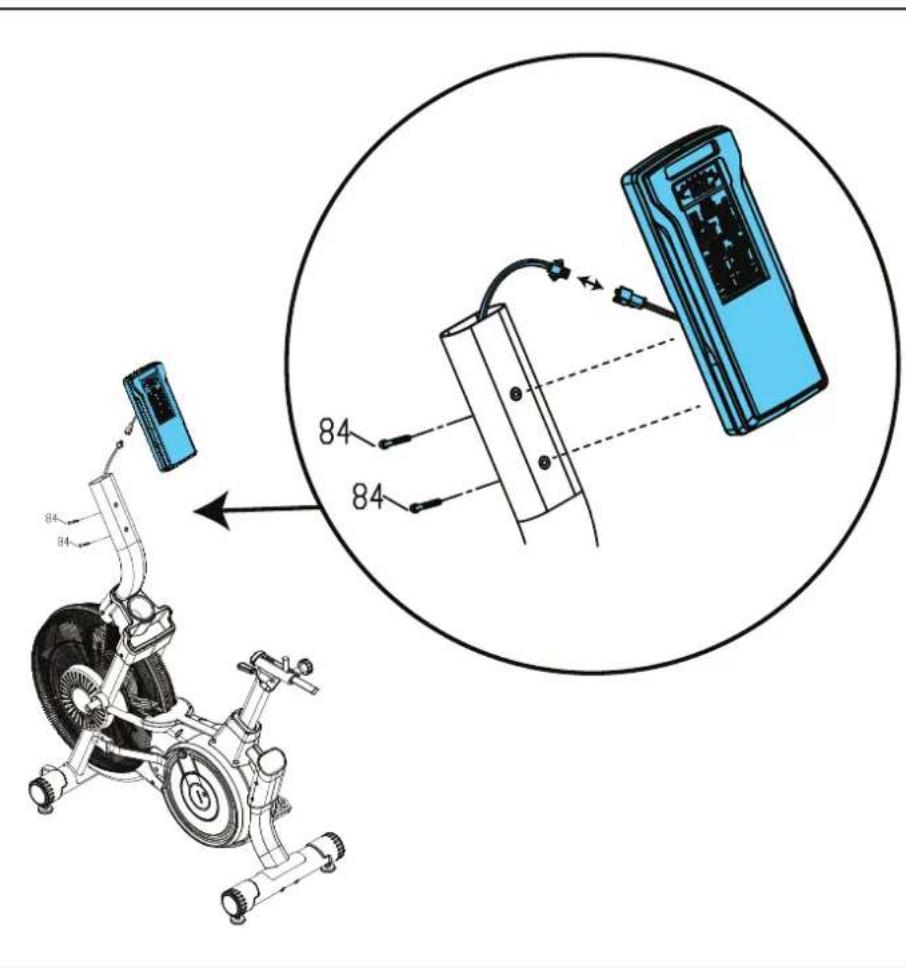

84 x2

Line drawing of a stationary exercise bike with visible mechanical components and wheels (no text or symbols)

Diagram illustrating the use of a 84-unit motor on an exercise bike, with a magnified view showing the internal components.

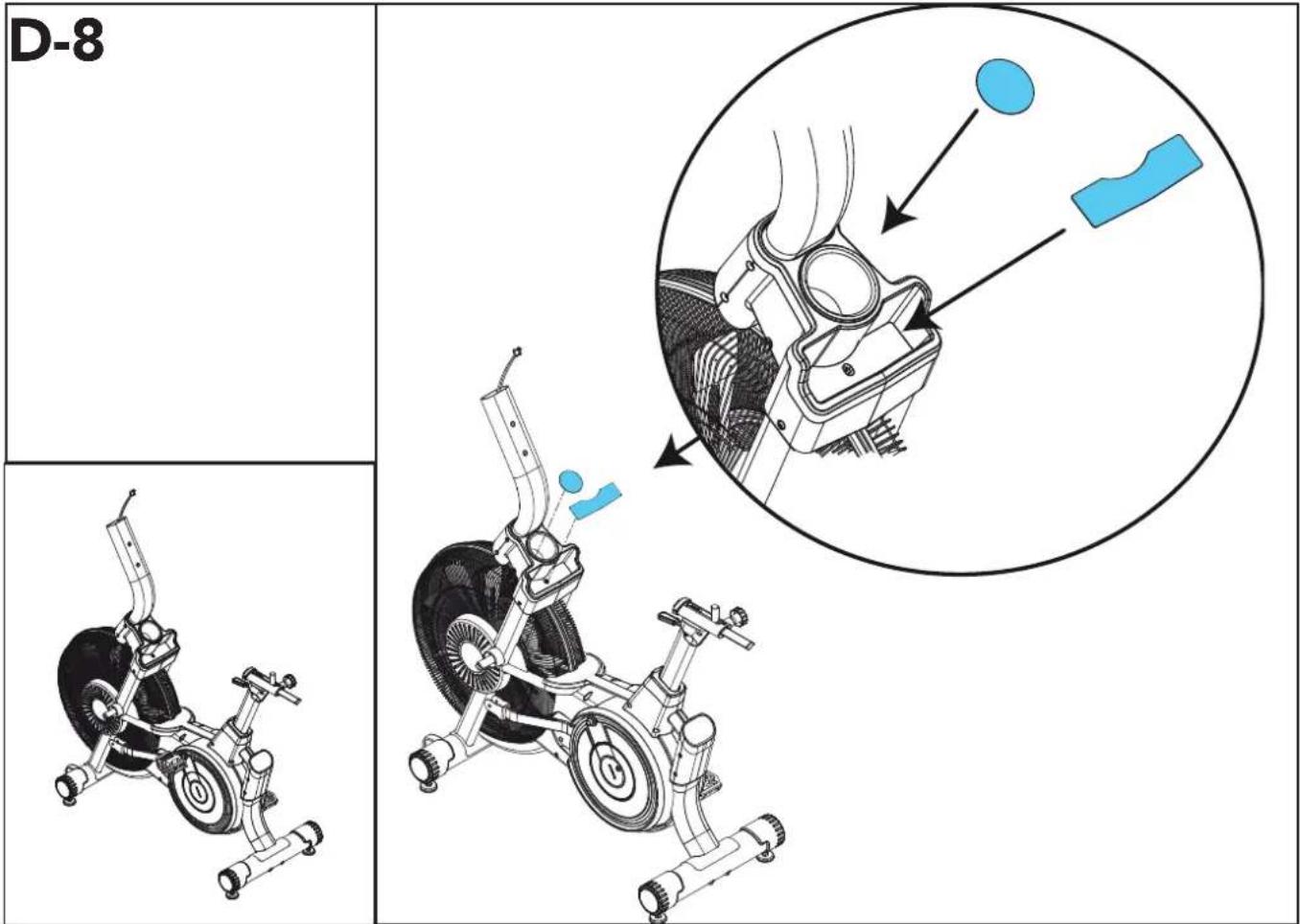

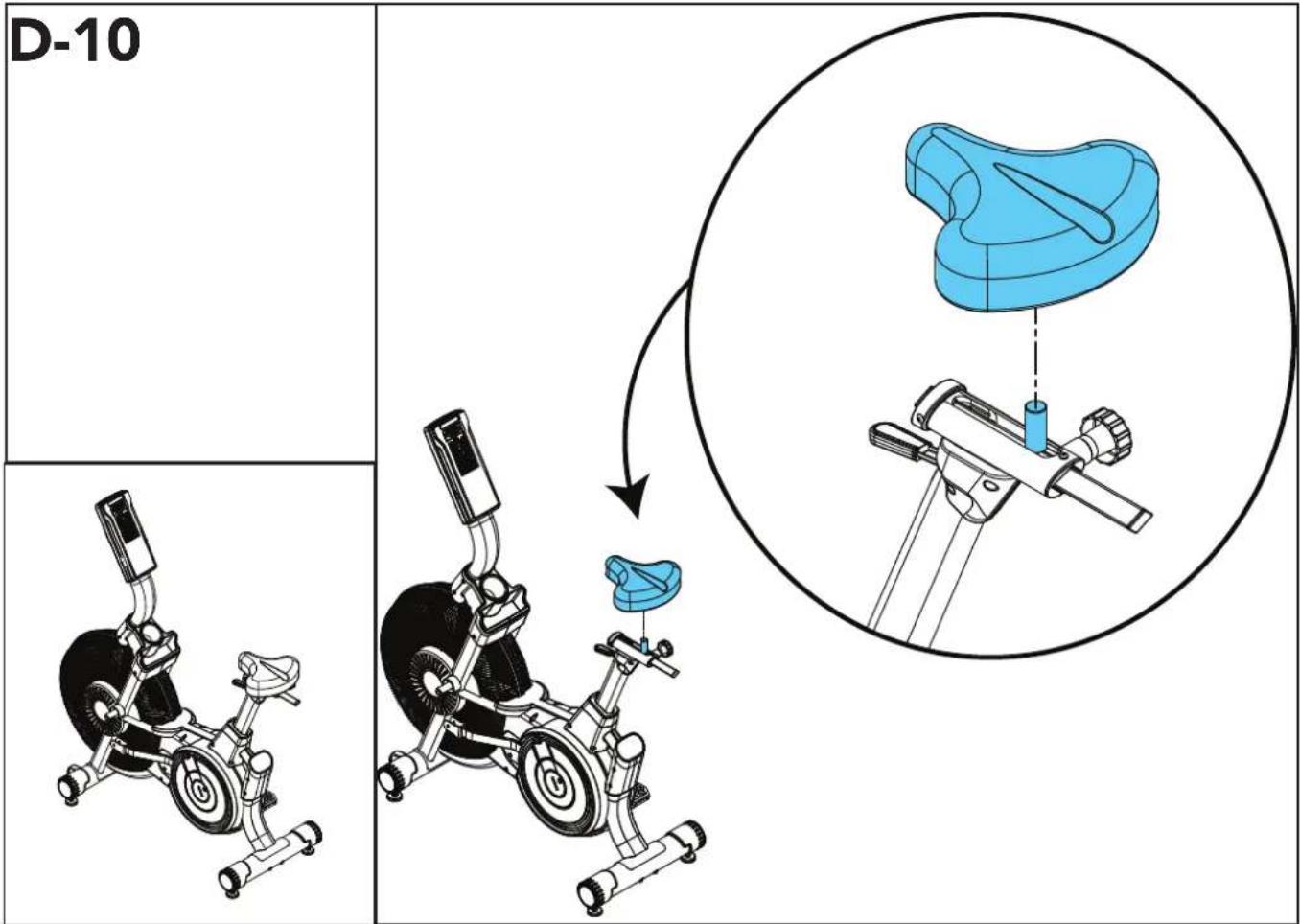

D-10

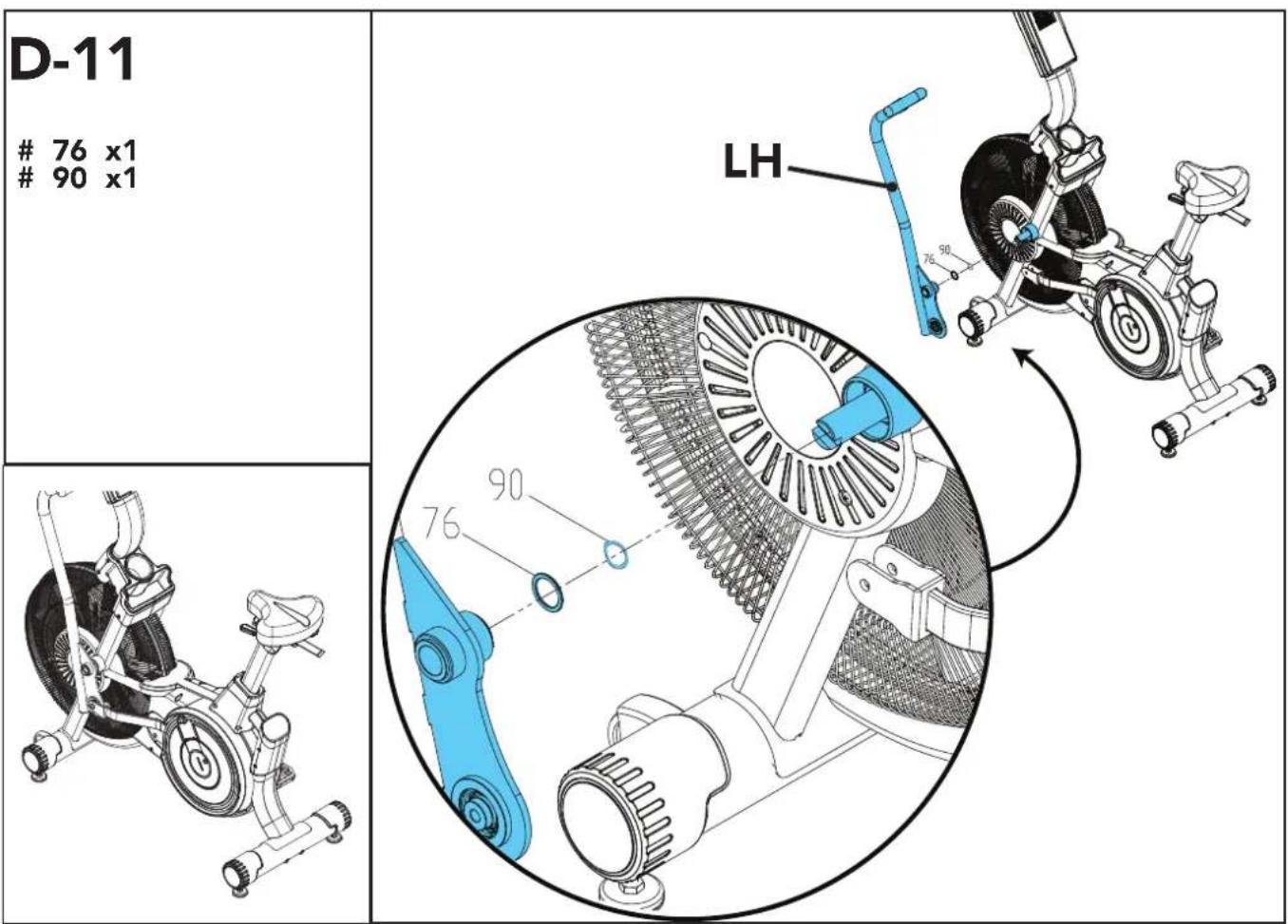

D-11

76 x1

90 x1

LH 76 90 76 90

Platinum®PRO

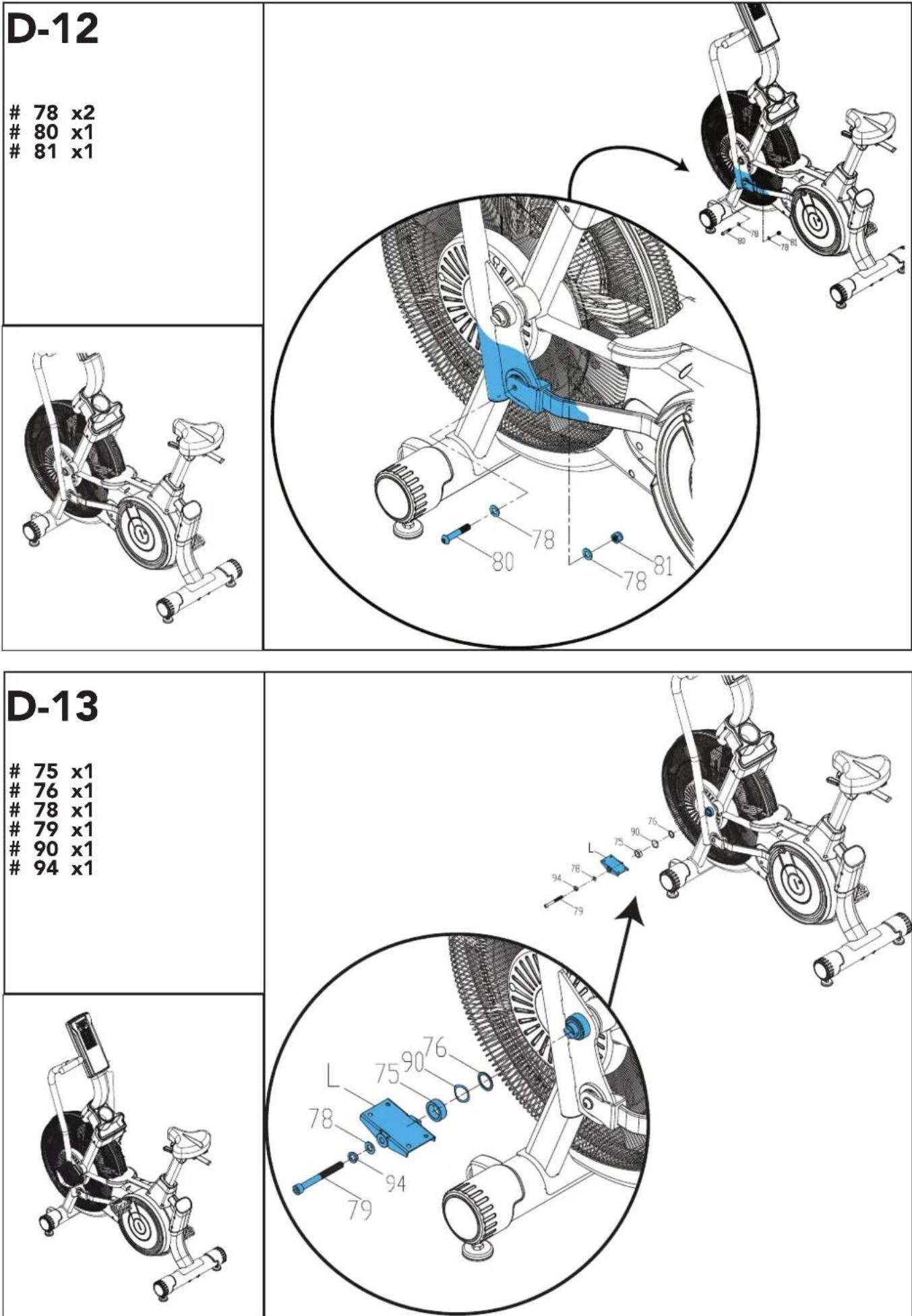

78 x2

80 x1

81 x1

# 75 x1

# 76 x1

# 78 x1

# 79 x1

# 90 x1

# 94 x1

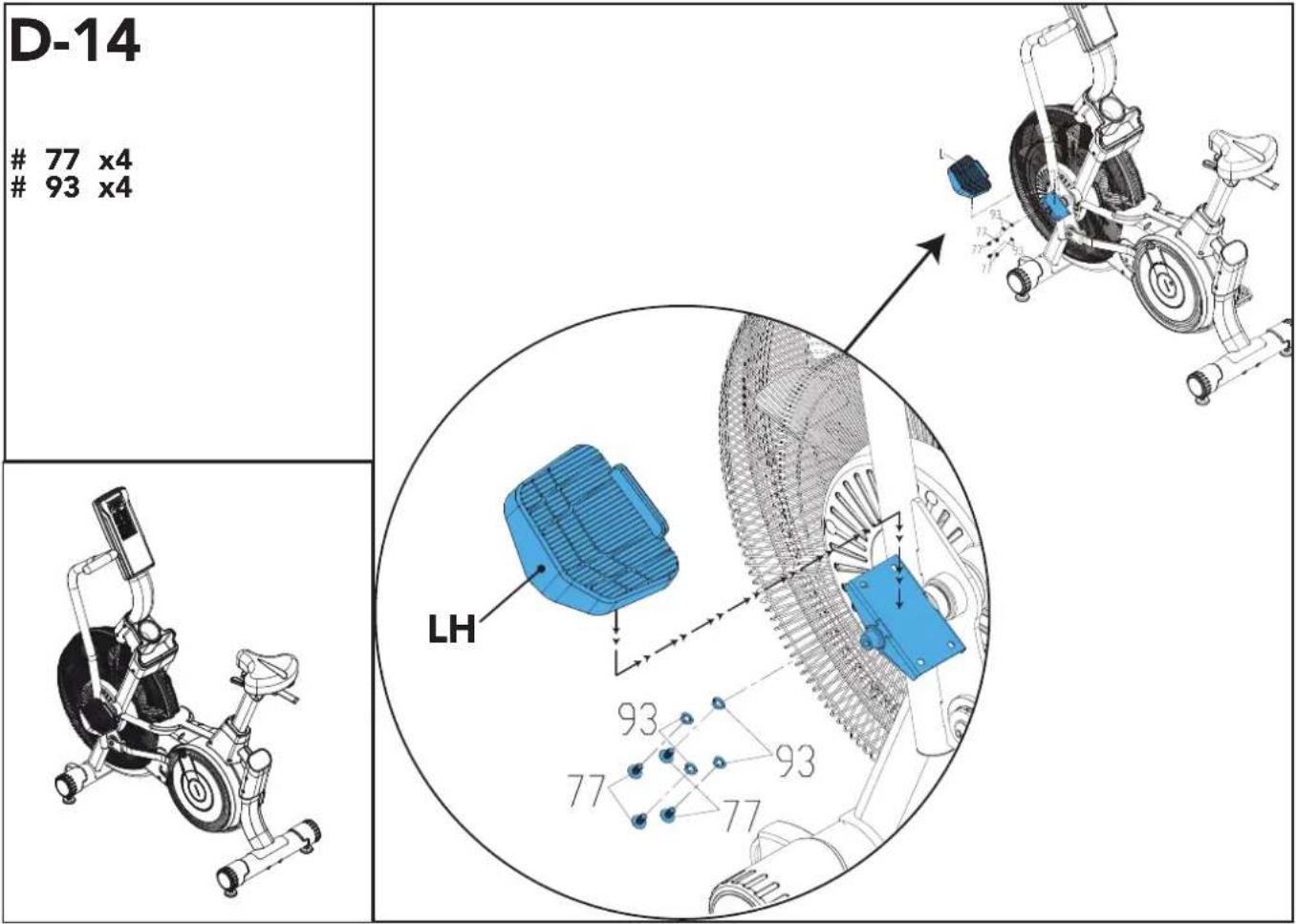

77 x4

93 x4

76 x1

90 x1

D-15

Line drawing of a stationary exercise bike with adjustable arms and wheels (no text or symbols)

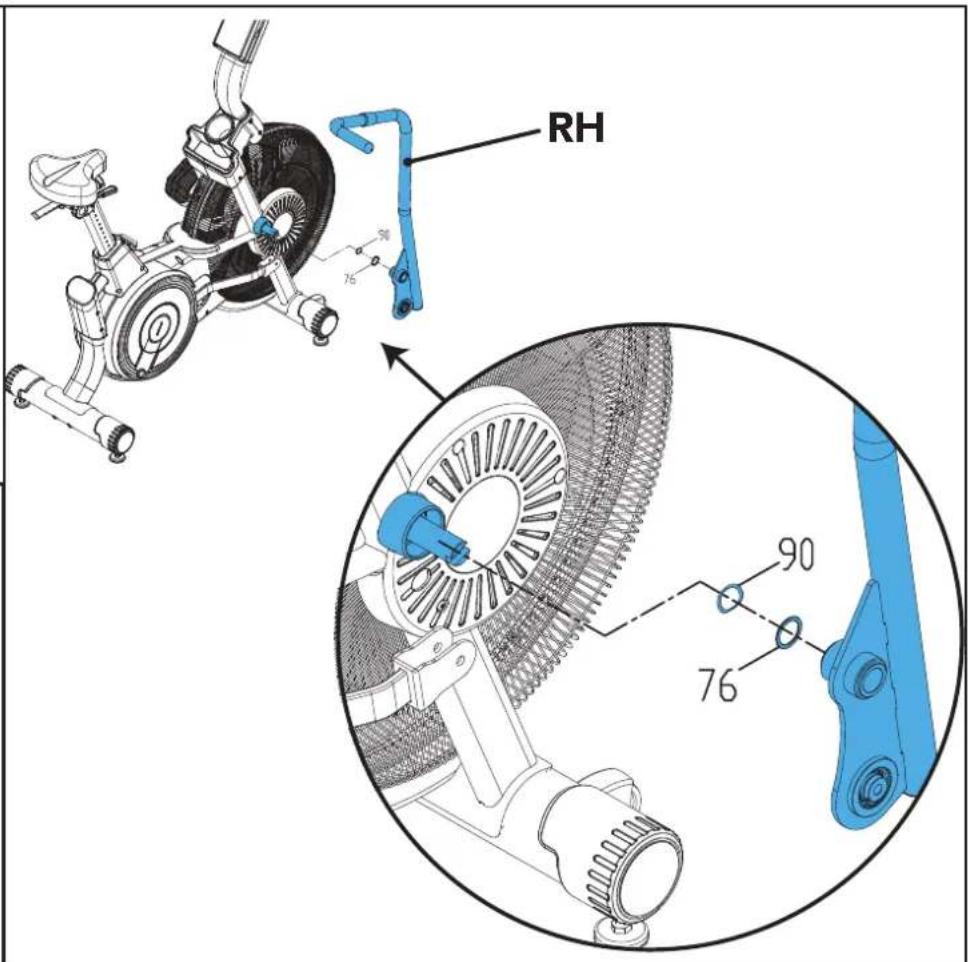

RH 90 76 90 76

Platinum®

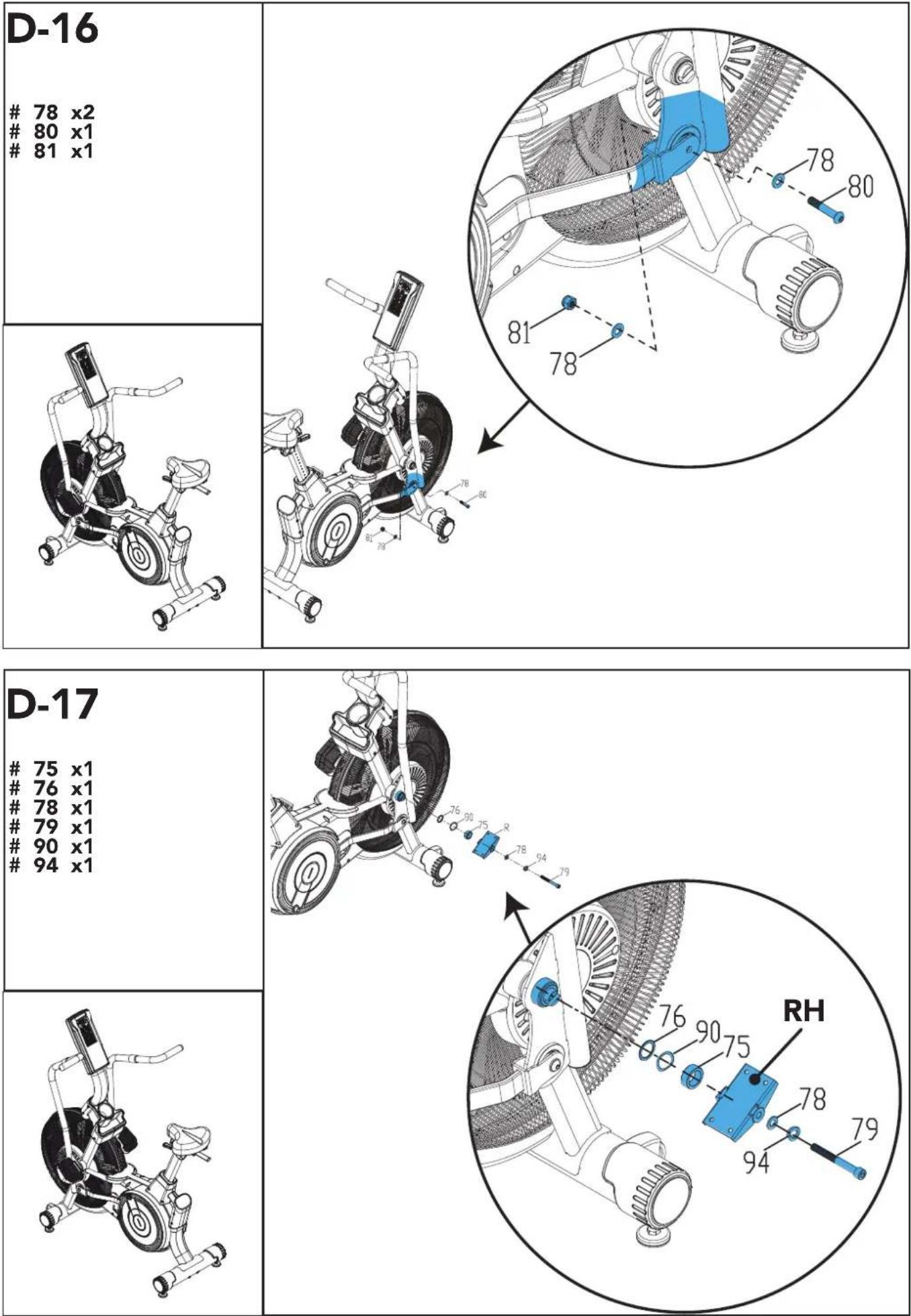

78 x2

80 x1

81 x1

75 x1

76 x1

78 x1

79 x1

90 x1

94 x1

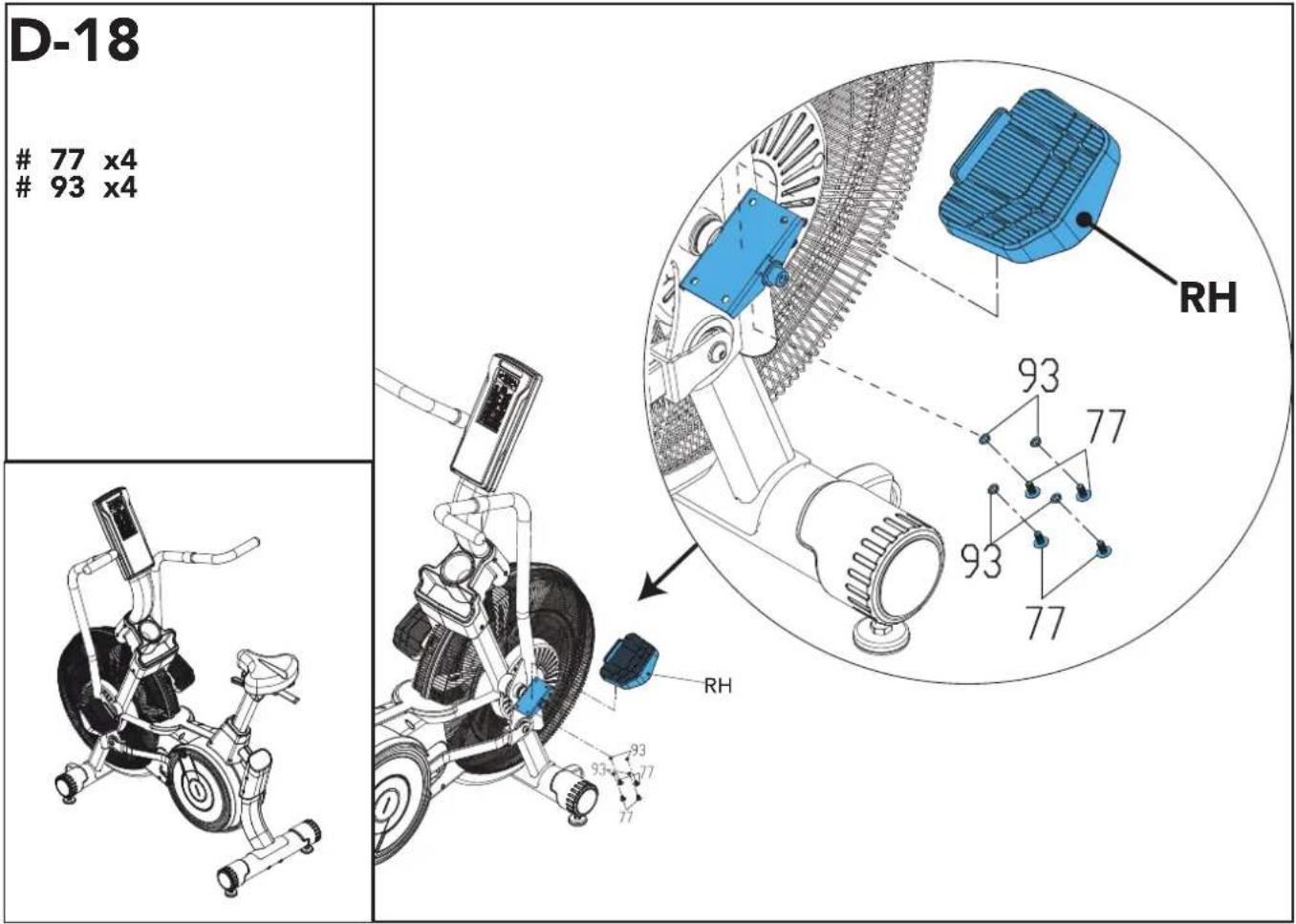

D-18

77 x4

93 x4

RH 93 77 93 77 RH 93 77 93 77

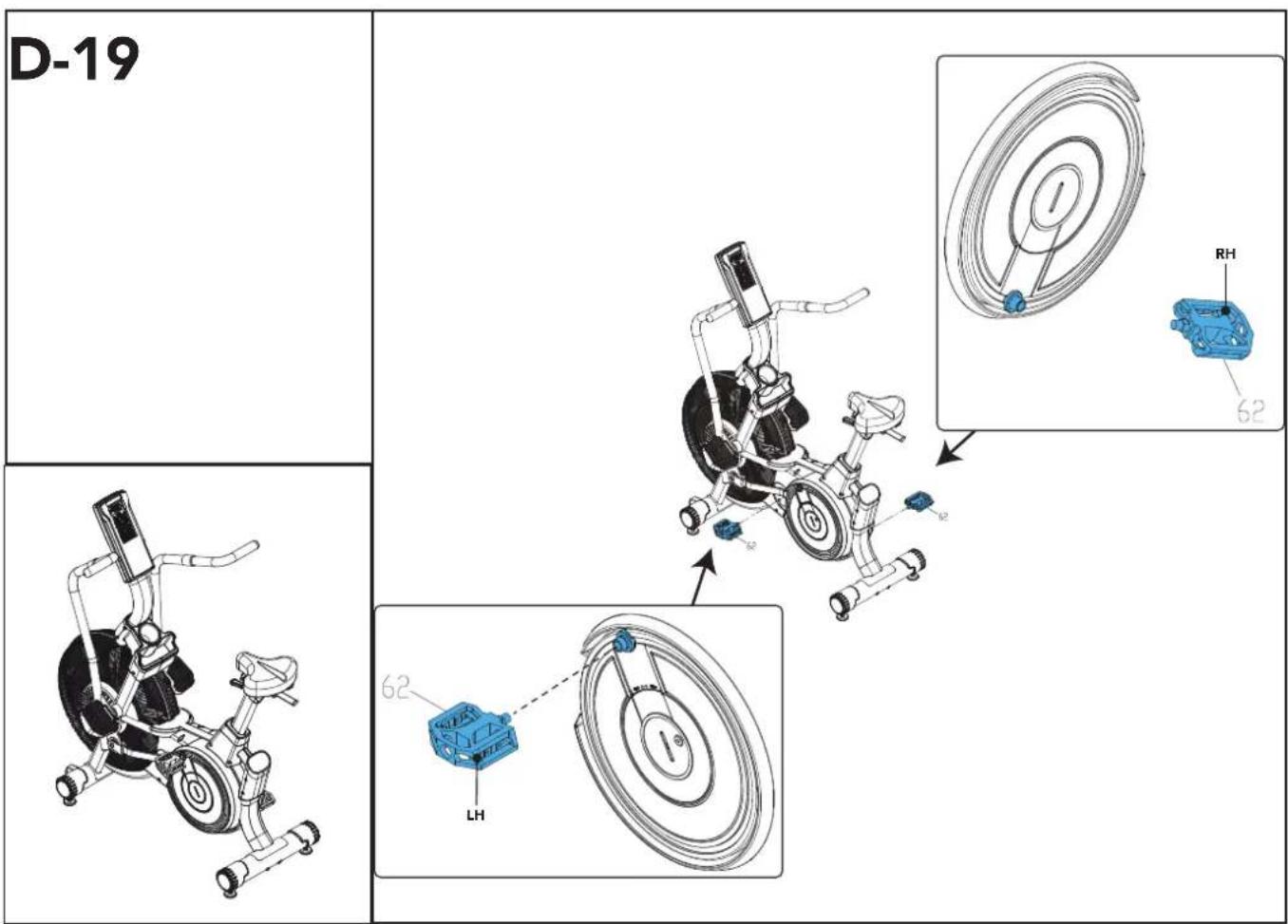

D-19 62 RH 62 LH

E

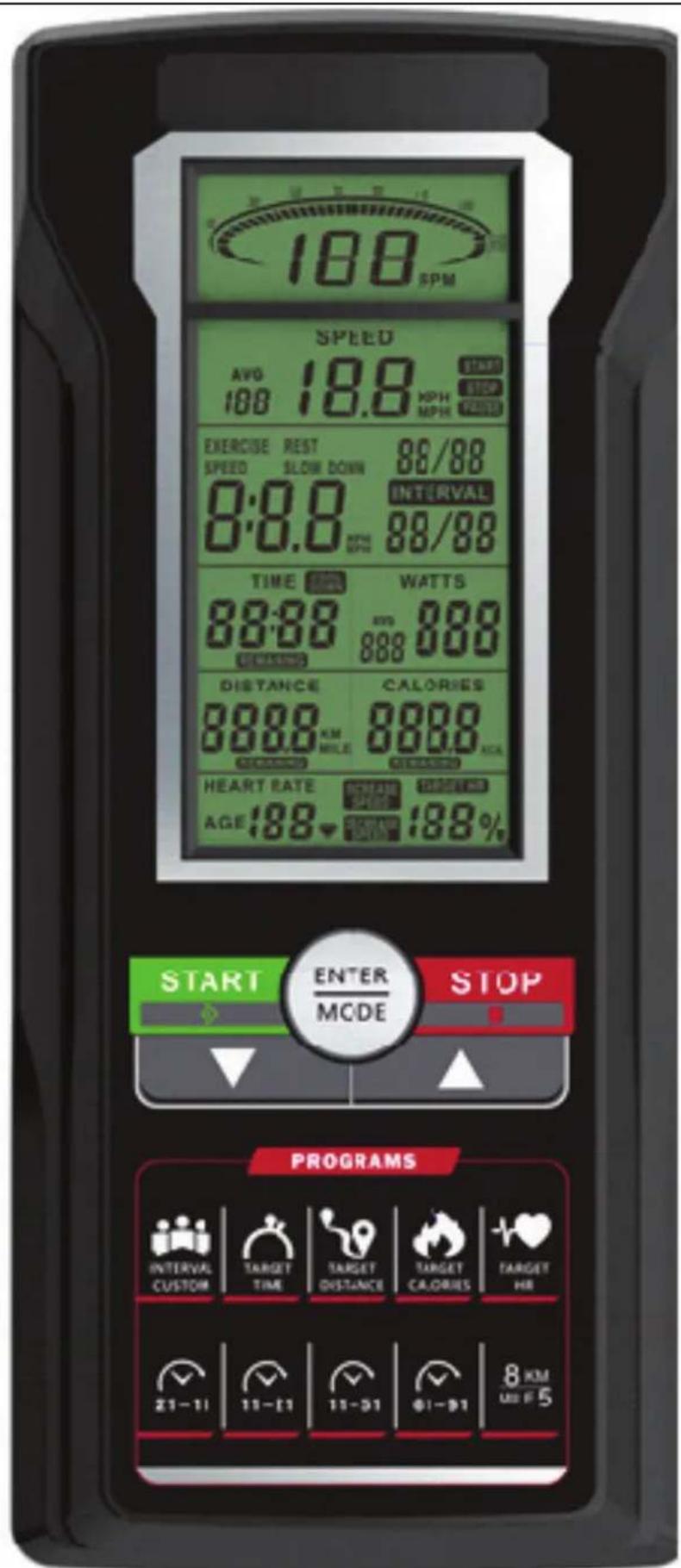

188 SPM SPEED AVG 18.8 START 188 MPH STOP MPH FREE EXERCISE REST 86/88 SPEED SLOW DOWN INTERVAL 8:0.8 86/88 TIME WATTS 88:88 888 888 DISTANCE CALORIES 3888 KM 888.0 MILE DEATH RATE ACC HEART RATE INCREASE STOP AGE 188 198% START ENTER STOP MCDE PROGRAMS INTERVAL TARGET TARGET TARGET TARGET CUSTOM TIME DISTANCE CALORIES HR 21-11 11-11 11-31 01-31 8 KM MI # 5

F

Diagram showing battery charging system with speed and program controls, including battery charge distribution and digital display.

Platinum®PRO

Index

Bike....18

Safety warnings....18

Description (fig. A) 19

Package contents (fig. B & C) 19

Assembly (fig. D) 19

Workouts....19

Exercise Instructions 19

Heart rate 20

Use....20

Metric/ Imperial setting 21

How often 21

Console (fig. E) 21

Explanation Display functions 21

Explanation of buttons 22

Operation 22

Programs 22

Warranty 23

Cleaning and maintenance....24

Replacing the batteries 24

Troubleshooting 24

Transport and storage....24

Additional information 24

Technical data....25

Declaration of the manufacturer 25

Disclaimer 25

Bike

Welcome to the world of Tunturi!

Thank you for purchasing this piece of Tunturi equipment. Tunturi offers a wide range of home fitness equipment, including crosstrainers, treadmills, exercise bikes and rowers. The Tunturi equipment is suitable for the entire family, no matter what fitness level. For more information, please visit our website www.tunturi.com

Important Safety Instructions

This Owner's Manual is an essential part of your training equipment: reading all instructions in this manual before you start using this appliance. The following precautions must always be followed:

Safety warnings

WARNING

- Read the safety warnings and the instructions. Failure to follow the safety warnings and the instructions can cause personal injury or damage to the equipment. Keep the safety warnings and the instructions for future reference.

• The equipment is suitable for domestic and professional use only (e.g. hospitals, fire stations, hotels, schools etc.). Max. usage is limited to 6 hrs a day. The equipment is not suitable for full commercial use (e.g. large gyms).
• The use of this equipment by children or persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge can give cause to hazards. Persons responsible for their safety must give explicit instructions or supervise the use of the equipment.
• Before starting your workout, consult a physician to check your health.
• If you experience nausea, dizziness or other abnormal symptoms, immediately stop your workout and consult a physician.
• To avoid muscular pain and strain, start each workout by warming up and finish each workout by cooling down. Remember to stretch at the end of the workout.
• The equipment is suitable for indoor use only. The equipment is not suitable for outdoor use.
• Only use the equipment in environments with adequate ventilation. Do not use the equipment in draughty environments in order not to catch a cold.
• Only use the equipment in environments with ambient temperatures between 10 °C and 35 °C. Only store the equipment in environments with ambient temperatures between 5 °C and 45 °C.
• Do not use or store the equipment in humid surroundings. The air humidity must never be more than 80%.

• Only use the equipment for its intended purpose. Do not use the equipment for other purposes than described in the manual.

• Do not use the equipment if any part is damaged or defective. If a part is damaged or defective, contact your dealer.

• Keep your hands, feet and other body parts away from the moving parts.
• Keep your hair away from the moving parts.
• Wear appropriate clothing and shoes.
• Keep clothing, jewellery and other objects away from the moving parts.
• Make sure that only one person uses the equipment at a time. The equipment must not be used by persons weighing more than 165 kg (363 lbs).
• Do not open equipment without consulting your dealer.

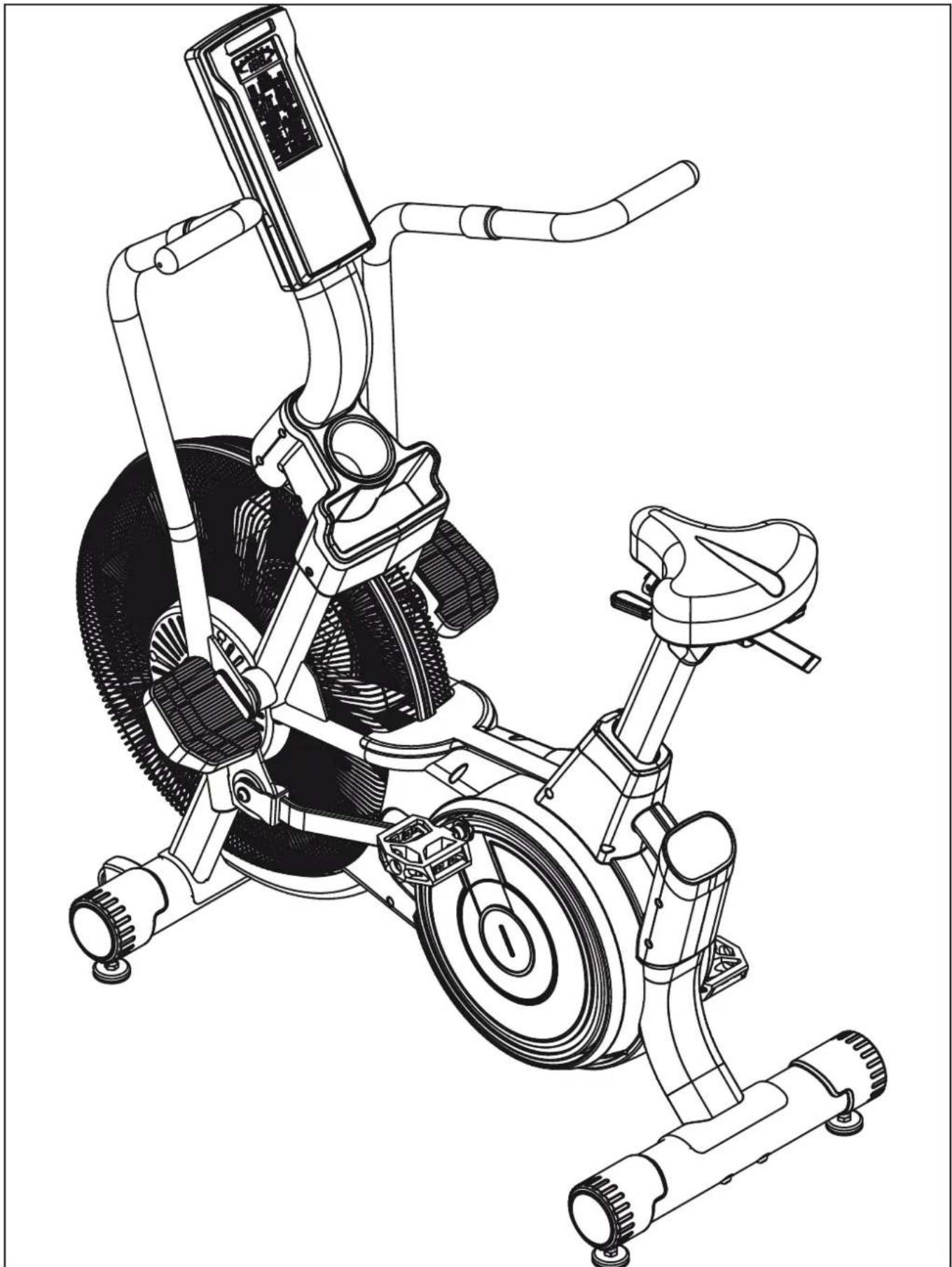

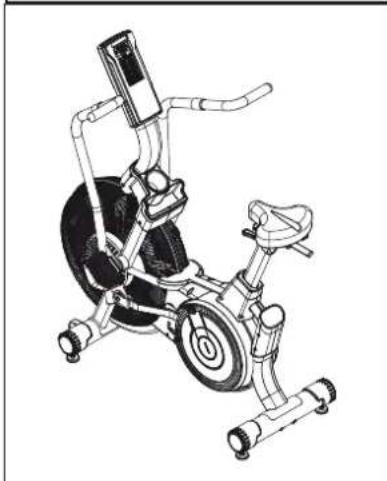

Description(fig.A)

Your bike is a piece of stationary fitness equipment used to simulate cycling without causing excessive pressure to the joints.

Package contents (fig. B & C)

• The package contains the parts as shown in fig. B.
• The package contains the fasteners as shown in fig. C. Refer to the section "Description"

NOTE

- If a part is missing, contact your dealer.

Assembly (fig. D)

WARNING

• Assemble the equipment in the given order.
• Carry and move the equipment with at least two persons.

CAUTION

• Place the equipment on a firm, level surface.
• Place the equipment on a protective base to prevent damage to the floor surface.

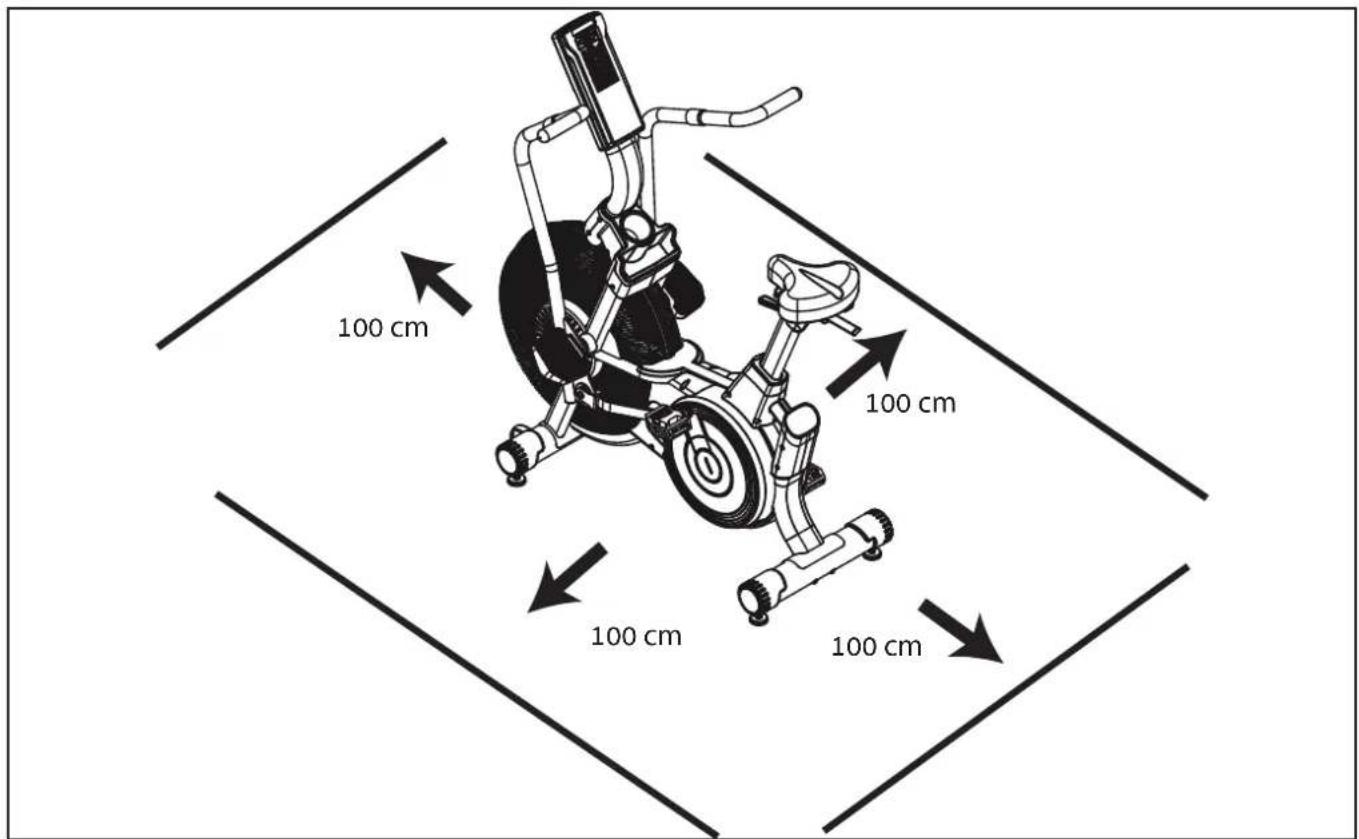

• Allow at least 100 cm of clearance around the equipment.
• Refer to the illustrations for the correct assembly of the equipment.

Workouts

The workout must be suitably light, but of long duration. Aerobic exercise is based on improving

the body's maximum oxygen uptake, which in turn improves endurance and fitness. You should perspire, but you should not get out of breath during the workout.

To reach and maintain a basic fitness level, exercise at least three times a week, 30 minutes at a time. Increase the number of exercise sessions to improve your fitness level. It is worthwhile to combine regular exercise with a healthy diet. A person committed to dieting should exercise daily, at first 30 minutes or less at a time, gradually increasing the daily workout time to one hour. Start your workout at low speed and low resistance to prevent the cardiovascular system from being subjected to excessive strain.

As the fitness level improves, speed and resistance can be increased gradually. The efficiency of your exercise can be measured by monitoring your heart rate and your pulse rate.

ExerciseInstructions

Using your fitness trainer will provide you with several benefits, it will improve your physical fitness, tone muscle and in conjunction with a calorie controlled diet help you lose weight.

The warming up phase

This stage helps get the blood flowing around the body and the muscles working properly. It will also reduce the risk of cramp and muscle injury. It is advisable to do a few stretching exercises as shown below. Each stretch should be held for approximately 30 seconds, do not force or jerk your muscles into a stretch - if it hurts, STOP

The exercise phase

This is the stage where you put the effort in. After regular use, the muscles in your legs will become more flexible. Work to your but it is very important to maintain a steady tempo throughout. The rate of work should be sufficient to raise your heart beat into the target zone shown on the graph below.

This stage should last for a minimum of 12 minutes though most people start at about 15-20 minutes

The cool down phase

This stage is to let your Cardiovascular System and muscles wind down. This is a repeat of the warm up exercise e.g. reduce your tempo, continue for approximately 5 minutes. The stretching exercises should now be repeated, again remembering not to force or jerk your muscles into the stretch.

As you get fitter you may need to train longer and harder. It is advisable to train at least three times a week, and if possible space your workouts evenly throughout the week.

Muscle toning

To tone muscle while on your fitness trainer you will need to have the resistance set quite high. This will put more strain on our leg muscles and may mean you cannot train for as long as you would like. If you are also trying to improve your fitness you need to alter your training program. You should train as normal during the warm up and cool down phases, but towards the end of the exercise phase you should increase resistance making your legs work harder. You will have to reduce your speed to keep your heart rate in the target zone.

Weight loss

The important factor here is the amount of effort you put in. The harder and longer you work the more calories you will burn. Effectively this is the same as if you were training to improve your fitness, the difference is the goal.

Heart rate

Heart rate measurement (heart rate chest belt)

The most accurate heart rate measurement is achieved with a heart rate chest belt. The heart rate is measured by a heart rate receiver in combination with a heart rate transmitter belt. Accurate heart measurement requires that the electrodes on the transmitter belt are slight moist and constantly touching the skin. If the electrodes are too dry or too moist, the heart rate measurement will become less accurate.

WARNING

- If you have a pacemaker, consult a physician before using a heartrate chest belt.

CAUTION

• If there are several heart rate measurement devices next to each other, make sure that the distance between them is at least 1.5 metres.
• If there is only one heart rate receiver and several heart rate transmitters, make sure that only one person with a transmitter is within transmission range.

NOTE

• Do not use a heart rate chest belt in combination with the handpulse sensors.
• Always wear the heart rate chest belt under your clothes directly in contact with your skin. Do not wear the heart rate chest belt above your clothes. If you wear the heart rate chest belt above your clothes, there will be no signal.
• If you set a heart rate limit for your workout, an alarm will sound when it is exceeded.
• The transmitter transmits the heart rate to the console up to a distance of 1 metre. If the electrodes are not moist, the heart rate will not appear on the display.
• Some fibers in clothes (e.g. polyester, polyamide) create static electricity which can prevent accurate heart rate measurement.

- Mobile phones, televisions and other electrical appliances create an electromagnetic field which can prevent accurate heart rate measurement.

Maximum heart rate (during training)

The maximum heart rate is the highest heart rate a person can safely achieve through exercise stress. The following formula is used to calculate the average maximum heart rate: 220 - AGE. The maximum heart rate varies from person to person.

WARNING

- Make sure that you do not exceed your maximum heart rate during your workout. If you belong to a risk group, consult a physician.

Beginner

50-60% of maximum heart rate

Suitable for beginners, weight-watchers, convalescents and persons who have not exercised for a long time. Exercise at least three times a week, 30 minutes at a time.

Advanced

60-70% of maximum heart rate

Suitable for persons who want to improve and maintain fitness. Exercise at least three times a week, 30 minutes at a time.

Expert

70-80% of maximum heart rate

Suitable for the fittest of persons who are used to long-endurance workouts.

Use

Adjusting the vertical seat position

The vertical seat position can be adjusted by setting the seat tube to the required position. With the leg almost straight, the arch of the foot must touch the pedal at its lowermost point.

• Lift up and hold the seat tube adjustment handle to release the fixation system.
• Move the seat tube to the required position.
• Release the seat tube adjustment knob.

WARNING

- make sure the seat tube is fixed by try to slide seat tube down before seated.

Adjusting the horizontal seat position

The horizontal seat position can be adjusted by setting the seat to the required position.

• Loosen the seat adjustment knob.
• Move the seat to the required position.
• Tighten the seat adjustment knob.

Metric/ Imperial setting

The console is set in Metrc (KM) mode as default, but it is possible to set it into Imperial (Mile) mode.

• Press and hold "Enter/ Mode" button until console reboots (± 10 seconds), before release button.
• Console will restart in "Imperial" mode.
• Repeat above steps to convert into "Metric" mode.

NOTE

- After replacing batteries, the console will automatically be set in "Metric" mode.

How often

Begin with 5 minute training sessions once a day and aim for a time around 2:30 to 2:45 for 500m distance. Row at a pace that keeps the water circulating continuously between strokes.

Progress a few minutes more each day until you are comfortable with 30-45 minutes training time 3 or 4 times a week.

This will provide aerobic endurance benefits, muscle toning and sufficient calorie burning to form part of a weight loss program.

WARNING

• Always consult a doctor before beginning an exercise program.
- Stop immediately if you feel faint or dizzy.

Console (fig. E)

CAUTION

• Keep the console away from direct sunlight.
• Dry the surface of the console when it is covered with drops of sweat.
• Do not lean on the console.

NOTE

- The console switches to standby mode when the equipment is not used for 4 minutes.

Explanation Display functions

RPM Display

• Shows actual speed in Rpm in digits (Rotations per minute)
• Shwows actual speed in Rpm graphically.

Program display

Speed

• Shows actual speed during exercise in KM/H /MPH
• Range: 0.0 \~ 99.9
• Shows "AVG" average speed when being in "Pause" mode.

START : Is shown in workout mode.

PAUSE : Is shown in Pause mode.

STOP : is shown in Stop mode.

Workout display

• Shows speed in KPH/ MPH when not preset a target nor program.
• Shows workout information when being in Target or program mode.

Time

• Without setting the target value, time will count up.
• When setting the target value, time will count down from your target value to 0 and alarm will sound or flash. (During countdown "Remaining" is shown)
• Range 0:00\~99:59 /± 1:00

NOTE

- Without any signal being transmitted into the monitor the countdown for time will not stop when console is in "Start" mode.

Watt

• Shows workout watt power during exercise.
• Avg shows the average value for your total workout.

Distance

• Without setting the target value, distance will count up. (KM/ ML)
• When setting the target value, distance will count down from your target value to 0 and alarm will sound or flash. (During countdown "Remaining" is shown)
• Without any signal being transmitted into the monitor for 4 seconds during workout, distance will STOP
• Range 0\~9999.

Calories

• Without setting the target value, calorie will count up.
• When setting the target value, calories will count down from your target value to 0 and alarm will sound or flash. (During countdown "Remaining" is shown)
• Without any signal being transmitted into the monitor for 4 seconds during workout, calories will STOP
• Range 0\~9999.

NOTE

- This data is a rough guide for comparison of different exercise sessions which cannot be used in medical treatment

Heart rate

• Current pulse will display after 6 seconds when detected by the console.
• Target HR in Percentage (auto calculated based on you age, that has been set when started console)
• Increase speed will blink when target in below 65% when being in Target HR mode.
• Decrease speed will blink when target is above 85% when being in Target HR mode.

Explanation of buttons

Start

• Start your workout.
• Resume workout in Pause mode.

Enter/ Mode

• Confirm (target) setting.
• Scroll through the menu/ selectable options.
• Press ENTER/ MODE key and hold for 10 seconds to reset all function figures and switch units.

Stop

• Pause your workout when being in workout mode.
• Stop your workout when being in Pause mode.
• Press STOP key and hold for 3 seconds to reset all function figures.

Down

• Decrease value.
• Scroll through programs in setting mode.
• Button has no function in workout mode.

Up

• Increase value.
• Scroll through programs in setting mode.
• Button has no function in workout mode.

Program quick buttons

- Press Program quick button to enter default program setting fast.

Operation

Power on

• Press any key or start pedalling to power on the console when being in sleep mode..
• Age function will blink when console starts up/ is reset. Use UP/ DOWN key to set the correct age value and confirm with ENTER/ MODE button.

NOTE

- Set your age right is important for build in heart rate functions/ programs.

Power off

Without any signal being transmitted into the monitor for 4 minutes the monitor will enter SLEEP mode automatically. (Active training data will be lost)

WARNING

- It is recommended to remove batteries if equipment is not used for a longer period of time.

Programs

Manual mode

• Press START button, to start your workout fast without any further pre set targets. All figures will count up.
• Press ENTER/ MODE button once to set target TIME. Twice to set target DISTANCE or three times to set target CALORIES.
• Use UP/ DOWN keys to set target and confirm with MODE/ ENTER. (remaining will show)
• Press START button to start your workout.

NOTE

• Only one target can be set, the not set targets should be confirmed as "0" goal target.
• When set a target, the training will end when target is reached.
• If no target is set, the training will continue until user ends training.

Interval custom

An interval training, will vary in "Exercise" mode and a "Rest" mode, and will repeat this a number of cycles.

• Press ENTER/ MODE to confirm.
• Use UP/ DOWN Key to adjust the "Exercise" duration in time per interval and confirm with ENTER/ MODE. (Default is 30 sec.)
• Use UP/ DOWN Key to adjust the "REST" duration in time per interval and confirm with "Enter/ MODE. (Default is 30 sec.)
• Use UP/ DOWN Key to adjust the "Interval" times in number of cycles and confirm with "ENTER/ MODE. (Default is 12 cycles.)
• Press "START" to begin your workout.
• 10 seconds countdown will appear before start.
• After finish your workout, the 3 min. cool-down will start.
• Workout will stop automatically when end of program is reached.

NOTE

- Total workout time, will adapt to your pre-set interval settings.

Target Time

• Press ENTER/ MODE to confirm.
• Use UP/ DOWN keys to set your target workout time and confirm with ENTER/ MODE button. (Default setting 30:00 min)
• Press START button to start your workout.
• Workout will stop automatically when target is reached.

Target Distance

• Press ENTER/ MODE to confirm.
• Use UP/ DOWN keys to set your target workout Distance and confirm with ENTER/ MODE button. (Default setting 16.0 KM/ 10ML)
• Press START button to start your workout.
• Workout will stop automatically when target is reached.

Target Calories

• Press ENTER/ MODE to confirm.
• Use UP/ DOWN keys to set your target workout calories and confirm with ENTER/ MODE button.
• Press START button to start your workout.
• Workout will stop automatically when target is reached.

Target HR

An target HR training, will prompt you to workout at 65%\~85% or your Maximum heart rate.

Your maximum heart-rate is fixed as : 220 - Age. (TARGET RANGE IS NOT ADJUSTABLE)

• Press ENTER/ MODE to confirm.
• Press ENTER/ MODE button once to set target TIME. Twice to set target DISTANCE or three times to set target CALORIES.
• Use UP/ DOWN keys to set target and confirm with MODE/ ENTER. (remaining will show)
• Press START button to start your workout.
• Workout will stop automatically when target is reached.

NOTE

• Only one target can be set, the not set targets should be confirmed as "0" goal target.
• When set a target, the training will end when target is reached.
• If no target is set, the training will continue until user ends training.

20\~10

This is an interval program see "Interval Custom" for setting details.

• Default exercise time: 20 Seconds
• Default Rest time : 10 seconds
• Default cycle times : 8

10\~20

This is an interval program see "Interval Custom" for setting details.

• Default exercise time: 10 Seconds
• Default Rest time : 20 seconds
• Default cycle times : 8

10\~50

This is an interval program see "Interval Custom" for setting details.

• Default exercise time: 10 Seconds
• Default Rest time : 50 seconds
• Default cycle times : 8

60\~90

This is an interval program see "Interval Custom" for setting details.

• Default exercise time: 60 Seconds
• Default Rest time : 90 seconds
• Default cycle times : 12

8KM / 5 MILE

This is an target distance program, see "Target Distance" for setting details. - Default exercise distance 8KM/5ML

Trouble shooting:

• When the display of LCD is dim, it means the batteries need to be changed.
• If there is no signal when you pedal, please check if the cable is well connected.

NOTE

• When stop training for 4 minutes, the main screen will be off.
• If the computer displays abnormally, please re-install the batteries and try again.

Warranty

Warranty terms

The consumer is entitled to the applicable legal rights stated in the national legislation concerning the commerce of consumer goods. This warranty does not restrict these rights. The Purchaser's Warranty is only valid if the item is used in an environment approved by Tunturi New Fitness BV for that particular equipment. The product-specific approved environment is stated in the Owner's Manual provided with your equipment.

Warranty conditions

The warranty conditions commence from the date of purchase. Warranty conditions may vary per country, so please consult your local dealer for the warranty conditions.

Warranty coverage

Under no circumstances shall Tunturi New Fitness BV or the Tunturi Distributor be liable by virtue of this warranty or otherwise for any special, indirect, secondary or consequential damages of any nature arising out of any use or inability to use this equipment.

Warranty limitations

This warranty covers manufacturing defects in the fitness equipment as originally packed by Tunturi New Fitness BV. The warranty shall apply only under conditions of normal, recommended use of the product as described in the Owner's Manual and providing that Tunturi New Fitness BV's instructions for installation, maintenance and use have been complied with. Neither Tunturi New Fitness BV's nor the Tunturi Distributors' obligations apply to defects due to reasons beyond their control. The warranty applies only to the original purchaser and is valid only in countries where Tunturi New Fitness BV has an authorised importer. The warranty does not extend to fitness equipment or components that have been modified without the consent of Tunturi New Fitness BV. Defects resulting from normal wear, misuse, abuse, corrosion, or damage incurred during loading or transportation are not covered.

The warranty does not cover sounds or noises emitted during use where these do not substantially impede the use of the equipment and where they are not caused by a fault in the equipment.

The warranty does not cover defects arising from the failure to carry periodic maintenance as outlined within the Owner's Manual for the product. Furthermore, the warranty does not cover defects arising from usage and storage within an unsuitable environment as described within the Owner's Manual which should be indoors, dry, dust and grit free and within a temperature range of +15°C to +35°C. The warranty does not cover maintenance activities, such as cleaning, lubricating, and normal part adjustments, nor installation

procedures that customers can accomplish themselves, such as changing uncomplicated meters, pedals and other similar parts not requiring any dismantling/reassembling of the fitness equipment. Warranty repairs carried out by other than authorised Tunturi representatives are not covered.

Failure to follow the instructions given in the Owner's Manual will invalidate the product's warranty.

Cleaning and maintenance

The equipment does not require special maintenance. The equipment does not require recalibration when it is assembled, used and serviced according to the instructions.

WARNING

• Do not use solvents to clean the equipment.
• Clean the equipment with a soft, absorbent cloth after each use.
• Regularly check that all screws and nuts are tight.
• If necessary, lubricate the joints.

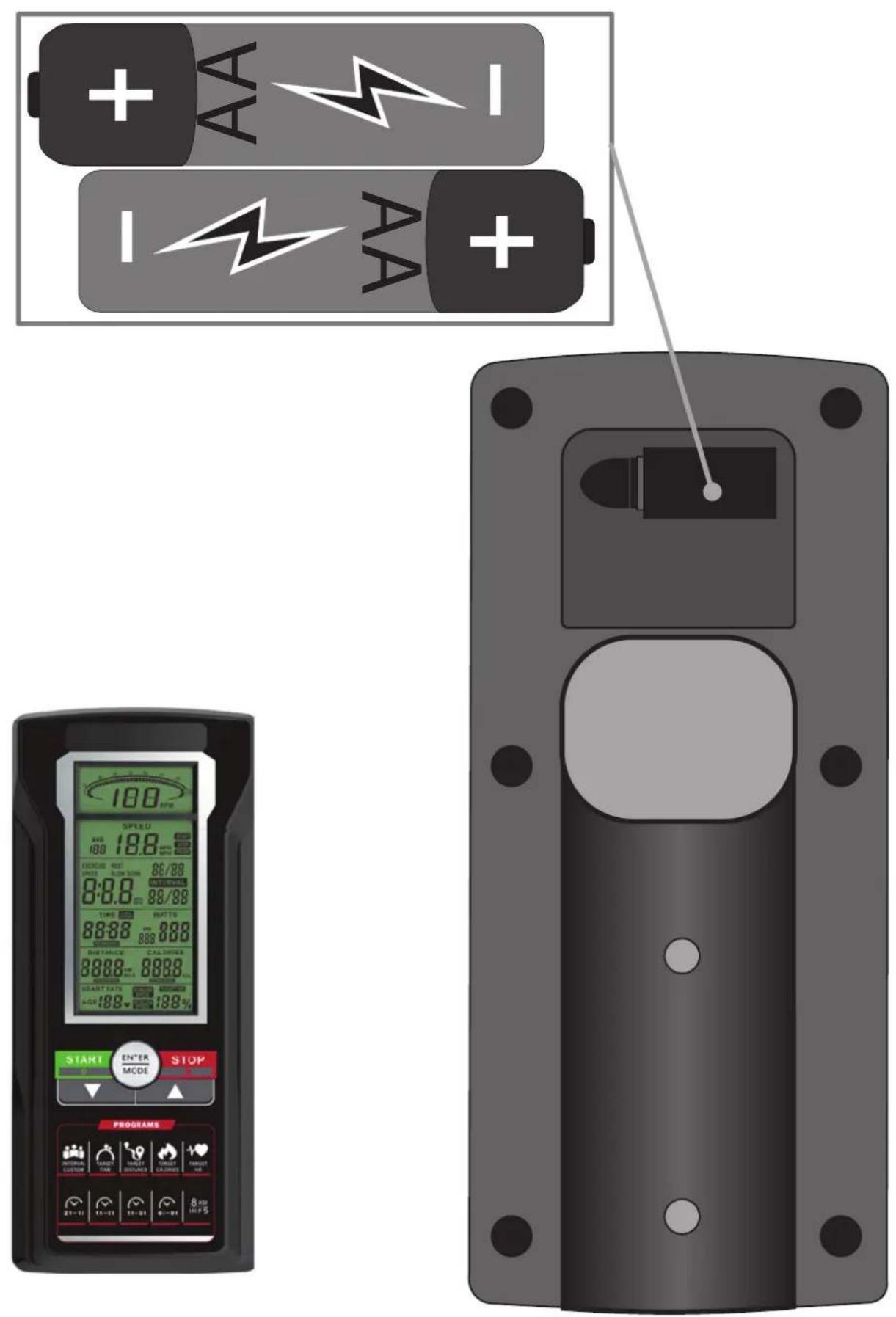

Replacing the batteries (fig. F)

The console is equipped with 2 AA batteries at the rear of the console.

• Remove the cover.
• Remove the old batteries.
• Insert the new batteries. Make sure that batteries match the (+) and (-) polarity markings.
• Mount the cover.

Troubleshooting

Despite continuous quality control, defects and malfunctions caused by individual components may occur in the equipment. In most cases it's unnecessary to take the whole device in for repair, as it's usually sufficient to replace the defective part.

If the equipment does not function properly during use, contact your Tunturi dealer immediately. Always give the model and serial number of your equipment. Please state also the nature of the problem, conditions of use and purchase date.

If you require spare parts, always give the model, serial number of your equipment and the spare part number for the part you need. The spare part list is at the back of this manual. Use only spare parts mentioned in the spare part list.

Transport and storage

WARNING

• Carry and move the equipment with at least two persons.
• Remain standing in front of the equipment on each side and take a sturdy grip at the handlebars. Tilt the front of the equipment so as to lift the rear of the equipment on the wheels. Move the equipment and carefully put the equipment down. Place the equipment on a protective base to prevent damage to the floor surface.
• Move the equipment carefully over uneven surfaces. Do not move the equipment upstairs using the wheels, but carry the equipment by the handlebars.
• Store the equipment in a dry place with as little temperature variation as possible.

Additional information

Packaging disposal

Government guidelines ask that we reduce the amount of waste material disposed of in land fill sites. We therefore ask that you dispose of all packaging waste responsibly at public recycling centres.

End of life disposal

We at Tunturi hope you enjoy many years of enjoyable use from your fitness trainer. However, a time will come when your fitness trainer will come to the end of its useful life. Under 'European WEEE Legislation you are responsible for the appropriate disposal of your fitness trainer to a recognised public collection facility.

Technical data

Parameter Unit of measurement		Value
Length cm	inch	12549,2
Width cm	inch	5120
Height cm	inch	14757.9
Weight kg	lbs	71156.4
Max. user weight kg	lbs	165363
Battery size 2pcs AA

Declaration of the manufacturer

Tunturi New Fitness BV declares that the product is in conformity with the following standards and directives: EN 957 (HB), 89/336/EEC. The product therefore carries the CE label.

01-2017

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

The Netherlands

Disclaimer

© 2017 Tunturi New Fitness BV All rights reserved.

The product and the manual are subject to change. Specifications can be changed without further notice.

Deutsch

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

The Netherlands

Haftungsausschluss

© 2017 Tunturi New Fitness BV

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

Pays-Bas

© 2017 Tunturi New Fitness BV

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

The Netherlands

Disclaimer

© 2017 Tunturi New Fitness BV

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

The Netherlands

© 2017 Tunturi New Fitness BV

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

Alankomaat

Vastuuvapauslauseke

© 2017 Tunturi New Fitness BV

Exploded view diagram of a car's internal components with numbered parts and labels

Platinum®PRO

TUNTURI®

WORLDWIDE FITNESS

Tunturi New Fitness BV

Purmerweg 1 NL - 1311 XE Almere

P.O. Box 60001 NL - 1320 AA Almere

The Netherlands

www.tunturi-fitness.com
