USER MANUAL 580BFS HUSQVARNA

580BTS Mark III, 580BFS Mark III

EN Operator's manual 2-20

Transportation and storage....17

Technical data.... 18

Warranty.... 19

Introduction

California Proposition 65

WARNING!

The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

Product description

This product is a backpack blower with a fuel engine.

We have a policy of continuous product development and therefore reserve the right to modify the design and appearance of products without prior notice.

Intended use

Use the product to blow leaves and other unwanted material from areas such as lawns, pathways and asphalt roads.

BFS Mark III

1. Frame
2. Harness
3. Engine cover
4. Fan housing
5. Air intake screen
6. Fan
7. Air filter
8. Starter rope handle
9. Fuel tank
10. Waist belt
11. Spark plug
12. Vibration damping system
13. Choke control
14. Handle
15. Stop switch with throttle position adjustment
16. Throttle trigger/Throttle lever
17. Stop switch
18. Pipe angle
19. Clamp

20. Flexible hose

21. Control pipe

22. Cable clamp
23. Intermediate pipe
24. Standard nozzle
25. Operator's manual
26. Combination wrench

Symbols on the product

WARNING! This product is dangerous. Injury or death can occur to the operator or bystanders if the product is not used carefully and correctly. To prevent injury to the operator or bystanders, read and obey all safety instructions in the operator's manual.

Read the operator's manual carefully and make sure that you understand the instructions before use.

Use approved hearing protection and approved eye protection. If the environment contains dust, use a breathing mask.

Air purge bulb.

Use approved protective gloves.

Keep all parts of your body away from hot surfaces.

Severing of fingers or hand by fan blade.

Choke, open position.

Mixture of gasoline and two-stroke oil.

Choke, close position.

Safety warning illustration showing a person spraying water with a warning sign and safety symbol

yyyyMMddxxxxxx

Look out for thrown objects. Thrown objects can cause serious injury. Use personal protective equipment.

Keep a safety distance at a minimum of 15 m to persons or animals.

The rating plate or the laser printing shows the serial number. yyyy is the production year and ww is the production week.

Note: Other symbols/decals on the product refer to certification requirements for other commercial areas.

EPA III

EMISSION CONTROL INFORMATION Husqvarna® HUSQVARNA AB HUSKVARNA SWEDEN THIS ENGINE MEETS U.S. EPA EXH/EVP REGS FOR SORE. REFER TO OPERATOR'S MANUAL FOR MAINTENANCE SPECIFICATIONS AND ADJUSTMENTS. EMISSIONS COMPLIANCE PERIOD: HRS

The Emissions Compliance Period referred to on the Emission Compliance label indicates the number of operating hours for which the engine has been shown to meet Federal emissions requirement. Maintenance, replacement or repair of the emission control devices and system may be performed by any nonroad engine repair establishment or individual.

EMISSION CONTROL LABEL ABBREVIATIONS
General:
CAL California	EXH/EVP Exhaust and	Evapora-	tive	REGS Regulations
DISPL Displacement EVAP Evaporative	SORE Small off road engines
ECS Emission control system HRS Hours US EPA	United States Environ-				mental Protection Agency

Exhaust emission control system:
ECM Engine control module (Auto-tune)		OC Oxidizing Catalyst
EM Engine modification		TWC Three way catalyst

Evaporative emission control systems:
C Coextruded (Mul-tilayer)		P Treated HDPE or PE
N Nylon	S Sealed

Product liability

As referred to in the product liability laws, we are not liable for damages that our product causes if:

• the product is incorrectly repaired.
- the product is repaired with parts that are not from the manufacturer or not approved by the manufacturer.
- the product has an accessory that is not from the manufacturer or not approved by the manufacturer.
- the product is not repaired at an approved service center or by an approved authority.

Safety

Safety definitions

Warnings, cautions and notes are used to point out specially important parts of the manual.

WARNING: Used if there is a risk of injury or death for the operator or bystanders if the instructions in the manual are not obeyed.

CAUTION: Used if there is a risk of damage to the product, other materials or the adjacent area if the instructions in the manual are not obeyed.

Note: Used to give more information that is necessary in a given situation.

General safety instructions

WARNING: Read the warning instructions that follow before you use the product.

- Under no circumstances may the design of the product be modified without the permission of the manufacturer. Always use genuine accessories. Non-authorized modifications and/or accessories

can result in serious personal injury or the death of the operator or others.

• Never use a product that has been modified in any way from its original specification.
• Never use a product that is faulty. Carry out the safety checks, maintenance and service instructions described in this manual. Some maintenance and service measures must be carried out by trained and qualified specialists. Refer to Maintenance schedule on page 15 for instructions.
• All servicing and repair work on the product requires special training. This is especially true of the safety equipment. Never use a product with faulty safety equipment. If your product fails any of the checks described in this operator's manual you must contact your service agent. The safety equipment of the product must be maintained as described in this operator's manual. When you buy any of our products we guarantee the availability of professional repairs and service. If the retailer who sells your product is not a servicing dealer, ask him for the address of your nearest service agent.

Safety instructions for operation

WARNING: Read the warning instructions that follow before you use the product.

- This product is a dangerous tool if used carelessly or incorrectly and can cause serious, even fatal injuries.

It is extremely important that you read and understand the contents of this operator's manual.

- Long-term exposure to noise can result in permanent hearing impairment. Always use approved hearing protection.

- Do an overall inspection of the machine before use. Refer to Maintenance schedule on page 15.

- Never use the machine if you are tired, if you have drunk alcohol, or if you are taking medication that could affect your vision, your judgement or your coordination.

- Wear personal protective equipment. Refer to Personal protective equipment on page 7.

- All covers and guards must be fitted before starting. Ensure that the spark plug cap and ignition lead are undamaged to avoid the risk of electric shock.

- The blower operator must make sure that no bystanders or animals come nearer than 15 m. Whenever several operators are working in the same work area, they should maintain a safe distance of at least 15 m from one another.

- Never allow children to operate the machine. Never allow anyone else to use the machine without first ensuring that they have read and understood the contents of the operator's manual.

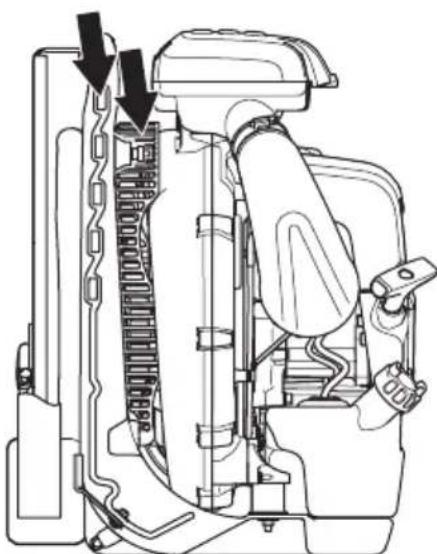

• Always check for any objects that may block the air intake screen before beginning work.

- Never remove the air intake screen.

• In case of emergency, release yourself from the machine by opening the waist and chest belt and let the machine fall backwards.

• Always contact local authorities and make sure you are following applicable directives.

- Keep all parts of your body away from hot surfaces.

- Never start the machine indoors. Exhaust fumes can be dangerous if inhaled.

- Observe and be aware of the surroundings. Ensure that no people or animals can come into contact with the product. If anyone approaches your work area, set the throttle control to the lowest throttle until the person is at a safe distance. Direct the product away from people, animals, play areas, open windows and cars etc. No unauthorised persons or animals may be present in the working area, which is 15 metres.

• Overexposure to vibration can lead to circulatory damage or nerve damage in people who have impaired circulation. Contact your doctor if you experience symptoms of overexposure to vibration. Such symptoms include numbness, loss of feeling, tingling, pricking, pain, loss of strength, changes in skin colour or condition. These symptoms normally appear in the fingers, hands or wrists. The risk increases at low temperatures.

• Engine exhaust fumes contain carbon monoxide, which can cause carbon monoxide poisoning. For this reason you should not start or run the product indoors, or anywhere that is poorly ventilated. The exhaust fumes from the engine are hot and may

contain sparks which can start a fire. Never start the product indoors or near combustible material.

• Allow the engine to cool before refueling.
• The powerful currents of air can move objects at such a speed that they can bounce back and cause serious eye injuries.

Line drawing of a person using a spray gun to spray particles, with no text or symbols present.

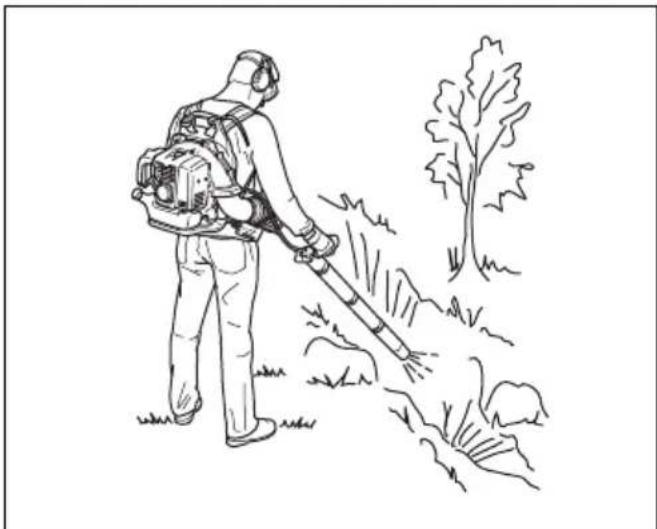

• Do not direct the air jet towards people or animals.
• Do not use the machine in bad weather, such as dense fog, heavy rain, strong wind, intense cold, etc. Working in bad weather is tiring and can lead to dangerous conditions, e.g. slippery surfaces.
• Minimize the time of operation by lightly wetting dusty areas or using spray equipment.
  • Make sure you can move and stand safely. Check the area around you for possible obstacles (roots, rocks, branches, ditches, etc.) in case you have to move suddenly. Take great care when working on sloping ground.

Line drawing of a person using a portable air conditioner in a field, with trees and grass in the background (no text or symbols)

- Never put the product down with the engine running unless you have it in clear sight.

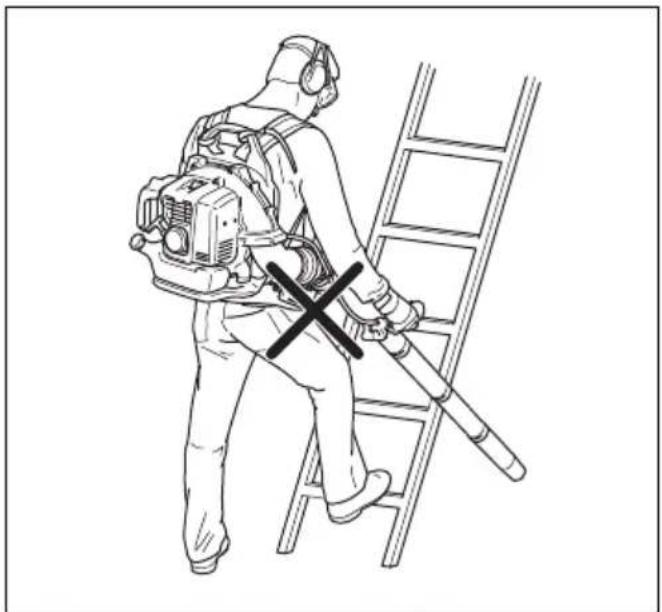

- Never operate the product from ladders or high places (such as roofs), it is prohibited and could result in severe injury.

Line drawing of a person in protective gear using a portable air conditioner on a ladder (no text or symbols)

• Do not use the product unless you are able to call for help in the event of an accident.

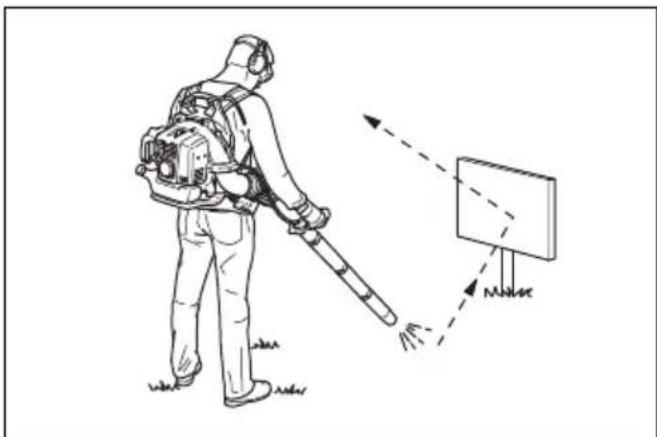

• Watch out for thrown objects. Always wear eye protection. Stones, rubbish, etc. can be thrown up into the eyes causing blindness or serious injury. Keep unauthorised persons at a distance. Children, animals, onlookers and helpers should be kept outside the safety zone of 15 m. Stop the machine immediately if anyone approaches.
• Do not operate the product if the exhaust gas outlet on the engine cover is covered by a wall and/or some other obstacles. The product could get damaged. Make sure that the distance is 50 cm or more from the obstacles during operation.
  • Always stop the engine before cleaning.
  • Always move the product away from the refueling area and source before starting. Place the product on a flat surface.
• The product may only be started in its complete design. If the product is started without all the guards fitted there is a risk of personal injuries.

Personal protective equipment

WARNING: Read the warning instructions that follow before you use the product.

• Always use approved personal protective equipment when you use the product. Personal protective equipment cannot fully prevent injury but it decreases the degree of injury if an accident does occur. Let your dealer help you select the right equipment.

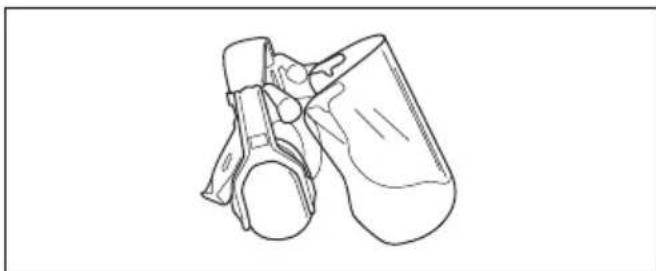

- Use approved hearing protection.

Line drawing of a mechanical component or device (no text or symbols)

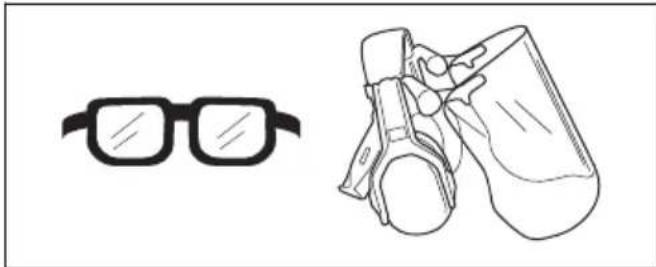

- Use approved eye protection. If you use a visor, you must also use approved protective goggles. Approved protective goggles must agree with the ANSI Z87.1 standard in the USA or EN 166 in EU countries.

Line drawings of glasses and footshoes (no text or symbols)

- Use gloves when it is necessary, for example, when you examine or clean the product.

Line drawing of two gloves with bandages and shaded areas, no text or symbols present

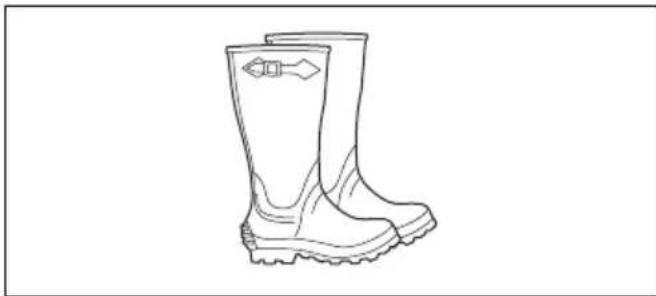

- Use protective boots, or shoes, with non-slip soles.

Line drawing of a pair of boots with visible tread pattern and sole plate (no text or symbols)

- Use clothing made of a strong fabric. Always use heavy, long pants and long sleeves. Do not use loose clothing that can catch on twigs and branches. Do not wear jewelry, short pants, open shoes or go with bare feet. Put your hair up safely above your shoulders.

- Use breathing protection when there is a risk of dust.

Line drawing of a mechanical component with a circular end and textured body (no text or symbols)

- Keep first aid equipment close at hand.

Safety devices on the product

WARNING: Read the warning instructions that follow before you use the product.

In this section the product's safety features, its purpose and how checks and maintenance should be carried out to ensure that it operates correctly. See instructions under the heading Product overview on page 3 to find where these parts are located on your product.

The life span of the product can be reduced and the risk of accidents can increase if product maintenance is not carried out correctly and if service and/or repairs are not carried out professionally. If you need further information please contact your nearest servicing dealer.

WARNING: Never use a product with defective safety components. The product's safety equipment must be inspected and maintained as described in this section. If your product fails any of these checks, contact your service agent to get it repaired.

CAUTION: All servicing and repair work on the machine requires special training. This is especially true of the machine's safety equipment. If your machine fails any of the checks described below you must contact your service agent. When you buy any of our products we guarantee the availability of professional repairs and service. If the retailer who sells your machine is not a servicing dealer, ask him

for the address of your nearest service agent.

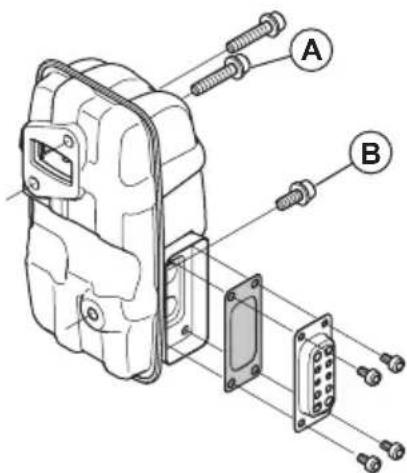

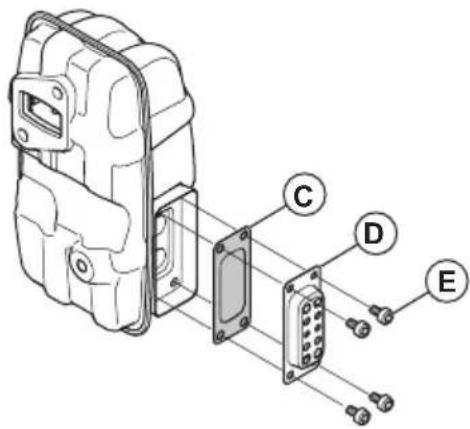

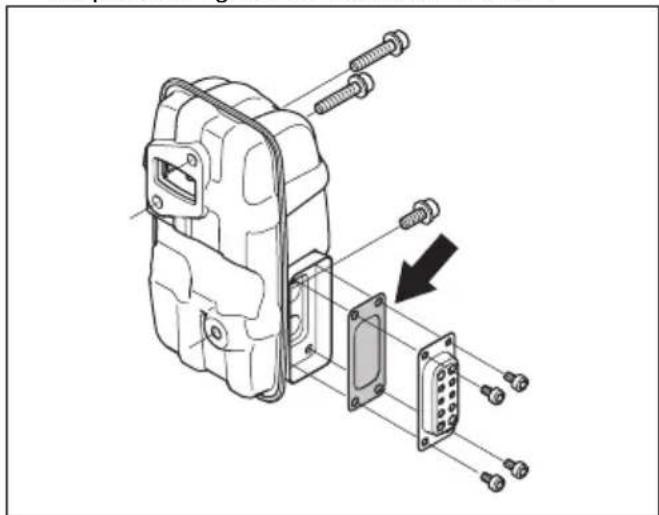

To do a check of the muffler

WARNING: Do not use a product with a defective muffler.

WARNING: The muffler becomes very hot during and after operation, also at idle speed. Use protective gloves to prevent burn injuries.

The muffler keeps noise levels to a minimum and sends exhaust fumes away from the operator.

1. Stop the engine.
2. Do a visual check for damage and deformation.

Note: The inner surfaces of the muffler contain chemicals that can cause cancer. Be careful not to touch these elements if the muffler is damaged.

1. Make sure that the muffler is correctly attached to the product. Tighten the screws to 8-12 Nm.

Technical diagram of an electrical connector assembly with multiple pins and connectors (no text or labels)

1. Examine the spark arrester screen, do a visual check.

a) Replace the spark arrester screen if it is damaged.
b) Clean the spark arrester screen if it is blocked. Refer to To do maintenance of the muffler on page 16 for more information.

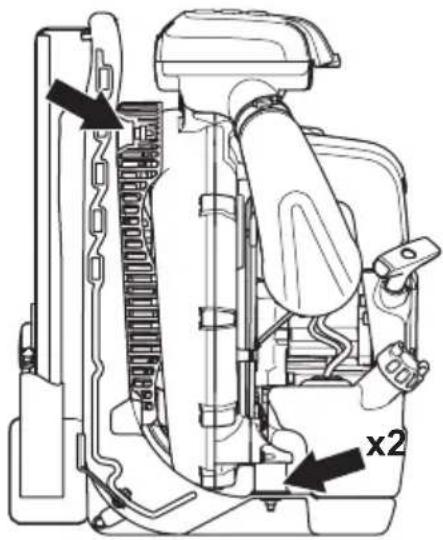

Vibration damping system

The product has a vibration damping system that decreases vibrations and makes operation easier. Examine the vibration damping system and make sure

that it is not damaged. Make sure that the vibration damping system is attached correctly.

x2

Air filter

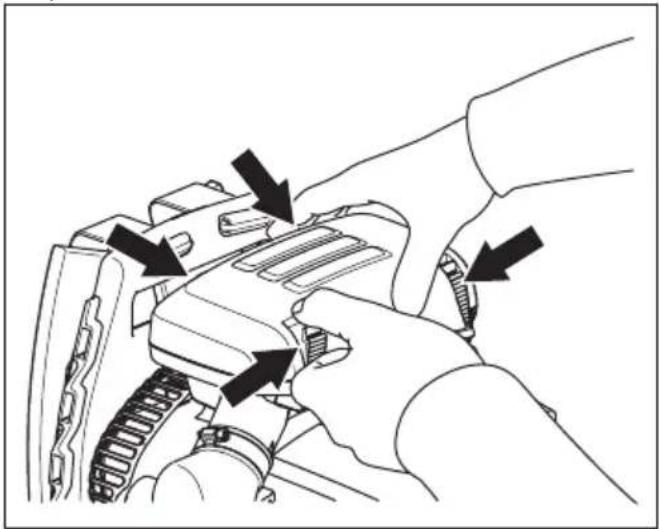

Do not use the product without an air filter or if the air filter is damaged or has a deformation.

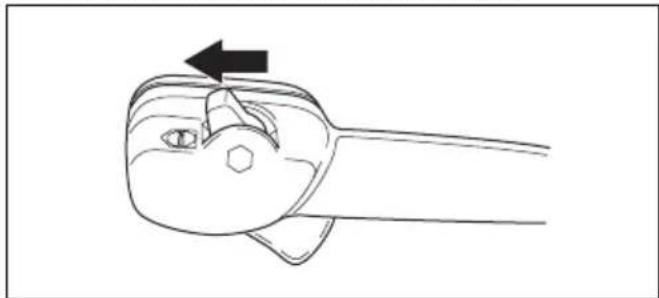

Stop switch

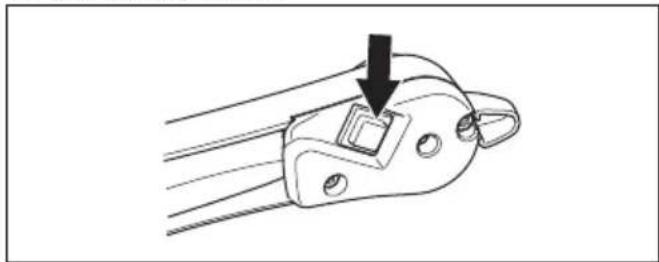

Use the stop switch to stop the engine. Make sure that the engine stops fully.

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a mechanical tool with a downward arrow indicating a component (no text or symbols present)

Harness safety

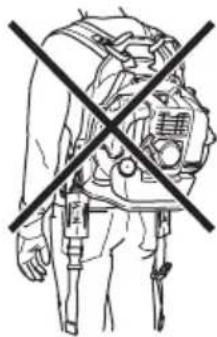

Always use the harness when you operate the product. If you do not use the harness, you cannot operate the product safely. This can result in injury to you or other persons. Make sure that the waist belt and chest strap

are attached and correctly adjusted. There is a risk that an open belt can go into the fan of the product.

Line drawing of a person with a crossed-out black-and-white symbol crossing the body (no text or symbols present)

Fuel safety

WARNING: Read the warning instructions that follow before you use the product.

• Do not mix the fuel indoor or near a heat source.
• Do not start the product if there is fuel or engine oil on the product. Remove the unwanted fuel/oil and let the product dry. Remove unwanted fuel from the product.
• If you spill fuel on your clothing, change clothing immediately.
• Do not get fuel on your body, it can cause injury. If you get fuel on your body, use a soap and water to remove the fuel.
• Do not start the engine if you spill oil or fuel on the product or on your body.
• Do not start the product if the engine has a leak. Examine the engine for leaks regularly.
• Be careful with fuel. Fuel is flammable and the fumes are explosive and can cause injuries or death.
• Do not breathe in the fuel fumes, it can cause injury. Make sure that there is sufficient airflow.
• Do not smoke near the fuel or the engine.
• Do not put warm objects near the fuel or the engine.
• Do not add the fuel when the engine is on.
  • Make sure that the engine is cool before you refuel.
• Before you refuel, open the fuel tank cap slowly and release the pressure carefully.
• Make sure there are sufficient airflow when refueling and mixing fuel (petrol and two-stroke oil) or draining the fuel tank.
• Fuel and fuel vapor are highly flammable and can cause serious injury when inhaled or allowed to come into contact with the skin. For this reason, observe caution when handling fuel and make sure there is sufficient airflow.
• Tighten the fuel tank cap carefully or a fire can occur.
• Move the product at a minimum of 3 m (10 ft) from the position where you filled the tank before a start.
• Do not put too much fuel in the fuel tank.

• Make sure that a leak cannot occur when you move the product or fuel container.
- Do not put the product or a fuel container where there is an open flame, spark or pilot light. Make sure that the storage area does not contain an open flame.
- Only use approved containers when you move the fuel or put the fuel into storage.
- Empty the fuel tank before long-term storage. Obey the local law on where to dispose fuel.
- Clean the product before long-term storage.
- Remove the spark plug cap before you put the product into storage to make sure that the engine does not start accidentally.

Safety instructions for maintenance

WARNING: Read the warning instructions that follow before you use the product.

• Your warranty may not cover damage or liability caused by the use of non-authorized accessories or replacement parts.
• The inside of the muffler contains chemicals that may be carcinogenic. Avoid contact with these elements in the event of a damaged muffler.
• Stop the engine before assembling or dismantling accessories or other parts.

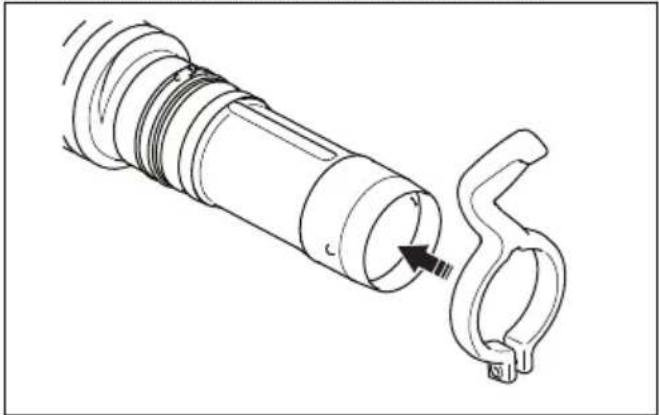

• Check that the thick round pin in the clamp is inserted in the strap. If it is inserted incorrectly it may lead to personal injury.

Assembly

Introduction

WARNING: Read and understand the safety chapter before you assemble the product.

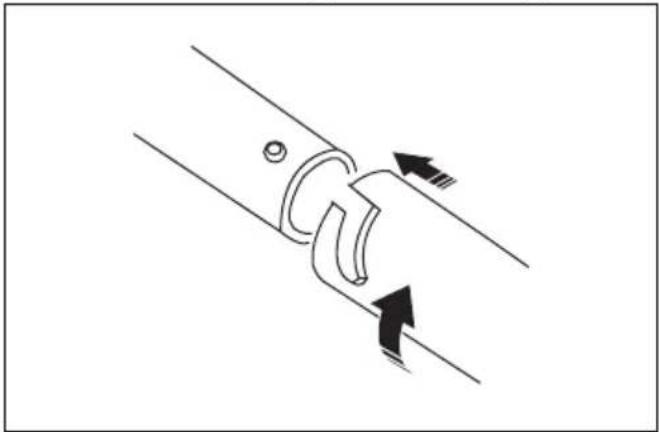

To assemble the tube and handle on the product :580BTS Mark III

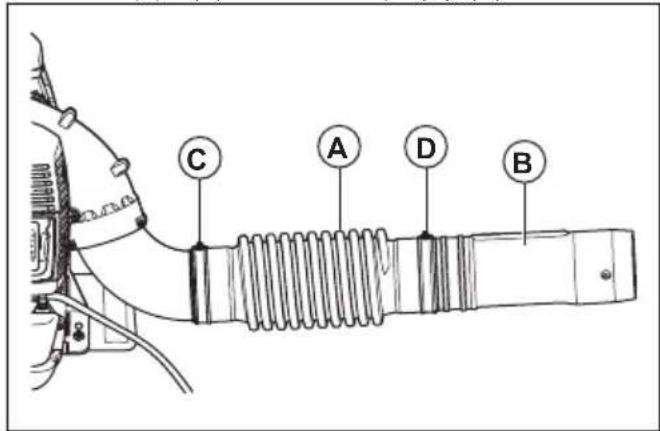

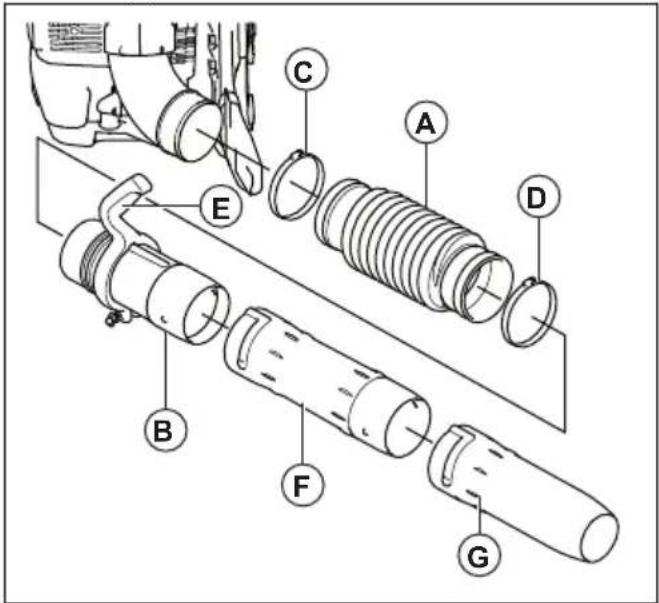

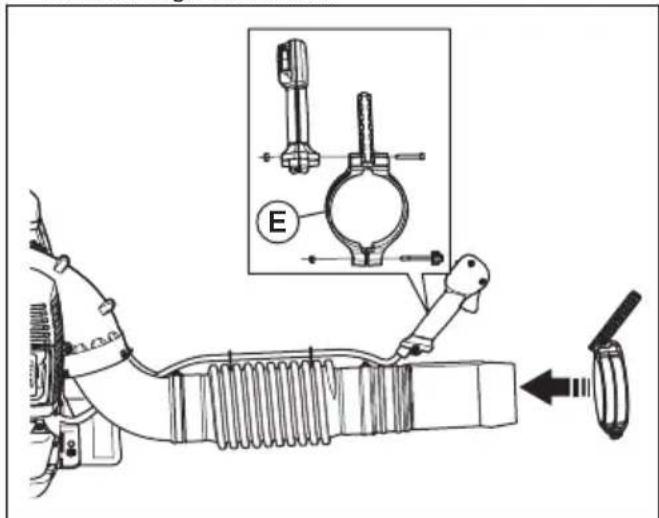

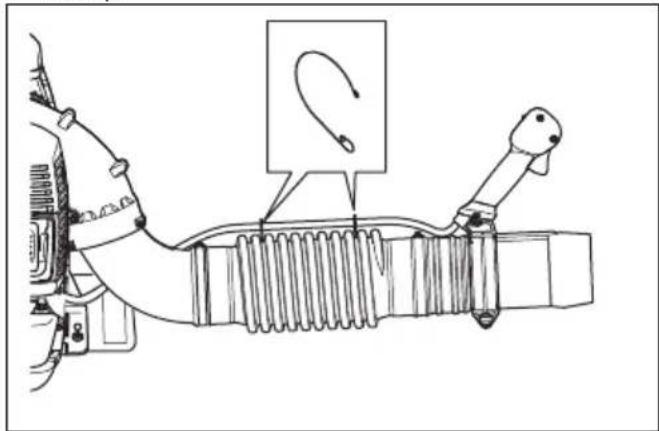

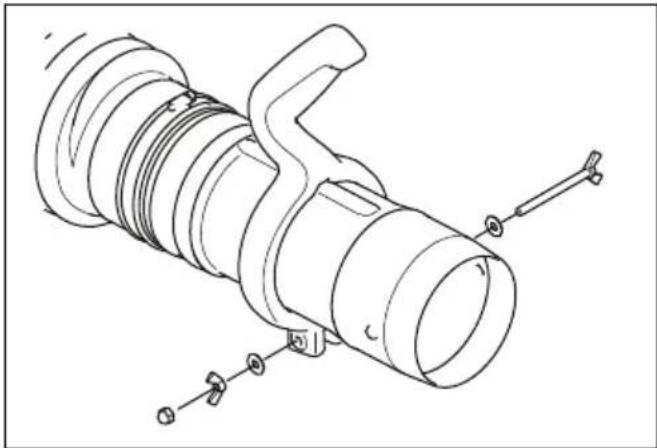

1. Attach the flexible hose (A) to the pipe angle and the control pipe (B) with the clamps (C), (D).

C A D B

Note: Lubricate the control pipe and the flexible hose to make them more easy to assemble.

1. Attach the handle (E) to the control pipe and put the knob through the handle.

Technical diagram showing mechanical assembly with labeled component E and directional arrow indicating motion or force

1. Tighten the knob.
2. Attach the cable to the flexible hose with the cable clamp.

Technical line drawing of a mechanical assembly with spring and connector components (no text or symbols)

1. Attach the intermediate pipe to the control pipe.

Diagram of a mechanical clamp or hook mechanism with directional arrows indicating motion (no text or symbols)

1. Attach the blower nozzle to the intermediate pipe.

To assemble the tube and handle on the product :580BFS Mark III

1. Attach the flexible tube (A) to the pipe angle with the clamp (C).

Technical diagram of a mechanical assembly with labeled parts A through G

1. Push the handle (E) onto the control pipe (B)

Technical line drawing of a mechanical component with a curved hook and arrow indicating direction (no text or symbols)

1. Attach and tighten the bolt, washer and nuts as shown in the illustration.

Technical line drawing of a mechanical component with bolts and a central shaft (no text or symbols)

1. Attach the control pipe (B) to the flexible tube (A) with the clamp (D). Make sure that the mark on the control pipe is up.

2. Attach the intermediate pipe (F) to the control pipe.

Diagram of a mechanical clamp or spring mechanism with directional arrows indicating motion (no text or symbols)

1. Attach the blower nozzle (G) to the intermediate pipe.

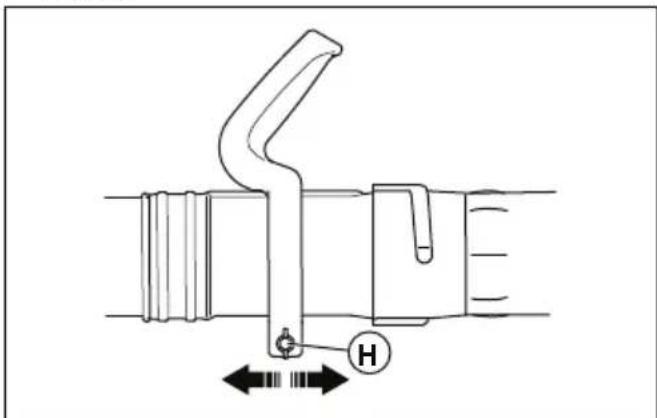

2. Loosen the knob (H) to adjust the position of the handle.

Technical line drawing of a mechanical component with labeled parts (no text or symbols)

1. Tighten the knob again.

To adjust the harness

A correctly adjusted harness and product makes operation easier.

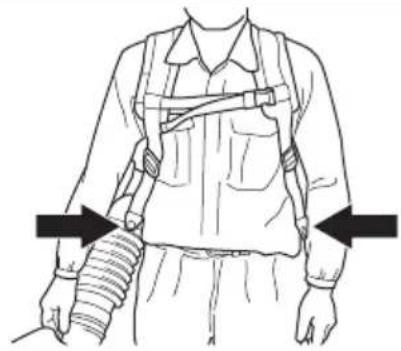

1. Put on the harness of the product.

2. Tighten the side straps until the product is tight against your body.

Line drawing of a person wearing a harness and belt, with two arrows pointing to the arm (no text or symbols present)

1. Connect the chest strap to the clip.

2. Tighten the strap.

Operation

Introduction

WARNING: Read and understand the safety chapter before you use the product.

Fuel

To use fuel

CAUTION: This product has a two-stroke engine. Use a mixture of gasoline and two-stroke engine oil. Make sure to use the correct quantity of oil in the mixture. Incorrect ratio of gasoline and oil can cause damage to the engine.

Husqvarna alkylate fuel

CAUTION: Do not use gasoline with an octane number less than 90 RON (87 AKI). This can cause damage to the product.

CAUTION: Do not use gasoline with more than 10% ethanol concentration (E10). This can cause damage to the product.

CAUTION: Do not use leaded gasoline. This can cause damage to the product.

We recommend Husqvarna alkylate fuel for best performance. This fuel gives less dangerous exhaust fumes compared to regular fuel. It keeps the engine clean and increases the engine life. Husqvarna alkylate fuel is not available in all commercial areas.

• Always use new unleaded gasoline with a minimum octane number of 90 RON (87 AKI) and with less than 10% ethanol concentration (E10).

• Use gasoline with a higher octane number if you frequently use the product at continuously high engine speed.
  • Always use a good quality unleaded gasoline/oil mixture.

Two-stroke oil

• For best results and performance use Husqvarna two-stroke oil, which is specially formulated for our two-stroke engines.
• If Husqvarna two-stroke oil is not available, use a different two-stroke oil of good quality that is formulated for air-cooled engines. Consult your servicing dealer when you select an oil.
• Do not use two-stroke oil for water-cooled outboard engines, also referred to as outboard oil.
• Do not use oil intended for four-stroke engines.

Gasoline, l	Two-stroke oil, l
	2% (50:1)
5 0.10
10 0.20
15 0.30
20 0.40
US gallon US fl. oz.
1 2 12
2 12 6 12
5 12 78

To make the fuel mixture

Note: Always use a clean fuel container when you mix the fuel.

Note: Do not make more than 30 days quantity of fuel mixture.

1. Add half of the gasoline quantity.
2. Add the full quantity of oil.
3. Shake the fuel mixture to mix the contents.
4. Add the remaining gasoline quantity.
5. Shake the fuel mixture to mix the contents.
6. Fill the fuel tank.

To add fuel

• Always use a fuel container with an antispill valve.
- If there is some fuel on the container, remove the unwanted fuel and let the container dry.
- Make sure that the area near the fuel tank cap is clean.
- Shake the fuel container before you add the fuel mixture to the fuel tank.

To add fuel to the fuel tank

1. Stop the product.
2. Put the product on a flat surface.
3. Loosen the fuel tank cap to release the pressure in the fuel tank.
4. Remove the fuel tank cap.
5. Fill the fuel tank to 80%.
6. Tighten the fuel tank cap fully.
7. Make sure that there is no leak in the fuel tank.

Before you operate the product

WARNING: Read the safety instructions before you operate the product.

• Use the blower with the lowest possible throttle. A lower throttle means less noise and less dust, and it is also easier to keep control over the rubbish collected together/moved. Use a rake or a brush to release rubbish stuck to the ground.
• Hold the opening of the blower as close to the ground as possible. Utilize the entire length of the blow pipe to keep the air current close to the ground. Clean up afterwards. Make sure that you have not blown rubbish into someone's garden. Operate power equipment only at reasonable hours, not early in the morning or late at night when people might be disturbed. Comply with times listed in local ordinances.

• This blower is a backpack type, and is carried using a shoulder harness while operating. It is operated and controlled with the handle on the tube using the right hand.

• The speed of the air jet is regulated by means of the throttle. Select the speed best suited for respective tasks.

• Check that the air intake is not blocked, for example, by leaves or rubbish. A clogged air intake reduces the machine's blowing capacity and increases the engine's working temperature, which can result in engine failure. Stop the engine and remove the object.
• Be aware of the wind direction. Work with the wind to make your work easier.
  • Using the blower to move large piles is time consuming and creates unnecessary noise.
• Keep a good balance and a firm foothold.
• When work is finished the machine should be stored vertically.

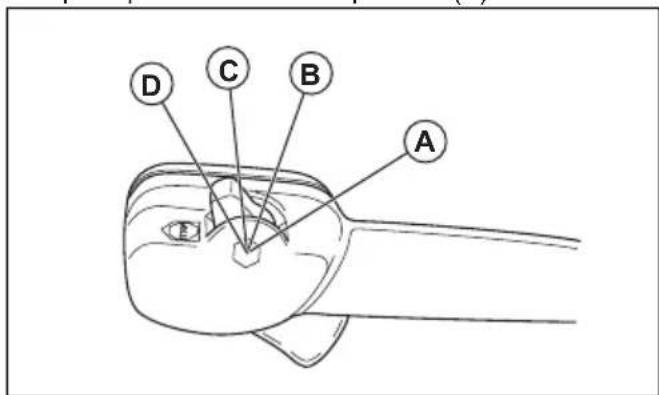

To operate the throttle switch :580BTS Mark III

• Apply full throttle (A).
• Apply 1/3 speed (B).
• Apply idle speed (C).
• Stop the product with the stop switch (D).

A B C D

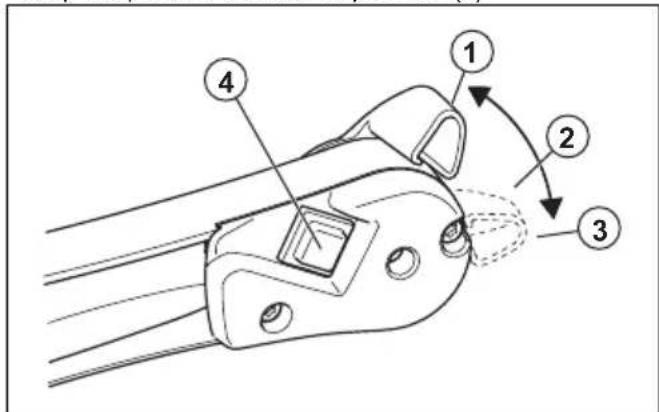

To operate the throttle switch :580BFS Mark III

• Apply full throttle (1).
• Apply 1/3 speed (2).
• Apply Idle speed (3).
• Stop the product with the stop switch (4).

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

To start the product

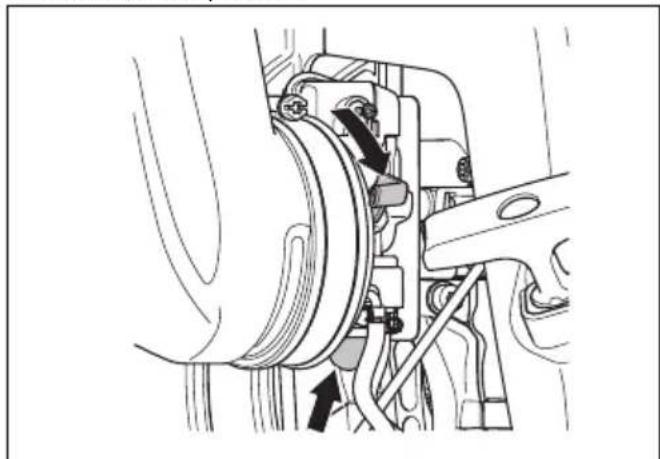

1. If the engine is cold, push the choke lever to the closed choke position.

Mechanical assembly diagram showing a brake caliper and suspension components (no text or labels)

1. Push the air purge bulb again and again until fuel starts to fill the air purge bulb. It is not necessary to fill the air purge bulb fully.
2. Push the throttle lever to the 13 speed position. Refer to To operate the throttle switch :580BTS Mark III on page 13.
3. Put the product on a flat surface on the ground.

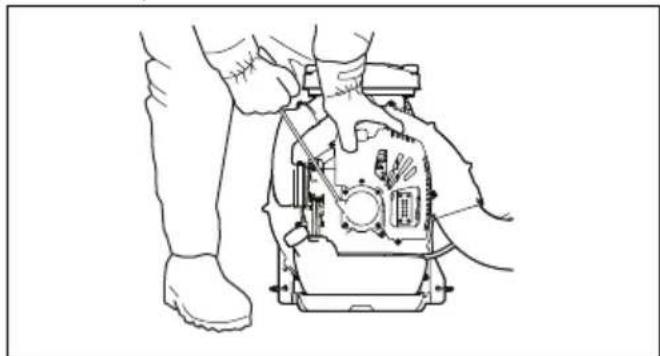

4. Hold the product with the left hand.

Line drawing of a person operating a mechanical device with foot and legs (no text or symbols)

1. Pull the starter rope handle slowly until resistance occurs.
2. Pull the starter rope handle quickly with the right hand until the engine starts or attempts to start, maximum 10 times. If the engine starts, move the choke lever gradually to the open position.

Note: Do not pull the starter rope handle to full extension and do not let go of the starter rope handle.

1. Move the choke lever to the open choke position until the choke lever stops.
2. Pull the starter rope handle repeatedly until the engine starts and continues to run.
3. If the engine does not start, do step 1 to step 10 again.
4. Let the engine run for 2-3 minutes to become warm before operation.

To stop the product :580BTS Mark III

CAUTION: Do not stop the product at full speed.

1. Push the throttle lever to the stop position.

Line drawing of a mechanical tool or grip with an arrow indicating direction (no text or symbols)

To stop the product :580BFS Mark III

CAUTION: Do not stop the product at full speed.

1. Push the stop switch.

Line drawing of a mechanical component with a downward arrow indicating a step or insertion (no text or symbols present)

Maintenance

Introduction

WARNING: Read and understand the safety chapter before you do maintenance on the product.

Maintenance schedule

Maintenance Daily Weekly Monthly
Clean the external surfaces. X
Make sure that the control handle operates correctly. X
Make sure that the start/stop switch operates correctly. Refer to To stop the product :580BTS Mark III on page 14.	X
Examine the engine, the fuel tank and the fuel lines for leaks. Examine the fuel filter for contamination. Replace the fuel filter if it is necessary.	X
Clean the air filter. Replace the air filter if it is necessary. X
Tighten nuts and screws. X
Examine the air intake and make sure that it is not blocked. X
Examine the starter and the starter rope for damages. X
Examine the vibration damping units for damages, cracks and deformation.Make sure that the vibration damping units are correctly installed.		X
Examine the spark plug. Refer to To do a check of the spark plug on page 15.		X
Clean the cooling system. X
Clean the external surface of the carburetor and the area around it. X
Clean the fuel tank. X
Examine all cables and connections. X
Examine and clean the spark arrestor screen on the muffler (for products without catalytic converter).		X
Examine and clean the spark arrestor screen on the muffler (for products with catalytic converter).			X
Examine the spark plug. Replace if it is necessary. X

To do a check of the spark plug

CAUTION: Use the recommended spark plug. Refer to Technical data on page 18. An incorrect spark plug can cause damage to the product.

1. If the product is not easy to start or to operate or if the product operates incorrectly at idle speed, examine the spark plug for unwanted materials. To decrease the risk of unwanted material on the spark plug electrodes, do these steps:

a) make sure that the idle speed is correctly adjusted.
b) make sure that the fuel mixture is correct.
c) make sure that the air filter is clean.

1. Clean the spark plug if it is dirty.

2. Make sure that the electrode gap is correct. Refer to, Technical data on page 18.

1. Replace the spark plug monthly or more frequently if necessary.

To clean the cooling system

CAUTION: A dirty or blocked cooling system can make the product too hot, which can cause damage to the product.

The cooling system includes the cooling fins on the cylinder and the air intake screen.

• Make sure that the cooling system is not dirty or blocked.
- Clean the cooling system with a brush weekly or more frequently if it is necessary.

To do maintenance of the muffler

WARNING: Do not use a product with a defective muffler.

WARNING: The mufflers become very hot during and after operation, also at idle speed. Use protective gloves to prevent burn injuries.

1. Stop the engine and let the muffler become cool.
2. Replace the spark arrester screen if it is damaged.
3. Remove the screws (E) and remove the exhaust duct (D).

Technical diagram of an electrical connector with labeled parts C, D, and E

Note: The inner surfaces of the muffler contain chemicals that can cause cancer. Be careful not to touch these elements if the muffler is damaged.

1. Remove the spark arrester screen (C) and clean it with a wire brush. Remove dirt from the inlet and outlet of the muffler with the wire brush. Also, remove dirt from the exhaust port of the cylinder with the wire brush.

2. Attach the spark arrester screen (C) and the exhaust duct (D) with the screws (E). Tighten the screws to 2-3 Nm.

3. Make sure that the muffler is correctly attached to the product. Tighten the screws (A) and (B) to 8-12 Nm.

Technical diagram of a mechanical assembly with labeled parts A and B, showing exploded view of components like connectors and a connector pin.

To examine the air intake screen

A clogged air intake screen decreases the blow force and increases the temperature of the engine. An increased temperature can result in engine failure.

1. Stop the engine.
2. Examine the air intake screen for damages and make sure that it is attached correctly.

Technical line drawing of a mechanical assembly with internal components and arrows indicating parts of motion (no text or symbols present)

1. Remove dirt, leaves and unwanted materials from the air intake screen.

To clean the air filter

Clean the air filter regularly from dirt and dust. This prevents carburetor malfunctions, starting problems, loss of engine power, wear to engine parts and more fuel consumption than usual. Clean the air filter at an interval of 40 hours of operation or less if it is heavy operation conditions.

1. Loosen the fasteners that holds the air filter cover in position.

Line drawing of a mechanical assembly with hands adjusting components (no text or symbols)

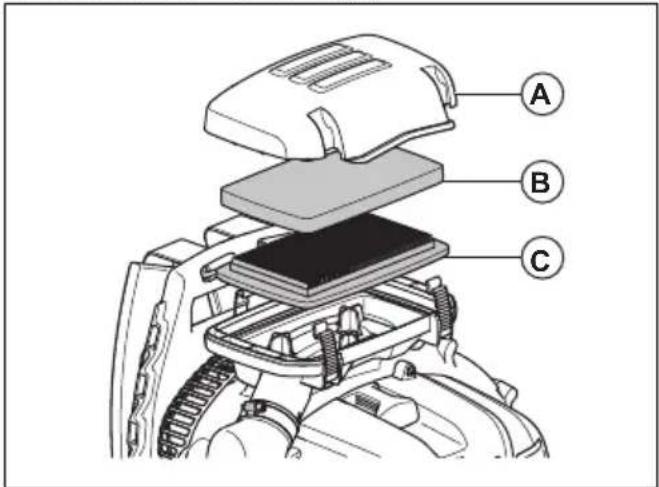

1. Remove the air filter cover (A).

A B C

1. Remove the foam filter (B) and the paper filter (C) from the filter frame.

2. Replace the paper filter (C).

3. Clean the foam filter (B) with warm soap water.

Note: An air filter that is used for a long time can not be fully cleaned. Replace the air filter regularly and always replace a defective air filter.

1. Make sure that the foam filter (B) is dry.

2. Clean the inner surface of the air filter cover with a brush (A).

To replace the harness

WARNING: A damaged harness can make the product fall and cause injuries.

1. Stop the engine.
2. Remove the clamp from the strap.
3. Push the end of the strap through the hanger.
4. Pull the new strap through the hanger.
5. Attach the clamp to the new strap.

Transportation and storage

Transportation and storage

WARNING: To prevent the risk of fire, make sure that there are no leaks or fumes during transportation or storage. Make sure that there is no risk of sparks or fire.

• Empty the fuel tank before transportation or long-term storage. Push the air purge bulb to make sure that all fuel is removed. Discard the fuel at an applicable disposal location.
• Make sure that the product is clean and that a full servicing is done before long-term storage.
• Remove the spark plug and put approximately 15 ml of two-stroke oil into the cylinder. Turn the product 3 times and install the spark plug again.
• Attach the product safely to the vehicle during transportation.
• Keep the product in a dry, cool and clean space with good airflow. Keep the product away from children.

Technical data

Technical data

	580BTS Mark III 580BFS Mark III
Engine
Cylinder displacement, cm^3	75.6 75.6
Idle speed, rpm 2000 2000
Catalytic converter muffler No No
Speed-regulated ignition system Yes Yes
Ignition system^1
Spark plug NGK CMR7H NGK CMR7H
Electrode gap, mm/in 0.6-0.7 / 0.024-0.028 0.6-0.7 / 0.024	-0.028
Fuel and lubrication system
Fuel tank capacity, I/US pint 2.6 / 5.5 2.6 / 5.5
Weight
Weight, kg/lb 12.2/26.8 12.3/27.1
Fan performance
Maximum air velocity with standard nozzle, mph / m/s	220/98	220/98
Air flow with standard nozzle, cfm / m^3/min	1000/28 1000/28

Warranty

CALIFORNIA, U.S FEDERAL, AND CANADA EXHAUST AND EVAPORATIVE EMISSIONS CONTROL WARRANTY STATEMENT

YOUR WARRANTY RIGHTS AND OBLIGATIONS

The California Air Resources Board (CARB), U.S. Environmental Protection Agency (EPA), Environment and Climate Change Canada and Husqvarna Forest & Garden are pleased to explain the exhaust and evaporative emissions ("emissions") control system warranty on your 2021-2022* small off-road engine. In California, new equipment that use small off-road engines must be designed, built, and equipped to meet State's stringent anti-smog standards. Husqvarna Forest & Garden must warrant the emissions control system on your small off-road engine for the periods of time listed below provided there has been no abuse, neglect or improper maintenance of your small off-road engine or equipment leading to the failure of the emissions control system. Your emissions control system may include parts such as the carburetor or fuel injection system, the ignition system, catalytic convertor, fuel tanks, fuel lines (for liquid fuel and fuel vapors), fuel caps, valves, canisters, filters, clamps and other associated components. Also included may be hoses, belts, connectors, and other emission-related assemblies. Where a warrantable condition exists, Husqvarna Forest & Garden will repair your small off-road engine at no cost to you including diagnosis, parts and labor.

MANUFACTURER'S WARRANTY COVERAGE

The exhaust and evaporative emissions control system on your small off-road engine is warranted for two years. If any emissions-related part on your small off-road engine is defective, the part will be repaired or replaced by Husqvarna Forest & Garden.

OWNER'S WARRANTY RESPONSIBILITIES

• As the small off-road engine owner, you are responsible for performance of the required maintenance listed in your owner's manual. Husqvarna Forest & Garden recommends that you retain all receipts covering maintenance on your small off-road engine, but Husqvarna Forest & Garden cannot deny warranty coverage solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance.
• As the small off-road engine owner, you should however be aware that Husqvarna Forest & Garden may deny you warranty coverage if your small off-road engine or a part has failed due to abuse, neglect, or improper maintenance or unapproved modifications.
• You are responsible for presenting your small off-road engine to a Husqvarna Forest & Garden

authorized servicing dealer as soon as the problem exists. The warranty repairs shall be completed in a reasonable amount of time, not to exceed 30 days. If you have any questions regarding your warranty rights and responsibilities, you should contact Husqvarna Forest & Garden in USA at 1-800-487-5951, in CANADA at 1-800-805-5523 or send e-mail correspondence to [e-mail] or [e-mail].

WARRANTY COMMENCEMENT DATE

The warranty period begins on the date the engine or equipment is delivered to an ultimate purchaser.

LENGTH OF COVERAGE

Husqvarna Forest & Garden warrants to the ultimate purchaser and each subsequent owner that the engine or equipment is designed, built, and equipped so as to conform with all applicable regulations adopted by CARB and EPA, and is free from defects in materials and workmanship that causes the failure of a warranted part for a period of two years.

WHAT IS COVERED

REPAIR OR REPLACEMENT OF PARTS: Repair or replacement of any defective warranted part will be performed at no charge to you at a brand authorized servicing dealer. Except for repairs and replacement under this Emission Control Warranty, you may choose a repair shop or other person to maintain, replace or repair emission control devices and systems. However, Husqvarna Forest & Garden recommends that all maintenance, replacement and repairs of emission control devices and systems be performed by a brand authorized servicing dealer.

IMPORTANT: This product is compliant with U.S. EPA Phase 3 regulations for exhaust and evaporative emissions. To ensure EPA Phase 3, California Air Resources Board and Environment and Climate Change Canada regulation, we recommend using only genuine product branded replacement parts. Use of non-compliant replacement parts is a violation of federal and state laws.

WARRANTY PERIOD: Any warranted part which is not scheduled for replacement as required maintenance, or which is scheduled only for regular inspection to the effect of "repair or replace as necessary" is warranted for 2 years (or time defined in the product warranty statement, whichever is longer) from the date of purchase by the initial consumer purchaser. Any warranted part which is scheduled for replacement as required maintenance is warranted for the period of the time up to the first scheduled replacement for that part. Any part repaired or replaced under the warranty must be warranted for the remaining warranty period.

DIAGNOSIS: You will not be charged for diagnostic labor that leads to the determination that a warranted part is in fact defective, provided that such diagnostic work is performed at a brand authorized servicing dealer.

OTHER DAMAGES: Husqvarna Forest & Garden will repair other engine components caused by the failure of a warranted part still under warranty.

EMISSION WARRANTY PARTS LIST

1. Carburetor and intake parts or fuel injection system.
2. Air filter and fuel filter covered up to maintenance schedule.
3. Spark Plug, covered up to maintenance schedule.
4. Ignition Module.
5. Mufflers with catalyst and exhaust manifolds.
6. Fuel tank, fuel lines (for liquid fuel and fuel vapors), fuel cap, carbon canister and tip-over/anti-slosh valves as applicable.**
7. Electronic Controls, Vacuum, temperature, and time sensitive valves and switches.
8. Hoses, connectors, and assemblies.
9. All other components the failure of which would increase the engine's exhaust and evaporative emissions of any regulated pollutant as set forth at the following:

- For California see California Code of Regulations, 13 CCR §2405(d) and 2760(d).

- For U.S. and Canada see US Federal Code of Regulations, 40 C.F.R 1068 Appendix I (iii).

WHAT IS NOT COVERED

All failures caused by abuse, neglect, unapproved modifications, misuse or improper maintenance are not covered.

ADD -ON OR MODIFIED PARTS: Add-on or modified parts that are not exempted by CARB or EPA may not be used. The use of any non-exempted add-on or modified parts will be grounds for disallowing a warranty claim. Husqvarna Forest & Garden will not be liable to warrant failures of warranted parts caused by the use of a non-exempted add-on or modified part.

HOW TO FILE A CLAIM

If you have any questions regarding your warranty rights and responsibilities, you should contact your nearest authorized servicing dealer or call Husqvarna Forest & Garden in USA at 1-800-487-5951, in CANADA at 1-800-805-5523 or send e-mail correspondence to [e-mail] or [e-mail].

WHERE TO GET WARRANTY SERVICE

Warranty services or repairs are provided through all Husqvarna Forest & Garden authorized servicing dealers. If the nearest authorized servicing dealer is more than 100 miles from your location, Husqvarna Forest & Garden will arrange and pay for the shipping costs to and from a brand authorized servicing dealer or

otherwise arrange for warranty service in accordance with applicable regulations.

MAINTENANCE, REPLACEMENT AND REPAIR OF EMISSION-RELATED PARTS

Any replacement part may be used in the performance of any warranty maintenance or repairs and must be provided without charge to the owner. Such use will not reduce the warranty obligations of the manufacturer.

MAINTENANCE STATEMENT

The owner is responsible for the performance of all required maintenance, as defined in the owner's manual.

* Current and following model year will be updated annually in the warranty statement provided to the consumer. For example, in 2012 model year, 2012-2013 will be specified.

** Evaporative emission parts.

Contenido

Introducción.... 21

Seguridad.... 24

Montaje.... 29

Safety warning illustration showing a person spraying water with a warning sign and warning triangle

aaaassxxxxx

Illustration of a person in protective gear spraying a device with a screen, no text or symbols present

Line drawing of a person using a shoveling machine to spray plants, with no text or symbols present.

Line drawing of a person in protective gear carrying a shooler on a ladder, with no text or symbols present.

Line drawing of a mechanical component or device with no visible text or symbols

Line drawing of glasses and binoculars (no text or symbols)

Line drawing of two gloves with bandages and segmented bands (no text or symbols)

Line drawing of a pair of boots with visible tread pattern and buckles (no text or symbols)

Line drawing of a mechanical component with a circular base and textured end (no text or symbols)

Technical diagram of an automotive electrical connector assembly with labeled parts (no text or symbols present)

Technical illustration of two hand tools with arrows indicating tool movement (no text or symbols)

Seguridad del arnés

Line drawing of a person wearing a medical device with a cross symbol crossed out (no text or labels)

Technical diagram showing mechanical assembly with labeled component E and directional arrow indicating motion or force

Technical line drawing of a mechanical assembly with spring and connector (no text or symbols)

Diagram of a mechanical joint or clamp mechanism with directional arrows indicating motion (no text or symbols)

Technical diagram of a mechanical assembly with labeled parts A through G

Technical line drawing of a mechanical component with a curved hook and arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a mechanical clamp or spring mechanism with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with labeled parts and directional arrows (no text or symbols)

Line drawing of a person wearing a vest with straps and a bandage, no text or symbols present

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Mechanical assembly diagram showing a brake system with no visible text or symbols

Line drawing of a person's legs and foot using a mechanical device (no text or symbols)

Line drawing of a mechanical tool with an arrow indicating direction (no text or symbols)

Line drawing of a mechanical component with a downward arrow indicating a step or adjustment (no text or symbols present)

Mantenimiento

Introducción

Technical line drawing of a mechanical component with threaded base and mounting holes (no text or symbols)

Technical diagram of an electrical connector with labeled parts C, D, and E

Technical diagram of an electrical connector with labeled parts A and B, showing internal components and wiring connections.

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of hands operating a mechanical component with arrows indicating motion direction (no text or symbols)

Safety warning illustration showing a person using a tool to prevent a person's leg injury, with a warning triangle and dot indicating hazard.

aaaassxxxxx

Illustration of a person using a handheld device to spray or spray a surface, with no visible text or symbols.

Line drawing of a person using a biopack to clean grass near a tree (no text or symbols)

Line drawing of a person using a hairdryer on a ladder, with a cross symbol indicating no text or symbols.

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical component or bracket (no text or symbols)

Line drawing of two human gloves with bandages and shaded areas (no text or symbols)

Line drawing of a pair of boots with visible tread pattern and buckles (no text or symbols)

Line drawing of a mechanical component with a circular base and textured top (no text or symbols)

Technical diagram of an automotive electrical connector assembly with no visible text or symbols

Technical illustration of two hand tools with arrows indicating movement or assembly (no text or symbols)

Sécurité du harnais

Line drawing of a person crossing a cross symbol (no text or labels)

Technical diagram showing mechanical assembly with labeled component E and directional arrow indicating motion or force

Technical line drawing of a mechanical assembly with coiled spring and connector (no text or symbols)

Diagram of a mechanical clamp or hook mechanism with directional arrows indicating motion (no text or symbols)

Technical diagram of a mechanical assembly with labeled parts A through G

Technical line drawing of a mechanical component with a curved hook and arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with threaded ends and mounting holes (no text or symbols)

Diagram of a mechanical clamp or spring mechanism with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with labeled parts and directional arrows (no text or symbols)

Line drawing of a person wearing a vest with straps and a bandage, no text or symbols present

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Mechanical assembly diagram showing a brake caliper and suspension components (no text or labels)

Line drawing of a person using a handheld device to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand gripping a tool, with an arrow indicating the movement direction (no text or symbols)

Line drawing of a mechanical tool with a downward arrow indicating a process step (no text or symbols present)

Entretien

Introduction

Technical diagram of an electrical connector with labeled parts C, D, and E

Technical diagram of a mechanical assembly with labeled parts A and B, showing exploded view of components like connectors and a connector pin.

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical assembly with hands adjusting components (no text or symbols)

Original instructions

Black and white barcode image with vertical lines and a small number '1' at the bottom right.
