USER MANUAL DVP-FX950 SONY

Portable CD/DVD Player

Operating Instructions GB

Mode d'emploi FR

To reduce the risk of fire or electricshock, donotexpose this apparatus to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

The mains lead must be changed only at a qualified service shop.

Batteriesorbatteriesinstalled apparatus shall not be exposed to excessive heat such as sunshine, fire or the like.

This label is located on the bottom of the unit.

This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the bottom of the unit.

CAUTION

• The use of optical instruments with this product will increase eye hazard. As the laser beam used in this CD/DVD player is harmful to eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only.
• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Disposal of waste batteries (applicable in the European Union and other European countries with separate collection systems)

This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste.

On certain batteries this symbol might be used in combination with a chemical symbol. The

chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead.

By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources.

In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only.

To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment.

For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries.

For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Precautions

• Install this system so that the mains lead can be unplugged from the wall socket immediately in the event of trouble.

• The player is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the player itself has been turned off.

• To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus.

• Excessive sound pressure from earphones and headphones can cause hearing loss.

The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.

IMPORTANT NOTICE

Caution: This player is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave the still video image or on-screen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen. Plasma display panel televisions and projection televisions are susceptible to this.

If you have any questions or problems concerning your player, please consult your nearest Sony dealer.

Copyrights, licencing and trademarks

• Manufactured under licence from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
• "DVD+RW," "DVD-RW," "DVD+R," "DVD+R DL," "DVD-R," "DVD VIDEO," and "CD" logos are trademarks.
• MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.
• DivX^® , DivX Certified and associated logos are registered trademarks of DivX , Inc. and are used under license.
  THIS PRODUCT IS
  LICENSED UNDER THE
  MPEG-4 VISUAL PATENT
  PORTFOLIO LICENSE FOR
  THE PERSONAL AND NONCOMMERCIAL USE OF A CONSUMER FOR
  DECODING VIDEO IN
  COMPLIANCE WITH THE MPEG-4 VISUAL
  STANDARD ("MPEG-4
  VIDEO") THAT WAS ENCODED BY A
  CONSUMER ENGAGED IN
  A PERSONAL AND NONCOMMERCIAL ACTIVITY
  AND/OR WAS OBTAINED
  FROM A VIDEO PROVIDER
  LICENSED BY MPEG LA TO
  PROVIDE MPEG-4 VIDEO.
  NO LICENSE IS GRANTED
  OR SHALL BE IMplied
  FOR ANY OTHER USE.
  ADDITIONAL
  INFORMATION
  INCLUDING THAT
  RELATING TO
  PROMOTIONAL,
  INTERNAL AND
  COMMERCIAL USES AND
  LICENSENG MAY BE
  OBTAINED FROM MPEG
  LA, LLC. SEE
  HTTP://WWW.MPEGLA.COM

About this manual

• In this manual, "disc" is used as a general reference for the DVDs or CDs unless otherwise specified by the text or illustrations.
• Icons, such as DVD, listed at the top of each explanation indicate what kind of media can be used with the function being explained. For details, see "Playable Media" (page 30).
• NEED-to-know information (to prevent incorrect operation) is listed under the icon. NICE-to-know information (tips and other useful information) is listed under the icon.

Table of Contents

WARNING 2
Guide to Parts and Controls 5
Rotating and Folding Down the LCD Panel 9

Preparations 10

Checking the Accessories 10
Charging the Battery Pack 10
Using in a Car (for Rear Seat Passenger) 12
Connecting to Other Equipment 14

Playback 15

Playing Discs 15
Playing MP3, JPEG, and Video Files 18
Adjusting the Picture Size and Quality 20

Settings and Adjustments 21

Using the Setup Display 21

Additional Information 25

Troubleshooting 25
Precautions 27
Playable Media 30
Specifications 32
Index 33

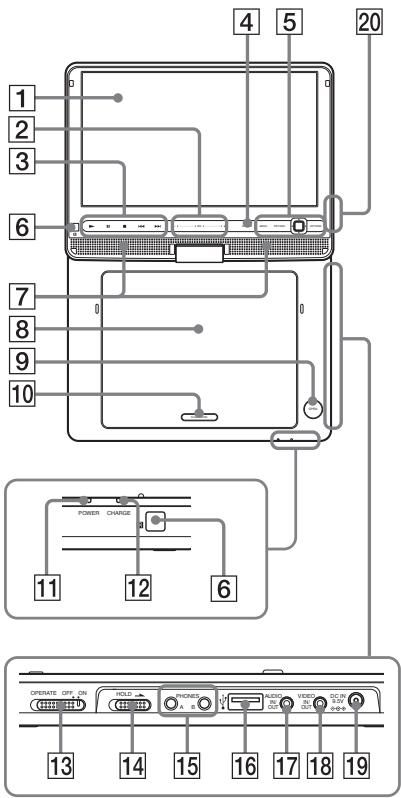

Guide to Parts and Controls

For more information, see the pages indicated in parentheses.

Player

Buttons 234 and 5 (but not / / / / ENTER) can be operated with a single touch.

The VOL+ and (play) buttons have a tactile dot. Use the tactile dot as a reference when operating the player.

LCD panel (page 9)
2 VOL (sound volume) +/-

Adjusts the volume.

Operate with a single touch of + or - on the player. You can also adjust the volume by sliding your finger along the touch slider. Sliding toward + from centre increases volume; sliding toward - from centre decreases volume. (The same operation in "LCD Mode" can be used to adjust the picture quality level. See page 20.)

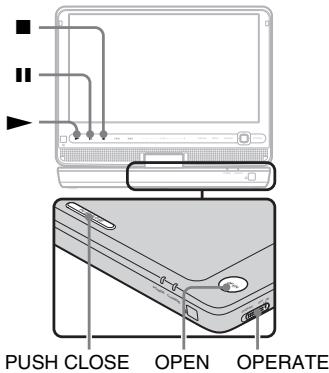

(play) (page 15)

Starts or re-starts playback.

I (pause) (page 15)

Pauses or re-starts playback.

stop) page 15

Stops playback.

(previous)

Skipping to the beginning of the current chapter/track/scene.

To go to the beginning of the previous chapter/track/scene, press twice.

1 (next)

Skipping to the next chapter/track/scene.

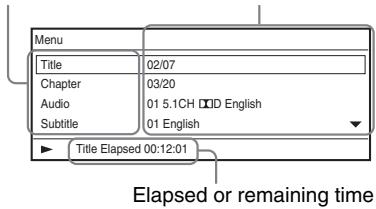

4 DISPLAY

Displays the playback information.

• When playing a DVD: Displays the playback information and changes the playback mode. See page 17.
• When playing a CD or video file: Each time you press the button, the time information switches.
• When playing a VIDEO CD: Displays the playback information.

5 MENU

• When playing a DVD VIDEO: Displays the menu.
• When playing a CD or VIDEO CD: Each time you press the button, switches Repeat Play, Random Play, and Play. (Only when "PBC" is set to "Off" for VIDEO CD.)
• When playing a JPEG file: Displays the list of thumbnails and plays a slideshow. See page 19.

RETURN

Returns to the previous display.

/ / /

Moves the highlight to select a displayed item.

• When playing a DVD, CD, VIDEO CD or video file: / on the player works as the same as / on the remote.

Centre button (ENTER)

Enters the selected item.

• When playing a DVD, CD,VIDEO CD or video file: ENTER on the player works as the same as

OPTIONS

Displays the menu for adjusting the LCD screen (page 20) and using the setup display (page 21).

6 (remote sensor)

When operating by the remote, point it at the remote sensor R .

7 Speaker

8 Disc Lid (page 15)

9 OPEN button (page 15)

Opens the disc lid.

10 PUSH CLOSE (page 15)

Closes the disc lid.

11 POWER indicator (page 15)

12 CHARGE indicator (page 11)

13 OPERATE switch (page 15)

Turns the player on or off.

14 HOLD switch

To avoid accidental button operation of the player, set the HOLD switch to the direction of the arrow. All the buttons on the player are locked, while the buttons on the remote remain operable.

15 PHONES (headphone) jack A, B

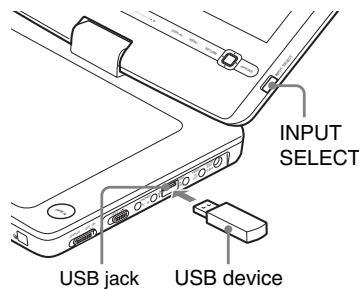

16 USB jack (type A) (page 19)

Connect a USB device to this jack.

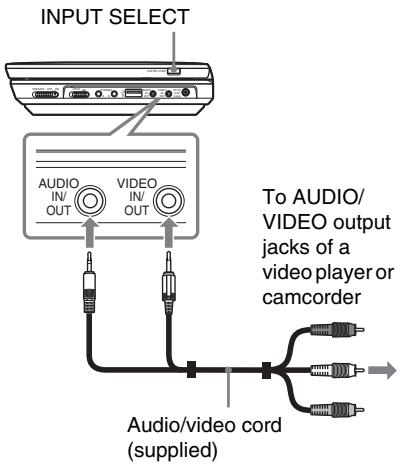

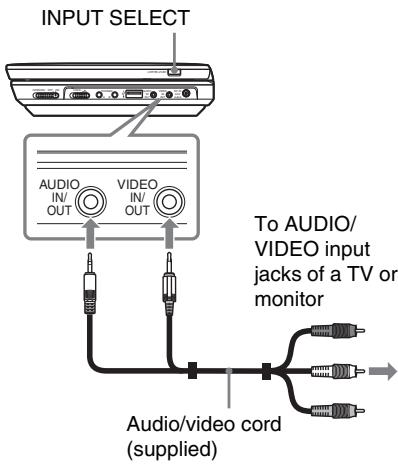

17 AUDIO IN/OUT jack (page 14)

VIDEO IN/OUT jack (page 14)

19 DC IN 9.5V jack (page 11, 12)

Connect the AC power adaptor or car battery adaptor.

20 INPUT SELECT button (page 14)

Each time you press the button, the LCD screen image switches as follows:

• Disc mode (default): When playing an inserted disc.
• USB mode: When playing DATA files on a connected USB device. Appears "USB" on the LCD screen when you select this mode.
• Line In mode: When inputting a playback signal from connected A/V equipment. Appears "Line In" on the LCD screen when you select this mode.

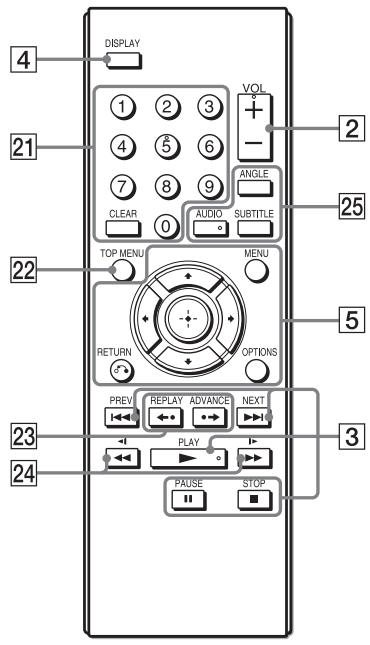

Remote

The VOL + ,number 5, and AUDIO buttons have a tactile dot. Use the tactile dot as a reference when operating the player.

21 Number buttons

Enters the title/chapter numbers, etc.
- When playing a DVD VIDEO or CD or VIDEO CD: Search directly by entering the title/chapter/track number using the number buttons, and press ENTER. (Only when "PBC" is set to "Off" for VIDEO CD.)
To switch a title or chapter, press

CLEAR button

Cleared the entry field.

22 TOP MENU button

• When playing a DVD VIDEO: Displays the top menu.
• When playing a DVD VR: Switches between "Original" and "Play List" on the disc created Playlist. During playback, you cannot switch. Press twice, and press TOP MENU.

23 REPLAY/ ADVANCE buttons

Replays the scene/briefly fast forward the current scene (DVD only).

24 <1<1/>> (scan/slow) buttons

Fast reverses/ fast forwards when pressed during playback. Press repeatedly to change the speed.

• When playing a DVD: Slow reverses/ slow forwards when pressed during pause. Press repeatedly to change the speed.
• When playing a VIDEO CD or video file: Slow forwards when pressed during pause. Press repeatedly to change the speed.

25 ANGLE button

Changes the angle. When "OO" (Angle Mark) appears, you can change angles. Depending on the disc, you may not be able to change the angle. (DVD VIDEO only)

AUDIO button

Changes the audio signal.

• When playing a DVDVIDEO: Each time you press the button, the language of the sound track switches. Depending on the disc, the choice of language varies.

• When playing a DVD VR: Each time you press the button, the type of sound tracks recorded on a disc switches between main, sub and main/sub sound.

• When playing a CD or VIDEO CD: Each time you press the button, the mode switches between stereo and monaural (left/right).
• When playing a DivX video file: Each time you press the button, the audio signal switches. If "No Audio" appears, the player does not support the audio signal.

SUBTITLE button

Changes the subtitle.

• When playing a DVD: Each time you press the button, the subtitle switches. Depending on the disc, the choice of language varies.
• When playing a DivX video file: Press the button during playback. Press / and ENTER while displaying subtitle information.

Rotating and Folding Down the LCD Panel

Open the LCD panel to the vertical position, then slowly rotate it 180 degrees in the direction indicated by the arrow (clockwise).

After rotating the LCD panel 180 degrees clockwise, push the LCD panel down onto the main body of the player. In this position the panel is facing up.

To return the LCD panel to its original position

Open the LCD panel to the vertical position and rotate the LCD panel counterclockwise slowly.

#

• Do not rotate the LCD panel over 180 degrees. In addition, do not rotate in the opposite direction. Doing so will break the LCD panel.
• Return the LCD panel to its original positions after use, so the LCD panel will not be damaged by sudden shocks or rough treatment.
• Do not rotate the LCD panel while keeping it closed or out of vertical. It may scratch the player.

Checking the Accessories

Check that you have the following items:

• Battery pack (NP-FX110) (1)
• AC power adaptor (1)
• Car battery adaptor (1)
  Audio/video cord (mini plug × 2 phono plug × 3 1)
  Remote (1)
  R6 (size AA) batteries (2)
• Headrest mounting bracket (1)

Preparing the remote

Insert two R6 (size AA) batteries by matching the and ends on the batteries to the markings inside the compartment.

Charging the Battery Pack

Charge the battery pack (supplied) before using the player for the first time, or when the battery is depleted.

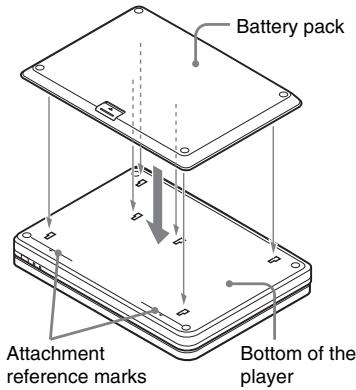

1 Attach the battery pack to the player.

Align the battery pack with the lines on the bottom of the player.

Engage the hooks of the battery pack into the holes on the bottom of the player.

Slide the battery pack in the direction of the arrow until it clicks into place.

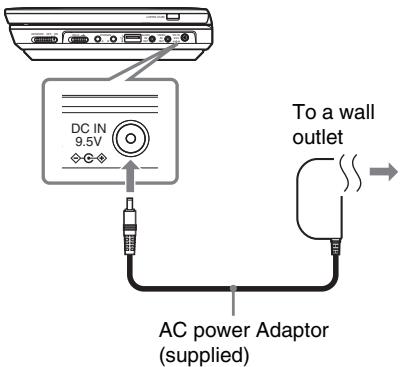

2 Connect the AC power adaptor.

When charging begins, the CHARGE indicator lights up in orange.

When charging ends, the CHARGE indicator lights off.

Disconnect the AC power adaptor.

If the POWER indicator lights up instead of the CHARGE indicator, the OPERATE switch is set to "ON." Set the OPERATE switch to "OFF," and make sure that the CHARGE indicator lights up.

Charge the battery in an ambient temperature of between 5^ to 35^ .

Charging time and playing time

Charging time: approx. 6 hours

Playing time: approx. 7.5 hours

Times indicated are under the following conditions:

Moderate temperature (20^)
- Headphone use
-Backlight set to minimum

Depending on the ambient temperature or battery pack condition, charging time may be longer, or playing time may be reduced.

To check the battery level

When the player is stopped, the battery indicator is displayed. When the battery is empty, l is displayed or the CHARGE indicator flashes. Set the OPERATE switch to "OFF," connect the AC power adaptor, and recharge the battery.

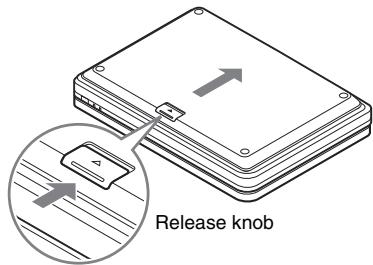

To remove the battery pack

Push the release knob and slide the battery pack in the direction of the arrow.

Using in a Car (for Rear Seat Passenger)

Use the headrest mounting bracket and car battery adaptor (both supplied) for rear seat passengers to enjoy the player.

#

• Do not perform installation while the car is being driven.
• The adaptor is for a 12V car battery. Do not use it with a 24V battery.
• The adaptor is only for use with negatively grounded cars. Do not use it with cars grounded positively.
• Depending on the seat type, it may not be possible to mount the player.

Mounting the player at the back of the front seat

You should not use the battery pack in the car. Turn off the player and remove the battery pack in advance (page 11).

1 Attach the bracket to the headrest.

Adjust the height of the headrest to allow approx. 3cm of space (1). Attach the bracket by buckling up firmly until it clicks (2), then securely tighten the belt (3).

If the headrest is too high, the belt may loosen, which could cause an accident or injury.

2 Rotate and fold down the LCD panel (page 9).

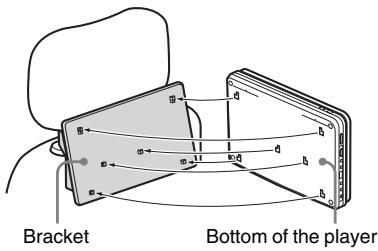

3 Attach the player to the bracket.

Securely hold the player with both hands.

Engage the hooks of the bracket into the holes on the bottom of the player.

Slide the player in the direction of the arrow until it clicks into place.

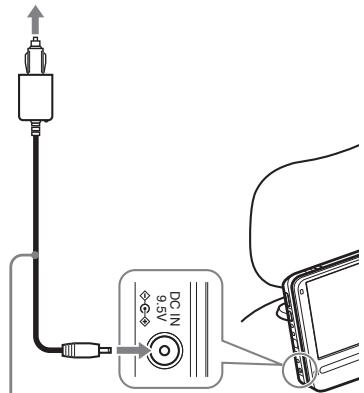

4 Connect the car battery adaptor.

To cigarette lighter socket

Car battery adaptor (supplied)

• The driver should not connect or disconnect the car battery adaptor while driving.
• Arrange the cord so as not to interfere with the driver. Also, do not place the LCD panel where the driver can watch.
• Clean the cigarette lighter socket. If it is dirty, it may cause contact failure or malfunction.
• Use the car battery adaptor with the car engine running. If it is used with the car engine off, the car battery may become depleted.
• Do not use the headrest mounting bracket or car battery adaptor if they have been dropped or damaged.
• Do not connect a USB device when using the player in a car. If it is connected, it could cause an accident or injury if the USB device disengages.

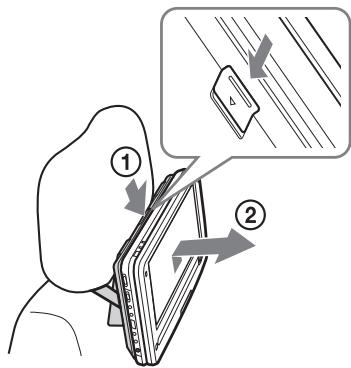

After using the player in a car

1 Turn off the player.
2 Disconnect the car battery adaptor.
3 Detach the player.

Press down the release knob until it clicks (①).

Hold the player securely with both hands and pull out towards you (②).

4 Detach the bracket.

• Do not disconnect the car battery adaptor or turn off the car engine before you turn off the player. Doing so may cause damage to the player. Also Resume Play (page 16) is not possible if you do so. If your car is equipped with an idling stop system, deactivate the function before using the player in the car.
• Disconnect the car battery adaptor after use. If it is left connected, the car battery may become depleted.
• Detach the bracket after use. If it is left attached, it could cause an accident or injury.
• Do not leave the player or accessories in the car.
• Do not leave the battery pack in the car.

SPECIAL NOTE

Any warranty, stated or implied, shall not be applied in the case of your failure to follow the instruction mentioned above, and you are liable for all problems or damage arising from failure to follow such instructions.

Connecting to Other Equipment

By connecting the player to your TV or other equipment, you can increase your viewing options.

#

Refer to the instructions supplied with the equipment to be connected.
- Before connecting, turn off the player and the equipment to be connected, then unplug from their wall sockets.

Enjoying images on a connected TV

1 Connect the player to your TV or monitor using the audio/video cord (supplied).

• When you play back a disc after enjoying images by "Line In" or "USB," press INPUT SELECT repeatedly to select the disc mode. See page 7.
• The player can connect to an AV amplifier in the same way as a TV. Although connecting is

the same as a TV, the yellow plug of the audio/ video cord is not used.

Enjoying images on other equipment

1 Connect the player to your video player or camcorder using the audio/video cord (supplied).

2 Turn on the player and press INPUT SELECT repeatedly to select "Line In."

Playing Discs

DVDVideo

DVDVR

VCD

CD

DATA

Depending on the disc, some operations may be different or restricted. Refer to the operating instructions supplied with the disc.

Connect the AC power adaptor or attach the battery pack.

1 Open the LCD panel.
2 Slide the OPERATE switch to "ON."

The player turns on and the POWER indicator lights up in green.

3 Press OPEN to open the disc lid.

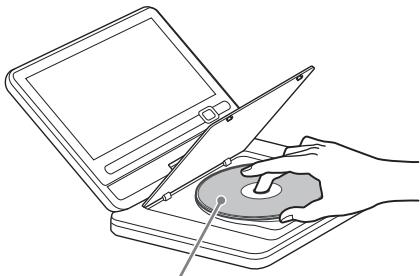

4 Insert the disc to be played.

Place with the playback side down and push gently until it clicks.

Playback side facing down

5 Push the PUSH CLOSE on the disc lid to shut the disc lid.

6 Press ▷.

The player starts playback.
Depending on the disc, a menu may appear. Press / / / to select the item, and press ENTER.

To stop playback

Press ■.

To pause playback

Press II.

When you play back a disc after enjoying images by "Line In" or "USB," press INPUT SELECT repeatedly to select the disc mode. See page 7.

#

• Discs created on DVD recorders must be correctly finalised to play on the player. For more information about finalising, refer to the operating instructions supplied with the DVD recorder.
• The disc may be still spinning when the disc lid is opened. Wait until the spinning stops before removing the disc.

Notes on the screen saver

• A screen saver image appears when you leave the player in pause or stop mode without operation for more than 15 minutes. The image disappears when you press . For the setup of "Screen Saver," see page 22.
• The player goes to standby, 15 minutes after starting the screen saver function. Press to come out of standby mode.

To resume playback from the point where you stopped the disc (Resume Play) DVDVideo DVDVR VCD CD

When you press again after you stop playback, the player starts playback from the point when you pressed.

• To play from the beginning of the disc, press twice, and press .
• When turning power on again after power off, resume play starts automatically.

Depending on the stop point, Resume play may not start from exactly the same point.
- The resume point is cleared when:

• you open the disc lid.
• you press INPUT SELECT.
• you disconnect the adaptor or remove the battery pack before turning off the player.

To play VIDEO CDs with PBC Functions (PBC Playback) VCD

PBC (Playback Control) allows you to play VIDEO CDs interactively using a menu. When you start playing a VIDEO CD with PBC functions, the menu appears. Select an item using the number buttons on the remote, and press ENTER. Then, follow the instructions in the menu (press when "Press SELECT." appears).

About various playback operations

To	Operation
Change the LCD picture size	Press OPTIONS to select “LCD Mode” (page 20).
Display the DVD menu	Press MENU (page 6) or TOP MENU (page 8).
Check the DVD playback information	Press DISPLAY (page 17).
Play DVDs*1 repeatedly (Repeat Play)	Press DISPLAY to select “Repeat” (page 17).
Play DVDs in fast reverse or fast forward (Scan Play)	Press ↦ ➔ repeatedly on the player to select the speed (page 6).
Switch between original and Playlist in DVD (VR mode)	Press TOP MENU repeatedly (page 8).
Check the CD or VIDEO CD playback information	Press DISPLAY (page 6).
Play CDs or VIDEO CDs*2 repeatedly (Repeat Play)	Press MENU repeatedly (page 6).
Play CDs orVIDEO CDs*2 randomly (Random Play)	Press MENU repeatedly (page 6).
Play CDs orVIDEO CDs in fast reverse or fast forward (Scan Play)	Press ↦ ➔ repeatedly on the player to select the speed (page 6).

1 DVD VIDEO only
2 only when "PBC" is set to "Off."

Using the Playback Information Display

DVDVideo

DVDVR

While playing a DVD, you can check the current playback information. The playback information display also allows you to set a title/chapter or change sound/ subtitle, and so on.

When entering the numbers, operate the number buttons on the remote.

1 Press DISPLAY while playing a DVD.

The current playback information appears.

Example: When playing a DVD
VIDEO

Items Current playback information*

• When a DVD (VR mode) is played, "PL" (playlist) or "ORG" (original) is displayed next to the title number.

2 Press / to select items and press ENTER.

• Title: Select the title number by pressing / or number buttons.
• Chapter: Select the chapter number by pressing / or number buttons.
  Audio: Select the sound by pressing /

• Subtitle: Select the subtitle by pressing / .
  Angle: Select the angle by pressing /

• T.Time: Time appears while playing a title. "00:00:00" will appear by pressing ENTER. Enter the desired time code by pressing the number buttons.
  C.Time: Time appears while playing a chapter. "00:00:00" will appear by pressing ENTER. Enter the desired time code by pressing the number buttons.

• Repeat: Select "Chapter," "Title," "All," or "Off" by pressing ↑/↓.
• A-B Repeat: Select "Set" by pressing / , and press ENTER. Select point A and point B by pressing ENTER.
• Time Disp.: "Title Elapsed" is displayed. Select "Title Elapsed," "Title Remain," "Chapter Elapsed," or "Chapter Remain" by pressing ↑/ ↓.

3 Press ENTER.

To turn off the display

Press DISPLAY or RETURN.

#

Depending on the disc, you may not be able to set some items.

Playing MP3, JPEG, and Video Files

DATA

You can play MP3, JPEG, and video files. For details on playable files, see "Playable Media" (page 30).

When you set a DATA media, a list of albums appears.

DATA CDs recorded in KODAK Picture CD format automatically start playing when inserted.

1 Press / to select the album, and press ENTER.

The list of files in the album appears. Example: The list of MP3 files

To go to the next or previous page, press or .
To return to the list of albums, press / to select and press ENTER.

2 Press / to select the file, and press ENTER or .

Playback starts from the selected file.

To go to the next or previous file

Press or

To stop playback

Press ■.

If the number of viewing times is preset, you can play the DivX video files as many times as the preset number. The following occurrences will be counted as one time:

• when ■ is pressed twice.
• when the player is turned off (including standby mode).
• when the disc lid is opened.
• when another file is played.
• when INPUT SELECT is pressed.
• when the USB device is disconnected.

#

Depending on the file, playback may take time to start or may not be able to start. For details on playable files, see "Playable Media" (page 30).

Selecting a JPEG file

To rotate a JPEG image

Press / / / while viewing the image file. Rotate every file.

Rotates the image 90 degrees clockwise.
: Rotates the image 90 degrees counter clockwise.
: Reverses the image vertically (up and down).
: Reverses the image horizontally (left and right).

To display the list of thumbnails

Press MENU.

The image files in the album appear in 12 sub-screens.

• To go to the previous or next list of thumbnails, select "▲Prev" or "Next" at the bottom of the screen, and press ENTER.
• To exit the list of thumbnails, press MENU.

Playing a Slide Show

1 Press MENU.

The list of thumbnails appears.

2 Press / / / to select "Slide Show" at the bottom of the screen, and press ENTER.

A slideshow starts.

To stop slideshow

Press to return to the list of files. Press MENU to return to the list of thumbnails.

To pause slideshow

Press II.

Playing data on a USB device

You can playback DATA files on a USB device.

1 Press INPUT SELECT repeatedly to select "USB."

2 Connect a USB device to the USB jack.

To disconnect a USB device

1 Press INPUT SELECT to deselect "USB."

2 Disconnect the USB device.

About supported Sony USB devices

The following Sony USB Memory Stick reader/writer and USB flash drive "Micro Vault" are supported: MSAC-US40, USM-J series, USM-JX series, USM-J/B series, USM-L series, and USM-LX series.

#

• Do not disconnect the USB device while its access indicator is flashing. Doing so may cause data corruption or loss of data.
• USB devices which can connect to the player are flash memory and multiple card readers. Other devices (digital still camera, USB hub, etc.) cannot be connected. When an unsupported device is connected, an error message appears.

Adjusting the Picture Size and Quality

DVDVideo DVDvVCD DATA

You can adjust the picture displayed on the LCD screen.

1 Press OPTIONS.

The menu display appears.

2 Press / to select "LCD Mode" and press ENTER.

The "LCD Mode" display appears.

items

3 Press / to select items and press ENTER.

• LCD Aspect: Change the picture size. Select "Normal," "Full" or "Zoom" by pressing / *^1 .

• Backlight: Adjust the brightness by pressing / or VOL +/-^*2 .

• Contrast: Adjust the difference between light and dark areas by pressing / or VOL +/-^2 .
  Hue: Adjust the red and green colour balance by pressing / or VOL + / - ^2
  Color: Adjust the richness of colours by pressing / or VOL +/-^*2 .

• Default: Return all settings to the factory defaults.

4 Press ENTER.

*1 In "Normal," pictures are displayed in their original configuration, retaining the aspect ratio. 4:3 pictures are displayed with black bands on both sides of the screen. 4:3 letter box pictures are displayed with bands on all sides of the screen.

In "Full," pictures are adjusted to fill the entire screen. 16:9 pictures are displayed in their original configuration. (Black band recorded in a 16:9 picture cannot be erased.) 4:3 pictures appear stretched.

In "Zoom," 4:3 pictures are displayed full width. The upper and lower areas of the picture will be slightly cut.

^*2 Operate with a single touch of + or - on the player. You can also adjust the level by sliding your finger along the touch slider. For VOL +/- , see page 5.

To turn off the menu display

Press OPTIONS or RETURN twice.

#

Depending on the disc, the screen size you can select differs.

Settings and Adjustments

Using the Setup Display

By using the setup display, you can make various settings to items such as picture and sound.

Some discs have stored playback settings, which take priority.

1 Press OPTIONS when the player is in stop mode.

The menu display appears.

During Resume Play, you cannot use the setup display. Press twice to clear Resume Play, and press OPTIONS.

2 Press / to select "Setup," and press ENTER.

The setup display appears.

setup category

items

3 Press / to select the setup category and press ENTER.

: General Setup (page 21)

Makes the player-related settings.

Audio Setup (page 22)

Makes the audio settings according to playback conditions.

Cä: Language Setup (page 22)

Makes the language settings for the on-screen display or sound track.

: Parental Control (page 23)

Sets the parental control limit.

4 Select and adjust each of the following items by pressing / and ENTER.

To turn off the setup display

Press OPTIONS or RETURN twice.

General Setup

The default settings are underlined.

TV Display (DVD only)

Selects the aspect ratio of the connected TV.

4:3 Pan Scan	Select this when you connect a 4:3 screen TV. Automatically displays a wide picture on the entire screen and cuts off the portions that do not fit.
4:3 Letter Box	Select this when you connect a 4:3 screen TV. Displays a wide picture with bands on the upper and lower portions of the screen.
16:9	Select this when you connect a wide-screen TV or a TV with a wide mode function.

4:3 Pan Scan

4:3 Letter Box

16:9

#

Depending on the disc, "4:3 Letter Box" may be selected automatically instead of "4:3 Pan Scan" or vice versa.

Angle Mark (DVDVIDEO only)

Displays the angle mark when you can change the viewing angles during playback of DVDs recorded with multi-angles.

On	Display the angle mark.
Off	Hide the angle mark.

Screen Saver

The screen saver image appears when you leave the player in pause or stop mode for 15 minutes. The screen saver will help prevent your display equipment from becoming damaged (ghosting). Press to turn off the screen saver.

On	Activates the screen saver function.
Off	Deactivates the screen saver function.

PBC

You can enjoy playing interactive programmes using the PBC (Playback Control) function of a VIDEO CD if available (page 16).

On	By the PBC function, you can play back VIDEO CDs via the menu screen.
Off	Turn off the PBC function.

DivX® VOD

Displays the registration code and deactivation code for this player. For more information, go to http://vod.divx.com on the Internet.

Default

Each function returns to its original factory settings. Note that all of your settings will be lost.

Audio Setup

The default setting is underlined.

Audio DRC (Dynamic Range Control) (DVD only)

Makes the sound clear when the volume is turned down when playing a DVD that conforms to "Audio DRC."

Standard	Standard sound.
TV Mode	Makes low sounds clear even if you turn the volume down.
Wide Range	Gives you the feeling of being at a live performance.

A Language Setup

OSD (On-Screen Display)

Switches the display language on the screen.

Disc Menu (DVD VIDEO only)

Switches the language for the disc's menu. When you select "Original," the language given priority in the disc is selected.

Subtitle (DVDVIDEO only)

Switches the subtitle language.

When you select "Off," no subtitle is displayed.

Audio (DVD VIDEO only)

Switches the language of the sound track. When you select "Original," the language given priority in the disc is selected.

#

If you select a language in "Disc Menu," "Subtitle," or "Audio" that is not recorded on the disc, one of the recorded languages will be automatically selected.

Parental Control

You can limit playback of a DVD that has the parental control function.

When you operate this setting, use the remote.

Password (DVDVIDEO only)

Enter or change a password. Set the password for the parental control function. Enter your 4-digit password using the number buttons on the remote.

To change the password

1 Press / to select "Password," and press ENTER.
2 Check "Change" is selected and press ENTER.

The display for entering the password appears.

3 Enter your current password in "Old Password," your new password in "New Password" and "Verify Password," and press ENTER.

If you make a mistake entering your password

Press CLEAR, or press to return one by one before pressing ENTER in step 3, and re-enter the password.

If you forget your password

Enter "1369" in "Old Password," and enter your new password in "New Password" and "Verify Password."

Parental Control (DVD VIDEO only)

Set the limitation level. The lower t value, the stricter the limitation.

To set the parental control, you need to set the password first.

To set the parental control (limited playback)

1 Press / to select "Parental Control," and press ENTER.
2 Press / to select the limitation level, and press ENTER. The lower the value, the stricter the limitation. The display for entering the password appears.

3 Enter your password, and press ENTER.

To play a disc for which Parental Control is set

Insert the disc and press . The display for entering your password appears. Enter your password using the number buttons on the remote, and press ENTER.

#

• When you play discs which do not have the Parental Control function, playback cannot be limited on the player.
• Depending on the disc, you may be asked to change the parental control level while playing the disc. In this case, enter your password, then change the level. If the Resume Play mode is cancelled, the level returns to the previous level.

Additional Information

Troubleshooting

If you experience any of the following difficulties while using the player, use this troubleshooting guide to help remedy the problem before requesting repairs. Should any problem persist, consult your nearest Sony dealer.

Power

The power is not turned on.

Check that the AC power adaptor is connected securely (page 10).
- Check that the battery pack is attached securely (page 10).
- Check that the battery pack is sufficiently charged (page 11).

The battery pack cannot be charged.

You cannot charge the battery pack when power is turned on. Set the OPERATE switch to "OFF" (page 10).


There is no picture/picture noise appears.

The disc is dirty or flawed (page 29).
The brightness is set at minimum. Adjust the brightness of the LCD (page 20).
When "USB" or "Line In" is displayed, press INPUT SELECT repeatedly to select the disc mode (page 7).

The black points appear and the red, blue, green points remain on the LCD.

This is a structural property of the LCD and not malfunction.

Sound

There is no sound.

The player is in pause mode or in slow play mode.
The player is in fast forward or fast reverse mode.

The sound volume is low.

The sound volume is low on some DVDs. The sound volume may improve if you set "Audio DRC" in "Audio Setup" to "TV Mode" (page 22).

Operation

Nothing happens when buttons are pressed.

The HOLD switch is set in the direction of the arrow (page 6).

The disc does not play.

If the disc is turned over, a "No Disc" or "Cannot play this disc." message appears. Insert the disc with the playback side facing down (page 15).
The disc is not set until it clicks (page 15).
The disc that cannot be played is inserted. Check the region code matches the player, and that the disc has been finalised (page 30).
When "USB" or "Line In" is displayed, press INPUT SELECT repeatedly to select the disc mode (page 7).
Parental Control has been set. Change the setting (page 23).
Moisture has condensed inside the player (page 27).

The player starts and stops playing the disc automatically.

The disc features an auto playback function.
While playing discs with an auto pause signal, the player stops playback at the auto pause signal.

The disc does not start playing from the beginning.

Repeat Play or Random Play is selected (page 16).
Resume play has taken effect (page 16).
The Playlist of the created disc is automatically played. To play original titles, press TOP MENU to set "Original" (page 8).

Playback may take time to start.

→Playback may take time to start in DVD (VR mode).

Playback freezes.

When the playback layer of a DVD+R DL/-R DL disc changes, playback may freeze.

The subtitles disappear.

When you change playback speed, or skip scenes during playback, the subtitles may disappear temporarily.

" " appears and the player does not function according to the button pressed.

Depending on the disc, you may not be able to perform certain operations. Refer to the operating instructions supplied with the disc.

"Copyright Lock" appears and the screen turns blue when playing a DVD (VR mode) disc.

Images taken from digital broadcasts, etc., may contain copy protection signals, such as complete copy protection signals, single copy signals, and restriction-free signals. When images that contain copy protection signals are played, a blue screen may appear instead of the images. It may take a while when looking for playable images. (For player that cannot play images that contain a copy

protection only.)

/ does not work on menu display.

Depending on the disc, you may not be able to use / on the player for the disc menu. In this case, use / on the remote.

The remote does not function.

Batteries in the remote are weak.
There are obstacles between the remote and the player.
The distance between the remote and the player is too far.
The remote is not pointed at the remote sensor on the player.
Direct sunlight or strong illumination is striking the remote sensor.
When the AUDIO/SUBTITLE/ANGLE buttons do not work, select and operate it from the DVD menu.

The MP3, JPEG, or video file cannot be played (page 31).

The file format does not conform.
The extension does not conform.
The file is damaged.
The file size is too large.
When the selected file is not supported, "Data Error" appears and the file will not be played.
Because of the compression technology used for DivX/MPEG-4 video files, playback may take time to start.

The file or album names are not displayed correctly.

The player can only display numbers and alphabet. Other characters are displayed as * page 31).

The player does not operate properly or the power does not turn off.

When static electricity, etc., causes the player to operate abnormally, set the OPERATE switch to "OFF" and disconnect the adaptor and remove the battery pack.

Hookup

There is no picture or sound on the connected equipment.

Re-connect the connecting cord securely (page 14).
The connecting cord is damaged.
Check the setting of a connected TV or amplifier.
When "USB" or "Line In" is displayed, press INPUT SELECT repeatedly to select the disc mode (page 14).

There is no picture or sound from a connected equipment.

Press INPUT SELECT repeatedly to select "Line In" (page 14).

USB

The player does not recognize a USB device connected to the player.

Re-connect the USB device securely (page 19).
The USB device is damaged.
Press INPUT SELECT repeatedly to select "USB" (page 19).

Precautions

Road safety

Do not use the monitor unit and headphones while driving, cycling, or operating any motorized vehicle. Doing so may create a traffic hazard and is illegal in some areas. It can also be potentially dangerous to play your headsets at high volume while walking, especially at pedestrian crossings. You should exercise extreme caution or discontinue use in potentially hazardous situations.

On safety

Should any solid object or liquid fall into the cabinet, unplug the player and have it checked by qualified personnel before operating it any further.

On power sources

• If you are not going to use the player for a long time, be sure to disconnect the player from the wall outlet. To disconnect the AC power adaptor, grasp the plug itself; never pull the cord.
• Do not touch the AC power adaptor with wet hands. Doing so may cause shock hazard.
• Do not connect the AC power adaptor to a traveler's electric transformer, which may generate heat and cause a malfunction.

On temperature increases

Heat may build up inside the player during charging or if it is being used for a long time. This is not a malfunction.

On placement

• Do not place the player in a confined space such as a bookshelf or similar unit.

• Do not cover the ventilation of the player with newspapers, tablecloths, curtains, etc. And do not place the player on a soft surface, such as a rug.

• Do not place the player and adaptors in a location near heat sources, or in a place subject to direct sunlight, excessive dust, sand, moisture, rain, or mechanical shock, or in a car with its windows closed.
• Do not place the player in an inclined position. It is designed to be operated in a horizontal position only.
• Keep the player and discs away from equipment with strong magnet, such as microwave ovens, or large loudspeakers.
• Do not drop or apply strong shock.
• Do not place heavy objects on the player and accessories.

On operation

• If the player is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lenses inside the player. Should this occur, the player may not operate properly. In this case, remove the disc and leave the player for about half an hour until the moisture evaporates. Wipe off moisture attached to the LCD surface with tissue etc. Turn on the power again later.
• Keep the lens on the player clean and do not touch it. Touching the lens may damage the lens and cause the player to malfunction. Leave the disc lid closed except when you insert or remove discs.
• Turn off the power before disconnecting the AC power adaptor, the car battery adaptor or the battery pack. Failure to do so may cause a malfunction.

On Liquid Crystal Display

• Although manufactured with high precision technology, the LCD may occasionally display dots of various colours. That is not a malfunction.

• Do not place or drop any object onto the LCD surface. Also, do not apply pressure from hands or elbows.

• Do not damage the LCD surface with a sharp edged tool.

On battery pack

• Certain countries may regulate disposal of the battery used to power this product. Please consult with your local authority.
• Because of the battery's limited life, its capacity gradually deteriorates over time and repeated use. Purchase a new one when the battery holds about only half the normal period.
• The battery may not be charged to its fullest capacity when charged for the first time, or when it has not been used for a long time. The capacity recovers after being charged and discharged several times.
• Do not leave the battery pack in a car or direct sunlight, where temperature goes up above 60^ .
• Do not expose to water.
• Avoid short-circuiting the battery connecting jacks with metal objects such as a necklace.
• Make sure dust or sand does not enter the battery connecting jacks and the guide holes located on the bottom of the player.

On AC power adaptor and car battery adaptor

• Use the supplied adaptors for the player, as other adaptors may cause a malfunction.
• Do not disassemble or reverse-engineer.
• Do not touch the metal parts, as it may cause a short and damage the adaptors, especially if touched by other metal objects.

On adjusting volume

Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speakers may be damaged when a peak level section is played.

On headphones

• Preventing hearing damage: Avoid using headphones at high volumes. Hearing experts advice against continuous, loud, and extended play. If you experience a ringing in your ears, reduce the volume or discontinue use.
• Showing consideration for others: Keep the volume at a moderate level. This will allow you to hear outside sounds and still be considerate to the people around you.

On cleaning

• Clean the cabinet, panel, and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.
• Wipe the LCD surface with the soft dry cloth lightly. To prevent dirt buildup, wipe it frequently. Do not wipe the LCD surface with a wet cloth. If water enters, a malfunction may result.
• If picture/sound is distorted, the lens may be covered with dust. In this case, use a commercially-available blower brush for camera lenses to clean the lens. Avoid touching the lens directly during cleaning.

On cleaning discs, disc/lens cleaners

Do not use cleaning discs or disc/lens cleaners (including wet or spray types). These may cause the apparatus to malfunction.

Notes About the Discs

• To keep the disc clean, handle the disc by its edge. Do not touch the surface.

• Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature may rise considerably inside the car.
  After playing, store the disc in its case.
• Clean the disc with a cleaning cloth. Wipe the disc from the centre out.

• Do not use solvents such as benzine, thinner, disc/lens cleaners, or anti-static spray intended for vinyl LPs.
• If you have printed the disc's label, dry the label before playing.
• Do not use the following discs:

-A disc that has a non-standard shape (e.g., card, heart).
-A disc with a label or sticker on it.
-A disc that has cellophane tape or sticker adhesive on it.

Playable Media

Type	Disc Logo	Icon	Characteristics
DVD	DVD VIDEO DVD RW R4.7 DVD+ReWrittable DVD+R	DVDVideo	Commercial DVD DVD+RWs/DVD+Rs/DVD+R DLs in +VR mode DVD-RWs/DVD-Rs/DVD-R DLs in video mode
		DVDVR	DVD-RWs/DVD-Rs/DVD-R DLs in VR (Video Recording) mode
CD	COMPACT DISC DIGITAL AUDIO	CD	Music CDs CD-Rs/CD-RWs in music CD format
	COMPACT DISC DIGITAL AUDIO	VCD	VIDEO CDs (including Super VCDs) CD-Rs/CD-RWs in video CD format or Super VCD format
DATA disc or USB	-	DATA	DATA CD/DATA DVD or USB devices containing MP3, JPEG, or video files.

#

Notes about recordable media

Some recordable media cannot be played on the player due to the recording quality or physical condition of the media, or the characteristics of the recording device and authoring software.

The disc will not play if it has not been correctly finalised. For more information, refer to the operating instructions for the recording device. Note that some playback functions may not work with some DVD+RWs/+Rs/+R DLs, even if they have been correctly finalised. In this case, view the disc by normal playback.

- For player that cannot play images that contain a copy protection only

Images in DVD (VR mode) with CPRM* protection may not be played if they contain a copy protection signal. "Copyright Lock" appears.

• CPRM (Content Protection for Recordable Media) is a coding technology that protects the copyright of images.

Notes on MP3, JPEG, and video files

The player can play the following files:

• MP3 files with the extension“.mp3”*1.
• JPEG files with the extension "jpg"*2.
• JPEG image files that conform to the DCF (Design rule for Camera File system) image file format.
  DivX video files with the extension ".avi" or ".divx."
• MPEG-4 video files (simple profile) with the extension ".mp4"*3.
  DATA CDs must be recorded according to ISO 9660 Level 1, or its extended format, Joliet.
• DATA DVDs must be recorded according to UDF (Universal Disk Format).
  1 Files in mp3PRO format cannot be played.
  2 Files with the extension“.jpeg” or“.jpeg” can be played by changing the extension to“.jpg.”
  *3 Files with copyright protection (Digital Right Management) cannot be played. Files in MPEG-4 AVC format cannot be played.

• To play a complex hierarchy of folders may take some time. Create albums as follows:
• The number of hierarchies in the media should be no more than two.
• The number of albums in the media should be 50 or less.
• The number of files in one album should be 100 or less.
• The total number of albums and files in the media should be 600 or less.
• The player plays the files in an album in the order the media was recorded.

#

• The player will play any file in the above table, even if the file format differs. Playing such data may generate noise that can result in speaker damage.
• Some DATA discs created in Packet Write format cannot be played.

• Some DATA discs created in multiple sessions may not be playable.

• Some JPEG files cannot be played.

• The player cannot play the JPEG file that is larger than 3078 (width) x 2048 (height) in normal mode, or larger than 2000 (width) x 1200 (height) in progressive JPEG. (Some progressive JPEG files cannot be displayed even if the size is within this specified capacity.)
• The player may not play a combination of two or more DivX/MPEG-4 video files.
• The player cannot play a DivX/MPEG-4 video file of size more than 720 (width) × 576 (height)/2 GB.
• The player may not play certain DivX/MPEG-4 video files that are longer than 3 hours.
• Depending on the DivX/MPEG-4 video file, normal playback may not be possible. The picture may be unclear, playback may not appear smooth, the sound may skip, etc. You are recommended to create the file at a lower bit rate. If the sound is still noisy, check the audio format. (MP3 is recommended for DivX video files, and MPEG-4 video file should be AAC LC.) Note, however, the player does not conform to WMA (Windows Media Audio) format.
• The player may not playback the high bit rate video file on the DATA CD smoothly. You are recommended to playback using DATA DVD.
• The player can display a file or album name up to 14 characters. Special character appears as "*,"
• The player can display only the currently playing album name. Any album located on the upper layer is displayed as "\..
• Playback information of some files may not be displayed correctly.

Notes on commercial discs

Region code

It is the system that is used to protect copyrights. The region code is shown on the DVD VIDEO packages according to the region of sale. DVD VideOs labelled "ALL" or "2" will play on the player.

DVD andVIDEO CD playback operations

Some playback operations of DVDs and VIDEO CDs may be intentionally set by software producers. Since the player plays DVDs and VIDEO CDs according to the disc contents the software producers designed, some playback features may not be available. Also, refer to the instructions supplied with the DVDs and VIDEO CDs.

Notes on discs

This product is designed to playback discs that conform to the Compact Disc (CD) standard.

DualDiscs and some music discs encoded with copyright protection technologies do not conform to the Compact Disc (CD) standard. Therefore, these discs may not be compatible with this product.

Specifications

System

Laser: Semiconductor laser

Signal format system: PAL (NTSC)

Inputs/Outputs

VIDEO (video input/output): Minijack

AUDIO (audio input/output): Stereo minijack

PHONES (headphones) A/B: Stereo minijack

USB: USB jack Type A (For connecting USB memory)

Liquid Crystal Display

Panel size (approx.): 23cm / 9 inches (diagonal)

Driving system: TFT active matrix

Resolution: 800 × 480 (effective pixel rate: more than 99.99% )

General

Power requirements:

DC 9.5 V (AC power Adaptor/Car battery adaptor)

DC 7.4 V (Battery pack)

Power consumption (DVDVIDEOPlayback): 6.5 W (when used with a headphone)

Dimensions (approx.):

227× 34.4× 170.8mm width/height/depth) incl. projecting parts

Mass (approx.): 880 g

Operating temperature: 5^ to 35^

Operating humidity: 25% to 80%

AC Power Adaptor: 110-240 V AC, 50/60 Hz

Car Battery Adaptor: 12 V DC

Supplied accessories

See page 10.

Specifications and design are subject to change without notice.

Index

Numerics

16:9 21

4:3 Letter Box 21

4:3 Pan Scan 21

A

Angle Mark 8, 22

Audio 8, 23

Audio DRC 22

Audio Setup 22

C

CD 15, 30

Charging time and playing time 11

D

DATA 18, 30

Disc Menu 22

DivX(video file)18,31

DVD 15, 30

G

General Setup 21

J

JPEG 18, 31

L

Language Setup 22

LCD Aspect 20

LCD Mode 20

M

MP3 18, 31

MPEG-4 (video file) 18, 31

0

OSD (On-Screen Display) 22

P

Parental Control 23

Password 23

PBC 16, 22

Playable Media 30

Playback Information Display 17

R

Random Play 16

Region code 32

Repeat Play 16

Resume Play 16

s

Screen Saver 16, 22

Setup 21

Slide Show 19

Subtitle 8, 23

T

Troubleshooting 25

TV Display 21

U

USB 19

V

VIDEO CD 15,30

Video file (DivX/MPEG-4) 18, 31

AVERTISSEMENT

4 DISPLAY (afficher)

Bouton CLEAR (Effacer)

24 Les touches (balayage/lent)

Afficher TV (DVD unquipment)

OSD (On-Screen Display)

Laser: a semiconducttore

OSD (On-Screen Display) 25

P

Password 25

PBC 17, 25

Presentazione 21

Protezione 25

R

14 HOLD (hodium)-schakelaar

OSD (On-Screen Display)

Laser: Semigeleider laser

Signaalformaat system: PAL (NTSC)

Ingangen/uitgangen

VIDEO (video ingang/uitgang): Mini-aansluting

OSD (On-Screen Display) 25

P

Parental Control 25

Password 25

PBC 17, 24

Probleemoplossen 27

R

Regiode 35

s

schembeveiliging 17

Screen Saver 24

Set-up 23

Subtitle 8, 25

T

TV Display 23

U

USB 21

V

VIDEO CD 16,33

Videobestand (DivX/MPEG-4) 19, 34

W

Willekeurig afsplen 18

To find out useful hints, tips and information about Sony products and services please visit:

www.sony-europe.com/myproduct/
