USER MANUAL VPCM20 Veripart

Veripart is a registered trademark

Weena 664

3012CN Rotterdam

The Netherlands

Made in China

INHOUD

VEILIGHEIDSINSTRUCTIES 3

4. Grill of combimodus

Instructions Écran Micro-ondes		Grill Convection
1 C-1		●		●
2 C-2		●	●
3 C-3			●	●
4 C-4		●	●	●

IMPORTANT SAFETY INSTRUCTIONS 69

CLEANING 72

UTENSILS 73

SETTING UP YOUR MICROWAVE 76

INSTALLATION

EN Read these instructions carefully before using your microwave, and keep them in a safe place. If you follow the instructions, your microwave will provide you with many years of good service.

KEEP THESE INSTRUCTIONS IN A SAFE PLACE

SAFETY INSTRUCTIONS

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

A. Do not attempt to operate this microwave with the door open, since this can result in harmful exposure to microwave energy. You must not break or tamper with the safety interlocks.
B. Do not place any object between the microwave front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
C. WARNING: If the door or door seals are damaged, the microwave must not be operated until it has been repaired by a competent person.

ADDENDUM

Failure to keep the microwave clean could lead to deterioration of the surface that could adversely affect the lifespan of the appliance and possibly result in a hazardous situation.

SPECIFICATIONS
Model: VPCM20
Rated Voltage: 230 V ~ 50 Hz
Rated Input Power (microwave): 1450 W
Rated Output Power (microwave): 900 W
Rated Input Power (Grill): 1100 W
Rated Input Power (Convection): 2500 W
microwave Capacity: 28 L
Turntable Diameter:ø 315 mm
External Dimensions: 520 x 500 x 326 mm
Net Weight:	Approx. 18,5 kg

IMPORTANT SAFETY INSTRUCTIONS

WARNING!

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave energy when using your appliance, follow basic precautions, including the following:

• Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE microwave ENERGY".
• This appliance can be used by children aged 8 and over and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided they have been given supervision or instruction on how to use the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children unless they are over the age of 8 and supervised. Children under the age of 8 must be kept at a distance unless they are continuously supervised.
• Keep the appliance and its cord out of reach of children under the age of 8.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard (for appliances with type Y attachments).
• Warning: Ensure that the appliance is switched off before replacing the bulb to avoid the possibility of electric shock.
• Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
• Warning: Liquids and other foods must not be heated in sealed containers since these are liable to explode.
• When heating food in plastic or paper containers, watch the microwave continuously due to the possibility of ignition.

• Only use utensils that are suitable for use in microwave.

• If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

• Heating beverages in the microwave can result in delayed eruptive boiling, so care must therefore be taken when handling the container.
• The contents of feeding bottles and baby food jars must be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
• Eggs in their shells and whole hard-boiled eggs should not be heated in microwave since they may explode, even after microwave heating has ended.
• The microwave should be cleaned regularly and any food deposits removed.
• Failure to keep the microwave clean could lead to deterioration of the surface that could adversely affect the lifespan of the appliance and possibly result in a hazardous situation.
• The appliance must not be installed behind a decorative door in order to avoid overheating (not applicable for appliances with a decorative door).
• Only use the temperature probe recommended for this microwave (for microwaves with a facility to use a temperature-sensing probe).
• The microwave must not be placed in a cabinet unless it has been tested in a cabinet.
• The microwave must be operated with the decorative door open (for microwaves with a decorative door).

• This appliance is intended for household use and similar applications, such as:

• staff kitchen areas in shops, offices and other working environments;

• by clients in hotels, motels and other residential-type environments;
• farmhouses;

• bed & breakfast-type environments.

• The microwave is intended for heating food and beverages. Drying food or clothing and heating warming pads, slippers, sponges, damp cloths and similar items may lead to risk of injury, ignition or fire.
  Metallic containers for food and beverages must not be used for microwave cooking.
  The appliance must not be cleaned with a steam cleaner.
  The appliance is intended for freestanding use.

• The rear surface of appliances must be placed against a wall.
• Steam cleaners must not be used.

• The surface of a storage drawer can get hot.

• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass microwave door as they may scratch the surface, which may result in the glass shattering.

• Warning: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching the heating elements. Children under the age of 8 must be kept at a distance unless they are continuously supervised.
• The appliance becomes hot during use. Care should be taken to avoid touching the heating elements inside the microwave.
• Warning: Accessible parts may become hot during use. Young children should be kept at a distance.
• Warning: When the appliance is operated in combination mode, children should only use the microwave under adult supervision due to the temperatures generated.

① Note!

• Read carefully and keep for future reference.

TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of grounding can result in electric shock. Do not plug into an outlet until the appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord that has a

grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if in doubt as to whether the appliance is properly grounded. If it is necessary to use an extension cord, only use a 3-wire extension cord.

A short power-supply cord is provided to reduce the risks of becoming entangled in or tripping over a longer cord.

A. If a long cord set or extension cord is used:

1. The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
2. The extension cord must be a grounding-type 3-wire cord.
3. The long cord should be arranged so that it does not dangle over the counter top or table top where it can be pulled by children or tripped over accidentally.

CLEANING

Make sure you unplug the appliance from the power supply.

1. Clean the cavity of the microwave after use with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the microwave door glass as they can scratch the surface, which may result in the glass shattering.
5. Cleaning Tip: For easier cleaning of the cavity walls that can be touched by the food cooked, place half a lemon in a bowl, add 300 ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the microwave clean using a soft, dry cloth.

UTENSILS

① CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. See the instructions on "Materials you can use in microwaves or to be avoided in microwaves". Certain non-metallic utensils may not be safe for microwave use. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250 ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwaves:

UTENSILS REMARKS
Browning dish Follow	he manufacturer's instructions. The bottom of thebrowning dish must be at least 3/16 inch (5 mm) above theturntable. Incorrect usage may cause the turntable to break.
Dinnerware Microwave-safe only. Follow the manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars Always remove the lid. Only use to heat food until just warm.Most glass jars are not heat resistant and may break.
Glassware Heatresistancetmicrowave glassware only. Make sure there is no metallic trim. Heat-resistant microwave glassware only. Make sure there is no metallic trim.
Microwavecooking bags	Follow the manufacturer's instructions. Do not close with a metaltie. Make slits to allow the steam to escape.
Paper platesand cups	Use for short cooking/warming only. Do not leave microwaves unattended while cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use withsupervision for short cooking only.
Parchment paper Useas a cover to prevent splattering or as a wrap for steaming.
Plastic Microwave-safofonly. Follow the manufacturer's instructions.Should be labelled "microwave Safe". Some plastic containerssoften as the food inside gets hot. "Boiling bags" and tightlyclosed plastic bags should be slit, pierced or vented as directedon the packaging.
Plastic wrap Microwave-safofonly. Use to cover food during cooking to retainmoisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safofonly (meat and sugar thermometers).
Wax paper Use as a cover to prevent splattering and to retain moisture.

Materials to be avoided in microwaves:

UTENSILS REMARKS
Aluminium tray May cause arcing. Transfer food to a microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food to a microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the microwave.
Paper bags	May cause a fire in the microwave.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperatures.
Wood	Wood will dry out when used in the microwave and may split or crack.

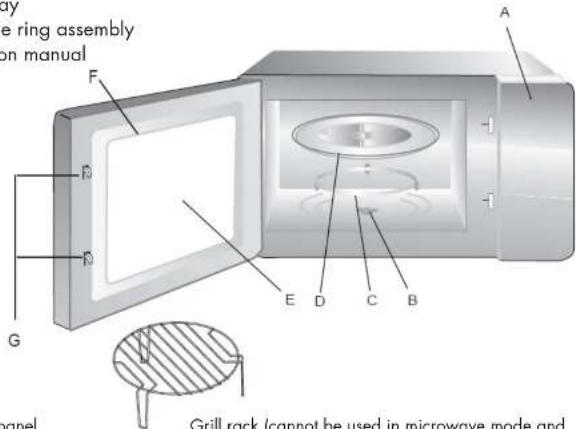

Names of microwave arts and accessories

Remove the microwave and all materials from the box and microwave cavity. Your microwave comes with the following accessories:

Glass tray
- Turntable ring assembly
- Instruction manual

A. Control panel
B. Turntable shaft
C. Turntable ring assembly
D. Glass tray
E. Observation window
F. Door assembly
G. Safety interlock

Turntable Installation

A. Never place the glass tray upside down. The glass tray should never be restricted.
B. Both the glass tray and the turntable ring assembly must always be used during cooking.
C. All food and food containers must always be placed on the glass tray for cooking.
D. If the glass tray or the turntable ring assembly cracks or breaks, contact your nearest authorised service centre.

Grill rack (cannot be used in microwave mode and must be placed on the glass tray)

7677

INSTALLATION

Countertop Installation

Remove all packaging and accessories. Examine the microwave for any damage, such as dents or a broken door. Do not install if the microwave is damaged.

Cabinet: Remove any protective film found on the microwave cabinet surface. Do not remove the light brown Mica cover that is attached to the microwave cavity to protect the microwave.

Installation

1. Select a level surface with sufficient open space for the intake and/or outlet vents.
2. The minimum installation height is 85 cm.
   The rear surface of the appliance must be placed against a wall. Leave a minimum clearance of 30~cm above the microwave. A minimum clearance of 20~cm is required between the microwave and any adjacent walls.
3. Do not remove the legs from the bottom of the microwave.
4. Blocking the intake and/or outlet vents can damage the microwave.
5. Place the microwave as far away from radios and TVs as possible. Operating the microwave may cause interference with your radio or TV reception.
6. Plug your microwave into a standard household outlet. Make sure that the voltage and the frequency is the same as the voltage and the frequency on the rating label.

Warning!

Do not install the microwave over a range cooktop or other heat-producing appliance. The microwave could be damaged if it is installed near or over a heat source, and the warranty would be void.

The accessible surface may become hot during operation.

This microwave uses modern electronic controls to meet your cooking needs.

1. Setting the Clock

When the microwave is Powered On, the microwave will display "0:00", and the buzzer will sound once.

1. Press "Klok" once. "00:00" displays.
2. Turn " " to adjust the hour figures. The input time should be 0-23 (24-hour clock).
3. Press "Klok". The minute figures will flash.
4. Turn " 品 " to adjust the minute figures. The input time should be 0-59.
5. Press "Klok" to finish setting the clock.
   :"will flash."

① Note!

• If the clock is not set, it will not function when powered.
• During the process of setting the clock, if you press "STOP", the microwave will automatically return to its previous status.

2. Kitchen Timer

1. Press "Klok" twice. The screen will display 00:00.
2. Turn " " to enter the correct time (the maximum cooking time is 95 minutes).
3. Press "Start/+30sec." to confirm.
4. When the kitchen time is reached, the buzzer will sound 5 times. If the clock has been set to the 24-hour system, the screen will display the current time.

① Note!

• The Kitchen Timer is different from 24-hour system. The Kitchen Timer is a timer.

3. Microwave Cooking

Press "Magnetron" once. The screen will display "P100". Press "Magnetron" repeatedly to select the power you want, and "P100", "P 80", "P 50", "P 30" or "P 10" will display with each additional press. Then press "Start/+30sec." to confirm, and turn " 心 " to adjust the cooking time (the maximum cooking time is 95 minutes).

Press "Start/+30sec." again to start cooking.

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the microwave using the following steps.

1. Press "Magnetron" once. The screen will display "P100".
2. Press "Magnetron" again to select 80% microwave power.
3. Press "Start/+30sec." to confirm. The screen will display "P 80".
4. Turn " 品 " to adjust the cooking time until the microwave displays "20:00".
5. Press "Start/+30sec." to start cooking.

Note: The step quantities for the adjustment time of the coding switch are as follows:

0-1 min: 5 seconds

1-5 min: 10 seconds

5-10 mins: 30 seconds

10-30 mins: 1 minute

30-95 mins: 5 minutes

Microwave Power Chart

Press Once Twice 3 times 4 times 5 times
Microwave Power	P100 = 900 Watt (100%)	P80 = 720 Watt (80%)	P50 = 450 Watt (50%)	P30 = 270 Watt (30%)	P10 = 90 Watt (10%)

4. Grill or Combi Cooking

Press "Grill/Combi." once. The screen will display "G-1". Press "Grill/ Combi." repeatedly or turn " 品 " to select the power you want, and "G-1", "C-1", "C-2", "C-3" or "C-4" will display with each additional press. Then press "Start/+30sec." to confirm, and turn "" to adjust the cooking time (the maximum cooking time is 95 minutes). Press "Start/+30sec." again to start cooking.

Example: If you want to use grill power to cook for 10 minutes, you can operate the microwave using the following steps.

1. Press "Grill/Combi." once. The screen will display "G-1".
2. Press "Start/+30sec." to confirm.
3. Turn " 品 " to adjust the cooking time until the microwave displays 10:00^
4. Press "Start/+30sec." to start cooking.

① Note!

• Once half the grill time has passed, the microwave sounds twice. This is normal. In order to have a better effect when grilling food, you should turn the food over, close the door and press "Start/+30sec." to continue cooking. If this operation does not take place, the microwave will continue cooking.

Combination instructions:

Instructions Display Microwave Grill Convection
1 C-1		• •
2 C-2		• •
3 C-3			• •
4 C-4		• • •

80 81

5. Convection Cooking (with preheating function)

Convection cooking allows you to cook food as in a traditional microwave. The microwave is not used. It is recommended that you preheat the microwave to the appropriate temperature before placing the food in the microwave.

1. Press the "Hetelucht" key once. "140" will flash.
2. Keep pressing "Hetelucht" or turn "Q" to select the convection temperature.

① Note!

• The temperature can be selected from 140 degrees to 230 degrees.

• Press "Start/+30sec." to confirm the temperature.

• Press "Start/+30sec." to start preheating. When the preheating temperature is reached, the buzzer will sound twice to remind you to put the food in the microwave. The preheated temperature is displayed and flashes.
• Put the food in the microwave and close the door.
  Turn "O" to adjust the cooking time (the maximum setting time is 95 minutes).
• Press "Start/+30sec." to start cooking.

① Note!

A. The cooking time cannot be input until the preheating temperature is reached.
B. If the time is not input in 5 minutes, the microwave will stop preheating. The buzzer will sound five times and turn back to standby mode.

6. Convection Cooking (without pre-heating function)

1. Press the "Hetelucht" key once. "140" will flash.
2. Keep pressing "Hetelucht" or turn "Q" to select the convection temperature.

① Note!

The temperature can be selected from 140 degrees to 230 degrees.

1. Press "Start/+30sec." to confirm the temperature.
2. Turn " to adjust the cooking time (the maximum setting time is 95 minutes).
3. Press "Start/+30sec." to start cooking.

7. Multi-Stage Cooking

A maximum of two stages can be set. If one stage is defrosting, this should be the first stage. The buzzer will sound once after each stage, and the next stage will begin.

① Note!

• Auto menu and preheating cannot be set as one of the two stages.

Example: If you want to defrost the food for 5 minutes, then cook on 80% microwave power for 7 minutes, the steps are as follows:

1. Press "Ontdooien" twice. The screen will display "d-2".
2. Turn " 品 " to adjust the defrost time of 5 minutes.
3. Press "Magnetron" once. "P100" will display.
4. Press "Magnetron" again to select 80% microwave power until "P 80" displays.
5. Press "Start/+30sec." to confirm.
6. Turn " to adjust the cooking time of 7 minutes.
7. Press "Start/+30sec." to start cooking.

8. Speedy Cooking

1. In standby mode, press "Start/+30sec." to cook on 100% power for 30 seconds. Each time you press the same key adds 30 seconds. The maximum cooking time is 95 minutes.
2. In microwave, grill, convection and combination modes, the cooking time can be increased by pressing "Start/+30sec." Each time you press adds 30 seconds.

① Note!

• This function does not work with weight defrost, multi-stage and auto menu cooking.

Auto Menu Chart

MENU	WEIGHT (g)	DISPLAY	POWER
A1PIZZA	200 200 C-4
	300 300
	400 400
A2Potato	1 (about 230 g) 1 100%
	2 (about 460 g) 2
	3 (about 690 g) 3
A3Meat	150 150 100%
	300 300
	450 450
	600 600
A4Fish	150 150 80%
	250 250
	350 350
	450 450
	650 650
A5Vegetables	150 150 100%
	350 350
	500 500
A6Beverage /Coffee	1 cup (about 240 g) 1 100%
	2 cups (about 480 g) 2
	3 cups (about 720 g) 3
A7Pasta	50 (with water 450 ml) 50 80%
	100 (with water 800 ml) 100
	150 (with water 1200 ml) 150
A8Popcorn	50 50 100%
	100 100
A9Cake	475 475 Preheat at 160 degrees
A10Chicken	500 500 C-4
	750 750
	1000	1000
	1200	1200

8485

Auto Menu

1. In standby mode, turn " right to select the desired function, and "A1", "A2", "A3" through to "A10" will be displayed.
2. Press "Start/+30sec." to confirm the menu you want.
3. Turn " " to select the weight and the "g" indicator will light up.
4. Press "Start/+30sec." to start cooking.

① Note!

• When you select A9 cake, do not put the cake in the microwave at the start. The microwave needs to be preheated to 160 degrees first. After several minutes, the buzzer will sound twice to remind you to put the cake in the microwave. After putting the cake in the microwave, please press start again. The timer will count down, and the cake will be cooked perfectly.

9. Defrost by W.T.

1. Press "Ontdooien" once. The microwave will display "d-1".
2. Turn " " to select the weight of the food. At the same time, "g" will light up (The weight should be 100-2000 g.).
3. Press "Start/+30sec." to start defrosting.

10. Defrost by Time

1. Press "Ontdooien" key twice. The microwave will display "d-2".
2. Turn " 品 " to select the cooking time. The maximum time is 95 minutes.
3. Press "Start/+30sec." to start defrosting.

11. Inquiring Function

1. During cooking mode, press "Klok" to check the current time. It will be displayed for 2-3 seconds.
2. In cooking mode, press "Magnetron", "GRILL/COMBI." or "Hetelucht". The current power will be displayed for 2-3 seconds.

12. Child Lock

Lock: In standby mode, press "STOP" for 3 seconds. A long "beep" will sound to indicate the start of child lock mode and the "O indicator will light up. The screen will display the current time or 0:00.

Unlock: In child lock mode, press "STOP" for 3 seconds. A long "beep" will sound to indicate the end of child lock mode, and the "0" indicator will disappear.

13. Specification

1. The buzzer will sound once when you turn the knob at the beginning
2. "Start/+30sec." must be pressed to continue cooking if the door is opened during cooking.
3. If, once the cooking programmer has been set, "Start/+30sec." is not pressed within 5 minutes, the current time will be displayed and the setting will be cancelled.
4. The buzzer sounds once if it is pressed properly. If it is not pressed properly, there will be no sound.
5. The buzzer will sound five times to tell you when the cooking is finished.

TROUBLESHOOTING

NORMAL
Microwave interfering with TV reception	Radio and TV reception may be interfered with when the microwave is operating. The effect is similar to the interference from small electrical appliances, such as blenders, vacuum cleaners and electric fans. This is normal.
Dim microwave light	During low power microwave cooking, the microwave light may become dim. This is normal.
Steam accumulating on the door, hot air coming out of the vents	During cooking, steam may come out of the food. Most of it will come out of the vents, but some may accumulate on cool places such as the microwave door. This is normal.
Microwave started accidentally with no food inside	You must not run the unit without any food inside. This is very dangerous.

TROUBLE POSSIBLE CAUSE REMEDY
Microwave cannot be started	Power cord not plugged in tightly.	Unplug, then plug in again after 10 seconds.
	Fuse blowing or circuit breaker activating.	Replace the fuse or reset the circuit breaker (repaired by professional personnel from our company).
	Trouble with the outlet.	Test the outlet with other electrical appliances.
Combi-Magnetron wordi Niet warm.	Door not closed properly. Close	he door properly.

According to the Waste of Electrical and Electronic Equipment (WEEE) Directive, WEEE should be collected and treated separately. If at any time in the future you need to dispose of this product, please do NOT dispose of this product with household waste. Please send this product to a WEEE collection point where available.
